The Large N Limit with Vanishing Leading Order Condensate for Zero Pion Mass

TL;DR

This paper explores a novel large N limit in QCD where the leading order condensate vanishes, analyzing its implications for meson masses, nucleon properties, and nuclear interactions, supported by lattice data comparisons.

Contribution

It proposes and investigates a new large N limit with a vanishing leading order condensate, challenging conventional assumptions and analyzing its phenomenological consequences.

Findings

Linear sigma model describes lattice data well for N_c=3 and variable N_c.

Pion-nucleon coupling is of order 1, not N_c.

Nucleon-nucleon potential is weakly attractive with small interaction energy.

Abstract

It is conventionally assumed that the negative mass squared term in the linear sigma model version of the pion Lagrangian is $M^2 \sim \Lambda_{\rm QCD}^2$ in powers of $N_c$. We consider the case where $M^2 \sim \Lambda^2_{\rm QCD}/N_c$ so that to leading order in $N_c$ this symmetry breaking term vanishes. We present some arguments why this might be plausible. One might think that such a radical assumption would contradict lattice Monte Carlo data on QCD as function of $N_c$. We show that the linear sigma model gives a fair description of the data of DeGrand and Liu both for $N_c = 3$, and for variable $N_c$. The values of quark masses considered by DeGrand and Liu, and by Bali et. al. turn out to be too large to resolve the case we consider from that of the conventional large $N_c$ limit. We argue that for quark masses $m_{q} \ll \Lambda_{\rm QCD}/N_c^{3/2}$, both the baryon mass and nucleon size scale as $\sqrt{N_c}$. For $m_{q} \gg \Lambda_{\rm QCD}/N_c^{3/2}$ the conventional large-$N_c$ counting holds. The physical values of quark masses for QCD correspond to the small quark mass limit. We find pion-nucleon coupling strengths are reduced to order ${\cal O}(1)$ rather than ${\cal O}(N_c)$. Under the assumption that in the large $N_c$ limit the sigma meson mass is larger than that of the omega, and that the omega-nucleon coupling constant is larger than that of the sigma, we argue that the nucleon-nucleon large range potential is weakly attractive and admits an interaction energy of order $\Lambda_{\rm QCD}/N_c^{5/2} \sim 10$ MeV. With these assumptions on coupling and masses, there is no strong long range attractive channel for nucleon-nucleon interactions, so that nuclear matter at densities much smaller than that where nucleons strongly interact is a weakly interacting configuration of nucleons with strongly interacting localized cores.

Figures

Equations

$$\int d^{3}x\frac{N_c}{M_{\omega }^2}{\rho }_B(x{)}^2\sim \frac{N_c}{M_B^2{R}^3},$$

$$\sim N_c{m}_q{\Lambda }_{\mathrm{QCD}}^3{R}^3.$$

$$R_{\mathrm{nuc}}\sim m_q^{-1/6}{\Lambda }_{\mathrm{QCD}}^{-5/6}$$

$$M_{\mathrm{nuc}}\sim N_c{m}_q^{1/2}{\Lambda }_{\mathrm{QCD}}^{1/2}\sim N_c{m}_{\pi }.$$

$$1/R^3\sim m_q^{1/2}{\Lambda }^{5/2}\sim m_{\pi }{\Lambda }_{\mathrm{QCD}}^2.$$

$$J_{\mu a5}\sim \sigma \{{\overrightarrow{\partial }}_{\mu }-{\overleftarrow{\partial }}_{\mu }\}{\pi }^a.$$

$$m_{{\eta }^{\prime }}^2\sim \frac{1}{f_{\pi }^2}\frac{d^{2}E}{d{\theta }^2}\sim {\Lambda }_{\mathrm{QCD}}^2,$$

$$J_{\mu 5}\sim \sigma \{{\overrightarrow{\partial }}_{\mu }-{\overleftarrow{\partial }}_{\mu }\}{\eta }^{\prime }.$$

$$S=\frac{1}{2}\left[(\partial \varphi {)}^2+(\partial \pi {)}^2\right]-\frac{1}{2}\frac{m^2}{N_c}({\varphi }^2+{\pi }^2)+\frac{\lambda }{4N_c}({\varphi }^2+{\pi }^2{)}^2-\sqrt{N_c}{m}_q{\mu }^2\varphi .$$

$${\varphi }^3-\varphi m^2/\lambda -N_c^{3/2}{m}_q{\mu }^2/\lambda =0.$$

$$m_{\pi }=140\text{MeV},{\varphi }_0\sim f_{\pi }\sim 130\text{MeV},M_{\sigma }\sim 950-1050\text{MeV}.$$

$$\lambda =N_c\frac{m_{\sigma }^2-m_{\pi }^2}{2{\varphi }_0^2},$$

$${\mu }^2=\frac{m_{\pi }^2{\varphi }_0}{m_q\sqrt{N_c}},$$

$$m^2=N_c\frac{m_{\sigma }^2-3m_{\pi }^2}{2}.$$

$${\varphi }_0=m/\sqrt{\lambda }.$$

$${\varphi }_0=\sqrt{N_c}(m_q{\mu }^2/\lambda {)}^{1/3}.$$

$$m_{\sigma }^2=-\frac{m^2}{N_c}+\frac{3\lambda }{N_c}{\varphi }_0^2.$$

$$m_{\sigma }^2=\frac{2m^2}{N_c}.$$

$$m_{\sigma }^2=3(m_q{\mu }^2\sqrt{\lambda }{)}^{2/3}.$$

$$m_{\pi }^2=\sqrt{N_c}\lambda m_q\frac{{\mu }^2}{m^2}$$

$$m_{\pi }^2=(m_q{\mu }^2\sqrt{\lambda }{)}^{2/3}.$$

$$m=1112.3\text{MeV},\mu =648.3\text{MeV},\lambda =\mathrm{76.7.}$$

$$\lambda {\varphi }^2\sim m^2$$

$$m_q\sim m\frac{m^2}{{\mu }^2}\frac{1}{\sqrt{\lambda }}\frac{1}{N_c^{3/2}}=72\text{MeV}.$$

$$R\sim \sqrt{N_c}/{\varphi }_0\sim (\lambda /m_q{\mu }^2{)}^{-1/3}.$$

$$\frac{g^2}{{\Lambda }_{\mathrm{QCD}}^2}\left\{{\overline{\psi }}_L\chi \gamma \cdot \partial {\chi }^{†}{\psi }_L+{\overline{\psi }}_R{\chi }^{†}\gamma \cdot \partial \chi {\psi }_R\right\}.$$

Full text

1 Introduction

It is standard lore that the large $N_{c}$ limit predicts a vacuum expectation value for the sigma field, $f_{\pi}$ which scales as $\sqrt{N_{c}}$, and that baryons have a mass of order $N_{c}$ [1]. A model for baryons is provided by the Skyrme model; within the Skyrme model, the meson nucleon interactions are strong, of order $N_{c}$ [4]. This includes pion-nucleon interactions, and for massless pions leads to very strong long range forces [1].

The long range force associated with pion exchange leads to the conclusion that the binding energy of nuclear matter is of order the nucleon mass, and that a nucleon liquid would be unstable, forming a Skyrme crystal of tightly bound nucleons [5]. In nature, nuclear matter is weakly bound, with binding energy of order $15$ MeV. In spite of the great successes of large $N_{c}$ phenomenology for mesons, it appears that the large $N_{c}$ limit dramatically fails to describe the most basic feature of nuclear matter, that it is weakly bound [6].

The large strength of meson forces is impossible to evade in the standard Skyrme model of nucleons. The Skyrme model describes a two-baryon solution, and as a function of position, the energy scales as $N_{c}$. This has led some to modify the Skyrme model, by ignoring the kinetic energy term in the non-linear sigma model [7]. It is then argued that the Wess-Zumino-Witten term [8, 9] generates a baryon-baryon interaction, and this combined with the mass term for the pions generates stable skyrmions. Remarkably, such skyrmions saturate the BPS bound that means to leading order in large $N_{c}$, they are non-interacting. The essential feature of such consideration is that the ordinary sigma model kinetic energy term vanishes corresponding to vanishing vacuum expectation values for the sigma field.

While the BPS Skyrme model has the attractive feature that the interaction energy of nucleons is generically weak [10, 11], it has the unattractive feature that the baryon number density squared is stabilized by the mass term associated with explicit breaking of chiral symmetry. As we shall see, this results in the baryon density being of order $N_{c}m_{\pi}$, and the massless pion limit of the theory corresponds to a baryon of infinite extent. We can see this from elementary scaling arguments. The baryon self interaction associated with omega meson exchange is of order

[TABLE]

where $R$ is the nucleon radius. The stabilizing mass generating by the “sigma term” is of order

[TABLE]

Extremization gives

[TABLE]

and the nucleon mass of order

[TABLE]

The baryon number density is of order

[TABLE]

The vanishing of the nucleon mass in the chiral limit is an unfortunate consequence of this theory. Nevertheless, the idea that the vacuum expectation value of the sigma field is small, and as well the corresponding kinetic term in the non-linear sigma model, might have merit and we will consider this assumption in this paper. We will see that if we assume the kinetic term is suppressed by one order of $N_{c}$, we find a different dependence on quark mass for the nucleon mass and radius, and that for the values for which there is lattice data from DeGrand and Liu [2], the resulting nucleon mass is consistent with the data.

A vanishing vacuum expectation value for the scalar field in leading order in $N_{c}$ corresponds to a vanishing mass for the sigma particle in this order. A vanishing mass for the scalar sigma field does happen in the large $N_{c}$ limit of QCD in two dimensions [12]. It is also not so implausible in four dimensions. In leading order in $N_{c}$, the four dimensional theory is a non-interacting theory. With a negative mass squared for the sigma field, this large $N_{c}$ theory would be unstable, since to leading order in $N_{c}$, interaction terms which would stabilize the theory vanish. A positive mass squared term would not allow for chiral symmetry breaking. Assuming a negative mass squared term generated in non-leading order in $N_{c}$ would allow for a stable theory in the strict large $N_{c}$ limit. The potential would be flat in this limit, allowing for symmetry breaking as required by the Coleman-Witten theorem [13]. The value of the condensate would be determined by the next to leading order corrections to the sigma model.

It is difficult to provide an explicit mechanism for how the symmetry breaking negative mass squared term might vanish. It is interesting that the low energy sector that results for massless quarks is scale invariant at the mean field level for the effective pion-sigma action. Scale invariance is associated with critical phenomena. Perhaps such scale invariance might be argued by renormalization group methods in the large $N_{c}$ limit. As we will see, this scale invariance argument is also useful for arguing the form of the effective action that generate the nucleon mass. In any case, we will take throughout this paper an unproven assumption that this masslessness exists and shall explore the consequences of this assumption.

One can ask whether this $1/N_{c}$ behavior of the squared mass of the sigma field is preserved by higher order radiative corrections. This is equivalent to asking if the $1/N_{c}$ behavior is natural. Indeed, when one computes the radiative correction to the sigma mass, the lowest order correction arises from a tadpole diagram. The four meson interaction in the diagram is of order $1/N_{c}$ and the overall quadratic divergence is cutoff at the QCD scale so this gives a contribution to the mass squared of order $\Lambda_{\rm QCD}^{2}/N_{c}$, and indeed the behavior of the scalar mass term is natural. Higher order corrections indeed maintain this behavior.

Another implication of these results is that $f_{\pi}\sim{\cal O}(1)$ in powers of $N_{c}$. On the other hand standard counting in powers of $N_{c}$ using quark counting gives $f_{\pi}\sim\sqrt{N_{c}}$. In the considerations below, we will limit ourselves to momentum scales which are less than $\Lambda_{\rm QCD}/\sqrt{N_{c}}$. If for example we compute the matrix elements of the vector current squared, it is given by a vacuum polarization diagram involving a quark loop, and this appears to be of order $N_{c}$ corresponding to a current with a typical value of order $\sqrt{N_{c}}$. However, if we look at low momentum scales, of order $q\sim\Lambda_{\rm QCD}/\sqrt{N_{c}}$, the contribution to the quark loop involving gluons must be summed. The leading order contribution in powers of $N_{c}$ are one vector meson states such as the $\rho$ meson, and this state decouples at zero momentum transfer as $q^{2}/M_{\rho}^{2}$, suppressing the contribution by order $1/N_{c}$. Now if a vector meson coupling to this channel shrinks to zero mass in the large $N_{c}$ limit, then the ordinary counting can be maintained.

We shall later argue that the sigma meson mass becomes small in the large $N_{c}$ limit. If this is the case, the ordinary $N_{c}$ counting should work for vector current matrix elements. The axial vector channel is however different. In the axial isoscalar vector channel there is a U(1) anomaly, and we will argue this will result in a pseudo-scalar particle with mass of order $\Lambda_{\rm QCD}$.

Let us consider the two axial vector current correlation function. This correlation function involves a quark-antiquark pair, the interactions of which can lead to a pole corresponding to an axial vector meson We assume that, as is the case for the scalar axial vector mesons also have masses of order $\Lambda_{\rm QCD}$. In this case, axial vector meson contributions will be suppressed at small $q^{2}$. This leaves two meson intermediate and the pion states which are suppressed by powers of $N_{c}$. Note that the contribution from the scalar sigma and pion to the axial vector isotriplet current can be written in terms of the low momentum degrees of freedom as

[TABLE]

For the cases where $f_{\pi}=\langle\sigma\rangle\sim{\cal O}(1)$ in powers of $N_{c}$, this current has matrix elements of order 1, consistent with the reasoning above. A necessary condition for this to be maintained, therefore, is that the isovector axial vector mesons have a mass of order $\Lambda_{\rm QCD}$.

We can easily see why the $\eta^{\prime}$ mass is of order one in our scenario. It follows simply by the assumption that the energy density dependence of the $\theta$ angle of QCD is of order one because

[TABLE]

where we have assumed the $U(1)$ current is of the form

[TABLE]

Since the $U(1)$ axial symmetry is explicitly broken, there is no spontaneous symmetry breaking so the parity doublet of the pion, the scalar isovector mesons presumable have masses of order $\Lambda_{\rm QCD}$.

There is no reasonable theory of nuclear matter if the scale $\sigma$ becomes massless and there is no other small mass iso-singlet vector, since this generates an attractive force on baryons of order $N_{c}$ and will cause nuclear matter to collapse. One needs also that the $\omega$ meson becomes massless also, with $m_{\omega}\leq m_{\sigma}$ and that in this limit, $\omega$ nucleon coupling is larger than that of the $\sigma$ meson. This guarantees that in the isosinglet channel at distances less than $R\leq\sqrt{N_{c}}/\Lambda_{\rm QCD}$, the over all isosinglet force is repulsive. In various theories such as those with a hidden local gauge symmetry, the omega meson mass is of order $f_{\pi}/\sqrt{N_{c}}$. We will need to have this possibility here as well. Presumably there is a similar behavior for the $\rho$ meson. So the theory we propose would have a Goldstone pion, a small mass sigma and omega, $m_{\omega}\leq m_{\sigma}\sim 1/\sqrt{N_{c}}$. We will make such assumptions in this paper, and explore the consequences.

In the next section, we write out the explicit action for the pion-nucleon sigma model. We then use this action to compute $f_{\pi}$, the sigma meson mass and the pion mass. We compute these quantities as a function of the quark mass, the number of colors $N_{c}$, the four meson coupling strength $\lambda$ and the negative mass squared which drive the symmetry breaking. We show that our results are in good accord with those of DeGrand and Liu for $N_{c}=3$ and determine the values of the underlying parameters of our sigma model [2]. The values for quark masses in the computation of Bali et. al. are quite large, and they work in the quenched approximation, and we do not compare with their data [3], We find there are two possible cases: In the first the quark mass is generically $m_{q}\gg\Lambda_{\rm QCD}/N_{c}^{3/2}$. In this limit, symmetry breaking is driven by the explicit symmetry breaking of the quark mass. The large $N_{c}$ counting is conventional for physical quantities. The data of DeGrand and Liu is in this range [2]. The other case is $m_{q}\ll\Lambda_{\rm QCD}/N_{c}^{3/2}$. In this range physical quantities have unanticipated dependences on $N_{c}$ and there is no Monte Carlo data for $N_{c}$ dependence for this case. For QCD, $(N_{c}=3)$, the physical value of quark masses is in this region.

In the fourth section we compare the sigma model action prediction to the computations of DeGrand and Liu for variable $N_{c}$ [2]. We find fair agreement with their results, although the quark masses considered are sufficiently large so that deviations from the naive large $N_{c}$ scaling predictions are small.

In the fourth section, we consider baryons. We argue that the baryon mass for the small quark mass limit scales as $M_{B}\sim\sqrt{N_{c}}\Lambda_{\rm QCD}$, and that the radius $R\sim\sqrt{N_{c}}/\Lambda_{\rm QCD}$. These scaling relation imply that the baryon a mass of order $\sqrt{N_{c}}f_{\pi}$, and this dependence is consistent with the data of DeGrand and Liu for large quark masses [2]. The data available are not in the small quark mass limit where the unexpected behaviour as a function of $N_{c}$ is found. Nevertheless, the agreement with our $N_{c}$ dependence is only fair for the range of parameters considered by DeGrand and Liu.

In the last section, we consider general properties of the nucleon-nucleon force. We find the pion to be couple not with a coupling of order $\sqrt{N_{c}}$ to the nucleon but of order 1. The pion force generates a long range tail for nucleon-nucleon interaction.

To achieve a theory of the nucleon that has a reasonable small interaction strength for nuclear matter, we needed to make drastic assumptions about the behaviour of QCD in the large $N_{c}$ limit. In the future, we intend to investigate various Lagrangian for scalar and vector mesons to see under what set of assumptions, if any, such a description is internally consistent. It is also true that the behaviour we predict makes testable predictions for Monte-Carlo simulations of the large $N_{c}$ limit of QCD. Unfortunately, the restriction to very small mass quarks makes explicit computation very difficult.

2 The Low Energy Linear Pion Sigma Model as a Function of $N_{c}$

We begin with the effective action

[TABLE]

Here $\phi$ is the sigma field and $\pi$ is the pion field. The quark mass is $m_{q}=(m_{u}+m_{d})/2\sim 3.5$ MeV. The parameters $m,\lambda,\mu$ will be determined from the sigma meson mass, the pion decay constant $f_{\pi}$ which is the vacuum expectation value of $\phi$ and by the pion mass.

We are here assuming that the negative mass squared term in our action is of order $1/N_{c}$. The conventional large $N_{c}$ limit is obtained if $m^{2}\sim N_{c}$. The $\sqrt{N_{c}}$ in front of the last term (the sigma term) is of the correct order for the large $N_{c}$ limit.

The vacuum expectation values of the sigma field is determined by the roots of

[TABLE]

We denote this root by $\phi_{0}$.

One can solve for the values of the parameters $m^{2}$, $\mu^{2}$ and $\lambda$ in terms of the masses of the sigma meson, the pion and the expectation value of the scalar field $\phi_{0}$. The vacuum values for $N_{c}=3$ are taken to be

[TABLE]

The solutions are

[TABLE]

[TABLE]

[TABLE]

Note that if we were to take $m^{2}\sim N_{c}$ for the conventional large $N_{c}$ limit, we would have $\phi_{o}\sim\sqrt{N_{c}}$, and the values of $\lambda$, $\mu^{2}$ and $m^{2}$ would be $N_{c}$ independent. Our philosophy will be to take these values from the case $N_{c}=3$, fix them, and then determine the variation of $m_{\pi}$, $m_{\sigma}$ and $\phi_{0}=f_{\pi}$ predicted by the variation of $N_{c}$.

Notice there are two regimes for solution to this equation. We will get these values more precisely later, but for now if we assume that $\mu\sim m\sim\Lambda_{\rm QCD}$ and $\lambda\sim 1$, these regimes are the small and large quark mass limits which are separated by $m_{q}\sim\Lambda/N_{c}^{3/2}$. When we put in properly determined numbers, we will see that the small quark mass regime is characteristic of the physical values for the real world of pions, sigma mesons and $f_{\pi}$. However, we will see that for almost all of the range covered in the work of DeGrand, the large quark mass region dominates. Notice that this also implies that as $N_{c}\rightarrow\infty$, there is a non-uniformity of the small quark mass limit. The small mass limit is what is required for good phenomenology, so we must always take $N_{c}$ large but finite and consider masses in the range $m_{q}\ll\Lambda/N_{c}^{3/2}$ for the correct physical limit.

Let us explore solutions in these different limits. In the small mass limit (Region I), the VEV is determined by ignoring the sigma term (term proportional to the quark mass)

[TABLE]

Because of the extra $1/N_{c}$ in the mass term, the VEV for case one is $N_{c}$ independent.

In the large quark mass limit (Region II)

[TABLE]

In this latter case, the scalar field has the canonical dependence on $N_{c}$ as expected in the ordinary large $N_{c}$ limit. We will see that this will guarantee the expected large $N_{c}$ behavior for physical quantities in this limit.

We can now compute the sigma mass:

[TABLE]

For region 1,

[TABLE]

In this small mass region, the sigma mass shrinks to zero as $N_{c}\rightarrow\infty$. Of course for any fixed quark mass, we are only in the region up till some large $N$ and then we move into the effective large mass region. In Region II

[TABLE]

The pion mass can also be computed in these two limits:

Region I

[TABLE]

and Region II

[TABLE]

Let us now determine parameters for the world we live in111For certainty we use $M_{\sigma}=1000$ MeV. , see Eqs. (11):

[TABLE]

The obtained value of the coupling constant is somewhat large even if we take into account that the expansion parameter that controls perturbative computations is $\lambda/(4\pi^{2}N_{c})\approx 0.7$. This either means that the model at hand is too simplistic or that the lattice artifacts dominate in the observables. Here our strategy is to be pragmatic and to take the fitted values at their face value.

The edge of the region where the large limit dominates is when the quartic term in the potential dominates over the quadratic. This is when

[TABLE]

or when

[TABLE]

3 Mesons at $N_{c}=3$: Comparison to LQCD Results

Using the model described in Sect. 2 we attempt to fit the dependence of the mesonic properties on the quark mass obtained from the lattice data [2] for $N_{c}=3$. We would like to point out that the model has a few parameters and fixing the parameters at the physical quark mass leaves us with only one parameter to vary – the sigma mass. This over-constrains the model and we fail to achieve a good fit of the lattice data. We thus allow small variation of the physical parameter $m_{\pi}$. This variation can be attributed to either systematics of the lattice calculations or, which is more plausible, to relevant physics our model fails to capture. We get a good description of the lattice if we increase $m_{\pi}$ to 180 MeV.

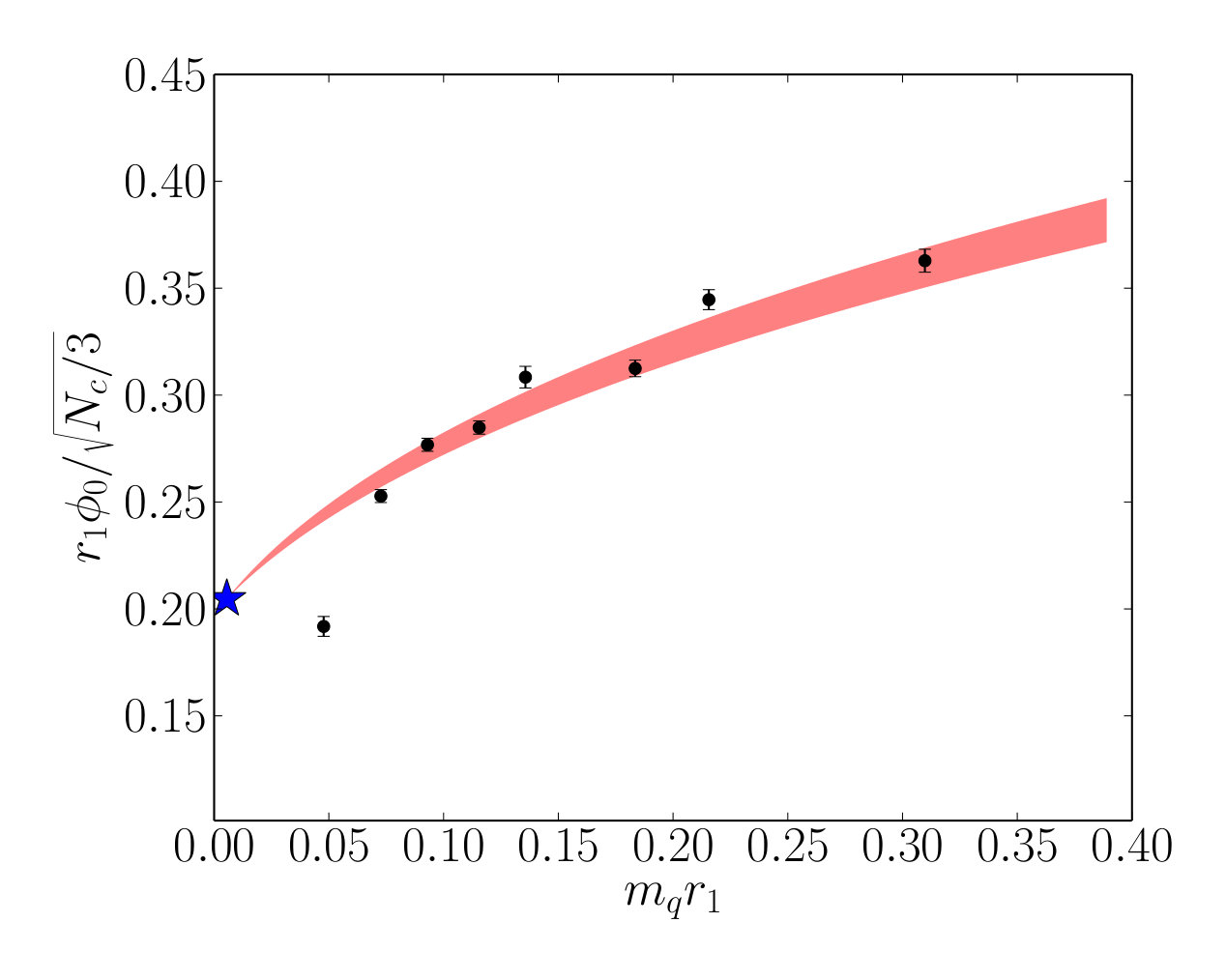

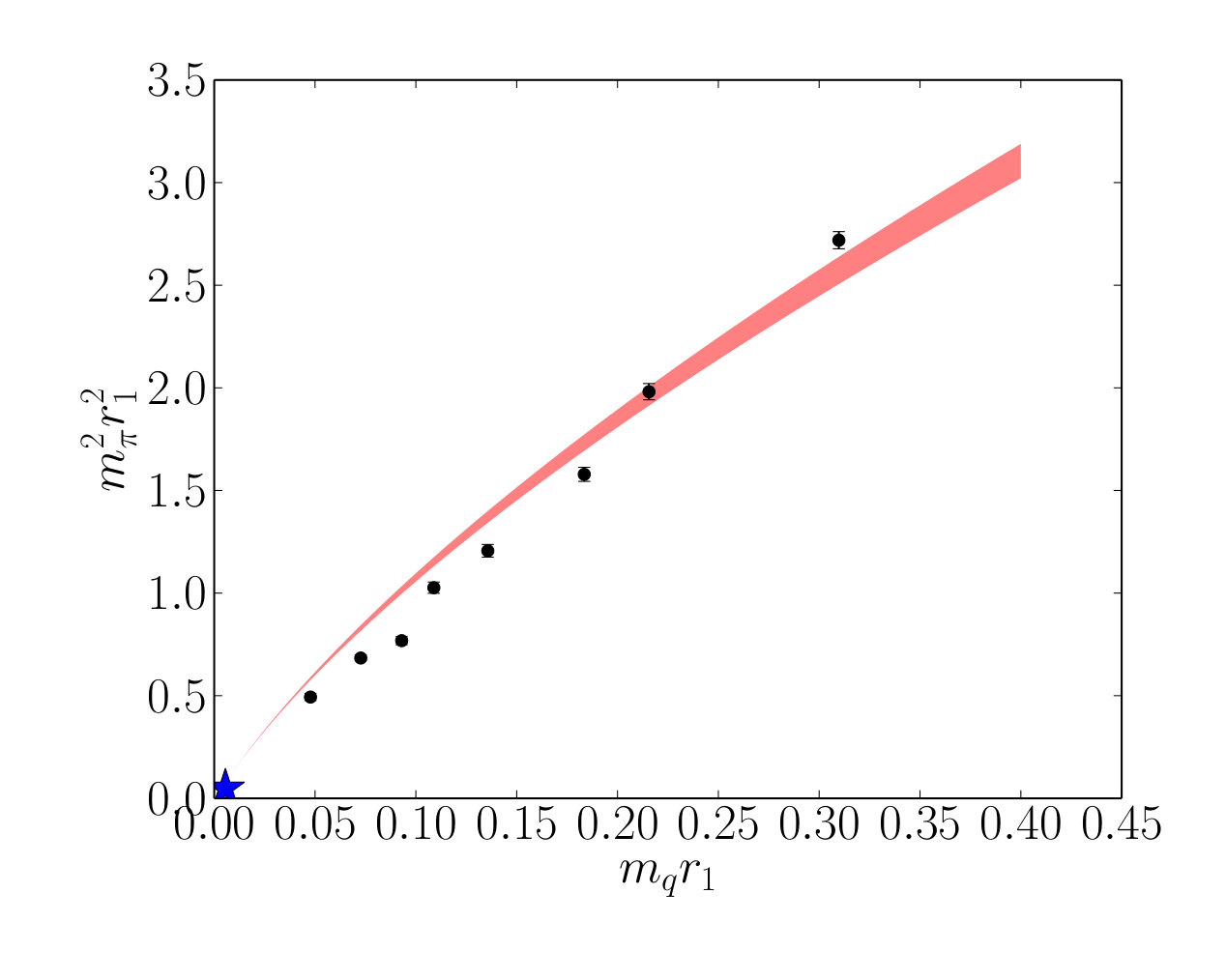

In Figure 1, we show the dependence of the pion decay constant and the pion mass on the quark mass in the model; the results are compared to the lattice QCD calculations from Ref. [2]. The model results are obtained by solving the stationarity conditions, Eq. (10); the pion mass is then computed. The stars in Fig. 1 denote the physical values of the observables.

Although the model misses the first LQCD data point for the pion decay constant, the overall description of the lattice results is quite remarkable given the simplicity of the model.

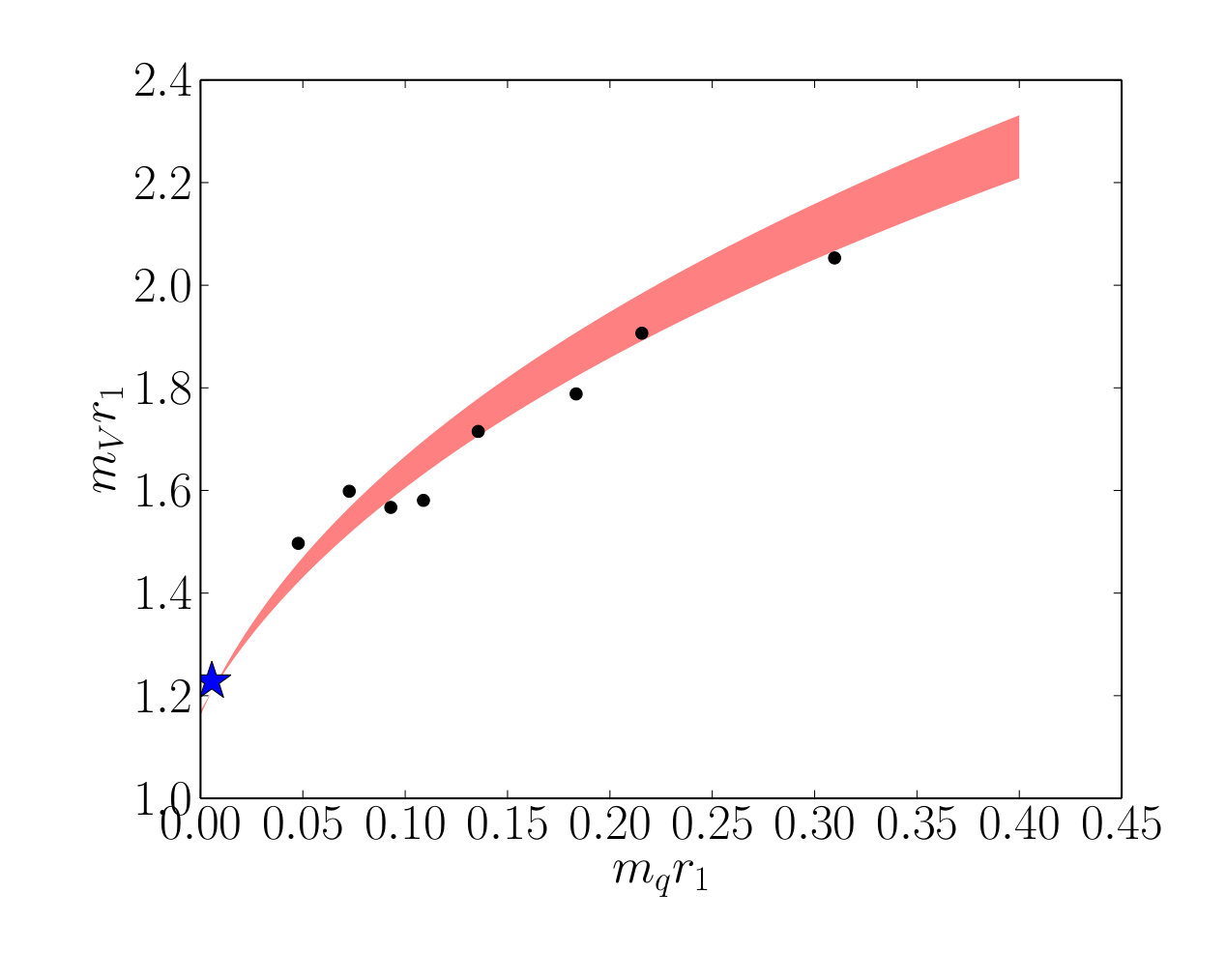

Additionally, we compare our results for the vector meson mass, assuming $m_{V}\propto f_{\pi}$, see Fig. 2.

Using this fit, we can proceed by computing the observables for any number of colors.

4 Variable $N_{c}$

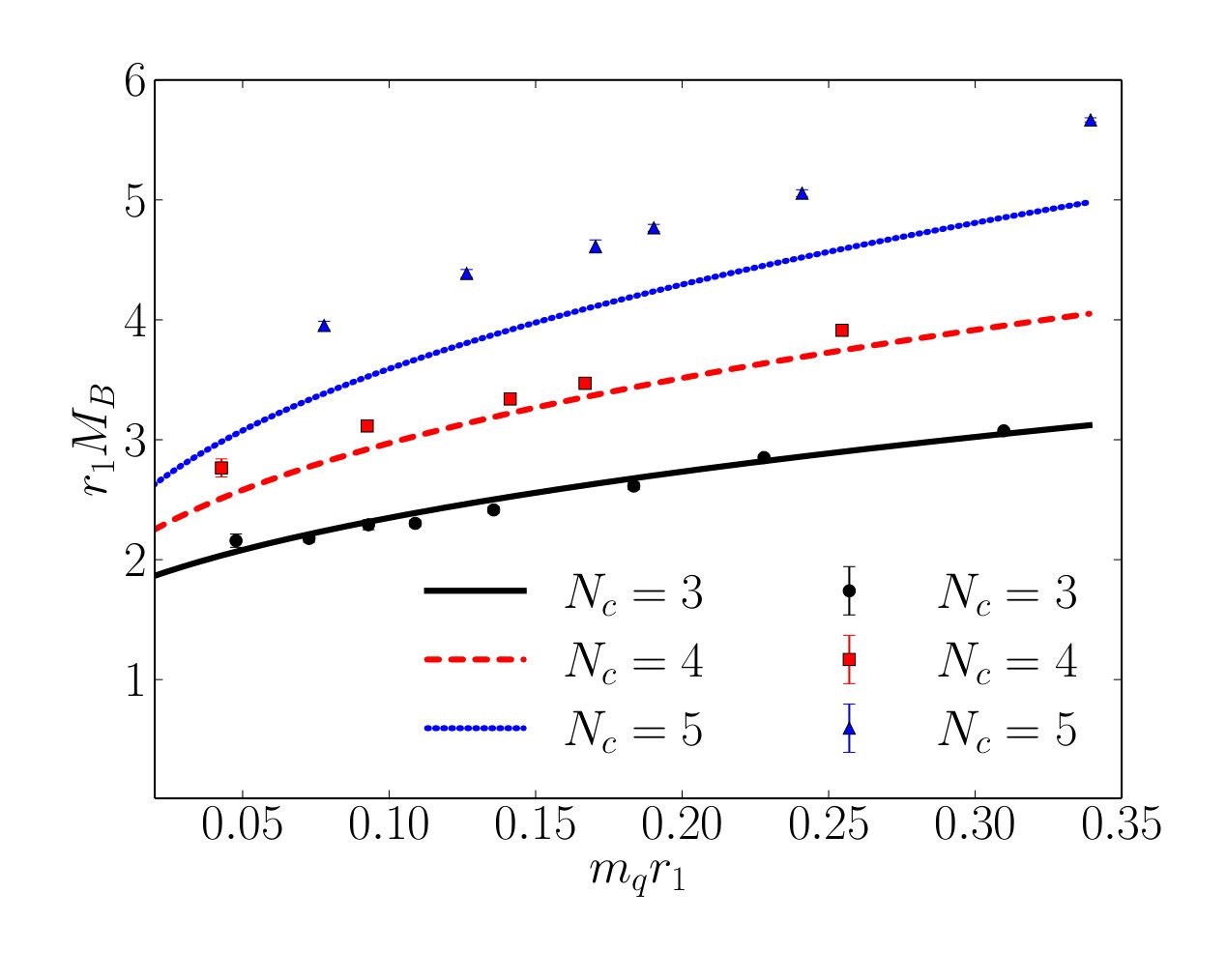

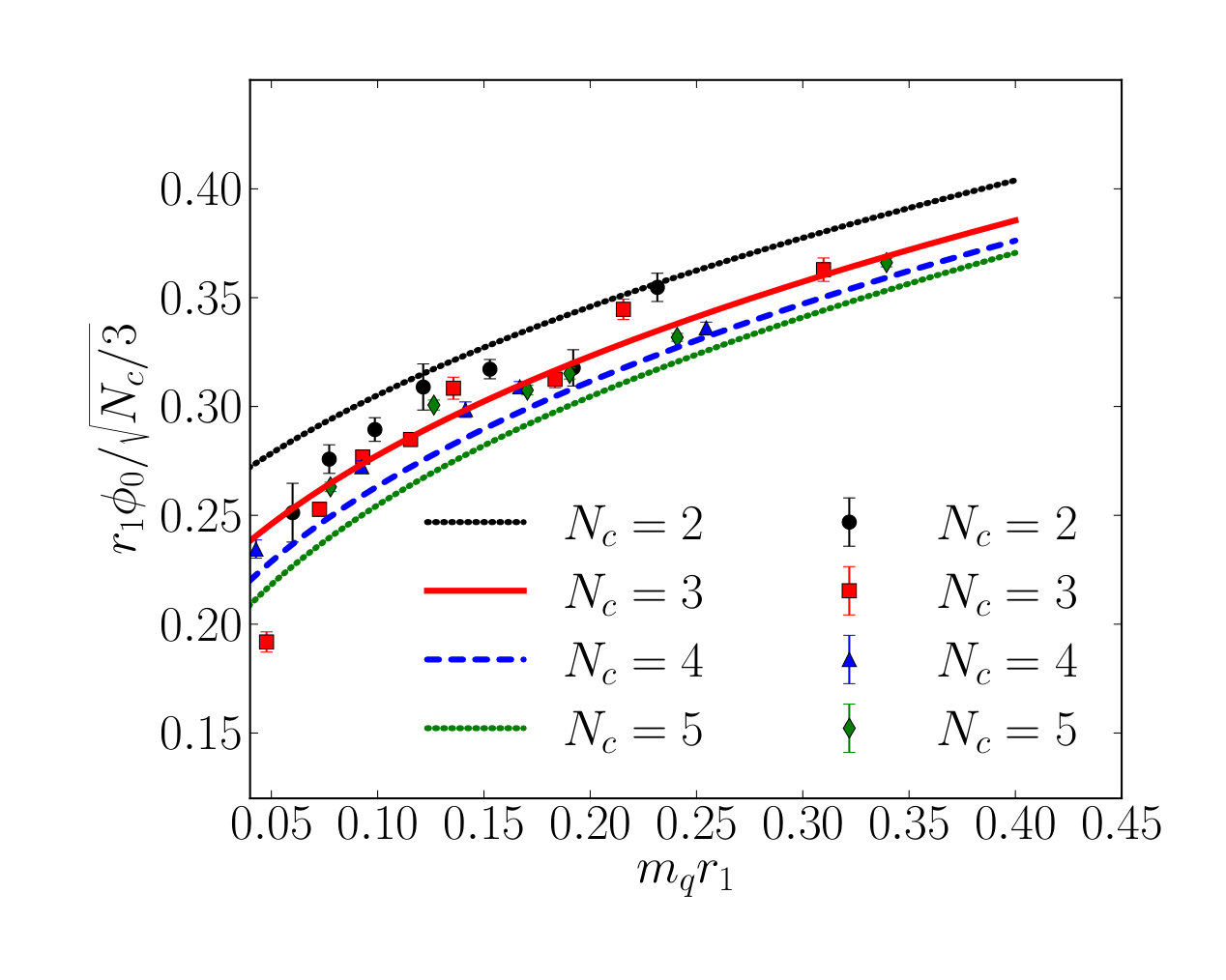

Recent calculations by DeGrand and Liu show the dependence of various observables on $N_{c}$ [2]. Here we want to demonstrate that, in their range of the quark masses (in the model, it is Region II described in Sect. 2), our model follows the data and exhibits the conventional dependence on the number of colors. In Fig. 3 we show the pion decay coupling constant as a function of the mass for various $N_{c}$. For the model, we also show the limit of $N_{c}\to\infty$. As seen from the figure, for these values of the quark masses the large $N_{c}$ limit describes lower values $N_{c}$ quite well, which demonstrates the conventional scaling of Region II, see Eq. (16).

The important question this exercise allows us to address is: Are the lattice data in a range where we can rule out our $1/N_{c}$ hypothesis for the negative mass-square term of the action (9)? The answer is that no, we cannot rule this hypothesis out based on the available data.

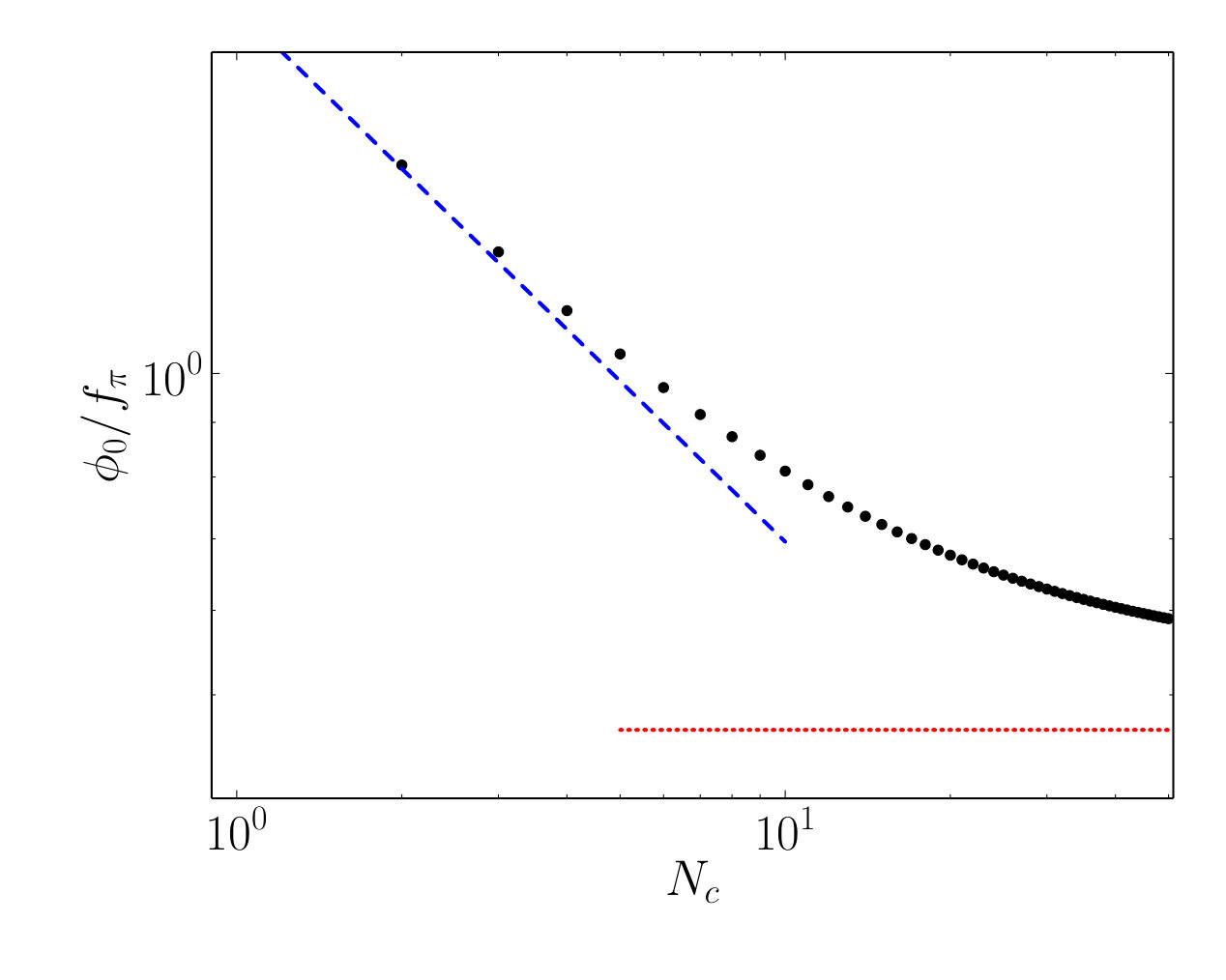

As we argued in the introduction, the relevant region for the physical quark masses is Region 1. Indeed by applying the argument presented in Eq. (24) to the physical quark mass and computing the critical $N_{c}^{\rm cr}$ where the transition from Region I to Region II takes place, we get $N_{c}^{\rm cr}\approx 22$. We also demonstrate this in Fig. 4, where the dependence of the pion decay coupling constant on the number of colors for the physical quark mass is plotted. The two asymptotic regimes, see Eq. (15) and Eq. (16), are also shown. This comparison shows that at the physical pion mass the relevant approach to the limit $N_{c}\to\infty$ should be considered in the case of a small quark mass, Region I.

5 Baryons

Baryons in the large $N_{c}$ limit are conventionally assumed to be given by non-perturbative solutions to the classical equation of motion of the non-linear sigma model [4]. These skyrmions have a topological charge corresponding to baryon number. Let us first consider general features of such non-perturbative solutions.

In the small quark mass region where the large $N_{c}$ behaviour is unconventional, the potential is generically of order $1/N_{c}$. Therefore the kinetic energy term is of the order of potential energy if $R\sim\sqrt{N_{c}}/\Lambda_{\rm QCD}$. This implies the mass of the skyrmion is of order $M\sim\sqrt{N_{c}}\Lambda_{\rm QCD}$. More generally, even in the large $N_{c}$ region, the kinetic energy will trade off against the potential energy when $R\sim\sqrt{N_{c}}/f_{\pi}$, and $M\sim\sqrt{N_{c}}f_{\pi}$. The lattice data seems to support it, see our representation of results by DeGrand and Liu in Fig. 5. For the conventional Skyrme model treatment, this would imply $M\sim N_{c}\Lambda_{\rm QCD}$ and $R\sim 1/\Lambda_{\rm QCD}$.

For large $m_{q}$, we would indeed find the correct $N_{c}$ counting for the mass and radius of any solitonic solution, however the dependence upon quark mass is nontrivial. As the scale is set by $f_{\pi}$, for large quark mass we have the radius

[TABLE]

In order to be in the large quark mass limit appropriate for this expression, we must have $R\ll\sqrt{N_{c}}/\Lambda_{\rm QCD}$. Correspondingly, the mass is $M\gg\sqrt{N_{c}}\Lambda_{\rm QCD}$.

In general, the only scale in our theory of pions and sigma mesons is $f_{\pi}$ so if there is a non-perturbative skyrmionic solution for the theory, its size will generically be of order $\sqrt{N_{c}}/f_{\pi}$ and mass of order $\sqrt{N_{c}}f_{\pi}$. We might have thought that a derivative expansion for an effective Lagrangian for the skyrmion would be well behaved because of the large distances involved. This is not the case as the mass scale associated with this derivative expansion is the $\sigma$ mass, which is of this same size.

A light mass sigma meson will cause problems for baryonic matter. The sigma meson generates an attractive self interaction. This will show up in a skyrmion solution for two particle interactions that will have a long distance attractive interaction that will generate a binding energy for the two skyrmion solution that is of the order of the skyrmion mass. The sigma mass cuts this interaction off at large distances, so large binding is generated at the size scale of the skyrmion and is a hard core attraction. In order to have a sensible theory, one needs a compensating repulsion. This might be given by the omega meson. The coupling of the omega to the nucleon would need to be larger than that of the sigma. This is phenomenologically the case. More importantly the omega mass would have to shrink to zero like the omega in the large $N_{c}$ limit, and $m_{\omega}\leq m_{\sigma}$. In models with a hidden local gauge symmetry, this is plausible, since the omega meson’s mass is proportional to $f_{\pi}/\sqrt{N_{c}}$. It is also not so implausible if the large $N_{c}$ limit corresponds to critical behaviour since both the sigma meson and omega meson couple to isospin singlet density fluctuations. With this added assumption the omega and sigma mesons combine together to generate a short distance repulsive core. If the typical separation of nucleon is large compared to this core’s size, it should not affect much the energy density of nuclear matter. The hard core interaction will generate effects of order $\sqrt{N_{c}}R^{3}_{\rm nucleon}\rho_{\rm baryon}$, so if the density of nuclear matter is sufficiently low, the effects are small. This will be discussed more in the next section when we discuss pion interactions. At this point, we note that the typical distance scale for the pion interactions is of order $1/m_{\pi}$, and the since $R_{\rm nucleon}m_{\pi}\sim\sqrt{N_{c}}m_{\pi}/\Lambda_{\rm QCD}\ll N_{c}^{-1/4}$, so that the effects of the hard core relative to the mass contributions to the energy are suppressed by at least a factor of $N_{c}^{-3/4}$. In the case of QCD for $N_{c}=3$, the bound that $m_{q}\leq\Lambda_{\rm QCD}/N_{c}^{3/2}$ is satisfied with about an order of magnitude to spare, and for general $N_{c}$ there is always some sufficiently small quark mass where this will give an acceptably small correction from the core.

An explicit form for the skyrmion solution is difficult to argue, since one will have all order in derivatives, as is really the case for the standard skyrmion solution, and because the $\omega$ meson will play an essential role in its structure. Nevertheless, the dependence of the mass of the skyrmion upon $f_{\pi}$ can be compared to the lattice data, see Fig. 6. The figure demonstrates quite a good agreement affirming our discussion based on the skyrmion argument.

6 Strength of Interaction

As described above, the short distance repulsive core is associated with omega and sigma exchange. What about the pion range pion tail? The conventional pion nucleon interaction of the sigma model, g $\overline{\psi}\tau\cdot\pi\gamma^{5}\psi$, has an interaction strength naively of order $\sqrt{N_{c}}$ from the coupling. However, for a non-relativistic nucleon, this is of order $g/2M_{\rm nucleon}\overline{\psi}\gamma^{\mu}\gamma^{5}\psi$ which is of order 1 in powers of $N_{c}$. There is also a potentially dangerous term that arises from the axial current interaction:

[TABLE]

Here $g^{2}$ is of order 1 in powers of $N_{c}$, and if this interaction is generated by the exchange of an axial vector meson, then the scale is $\Lambda_{\rm QCD}$. For $f_{\pi}\sim O(1)$ in powers of $N_{c}$ again this generates an interaction of order 1. Note that the basic pion nucleon interaction strength is reduced by a factor of $\sqrt{N_{c}}$ relative to the naive counting where $f_{\pi}\sim\sqrt{N_{c}}$

This counting means that the one pion exchange isospin dependent interaction is of order $1/\Lambda^{2}_{\rm QCD}R^{3}$ which at the typical length scale of the nucleon is of order $1/N_{c}^{3/2}$. For isopsin singlet interaction which should be typical of nuclear matter, two pion exchanges are important, and these are of strength $1/\Lambda^{4}_{\rm QCD}R^{5}\sim 1/N_{c}^{5/2}$. So the picture naturally arises that the nucleon has a strongly repulsive core with a weak long scale interaction generated by pion exchange. There is no strong long range force. This is consistent with the phenomenology of nuclear matter.

One can of course also include the effects of massive mesons $M\sim\Lambda_{\rm QCD}$, but such mesons when convoluted over the large size scale of the nucleon give small effects.

The issue of the binding of nuclear matter is a very subtle one and may be special to the case of intermediate values of $N_{c}$ and the details of the pion, sigma and omega meson masses. Nevertheless the basic outline of our description seem reasonable.

Concluding this section, we want to mention that the effective theory with the required properties was discussed in the literature before, see e.g.  [14]. First of all, the vector meson (rho and omega ) masses satisfy the KSRF relation $m_{V}^{2}\propto f_{\pi}^{2}$. Second, at least for three colors, the parameters of the model are consistent with the phenomenologically reasonable hierarchy of the interaction ranges; one may expect that the associated hierarchy of the coupling constants between matter fields scalar/vector mesons is preserved at larger $N_{c}$.

7 Summary

In this article we tried to resolve the issue of the interaction strength for the nuclear matter. For this we needed to make assumptions on the QCD behaviour in the large $N_{c}$ limit; namely, in contrast to the conventional scaling $N_{c}^{0}$, we considered that the negative mass term of the associated linear sigma meson Lagrangian is inversely proportional to $N_{c}$ and thus vanishes in the large $N_{c}$ limit. We showed that this radical assumption does not contradict the existent lattice QCD data, which provides results for the quark masses in the range where, in our approach, the conventional scaling still holds $m_{q}\gg\Lambda_{\rm QCD}/N_{c}^{3/2}$. With some modest assumptions for the values of the scalar-nucleon and vector-nucleon coupling constants, we were able to get a weekly attractive nucleon-nucleon potential admitting an interaction energy of order the physical scale.

8 Acknowledgements

We thank Robert Pisarski for valuable discussions. L. McLerran acknowledges useful conversations with Jean Paul Blaizot and Tory Kojo. L. McLerran was supported under Department of Energy contract number Contract No. DE-SC0012704 at Brookhaven National Laboratory, and L. McLerran is now supported under Department of Energy under grant number DOE grant No. DE-FG02-00ER41132.
