Time-frequency or time-scale representation fission and fusion rules.

Coen Jonker

Institute of Artificial Intelligence, Faculty of Mathematics and Natural Sciences, University of Groningen

Arryon D. Tijsma

Institute of Artificial Intelligence, Faculty of Mathematics and Natural Sciences, University of Groningen

SoundAppraisal BV

Groningen, The Netherlands

Ronald A.J. van Elburg

Institute of Artificial Intelligence, Faculty of Mathematics and Natural Sciences, University of Groningen

SoundAppraisal BV

Groningen, The Netherlands

Correspondence: RonaldAJ@vanElburg.eu

Abstract

Time-frequency representations are important for the analysis of time series. We have developed an online time-series analysis system and equipped it to reliably handle re-alignment in the time-frequency plane. The system can deal with issues like invalid regions in time-frequency representations and discontinuities in data transmissions, making it suitable for on-line processing in real-world situations. In retrospect the whole problem can be considered to be a generalization of ideas present in overlap-and-add filtering, but then for time-frequency representations and including the calculation of non-causal features. Here we present our design for time-frequency representation fission and fusion rules. We present these rules in the context of two typical use cases, which facilitate understanding of the underlying choices.

Topics: time-series, time-frequency representations, time-scale representations, computational auditory scene analysis, feature fusion, data fusion, common representational format, libSoundAnnotator.

1 Introduction

When building a system for online time series analysis one runs into the problem of proper time-frequency alignment. Although this problem by necessity appears to all involved in building such systems it is not given much attention in the literature. However, when presenting our software, libSoundAnnotator, we found it to be a non-trivial aspect of the software. And although there is a wealth of literature on processing time series using time-frequency representations there is little information available on the implementation of systems producing and fusing these representations in an online time-series analysis system. It is our impression that those involved in building these systems value this issue as a small implementation detail, that is certainly how we saw it initially. However over time, in contacts with peers and students, it became clear that proper time-frequency alignment is worth explaining in some detail.

The literature available on temporal alignment is predominantly aimed at aligning signals from different sensors. Due to the nature of that problem it involves statistical methods for inferring the time-frequency shift needed to align signals Mitchell, (2007). This is not the problem we want to address here. The problem we want to address is a much simpler one. Suppose you are processing a time series online and the processing requires the creation of intermediate time-frequency representations which need to be combined to calculate another time-frequency representations. How should you, in this situation, setup your metadata to make it possible to re-align the representations, i.e. how can you create a common representational format Mitchell, (2007) for this scenario. In addition we make use of non-causal features. Although it is possible to make our features causal by manually introducing extra delays, we prefer an approach where the data indicates how it can be aligned. Thus taken together non-causal time-frequency representation processing is what sets our processing requirements apart from what is commonly done in signal processing.

In a quick inventory of open source signal processing software we found signal processing tools for offline analysis and for real time effects. In, for example, the field of music information retrieval we found:

• •

http://librosa.github.io/librosa/LibROSA McFee et al., (2015),

• •

http://essentia.upf.edu/Essentia Bogdanov et al., (2013).

Judging from the algorithms provided the music information retrieval systems are closest to our computational auditory scene analysis goals. They are aimed at offline use, although Essentia also offers part of their functionality in a closed source real-time system. In the area of computer algebra system we found:

• •

https://www.gnu.org/software/octave/GNU Octave Eaton et al., (2015),

• •

https://cran.r-project.org/web/packages/signal/index.htmlR-signal Signal Developers, (2014),

• •

https://www.scilab.org/scilab/features/scilab/signal_processingSciLab Scilab Enterprises, (2012),

all providing signal processing capabilities, just as the Python packages on which we built or implementation:

• •

http://www.numpy.org/Numpy van der Walt et al., (2011),

• •

http://www.scipy.org/Scipy Jones et al., (2016).

For audio processing aimed at music synthesis we further found:

• •

http://faust.grame.fr/Faust Programming Language Jouvelot and Orlarey, (2011); Orlarey et al., (2004),

• •

https://ccrma.stanford.edu/software/stk/The Synthesis ToolKit in C++ Scavone and Cook, (2005).

This list is by no means exhaustive, and in addition open source development is a very dynamic field making an overview near obsolete at the moment of publishing. Important for our purposes here, all of the projects above seem to rely on either processing whole files at once or using overlap-and-add filter implementation. We have found no indications for any of these implementations that they work with time-frequency representations and non-causal features in an online setting.

Originally our need for online processing arose as part of the Sensor City Sound project, where we were striving to abstract information close to the microphone. In this way it should become possible to remove privacy sensitive aspects before data entered the Sensor City Intranet, effectively creating a smart sensor. As it was upfront unclear what could be deployed to the available hardware we also chose for a networked solution where it was assumed that different processing steps could take place on different hardware. To make this possible the necessary information for temporal and frequency alignment should be in the data travelling from processor to processor, and it wasn’t possible to rely on a central data structure for communication between processors. Relying on a central data structure for alignment was the approach chosen in an earlier Matlab111The Mathworks Inc., Natick, Massachusetts, USA based implementation of an online CASA system, this system was never published but for some indicative results obtained with it see Krijnders, (2010), Krijnders et al., (2010).

Before we continue a note on terminology: we speak about chunks instead of frames in most of this paper. In the first processing stages the chunks in libSoundAnnotator consist of a single frame and its accompanying metadata. In our intended further development we foresee that chunks further in the processing chain will contain information at higher abstraction levels no longer directly related to digital signal processing. Therefore, we will stick to the word chunk.

2 Use Cases libSoundAnnotator

At present we distinguish two different scenarios from the end user point of view:

• •

offline file processing

• •

online microphone processing

We start with the offline file processing use case. This use case can be used to illustrate time-frequency alignment. The second use case adds the complications associated with temporary failures somewhere in the processing chain. In a networked solution this problem can arise through failure of connectivity, processing and/or acquisition. The system is designed to maintain correct alignment while such incidents happen.

We used two alignment design principles:

• •

As much as possible of the merging should be handled by the framework, leaving only processor specific data handling to the processor.

• •

Only valid time steps are published, to keep alignment simple the invalid scales are included in the representation, and they can be overwritten by the receiving processor to manage problems with zero’s and NaN values in later calculations.

In addition we use the following simplifying assumptions:

• •

We assume failures are rare. Which allows us to keep the buffering mechanism simple. We will simply accept a failure, fast forward to a failure free time point and propagate the failure without attempts to recover lost information.

• •

We assume that the chunks contain a sufficiently long time interval that there are always valid time values present in each single chunk.

For now this last assumption puts a limit on the total length of the processing chain, or alternatively it puts a lower bound on the length of the time interval included in a chunk.

2.1 Use Case I: Estimating the relative amount of tonal energy

represented in a wav-file.

An earlier version of this software was used by van Elburg and Andringa, (2017) to estimate the distribution of energy over different sound types: pulsal, tonal, noise. They defined tract features $T_{-}$ and $T_{|}$ which provide an indication of sound structure. In addition they showed how these correlate with human perception. Here we will review how using libSoundAnnotator the tonal energy can be calculated per frequency band and time interval. This function is implemented in the PTN_Processor, which extracts energy in pulses (P), tones (T) and noises (N) and in addition it provides the total energy in the resulting time-frequency regions. To achieve this the PTN_Processor receives an energy representation (E) from a GammaChirp FilterBank (implemented as a set of FFT based overlap-and-add filters) and it receives tract-features ($T_{-}$, $T_{|}$) from two StructureExtractor instances. In the PTN_Processor the local energy attributable to for example tones is calculated by thresholding the corresponding tract feature and multiplying it with the local energy, i.e. the local tonal energy is given by $E_{T}(t,f)=E(t,f)\sigma(T_{-}(t,f))$. For the full computation the following steps are needed: reading from file, down-sampling, conversion to cochleogram $E(t,f)$, extraction of horizontal tract-feature $T_{-}$ from the cochleogram, multiplication of energy in cochleogram with sigmoid function of the horizontal tract feature and areal averaging, saving of the result to file.

File processing is typically done on a single machine while the processors are distributed over its cores. Several processors are started each in their own process, and when running on a single machine they are linked by pipes. Due to the high reliability of these pipes we can trust that data published by one process will be received by all subscribed processes, and we don’t have to deal with data loss. As long as we have a linear topology of processing steps arrival of all data will be in the same order on all processes. However if we are forking data flow to two processors and subsequently merge data coming from these two data flow paths then there is no guarantee that data belonging together will arrive together. In fact this is unlikely if one path contains an extra processing step while the other path is actually a direct connection to the merging process. This is actually the case for our scenario: $E(t,f)$ is used for calculation of the tract features and it also merged with these tract-features in the PTN-Processor. In that case some buffering is needed on the receiving end until data for the same time-frequency points has arrived through both paths.

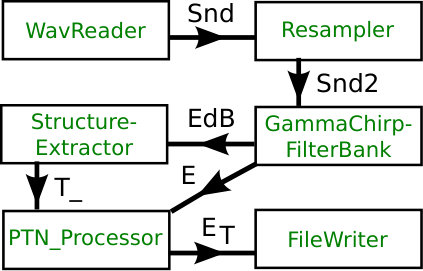

To be able to calculate the tonal energy $E_{T}(t,f)$ for a single time-frequency location $(t,f)$ requires the presence at that location of the energy $E(t,f)$ and the horizontal tract feature $T_{-}(t,f)$, see figure 1. Now the energy at a given frequency can only be calculated when there is a history available of the full length of the applied $\gamma$-chirp filter, which in our setting is typically set to 100 ms. Furthermore because the tract features look at a region surrounding a time-frequency location they are only defined if that region is completely within the current E-representation. Thus tract-features are only defined if the time-frequency location is sufficiently far away from the lowest and highest energy in the E-representation and is sufficiently far away from the time for which the first and last received energy are valid. This is illustrated in figure 2.A which shows the chunks as published by the WavReader. The panel 2.B shows the PTN-Processor perspective on its incoming $E$, $T_{-}$ and outgoing representations $E\sigma(T_{-})$. The colors indicate whether data is present and if present whether it is valid data. We chose to transmit some invalid data to keep the implementation relatively simple.

The alignment principles in the architecture make sure the data is aligned before it is handed to a processor. The processor can then impose its own rules to adjust alignment further. This is to say that a processor receives only data belonging to the same time-interval. This data is accompanied by meta-data indicating how it is shifted with respect to the original time-series. We determined that we need 4 parameters to describe these shifts and invalid regions, where some of the names also prelude on the next use case:

• •

includedPast (p): This parameter is used for non-causal features or their non-causal part. It measures how many time steps from the future are used to calculate the feature value at this point. To simplify the treatment the maximum value over all frequencies is used.

• •

droppedAfterDiscontinuity (d): This parameter is used for causal features or their causal part. It measures how many time steps from the past are used to calculate the feature value at this point. To simplify the treatment the maximum value over all frequencies is used.

• •

invalidLargeScales (l): This parameter is used for features depending not only on the frequency considered but also on lower frequencies (larger scales). It measures how many higher frequency channels are used to calculate the feature value at the point under consideration. To simplify the treatment the maximal value is used subject to the constraint that only values which lead to frequencies outside the TF-representation are considered.

• •

invalidSmallScales (s): This parameter is used for features depending not only on the frequency considered but also on higher frequencies (smaller scales). It measures how many lower frequency channels are used to calculate the feature value at the point under consideration. To simplify the treatment the maximal value is used subject to the constraint that only values which lead to frequencies outside the TF-representation are considered.

All these 4 parameters appear in two forms: a cumulative form in the meta data of an incoming (merged) chunk and a relative form related to a processor indicating how the processor will impact alignment of the features it will publish. Because a single processor can produce several features it contains alignment parameters for all features produced. When publishing an outgoing chunk (Out) will get the following alignment parameters from the incoming (Merged) chunks and the feature publishing processor (Feature):

[TABLE]

The $Merged$ chunk is obtained from the incoming chunks. For example if two incoming chunks need to be aligned we need to use different rules for merging the alignment parameters. A merged chunk (Merged) derived from two incoming chunk (In1 and In2) will have the following alignment parameters:

[TABLE]

This alignment merging rule basically states that only areas in which valid data from all incoming chunks overlap will be valid in the merged chunk. How these rules work out is shown in figure 2.

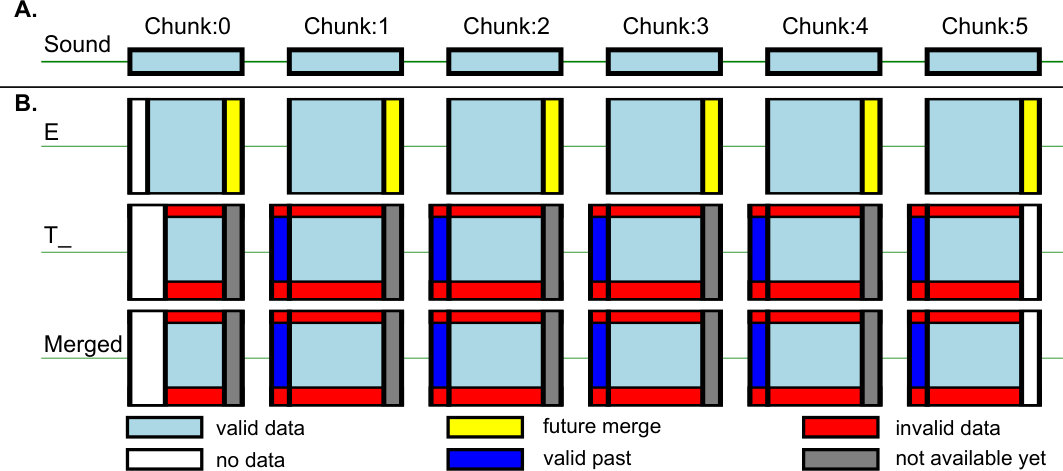

Let us discuss figure 2 and the underlying choices in more detail. The InputProcessor in this case the WavReader produces chunks of sound, which typically covers several tenths of a second. Each chunk receives a number indicating the order in which it was entered into the system. The light blue color for each chunk in 2.A indicates that we consider all samples in a chunk as valid sound data. After two processing steps we arrive at an energy or cochleogam representation $E(t,f)$. Because both processing steps, i.e. down-sampling and $\gamma$-chirp filterbank require a filter of finite length it is only after processing the combined length of these filters in sound data that we arrive at valid data. This is indicated with white areas at the beginning of all affected chunks. The $E$ representation also contains yellow areas, these yellow areas are not intrinsic to the received data but they are related to the merging process in the PTN_Processor. Yellow indicates that the receiving processor needs to store these for use with other data that still has to arrive. In this case because the tract feature couldn’t be calculated for these values until the next chunk became available. These future dependent values are indicated by the gray areas in the next line with chunks. The blue areas are their counter part, they contain data that has been prepended containing the features that couldn’t be calculated earlier. The red areas are similar to the white areas in that no valid representation can be calculated for these areas. However the representation contains invalid values, typically NaN or 0, at the time-frequency points that fall into these areas. Also contrary to the white areas the red areas are not dropped from the chunk. Instead they are kept to facilitate array operations in later processing steps. Their invalidity can be read off from the alignment parameters (invalidLargeScales,invalidSmallScales) introduced above.

The last line of chunks represents the output of the merging operation. The merging operation takes place in the compositeManager. As soon as all relevant chunks arrived it will pass all TF-representations, in this case $E$ and $T_{-}$, to a processors processData method. The merging operation above ensures that all TF-representations arriving at a processor belong to the same time interval and that the frequencies stay aligned.

2.2 Use Case II: Estimating the relative amount of tonal energy

present in sound arriving at a microphone

From the signal processing point of view this is more or less the same task as in the previous use case. So lets us stress the differences provided by the context. We analyse here the worst case scenario that each processor runs on a separate machine, therefore all processors are connected by network connections and we can expect transmission failures which affect the processor input. In one context, for example, we used an indoors wifi connection to relay sound from a microphone to subsequent processing on a PC and we observed many failures in the connection. Despite these failures processing on the PC could continue once the connection was restored without restarting the whole system. This is possible due to two kinds of metadata, the first kind we already encountered in use case I the alignment parameters, the second kind we encounter in this use case is the continuity flag.

The potential continuity flag values are defined in the class ContinuityMeta as follows:

Continuity class: please maintain numerical order, the code assumes

the mapping is one-to-one.

values = { #invalid chunk ’invalid’ : -1, #discontinuous subtypes ’discontinuous’ : 0, ’newfile’: 1, ’calibrationChunk’: 2, #withprevious subtypes ’withprevious’ : 10, ’last’ : 11 }

Let discuss values in order of appearance. The invalid value is used to signal that we don’t know whether the samples in a chunk are continuous with the samples in its predecessor or successor or neither. An example we can give is that some times the microphone input buffer experiences an overflow, in that case we know there are samples lost and we have lost continuity between our samples. The discontinuous value and the other discontinuous subtypes newfile and calibrationchunk signal that they are discontinuous with their predecessor. The first chunk from the MicInputProcessor after an incidental buffer overflow will be flagged as discontinuous. Subsequent chunks provided by the MicInputProcessor will be marked as withprevious as they contain frames which are continuous with those encountered in the previous chunk. There is a special last value as well which is the counterpart of newfile, both are used in file processing where it is necessary to mark the beginning and end of a file. The value calibrationchunk is a special case and is at the same time a ‘discontinuous’ and a ‘last’ subtype. However the architecture treats it as ‘discontinuous’ and leaves it to those processors needing calibration to take appropriate action on receiving it.

Sofar we discussed mainly how the continuity flag on a chunk is set when obtaining sound from a microphone or file. However, that is not the only point at which continuity can change, in addition we need to determine how a continuity change propagates and how it influences subsequent processing. We have illustrated two of these scenarios in figure 3.

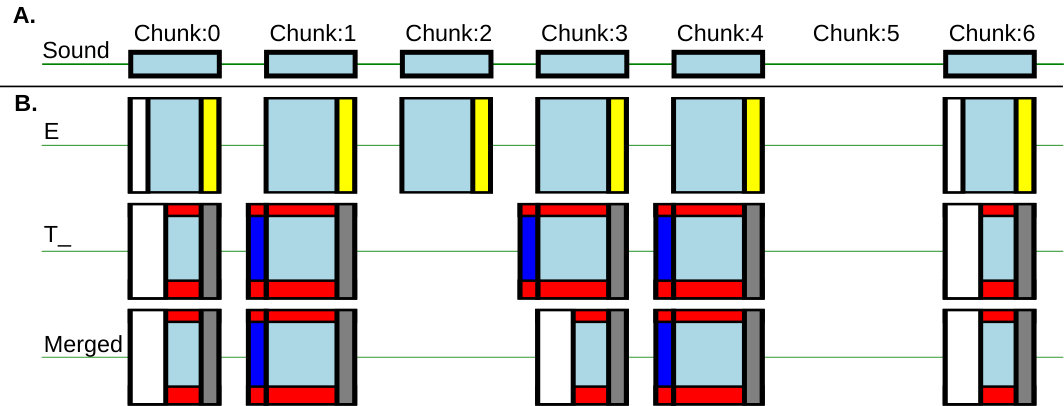

Lets discuss the two discontinuity scenarios depicted in figure 3. This figure shows two continuity failures. First a failure in the processing of chunk 2. Chunk 2 is lost during transmission from the structureExctractor instance to the PTN_Processor instance. Second a failure in the data acquisition at the microphone leads to a buffer overflow during acquisition of chunk 5 which, therefore, gets flagged as invalid. This invalid chunk is never published and stays at the MicInputProcessor instance recording the state of this processor. The next reading of the microphone succeeds and the MicInputProcessor instance publishes this chunk flagged as discontinuous.

Lets examine the first scenario a bit more closely. How does it become clear that $T_{-}$ was lost. To understand this we need to point out that we made a simplifying assumption, we assumed that as a rule the chunks arrive in the correct order. Therefore if chunk $T_{-,6}$ arrives we infer that $T_{-,5}$ was lost. If later on $T_{-,5}$ arrives it will be discarded, and we will not rewind history to see if it can still be fixed. In fact all available chunks with chunk number 5 or lower are discarded after it was established that a discontinuity occured from chunk 5 to chunk 6. Now on arrival of chunks $T_{-,6}$ and $E_{6}$, we need to decide which part of the data we will include in the merge. To keep it simple we discard the information in the buffer, and try to align data from the currently incoming chunks only. In this scenario $T_{-,6}$ and $E_{6}$ both have continuity withprevious despite the discontinuity in the transmission. Therefore we know that information is available from the start of the time interval originally inserted as chunk $Snd_{6}$ into the processing chain. Now $T_{-,6}$ has prepended part of the data which should be aligned with data coming from $Snd_{5}$, this part should be discarded. Now the length of this part is encoded in the alignment parameter includedPast $T_{-,6}.p$ of $T_{-,6}$. This would be sufficient if processing stopped here, we will however flag this chunk as discontinuous and therefore the receiving processor will assume it does not contain the first part, therefore we use the parameter droppedAfterDiscontinuity $Merged.d$ of the $E$ merged with $T_{-}$ to discard even more timesteps. Remember we assumed these events to be relatively rare, therefore we are convinced that the benefits of trying to keep things simple outweigh the benefits of saving additional data. For our wifi failure example this still works out reasonably well, as the interruptions were often several hours containing tens of thousands of chunks and then connectivity would mostly be present for several hours. And thus dropping this data leads to an increase of data loss less than a promille.

Because of this last choice the number of scenarios to consider when aligning a chunk from a complete set of received chunks is limited to three. One scenario for regular continuous operation, which applies if the resulting merged chunk is of withprevious subtype:

Regular Continuous Operation: All chunks in the set have continuity withprevious or last and the last previously completed set of chunks belonged to the directly preceding time interval not an earlier one.

And two other cases, which are invoked if conditions are such that after merging the merged chunk should be of a discontinuous subtype. This occurs if the last previously completed set of chunks belonged to a preceding time interval not directly preceding the current interval, or during a regular startup in which all chunks should be of a discontinuous subtype.

Regular Discontinuous Operation: The chunk to be merged is of a discontinuous subtype and the resulting merged chunk of a discontinuous subtype. 2. 3.

Irregular Discontinuous Operation: The chunk to be merged is of a withprevious subtype and the resulting merged chunk of a discontinuous subtype.

All these three scenarios require their own handling of the incoming data, based on the information contained in the alignment parameters. Lets link this back to figure 3. To obtain the merged data we observe Regular Discontinuous Operation for chunk $Merged_{0}$ at startup, we observe Regular Continuous Operation for chunk $Merged_{1}$ and $Merged_{4}$ and we observe Irregular Discontinuous Operation for the construction of chunks $Merged_{3}$. Perhaps somewhat suprisingly the construction of $Merged_{6}$ is obtained through Regular Discontinuous Operation, this is because the discontinuity arose earlier in the processing chain. In this case Irregular Discontinuous Operation occurs when merging takes place for the Resampler, there at the Resampler discontinuity is spotted through the absence of chunk $Snd_{5}$. Due to our choice to let all discontinuous merged data cover the same time interval with respect to the original sound data the Resampler will publish a ‘regularized’ chunk $Snd2_{6}$ of the discontinuous subtype and then after the Resampler all processing for chunk 6 is regular. This is because the other processors don’t receive $Snd_{6}$ directly but instead they receive the ‘regularized’ chunk $Snd2_{6}$ or its regular descendants. Therefore this case illustrates how ‘chunk regularization’ helps to keep processing simple.

Lets us now describe how in these three scenarios the merged data arrays are constructed from the incoming data arrays. We will introduce new notation to illustrate this. We denote the data array in an incoming chunk by $A_{N}^{f}$, where $N$ indicates the chunk number, and $f$ denotes the continuity subtype and will be replaced by $d$ for chunks of the discontinuous subtypes and by $c$ for chunks of the continuous with previous chunk subtypes, invalid chunks do not appear in the merge process as they remain unpublished. The array resulting from the merge is denoted by $\tilde{A}_{N}^{f}$. Now for the actual merge at array level we only need to consider a single representation, but to determine the continuity subtype denoted by $f$ we need to consider all incoming chunks and whether the last merged chunk was the direct predecessor of the current chunk. To achieve this the last merged chunk and the data on which it was based are kept. And during the merging of all incoming chunks for chunk number $N$ we determine $f$ using the following rules in pythonesque pseudocode:

if not N == N_lastcompleted +1: f_merged=d else: if any incoming chunk has f==d: f_merged=d else: f_merged=c

Now that we established the continuity subtype of the merged chunk, we can select the correct rule to calculate the merged array for each incoming representation from the rules below:

1. Regular Continuous Operation: $\tilde{A}_{N}^{c}=A_{N-1}^{c}(:,e-d_{H}:)+A_{N}^{c}(:,:e-d_{H})$
2. Regular Discontinuous Operation: $\tilde{A}_{N}^{d}=A_{N}^{d}(:,d_{L}:e-d_{H})$
3. Irregular Discontinuous Operation: $\tilde{A}_{N}^{d}=A_{N}^{c}(:,d_{l}:e-d_{H})$

Where $+$ denotes concatenation, between brackets the selection of part of the arrays is indicated, where we follow the notation used in Numpy van der Walt et al., (2011). The letter $e$, the first letter from the word ‘end’, indicates the size of the array for the dimension where it appears. The parameters $d_{L}$, $d_{H}$ and $d_{l}$ are derived from the alignment parameters of the incoming chunks, and the alignment parameters for the merged chunk which have been obtained through repeated application of the rules outlined earlier for UseCase I. The $d$ is derived from the word drop, $L$, $l$ and $H$ refer to low and high indices respectively:

[TABLE]

Where we used the arrays to refer to the corresponding chunk and its alignment parameters. The rules for time series are obtained by simply dropping the first dimension representing the frequencies.

3 Discussion

The algorithm presented above provides sound and more general time-series processing which maintains time-frequency alignment. It can achieve this even in the presence of incidental acquisition, hardware and data transmission failures and it that sense the algorithm is robust.

Our algorithm transmits, at our current standard settings, about 10% invalid data, this has been an optimization on developer time. Keeping this data facilitates the use of standard algorithms from the numerical python library to do element wise multiplication, and therefore also reduces the chance of implementation errors. Therefore although the saving in our standard setting would be significant and in the order of 10% in computing time, we considered the potential savings not worth the costs of spending a large amount of developer time at this stage of development. Similar considerations on developer time and maintainability in an academic context lead us to transmit representations using pipes when processes are running on a single machine, this implies a large amount of data copying. We don’t know at present how this impacts performance, but we imagine that a shared memory model would eventually be more efficient. What is presented in this paper does not rely on the exact form in which data is transferred and can therefore without change be applied to a shared memory model.

There is a part in our design which is design by contract. We made no provision for working with data coming from two independent sources. In which case different continuity subtypes can occur on chunks arriving from the different original sources. That this problem can occur is a likely signal that the design of continuity can be further improved by splitting it in two separate flags. One purely aimed at administrating continuity for use in the distinction between Regular Continuous Operation, Regular Discontinuous Operation and Irregular Discontinuous Operation. And another flag indicating the intended continuity from the perspective of the original source. This being said, scenarios using different sources need true fusion algorithms, taking into account deviations in clock speeds, sampling rates and start times, and in our case a forced alignment of chunk numbering. Our code does not provide such functionality at present.

The whole library implementation is made available as open source through GitHub: https://github.com/soundappraisal/libsoundannotator and licensed under the Apache License, Version 2.0. Both UseCase are available as documented code examples also available through GitHub https://github.com/soundappraisal/soundannotatordemo and licensed under the Apache License, Version 2.0.

4 Funding

Part of the research described in this paper was conducted as part of the SensorCity Sound project which was funded by the European Union, the European Regional Development Fund, the Dutch Ministry of Economic Affairs, and The Northern Netherlands Provinces Alliance, KOERS NOORD.

5 Author Contributions

CJ, RAJvE: Design and implementation streamboard. AT: Design and implementation networking. RAJvE: Design and implementation alignment and continuity handling mechanism and overall design, wrote the paper. AT, CJ, RAJvE: Contributed code.

Appendix A Appendix: Calibration

The calibration signal is needed in those use cases where a processor needs to estimate its own internal parameters while taking into account the input it can expect. Tract-features van Elburg and Andringa, (2017) for example require knowledge about the correlations distances found when processing white noise. These correlation distances are dependent on the method and parameters used to create a time-frequency representation. Calibration is a necessary step preparatory step in all use cases, from the implementation point of view it is, however, a special case of the offline file processing scenario in which the whole file is contained in a single frame or chunk, in addition this single chunk is flagged as being a calibration chunk.

Appendix B Appendix: Streamboard

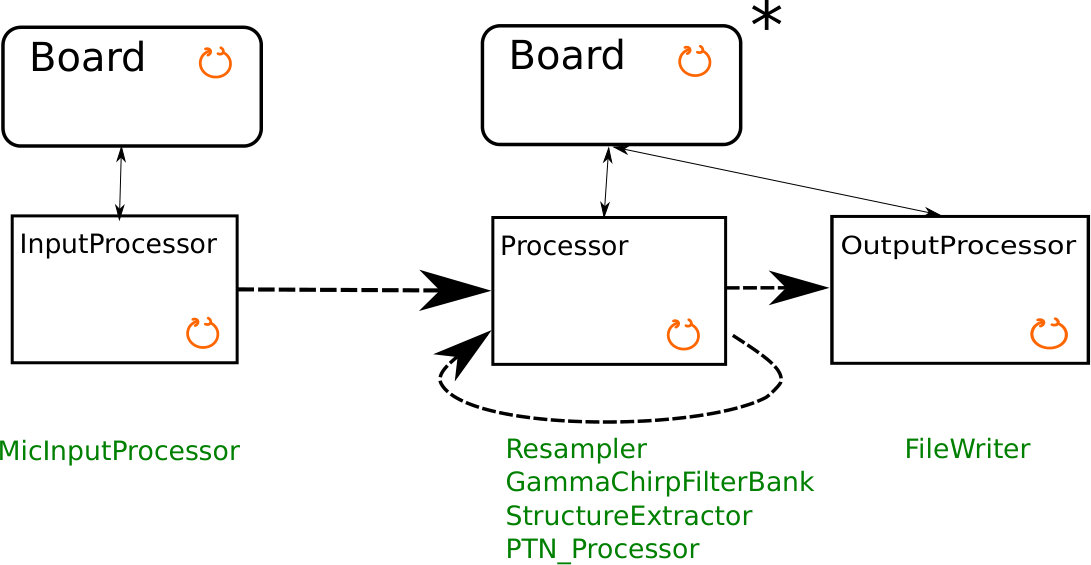

Figure 4 shows how the processors are embedded in the streamboard architecture. The board is the process from which the different processors are spawned. Processors running on the same machine are linked through pipes.

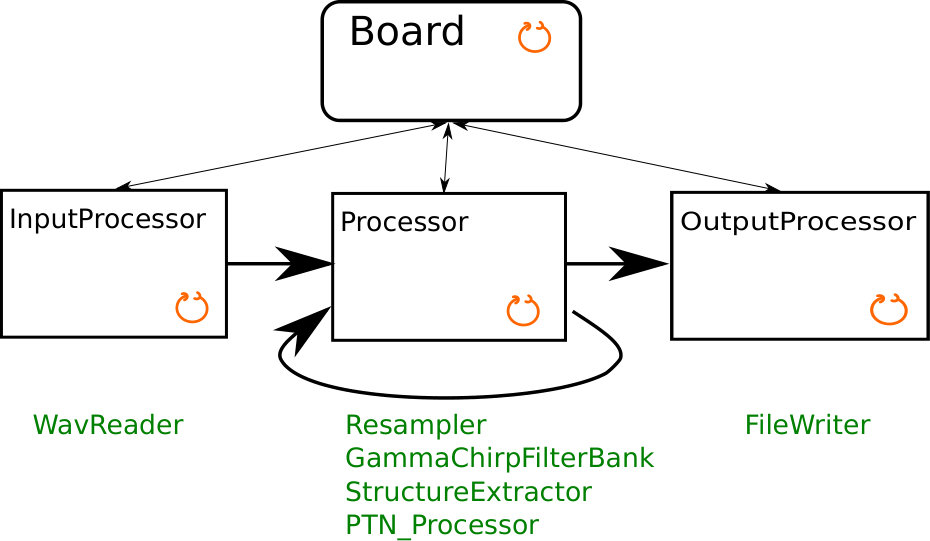

Figure 5 shows how the processors are embedded in the streamboard architecture when each of them is running on a separate machine. The board is again the process from which the different processors are spawned. However for each machine a separate board is required to start the processors on that machine.
