Hierarchical Temporal Representation in Linear Reservoir Computing

TL;DR

This paper demonstrates how linear reservoir computing models exhibit hierarchical temporal representations, analyzed through frequency analysis, with potential applications in complex oscillatory tasks and insights into deep learning's temporal dynamics.

Contribution

It provides evidence of hierarchical temporal encoding in deep RNNs using linear units and frequency analysis, advancing understanding of temporal processing in neural networks.

Findings

Hierarchical temporal representations are observable in linear RC models.

Frequency analysis reveals layered temporal features.

Models perform well on Multiple Superimposed Oscillator tasks.

Abstract

Recently, studies on deep Reservoir Computing (RC) highlighted the role of layering in deep recurrent neural networks (RNNs). In this paper, the use of linear recurrent units allows us to bring more evidence on the intrinsic hierarchical temporal representation in deep RNNs through frequency analysis applied to the state signals. The potentiality of our approach is assessed on the class of Multiple Superimposed Oscillator tasks. Furthermore, our investigation provides useful insights to open a discussion on the main aspects that characterize the deep learning framework in the temporal domain.

Figures

Tables

Table 1. Table 1 : Hyper-parameters values considered for model selection on the MSO tasks.

Hyper-parameter	Values considered for model selection
number of levels $N_L$	10
reservoir size $N_R$	100
input scaling $scal{e}_{in}$	0.01, 0.1, 1
leaking rate $a$	0.1, 0.3, 0.5, 0.7, 0.9, 1.0
spectral radius $\rho$	0.1, 0.3, 0.5, 0.7, 0.9, 1.0
ridge regression regularization ${\lambda }_r$	${10}^{-11},{10}^{-10},\dots ,{10}^0$

Table 2. Table 2 : Test NRMSE obtained by L-deepESN, L-ESN, neuro-evolution (n.-evolution), balanced ESN, IIR ESN and Evolino on the MSO5-12 tasks.

Task	L-deepESN	L-ESN	n.-evolution otte2016optimizing	balanced ESN koryakin2012balanced	IIR ESN holzmann2010echo	Evolino schmidhuber2007training
MSO5	$6.75\cdot {10}^{-13}$	$7.14\cdot {10}^{-10}$	$4.16\cdot {10}^{-10}$	$1.06\cdot {10}^{-6}$	$8\cdot {10}^{-5}$	$1.66\cdot {10}^{-1}$
MSO6	$1.68\cdot {10}^{-12}$	$5.40\cdot {10}^{-9}$	$9.12\cdot {10}^{-9}$	$8.43\cdot {10}^{-5}$	-	-
MSO7	$5.90\cdot {10}^{-12}$	$5.60\cdot {10}^{-8}$	$2.39\cdot {10}^{-8}$	$1.01\cdot {10}^{-4}$	-	-
MSO8	$1.07\cdot {10}^{-11}$	$2.08\cdot {10}^{-7}$	$6.14\cdot {10}^{-8}$	$2.73\cdot {10}^{-4}$	-	-
MSO9	$5.34\cdot {10}^{-11}$	$4.00\cdot {10}^{-7}$	$1.11\cdot {10}^{-7}$	-	-	-
MSO10	$8.22\cdot {10}^{-11}$	$8.21\cdot {10}^{-7}$	$1.12\cdot {10}^{-7}$	-	-	-
MSO11	$4.45\cdot {10}^{-10}$	$1.55\cdot {10}^{-6}$	$1.22\cdot {10}^{-7}$	-	-	-
MSO12	$5.40\cdot {10}^{-10}$	$1.70\cdot {10}^{-6}$	$1.73\cdot {10}^{-7}$	-	-	-

Equations

$${\mathbf{x}}^{(1)}(t)=(1-a^{(1)}){\mathbf{x}}^{(1)}(t-1)+a^{(1)}\mathbf{f}({\mathbf{W}}_{in}\mathbf{u}(t)+{\hat{\mathbf{W}}}^{(1)}{\mathbf{x}}^{(1)}(t-1)),$$

$${\mathbf{x}}^{(i)}(t)=(1-a^{(i)}){\mathbf{x}}^{(i)}(t-1)+a^{(i)}\mathbf{f}({\mathbf{W}}^{(i)}{\mathbf{x}}^{(i-1)}(t)+{\hat{\mathbf{W}}}^{(i)}{\mathbf{x}}^{(i)}(t-1)),$$

$$\mathbf{x}(t)=\left[\begin{array}[]{lll}\mathbf{V}_{1,1}&\ldots&\mathbf{V}_{1,N_{L}}\\ \vdots&\ddots&\vdots\\ \mathbf{V}_{N_{L},1}&\ldots&\mathbf{V}_{N_{L},N_{L}}\\ \end{array}\right]\mathbf{x}(t-1)+\left[\begin{array}[]{l}\mathbf{V}_{in,1}\\ \vdots\\ \mathbf{V}_{in,N_{L}}\end{array}\right]\mathbf{u}(t).$$

$$\mathbf{V}_{i,j}=\left\{\begin{array}[]{ll}\mathbf{0}&\text{if }i<j\\ (1-a^{(i)})\mathbf{I}+a^{(i)}\hat{\mathbf{W}}^{(i)}&\text{if }i=j\\ (\prod_{k=j+1}^{i}a^{(k)}{\mathbf{W}}^{(k)})\big{(}(1-a^{(j)})\mathbf{I}+a^{(j)}\hat{\mathbf{W}}^{(j)}\big{)}&\text{if }i>j.\\ \end{array}\right.$$

$$\mathbf{V}_{in,i}=\left\{\begin{array}[]{ll}a^{(1)}\mathbf{W}_{in}&\text{if }i=1\\ (\prod_{k=2}^{i}a^{(k)}\mathbf{W}^{(k)})a^{(1)}\mathbf{W}_{in}&\text{if }i>1.\\ \end{array}\right.$$

$$u(t)=\sum _{i=1}^{n}sin({\phi }_{i}t)$$

$$NRMSE=\sqrt{(\sum _{t=1}^T(y_{target}(t)-y(t){)}^2)/(T{\sigma }_{y_{target}(t)}^2}),$$

Full text

1 Introduction

In the last years, the extension of deep neural network architectures towards recurrent processing of temporal data has opened the way to novel approaches to effectively learn hierarchical representations of time-series featured by multiple time-scales dynamics Schmidhuber2015 ; Pascanu2014 ; ElHihi1995 ; Hermans2013 ; Angelov2016 . Recently, within the umbrella of randomized neural network approaches Gallicchio2017Randomized , Reservoir Computing (RC) verstraeten2007experimental ; lukovsevivcius2009reservoir has proved to be a useful tool for analyzing the intrinsic properties of stacked architectures in recurrent neural networks (RNNs), allowing at the same time to exploit the extreme efficiency of RC training algorithms in the design of novel deep RNN models. Stemming from the Echo State Network (ESN) approach Jaeger2004 the study of the dynamics of multi-layered recurrent reservoir architectures has been introduced with the deepESN model in gallicchio2017deep ; Gallicchio2016Deep . In particular, the outcomes of the experimental analysis in gallicchio2017deep ; Gallicchio2016Deep as well as theoretical results in the field of dynamical systems gallicchio2017echo ; Gallicchio2017Lyapunov , highlighted the role of layering in the inherent development of progressively more abstract temporal representations in the higher layers of deep recurrent models.

In this paper, we take a step forward in the study of the structure of the temporal features naturally emerging in layered RNNs. To this aim, we resort to classical tools in the area of signal processing to analyze the differentiation among the state representations developed by the different levels of a deepESN in a task involving signals in a controlled scenario. In particular, we simplify the deepESN design by implementing recurrent units with linear activation function, i.e. we adopt linear deepESN (L-deepESN). In the analysis of the frequency spectrum of network’s states, this approach brings the major advantage of avoiding the effects of harmonic distortion due to non-linear activation functions. To provide a quantitative support to our analysis, we experimentally assess the L-deepESN model on a variety of progressively more involving versions of the Multiple Superimposed Oscillator (MSO) task wierstra2005modeling ; xue2007decoupled . Note that the class of MSO tasks is of particular interest for the aims of this paper, especially in light of previous literature results that pointed out the relevant need for multiple time-scales processing ability Jaeger2007 ; schmidhuber2007training ; xue2007decoupled as well as the potentiality of linear models in achieving excellent predictive results in base settings of the problem vcervnansky2008predictive . Another example of application of linear RNNs is in pasa2014pre .

As a further contribution, our investigation would offer interesting insights on the nature of compositionality in deep learning architectures. Typically, deep neural networks consist in a hierarchy of many non-linear hidden layers that enable a distributed information representation (through learning) where higher layers specialize to progressively more abstract concepts. Removing the characteristic of non-linearity, and focusing on the ability to develop a hierarchical diversification of temporal features (prior to learning), our analysis sheds new light into the true essence of layering in deep RNN even with linear recurrent units.

The rest of this paper is organized as follows. In Section 2 we introduce the L-deepESN model. In Section 3 we analyze the hierarchical nature of temporal representations in L-deepESN, presenting the experimental results on the MSO tasks and the outcomes of the signal processing analysis of the developed system dynamics. Finally, in Section 4 we draw the conclusions.

2 Linear Deep Echo State Networks

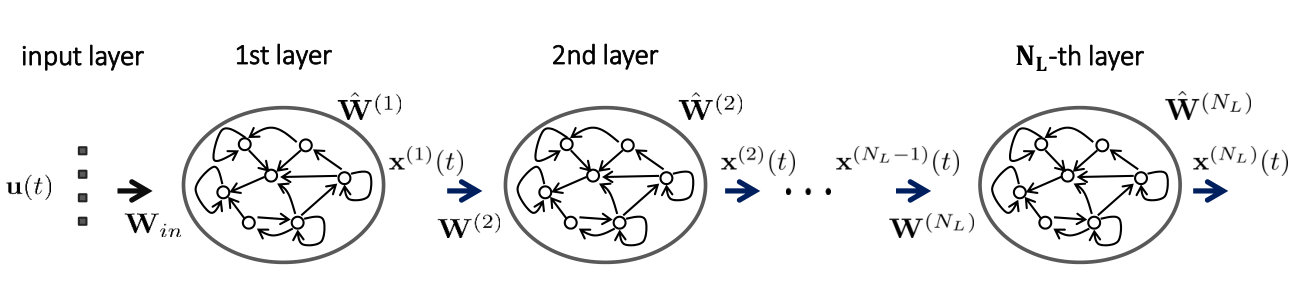

A deepESN architecture gallicchio2017deep is composed by a stack of $N_{L}$ recurrent reservoir layers, where at each time step $t$ the first layer receives the external input $\mathbf{u}(t)\in\mathbb{R}^{N_{U}}$, while successive layers are fed by the output of the previous layer in the hierarchy. We denote the state of layer $i$ at time $t$ by $\mathbf{x}^{(i)}(t)\in\mathbb{R}^{N_{R}}$, where we assume the same state dimension $N_{R}$ for every layer for the sake of simplicity. A schematic representation of the reservoir architecture in a deepESN is provided in Figure 1.

By referring to the case of leaky integrator reservoir units Jaeger2007 , and omitting the bias terms for the ease of notation, the state transition function of the first layer is given by the following equation:

[TABLE]

whereas the state transition of layer $i>1$ is ruled by the equation:

[TABLE]

where $a^{(i)}\in[0,1]$ is the leaking rate parameter at layer $i$, $\mathbf{W}_{in}\in\mathbb{R}^{N_{R}\times N_{U}}$ is the input weight matrix, $\mathbf{W}^{(i)}\in\mathbb{R}^{N_{R}\times N_{R}}$ is the weight matrix of the inter-layer connections from layer $i-1$ to layer $i$, $\hat{\mathbf{W}}^{(i)}\in\mathbb{R}^{N_{R}\times N_{R}}$ is the matrix of recurrent weights of layer $i$, and $\mathbf{f}$ denotes the element-wise application of the activation function of the recurrent units. A null initial state is considered for the reservoirs in all the layers, i.e. $\mathbf{x}^{(i)}(0)=\mathbf{0}$ for all $i=1,\ldots,N_{L}$.

The case of L-deepESN is obtained from equations 1 and 2 when a linear activation function is used for each recurrent unit, i.e. $\mathbf{f}=\mathbf{id}$. As in standard RC, all the reservoirs parameters, i.e. all the weight matrices in equations 1 and 2, are left untrained after initialization subject to stability constraints. According to the necessary condition for the Echo State Property of deep RC networks gallicchio2017echo , stability can be accomplished by constraining the maximum among the spectral radii of matrices $\left((1-a^{(i)})\mathbf{I}+a^{(i)}\hat{\mathbf{W}}^{(i)}\right)$, individually denoted by $\rho^{(i)}$, to be not above unity. Thereby, a simple initialization condition for L-deepESNs consists in randomly selecting the weight values in matrices $\mathbf{W}_{in}$ and $\{\mathbf{W}^{(i)}\}_{i=2}^{N_{L}}$ from a uniform distribution in $[-scale_{in},scale_{in}]$, whereas the weights in recurrent matrices $\{\hat{\mathbf{W}}^{(i)}\}_{i=1}^{N_{L}}$ are initialized in a similar way and are then re-scaled to meet the condition on $\max{\rho^{(i)}}$.

In this context it also interesting to observe that the use of linearities allows us to express the evolution of the whole system by means of an algebraic expression that describes the dynamics of an equivalent single-layer recurrent system with the same total number of recurrent units. Specifically, denoting by $\mathbf{x}(t)=(\mathbf{x}^{(1)}(t),\mathbf{x}^{(2)}(t),\ldots,\mathbf{x}^{(N_{L})}(t))\in\mathbb{R}^{N_{L}N_{R}}$ the global state of the network, the dependence of $\mathbf{x}(t)$ from $\mathbf{x}(t-1)$ can be expressed as $\mathbf{x}(t)=\mathbf{V}\mathbf{x}(t-1)+\mathbf{V}_{in}\mathbf{u}(t)$, where both $\mathbf{V}\in\mathbb{R}^{N_{L}N_{R}\times N_{L}N_{R}}$ and $\mathbf{V}_{in}\in\mathbb{R}^{N_{L}N_{R}\times N_{U}}$ can be viewed as block matrices, with block elements denoted respectively by $\mathbf{V}_{i,j}\in\mathbb{R}^{N_{R}\times N_{R}}$ and $\mathbf{V}_{in,i}\in\mathbb{R}^{N_{R}\times N_{U}}$, i.e.:

[TABLE]

Noticeably, the layered organization imposes a lower triangular block matrix structure to $\mathbf{V}$ such that in the linear case its blocks can be computed as:

[TABLE]

Moreover, as concerns the input matrix, we have:

[TABLE]

The mathematical description provided here for the L-deepESN case is particularly helpful in order to highlight the characterization resulting from the layered composition of recurrent units. Indeed, from an architectural perspective, a deep RNN can be seen as obtained by imposing a set of constraints to the architecture of a single-layer fully connected RNN with the same total number of recurrent units. Specifically, a deep RNN can be obtained from the architecture of a fully connected (shallow) RNN by removing the recurrent connections corresponding in the deep version to the connections from higher layers to lower layers, as well as the input connections to the levels higher than 1. In this respect, the use of linear activation functions has the effect of enhancing the emergence of such constrained characterization and making it visible through the peculiar algebraic organization of the state update as described by equations 3, 4 and 5. Indeed, the constrained structure given by the layering factor is reflected in the (lower triangular block) structure of the matrix $\mathbf{V}$ that rules the recurrence of the whole network dynamics in equation 3. In particular, the last line of equation 4 highlights the progressive filtering effect on the state information propagated towards the higher levels in the network, modulated by the leaking rates and through the magnitude of the inter-layer weights values. Similarly, the last line of equation 5 shows the analogous progressive filtering effect operated on the external input information for increasing level’s depth.

Thereby, although from the system dynamics viewpoint it is possible to find a shallow recurrent network that is equivalent to an L-deepESN, the resulting form of the matrices that rules the state evolution, i.e. $\mathbf{V}$ and $\mathbf{V}_{in}$, has a distinct characterization that is due to the layered construction. Moreover, note that the probability of obtaining such matrices $\mathbf{V}$ and $\mathbf{V}_{in}$ by means of standard random reservoir initialization is negligible. Noteworthy, the aforementioned architectural constraints imposed by the hierarchical construction are reflected also in the ordered structure of the temporal features represented in higher levels of the recurrent architecture, as investigated for linear reservoirs in Section 3, and as observed, under a different perspective and using different mathematical tools, in the non-linear case in gallicchio2017deep .

As regards network training, as in standard RC, the only learned parameters of the L-deepESN are those pertaining to the readout layer. This is used for output computation by means of a linear combination of the reservoir units activations in all the levels, allowing the linear learner to weight differently the contributions of the multiple dynamics developed in the network state. In formulas, at each time step $t$ the output $\mathbf{y}(t)\in\mathbb{R}^{N_{Y}}$ is computed as $\mathbf{y}(t)=\mathbf{W}_{out}\mathbf{x}(t)$, where $\mathbf{W}_{out}\in\mathbb{R}^{N_{Y}\times N_{L}N_{R}}$ is the output weight matrix whose values are learned from a training set. Typically, as in the standard RC framework, the values in $\mathbf{W}_{out}$ are found in closed form by using direct methods such as pseudo-inversion or ridge regression lukovsevivcius2009reservoir .

3 Experimental Assessment

In this section we present the results of the experimental assessment of L-deepESN on the class of MSO tasks.

An MSO task consists in a next-step prediction on a 1-dimensional time-series, i.e. for each time step $t$ the target output is given by $y_{target}(t)=u(t+1)$, where $N_{U}=N_{Y}=1$. The considered time-series is given by a sum of sinusoidal functions:

[TABLE]

where $n$ denotes the number of sinusoidal functions, $\varphi_{i}$ determines the frequency of the $i$-th sinusoidal function and $t$ is the index of the time step. In the following, we use the notation MSO$n$ to specify the number $n$ of sinusoidal functions that are accounted in the task definition. The $\varphi_{i}$ coefficients in equation 6 are set as in otte2016optimizing ; koryakin2012balanced , i.e. $\varphi_{1}=0.2,\varphi_{2}=0.331,\varphi_{3}=0.42,\varphi_{4}=0.51,\varphi_{5}=0.63,\varphi_{6}=0.74,\varphi_{7}=0.85,\varphi_{8}=0.97,\varphi_{9}=1.08,\varphi_{10}=1.19,\varphi_{11}=1.27,\varphi_{12}=1.32$. In particular, in our experiments we focus on versions of the MSO task with a number of sine waves $n$ ranging from 5 to 12. This allows us to exercise the ability of the RC models to develop a hierarchy of temporal representations in challenging cases where the input signal is enriched by the presence of many different time-scales dynamics. Besides, note that summing an increasing number of sine waves with frequencies that are not integer multiples of each other makes the prediction task harder due to the increasing signal period. An example of the input signal for the MSO12 task is given in Figure 2.

For all the considered settings of the MSO task, the first 400 steps are used for training (with a washout of length 100), time steps from 401 to 700 are used for validation and the remaining steps from 701 to 1000 are used for test.

In our experiments, we used L-deepESN with $N_{L}$ levels, each consisting in a fully connected reservoir with $N_{R}$ units. We assumed that $\mathbf{W}_{in}$ and $\{\mathbf{W}^{(i)}\}_{i=2}^{N_{L}}$ are initialized with the same scaling parameter $scale_{in}$, and we used the same value of the spectral radius and of the leaking rate in every level, i.e. $\rho^{(i)}=\rho$ and $a^{(i)}=a$ for every $i$. For readout training we used ridge regression. Table 1 reports the range of values considered for every hyper-parameter considered in our experiments.

In order to evaluate the predictive performance on the MSO tasks, we used the normalized root mean square error (NRMSE), calculated as follows:

[TABLE]

where $T$ denotes the sequence length, $y_{target}(t)$ and $y(t)$ are the target and the network’s output at time $t$, and $\sigma_{y_{target}(t)}^{2}$ is the variance of $y_{target}$. For each reservoir hyper-parametrization, we independently generated 10 reservoir guesses, the predictive performance in the different cases has been averaged over such guesses and then the model’s hyper-parameterization has been selected on the validation set.

In the following Sections 3.1 and 3.2 we respectively evaluate our approach from a quantitative point of view, comparing the predictive performance of L-deepESN with related literature models, and from a qualitative perspective, by analyzing the frequencies of the state activations developed in the different reservoir levels.

3.1 Predictive Performance

In this section on recent (more complex and richer) variants of the MSO task, with a number of sine waves $n$ varying from 5 to 12. Table 2 provides a comparison among the NRMSE achieved on the test set by L-deepESN, neuro-evolution otte2016optimizing , balanced ESN koryakin2012balanced , ESN with infinite impulse response units (IIR ESN) holzmann2010echo and Evolino schmidhuber2007training on the considered MSO tasks. Furthermore, in the same table, we report the performance achieved by linear ESN built with a single fully connected reservoir (L-ESN), considering the same range of hyper-parameters and total number of recurrent units as in the L-deepESN case.

Noteworthy, the proposed L-deepESN model outperformed the best literature results of about 3 or 4 orders of magnitude on all the MSO settings. Furthermore, test errors obtained by L-ESN are always within one order of magnitude of difference with respect to the best state-of-the-art results. These aspects confirms the effectiveness of the linear activation function on this task, as also testified by our preliminary results that showed poorer performance for RC networks with $tanh$ units, unless forcing the operation of the activation function in the linear region. Moreover, L-deepESN always performed better then L-ESN. On the basis of the known characterization of the MSO task, our results confirm the quality of the hierarchical structure of recurrent reservoirs in representing multiple time-scales dynamics with respect to its shallow counterpart.

For the sake of completeness, we performed a further comparison considering L-deepESNs with the same number of total recurrent units used by the other ESN models taken into account from literature. In particular, balanced ESN used a maximum number of 250 units for model selection on the MSO5, MSO6, MSO7 and MSO8 tasks, while IIR ESN implemented 100 units on the MSO5 task (see results in Table 2). L-deepESN with $N_{L}=10$ and $N_{R}=25$ (i.e. a total of 250 recurrent units) performed better than balanced ESN, obtaining a test NRMSE of $1.20\cdot 10^{-11}$, $8.73\cdot 10^{-11}$, $2.42\cdot 10^{-10}$ and $9.06\cdot 10^{-10}$, on the MSO5, MSO6, MSO7 and MSO8 tasks, respectively. Moreover, even L-deepESN with $N_{L}=10$ and $N_{R}=10$ (i.e. a total of 100 recurrent units) obtained a better performance than IIR ESN, achieving a test error of $7.41\cdot 10^{-11}$ on the MSO5 task.

3.2 Hierarchical Temporal Representation Analysis

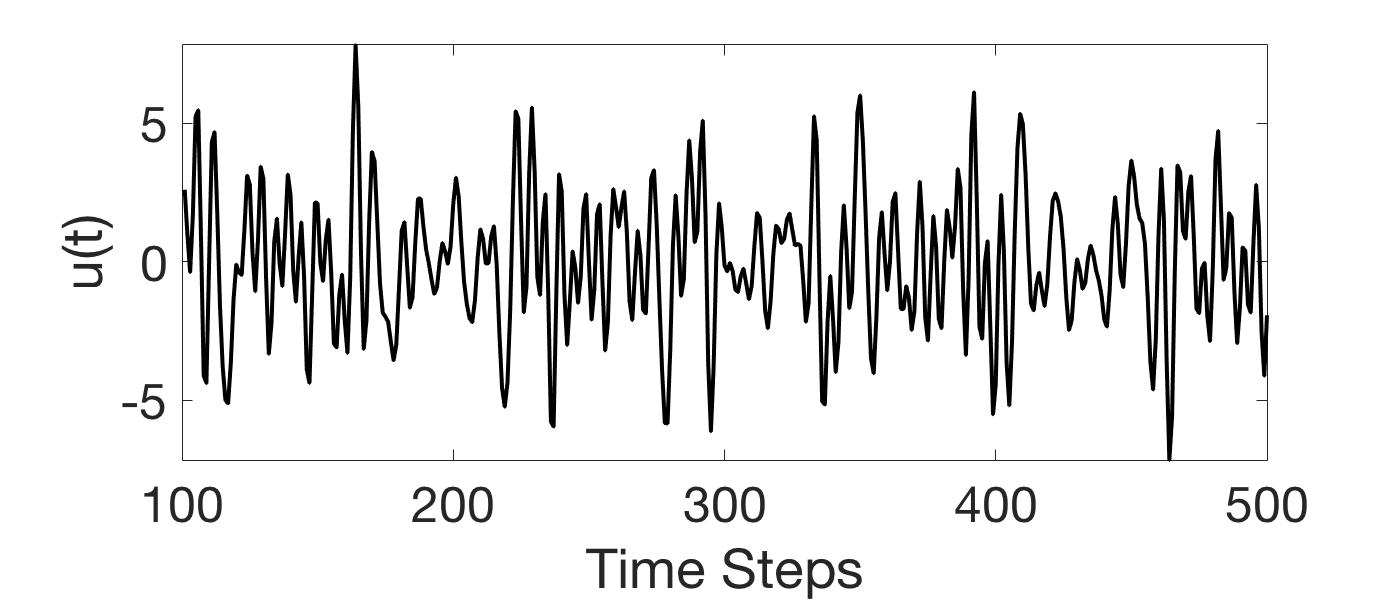

In this section we investigate the temporal representation developed by the reservoirs levels in an L-deepESN, using as input signal the sequence considered for the MSO12 task, featured by rich dynamics with known multiple time-scales characterization (see equation 6). We used the same reservoir hyper-parameterization selected for the predictive experiments on the MSO12 task in Section 3.1, namely $N_{R}=100$, $N_{L}=10$, $scale_{in}=1$, $a=0.9$ and $\rho=0.7$, averaging the results over 100 reservoir guesses. In our analysis, we first computed the states obtained by running the L-deepESN on the input sequence. Then, we performed the Fast Fourier Transform (FFT) frigo1998fftw algorithm on the states of all the recurrent units over the time, normalizing the obtained values in order to enable a qualitative comparison. Finally, we averaged the FFT values on a layer-by-layer basis.

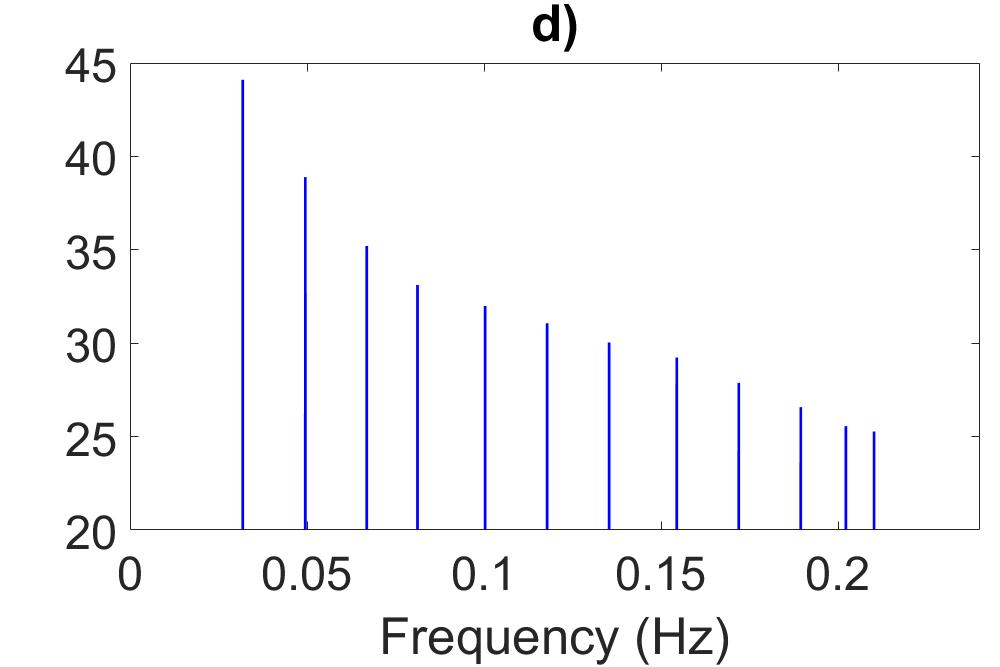

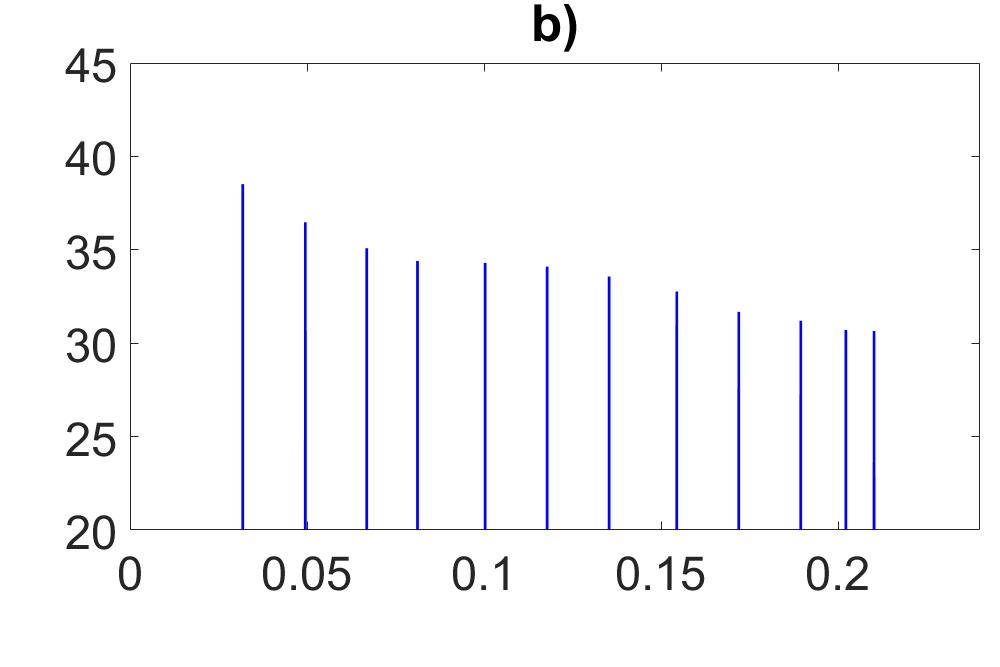

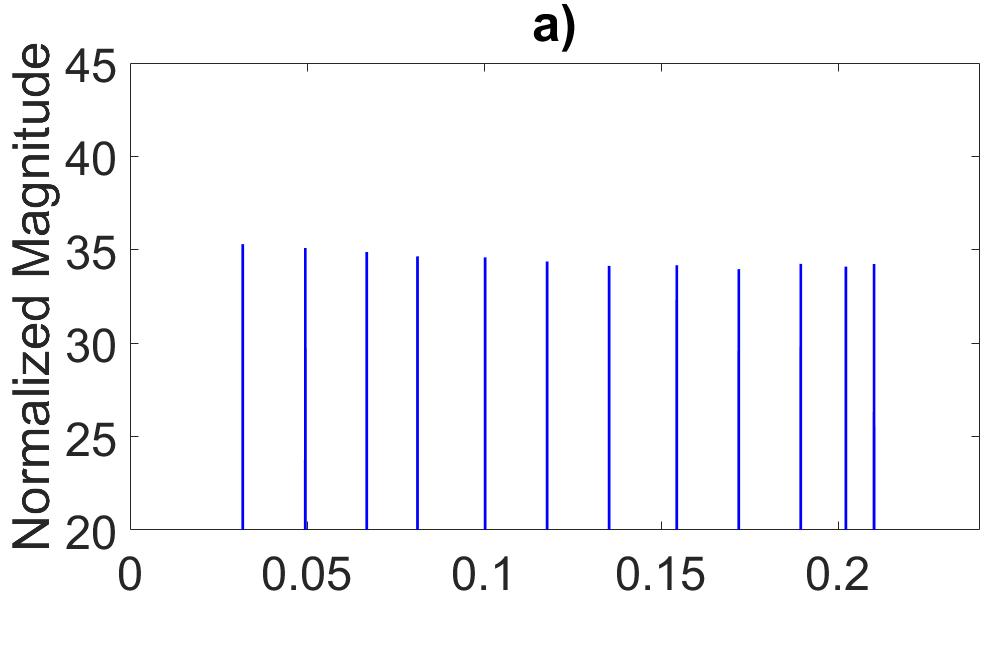

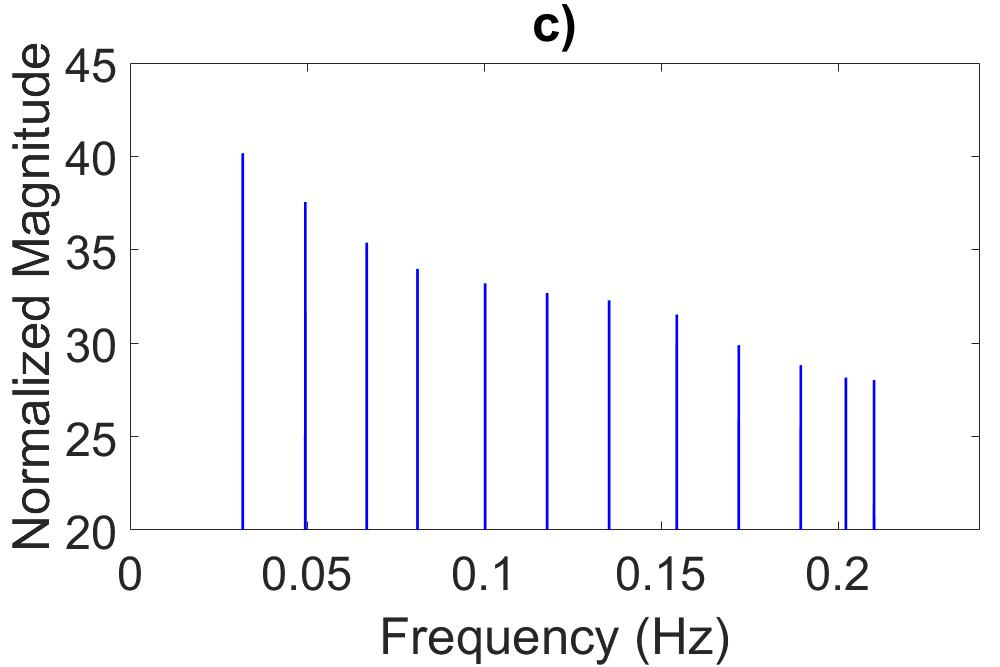

The FFT values obtained for progressively higher levels of L-deepESN are shown in Figures 3a), 3b), 3c) and 3d), which respectively focus on levels $1$, $4$, $7$ and $10$.

These figures represent the state signal in the frequency domain, where it is possible to see 12 spikes corresponding to the 12 sine waves components of the input. Looking at the magnitude of the FFT components, i.e. at the height of the spikes in plots, we can have an indication of how the signals are elaborated by the individual recurrent levels. We can see that the state of the reservoir at level 1 shows FFT components all with approximately the same magnitude. The FFT components of reservoir states at levels 4, 7 and 10, instead, show diversified magnitudes. Specifically, we can see that in higher levels of the network higher frequency components are progressively filtered, and lower frequency components tend to have relative higher magnitudes. This confirms the insights on the progressive filtering effect discussed in Section 2 in terms of mathematical characterization of the system.

Results in Figure 3 show that the hierarchical construction of recurrent models leads, even in the linear case, to a representation of the temporal signal that is sparsely distributed across the network, where different levels tend to focus on a different range of frequencies. Moreover, the higher is the level, the stronger is the focus on lower frequencies, hence the state signals emerging in deeper levels are naturally featured by coarser time-scales and slower dynamics. Thereby, the layered organization of the recurrent units determines a temporal representation that has an intrinsic hierarchical structure. According to this, the multiple time-scales in the network dynamics are ordered depending to the depth of reservoirs’ levels. Such inherent characterization of the hierarchical distributed temporal representation can be exploited when training the readout, as testified by the excellent predictive performance of L-deepESN on the MSO tasks reported in Section 3.1.

4 Conclusions

In this paper, we have studied the inherent properties of hierarchical linear RNNs by analyzing the frequency of the states signals emerging in the different levels of the recurrent architecture. The FFT analysis revealed that the stacked composition of reservoirs in a L-deepESN tends to develop a structured representation of the temporal information. Exploiting an incremental filtering effect, states in higher levels of the hierarchy are biased towards slower components of the frequency spectrum, resulting in progressively slower temporal dynamics. In this sense, the emerging structure of L-deepESN states can be seen as an echo of the multiple time-scales present in the input signal, distributed across the layers of the network. The hierarchical representation of temporal features in L-deepESN has been exploited to address recent challenging versions of the MSO task. Experimental results showed that the proposed approach dramatically outperforms the state-of-the-art on the MSO tasks, emphasizing the relevance of the hierarchical temporal representation and also confirming the effectiveness of linear signal processing on the MSO problem.

Overall, we showed a concrete evidence that layering is an aspect of the network construction that is intrinsically able to provide a distributed and hierarchical feature representation of temporal data. Our analysis pointed out that this is possible even without (or prior to) learning of the recurrent connections, and releasing the requirement for non-linearity of the activation functions. We hope that the considerations delineated in this paper could contribute to open an intriguing research question regarding the merit of shifting the focus, from the concepts of learning and non-linearities, to the concepts of hierarchical organization and distribution of representation to define the salient aspects of the deep learning framework for recurrent architectures.
