Is Spectral Width a Reliable Measure of GRB Emission Physics?

TL;DR

This paper critically evaluates the reliability of spectral width as a measure of GRB emission physics, demonstrating that physical model fitting provides a more accurate approach than width-based criteria.

Contribution

It shows that spectral width alone is insufficient for physical inference and advocates for direct physical model fitting in GRB spectral analysis.

Findings

Many spectra fit by synchrotron models despite width-based rejection.

Previous width measures fail due to multiple widths and spectral curvature.

Fitting physical models is more reliable than width-based criteria.

Abstract

The spectral width and sharpness of unfolded, observed GRB spectra have been presented as a new tool to infer physical properties about GRB emission via spectral fitting of empirical models. Following the tradition of the 'line-of-death', the spectral width has been used to rule out synchrotron emission in a majority of GRBs. This claim is investigated via reexamination of previously reported width measures. Then, a sample of peak-flux GRB spectra are fit with an idealized, physical synchrotron model. It is found that many spectra can be adequately fit by this model even when the width measures would reject it. Thus, the results advocate for fitting a physical model to be the sole tool for testing that model. Finally, a smoothly-broken power law is fit to these spectra allowing for the spectral curvature to vary during the fitting process in order to understand why the previous width measures poorly predict the spectra. It is found that the failing of previous width measures is due to a combination of inferring physical parameters from unfolded spectra as well as the presence of multiple widths in the data beyond what the Band function can model.

Figures

Tables

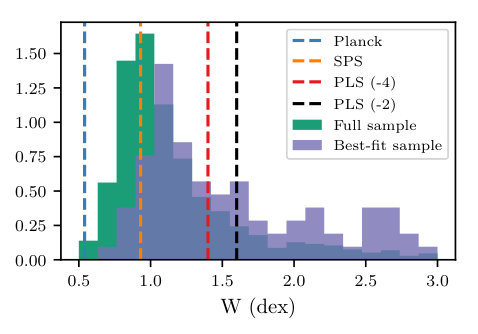

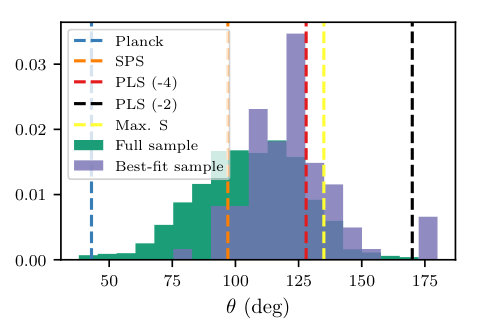

Table 1. Table 1: Derived Physical Widths

Width Measure	Planck	SPS	MS	PLS (-4)	PLS (-2)
$\theta$ (degrees)	43	97	135	128	170
$W$ (dex)	0.54	0.93	1.4	1.4	1.6

Table 2. Table 2: Spectral Fitting Results

GRB	${\alpha }_{\mathrm{Band}}$	${\alpha }_{\mathrm{SBPL}}$	${\Delta }_{\mathrm{SBPL}}$	${\delta }_{\mathrm{DIC}}$	$p_{\mathrm{eff}}^{\mathrm{Band}}$	$p_{\mathrm{eff}}^{\mathrm{SBPL}}$	$p_B^{\mathrm{Band}}$	$p_B^{\mathrm{synch}}$
080817161	$-{0.78}_{-0.08}^{+0.08}$	$-{0.79}_{-0.22}^{+0.26}$	${0.53}_{-0.53}^{+0.35}$	9.01	5.79	-1.51	0.184	0.144
080906212	$-{0.33}_{-0.07}^{+0.07}$	$-{0.60}_{-0.13}^{+0.10}$	${0.35}_{-0.14}^{+0.14}$	6.10	6.52	5.43	0.196	0.004
080925775	$-{0.63}_{-0.10}^{+0.08}$	$-{0.77}_{-0.23}^{+0.15}$	${0.44}_{-0.27}^{+0.21}$	5.27	5.62	2.92	0.172	0.150
081215784	$-{0.58}_{-0.02}^{+0.02}$	$-{0.46}_{-0.09}^{+0.06}$	${0.83}_{-0.16}^{+0.12}$	19.71	6.91	5.14
090131090	$-{0.55}_{-0.16}^{+0.12}$	${0.37}_{-1.26}^{+0.78}$	${0.76}_{-0.44}^{+0.23}$	1.88	-6.96	-5.12	0.046	0.026
090620400	${0.14}_{-0.10}^{+0.10}$	$-{0.03}_{-0.30}^{+0.20}$	${0.51}_{-0.24}^{+0.15}$	9.40	5.99	1.55	0.042
090626189	$-{0.35}_{-0.10}^{+0.09}$	${0.15}_{-0.86}^{+0.48}$	${0.90}_{-0.52}^{+0.37}$	24.69	4.53	-20.26	0.712	0.310
090809978	$-{0.50}_{-0.08}^{+0.08}$	$-{0.74}_{-0.15}^{+0.10}$	${0.28}_{-0.28}^{+0.12}$	6.62	5.98	3.38	0.658	0.384
090820027	$-{0.53}_{-0.03}^{+0.03}$	$-{0.66}_{-0.06}^{+0.06}$	${0.45}_{-0.12}^{+0.07}$	25.51	5.91	-2.66	0.004
090829672	$-{1.13}_{-0.04}^{+0.04}$	$-{1.26}_{-0.04}^{+0.03}$	${0.21}_{-0.12}^{+0.13}$	9.58	5.90	5.90	0.004
091003191	$-{0.56}_{-0.06}^{+0.06}$	$-{0.49}_{-0.24}^{+0.14}$	${0.79}_{-0.41}^{+0.22}$	24.86	5.45	-14.41	0.412	0.318
091127976	$-{1.13}_{-0.05}^{+0.05}$	$-{0.70}_{-0.35}^{+0.27}$	${1.28}_{-0.37}^{+0.28}$	24.09	5.95	-18.80	0.260	0.226
100131730	$-{0.28}_{-0.10}^{+0.09}$	$-{0.53}_{-0.21}^{+0.15}$	${0.35}_{-0.23}^{+0.18}$	6.67	5.76	4.03	0.790	0.426
100701490	$-{0.61}_{-0.04}^{+0.04}$	$-{0.58}_{-0.11}^{+0.08}$	${0.71}_{-0.27}^{+0.22}$	8.83	5.83	-2.53	0.338	0.156
100719989	$-{0.57}_{-0.04}^{+0.04}$	$-{0.21}_{-0.23}^{+0.19}$	${1.10}_{-0.32}^{+0.27}$	33.40	5.90	-11.16	0.004
101014175	$-{0.90}_{-0.04}^{+0.04}$	${0.16}_{-0.71}^{+0.40}$	${2.63}_{-1.05}^{+0.76}$	83.79	5.27	-46.02	0.096	0.092
110301214	$-{0.95}_{-0.03}^{+0.03}$	$-{1.11}_{-0.07}^{+0.05}$	${0.43}_{-0.09}^{+0.11}$	11.69	6.80	1.73
110625881	$-{0.53}_{-0.03}^{+0.04}$	$-{0.36}_{-0.27}^{+0.19}$	${0.80}_{-0.30}^{+0.23}$	25.06	6.97	-9.94	0.128	0.006
110921912	$-{0.64}_{-0.06}^{+0.05}$	${0.49}_{-0.74}^{+0.46}$	${2.10}_{-0.63}^{+0.65}$	34.57	5.32	-14.51	0.066	0.084
120102095	$-{1.06}_{-0.09}^{+0.08}$	$-{1.08}_{-0.19}^{+0.21}$	${0.60}_{-0.60}^{+0.45}$	9.97	3.38	-4.15	0.902	0.900
120217904	$-{0.78}_{-0.07}^{+0.06}$	$-{0.91}_{-0.11}^{+0.07}$	${0.37}_{-0.20}^{+0.18}$	8.73	6.45	3.91	0.566	0.606
120707800	$-{0.90}_{-0.11}^{+0.10}$	$-{0.59}_{-0.66}^{+0.44}$	${0.84}_{-0.70}^{+0.45}$	14.31	4.86	-9.81	0.176	0.158
120711115	$-{0.86}_{-0.04}^{+0.04}$	$-{0.88}_{-0.12}^{+0.08}$	${0.59}_{-0.42}^{+0.37}$	18.55	5.76	-14.57	0.562	0.422
120921877	${0.73}_{-0.29}^{+0.24}$	${1.21}_{-0.31}^{+0.79}$	${0.69}_{-0.22}^{+0.23}$	-5.04	-3.63	4.71	0.042
130606497	$-{1.06}_{-0.02}^{+0.01}$	$-{0.95}_{-0.06}^{+0.05}$	${1.20}_{-0.23}^{+0.21}$	20.49	5.92	-1.13	0.040
130704560	$-{0.90}_{-0.04}^{+0.05}$	$-{0.90}_{-0.15}^{+0.13}$	${0.63}_{-0.14}^{+0.11}$	3.14	4.60	5.47
130815660	$-{0.63}_{-0.07}^{+0.07}$	$-{0.92}_{-0.10}^{+0.07}$	${0.25}_{-0.11}^{+0.09}$	7.52	6.41	5.34	0.002	0.002
131028076	$-{0.33}_{-0.24}^{+0.78}$	$-{0.60}_{-0.03}^{+0.03}$	${0.55}_{-0.06}^{+0.06}$	1955.85	-169.51	6.02
131127592	$-{0.77}_{-0.04}^{+0.05}$	$-{0.99}_{-0.10}^{+0.08}$	${0.38}_{-0.15}^{+0.12}$	16.32	6.60	-4.45	0.024	0.022
140206304	${0.49}_{-0.24}^{+0.19}$	${1.24}_{-0.32}^{+0.74}$	${0.73}_{-0.16}^{+0.20}$	2.58	-3.03	2.96	0.506	0.002
140209313	$-{0.00}_{-0.14}^{+0.14}$	${0.23}_{-0.77}^{+0.49}$	${0.77}_{-0.51}^{+0.30}$	11.28	3.47	-4.71	0.162	0.026
150105257	$-{0.87}_{-0.13}^{+0.11}$	$-{0.90}_{-0.43}^{+0.54}$	${0.44}_{-0.44}^{+0.34}$	5.47	2.67	-1.37	0.314	0.288
150201574	$-{0.67}_{-0.03}^{+0.04}$	$-{0.97}_{-0.05}^{+0.05}$	${0.26}_{-0.06}^{+0.06}$	12.53	5.93	6.92
150213001	$-{1.22}_{-0.02}^{+0.02}$	$-{1.51}_{-0.02}^{+0.02}$	${0.20}_{-0.04}^{+0.04}$	52.70	7.03	6.62
150314205	$-{0.33}_{-0.04}^{+0.04}$	$-{0.36}_{-0.13}^{+0.10}$	${0.56}_{-0.15}^{+0.11}$	15.87	5.81	1.90
150330828	$-{0.88}_{-0.03}^{+0.03}$	$-{1.02}_{-0.04}^{+0.03}$	${0.27}_{-0.11}^{+0.12}$	13.57	6.76	4.64	0.002
150627183	$-{0.79}_{-0.03}^{+0.04}$	$-{0.99}_{-0.05}^{+0.04}$	${0.27}_{-0.10}^{+0.08}$	12.08	5.84	5.40	0.136	0.104
150824079	$-{0.42}_{-0.06}^{+0.07}$	$-{0.11}_{-0.35}^{+0.28}$	${1.10}_{-0.40}^{+0.35}$	24.03	6.44	-8.87	0.290	0.108
160101030	$-{0.80}_{-0.04}^{+0.05}$	$-{0.89}_{-0.18}^{+0.11}$	${0.55}_{-0.21}^{+0.14}$	6.46	6.73	-1.25	0.342	0.306
160118060	$-{0.54}_{-0.16}^{+0.13}$	$-{0.79}_{-0.19}^{+0.15}$	${0.22}_{-0.22}^{+0.17}$	9.30	1.41	-4.00	0.844	0.834
160215773	$-{0.92}_{-0.07}^{+0.06}$	${0.06}_{-0.69}^{+0.57}$	${2.96}_{-1.29}^{+1.05}$	19.55	4.46	-7.91	0.862	0.880
160422499	$-{0.82}_{-0.02}^{+0.02}$	$-{0.79}_{-0.08}^{+0.06}$	${0.72}_{-0.16}^{+0.14}$	50.64	6.80	-17.48
160521385	$-{0.38}_{-0.05}^{+0.04}$	$-{0.47}_{-0.13}^{+0.09}$	${0.58}_{-0.12}^{+0.12}$	20.82	6.76	-4.74	0.700	0.034
160530667	$-{0.54}_{-0.03}^{+0.03}$	$-{0.69}_{-0.05}^{+0.04}$	${0.42}_{-0.07}^{+0.06}$	17.84	6.97	6.47

Equations

$$W={\log }_{10}\left(\frac{E_2}{E_1}\right)$$

$$F_{\gamma }(\epsilon )=A{\left(\frac{\epsilon }{{\epsilon }_{\mathrm{piv}}}\right)}^{b}10^{(a-a_{\mathrm{piv}})}$$

$$a=m\Delta \log \left(\frac{e^q+e^{-q}}{2}\right),$$

$$q=\frac{{\log }_{10}(\epsilon /{\epsilon }_{\mathrm{break}})}{\Delta },$$

$$m=\frac{\beta -\alpha }{2},$$

$$n_{\mathrm{e}}(\gamma )\propto {\gamma }^{-p}\forall \gamma \ge {\gamma }_{\mathrm{inj}}$$

$$n_{\gamma }\left(\epsilon ;N,B,{\gamma }_{\mathrm{inj}},{\gamma }_{\max },p\right)=N{\int }_{{\gamma }_{\mathrm{inj}}}^{{\gamma }_{\max }}\mathrm{d}\gamma n_{\mathrm{e}}\left(\gamma ;p\right)\Phi \left(\frac{\epsilon }{{\epsilon }_{\mathrm{crit}}(\gamma ;B)}\right)$$

$$\Phi \left(w\right)={\int }_w^{\infty }\mathrm{d}x{K}_{5/3}\left(x\right)$$

$${\epsilon }_{\mathrm{crit}}\left(\gamma ;B\right)=\frac{3}{2}\frac{B}{B_{\mathrm{crit}}}{\gamma }^2.$$

$$\text{DIC}=-2\log \pi (y|\hat{\theta })+2p_{\mathrm{eff}}$$

$$\pi (y^{\mathrm{rep}}|y)=\int d\theta \pi (y^{\mathrm{rep}}|\theta )\pi (\theta |y)$$

$$p_{\mathrm{B}}=\pi (T(y^{\mathrm{rep}},\theta )\ge T(y,\theta )|y)\text{.}$$

Full text

1 Introduction

Catalogs of GRB observations contain spectra fit to the canonical Band function (Band et al., 1993) which consists of two power laws that are exponentially connected (Greiner et al., 1995; Briggs et al., 1999; Goldstein et al., 2012; Gruber et al., 2014; Yu et al., 2016). They are additionally fit with other empirical photon models when the Band function does not provide an acceptable fit. Historically, empirical approaches to characterizing GRB spectra have focused on the Band fitted low-energy power law slope, $\alpha$, from which conclusions are drawn about the physical process producing the observed emission (Crider et al., 1997; Preece et al., 1998). These studies find that a fraction, $\sim 1/3$, of GRB spectra cannot be explained by the simplest so-called slow-cooled synchrotron emission models and disfavor the more preferred (on account of radiative efficiency) fast-cooled synchrotron models (Sari et al., 1998; Beniamini & Piran, 2013). This has often been referred to as the ’line-of-death’ problem.

Further investigation of the spectra, aided by fitting physical synchrotron models to the data (Burgess et al., 2014), confirmed that many GRB spectra cannot be fit by fast-cooled electron synchrotron spectrum because the spectral width of the data was too narrow for this model (see however Uhm & Zhang, 2014; Zhang et al., 2016). Yet, it was found that some GRBs whose spectra violated the line-of-death were able to be fit with slow-cooled synchrotron models directly. This hinted that using the empirical Band function to characterize the physical origin of GRB spectra can be misleading.

Recently, new empirical tools have been introduced in an attempt to characterize the observed, prompt gamma-ray spectra of GRBs (Axelsson & Borgonovo, 2015; Yu et al., 2015). Motivated by the claims of Beloborodov (2013) that synchrotron emission is too broad for the observed data, these works take the unfolded empirical spectra from the GRB catalogs and characterized them by an auxiliary quantity, the spectral width, in an attempt to measure the broadness of the observed spectra. Both Axelsson & Borgonovo (2015) and Yu et al. (2015), then compare these observed widths with the widths of physical spectra and arrive at the conclusion that a large fraction of GRB spectra are inconsistent with synchrotron emission.

Such empirical procedures are powerful tools in astronomy. Without much effort or the need for computationally expensive physical models, the community can quickly categorize thousands of observations and provide tests for theoretical predictions from which models can be rejected. For this reason, many studies have begun adopting the width as a tool to advocate for photospheric emission (Ahlgren et al., 2015; Iyyani et al., 2015; Iyyani et al., 2016; Vurm & Beloborodov, 2016; Bharali et al., 2017). Therefore, these empirical tools must fully incorporate the properties of the observed data. The typical approach of post-processing unfolded, fitted GRB spectra introduces a bias; the inferred properties of the post-processing are influenced by properties of the functional form of the already-fitted model, and lose information that was contained in the raw count data. This is to say, that measuring the width of fitted Band functions does not directly measure the width inherent in the data. Herein, a different approach is taken to measuring the width of GRB spectra in order to incorporate properties of the folded data into empirical inferences. By modeling the width directly in the data during the fitting process, any bias introduced by the Band function’s natural width is reduced.

Even with the use of more predictive physical measures, the process is simply a substitute for the growing field of physical model fitting (e.g. Burgess et al., 2014; Ahlgren et al., 2015; Zhang et al., 2016). Thus it is now possible to evaluate the physical predictions of empirical measures directly. If an observed GRB can be fit with a physical model that would have been rejected by an empirical measure, then this empirical measure must be disregarded. The current paradigm of GRB spectral data modeling allows us to fit physical models directly to data, reject those models when necessary, and develop better theoretical predictions.

This article is organized into three main sections. First a review of the approaches to measuring the width developed in Axelsson & Borgonovo (2015) and Yu et al. (2015) (Section 2). Next, a sample of GRB spectra are fit with a physical synchrotron spectrum and an evaluation of the quality of the fit compared to the predictions of the empirical approaches is made (Section 3). Finally, a method for measuring the width of the spectra directly in the data by fitting a sample of GRB peak-flux spectra is employed (Section 4).

2 A Review of GRB spectral widths

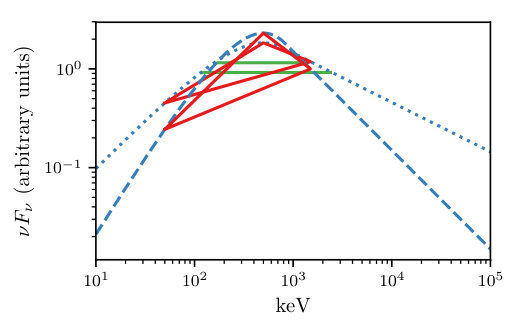

Two different approaches to measuring the width or sharpness of GRB data were undertaken by Axelsson & Borgonovo (2015) and Yu et al. (2015). Following (Beloborodov, 2013), Axelsson & Borgonovo (2015) define the width as the logarithmic ratio of the energies at the full width half maximum (FWHM) spectra:

[TABLE]

and Yu et al. (2015) defined a sharpness angle ($\theta$) at the $\nu F_{\nu}$ peak between two normalized fluxes at their respective normalized energies. With these definitions, both works define limits of different emission mechanisms in their respective measurement spaces as shown in Table 1. These mechanisms include a Planck function, single-particle synchrotron (SPS), synchrotron from a Maxwellian distribution of electrons (MS), and synchrotron from a power law distribution of electrons (PLS) with electron indices of either $p=2$ or $p=4$. In each approach, it was found that a majority of the data cannot be explained by synchrotron emission.

The sample selection in Axelsson & Borgonovo (2015) included GRBs from the Gamma-ray Burst Monitor (GBM) onboard the Fermi Gamma-ray Space Telescope (Meegan et al., 2009). The authors used all Band fits from the GBM catalog peak-flux spectral catalog regardless of which photon model best-fit the spectrum or if the Band function resulted in a failed maximum-likelihood fit. A cut was applied to the data requiring the low- and and high-energy power laws of the Band function ($\alpha$ and $\beta$ respectively) be $\alpha>-1.9$ and $\beta<-2.1$. Herein, this analysis is replicated and then a further cut requiring that the best fitting spectrum as determined in the catalog be either the Band function or a smoothly-broken power law (SBPL) is applied. This eliminates spectra that may include Band parameters from failed fits due to a simpler function such as the exponentially-cutoff power law (CPL) or power law (PL) having been recorded as the best-fit. The width and the sharpness angle are computed from each observation in both the full and best-fit samples. The software used to compute the width and sharpness angle is released for the purpose of replication. 111https://github.com/grburgess/width_calculator

Figure 1 shows that that when the cuts for best-fit spectrum are applied, the distributions shift to broader spectra or away from thermal spectra and towards optically-thin synchrotron spectra. Goldstein et al. (2012) note that with increasing signal-to-noise in the peak-flux spectra, the photon models shift from simple models such as the PL and CPL to more complex models such as the Band function or SBPL. This tentatively indicates that spectra are best fit by these simpler functions due to lack of photon statistics and not due to intrinsic physical reasons. The simpler functions are intrinsically narrower than the Band function and SBPL. Therefore, including spectra that were best fit by simpler (narrower) functions and not the Band function in the sample artificially leads to a bias towards narrower spectra. It is noted that Yu et al. (2015) computed the spectral sharpness on time-resolved spectra using the best-fitting model of each observed spectrum of the GBM time-resolved catalog (Yu et al., 2016).

The two width measures differ in their prediction for what types of spectra are viable. Figure 2 gives a toy example of how the measures look in $\nu F_{\nu}$-space. Examining the $W-\theta$ plane, Figure 3 shows the full sample against the GBM best-fit sample as well as the regions allowed for different models. Over-plotted are the relation between $W$ and $\theta$ with $\beta=-2.25$ and $\alpha\in\{-1.5,0\}$ as well as $\alpha=-0.8$ and $\beta\in\{-2.25,-4\}$. Interestingly, the best-fit sample follows a different trend than the full sample corresponding to the fixed-$\alpha$ curve. There is also a tentative correspondence of $\alpha$ and width with softer $\alpha$ values corresponding to larger width. It is clear that when a cut is not applied to the catalog fits to ensure that no failed fits are included, the width measures move away from the a clustering at ”non-synchrotron” allowed values. Nevertheless, as pointed out in each work, the standard synchrotron models are strongly rejected by the width measures.

3 Synchrotron emission

Instead of employing empirical measures to infer if synchrotron can fit the data, let us now fit the data with a synchrotron model. A power law synchrotron model has been implemented into 3ML via astromodels222https://github.com/giacomov/astromodels following the method of Burgess et al. (2014) and described in Appendix A except that the Maxwellian part of the electron distribution is not included. In the spirit of open software, the model is made publicly available for use with 3ML333https://github.com/grburgess/powerlaw_synchrotron. The model has three free parameters: a normalization, the electron spectral index, and an energy scaling parameter (the magnetic field strength) proportional to the peak of the $\nu F_{\nu}$ spectrum. While it is numerically expensive to compute, it is functionally less complex than the four parameter Band function and five parameter SBPL thus making it less flexible.

3.1 Sample selection

The GBM has observed over 2000 GRBs with cataloged spectral parameters readily available online444https://heasarc.gsfc.nasa.gov/W3Browse/fermi/fermigbrst.html. However, we must re-fit these data for this work. All spectral data used consist of 128 channel, time-tagged event (TTE) data obtained from the Fermi Science Support Center (FSSC). GRBs with cataloged parameters that were detected before 2017 and with best-fit peak-flux spectra of either Band or SBPL are used. These criteria result in a sample of 91 GRBs. Some catalog entries in the FSSC database had invalid response matrices and were discarded from the sample as it is important to use the exact responses that were used to compute the cataloged spectra555These errors involved RSP2 files that did not have valid time coverage intervals appropriate for the published peak-flux intervals.. Next, a cut on significance over background of 30$\sigma$ was introduced to have a bright sample. A requirement that at least two Sodium Iodide (NaI) detectors in addition to one Bismuth Germinate (BGO) detector have acceptable viewing geometry of the GRB as denoted in the catalog further reduces the sample size. No selection on previously fitted spectral parameters was made to eliminate biasing the sample. Additionally, GRBs with Fermi Large Area Telescope (LAT) data are cut as they may include additional spectral features such as high-energy cutoffs. The final selections resulted in a sample of 44 GRBs.

Using the information provided in the GBM catalog, detectors, background and peak-flux intervals are selected to appropriately match with the selections used to produce the catalog. It was required that some background selections be modified as the ones specified in the online catalog occasionally contained on-source intervals. With these selections, the backgrounds were fitted with a series of polynomials of varying order via an unbinned Poisson likelihood and the best one was chosen via a likelihood ratio test (LRT). The modeled background count estimation and Gaussian error were extrapolated into the source interval as described in Greiner et al. (2016). For source intervals, the 1.024 s peak-flux intervals denoted in the catalog were selected to minimize the effects of spectral evolution as well as to keep the properties of the sample close to those which were used in Section 2.

3.2 Spectral fitting procedure

For spectral analysis, the Multi-Mission Maximum Likelihood framework666https://github.com/giacomov/3ML (3ML Vianello et al., 2015) is used. The likelihood for the data is a Poisson-Gaussian likelihood to account for the Poisson nature of the total counts and the Gaussian nature of the modeled background (Arnaud, 1996). 3ML allows for both maximum likelihood (MLE) and Bayesian posterior simulation (BPS) via a variety of optimization or sampling algorithms. For this study, BPS was chosen via the emcee (Foreman-Mackey et al., 2013) algorithm to fit the data in the sample. The fitting procedure involves two steps. First, MLE is used to find a starting point for the BPS. For MLE, the MINUIT (James & Roos, 1975) optimization algorithm is used. With the MLE starting point, the posterior is sampled using flat, uninformative priors on all parameters777Log uniform priors are used on scale parameters and uniform priors for spectral indices for all fitting in this work. To account for systematics in the GBM response matrices, the total effective area of all detectors is scaled to the brightest NaI detector by multiplicative constants. Instead of uninformative priors, informative Cauchy priors centered at unity, i.e., no correction, and width set to reflect the assumed 10% systematics in the GBM responses (Bissaldi et al., 2009) are used. The use of a Cauchy prior rather than a Gaussian is due to its wider shape around the mean reflecting the lack of knowledge about the systematics within 10%, but the belief that they are not too extreme.

Model comparison between the empirical functions used in Section 4 and synchrotron is not attempted because an empirical function can always be designed to fit the data with more predictability than a physical model. Moreover, it is invalid to treat the Band function as a null hypothesis against synchrotron emission as it is not a hypothesis, a special case of synchrotron (a so-called nested model), or part of a closed set of models which are known to include the true data-generating process 888This is known as the $\mathcal{M}$-closed model comparison scenario (Vehtari & Ojanen, 2012) under which LRTs and Bayes factors are a valid statistical test. This is explicitly not the case herein..In fact, this is the goal of empirical models. Instead, model checking of the synchrotron fits is performed via posterior predictive checks (PPC) which allows us to see if the observed data look plausible under the posterior predictive distribution. The details of the procedure are discussed in Appendix D.

3.3 Synchrotron Results

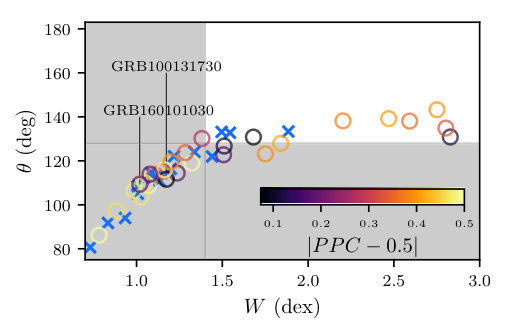

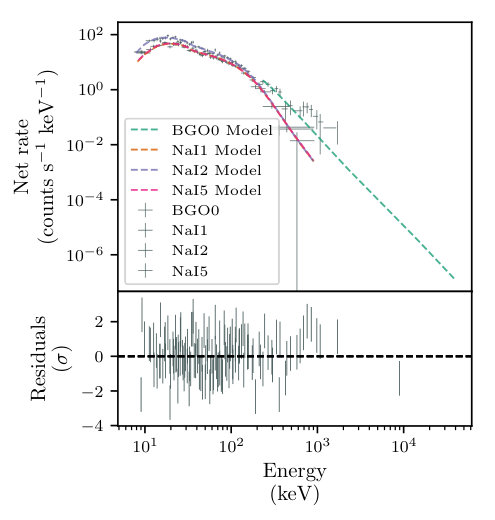

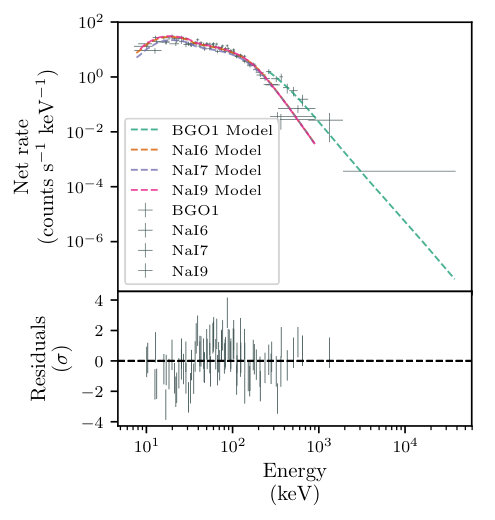

In order to directly compare a success fit of the synchrotron model to the inference of the width measure, all data were also fitted by the Band function allowing for the Band derived width to be computed. This allows the fits to synchrotron to be displayed in the $W-\theta$ plane with their PPC values in Figure 4 (a). Both width measures are computed from the Band function fit of the data. There are some spectra that lie in the excluded regions that have extremely poor PPC values as indicated by the blue X’s; however, several fits lie in the excluded region that can be well described by synchrotron. We demonstrate two of these fits in Figure 5 which had similar PPC values as those fitted with the Band function. This explicitly demonstrates that models with very different shapes in photon space can be statistically similar in detector count space thus making empirically derived model assessment procedures very uninformative. Similar results were recently shown in Vianello et al. (2018). This is likely due to the Band function not properly modeling the inherent shape of the data and hence resulting in an misleading $W$ or $\theta$ value. Therefore, empirical width measures fail to accurately predict if synchrotron is a viable spectral model for the data and hence cannot be used with the purpose for which they were designed. Synchrotron fit parameters are displayed in Appendix B. Figure 6 shows fits to both synchrotron and the Band function where the PPC for synchrotron was very bad and for the Band function acceptable. The pattern in the residuals for the synchrotron fit is not dissimilar to that of Figure 5 (a). Naively, this would indicate that both fits should have bad PPCs. This is precisely why visual inspection of residuals which measures only a single point in the posterior can be misleading. PPCs have the advantage of measuring the deviation from the data across the entire posterior.

Goodness of fit via any method should be regarded with caution because one never has access to the true model. Moreover, it is preferable to compare physically motivated models to each other and chose the one which provides the best predictability of the data similar to what we have done with the empirical models. Nevertheless, PPCs for the Band function fits are computed and displayed in Figure 4 (b). We can see that many of the Band function fits also do not accurately model the data according to the chosen PPC criterion, though the number of poor Band fits was smaller than poor synchrotron fits. The poor Band fits can be due to any number of issues such as unmodeled detector systematics like the K-edge non-linearity at $\sim 32$ keV (Bissaldi et al., 2009; Goldstein et al., 2012). Therefore, I conclude that while synchrotron nor the Band function provide universally adequate fits, synchrotron does fit some spectra which would be ruled out by the width measures.

4 Fitting for the width

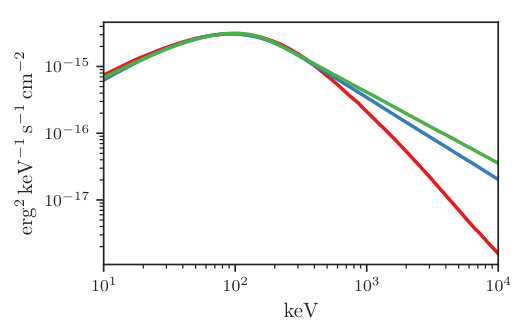

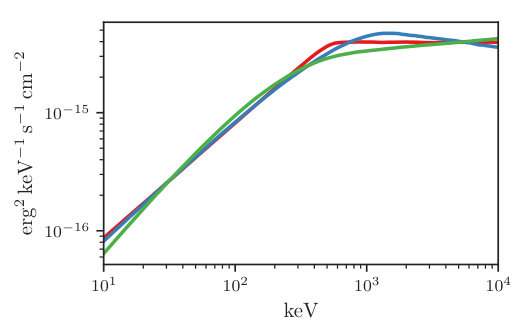

It is important to understand why the previous empirical width measures too conservatively reject synchrotron emission as shown in Section 3.3. Thus, the data are fitted with an SBPL of the form:

[TABLE]

where

[TABLE]

Here, $\varepsilon_{\rm break}$ is the break energy in keV, $\varepsilon_{\rm piv}$ is the pivot energy, $\alpha$ and $\beta$ are the low- and high-energy spectral indices respectively, and $\Delta$ is the break scale in decades of energy (for a similar use of a SBPL, see Ryde, 1999). The proxy for the width of the spectral data will be $\Delta$ as it is a measure that is optimized during the fitting process and thus contains information about the width of the folded data. Figure 2 demonstrates how the function changes as a function of $\Delta$ for a range covering the distribution found from fitting the data. The intent of this fitting is not to introduce a new measure of width in the literature, but rather to see if the Band function is adequately modeling all features present in the data.

4.1 Fit Results and Model Selection

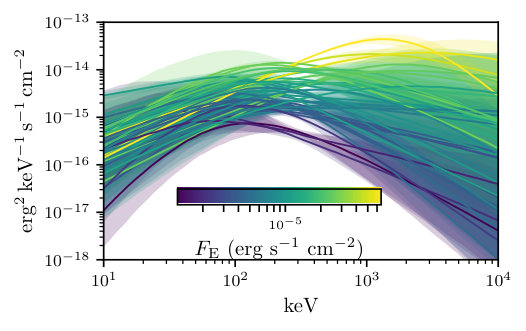

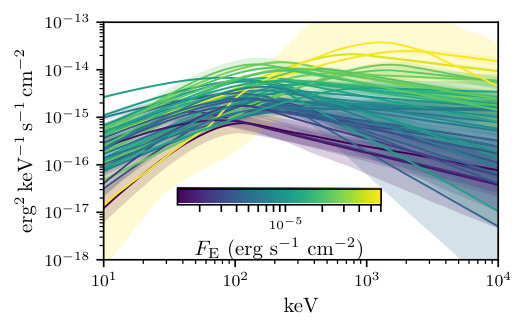

Every GRB spectrum is fit to both the SBPL and Band function so that a comparison between the models can be made. The complexity of the SBPL function can result in local minima regardless of the optimization scheme; therefore, optimizing on a logarithmic grid of $\Delta$ and spectral normalizations results in a more robust result. Figure 7 illustrates the results of the fits to the two different functions. It can be seen that the SBPL allows for more posterior variance below the $\nu F_{\nu}$ peak due to its freedom to vary its width during the fit. Model selection via the likelihood ratio test (LRT) between the Band function an SBPL is not possible due to the fact that they are not nested functions. Additionally, for the empirical functions used, the aim is to assess whether a richer model is required to describe the data. The deviance information criteria (DIC) can be used to judge which model provides the best predictability of the data (See Appendix C). Table 2 details the results of the fits. Of the spectra fit, all but one are best described by the SBPL, i.e., positive $\delta_{\rm DIC}$ in Table 2.

The ability to fit a width parameter in the data indicates that the spectra have a variety of inherent widths rather than a single natural width of the Band function. Any change in the empirically measured width of the Band function is related to a change in spectral indices only. This variety is not captured by the Band function and hence, widths derived from the Band function can be systematically biased. It is noted that in GBM spectral catalogs, an SBPL is also fit to the spectra but its $\Delta$ is always fixed to 0.3 for historical reasons related to the bandpass of BATSE (Kaneko et al., 2006).

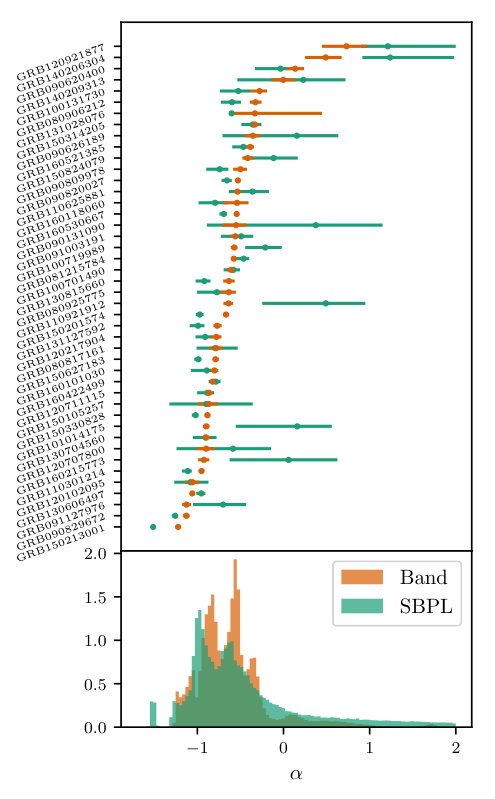

Another interesting feature of the SBPL fits is the different values of the measured $\alpha$ values. The distribution of $\alpha$ from the SBPL is shifted to softer values with a tail extending to hard values (see Figure 8). Noticeably larger uncertainty on SBPL $\alpha$’s is due to the additional freedom in the curvature. Physical inferences coming from empirical models are dependent on the spectral shape from which they are derived. The long standing paradigm that the Band function’s $\alpha$ should be used to infer physical spectra as well as the newly proposed limits of width measures do not hold if the Band function is not the best-fit to the data.

4.2 The smoothly-broken power law and synchrotron

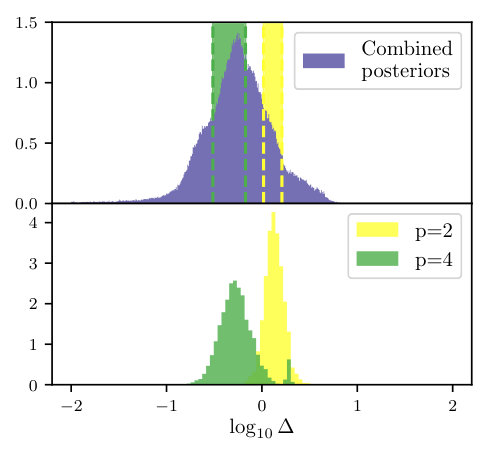

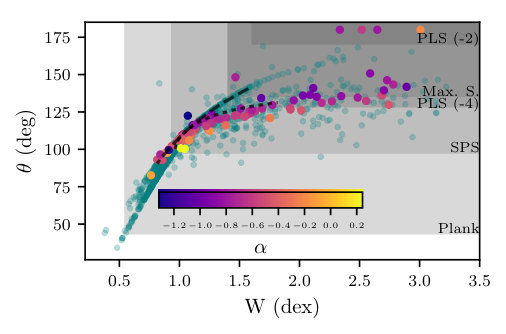

Let us now examine the proxy for the width in the data, $\Delta$, and its relation to synchrotron emission. To incorporate the uncertainty on $\Delta$ into the full sample distribution, the full marginal distributions from all fits are combined into a single distribution in Figure 9. The distribution is unimodal with a tail extending to narrow widths. Hints of substructure are visually apparent in the distribution, but are likely an artifact of small sample size.

A simple power law synchrotron model from Baring & Braby (2004); Burgess et al. (2014) was used to create synthetic count spectra using the GBM response matrices from a GRB in the sample. These synthetic spectra were then fit via BPS to a SBPL to estimate the values of $\Delta$ for different electron power law distributions. However, several factors influence the value of $\Delta$ beyond the shape of the electron distribution alone; most notably, the number of counts at high-energy in the synthetic spectra. This makes it difficult to set a hard limit on which values of $\Delta$ correspond to various synchrotron scenarios999Both Axelsson & Borgonovo (2015) and Yu et al. (2015) calculate their respective limits in photon space rather than count space. Both works use Monte Carlo methods to calculate reportedly small errors on their respective measures.. Nevertheless, examining the distribution of $\Delta$ expected from synchrotron with electron power law indices $p=2,4$ is necessary to follow the previous investigations into the spectral width. These limits are displayed in Figure 9 both as the full marginal distribution from the BPS and as their respective 0.68 credible regions. The peak of the observed $\Delta$ distribution coincides with the SBPL-fitted $\Delta$’s of the synthetic synchrotron spectra when $p=4$. Thus, the distribution of widths from real data are marginally consistent with the limits derived from pure synchrotron emission. This is notably in contrast to the conclusions derived in previous studies providing further evidence that the natural width of the (less predictive) Band function is biasing the previously derived widths.

While these results are promising for synchrotron emission, it is worth examining their weaknesses. The difficulties of reconciling empirical models with physical spectra presents us with problems even when the more flexible SBPL is used to fit and characterize the spectra. Consider Figure 10 which shows the fitted Band and SBPL functions to simulated synchrotron spectra. In the first case (Figure 10 (a)) the SBPL accurately models the spectra, in the second case (Figure 10 (b)) the SBPL overestimates the peak energy of the synthetic model and poorly models the non power law behavior of spectrum at low energies. In each case, the Band function fails to accurately model the synthetic spectrum. For these reasons, even though $\Delta$ serves as a better proxy for the width due to its ability to model the width directly in the data, it should not be used to set quantitative limits or inferences for the true underlying emission mechanisms in the data.

5 Discussion

It has been demonstrated that the empirical width measures derived in Axelsson & Borgonovo (2015) and Yu et al. (2015) fail to predict when GRB data cannot be fit with a synchrotron spectra. Many of the spectra could be adequately fit with this model in regardless of the value of the spectral width derived from the Band function. These measures are derived from an empirical models that can poorly represent synchrotron emission. This was previously highlighted in Lloyd & Petrosian (2000) where parameterized synchrotron models were fit directly to the data and their asymptotic low-energy power law behavior was compared to that of the Band function. Only a small subset of GBM peak-flux spectra were examined and hence no physical conclusions about the validity of the synchrotron model used herein can be drawn. Such conclusions require examining the time-resolved spectra of individual GRBs. Instead, it was assessed whether empirical width measures which would have rejected synchrotron failed when synchrotron was actually fit to the same spectra. Furthermore, the question of whether synchrotron emission can be rejected when compared to other physical models has not been posed in this work as there are no other publicly available physical models to compare against. In reality, an emission model like synchrotron possesses multiple widths which may change non-linearly with the model parameters. This further exaggerates the issues with using secondary inference methods in fitted model space. This was not addressed directly in this study because the fact that the width fails to accurately predict the underlying model in the simple case is enough to demonstrate that fitting physical spectra is the proper way forward in GRB emission studies.

In an attempt to understand the spectral width by including the width of the data rather than the unfolded model, a sample of GRBs was re-fit with a SBPL and the distribution of its break scale parameter ($\Delta$) was examined. With this measure, GRBs exhibit a variety of inherent data widths and the majority of these widths are not inconsistent with synchrotron emission. While this approach is a more appropriate empirical measure of the spectral width, it too suffers from the problem that the SBPL does not always model the shape of synchrotron emission properly. It is not entirely surprising that these empirical measures do not serve as quantitative inferences for physical models. Burgess et al. (2014, 2015) showed that synchrotron emission can fit GRBs that violate the ’line-of-death’ and that Band $\alpha$ values provide little insight into the presence of blackbodies in GRB spectra. Thus, it is strongly suggested that the fitting of physical models be performed to ascertain which model best represents the data.

While model checking can provide a qualitative guide to the validity of a spectra fit, other information should be used to fully justify the use of a model. These information can include physically motivated priors and predictions from time-evolving models such as those used in Dermer et al. (1999); Pe’er (2008); Bošnjak & Daigne (2014). For example, Burgess et al. (2016) used temporal predictions from Dermer et al. (1999) combined with synchrotron spectral fits to argue for an external shock interpretation of GRB 141028A. Therefore, without temporal or other information, it is important to not stress the physical implications of this work. Empirical models provide no such insight to physics other than assessing general features about the data e.g., the total flux, peak $\nu F_{\nu}$ energy and the existence of high-energy power laws. Deeper physical inferences from these empirical models should be regarded with caution until verified by complimentary analysis with physical emission models.

Supporting Material

All processed GBM data files for use with XSPEC or 3ML as well as the analysis files containing the parameter marginals (readable by 3ML) are released for the purposes of replication. In addition, sample code for constructing the models used is also released. All files can be located here: doi:10.7910/DVN/BDC2GS.

Acknowledgements

I gratefully acknowledge fruitful discussion with Damien Bégué, Giacomo Vianello, David Yu, Patricia Schady, and Thomas Krühler concerning various aspects of this work.

Appendix A Synchrotron Modeling

In order to fit synchrotron emission directly to the data, we will assume a simple and pragmatic parameterization. More importantly, we will assume the parameterization which captures the assumptions used to derive the rejection criteria for the various width measures adopted in previous works. The observed emission is assumed to come from a power law distribution of electrons that have been accelerated by an unspecified mechanism. Thus,

[TABLE]

where $\gamma$ is dimensionless electron energy, $\gamma_{\mathrm{inj}}$ the energy at which electrons are injected with spectral index $p$. The electrons are assumed to not cool via their radiation of synchrotron photons within a dynamical time. Therefore, we simply compute the synchrotron emission of this power law distribution by convolving it with the standard synchrotron emission kernel (Blumenthal & Gould 1970). Therefore,

[TABLE]

where

[TABLE]

and

[TABLE]

Here, $N$ is an arbitrary spectral normalization constant, $B$ is the magnetic field strength, $B_{\mathrm{crit}}=4\cdot 10^{14}$ G, and $\gamma_{\mathrm{max}}$ is the maximum electron energy which is set to have the spectral cutoff of the photon model above the GBM energy range.

With this simple parameterization, $B$ and $\gamma_{\mathrm{inj}}$ are multiplicatively degenerate in setting the $\nu F_{\nu}$ peak of the spectrum, thus, the choice is made to fix $\gamma_{\mathrm{inj}}=10^{5}$ which is an arbitrary choice. This implies that the value of $B$ found during fits is scaled and cannot be interpreted physically other than setting the location of the $\nu F_{\nu}$ peak. Therefore, there are three fitting parameters: $B$, $p$, and the arbitrary spectral normalization $N$. The high-energy shape of the photon spectrum is set by $p$ while the low-energy shape is that of the synchrotron kernel. Note that this is the same functional form of synchrotron that is used to derive the conditions for rejecting synchrotron emission via the width or the line of death.

Appendix B Synchrotron Fit Parameters

Here I include parameter plots for the synchrotron fits for reference. The synchrotron model in this work contains only two shape parameters and a normalization. Figure 11 display the magnetic field strength and power law electron injection index from the fits. The plots are ranked and display the 68% highest density posterior intervals obtained from the fit. The electron spectral index is often found to be quite steep. This is not in conflict with expectations from relativistic, oblique shock acceleration theory (Baring 2006).

It is stressed that the value of the magnetic field strength value has no scale unless assumptions about the emission region (emission radius, time scale, etc.) are assumed as noted in A. For further discussion see Burgess et al. (2014).

Appendix C Deviance Information Criteria

Model selection is one of the most difficult procedures in spectral analysis. The use of reduced $\chi^{2}$ as a model rejection criterion is not applicable to photon counting problems though it has previously been employed in GBM spectral catalogs. The lack of Gaussian likelihoods, generally non-linear models, unattained asymptotics of Wilk’s theorem (Wilks 1938) and the generally non-nested models employed (Protassov et al. 2002) violate a host of regularity conditions required to apply simple hypothesis testing. Additionally, the effective number of free parameters in a model is not necessarily equal to the number of fitted functional parameters. Therefore, rather than likelihood ratio tests, information criteria which seek to quantify the predictive accuracy of a model can be more useful for the current situation (see however the technique of Algeri et al. 2016, for an approach to assessing non-nested likelihood ratio tests)101010While Bayes factors and marginal likelihoods can also avoid the typical problems of the LRT, they are sensitive to the chosen prior distributions..

The Akaike information criteria (AIC) (Akaike 1977) has recently become common in X-ray spectral analysis as a model comparison tool (Zhang et al. 2011; Buchner et al. 2014); however, it relies of point estimates, an assumption of large number statistics, and only penalizes model complexity by the number of free model parameters. The deviance information criteria (DIC), uses the posterior mean, rather than a point estimate and penalizes model complexity with the effective number of free parameters which are a function of both the data and the model (Spiegelhalter et al. 2002).

[TABLE]

where $y$ are the data, $\hat{\theta}$ is the posterior mean and $p_{\rm eff}$ is the effective number of free parameters. The effective number of free parameters is a function of both the model and the data and can be negative if the posterior mean is far from the mode (Gelman et al. 2014). This allows for a model and data sensitive measure of a model’s data predictability.

Appendix D Posterior Predictive Checks

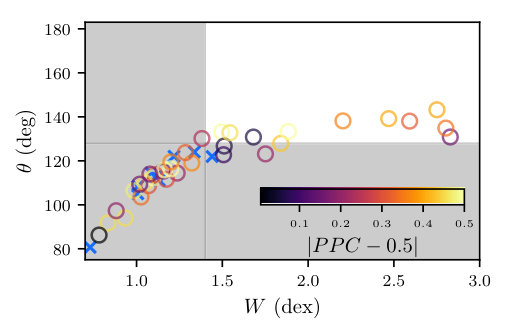

Assessment of a model’s fit to data via posterior predictive checks (PPCs) allows for incorporating information in the posterior into a quantitative goodness of fit measure for future observations. The usefulness of PPCs in X-ray spectral analysis has been demonstrated in van Dyk & Kang (2004). PPCs offer a guide to model assessment but are simply a self-consistency check. In the current situation we lack other physical models with which to check against. The posterior predictive distribution is defined as

[TABLE]

where $y$ are the data and $y^{\rm rep}$ are data replicated from a the posterior and $\theta$ are the parameters. One way to assess the lack of fit of data to this distribution is a tail-area probability known as the posterior p-value:

[TABLE]

Here, $T$ is a test statistic. For this work, 500 replicated spectra are produced from the simulated posterior and $T(y,\theta)$ is defined as the likelihood value for the given parameter. We compare these test statistics to that of the actual data to arrive at a measure of goodness of fit. A fit that adequately models the data should have $p_{\rm B}\sim 0.5$ (Gelman 2013). Thus, we define a so-called good fit as being $|p_{\rm B}-0.5|\sim 0$.

Model assessment and comparison is an ongoing and active part of statistical research. Further details can be found in (Vehtari & Ojanen 2012).
