Emergence of Chiral Spin Liquids via Quantum Melting of Non-Coplanar Magnetic Orders

TL;DR

This paper demonstrates that chiral spin liquids can emerge from the quantum melting of non-coplanar magnetic orders in frustrated spin models on various lattices, using advanced numerical methods.

Contribution

It provides a unified theoretical framework showing how chiral spin liquids arise from magnetic orders with scalar chirality through quantum melting.

Findings

Chiral spin liquids emerge from triple-Q spin crystals with tetrahedral order.

Quantum melting transitions can be described by effective Chern-Simons-Higgs theories.

Materials with magnetic skyrmion crystal order are promising candidates for realizing CSLs.

Abstract

Quantum spin liquids (QSLs) are long-range entangled states of quantum magnets which lie beyond the Landau paradigm of classifying phases of matter via broken symmetries. A physical route to arriving at QSLs is via frustration-induced quantum melting of ordered states such as valence bond crystals or magnetic orders. Here, we show, using extensive exact diagonalization (ED) and density-matrix renormalization group (DMRG) studies of concrete $SU(2)$ invariant spin models on honeycomb, triangular and square lattices, that chiral spin liquids (CSLs) emerge as descendants of triple-$Q$ spin crystals with tetrahedral magnetic order and a large scalar spin chirality. Such ordered-to-CSL melting transitions may yield lattice realizations of effective Chern-Simons-Higgs field theories. Our work provides a distinct unifying perspective on the emergence of CSLs, and suggests that materials with magnetic skyrmion crystal order might provide a good starting point to search for CSLs.

Figures

Equations

$$H_{\mathrm{spin}}=\frac{1}{2}\sum _{i,j}{J}_{i,j}{\mathbf{S}}_i\cdot {\mathbf{S}}_j+J_{\chi }\sum _{i,j,k\in △}{\mathbf{S}}_i\cdot ({\mathbf{S}}_j\times {\mathbf{S}}_k).$$

$$F_n(g)=\frac{1}{n}\sum _{i=1}^n\left|⟨{\Psi }_i(g)⟩{\Psi }_i(g+\delta g)\right|$$

$${\chi }_n^F=\frac{F_n(g+\delta g)-2F_n(g)+F_n(g-\delta g)}{(\delta g{)}^2}.$$

Full text

Quantum spin liquids (QSLs) are phases of matter which defy a classical Landau description in terms of broken symmetries and local order parameters. Zhou et al. (2017); Savary and Balents (2017) Unlike ordered phases, which can be described using simple mean field wavefunctions with short-range entanglement, QSLs feature long-range entanglement and unusual excitations with fractional quantum numbers. This leads to robust many-body properties of QSLs which are of potential use in topological quantum memories and quantum computation. Nayak et al. (2008)

In this paper, we focus on two-dimensional (2D) chiral spin liquids (CSLs), close cousins of the celebrated fractional quantum Hall states. CSLs exhibit topological ground state degeneracies, possess gapped anyonic excitations, and were originally proposed by Kalmeyer and Laughlin in 1987 Kalmeyer and Laughlin (1987) as candidate ground states of the spin-$1/2$ triangular lattice Heisenberg antiferromagnet (although this model Hamiltonian is now known to have long-ranged magnetic order). Specifically, viewing the spins as hard-core bosons, the Kalmeyer-Laughlin state is equivalent to a $\nu\!=\!1/2$ bosonic Laughlin liquid with gapped semion excitations.

The surge of recent interest in such CSLs started with the introduction of parent Hamiltonians or exactly solvable models, Schroeter et al. (2007); Thomale et al. (2009); Greiter et al. (2014a); Meng et al. (2015) as well as numerical studies of a variety of simple frustrated spin models which yielded CSL ground states on the kagome, He et al. (2014); Bauer et al. (2014); Gong et al. (2014); Kumar et al. (2014); Gong et al. (2015); Wietek et al. (2015); Zhu et al. (2016); Hu et al. (2015); Bieri et al. (2015); Kumar et al. (2015) square, Nielsen et al. (2013); Poilblanc et al. (2015); Liu et al. (2016) honeycomb, Hickey et al. (2016) and triangular lattices. Hu et al. (2016); Wietek and Läuchli (2017) CSLs have also been described using variational Gutzwiller projected fermion or boson wavefunctions, whose low energy properties are captured in terms of spin-$1/2$ partons (spinons) coupled to emergent dynamical gauge fields. From this perspective, we can obtain the CSL ground state by starting with spin-$1/2$ fermions filling up individual Chern bands with $C=1$, leading to an integer quantum Hall state with $\sigma^{\rm total}_{xy}\!=\!2e^{2}/h$, and Gutzwiller projecting this state (which enforces the constraint of one fermion per site) to yield a legitimate spin wavefunction. Wen et al. (1989); Wen (1991); Zhang et al. (2011, 2012) A complementary picture is to view them as Gutzwiller projected integer quantum Hall states of strongly interacting bosons with $\sigma_{xy}\!=\!2e^{2}/h$. Barkeshli (2013); He et al. (2015) Gutzwiller projection promotes the global $U(1)$ symmetry of the fermions or bosons to a local gauge invariance, leading to an emergent low energy $U(1)_{2}$ Chern Simons theory.

A physically different way to think about QSLs is to start from broken symmetry phases of $SU(2)$ magnets, and introducing strong quantum fluctuations to melt the long-range order. For instance, certain frustrated quantum magnets support ordered crystals of valence bond singlets between nearby spins. However, quantum fluctuations of such singlet dimers can melt the crystalline order, resulting in a quantum superposition of dimer configurations, which provides the resonating valence bond description of gapped $Z_{2}$ QSLs. Moessner and Sondhi (2001) We can also arrive at such a QSL by quantum disordering a coplanar spin spiral, without simultaneously proliferating $Z_{2}$ vortices which are topological point defects in the magnetically ordered phase. Chubukov et al. (1994)

Here, we focus on the question of how to realize CSLs from quantum disordering magnetically ordered states. We consider previously discovered $SU(2)$ invariant CSLs on honeycomb, triangular and square lattices, and use extensive numerical exact diagonalization (ED) and density matrix renormalization group (DMRG) calculations to show that they descend from parent non-coplanar magnetic orders which are skyrmion crystals with zero net magnetization and a nonzero scalar spin chirality. Our work thus presents a distinct unifying perspective on such chiral spin liquids, and suggests that Mott insulators with magnetic skyrmion crystal order might be viable candidates for realizing chiral spin liquids - by tuning exchange couplings via physical pressure or chemical composition in order to melt the magnetic order.

Our study relies crucially on the classification of so-called “regular magnetic orders” (RMOs): magnetically ordered states which preserve all lattice symmetries modulo global spin rotations. Messio et al. (2011) (We note that the original classification of classical RMOs considered orders which preserved all lattice symmetries up to global spin rotations and spin-inversion $\mathbf{S}\to-\mathbf{S}$. However, spin inversion is not a symmetry for quantum spins or even a classical symmetry in the presence of chiral interactions, so we drop spin inversion in our definition of RMOs.) If we start from such a RMO, and introduce strong quantum fluctuations and frustration, we might expect to restore a fully symmetric liquid state of spins. This suggests that RMOs with non-coplanar order, net zero magnetization, and a large scalar spin chirality are likely to be natural candidates for parent states of singlet CSLs.

As an example, we have recently studied the phase diagram of an extended Heisenberg model on the honeycomb lattice with additional chiral spin interactions, Hickey et al. (2016) and found that the CSL emerges in proximity to a tetrahedral state, which is a non-coplanar RMO. Similar results were subsequently found in a triangular lattice spin model. Wietek and Läuchli (2017) Here, we present careful ED and DMRG calculations of the fidelity and energy in these two models, which show that the tetrahedral state and the CSL appear to be separated by a continuous rather than a first-order transition. This signifies that the CSL may be viewed as descending from the tetrahedral state on both lattices. Interestingly, such tetrahedral orders and the possibility of topological phases arising from them was pointed out in previous work on itinerant fermion models.Martin and Batista (2008); Kato et al. (2010); Rahmani et al. (2013); Jiang et al. (2014)

We next turn to the square lattice, for which there are no non-coplanar RMOs (as we define it). However, if we allow for $C_{4}$ symmetry breaking, it turns out there is a non-coplanar RMO with net zero magnetization, which is a distorted ‘tetrahedral umbrella’ state. We therefore focus here on Hamiltonians on the square lattice which explicitly break the $C_{4}$ symmetry of the Hamiltonian, by including a staggered chiral interaction. This does not impact the topological order of the CSL, since it should survive even in the presence of such symmetry breaking. However, the simplification is that at the transition from the magnetically ordered state to the CSL, we only need to restore spin rotation symmetry while inducing topological order, similar to the triangular and honeycomb lattice examples. Indeed, we find that in this case, the combination of staggered chiral interaction and a further neighbor Heisenberg coupling again drives what appears to be a continuous quantum phase transition between a tetrahedral umbrella state and a square lattice CSL.

We conjecture that the phases and phase transitions we have uncovered in our numerical studies provide concrete microscopic realizations of Chern-Simons-Higgs field theories. In this scenario, the CSL is the phase with gapped matter fields (bosonic spinons) minimally coupled to a $U(1)_{2}$ Chern Simons gauge theory in its deconfined phase, while the ordered phase is a Higgs condensate of spinons which leads to magnetic order and a simultaneous loss of topological order.

I Model Hamiltonians

The models we study in this paper are $SU(2)$ invariant spin Hamiltonians with extended Heisenberg interactions, supplemented by a chiral $3$-spin interaction:

[TABLE]

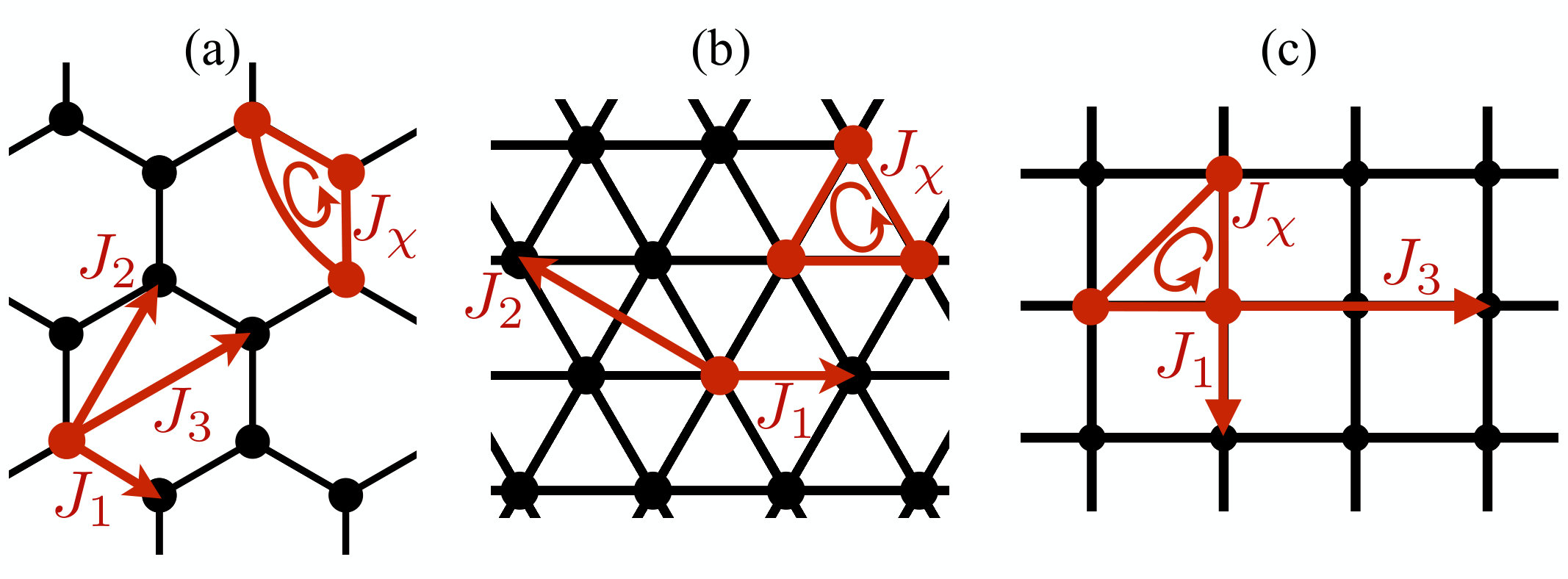

Here, as indicated in Fig. 1, the extended Heisenberg interactions include the first few neighbors, while $\sum_{\triangle}$ in the chiral interaction denotes a sum over the smallest triangular plaquettes, with $\{i,j,k\}$ taken anti-clockwise around the triangle.

We emphasize that the chiral terms, which explicitly break time-reversal symmetry, are not necessarily crucial for realizing CSLs; indeed, it has been shown on the kagome lattice that a CSL with spontaneous breaking of time-reversal symmetry can be realized in an extended Heisenberg model. Gong et al. (2015) Nevertheless, we keep these terms since models including such chiral terms have been shown to realize CSLs on most 2D lattices - honeycomb, triangular, square, and kagome - and our main aim here is to relate these CSLs to underlying parent magnetic orders.

If we start from a Hubbard model (with hoppings $t_{i,j}$ and local repulsion $U$), and attempt to derive $H_{\rm spin}$ as an effective spin Hamiltonian in the Mott limit, we find $J_{i,j}=4t^{2}_{ij}/U$, while the chiral interaction is $J_{\chi}=24(t^{3}/U^{2})\sin\Phi_{\triangle}$ if the Hubbard model has nonzero orbital fluxes $\Phi_{\triangle}$ penetrating the triangular plaquettes. Such chiral terms have been suggested to be relevant for understanding orbital magnetic field effects in certain organic spin liquids, Motrunich (2006) and for interacting ultracold atomic systems with ‘artificial’ gauge fields (where models such as the honeycomb lattice Haldane model of a quantum anomalous Hall insulator have been experimentally realized Haldane (1988); Jotzu et al. (2014)). More recently, there has been a very interesting suggestion to induce such chiral terms via circularly polarized light rather than by an orbital magnetic field. Claassen et al. (2016); Kitamura et al. (2017) The Hubbard model derivation suggests that the chiral terms will greatly influence magnetism in the ‘weak’ Mott insulator regime $U\gtrsim t$. However, as $U/t\to\infty$, i.e. deep in the Mott insulator regime, the chiral terms will become less important than two-spin interactions. In our study we will treat this Hamiltonian $H_{\rm spin}$ simply as a spin model in its own right.

II Numerical Signatures

Within an ED calculation, a CSL and a magnetically ordered state can be distinguished by their low-lying energy spectrum and the static spin structure factor of their ground state. In a magnetically ordered state, with net zero magnetization, the first excited state should be a spin triplet with momenta associated with the magnetic ordering wavevectors. It forms part of the “Anderson tower of states” that lead to a symmetry broken ground state in the $N\rightarrow\infty$ limit. Bernu et al. (1992, 1994) The static spin structure factor of the ground state, $\mathcal{S}(\mathbf{q})=\frac{1}{N}\sum_{i,j}\braket{\mathbf{S}_{i}\cdot\mathbf{S}_{j}}e^{i\mathbf{q}\cdot(\mathbf{r}_{i}-\mathbf{r}_{j})}$, should display clear peaks at the expected ordering wavevectors. On the other hand, in the CSL phase, both the ground state and the first excited state should be spin singlet states with momentum ${{\bf{k}}}=(0,0)$ on all of the lattices studied here ($L_{x}\times L_{y}$ lattices with both $L_{x}$ and $L_{y}$ even, and periodic boundary conditions). The gap between these two states should vanish in the $N\to\infty$ limit, so that they form the degenerate ground state manifold (GSM) of the topologically ordered CSL on the torus. The static spin structure factor of the ground state should be featureless, with no sharp peaks, indicative of a magnetically disordered state.

Our DMRG calculations are done in the infinite cylinder limit with varying circumferences $L_{y}$. Within such DMRG calculations, one indicator that we are in a CSL is that we are able to find multiple distinct ground states associated with the topological order. By contrast, in regimes where we expect magnetic order, we always find only a single ground state. A more positive indicator is to calculate the total quantum dimension which is encoded in the overlap of a single ground state on a torus $|\Psi_{i}\rangle$ with its rotated version, i.e., $R_{ii}\!=\!\bra{\Psi_{i}}{\mathcal{R}}_{\pi/3}\ket{\Psi_{i}}$. Here, ${\mathcal{R}}_{\pi/3}$ denotes $\pi/3$ rotation of a state on a torus (the appropriate rotation for a lattice with $C_{6}$ symmetry). In an Abelian topologically ordered phase with total quantum dimension $D$, we expect $|R_{ii}|=1/D$, with $D=\sqrt{2}$ for a CSL. In a topologically trivial state, however, we expect $|R_{ii}|=1$. As a more complete characterization, we can also study the $S$ and $T$ matrices of the anyons in the topologically ordered state by constructing the matrix $R_{ij}=\bra{\Psi_{i}}{\mathcal{R}}_{\pi/3}\ket{\Psi_{j}}$ of overlaps between all pairs of states in the GSM. Cincio and Vidal (2013) However, this is not something that we can track across the transition. Yet another distinction between the CSL and magnetically ordered states lies in the edge entanglement spectrum obtained by cutting the cylinder into two halves, with the CSL showing a signature of a free chiral boson described by an $SU(2)_{1}$ Wess-Zumino-Witten (WZW) conformal field theory. Cincio and Vidal (2013)

To probe the nature of the transition between the CSL and the magnetically ordered states, we calculate the ground state energy per spin and the ground state fidelity, usually defined as $F(g)\!=\!|\langle\Psi(g)|{\Psi(g+\delta g)}\rangle|$, where the ground state $|\Psi(g)\rangle$ is parameterized by the tuning parameter $g$. The fidelity has been shown to be an indicator of quantum phase transitions, both symmetry-breaking transitions as well as certain topological phase transitions. Zanardi and Paunković (2006); Gu (2010) A first order transition is signalled by a sharp discontinuity in $F$, which jumps to zero at the transition where there is a ground state level crossing. By contrast, a continuous transition is signalled by a weak dip in $F$ at the transition, which results in a (more clearly visible) peak in the fidelity susceptibility $\chi^{F}(g)=\partial^{2}F(g)/\partial g^{2}$. In the case of topologically ordered states the ground state is not unique so we instead define a GSM fidelity. If the states in the GSM do not mix with one another and there are no exact degeneracies (both of which are conditions satisfied in the models and clusters studied here using ED), then we can define the GSM fidelity for an $n$-fold degenerate GSM as

[TABLE]

where $n=2$ for the CSL. Associated with this, we define the fidelity susceptibility $\chi^{F}_{n}=\partial^{2}F_{n}/\partial g^{2}$, which we compute as the numerical second derivative of the fidelity

[TABLE]

In ED, we study $F_{2}$ and $\chi^{F}_{2}$ since we can track the two states that make up the GSM in the CSL, GS$1$ and GS$2$, throughout the phase diagram, i.e., we can adiabatically follow the two CSL ground states even into the topologically trivial phase (where the upper of the two states in the GSM levitates into a genuine excited state). In the DMRG calculations, however, we do not have access to this second state in the topologically trivial phase. We thus compute the fidelity $F$ of just a single GS; in the CSL, this corresponds to tracking that ground state which is adiabatically connected to the unique ground state we find in the topologically trivial phase.

III Results

Below, we discuss the results we obtain from both ED and DMRG studies for the honeycomb, triangular and square lattices. We defer a discussion of the kagome lattice CSL to a future publication. The data presented is from the largest system sizes studied. For ED this is $N=32$ sites for the honeycomb lattice and $N=36$ sites for the triangular and square lattices. In the DMRG simulations we studied infinite cylinders of width up to 6 lattice unit cells for honeycomb and triangular lattices. We keep at most $\chi=2048$ states in the infinite DMRG algorithm, finding convergence in all quantities of interest. $\chi$ is referred to as bond dimension throughout the remaining part of text. Results on smaller clusters are consistent with the conclusions presented here.

III.1 Honeycomb Lattice

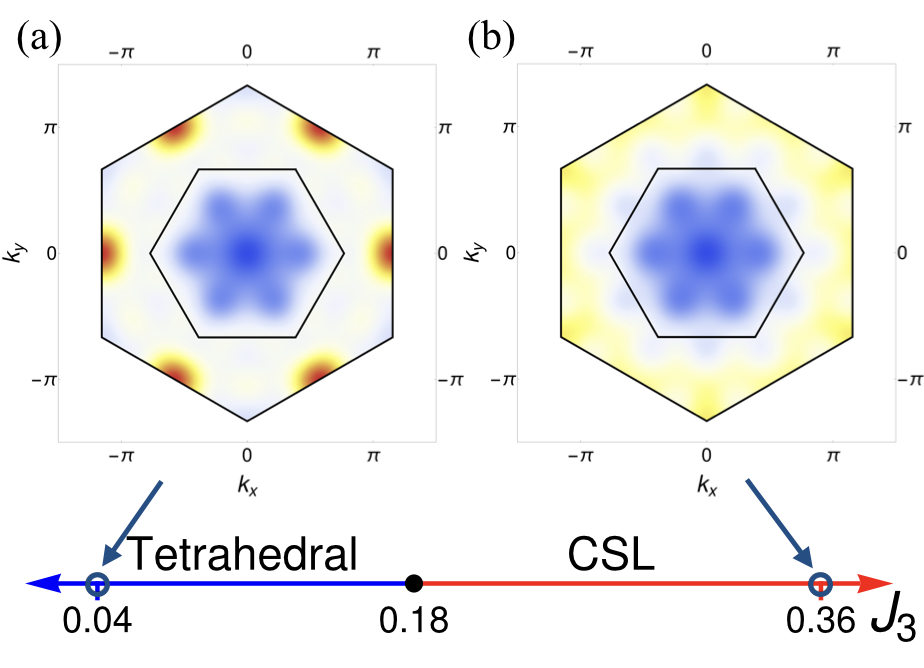

For the honeycomb lattice, we keep Heisenberg terms, $J_{1},J_{2},J_{3}$ corresponding to first, second, and third nearest neighbors, in addition to the chiral term $J_{\chi}$, as shown in Fig. 1(a). Our recent study of this model found a tetrahedral phase in this model for $J_{3}=0$, and a CSL phase for sufficiently large $J_{3}>0$. Here, we fix $J_{1}=1.0$, $J_{2}=0.36$ and $J_{\chi}=0.31$, and use ED and DMRG to investigate the nature of the transition between the tetrahedral state and the CSL state upon increasing $J_{3}$.

In ED, for small $J_{3}\geq 0$, we find that the ground state is a spin singlet, with large uniform ground state spin chirality $\langle\mathbf{S}_{i}\cdot\mathbf{S}_{j}\times\mathbf{S}_{k}\rangle\sim 0.16$ on the small triangles of the honeycomb lattice (shown in Fig. 1(a)) consistent with strong non-coplanarity of the spins. The first excited state is a spin triplet with momenta at the $M$ points, the ordering wavevector of the tetrahedral state, and the static spin structure factor, shown in Fig. 2(a) for $J_{3}=0.04$, also exhibits clear peaks at the $M$ points. The full spectrum, shown in our previous study (see Supplemental Material of Ref. Hickey et al., 2016), exhibits an ‘Anderson tower’ consistent with a non-coplanar ground state having fully broken spin rotational symmetry. All these are clear signatures of the triple-$Q$ tetrahedral state.

By contrast, at $J_{3}=0.36$, we find that the system is in the CSL phase. At this point, ED shows that both the ground state and the first excited state are spin singlet states with momentum ${{\bf{k}}}\!=\!(0,0)$, and they are well separated by a gap from all other excitations. Hickey et al. (2016) This is consistent with a two-fold topological ground state degeneracy on the torus in the thermodynamic limit, and we have confirmed this by computing the many-body Chern number using flux-threading. Hickey et al. (2016) In addition, the static spin structure factor, shown in Fig. 2(b), exhibits no sharp peaks, indicating short-ranged spin correlations.

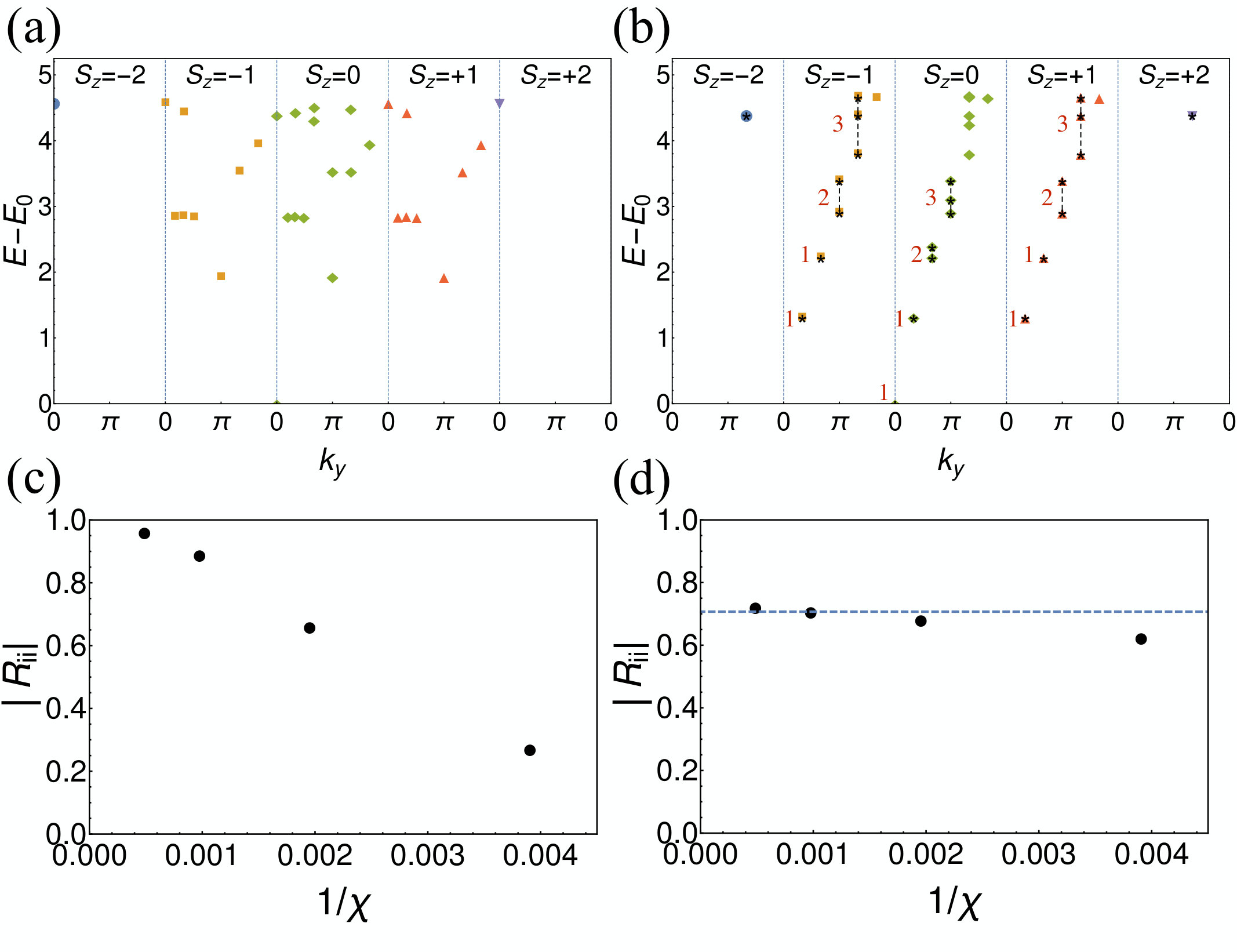

As a further indication that there is a topological phase transition, DMRG always finds two ground states at $J_{3}=0.36$. For either ground state $\ket{\Psi_{i}}$, the overlap $\left|\bra{\Psi}{\mathcal{R}}_{\pi/3}\ket{\Psi}\right|\approx 1/\sqrt{2}$ for various bond dimensions as shown in Fig. 3(d). This indicates that it is consistent with a topologically ordered CSL having total quantum dimension $D=\sqrt{2}$. Fig. 3(b) shows the DMRG edge entanglement spectra in the CSL phase (here, we have picked one of the two ground states), which clearly resembles that of a free chiral boson. In our previous study of this model, we have provided further evidence for the CSL phase, including the full $S$ and $T$ matrices. We contrast these observations with the results at $J_{3}=0.04$. Here, we only find a single ground state, with the overlap $\left|\bra{\Psi}{\mathcal{R}}_{\pi/3}\ket{\Psi}\right|$ extrapolating to $1$ with increasing bond dimension $\chi$ as shown in Fig. 3(c), indicative of a topologically trivial phase. Upon decreasing $J_{3}$, and entering the tetrahedral state, we find many additional low-lying states in the entanglement spectrum as seen from Fig. 3(a), leading to a complete breakdown of the free chiral boson description.

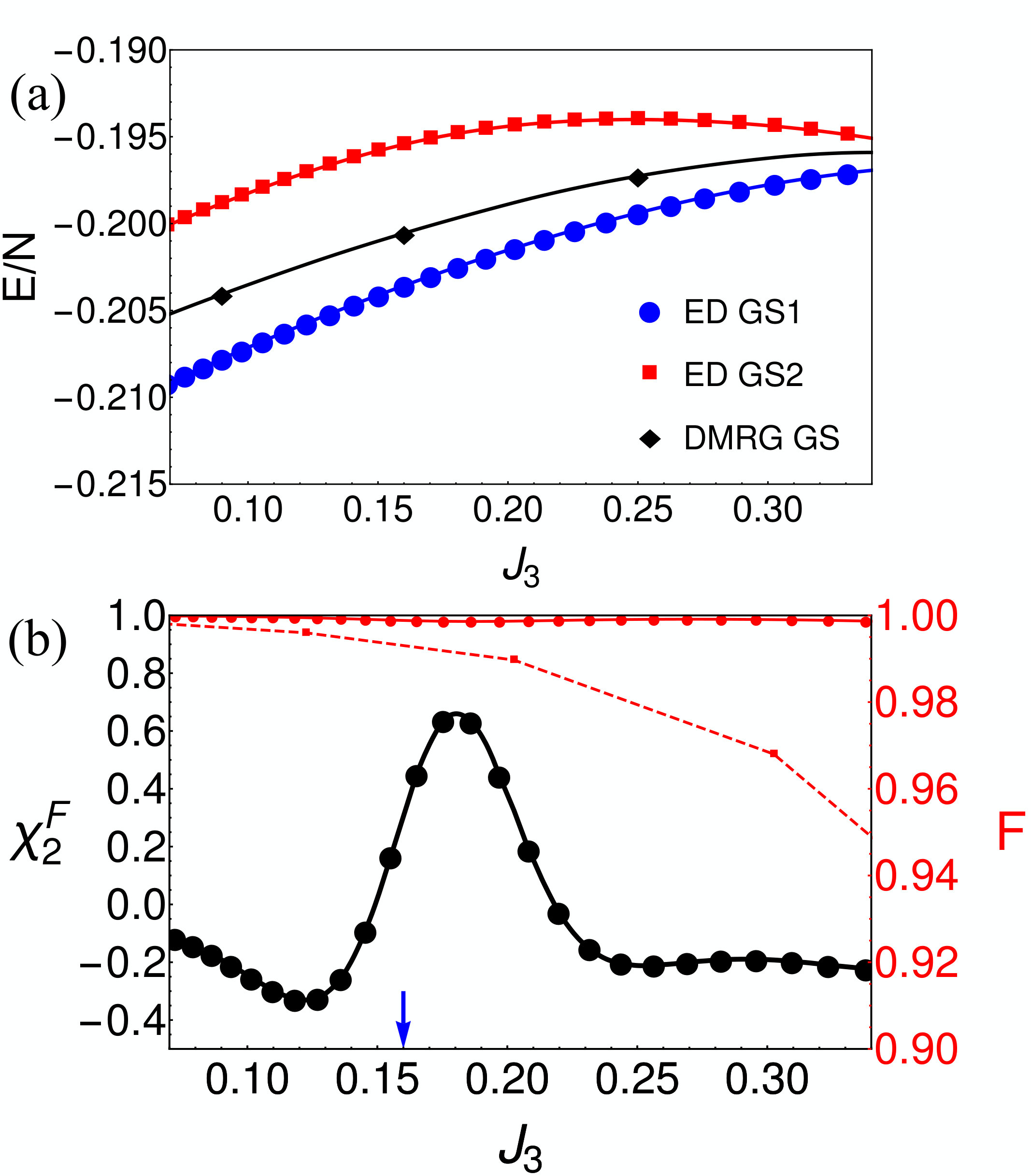

Taken together, these results provide clear evidence that, somewhere between $J_{3}=0.04$ and $J_{3}=0.36$, there must be a phase transition between a magnetically ordered tetrahedral phase and the CSL. In order to study this transition, we have computed the energy per site as well as the fidelity and fidelity susceptibilities with varying $J_{3}$. As shown in Fig. 4(a), the energy shows no sharp kinks, suggesting that this transition is not obviously first order. Similarly the fidelity of the ground states from ED and DMRG, shown in Fig. 4(b) are smooth, again suggesting a continuous transition. $\chi^{F}_{2}$, computed using ED, has a clear peak at $J_{3}=0.18$, which we take to be the transition point for the $N=32$ site system.

In summary, our ED and DMRG results indicate that the tetrahedral state may be viewed as a parent magnetically ordered state from which the CSL descends via a seemingly continuous transition upon increasing frustration through $J_{3}>0$.

III.2 Triangular Lattice

For the triangular lattice, we consider a model with nearest and next-nearest neighbor Heisenberg terms $J_{1},J_{2}$, supplemented by a nonzero $J_{\chi}$. For fixed $J_{1}=1.0$, the phase diagram of the model has already been determined using ED (with up to $36$ spins) over a range of couplings $0\leq J_{2}\leq 0.3$ and $0\leq J_{\chi}\leq 0.6$. Among other phases, a CSL phase was found bordering a magnetically ordered tetrahedral phase. Here, we fix $J_{\chi}=0.4$, and vary $J_{2}$ in order to investigate the nature of the transition from the CSL to the tetrahedral.

At $J_{2}=0.15$, the system is in a tetrahedral state. Our ED results show that the ground state is a singlet while the first excited state is a spin triplet with momentum at the $M$ point. The static spin structure factor of the ground state, shown in Fig. 5 (b), has clear peaks at the $M$ points. At the same time, DMRG finds a single ground state, indicative of a topologically trivial phase.

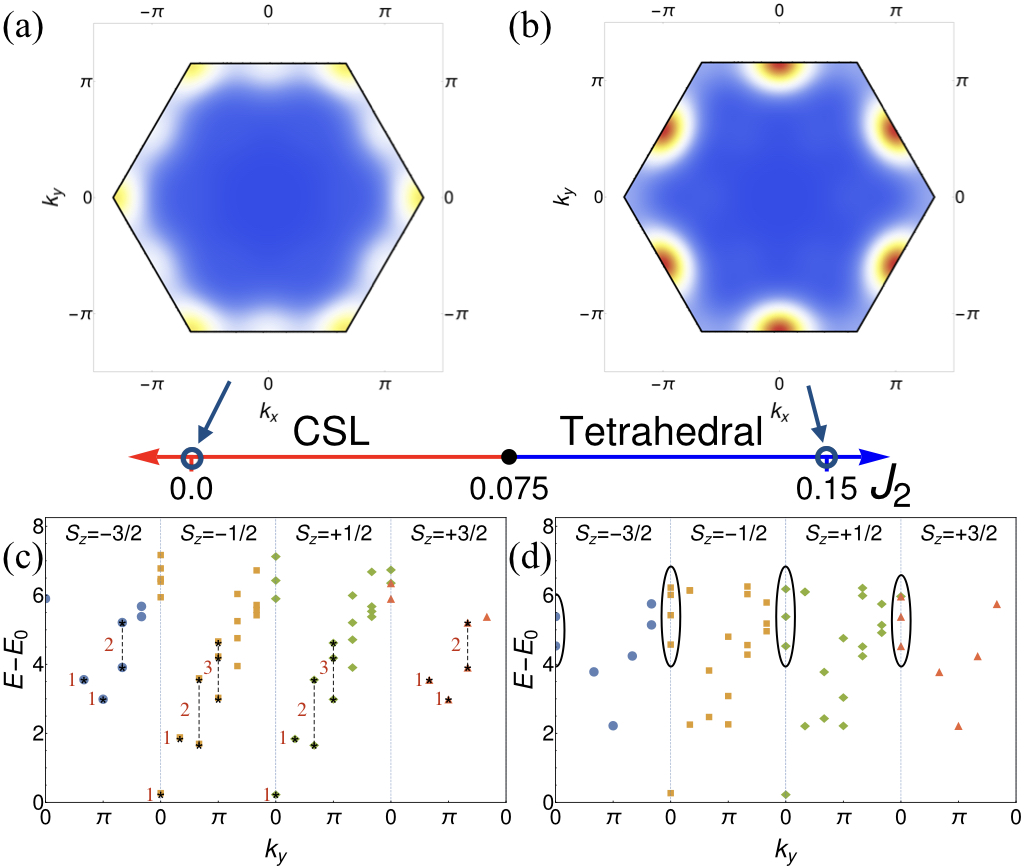

At $J_{2}=0.0$, the system is in the CSL phase. In ED, both the ground state and the first excited state are spin singlet states with momentum ${{\bf{k}}}=(0,0)$. The static spin structure factor of the ground state, shown in Fig. 5 (a), has no sharp peaks. Furthermore, in DMRG we find two distinct ground states indicative of topological order, and the entanglement spectrum resembles that of a free chiral boson, as shown in Fig. 5 (c). Upon increasing $J_{2}$, and entering the tetrahedral state, we again find many additional low lying states (highlighted in Fig. 5 (d)), leading to strong deviations from the free chiral boson description.

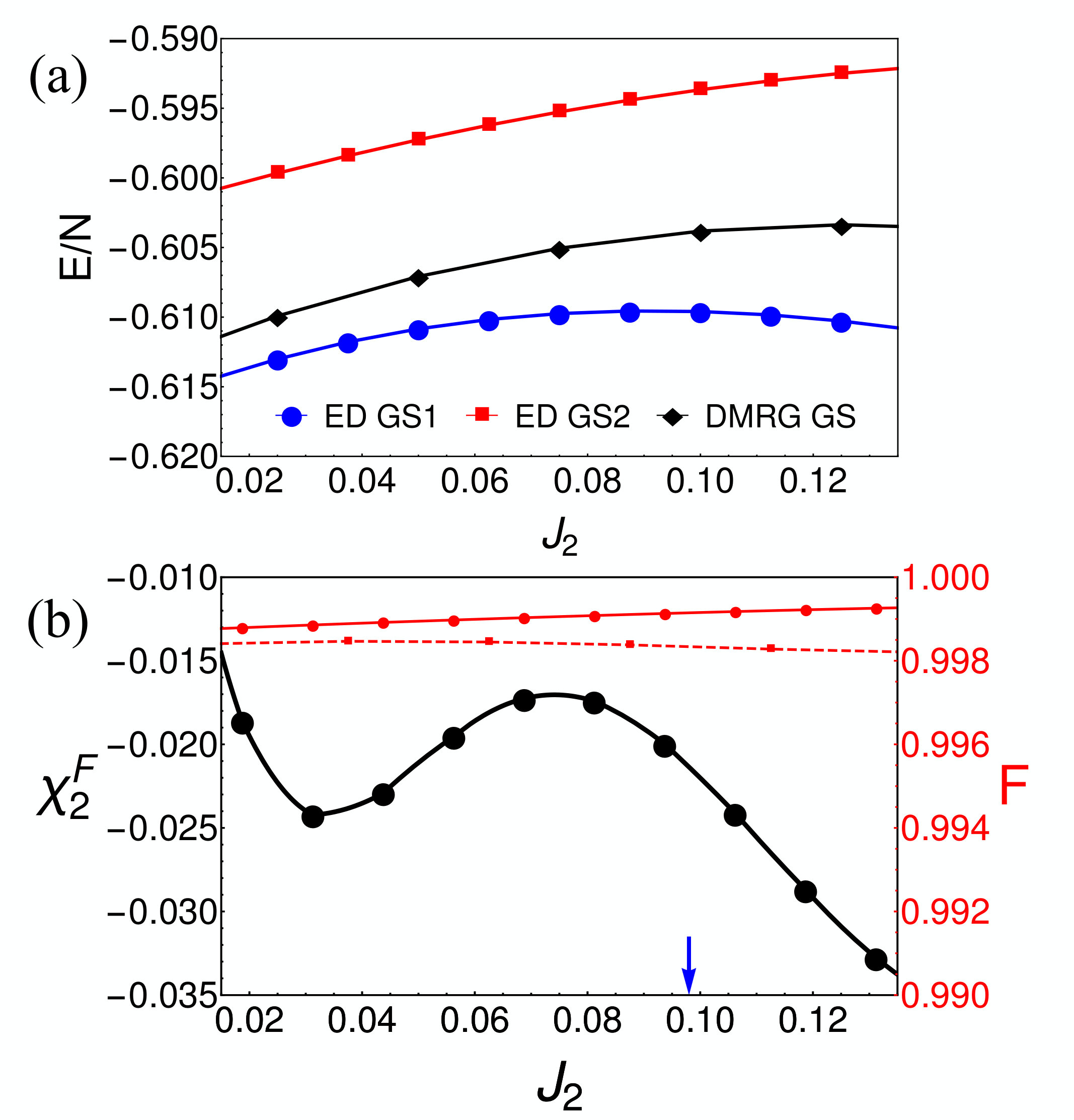

Again these results indicate that there must be a phase transition between the CSL and a magnetically ordered tetrahedral phase between $J_{2}=0.0$ and $J_{2}=0.15$. However, the energy of the ground states in ED and DMRG shown in Fig. 6 show no sharp kinks and the fidelities are again smooth. It is only the fidelity susceptibility that provides a signal of the transition, with a broad peak centered at $J_{2}=0.075$. We thus again conclude that the CSL to tetrahedral transition is likely to be continuous, as indicated by our ED and DMRG signatures.

We note that the signatures of the CSL, such as the structure of the entanglement spectrum, are not quite as clean here as in the honeycomb lattice case. This can be explained by the fact that the correlation length $\xi_{\mathrm{TM}}$, extracted from DMRG, is shorter for the honeycomb lattice case. The correlation length for the honeycomb lattice at $J_{3}=0.36$ is $\xi_{\mathrm{TM}}=0.88$ whereas for the triangular case at $J_{2}=0.0$ it is more than double at $\xi_{\mathrm{TM}}=1.89$. Here, $\xi_{\mathrm{TM}}$ denotes the transfer matrix correlation length defined as $\xi_{\mathrm{TM}}=-1/\log(\lambda_{2})$, where $\lambda_{2}$ is the second largest eigenvalue of the transfer matrix. The transfer matrix contains tensors associated to one column of an infinite cylinder. $\xi_{\mathrm{TM}}$ is the upper bound for any correlation length in the system. The above values for $\xi_{\mathrm{TM}}$ are extrapolated in the bond dimension.

III.3 Square Lattice

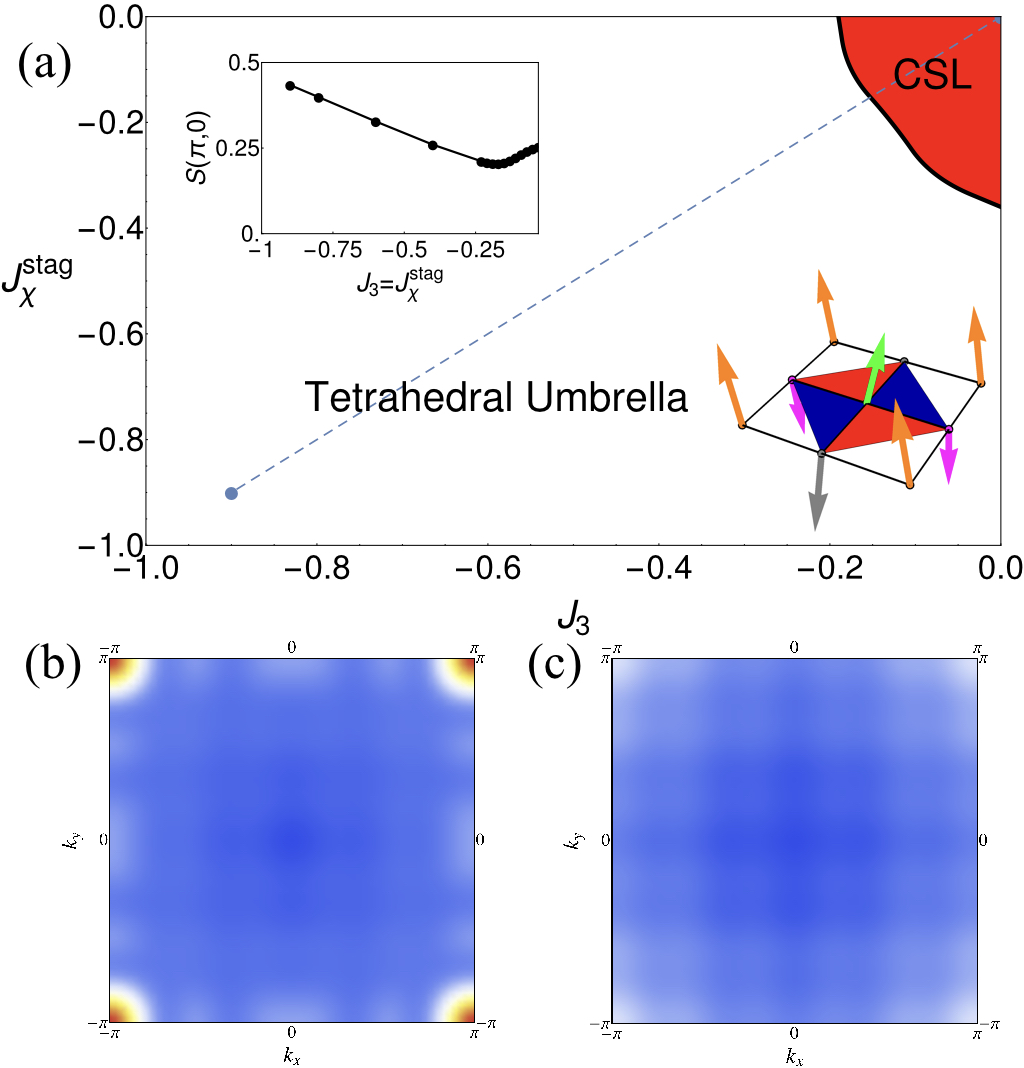

The square lattice $J_{1},J_{2}$ model with a nonzero $J_{\chi}$ has already been shown to realize a CSL phase. Nielsen et al. (2013) Here, for simplicity, we set $J_{1}=J_{\chi}=1.0$, and $J_{2}=0$, which places us in the CSL phase. On the square lattice, there are no non-coplanar RMOs. However, allowing for the breaking of $C_{4}$ symmetry about a lattice site allows for a non-coplanar RMO which is called the ‘tetrahedral umbrella’ state, depicted schematically in Fig. 7 (a). This state is a multimode spin crystal formed by wavevectors at the $K=(\pi,\pi)$ and $X=(\pi,0),(0,\pi)$ points of the BZ. In addition to breaking spin rotational symmetry, the broken $C_{4}$ rotational symmetry about the square lattice sites leads to a staggered modulation of the scalar spin chirality. In order to simply access this phase from the CSL, we add a ferromagnetic third neighbor Heisenberg term $J_{3}<0$ as well as a staggered chiral term $J_{\chi}^{\rm stag}$ that explicitly breaks the square lattice $C_{4}$ symmetry, which leads to the phase diagram depicted schematically in Fig. 7(a).

For $J_{3}=J_{\chi}^{\rm stag}=0$ the system is in the CSL phase. As before, the ED ground state and the first excited state are spin singlet states with momentum ${{\bf{k}}}=(0,0)$, and they form the GSM of the CSL, which are reasonably well separated from all the other excited states. The static spin structure factor of the ground state, shown in Fig. 7(c), is featureless. For significant $J_{3}<0$ and $J_{\chi}^{\rm stag}$, on the other hand, the system resembles the tetrahedral umbrella state. In ED, the ground state is a singlet while the first excited state is now a spin triplet with momentum at the $K=(\pi,\pi)$ point, followed by slightly higher energy triplet excitations at the $X=(\pi,0),(0,\pi)$ points. The static spin structure factor of the ground state, shown in Fig. 7(b), has a sharp peak at the $K$ point and smaller peaks at the $X$ points. These suggest multimode order associated with the tetrahedral umbrella state.

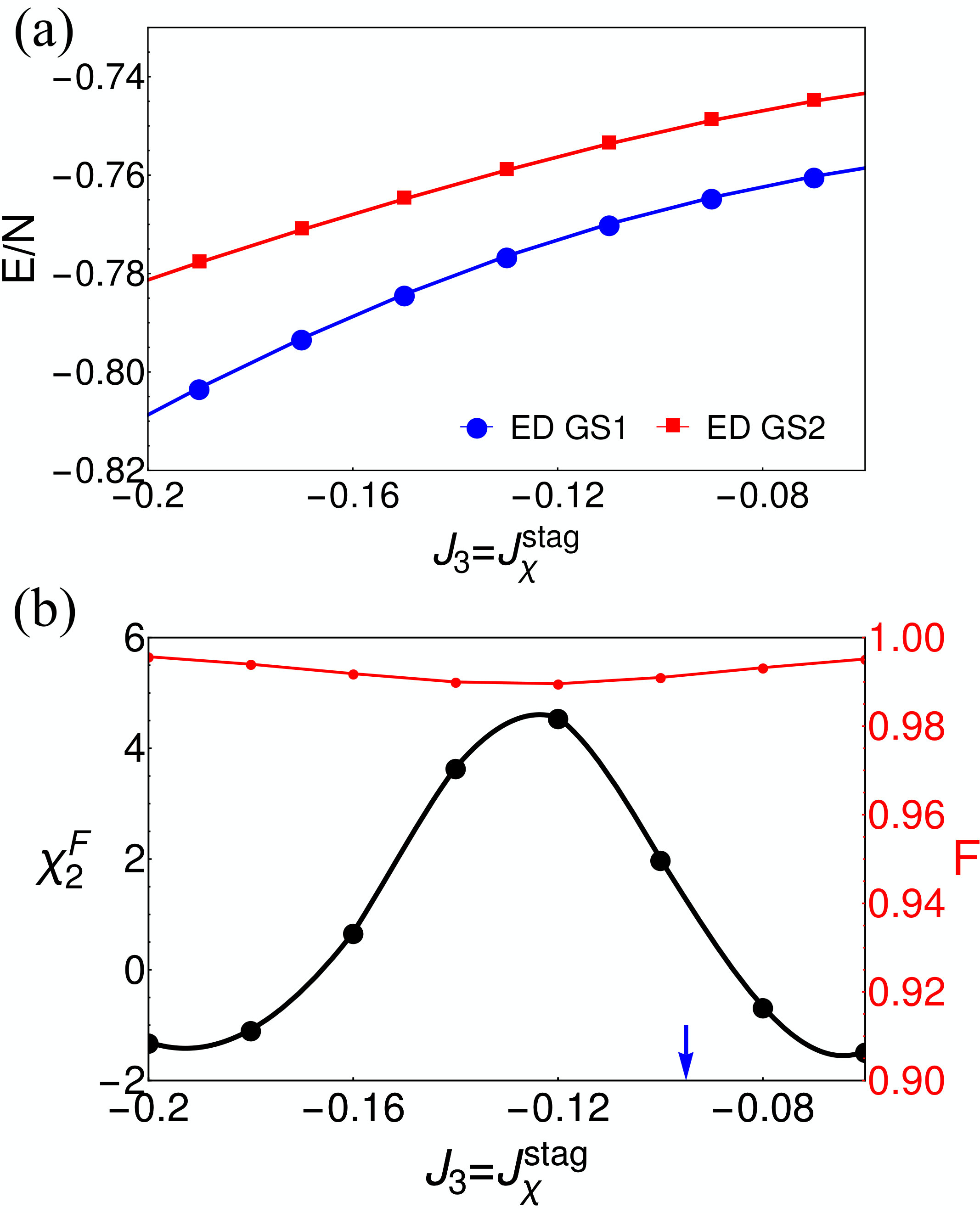

In Fig. 8, we plot the energy per site which is smooth and the GSM fidelity from ED which has a weak dip indicating the transition, with a clear peak in the fidelity susceptibility at $J_{3}=-0.125$. Just as in the honeycomb and triangular lattice, the CSL to tetrahedral transition does not show any signatures of first order behaviour, supporting the idea that it is again a continuous transition.

IV Discussion

We have provided numerical evidence (using ED and DMRG) that CSLs on the honeycomb, triangular, and square lattices arise from melting ordered non-coplanar spin crystal states via continuous transitions. This suggests that quantum melting such non-coplanar states is likely to be a general mechanism to obtain CSLs. In previous work, we have conjectured a possible Chern-Simons-Higgs theory which could possibly capture the tetrahedral-CSL transition on the honeycomb lattice. Our work motivates a further study of this exotic continuous transition, including a comparison with the gauge theory spectrum on the torus which has been studied within a large-${\cal N}$ approximation Thomson and Sachdev (2016).

There are a number of interesting extensions of this work to consider. In particular it is natural to ask whether this kind of mechanism could be extended to 3D lattices. Can quantum melting a 3D non-coplanar magnetic state lead to a stacked chiral spin liquid state? This may be of relevance to the 3D pyrochlore Pr2Ir2O7, which appears to exhibit an anomalous Hall effect without long-range magnetic order, suggestive perhaps of a spin liquid state with nonzero scalar spin chirality.Machida et al. (2010) Another interesting direction would be to explore higher spin systems. On the ordered side, moving to higher spin allows for a richer set of order parameters, such as quadrupolar order in the case of spin-$1$. On the CSL side, higher spin CSLs can have non-Abelian topological order and thus a more complex GSM structure. Greiter and Thomale (2009); Scharfenberger et al. (2011); Greiter et al. (2014b); Liu et al. (2015); Lecheminant and Tsvelik (2017) Is it possible to find an ordered “parent state” for these higher spin non-Abelian CSLs?

Note Added - During completion of this work, we became aware of two recent preprints Saadatmand and McCulloch (2017); Gong et al. (2017) that also discuss the $J_{1}$-$J_{2}$-$J_{\chi}$ model on the triangular lattice. Our results are consistent where there is overlap.

V Acknowledgements

We thank L. Balents, I. Martin, and S. Bhattacharjee for useful discussions. CH and AP acknowledge support from NSERC of Canada. LC acknowledges support by the John Templeton Foundation. Z.P. acknowledges support by EPSRC grant EP/P009409/1. Statement of compliance with EPSRC policy framework on research data: This publication is theoretical work that does not require supporting research data. This research was supported in part by Perimeter Institute for Theoretical Physics. Research at Perimeter Institute is supported by the Government of Canada through Industry Canada and by the Province of Ontario through the Ministry of Research and Innovation. This research is supported in part by the U.S. Department of Energy through J. Robert Oppenheimer fellowship (LC). Computations were performed on the GPC supercomputer at the SciNet HPC Consortium. SciNet is funded by: the Canada Foundation for Innovation under the auspices of Compute Canada; the Government of Ontario; Ontario Research Fund - Research Excellence; and the University of Toronto. This work also made use of the facilities of N8 HPC Centre of Excellence, provided and funded by the N8 consortium and EPSRC (Grant No.EP/K000225/1). The Centre is co-ordinated by the Universities of Leeds and Manchester. Some of the computations were done on the supercomputer Mammouth parallèle II from University of Sherbrooke, managed by Calcul Québec and Compute Canada. The operation of this supercomputer is funded by the Canada Foundation for Innovation (CFI), the ministère de l’Économie, de la science et de l’innovation du Québec (MESI) and the Fonds de recherche du Québec - Nature et technologies (FRQ-NT).
