Dissipative Landau-Zener problem and thermally assisted Quantum Annealing

TL;DR

This paper investigates how thermal environments influence quantum annealing efficiency by analyzing a dissipative Landau-Zener model, revealing that transverse coupling and higher temperatures can enhance ground-state probabilities.

Contribution

It demonstrates that a finite temperature bath can improve quantum annealing success only with transverse coupling, providing new insights into environmental effects on quantum optimization.

Findings

Transverse bath coupling can increase ground-state probability.

Higher bath temperatures improve performance in fast-driving regimes.

Purely longitudinal coupling shows no benefit from temperature increase.

Abstract

We revisit the issue of thermally assisted quantum annealing by a detailed study of the dissipative Landau-Zener problem in presence of a Caldeira-Leggett bath of harmonic oscillators, using both a weak-coupling quantum master equation and a quasi-adiabatic path-integral approach. Building on the known zero-temperature exact results (Wubs et al., PRL 97, 200404 (2006)), we show that a finite temperature bath can have a beneficial effect on the ground-state probability only if it couples also to a spin-direction that is transverse with respect to the driving field, while no improvement is obtained for the more commonly studied purely longitudinal coupling. In particular, we also highlight that, for a transverse coupling, raising the bath temperature further improves the ground-state probability in the fast-driving regime. We discuss the relevance of these findings for the current quantum-annealing flux qubit chips.

Figures

Equations

$$\hat{H}(t)={\hat{H}}_{\mathrm{sys}}(t)+\sum _{\nu }{\hat{A}}_{\nu }\otimes {\hat{X}}_{\nu }+{\hat{H}}_{\mathrm{B}},$$

$${\hat{H}}_{\mathrm{Q}}(t)=-\frac{ϵ(t)}{2}{\hat{\sigma }}^z-\frac{\Delta }{2}{\hat{\sigma }}^x,$$

$$\hat{H}(t)={\hat{H}}_{\mathrm{Q}}(t)+\left(\sum _{\nu }{g}_{\nu }{\hat{\sigma }}^{\nu }\right)\otimes \hat{X}+{\hat{H}}_{\mathrm{B}}.$$

$$\hat{H}(t)={\hat{H}}_{\mathrm{Q}}(t)+\frac{1}{2}\left(\cos \theta {\hat{\sigma }}^z+\sin \theta {\hat{\sigma }}^x\right)\otimes \hat{X}+{\hat{H}}_{\mathrm{B}},$$

$$\hat{\mathcal{U}}(t,t_0)=\mathcal{T}\exp \left(-\frac{i}{\hslash }{\int }_{t_0}^{t}d{t}^{\prime }\hat{H}(t^{\prime })\right)$$

$${\hat{\rho }}_{\mathrm{Q}}(t)={\mathrm{Tr}}_{\mathrm{B}}\left(\hat{\mathcal{U}}(t,t_0){\hat{\rho }}_0{\hat{\mathcal{U}}}^{†}(t,t_0)\right)$$

$${\mathrm{P}}_{\mathrm{gs}}(t)={\mathrm{Tr}}_{\rm Q}\Big{(}\hat{\rho}_{\rm Q}(t)\;|\psi_{\mathrm{gs}}(t)\rangle\langle\psi_{\mathrm{gs}}(t)|\Big{)}\;.$$

$$\left\{\begin{array}[]{lcl}\dot{r}_{x}&=&-\gamma_{\mathrm{\scriptscriptstyle R}}(r_{x}-\overline{r}_{x})+(\dot{\phi}_{t}+\gamma_{xz})r_{z}\\ \dot{r}_{y}&=&-\left(\gamma_{\mathrm{\scriptscriptstyle D}}+\displaystyle\frac{\gamma_{\mathrm{\scriptscriptstyle R}}}{2}\right)\,r_{y}+\Lambda_{t}r_{z}\\ \dot{r}_{z}&=&-\dot{\phi}_{t}r_{x}-\gamma_{zx}(r_{x}-\overline{r}_{x})-\Lambda_{t}r_{y}-\displaystyle\left(\gamma_{\mathrm{\scriptscriptstyle D}}-\frac{\gamma_{\mathrm{\scriptscriptstyle R}}}{2}\right)\,r_{z}\end{array}\right.$$

$${\gamma }_{\mathrm{R}}(t)=\frac{\pi }{2{\hslash }^2}\coth \left(\frac{\beta \hslash {\Lambda }_t}{2}\right)J({\Lambda }_t){\cos }^2({\varphi }_t+\theta )$$

$${\gamma }_{\phi }(t)=\frac{2\pi \alpha }{\hslash \beta }{\sin }^2({\varphi }_t+\theta )$$

$${\gamma }_{\mathrm{D}}(t)={\gamma }_{\phi }(t)+\frac{1}{2}{\gamma }_{\mathrm{R}}(t);$$

$${\gamma }_{zx}(t)=-\frac{\pi }{4{\hslash }^2}\coth \left(\frac{\beta \hslash {\Lambda }_t}{2}\right)J({\Lambda }_t)\sin 2({\varphi }_t+\theta )$$

$${\gamma }_{xz}(t)=\frac{\pi \alpha }{\hslash \beta }\sin 2({\varphi }_t+\theta ).$$

$$P_{\mathrm{gs}}(v,T=0)=1-{\text{e}}^{-\frac{\pi W_{\theta }^2}{2\hslash v}}$$

$$W_{\theta}^{2}=\Big{|}\Delta-\alpha\hbar\omega_{c}\sin{2\theta}\Big{|}^{2}+2\alpha(\hbar\omega_{c})^{2}\sin^{2}\theta\;.$$

$$\hat{H}(t)={\hat{H}}_{\mathrm{Q}}(t)+\hslash \Omega {\hat{b}}^{†}{\hat{b}}^{}+\lambda (\cos \theta {\hat{\sigma }}^z+\sin \theta {\hat{\sigma }}^x)({\hat{b}}^{†}+{\hat{b}}^{}).$$

$$W_{\theta}^{2}=\Big{|}\Delta-\frac{2\lambda^{2}}{\hbar\Omega}\sin{2\theta}\Big{|}^{2}+4\lambda^{2}\sin^{2}\theta\;.$$

$$t^{\ast }=\frac{1}{v}\sqrt{(\hslash \Omega {)}^2-{\Delta }^2},$$

$$C(t)$$

$$\displaystyle=\int_{0}^{\infty}\!d\omega\;J(\omega)\Big{(}\textrm{e}^{i\omega t}f_{\rm B}(\omega)+\textrm{e}^{-i\omega t}[f_{\rm B}(\omega)+1]\Big{)}$$

$${\tilde{H}}_{\mathrm{Q}}(t)={\hat{R}}_t^{†}{\hat{H}}_{\mathrm{Q}}(t){\hat{R}}_t+i\hslash \frac{d{\hat{R}}_t^{†}}{dt}{\hat{R}}_t=-\frac{E_t}{2}{\hat{\sigma }}^x+\frac{\hslash {\dot{\varphi }}_t}{2}{\hat{\sigma }}^y.$$

$$\frac{d{\tilde{\rho }}_{\mathrm{Q}}}{dt}=-\frac{i}{\hslash }\left[{\tilde{H}}_{\mathrm{Q}},{\tilde{\rho }}_{\mathrm{Q}}\right]-\frac{1}{{\hslash }^2}\sum _{\nu ,{\nu }^{\prime }}^{x,z}{g}_{\nu }^2\left(\left[{\tilde{\sigma }}_{\nu },{\tilde{S}}_{{\nu }^{\prime }}{\tilde{\rho }}_{\mathrm{Q}}\right]+H.c.\right).$$

$${\tilde{S}}_{\nu }(t)={\int }_0^{t-t_0}d\tau C(\tau ){\tilde{\mathcal{U}}}_{\mathrm{Q}}(t,t-\tau ){\tilde{\sigma }}_{\nu }(t-\tau ){\tilde{\mathcal{U}}}_{\mathrm{Q}}^{†}(t,t-\tau )$$

$${\tilde{\mathcal{U}}}_{\mathrm{Q}}(t,t-\tau )=\mathcal{T}\exp \left[-\frac{i}{\hslash }{\int }_{t-\tau }^{t}d{t}^{\prime }{\tilde{H}}_{\mathrm{Q}}(t^{\prime })\right]\equiv {\text{e}}^{-\frac{i}{\hslash }\overline{\mathrm{H}}\tau }$$

$${\tilde{S}}_{\nu }(t)\approx {\int }_0^{\infty }d\tau C(\tau ){\text{e}}^{-\frac{i}{\hslash }\overline{\mathrm{H}}\tau }{\tilde{\sigma }}_{\nu }(t){\text{e}}^{\frac{i}{\hslash }\overline{\mathrm{H}}\tau }.$$

$$\left\{\begin{array}[]{lcl}\dot{r}_{x}&=&-\gamma_{x}(r_{x}-\overline{r}_{x})+\dot{\phi}_{t}r_{z}\\ \dot{r}_{y}&=&-\gamma_{\mathrm{\scriptscriptstyle D}}r_{y}+\Lambda_{t}r_{z}\\ \dot{r}_{z}&=&-\dot{\phi}_{t}r_{x}-\Lambda_{t}r_{y}-\displaystyle\gamma_{\mathrm{\scriptscriptstyle D}}\,r_{z}\;.\end{array}\right.$$

Full text

I Introduction

Quantum Annealing (QA) Finnila et al. (1994); Kadowaki and Nishimori (1998); Brooke et al. (1999); Santoro et al. (2002) — essentially equivalent to a form of quantum computation known as Adiabatic Quantum Computation (AQC) Farhi et al. (2001) — was originally introduced as an alternative to classical simulated annealing Kirkpatrick et al. (1983) for optimization and has become a very active field of research in the last few years, due to the availability of QA programmable machines based on superconducting flux quantum bits Harris et al. (2010); Johnson et al. (2011).

One of the open issues in this field is the role played by a thermal environment, which makes the dynamics of the system non-unitary Ashhab et al. (2006); Patanè et al. (2008); Keck et al. (2017); Malla et al. (2017). It has been argued Amin et al. (2009) that AQC-QA should be less critically affected by decoherence/dephasing of the individual qubits with respect to traditional unitary-gate quantum computation. Even more, it has been suggested Amin et al. (2008) that a thermal environment might be beneficial during the open system dynamics, in the sense that it might enhance the probability that the system remains in its instantaneous ground state with respect to the corresponding coherent evolution dynamics. This mechanism is known as “thermally assisted AQC” Amin et al. (2008).

A way to model the coupling of the quantum system with the external environment is to write a system-plus-bath Hamiltonian of the form Leggett et al. (1987); Weiss (1999); Breuer and Petruccione (2002); Grifoni and Hänggi (1998):

[TABLE]

where $\hat{H}_{\rm sys}(t)$ is the Hamiltonian of the time-dependent quantum system, $\hat{A}_{\nu}$ and $\hat{X}_{\nu}$ denote a suitable set of Hermitean operators acting on the system and on the bath respectively, and $\hat{H}_{\rm B}$ describes a set of harmonic oscillators. For a single qubit (spin-1/2), one would take $\hat{A}_{\nu}=\hat{\sigma}^{\nu}$ (the Pauli matrices) and $\hat{X}_{\nu}$ combinations of the bosonic harmonic oscillator operators. As a matter of fact, both in the spin-boson literature as well as in the context of QA, a $\hat{\sigma}^{z}$-coupled environment is usually assumed. Indeed, if $\hat{H}_{\rm sys}$ describes a biased spin-boson problem Leggett et al. (1987), $\hat{H}_{\rm sys}=-(\epsilon/2)\hat{\sigma}^{z}-(\Delta/2)\hat{\sigma}^{x}$, then $\hat{\sigma}^{z}\otimes\hat{X}_{z}$ is a rather “generic” linear coupling to the environment, as it causes both decoherence and relaxation of the density matrix populations Shnirman et al. (2002). Moreover, as discussed in Ref. Leggett et al., 1987, the $\hat{\sigma}^{z}$-coupling is definitely the dominant noise mechanism when the qubit originates from a macroscopic two-level system, as any off-diagonal coupling would be proportional to the “exponentially small” (overlap-related) tunnelling matrix element $\Delta$. In the context of QA, the $\hat{\sigma}^{z}$-noise is recognized to be the dominant noise mechanism for the D-Wave${}^{\mbox{\tiny\textregistered}}$ machine superconducting flux qubits Harris et al. (2010); Johnson et al. (2011), albeit with important low-frequency noise contributions which tend to make the qubits dynamics typically dominated by incoherent tunnelling Harris et al. (2008); Amin and Averin (2008).

While a general AQC-QA Hamiltonian $\hat{H}_{\rm sys}(t)$ would involve a complex dynamics of exponentially many states, a simple dissipative two-level system serves as a pedagogical example of the effect of the environment on the avoided-level crossing of the two lowest-lying adiabatic states of $\hat{H}_{\rm sys}(t)$. Even more, a 16-qubit problem has been specially engineered on the D-Wave${}^{\mbox{\tiny\textregistered}}$ chip Dickson et al. (2013) in such a way that the two lowest instantaneous eigenstates, which are quite well separated from the higher states, provide an explicit realization of a dissipative Landau-Zener (LZ) problem, for which one would write the system Hamiltonian $\hat{H}_{\rm sys}(t)\equiv\hat{H}_{\rm Q}(t)$ as

[TABLE]

with $\epsilon(t)=vt$ the driving field, and $v$ the driving velocity. This Hamiltonian describes the avoided crossing between the two eigenstates of $\hat{\sigma}^{z}$, $\{|\!\!\downarrow\rangle,|\!\!\uparrow\rangle\}$, for $t\to\pm\infty$, due to the coupling provided by an off-diagonal term $\sim\Delta\,\hat{\sigma}^{x}$. From general considerations, when the LZ physics emerges from the two lowest-lying eigenstates $\{|\psi_{1}(t)\rangle,|\psi_{2}(t)\rangle\}$ of a complex multi-qubit Hamiltonian, one would expect that an appropriate model to describe the dissipation should include couplings to the transverse directions, e.g.,

[TABLE]

Here the sum runs over $\nu=x,y,z$ so as to allow for the possibility of a coupling (in principle time-dependent) through $g_{x/y}\hat{\sigma}^{x/y}$, which we will refer to as transversal noise, as well as via the more standard longitudinal coupling $g_{z}\hat{\sigma}^{z}$. Notice that, although in principle one might allow for independent harmonic oscillator baths coupling to each spin direction $\hat{\sigma}^{\nu}$, for the purpose of a simpler setting we focus here on a common set of oscillators, i.e. $\hat{X}_{\nu}=\hat{X}$. Couplings of this kind have already been considered in the literature, precisely in the present dissipative LZ context Wubs et al. (2006); Saito et al. (2007); Nalbach and Thorwart (2009); Nalbach (2014); Javanbakht et al. (2015).

A number of results are known on this problem, both exact Wubs et al. (2006); Saito et al. (2007) at zero temperature and numerical at finite temperature Nalbach and Thorwart (2009); Nalbach (2014); Javanbakht et al. (2015), obtained by means of a perturbative quantum master equation (QME) approach and by the so-called quasi-adiabatic path integral (QUAPI) Makri (1995); Makri and Makarov (1995a). Let $P_{\mathrm{gs}}(v,T)$ denote the probability that the system remains in the ground state of $\hat{H}_{\rm Q}(t)$ when evolving from the ground state at $t=-\infty$ up to $t=+\infty$ in presence of a thermal bath at temperature $T$. It is known that a $\hat{\sigma}^{z}$-coupling alone cannot be truly beneficial to $P_{\mathrm{gs}}(v,T)$. This has been established both exactly, at zero temperature — where the actual $P_{\mathrm{gs}}{(v,T=0)}$ is completely unaffected by the bath Saito et al. (2007) and coincides with the well-known Landau-Zener Landau (1932); Zener (1932) coherent evolution result $P^{\mathrm{\scriptscriptstyle LZ}}_{\mathrm{gs}}(v)=1-\textrm{e}^{-\pi\Delta^{2}/(2\hbar v)}$ —, and numerically at finite temperatureNalbach and Thorwart (2009); Javanbakht et al. (2015).

In presence of a transverse coupling, the situation changes drastically: an exact analysis Wubs et al. (2006); Saito et al. (2007) at $T=0$ shows that $P_{\mathrm{gs}}(v,T=0)$ can be enhanced with respect to the coherent probability $P_{\mathrm{gs}}^{\mathrm{\scriptscriptstyle LZ}}(v)$. On the contrary, the finite-$T$ behaviour of $P_{\mathrm{gs}}(v,T)$, and the possibility of a “thermally assisted” QA, i.e., a beneficial effect due to the bath, has not been properly scrutinized. This is what we aim at exploring in the present paper. We will show that the behaviour of $P_{\mathrm{gs}}(v,T)$ in presence of a transverse coupling becomes highly non-trivial upon rising $T$. In particular, when the coupling to the bath is along $\hat{\sigma}^{x}$, while increasing $T$ reduces $P_{\mathrm{gs}}(v,T)$ in the adiabatic regime of small $\hbar v/\Delta^{2}$, it further improves on $P_{\mathrm{gs}}(v,T=0)$ for fast drivings, i.e. in the non-adiabatic regime of large $\hbar v/\Delta^{2}$. Part of the story and some of our findings are summarized in Fig. 1, where $P_{\mathrm{gs}}(v,T)$ is plotted as a function of $\hbar v/\Delta^{2}$ for both a $\hat{\sigma}^{z}$- and a $\hat{\sigma}^{x}$-coupling. These results will allow us to partly address the physics behind the experimental findings of Ref. Dickson et al., 2013, which we will comment further upon in the final discussion.

The paper is organized as follows. In Sec. II we discuss the properties of the bosonic bath to which the qubit is coupled and we quickly survey the techniques used: the QME approach and the QUAPI technique. In Sec. III we present our results. We have benchmarked the validity of our QME approach both at zero temperature, by comparing it with known exact analytical results as well as at finite $T$, against numerically exact QUAPI results. In passing, we find a remarkable and perplexing robustness of our QME for a $\hat{\sigma}^{x}$-coupled bath at $T=0$ up to the strong-coupling and fast driving regimes. The QUAPI technique has also been used to address the strong-coupling regime for a longitudinal coupling. We also discuss a simple single-oscillator-bath model in terms of which the effect of finite temperature for a $\hat{\sigma}^{x}$-coupling becomes physically very transparent. Finally, Sec. IV contains a discussion and some concluding remarks.

II Model and methods

The model considered in this work, see Eqs. (2-3), has been extensively discussed in the literature Leggett et al. (1987); Gefen et al. (1987); Ao and Rammer (1991); Weiss (1999); Breuer and Petruccione (2002); Grifoni and Hänggi (1998). For this reason, we just mention a few details, for the reader’s convenience, concerning the properties of the bath and the choice of the initial state. Specifically, the Hamiltonian we will study is given by:

[TABLE]

where we set for simplicity $g_{y}=0$ and parameterize, following Ref. Saito et al., 2007, the transversal $g_{x}$ and longitudinal $g_{z}$ couplings as $(g_{x},g_{z})=(\sin\theta,\cos\theta)/2$ (neglecting also any time-dependence of the couplings). The bath Hamiltonian $\hat{H}_{\rm B}=\sum_{k}\hbar\omega_{k}{\hat{b}^{\dagger}}_{k}{\hat{b}^{\phantom{\dagger}}}_{k}$ describes a set of harmonic oscillators, $[{\hat{b}^{\phantom{\dagger}}}_{k},{\hat{b}^{\dagger}}_{k^{\prime}}]=\delta_{k,k^{\prime}}$, and $\hat{X}=\sum_{k}\lambda_{k}({\hat{b}^{\dagger}}_{k}+{\hat{b}^{\phantom{\dagger}}}_{k})$ is a combination of their position operators, with coupling constants $\lambda_{k}$. For a bath of harmonic oscillators, the coupling to the environment is captured by the spectral function $J(\omega)=\sum_{k}\lambda_{k}^{2}\delta(\omega-\omega_{k})$ which we take to be parametrized, in the limit of a continuous distribution of frequencies $\omega_{k}$, by the standard ohmic form Leggett et al. (1987) $J(\omega)=2\alpha\hbar^{2}\omega\textrm{e}^{-\omega/\omega_{c}}$, with a cut-off frequency $\omega_{c}$ and an overall dimensionless coupling constant $\alpha$, which encodes the coupling strength between the system and the environment. Since our results are not qualitatively affected by the choice of the cut-off frequency, we will set $\omega_{c}=10\Delta/\hbar$ throughout this paper.

Let us briefly discuss how the initial state of the system is chosen. In the spirit of the LZ formula, we assume that, at some large negative time $t_{0}=-t_{a}$ — which we select such that $vt_{a}\gg\Delta$, so that the initial qubit ground state $|\psi_{\mathrm{gs}}(t_{0})\rangle$ is very close to being a $\hat{\sigma}^{z}$-eigenstate — we initialize the system in a decoupled state $\hat{\rho}_{0}=|\psi_{\mathrm{gs}}(t_{0})\rangle\langle\psi_{\mathrm{gs}}(t_{0})|\otimes\hat{\rho}_{\rm B}$, where $\hat{\rho}_{\rm B}=\textrm{e}^{-\beta\hat{H}_{\rm B}}/Z$ is the bath thermal equilibrium density matrix at temperature $T$, with $Z={\mathrm{Tr}}(\textrm{e}^{-\beta\hat{H}_{\rm B}})$ the bath partition function and $\beta=1/(k_{B}T)$. The ensuing unitary dynamics is captured by the full evolution operator

[TABLE]

where $\mathcal{T}\mathrm{exp}$ is the time-ordered exponential. Information on the qubit is fully encoded in its reduced density matrix

[TABLE]

and we can extract the probability that the qubit can be found in its (instantaneous) ground state $|\psi_{\mathrm{gs}}(t)\rangle$ at time $t$:

[TABLE]

From the probability ${\mathrm{P}}_{\mathrm{gs}}(t)$ calculated at a large positive time $t_{\rm f}=-t_{0}=t_{a}$, we obtain the quantity that effectively generalizes the LZ formula, i.e. $P_{\mathrm{gs}}(v,T)\equiv{\mathrm{P}}_{\mathrm{gs}}(t_{\rm f})$, which turns out to be effectively independent of the value of $t_{a}$, provided $vt_{a}\gg\Delta$. In practice, choosing $vt_{a}=200\Delta$ is enough to guarantee convergence to the infinite-time limit, and we have set it throughout this paper, unless otherwise stated. In the following, we will compare results obtained with $\hat{\rho}_{\rm Q}(t)$ calculated in two different ways: first, by means of a rather standard QME approach based on Bloch-Redfield-type equations, see Sec. II.1; second, by using a non-perturbative, non-Markovian numerical method, the quasi-adiabatic path-integral (QUAPI), see Sec. II.2, which we employed to check and benchmark the QME data and to produce reliable results in the strong-coupling limit.

II.1 Quantum Master Equation

We construct our QME for a system that is weakly coupled to the thermal environment, assuming the usual Born-Markov approximations and proceeding as in many standard derivations Cohen-Tannoudji et al. (1992); Gaspard and Nagaoka (1999); Yamaguchi et al. (2017). We provide a few details about this derivation in Appendix A. In order to make a more direct contact with the well known weak-coupling QME for an unbiased spin-boson problem ($\epsilon=0$), we choose to perform, following Ref. Nalbach, 2014, a time-dependent rotation in spin space around the $y$-axis, $\hat{R}_{t}=\exp[i\phi_{t}\hat{\sigma}^{y}/2]$, with $\phi_{t}=\arctan(\epsilon(t)/\Delta)$, such that $\hat{R}_{t}^{\dagger}\hat{H}_{\rm Q}(t)\hat{R}_{t}=-E_{t}\hat{\sigma}^{x}/2$, with $E_{t}\equiv\hbar\Lambda_{t}\equiv\sqrt{\Delta^{2}+\epsilon^{2}(t)}$. In this framework, by adopting the Bloch-sphere representation $\tilde{\rho}_{\rm Q}(t)=\hat{R}_{t}^{\dagger}\hat{\rho}_{\rm Q}(t)\hat{R}_{t}=\frac{1}{2}(\mathbb{1}+\sum_{\nu}r_{\nu}(t)\hat{\sigma}^{\nu})$ with $\nu=x,y,z$, we write down our weak-coupling QME as the following set of three differential equations:

[TABLE]

with $\overline{r}_{x}(t)=\tanh(\beta E_{t}/2)$ the “instantaneous” putative equilibrium value that $r_{x}$ would reach in absence of driving. The various (time-dependent) rate constants include the usual “relaxation” $\gamma_{\mathrm{\scriptscriptstyle R}}$, “pure dephasing” $\gamma_{{\scriptscriptstyle\varphi}}$ and “decoherence” $\gamma_{\mathrm{\scriptscriptstyle D}}$ rates Shnirman et al. (2002):

[TABLE]

as well as the following two extra terms:

[TABLE]

These equations are obtained without using the so-called secular or rotating wave approximation (RWA) Cohen-Tannoudji et al. (1992); if we employ it, we obtain a simplified set of equations Nalbach (2014); Javanbakht et al. (2015) which we report in Appendix B, see Eq. (22). In the following, we will present results obtained from Eqs. (8), integrated through a standard IV-order Runge-Kutta method. We will comment, in Appendix B, on the quality of the RWA-approximation in some regimes.

II.2 QUAPI

The quasi-adiabatic propagator path-integral algorithm (QUAPI) developed by Makri and Makarov Makri (1995); Makri and Makarov (1995a, b) is a numerical technique for evaluating an exact Trotter-discretized path-integral of a low-dimensional system (the evolving qubit $\hat{H}_{\rm Q}(t)$, in the present case) taking into account the effect of the bath through a discrete version of the Feynman-Vernon influence integral, describing non-local-in-time correlations induced by the environment. The key idea behind this method is that the resulting path-integral is evaluated without resorting to any Monte Carlo sampling, but rather through an ingenious use of an iterative tensor multiplication scheme. This technique is numerically exact, in principle, since both the Trotter time-step $\delta t$ and the size of the tensor $2^{K}$ — where $K\geq 1$ is such that $\tau_{\rm mem}=K\delta t$ sets the bath-memory time-scale, beyond which the bath correlation function is effectively neglected — can be in principle changed towards their limiting values of $\delta t\to 0$ and $K\to\infty$ for each fixed $\tau_{\rm mem}$. In practice, however, both $\delta t$ and $K$ have to be chosen carefully. For large $\delta t$, the required $K$ is small, and one deals with small matrices, but the Trotter error might be large; for small $\delta t$ the Trotter error might be negligible, but one needs large values of $K$, hence the resulting matrices are big and the calculation becomes very heavy.

III Results

III.1 Zero temperature

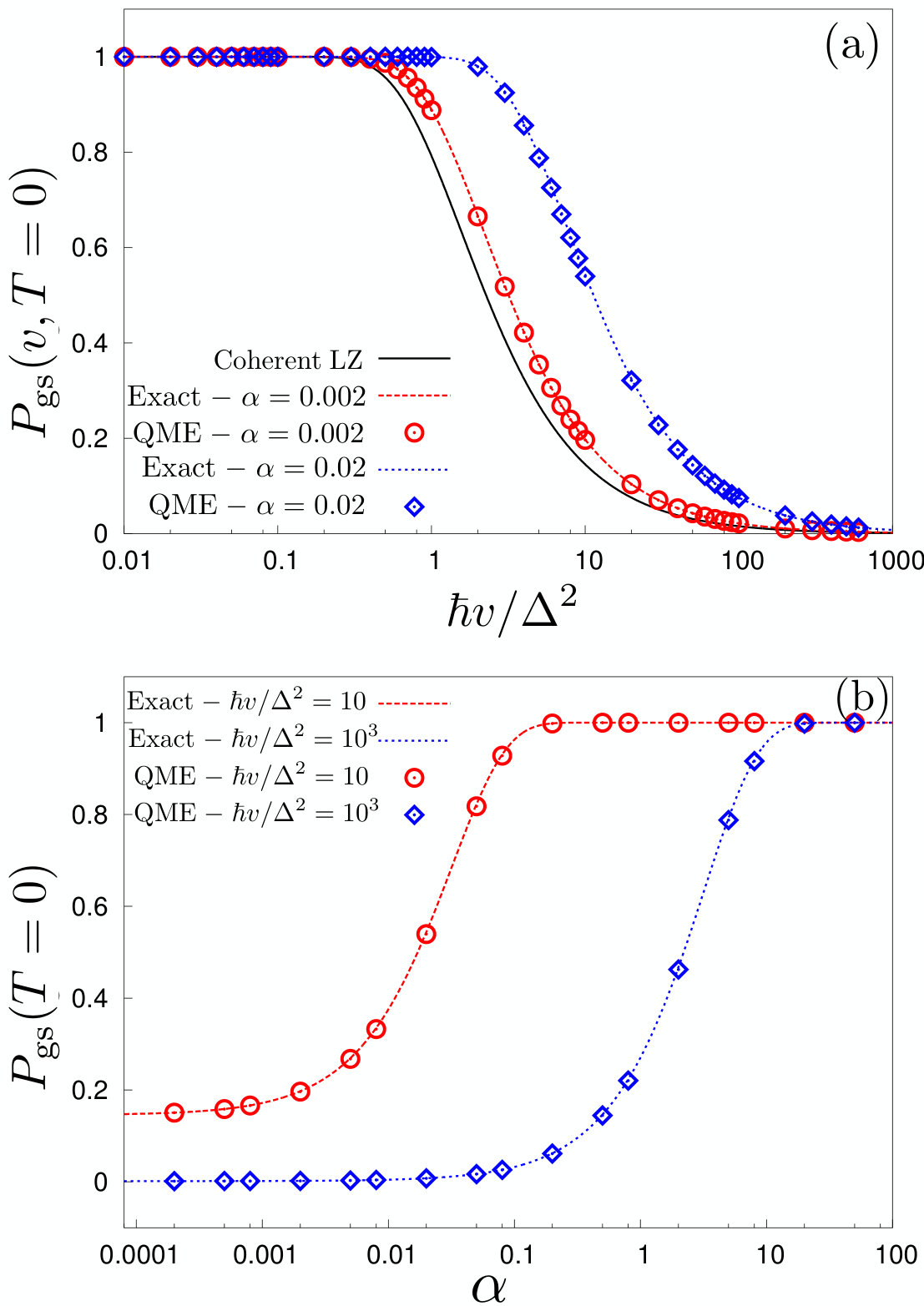

Let us start by discussing our results at zero-temperature. In this regime, we have a perfect benchmark for our QME approach given by the exact predictions by Hänggi and coworkers Wubs et al. (2006); Saito et al. (2007), who showed that, in presence of a bath at $T=0$ and for an evolution starting at $t_{0}=-\infty$ and ending at $t_{\rm f}=+\infty$, the exact generalization of the LZ formula reads:

[TABLE]

where $W_{\theta}$, effectively replacing the tunnelling matrix element $\Delta$ in the standard LZ formula, for our ohmic bath choice reads:

[TABLE]

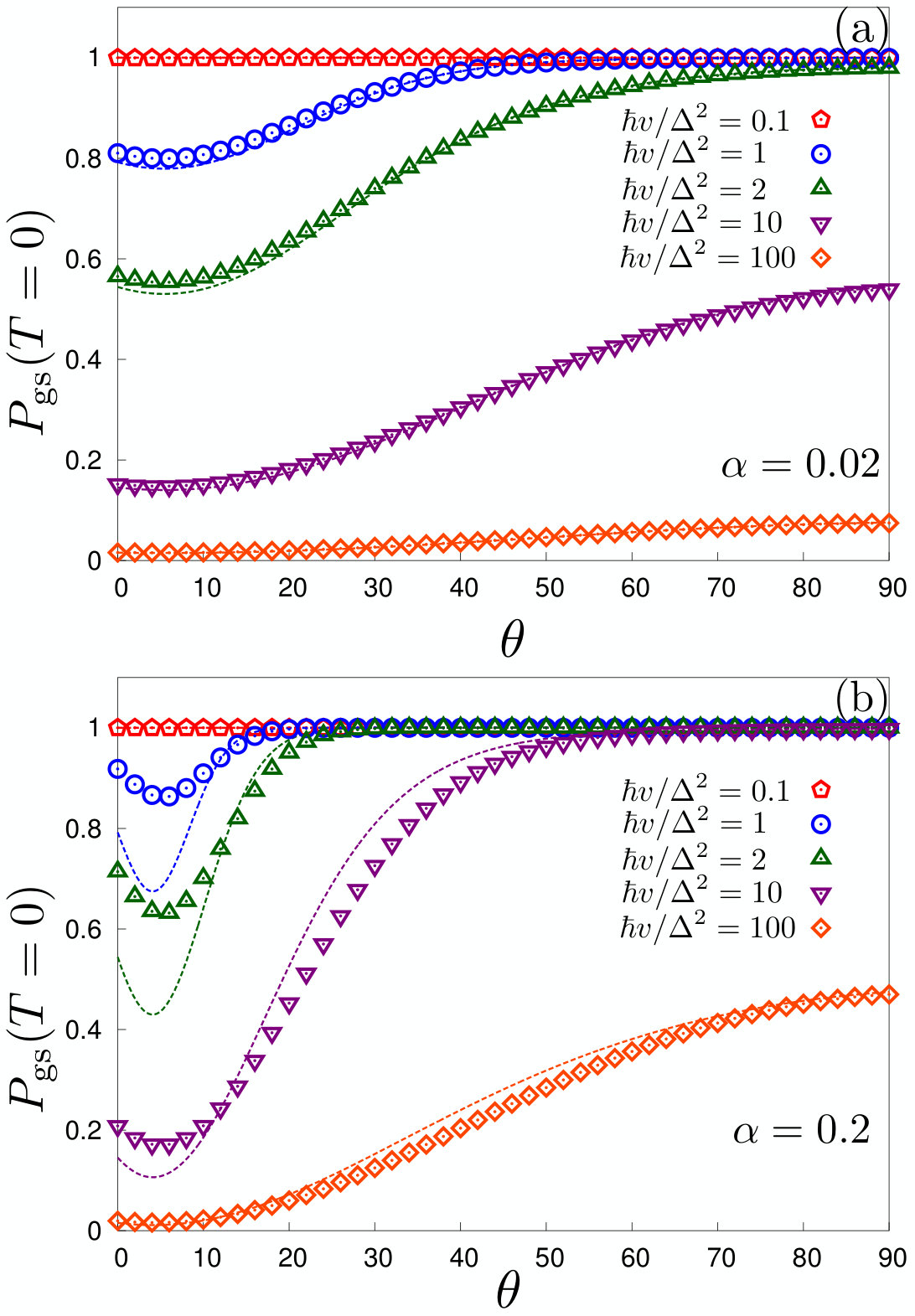

According to Eq. (12), the bath has no effect when acting only along $\hat{\sigma}^{z}$ since $W_{\theta=0}^{2}=\Delta^{2}$; on the contrary, it effectively increases the bare tunnelling amplitude $\Delta$ when, for instance, it acts along $\hat{\sigma}^{x}$ since $W_{\theta=\pi/2}^{2}=\Delta^{2}+2\alpha\omega_{c}^{2}$. (Incidentally, an identical enhancement would hold for a bath coupling along $\hat{\sigma}^{y}$.) This effective increase of the tunnelling amplitude leads to a definite enhancement of the probability to remain in the ground state $P_{\mathrm{gs}}(v,T=0)$: we illustrate this in Fig. 2(a), where the exact predictions of Refs. Wubs et al., 2006; Saito et al., 2007 reported in Eq. (11) are compared to QME evolution data, obtained by integrating Eqs. (8) for two relatively weak values of the coupling $\alpha$. The agreement is almost perfect at weak coupling, and, as shown in Fig. 2(b), it also persists in a remarkable and puzzling fashion all the way up to the strong coupling regime. Therefore, our QME is extremely good for a pure transversal noise, $\theta=\pi/2$, even in the strong coupling regime. This excellent agreement diminishes, or even disappears, if the noise has a longitudinal component, as shown in Fig. 3, where the probability $P_{\mathrm{gs}}(v,T=0)$ is plotted, for fixed driving velocities $v$, versus the noise coupling direction $\theta$ and for different coupling strengths $\alpha$. The reason for this great reliability is still unclear to us, but we speculate that it might be linked to the fact that the system’s dynamics is Markovian for a purely transversal coupling, while non-Markovian effects are more pronounced for a purely longitudinal noise Breuer et al. (2016). Indeed, we have checked the behaviour in time of the trace distance between pairs of random initial states both for $\theta=0$ and $\theta=\pi/2$: in the former case, we have found non-monotonic trends, hinting that the dynamics must be non-Markovian Breuer et al. (2016); in the latter case, we have found that the trace distance always monotonically decreases, as expected for Markovian dynamics Breuer et al. (2016).

III.2 Finite temperature

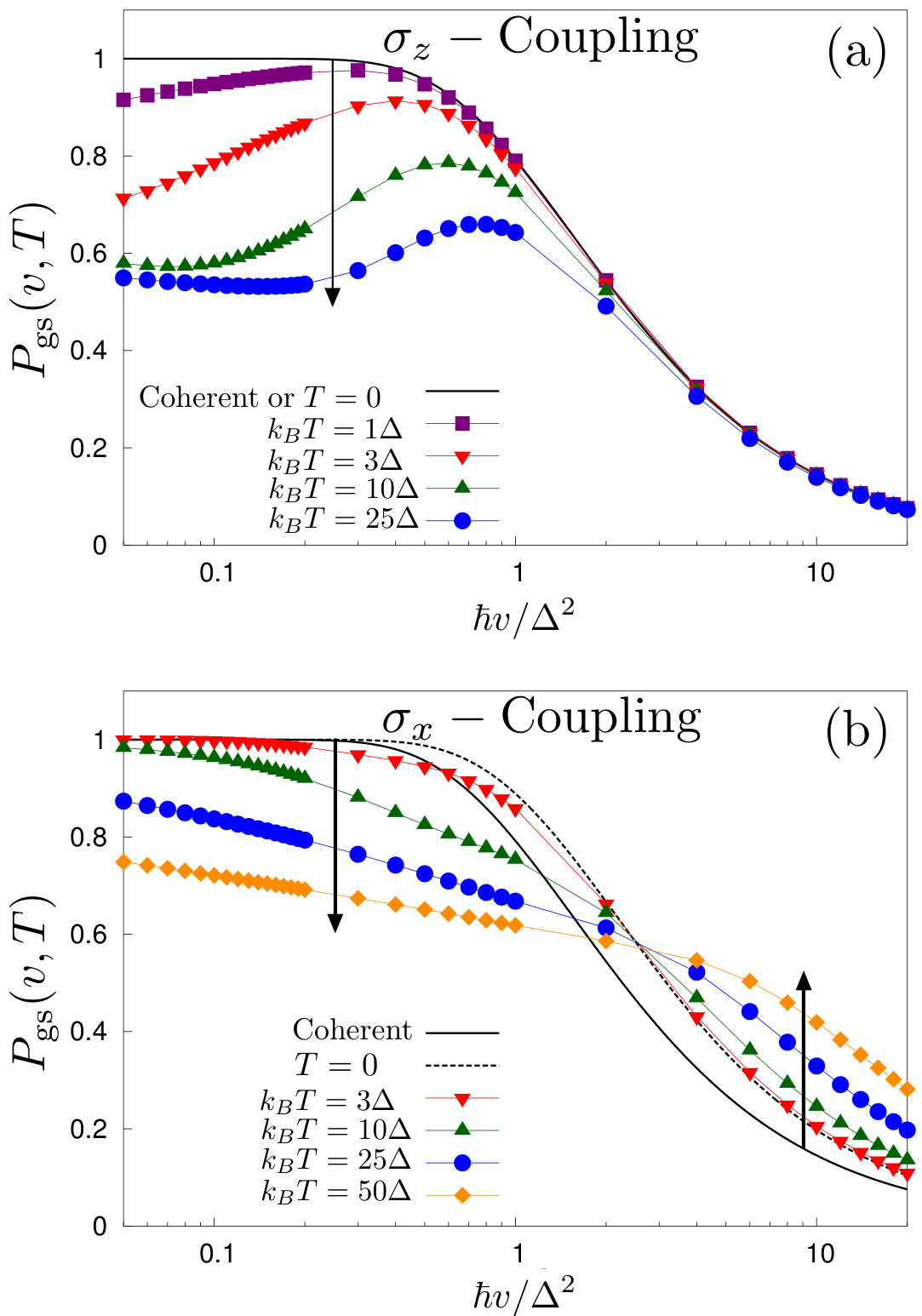

We now turn to finite bath temperatures. We begin by considering a purely longitudinal coupling, $\theta=0$. At $T>0$ no analytical results are available, but we can use QUAPI to benchmark our QME data.

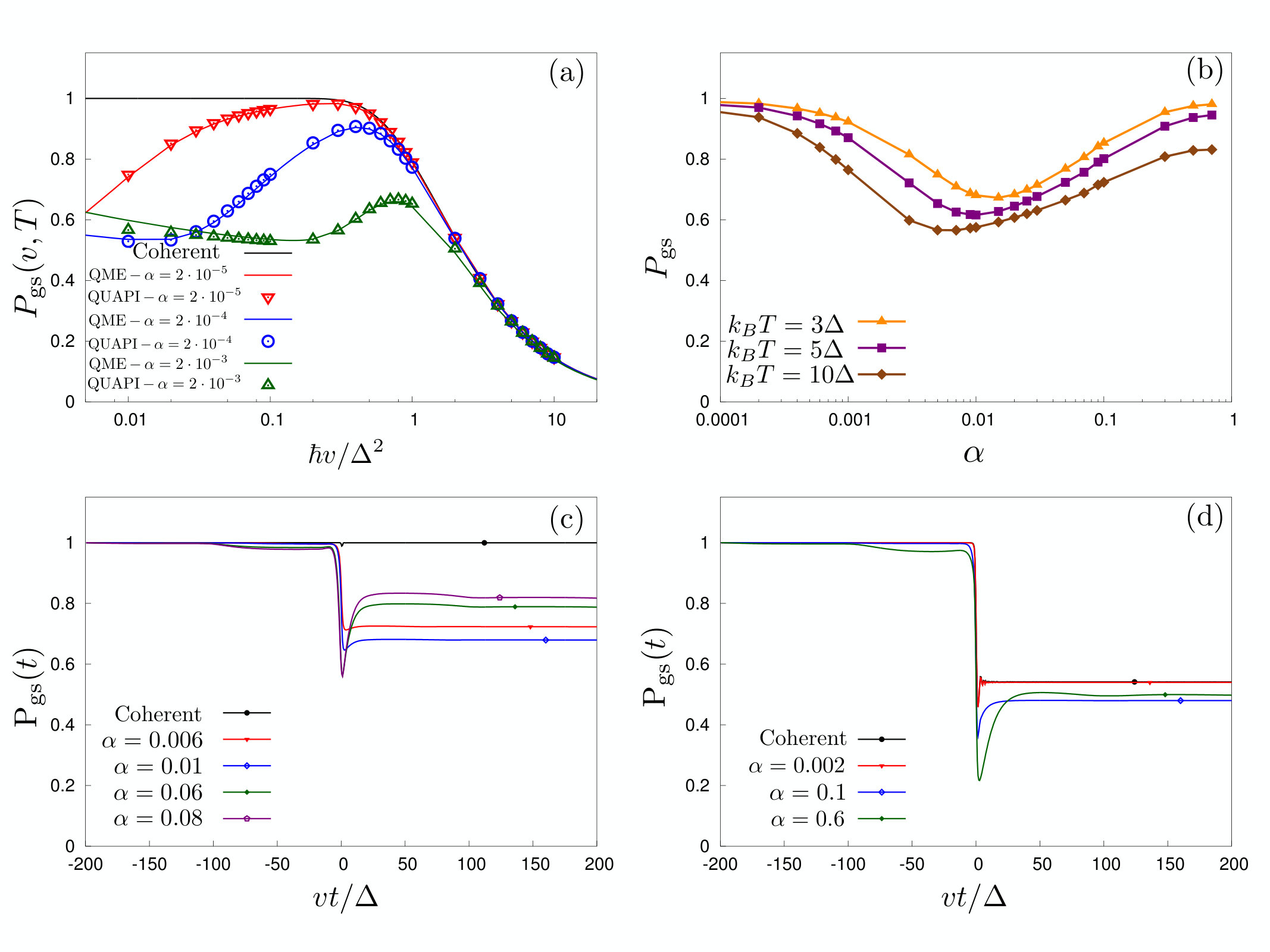

As Fig. 4(a) shows, the agreement between the QME results (lines) and the QUAPI data (points) is quite good in the weak coupling regime and (not shown) for all the temperatures for which a QUAPI simulation is feasible. Notice also that increasing the bath temperature reduces $P_{\mathrm{gs}}(v,T)$ from the coherent evolution and $T=0$ value $P_{\mathrm{gs}}(v,0)=P_{\mathrm{gs}}^{\mathrm{\scriptscriptstyle LZ}}(v)$, and it does so in a rather non-monotonic fashion, depending on the coupling constant $\alpha$, as previously reported Nalbach and Thorwart (2009); Nalbach (2014). What we also find is that $P_{\mathrm{gs}}(v,T)$ exhibits a non-monotonic behavior for increasing coupling $\alpha$, at fixed $v$, especially relevant in the adiabatic driving regime (small $\hbar v/\Delta^{2}$). This is shown in Fig. 4(b), where we plot $P_{\mathrm{gs}}(v,T)$ at a fixed value of $\hbar v/\Delta^{2}=0.2$ and for different temperatures, as a function of the coupling constant $\alpha$ (these data are obtained using QUAPI, as the QME would not be reliable at such large values of $\alpha$ for $\theta=0$). While for weak coupling the probability $P_{\mathrm{gs}}(v,T)$ decreases as $\alpha$ increases, the inverse tendency, characterized by a $P_{\mathrm{gs}}(v,T)$ increasing back towards $P_{\mathrm{gs}}^{\mathrm{\scriptscriptstyle LZ}}$, is found when $\alpha$ increases beyond a certain $T$-dependent characteristic $\alpha_{\rm min}(T)$. Evidently, although the dynamics tends to become more and more incoherent for large $\alpha$, the overall form of $P_{\mathrm{gs}}(v,T)$ would be very close to the fully coherent value of $P_{\mathrm{gs}}^{\mathrm{\scriptscriptstyle LZ}}$, in agreement with the Fermi-Golden rule results of Ref. Amin and Averin, 2008, obtained from a fully incoherent population-dynamics evolution. Figure 4(c,d) shows details of the dynamical evolution of ${\mathrm{P}}_{\mathrm{gs}}(t)$ obtained from QUAPI at different values of the parameters. In Fig. 4(c) the driving velocity is “small” ($\hbar v/\Delta^{2}=0.2$), the coherent evolution is essentially adiabatic, and we notice the effect of the finite-temperature bath in the form of a rather sharp decrease of ${\mathrm{P}}_{\mathrm{gs}}(t)$ around the transition region, followed by a partial recovery which tends to push ${\mathrm{P}}_{\mathrm{gs}}(t_{\rm f})$ towards values which are closer and closer to $P_{\mathrm{gs}}(v,T=0)$ as the coupling $\alpha$ becomes stronger. In Fig. 4(d) the driving velocity is rather “large” ($\hbar v/\Delta^{2}=2$): here we observe that while for small couplings ${\mathrm{P}}_{\mathrm{gs}}(t)$ is basically on top of the corresponding coherent evolution dynamics (including almost invisible, on the scale of the figure, coherent dynamics oscillations), at larger couplings the drop of ${\mathrm{P}}_{\mathrm{gs}}(t)$ is rather sharp and non-oscillatory, again with a partial recovery which tends to push ${\mathrm{P}}_{\mathrm{gs}}(t_{\rm f})$ towards $P_{\mathrm{gs}}(v,T=0)$ as the coupling $\alpha$ becomes stronger.

The previous discussion can be fairly well summarized by saying that a “thermally assisted” QA dynamics requires necessarily some form of transverse noise, which we now explore in the regime of finite bath temperatures $T>0$. The crucial question is: will a finite-$T$ bath improve or be detrimental to the $T=0$ dynamics in presence of a transverse noise? We will see that the answer to such question depends on the driving velocity $v$. Anticipating the following discussion, we might say that increasing $T$ is helpful in the fast driving regime $\hbar v/\Delta^{2}\gg 1$, while it is rather detrimental in the “adiabatic” regime $\hbar v/\Delta^{2}\ll 1$.

Unfortunately, the QUAPI does not provide a very good benchmark for the $\theta=\pi/2$ case at finite temperature. The reason for this has to do with the Trotter error, which is proportional to $|\epsilon(t)|(\delta t)^{3}$, as one can check by calculating the relevant commutator $[\hat{H}_{\rm QB},[\hat{H}_{\rm Q}(t),\hat{H}_{\rm QB}]](\delta t)^{3}$, where $\hat{H}_{\rm QB}$ is the system-bath interaction. This implies that the Trotter error is very large at the initial and final stages of the evolution, where $|\epsilon(t)|=v|t|\gg\Delta$ unless the corresponding Trotter time $\delta t$ is decreased accordingly. In practice, this makes large values of the evolution time-interval $[-t_{a},t_{a}]$ intractable with QUAPI. Nevertheless, we have benchmarked our finite-$T$ QME data by comparing against QUAPI the results of evolutions restricted to smaller time-intervals, with $vt_{a}\approx 20\Delta$, for which however ${\mathrm{P}}_{\mathrm{gs}}(t_{\rm f})$ deviates quantitatively from $P_{\rm gs}(v,T)$. In this way we verified a rather good agreement (not shown) between QUAPI and QME also for transverse noise, for all the temperatures we have studied, at least in the weak-coupling region. Armed with this satisfactory validation of our weak-coupling finite-temperature QME approach, we go on and we consider a transverse noise at finite temperature in the long-evolution time regime, $vt_{a}\gg\Delta$. Here the data show a very intriguing behavior with temperature, as summarized in Fig. 1(b). Remarkably, for a sufficiently fast driving $\hbar v/\Delta^{2}\gg 1$, a higher bath temperature can significantly enhance the performance of the annealing protocol with respect to the $T=0$ case, hence effectively providing a “thermally assisted” QA Amin et al. (2008). On the contrary, this beneficial effect of a bath-temperature increase disappears, turning into detrimental, in the opposite regime of small driving velocity $\hbar v/\Delta^{2}\ll 1$.

To better understand the physics behind this effect, we consider a drastically simplified model of “environment”, which is reduced to a single harmonic oscillator Ashhab (2014), with a fixed frequency $\Omega$ coupled to the qubit along a fixed direction in spin-space, parameterized as before with the angle $\theta$. The Hamiltonian is therefore:

[TABLE]

According to the predictions of Ref. Saito et al., 2007, such a zero-temperature “single-oscillator bath” would still lead to a $P_{\mathrm{gs}}(v,T=0)$ given by Eq. (11), where now:

[TABLE]

Notice that we can tune $\Omega$ and $\lambda$ so as to get the same $W_{\theta}^{2}$ we would have for a set of infinitely many harmonic oscillators with Ohmic spectrum (see Eq. (20) in Ref. Saito et al., 2007). Therefore, the behaviour of $P_{\mathrm{gs}}(v,T=0)$ for a Ohmic dissipative problem can be perfectly mapped into a specific “single-oscillator environment” coupled to the system. This analogy, which is in principle justified only for $T=0$ and for the infinite-time Landau-Zener problem, helps elucidating some of the physics of the problem, which becomes very transparent in the single-oscillator setting. In the following we will take $\hbar\Omega=50\Delta$ and a coupling $\lambda=0.5\Delta$. The time evolution of this simple driven qubit can be studied both at zero and finite temperature by means of an exact diagonalization-based Schrödinger dynamics, provided the oscillator Hilbert space is properly truncated. Fig. 5 shows the results of such a study for a purely transversal coupling $\theta=\pi/2$ in the non-adiabatic regime, $\hbar v/\Delta^{2}=6$ (a), and in the “adiabatic” regime $\hbar v/\Delta^{2}=0.6$ (b), compared to the “free” coherent evolution.

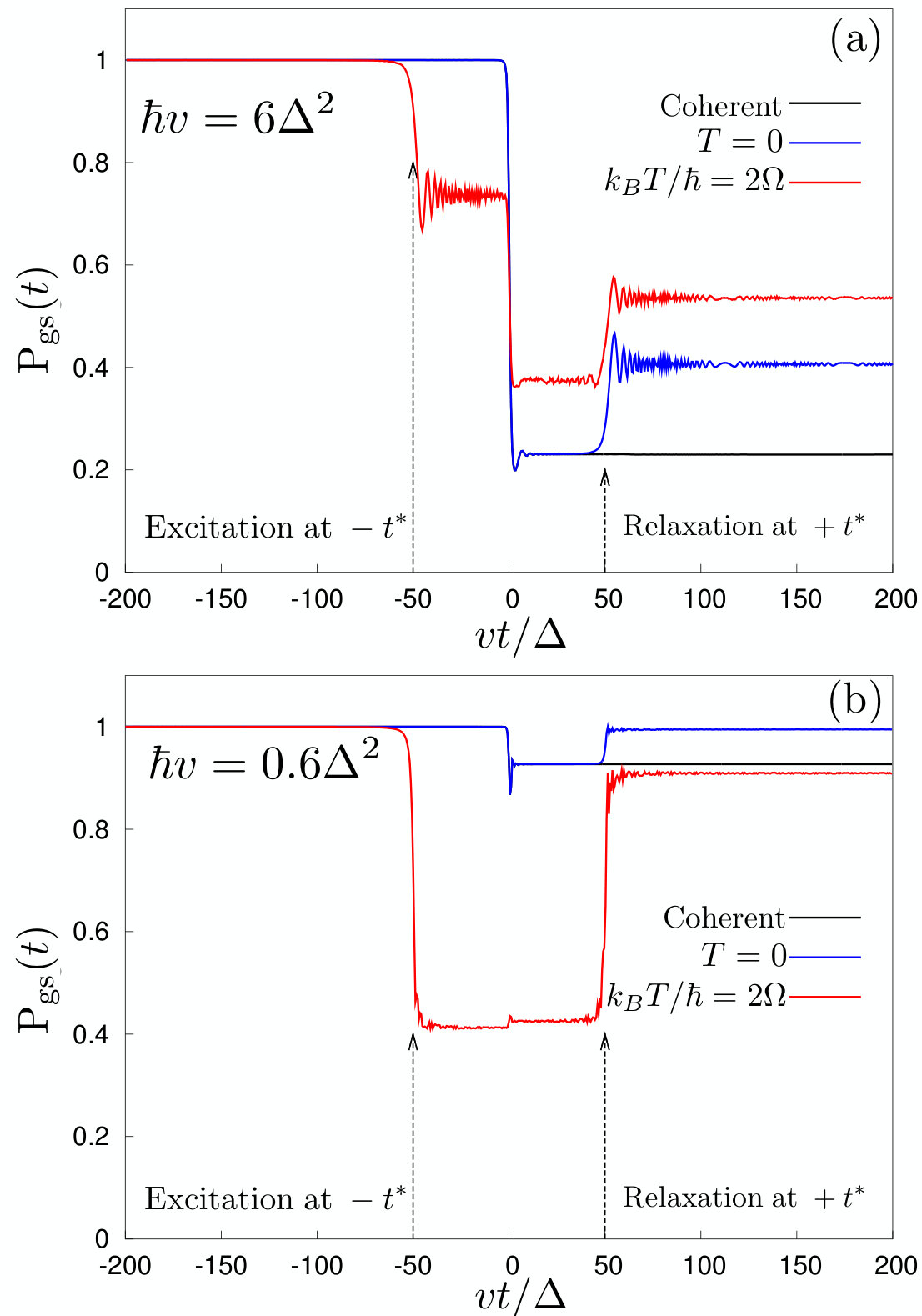

We observe that a $\hat{\sigma}^{x}$-coupling “bath” is indeed active when the instantaneous gap of the qubit $E(t)=\sqrt{(vt)^{2}+\Delta^{2}}$ matches exactly the oscillator energy $\hbar\Omega$. This resonance condition happens at two times $\pm t^{*}$ with

[TABLE]

which correspond to excitation (at $-t^{*}$, before the avoided crossing) and relaxation (at $+t^{*}$, after the avoided crossing) of the system, by absorption/emission of a quantum of vibration. The final result is however very different depending on the driving velocity $v$. In the fast-driving regime, Fig. 5(a), immediately after the avoided crossing ($0<t<+t^{*}$), the system ends up in the excited state with a significant probability, both at zero and at finite temperature. Thus, a relaxation mechanism occurring at $t=+t^{*}$ is quite effective in increasing ${\mathrm{P}}_{\mathrm{gs}}(t)$ (the $\hat{\sigma}^{x}$-coupling providing the necessary matrix element at this resonant condition) up and above at the coherent-dynamics probability (solid black line). We also observe that, at $T=0$ (blue solid line), the relaxation associated to a resonant emission of a quantum of vibration at $t=+t^{*}$ is the only possible process, since the oscillator is unable to excite the system at $t=-t^{*}$. On the contrary, for $T>0$ (red solid line), the bath can excite the qubit before the avoided crossing, by a resonant absorption of a quantum of vibration at $t=-t^{*}$. This effect, which reflects itself in a marked decrease of ${\mathrm{P}}_{\mathrm{gs}}(t)$ at $t\sim-t^{*}$, is actually beneficial to the final ground state probability after the avoided crossing (where the instantaneous ground state is indeed flipped), providing an enhancement of ${\mathrm{P}}_{\mathrm{gs}}(t)$ over the coherent evolution result at times $0<t<+t^{*}$ (red solid line). Finally, the subsequent relaxation process at $t=+t^{*}$, although less effective than at $T=0$, further improves the final probability ${\mathrm{P}}_{\mathrm{gs}}(t_{\rm f})$ up and above the coherent evolution result. This state of matters changes if the driving velocity is small, as shown in Fig. 5(b), corresponding to $\hbar v/\Delta^{2}=0.6$. Here, the coherent dynamics is nearly adiabatic. While a zero temperature transverse bath further improves $P_{\mathrm{gs}}(v,0)$ above $P_{\mathrm{gs}}^{\mathrm{\scriptscriptstyle LZ}}$, at finite $T$ the combined effect of the excitation at $t=-t^{*}$ and the subsequent relaxation at $t=+t^{*}$ is eventually slightly detrimental.

IV Discussion and conclusions

In this study, we have investigated the role of the bath temperature and of the spin-coupling direction in a simple dissipative LZ model, showing that thermally assisted AQC requires a transverse component of the coupling and is generally effective only in the fast driving regime.

We can now return to the results of Ref. Dickson et al., 2013 and discuss them in the light of our findings. Ref. Dickson et al., 2013 deals with an explicit realization of an approximate two-level system LZ dynamics using 16-qubit of the D-Wave${}^{\mbox{\tiny\textregistered}}$ machine. The gap at the anti-crossing between the two low-lying instantaneous eigenstates is engineered to be rather small, $\Delta=g_{\rm min}=0.011$ mK$/k_{B}$, compared to a rather large energy separation, $\delta E\approx 50.5$ mK$/k_{B}$, from all the higher-lying states. In the experiment, several annealing runs are performed at different driving velocities and temperatures, with $T$ ranging from $T_{\rm low}=19.9$ mK up to $100.8$ mK. Particularly interesting are the first four temperature datasets, ranging from $T_{\rm low}$ up to $T_{\rm high}=34.9$ mK, where the two-level-system approximation is reasonable, since $k_{B}T<\delta E$. The extrapolation of the lowest experimental annealing data down to $T=0$ (see Fig. 3 of Ref. Dickson et al., 2013) allows to extract $P_{\rm gs}(v,T=0)$, which closely matches a Landau-Zener type of expression. This is, in a sense, not surprising, in view of the exact results of Refs. Wubs et al., 2006; Saito et al., 2007; it is also perfectly in line with the Fermi golden rule findings in the incoherent-tunnelling-dominated regime associated to a significant sub-ohmic flux noise Amin and Averin (2008), as well as with the seminal analysis by Ao and Rammer Ao and Rammer (1991). But, as we have discussed, a LZ form is rather generic: it does not tell you if the coupling is predominantly in the longitudinal $\hat{\sigma}^{z}$-direction, or if there is some component of transverse noise. The finite-$T$ experimental curves with $T=19.9\div 34.9$ mK are in some sense a strong argument in favour of the fact that there should be some transverse noise affecting the annealing dynamics. Indeed, Fig. 4 of Ref. Dickson et al., 2013 clearly shows that $P_{\rm gs}(v,T)$ is considerably improved over the $T=0$ curve in its fast-driving tail, which would be impossible with a purely longitudinal noise. Consistently with our findings, this “thermally assisted” QA turns into a detrimental effect in the slow-driving regime. What is hard to explain from our very rough modelling is the fact that the experimentally extracted $P_{\rm gs}(v,T)$ remains quite different from $1/2$ — the value you would expect at $T=\infty$ — at temperatures which are incredibly large compared to the minimum gap, $k_{B}T/\Delta=1809\div 3172$. Evidently, a detailed understanding of the experimental findings needs a more refined modelling, possibly including the unavoidable time-dependence of the couplings $g_{i}(t)$ to the environment, as well as the possible presence of sub-ohmic noise components, very hard to tackle with traditional QME weak-coupling techniques.

In future, the role of a $\hat{\sigma}^{y}$-coupling, which we have not explicitly addressed, might also be worth looking at. Indeed $\hat{\sigma}^{y}$ is precisely the Hamiltonian term realising the shortcut to adiabaticity Demirplak and Rice (2003), or transitionless quantum driving, in Berry’s terminology Berry (2009), in our LZ problem: this is clear from the presence of the $\dot{\phi}_{t}\,\hat{\sigma}^{y}$ term in the rotated Hamiltonian in Eq. (17), see also Ref. del Campo et al., 2012. Clearly, the possible time-dependence of the bath-couplings, inherited by projecting the two lowest-lying instantaneous eigenstates into an effective two-level system, might also play a role, especially in view of the fact that the larger transverse field present before the anti-crossing might favour thermal excitations over the thermal relaxations phenomena occurring after the anti-crossing Dickson et al. (2013). Further work is necessary to fully elucidate all these aspects.

ACKNOWLEDGMENTS

We acknowledge fruitful discussions with S. Suzuki, M. Keck and D. Rossini. RF kindly acknowledges support from the National Research Foundation of Singapore (CRP - QSYNC) and the Oxford Martin School. Research was partly supported by EU ERC MODPHYSFRICT.

Appendix A A few remarks on the derivation of the quantum master equation

In the usual setting of a perturbative QME approach, the bath has a large number of degrees of freedom weakly coupled to the system, which in turn perturbs the bath state in a negligible way. Hence, the bath $\hat{X}$-correlation function is essentially unmodified by the system, and is given by

[TABLE]

where $\hat{X}(t)=\textrm{e}^{i\hat{H}_{\rm B}t/\hbar}\hat{X}\textrm{e}^{-i\hat{H}_{\rm B}t/\hbar}$ (in the usual interaction representation) and the second expression applies to a strictly harmonic bath for which ${\mathrm{Tr}}_{\rm B}\left(\rho_{\rm B}{\hat{b}^{\dagger}}_{k}{\hat{b}^{\phantom{\dagger}}}_{k}\right)=f_{\rm B}(\omega_{k})=1/(\textrm{e}^{\beta\hbar\omega_{k}}-1)$ is the Bose distribution. Ideally, for a Markovian approximation to hold, one would require that $C(t)$ decays fast with respect to the timescales of the evolving system; this is strictly speaking not the case for an ohmic bath $C(t)$, which shows a power-law tail even at finite temperature. We consider the case of a system weakly coupled to its environment, under the usual Born-Markov approximations Cohen-Tannoudji et al. (1992); Gaspard and Nagaoka (1999); Yamaguchi et al. (2017). Following Ref. Nalbach, 2014, we perform a time-dependent rotation in spin space around the $y$-axis, $\hat{R}_{t}=\exp[i\phi_{t}\hat{\sigma}^{y}/2]$, with $\phi_{t}=\arctan(\epsilon(t)/\Delta)$, such that $\hat{R}_{t}^{\dagger}\hat{H}_{\rm Q}(t)\hat{R}_{t}=-E_{t}\hat{\sigma}^{x}/2$, with $E_{t}\equiv\hbar\Lambda_{t}\equiv\sqrt{\Delta^{2}+\epsilon^{2}(t)}$. This leads to an effective qubit Hamiltonian of the form:

[TABLE]

In this time-dependent frame we denote by a tilde the other rotated operators, $\tilde{\rho}_{\rm Q}(t)=\hat{R}_{t}^{\dagger}\hat{\rho}_{\rm Q}(t)\hat{R}_{t}$ and $\tilde{\sigma}_{\nu}(t)=\hat{R}_{t}^{\dagger}\hat{\sigma}^{\nu}\hat{R}_{t}$, and write the Schrödinger picture QME as:

[TABLE]

The effect of the bath is all encoded in

[TABLE]

where

[TABLE]

is the free evolution operator associated to $\tilde{H}_{\rm Q}(t)$, which we have re-expressed in terms of an appropriate effective Hamiltonian $\overline{\rm H}$, in general function of both $t$ and $\tau$. In the well-known setting of a time-independent qubit Hamiltonian $\hat{H}_{\rm Q}$, we would have $\overline{\rm H}=\hat{H}_{\rm Q}$ and one would then argue that, assuming $C(\tau)$ to decay on a fast enough timescale $t_{\rm B}$, the upper limit of the integral in $\tilde{S}_{\nu}$ can be effectively set to infinity Gaspard and Nagaoka (1999); Yamaguchi et al. (2017) (as soon as $t-t_{0}\gg t_{\rm B}$), and any other dependence on $\tau$, apart from that of the free-evolution operator, can be neglected. In the present time-dependent framework, these two standard approximations lead to:

[TABLE]

A further approximation that we do is to take the evolution operator effective Hamiltonian $\overline{\rm H}$ to be simply $\overline{\rm H}\approx-E_{t}\hat{\sigma}^{x}/2=\hat{R}_{t}^{\dagger}\hat{H}_{\rm Q}(t)\hat{R}_{t}$. Although not straightforward to justify, especially in the non-adiabatic large-$v$ regime, we will assume it here, following the literature Nalbach (2014), and refer to Ref. Yamaguchi et al., 2017 for a detailed discussion of the different time-scales involved in the dynamics. The great advantage of this approximation is that it allows us to analytically calculate the rate constants appearing in our QME: indeed, the effect of dissipation reduces to that of an unbiased spin-boson problem with an instantaneous value of the tunnelling amplitude $\Delta\mapsto E_{t}=\hbar\Lambda_{t}$. We will test the approximations involved in this QME a posteriori, against numerically “exact” QUAPI data and exact zero temperature analytical results Wubs et al. (2006); Saito et al. (2007). Eventually, neglecting the so-called Lamb shiftCohen-Tannoudji et al. (1992) terms due to the small imaginary parts in the Fourier transform of $C(t)$ and by adopting the Bloch-sphere representation $\tilde{\rho}_{\rm Q}(t)=\frac{1}{2}(\mathbb{1}+\sum_{\nu}r_{\nu}(t)\hat{\sigma}^{\nu})$ with $\nu=x,y,z$, we obtain the weak-coupling QME shown in Eq.(8).

Appendix B Rotating-wave approximation

The rotating wave approximation (RWA) Cohen-Tannoudji et al. (1992) is a very popular approximation which, among other things, allows to put the QME, in the time-independent case, into an explicitly Lindbladian form. This, in particular, guarantees that the approximation explicitly preserves the positivity condition of the density matrix. There is no really compelling reason to adopt it in the present time-dependent case, apart from a small simplification of the QME equations, which will now read as follows Nalbach (2014); Javanbakht et al. (2015):

[TABLE]

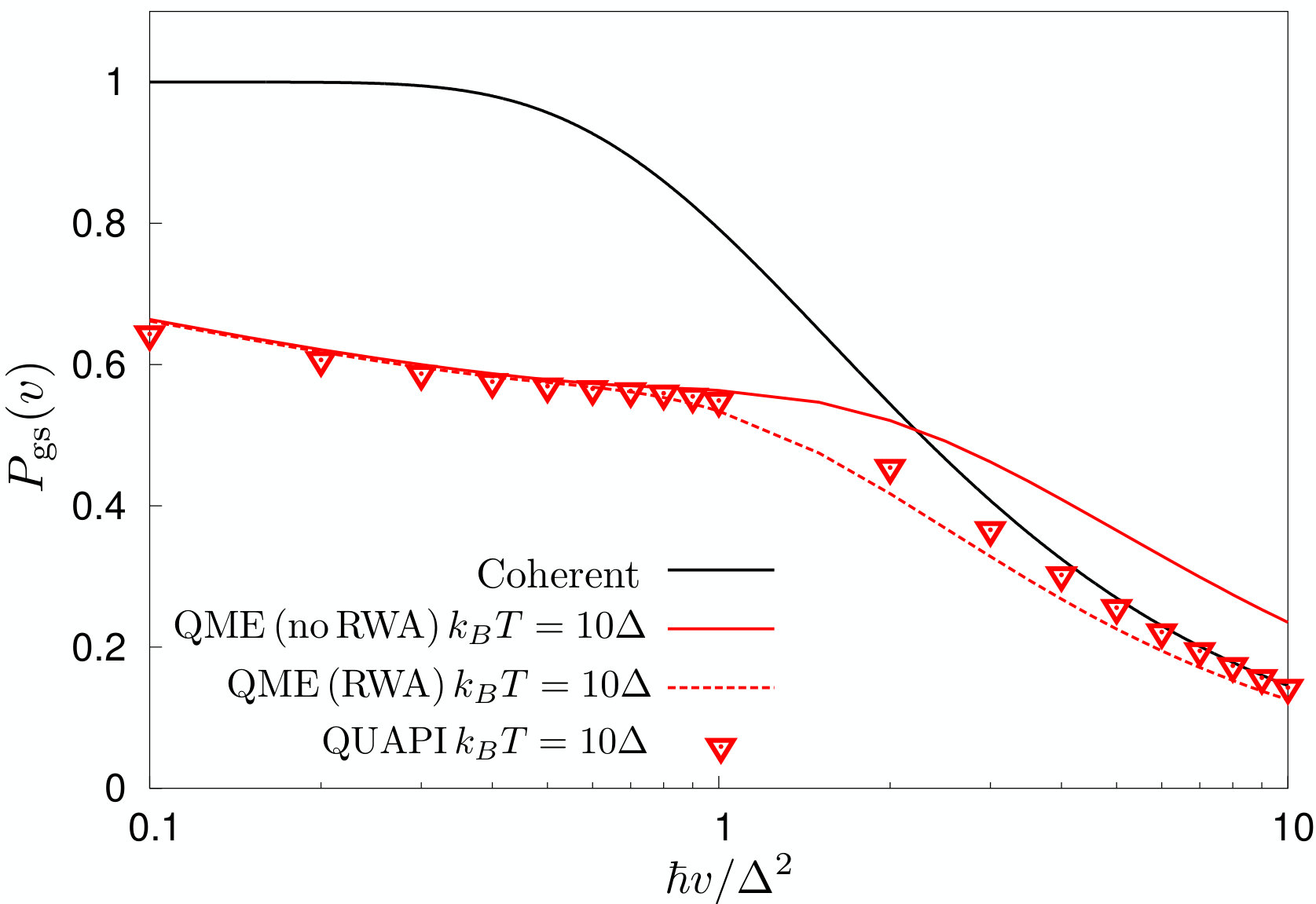

Overall, we find that the difference in the results obtained with and without RWA is rather small if one stays in the weak-coupling region. In particular, we have verified that our density matrix remains positive definite at all times, even if we do not explicitly use a RWA. Nevertheless, the RWA results tend to produce, as an artefact of the approximation, a certain tendency to increase $P_{\mathrm{gs}}(v,T)$ in the large $v$ tails, up and above the coherent evolution result. We show this in Fig. 6, where we plot QME results obtained with and without RWA (i.e., using the full set of Eqs.(8)) benchmarked against numerically exact QUAPI data at the moderate coupling $\alpha=0.02$. The RWA line shows a quite clear over-shooting above the coherent evolution result which is an artefact of the approximation.
