Efficient adiabatic hydrodynamical simulations of the high-redshift   intergalactic medium

Prakash Gaikwad; Tirthankar Roy Choudhury; Raghunathan Srianand,; Vikram Khaire

arXiv:1705.05374·astro-ph.CO·February 6, 2018

Efficient adiabatic hydrodynamical simulations of the high-redshift intergalactic medium

Prakash Gaikwad, Tirthankar Roy Choudhury, Raghunathan Srianand,, Vikram Khaire

PDF

TL;DR

This paper introduces a fast post-processing tool for adiabatic simulations of the high-redshift intergalactic medium, enabling efficient modeling of Lyα forest properties and thermal histories with good accuracy.

Contribution

The method allows rapid exploration of different thermal histories and non-standard heating sources without rerunning full simulations, improving efficiency and flexibility.

Findings

01

Results agree within 20% of self-consistent simulations

02

Method reduces computation time by a factor of N for multiple thermal histories

03

Enables modeling of non-equilibrium thermal and ionization evolution

Abstract

We present a post-processing tool for GADGET-2 adiabatic simulations to model various observed properties of the Ly $α$ forest at $2.5 \leq z \leq 4$ that enables an efficient parameter estimation. In particular, we model the thermal and ionization histories that are not computed self-consistently by default in GADGET-2. We capture the effect of pressure smoothing by running GADGET-2 at an elevated temperature floor and using an appropriate smoothing kernel. We validate our procedure by comparing different statistics derived from our method with those derived using self-consistent simulations with GADGET-3. These statistics are: line of sight density field power spectrum, flux probability distribution function, flux power spectrum, wavelet statistics, curvature statistics, HI column density ( $N_{HI}$ ) distribution function, linewidth ( $b$ ) distribution and $b$ versus $\log…

Figures26

Click any figure to enlarge with its caption.

Tables8

Table 1. Table 1: Details of our simulations described in § 2

Model	gadget-3	G2-LTF	G2-HTF
N-body code	gadget-3	gadget-2	gadget-2
Initial redshift¹	99	99	99
Box size ( $h^{- 1}$ c Mpc)	10	10	10
Number of particles	$2 \times 512^{3}$	$2 \times 512^{3}$	$2 \times 512^{3}$
UVB²	HM12	HM12	HM12
Ionization evolution²	Equilibrium	Equilibrium	Equilibrium
$T$ and $Δ$ evolution	Internal	Post-process (cite)	Post-process (cite)
SFR Criteria³	QUICK_LYALPHA	$-$	$-$
Output redshifts	$6.0, 5.9, \dots, 2.0$	$6.0, 5.9, \dots, 2.0$	$6.0, 5.9, \dots, 2.0$
Temperature floor⁴	$-$	$100$ K	$10000$ K
Smoothing kernel type⁵	SPH	Modified	Modified
	$W (r, h)$	$W^{'} (r, h, L_{j})$	$W^{'} (r, h, 0.66 \times L_{J})$
Gas particle mass ( $δ m$ )⁶	$1.01 \times 10^{5} h^{- 1} M_{☉}$	$1.01 \times 10^{5} h^{- 1} M_{☉}$	$1.01 \times 10^{5} h^{- 1} M_{☉}$
Pixel size ( $δ x$ )⁷	$9.77 h^{- 1}$ ckpc	$9.77 h^{- 1}$ ckpc	$9.77 h^{- 1}$ ckpc

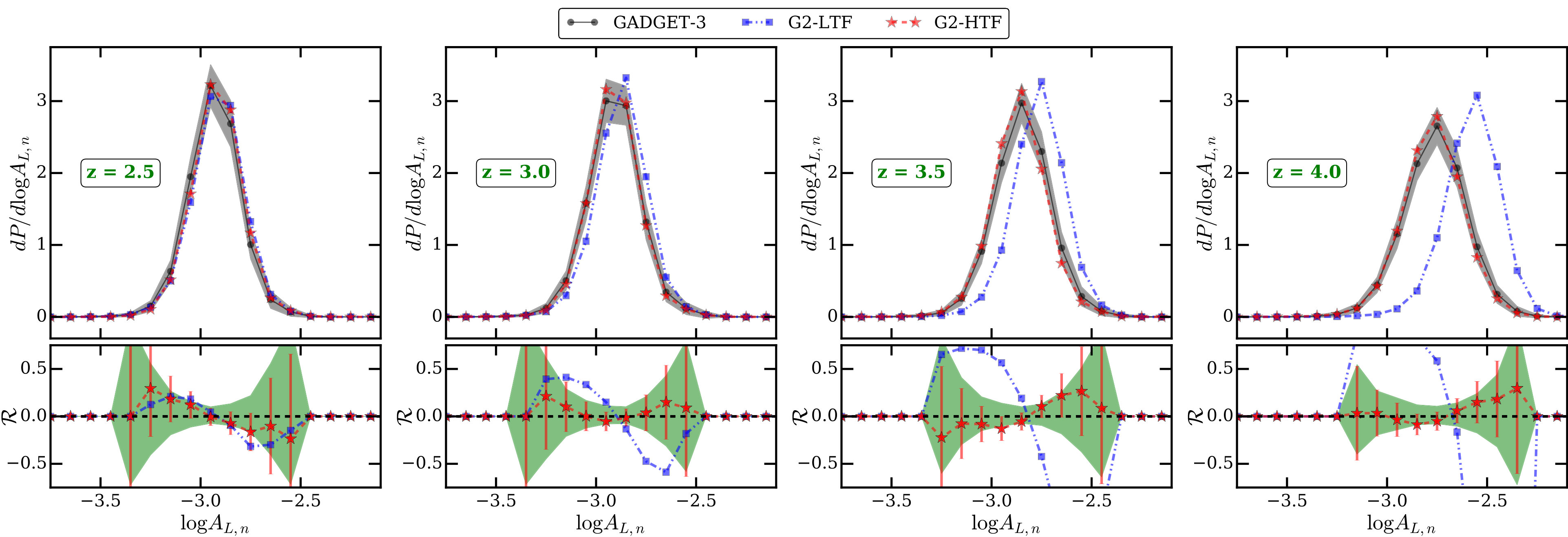

Table 2. Table 2: Median wavelet power ( log ⁡ A L , n subscript 𝐴 𝐿 𝑛 \log A_{L,n} ) in 4 different redshifts bins for the gadget-3 , G2-LTF and G2-HTF models. The intervals represent 68 percentile around median.

$z$	gadget-3	G2-LTF	G2-HTF
2.5	$- 2.93 \pm 0.12$	$- 2.91 \pm 0.12$	$- 2.92 \pm 0.12$
3.0	$- 2.91 \pm 0.12$	$- 2.87 \pm 0.12$	$- 2.91 \pm 0.12$
3.5	$- 2.85 \pm 0.13$	$- 2.76 \pm 0.12$	$- 2.86 \pm 0.13$
4.0	$- 2.76 \pm 0.15$	$- 2.57 \pm 0.13$	$- 2.77 \pm 0.14$

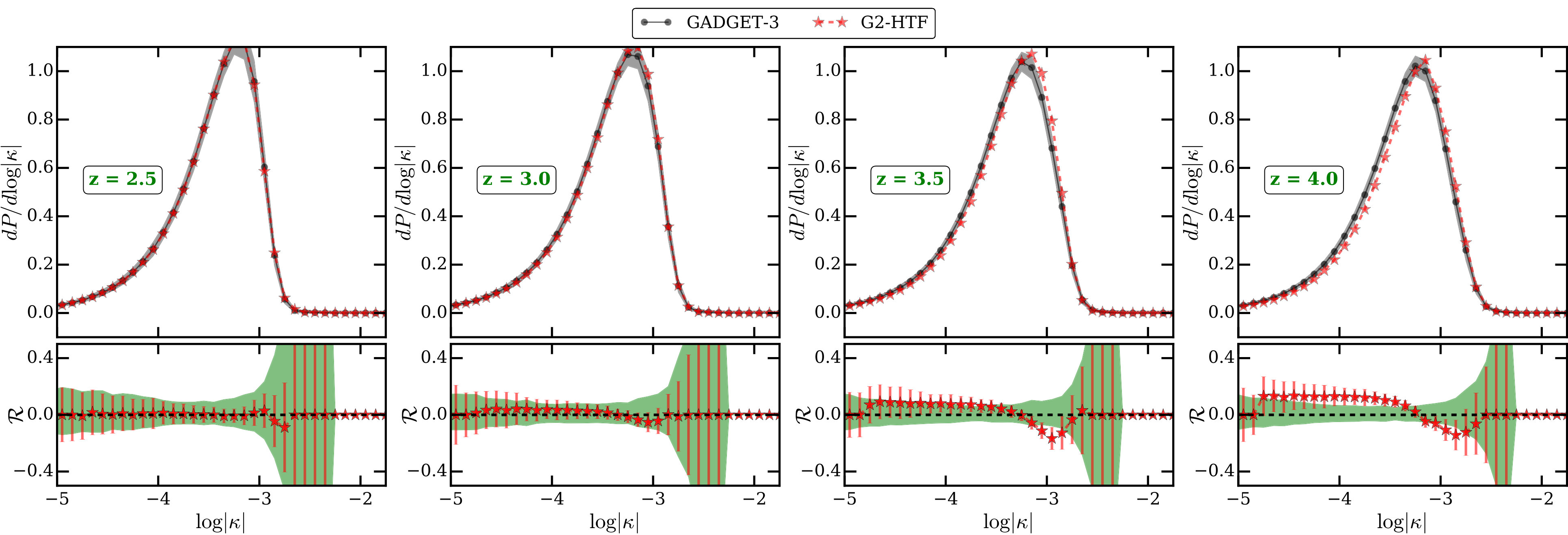

Table 3. Table 3: Median curvature in 4 different redshifts bins for the gadget-3 , G2-LTF and G2-HTF models.

$z$	gadget-3	G2-LTF	G2-HTF
2.5	$- 3.35 \pm 0.57$	$- 3.35 \pm 0.58$	$- 3.35 \pm 0.58$
3.0	$- 3.32 \pm 0.60$	$- 3.29 \pm 0.61$	$- 3.31 \pm 0.60$
3.5	$- 3.29 \pm 0.63$	$- 3.22 \pm 0.65$	$- 3.27 \pm 0.64$
4.0	$- 3.28 \pm 0.69$	$- 3.17 \pm 0.72$	$- 3.26 \pm 0.70$

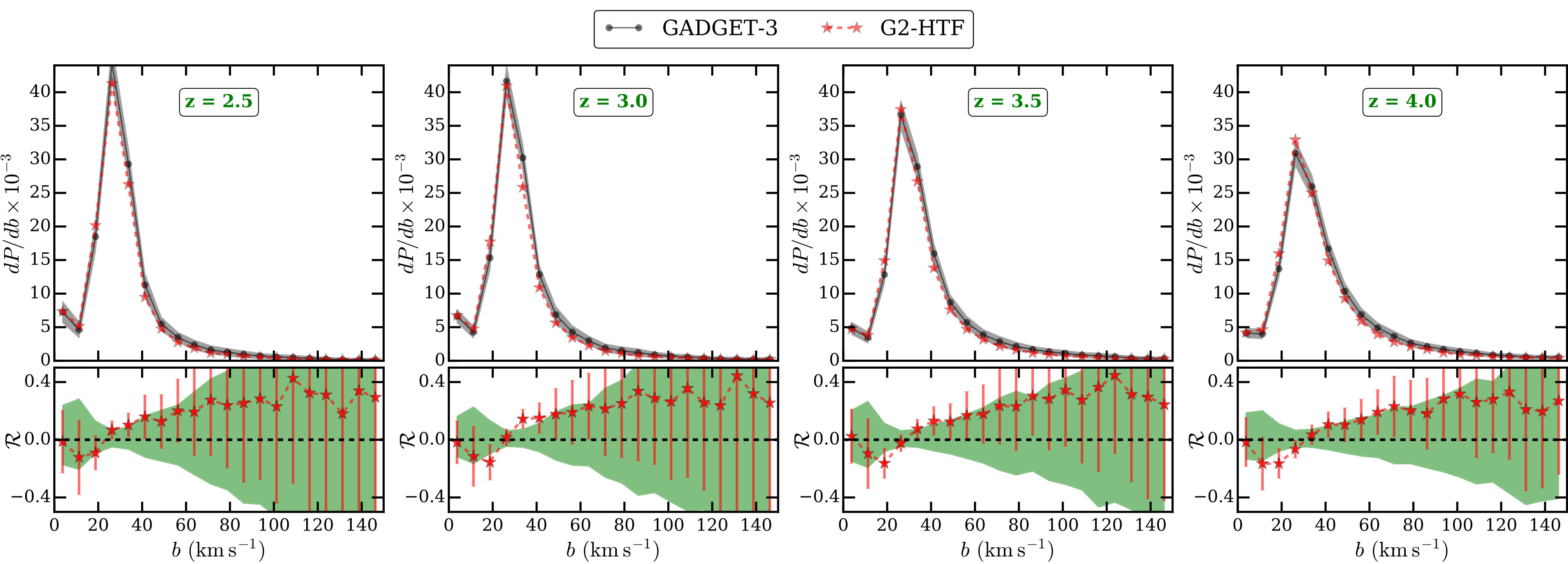

Table 4. Table 4: Median b 𝑏 b parameter (with 68 percentile interval) in 4 different redshifts bins for the gadget-3 , G2-LTF and G2-HTF models.

$z$	gadget-3	G2-LTF	G2-HTF
2.5	25.03 ${}_{- 9.54}^{+ 29.51}$	22.53 ${}_{- 9.80}^{+ 23.46}$	22.76 ${}_{- 8.84}^{+ 24.44}$
3.0	26.61 ${}_{- 10.02}^{+ 30.14}$	23.22 ${}_{- 9.65}^{+ 22.12}$	24.69 ${}_{- 9.58}^{+ 27.01}$
3.5	30.15 ${}_{- 11.96}^{+ 34.69}$	25.69 ${}_{- 10.62}^{+ 25.23}$	28.86 ${}_{- 11.54}^{+ 32.21}$
4.0	35.43 ${}_{- 15.13}^{+ 37.28}$	29.22 ${}_{- 12.83}^{+ 28.12}$	34.21 ${}_{- 14.51}^{+ 36.47}$

Table 5. Table 5: Reduced χ 2 superscript 𝜒 2 \chi^{2} between G2-LTF, G2-HTF model and reference model gadget-3 for different statistics.

	$z = 2.5$		$z = 3.0$		$z = 3.5$		$z = 4.0$
Statistics¹	G2-LTF	G2-HTF	G2-LTF	G2-HTF	G2-LTF	G2-HTF	G2-LTF	G2-HTF
Density Power spectrum ( $δ$ )	0.41	0.98	0.67	0.79	0.82	0.60	1.21	0.58
FPDF	1.26	0.76	1.41	0.80	1.79	0.76	1.87	0.81
FPS	0.50	0.36	0.68	0.25	1.82	0.22	3.23	0.45
Wavelet PDF	0.20	0.42	0.60	0.17	4.46	0.27	12.84	0.74
Curvature PDF	0.30	0.19	1.34	0.49	6.81	0.82	17.07	0.78
CDDF	2.84	1.20	2.85	1.07	4.51	0.47	4.48	0.41
$b$ parameter distribution	4.38	1.04	6.09	0.75	4.56	0.42	2.18	0.73
$b$ vs $\log N_{HI}$ correlation	0.70	0.54	1.27	0.46	1.35	0.44	1.55	0.62

Table 6. Table 6: Consumption of CPU time (in hours) per core for various tasks of the code for a cosmological run from z = 99 𝑧 99 z=99 to z = 2.0 𝑧 2.0 z=2.0

Step	Description^a	gadget-3	G2-HTF
1	$Δ$ , $v$ and $T$ Evolution	156	108
2	cite ( $T$ Evolution)^b	$-$	3.5
3	Grid calculation^c	3.5	4
4	glass^d	1	1
-	Total time to run	1605	193
	10 UVB model^e	( $67$ days)	( $8$ days)

Table 7. Table 7: Recovery of Γ 12 subscript Γ 12 \Gamma_{\rm 12} within statistical uncertainty d Γ 12 subscript Γ 12 \Gamma_{\rm 12} for different SNR for G2-HTF model. The path length of mock sample is 1000 h − 1 1000 superscript ℎ 1 1000h^{-1} cMpc ( X ∼ 5.35 similar-to 𝑋 5.35 X\sim 5.35 at z = 3 𝑧 3 z=3 ). gadget-3 with Γ 12 = 1 subscript Γ 12 1 \Gamma_{12}=1 is assumed to be fiducial model.

	The values corresponds to $Γ_{12}$ $\pm$ d $Γ_{12}$ (best fit $χ_{dof}^{2}$ ) from G2-HTF model
SNR	$z = 2.5$	$z = 3.0$	$z = 3.5$	$z = 4.0$
15	0.97 $\pm$ 0.07 (0.96)	1.02 $\pm$ 0.05 (0.96)	1.00 $\pm$ 0.05 (0.70)	0.98 $\pm$ 0.05 (0.93)
25	0.98 $\pm$ 0.07 (1.09)	1.01 $\pm$ 0.05 (0.96)	1.00 $\pm$ 0.05 (0.84)	0.99 $\pm$ 0.05 (0.98)
35	0.99 $\pm$ 0.07 (1.22)	1.02 $\pm$ 0.05 (1.07)	0.99 $\pm$ 0.05 (0.87)	0.97 $\pm$ 0.04 (1.03)
50	0.98 $\pm$ 0.07 (1.21)	1.01 $\pm$ 0.05 (1.01)	1.01 $\pm$ 0.05 (1.04)	0.97 $\pm$ 0.04 (1.10)
100	1.02 $\pm$ 0.08 (1.33)	1.02 $\pm$ 0.05 (1.11)	1.00 $\pm$ 0.05 (0.95)	0.96 $\pm$ 0.04 (1.30)
Infinite	1.04 $\pm$ 0.07 (1.61)	1.02 $\pm$ 0.05 (1.12)	0.98 $\pm$ 0.05 (1.13)	0.95 $\pm$ 0.04 (1.30)

Table 8. Table 8: Comparison of median wavelet power, curvature and b 𝑏 b parameters for the gadget-3 and G2-HTF model with enhanced HM12 UVB. The errorbars correspond to 68 percentile around the median.

Redshift	Median wavelet power		Median curvature		Median $b$ parameter
$z$	gadget-3	G2-HTF	gadget-3	G2-HTF	gadget-3	G2-HTF
2.5	$- 2.96 \pm 0.13$	$- 2.96 \pm 0.13$	$- 3.43 \pm 0.55$	$- 3.42 \pm 0.57$	32.97 ${}_{- 12.20}^{+ 32.36}$	29.50 ${}_{- 11.25}^{+ 24.00}$
3.0	$- 3.03 \pm 0.14$	$- 3.03 \pm 0.14$	$- 3.41 \pm 0.57$	$- 3.40 \pm 0.58$	34.22 ${}_{- 12.19}^{+ 33.99}$	30.44 ${}_{- 11.15}^{+ 26.23}$
3.5	$- 3.12 \pm 0.15$	$- 3.12 \pm 0.16$	$- 3.39 \pm 0.60$	$- 3.37 \pm 0.61$	36.15 ${}_{- 12.67}^{+ 36.64}$	32.23 ${}_{- 11.42}^{+ 28.65}$
4.0	$- 3.21 \pm 0.16$	$- 3.22 \pm 0.16$	$- 3.39 \pm 0.64$	$- 3.35 \pm 0.66$	36.76 ${}_{- 13.60}^{+ 37.21}$	33.36 ${}_{- 12.31}^{+ 30.92}$

Equations87

\frac{d T}{d t} = - 2 H T + \frac{2 T}{3Δ} \frac{d Δ}{d t} + \frac{d T _{shock}}{d t} + \frac{d T _{IE}}{d t} + \frac{d T _{other}}{d t} .

\frac{d T}{d t} = - 2 H T + \frac{2 T}{3Δ} \frac{d Δ}{d t} + \frac{d T _{shock}}{d t} + \frac{d T _{IE}}{d t} + \frac{d T _{other}}{d t} .

{}\frac{L}{1\>{\rm kpc}}\sim 0.52\>\bigg{[}\frac{T}{10^{4}\>{\rm K}}\>\frac{1-Y}{0.76}\>\frac{f_{g}}{0.16}\>\frac{1\>{\rm cm}^{-3}}{n_{H}}\>\frac{0.59}{\mu}\bigg{]}^{1/2}

{}\frac{L}{1\>{\rm kpc}}\sim 0.52\>\bigg{[}\frac{T}{10^{4}\>{\rm K}}\>\frac{1-Y}{0.76}\>\frac{f_{g}}{0.16}\>\frac{1\>{\rm cm}^{-3}}{n_{H}}\>\frac{0.59}{\mu}\bigg{]}^{1/2}

f_{i} = j \sum f_{j} \frac{m _{j}}{ρ _{j}} S_{ij}

f_{i} = j \sum f_{j} \frac{m _{j}}{ρ _{j}} S_{ij}

V \int S_{ij} d r = 1

V \int S_{ij} d r = 1

S_{ij} \equiv ⎩ ⎨ ⎧ W (r_{ij}, h_{j}), W^{'} (r_{ij}, h_{j}, 1 \times L_{j}), W^{'} (r_{ij}, h_{j}, 0.66 \times L_{j}), For \textsc gadget - 3 For \textsc G2 - LTF For \textsc G2 - HTF

S_{ij} \equiv ⎩ ⎨ ⎧ W (r_{ij}, h_{j}), W^{'} (r_{ij}, h_{j}, 1 \times L_{j}), W^{'} (r_{ij}, h_{j}, 0.66 \times L_{j}), For \textsc gadget - 3 For \textsc G2 - LTF For \textsc G2 - HTF

W(r,h)=W_{0}\begin{cases}\;\;1-6\bigg{(}\frac{r}{h}\bigg{)}^{2}+6\bigg{(}\frac{r}{h}\bigg{)}^{3},&0\leq\frac{r}{h}\leq\frac{1}{2}\\ \;\;2\bigg{(}1-\frac{r}{h}\bigg{)}^{3},&\frac{1}{2}\leq\frac{r}{h}\leq 1\\ \;\;0,&\frac{r}{h}>1\end{cases}

W(r,h)=W_{0}\begin{cases}\;\;1-6\bigg{(}\frac{r}{h}\bigg{)}^{2}+6\bigg{(}\frac{r}{h}\bigg{)}^{3},&0\leq\frac{r}{h}\leq\frac{1}{2}\\ \;\;2\bigg{(}1-\frac{r}{h}\bigg{)}^{3},&\frac{1}{2}\leq\frac{r}{h}\leq 1\\ \;\;0,&\frac{r}{h}>1\end{cases}

W^{'} (r, h, σ)

W^{'} (r, h, σ)

G (∣ r - x_{1} ∣, σ)

G (∣ r - x_{1} ∣, σ)

\displaystyle=\frac{1}{(2\pi\sigma^{2})^{3/2}}\;\;{\rm exp}\bigg{[}{-\frac{(r^{2}+r_{1}^{2}-2\>r\>r_{1}\>\mu)}{2\>\sigma^{2}}}\bigg{]}

W^{'} (r, h, σ) = {W^{'} (r, h, σ) 0, 0 \leq r \leq (h + 3 σ) r > (h + 3 σ) .

W^{'} (r, h, σ) = {W^{'} (r, h, σ) 0, 0 \leq r \leq (h + 3 σ) r > (h + 3 σ) .

T = ⎩ ⎨ ⎧ T_{0} Δ^{γ - 1}, T_{0} 1 0^{γ - 1}, T_{shock}, Δ \leq 10 Δ > 10 T_{shock} > T

T = ⎩ ⎨ ⎧ T_{0} Δ^{γ - 1}, T_{0} 1 0^{γ - 1}, T_{shock}, Δ \leq 10 Δ > 10 T_{shock} > T

σ_{F_{δ}}^{2} = - \infty \int \infty \frac{d k}{2 π} P_{δ} (k)

σ_{F_{δ}}^{2} = - \infty \int \infty \frac{d k}{2 π} P_{δ} (k)

\overline{P}_{δ} (k_{i})

\overline{P}_{δ} (k_{i})

C (i, j)

C (i, j)

R_{G2 - HTF} = 1 - \frac{P _{δ, G2 - HTF}}{P _{δ, GADGET - 3}} .

R_{G2 - HTF} = 1 - \frac{P _{δ, G2 - HTF}}{P _{δ, GADGET - 3}} .

\displaystyle\Psi(x)=A\;\exp(-i\>k_{0}\>x)\;\exp\bigg{[}-\frac{x^{2}}{2\>s^{2}_{n}}\bigg{]}

\displaystyle\Psi(x)=A\;\exp(-i\>k_{0}\>x)\;\exp\bigg{[}-\frac{x^{2}}{2\>s^{2}_{n}}\bigg{]}

- \infty \int \infty ∣Ψ (x) ∣^{2} d x = 1 .

- \infty \int \infty ∣Ψ (x) ∣^{2} d x = 1 .

a_{n} (x) = - \infty \int \infty F (x^{'}) Ψ (x - x^{'}) d x^{'}

a_{n} (x) = - \infty \int \infty F (x^{'}) Ψ (x - x^{'}) d x^{'}

A_{L, n} (x) = \frac{1}{L} - \infty \int \infty Θ (∣ x - x^{'} ∣; L /2) A_{n} (x^{'}) d x^{'}

A_{L, n} (x) = \frac{1}{L} - \infty \int \infty Θ (∣ x - x^{'} ∣; L /2) A_{n} (x^{'}) d x^{'}

κ \equiv \frac{F ^{''}}{[ 1 + ( F ^{'} ) ^{2} ] ^{3/2}}

κ \equiv \frac{F ^{''}}{[ 1 + ( F ^{'} ) ^{2} ] ^{3/2}}

χ_{(Γ_{12})}^{2} = [P_{(Γ_{12})} - P_{fid}] C^{- 1} [P_{(Γ_{12})} - P_{fid}]^{T}

χ_{(Γ_{12})}^{2} = [P_{(Γ_{12})} - P_{fid}] C^{- 1} [P_{(Γ_{12})} - P_{fid}]^{T}

W^{'} (k, h, σ)

W^{'} (k, h, σ)

W^{'} (r, h, σ)

W^{'} (r, h, σ)

W^{'} (r, h, σ)

W^{'} (r, h, σ)

G (∣ r - x_{1} ∣, σ)

G (∣ r - x_{1} ∣, σ)

\displaystyle=\frac{1}{(\pi b^{2})^{3/2}}\;\;{\rm exp}\bigg{[}{-\frac{|\bm{r}-\bm{x_{1}}|^{2}}{b^{2}}}\bigg{]}

\displaystyle=G_{0}\;\;{\rm exp}\bigg{[}{-\frac{|\bm{r}-\bm{x_{1}}|^{2}}{b^{2}}}\bigg{]}

\displaystyle=G_{0}\;\;{\rm exp}\bigg{[}{-\frac{(r^{2}+r_{1}^{2}-2\>r\>r_{1}\>\mu)}{b^{2}}}\bigg{]}

W^{\prime}(r,h,\sigma)=W^{\prime}_{0}\bigg{[}\;\sum\limits_{n=0}^{4}{\rm A}^{+}_{n}\;{\rm I}_{n}\bigg{(}\frac{-r}{b},\frac{h/2-r}{b}\bigg{)}\\ +\;{\rm A}^{-}_{n}\;{\rm I}_{n}\bigg{(}\frac{r}{b},\frac{h/2+r}{b}\bigg{)}+\;{\rm C}^{+}_{n}\;{\rm I}_{n}\bigg{(}\frac{h/2-r}{b},\frac{h-r}{b}\bigg{)}\\ +\;{\rm C}^{-}_{n}\;{\rm I}_{n}\bigg{(}\frac{h/2+r}{b},\frac{h+r}{b}\bigg{)}\bigg{]}

W^{\prime}(r,h,\sigma)=W^{\prime}_{0}\bigg{[}\;\sum\limits_{n=0}^{4}{\rm A}^{+}_{n}\;{\rm I}_{n}\bigg{(}\frac{-r}{b},\frac{h/2-r}{b}\bigg{)}\\ +\;{\rm A}^{-}_{n}\;{\rm I}_{n}\bigg{(}\frac{r}{b},\frac{h/2+r}{b}\bigg{)}+\;{\rm C}^{+}_{n}\;{\rm I}_{n}\bigg{(}\frac{h/2-r}{b},\frac{h-r}{b}\bigg{)}\\ +\;{\rm C}^{-}_{n}\;{\rm I}_{n}\bigg{(}\frac{h/2+r}{b},\frac{h+r}{b}\bigg{)}\bigg{]}

W_{0}^{'}

W_{0}^{'}

A_{0}^{\pm}

A_{1}^{\pm}

A_{2}^{\pm}

A_{3}^{\pm}

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

Efficient adiabatic hydrodynamical simulations of the high-redshift intergalactic medium

Prakash Gaikwad1, Tirthankar Roy Choudhury1, Raghunathan Srianand2, and Vikram Khaire1,3

1National Centre for Radio Astrophysics, Tata Institute of Fundamental Research, Pune 411007, India

2Inter-University Centre for Astronomy and Astrophysics (IUCAA), Post Bag 4, Pune 411007, India

3Department of Physics, University of California, Santa Barbara, CA 93106, USA E-mail: [email protected]

Abstract

We present a post-processing tool for gadget-2 adiabatic simulations to model various observed properties of the Ly $\alpha$ forest at $2.5\leq z\leq 4$ that enables an efficient parameter estimation. In particular, we model the thermal and ionization histories that are not computed self-consistently by default in gadget-2. We capture the effect of pressure smoothing by running gadget-2 at an elevated temperature floor and using an appropriate smoothing kernel. We validate our procedure by comparing different statistics derived from our method with those derived using self-consistent simulations with gadget-3. These statistics are: line of sight density field power spectrum, flux probability distribution function, flux power spectrum, wavelet statistics, curvature statistics, Hi column density ( ${\rm N_{HI}}$ ) distribution function, linewidth ( $b$ ) distribution and $b$ versus $\log{\rm N_{HI}}$ scatter. For the temperature floor of $10^{4}$ K and typical signal-to-noise of 25, the results agree well within 20 percent of the self-consistent gadget-3 simulation. However, this difference is smaller than the expected $1\sigma$ sample variance for an absorption path length of $\sim 5.35$ at $z=3$ . Moreover for a given cosmology, we gain a factor of $\sim N$ in computing time for modelling the intergalactic medium under $N\gg 1$ different thermal histories. In addition, our method allows us to simulate the non-equilibrium evolution of thermal and ionization state of the gas and include heating due to non-standard sources like cosmic rays and high energy $\gamma$ -rays from Blazars.

keywords:

cosmology: large-scale structure of Universe - methods: numerical - galaxies: intergalactic medium - quasars: absorption lines

††pubyear: 2015††pagerange: Efficient adiabatic hydrodynamical simulations of the high-redshift intergalactic medium–E

1 Introduction

The Ly $\alpha$ forest seen in the spectra of distant background QSOs trace the distribution of neutral hydrogen (Hi) in the universe at mildly non-linear overdensities ( $\Delta\lesssim 10$ , Miralda-Escudé et al., 1996; Bi & Davidsen, 1997; Croft et al., 1997). Observed properties of the Ly $\alpha$ forest are sensitive to fluctuations in the cosmic density and velocity fields and physical conditions like the temperature, turbulence and ionizing radiation prevailing in the intergalactic medium (IGM; Cen et al., 1994; Zhang et al., 1995; Miralda-Escudé et al., 1996; Hernquist et al., 1996). As a result, Ly $\alpha$ forest has been used in the literature to constrain cosmological parameters such as $\Omega_{\rm m}$ , $\Omega_{\rm b}$ , $\sigma_{\rm 8}$ , $n_{\rm s}$ (see, e.g., Viel et al., 2004a, b; McDonald et al., 2005), the neutrino mass (Palanque-Delabrouille et al., 2015a, b; Yeche et al., 2017), mass of warm dark matter particles (Narayanan et al., 2000; Viel et al., 2005, 2013a) and astrophysical parameters such as the IGM temperature $T_{0}$ at cosmic mean density and slope $\gamma$ of the temperature ( $T$ ) - density ( $\Delta$ ) relation ( $T=T_{0}\Delta^{\gamma-1}$ , hereafter TDR; Schaye et al., 1999, 2000; Zaldarriaga et al., 2001; McDonald et al., 2001; Theuns & Zaroubi, 2000; Lidz et al., 2010; Becker et al., 2011; Boera et al., 2014) and H i photo-ionization rate ( $\Gamma_{\rm HI}$ , Rauch et al., 1997; Cooke et al., 1997; Meiksin & White, 2004; Becker & Bolton, 2013; Kollmeier et al., 2014; Shull et al., 2015; Gaikwad et al., 2017a, b; Viel et al., 2016; Gurvich et al., 2017).

Usually constraining these parameters involves comparing different properties of the Ly $\alpha$ forest derived from observed spectra with those from the simulated ones. Early simulations of Ly $\alpha$ forest based on lognormal (Bi et al., 1992; Bi & Davidsen, 1997; Gnedin & Hui, 1996; Choudhury et al., 2001) or the Zel’dovich approximation (Doroshkevich & Shandarin, 1977; McGill, 1990), although fast and capture the basic picture, failed to reproduce the quasi- and non-linear density fields accurately (Viel et al., 2002) or washed out the small scale structures in the Ly $\alpha$ forest (Gnedin & Hui, 1998).

By using cosmological $N$ -body simulations (Hernquist & Katz, 1989; Springel, 2005; O’Shea et al., 2005), the Ly $\alpha$ forest has been modelled in the past using (i) dark matter only simulations where baryons are assumed to follow the dark matter, and the temperature is assigned to the baryons assuming a power-law TDR (Muecket et al., 1996), (ii) smoothed particle hydrodynamic (SPH) codes (Cen et al., 1994; Zhang et al., 1995; Hernquist et al., 1996; Theuns et al., 1998; Davé et al., 1999; Viel et al., 2004a) like gadget-2 and gadget-3 111gadget-3 is not publicly available. However, Volker Springel has provided this code through private communication for our studies. gadget-3 has been frequently used for Ly $\alpha$ forest studies (see e.g., Becker et al., 2011; Viel et al., 2016) (Springel et al., 2001; Springel, 2005; Bolton et al., 2006), (iii) grid based adaptive mesh refinement (AMR) code enzo (Smith et al., 2011; Shull et al., 2012; Bryan et al., 2014) and (iv) hybrid methods such as Ly $\alpha$ Mass Association Scheme (LyMAS) in which moderate resolution dark matter only simulation is used after the calibration using high resolution but small volume hydrodynamic simulations (Peirani et al., 2014; Sorini et al., 2016). The main drawback of the dark matter only simulations is that it does not account for the smoothing of the baryonic density field due to finite pressure of the baryons, while these effects are self-consistently accounted for in the SPH and AMR based simulations. Interestingly, the Ly $\alpha$ forest flux statistics from SPH and AMR simulations are shown to agree with each other to within 10 per cent accuracy (Regan et al., 2007). These simulations can, in principle, incorporate different complex astrophysical processes such as the radiative heating, cooling, shocks, starbursts and AGN induced feedback processes (Kollmeier et al., 2006; McDonald et al., 2006; Davé et al., 2010; Schaye et al., 2010; Viel et al., 2013b).

While the current state of the art hydrodynamical simulations are extremely useful for probing the physical properties of the IGM, the computational expenses severely limit their usage for constraining the unknown model parameters and their associated errors. Various approaches have been introduced to keep the computational expense within manageable limits while exploring the large parameter space. For example, Viel & Haehnelt (2006); Viel et al. (2009) begin by choosing a “best-guess” model and expand the statistical quantities under consideration (e.g., the flux power spectrum) in a Taylor series around this model. Their method requires calculating a limited number of derivatives which can be achieved by running only a few simulations around the best-guess model. The method of McDonald et al. (2005) involves running simulations on a carefully chosen grid in the parameter space and then interpolating between these runs. Other methods include deriving scaling relations between different parameters from a limited number of hydrodynamical simulations which are useful for studying parameter degeneracies (Bolton et al., 2005; Bolton & Haehnelt, 2007; Faucher-Giguère et al., 2008). Since many of the parameters, particularly those related to the thermal state of the IGM, are poorly understood, obtaining robust constraints would require exploring a sufficiently wide range of parameter values. It is thus useful to develop newer methods of simulating the high- $z$ IGM that are efficient, flexible and at the same time sufficiently accurate. This forms one of the main motivation of this work.

In Gaikwad et al. (2017a), we have developed a “Code for Ionization and Temperature Evolution” (cite) to estimate the temperature of the SPH particles in the post-processing step of gadget-2 by taking care of radiative cooling and heating effects. cite allowed us to place good constraints on $\Gamma_{\rm HI}$ while efficiently exploring different thermal histories at low- $z$ ( $z\leq 0.5$ ). While cite works well for the low resolution simulation (gas particle mass $\delta m=1.26\times 10^{7}\>h^{-1}\>{\rm M}_{\sun}$ and pixel size $\delta x=48.8h^{-1}$ ckpc) as shown in Gaikwad et al. (2017a), the dynamical evolution of SPH particles at finite pressure is an important effect when we consider high resolution simulations (e.g. gas particle mass $\delta_{m}=1.01\times 10^{5}\>{\rm M}_{\sun}$ and pixel size $\delta x=9.77h^{-1}$ ckpc). In this article, we present a method to account for this effect by smoothing (in 3 dimensions) the density and velocity fields over a local Jeans scale. We explore the consistency of our method with that from gadget-3 (Springel, 2005, in which the thermal effects on the hydrodynamical evolution of baryonic particles are taken care of in a self-consistent manner) by comparing different Ly $\alpha$ flux statistics frequently used in the literature. Our method (though approximate) is computationally less expensive and accurate enough to constrain physical parameters through a detailed exploration of possible parameter space. Our code is also flexible enough to incorporate effects such as non-equilibrium evolution of the ionization state of the gas and heating by non-standard sources like Blazars or cosmic rays etc.

This paper is organized as follows. In §2, we describe the gadget-2 and gadget-3 simulations used in this study. We discuss the method of simulating Ly $\alpha$ forest in §3. We show the consistency of our method with gadget-3 by comparing 8 different statistics in §4. We summarize our results in §5. We use flat $\Lambda$ CDM cosmology with parameters $(\Omega_{\Lambda},\Omega_{\rm m},\Omega_{\rm b},h,n_{s},\sigma_{8},Y)\equiv(0.69,0.31,0.0486,0.674,0.96,0.83,0.24)$ consistent with Planck Collaboration et al. (2016). The Hi photoionization rate ( $\Gamma_{\rm HI}$ ) expressed in units of $10^{-12}\>{\rm s}^{-1}$ is denoted as $\Gamma_{\rm 12}$ . Unless mentioned all the distances are expressed in comoving co-ordinates.

2 Simulation

We use the publicly available gadget-2 222http://wwwmpa.mpa-garching.mpg.de/gadget/ (Springel, 2005) to perform smoothed particle hydrodynamical simulations used in this study. The initial conditions are generated at $z=99$ using the publicly available 2lpt333http://cosmo.nyu.edu/roman/2LPT/ code (Scoccimarro et al., 2012). We use $1/30^{\rm th}$ of the mean inter-particle distance as the gravitational softening length. The gadget-2 simulation does not include radiative heating and cooling of the SPH particles internally. As a result, the unshocked gas particles (in the low density regions) are evolved at very low temperature (the default value is $100$ K in gadget-2) and pressure. However, the simulation allows one to set the minimum allowed gas temperature (referred as temperature floor) to higher values. In this work, we perform two simulations of gadget-2: (i) G2-LTF with low temperature floor of $T=100$ K and (ii) G2-HTF with high temperature floor of $T=10000$ K (corresponding to typical IGM temperatures due to photoheating). An unique identification number is assigned to each particle in gadget-2 and is used for tracing its density and temperature evolution.

We also perform a gadget-3 simulation (a modified version of the publicly available gadget-2 code, see Springel, 2005) with the same initial conditions as the gadget-2 simulations discussed above. Unlike gadget-2, the gadget-3 simulation includes radiative heating and cooling of SPH particles internally for any given metagalactic UV background (UVB). We use Haardt & Madau (2012, hereafter HM12) UVB assuming ionization equilibrium in gadget-3. To speed up the calculations, we run the simulations with QUICK_LYALPHA flag that converts particles with $\Delta>1000$ and $T<10^{5}$ K into stars (Viel et al., 2004a) and removes them from subsequent calculations. None of our simulations (i.e., gadget-2 or gadget-3) include AGN feedback, stellar feedback or outflows in the form of galactic wind. The details of our simulations are listed in Table 1.

3 Method

The Ly $\alpha$ optical depth is calculated by evaluating the overdensity ( $\Delta$ ), temperature ( $T$ ) and velocity ( $v$ ) on grid points along a given sightline in the simulation box. Unlike gadget-3, the TDR obtained in gadget-2 is not realistic as the radiative heating and cooling terms are not incorporated. At moderate to low resolution, the overdensity and velocity fields from gadget-2 matches well with those from gadget-3 as shown in panel (a) and (b) of Fig. 1. This resolution (gas particle mass $\delta m=1.26\times 10^{7}\>h^{-1}\>{\rm M}_{\sun}$ , pixel size $\delta x\sim 48.8h^{-1}$ ckpc) is appropriate for low- $z$ ( $z<0.5$ ) Ly $\alpha$ forest studies with instruments like the HST-COS (Gaikwad et al., 2017a, b). However gadget-2 does not capture the effect of finite gas pressure in the hydrodynamical evolution of the photoionized gas. This effect becomes important at smaller scales probed well in high resolution spectra (gas particle mass $\delta m=1.01\times 10^{5}\>h^{-1}\>{\rm M}_{\sun}$ , pixel size $\delta x\sim 9.77h^{-1}$ ckpc) typically used in the Ly $\alpha$ forest studies at high- $z$ ( $z>1.6$ ). This is illustrated in the panel (c) and (d) of Fig. 1 where the density and velocity fields obtained in gadget-3 can be seen to be smooth as compared to those in gadget-2. Our method of evolving the gas temperature using gadget-2 + cite, as discussed in Gaikwad et al. (2017a), does not account for the effect of finite gas pressure on the evolution of density and velocity fields.

In this work, we present a method to account for the effect of gas pressure in gadget-2 + cite for high resolution Ly $\alpha$ forest simulations. Fig. 2 shows the outline of our procedure whose main steps are as follows: (1) First we estimate the temperature of the gadget-2 particles accounting for the radiative heating and/or cooling (Gaikwad et al., 2017a). Depending on the requirements of the problem, the ionized fraction can be calculated either under ionization equilibrium or non-equilibrium conditions. (2) We then calculate the Jeans length for each particle assuming the particles to be in local hydrostatic equilibrium (Schaye, 2001). We smooth the density field by modifying the SPH kernel suitably to account for pressure smoothing. (3) We then use the TDR to calculate the temperature on the grids (Hui & Gnedin, 1997) for particles that do not go through any shock heating. (4) Finally we calculate the Ly $\alpha$ optical depth using the density, velocity and temperature along the sightline (Choudhury et al., 2001). We discuss all these steps in more details below.

3.1 Temperature evolution in gadget-2 using cite:

We evolve the temperature of the particles in gadget-2 using cite (as discussed in details in Gaikwad et al., 2017a). For completeness, here we briefly discuss the steps involved. We solve the temperature evolution equation for each particle in the post-processing step of gadget-2 using

[TABLE]

The five terms on the right hand side of above equation represents, respectively, rate of cooling due to Hubble expansion, adiabatic heating or cooling arising from change in density of particles, change in temperature due to shock heating, change in temperature due to change in internal energy per particle and change in temperature due to other heating/cooling processes (such as photo-heating, cosmic ray heating, radiative cooling). We use cite to calculate the last two terms on right hand side of Eq. 1 as they are not self-consistently computed in gadget-2. The actual implementation is as follows.

At the initial redshift (taken to be $z_{1}=6.0$ in this work), we assume a given power-law TDR. In this paper, we choose $T_{0}=7920$ K and $\gamma=1.52$ in order to match those obtained in gadget-3 at the same redshift for HM12 UVB. We then compute the actual temperature of a gas particle using following prescription: If a particle is shock heated in recent times (i.e., within a time scale corresponding to $\delta z=0.1$ ), then the temperature of the particle will not be updated by cite. Otherwise we assume the particle temperature to be following the above mentioned power-law TDR. At the initial redshift, we solve equilibrium ionization evolution equation assuming HM12 UVB to calculate various ion fractions of H and He. 2. 2.

Given the ion fractions and the temperatures, it is straightforward to calculate last two terms on the right hand side of Eq. 1 for subsequent time steps. For this, we use the photo-heating rates of HM12 UVB model. 3. 3.

To obtain the temperature of the particles in the next time step ( $z_{2}=z_{1}-\Delta z$ )444In all simulations, we have stored the gadget-2 snapshots between $z=6$ to $2$ with a redshift interval of 0.1 (see §2). In cite, we divide the time-step between two neighbouring redshifts into 100 smaller steps for numerical stability (i.e., $\Delta z=0.001$ ) and interpolate all the relevant quantities in the intermediate time-steps., we first check if the particle is shock heated in recent times (i.e., within a time scale corresponding to $\delta z=0.1$ ). If the particle is not shock heated, then we neglect the third term on the right hand side of Eq. 1. Otherwise we solve the same Eq. 1 accounting all the five terms. 4. 4.

For redshift $z_{2}$ , we solve equilibrium (or non-equilibrium, if desired) ionization evolution equations to calculate various ion fractions. 5. 5.

We repeat the steps (ii)-(iv) to obtain the temperature of the particle at subsequent redshifts.

Fig. 3 shows comparison of TDR of SPH particles obtained from gadget-3 (left panel), G2-LTF (middle panel) and G2-HTF (right panel) simulations at $z=2.5$ . Qualitatively, the TDR from G2-LTF and G2-HTF (after processing through cite) is remarkably similar to that from gadget-3. The differences at $\Delta>1000$ and $T<10^{5}$ K can be attributed to the QUICK_LYALPHA flag employed in gadget-3 (see Appendix A for more details). For each model, we calculate median temperature (black star points) in $\log\Delta$ bins with centres at $-0.375,-0.125,0.125,0.375$ and bin width $0.125$ (indicated by magenta dashed vertical lines). We then fit power law relation $T=T_{0}\>\Delta^{\gamma-1}$ to obtain the best fit $T_{0}$ and $\gamma$ (Hui & Gnedin, 1997; McDonald et al., 2005). The fitted TDR is shown by black dashed line in each panel. The values of $T_{0}$ and $\gamma$ are also indicated in each panel. It is clear that they are similar within $2.5$ percent.

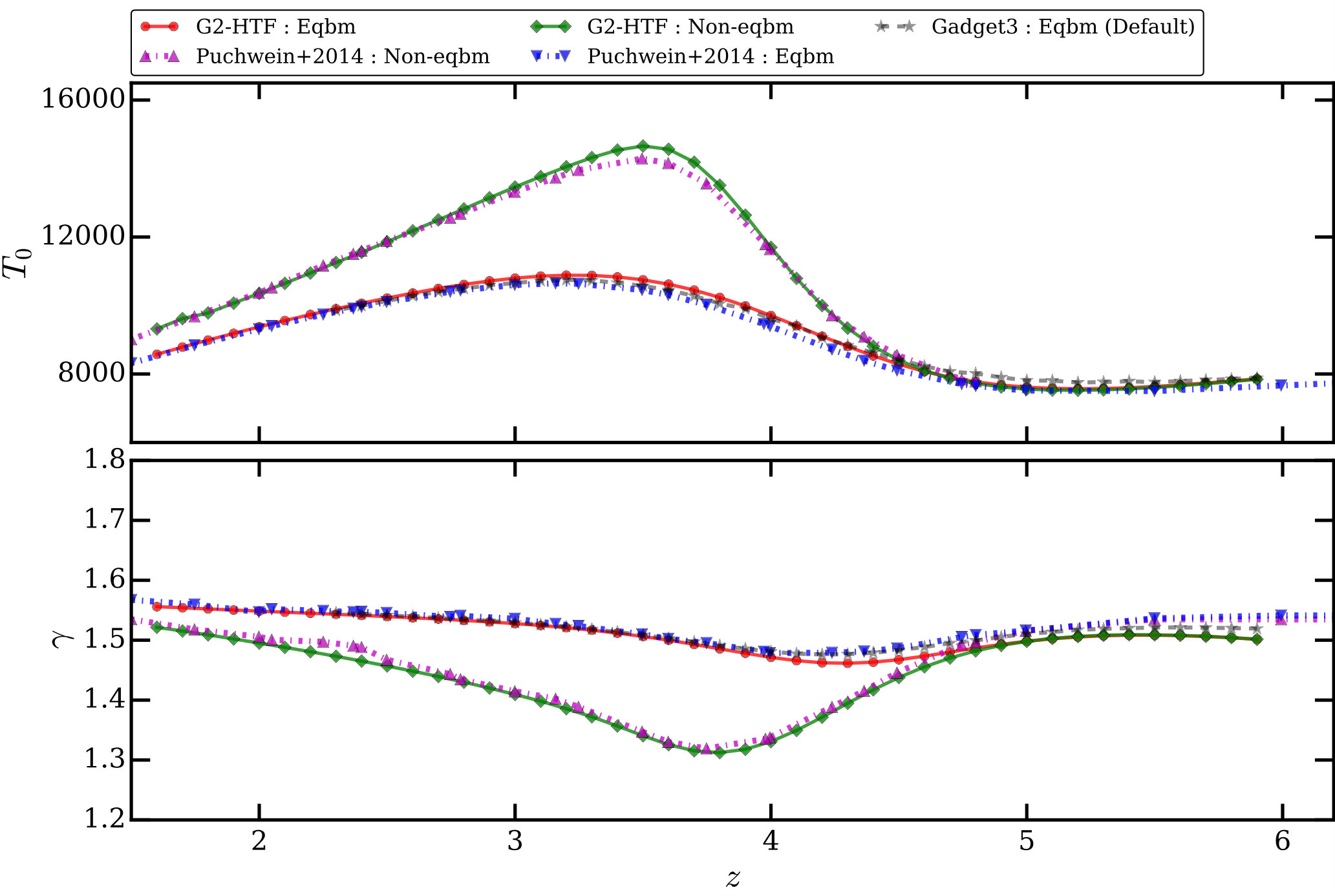

Fig. 4 shows the redshift evolution of best fit $T_{0}$ (top panel) and $\gamma$ (bottom panel) for G2-HTF, gadget-3 and Puchwein et al. (2015) models for equilibrium and non-equilibrium ionization evolution cases. The evolution of $T_{0}$ and $\gamma$ obtained from cite for the equilibrium ionization case is remarkably similar to those obtained from the gadget-3 run and Puchwein et al. (2015)555The differences between the values of $T_{0}$ and $\gamma$ calculated from G2-LTF and G2-HTF are less than 0.1 per cent.. As mentioned earlier, we can also solve for non-equilibrium ionization evolution equation using cite. The $T_{0}$ and $\gamma$ evolution for non-equilibrium case from Puchwein et al. (2015, magenta dashed curve) is also consistent with those from G2-HTF with the maximum difference being less than 2.5 per cent (at $z\sim 3.5$ ). Since the default version of gadget-3 solves the ionization evolution equation under equilibrium conditions, hereafter we restrict our discussions to the models with equilibrium ionization as we will use gadget-3 as our reference. While cite reproduces the $T_{0}$ and $\gamma$ evolution well, the issues related to small scale density and velocity field (demonstrated in Fig. 1) still need to be addressed.

3.2 Jeans length of SPH particle in gadget-2:

In this section, we explore the possibility of using local pressure smoothing in the gadget-2 simulations to reduce the shortcomings highlighted in panels (c) and (d) of Fig. 1. We choose to smooth the density field in G2-LTF or G2-HTF on the scales of Jeans length of the particles to account for the pressure smoothing. Assuming the Ly $\alpha$ absorbers to be in local hydrostatic equilibrium, Schaye (2001) has shown that the Jeans length can be obtained by equating dynamical time with sound crossing time and is given by,

[TABLE]

where, $T$ is temperature, $n_{H}$ is number density of H, $Y$ is He fraction by mass, $\mu=4/(8-5Y)$ is the mean molecular weight and $f_{g}$ is fraction of total mass in gas phase. For the scales of interest here $f_{g}$ is close to its universal value $\Omega_{\rm b}/\Omega_{\rm m}\sim 0.16$ . It should be emphasized that the Jeans length depends on the density and temperature and hence is different for different particles. For the same reason, it is different for the same particle at different epochs. The above equation is not valid for Ly $\alpha$ absorbers with characteristic densities smaller than the cosmic mean ( $\Delta\sim 1$ , Schaye, 2001). Hence we ignore the pressure smoothing for such particles and retain only the SPH smoothing. We now explain how the effect of pressure smoothing is incorporated in G2-LTF or G2-HTF by modifying the SPH kernel.

Smoothing kernel :

The estimate of a quantity $f$ at any grid point $i$ in the SPH formulation (Monaghan, 1992; Springel, 2005) is given by,

[TABLE]

where the summation is performed over all particles. The quantities $m_{j}$ , $\rho_{j}$ , $f_{j}$ are the mass, density and value of the quantity $f$ of $j^{th}$ particle, respectively. The quantity $f$ could be overdensity ( $\Delta$ ), temperature ( $T$ ) or any component of the velocity ( $v$ ). The smoothing kernel, $S_{ij}$ , has units of inverse of volume and in general depends on the distance ( $r_{ij}$ ) between $i^{th}$ grid point and $j^{th}$ particle. It is necessary for $S_{ij}$ to satisfy the following normalization condition in order to conserve the quantity $f$ (in particular mass) in SPH formulation (Monaghan, 1992),

[TABLE]

where the integration is over volume $\mathcal{V}$ .

We use the following smoothing kernels for various simulations,

[TABLE]

where $h_{j}$ and $L_{j}$ are smoothing length and Jeans length (given by Eq. 2) of the $j^{th}$ particle respectively.

The smoothing kernel used for gadget-3 is same as SPH kernel given in Springel (2005) and has following form,

[TABLE]

where $W_{0}=8/(\pi h^{3})$ is normalization constant of SPH kernel.

The pressure smoothing can be well approximated by a Gaussian (Gnedin & Hui, 1998; Kulkarni et al., 2015). Hence we modify the smoothing kernel by convolving SPH kernel with Gaussian kernel of pressure smoothing

[TABLE]

where the Gaussian kernel is assumed to be isotropic and is given by

[TABLE]

with $\mu$ being the cosine of the angle between $\bm{r}$ and $\bm{x_{1}}$ and $\sigma$ the width of the Gaussian which in turn depends on the Jeans length. At this point let us highlight some of the key properties of $W^{\prime}(r,h,\sigma)$ which are relevant for our calculations:

•

Both $W(r,h)$ in Eq. 6 and $W^{\prime}(r,h,\sigma)$ in Eq. 7 satisfy the normalization condition given in Eq. 4.

•

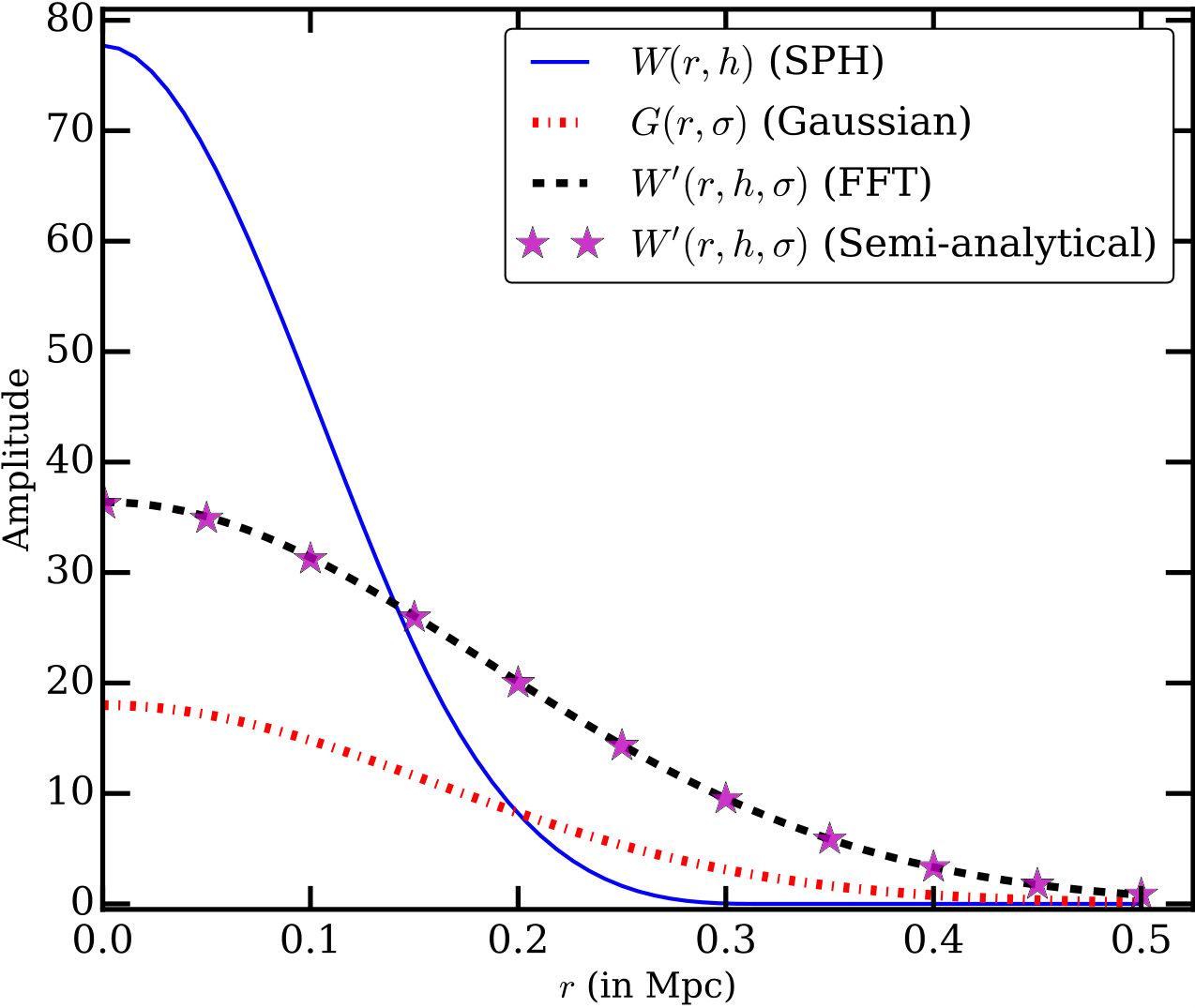

The kernel in Eq. 7 does not have a closed form analytic solution, hence we need to calculate it numerically (See Appendix B for more details).

•

Unlike $W(r,h)$ , $W^{\prime}(r,h,\sigma)$ does not have a compact support as the Gaussian is non-zero at large distances. Hence we put a cut-off such that if distance between particle and grid is more than $h+3\sigma$ , the contribution of $W^{\prime}(r,h,\sigma)$ is zero. Mathematically,

[TABLE]

We find that this cut-off does not have any significant effect on the density, velocity or temperature estimates as long as it is taken to be $\geq h+3\sigma$ .

•

The amount of pressure smoothing in Eq. 7 is decided by the width $\sigma$ of the Gaussian. The SPH particles in G2-HTF are evolved at relatively high temperature ( $T\sim 10^{4}$ K) and pressure as compared to G2-LTF ( $T\sim 100$ K). It can be shown that the additional pressure smoothing length required in G2-HTF model is factor $\sim 0.66$ times the smoothing length for the model G2-LTF (see Appendix C for details).

•

This way of modifying smoothing kernel and estimating quantities along sightlines allow us to account for two important effects: (i) the variation in pressure smoothing for different particles at any epoch and (ii) the evolution of pressure smoothing scale for any particle at different epochs. Note that the pressure smoothing experienced by a particle in the gadget-3 simulation depends on the whole thermal history and not only on the present temperature as we do in our case (Lukić et al., 2015; Kulkarni et al., 2015). However, as we will discuss later, running the gadget-2 with high temperature floor captures (on an average) the pressure broadening arising from thermal history effects reasonably well.

3.3 Estimation of the temperature field on a grid:

After calculating the overdensity ( $\Delta$ ) and velocity field ( $v$ ) on grids along a given sightline using Eqs 3-8, we can also estimate the temperature ( $T$ ) along the same sightline using the same equations. However, the resultant TDR is not a power-law any more. This is because the temperature of the particle from cite in the first step is calculated using gadget-2 density field that does not incorporate the pressure smoothing. Hence we need to recalculate the temperature corresponding to the new density field with the pressure smoothing incorporated. In principle, we can again use cite on the new smoothed density field and calculate the temperature. However, we find that this is computationally expensive because we need to calculate the smoothed density field on the grid along the sightline for all redshifts i.e. $z=6$ to $2$ with a $\Delta z=0.1$ . Hence we adopt a simplified approach of applying power-law TDR (Hui & Gnedin, 1997; Choudhury et al., 2001)

[TABLE]

where $T_{0}$ and $\gamma$ are obtained from fitting the TDR for particles in our simulation box at the redshift of our interest as explained in Step (1) (also see Fig. 4). The last relation implies that if a particle is shock heated (or has temperature higher than that predicted by the TDR) then its temperature is not updated. We have confirmed that this approach produces consistent results with those obtained by running cite on the new density field.

3.4 Ly $\alpha$ transmitted flux:

We have developed a module for “Generating Ly-Alpha forest Spectra in Simulations” (glass) to calculate the Ly $\alpha$ transmitted flux that has signal-to-noise ratio (SNR) and spectral resolution similar to the typical observational data used in the Ly $\alpha$ forest studies. The basic steps involved in glass (Choudhury et al., 2001; Padmanabhan et al., 2015; Gaikwad et al., 2017a) are as follows:

We determine the Hi number density ( $n_{\rm HI}$ ) at any grid point from the baryonic density field ( $\Delta$ ) assuming the gas to be optically thin and in photoionizing equilibrium with the UVB. The Hi photoionization rate ( $\Gamma_{\rm HI}$ ) is a free parameter. Throughout this paper we consider models with a fixed value $\Gamma_{\rm HI}$ $=10^{-12}\;{\rm s}^{-1}$ (Becker & Bolton, 2013) for simplicity. 2. 2.

We calculate the Ly $\alpha$ optical depth ( $\tau$ ) along a line of sight from $n_{\rm HI}$ field by accounting for peculiar velocity, thermal and natural broadening effects. 3. 3.

The Ly $\alpha$ transmitted flux is given by $F={\rm e}^{-\tau}$ . 4. 4.

When comparing with observations, the Ly $\alpha$ flux field is linearly interpolated to match the wavelength sampling of observations. 5. 5.

The Ly $\alpha$ flux field is then convolved with line spread function (LSF) of the spectrograph used in the observation. In this work we assume that the LSF is a Gaussian with a full width at half maximum, FWHM $\sim 7$ km s*-1*, typical of UVES or HIRES spectra. 6. 6.

Finally we add Gaussian random noise corresponding to a typical SNR=25 similar to what has been frequently achieved in echelle spectrographic observations with VLT and KECK that are used for Ly $\alpha$ forest studies.

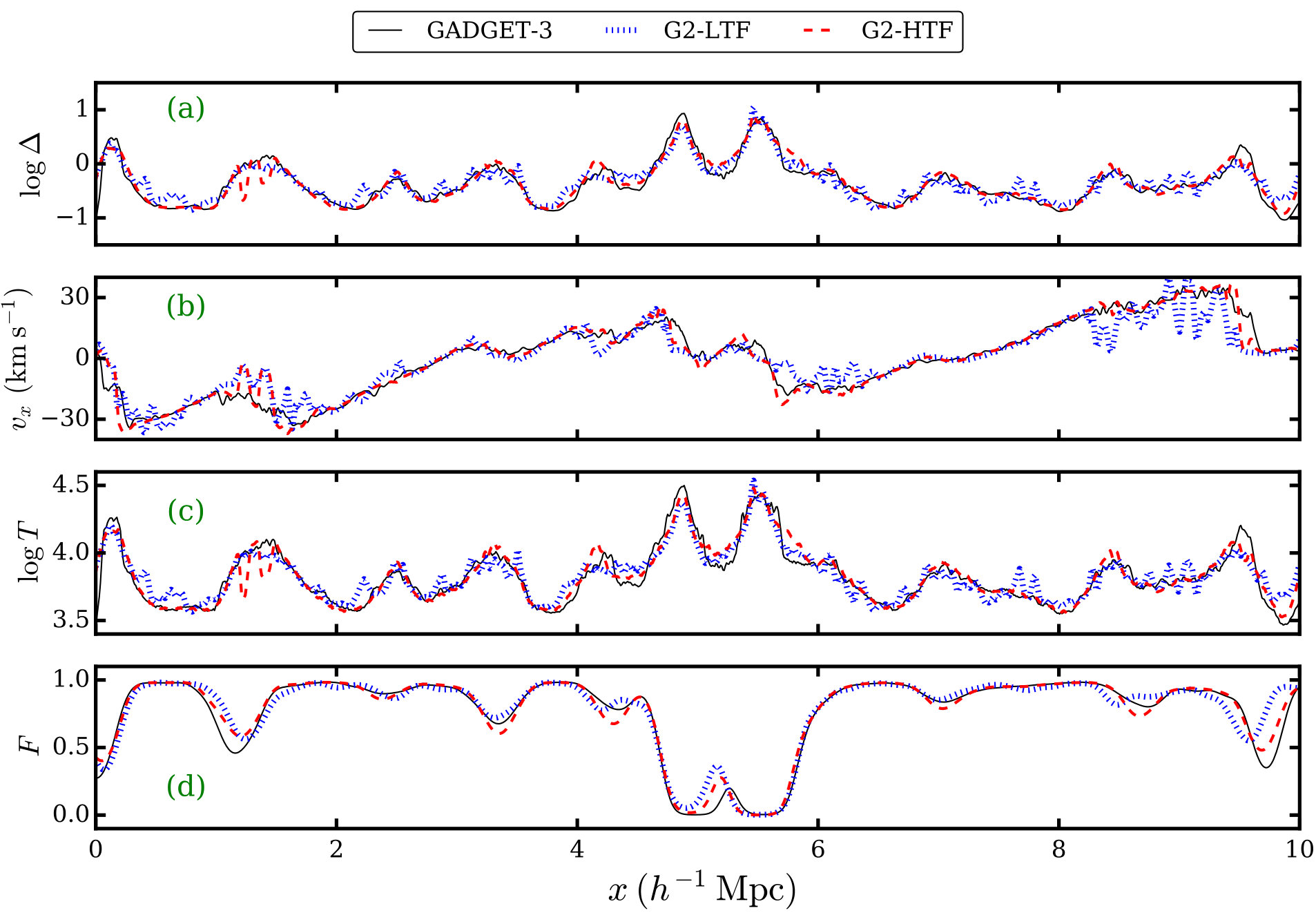

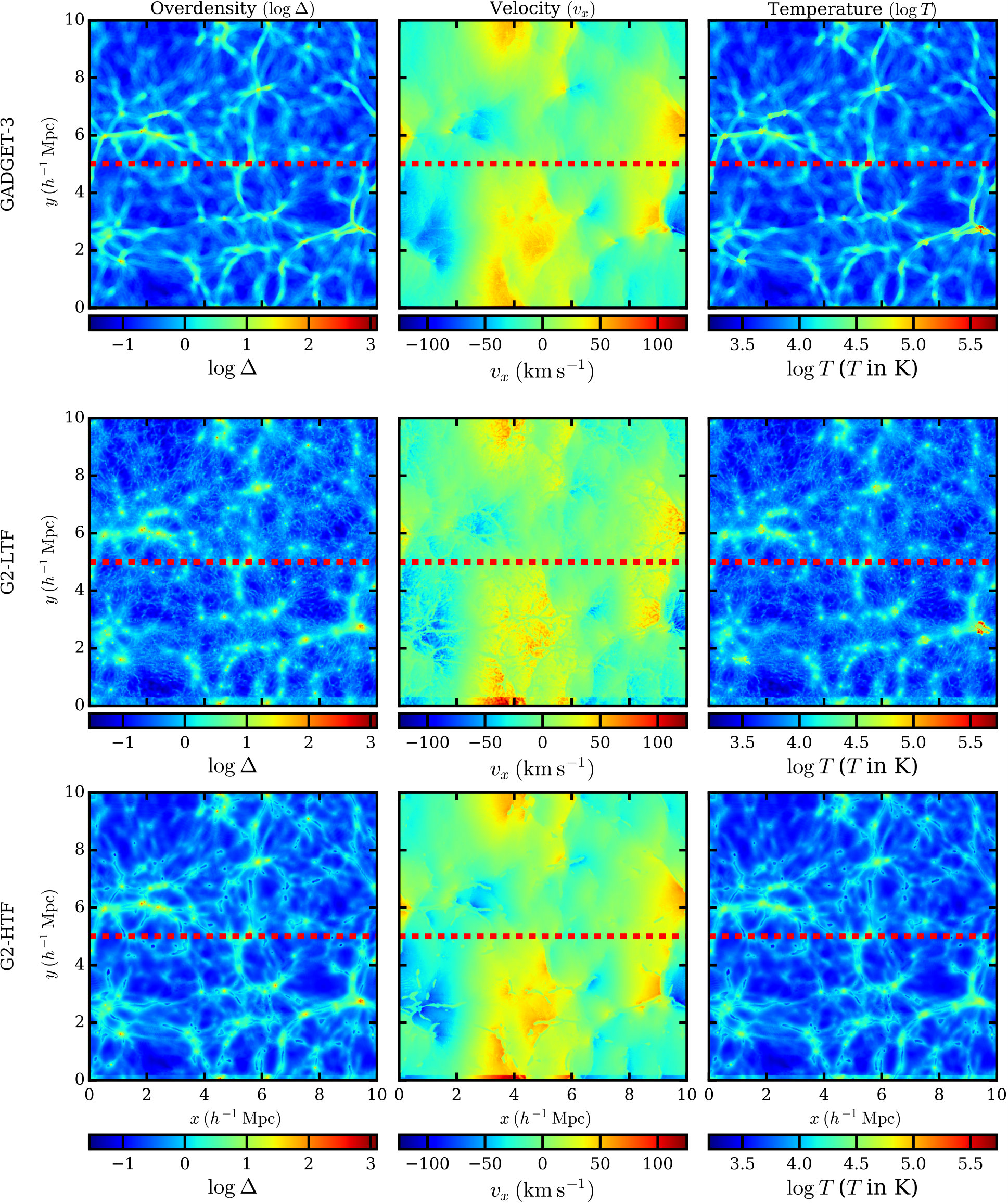

A comparison of slices (having a width of $10$ ckpc) of the overdensity ( $\log\Delta$ ), line of sight velocity (along $x$ axis, $v_{x}$ ) and temperature ( $\log T$ ) fields on grids from a simulation boxes at $z=2.5$ are shown in Fig. 5. The top, middle and bottom rows show slices from gadget-3, G2-LTF and G2-HTF simulations respectively. The $\log\Delta$ , $v_{x}$ and $\log T$ fields are sharper in the G2-LTF model (in particular in low density regions) as compared to those of gadget-3 model. On the other hand the $\log\Delta$ , $v_{x}$ and $\log T$ fields from G2-HTF model resembles close to those from gadget-3. We shoot a sightline through each of these slices as shown by horizontal dashed line and extract the $\log\Delta$ , $v_{x}$ and $\log T$ fields as shown in panel (a), (b) and (c) of Fig. 6 respectively. The line of sight $\log\Delta$ , $v_{x}$ and $\log T$ fields from G2-LTF and G2-HTF are very similar to those from gadget-3. However, in general the variations in these fields for G2-LTF model are slightly more compared to those of gadget-3 and G2-HTF models. The panel (d) of Fig. 6 shows the Ly $\alpha$ transmitted flux calculated along sightlines shown in Fig. 5 for gadget-3, G2-LTF and G2-HTF models. Visually the Ly $\alpha$ transmitted fluxes from different models are similar, despite subtle differences seen in $\log\Delta$ , $v_{x}$ , $\log T$ fields between these models. The Ly $\alpha$ transmitted flux shown in this example is not convolved with LSF and is free of noise.

To perform a quantitative comparison of the Ly $\alpha$ forest spectra extracted from different models, we identify eight statistics that are frequently used in the literature. We shoot random sightlines through the simulation and splice together the lines of sight in such a way that it covers a redshift path $z\pm 0.05$ , where $z=2.5,3.0,3.5,4.0$ are redshifts of the simulation box666We do not splice together the lines of sight for FPS estimation.. Each Ly $\alpha$ forest spectrum has a path length of $\sim 50$ cMpc. Following Rollinde et al. (2013); Gaikwad et al. (2017a, b), we generate a mock sample of $N_{\rm spec}=20$ Ly $\alpha$ forest spectra for the gadget-3, G2-LTF and G2-HTF models. Each mock sample covers path length of $\sim 1000h^{-1}$ cMpc (corresponding dimensionless absorption path length is $X\sim 5.35$ at $z=3$ )777The dimensionless absorption path length is defined as $dX=dz\>(1+z)^{2}\>\frac{H(0)}{H(z)}$ where $H(z)$ is hubble parameter at $z$ (Bahcall & Peebles, 1969).. This path length is similar to the path length covered in the Ly $\alpha$ forest studies by Becker et al. (2011, see their Table 3). We repeat the procedure by choosing different random sightlines and generate $N=100$ such mock samples. The collection of $N$ mock samples constitute a “mock suite” that consists of $N\times N_{\rm spec}=2000$ simulated spectra. Thus total path length covered in mock suite is $\sim 10^{5}$ cMpc. We estimate the covariance matrix for different statistics using the simulated spectra.

4 Results

We now compare different properties of the Ly $\alpha$ forest generated from G2-LTF, G2-HTF and gadget-3 simulations using eight statistics, namely, (i) the line of sight baryonic density field ( $\delta=\Delta-1$ ) power spectrum (DPS), (ii) the flux probability distribution function (FPDF), (iii) the flux power spectrum (FPS), (iv) the wavelet statistics, (v) the curvature statistics, (vi) the column density distribution function (CDDF), (vii) the line width ( $b$ ) distribution function and (viii) the $b$ vs $\log{\rm N_{HI}}$ scatter plot. The statistics (i)-(v) are obtained assuming Ly $\alpha$ transmitted flux to be a continuous field whereas, the statistics (vi)-(viii) are based on parameters derived using Voigt profile decomposition of Ly $\alpha$ forest. For this purpose we use our automatic Voigt profile fitting code viper described in full detail in Gaikwad et al. (2017b).

4.1 Line of sight density power spectrum (DPS)

The density field power spectrum is not a directly measurable quantity but it influences all the observable quantities of Ly $\alpha$ forest. We calculate the power spectrum of the 1D density fluctuations along the line of sights using sightlines of comoving length equal to the simulation box size $10\>h^{-1}$ cMpc. This is done by computing the Fourier transform $\delta(k)$ of the density field $\delta(x)$ , the corresponding power is simply given by $P_{\delta}(k)\propto|\delta(k)|^{2}$ . We normalize the DPS (Zhan et al., 2005) as,

[TABLE]

where $\sigma^{2}_{F_{\delta}}$ is variance of the 1D density field. We bin the DPS in $20$ equispaced logarithmic bins in the range $\log k=0.301$ to $2.466$ with bin width of $\Delta\log k=0.114$ (Kim et al., 2004).

Following Rollinde et al. (2013) and Gaikwad et al. (2017a), we take the average of all DPS along different sightlines in a mock sample (consisting of $20$ lines of sight). We then calculate the mean DPS and the associated errors from the mock suite (which consists of $N=100$ mock sample). Let $P_{\delta,n}(k_{i})$ denotes the value of DPS in $i^{th}$ bin of $n^{th}$ mock sample, then the average DPS in $i^{th}$ bin is given by,

[TABLE]

The covariance matrix element $C(i,j)$ between the $i^{th}$ and $j^{th}$ bins is given by,

[TABLE]

where, $i$ and $j$ can take values from 1 to the number of bins. The above analysis assumes a mock sample path length of 1000 $h^{-1}$ cMpc (i.e., the mock sample consisting of $20$ spectra, corresponding dimensionless absorption path length is $X\sim 5.35$ at $z=3$ ). We have done the similar analysis for the $5000h^{-1}$ cMpc mock sample path length (i.e., the mock sample consisting of $100$ spectra, corresponding to $X\sim 26.75$ at $z=3$ ). In this case we find that the covariance matrix elements are similar to those from mock samples with $1000h^{-1}$ cMpc path length for all the statistics (see the discussion in Appendix D). Hereafter unless mention the results are presented for mock sample path length of $1000h^{-1}$ cMpc.

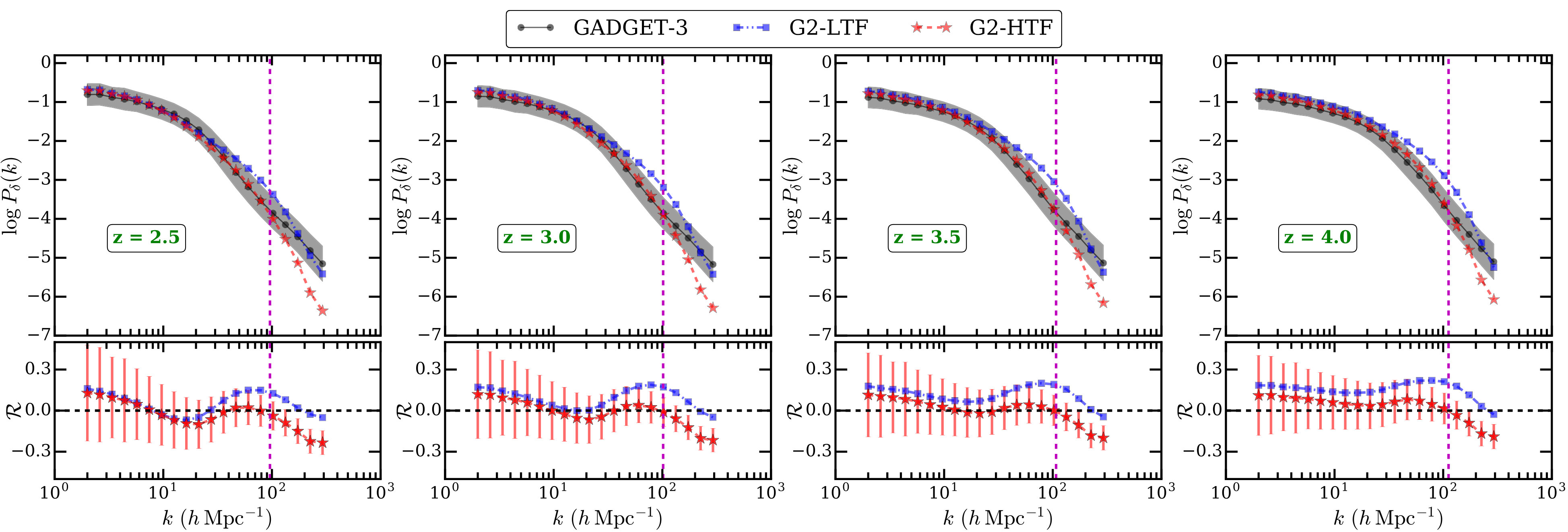

The top left panel of Fig. 7 shows the DPS for the gadget-3 (black circles), G2-LTF (blue squares) and G2-HTF (red stars) models at $z=2.5$ . The grey shaded region is the $1\sigma$ uncertainty coming from sample variance (i.e., variation in DPS along different sightlines) in the gadget-3 DPS. The bottom left panel shows the residual fraction (hereafter residual for simplicity) between G2-LTF (blue squares) and G2-HTF (red stars with errorbars) model with respect to gadget-3 model. The residual between G2-HTF (or G2-LTF) and gadget-3 model is defined as follows,

[TABLE]

The errors on G2-HTF residuals in bottom left panel of Fig. 7 correspond to grey shaded region in top left panel (sample variance). Other panels in Fig. 7 are similar to left most panels but for different redshifts. The redshifts are mentioned in each panel.

Although we show the DPS in the range $1\leq k\leq 300h\>{\rm Mpc}^{-1}$ , all these scales are not accessible in the current set of best possible spectroscopic observations. The first scale is introduced by the typical temperature of the IGM at cosmic mean density $\sim 10^{4}$ K which corresponds to a velocity smoothing of $\sim 12$ km s*-1*. The second scale is spectral resolution of $\sim 7$ km s*-1achieved by the current echelle spectrographs like HIRES or UVES. Thus scales below $\sim 7$ km s-1or the Fourier modes above the cut-off scale $k_{\rm cutoff}(z=3)=101h\>{\rm Mpc}^{-1}$ ( $k_{\rm cutoff}$ varies with redshift and is shown by magenta dashed vertical line) cannot be probed by Ly $\alpha$ forest observations. Note that the velocity sampling of our simulated mock spectra is $\sim 1.11$ km s-1*.

We find that at all redshifts the DPS for G2-HTF and G2-LTF are within 12 and 18 percent (and well within $1\sigma$ uncertainty due to sample variance) respectively with that from gadget-3 at $k\leq k_{\rm cutoff}$ . The G2-LTF model has higher power on the scales in the range 35-135 ckpc ( $k\sim 180-47\>h$ Mpc*-1*). Note that although the instantaneous TDR is similar in G2-HTF and G2-LTF model (see Fig. 3), the thermal history of the particles is different because the particles in G2-LTF model that do not go through shocks are effectively evolved at temperature smaller by factor of 100 as compared to those in G2-HTF. The pressure smoothing scale, in addition to instantaneous TDR, also depends on thermal history of the particles (Kulkarni et al., 2015). Thus the density field in G2-LTF model is less smooth (and hence has more power) as compared to that from G2-HTF model at small scales. This difference is more prominent at high redshifts. This highlights the need for an appropriate smoothing of the density field on scales larger than pressure smoothing scale for G2-LTF at higher redshifts. However, when we evolve our simulations with a high temperature floor (i.e., $T\sim 10^{4}$ K), Jeans length based on a instantaneous $T$ and $\Delta$ is adequate to capture the pressure smoothing effects over the scales probed by the Ly $\alpha$ forest observations.

We notice at $k>k_{\rm cutoff}$ , the power in G2-HTF model is smaller as compared to gadget-3 model. This is due to the fact that the minimum temperature before applying cite (irrespective of the density) in G2-HTF model is $\sim~{}10^{4}$ K. However in gadget-3 model, the particles with $\Delta<1$ are at temperature smaller than $10^{4}$ K (see Fig. 3). Thus higher temperature for $\Delta<1$ particles in G2-HTF model leads to an additional pressure smoothing, thus the power on scales $k>k_{\rm cutoff}$ is smaller than that from gadget-3. However it is important to note that (for reasons mentioned above) the mismatch between G2-HTF and gadget-3 model at $k>k_{\rm cutoff}$ does not have a significant effect on the Ly $\alpha$ flux statistics presented later.

4.2 Flux probability distribution function (FPDF)

The FPDF is one of the flux statistics that is relatively straightforward to calculate from observations as well as simulations (Jenkins & Ostriker, 1991; McDonald et al., 2000; Kim et al., 2007; Desjacques et al., 2007; Rollinde et al., 2013; Gaikwad et al., 2017a). Note that we have added the noise to flux corresponding to the SNR of 25. Unless mentioned, hereafter all the results are presented for SNR=25 . We calculate the FPDF in $21$ equally spaced bins with bin centres in the range $F=0.05$ to $1.0$ and bin width $\Delta F=0.05$ (consistent with Kim et al., 2007). The pixels with $F<0$ ( $F>1$ ) are included in the first (last) bin. Let $P_{n}(F_{i})$ denote the value of FPDF in $i^{th}$ bin of $n^{th}$ mock sample then average FPDF in $i^{th}$ bin (denoted as $\overline{P}(F_{i})$ ) is given by Eq. 12 where we replace $P_{\delta,n}(k_{i})$ with $P_{n}(F_{i})$ . Similarly the covariance matrix element $C(i,j)$ between the $i^{th}$ and $j^{th}$ bins is obtained from Eq. 13 by replacing $P_{\delta,n}(k_{i})$ , $\overline{P}_{\rm\delta}(k_{i})$ with $P_{n}(F_{i})$ , $\overline{P}(F_{i})$ respectively.

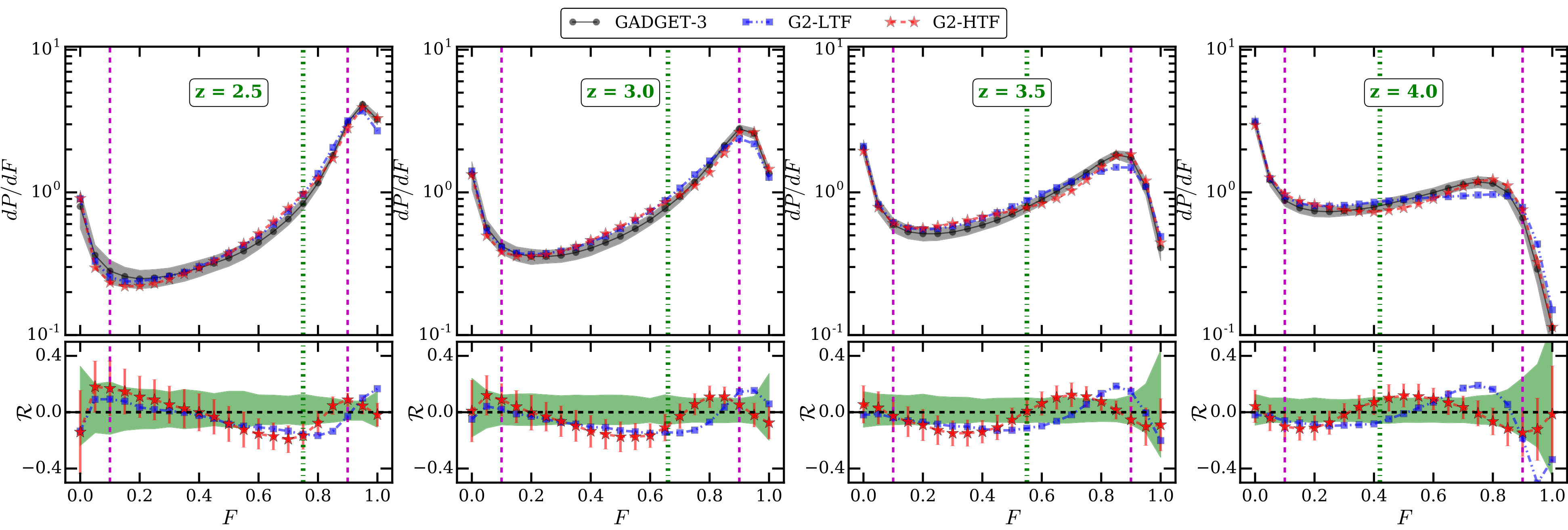

Fig. 8 shows the comparison of FPDF obtained from gadget-3, G2-HTF and G2-LTF models. Various symbols and line styles are same as those used in Fig. 7. Note that for all the three models we use $\Gamma_{12}=1$ , SNR= $25$ and a path length of $1000h^{-1}$ cMpc ( $X\sim 5.35$ at $z=3$ ) for the mock sample. We calculated the mean FPDF, the covariance matrix and residuals ( $\mathcal{R}$ ) using Eq. 12, 13 and 14 respectively with $P_{\rm\delta}$ replaced by $P_{\rm F}$ . The $1\sigma$ uncertainty in top (gray shaded region) and bottom left panels (red stars with errorbars) are contributed by the uncertainty in FPDF along different sightlines (sample variance) and finite SNR of the spectra. In order to separate out the statistical error arising purely from the assumed SNR and that from the sample variance, we calculate the FPDF for noise free spectra (i.e. SNR $=\infty$ but same $\Gamma_{12}$ and mock sample path length) for gadget-3 model. The green shaded region in bottom panels of Fig. 8 represents sample variance from gadget-3 model. The size of this sample variance is comparable to the errors on FPDF from gadget-3 model (red stars with errorbars) suggesting that the errors are dominated by sample variance. The mean flux in gadget-3 model (shown by green dashed dot vertical line) differs by less than 0.78 percent with that from G2-HTF and G2-LTF models at all $z$ .

The flux near the normalized continuum (in bins with $F>0.9$ ) is usually affected by two observational systematics, (i) the continuum fitting of the spectra888This systematic is severe at $z\geq 3.5$ as the continuum is not well defined and many pixels are near the saturated region (i.e., $F<0.1$ ). and (ii) the noise property of the spectra. On the other hand, flux near saturated region ( $F<0.1$ ) depends on accurate background sky subtraction. Thus while comparing observed FPDF and the simulated FPDF, one usually compares them in the range $0.1\leq F\leq 0.9$ (Gaikwad et al., 2017a). In Fig. 8, we compare the FPDF from three models within the range $0.1\leq F\leq 0.9$ shown by magenta dashed vertical lines.

It is clear from the bottom panels of Fig. 8 that the difference between FPDF in the range $0.1\leq F\leq 0.9$ for G2-HTF and G2-LTF (with respect to gadget-3 model) is less than $15$ and $18$ percent respectively at all redshifts. Note that sample variance is typically of the order of 13 percent in the range $0.1\leq F\leq 0.9$ .

4.3 Flux power spectrum (FPS)

Like the DPS, the FPS is a two point correlation function between pixels of the Ly $\alpha$ transmitted flux (Croft et al., 1998; McDonald et al., 2000; McDonald, 2003; Kim et al., 2004; Zhan et al., 2005; Arinyo-i-Prats et al., 2015). The FPS is known to be sensitive to the astrophysical parameters such as $\Gamma_{\rm HI}$ , $T_{0}$ and $\gamma$ (Zaldarriaga et al., 2001; Zaldarriaga, 2002; Viel et al., 2004a) in addition to the cosmological parameters. The procedure for calculating the FPS is identical to that of the DPS. If we denote the value of FPS in $i^{th}$ bin of $n^{th}$ mock sample as $P_{F,n}(k_{i})$ then the average FPS in $i^{th}$ bin is obtained from Eq. 12 by replacing $P_{\delta,n}(k_{i})$ with $P_{F,n}(k_{i})$ . In similar vein, the covariance matrix elements $C(i,j)$ are obtained from Eq. 13. The $\chi^{2}$ is calculated using the full covariance matrix.

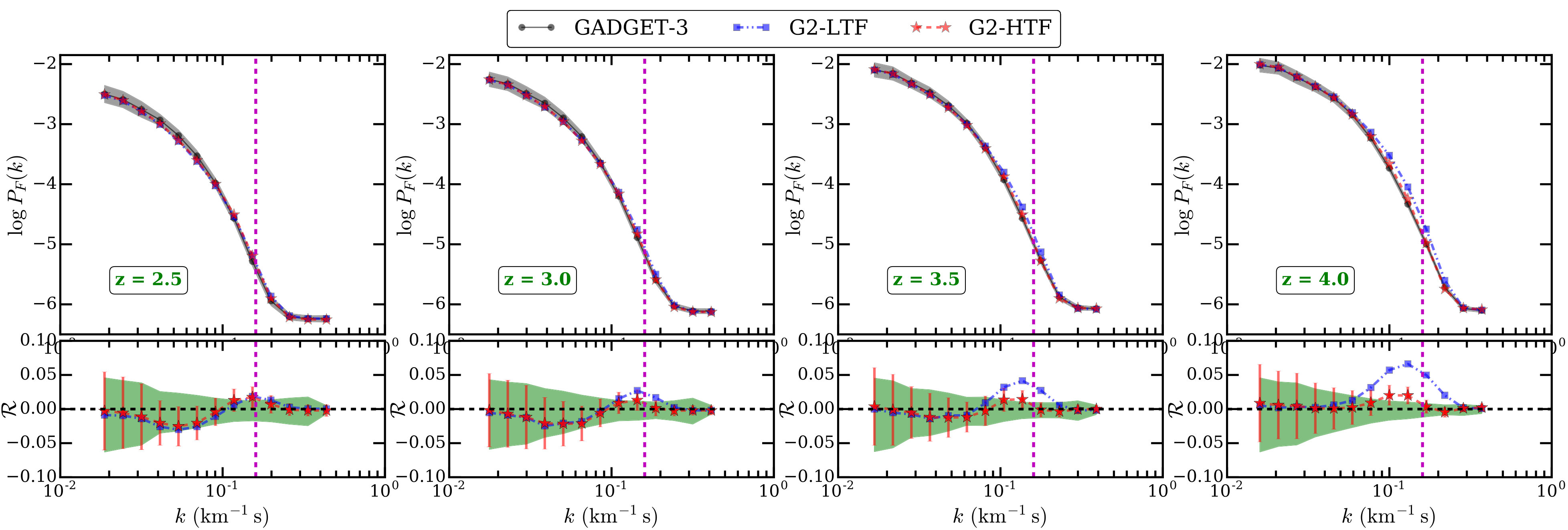

In Fig. 9 we compare the FPS between different models. Note that at the redshift of interest the astrophysical parameters $\Gamma_{\rm HI}$ , $T_{0}$ , $\gamma$ and spectral properties such as SNR, resolution and mock sample path lengths are same for different models. The FPS for different models behave in a way similar to the DPS. The FPS obtained from G2-HTF model is consistent within $1\sigma$ and $5$ percent accuracy with that from the gadget-3 model at all redshifts. However, G2-LTF models at $z=3.5$ and $4.0$ have slightly excess power (but still within 5 percent) at scales in the range $20-100$ km s*-1*( $k\sim 0.06-0.28\;{\rm s\>km}^{-1}$ ). Similar to DPS, this excess power in the G2-LTF model can be attributed to the differences in the thermal history of the particles. We also see that the sample variance in FPS is smaller as compared to DPS as noted by Zhan et al. (2005). This is because the transformation (logarithmic suppression) between baryon density and flux is non-linear.

4.4 Wavelet statistics

The wavelet statistic has been used in the past to constrain $T_{0}$ and $\gamma$ of the IGM (Theuns & Zaroubi, 2000; Theuns et al., 2002; Zaldarriaga, 2002; Lidz et al., 2010; Garzilli et al., 2012). Wavelets have finite support in both real and Fourier space and thus can be used to extract the power at scales of interest. This is necessary because large scales (small $k$ ) are not sensitive to $T_{0}$ , $\gamma$ variation whereas small scales (large $k$ ) are contaminated by noise and metal lines in observations (Lidz et al., 2010). We use the “Morlet” wavelet, usually a sine (or a cosine) function damped by Gaussian, which has the form

[TABLE]

where $s_{n}=35$ km s*-1*, and $k_{0}=s_{n}/2\pi$ is the scale over which power is extracted. As shown by Lidz et al. (2010), this scale is sensitive to $T_{0}$ and $\gamma$ variations. $A$ is a normalization constant fixed by,

[TABLE]

The wavelet coefficients are obtained by convolving the Ly $\alpha$ flux ( $F$ ) with Morlet as,

[TABLE]

The wavelet power is then given by $A_{n}(x)=|a_{n}(x)|^{2}$ . Following Lidz et al. (2010), we smooth the wavelet power on scales of $L=1000$ ${\rm km\;s}^{-1}$ to avoid noisy excursions in wavelet power

[TABLE]

where $\Theta(|x-x^{\prime}|;L/2)$ is the top-hat filter. It is important to note that wavelet power is anti-correlated with $T_{0}$ i.e., the wavelet power is smaller for higher $T_{0}$ and vice-versa.

Fig. 10 shows the comparison of the PDF of the smoothed wavelet power $(A_{L,n})$ (hereafter wavelet PDF) from the three models. As the TDR parameters $T_{0}$ and $\gamma$ evolve with redshift, the peak and amplitude of the wavelet PDF also evolves accordingly. The bottom panels in Fig. 10 show that the wavelet PDF for G2-HTF model is within sample variance (green shaded region) and within 18 percent (red stars with errorbars) to that from the gadget-3 model at all redshifts. In contrast, the wavelet PDF is systematically shifted to larger values at higher redshifts for the G2-LTF model as compared to the gadget-3 model even though the thermal history parameters are quite similar at those redshifts (see Fig. 4). This can also be seen from Table. 2 where the median wavelet power is consistently larger at higher redshift. Since the distribution is skewed, the errors given in Table. 2 correspond to 68 percentile around the median value. The median wavelet power from G2-HTF model is in good agreement (0.4 percent) with that from gadget-3. However, median wavelet power in G2-LTF model is consistently lower than that from gadget-3 model at higher redshifts ( $z\geq 3.5$ , difference $\sim 7$ percent). This is because the wavelet scale used in our analysis ( $s_{\rm n}=35$ km s*-1*) corresponds to $k\sim 0.18\;{\rm s\;km}^{-1}$ shown by magenta dashed vertical line in Fig. 9. At this scale, the G2-LTF FPS has larger power as compared to gadget-3 FPS due to difference in density evolution and thermal history of the particles. Thus corresponding wavelet power is also larger for G2-LTF model as compared to gadget-3 model. Note that the wavelet power is still large in G2-LTF model even if we use a factor $\sim 2$ higher $\Gamma_{\rm HI}$ (corresponding to best fit value for G2-LTF model see section 4.9).

Due to such systematics, the inferred $T_{0}$ from G2-LTF model (or models in which Jeans smoothing effect from thermal history are not accounted for) would be larger at higher redshift and may lead to a misinterpretation of earlier He ii reionization. On the other hand G2-HTF model though approximate in computing the Jeans smoothing does produce consistent results with that from gadget-3. Thus the inferred $T_{0}$ from G2-HTF model doesn’t seem to be skewed by any systematic discussed above.

4.5 Curvature statistics

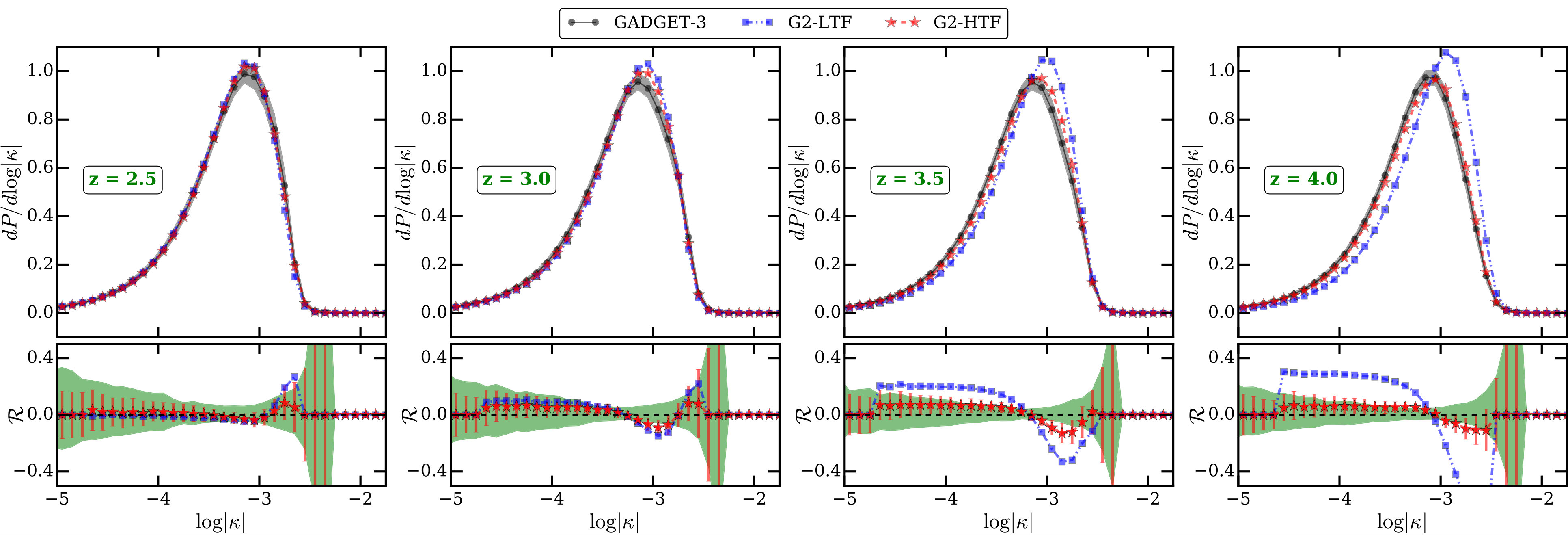

Similar to the wavelet analysis, Becker et al. (2011) introduced a curvature statistics to measure the amount of small-scale structure in the Ly $\alpha$ forest. The curvature $\kappa$ is defined as,

[TABLE]

where $F^{\prime}$ , $F^{\prime\prime}$ is first and second derivative of Ly $\alpha$ transmitted flux respectively. This statistics is suitable for obtaining the IGM temperature at characteristic overdensity which is found to be an almost one-to-one function of the mean curvature regardless of $\gamma$ (Becker et al., 2011; Boera et al., 2014; Padmanabhan et al., 2014, 2015; Upton Sanderbeck et al., 2016). Following the earlier works, Padmanabhan et al. (2015) have shown that the mean and the percentiles of the curvature distribution function can be used to obtain constraints on the TDR. The comparisons of curvature PDF from three models are shown in Fig. 11. The curvature PDF from G2-HTF model is within 10 percent to that from gadget-3 model at all redshifts. On the other hand, curvature is systematically more at higher redshifts for G2-LTF models than those of gadget-3 models and the residuals are as high as $\sim 120$ percent. The median curvature values are summarized in Table 3. The median curvature in G2-LTF model is systematically higher than that from gadget-3 model at $z=4$ . This is because of small scale fluctuations in density field (and hence flux) are larger for the G2-LTF model (see Fig. 9) which affects the curvature measurement. Thus similar to wavelet analysis, the $T_{0}$ inferred from G2-LTF model using curvature statistics would be larger at higher redshifts ( $z\geq 3.5$ ). Whereas $T_{0}$ inferred from G2-HTF model would be consistent with that from gadget-3 model.

4.6 Column Density Distribution function (CDDF)

The next three statistics we will discuss treat the Ly $\alpha$ forest as a composition of discrete clouds. Each Ly $\alpha$ line is fitted with multiple Voigt profiles each having 3 free parameters column density ( ${\rm N_{HI}}$ ), linewidth ( $b$ ) parameter and line center ( $\lambda_{\rm c}$ ). We used “VoIgt profile Parameter Estimation Routine” (viper) to decompose the Ly $\alpha$ forest into multi-component Voigt profiles. More details can be found in (Gaikwad et al., 2017b).

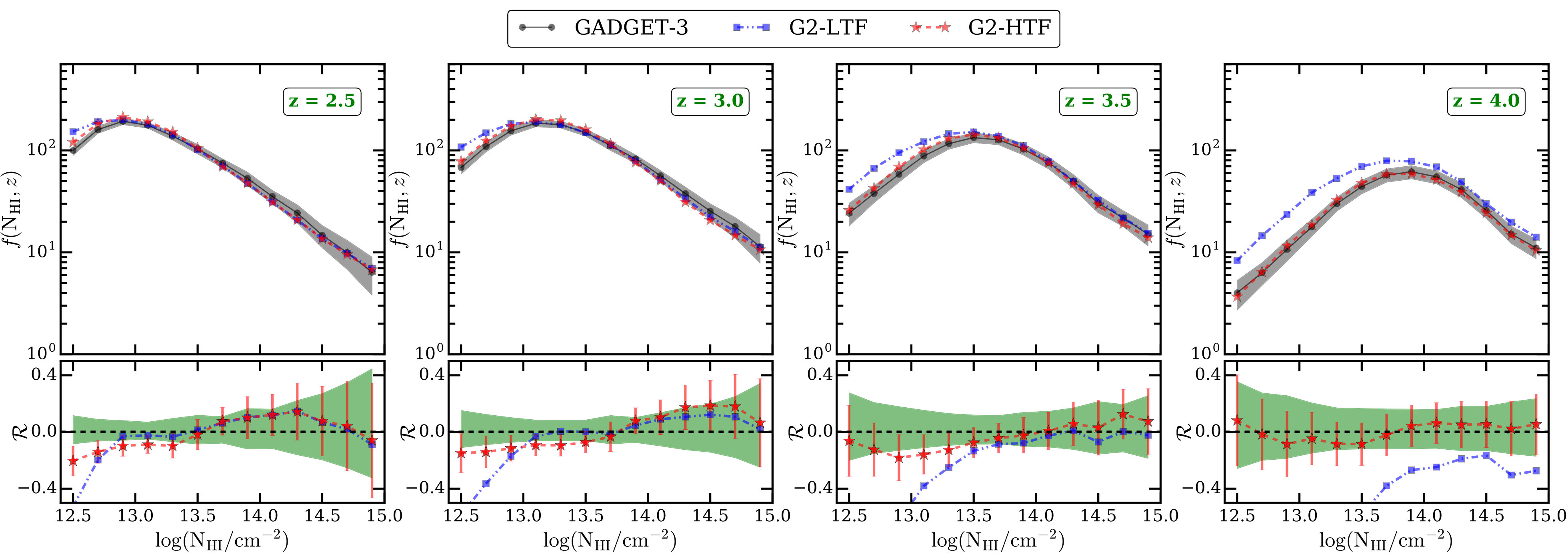

The CDDF, $f({\rm N_{HI}},z)$ , is a bivariate distribution that describes the number of absorption lines with column density in range $\log{\rm N_{HI}}$ to $\log{\rm N_{HI}}$ + d $\log{\rm N_{HI}}$ and redshift in the range $z$ to $z+dz$ . The CDDF is sensitive to $\Gamma_{\rm HI}$ (Schaye, 2001; Shull et al., 2012; Kollmeier et al., 2014; Shull et al., 2015; Gaikwad et al., 2017b; Viel et al., 2016; Gurvich et al., 2017). Fig. 12 shows the comparison of CDDF obtained from gadget-3, G2-LTF and G2-HTF models. We fit the noise free spectra from gadget-3 model and calculate the sample variance as shown by green shaded region in bottom panels. We have not accounted for the incompleteness of the sample in the calculation of redshift path length. This affects the shape of the CDDF at low $\log{\rm N_{HI}}$ end. The CDDF from G2-HTF models agree within sample variance ( $1.25\sigma$ ) and consistent (within 18 percent) with that from gadget-3 at all redshifts. For $\log{\rm N_{HI}}$ $>13.5$ , the G2-LTF model is consistent within 10 percent at $z\leq 3.5$ except at $z=4$ where the differences are large $\sim 40$ percent. In addition, as expected the G2-LTF model predicts more number of lines at lower column densities i.e., $\log{\rm N_{HI}}$ $<13.5$ . This is because the features arising from small scale density fluctuations of G2-LTF model (as seen in Fig. 6) is identified and fitted by viper as narrow lines with smaller column densities (for example see the region between $8-9$ cMpc in Fig. 6). However, like other statistics the CDDF from G2-HTF model is in good agreement with that from gadget-3 model.

4.7 Linewidth ( $b$ parameter) distribution function

The top panels in Fig. 13 show the linewidth distribution, which is sensitive to thermal history, pressure smoothing and unknown turbulent motions in the IGM (Schaye et al., 1999, 2000; McDonald et al., 2001; Davé & Tripp, 2001; Gaikwad et al., 2017b; Viel et al., 2016), from gadget-3 (black circles), G2-LTF (blue squares) and G2-HTF (red stars) models for different redshift bins. The $b$ parameter distribution and residuals plotted in Fig. 13 is calculated from all the lines in sample with relative error in $b$ parameter smaller than 0.5. Again, unlike the G2-LTF model the linewidth distribution from G2-HTF model is consistent (within $18$ percent uncertainty) with that from gadget-3 model at $b<60$ km s*-1*. On the other hand residual between G2-LTF and gadget-3 model is large. It is interesting to note that the peak of the $b$ distribution shifts towards larger $b$ values with increasing redshift. This is because the lines tend to be saturated and blended together at higher redshifts. As a result, the fitted $b$ parameter tends to be larger. However, the errors on the fitted $b$ parameters are relatively higher at higher redshifts and hence it is non-trivial to constrain the thermal history of IGM at higher redshifts ( $z>3.5$ ) using line fitting method (Webb & Carswell, 1991; Fernández-Soto et al., 1996). This can also be seen from Table 4 where we have summarize the median $b$ parameters for the $3$ models at 4 different redshifts. The median $b$ increases from $z=2.5$ to $z=4.0$ in all models. The 68 percentile intervals around median are asymmetric because the $b$ distribution is skewed. Within $1\sigma$ errorbars the $b$ distribution from G2-LTF and G2-HTF model is consistent with that from gadget-3 model.

4.8 $b$ versus $\log{\rm N_{HI}}$ scatter

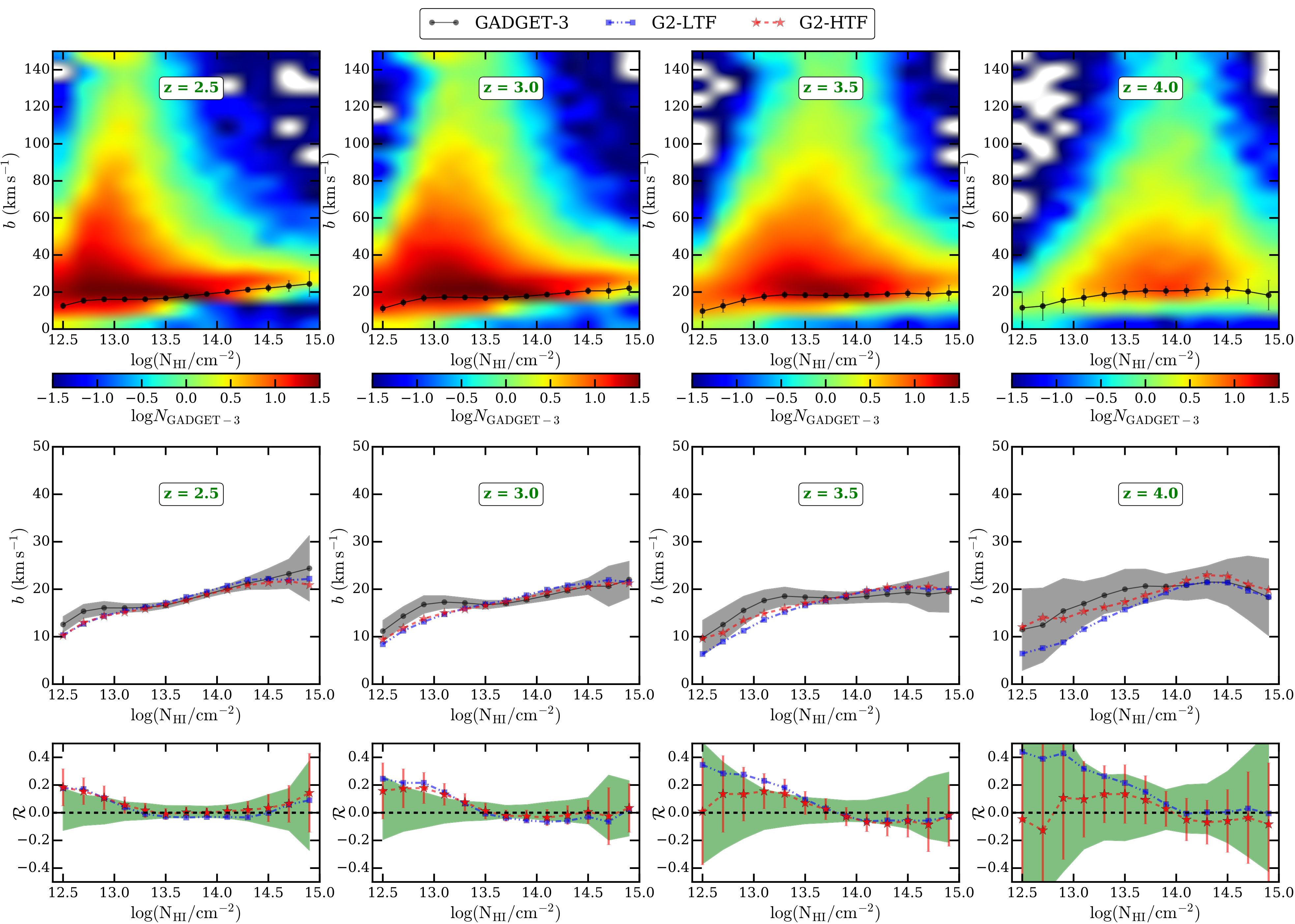

The top panels in Fig. 14 show the $b$ versus $\log{\rm N_{HI}}$ scatter for gadget-3 model. The color scheme represents density of points in logarithmic units. One way to assess the goodness of fit is to match the lower-envelope in $b$ versus $\log{\rm N_{HI}}$ plot. The lower-envelope in the $b$ versus $\log{\rm N_{HI}}$ plot has been used in the past to constrain the thermal history parameters $T_{0}$ and $\gamma$ (Schaye et al., 1999, 2000; McDonald et al., 2001). Following Garzilli et al. (2015), we obtain the lower-envelope by calculating the $10^{\rm th}$ percentile of $b$ values in $\log{\rm N_{HI}}$ bin. The middle and bottom panels show the comparison of the lower-envelope obtained from gadget-3, G2-HTF and G2-LTF model. The lower envelope in $b$ versus $\log{\rm N_{HI}}$ plot from G2-HTF (red stars) is within sample variance and in 18 percent agreement with gadget-3 (black circles). On the other hand, at $z=3.5$ and $4.0$ , the lower-envelope from G2-LTF (blue stars) is consistently smaller at $\log{\rm N_{HI}}$ $<13.5$ than that from gadget-3 model. This can again be attributed to extra absorption line features with smaller $\log{\rm N_{HI}}$ identified by the viper. Because of the systematically smaller lower-envelop in G2-LTF model at $\log{\rm N_{HI}}$ $<13.5$ , $\gamma$ derived from G2-LTF model would be systematically larger than that from gadget-3 model at $z\geq 3.5$ .

To summarize the results presented in sections 4.1–4.8, we find that the Ly $\alpha$ statistics derived from G2-HTF model are within 20 percent (except for $b$ parameter distribution) to that from gadget-3 model and within the sample variance for a path length of $\sim 1000h^{-1}$ cMpc ( $X\sim 5.35$ at $z=3$ ).

4.9 $\chi^{2}$ analysis

The main motivation of this work is to develop the method to simulate the Ly $\alpha$ forest in order to efficiently explore the parameter space. Hence, it is important to show the accuracy of the method in recovering the astrophysical parameters. In this section we present the $\chi^{2}$ analysis and show the accuracy of our method in recovering the Hi photoionization rate $\Gamma_{\rm HI}$ .

The differences we see between the FPDF and the FPS from different models will have direct consequence in the derived parameter values like $\Gamma_{\rm HI}$ . To study this, we treat gadget-3 as the reference model and see how the value of $\Gamma_{\rm HI}$ is recovered when we use the G2-LTF and G2-HTF models. Note that we use the noise (corresponding to SNR=25) added Ly $\alpha$ transmitted flux in all the models. We vary $\Gamma_{\rm 12}$ in G2-HTF (or G2-LTF) model and calculate the FPDF and FPS. The $\chi^{2}$ between the FPDF / PS calculated from gadget-3 and that from G2-HTF (or G2-LTF) model can be written in the matrix form as (for similar method see Gaikwad et al., 2017a),

[TABLE]

where $P_{\rm fid}$ and $P_{(\Gamma_{\rm 12})}$ is flux statistics (either FPDF or PS) from gadget-3 and G2-HTF (or G2-LTF) model respectively. $C$ is the covariance matrix as given in Eq. 13. Note that we use full covariance matrix for $\chi^{2}$ estimation.

$\Gamma_{\rm 12}$ ** recovery:**

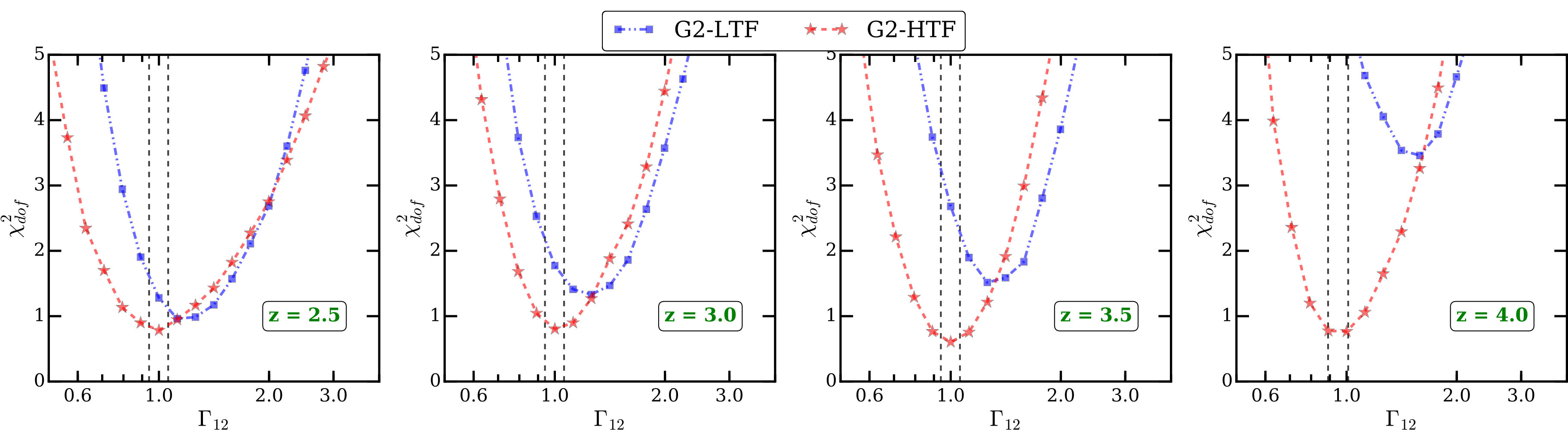

The panels in Fig. 15 show reduced $\chi^{2}$ as a function of $\Gamma_{\rm 12}$ from G2-HTF (red stars) and G2-LTF (blue squares) model for four different redshifts. The black dashed vertical lines show the statistical uncertainty in $\Gamma_{\rm 12}$ for G2-HTF model999Under the assumption of normal distribution, the statistical uncertainty corresponds to $\chi^{2}=\chi^{2}_{\rm min}+\Delta\chi^{2}$ where $\Delta\chi^{2}=1$ (Press et al., 1992).. The $\Gamma_{\rm 12}$ is recovered within $1\sigma$ ( $d$$\Gamma_{\rm 12}$ $\sim\pm 0.05$ , within $5$ percent accuracy) in G2-HTF model at all redshifts whereas G2-LTF model fails to recover the $\Gamma_{\rm 12}$ within $1\sigma$ . The $\Gamma_{\rm 12}$ recovered from G2-LTF model at $z=3.0$ and $z=4.0$ is higher by a factor of 1.7 and 2 respectively. The minimum $\chi^{2}_{\rm dof}$ for G2-HTF model is also close to 1 indicating the goodness-of-fit. Note that the above analysis is done assuming HM12 UVB, SNR = 25 and mock sample path length of $1000h^{-1}$ cMpc (corresponding $X\sim 5.35$ at $z=3$ ). However, the effect of SNR on $\Gamma_{\rm HI}$ recovery is not significant. To illustrate this, we recover the $\Gamma_{\rm HI}$ at four different redshift bins for SNR varying from 15 to $\infty$ (noise free spectra) as shown in Table 7 of Appendix D. We can see that for wide range of SNR, the $\Gamma_{\rm HI}$ is recovered in the case of G2-HTF model within $5$ percent accuracy. The statistical uncertainty on recovered $\Gamma_{\rm HI}$ is also very similar101010The $\chi^{2}_{\rm dof}$ increases by $\sim 60$ percent for SNR= $\infty$ as compared to SNR $=15$ due to smaller errorbars in earlier.. This is because, as pointed out earlier, the scatter in FPDF and FPS mainly comes from sample variance. Thus effect of SNR is not important in recovery of $\Gamma_{\rm HI}$ . The main conclusion from this study is that the gas pressure is very important while deriving $\Gamma_{\rm HI}$ based on FPDF and FPS. Simple pressure smoothing based on instantaneous temperature and density values can lead to an overestimation of $\Gamma_{\rm HI}$ . We show that if we run gadget-2 with higher temperature floor ( $T\sim 10^{4}$ K), we are able to recover the correct $\Gamma_{\rm HI}$ within $5$ percent accuracy using our approach.

$\chi^{2}$ ** analysis for other statistics:** We have also calculated the $\chi^{2}$ between G2-HTF and G2-LTF model with gadget-3 as a reference model keeping all other parameters fixed. Table 5 summarizes the reduced $\chi^{2}$ values for different statistics. Note that we calculate the reduced $\chi^{2}$ values for the statistics other than FPDF and FPS using only the diagonal terms of the covariance matrix as the off-diagonal terms are noisy. It is clear from Table 5 that the reduced $\chi^{2}$ is generally less for G2-HTF model as compared to that for G2-LTF model which suggest G2-HTF model is in general better agreement with gadget-3 model. The $\chi^{2}$ analysis for the case of an enhanced UVB is presented in Appendix E where we show that the G2-HTF model is consistent with gadget-3 model for a significantly different thermal history.

4.10 Effect of different thermal history

The comparison between different models discussed in sections 4.1-4.9 has been performed for the ionization and heating rates from HM12 UVB model. It is, however, important to validate our method for different UVB models where the thermal history is significantly different from that in the case of the HM12 UVB. In Figs. 19-26, we validate our method (for G2-HTF model) for a UVB models in which $T_{0}$ is increased by a factor of $\sim 2$ while $\gamma$ remains same at all redshifts (see Appendix E for details). We find that the statistics derived from the G2-HTF model is again consistent within 20 percent to that from gadget-3 model for such a different thermal history. Thus for a range of physically motivated photo-heating rates from UVB calculations (such as Khaire & Srianand, 2015a, b), we can easily probe the $T_{0}-\gamma$ parameter space and calculate Ly $\alpha$ flux in G2-HTF model without performing full gadget-3 simulation. Therefore our method can be a good first step to narrow down the parameter space before confirming the best fit parameter with gadget-3 simulation.

4.11 Computational gain

We now highlight the advantages of using our method for simulating Ly $\alpha$ forest:

•

Efficiency : Table 6 summarizes the CPU time consumption in various parts of the code. Significant fraction of time is spent in evolution of $\Delta$ , $v$ and $T$ in both codes. However, unlike gadget-3 we need to evolve $\Delta$ , $v$ and $T$ in G2-HTF (or G2-LTF) only once. To vary astrophysical parameters in G2-HTF, we just need to vary UVB in cite. This allows one to probe $T_{0}$ and $\gamma$ parameter space efficiently. For example, the time (per core) required to simulate Ly $\alpha$ forest for 10 different UVB in gadget-3 is $\sim 67$ days whereas for gadget-2 is $\sim 8$ days.

•

Accuracy : We have shown that our method (running gadget-2 with a high temperature floor and post-process using cite) produces statistical distributions that are consistent within sample variance (calculated from mock sample path length of $1000h^{-1}$ cMpc or $X\sim 5.35$ at $z=3$ ) and within 20 percent to those obtained with gadget-3. In particular, our method is accurate within 5 percent with that from gadget-3 in recovering $\Gamma_{\rm HI}$ .

•

Flexibility : In addition to HM12, it is straightforward to incorporate other UVB such as Faucher-Giguère et al. (2009); Khaire & Srianand (2015a, b) in cite and evolve the temperature without performing full hydrodynamic simulation. cite can be run in either equilibrium or non-equilibrium ionization evolution mode. It is easy to incorporate cooling due to metals in cite by changing cooling rate tables (Wiersma et al., 2009; Gaikwad et al., 2017a, for similar analysis)111111http://www.strw.leidenuniv.nl/WSS08/.

Thus our method (though approximate) is efficient, flexible and sufficiently accurate to explore a large parameter space which otherwise would be more time consuming with self-consistent simulations like gadget-3. However in practice, while constraining astrophysical parameters from observations, we propose to use the method in 3 steps (i) use G2-HTF model to explore large parameter space and obtain the best fit parameters with corresponding statistical uncertainty, (ii) run gadget-3 simulation with best fit parameters (and also for parameters with $1\sigma$ deviation) and (iii) check if the statistics derived from data are consistent with those derived from gadget-3 model with best fit parameters.

Thus our method, while not a substitute for the full hydrodynamical simulation like gadget-3, provide an efficient and reasonable accurate tool to explore a large parameter space which otherwise require large resources and computational time. A possible way to make use this method would be to narrow down the parameter space in the first step before confirming the best fit parameters with a full gadget-3 simulation.

5 Summary

With the advent of high quality observations, an efficient method to simulate the Ly $\alpha$ forest would be useful for parameter estimation. Current state-of-art simulations like gadget-3, though reproduce observational properties of Ly $\alpha$ forest very well, are computationally expensive for large parameter space exploration. As part of our ongoing effort, we have developed a post processing module for gadget-2 called “Code for Ionization and Temperature Evolution” (CITE). In Gaikwad et al. (2017a), we have shown that the predictions of our low redshift simulations match well with other existing hydrodynamical simulations and estimated $\Gamma_{\rm HI}$ at $z<0.5$ and associated uncertainties using extensive exploration of the parameter space.

For the resolution used in the above study (gas particle mass $\delta m=1.26\times 10^{7}\>h^{-1}\>{\rm M}_{\sun}$ , pixel size $\delta x\sim 48.8h^{-1}$ ckpc), the pressure smoothing of baryons may not be a major issue. However, for studying the high- $z$ Ly $\alpha$ forest one usually uses higher resolution echelle data. When we use appropriate high resolution (gas particle mass $\delta m=1.01\times 10^{5}\>h^{-1}\>{\rm M}_{\sun}$ , pixel size $\delta x\sim 9.77h^{-1}$ ckpc) simulation boxes, we notice that the density ( $\Delta$ ) and velocity ( $v$ ) fields are smoother for gadget-3 as compared to those from gadget-2. This is because the temperature and ionization state of the SPH particles in gadget-2 is not calculated self-consistently (photo-heating and radiative cooling terms are not accounted for). In this work we show that by running a gadget-2 simulation with elevated temperature floor (i.e., $T\sim 10^{4}$ K) and using local Jeans smoothing we are able to appreciably overcome the above mentioned shortcomings of our method in the high resolution simulations.

The basic idea is to apply additional smoothing in gadget-2 by a local Jeans length at the epoch of our interest. However, it is well known that the smoothing in gadget-3 is not only decided by the instantaneous density and temperature of the particles but also to some extent by the thermal history of the particles. To understand this, we perform three high resolution simulations (gas particle mass $\delta m=1.01\times 10^{5}\>h^{-1}\>{\rm M}_{\sun}$ , pixel size $\delta x\sim 9.77h^{-1}$ ckpc) with same initial conditions (i) G2-LTF: gadget-2 with low temperature ( $T\sim 100$ K) floor in which local Jeans length is decided by instantaneous density and temperature and (ii) G2-HTF: gadget-2 with high temperature ( $T\sim 10^{4}$ K) floor in which even the unshocked gas is evolved at with a pressure appropriate for a photoionized gas at $T=10^{4}$ K and (iii) gadget-3: a reference model for comparison with G2-LTF and G2-HTF model.

For G2-LTF and G2-HTF models, we first estimate the temperature of SPH particles in gadget-2 using our code cite. We modify the smoothing kernel to account for pressure smoothing and estimated the density, velocity field on grids. We find that the line of sight density and velocity from our method matches well with that from gadget-3. We then compare our method for G2-LTF and G2-HTF models with that from gadget-3 simulation. The main results of our analysis are as follows:

•

We obtain the evolution of thermal history parameters $T_{0}$ and $\gamma$ by estimating the temperature of the SPH particles from cite. We show that the redshift evolution of $T_{0}$ and $\gamma$ from G2-HTF and G2-LTF are in very good agreement with that from gadget-3. cite also provides us with enough flexibility to solve the non-equilibrium ionization evolution equation. The $T_{0}$ and $\gamma$ evolution for non-equilibrium case is considerably different ( $T_{0}$ is larger by $\sim 60$ percent and $\gamma$ is smaller by 15 percent at $z=3.7$ ) than that for equilibrium case. We show that the redshift evolution of $T_{0}$ and $\gamma$ for non-equilibrium case from our method is consistent with that from Puchwein et al. (2015, difference less than 2.5 percent).

•

We generate the Ly $\alpha$ forest spectra by shooting random sightlines through simulation box in all the 3 models. The resulting Ly $\alpha$ forest spectra along sightline are remarkably similar in the G2-HTF and gadget-3 methods. However the Ly $\alpha$ forest spectra in G2-LTF model show more variation as compared to that from gadget-3. We compare the G2-LTF and G2-HTF with the gadget-3 model using 8 different statistics, namely: (i) 1D density field PS, (ii) FPDF, (iii) FPS, (iv) wavelet PDF, (v) curvature PDF, (vi) column density distribution function, (vii) linewidth distribution and (viii) $b$ vs $\log{\rm N_{HI}}$ correlation, at four different redshift $z=2.5,3.0,3.5$ and $4.0$ . Treating the gadget-3 model as the reference, we demonstrate that the Hi photoionization rate ( $\Gamma_{\rm HI}$ ) can be recovered, using FPDF and FPS statistics, well within $1\sigma$ statistical uncertainty using the G2-HTF model. We find that the G2-HTF model is in general very good agreement (within 20 percent and within $1\sigma$ sample variance calculated from $1000h^{-1}$ cMpc or $X\sim 5.35$ at $z=3$ ) with gadget-3 model at all redshifts. On the other hand G2-LTF model overestimates the $\Gamma_{\rm HI}$ by a factor of $\sim 2$ at $z\geq 3.5$ .

•

Using enhanced HM12 photo-heating rates, we obtain a thermal history such that $T_{0}$ is increased by a factor of $\sim 2$ . We show that our method for such significantly different thermal history is also consistent (in $1\sigma$ ) with gadget-3 simulation.

Our method to simulate the Ly $\alpha$ forest is computationally less expensive, flexible to incorporate changes in UVB, metallicity, non-equilibrium ionization evolution etc. and accurate (in recovering $\Gamma_{\rm HI}$ ) to within 5 percent. This method can be used in future more effectively to explore $T_{0}$ , $\gamma$ and $\Gamma_{\rm HI}$ parameter space and to simultaneously constrain these quantities from observations.

Acknowledgement

All the computations are performed using the PERSEUS cluster at IUCAA and the HPC cluster at NCRA. We like to thank Volker Springel, Aseem Paranjape and Ewald Puchwein for useful discussion. We also thank the anonymous referee for improving this work and the manuscript.

Appendix A Star formation criteria

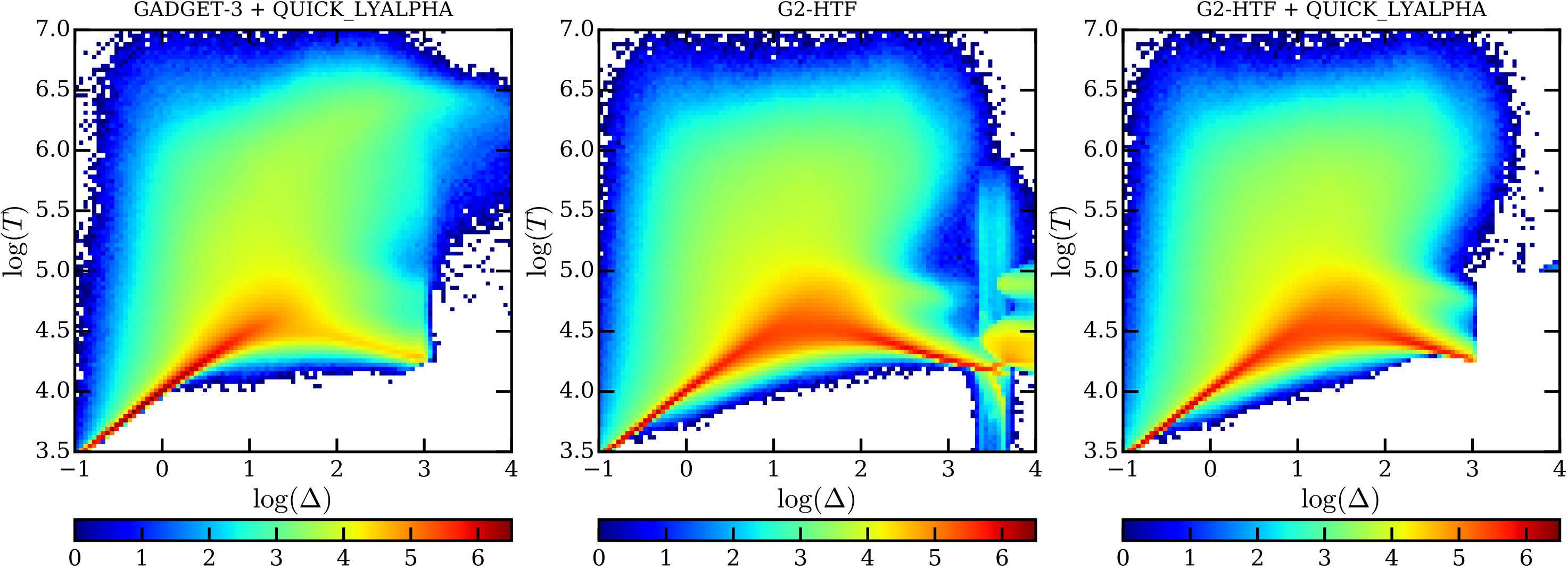

To speed up the calculations in gadget-3, we use QUICK_LYALPHA flag that converts gas with $\Delta>1000$ and $T<10^{5}$ K into stars. In order to study its effect on our method, we apply the same criteria to the G2-HTF model. The left, middle and right panels in Fig. 16 show the TDR for gadget-3, G2-HTF model without star formation criteria and G2-HTF model with star formation criteria similar to QUICK_LYALPHA respectively. The TDR for gadget-3 and G2-HTF model with star formation are remarkably similar even at $\Delta>1000$ . We also generate Ly $\alpha$ forest from G2-HTF model with star formation and calculated various Ly $\alpha$ statistics. We find that the Ly $\alpha$ statistics are accurate to within 1.8 percent suggesting QUICK_LYALPHA is a good approximation. This is because the particles converted in to stars occupy small volume in the simulation box. The probability that a random sightline (along which Ly $\alpha$ optical depth is calculated) intersecting such region is small. It should be noted that the results presented in §4 for G2-LTF and G2-HTF do not employ star formation criteria.

Appendix B Convolution of SPH kernel with Gaussian Kernel

In this section, we show that the convolution integral in Eq. 7 can be recast in to an analytical form that is fast and easy to implement on computers. Let $W(r,h)$ be sph kernel and $G(r,\sigma)$ be Gaussian kernel of pressure smoothing. Let $\widetilde{W}(k,h)$ and $\widetilde{G}(k,\sigma)$ be the Fourier transforms of $W(r,h)$ and $G(r,\sigma)$ respectively. The convolution of $W(r,h)$ with $G(r,\sigma)$ is given by,

[TABLE]

Using the convolution theorem,

[TABLE]

The sph kernel is given in Eq. 6. The Gaussian kernel in Eq. 8 can be written in following form,

[TABLE]

where, $b=\sqrt{2}\>\sigma$ and $\mu$ is cosine of angle between vector $\bm{r}$ and $\bm{x_{1}}$ . The convolution integral can be recast in to the following form,

[TABLE]

where,

[TABLE]

These integrals involve error function and hence need to be evaluated numerically. To speed up the calculations we used error function approximation of the following form (Abramowitz & Stegun, 1972)

[TABLE]

where,

[TABLE]

The small value of $|\epsilon(x)|$ indicates that the uncertainty in error function approximation is negligible. The values of the constants are

[TABLE]

Eq. 7 can also be solved numerically using a 3D FFT based method. However, we find that this method is computationally expensive for large number of particles. Fig. 17 shows a comparison of semi-analytical approximation (red stars, given in Eq. 24) with FFT based method (black dashed curve) for a particle. The SPH kernel and Gaussian kernel for this particle are shown by blue solid curve and red dash dot curves respectively. For visual purpose the Gaussian kernel is rescaled to fit the graph. Our method of approximation for convolution given in Eq. 24 is accurate within 2 percent of FFT based method.

Appendix C Jeans length in G2-HTF model

The G2-LTF and G2-HTF models are gadget-2 simulations with temperature floor $\sim 100$ K and $\sim 10000$ K respectively. For G2-HTF model (high temperature floor) the density field would be smoother as compared to the G2-LTF model (low temperature floor). Hence pressure smoothing scale for G2-HTF model would be smaller than that for G2-LTF. Using Eq. 2, we can quantify the factor by which this pressure smoothing scale is smaller,

[TABLE]

where we have assumed that $T\propto\Delta^{\gamma-1}$ (valid for $\Delta\leq 10$ ). The median gadget-2 temperature (i.e., before applying cite) in the overdensity range $\Delta\leq 10$ for G2-LTF and G2-HTF model is $T_{\rm{}{G2-LTF}}\sim 4000$ K and $T_{\rm{}{G2-HTF}}\sim 14000$ K respectively. The ratio of pressure smoothing scale in G2-LTF and G2-HTF model is given by (assuming $\gamma\sim 1.6$ ),

[TABLE]

It is clear from the above expression that if we use $L_{j}$ as pressure smoothing scale for the G2-LTF model in Eq. 5 then we need to use $0.66\times L_{j}$ for the G2-HTF model. Note that we do not modify this value ( $0.66$ ) for a different thermal history corresponding to different UVB (see Appendix E).

Appendix D Effect of different path length and SNR

**Effect of path length: **The analysis presented in the main paper assumes a default path length for the mock sample as $1000h^{-1}$ cMpc (corresponding to $X\sim 5.35$ at $z=3$ ). With the advent of surveys like KODIAQ (O’Meara et al., 2015, 2017, $\sim 100$ QSO around $z\sim 2-3.5$ ), XQ-100 (López et al., 2016), the path length of Ly $\alpha$ forest covered in QSO absorption spectroscopy is likely to increase by factor of $5$ . To study the effect of increase in path length, we generated a mock sample of 100 spectra at redshifts $z=2.5,3.0,3.5,4.0$ . We repeated the procedure and generated 100 such mock samples. Thus in all we generated $5\times 100\times 100=50000$ spectra at each redshift (see section 3) and followed the same procedure to calculate $8$ different statistics and the associated uncertainty (see section 4). We find that the $1\sigma$ uncertainty (similar to grey shaded region in Fig.7 to Fig. 14) is decreased by $\sim 12$ percent but it is still dominated by sample variance. The residuals are typically less than 20 percent for G2-HTF model. We are also able to recover the $\Gamma_{\rm HI}$ (using G2-HTF model) within accuracy of $\sim 5$ percent although the reduced $\chi^{2}$ is slightly large ( $\sim 1.2$ ) in this case due to smaller errorbars. Thus increase in path length does not affect the results of the work presented earlier.

Effect of SNR: Table 7 shows the recovery of the $\Gamma_{\rm 12}$ within $1\sigma$ statistical uncertainty from G2-HTF model assuming gadget-3 as a fiducial model (fiducial $\Gamma_{\rm 12}$ $=1$ ) for different SNR. The path length of mock sample is $1000h^{-1}$ cMpc (see section 3 for details). The values in brackets of Table 7 indicate the reduced $\chi^{2}$ corresponding to best fit $\Gamma_{\rm 12}$ . At all redshifts, the G2-HTF model is able to recover the $\Gamma_{\rm 12}$ within $1\sigma$ statistical uncertainty. However, the $\chi^{2}_{\rm dof}$ is large for high SNR. This is because the differences between gadget-3 and G2-HTF model are significant as SNR increases. But even in the case of high SNR, the reduced $\chi^{2}$ is close to 1 indicating the goodness of fit.

Appendix E Ly $\alpha$ flux statistics comparison for different thermal history

In order to explore the effect of difference in thermal history, we follow Becker et al. (2011) and modify the photo-heating rates of species $i=$ [H i, He i, He ii] as $\epsilon_{i}=a\times\epsilon_{i}^{\rm HM12}$ where, $\epsilon_{i}^{\rm HM12}$ is HM12 photo-heating rates of specie $i$ . We choose $a=2.933$ such that the $T_{0}$ is increased by factor of $\sim 2$ while $\gamma$ remains same at all redshifts. With this updated photo-heating rates we perform a gadget-3 (with QUICK_LYALPHA flag) and G2-HTF simulation with the initial conditions same as described in §2. It is important to emphasize here that we do not perform a gadget-2 simulation again, rather we only modify the HM12 photo-heating rates while running cite in the post-processing stage on the same simulation run earlier. Note that at the initial redshift $z=6$ , we use $T_{0}=14543$ K and $\gamma=1.51$ in cite consistent with gadget-3 for enhanced HM12 photo-heating rates at that redshift. Fig. 18 shows comparison of Ly $\alpha$ flux from gadget-3 and G2-HTF model for enhanced HM12 photo-heating rates. The flux from the two models match very well with each other. We also calculate the line of sight DPS, FPDF, FPS, wavelet PDF, curvature PDF, CDDF, $b$ parameter distribution and $b$ vs $\log{\rm N_{HI}}$ distribution for these models.

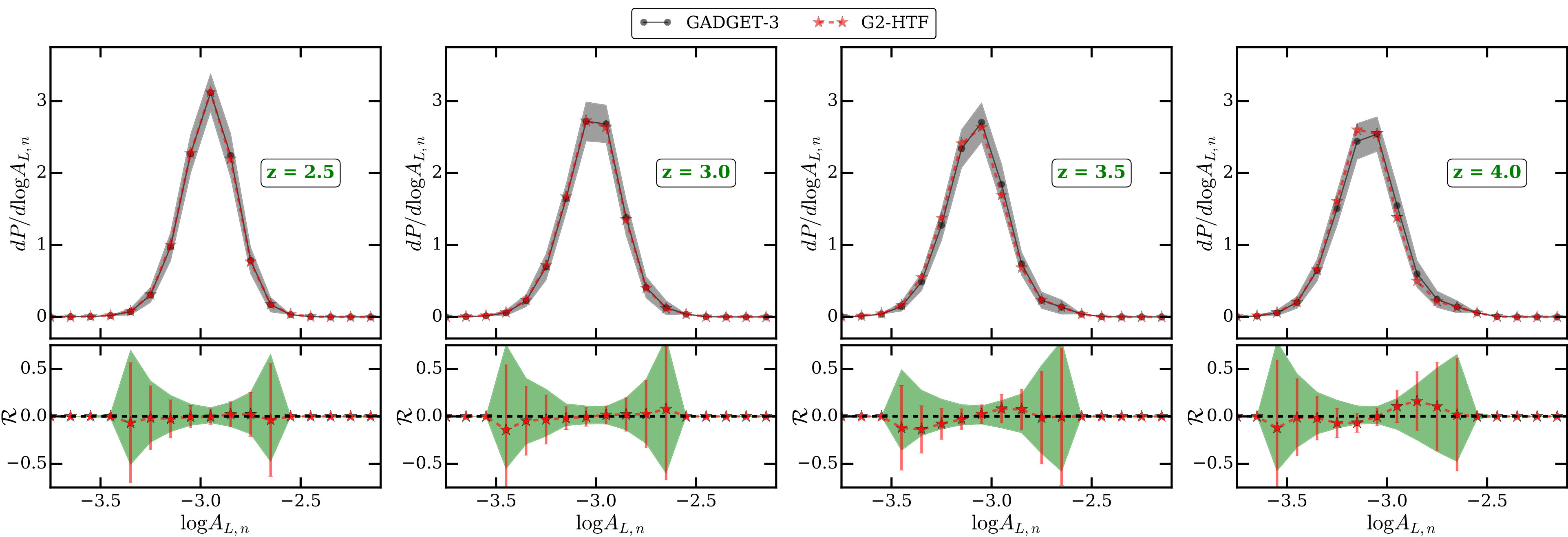

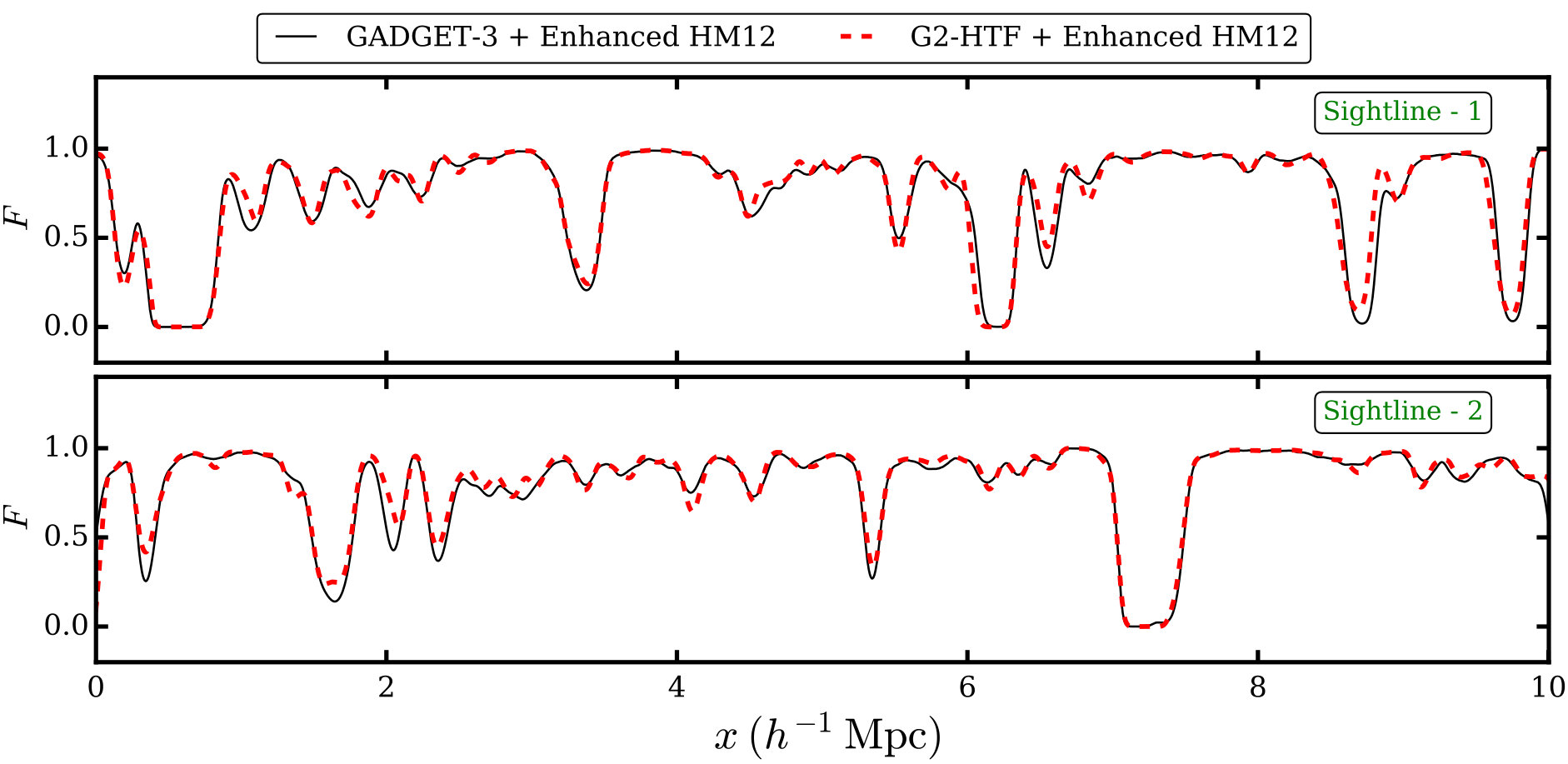

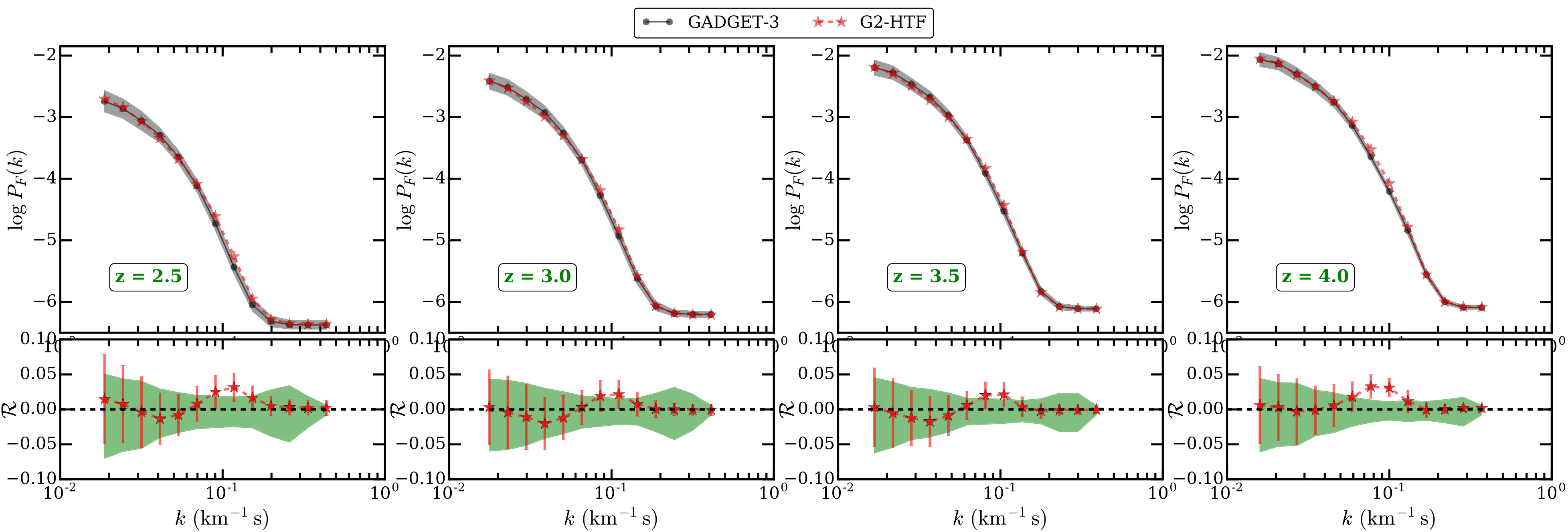

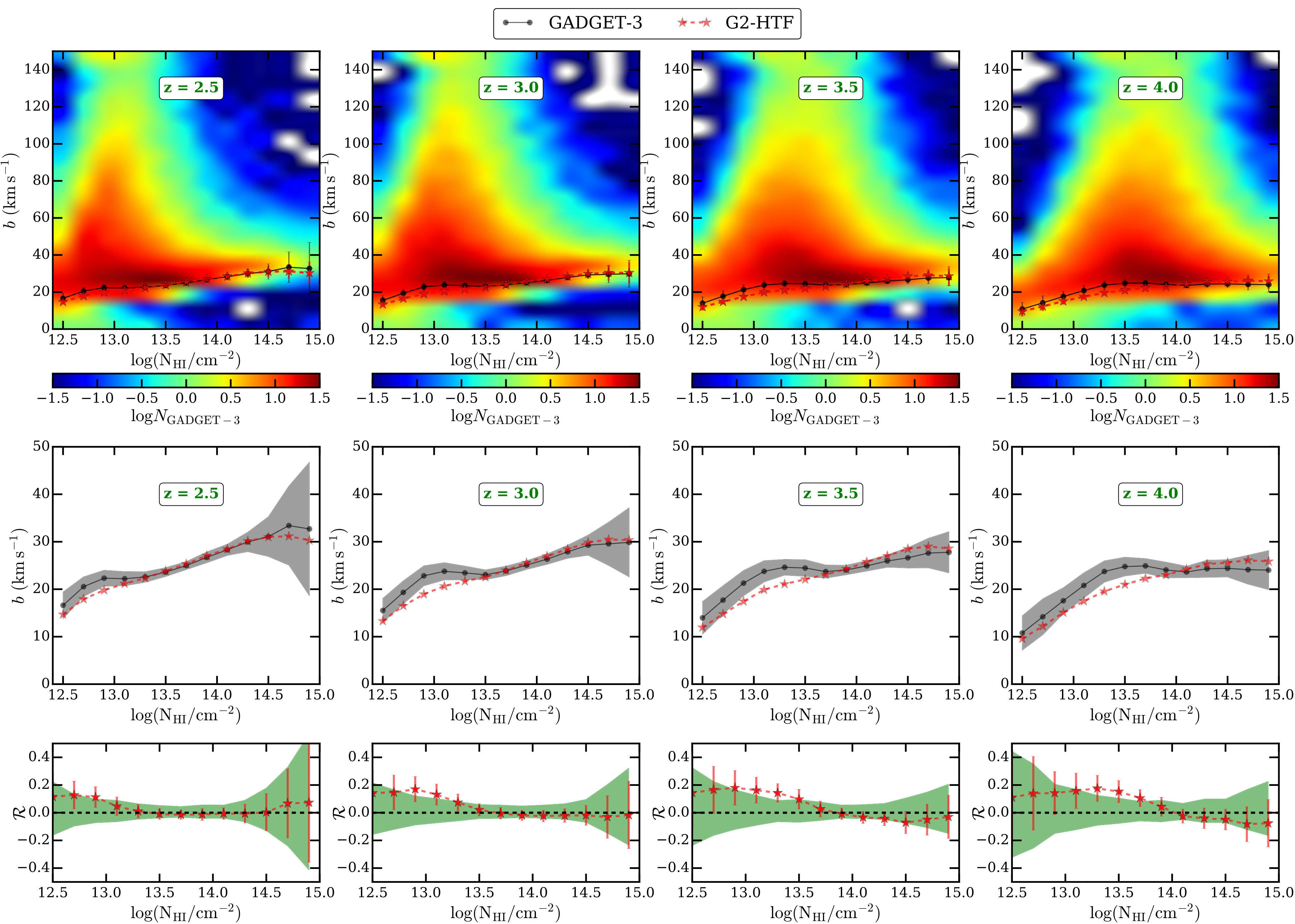

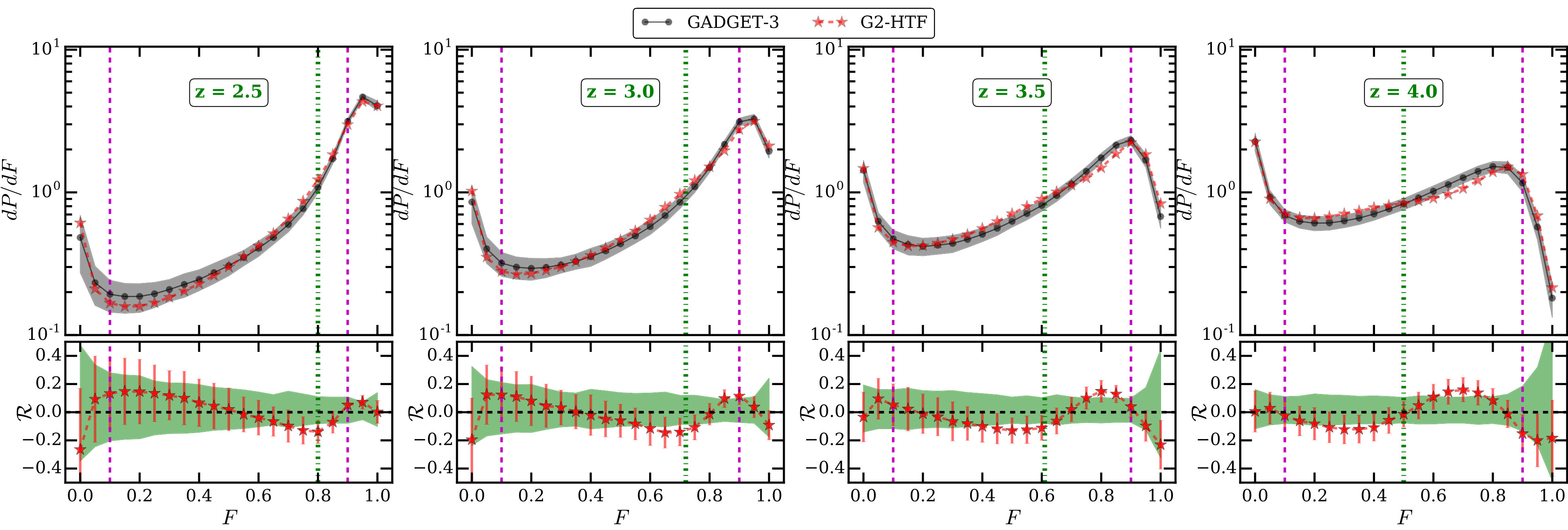

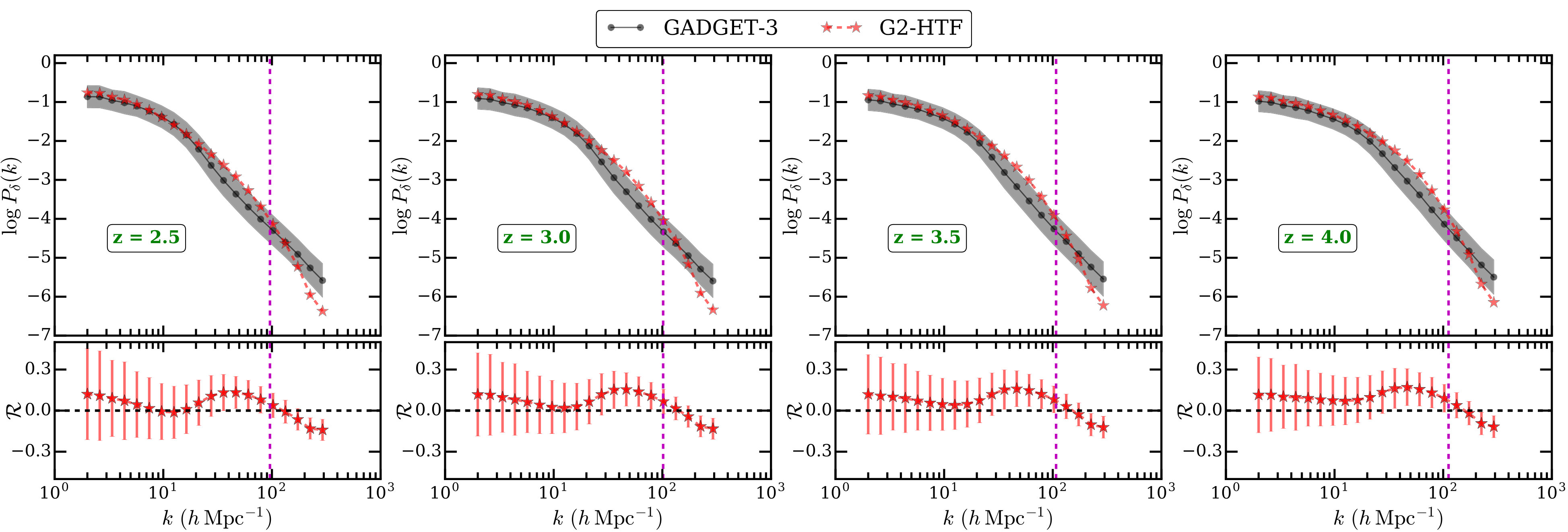

Figs. 19-26 show comparison of different statistics for gadget-3 and G2-HTF model with enhanced HM12 UVB. Since the gas ionized by the enhanced HM12 UVB is at higher temperature (by a factor of $\sim 2$ ) as compared to the models using HM12 UVB radiation, one would expect to see the differences in the statistics. We notice that the G2-HTF model residuals for FPDF are slightly large in enhanced HM12 UVB ( $\sim 20$ percent, see Fig. 20) as compared to those from HM12 UVB ( $\sim 15$ percent, see Fig. 8). Similar to HM12 G2-HTF model FPS ( $\mathcal{R}\sim 5$ percent, see Fig. 8), we also see the mismatch in enhanced HM12 G2-HTF model ( $\mathcal{R}\sim 5$ percent, Fig. 21) at scales in the range $220-650$ ckpc ( $k\sim 30-10\>h$ Mpc*-1*). The G2-HTF FPS in enhanced HM12 UVB is consistent within $1.6\sigma$ of the sample variance. Wavelets and curvature measurements are anti-correlated with temperature of the IGM. As expected, the comparisons of Fig. 10 with Fig. 22 and Fig. 23 with 11 show that the wavelet PDF and curvature PDF are consistently smaller for enhanced HM12 UVB (higher temperature) respectively. On the other hand the $b$ parameters in enhanced HM12 UVB model (Fig. 25) are consistently larger as compared to that in HM12 UVB model (see Fig.13) at a given redshift. This trend is furthermore clear from Table 8 (compare with Table 2, 3 and 4) where we tabulated the median value of wavelet, curvature and $b$ parameter from gadget-3 and G2-HTF model with enhanced HM12 UVB. The wavelet and curvature PDF in enhanced HM12 UVB for G2-HTF models are in agreement ( $1.1\sigma$ ) with the sample variance. Similarly the CDDF, $b$ parameter distribution and $b$ vs $\log{\rm N_{HI}}$ lower envelope from G2-HTF model are within sample variance with that from gadget-3 model (see Fig. 24, 25 and 26).

We also calculated the reduced $\chi^{2}$ for different statistics. The reduced $\chi^{2}$ for these statistics are $\sim 0.33,0.67,0.34,0.41,0.59,0.53,0.47$ and $0.58$ respectively. Using this model we are also able to recover $\Gamma_{\rm 12}$ within $1\sigma$ from FPDF and FPS statistics. This shows that G2-HTF model is consistent (within $20$ percent) with gadget-3 model for a significantly different thermal history.

Bibliography103

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Abramowitz & Stegun (1972) Abramowitz M., Stegun I. A., 1972, Handbook of Mathematical Functions
2Arinyo-i-Prats et al. (2015) Arinyo-i-Prats A., Miralda-Escudé J., Viel M., Cen R., 2015, J. Cosmology Astropart. Phys. , 12, 017 · doi ↗
3Bahcall & Peebles (1969) Bahcall J. N., Peebles P. J. E., 1969, Ap J , 156, L 7 · doi ↗
4Becker & Bolton (2013) Becker G. D., Bolton J. S., 2013, MNRAS , 436, 1023 · doi ↗
5Becker et al. (2011) Becker G. D., Bolton J. S., Haehnelt M. G., Sargent W. L. W., 2011, MNRAS , 410, 1096 · doi ↗
6Bi & Davidsen (1997) Bi H., Davidsen A. F., 1997, Ap J , 479, 523 · doi ↗
7Bi et al. (1992) Bi H. G., Boerner G., Chu Y., 1992, A&A, 266, 1
8Boera et al. (2014) Boera E., Murphy M. T., Becker G. D., Bolton J. S., 2014, MNRAS , 441, 1916 · doi ↗

TL;DR

Contribution

Findings

Abstract

Peer Reviews

Videos

Efficient adiabatic hydrodynamical simulations of the high-redshift intergalactic medium

Abstract

keywords:

1 Introduction

2 Simulation

3 Method

3.1 Temperature evolution in gadget-2 using cite:

3.2 Jeans length of SPH particle in gadget-2:

Smoothing kernel :

3.3 Estimation of the temperature field on a grid:

3.4 Lyα\alphaα transmitted flux:

4 Results

4.1 Line of sight density power spectrum (DPS)

4.2 Flux probability distribution function (FPDF)

4.3 Flux power spectrum (FPS)

4.4 Wavelet statistics

4.5 Curvature statistics

4.6 Column Density Distribution function (CDDF)

4.7 Linewidth (bbb parameter) distribution function

4.8 bbb versus log⁡NHI\log{\rm N_{HI}}logNHI​ scatter

4.9 χ2\chi^{2}χ2 analysis

4.10 Effect of different thermal history

4.11 Computational gain

5 Summary

Acknowledgement

Appendix A Star formation criteria

Appendix B Convolution of SPH kernel with Gaussian Kernel

Appendix C Jeans length in G2-HTF model

Appendix D Effect of different path length and SNR

Appendix E Lyα\alphaα flux statistics comparison for different thermal history

3.4 Ly $\alpha$ transmitted flux:

4.7 Linewidth ( $b$ parameter) distribution function

4.8 $b$ versus $\log{\rm N_{HI}}$ scatter

4.9 $\chi^{2}$ analysis

Appendix E Ly $\alpha$ flux statistics comparison for different thermal history
