Construction of lepton mass matrices and TeV-scale phenomenology in the minimal left-right symmetric model

TL;DR

This paper presents a systematic method for constructing lepton mass matrices in the minimal left-right symmetric model, analyzing TeV-scale phenomenology and experimental constraints on lepton flavor violation and related observables.

Contribution

It introduces a unique, general procedure for lepton mass matrix construction in the model, applicable to complex electroweak VEVs, and explores phenomenological implications without fine-tuning.

Findings

Experimental bounds constrain parameter space for small neutrino masses.

Lightest heavy neutrino mass must be relatively small.

Charged lepton flavor violation limits impact model parameters.

Abstract

We develop a systematic procedure of constructing lepton mass matrices that satisfy all the experimental constraints in the light lepton sector of the minimal left-right symmetric model with type-I seesaw dominance. This method is unique since it is applicable to the most general cases of type-I seesaw with complex electroweak vacuum expectation values in the model. With this method, we investigate the TeV-scale phenomenology in the normal hierarchy without fine-tuning of model parameters, focusing on the charged lepton flavour violation, neutrinoless double beta decay, and electric dipole moments of charged leptons. We examine the predictions for typical ranges of associated observables such as branching ratios of rare lepton decays, and study how those experimental constraints affect the model parameter space. The most notable result is that the regions of parameter space that allow small light neutrino masses have been constrained by the present experimental bounds from charged lepton flavour violation. Furthermore, we also find that the mass of the lightest heavy neutrino should be relatively small in order to satisfy those experimental constraints.

Figures

Tables

Table 1. Table 1: Physical scalar fields and their masses in the MLRSM when v L = 0 subscript 𝑣 𝐿 0 v_{L}=0 and v R ≫ κ 1 ≫ κ 2 much-greater-than subscript 𝑣 𝑅 subscript 𝜅 1 much-greater-than subscript 𝜅 2 v_{R}\gg\kappa_{1}\gg\kappa_{2} . Here, ϵ 1 ≡ κ 1 / v R subscript italic-ϵ 1 subscript 𝜅 1 subscript 𝑣 𝑅 \epsilon_{1}\equiv\kappa_{1}/v_{R} and ϵ 2 ≡ κ 2 / κ 1 subscript italic-ϵ 2 subscript 𝜅 2 subscript 𝜅 1 \epsilon_{2}\equiv\kappa_{2}/\kappa_{1} . The SM Higgs field is identified as h 0 superscript ℎ 0 h^{0} . Note that m H 1 + ≈ m δ L + + subscript 𝑚 superscript subscript 𝐻 1 subscript 𝑚 superscript subscript 𝛿 𝐿 absent m_{H_{1}^{+}}\approx m_{\delta_{L}^{++}} for v R ≫ v EW much-greater-than subscript 𝑣 𝑅 subscript 𝑣 EW v_{R}\gg v_{\text{EW}} . The mixing between δ L + + superscript subscript 𝛿 𝐿 absent \delta_{L}^{++} and δ R + + superscript subscript 𝛿 𝑅 absent \delta_{R}^{++} is assumed to be small, although it could be large in principle for relatively small values of ρ 3 − 2 ​ ρ 1 subscript 𝜌 3 2 subscript 𝜌 1 \rho_{3}-2\rho_{1} and v R subscript 𝑣 𝑅 v_{R} LRSMPLFV . It is, however, a good assumption even for such cases if we introduce an additional assumption β 1 , β 3 ≲ 𝒪 ​ ( 10 − 1 ) less-than-or-similar-to subscript 𝛽 1 subscript 𝛽 3 𝒪 superscript 10 1 \beta_{1},\beta_{3}\lesssim\mathcal{O}(10^{-1}) .

Physical scalar fields	Mass-squared
$h^0=\sqrt{2}\text{Re}\left[{\varphi }_1^{0\ast }+{ϵ}_2{e}^{-i\alpha }{\varphi }_2^0\right]$	$\frac{1}{2}\left(4{\lambda }_1-{\alpha }_1^2/{\rho }_1\right){\kappa }_1^2+\frac{1}{2}{\alpha }_3{v}_R^2{ϵ}_2^2$
$H_1^0=\sqrt{2}\text{Re}\left[-{ϵ}_2{e}^{i\alpha }{\varphi }_1^{0\ast }+{\varphi }_2^0\right]$	$\frac{1}{2}{\alpha }_3{v}_R^2$
$H_2^0=\sqrt{2}\text{Re}\left[{\delta }_R^0\right]$	$2{\rho }_1{v}_R^2$
$H_3^0=\sqrt{2}\text{Re}\left[{\delta }_L^0\right]$	$\frac{1}{2}\left({\rho }_3-2{\rho }_1\right)v_R^2$
$A_1^0=\sqrt{2}\text{Im}\left[-{ϵ}_2{e}^{i\alpha }{\varphi }_1^{0\ast }+{\varphi }_2^0\right]$	$\frac{1}{2}{\alpha }_3{v}_R^2$
$A_2^0=\sqrt{2}\text{Im}\left[{\delta }_L^0\right]$	$\frac{1}{2}\left({\rho }_3-2{\rho }_1\right)v_R^2$
$H_1^{+}={\delta }_L^{+}$	$\frac{1}{2}\left({\rho }_3-2{\rho }_1\right)v_R^2+\frac{1}{4}{\alpha }_3{\kappa }_1^2$
$H_2^{+}={\varphi }_2^{+}+{ϵ}_2{e}^{i\alpha }{\varphi }_1^{+}+\frac{1}{\sqrt{2}}{ϵ}_1{\delta }_R^{+}$	$\frac{1}{2}{\alpha }_3\left(v_R^2+\frac{1}{2}{\kappa }_1^2\right)$
${\delta }_R^{++}$	$2{\rho }_2{v}_R^2+\frac{1}{2}{\alpha }_3{\kappa }_1^2$
${\delta }_L^{++}$	$\frac{1}{2}\left({\rho }_3-2{\rho }_1\right)v_R^2+\frac{1}{2}{\alpha }_3{\kappa }_1^2$

Table 2. Table 2: List of parameters and the ranges where those parameters are randomly generated. It is also assumed that δ L ​ 5 = δ L ​ 6 = 0 subscript 𝛿 𝐿 5 subscript 𝛿 𝐿 6 0 \delta_{L5}=\delta_{L6}=0 , θ R ​ i ​ j = θ L ​ i ​ j subscript 𝜃 𝑅 𝑖 𝑗 subscript 𝜃 𝐿 𝑖 𝑗 \theta_{Rij}=\theta_{Lij} , and δ R ​ i = δ L ​ i subscript 𝛿 𝑅 𝑖 subscript 𝛿 𝐿 𝑖 \delta_{Ri}=\delta_{Li} ( i , j = 1 , 2 , 3 formulae-sequence 𝑖 𝑗 1 2 3 i,j=1,2,3 ). Here, A 𝐴 A is defined as A ≡ f ​ κ 2 / 2 𝐴 𝑓 subscript 𝜅 2 2 A\equiv f\kappa_{2}/\sqrt{2} , and M ℓ = V L ℓ ​ M ℓ c ​ V R ℓ ⁣ † subscript 𝑀 ℓ superscript subscript 𝑉 𝐿 ℓ superscript subscript 𝑀 ℓ 𝑐 superscript subscript 𝑉 𝑅 ℓ † M_{\ell}=V_{L}^{\ell}M_{\ell}^{c}V_{R}^{\ell\dagger} is the charged lepton mass matrix in the symmetry basis. The electroweak VEV is v EW = κ 1 2 + κ 2 2 = 246 subscript 𝑣 EW superscript subscript 𝜅 1 2 superscript subscript 𝜅 2 2 246 v_{\text{EW}}=\sqrt{\kappa_{1}^{2}+\kappa_{2}^{2}}=246 GeV, and v R = m W R ​ 2 / g subscript 𝑣 𝑅 subscript 𝑚 subscript 𝑊 𝑅 2 𝑔 v_{R}=m_{W_{R}}\sqrt{2}/g ( g = 0.65 ) 𝑔 0.65 (g=0.65) is the VEV of the SU(2) R triplet. Since Yukawa coupling matrices f 𝑓 f , f ~ ~ 𝑓 \tilde{f} are constructed from given M ℓ subscript 𝑀 ℓ M_{\ell} by the method presented in section 3 , we explicitly consider only the condition κ 1 ≫ κ 2 much-greater-than subscript 𝜅 1 subscript 𝜅 2 \kappa_{1}\gg\kappa_{2} for the TeV-scale MLRSM. Any Yukawa couplings that do not satisfy f i ​ j ≪ f ~ i ​ j much-less-than subscript 𝑓 𝑖 𝑗 subscript ~ 𝑓 𝑖 𝑗 f_{ij}\ll\tilde{f}_{ij} can be excluded by filtering M R subscript 𝑀 𝑅 M_{R} with large entries, which is one of the constraints given in table 3 . The ranges and values of δ L ​ 4 subscript 𝛿 𝐿 4 \delta_{L4} , δ L ​ 5 subscript 𝛿 𝐿 5 \delta_{L5} , δ L ​ 6 subscript 𝛿 𝐿 6 \delta_{L6} , θ R ​ i ​ j subscript 𝜃 𝑅 𝑖 𝑗 \theta_{Rij} , and δ R ​ i subscript 𝛿 𝑅 𝑖 \delta_{Ri} are chosen to guarantee V R ℓ ≈ V L ℓ superscript subscript 𝑉 𝑅 ℓ superscript subscript 𝑉 𝐿 ℓ V_{R}^{\ell}\approx V_{L}^{\ell} for TeV-scale m N subscript 𝑚 𝑁 m_{N} . In principle, we only need δ L ​ 4 ≈ 0 subscript 𝛿 𝐿 4 0 \delta_{L4}\approx 0 , δ L ​ 5 ≈ 0 subscript 𝛿 𝐿 5 0 \delta_{L5}\approx 0 , δ L ​ 6 ≈ 0 subscript 𝛿 𝐿 6 0 \delta_{L6}\approx 0 , θ R ​ i ​ j ≈ θ L ​ i ​ j subscript 𝜃 𝑅 𝑖 𝑗 subscript 𝜃 𝐿 𝑖 𝑗 \theta_{Rij}\approx\theta_{Lij} , and δ R ​ i ≈ δ L ​ i subscript 𝛿 𝑅 𝑖 subscript 𝛿 𝐿 𝑖 \delta_{Ri}\approx\delta_{Li} for V R ℓ ≈ V L ℓ superscript subscript 𝑉 𝑅 ℓ superscript subscript 𝑉 𝐿 ℓ V_{R}^{\ell}\approx V_{L}^{\ell} . However, for the parameters other than δ L ​ 4 subscript 𝛿 𝐿 4 \delta_{L4} , it turned out that only extremely small deviations ( ≲ 10 − 6 less-than-or-similar-to absent superscript 10 6 \lesssim 10^{-6} ) from the values assumed above are allowed to obtain TeV-scale m N subscript 𝑚 𝑁 m_{N} . Therefore, for convenience, only δ L ​ 4 subscript 𝛿 𝐿 4 \delta_{L4} is varied around 0 while all the other parameters are set to the fixed values mentioned above. The coupling constants α 3 subscript 𝛼 3 \alpha_{3} , ρ 2 subscript 𝜌 2 \rho_{2} , ρ 3 − 2 ​ ρ 1 subscript 𝜌 3 2 subscript 𝜌 1 \rho_{3}-2\rho_{1} are assumed to be positive, which is a sufficient condition to have real masses of charged scalar fields. Note that slightly broader ranges than necessary are chosen for several parameters, in order to generate contour plots less distorted around the borders.

Parameter	Range
${\log }_{10}\left(m_{{\nu }_1}/\text{eV}\right)$	$-4-{\log }_{10}2$
$m_{W_R}$	$2-35$ TeV
${\log }_{10}\left({\kappa }_2/\text{GeV}\right)$	$-4-1$
${\delta }_D$, ${\delta }_{M1}$, ${\delta }_{M2}$, ${\theta }_{L12}$, ${\theta }_{L13}$, ${\theta }_{L23}$, ${\delta }_{L1}$, ${\delta }_{L2}$, ${\delta }_{L3}$	$-\pi -\pi$ rad
${\delta }_{L4}$	($-1-1$)$\cdot {10}^{-3}$ rad
${\log }_{10}\left(\left|A_{11}\right|/\text{GeV}\right)$	${\log }_{10}\left|\text{Im}\left[M_{\ell 11}\right]\right|-{\log }_{10}\left(5\sqrt{2\pi }{v}_{\text{EW}}\right)$
${\log }_{10}{\alpha }_3$, ${\log }_{10}{\rho }_2$	${\log }_{10}\left(1000{\text{GeV}}^2/v_R^2\right)-{\log }_{10}\left(5\sqrt{4\pi }\right)$
${\log }_{10}\left({\rho }_3-2{\rho }_1\right)$	${\log }_{10}\left(1000{\text{GeV}}^2/v_R^2\right)-{\log }_{10}\left(15\sqrt{4\pi }\right)$

Table 3. Table 4: Experimental bounds on CLFV, 0 ​ ν ​ β ​ β 0 𝜈 𝛽 𝛽 0\nu\beta\beta , EDM’s of charged leptons, and light neutrino masses. The actual present bounds on d τ subscript 𝑑 𝜏 d_{\tau} reported by Belle Collaboration are − 2.2 ⋅ 10 − 17 e ⋅ -2.2\cdot 10^{-17}e\cdot cm < Re [ d τ ] < 4.5 ⋅ 10 − 17 e ⋅ <\text{Re}[d_{\tau}]<4.5\cdot 10^{-17}e\cdot cm and − 2.5 ⋅ 10 − 17 e ⋅ -2.5\cdot 10^{-17}e\cdot cm < Im [ d τ ] < 0.8 ⋅ 10 − 17 e ⋅ <\text{Im}[d_{\tau}]<0.8\cdot 10^{-17}e\cdot cm. For the normal hierarchy, the constraint from the Planck observation corresponds to the upper bound of the lightest neutrino mass m ν 1 < 0.071 subscript 𝑚 subscript 𝜈 1 0.071 m_{\nu_{1}}<0.071 eV.

	Present bound	Future sensitivity
BRμ→eγ	(MEG) MEG	(Upgraded MEG) MEG (Sawada)
BRτ→μγ	(BaBar) BaBar	(Super B factory) SBf
BRτ→eγ	(BaBar) BaBar	(Super B factory) SBf
BRμ→eee	(SINDRUM) SINDRUM	(PSI) PSI
R${}_{}{}^{\text{Al}}{}_{\mu \to e}{}^{}$	$\cdot$	(COMET) COMET
R${}_{}{}^{\text{Ti}}{}_{\mu \to e}{}^{}$	(SINDRUM II) SINDRUM II (RTi)	(PRISM/PRIME) PRISM
R${}_{}{}^{\text{Au}}{}_{\mu \to e}{}^{}$	(SINDRUM II) COMET	$\cdot$
R${}_{}{}^{\text{Pb}}{}_{\mu \to e}{}^{}$	(SINDRUM II) SINDRUM II (RPb)	$\cdot$
${T_{1/2}^{0\nu }|}_{\text{Ge}}$	$>2.1\cdot {10}^{25}$ yrs. (GERDA) 0nbb	$>1.35\cdot {10}^{26}$ yrs. (GERDA II) 0nbb
${T_{1/2}^{0\nu }|}_{\text{Te}}$	$\cdot$	$>2.1\cdot {10}^{26}$ yrs. (CUORE) 0nbb
${T_{1/2}^{0\nu }|}_{\text{Xe}}$	$>1.9\cdot {10}^{25}$ yrs. (KamLAND-Zen) 0nbb	$\cdot$
$\left|d_e\right|$	cm (ACME) ACME	cm (PSU) PSU
$\left|d_{\mu }\right|$	cm (Muon $\left(g-2\right)$) Mu(g-2)	$\cdot$
$\left|d_{\tau }\right|$	$\lesssim 5.0\cdot {10}^{-17}e\cdot$cm (Belle) Belle	$\cdot$
${\sum }_i^3{m}_{{\nu }_i}$	eV (Planck) Planck	$\cdot$

Table 4. Table 6: Form factors and capture rates of various nuclei associated with μ → e → 𝜇 𝑒 \mu\to e conversion.

Nucleus ${}_Z{}^A\text{N}$	$Z_{\text{eff}}$	$\left|F_p\left(-m_{\mu }^2\right)\right|$	${\Gamma }_{\text{capt}}\left({10}^6{s}^{-1}\right)$
${}_{13}{}^{27}\text{Al}$	11.5	0.64	0.7054
${}_{22}{}^{48}\text{Ti}$	17.6	0.54	2.59
${}_{79}{}^{197}\text{Au}$	33.5	0.16	13.07
${}_{82}{}^{208}\text{Pb}$	34.0	0.15	13.45

Table 5. Table 7: Phase space factors and matrix elements associated with 0 ​ ν ​ β ​ β 0 𝜈 𝛽 𝛽 0\nu\beta\beta .

Isotope	$G_{01}^{0\nu }\left({10}^{-14}{\text{yrs.}}^{-1}\right)$	${ℳ}_{\nu }^{0\nu }$	${ℳ}_N^{0\nu }$	${ℳ}_{\lambda }^{0\nu }$	${ℳ}_{\eta }^{0\nu }$
76Ge	0.686	$2.58-6.64$	$233-412$	$1.75-3.76$	$235-637$
82Se	2.95	$2.42-5.92$	$226-408$	$2.54-3.69$	$209-234$
130Te	4.13	$2.43-5.04$	$234-385$	$2.85-3.67$	$414-540$
136Xe	4.24	$1.57-3.85$	$164-172$	$1.96-2.49$	$370-419$

Table 6. Table 8: Benchmark parameters for large CLFV and 0 ​ ν ​ β ​ β 0 𝜈 𝛽 𝛽 0\nu\beta\beta . The predictions from these parameters are given in table 9 .

Parameter	Value	Parameter	Value
${\log }_{10}\left(m_{{\nu }_3}/\text{eV}\right)$	$-10.2$	${\log }_{10}\left({\kappa }_2/\text{GeV}\right)$	$-1.12$
$m_{W_R}$	3.60 TeV	$\alpha$	$0.7843093682120977\pi$ rad
${\delta }_D$	$-0.700\pi$ rad	${\log }_{10}\left(\left|A_{11}\right|/\text{GeV}\right)$	$-8.20$
${\delta }_{M1}$	$-0.0640\pi$ rad	$A_{11}/\left|A_{11}\right|$	$1$
${\delta }_{M2}$	$0.850\pi$ rad	$A_{22}/\left|A_{22}\right|$	$-1$
${\theta }_{L12}$	$0.287\pi$ rad	$A_{33}/\left|A_{33}\right|$	$-1$
${\theta }_{L13}$	$0.387\pi$ rad	${\theta }_{A_{12}}$	$-0.5970870460412485\pi$ rad
${\theta }_{L23}$	$0.546\pi$ rad	${\theta }_{A_{13}}$	$0.26505775139215687\pi$ rad
${\delta }_{L1}$	$-0.488\pi$ rad	${\theta }_{A_{23}}$	$-0.6679707059438431\pi$ rad
${\delta }_{L2}$	$-0.953\pi$ rad	${\log }_{10}{\alpha }_3$	$0.520$
${\delta }_{L3}$	$-0.769\pi$ rad	${\log }_{10}\left({\rho }_3-2{\rho }_1\right)$	$0.328$
${\delta }_{L4}$	$-5.30\cdot {10}^{-5}\pi$ rad	${\log }_{10}{\rho }_2$	$0.450$

Equations

$$\text{SU}(2{)}_L\otimes \text{SU}(2{)}_R\otimes \text{U}(1{)}_{B-L},$$

$$\displaystyle L_{Li}^{\prime}=\left(\begin{array}[]{c}\nu_{Li}^{\prime}\\ \ell_{Li}^{\prime}\end{array}\right)\sim(\textbf{2},\textbf{1},-1),$$

$$\displaystyle\Phi=\left(\begin{array}[]{cc}\phi_{1}^{0}&\phi_{2}^{+}\\ \phi_{1}^{-}&\phi_{2}^{0}\end{array}\right)\sim(\textbf{2},\textbf{2},0),$$

$$\displaystyle\Delta_{L}=\left(\begin{array}[]{cc}\delta_{L}^{+}/\sqrt{2}&\delta_{L}^{++}\\ \delta_{L}^{0}&-\delta_{L}^{+}/\sqrt{2}\end{array}\right)\sim(\textbf{3},\textbf{1},2),\qquad\Delta_{R}=\left(\begin{array}[]{cc}\delta_{R}^{+}/\sqrt{2}&\delta_{R}^{++}\\ \delta_{R}^{0}&-\delta_{R}^{+}/\sqrt{2}\end{array}\right)\sim(\textbf{1},\textbf{3},2).$$

$${\mathcal{L}}_Y^{\ell }$$

$$\displaystyle\tilde{\Phi}\equiv\sigma_{2}\Phi^{*}\sigma_{2}=\left(\begin{array}[]{cc}\phi_{2}^{0*}&-\phi_{1}^{+}\\ -\phi_{2}^{-}&\phi_{1}^{0*}\end{array}\right).$$

$$\displaystyle\Phi=\left(\begin{array}[]{cc}\kappa_{1}/\sqrt{2}&0\\ 0&\kappa_{2}e^{i\alpha}/\sqrt{2}\end{array}\right),\qquad\Delta_{L}=\left(\begin{array}[]{cc}0&0\\ v_{L}e^{i\theta_{L}}/\sqrt{2}&0\end{array}\right),\qquad\Delta_{R}=\left(\begin{array}[]{cc}0&0\\ v_{R}/\sqrt{2}&0\end{array}\right).$$

$$M_{\ell }=\frac{1}{\sqrt{2}}(f{\kappa }_2{e}^{i\alpha }+\tilde{f}{\kappa }_1),$$

$$\displaystyle\mathcal{L}_{\nu}^{\text{mass}}=-\frac{1}{2}(\overline{\nu_{L}^{\prime}}\ \overline{\nu_{R}^{\prime c}})\left(\begin{array}[]{cc}M_{L}&M_{D}\\ M_{D}^{\mathsf{T}}&M_{R}\end{array}\right)\left(\begin{array}[]{c}\nu_{L}^{\prime c}\\ \nu_{R}^{\prime}\end{array}\right)+\text{H.c.}$$

$$M_D=\frac{1}{\sqrt{2}}(f{\kappa }_1+\tilde{f}{\kappa }_2{e}^{-i\alpha }),M_L=\sqrt{2}{h}_L^{\ast }{v}_L{e}^{-i{\theta }_L},M_R=\sqrt{2}{h}_R{v}_R.$$

$$M_{\nu }\approx M_L-M_D{M}_R^{-1}{M}_D^{\mathsf{T}}.$$

$$M_{\nu }\approx -M_D{M}_R^{-1}{M}_D^{\mathsf{T}}.$$

$$\displaystyle\left(\begin{array}[]{c}W_{L}^{-}\\ W_{R}^{-}\end{array}\right)=\left(\begin{array}[]{cc}\cos{\xi}&\sin{\xi}e^{i\alpha}\\ -\sin{\xi}e^{-i\alpha}&\cos{\xi}\end{array}\right)\left(\begin{array}[]{c}W_{1}^{-}\\ W_{2}^{-}\end{array}\right)$$

$$\xi \approx -\frac{{\kappa }_1{\kappa }_2}{v_R^2}.$$

$$m_{W_1}^2\approx \frac{1}{4}{g}^2{v}_{\text{EW}}^2,m_{W_2}^2\approx \frac{1}{2}{g}^2{v}_R^2$$

$$m_{Z_1}^2\approx \frac{g^2{v}_{\text{EW}}^2}{4{\cos }^2{\theta }_W},m_{Z_2}^2\approx \frac{g^2{\cos }^2{\theta }_W{v}_R^2}{\cos 2{\theta }_W},m_A^2=0$$

$$\displaystyle\left(\begin{array}[]{c}W_{L}^{3}\\ W_{R}^{3}\\ B\end{array}\right)$$

$${\zeta }_1={\sin }^{-1}(\tan {\theta }_W),{\zeta }_2\approx {\theta }_W,{\zeta }_3\approx -\frac{g^2\sqrt{\cos 2{\theta }_W}{v}_{\text{EW}}^2}{4{\cos }^2{\theta }_W{m}_{Z_2}^2}.$$

$$L_{Li}^{\prime }\leftrightarrow L_{Ri}^{\prime },{\Delta }_L\leftrightarrow {\Delta }_R,\Phi \leftrightarrow {\Phi }^{†},f=f^{†},\tilde{f}={\tilde{f}}^{†},h_L=h_R,$$

$$L_{Li}^{\prime }\leftrightarrow L_{Ri}^{\prime c},{\Delta }_L\leftrightarrow {\Delta }_R^{\ast },\Phi \leftrightarrow {\Phi }^{\mathsf{T}},f=f^{\mathsf{T}},\tilde{f}={\tilde{f}}^{\mathsf{T}},h_L=h_R^{\ast }.$$

$$V$$

$$\displaystyle\qquad+\lambda_{1}\text{Tr}\big{[}\Phi^{\dagger}\Phi\big{]}^{2}+\lambda_{2}\left(\text{Tr}\big{[}\Phi^{\dagger}\tilde{\Phi}\big{]}^{2}+\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Phi\big{]}^{2}\right)+\lambda_{3}\text{Tr}\big{[}\Phi^{\dagger}\tilde{\Phi}\big{]}\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Phi\big{]}+\lambda_{4}\text{Tr}\big{[}\Phi^{\dagger}\Phi\big{]}\left(\text{Tr}\big{[}\Phi^{\dagger}\tilde{\Phi}\big{]}+\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Phi\big{]}\right)$$

$$\displaystyle\qquad+\rho_{1}\left(\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}\big{]}^{2}+\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}\big{]}^{2}\right)+\rho_{2}\left(\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}^{\dagger}\big{]}\text{Tr}\big{[}\Delta_{L}\Delta_{L}\big{]}+\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}^{\dagger}\big{]}\text{Tr}\big{[}\Delta_{R}\Delta_{R}\big{]}\right)$$

$$\displaystyle\qquad+\rho_{3}\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}\big{]}\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}\big{]}+\rho_{4}\left(\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}^{\dagger}\big{]}\text{Tr}\big{[}\Delta_{R}\Delta_{R}\big{]}+\text{Tr}\big{[}\Delta_{L}\Delta_{L}\big{]}\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}^{\dagger}\big{]}\right)$$

$$\displaystyle\qquad+\alpha_{1}\text{Tr}\big{[}\Phi^{\dagger}\Phi\big{]}\left(\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}\big{]}+\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}\big{]}\right)+\left\{\alpha_{2}e^{i\delta_{2}}\left(\text{Tr}\big{[}\Phi^{\dagger}\tilde{\Phi}\big{]}\text{Tr}\big{[}\Delta_{L}^{\dagger}\Delta_{L}\big{]}+\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Phi\big{]}\text{Tr}\big{[}\Delta_{R}^{\dagger}\Delta_{R}\big{]}\right)+\text{H.c.}\right\}$$

$$\displaystyle\qquad+\alpha_{3}\left(\text{Tr}\big{[}\Phi\Phi^{\dagger}\Delta_{L}\Delta_{L}^{\dagger}\big{]}+\text{Tr}\big{[}\Phi^{\dagger}\Phi\Delta_{R}\Delta_{R}^{\dagger}\big{]}\right)+\beta_{1}\left(\text{Tr}\big{[}\Phi^{\dagger}\Delta_{L}^{\dagger}\Phi\Delta_{R}\big{]}+\text{Tr}\big{[}\Phi^{\dagger}\Delta_{L}\Phi\Delta_{R}^{\dagger}\big{]}\right)$$

$$\displaystyle\qquad+\beta_{2}\left(\text{Tr}\big{[}\Phi^{\dagger}\Delta_{L}^{\dagger}\tilde{\Phi}\Delta_{R}\big{]}+\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Delta_{L}\Phi\Delta_{R}^{\dagger}\big{]}\right)+\beta_{3}\left(\text{Tr}\big{[}\tilde{\Phi}^{\dagger}\Delta_{L}^{\dagger}\Phi\Delta_{R}\big{]}+\text{Tr}\big{[}\Phi^{\dagger}\Delta_{L}\tilde{\Phi}\Delta_{R}^{\dagger}\big{]}\right).$$

$$M_{\ell }=V_L^{\ell }{M}_{\ell }^c{V}_R^{\ell †}$$

$$2|A_{ij}|\sin \alpha =\pm \sqrt{\text{Re}[M_{ji}-M_{ij}{]}^2+\text{Im}[M_{ji}+M_{ij}{]}^2}$$

$$\tan {\theta }_{ij}$$

$$|A_{ij}|\ge \frac{1}{2}\sqrt{\text{Re}[M_{ji}-M_{ij}{]}^2+\text{Im}[M_{ji}+M_{ij}{]}^2}$$

$$\sin \alpha =\pm \frac{1}{2|A_{ij}|}\sqrt{\text{Re}[M_{ji}-M_{ij}{]}^2+\text{Im}[M_{ji}+M_{ij}{]}^2}.$$

$$\displaystyle|A_{11}|>\big{|}\text{Im}[M_{11}]\big{|},$$

Full text

1 Introduction

The Standard Model (SM) of particle physics is a chiral theory with a broken parity symmetry, and the left-right symmetric model is an extension of the SM with the parity symmetry restored at high energies LNC ; NLRS ; LRSVP . Its extended particle content (e.g. right-handed (RH) neutrinos and gauge bosons) allows us not only to find the solution to the parity problem of the SM but also to solve the problem of understanding the neutrino masses via the seesaw mechanism mutoeg9 ; UTBN ; SUGRA ; numassSPV . If the scale of parity restoration is in the few TeV range, we can expect new physics signals that are not present in the SM in planned future experiments. For example, since the lepton number for each flavour in the left-right symmetric model is no longer an exact symmetry of nature as in the SM, it is possible to observe charged lepton flavour violation (CLFV) processes such as $\mu\to e\gamma$ or lepton number violation effects through neutrinoless double beta decay ($0\nu\beta\beta$). Furthermore, since the left-right symmetric model not only has more particles but also has more sources of CP violation not present in the SM such as complex Yukawa couplings and vacuum expectation values (VEV), we can also expect large CP violating effects such as the electric dipole moment (EDM) of a charged lepton. In this paper, these aspects of the left-right symmetric model will be discussed.

In the lepton sector of the minimal left-right symmetric model (MLRSM), of which a brief review is provided in section 2, we have four mass matrices: the charged lepton mass matrix $M_{\ell}$, the Dirac neutrino mass matrix $M_{D}$, and the left-handed and RH Majorana neutrino mass matrices $M_{L}$ and $M_{R}$. The light neutrino mass matrix $M_{\nu}$ is determined by $M_{D}$, $M_{L}$, and $M_{R}$ through the seesaw mechanism $M_{\nu}\approx M_{L}-M_{D}M_{R}^{-1}M_{D}^{\mathsf{T}}$. Since we have experimental data on the masses of charged leptons and the squared-mass differences of neutrinos as well as their mixing angles, $M_{\ell}$ is completely known in the charged lepton mass basis and $M_{\nu}$ is also partially determined in its own mass basis and in the charged lepton mass basis. The neutrino mass matrices $M_{D}$, $M_{L}$, and $M_{R}$ are nonetheless completely unknown, and constructing those matrices compatible with experimental data is a nontrivial problem, not only because $M_{\ell}$ and $M_{D}$ in the MLRSM are determined from common Yukawa couplings and electroweak VEV’s, but also because those Yukawa coupling matrices have a specific structure (i.e. Hermitian or symmetric) in a specific basis (i.e. symmetry basis) due to the discrete symmetry (i.e. parity or charge conjugation symmetry) of the model that realizes the manifest left-right symmetry at high energies.

For simplicity, we may assume that the electroweak VEV’s are all real, in which case $M_{\ell}$ and $M_{D}$ have the same structure (i.e. Hermitian or symmetric) as the Yukawa coupling matrices. Since they maintain that structure in any basis, we can work in the charged lepton mass basis where $M_{\ell}$ is completely determined so that we can practically forget about it while keeping the structure of mass matrices. Now using that structure itself, we can find $M_{R}$ from known $M_{D}$ LRSMD or alternatively find $M_{D}$ from known $M_{R}$ LRSMDM . Without loss of generality, however, we can make only one of two electroweak VEV’s real by gauge transformation. Furthermore, for the TeV-scale MLRSM, $M_{D}$ assumed or constructed in such ways usually requires fine-tuning of Yukawa couplings and VEV’s, and it would be rather difficult to make natural predictions for the TeV-scale phenomenology of the MLRSM using those mass matrices.

In this paper, we develop a different approach appropriate for the case of type-I dominance (i.e. $M_{L}=0$) with complex electroweak VEV’s: (i) the Yukawa coupling matrices with a desired structure are constructed from $M_{\ell}$ in the symmetry basis; (ii) $M_{D}$ is determined from those Yukawa couplings as well as the electroweak VEV’s, and $M_{R}$ is calculated from $M_{D}$ we have found. Since Yukawa couplings are explicitly constructed and $M_{D}$ is calculated from them, fine-tuned $M_{D}$ can only appear rarely. With this method, we collect a huge amount of data points that satisfy all the major experimental constraints, and conduct a comprehensive study of the TeV-scale phenomenology of the model, focusing on the CLFV, $0\nu\beta\beta$, and EDM’s of charged leptons.

There are several works which studied CLFV and $0\nu\beta\beta$ in the MLRSM: in reference LRSMLFV , those effects were discussed in the type-I or type-II seesaw dominance, and several processes of $0\nu\beta\beta$ were examined in detail; in reference LRSMST , CLFV and $0\nu\beta\beta$ processes were investigated also in type-I or type-II dominance with emphasis on the allowed masses of doubly charged scalar fields; in reference LRSMCLFV , the type-I+II seesaw contributions were simultaneously considered as in references LRSMD and LRSMDM , but with richer results on the phenomenology; in reference LRSMPLFV , the CLFV effects were studied in detail also in the type-I+II seesaw cases by a slightly different method from the one originally proposed by reference LRSMD . However, the common features of those works are: (i) real electroweak VEV’s were explicitly or implicitly assumed, and (ii) $M_{D}$ or $M_{R}$ was chosen for numerical analysis without considering the issue of fine-tuning. Even though we can still obtain meaningful results focusing on specific regions of parameter space with rich phenomenologies, it is important to investigate the predictions of the model in a more natural situation. Furthermore, some works assumed that the tree-level contribution to $\mu\to eee$ is always dominant over the type-I contribution in their analyses. We will also see that this is an inadequate assumption.

This paper is organized as follows: in section 2, a brief review on the MLRSM is provided; in section 3, we systematically construct lepton mass matrices that satisfy the experimental constraints in the light lepton sector; in section 4, the conditions for the TeV-scale MLRSM is investigated, and its phenomenology is studied; all the expressions of observables of CLFV, $0\nu\beta\beta$, and EDM’s of charged leptons used in this paper are summarized in appendix A; the benchmark model parameters and their predictions are provided in appendix B.

2 Minimal left-right symmetric model

In this section, we briefly review the MLRSM. The gauge group of the MLRSM is

[TABLE]

and the representations of the leptons are

[TABLE]

where $i$ is the flavour index. The bi-doublet scalar field is given by

[TABLE]

and the triplet scalar fields are

[TABLE]

The Lagrangian terms of Yukawa interactions are written as

[TABLE]

where

[TABLE]

Here, $\psi^{c}\equiv\mathsf{C}\psi^{*}$, and thus $\overline{\psi^{c}}=-\psi^{\mathsf{T}}\mathsf{C}$ where $\mathsf{C}=i\gamma^{2}\gamma^{0}$ is the charge conjugation operator in the Dirac-Pauli representation. Note that $h_{L}$ and $h_{R}$ are symmetric matrices. Without loss of generality, we can write the VEV’s of scalar fields as

[TABLE]

After spontaneous symmetry breaking, the mass matrix of charged leptons is written as

[TABLE]

and the neutrino mass term is given by

[TABLE]

where

[TABLE]

When $v_{L}\ll\kappa_{1},\kappa_{2}\ll v_{R}$, the light neutrino mass matrix is given by the seesaw mechanism

[TABLE]

In this paper, we only consider the case of type-I dominance by assuming $v_{L}=0$, and the light neutrino mass matrix is given by the type-I seesaw formula

[TABLE]

We denote the mass eigenstates of the light and heavy neutrinos as $\nu_{i}$ and $N_{i}$ $(i=1,2,3)$, respectively. The charged gauge bosons $W_{L}^{-}$, $W_{R}^{-}$ in the gauge basis can be written in terms of the mass eigenstates $W_{1}^{-}$, $W_{2}^{-}$ as

[TABLE]

where $\xi$ is the $W_{L}$-$W_{R}$ mixing parameter given by

[TABLE]

The masses of charged gauge bosons are

[TABLE]

where $v_{\text{EW}}=\sqrt{\kappa_{1}^{2}+\kappa_{2}^{2}}=246$ GeV is the VEV of the SM. In addition, the masses of neutral gauge bosons $Z_{1}$, $Z_{2}$, $A$ are given by

[TABLE]

where $\theta_{W}$ is the Weinberg angle. We can identify $W_{1}$, $Z_{1}$, $A$ as $W$, $Z$, the photon of the SM, respectively. The neutral gauge bosons $W_{L}^{3}$, $W_{R}^{3}$, $B$ in the gauge basis are expressed in terms of the mass eigenstates as

[TABLE]

where

[TABLE]

For the MLRSM with a manifest left-right symmetry before spontaneous symmetry breaking, we need a discrete symmetry which could be either the parity symmetry or the charge conjugation symmetry. In case of the parity symmetry, we have the relationships of fields and Yukawa couplings given by

[TABLE]

and in case of the charge conjugation symmetry

[TABLE]

We consider only the parity symmetry here. This symmetry is manifest in a specific basis in the flavour space, which we call the symmetry basis. The scalar potential invariant under the parity symmetry is written as

[TABLE]

In this paper, we study the TeV-scale MLRSM without fine-tuning, for which $\kappa_{1}\gg\kappa_{2}$ is one of the sufficient conditions, as we will see in section 4. The physical scalar fields and their masses when $v_{L}=0$ and $v_{R}\gg\kappa_{1}\gg\kappa_{2}$ are summarized in table 1 LRSMCP .

3 Construction of lepton mass matrices

In this section, we discuss the procedure to construct lepton mass matrices that satisfy the experimental constraints in the light lepton sector (i.e. light neutrino masses and mixing angles) in case of type-I dominance. The Yukawa coupling matrices $f$, $\tilde{f}$ in the symmetry basis are Hermitian due to the parity symmetry before spontaneous symmetry breaking. However, the mass matrices $M_{\ell}$ and $M_{D}$ in the same basis do not have such structures when the electroweak VEV’s are complex, and it is therefore a non-trivial problem to construct mass matrices that would give Yukawa couplings with the right structure in the symmetry basis and simultaneously satisfy all the constraints in the light lepton sector.

The procedure to construct such lepton mass matrices is as follows: (i) first, we find $M_{\ell}$ in the symmetry basis that gives the right masses of charged leptons, and build up $f$, $\tilde{f}$, and VEV’s out of it. The solutions are not unique; (ii) $M_{D}$ is constructed in the straightforward way from the Yukawa couplings and VEV’s we have obtained, and $M_{R}$ can also be easily calculated from this $M_{D}$ and the type-I seesaw formula of equation 34.

Since the masses of charged leptons are already known, $M_{\ell}$ in the symmetry basis can be easily constructed from

[TABLE]

where $V^{\ell}_{L}$ and $V^{\ell}_{R}$ are arbitrary unitary matrices and $M_{\ell}^{c}$ is the diagonal matrix which has charged lepton masses as its entries. The superscript $c$ denotes mass matrices in the charged lepton mass basis, and we always assume that matrices without any superscript are in the symmetry basis. Note that $V^{\ell}_{L}$ and $V^{\ell}_{R}$ are totally different matrices in general even with a manifest discrete symmetry when the electroweak VEV’s are complex. With the parity symmetry, we have $M_{\ell}=Ae^{i\alpha}+B$ ($A\equiv f\kappa_{2}/\sqrt{2}$, $B\equiv\tilde{f}\kappa_{1}/\sqrt{2}$) where $A$, $B$ are Hermitian matrices. Therefore, for the rest of step (i), we claim that, for an arbitrary matrix $M$, it is always possible to find Hermitian matrices $A$, $B$ such that $M=Ae^{i\alpha}+B$.

In order to prove it, we explicitly construct Hermitian matrices $A$, $B$ that satisfy $M=Ae^{i\alpha}+B$. First, we write $A_{ij}=|A_{ij}|e^{i\theta_{ij}}$ and $B_{ij}=|B_{ij}|e^{i\phi_{ij}}$ where $\theta_{ji}=-\theta_{ij}$ and $\phi_{ji}=-\phi_{ij}$. Then, we have $M_{ij}=|A_{ij}|e^{i(\alpha+\theta_{ij})}+|B_{ij}|e^{i\phi_{ij}}$ and $M_{ji}=|A_{ij}|e^{i(\alpha-\theta_{ij})}+|B_{ij}|e^{-i\phi_{ij}}$. From these expressions, it is straightforward to derive

[TABLE]

and

[TABLE]

Note that two different values of $\theta_{ij}$ are allowed in the range $-\pi<\theta_{ij}<\pi$ for each pair of $i,j$. In addition, since $|\sin{\alpha}|\leq 1$, we must have

[TABLE]

which sets the lower bound of $|A_{ij}|$ for given $M$. If $|A_{ij}|\neq 0$, we can write

[TABLE]

Now we choose an arbitrary real number $|A_{11}|$ that satisfies

[TABLE]

and determine $\alpha$ from

[TABLE]

Note that four different values of $\alpha$ are allowed in the range $-\pi<\alpha<\pi$. We can find all the other $|A_{ij}|$ from

[TABLE]

By equations 73 and 67, $A$ is completely determined. Alternatively we can write

[TABLE]

It is now trivial to find $B$ from $B=M-Ae^{i\alpha}$, and explicitly

[TABLE]

or

[TABLE]

Note that $A$ and $B$ are indeed Hermitian matrices. Since we have two choices of $A_{ij}$ for each pair of $i,j$ as well as each choice of $\alpha$ and $|A_{11}|$, there are $2^{6}$ choices of $A$ for each $\alpha$ and $|A_{11}|$ as we have three diagonal and three off-diagonal independent components in $A$. Moreover, since we have four choices of $\alpha$ for each $|A_{11}|$, there are total $2^{6}\cdot 4=256$ different choices of $A$, $B$, and $\alpha$ for each choice of $|A_{11}|$. We use this method to construct lepton mass matrices in the TeV-scale MLRSM.

4 TeV-scale phenomenology of the minimal left-right symmetric model

4.1 Conditions for the TeV-scale minimal left-right symmetric model

In the MLRSM, $M_{\ell}$ and $M_{D}$ are determined from common Yukawa couplings and VEV’s: $f$, $\tilde{f}$, $\kappa_{1}$, and $\kappa_{2}e^{i\alpha}$. Hence, it would be natural if the largest component of $M_{D}$ is $\mathcal{O}(1)$ GeV, since the largest component of $M_{\ell}$ should be comparable to $m_{\tau}\sim\mathcal{O}(1)$ GeV. However, this implies that the smallest heavy neutrino mass should be larger than $\mathcal{O}(10^{10})$ GeV, since $M_{\nu}$ is determined from the seesaw formula of equation 34 and the present upper bound of the light neutrino mass is $m_{\nu}\lesssim\mathcal{O}(0.1)$ eV Planck .

For the TeV-scale MLRSM, i.e. 0.1 TeV $\lesssim m_{N}\lesssim$ 100 TeV, we need $|M_{Dij}|\lesssim 10^{-3}$ GeV. Since $M_{D}=(f\kappa_{1}+\tilde{f}\kappa_{2}e^{-i\alpha})/\sqrt{2}$ in the MLRSM, its largest component could be as small as $10^{-3}$ GeV when the corresponding components of $f\kappa_{1}$ and $\tilde{f}\kappa_{2}e^{-i\alpha}$ almost cancel each other, which is however unnatural. One solution to avoid such cancellation is that either $f\kappa_{2}$ or $\tilde{f}\kappa_{1}$ is dominant in $M_{\ell}$ while $\tilde{f}\kappa_{2}$ and $f\kappa_{1}$ are both small and comparable to each other in $M_{D}$. Note that we need hierarchies in both Yukawa couplings and VEV’s to satisfy this condition. Even though it is good enough if only a few components of either $f\kappa_{2}$ or $\tilde{f}\kappa_{1}$ that correspond to $m_{\tau}$ and $m_{\mu}$ are dominant in $M_{\ell}$, we assume that all the components of either $f\kappa_{2}$ or $\tilde{f}\kappa_{1}$ are dominant over the others for simplicity.

Now we write $A\equiv f\kappa_{2}/\sqrt{2}$ and $B\equiv\tilde{f}\kappa_{1}/\sqrt{2}$, and thus $M_{\ell}=Ae^{i\alpha}+B$, as before. When $|A_{ij}|\ll|B_{ij}|$, $M_{\ell}$ must be close to a Hermitian matrix, which is equivalent to $V_{L}^{\ell\dagger}V_{R}^{\ell}\approx 1$. When $|A_{ij}|\gg|B_{ij}|$, we have $M_{\ell}\approx Ae^{i\alpha}$, which implies that $M_{\ell}e^{-i\alpha}$ is approximately Hermitian, i.e. $V_{L}^{\ell\dagger}V_{R}^{\ell}\approx e^{i\alpha}$. Note that we need the condition on mixing matrices in addition to the conditions on the Yukawa couplings and VEV’s since constructing $M_{\ell}$ from mixing matrices is one of the first steps to construct all the mass matrices.

In this paper, we only consider the first case, i.e. $|A_{ij}|\ll|B_{ij}|$. For simplicity, we could assume $A=0$, for which we need either $f=0$ or $\kappa_{2}=0$. In these cases, the mass matrices are rather simple: $M_{\ell}=\tilde{f}\kappa_{1}/\sqrt{2}$, $M_{D}=\tilde{f}\kappa_{2}e^{-i\alpha}/\sqrt{2}$ if $f=0$, and $M_{\ell}=\tilde{f}\kappa_{1}/\sqrt{2}$, $M_{D}=f\kappa_{1}/\sqrt{2}$ if $\kappa_{2}=0$. However, $f=0$ is the limiting case of an extreme hierarchy between two Yukawa coupling matrices $f$ and $\tilde{f}$, which is rather unnatural. Furthermore, we must have $M_{\ell}\propto M_{D}\propto\tilde{f}$, and thus $M_{D}$ is diagonal in the mass basis of charged leptons, which means that we have to resort to only restrictive structures of mass matrices. On the other hand, with the condition $\kappa_{2}=0$, the $W_{L}$-$W_{R}$ mixing parameter $\xi\approx-\kappa_{1}\kappa_{2}/v_{R}^{2}$ vanishes, and we have to lose the rich phenomenology dependent upon $\xi$, especially the EDM’s of charged leptons. Therefore, we do not introduce these extreme conditions.

In summary, for the TeV-scale MLRSM without fine-tuning in $M_{D}$, we can assume the conditions either that (i) $f_{ij}\ll\tilde{f}_{ij}$ and $\kappa_{1}\gg\kappa_{2}$, when $M_{\ell}$ is approximately Hermitian, i.e. $V_{L}^{\ell}\approx V_{R}^{\ell}$, or that (ii) $f_{ij}\gg\tilde{f}_{ij}$ and $\kappa_{1}\ll\kappa_{2}$, when $M_{\ell}e^{-i\alpha}$ is approximately Hermitian, i.e. $V_{L}^{\ell}\approx V_{R}^{\ell}e^{-i\alpha}$. We study the first case here.

4.2 Numerical procedure

In this paper, we only consider the normal hierarchy in light neutrino masses. The procedure to calculate all the model parameters that determine the phenomenology of the MLRSM in type-I dominance is as follows:

Randomly generate the lightest light neutrino mass $m_{\nu_{1}}$, and calculate $m_{\nu_{2}}=\sqrt{m_{\nu_{1}}^{2}+\Delta m_{21}^{2}}$ and $m_{\nu_{3}}=\sqrt{m_{\nu_{1}}^{2}+\Delta m_{31}^{2}}$. 2. 2.

Calculate $M_{\nu}^{c}$ from $M_{\nu}^{c}=U_{\text{PMNS}}M_{\nu}^{\text{diag}}U_{\text{PMNS}}^{\mathsf{T}}$ where $M_{\nu}^{c}$ and $M_{\nu}^{\text{diag}}$ are the light neutrino mass matrices in the charged lepton and light neutrino mass bases, respectively. The mixing matrix $U_{\text{PMNS}}$ is the Pontecorvo-Maki-Nakagawa-Sakata (PMNS) matrix whose CP phases are also randomly generated. 3. 3.

Randomly generate $V^{\ell}_{L}$, $V^{\ell}_{R}$, and calculate $M_{\ell}=V^{\ell}_{L}M_{\ell}^{c}V^{\ell\dagger}_{R}$ where $M_{\ell}$ and $M_{\ell}^{c}$ are charged lepton mass matrices in the symmetry and charged lepton mass bases, repectively. 4. 4.

Find $A\equiv f\kappa_{2}/\sqrt{2}$, $B\equiv\tilde{f}\kappa_{1}/\sqrt{2}$ from $M_{\ell}=Ae^{i\alpha}+B$ using the method discussed in section 3. Randomly generate $\kappa_{2}$, and calculate $f$, $\tilde{f}$ from $A$, $B$. 5. 5.

Calculate $M_{D}=(f\kappa_{1}+\tilde{f}\kappa_{2}e^{-i\alpha})/\sqrt{2}$ from $f$, $\tilde{f}$, $\alpha$, $\kappa_{2}$, $\kappa_{1}=\sqrt{v_{\text{EW}}^{2}-\kappa_{2}^{2}}$, and find $M_{D}^{c}=V^{\ell\dagger}_{L}M_{D}V^{\ell}_{R}$ where $M_{D}^{c}$ is the Dirac neutrino mass matrix in the charged lepton mass basis. 6. 6.

Calculate $M_{R}^{c}$ from the type-I seesaw formula $M_{\nu}^{c}=-M_{D}^{c}M_{R}^{c-1}M_{D}^{c\mathsf{T}}$ where $M_{R}^{c}$ is the RH neutrino mass matrix in the charged lepton mass basis. 7. 7.

Construct the $6\times 6$ neutrino mass matrix $M_{\nu N}^{c}$ from $M_{D}^{c}$ and $M_{R}^{c}$, and find the $6\times 6$ mixing matrix $V_{\nu N}$ that diagonalizes $M_{\nu N}^{c}$.

Here, the $6\times 6$ neutrino mass matrix $M_{\nu N}^{c}$ in the charged lepton mass basis is written as

[TABLE]

and this matrix is diagonalized by the $6\times 6$ unitary matrix $V_{\nu N}$:

[TABLE]

where $M_{\nu N}^{\text{diag}}$ is the diagonal matrix with positive entries. Following the convention of reference LRSMLFV , we write

[TABLE]

where $U$, $S$, $T$, and $V$ are $3\times 3$ mixing matrices. Note that $U=U_{\text{PMNS}}$. The straightforward numerical diagonalization might not work appropriately because of the hierarchy in the components of $M_{\nu N}^{c}$. Instead, $V_{\nu N}$ is calculated in two steps:

[TABLE]

where

[TABLE]

Here, $V_{\nu N1}$ transforms $M_{\nu N}$ into the block-diagonal matrix

[TABLE]

and $V_{\nu N2}$ is the matrix that diagonalizes $M_{\nu N}^{\text{BD}}$. In addition, we use the standard parametrization of the PMNS matrix:

[TABLE]

where $\delta_{D}$ and $\delta_{Mi}$ are Dirac and Majorana CP phases, respectively. On the other hand, we parametrize $V_{L}^{\ell}$ and $V_{R}^{\ell}$ as

[TABLE]

where

[TABLE]

Note that it is always possible to absorb $V_{R3}^{\ell}$ into $V_{L3}^{\ell}$ since $M_{\ell}=V^{\ell}_{L}M_{\ell}^{c}V^{\ell\dagger}_{R}$ where $M_{\ell}^{c}$ is a diagonal matrix. We can therefore write

[TABLE]

In addition, the Hermitian matrix $A~{}(\equiv f\kappa_{2}/\sqrt{2})$ is parametrized as

[TABLE]

where $A_{ii}$ are real numbers. The list of model parameters and the ranges where they are randomly generated are summarized in table 3. Several appropriate constraints are imposed on some model parameters, and they are presented in table 3.

4.3 Numerical results

The present and future experimental bounds on CLFV, $0\nu\beta\beta$, and EDM’s of charged leptons are summarized in table 5. The upper bound of light neutrino masses from the Planck observation is also considered. The experimental bounds on the dimensionless parameters associated with the various processes of $0\nu\beta\beta$ are given in table 5.

The numerical results are presented in figures 1$-$7. The plots on the various branching ratios and conversion rates of CLFV in the MLRSM for 2 TeV $<m_{W_{R}}<$ 30 TeV are given in figure 1. The results on the dimensionless parameters of $0\nu\beta\beta$ for the same range of $m_{W_{R}}$ are presented in figure 2. The plots on the EDM’s of charged leptons are presented in figure 3. The effect of experimental constraints on the masses of the RH gauge boson, neutrinos, and scalar fields are shown in figures 4$-$7. The benchmark model parameters and their predicitons are given in appendix B.

The most notable result is that the regions of parameter space that allow small light neutrino masses are largely constrained by the experimental bounds from CLFV as well as the constraints from the light neutrino mass and mixing angles. Since the type-I seesaw formula implies det($M_{\nu}$) $\approx$ det($M_{D}$)2/det($M_{R}$), we need a hierarchy in the eigenvalues of $M_{D}$ or $M_{R}$ when light neutrino masses have a hierarchy. However, $M_{D}$ is determined from Yukawa couplings and VEV’s, and it generally does not have the appropriate hierarchy in its eigenvalues to give hierachical light neutrino masses for most of the available parameter space. In other words, we generally need a hierarchy in the eigenvalues of $M_{R}$, i.e. in the heavy neutrino masses as well, in order to obtain hierachical light neutrino masses. Since we are considering a range of $m_{N}$, i.e. 0.1 TeV $\lesssim m_{N}\lesssim$ 100 TeV, the cases of large hierarchies in light neutrino masses are supposed to get constrained accordingly. Furthermore, since the regions of parameter space with large $m_{N}$ are largely affected by the experimental constraints from CLFV, small light neutrino masses are disfavored by all those experimental constraints. These results are all clearly presented in several plots in figures 4, 6, and 7. For example, the 99 % contour in figure 7a shows that $m_{\nu_{1}}\sim 0.1$ eV for $m_{W_{R}}=5$ TeV and $m_{\nu_{1}}\gtrsim 6\cdot 10^{-3}$ eV for $m_{W_{R}}=10$ TeV. Note that this does not necessarily mean that there exists a strict lower bound of the light neutrino mass for given $m_{W_{R}}$, since the results of this paper are based on the naturalness argument such as no fine-tuning in $M_{D}$. Note also that we can observe similar patterns in neutrino mass correlations in any type-I seesaw models, even in the simple extension of the SM only with gauge singlet neutrinos. The difference in the MLRSM, or in a more general class of the left-right symmetric model, is that we can have large CLFV effects and thus the experimental bounds on CLFV are constraining the light neutrino masses. Moreover, since the largest possible hierarchy in heavy neutrino masses is directly associated with $m_{W_{R}}$ and the regions of parameter space with smaller $m_{W_{R}}$ are more constrained by CLFV bounds, we can expect that the discovery of light $W_{R}$ as well as any improved experimental bounds on CLFV would largely constrain the regions of parameter space of the normal hierarchy.

Another interesting result is that the mass of the lightest heavy neutrino $m_{N_{1}}$ has been also notably constrained by the present experimental constraints, which is, of course, associated with the result on light neutrino masses just mentioned. This is shown in figures 5a, 5b, 6a, and 7b. For example, the 99 % density contour of figure 7b shows that $m_{N_{1}}\lesssim 200$ GeV for $m_{W_{R}}=5$ TeV and $m_{N_{1}}\lesssim 2$ TeV for $m_{W_{R}}=10$ TeV. Due to the mass insertion in the Dirac propagators of heavy neutrinos in some CLFV processes, large heavy neutrino masses generally induce large CLFV effects. Figure 4b explicitly shows how the CLFV bound is constraining $m_{N_{1}}$. The heaviest heavy neutrino mass is also affected by the experimental bounds, although its effect is rather small, as shown in figures 5c, 6b, and 7c.

While the CLFV effects of muons could be large enough for the associated processes to be detected in near-future experiments, the branching ratios of tau decays are either too small or just around the sensitivities of future experiments, as shown figure 1. The experimental bounds of CLFV are also constraining small masses of charged scalar fields as well as the RH gauge boson, as shown in figure 7. As a result, the $0\nu\beta\beta$ processes through the heavy neutrinos as well as RH gauge boson (denoted by $\eta^{R}_{N_{R}}$) and also processes through $\delta_{R}^{++}$ as well as the RH gauge boson (denoted by $\eta_{\delta_{R}}$) are both suppressed. Hence, for most data points that satisfy the present experimental constraints, the dominant contribution to $0\nu\beta\beta$ comes from the process of the light neutrino exchange (denoted by $\eta_{\nu}$), as shown in figures 2a$-$2c. However, since the upper bound of the light neutrino mass by Planck is already below the bounds of future experiments as shown in figure 2i, i.e. the light neutrino exchange channel has been largely constrained by the Planck observation, the possibility to detect $0\nu\beta\beta$ processes in near-future experiments is small. As for the EDM’s of electrons, there seems to be also only small chances that they could be detected in near-future experiments as shown in figure 3, since the largest possible EDM’s of electrons are well below the future sensitivities of the planned experiement. In addition, the EDM’s of muons and taus are too small compared with the present upper bounds. Note that the EDM’s of charged leptons has been also constrained by the experimental bounds from CLFV, since large EDM’s generally require small $m_{W_{R}}$ and large $m_{N}$ and such regions of parameter space are largely affected by those experimental constraints. Note also that, even with the relatively small values of the RH scale, i.e. $v_{R}<65$ TeV corresponding to $m_{W_{R}}<30$ TeV, the observables of CLFV, $0\nu\beta\beta$, and EDM’s cover very wide ranges, e.g. roughly $10^{-20}\lesssim\text{BR}_{\mu\to e\gamma}\lesssim 10^{-3}$ and $10^{-35}~{}e\cdot\text{cm}\lesssim|d_{e}|\lesssim 10^{-29}~{}e\cdot\text{cm}$. Hence, neither a success nor a failure in detecting one of these effects rules out even the TeV-scale MLRSM, unless any other experimental results are simultaneously considered.

5 Conclusion

In this paper, the procedure to construct lepton mass matrices is presented in the MLRSM of type-I dominance with the parity symmetry, and the conditions for the TeV-scale MLRSM without fine-tuning are also discussed, i.e. either (i) $\kappa_{1}\gg\kappa_{2}$ and $f_{ij}\ll\tilde{f}_{ij}$, which implies $V^{\ell}_{L}\approx V^{\ell}_{R}$, or (ii) $\kappa_{1}\ll\kappa_{2}$ and $f_{ij}\gg\tilde{f}_{ij}$, which implies $V^{\ell}_{L}\approx V^{\ell}_{R}e^{-i\alpha}$. Based on these results, the phenomenology of the TeV-scale MLRSM is numerically investigated when the masses of light neutrinos are in the normal hierarchy, and the numerical results on how the present and future experimental bounds from the CLFV, $0\nu\beta\beta$, EDM’s of charged leptons, and Planck observation constrain the parameter space of the MLRSM are presented.

According to the numerical results, the regions of parameter space of small light neutrino masses have been constrained by the experimental bounds on CLFV effects, although it does not necessarily mean there exists a strict lower bound of light neutrino masses. The lightest heavy neutrino mass is also found to have been notably constrained by the present experimental bounds especially for small $m_{W_{R}}$. In addition, it has been shown that all the $0\nu\beta\beta$ processes and the EDM’s of charged leptons have been suppressed by the experimental constraints from CLFV, and we have at best only small chances to detect any of these effects in near-future experiments.

Note that the results of this paper are based on several nontrivial assumptions such as (i) type-I seesaw dominance, (ii) the parity symmetry, and (iii) the normal hierarchy in light neutrino masses. Furthermore, it should be emphasized that this paper is considering the TeV-scale phenomenology of the MLRSM without fine-tuning of model parameters. If fine-tuning is allowed, significantly different predictions could be made.

Acknowledgement

The author would like to thank Dr. R.N. Mohapatra for valuable discussions and encouragement. This work is supported by the National Science Foundation grant NSF-PHY-1620074.

Appendix A Expressions of observables

In this paper, the expressions presented in reference LRSMLFV are mostly used. The exceptions are the form factors $F^{Z_{1}}_{R}$ and $B_{RR}^{\mu eee}$: for $F^{Z_{1}}_{R}$, a mixed expression from references LRSMLFV and LRSMQR is used; for $B_{RR}^{\mu eee}$, the suppression factor $(m_{W_{L}}/m_{W_{R}})^{2}$ is multiplied to the whole expression. The normalized Yukawa couplings $\tilde{h}_{L}$ and $\tilde{h}_{R}$ are explicitly distinguished in this paper, since they are generally different even with the manifest left-right symmetry.

A.1 Charged lepton flavour violation

The normalized Yukawa couplings $\tilde{h}_{L}$, $\tilde{h}_{R}$ in the charged lepton mass basis are given by LFVnonSUSY

[TABLE]

Note that $\tilde{h}_{L}\neq\tilde{h}_{R}$ in general since $V_{L}^{\ell}\neq V_{R}^{\ell}$ for nonzero $\alpha$, although $h\equiv h_{L}=h_{R}$ with the parity symmetry. The loop functions of CLFV are given in appendix A.1.4.

A.1.1 $\ell_{a}\to\ell_{b}\gamma$

For on-shell decay $\ell_{a}\to\ell_{b}\gamma$, the branching ratio is given by

[TABLE]

where $\alpha_{W}\equiv g^{2}/(4\pi)$, $s_{W}\equiv\sin{\theta_{W}}$, and $\Gamma_{\ell_{a}}$ is the decay rates of $\ell_{a}$: $\Gamma_{\mu}=2.996\cdot 10^{-19}$ GeV and $\Gamma_{\tau}=2.267\cdot 10^{-12}$ GeV PDG . The form factors $G_{L}^{\gamma}$, $G_{R}^{\gamma}$ are given by

[TABLE]

where $x_{i}=(m_{N_{i}}/m_{W_{L}})^{2}$ and $y_{i}=(m_{N_{i}}/m_{W_{R}})^{2}$. The initial and final charged leptons have opposite chiralities, and $L$ or $R$ in $G_{L,R}^{\gamma}$ denotes the chirality of the initial charged lepton. The Feynman diagrams of on-shell $\mu\to e\gamma$ are given in figure 8.

A.1.2 $\mu\to eee$

The tree-level contribution to $\mu\to eee$ is

[TABLE]

The Feynman diagrams of the tree-level processes are given in figure 9.

The one-loop type-I seesaw contribution is given by LFVS ; CLFVSUSY

[TABLE]

and the interference terms are

[TABLE]

The form factors for the off-shell photon exchange are

[TABLE]

For the $Z_{1}$-exchange diagrams, the form factors are given by

[TABLE]

where $z_{i}=(m_{N_{i}}/m_{H_{2}^{+}})^{2}$, $c_{W}\equiv\cos{\theta_{W}}$, and $\zeta_{3}$ is the $Z_{1}$-$Z_{2}$ mixing parameter given by equation 61. The Feynman diagrams that contribute to $F_{L,R}^{\gamma}$ and $F_{L,R}^{Z_{1}}$ are presented in reference LFVnonSUSY . The form factors of the box diagrams are written as

[TABLE]

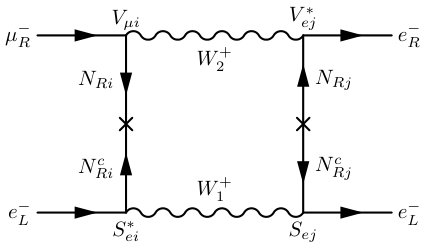

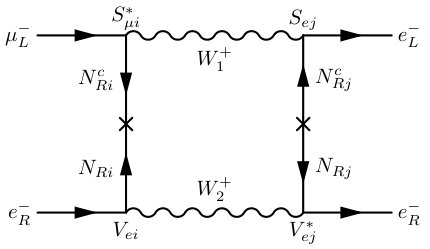

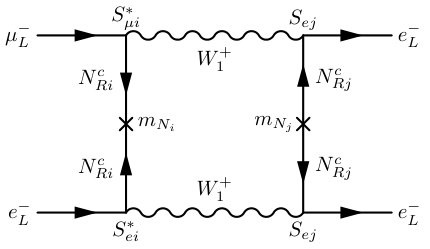

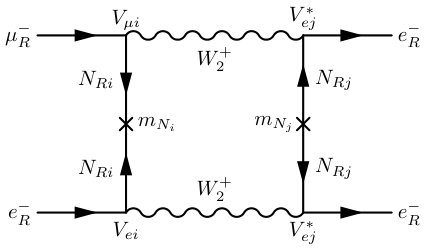

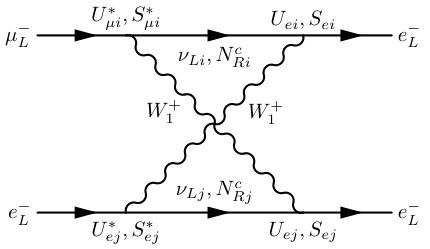

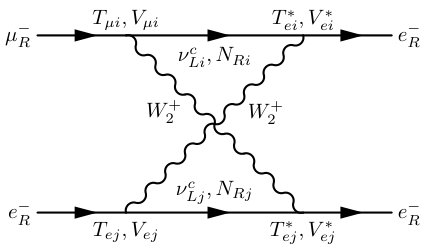

Here, the masses of light neutrinos and the momenta of external fields are assumed to be zero. The Feynman diagrams of the box diagrams are presented in figure 10.

A.1.3 $\mu\to e$

The $\mu\to e$ conversion rate is given by LFVnonSUSY ; EWRL ; mutoeTypeI ; CLFVSUSY

[TABLE]

Here, $A$, $N$, and $Z$ are the mass, neutron, and atomic numbers of a nucleus, respectively, and $Z_{\text{eff}}$ is the effective atomic number. The parameter $F_{p}$ is the nuclear form factor, $\Gamma_{\text{capt}}$ is the capture rate, and $\alpha_{\text{em}}\equiv e^{2}/(4\pi)$. The values of $F_{p}$ and $\Gamma_{\text{capt}}$ of various nuclei are summarized in table 6 mutoeTypeI .

The form factors in equation 148 are given by

[TABLE]

and

[TABLE]

The box diagram form factors are

[TABLE]

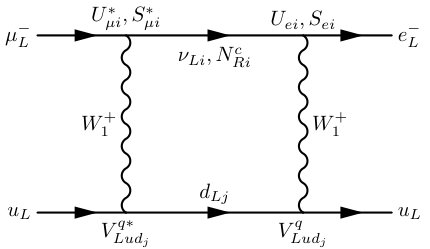

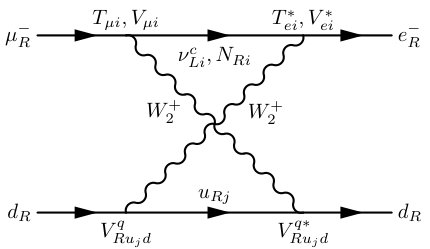

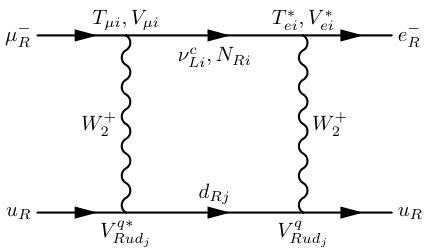

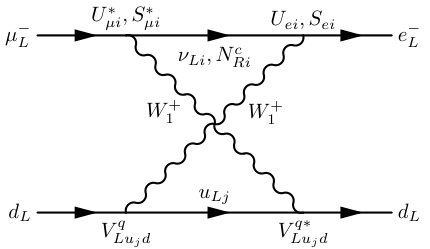

and $B_{LR}^{\mu eqq}=B_{RL}^{\mu eqq}=0$ due to their chiral structures. Here, $x_{t}=m_{t}^{2}/m_{W_{L}}^{2}$ and $y_{t}=m_{t}^{2}/m_{W_{R}}^{2}$ where $m_{t}$ is the mass of a top quark, and the masses of all the other quarks as well as light neutrinos are assumed to be zero. The matrix $V_{L}^{q}$ is the Cabibbo-Kobayashi-Maskawa matrix, and $V_{R}^{q}$ is its RH counterpart. Note that $V_{L}^{q}\neq V_{R}^{q}$ for nonzero $\alpha$, although $V_{Ltd}^{q}=V_{Rtd}^{q}$ is assumed for the numerical analysis in this paper. The momenta of external fields are also assumed to be zero. The Feynman diagrams of the box diagrams are given in figure 11.

A.1.4 Loop functions

The loop functions of CLFV are

[TABLE]

where

[TABLE]

A.2 Neutrinoless double beta decay

The dimensionless parameter associated with the $W_{L}$- and light neutrino exchange is

[TABLE]

For the $W_{L}$- and heavy neutrino exchange, we have

[TABLE]

where $m_{p}$ is the mass of a proton. For the $W_{R}$- and heavy neutrino exchange, the parameter is given by

[TABLE]

For the $\delta_{R}^{++}$-exchange, we have

[TABLE]

For the $\lambda$-diagram with final state electrons of different helicities, the parameter is written as

[TABLE]

For the $\eta$-diagram with $W_{L}$-$W_{R}$ mixing,

[TABLE]

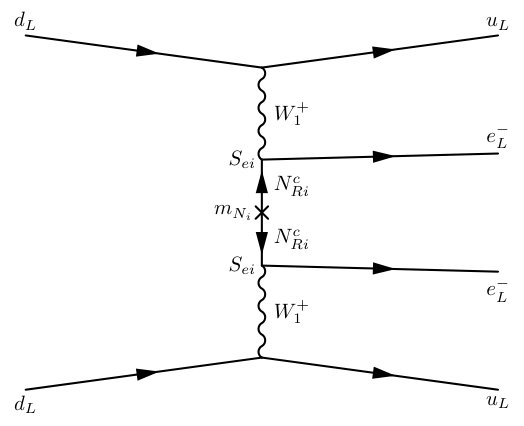

The Feynman diagrams corresponding to those parameters are given in figure 12.

The phase space factors $G_{01}^{0\nu}$ and matrix elements $\mathcal{M}^{0\nu}$ for various processes that lead to $0\nu\beta\beta$ are summarized in table 7 LRSMLFV ; PF0nbb ; 0nbbIH ; T0nbb ; CPbb ; ID0nbb ; CPbbN ; 0nbbQ ; WNbb . The inverse half-life is written as

[TABLE]

A.3 Electric dipole moments of charged leptons

The EDM of the charged lepton $\ell_{\alpha}$ $(\alpha=e,\mu,\tau)$ is given by LRSMDM ; EDMeLRSM

[TABLE]

The Feynman diagrams that generate the EDM of an electron are given in figure 13.

Appendix B Benchmark model parameters and their predictions

The benchmark model parameters and their predictions are summarized in tables 9 and 9. These parameters are chosen to obtain BRμ→eγ, BRμ→eee, Rμ→e, and $T_{1/2}^{0\nu}$ large enough to be observable in near-future experiments.

The Yukawa coupling matrices $f$, $\tilde{f}$ in the symmetry basis calculated from these parameters are

[TABLE]

The charged lepton and Dirac neutrino mass matrices in the symmetry basis are

[TABLE]

The mixing matrices that diagonalize $M_{\ell}$ are

[TABLE]

The neutrino mass matrices in the charged lepton mass basis are written as

[TABLE]

The neutrino mixing matrices are given by

[TABLE]

The Yukawa coupling matrix $h$ in the symmetry basis is

[TABLE]

and the normalized Yukawa couplings $\tilde{h}_{L}$, $\tilde{h}_{R}$ in the charged lepton mass basis are

[TABLE]

Note that $\tilde{h}_{L}\approx\tilde{h}_{R}$ since we are considering the cases of $V^{\ell}_{L}\approx V^{\ell}_{R}$ for the TeV-scale phenomenology.
