Continuous Diffraction of Molecules and Disordered Molecular Crystals.

Henry N. Chapman1,2,3,*, Oleksandr M. Yefanov1, Kartik Ayyer1, Thomas A. White1, Anton Barty1, Andrew Morgan1, Valerio Mariani1 Dominik Oberthuer1 Kanupriya Pande1

**1 Center for Free-Electron Laser Science, DESY, 22607 Hamburg, Germany

2 Department of Physics University of Hamburg, 22761 Hamburg, Germany

3 Centre for Ultrafast Imaging, 22607 Hamburg, Germany

• henry.chapman@desy.de**

Abstract

The diffraction pattern of a single non-periodic compact object, such as a molecule, is continuous and is proportional to the square modulus of the Fourier transform of that object. When arrayed in a crystal, the coherent sum of the continuous diffracted wave-fields from all objects gives rise to strong Bragg peaks that modulate the single-object transform. Wilson statistics describe the distribution of continuous diffraction intensities to the same extent that they apply to Bragg diffraction. The continuous diffraction obtained from translationally-disordered molecular crystals consists of the incoherent sum of the wave-fields from the individual rigid units (such as molecules) in the crystal, which is proportional to the incoherent sum of the diffraction from the rigid units in each of their crystallographic orientations. This sum over orientations modifies the statistics in a similar way that crystal twinning modifies the distribution of Bragg intensities. These statistics are applied to determine parameters of continuous diffraction such as its scaling, the beam coherence, and the number of independent wave-fields or object orientations contributing. Continuous diffraction is generally much weaker than Bragg diffraction and may be accompanied by a background that far exceeds the strength of the signal. Instead of just relying upon the smallest measured intensities to guide the subtraction of the background it is shown how all measured values can be utilised to estimate the background, noise, and signal, by employing a modified “noisy Wilson” distribution that explicitly includes the background. Parameters relating to the background and signal quantities can be estimated from the moments of the measured intensities. The analysis method is demonstrated on previously-published [1] continuous diffraction data measured from imperfect crystals of photosystem II.

1 Introduction

The statistics of diffraction intensities in protein crystallography have guided data analysis and data verification, such as providing a basis for a treatment of negative diffraction intensities [2], and the identification of crystal symmetries [3, 4] and crystal twinning [5]. The probability distribution of Bragg intensities in the X-ray diffraction pattern of a molecular crystal was first considered by Wilson [3], now referred to in the field as Wilson statistics. The assumptions on which the derivation of these statistics depend, namely that the atoms in the molecule are random and independent, equally apply to the case of the continuous coherent diffraction of a single molecule [6]. Such diffraction does not contain Bragg peaks since the object is not periodic, but instead is proportional to the square modulus of the continuous Fourier transform of the molecule, such as the computed patterns shown in Fig. 1. These are also known as speckle patterns, and are similar to patterns that can be observed by shining an optical laser beam on a uniformly rough surface such as a painted wall. In both cases the contrast of the speckles is high and their size, which is roughly homogeneous, is inversely proportional to the size of the illuminated object (the diameter of the molecule or laser beam). This similarity holds for the statistical description of the intensities. Speckle patterns of laser beams reflected from rough surfaces also obey Wilson statistics and a body of literature, parallel to that of macromolecular crystallography, has presented derivations of intensity distributions and their experimental verifications, explored methods to reduce the contrast of speckle in cases where it is considered a nuisance, and utilised the statistics to determine coherence or roughness properties [7, 8, 9]. Although optical speckle patterns were observed in the nineteenth century and explained by Laue [10] and Lord Rayleigh [11], it was not until the invention of the laser that detailed examination was taken up. It is interesting that there was no such hindrance in X-ray crystallography, where X-ray sources provided beams that could be made coherent enough—using collimating devices—to give rise to coherent diffraction patterns (consisting of Bragg peaks obeying Wilson statistics) from molecular crystals.

With the more recent measurements and studies of continuous diffraction patterns of molecular samples, such as X-ray or electron diffraction of aligned molecules [12, 13], single un-oriented molecules and viruses [14, 15], or translationally-disordered crystals [1], an understanding of the distribution of continuous diffraction intensities is required for the same reasons as mentioned above for crystallography. The motivation for these studies is clear: the continuous diffraction, when sampled at or beyond its Nyquist frequency, provides a complete description of the diffracted wave-field, and directly gives access to the full unaliased autocorrelation function of the object. Under most conditions, the information content of the measurable diffraction intensities exceeds that required to completely describe the electron density of the sample, allowing iterative algorithms to directly retrieve the diffraction phases without the need for prior knowledge about the object, a method known as diffractive imaging [16].

Perhaps the most crucial aspect of primary data analysis of continuous diffraction measurements is to determine the contribution of any incoherent background to the pattern. Unlike the narrow Bragg peaks in the diffraction patterns of crystals, which can be distinguished from a slowly-varying background reasonably well, the morphology of a continuous speckle pattern makes this discrimination less straight forward. In addition, without the “coherency gain” that concentrates intensity into Bragg peaks [17], the continuous diffraction is much weaker per pixel than Bragg diffraction and any incoherent background may far surpass the strength of the signal of interest. As we shall see, the common assumption that local minima of the diffraction pattern should be zero and thus can be attributed to background is not always correct, especially when particles are oriented in several discrete orientations as can be the case for continuous diffraction of a translationally-disordered crystal.

Indeed, the stimulus for this work was to better treat the continuous X-ray diffraction patterns that were measured from imperfect crystals of photosystem II (PS II) [1]. The presence of Bragg peaks in a diffraction pattern indicates a high degree of correlation of objects in a regular arrangement, over a number of objects that is inversely proportional to the width of the Bragg peak and to a precision determined by the highest scattering angles (the highest resolution) to which those Bragg peaks exist. Crystals of large protein complexes, such as membrane proteins, often only give Bragg diffraction to a limited resolution, such as $5\text{\,}\mathrm{\SIUnitSymbolAngstrom}$, for example. The lack of correlation beyond this limit may be due to the objects being different from one another at this length scale, or that the objects are structurally alike but randomly displaced from the regular lattice. Combinations of these effects may also occur, including rotational disorder of rigid objects or translational disorder of conformationally-varying molecules, but it is the lack of translational correlation that causes the Bragg peaks to vanish beyond a certain resolution. Scattering from the crystal still occurs beyond the highest-angle Bragg peaks, since the atomic scattering factors and numbers of atoms do not change just because the crystal is not ordered. In the case of translational disorder of repeating rigid units, the diminishing Bragg efficiency with increasing resolution is balanced by an increase of the incoherent sum of the continuous diffraction patterns of those units. This continuous diffraction is identical to that from a gas of molecules that are oriented in the discrete crystallographic orientations, and is amenable to direct phasing using iterative methods as demonstrated by Ayyer et al. [1].

In this paper we review, in Sec. 2, the statistics of continuous speckle patterns of ensembles of molecules aligned in one or several discrete orientations for both centric and acentric structures. These statistics follow familiar distributions of Bragg intensities of twinned crystals, since the intensities arise in both cases from an incoherent sum of independent coherent diffraction patterns. As is also well known in the field of speckle metrology, this incoherent sum reduces the contrast of the pattern and increases the most common intensity value from zero. The consideration of coherence is more critical for continuous diffraction than for Bragg diffraction, since partial coherence reduces the contrast of speckle patterns and modifies their statistics, with consequences on the ability to phase them. We verify the predicted distribution of intensities of partially coherent diffraction patterns by simulation. Even when using a coherent source such as an X-ray free-electron laser, the finite size of pixels in the diffraction detector gives the same effect, by reciprocity, as partial coherence.

In Sec. 3 we consider the statistics of the continuous diffraction of translationally- disordered crystals or other collections of molecules in discrete orientations. While this continuous diffraction follows the point-group symmetry of the crystal, as does the Bragg diffraction, the distribution of intensities may be different to that of the Bragg intensities due to the incoherent addition of diffraction from rigid units, compared with the coherent addition of scattering from the entire contents of the unit cell that gives rise to Bragg diffraction. We consider some special central sections of reciprocal space that are perpendicular to symmetry axes of the point group and which possess distributions that do not occur in diffraction of twinned crystals, and give some examples to highlight how the statistics of the continuous diffraction could indicate or verify the symmetry of the rigid unit in a translationally-disordered crystal.

We derive the distributions of diffraction intensities consisting of the continuous diffraction of discretely-oriented structures accompanied by an incoherent background, in Sec. 4. While the implications of subtracting background from Bragg data and the aforementioned treatment of negative intensities have been long considered [2], there has not been a detailed investigation of the case where the standard deviation of the background is a significant fraction of or is larger than the diffraction signal. We consider first the case where the background is normally distributed and give an explicit expression for the distribution of the intensities. Although we cannot obtain a similar expression for the case of photon-counting measurements, where the background follows a Poisson distribution, we determine the moments of intensities for both cases, and show that the parameters of the background (mean and variance in the case of the Normal distribution) and the scaling of the signal can be solved from the moments of the measured intensities, given that the number of independent orientations of the diffracting structures is known. In Sec. 5 we apply this estimation of parameters in shells of reciprocal space for diffraction patterns measured from translationally-disordered PS II crystals, as previously published [1]. In that work, background was estimated simply from the average intensities in circular rings of constant $q$, but we show here improved results obtained by estimating the background level and the diffraction signal scaling from the moments of the intensities. In Sec. 6, we examine the statistics of the aggregated three-dimensional continuous diffraction from the scaled and background-corrected PS II patterns and find that the acentric intensities fit a distribution corresponding to the incoherent summation of four independent structures, consistent with the four crystallographic orientations of the PS II dimer. Finally, in Sec. 7 an improved cross correlation is observed between the background-corrected continuous diffraction and simulated diffraction from an atomic model of a PS II dimer.

2 Statistics of diffraction intensities of aligned molecules

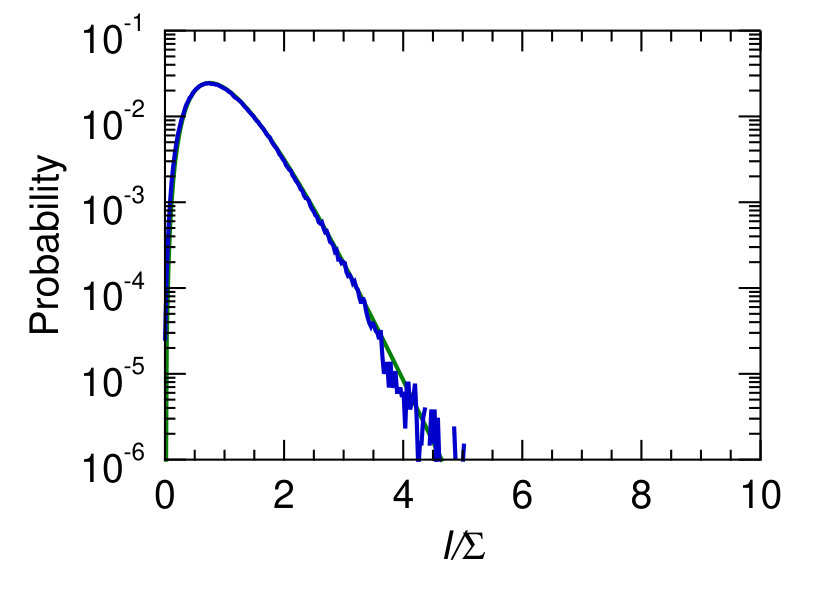

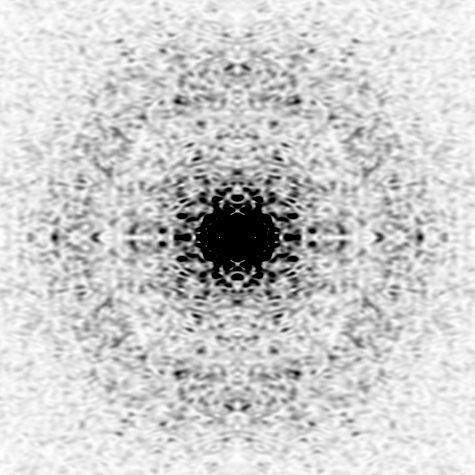

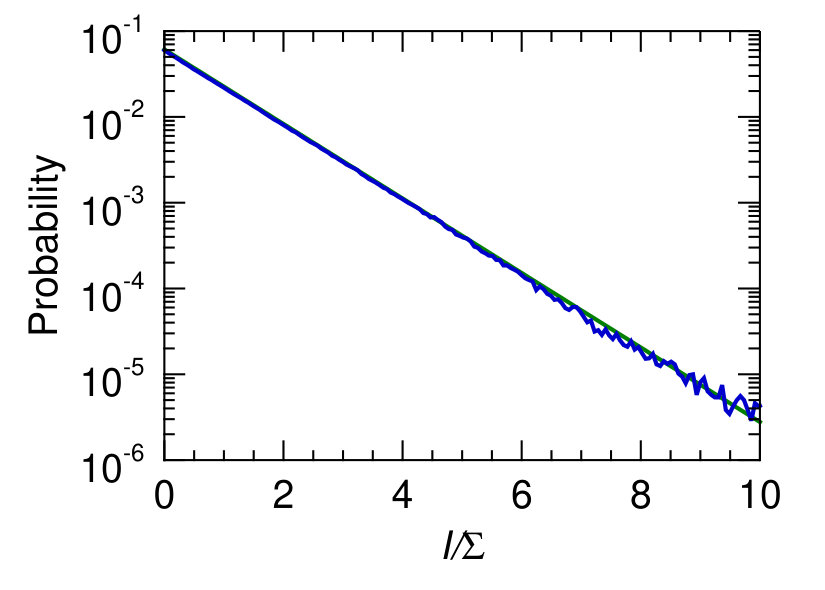

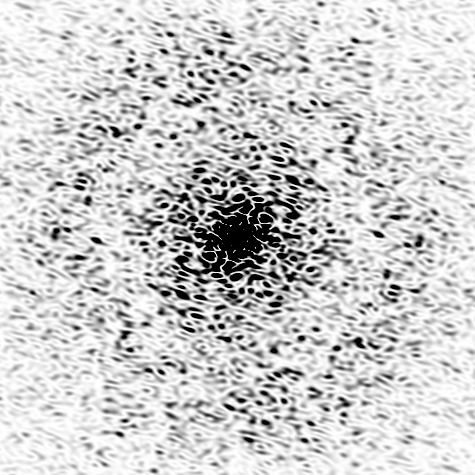

The distribution of intensities measured in the diffraction pattern of a molecular structure can be derived by considering the coordinates $\boldsymbol{x}_{i}$ of atoms in the object to be rationally independent or random [18]. Under those conditions, for a structure that is not centrosymmetric, and for a large number of atoms with approximately equal atomic scattering factors, the contributions of atoms to the phases of the diffraction amplitudes, $\theta_{i}=2\pi\boldsymbol{q}\cdot\boldsymbol{x}_{i}$, are uniformly distributed (between 0 and $2\pi$) for any given photon momentum transfer $\boldsymbol{q}$. The distribution of the magnitudes of the diffraction amplitudes, each a sum over the contributions from each atom, can then be estimated by analogy to a random walk in the complex plane or by application of the central limit theorem [18, 7]. Using the latter approach and for the case of unpolarised radiation, it is seen that at a particular $q$ (=$|\boldsymbol{q}|$) shell (where atomic scattering factors do not vary), the real and imaginary parts of the complex-valued diffraction amplitudes are both normally distributed with a mean of zero and mean square proportional to $\langle\sin^{2}\theta_{i}\rangle=1/2$ or $\langle\cos^{2}\theta_{i}\rangle=1/2$. The diffraction intensities, $I$, are equal to the sum of the squares of the real and imaginary parts. The distribution of a sum of squares of $k$ independent standard normal random variables is given by the chi-squared distribution of order $k$, which can be scaled to any particular variance [19]. Thus the intensities $I$ in a given shell of $\boldsymbol{q}$ are distributed according to the scaled chi-squared distribution of order 2, with a probability distribution function given by

[TABLE]

The mean of the intensity is $\Sigma$, which was set by the choice of the variance of the individual normal distributions. The variance of this distribution is $\Sigma^{2}$ and the most common value (the mode) of $I$ is zero. (This distribution is also referred to as a negative exponential distribution of scale $\Sigma$, an Erlang distribution with shape parameter 1 and rate $1/\Sigma$, or a Gamma distribution with shape parameter 1 and scale $\Sigma$. In the notation of statistics, $I\sim\mathrm{Gamma}(1,\Sigma)$, meaning that the random variable $I$ has the probability distribution of $\mathrm{Gamma}(1,\Sigma)$.)

When the structure is real and centrosymmetric, then the phases of the diffraction amplitudes take on values of 0 or $\pi$, which is to say that the imaginary parts of the diffraction amplitudes are zero. This is true also for diffraction amplitudes on a central section (or zone) of reciprocal space perpendicular to any projection of the structure that is centrosymmetric, such as a projection along the 2-fold symmetry axis of a crystal. By the Fourier slice theorem, the Fourier transform of a real-space projection, an integration along a real-space direction of an object, is equal to the central section perpendicular to that direction of the three-dimensional transform of the object. The real parts of the diffraction amplitudes of the centrosymmetric object or projection will still follow a normal distribution, and thus the intensities, equal to their squares, will have a scaled chi-squared distribution of order 1 (which can also be derived from the normal distribution by a change of variable), given by

[TABLE]

with a mean of $\Sigma$, variance $2\Sigma^{2}$, and mode of zero. The intensities $I_{C}$ are referred to as centric.

Equations (1) and (2) are the well-known Wilson statistics applicable to crystals of P1 symmetry and $\mathrm{P}\bar{1}$ symmetry, respectively [18], also referred to as Rayleigh statistics in the field of speckle metrology [7, 9]. The derivation of these statistics make no assumption of crystallinity of the sample and hence are equally applicable to the continuous diffraction of a single object [6] (such as the calculated single-molecule diffraction of a PS II complex shown in Fig. 1 (a)) as they are to the Bragg diffraction from a protein crystal, coherent diffraction from atomic glasses [20], or that resulting from the reflection of a monochromatic and polarised laser beam from a random rough surface [7, 9]. The applicability of Wilson statistics to single-molecule diffraction is demonstrated in Fig. 1 (b), where the distribution of simulated point-sampled intensities in a shell of reciprocal space is plotted for the single PS II complex.

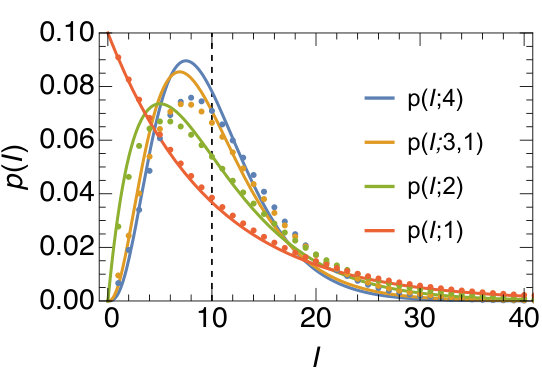

Equations (1) and (2) predict that the most common intensity value for molecular diffraction is zero. This is consistent with the view of a single-molecule diffraction pattern as made up of speckles that are surrounded by low values, such as seen in Fig. 1 (a). The speckle nature of the diffraction is less easily observed in Bragg diffraction, but is certainly true given that the diffraction pattern of a crystal can be described as a modulation of the continuous diffraction of the unit cell with the reciprocal lattice. A difference to Bragg diffraction, however, is that single-molecule diffraction can be more readily affected by the spatial coherence of the illumination or, equivalently, the detector pixel shape function, as discussed below in Sec. 2.3.

One insightful application of Wilson statistics is to identify the presence of crystal twinning purely from observations of diffraction intensities [5, 21]. The same tests can be carried out on diffraction of oriented single molecules. For example, alignment of molecules with an AC laser field gives rise to equal populations of molecules aligned parallel and anti-parallel to a lab-frame vector [22]. As with the case of merohedral twinning of a crystal, the diffraction intensities of the two populations sum incoherently. As long as the intensities at $\boldsymbol{R}\cdot\boldsymbol{q}$ are independent to those at $\boldsymbol{q}$ for the rotation operator $\boldsymbol{R}$ describing the twinning, then the distribution of the summed intensities follows the sum of two scaled chi-square distributions of order 2 (for a non-centrosymmetric object), which from the definition of a chi-square distribution is a chi-square distribution of order 4. In general, diffraction intensities from $N$ equal twin fractions (each with mean $\Sigma/N$) is given by a scaled chi-square distribution of order $2N$, also equivalent to $I\sim\mathrm{Gamma}(N,\Sigma/N)$, with a probability distribution function

[TABLE]

where $\Gamma$ is the Euler Gamma function, equal to $(N-1)!$ for whole numbers of $N$. Some plots of $p(I;N)$ are given in Fig. 2 (a). The most common value for the continuous diffraction intensity for $N>1$ orientations is not zero, but $(N-1)\Sigma/N$. The mean of this distribution is $\Sigma$ and the variance is reduced compared to the single object to a value of $\Sigma^{2}/N$ (see Table 1). The reduction in variance is quite noticeable in the simulated diffraction intensities shown in Fig. 1 (c), which is the calculation of the incoherent sum of diffraction of PS II complexes oriented in the four different orientations of the 222 space group (any orientation is related to another through a rotation of [math] about one of the three orthogonal axes). For the same mean, the standard deviation is halved in this case and the distribution of the simulated intensities agrees with Eqn. (3) for $N=4$ as seen in Fig. 1 (d).

In the case of centrosymmetric objects in $N$ unique orientations (whether due to crystal symmetry or twinning), the probability distribution will be given by the sum of random variables with scaled chi-square distributions of order 1, which is a scaled chi-square distribution of order $N$, $I\sim\mathrm{Gamma}(N/2,2\Sigma/N)$, with a probability distribution function

[TABLE]

The distribution of Eqn. 4 has mean $\Sigma$, variance $2\Sigma^{2}/N$, and is equal to $p(I;N/2)$ when $N$ is even. This will be the case for central sections of $\boldsymbol{q}$ that are perpendicular to a two-fold rotation axis of a dimer, for example. In the limit of an infinite number of orientations, such as the case of solution scattering of unoriented molecules, it can be found through the central limit theorem that $p(I;N)$ and $p(I_{C};N)$ both approach a normal distribution with a mean and variance both equal to $\Sigma$ [23], which is also the limit of Poisson statistics.

We note that Eqns. (1) to (4) hold for any scaling of intensities $I$ whether they be recorded as photon counts or “detector units” referred here as adu. For example, for a detector gain $a$, the intensities in detector units $I=a\bar{I}$ for the continuous diffraction of $N$ orientations are distributed as $I\sim\mathrm{Gamma}(N,a\Sigma/N)$, giving the probability distribution $p(I)=ap(\bar{I})$ with a mean $a\Sigma$ and variance $a^{2}\Sigma^{2}/N$.

A case that breaks the independence between diffraction intensities at $\boldsymbol{R}\cdot\boldsymbol{q}$ and $\boldsymbol{q}$ is when the electron density of a single molecule is real-valued, so that the diffraction intensities are centrosymmetric, and the operator $\boldsymbol{R}$ is a rotation by [math]. Under this condition, the diffraction intensities $I(\boldsymbol{q})$ of any object will be equal to $I(\boldsymbol{R}\cdot\boldsymbol{q})$ for values of $\boldsymbol{q}$ in a central section that is perpendicular to the two-fold rotation axis. In this reciprocal-space plane it would appear that the number of orientations of rigid objects is reduced by half or, equivalently, that the number of orientations did not change but the object’s projection is centrosymmetric. These diffraction intensities can thus be considered centric, even though the object itself is not centrosymmetric. Although similar to the case mentioned above of a crystal with a two-fold rotation axis, there is a difference in that the projection of the structure of the crystal along the two-fold axis is centrosymmetric, whereas it is the incoherent sum of the projections of aligned and anti-aligned molecules that is centrosymmetric. In the case of $N$ equally-populated alignment fractions, the centric reflections are those in central sections perpendicular to any two-fold rotation axes in the point group of the alignments. In those planes, for a real-valued structure, the distribution of diffraction intensities will be given by Eqn. (4) since the number of independent normal distributions being summed is reduced by half.

2.1 Discrete Distribution

Many of today’s X-ray detectors are sensitive to single photons, and diffraction measurements made with them are therefore governed by counting statistics. It is well appreciated that this discretisation leads to a signal described by Poisson statistics. For example, the counts in a particular pixel on the detector in a diffraction experiment of a static object illuminated with a beam of constant flux will follow the probability distribution

[TABLE]

for a mean number of photons $\bar{\mu}$, and where $\bar{I}$ are the discrete numbers of photons per pixel (here the bar indicates values in photon counts). One feature of this distribution is that the variance is equal to the mean, $\bar{\sigma}^{2}=\bar{\mu}$. For large values of $\bar{I}$ this distribution approaches the Normal distribution with $\sigma^{2}=\mu$. The statistics of the discrete diffraction of a molecule, measured at a particular $q$ shell, is found by selecting a random variable from the appropriate Gamma distribution (e.g. Eqn. (3)) and then realising a particular value of that variable by feeding it as the mean value of a Poisson distribution. This is known as a mixture distribution and is conceptually quite different from the distribution of the sum of random variables discussed above. The mixture distribution of photon counts, where the Poisson mean is distributed according to $\mathrm{Gamma}(N,\bar{\Sigma}/N)$ for $N$ equal twin fractions, is given by the negative binomial distribution $\mathrm{NegativeBionomial}(N,N/(N+\bar{\Sigma}))$

[TABLE]

with a mean $\bar{\Sigma}$ and variance $\bar{\Sigma}(N+\bar{\Sigma})/N$ [23] (Chapter 10.4), [9]. Thus, this distribution approaches the Poisson distribution for large $N$ and the variance is larger than for the non-discrete distribution of Eqn. (3). Some plots of the distributions are given in Figs. 2 (a) and (b) for the case of $\bar{\Sigma}=10$ counts.

2.2 Linear Polarisation

In the above we have assumed that the incident radiation is unpolarised. In that case, atomic scattering factors are dependent only on the magnitude of the photon momentum transfer $q$, giving rise to diffraction intensities that follow a given Gamma or negative binomial distribution for detector pixels located on a shell of constant $q$. Radiation at synchrotron and FEL facilities is usually linearly polarised, which modifies the diffraction intensities by a factor equal to the square of the dot product of the electric field vectors of the incident and scattered rays (which themselves are perpendicular to the direction of propagation of the rays). For example, for horizontally ($x$) polarised radiation, the intensity pattern is modulated by

[TABLE]

where $k_{x}$ and $k_{y}$ are the scattered wave-vector components in the detector plane. The measured intensities of each diffraction pattern $I(k_{x},k_{y})$ can be corrected by dividing by $P(k_{x},k_{y})$. For measurements of a non-discrete diffraction signal, this correction will have the intended consequence of generating signals that follow the statistics of the Gamma distribution on a particular $q$ shell. For the photon counting measurements this is not the case, since multiplying counts by a variable correction will alter the variance by a different factor than the mean. After correcting for the polarisation, counts in a $q$ shell of the diffraction of an unstructured object will no longer obey Poisson statistics.

In our analysis below we utilise the variance to determine parameters such as scaling and background of diffraction patterns. For discrete measurements we must first account for the polarisation in this analysis, as follows: First the polarisation-corrected diffraction pattern is averaged in thin shells of $q$ (or $k$) from which a 2D polarisation-uncorrected average is regenerated

[TABLE]

This average no longer contains any speckles but it can be contoured to find sets of detector pixels (or coordinates $k_{x}$, $k_{y}$) with equal mean counts $\Sigma$ in the polarisation-uncorrected measurement. These contoured regions are then used instead of shells of equal $q$ to determine the distribution of intensities. This approach will account for any signal or background originating from elastic scattering from a region near the sample, but will not account for so-called detector dark noise, X-ray fluorescence, or scattering from sources far upstream or downstream of the sample.

2.3 Spatial Coherence and Pixel Size

The continuous diffraction from single objects can be sampled arbitrarily finely, unlike the discrete locations of Bragg peaks. The simulated diffraction intensities shown in Fig. 1 (a) were calculated at twice the Nyquist sampling rate required to fully describe the continuous intensity wave-field, which is to say four times the sampling density in each dimension as would be obtained from Bragg peaks of a P1 crystal in which the molecules were packed in the smallest possible P1 unit cell (see e.g. [16]). At high sampling rates there are obviously correlations between neighbouring intensities, since they are likely to be sampling the same speckle. Even so, this “oversampling” does not affect the statistics in the limit of randomly positioned atoms. The simulation does however differ from actual measurements of a diffraction pattern, in that intensities will not in reality be sampled at points, but will be averaged over the active areas of the detector pixels, described by the convolution

[TABLE]

††margin:

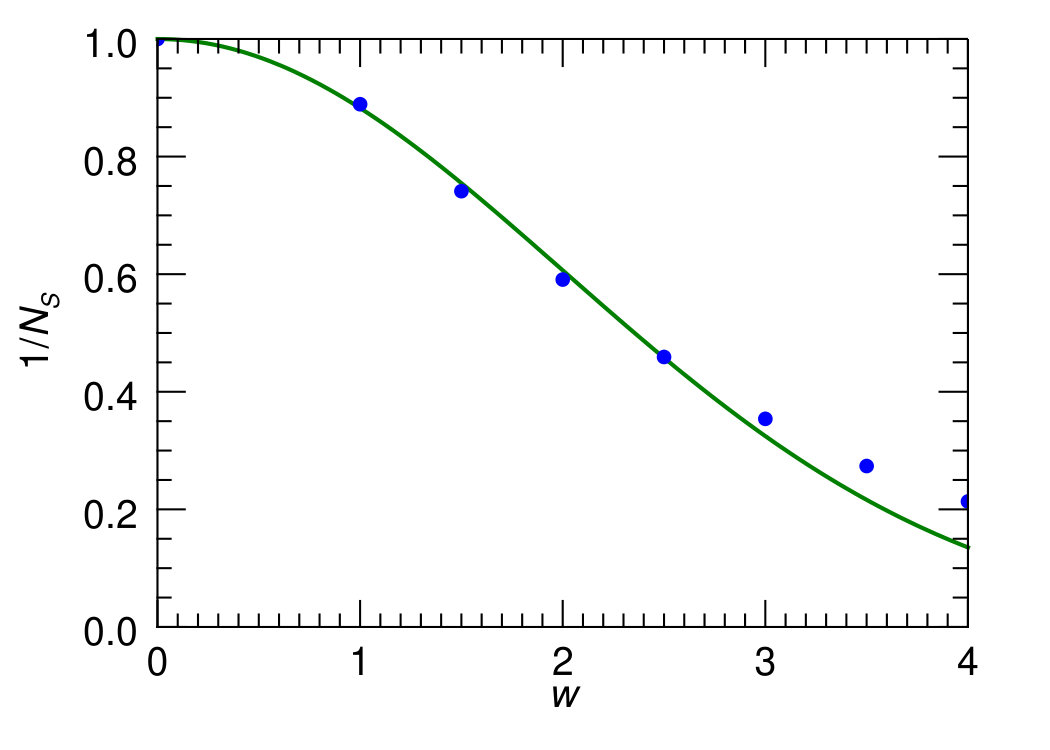

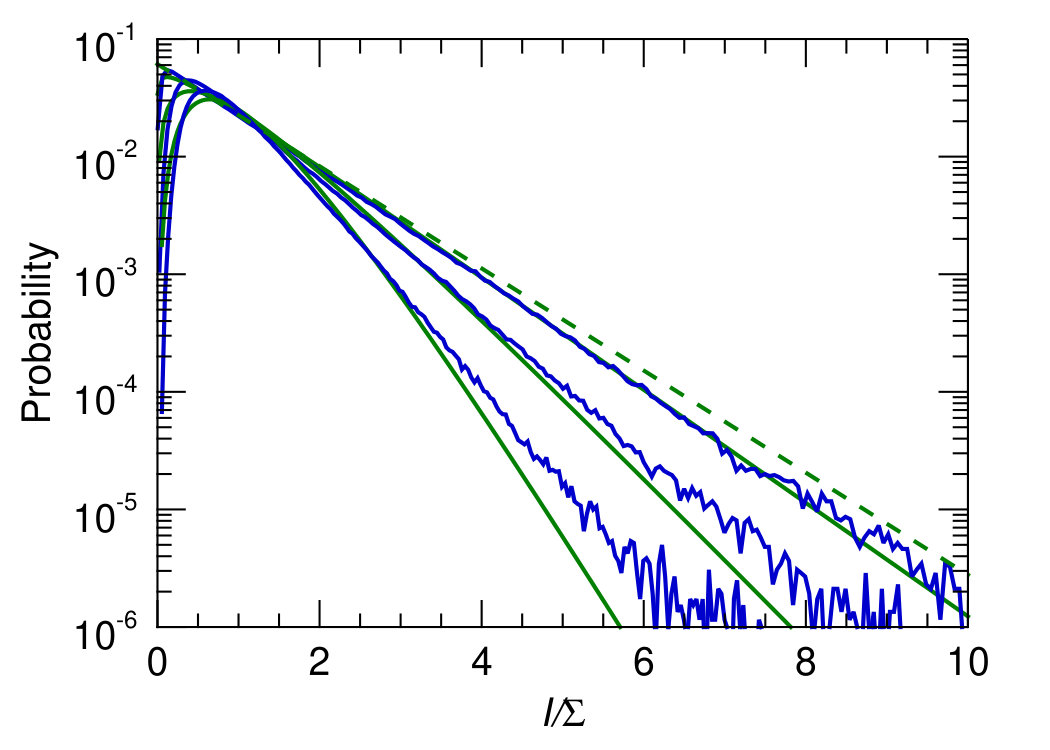

Figure 3. (a) Distributions of the simulated intensities of a single PS II complex after convolving the 3D reciprocal-space array of diffraction intensities with cubic voxels of widths 1, 2, and 3 times the Nyquist sampling rate of the continuous diffraction intensity. The negative exponential distribution of the point-sampled intensities is shown with the dashed line. (b) Plot of $1/N_{S}=\mathrm{Var}[I]/\mathrm{Mean}[I]^{2}$ versus the voxel width, $w$. The voxel width is normalised to the Nyquist sampling distance. Shown in green is a Gaussian of width 2. ©The Authors licensed under CC BY 4.0

where $s(k_{x},k_{y})$ is the pixel response function. The statistics of the measurements $I_{m}$ will clearly differ from those of $I$ if the pixel is larger than a speckle size. The blurring by the pixel response reduces the contrast of the speckles, eliminating zeroes and raising low intensity values as well as reducing the peak intensities. This can be seen in the plots of Fig. 3 (a), where histograms of the simulated intensities of a PS II complex are given after first convolving the patterns with cubic voxels of varying sizes. The distributions become more truncated and narrower, with an appearance similar to the distributions of the incoherent sum of $N$ independent patterns as shown in Fig. 2.

The effect on the intensity statistics of a continuous speckle pattern convolved with a pixel shape was examined by Dainty [7], who showed that the variance of the intensities is reduced from the ideal value of $\Sigma^{2}$ by a factor given by the ratio of the speckle size (equal to the inverse of the width of the autocorrelation function of the object) divided by the pixel area in $q$ space. In particular, Dainty posited that the intensities $I_{m}$ of Eqn. (9) can be expressed as a weighted sum of independent random variables, and that the distribution can in fact be approximated (for a wide range of pixel response functions and molecule autocorrelation functions) by the Gamma distribution of Eqn. (3). In this case $N=N_{S}$, the number of speckles per pixel, need not be a whole number. In Fig. 3 (a), these distributions are additionally plotted and can be compared with the histograms of the convolved simulated diffraction patterns. The distributions show a good agreement with the simulations by setting $1/N_{S}=\mathrm{Var}[I]/\mathrm{Mean}[I]^{2}$. This parameter, referred to as the “speckle contrast” [7], can be considered as the degree of purity of the measurement in a detector pixel, or in other words an indicator of the degree of coherence, as discussed below. A plot of $1/N_{S}$ versus the voxel width of the recording process is given in Fig. 3 (b) and is found to decrease with width roughly as a Gaussian. Here, the width is normalised to the Nyquist sampling width of the diffraction intensities (the inverse of twice the width of the molecule), which is about half the width of a speckle. The width of the Gaussian plotted in Fig. 3 (b) is 2, equal to a speckle width.

The speckle contrast in a diffraction pattern can be used as a measure of coherence [7]. Reducing the spatial coherence of the illumination will reduce the variance of the diffracted intensities. This can be quite clearly understood in the Gauss-Schell model of partial coherence [24] where a partially-coherent beam is equivalent to one produced by an incoherent source of finite extent. In this model, any point in the source gives rise to a fully coherent beam that produces a fully coherent diffraction pattern positioned relative to the axis defined by the line joining that source point and some arbitrary but common point in the object. For a small enough angular extent of the source, the pattern from each source point will be an identical but shifted version of that produced by any other source point. The patterns produced by each source point will be mutually incoherent, so in the limit of a small angular extent of the source the resulting diffraction pattern will be a convolution of the coherent pattern with a function describing the angular distribution of the source intensity. Thus, Eqn. (9) also represents the case of partially coherent diffraction, where $s$ describes the angular extent of the source, also equal to the Fourier transform of the mutual coherence function [8]. Again, this coherence length $w$ can be expressed in terms of the parameter $N_{S}$, equal to the fractional number of speckles that lie in the angular extent of the source.

In the case of $N$ independent orientations of molecule measured with $N_{S}$ speckles per detector pixel or coherence area, the distribution will be modified in a similar way as for a single orientation. For a given mean $\Sigma$, the variance will be modified from $\Sigma^{2}/N$ by an additional division by $N_{S}$ to $\Sigma^{2}/N^{\prime}$, where $N^{\prime}=N\,N_{S}$ and the distribution of intensities will be approximated by $I\sim\mathrm{Gamma}(N^{\prime},\Sigma/N^{\prime})$ as per Eqn. (3).

The phasing of continuous diffraction patterns using iterative algorithms depends critically on accurate sampling of the intensities. Any reduction in contrast or addition of a constant will eliminate intensity zeroes and cause discontinuities of phased amplitudes, a situation that is inconsistent with diffraction arising from a compact object. Much progress in diffractive imaging was made recently by accounting for the decrease in contrast in continuous diffraction caused by partial coherence [25]. The coherence width, or equivalently the detector pixel width, is usually required as a fixed parameter in schemes of partially-coherent diffractive imaging, and measurements of the coherence properties of the beam must often be made to carry out these schemes [26, 27]. For macromolecular diffractive imaging, where the object is typically less than several hundred ångströms in width, achieving the necessary coherence width of the beam, equal to double the object width [28], is routinely achieved, and the necessary sampling density and pixel width can be determined by examining the autocorrelation of the object. Nevertheless, the beam coherence, pixel width, sample heterogeneity, and errors in aggregating data from many diffraction patterns may all give rise to an effective degree of coherence that can be determined directly from the intensity statistics if the number of object orientations are known. A variation of the determined coherence as a function of $q$ may indicate rotational disorder of the molecules, or an alignment error in aggregating data from many single-molecule diffraction snapshots.

3 Statistics of diffraction intensities of translationally disordered crystals

The diffraction pattern of a crystal exhibiting a degree of translational disorder consists of Bragg peaks, modulated by a $q$-dependent Debye-Waller factor, and continuous diffraction that arises contrariwise to the decrease in Bragg intensities. Ayyer et al. [1] consider a disordered finite crystal consisting of a particular (and unique) rigid object that is repeated $M$ times in different orientations and positions according to the crystal symmetry, in each of $K$ unit cells of the crystal. (Crystals consisting of more than one kind of rigid object can also be considered.) The 3D diffraction pattern of such a crystal with identical rigid units that are randomly displaced from their ideal crystallography positions in each direction following a normal distribution of variance $\sigma_{\Delta}^{2}$, is then given by

[TABLE]

where $F(\boldsymbol{q})$ is the complex-valued Fourier transform of the density of the single rigid unit, $\boldsymbol{R}_{m}$ and $\boldsymbol{t}_{m}$ are the rotation and translation operators for the $m$th rigid unit, and $\boldsymbol{a}_{k}$ are the real-space lattice positions of the crystal. (Pre-factors in Eqn. (10) are ignored.) Note that the isotropic mean square displacement of rigid units in 3D space is equal to $3\sigma_{\Delta}^{2}$. The second term of Eqn. (10) is the square modulus of the Fourier transform of the entire unit cell, modulated by a Debye-Waller factor and by the double product that gives the reciprocal lattice. The first term is markedly different, and is given by the incoherent sum of the Fourier transforms of the rigid object in each of its crystallographic orientations, all modulated by a function, the complementary Debye-Waller factor, that monotonically increases with $q$. This term is not multiplied by a reciprocal lattice, and is thus continuous and proportional to the single molecule diffraction when there is only one orientation of the rigid randomly-translated object per unit cell. In the more general case, it is equal to the incoherent sum of the diffraction from $N$ unique orientations of the rigid unit. The number of unique orientations of the rigid unit may be a subset of those given by the point group of the crystal if the rigid unit itself is crystallographically symmetric (i.e. not non-crystallographic), or there may be more orientations than dictated by the crystal symmetry if the rigid units are oriented according to non-crystallographic symmetry. An example of the former situation is given below for PS I crystals in the space group P$6_{3}$.

The Bragg intensities are proportional to the coherent diffraction of the entire unit cell of the crystal (indicated by the square modulus outside the sum in the second term of Eqn. (10)) and hence depend on the space-group symmetry of the crystal. The continuous diffraction is proportional to the incoherent sum of the diffraction of the independent rigid objects in the crystal, subject to the (possibly reduced) point-group symmetry of the crystal given by the number of unique orientations of the (possibly symmetric) rigid objects. The statistics of the Bragg and continuous diffraction intensities are therefore different, depending on these symmetries. The Bragg reflections obey Wilson statistics with a symmetry dependence examined by Rogers [4]. The continuous diffraction will obey Wilson statistics such as given by Eqns. (3) or (4), subject to the symmetry of the rigid unit and on the number of unique orientations of that rigid unit. Eqns. (3) and (4) assume equal populations of objects in each of the orientations. In some crystals this will not be true, in which case the distributions can be derived from sums of squares of normally-distributed random variables with different variances [21]. In general, for a rigid unit with $N_{R}$ non-crystallographic rotation operations and $N_{C}$ crystal point group operations the centric intensities corresponding to any one of the non-crystallographic symmetries will be given by the incoherent sum of the centric diffraction from those objects in the particular orientation and the acentric diffraction from the rest of the objects. Assuming that the populations of rigid units in each crystallographic orientation are equal, these intensities will have a distribution $I\sim\mathrm{Gamma}(N_{C}-1,\Sigma/N_{C})+\mathrm{Gamma}(1/2,2\Sigma/N_{C})$. The probability distribution function of the sum of two random variables is equal to the convolution of their distributions, which can be calculated through the product of their inverse Fourier transforms. In statistics these are referred to as the characteristic functions [19, 18].

As an example, consider a PS II crystal in space group P$2_{1}2_{1}2_{1}$. This consists of four dimers in unique orientations found by rotating any one of them by [math] about each of the three orthogonal axes of the orthorhombic cell. The two-fold rotation symmetry of the dimer is non-crystallographic in this case, and the axis is not aligned along any of the crystallographic axes. The Bragg intensities are therefore in general acentric, given by Eqn. (1). In central sections of reciprocal space perpendicular to the orthogonal crystal axes, however, the Bragg intensities are centric since projections of the crystal structure down those axes will be centrosymmetric, with a distribution given by Eqn. (2). The projection of the crystal structure down the dimer two-fold axis of any of the four dimers will not be centrosymmetric, however, since the crystal as a whole does not share this symmetry. The continuous diffraction of a PS II crystal with translational disorder will be governed by the incoherent sum of diffraction of equal populations of dimers in each of four orientations, given by Eqn. (3) with $N=4$, and will thus exhibit $mmm$ symmetry. If the rigid unit is the dimer then central sections perpendicular to the dimer two-fold axis should include diffraction from the one quarter of all dimers whose projections are centrosymmetric in that view. The statistics in that case will be determined by a sum given by three parts acentric random variables and one part centric random variables, resulting in $I\sim\mathrm{Gamma}(3,\Sigma/4)+\mathrm{Gamma}(1/2,\Sigma/2)$ which has the distribution

[TABLE]

where $F_{D}$ is the integral

[TABLE]

and Erfi is the imaginary error function, $\mathrm{Erfi}(x)=\mathrm{Erf}(ix)/i$. Plots of $p(I;4)$ and $p(I;3,1)$ are given in Fig. 2 (a) and (b), showing that the dimer symmetry causes a higher probability of high intensities compared with the completely acentric reflections. It therefore should be possible to detect non-crystallographic symmetry of the rigid object from deviations of the statistics in particular central sections of reciprocal space.

The central sections perpendicular to the three orthogonal crystal axes of PS II are all perpendicular to a two-fold rotation axis and so, to the extent that the structure is real-valued, these intensities will be centric, with a distribution given by Eqn. (4) with $N=4$. This is equal to the acentric distribution with $N=2$, shown in Fig. 2.

As another example we consider a crystal of photosystem I, which has a hexagonal space group P$6_{3}$. The structure consists of trimers with 3-fold rotational symmetry located in alternating layers where the trimers are rotated by [math] about this 3-fold axis and translated perpendicular to it. The trimer symmetry is crystallographic. If the rigid object was hypothetically the entire trimer then the continuous diffraction arising from translational disorder would consist of the incoherent sum of the trimer in only these two orientations. Thus, in general, the probability distribution of the continuous diffraction intensities in any given $q$ shell will be equal to $p(I;2)$ (Eqn. (3) with $N=2$). The continuous diffraction of the trimer will have 3-fold rotational symmetry and, if the electron density of the trimer is real-valued, will be centrosymmetric. In the central section perpendicular to the 3-fold axis the diffraction from the [math]-rotated real-valued trimer will be identical, and hence in this plane of reciprocal space it will appear as if there is only one object contributing to the diffraction (or two centrosymmetric objects). These intensities can therefore be considered as centric, with a distribution in a given $q$ shell equal to $p(I;1)$ (Eqn. (3) with $N=1$ or Eqn. (4) with $N=2$). The Bragg reflections in general positions will be centric ($N=1$), or acentric in the $hk0$ zone. Thus comparisons of the statistics of Bragg and continuous diffraction in centric and acentric zones can be used to constrain the number of rigid-body units contributing to the continuous diffraction.

4 Modified Statistics with Background Noise

The continuous diffraction from a disordered crystal can be phased using iterative phasing algorithms, as has been well established for coherent diffractive imaging of single non-periodic objects. One of the experimental issues that can arise in coherent diffractive imaging is the incoherent addition of background intensity. For diffraction of disordered crystals, the diffuse scattering from the solvent adds incoherently to the pattern. This incoherent background must be estimated and subtracted, since otherwise phasing cannot be reliably achieved—the intensity sum does not match to the square modulus of the Fourier transform of an object of compact support. The complication can be appreciated by considering diffraction amplitudes that vary from positive to negative; for example, phases that vary from $\pi$ to $-\pi$. The diffraction amplitude must therefore pass through zero, which cannot be satisfied if the measured intensity is everywhere greater than zero due to a background.

When utilising Bragg peaks alone, the usual practise in crystallography, the background can be reliably estimated from the measured intensity values surrounding the peak. This obviously cannot be done for the continuous diffraction. In that case, background is often estimated from a measurement without the sample in place. In macromolecular crystallography, the sample is usually surrounded by solvent, which creates a diffuse background with a characteristic profile (including the so-called “water ring”). However, the crystal itself contains solvent which may differ in composition from pure buffer solution, so the amount of the background is not necessarily equal to the no-sample pattern. One way to estimate a smoothly-varying background is to fit a function to local minima of the diffraction pattern. This is a valid approach for an object of a single orientation, whose distribution of diffraction intensities follows Eqn. (1), but not when $N>1$. A much better approach is to utilise all intensity values in a reciprocal shell, not just the minima, and to fit the appropriate distribution to estimate the background. We explore this approach here by examining the properties of the distribution expected of intensities in a reciprocal-space shell from a disordered crystal with an incoherent background. This is carried out first for the case of non-discrete intensity measurements where the background in shells of $q$ are considered to be normally distributed. This is the limiting case for large photon counts per pixel, and allows analytical expressions of the resulting distribution of the sum of the aligned-molecule diffraction with the background. The case of discrete signals is presented in Sec. 4.2 where the background is assumed to follow Poisson statistics.

4.1 Non-discrete Intensities with a Normal-distributed Background

We refer to the disibution of the incoherent sum of the non-discrete acentric diffraction and a normally distributed background as the noisy Wilson distribution. For a background mean $\mu$ and variance $\sigma^{2}$, added to molecular diffraction of mean $\Sigma$ from $N$ orientations the distribution is given by $p_{NW}(I)$ by Eqn. (16) in Appendix Appedix A: The “noisy Wilson” distribution. Some examples of the distribution are plotted in Figs. 2 (c) and (d), where it is seen that $p_{NW}(I)$ is skewed. This skewness is a property of the signal, following the Gamma distribution, rather than the skew-less normal-distributed noise. In situations of low signal to background, this skewness can therefore indicate the presence of continuous diffraction signal. However, as we shall see in Sec. 4.2, unlike the normal distribution the Poisson distribution is skewed, with a skewness decreasing with the inverse of the square root of the mean counts. This is significant for mean counts approaching almost 100 photons, so the application of the results here requires suitably large signals or averages over many patterns.

As mentioned above, Equation (16) can also be evaluated by the Fourier transform of the product of the characteristic functions of the Gamma and normal distributions. Likewise, it is possible to derive the moments of $p_{NW}(I)$ from the Fourier transform of the derivatives of its characteristic function. Such an analysis can also be carried out for the partially centric intensities that arise due to non-crystallographic symmetry of the rigid unit, such as for the probability distribution $p_{NW}(I;N-1,1)$—even though an expression for the probability distribution cannot be readily derived. Expressions for these moments are given in Table 1 for the acentric and partially centric intensities. From the expressions in Table 1 it is possible to solve for the parameters $\Sigma$, $\mu$, and $\sigma^{2}$ from the moments of the measured intensities in a given $q$ shell. These parameters are respectively the mean of the continuous diffraction, the mean of the background, and the variance of the background in that shell. This is far less computationally expensive than fitting a probability distribution function to those intensities to obtain the parameters. The solution to the simultaneous set of equations given by the first column of Table 1 yields the following expressions:

[TABLE]

These estimates can be influenced by intensity values that do not conform to the expected distribution $p_{NW}(I)$, such as from Bragg peaks or centric intensities. The procedure of fitting the probability distribution function $p_{NW}(I)$ to the histogram of $I$ tends to avoid the influence of outliers, but ideally any Bragg peaks should be identified and excluded from the analysis. The parameters $\Sigma$, $\mu$, and $\sigma^{2}$ can be estimated in a number of reciprocal space shells (e.g. 50 equally-spaced shells) so that a smooth curve can be fit to each of the parameters as a function of function of $q$. In this way a radially-symmetric background $\mu(q)$ can be subtracted from the diffraction pattern. The curve $\Sigma(q)$ can be used to generate a Wilson plot of the continuous diffraction [2], the radially-weighted average of which can be used to scale each pattern before merging with others to form a 3D array of intensities. The error in the intensity measurements due to background can be estimated from $\sigma(q)$.

4.2 Discrete Intensities with a Poisson-distributed Background

The Poisson distribution is given by Eqn. (5). The variance of this distribution is equal to the mean, $\bar{\sigma}^{2}=\bar{\mu}$ and the skew is equal to $\bar{\mu}^{-1/2}$, giving appreciable values of skew even for signals of tens of photons and showing that the analysis of Sec. 4.1 is suitable only in the limit of large photon counts. The distribution of the sum of acentric diffraction and unstructured background is given by $\bar{I}\sim\mathrm{NegativeBinomial}(N,N/(N+\bar{\Sigma}))+\mathrm{Poisson}(\bar{\mu})$. We refer to this as the “discrete noisy Wilson” (DNW) distribution. An analytic expression for this distribution cannot be readily determined, but the probability distribution functions can be evaluated numerically using a program such as Mathematica, as shown in Figs. 2 (c) and (d). Additionally the moments can be found from the characteristic functions of the distributions and are given in the third column of Table 1 for intensities measured in photon counts. In this case, the expressions for the mean and variance are analogous to those for the normal-distributed background (replacing $\sigma^{2}$ for $\bar{\mu}$) but the skewness differs in that it has a contribution from the background in the numerator. Unlike the case of the normal-distributed background, the skew is not a unique identifier of the presence of aligned-molecule diffraction. The mean acentric diffraction $\bar{\Sigma}$ and mean background $\bar{\mu}$ are determined by easily solving the two equations for $\bar{\mu}_{DNW}$ and $\bar{\sigma}^{2}_{DNW}$ in Table 1:

[TABLE]

As compared with the continuous case, the presence of the signal is revealed by an excess of the variance of the intensities over the mean. Equality of these quantities occurs if the intensities followed a Poisson distribution, which would occur if no aligned-molecule diffraction signal was present. If $\bar{\sigma}^{2}_{DNW}<\bar{\mu}_{DNW}$ then the best estimate of $\bar{\Sigma}$ is zero.

The gain and offset of the detector can be estimated from a pattern recorded without any aligned-molecule diffraction but only a Poisson-distributed background, such as scattering from a liquid, or fluorescence. For a detector gain $a$ and offset $b$, the mean intensity in detector units is $a\bar{\mu}+b$ and variance $a^{2}\bar{\mu}$ . A linear fit to a plot of the sample variance as a function of the sample mean for different exposures or shells of $q$, for example, will give a slope equal the gain $a$, and offset $b$, assuming that the detector properties are the same over all pixels. For patterns recorded with linear incident polarisation, the procedure outlined in Sec. 2.2 must be used to find groups of pixels in the polarisation-uncorrected pattern from which to compute the mean and variance.

We note that for an integrating detector, the noise model could be improved by adding a normal distribution corresponding to the detector noise. For the CSPAD [29, 30] used in the experiments described below, the standard deviation of the detector noise is below a photon count, and thus only has a significant effect on the computation of statistics for patterns with very low detector counts. We ignore this consideration here.

5 Analysis of Continuous Diffraction Patterns

We demonstrate our analysis approaches on continuous diffraction patterns of PS II, previously measured at an X-ray free-electron laser [1] by the method of serial femtosecond crystallography. Crystals in liquid suspension were jetted across the focus of the X-ray beam while snapshot patterns were recorded on every X-ray pulse [31, 32] on a CSPAD detector. Measurements were carried out in vacuum. The concentration of crystals in the jet was such that only a fraction of the pulses hit a crystal, and a set of diffraction patterns was selected by searching for the presence of Bragg peaks.

5.1 Statistics of a single pattern

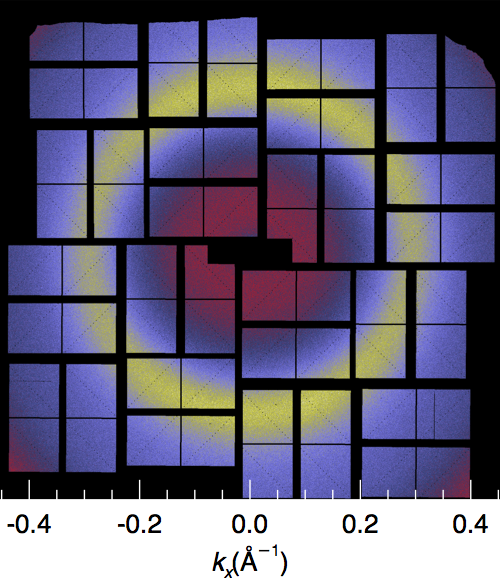

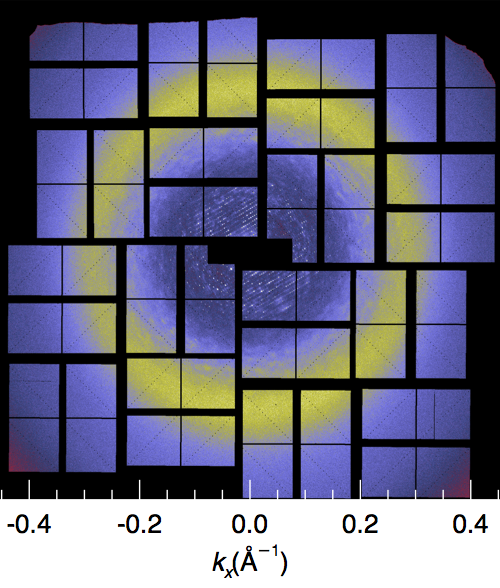

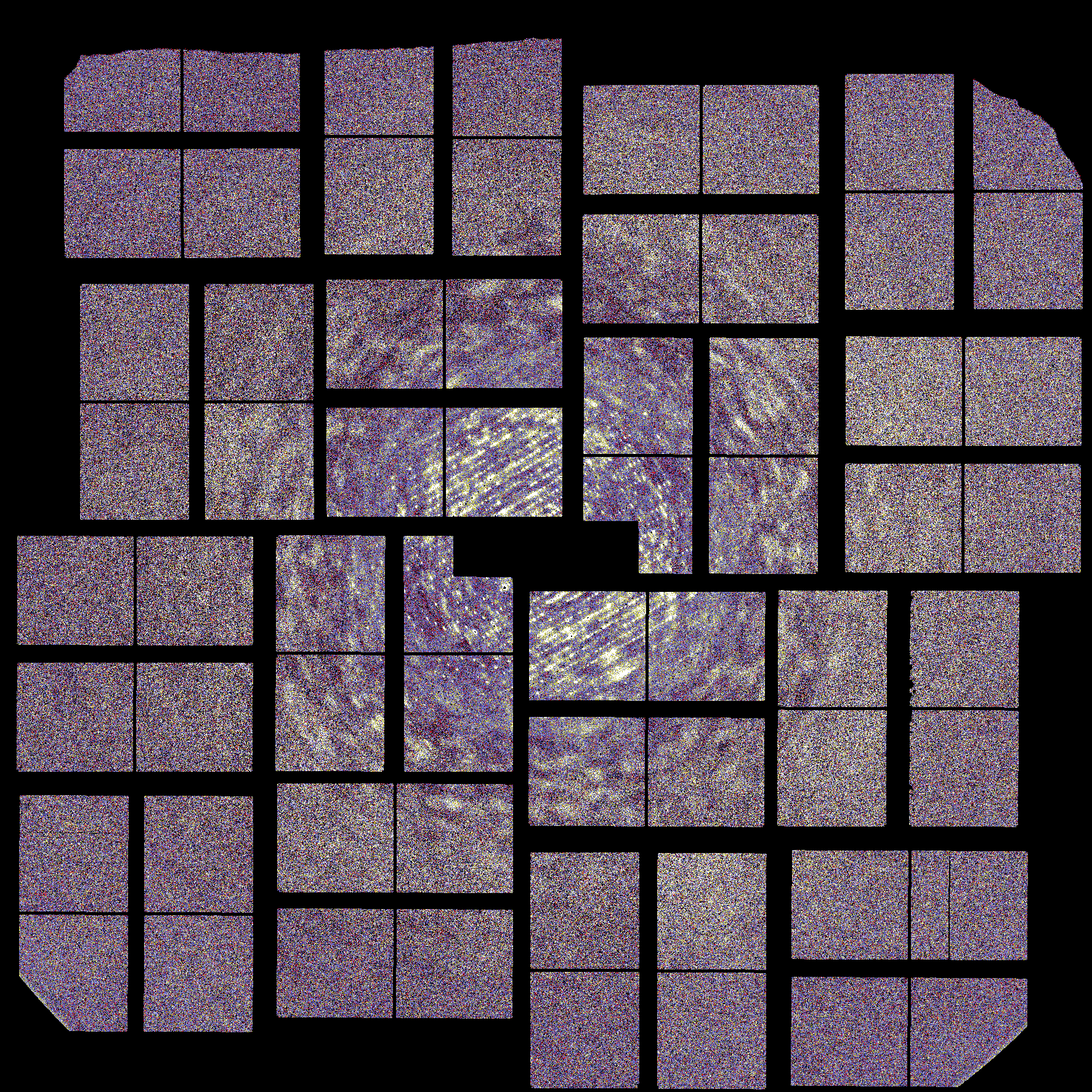

A typical snapshot pattern (from a still, not rotating, crystal) is given in Fig. 4 (a), without any background subtraction or correction for the polarisation of the incident beam. The Bragg peaks obviously influence the statistics of the intensities and must be excluded from our analysis of the continuous diffraction. For this, they must be first identified, which was done by comparing the pattern with a version of itself that was modified by applying a median filter of width 9 pixels. A mask was defined by choosing pixels where the original values exceeded the median filtered values by an amount equal to the mean intensity value in the shell. This mask was then dilated using a kernel that was 7 pixels wide. While this was quite aggressive in removing regions around Bragg peaks, there were still a large number of pixels left to obtain histograms of the continuous diffraction intensities.

A pattern free of crystal diffraction and showing scattering from the liquid jet that carries the crystals is displayed in Fig. 4 (b). Following the analysis procedure of Sec. 2.2, groups of pixels (excluding those that were masked) were determined by contouring $I_{av}(k_{x},k_{y})$ of Eqn. (7) at levels spaced by $20\text{\,}\mathrm{adu}$. A linear regression of the variances of the polarisation-uncorrected intensities within these groups to the means showed a high degree of correlation (with a correlation coefficient of 0.998), giving a detector gain of $28.7\text{\,}\mathrm{adu}\mathrm{/}\mathrm{photon}$ and an offset of $29\text{\,}\mathrm{adu}$.

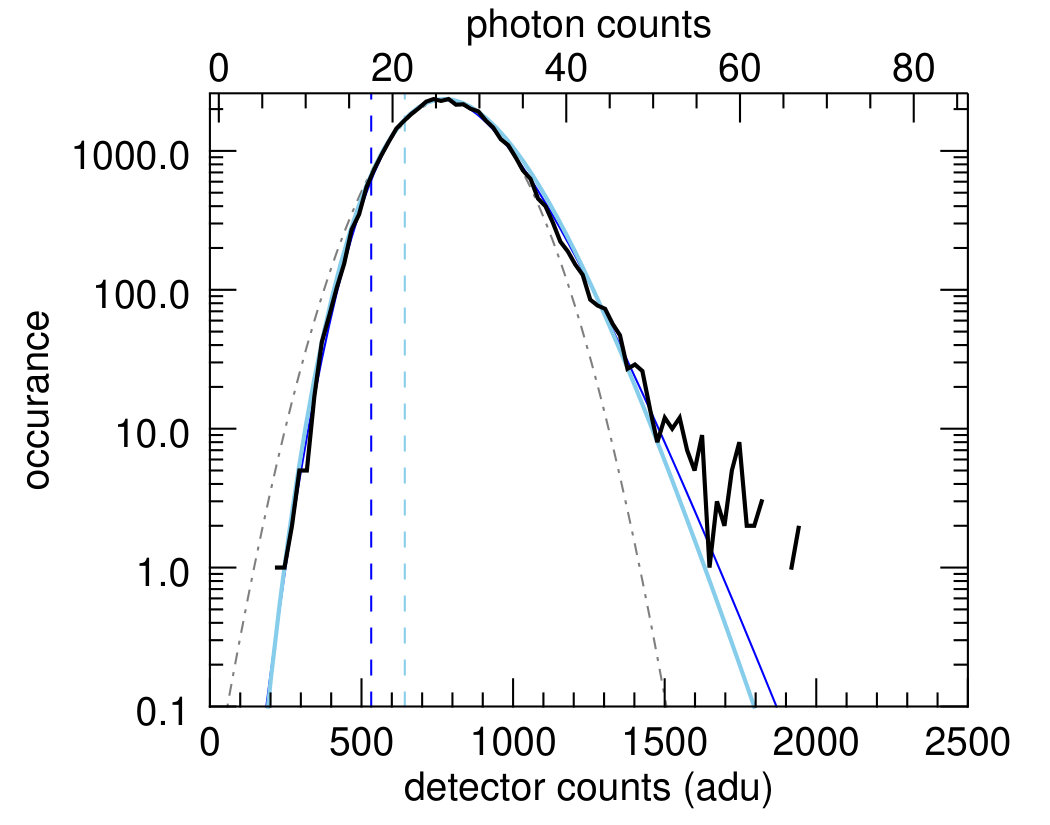

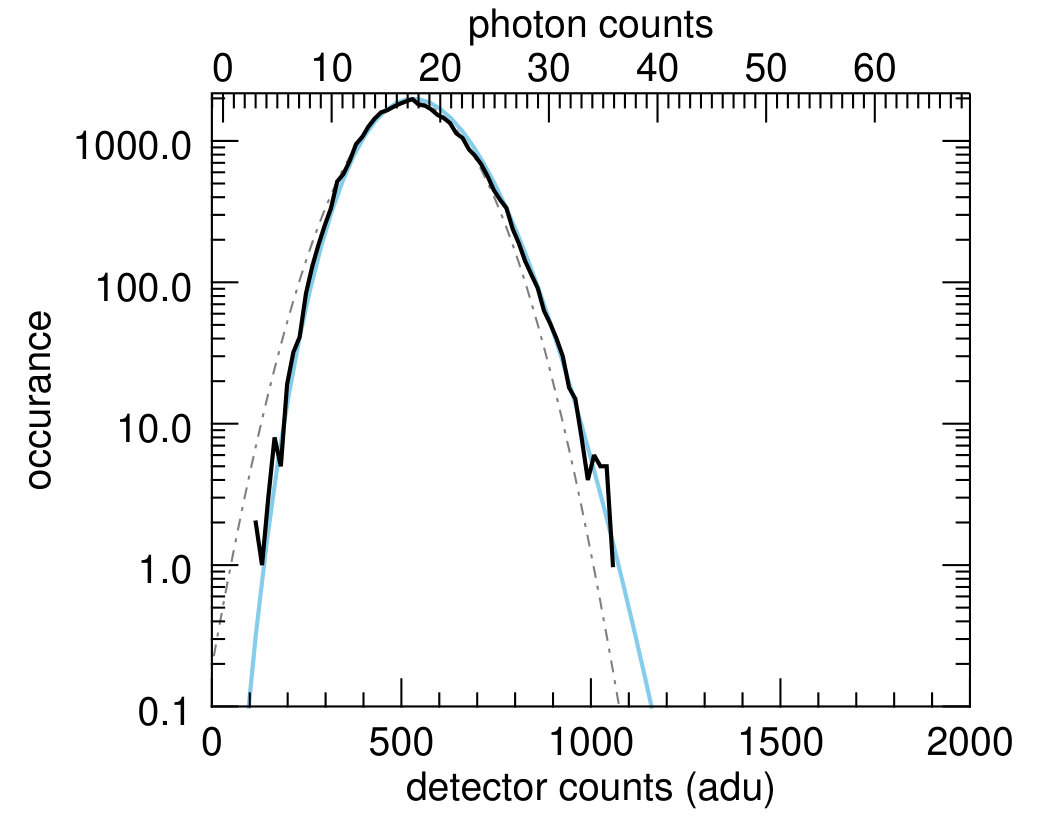

The distribution of intensities in a region of the pattern in Fig. 4 (a) in a ring centred at about $q=$0.15\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1} (260 pixel radius), is plotted in Fig. [5](#S5.F5) (a), in addition to the fits of $p_{NW}$ and $p_{DNW}$ with $N=4$. The parameters obtained from the fit of $p_{NW}$ were $\Sigma=269$, $\mu=532$, and $\sigma=$104\text{\,}\mathrm{adu}. Thus, the intensities are dominated by the background, as is obvious from Fig. 4 (a). From the detector gain and offset determined above, these correspond to $\Sigma=9.4$, $\mu=18.6$, and $\sigma=3.6$ photons. The variance of the background $\sigma^{2}$ does not match the mean of the background, suggesting that the model of normal-distributed background does not well describe the data. By applying Eqns. (14), the model of discrete statistics, to the same region after first converting the detector signal into photon counts we obtain the estimates of $\bar{\Sigma}=5.9$ and $\bar{\mu}=21$ photons. That is, the discrete model yields a larger estimate for the background and a smaller estimate for the molecular diffraction. The non-discrete analysis determines the magnitude of the molecular diffraction signal based on the skew of the distribution, but photon counting creates an inherent skew in any case.

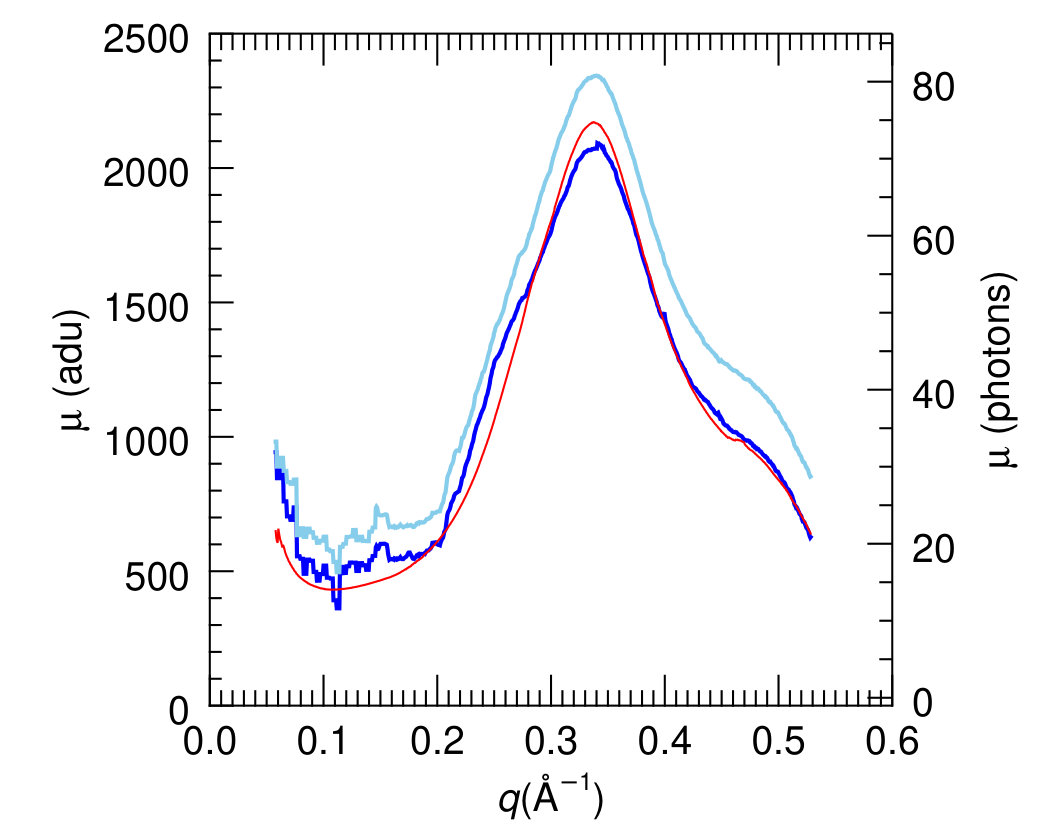

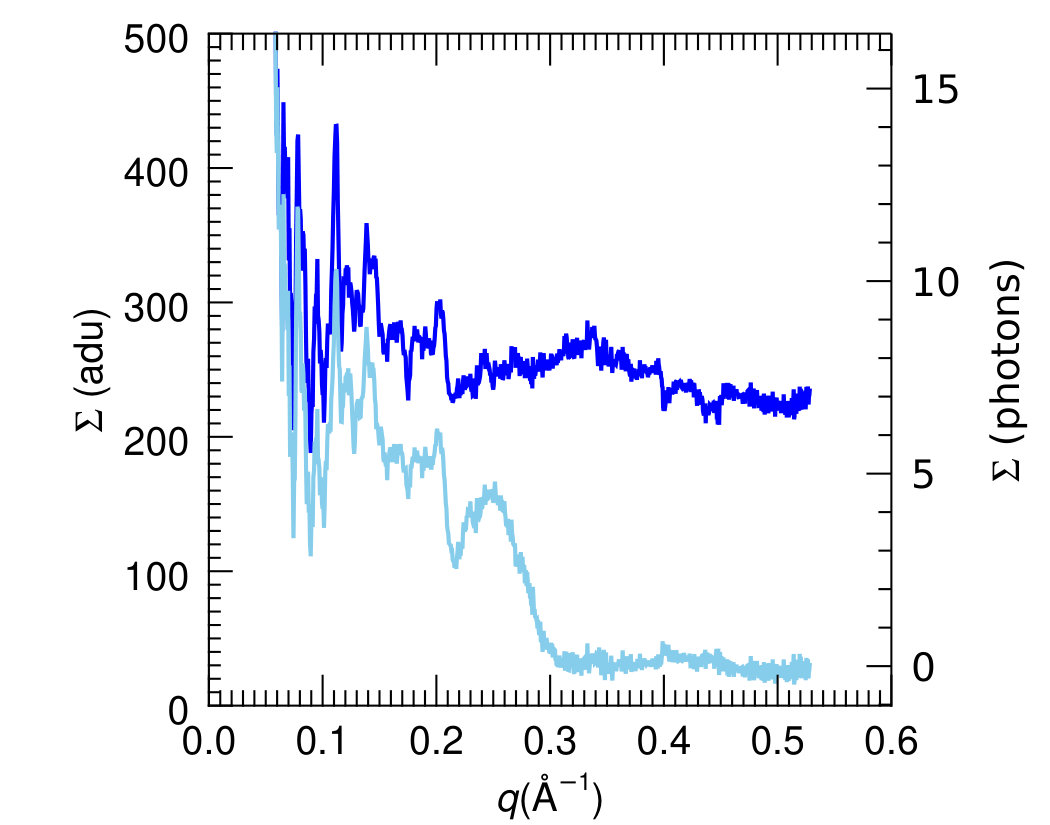

A plot of the estimated background $\mu$, as a function of $q$, is given in Fig. 6 (a) for the pattern of Fig. 4 (a). The values obtained from the moments of the intensity values using Eqns. (13), assuming non-continuous statistics, are plotted in blue, and those using Eqns. (14) are plotted in sky blue. As with the values shown in Fig. 5 (a) at $q=$0.15\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$$, the use of the discrete distributions consistently estimates a higher background. In red the radial average of the no-sample background is also plotted, scaled to fit the background estimates. The form of the background $\mu(q)$ matches the no-sample signal, but there are some differences which could possibly be due to a different composition of the solvent in the crystal to the buffer. Plots of the estimated signal $\Sigma(q)$ are shown in Fig. 6 (b). Here again, the estimate based on discrete statistics appears more reasonable, decreasing to near zero at the highest values of $q$. In that region the variance of the photon counts was approximately equal the mean and hence attributed to the Poisson-distributed background. We expect, from Eqn. (10), that the continuous diffraction should be zero at $q=0$ and modulated by $1-\exp(-4\pi^{2}\sigma_{\Delta}^{2}q^{2})$. Nevertheless, even with this modulation that approaches unity at large $q$, the diffraction signal diminishes with $q$ due to the dependence of the atomic form factors and possibly due to conformational variations in the molecules.

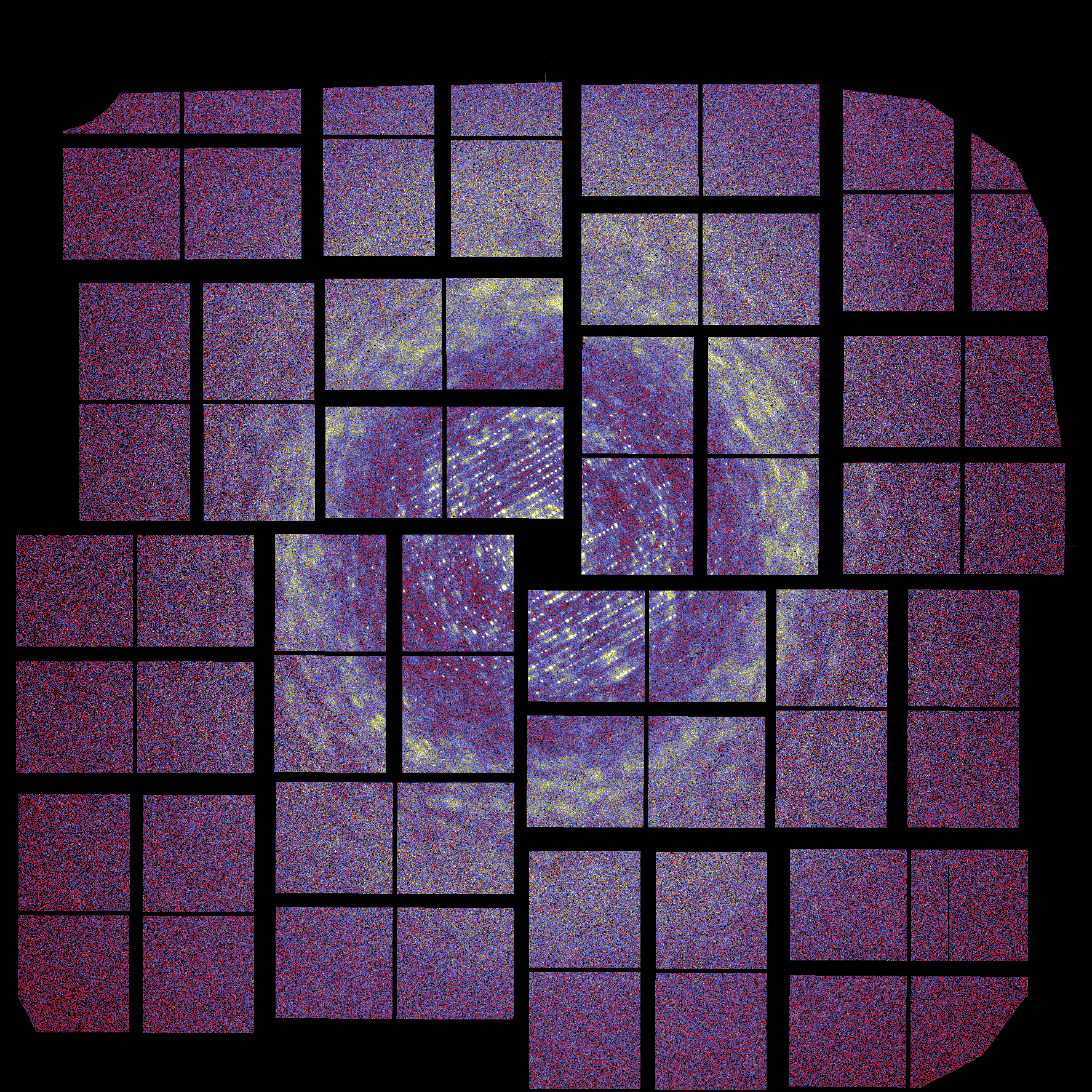

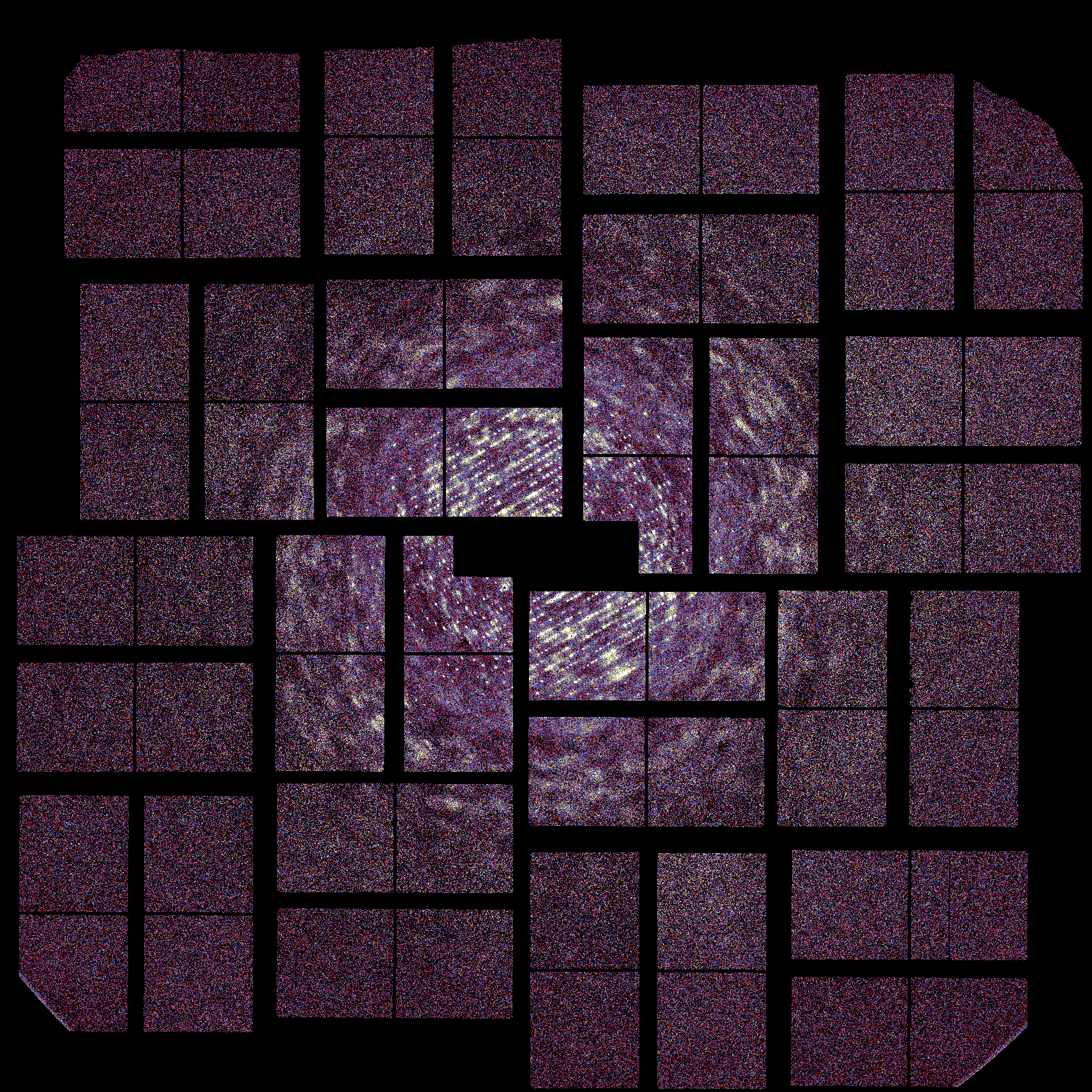

Background-corrected patterns, obtained by subtracting backgrounds $\mu(k_{x},k_{y})$ from the pattern of Fig. 4 (a) are shown in Fig. 7 for the cases of non-discrete statistics and discrete statistics. For discrete statistics the background estimates were calculated in regions obtained by contouring the average pattern as calculated by Eqn. (8), subtracting this map from the polarisation-uncorrected pattern, before finally applying the polarisation correction. This way the variance in each region was calculated from the detected counts, and was not affected by the polarisation correction factor. Again it is clear that the application of discrete statistics gives a more reasonable result.

The total photon count of the background-corrected pattern shown in Fig. 7 (b) is $2.7\text{\times}{10}^{6}$ photons, which is only 2.6% of the total counts before background subtraction which is $1.03\text{\times}{10}^{8}$ photons. Furthermore, the Bragg peaks account for $0.58\text{\times}{10}^{6}$ photons. This was found by summing the values in pixels defined by the dilated mask mentioned above, which generously encompasses all Bragg peaks and thus could be considered an overestimate. It maybe somewhat surprising that the continuous diffraction contains about 4.6 times the number of photons than Bragg counts. The total scattering power of the asymmetric units does not change depending on whether those units are arranged in a strictly periodic fashion or not, as can be seen from Eqn. (10). The continuous diffraction extends over a much larger area of reciprocal space, which may account for the factor of 4.6. However, the atomic scattering factors are stronger at low $q$ and so one may expect a greater proportion of the total scattering in the Bragg peaks, depending on how much data is missing at lowest $q$. Nevertheless, it is clear that the continuous diffraction is not weaker in total than the Bragg diffraction. Since it is not concentrated into narrow Bragg peaks but spread over many pixels of the detector the signal to noise of the continuous diffraction is lower than the Bragg data. From Figs. 6 (a) and (b) the noise, given by $\bar{\sigma}=\sqrt{\bar{\mu}}$ is comparable to the signal. Note however, that individual speckles cover more than 100 pixels, so these are measured with higher signal to noise.

5.2 Statistics of an ensemble of patterns

The analyses described in Sec. 5.1 can be repeated on the set of snapshot diffraction patterns recorded in a serial crystallography experiment, in order to obtain statistical measures of the experiment or to guide strategies of combining patterns into a dataset (see Sec. 6). The PS II dataset reported by Ayyer et al. [1] consisted of $25\,585$ snapshot patterns with Bragg peaks that could be indexed to obtain the orientation of the diffraction in the frame of reference of the crystal lattice. In that work, the strongest $2848$ patterns were oriented and aggregated in a 3D reciprocal-space array for phasing. That subset was reanalysed to obtain parameters $\mu(k_{x},k_{y})$ and $\Sigma(k_{x},k_{y})$ in regions of near constant photon counts in the polarisation-uncorrected patterns. The overall strengths of the background $\bar{\mu}_{T}$ and the continuous diffraction signal $\bar{\Sigma}_{T}$ in the PS II patterns was estimated for each pattern by summing the parameters over the entire pattern, weighted by the areas of each region. In Fig. 8 (a) the dependence of the total signal $\bar{\Sigma}_{T}$ is plotted as a function of the background $\bar{\mu}_{T}$. The strength of the diffraction is about 1% to 5% of the background. It is not strongly correlated to the background except that the very strongest diffraction signals coincide with the very strongest background. This trend may suggest that a portion the background is inherent to the liquid jet, with higher pulse energies giving rise to both strong background and strong diffraction. Atomic diffuse scattering caused by disorder of the atoms in the molecules may also contribute to some portion of the background, perhaps induced by the pulse itself and building up during the course of the pulse [33]. The pattern shown in Fig. 4 (a) is indicated by the red dots in Fig. 8, with typical signal and background strengths.

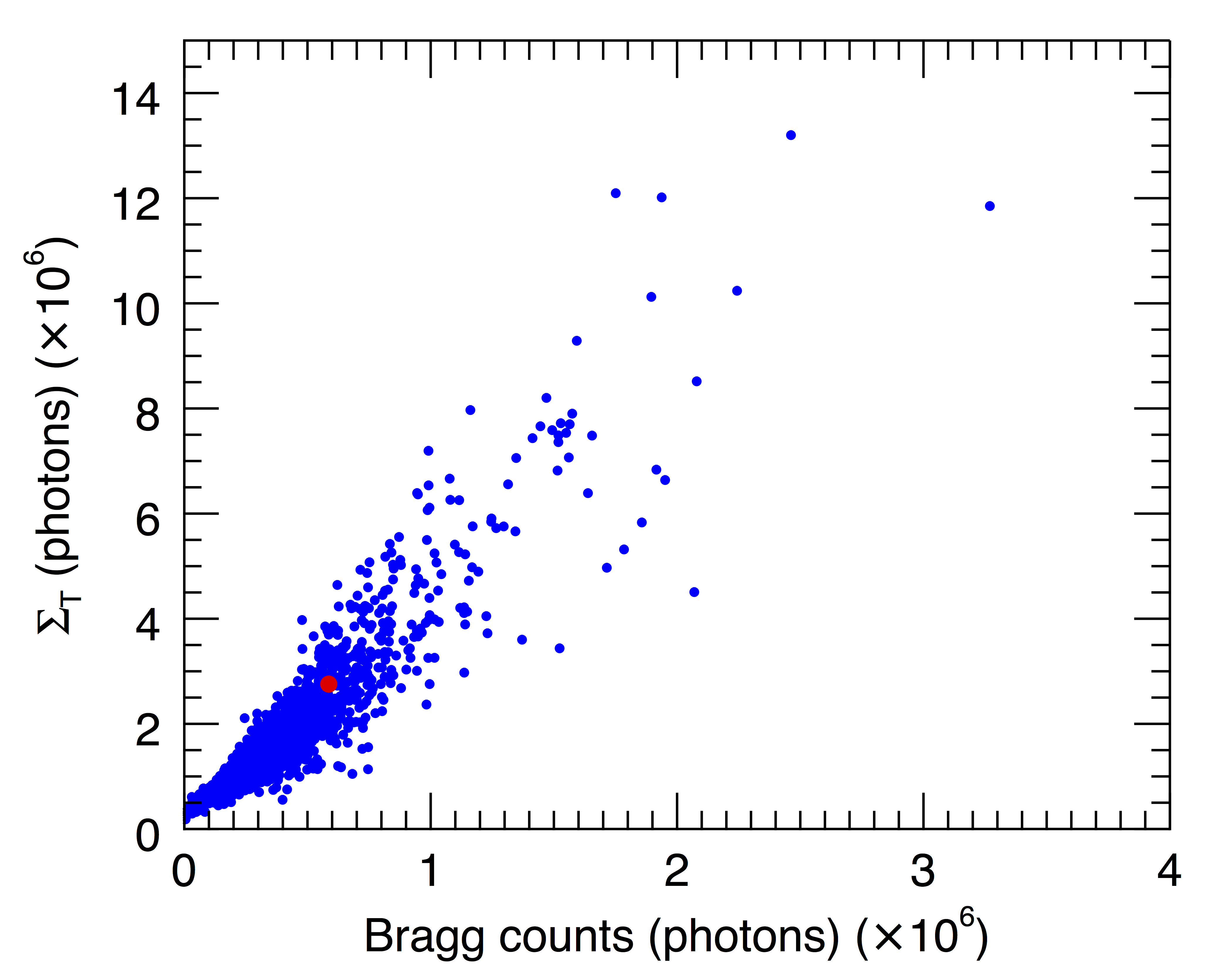

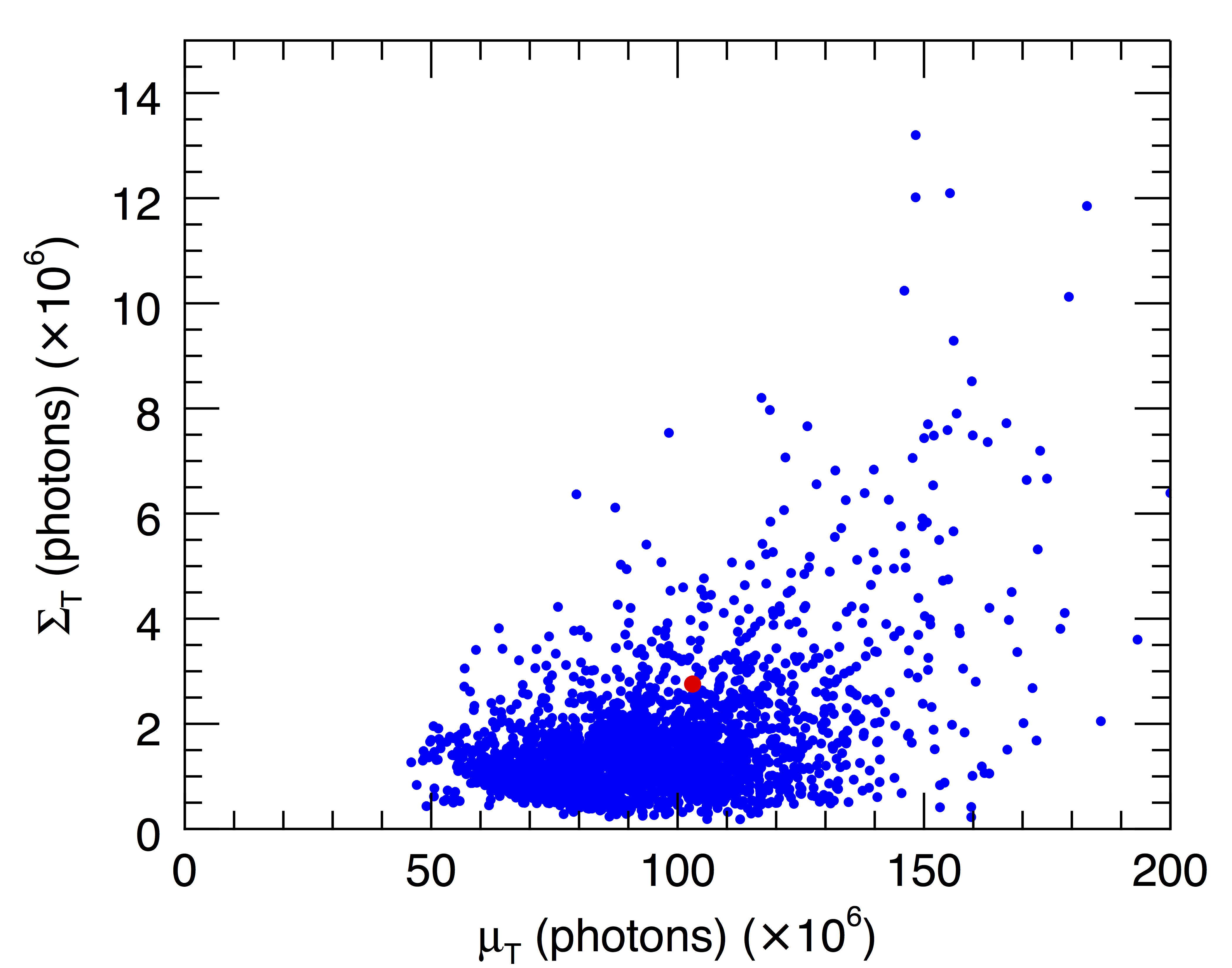

A plot of the continuous diffraction signal as a function of the total Bragg counts is given in Fig. 8 (b), indicating a high degree of correlation. As with the pattern discussed in Sec. 5.1, the continuous diffraction strength is about four times that of the Bragg counts, on average. The plot suggests that the strength of the continuous diffraction depends on the volume of the crystal in the same way as the total Bragg counts depends on the total number of unit cells contributing. This strong degree of correlation also indicates that all crystals possess a similar degree of disorder, such that the fraction of scattered counts in Bragg peaks versus continuous diffraction is roughly constant.

6 Statistics of the 3D Continuous Diffraction Intensities

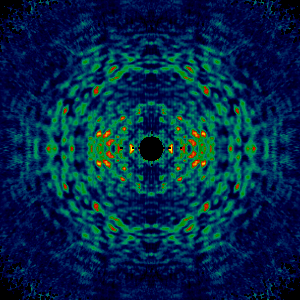

A 3D dataset of the continuously varying diffraction intensities of PS II was constructed using the approach described by Yefanov et al. [34] and Ayyer et al. [1]. Briefly, in this approach the orientation of each snapshot diffraction pattern was determined by indexing its Bragg spots using the software CrystFEL [35]. The pattern was then interpolated onto the appropriate spherical surface (the Ewald sphere) in a 3D array of reciprocal space, where the coordinates of the array were chosen to be parallel to the reciprocal lattice axes. Compared with the previous work [1], the smoothed background $\mu(q)$, interpolated onto the detector plane, was first subtracted from each pattern, which was also scaled by $1/\Sigma_{T}$, before merging into the 3D volume.

The $2514$ strongest patterns were chosen based on the values of $\Sigma_{T}$. After merging the patterns into the 3D array, the symmetry operations of the point group 222 were then applied corresponding to summing the 3D intensity array with copies of itself rotated about each of the three orthogonal axes of the crystal. This symmetrisation simply averages equivalent observations of intensities in order to increase the signal to noise. There is no loss of information in carrying out these operations since the crystal exhibits this symmetry anyway and the averaging cannot be avoided. We could also choose to impose centrosymmetry, which loses any information pertaining to Bijvoet differences. A map of the merged intensities in a central section normal to the [101] axis of the crystal is given in Fig. 9 (a), which can be compared with the previously published results in Fig. 9 (b) that were obtained by subtracting the radially-averaged intensity from each pattern [1]. Fig. 9 (b) appears to show more detail and contrast at high resolution, at least with the chosen colour scale. This may not be surprising, given that the no-crystal patterns were typically fit before subtracting, resulting in high contrast and negative intensities, neither of which accurately represents the incoherent sum of molecules in several orientations. The new method avoids over-subtraction of background and provides an improved scaling of the patterns.

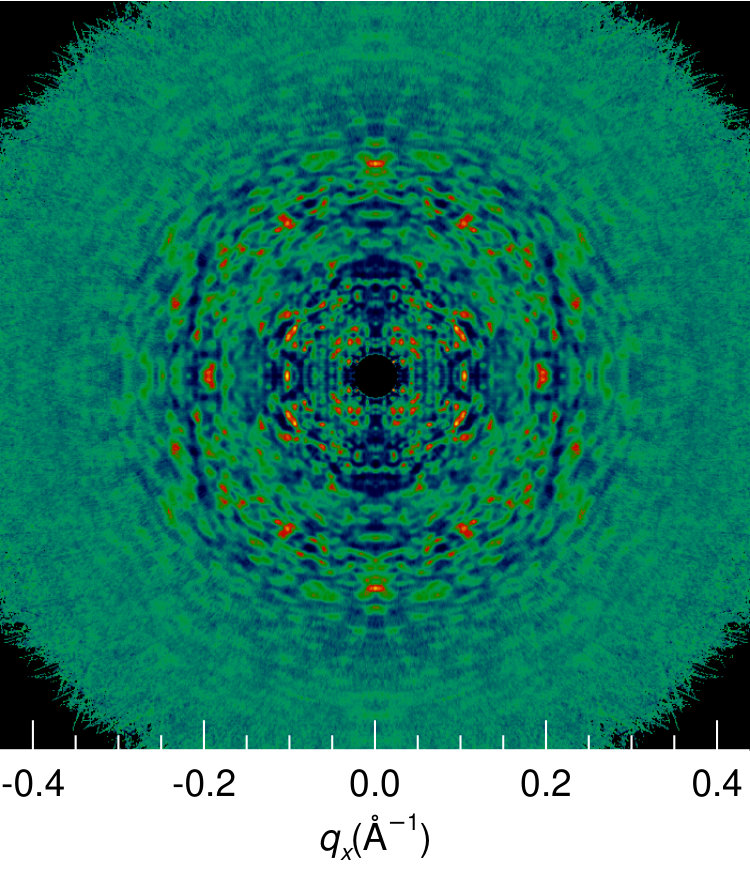

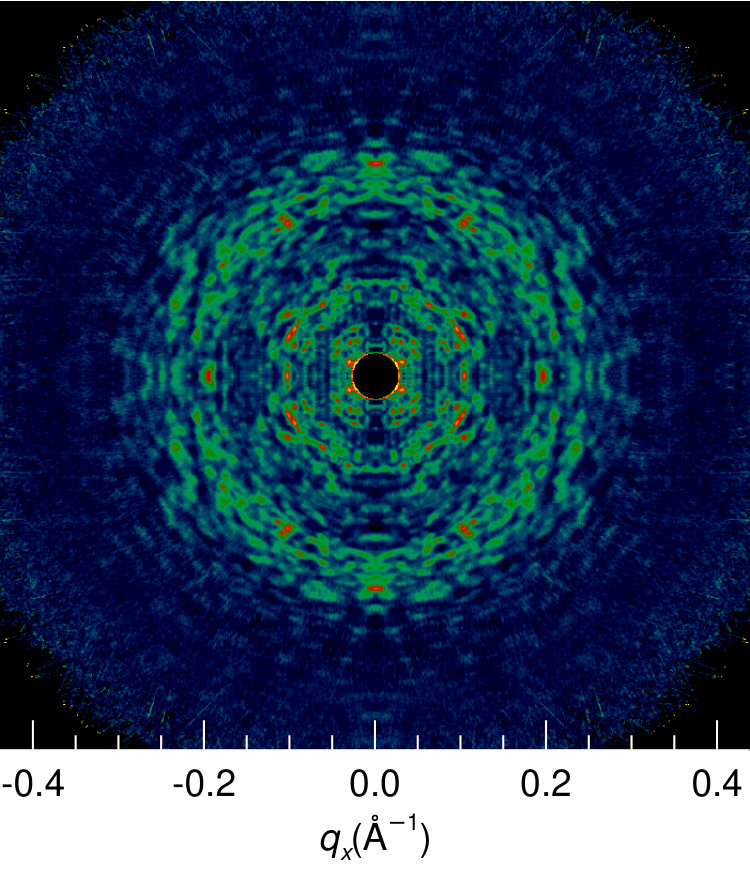

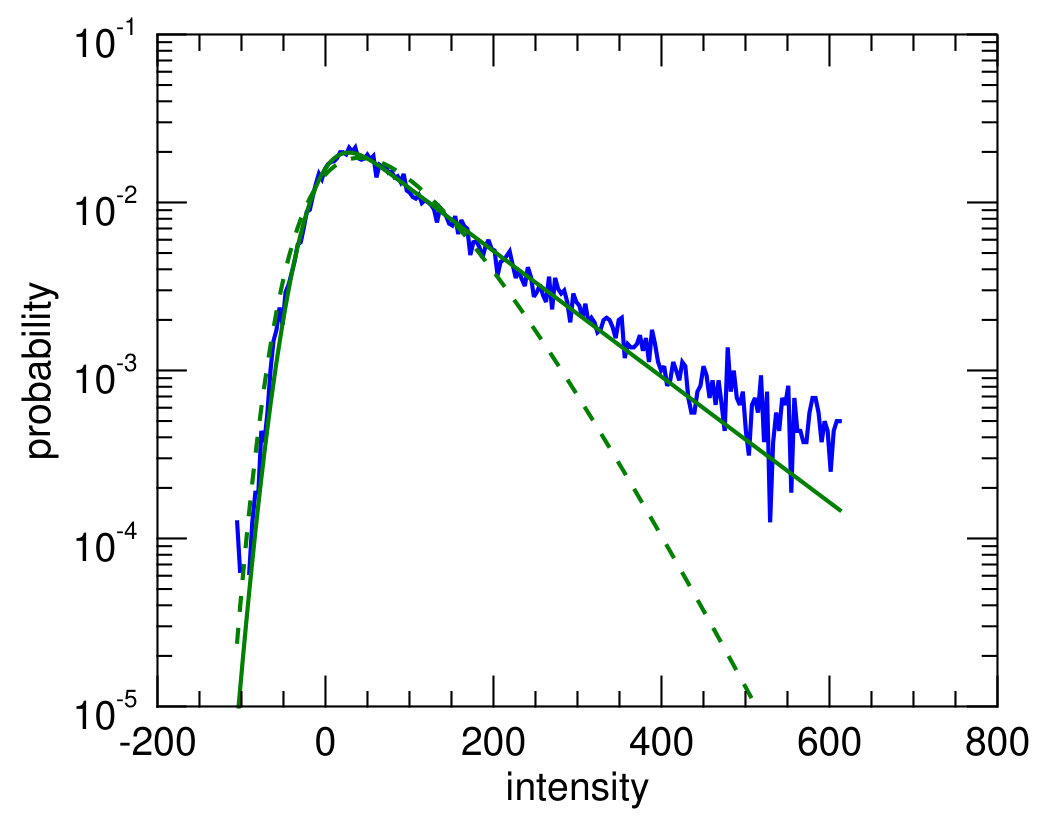

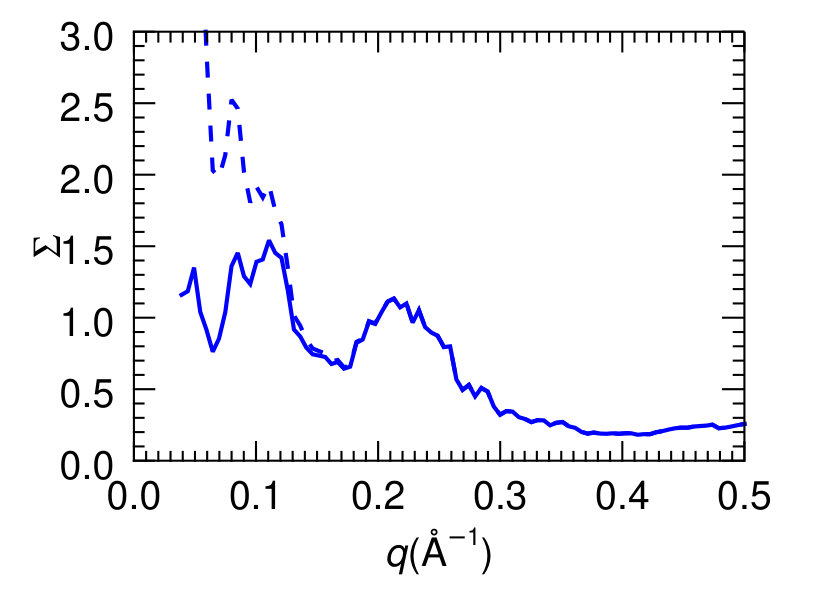

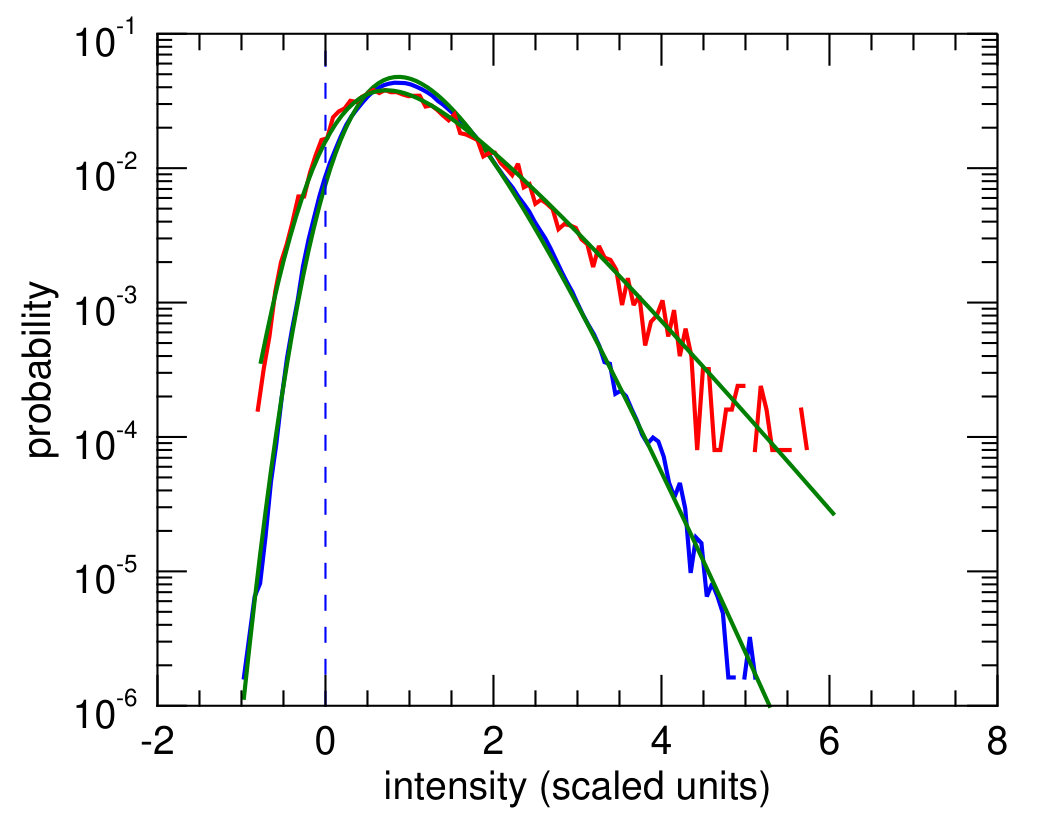

The statistics of the diffraction intensities in the 3D volume can be used to verify the scaling and placement of the data, and to verify the number of independent orientations of the rigid objects. For PS II crystals, which have P$2_{1}2_{1}2_{1}$ symmetry, we expect that non-centric continuous diffraction follows the the distribution $p_{NW}$ of Eqn. (16) with a twinning of $N=4$ and that the zones perpendicular to each of the crystallographic two-fold axes will be twinned with $N=2$. The intensities are expected to follow the non-discrete Gamma distribution with a normally distributed background since they arise from the sum of many scaled (and background subtracted) patterns. Histograms of intensities chosen from the shell lying between voxel radii of 170 and 185 (0.213\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$<q<$0.231\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}) are given in Fig. 10 (a), excluding the volume within 10 voxels of the three orthogonal zones, and for only those voxels lying on the three orthogonal zones. The histograms are normalised to unity total, giving an experimental probability distribution. It is immediately seen that the two distributions indeed are different, and fits of Eqn. (16) can be obtained for $N=4$ and $N=2$, respectively (green lines). Furthermore the fits were obtained for almost the same diffraction intensity mean, $\Sigma$, as expected. The fitted parameters (in arbitrary units due to the scaling) were $\sigma=0.30$ and $\Sigma=1.05$ for the $N=4$ “non-centric” intensities and $\sigma=0.36$ and $\Sigma=1.10$ for the $N=2$ centric intensities. Although the residual background level given by $\mu$ was low, it was subtracted to set this to zero. Thus there are some remaining negative intensities due to the distribution of the noise. The average per-voxel signal to noise of the 3D intensities in this shell is $\Sigma/\sigma=3.5$, larger than that of the individual patterns due to signal averaging. With $2514$ patterns included in this merged dataset, the multiplicity at $q=$0.22\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$$ was 24. The larger standard deviation for the centric intensities than for the centric intensities could be attributed to the smaller sample size ($5.0\text{\times}{10}^{4}$ versus $4.9\text{\times}{10}^{6}$ voxels).

The voxels of the 3D array have a width of $0.001\,25\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$, which is larger than the width of the detector pixels. The largest diameter of the PS II dimer is $178\text{\,}\mathrm{\SIUnitSymbolAngstrom}$, and thus the largest extent of its autocorrelation is $356\text{\,}\mathrm{\SIUnitSymbolAngstrom}$. The spacing for Nyquist sampling of the diffraction intensities, which are equal to the Fourier transform of the intensity pattern, is thus 1\text{/}356\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$=$0.0028\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}, giving a voxel width relative to this of $w=0.45$. From Fig. 3 (b) this should not impact the coherence of the merged pattern or the intensity statistics.

The Bragg intensities obtained by processing all $25\,585$ diffraction patterns using CrystFEL, are found to follow a negative exponential distribution, as shown in Fig. 10 (b) for a shell between 1\text{/}6\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$<q<$1\text{/}5\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}, excluding centric reflections. For this shell the intensities could be fit to the noisy Wilson distribution $p_{NW}(I,1)$ with a mean signal $\Sigma=116$ units and a background $\mu=-10.3$ units with a standard deviation of $\sigma=27.5$. The expected distribution in this case is for $N=1$ since there is no ambiguity of crystal orientation due to merohedry and hence no effective twinning. The intensities arise from coherent diffraction of the entire unit cell, and there is only one instance of that unit cell contributing to the Bragg intensities. The signal to noise in this shell is $\Sigma/\sigma=4.2$ which is only moderately greater than for the continuous diffraction even though ten times the number of patterns contribute and the intensities are concentrated into Bragg peaks. The distribution of Bragg intensities is clearly different to the continuous diffraction as can be seen in the slopes of the distributions in Fig. 10. Other values of $N$ do not fit as well to the distributions of the continuous and Bragg intensities. The fitting essentially amounts to the early twin tests [5] which identified twinning based on comparing the form of the cumulative distribution of intensities to the appropriate Gamma distributions. The fits here confirm that the continuous diffraction is indeed due to the incoherent sum of four independent objects whereas the Bragg diffraction arises from a single untwinned crystal. This is supporting evidence that the continuous diffraction measured from the PS II crystals does indeed arise from translational disorder of PS II dimers and not the monomers, since there are four orientations of PS II dimers in the crystals but eight orientations of monomers. The statistics alone can not reveal if the four objects are identical, but the symmetry of the continuous diffraction suggests that if they are different then they are equally distributed over the four orientations. The statistics also suggest that the background-corrected continuous diffraction does not have a significant contribution due to structural variability such as conformational disorder, since the diffraction from many smaller sub-structures would give rise to intensities approaching a Poisson distribution (the large $N$ limit of a Gamma distribution) and such diffraction presumably would not be completely rotationally invariant as was the Poisson-distributed background that was subtracted from each pattern. Some degree of orientational disorder of the rigid units is certainly possible, which would have the effect of reducing the diffraction contrast with increasing $q$, due to the blurring of speckles, as discussed in Sec. 2.

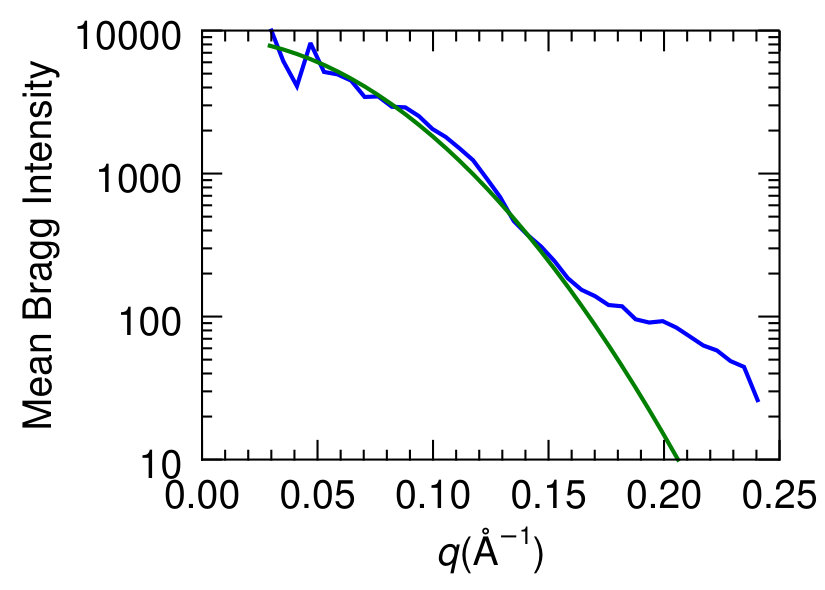

The scaling of the Bragg intensities as a function of $q$ is shown in Fig. 9 (d), plotted on a log scale, for comparison with the continuous diffraction plotted in Fig. 9 (c) on a linear graph. This scaling predominantly follows the familiar Wilson plot of Bragg intensities and the Debye Waller factor $e^{-4\pi^{2}\sigma_{\Delta}^{2}q^{2}}$ was fit with $\sigma_{\Delta}=$2.01\text{,}\mathrm{\SIUnitSymbolAngstrom}, which can be equated with an overall $B=8\pi^{2}\sigma_{\Delta}^{2}=$320\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{2}. That is, this is the $B$ factor computed by attributing the reduction of Bragg intensity with $q$ to atomic displacement, whereas it is clear from the existence of the continuous diffraction that the dependence of Bragg intensities with $q$ is mainly due to rigid body displacements of the molecular complexes. The effect of the complementary Debye Waller factor $1-e^{-4\pi^{2}\sigma_{\Delta}^{2}q^{2}}$ on the continuous diffraction is to suppress intensity at values of $q<$0.1\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$$. At higher photon momentum transfer than this, the factor is greater than 0.8 and thus has little effect. The mean intensity of the continuous diffraction, corrected for this factor, is given in Fig. 9 (c) as the dashed line.

7 Comparison with Atomic Model

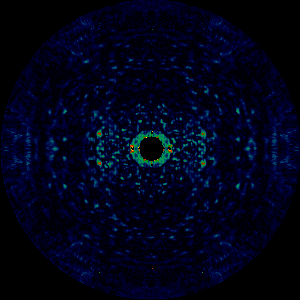

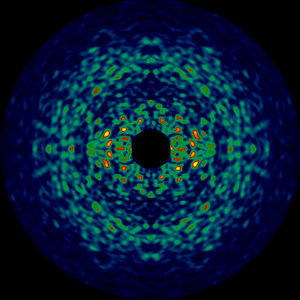

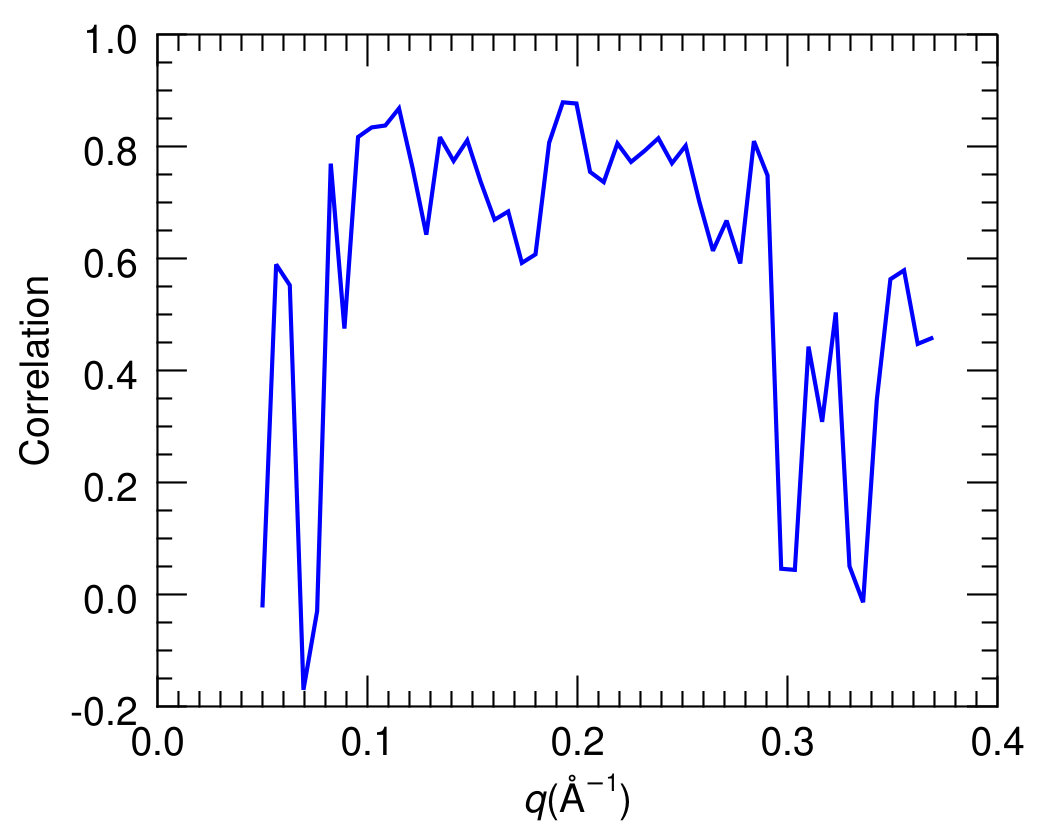

As a final analysis of the continuous diffraction, we compare it with the continuous diffraction of a disordered crystal of PS II as calculated from an atomic model. For the model we used atomic coordinates obtained by a refinement of a structure of the PS II dimer to the electron density obtained by diffractive imaging [1]. The molecular transform $F(\boldsymbol{q})$ of the PS II dimer was calculated by summing diffracted waves scattered from each atom on a 3D array of $q$ vectors spaced by $0.0025\text{\,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$ (twice that of the merged experimental data). From this the square modulus $|F(\boldsymbol{q})|^{2}$ was calculated before applying the rotation operations $\boldsymbol{R}_{m}$ of the point group of the crystal and incoherently summing the four equally-weighted sets of intensities. The 3D array was then multiplied by the factor $1-e^{-4\pi^{2}\sigma_{\Delta}^{2}q^{2}}$ with the previously determined value of $\sigma_{\Delta}=$2.01\text{,}\mathrm{\SIUnitSymbolAngstrom}$. It was found that the Pearson correlation between the experimental and computed data for the volume within the shell$0.088\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$<q<$0.29\text{,}{\mathrm{\SIUnitSymbolAngstrom}}^{-1}$$ was $0.67$, compared with a value of $0.55$ obtained previously [1]. An even higher degree of correlation of $0.77$ was obtained by blurring the computed intensities slightly by assuming rotational disorder of the PS II dimers by [math] RMS. To simulate this disorder, the symmetrised intensities were rotated in all three directions, by amounts chosen from a normal distribution with a width of [math]. This was repeated 500 times and the results averaged. Fig. 11 displays the experimental and calculated intensities, this time on one of the centric zones (normal to the 010 lattice vector), and the difference, all on the same colour scale. No manipulation of the background or scaling of the data was made—that is, there are no fitted parameters other than the [math] rotational blurring. A plot of the Pearson correlation coefficient computed in shells of $q$ is also given in Fig. 11. This reaches a maximum value of $0.88$. A very similar result was achieved by uniformly convolving the computed data by a $4\times 4\times 4$ voxel kernel instead of applying the rotational blurring. The high degree of correlation confirms the origin of the continuous diffraction and validates the approach of distinguishing the molecular diffraction from structureless background.

8 Discussion and Conclusions

We have carried out an extensive analysis of the continuous diffraction arising from translationally disordered crystals of PS II that was used previously for macromolecular coherent diffractive imaging [1]. That the diffraction could be directly phased, and used to obtain a volume image of the electron density of the PS II dimer, was certainly strong evidence that the continuous diffraction originates from the incoherent sum of randomly displaced rigid objects (the PS II dimers), but here that particular analysis was expanded with rigorous statistical tests to gain a deeper understanding of the nature of the continuous diffraction and how to measure it. One of the most crucial aspects in treating the continuous diffraction is distinguishing it from diffuse (i.e. structureless) background scattering. Unlike Bragg peaks which can easily be discriminated from a slowly-varying background in the diffraction pattern, the continuous diffraction cannot be readily separated from such background. In the previous work [1] the background was simply estimated from the radial average of the patterns. Such background was fitted to each crystal diffraction pattern with a result of maximising the contrast of the speckles of the molecular diffraction that ultimately led to an over-subtraction and negative intensities. In this work the statistics of the molecular diffraction intensities were exploited to obtain estimates of their scaling and zero level. In particular, the intensities in a shell of reciprocal space are assumed to follow a “noisy Wilson” distribution, which is that due to the sum of a random variables describing the structured signal and the unstructured background, where the signal follows the familiar Gamma distribution of Wilson statistics and the noise follows a normal distribution. When photon counting is considered, this corresponds to the sum of discrete random variables from a negative binomial distribution and a Poisson distribution.

The statistics of the structured component of the continuous diffraction depend on the number of independent objects contributing, or the number of modes in the speckle pattern. There are four orientations of dimers in PS II crystals, and since the displacements of each are random and uncorrelated the diffraction from each orientation adds incoherently, giving rise to continous diffraction with the same point group symmetry as the Bragg intensities. The statistics of the intensities thus do not follow the usual negative exponential of a single object, where the most common intensity value is zero (in between speckles), but a Gamma distribution that shows it is unlikely that zero intensity from one mode matches up with zero intensity from other modes. This reduction of speckle contrast must be taken into account when estimating the zero level of the structured diffraction. One way to achieve this is to fit the expected distribution to histograms of the measured intensities. More conveniently it is possible to solve for the means of the signal and background from the moments of the measured intensities using the formulae in Table 1.

Perhaps one of the surprising aspects of the analysis is that the continuous diffraction accounts for the majority of the diffracted signal. With the ability to partition photon counts into Bragg peaks, molecular diffraction, and background we found that the continuous molecular diffraction is about four times as strong as the Bragg diffraction. This is due to the greater area of diffraction space that the continuous diffraction covers, compared with the Bragg peaks that only extend to a resolution of about $5\text{\,}\mathrm{\SIUnitSymbolAngstrom}$. The molecules in the crystal scatter the same number of photons whether those molecules are perfectly registered on a lattice or if they are randomly displaced, and thus the diffraction counts beyond the cut-off of the Bragg peaks should be similar to the case of the perfect crystal. In the large ensemble of patterns the total number of counts in the continuous diffraction is found to be very strongly correlated with Bragg counts, showing that the strength of both the continuous and Bragg diffraction depends on the size of the crystal. Of course, since those counts are not concentrated into sparse Bragg peaks the signal to background of the continuous diffraction is lower than for Bragg peaks. For example, if individual Bragg peaks fit in a single pixel and were spaced on average by 10 pixels in each direction, then the counts per pixel in the continuous diffraction would be about 1% of the equivalent Bragg signal. Nevertheless, since individual speckles cover similar areas to the spacings between Bragg peaks (depending on the size of the rigid unit compared to the width of the unit cell), the total counts per speckle is similar to the Bragg counts and the signal to background is found to be almost comparable to the Bragg signal.

The low numbers of photons per pixel in the continuous diffraction is of course one reason why less attention is paid to it than the easily-measured Bragg peaks. This also demands a proper treatment of counting statistics when estimating the contributions due to signal and background. For example, in the case of continuous random variable the structureless background is considered to follow the normal distribution. This distribution has no skew, and thus any skew in the distribution of measured intensities is a signature of structured diffraction signal. However, the Poisson distribution is skewed due to there being no negative photon counts, and the skew is significant even at signal levels approaching 100 counts. It was found that only the use of discrete statistics gave rise to a reasonable estimation of the background of individual snapshot patterns whereas the non-discrete statistics resulted in over-estimation of structured diffraction signal, as clearly illustrated in Figs. 6 and  7. The counting statistics are obviously modified by any scaling of the measured intensities, such as the correction of the effect of linear X-ray polarisation. In the Poisson distribution the variance is equal to the mean, which is not the case if counts are multiplied by some factor. Regions of near-equal counts from which to determine moments of the photon-counting distribution were therefore obtained by averaging the polarisation corrected pattern in shells of $q$, and then reapplying the polarisation factor. Such an approach will not be valid for background due to fluorescence or which is non-uniformly distributed across the detector face: the conditions of the experiment must be carefully controlled to avoid such contamination.

We are currently exploring the effectiveness of the approach presented here on continuous diffraction data recorded from other samples and with different types of detectors. Until then, it is premature to release software, but we list in Appendix Appendix B: Procedure for processing diffraction data the steps of the procedure used here to obtain the 3D array of continuous diffraction intensities such as shown in Fig. 9 (a).

The fruit of the method presented here is clearly seen in the improved continuous diffraction intensity maps that are obtained—compare for example Figs. 9 (a) and (b). The background subtracted from the individual patterns, as well as from the merged 3D array, are all smooth functions that are rotationally symmetric (apart from the polarisation factor). Hence the manipulations do nothing to the speckles other than locally alter their contrast. The result shows a very high degree of correlation with the continuous diffraction calculated from an atomic model, with an overall value of $\mathrm{CC}=0.77$, compared with a value of 0.55 previously reported [1]. The signal is well distinguished from background even in the case of a strong background that was more than 25 times the diffraction signal. Stronger diffraction should arise from bigger crystals, and it is worth exploring the quality of the continuous diffraction with crystal size. Our first demonstration of macromolecular diffractive imaging may have been on the most challenging samples, but there may be an advantage of collecting diffraction from small volumes. Given the relative strength of signal and background the volume of each crystal was about 4% on average of the total probed volume of the jet, assuming the background is due entirely to the jet (and not to pulse-induced disorder of the molecules [33] or conformational variability [36], for example). The maximum jet diameter was about $5\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and the beam diameter was 1 to $2\text{\,}\mathrm{\SIUnitSymbolMicro m}$, giving a total probed volume of up to about $20\text{\,}{\mathrm{\SIUnitSymbolMicro m}}^{3}$. Thus the diffracting crystal volume was on average less than $1\text{\,}{\mathrm{\SIUnitSymbolMicro m}}^{3}$ even though the crystals were visually more than 10 times this volume.

The analysis presented here may prove useful to studies of protein dynamics, which have examined continuous diffraction from crystals due to various kinds of differences of the constituent molecules from the average [37, 38, 39, 40]. Such measurements are usually not time resolved and hence cannot distinguish static from dynamic disorder, but such measurements can be compared with diffraction calculations based on molecular dynamics trajectories to hopefully gain insights into protein motion and function. As shown here and in the previous work [1] one can establish the origin of the continuous diffraction and account for the dominant effects (such as translation of rigid units) prior to examining the effects of correlated motions. For example, the autocorrelation function obtained by a Fourier transformation of the continuous diffraction intensities reveals the shape and size of rigid units. Indeed, previous studies of lysozyme crystals determined from the speckle size that the rigid unit was the size of a lysozyme molecule [39], and considerations of the mechanical properties of protein crystals lead to the conclusion that molecular translations and rotations (dependent on the elastic and shear moduli repectively) in these bodies are inevitable [41]. Based on the formalism of Morozov [41], a molecular displacement of $\sigma_{\Delta}=$2\text{,}\mathrm{\SIUnitSymbolAngstrom}$$ at room temperature for a molecule width of $178\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ implies a Young’s modulus of only $0.01\text{\,}\mathrm{GPa}$. This is similar to soft rubber, which is consistent with experience in handling these crystals.

The statistics of diffraction intensities, and in particular the speckle contrast directly yields information of the number of independent modes contributing to the diffraction. Together with the symmetry of the crystal, this can indicate whether such independent objects correspond to asymmetric units in the crystal. Comparing centric and acentric sections gives further evidence of the origin of the diffraction. In all studies of continuous diffraction it is imperative to accurately measure the diffraction at a sufficient sampling in all three dimensions, and to remove the the background that accompanies such measurements. The approach given here is shown to be effective in extracting single-molecule diffraction from patterns arising from translationally-disordered crystals and it is expected that it may similarly improve measurements of continuous diffraction due to other kinds of disorder.

Although beyond the scope of this paper, we expect that the improved treatment of the background should lead to a better structure determination from the continuous diffraction through iterative phasing. A better correlation with the simulated diffraction was found by assuming a [math] rotational disorder of the PS II dimers. For the $178\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ diameter dimer, this will cause a blurring of the structure at resolutions beyond $3\text{\,}\mathrm{\SIUnitSymbolAngstrom}$, but by using methods of partially-coherent diffractive imaging [25] it should be possible to take such blurring into account, to a resolution where speckles are no longer visible. That the speckles do indeed appear visible to the edge of the detector at $2\text{\,}\mathrm{\SIUnitSymbolAngstrom}$ resolution suggests that with more measurements, structural information should be obtainable to at least that resolution.

Appedix A: The “noisy Wilson” distribution

We consider non-discrete acentric diffraction intensities incoherently summed with a background $I_{B}$ that is normally distributed with a mean $\mu$ and variance $\sigma^{2}$, $I_{B}\sim\mathcal{N}(\mu,\sigma)$, with

[TABLE]

We refer to the distribution of this sum $I\sim\mathrm{Gamma}(N,\Sigma/N)+\mathcal{N}(\mu,\sigma)$ as the noisy Wilson distribution, with a probability distribution function found by convolution of Eqns. (3) and (15) as

[TABLE]

where

[TABLE]

and ${}_{1}F_{1}$ is the confluent hypergeometric function. For $N=1$, 2, 4, 6, and 8, $h_{N}$ evaluates to

[TABLE]

where $F_{H}(x)$ is proportional to the scaled complementary error function,

[TABLE]

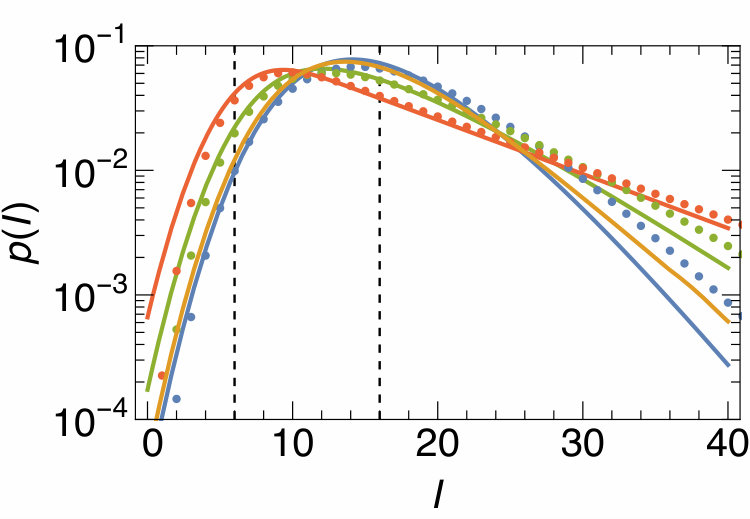

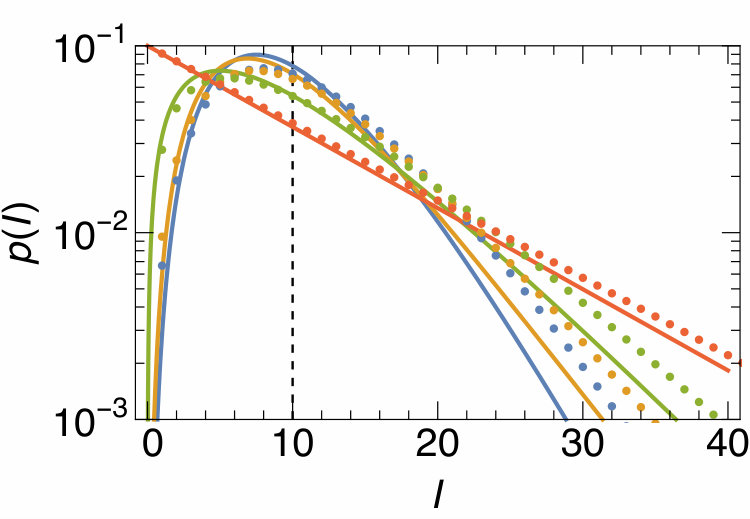

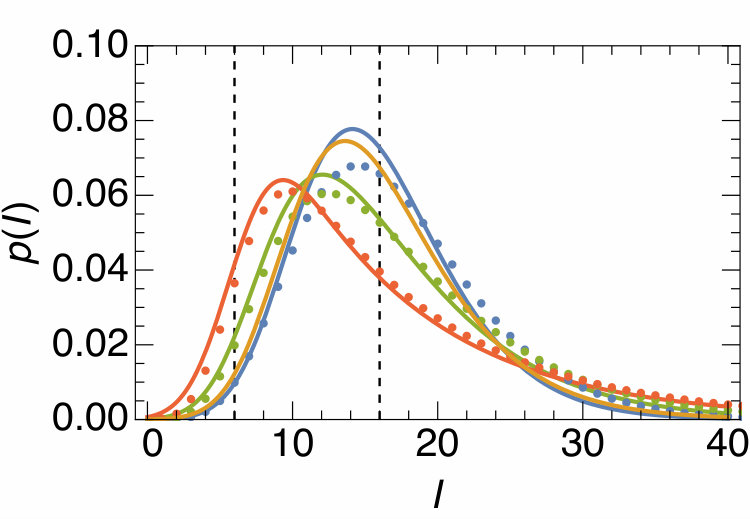

Some plots of $p_{NW}(I)$ are given in Figs. 2 (c) and (d).

Equations (16) and (17) can be evaluated for non-integer values of $N$, such as needed to account for partial coherence, by computing the series expansion of the confluent hypergeometric function.

Appendix B: Procedure for processing diffraction data

The following itemises the steps taken to process still diffraction patterns of crystals recorded in random orientations or a series of orientations. Here it is assumed that the patterns are recorded with a common (unchanging) detector geometry and wavelength, the incident beam is linearly polarised, and the unstructured background is radially symmetric when corrected by the polarisation factor. The procedure also assumes intensity data in units of photon counts, either obtained using a well-calibrated integrating detector or a photon counting detector.

Process the dataset using CrystFEL [35] to find the indexable patterns and the lattice orientation for each indexed pattern, as well as to create a set of merged Bragg intensities. 2. 2.

For each indexed pattern (calibrated and bad areas of the detector masked, but otherwise uncorrected for polarisation):

1. (a)

Mask Bragg peaks using a threshold filter or the peakfinder8 procedure from Cheetah [42]. Dilate the mask by a kernel about 7 pixels wide. The intensities in the masked pixels are not included in any further analysis. 2. (b)

Create contours of $I_{av}$, Eqn. (7), at a spacing of about 1 photon count, and from these determine contiguous regions bounded by those contours. 3. (c)

Calculate the moments (mean and variance) of photon counts in each contiguous region to compute the parameters of the discrete noisy Wilson distribution $\bar{\mu}$, $\bar{\Sigma}$ from Eqns. (14) with the appropriate value of $N$ (here $N=4$). 4. (d)

Set the background $\mu(k_{x},k_{y})$ to values $\bar{\mu}$ for each region, then smooth with a square kernel of about 3 pixels width. 5. (e)

Determine a scaling array $\Sigma(k_{x},k_{y})$ in a similar way to step 22 (d). 6. (f)

Subtract the smoothed background of step 22 (d) from the pattern. 7. (g)

Normalise the pattern by dividing by the sum of $\Sigma(k_{x},k_{y})$ from step 22 (e) over a predetermined range of $|\boldsymbol{k}|$. 8. (h)

Correct for polarisation by dividing by the polarisation factor $P(k_{x},k_{y})$, Eqn. 7. 3. 3.

Merge the corrected patterns into a 3D reciprocal space volume by interpolating each onto the appropriate Ewald sphere in the frame of reference of the crystal lattice [34]. The spacing of voxels in the 3D array should be chosen to sufficiently sample the highest frequencies of the continuous diffraction, $\Delta q<1/(2w)$ where $w$ is the width of the rigid body. 4. 4.

Apply the symmetry operations of the point group of the diffraction to the 3D array (here, point group 222). 5. 5.

Calculate moments of the scaled intensities in shells of $q$ from the 3D array and calculate parameters of the noisy Wilson distribution $\mu$, $\sigma$, and $\Sigma$ in those shells via Eqns. (13), avoiding centric zones. 6. 6.

Construct $\mu(\boldsymbol{q})$ for all voxels of the 3D array, smooth it with a three-dimensional kernel of about 3 pixels wide, and then subtract this from the merged intensities, to account for residual background. 7. 7.

Determine scaling and background of the merged Bragg intensities (from step 1) in shells of $q$ by applying the same procedure as per step 5 but with the appropriate value of $N$ (here $N=1$). Fit the Debye-Waller factor to the values $\Sigma(q)$ for these Bragg intensities to obtain $\sigma_{\Delta}$. 8. 8.

Correct the continuous diffraction intensities by dividing by the complementary Debye-Waller factor $1-\exp(-4\pi^{2}\sigma_{\Delta}^{2}q^{2})$.
