Fast Statistical Timing Analysis for Circuits with Post-Silicon Tunable Clock Buffers

TL;DR

This paper introduces a rapid, graph-based method for statistical timing analysis of circuits with Post-Silicon Tunable buffers, significantly outperforming traditional Monte Carlo simulations and aiding optimization.

Contribution

It presents a novel graph transformation approach for fast, parametric timing analysis of PST buffers, improving speed and critical gate identification.

Findings

Over 1000x faster than Monte Carlo simulation

Accurately computes parametric minimum clock period

Identifies critical gates for performance optimization

Abstract

Post-Silicon Tunable (PST) clock buffers are widely used in high performance designs to counter process variations. By allowing delay compensation between consecutive register stages, PST buffers can effectively improve the yield of digital circuits. To date, the evaluation of manufacturing yield in the presence of PST buffers is only possible using Monte Carlo simulation. In this paper, we propose an alternative method based on graph transformations, which is much faster, more than 1000 times, and computes a parametric minimum clock period. It also identifies the gates which are most critical to the circuit performance, therefore enabling a fast analysis-optimization flow.

Figures

Full text

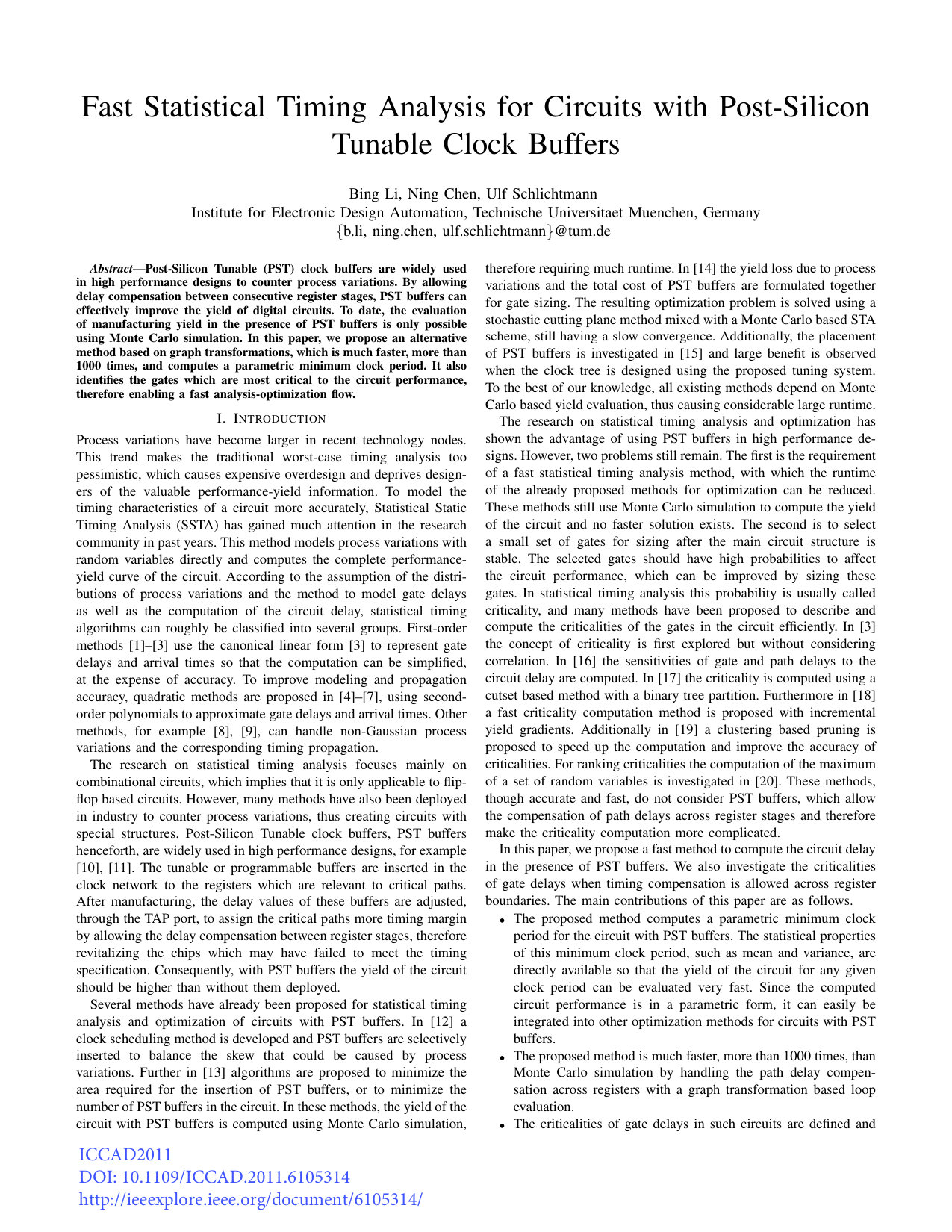

See pages 1-last of SSTA_PST_ICCAD2011.pdf
