Measuring K$^0_{\rm S}$K$^{\rm \pm}$ interactions using Pb-Pb collisions at ${\sqrt{s_{\rm NN}}=2.76}$ TeV

TL;DR

This paper reports the first femtoscopic measurements of K0sK± interactions in Pb-Pb collisions at 2.76 TeV, providing insights into the $a_0(980)$ resonance and its possible tetraquark structure.

Contribution

It introduces the first measurement of femtoscopic correlations between K0s and K± particles in heavy-ion collisions, constraining the properties of the $a_0(980)$ resonance.

Findings

Correlation parameters for K0sK− and K0sK+ are consistent within uncertainties.

Results support the $a_0(980)$ resonance being a tetraquark rather than a diquark.

Mass and coupling parameters of the $a_0$ are constrained by the data.

Abstract

We present the first ever measurements of femtoscopic correlations between the K$^0_{\rm S}$ and K$^{\rm \pm}$ particles. The analysis was performed on the data from Pb-Pb collisions at $\sqrt{s_{\rm NN}}=2.76$ TeV measured by the ALICE experiment. The observed femtoscopic correlations are consistent with final-state interactions proceeding via the $a_0(980)$ resonance. The extracted kaon source radius and correlation strength parameters for K$^0_{\rm S}$K$^{\rm -}$ are found to be equal within the experimental uncertainties to those for K$^0_{\rm S}$K$^{\rm +}$. Comparing the results of the present study with those from published identical-kaon femtoscopic studies by ALICE, mass and coupling parameters for the $a_0$ resonance are constrained. Our results are also compatible with the interpretation of the $a_0$ having a tetraquark structure over that of a diquark.

Figures

Tables

Table 1. Table 1: The a 0 subscript 𝑎 0 a_{0} masses and coupling parameters, all in GeV (taken from Ref. [ 2 ] ).

Reference	$m_{a_0}$	${\gamma }_{a_{0}K\overline{K}}$	${\gamma }_{a_0\pi \eta }$
Martin [7]	0.974	0.333	0.222
Antonelli [8]	0.985	0.4038	0.3711
Achasov1 [9]	0.992	0.5555	0.4401
Achasov2 [9]	1.003	0.8365	0.4580

Table 2. Table 2: Fit results for R 𝑅 R and λ 𝜆 \lambda extracted in the present analysis from K S 0 subscript superscript absent 0 S {}^{0}_{\rm S} K ± femtoscopy averaged over K S 0 subscript superscript absent 0 S {}^{0}_{\rm S} K + and K S 0 subscript superscript absent 0 S {}^{0}_{\rm S} K - . Statistical and systematic errors are also shown.

Parameters	$R$ (fm) or $\lambda$	all $k_T$	GeV/$c$	$k_T>0.675$ GeV/$c$
Achasov2	$R$	$5.17\pm 0.16\pm 0.41$	$6.71\pm 0.40\pm 0.42$	$4.75\pm 0.18\pm 0.36$
	$\lambda$	$0.587\pm 0.034\pm 0.051$	$0.651\pm 0.073\pm 0.076$	$0.600\pm 0.040\pm 0.034$
Achasov1	$R$	$4.92\pm 0.15\pm 0.39$	$6.30\pm 0.40\pm 0.43$	$4.49\pm 0.18\pm 0.30$
	$\lambda$	$0.650\pm 0.038\pm 0.056$	$0.723\pm 0.087\pm 0.091$	$0.649\pm 0.048\pm 0.038$
Antonelli	$R$	$4.66\pm 0.17\pm 0.46$	$5.74\pm 0.36\pm 0.26$	$4.07\pm 0.18\pm 0.29$
	$\lambda$	$0.624\pm 0.044\pm 0.058$	$0.703\pm 0.085\pm 0.077$	$0.613\pm 0.052\pm 0.037$
Martin	$R$	$3.29\pm 0.12\pm 0.35$	$4.46\pm 0.25\pm 0.20$	$2.90\pm 0.11\pm 0.41$
	$\lambda$	$0.305\pm 0.020\pm 0.033$	$0.376\pm 0.041\pm 0.037$	$0.296\pm 0.021\pm 0.030$

Table 3. Table 3: Comparisons of R 𝑅 R and λ 𝜆 \lambda from K S 0 subscript superscript absent 0 S {}^{0}_{\rm S} K ± with identical kaon results.

Parameters	${\chi }_R^2/\mathrm{ndf}$	$R$ p-value	${\chi }_{\lambda }^2/\mathrm{ndf}$	$\lambda$ p-value	$⟨\frac{\lambda \left(K_S^0{K}^{\pm }\right)}{\lambda \left(KK\right)}⟩$
Achasov2	0.456	0.713	0.248	0.863	1.04$\pm$0.17
Achasov1	0.583	0.626	0.712	0.545	1.14$\pm$0.20
Antonelli	1.297	0.273	0.302	0.824	1.09$\pm$0.20
Martin	14.0	0.000	22.2	0.000	0.55$\pm$0.10

Equations

$$|{\mathrm{K}}_S^0⟩=\frac{1}{\sqrt{2}}\left(|{\mathrm{K}}^0⟩+|{\overline{\mathrm{K}}}^0⟩\right),$$

$$C(k^{\ast })=A(k^{\ast })/B(k^{\ast })$$

$$k^{\ast }=\sqrt{\frac{(s-m_{{\mathrm{K}}^0}^2-m_{{\mathrm{K}}^{\pm }}^2{)}^2-4m_{{\mathrm{K}}^0}^2{m}_{{\mathrm{K}}^{\pm }}^2}{4s}}$$

$$s=m_{{\mathrm{K}}^0}^2+m_{{\mathrm{K}}^{\pm }}^2+2E_{{\mathrm{K}}^0}{E}_{{\mathrm{K}}^{\pm }}-2{\vec{p}}_{{\mathrm{K}}^0}\cdot {\vec{p}}_{{\mathrm{K}}^{\pm }}$$

$${\Psi }_{-\vec{k}{}^{\ast }}(\vec{r}{}^{\ast })=e^{-i\vec{k}{}^{\ast }\cdot \vec{r}{}^{\ast }}+f(k^{\ast })\frac{e^{i{k}^{\ast }{r}^{\ast }}}{r^{\ast }},$$

$$f(k^{\ast })=\frac{{\gamma }_{a_0\to \mathrm{K}\overline{\mathrm{K}}}}{m_{a_0}^2-s-i({\gamma }_{a_0\to \mathrm{K}\overline{\mathrm{K}}}{k}^{\ast }+{\gamma }_{a_0\to \pi \eta }{k}_{\pi \eta })}.$$

$$C(\vec{k}{}^{\ast })=\int {\mathrm{d}}^3\vec{r}{}^{\ast }S(\vec{r}{}^{\ast }){\left|{\Psi }_{-\vec{k}{}^{\ast }}(\vec{r}{}^{\ast })\right|}^2,$$

$$S(\vec{r}{}^{\ast })\sim e^{-{|\vec{r}{}^{\ast }|}^2/(4R^2)}.$$

$$C(k^{\ast })=1+\lambda \alpha \left[\frac{1}{2}{\left|\frac{f(k^{\ast })}{R}\right|}^2+\frac{2\mathcal{R}f(k^{\ast })}{\sqrt{\pi }R}{F}_1(2k^{\ast }R)-\frac{\mathcal{I}f(k^{\ast })}{R}{F}_2(2k^{\ast }R)\right],$$

$$F_1(z)\equiv \frac{\sqrt{\pi }{e}^{-z^2}\mathrm{erfi}(z)}{2z};F_2(z)\equiv \frac{1-e^{-z^2}}{z}.$$

$$C_{raw}^{fit}(k^{\ast })=a(1-b{k}^{\ast }+c{k}^{\ast 2})C(k^{\ast })$$

$${\chi }_{\omega }^2/\mathrm{ndf}=\frac{1}{\nu }\sum _{i=1}^3\frac{[{\omega }_i(K_{\mathrm{S}}^0{K}^{\pm })-{\omega }_i(KK){]}^2}{{\sigma }_i^2}$$

Full text

\PHyear2017 \PHnumber063 \PHdate06 Apr

\ShortTitleK${}^{0}_{\rm S}$K± interaction using Pb-Pb collisions

\CollaborationALICE Collaboration††thanks: See Appendix A for the list of collaboration members \ShortAuthorALICE Collaboration

We present the first ever measurements of femtoscopic correlations between the K${}^{0}_{\rm S}$ and K± particles. The analysis was performed on the data from Pb-Pb collisions at $\sqrt{s_{\rm NN}}=2.76$ TeV measured by the ALICE experiment. The observed femtoscopic correlations are consistent with final-state interactions proceeding via the $a_{0}(980)$ resonance. The extracted kaon source radius and correlation strength parameters for K${}^{0}_{\rm S}$K- are found to be equal within the experimental uncertainties to those for K${}^{0}_{\rm S}$K+. Comparing the results of the present study with those from published identical-kaon femtoscopic studies by ALICE, mass and coupling parameters for the $a_{0}$ resonance are tested. Our results are also compatible with the interpretation of the $a_{0}$ having a tetraquark structure instead of that of a diquark.

1 Introduction

Identical boson femtoscopy, especially of identical charged pions, has been used extensively over the years to study experimentally the space-time geometry of the collision region in high-energy particle and heavy-ion collisions [1]. Identical-kaon femtoscopy studies have also been carried out, recent examples of which are the ones with Au-Au collisions at $\sqrt{s_{\rm NN}}=200$ GeV by the STAR Collaboration [2] (K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$) and with pp at $\sqrt{s}=7$ TeV and Pb-Pb collisions at $\sqrt{s_{\rm NN}}=2.76$ TeV by the ALICE Collaboration [3, 4, 5] (K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ and K*±K±*). The pair-wise interactions between the identical kaons that form the basis for femtoscopy are for K±K± quantum statistics and the Coulomb interaction, and for K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ quantum statistics and the final-state interaction through the $f_{0}(980)/a_{0}(980)$ threshold resonances.

One can also consider the case of non-identical kaon pairs, e.g. K${}^{0}_{\rm S}$K± pairs. Besides the non-resonant channels which may be present, e.g. non-resonant elastic scattering or free-streaming of the kaons from their freeze-out positions to the detector, the other only pair-wise interaction allowed for a K${}^{0}_{\rm S}$K± pair at freeze out from the collision system is a final-state interaction (FSI) through the $a_{0}(980)$ resonance. The other pair-wise interactions present for identical-kaon pairs are not present for K${}^{0}_{\rm S}$K± pairs because: a) there is no quantum statistics enhancement since the kaons are not identical, b) there is no Coulomb effect since one of the kaons is uncharged, and c) there is no strong FSI through the $f_{0}$ resonance since the kaon pair is in an $I=1$ isospin state, as is the $a_{0}$, whereas the $f_{0}$ is an $I=0$ state.

Another feature of the K${}^{0}_{\rm S}$K± FSI through the $a_{0}$ resonance is, due to the $a_{0}$ having strangeness $S=0$ and the K${}^{0}_{\rm S}$ being a linear combination of the K0 and ${\rm\overline{K}^{0}}$,

[TABLE]

only the ${\rm\overline{K}^{0}}$K+ pair from K${}^{0}_{\rm S}$K+ and the K0K- pair from K${}^{0}_{\rm S}$K- have $S=0$ and thus can form the $a_{0}$ resonance. This allows the possibility to study the K0 and ${\rm\overline{K}^{0}}$ sources separately since they are individually selected by studying K${}^{0}_{\rm S}$K- and K${}^{0}_{\rm S}$K+ pairs, respectively. An additional consequence of this feature is that only $50\%$ of either the K${}^{0}_{\rm S}$K- or K${}^{0}_{\rm S}$K+ detected pairs will pass through the $a_{0}$ resonance. This is taken into account in the expression for the model used to fit the correlation functions.

On the other hand, the natural requirement that the source sizes extracted from the K${}^{0}_{\rm S}$K± femtoscopy agree with those obtained for the K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ and K±K± systems allows one to study the properties of the $a_{0}$ resonance itself. This is interesting in its own right since many studies discuss the possibility that the $a_{0}$, listed by the Particle Data Group as a diquark light unflavored meson state [6], could be a four-quark state, i.e. a tetraquark, or a “${\rm\overline{K}}-$K molecule” [7, 8, 9, 10, 11, 12]. For example, the production cross section of the $a_{0}$ resonance in a reaction channel such as ${\rm K}^{0}{\rm K}^{-}\rightarrow a^{-}_{0}$ should depend on whether the $a^{-}_{0}$ is composed of ${\rm d\overline{u}}$ or ${\rm d\overline{s}s\overline{u}}$ quarks, the former requiring the annihilation of the ${\rm\overline{s}s}$ pair and the latter being a direct transfer of the quarks in the kaons to the $a^{-}_{0}$. The results from K${}^{0}_{\rm S}$K- femtoscopy might be sensitive to these two different scenarios.

In this Letter, results from the first study of K${}^{0}_{\rm S}$K± femtoscopy are presented. This has been done for Pb-Pb collisions at $\sqrt{s_{\rm NN}}=2.76$ TeV measured by the ALICE experiment at the LHC [13]. The physics goals of the present K${}^{0}_{\rm S}$K± femtoscopy study are the following:

1. show to what extent the FSI through the $a_{0}$ resonance describes the correlation functions,
2. study the K0 and ${\rm\overline{K^{0}}}$ sources to see if there are differences in the source parameters, and
3. test published $a_{0}$ mass and coupling parameters by comparisons with published identical kaon results [5].

2 Description of experiment and data Selection

The ALICE experiment and its performance in the LHC Run 1 $(2009-2013)$ are described in Ref. [13] and Ref. [14, 15], respectively. About $22\times 10^{6}$ Pb-Pb collision events with [math]–$10\%$ centrality class taken in 2011 were used in this analysis (the average centrality in this range is 4.9% due to a slight trigger inefficiency in the 8-10% range). Events were classified according to their centrality using the measured amplitudes in the V0 detectors, which consist of two arrays of scintillators located along the beamline and covering the full azimuth [16]. Charged particles were reconstructed and identified with the central barrel detectors located within a solenoid magnet with a field strength of $B=0.5$ T. Charged particle tracking was performed using the Time Projection Chamber (TPC) [17] and the Inner Tracking System (ITS) [13]. The ITS allowed for high spatial resolution in determining the primary (collision) vertex. Tracks were reconstructed and their momenta were obtained with the TPC. A momentum resolution of less than 10 MeV/$c$ was typically obtained for the charged tracks of interest in this analysis. The primary vertex was obtained from the ITS, the position of the primary vertex being constrained along the beam direction (the “$z$-position”) to be within $\pm 10$ cm of the center of the ALICE detector. In addition to the standard track quality selections, the track selections based on the quality of track reconstruction fit and the number of detected tracking points in the TPC were used to ensure that only well-reconstructed tracks were taken in the analysis [14, 15].

Particle identification (PID) for reconstructed tracks was carried out using both the TPC and the Time-of-Flight (TOF) detector in the pseudorapidity range $|\eta|<0.8$ [14, 15]. For each PID method, a value was assigned to each track denoting the number of standard deviations between the measured track information and calculated values ($N_{\sigma}$) [5, 14, 15]. For TPC PID, a parametrized Bethe-Bloch formula was used to calculate the specific energy loss $\left<{\rm d}E/{\rm d}x\right>$ in the detector expected for a particle with a given mass and momentum. For PID with TOF, the particle mass was used to calculate the expected time-of-flight as a function of track length and momentum. This procedure was repeated for four “particle species hypotheses”—electron, pion, kaon and proton—, and, for each hypothesis, a different $N_{\sigma}$ value was obtained per detector.

2.1 Kaon selection

The methods used to select and identify individual K${}^{0}_{\rm S}$ and K± particles are the same as those used for the ALICE Pb-Pb K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ and K±K± analyses [5]. These are now described below.

2.1.1 K${}^{0}_{\rm S}$ selection

The K${}^{0}_{\rm S}$ particles were reconstructed from the decay K${}^{0}_{\rm S}\rightarrow\pi^{+}\pi^{-}$, with the daughter $\pi^{+}$ and $\pi^{-}$ tracks detected in the TPC and TOF detectors. Pions with $p_{\rm T}>0.15$ GeV/$c$ were accepted (since for lower $p_{\rm T}$ track finding efficiency drops rapidly) and the distance of closest approach to the primary vertex (DCA) of the reconstructed K${}^{0}_{\rm S}$ was required to be less than 0.3 cm in all directions. The required $N_{\sigma}$ values for the pions were $N_{\sigma TPC}<3$ and $N_{\sigma TOF}<3$ for $p>0.8$ GeV/$c$. An invariant mass distribution for the $\pi^{+}\pi^{-}$ pairs was produced and the K${}^{0}_{\rm S}$ was defined to be resulting from a pair that fell into the invariant mass range $0.480<m_{\pi^{+}\pi^{-}}<0.515$ GeV/$c^{2}$.

2.1.2 K± selection

Charged kaon tracks were also detected using the TPC and TOF detectors, and were accepted if they were within the range $0.14<p_{\rm T}<1.5$ GeV/$c$. In order to reduce the number of secondaries (for instance the charged particles produced in the detector material, particles from weak decays, etc.) the primary charged kaon tracks were selected based on the DCA, such that the DCA transverse to the beam direction was less than 2.4 cm and the DCA along the beam direction was less than 3.2 cm. If the TOF signal were not available, the required $N_{\sigma}$ values for the charged kaons were $N_{\sigma TPC}<2$ for $p_{\rm T}<0.5$ GeV/$c$, and the track was rejected for $p_{\rm T}>0.5$ GeV/$c$. If the TOF signal were also available and $p_{\rm T}>0.5$ GeV/$c$: $N_{\sigma TPC}<3$ and $N_{\sigma TOF}<2$ ($0.5<p_{\rm T}<0.8$ GeV/$c$), $N_{\sigma TOF}<1.5$ ($0.8<p_{\rm T}<1.0$ GeV/$c$), $N_{\sigma TOF}<1$ ($1.0<p_{\rm T}<1.5$ GeV/$c$).

K${}^{0}_{\rm S}$K± experimental pair purity was estimated from a Monte Carlo (MC) study based on HIJING [18] simulations using GEANT3 [19] to model particle transport through the ALICE detectors. The purity was determined from the fraction of the reconstructed MC simulated pairs that were identified as actual K${}^{0}_{\rm S}$K± pairs input from HIJING. The pair purity was estimated to be 88% for all kinematic regions studied in this analysis.

3 Analysis methods

3.1 Experimental Correlation Functions

This analysis studies the momentum correlations of K${}^{0}_{\rm S}$K± pairs using the two-particle correlation function, defined as

[TABLE]

where $A(k^{*})$ is the measured distribution of pairs from the same event, $B(k^{*})$ is the reference distribution of pairs from mixed events, and $k^{*}$ is the magnitude of the momentum of each of the particles in the pair rest frame (PRF),

[TABLE]

where,

[TABLE]

and $m_{\rm K^{0}}$ ($E_{\rm K^{0}}$) and $m_{\rm K^{\pm}}$ ($E_{\rm K^{\pm}}$) are the rest masses (total energies) of the K${}^{0}_{\rm S}$ and K±, respectively.

The denominator $B(k^{*})$ was formed by mixing K${}^{0}_{\rm S}$ and K± particles from each event with particles from ten other events. The vertexes of the mixed events were constrained to be within 2 cm of each other in the $z$-direction. A centrality constraint on the mixed events was found not to be necessary for the narrow centrality range, i.e. [math]–$10\%$, used in this analysis. Correlation functions were obtained separately for two different magnetic field orientations in the experiment and then either averaged or fit separately, depending on the fitting method used (see below).

Correlation functions were measured for three overlapping/non-exclusive pair transverse momentum ($k_{\rm T}=|\textbf{p}_{\rm T,1}+\textbf{p}_{\rm T,2}|/2$) bins: all $k_{\rm T}$, $k_{\rm T}<0.675$ and $k_{\rm T}>0.675$ GeV/$c$. The mean $k_{\rm T}$ values for these three bins were 0.675, 0.425 and 0.970 GeV/$c$, respectively. Figure 1 shows sample raw K${}^{0}_{\rm S}$K+ correlation functions for these three bins for one of the magnetic field orientations. One can see the main feature of the femtoscopic correlation function: the suppression due to the strong final-state interactions for small $k^{*}$. In the higher $k^{*}$ region, the effects of the $a_{0}$ appear to not be present and thus could be used as a reference, i.e. “baseline”, for the $a_{0}$-based model fitted to $C(k^{*})$ in order to extract the source parameters. Also shown in the figure are linear fits to the baseline for large $k^{*}$. The effects on $C(k^{*})$ by the $a_{0}$ resonance are mostly seen in the $k^{*}<0.2$ GeV/$c$ region, where the width of the $a_{0}$ region reflects the size of the kaon source (see equations below).

Correlation functions were corrected for momentum resolution effects using HIJING calculations. HIJING was used to create two correlation functions: one in terms of the generator-level $k^{*}$ and one in terms of the simulated detector-level $k^{*}$. Because HIJING does not incorporate final-state interactions, weights were calculated using a 9th-order polynomial fit in $k^{*}$ to an experimental correlation function and were used when filling the same-event distributions. These weights were calculated using $k^{*}$. Then, the ratio of the “ideal” correlation function to the “measured” one (for each $k^{*}$ bin) was multiplied to the data correlation functions before the fit procedure. This correction mostly affected the lowest $k^{*}$ bins, increasing the extracted source parameters by several percent.

3.2 Final-state interaction model

The K${}^{0}_{\rm S}$K± correlation functions were fit with functions that include a parameterization which incorporates strong FSI. It was assumed that the FSI arises in the K${}^{0}_{\rm S}$K± channels due to the near-threshold resonance, $a_{0}$(980). This parameterization was introduced by R. Lednicky and is based on the model by R. Lednicky and V.L. Lyuboshitz [20, 21] (see also Ref. [2] for more details on this parameterization).

Using an equal emission time approximation in the PRF [20], the elastic K${}^{0}_{\rm S}$K± transition is written as a stationary solution $\Psi_{-\vec{k}\mkern 2.0mu\vphantom{k}^{*}}(\vec{r}\mkern 2.0mu\vphantom{r}^{*})$ of the scattering problem in the PRF. The quantity $\vec{r}\mkern 2.0mu\vphantom{r}^{*}$ represents the emission separation of the pair in the PRF, and the $-\vec{k}\mkern 2.0mu\vphantom{k}^{*}$ subscript refers to a reversal of time from the emission process. At large distances this has the asymptotic form of a superposition of a plane wave and an outgoing spherical wave,

[TABLE]

where $f(k^{*})$ is the $s$-wave K0K- or $\overline{\rm K}^{0}$K+ scattering amplitude whose contribution is the $s$-wave isovector $a_{0}$ resonance (see Eq. 11 in Ref. [2]),

[TABLE]

In Eq. 6, $m_{a_{0}}$ is the mass of the $a_{0}$ resonance, and $\gamma_{a_{0}\rightarrow{\rm K\overline{K}}}$ and $\gamma_{a_{0}\rightarrow\pi\eta}$ are the couplings of the $a_{0}$ resonance to the K0K- (or $\overline{\rm K}^{0}$K+) and $\pi\eta$ channels, respectively. Also, $s=4(m_{\rm K^{0}}^{2}+k^{*2})$ and $k_{\pi\eta}$ denotes the momentum in the second decay channel ($\pi\eta$) (see Table 1).

The correlation function due to the FSI is then calculated by integrating $\Psi_{-\vec{k}\mkern 2.0mu\vphantom{k}^{*}}(\vec{r}\mkern 2.0mu\vphantom{r}^{*})$ in the Koonin-Pratt equation [22, 23]

[TABLE]

where $S(\vec{r}\mkern 2.0mu\vphantom{r}^{*})$ is a one-dimensional Gaussian source function of the PRF relative distance $\left|\vec{r}\mkern 2.0mu\vphantom{r}^{*}\right|$ with a Gaussian width $R$ of the form

[TABLE]

Equation 7 can be integrated analytically for K${}^{0}_{\rm S}$K± correlations with FSI for the one-dimensional case, with the result

[TABLE]

where

[TABLE]

In the above equations $\alpha$ is the fraction of K${}^{0}_{\rm S}$K*±* pairs that come from the K0K- or $\overline{\rm K}^{0}$K+ system, set to 0.5 assuming symmetry in K0 and $\overline{\rm K}^{0}$ production [2], $R$ is the radius parameter from the spherical Gaussian source distribution given in Eq. 8, and $\lambda$ is the correlation strength. The correlation strength is unity in the ideal case of pure $a_{0}$-resonant FSI, perfect PID, a perfect Gaussian kaon source and the absence of long-lived resonances which decay into kaons. Note that the form of the FSI term in Eq. 9 differs from the form of the FSI term for $\rm K^{0}_{S}\rm K^{0}_{S}$ correlations (Eq. 9 of Ref. [2]) by a factor of $1/2$ due to the non-identical particles in K${}^{0}_{\rm S}$K± correlations and thus the absence of the requirement to symmetrize the wavefunction given in Eq. 5.

As seen in Eq. 6, the K0K- or $\overline{\rm K}^{0}$K+ s-wave scattering amplitude depends on the $a_{0}$ mass and decay couplings. In the present work, we have taken the values used in Ref. [2] which have been extracted from the analysis of the $a_{0}\rightarrow\pi\eta$ spectra of several experiments [7, 8, 10, 9], shown in Table 1. The extracted $a_{0}$ mass and decay couplings have a range of values for the various references. Except for the Martin reference [7], which extracts the $a_{0}$ values from the reaction 4.2 GeV/$c$ incident momentum K${}^{-}+p\rightarrow\Sigma^{+}(1385)\pi^{-}\eta$ using a two-channel Breit-Wigner formula, the other references extract the $a_{0}$ values from the radiative $\phi$-decay data, i.e. $\phi\rightarrow\pi^{0}\eta\gamma$, from the KLOE collaboration [24]. These latter three references apply a model that assumes, after taking into account the $\phi\rightarrow\pi^{0}\rho^{0}\rightarrow\pi^{0}\eta\gamma$ background process, that the $\phi$ decays to the $\pi^{0}\eta\gamma$ final state through the intermediate processes $\phi\rightarrow{\rm K}^{+}{\rm K}^{-}\gamma\rightarrow a_{0}\gamma$ or $\phi\rightarrow{\rm K}^{+}{\rm K}^{-}\rightarrow a_{0}\gamma$, i.e. the “charged kaon loop model” [9]. The main difference between these analyses is that the Antonelli reference [8] assumes a fixed $a_{0}$ mass in the fit of this model to the $\pi^{0}\eta$ data, whereas the Achasov1 and Achasov2 analyses [9] allow the $a_{0}$ mass to be a free parameter in the two different fits made to the data. It is assumed in the present analysis that these decay couplings will also be valid for K0K- and $\overline{\rm K}^{0}$K+ scattering due to isospin invariance. Correlation functions were fitted with all four of these cases to see the effect on the extracted source parameters.

3.3 Fitting methods

In order to estimate the systematic errors in the fitting method used to extract $R$ and $\lambda$ using Eq. 9, two different methods, judged to be equally valid, have been used to handle the effects of the baseline: 1) a separate linear fit to the “baseline region,” followed by fitting Eq. 9 to the correlation function divided by the linear fit to extract the source parameters, and 2) a combined fit of Eq. 9 and a quadratic function describing the baseline where the source parameters and the parameters of the quadratic function are fitted simultaneously. The source parameters are extracted for each case from both methods and averaged, the symmetric systematic error for each case due to the fitting method being one-half of the difference between the two methods. Both fitting methods will now be described in more detail.

3.3.1 Linear baseline method

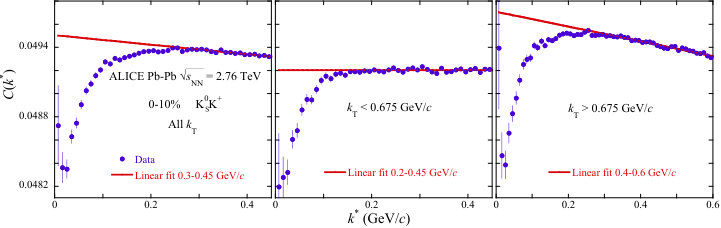

In the “linear baseline method,” for the all $k_{\rm T}$, $k_{\rm T}<0.675$ and $k_{\rm T}>0.675$ GeV/$c$ bins the $a_{0}$ regions were taken to be $k^{*}<0.3$, $k^{*}<0.2$ and $k^{*}<0.4$ GeV/$c$, respectively. In the higher $k^{*}$ region it was assumed that effects of the $a_{0}$ were not present and thus can be used as a reference, i.e. “baseline”, for the $a_{0}$-based model fitted to $C(k^{*})$, which was averaged over the two magnetic field orientations used in the experiment, to extract the source parameters. For the three $k_{\rm T}$ bins, linear fits were made in the $k^{*}$ ranges $0.3$–$0.45$, $0.2$–$0.45$ and $0.4$–$0.6$ GeV/$c$, respectively, and the correlation functions were divided by these fits to remove baseline effects extending into the low-$k^{*}$ region. These ranges were taken to define the baselines since the measured correlation functions were found to be linear here. For larger values of $k^{*}$ the correlation functions became non-linear. The baseline was studied using HIJING MC calculations which take into account the detector characteristics as described earlier. The $C(k^{*})$ distributions obtained from HIJING do not show suppressions at low $k^{*}$ as seen in Fig. 1 but rather show linear distributions over the entire ranges in $k^{*}$ shown in the figure. HIJING also shows the baseline becoming non-linear for larger values of $k^{*}$, as seen in the measurements. The MC generator code AMPT [25] was also used to study the baseline. AMPT is similar to HIJING but also includes final-state rescattering effects. AMPT calculations also showed linear baselines in the $k^{*}$ ranges used in the present analysis, becoming non-linear for larger $k^{*}$. Both HIJING and AMPT qualitatively show the same direction of changes in the slopes of the baseline vs. $k_{\rm T}$ as seen in the data, but AMPT more accurately described the slope values themselves, suggesting that final-state rescattering plays a role in the $k_{\rm T}$ dependence of the baseline slope. The systematic uncertainties on the extracted source parameters due to the assumption of linearity in these $k^{*}$ regions were estimated from HIJING to be less than 1%.

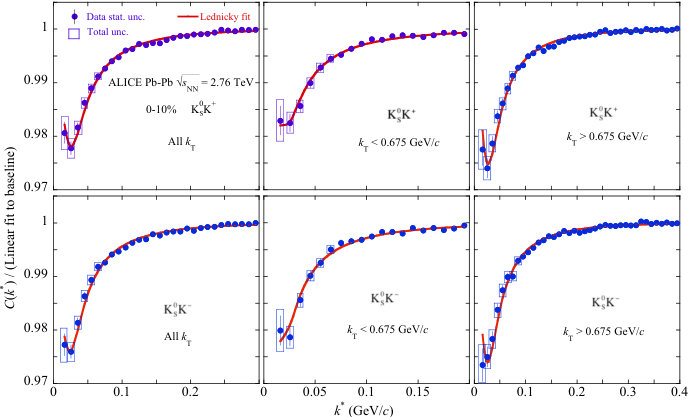

Figure 2 shows examples of K${}^{0}_{\rm S}$K+ and K${}^{0}_{\rm S}$K- correlation functions divided by linear fits to the baseline with Eq. 9 using the Achasov2 parameters. One can see the main feature of the femtoscopic correlation function: the suppression due to the strong final-state interactions for small $k^{*}$. As seen, the $a_{0}$ FSI parameterization gives an excellent representation of the “signal region” of the data, i.e. the suppression of the correlation functions in the $k^{*}$ range 0 to about 0.15 GeV/$c$.

3.3.2 Quadratic baseline method

In the “quadratic baseline method,” $R$ and $\lambda$ are extracted assuming a quadratic baseline function by fitting the product of a quadratic function and the Lednicky equation, Eq. 9, to the raw correlation functions for each of the two magnetic field orientations used in the experiment, such as shown in Fig. 1, i.e. ,

[TABLE]

where $C(k^{*})$ is given by Eq. 9, and $a$, $b$ and $c$ are fit parameters. Eq. 11 is fit to the same $k^{*}$ ranges as shown in Fig. 1, i.e. [math]–$0.45$ GeV/$c$ for all $k_{\rm T}$ and $k_{\rm T}<0.675$ GeV/$c$, and [math]–$0.6$ GeV/$c$ for $k_{\rm T}>0.675$ GeV/$c$. The fits to the experimental correlation functions are found to be of similar good quality as seen for the linear baseline method fits shown in Fig. 2.

3.4 Systematic uncertainties

Systematic uncertainties on the extracted source parameters were estimated by varying the ranges of kinematic and PID cut values on the data by $\pm 10\%$ and $\pm 20\%$, as well as from MC simulations. The main systematic uncertainties on the extracted values of $R$ and $\lambda$ due to various sources, not including the baseline fitting method, are: a) $k^{*}$ fitting range: 2%, b) single-particle and pair cuts (e.g. DCA cuts, PID cuts, pair separation cuts): $2\%$–$4\%$ for $R$ and $3\%$–$8\%$ for $\lambda$, and c) pair purity: 1% on $\lambda$. Combining the individual systematic uncertainties in quadrature, the total systematic uncertainties on the extracted source parameters, not including the baseline fitting method contribution, are in the ranges $3\%$–$5\%$ for $R$ and $4\%$–$8\%$ for $\lambda$.

As mentioned earlier, for the two fitting methods, the source parameters are extracted for each case from both methods and averaged, the symmetric systematic error for each case due to the fitting method being one-half of the difference between the two methods. The baseline fitting method systematic error thus obtained is added in quadrature with the systematic errors given above. It is found that the size of the baseline fitting method systematic errors are about 50% larger for $R$ and of similar magnitude for $\lambda$ as those quoted above for the non-fitting-method systematic errors.

4 Results and discussion

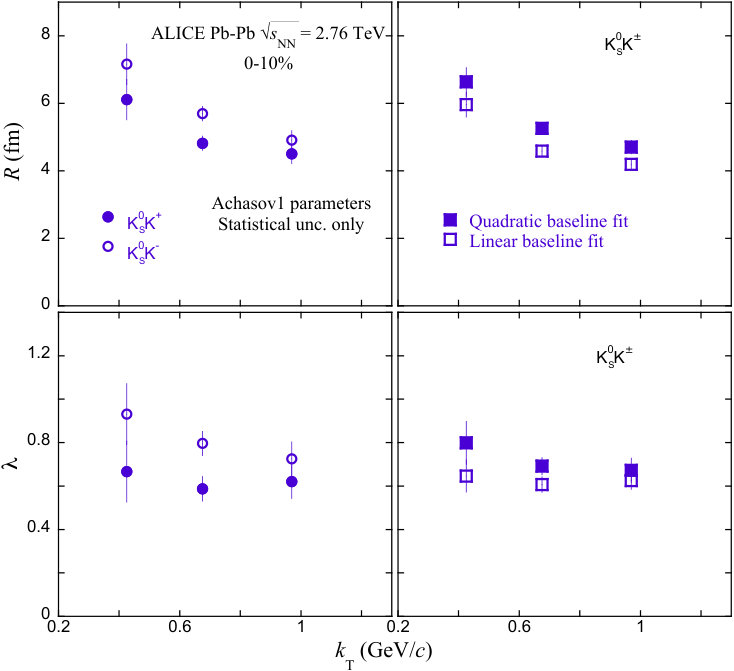

Figure 3 shows sample results for the $R$ and $\lambda$ parameters extracted in the present analysis from K${}^{0}_{\rm S}$K± femtoscopy using the Achasov1 parameters. The left column compares K${}^{0}_{\rm S}$K+ and K${}^{0}_{\rm S}$K- results from the quadratic baseline fit method, and the right column compares results averaged over K${}^{0}_{\rm S}$K+ and K${}^{0}_{\rm S}$K- for the quadratic baseline fits and the linear baseline fits. As it is usually the case in femtoscopic analyses, the fitted $R$ and $\lambda$ parameters are correlated. The fitting (statistical) uncertainties are taken to be the extreme values of the $1\sigma$ fit contours in $R$ vs. $\lambda$. Statistical uncertainties are plotted for all results. It is seen in the figure that the $R$ and $\lambda$ values for K${}^{0}_{\rm S}$K- have a slight tendency to be larger than those for K${}^{0}_{\rm S}$K+. Such a difference could result from the K- – nucleon scattering cross section being larger than that for K+ – nucleon (see Fig. 51.9 of Ref. [6]), possibly resulting in more final-state rescattering for the K-. Since the difference is not significant once systematic uncertainties are taken into account, K${}^{0}_{\rm S}$K+ and K${}^{0}_{\rm S}$K- are averaged over in the final results. The difference in the extracted parameters between the two baseline fitting methods is also seen to be small, and is accounted for as a systematic error, as described earlier.

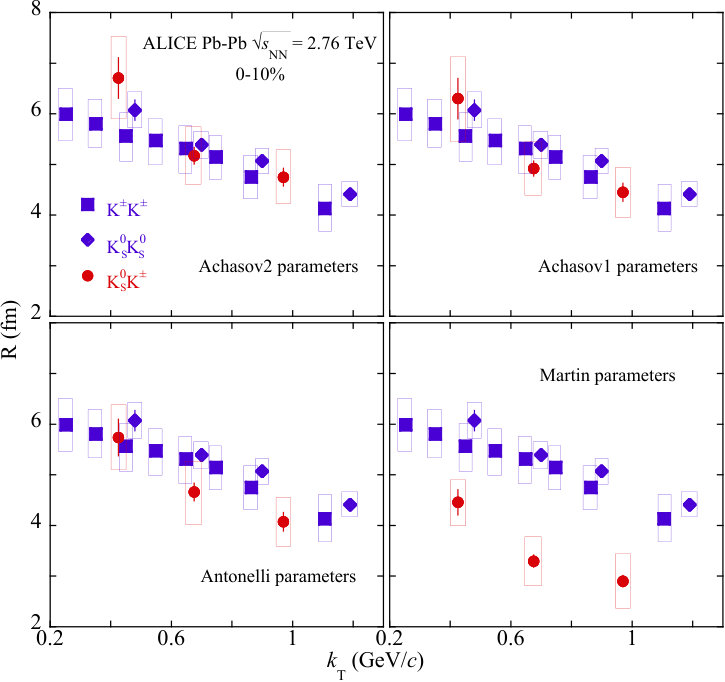

The results for the $R$ and $\lambda$ parameters extracted in the present analysis from K${}^{0}_{\rm S}$K± femtoscopy, averaged over the two baseline fit methods and averaged over K${}^{0}_{\rm S}$K+ and K${}^{0}_{\rm S}$K-, are presented in Table 2 and in Figs. 4 and 5. Fit results are shown for all four parameter sets given in Table 1. Figs. 4 and 5 also show comparisons with identical kaon results for the same collision system and energy from ALICE from Ref. [5]. Statistical and total uncertainties are shown for all results.

As shown in Fig. 4, both Achasov parameter sets, with the larger $a_{0}$ masses and decay couplings, appear to give $R$ values that agree best with those obtained from identical-kaon femtoscopy. The Antonelli parameter set appears to give slightly lower values. Comparing the measured $R$ values between K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ and K*±K±* in Fig. 4 they are seen to agree with each other within the uncertainties. In fact, the only reason for the femtoscopic K${}^{0}_{\rm S}$K± radii to be different from the K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ and K*±K±* ones would be if the K${}^{0}_{\rm S}$ and K*±* sources were displaced with respect to each other. This is not expected because the collision dynamics is governed by strong interactions for which the isospin symmetry applies.

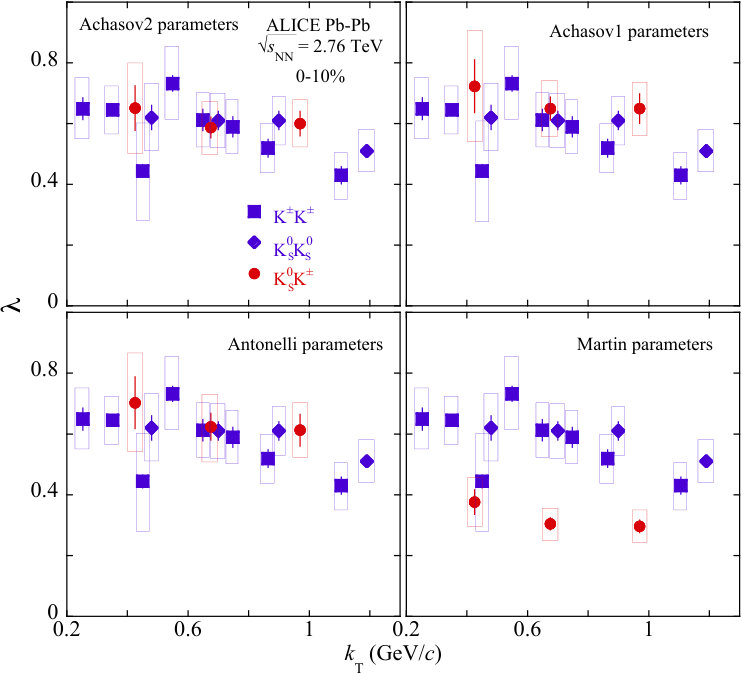

The results for the correlation strength parameters $\lambda$ are shown in Fig. 5. The $\lambda$ parameters from K${}^{0}_{\rm S}$K± and K*±K±* are corrected for experimental purity [5].The K${}^{0}_{\rm S}$K${}^{0}_{\rm S}$ pairs have a high purity of $>90\%$, so the corresponding correction was neglected [5](see the earlier discussion on purity). Statistical and total uncertainties are shown for all results.

The K${}^{0}_{\rm S}$K± $\lambda$ values, with the exception of the Martin parameters, appear to be in agreement with the $\lambda$ values for the identical kaons. All of the $\lambda$ values are seen to be measured to be about 0.6, i.e. less than the ideal value of unity, which can be due to the contribution of kaons from K∗ decay ($\Gamma\sim 50$ MeV, where $\Gamma$ is the decay width) and from other long-lived resonances (such as the $D$-meson) distorting the spatial kaon source distribution away from the ideal Gaussian which is assumed in the fit function [26]. One would expect that the K${}^{0}_{\rm S}$K± $\lambda$ values agree with those from the identical kaons if the FSI for the K${}^{0}_{\rm S}$K± went solely through the $a_{0}$ resonant channel since this analysis should see the same source distribution.

In order to obtain a more quantitative comparison of the present results for $R$ and $\lambda$ with the identical kaon results, the $\chi^{2}/{\rm ndf}$ is calculated for $R$ and $\lambda$ for each parameter set,

[TABLE]

where $\omega$ is either $R$ or $\lambda$, $i$ runs over the three $k_{T}$ values, the number of degrees of freedom taken is ${\rm ndf}=3$ and $\sigma_{i}$ is the sum of the statistical and systematic uncertainties on the $i^{th}$ K${}^{0}_{\rm S}$K± extracted parameter (Note that the all $k_{\rm T}$ bin indeed contains the kaon pairs that make up the $k_{\rm T}<0.675$ GeV/$c$ and $k_{\rm T}>0.675$ GeV/$c$ bins, but in addition it contains an equal number of new pair combinations between the kaons in the $k_{\rm T}<0.675$ GeV/$c$ and $k_{\rm T}>0.675$ GeV/$c$ bins. So for the purposes of this simple comparison, we approximate the all $k_{\rm T}$ bin as being independent). The linear sum of the statistical and systematic uncertainties is used for $\sigma_{i}$ to be consistent with the linear sum of the statistical and systematic uncertainties plotted on the points in Figs. 4 and  5. The quantity $\omega_{i}(KK)$ is determined by fitting a quadratic to the identical kaon results and evaluating the fit at the average $k_{T}$ values of the K${}^{0}_{\rm S}$K± measurements. Table 3 summarizes the results for each parameter set and the extracted p-values. As seen, the Achasov2, Achasov1 and Antonelli parameter sets are consistent with the identical kaon results for both $R$ and $\lambda$. The Martin parameter set is seen to have vanishingly small p-values for both $R$ and $\lambda$ and is thus in clear disagreement with the identical kaon results, as can easily be seen by examining Figs. 4 and 5.

In order to quantitatively estimate the size of the non-resonant channel present, the ratio $\left\langle\frac{\lambda(K^{0}_{\rm S}K^{\rm\pm})}{\lambda(KK)}\right\rangle$ has been calculated for each parameters set, where the average is over the three $k_{T}$ values and the uncertainty is calculated from the average of the statistical+systematic uncertainties on the K${}^{0}_{\rm S}$K± parameters. These values are shown in the last column of Table 3. Disregarding the Martin value, the smallest value this ratio can take within the uncertainties is 0.87 (from the Achasov2 paramters) which would thus allow at most a 13% non-resonant contribution.

The results of this study presented above clearly show that the measured K${}^{0}_{\rm S}$K± have dominantly undergone a FSI through the $a_{0}$ resonance. This is remarkable considering that we measure in Pb-Pb collisions the average separation between the two kaons at freeze out to be $\sim 5$ fm, and due to the short-ranged nature of the strong interaction of $\sim 1$ fm this would seem to not encourage a FSI but rather encourage free-streaming of the kaons to the detector resulting in a “flat” correlation function. A dominant FSI is what might be expected if the $a_{0}$ would be a four-quark, i.e. tetraquark, state or a “${\rm\overline{K}}-$K molecule.” There appears to be no calculations in the literature for the tetraquark vs. diquark production cross sections for the interaction ${\rm K\overline{K}}\rightarrow a_{0}$, but qualitative arguments compatible with the $a_{0}$ being a four–quark state can be made based on the present measurements. The main argument in favor of this is that the reaction channel ${\rm K}^{0}{\rm K}^{-}\rightarrow a^{-}_{0}$ ($\overline{\rm K}^{0}$K${}^{+}\rightarrow a^{+}_{0}$) is strongly favored if the $a^{-}_{0}$ ($a^{+}_{0}$) is composed of ${\rm d\overline{s}s\overline{u}}$ (${\rm\overline{d}s\overline{s}u}$) quarks such that a direct transfer of the quarks in the kaons to the $a^{-}_{0}$ ($a^{+}_{0}$) has taken place, since this is an “OZI superallowed” reaction [12]. The “OZI rule” can be stated as “an inhibition associated with the creation or annihilation of quark lines” [12]. Thus, a diquark $a_{0}$ final state is less favored according to the OZI rule since it would require the annihilation of the strange quarks in the kaon interaction. This would allow for the possibility of a significant non-resonant or free-streaming channel for the kaon interaction that would result in a $\lambda$ value below the identical-kaon value by diluting the $a_{0}$ signal. As mentioned above, the collision geometry itself also suppresses the annihilation of the strange quarks due to the large separation between the kaons at freeze out. Note that this assumes that the $C(k^{*})$ distribution of a non-resonant channel would be mostly “flat” or “monotonic” in shape and not showing a strong resonant-like signal as seen for the $a_{0}$ in Fig. 1 and Fig. 2. This assumption is clearly true in the free-streaming case, which is assumed in Eq. 9 in setting $\alpha=0.5$ due to the non-resonant kaon combinations. A similar argument, namely that the success of the “charged kaon loop model” in describing the radiative $\phi$-decay data favors the $a_{0}$ as a tetraquark state, is given in Ref. [9].

5 Summary

In summary, femtoscopic correlations with K${}^{0}_{\rm S}$K± pairs have been studied for the first time. This new femtoscopic method was applied to data from central Pb-Pb collisions at $\sqrt{s_{\rm NN}}=2.76$ TeV by the LHC ALICE experiment. Correlations in the K${}^{0}_{\rm S}$K± pairs are produced by final-state interactions which proceed through the a0(980) resonance. The $a_{0}$ resonant FSI is seen to give an excellent representation of the shape of the signal region in the present study. The differences between ${\rm\overline{K}^{0}}$K+ and K0K- for the extracted $R$ and $\lambda$ values are found to be insignificant within the uncertainties of the present study. The three larger $a_{0}$ mass and decay parameter sets are favored by the comparison with the identical kaon results. The present results are also compatible with the interpretation of the $a_{0}$ resonance as a tetraquark state. This work should provide a constraint on models that are used to predict kaon-kaon interactions [27, 28]. It will be interesting to apply K${}^{0}_{\rm S}$K± femtoscopy to other collision energies, e.g. the higher LHC energies now available, and bombarding species, e.g. proton-proton collisions, since the different source sizes encountered in these cases will probe the interaction of the K${}^{0}_{\rm S}$ with the K± in different sensitivity ranges (i.e. see the $R$ dependence in Eq. 9).
