The Perlick system type I: from the algebra of symmetries to the geometry of the trajectories

TL;DR

This paper analyzes the algebraic and geometric properties of the maximally superintegrable Perlick system type I, revealing how parameters influence the system's trajectories and symmetries.

Contribution

It provides a comprehensive algebraic and geometric analysis of the Perlick system type I, including constants of motion and their Poisson algebra for all parameter values.

Findings

Trajectories depend on the sign of parameter K, on compactness of manifolds.

The Poisson algebra of constants of motion is fully derived.

The rational parameter β significantly influences the system's behavior.

Abstract

In this paper, we investigate the main algebraic properties of the maximally superintegrable system known as "Perlick system type I". All possible values of the relevant parameters, $K$ and $\beta$, are considered. In particular, depending on the sign of the parameter $K$ entering in the metrics, the motion will take place on compact or non compact Riemannian manifolds. To perform our analysis we follow a classical variant of the so called factorization method. Accordingly, we derive the full set of constants of motion and construct their Poisson algebra. As it is expected for maximally superintegrable systems, the algebraic structure will actually shed light also on the geometric features of the trajectories, that will be depicted for different values of the initial data and of the parameters. Especially, the crucial role played by the rational parameter $\beta$ will be seen "in action".

Figures

Equations

$${\tilde{H}}^{\pm }={\beta }^2(1+K{r}^2)\frac{p_r^2}{2}+\frac{{\mathbf{L}}^2}{2r^2}+G\pm \frac{1}{r}\sqrt{1+K{r}^2},$$

$${\mathbf{L}}^2=H_{\theta \phi }=p_{\theta }^2+\frac{p_{\phi }^2}{{\sin }^2\theta }$$

$$d{s}^2=\frac{d{r}^2}{{\beta }^2(1+K{r}^2)}+r^2(d{\theta }^2+{\sin }^2\theta d{\phi }^2).$$

$$\{f,g\}=\frac{\partial f}{\partial r}\frac{\partial g}{\partial p_r}-\frac{\partial f}{\partial p_r}\frac{\partial g}{\partial r}+\frac{\partial f}{\partial \theta }\frac{\partial g}{\partial p_{\theta }}-\frac{\partial f}{\partial p_{\theta }}\frac{\partial g}{\partial \theta }+\frac{\partial f}{\partial \phi }\frac{\partial g}{\partial p_{\phi }}-\frac{\partial f}{\partial p_{\phi }}\frac{\partial g}{\partial \phi }.$$

$${\tilde{H}}_r^{\pm }={\beta }^2(1+K{r}^2)\frac{p_r^2}{2}+\frac{{\ell }^2}{2r^2}\pm \frac{1}{r}\sqrt{1+K{r}^2}.$$

$$H_{\theta }=p_{\theta }^2+\frac{{\ell }_z^2}{{\sin }^2\theta }.$$

$${\rm\ \!C}_{\kappa}(u)\equiv\left\{\begin{array}[]{ll}\cos{\sqrt{{\kappa}}\,u}&\quad{\kappa}>0\\ \qquad 1&\quad{\kappa}=0\\ \cosh{\sqrt{-{\kappa}}\,u}&\quad{\kappa}<0\end{array}\right.,\quad{\rm\ \!S}_{\kappa}(u)\equiv\left\{\begin{array}[]{ll}\frac{1}{\sqrt{{\kappa}}}\sin{\sqrt{{\kappa}}\,u}&\quad{\kappa}>0\\ \qquad u&\quad{\kappa}=0\\ \frac{1}{\sqrt{-{\kappa}}}\sinh{\sqrt{-{\kappa}}\,u}&\quad{\kappa}<0\end{array}\right..$$

$${\mathrm{T}}_{\kappa }(u)\equiv \frac{{\mathrm{S}}_{\kappa }(u)}{{\mathrm{C}}_{\kappa }(u)}.$$

$${\mathrm{C}}_{\kappa }^2(u)+\kappa {\mathrm{S}}_{\kappa }^2(u)=1,\frac{\mathrm{d}}{\mathrm{d}u}{\mathrm{C}}_{\kappa }(u)=-\kappa {\mathrm{S}}_{\kappa }(u),\frac{\mathrm{d}}{\mathrm{d}u}{\mathrm{S}}_{\kappa }(u)={\mathrm{C}}_{\kappa }(u).$$

$$K=-\kappa ,r={\mathrm{S}}_{\kappa }(\xi ),p_r=\frac{p_{\xi }}{{\mathrm{C}}_{\kappa }(\xi )},$$

$$H(\xi ,\theta ,\phi )={\beta }^2\frac{p_{\xi }^2}{2}+\frac{{\mathbf{L}}^2}{2}\frac{1}{{\mathrm{S}}_{\kappa }^2(\xi )}-\frac{1}{{\mathrm{T}}_{\kappa }(\xi )},$$

$$H_{\xi }={\beta }^2\frac{p_{\xi }^2}{2}+\frac{{\ell }^2}{2}\frac{1}{{\mathrm{S}}_{\kappa }^2(\xi )}-\frac{1}{{\mathrm{T}}_{\kappa }(\xi )}={\beta }^2\frac{p_{\xi }^2}{2}+V_{\mathrm{eff}}(\xi ).$$

$$H(\xi ,\theta ,\phi )={\tilde{H}}^{-}(r,\theta ,\phi ).$$

$$H(\xi,\theta,\varphi)=\left\{\begin{array}[]{ll}\widetilde{H}^{-}(r,\theta,\varphi)\,,&0<\xi<\dfrac{\pi}{2\sqrt{{\kappa}}}\,,\qquad 0<r<\dfrac{1}{\sqrt{{\kappa}}},\\[10.76385pt] \widetilde{H}^{+}(r,\theta,\varphi)\,,&\dfrac{\pi}{2\sqrt{{\kappa}}}<\xi<\dfrac{\pi}{\sqrt{{\kappa}}}\,,\qquad\dfrac{1}{\sqrt{{\kappa}}}>r>0\,.\end{array}\right.$$

$$H_{\xi }=B^{+}{B}^{-}+{\lambda }_{\xi },$$

$$B^{\pm }=\frac{1}{\sqrt{2}}\left(\mp i\beta p_{\xi }+\frac{\ell }{{\mathrm{T}}_{\kappa }(\xi )}-\frac{1}{\ell }\right),{\lambda }_{\xi }=-\frac{1}{2}\left(\frac{1}{{\ell }^2}-\kappa {\ell }^2\right).$$

$$\{B^{-},B^{+}\}=i\beta \frac{\ell }{{{\mathrm{S}}_{\kappa }}^2(\xi )},\{H_{\xi },B^{\pm }\}=\pm i\beta \frac{\ell }{{{\mathrm{S}}_{\kappa }}^2(\xi )}{B}^{\pm }.$$

$$\{H,B^{\pm }\}=\pm i\beta \frac{\sqrt{H_{\theta \phi }}}{{{\mathrm{S}}_{\kappa }}^2(\xi )}{B}^{\pm }.$$

$$\begin{array}[]{ll}{\kappa}<0\,,&-\sqrt{|{\kappa}|}>E\geq-\dfrac{1}{2}\left(\dfrac{1}{\ell^{2}}+|{\kappa}|\ell^{2}\right)\,,\\[8.61108pt] {\kappa}=0\,,&0>E\geq-\dfrac{1}{2\,\ell^{2}}\,,\\[8.61108pt] {\kappa}>0\,,&\infty>E\geq-\dfrac{1}{2}\left(\dfrac{1}{\ell^{2}}-{\kappa}\ell^{2}\right)\,.\end{array}$$

$$-{\ell }_z^2=p_{\theta }^2{\sin }^2\theta -H_{\theta }{\sin }^2\theta .$$

$$-{\ell }_z^2=A^{+}{A}^{-}+{\lambda }_{\theta },$$

$$A^{\pm }=\mp i\sin \theta p_{\theta }+\sqrt{H_{\theta }}\cos \theta ,{\lambda }_{\theta }=-H_{\theta }.$$

$$\{A^{-},A^{+}\}=2i\sqrt{H_{\theta }},\{H_{\theta },A^{\pm }\}=\pm 2i\sqrt{H_{\theta }}{A}^{\pm }.$$

$$\{H,A^{\pm }\}=\mp i\frac{\sqrt{H_{\theta \phi }}}{{{\mathrm{S}}_{\kappa }}^2(\xi )}{A}^{\pm }.$$

$${\ell }^2\ge {\ell }_z^2,$$

$$\{H,X^{\pm }\}=0,X^{\pm }=(A^{\pm }{)}^m(B^{\mp }{)}^n.$$

$$X^{\pm }=q_{\mathrm{x}}{e}^{\pm i{\alpha }_{\mathrm{x}}},0\le q_{\mathrm{x}}<\infty ,-\pi \le {\alpha }_{\mathrm{x}}<\pi .$$

$$q_{\mathrm{x}}=|X^{\pm }|={\left({\ell }^2-{\ell }_z^2\right)}^{m/2}{\left(E+\frac{1}{2}\left(\frac{1}{{\ell }^2}-\kappa {\ell }^2\right)\right)}^{n/2}.$$

$$H_{\theta }=p_{\theta }^2+\frac{{\ell }_z^2}{{\sin }^2\theta }=C^{+}{C}^{-}+{\lambda }_{\ell },$$

$$C^{\pm }=\mp i{p}_{\theta }+{\ell }_z\cot \theta ,{\lambda }_{\ell }={\ell }_z^2.$$

Full text

PACS: 04.20.-q; 02.40.Ky; 02.30.Ik

KEYWORDS: Bertrand spaces, superintegrable systems, factorization method, constants of motion.

1 Introduction

The Perlick systems type I and II have been studied in a large number of papers, where several crucial features have been discovered (see for instance [2, 3, 4, 5, 6, 7, 8, 9, 10, 11]). In particular, let us remind that in his original paper [2], V. Perlick constructed the most general class of three-dimensional spherically symmetric lagrangian systems complying with the requirements of the celebrated Bertrand’s Theorem [12], namely the fact that they possess stable circular orbits and all bounded trajectories are closed. Of course he had to abandon the Euclidean space framework in favour of more general conformally flat manifolds. In this way he unveiled the deep connection existing between the metrics characterizing the manifold and the corresponding integrable potentials. He classified these generalized Bertrand systems in two multiparametric families, defined according to their Euclidean limit. Family I is the one yielding the Kepler-Coulomb system and Family II is the one leading to the radial harmonic oscillator [13, 14, 15]. In ref. [4] by means of the coalgebra approach the extension to hyperspherically symmetric systems in any dimension was performed, and an intrinsic characterization of the two families was proposed. Family I was denoted as “intrinsic Kepler-Coulomb” because, up to additive and multiplicative constants (one could say, “up to affine transformations”), the pertaining class of potentials were discovered to be just the Green’s functions of the corresponding Laplace-Beltrami operators. Analogously, the potentials comprised in Family II, again up to affine transformations, were identified as the “inverse-squared” of those belonging to Family I and these have been called “intrinsic oscillator”. In a subsequent paper [5] the same authors gave a rigorous proof of the previously obtained results, including that of the periodicity of the bounded motions, and provided a closed expression for the corresponding trajectories. Thus, Perlick’s systems of type I and II are the most general classes of “maximally superintegrable” lagrangian (and consequently Hamiltonian) systems with (hyper-)spherical symmetry.

To further clarify our previous statements, let us recall that a classical Hamiltonian system with $n$ degrees of freedom is said to be integrable if there are $n$ functionally independent globally defined and single-valued integrals of motion in involution for a given Poisson bracket. If there exist $k$, with $0<k\leq n-1$, additional integrals (they must be functionally independent, but not all of them in involution) it is called superintegrable. When $k=n-1$, the system is maximally superintegrable. In this case, all bounded trajectories are closed and the motion is periodic [16, 17, 18]. The constants of motion of maximally superintegrable systems close an algebra and can be used to determine the trajectories in pure algebraic way. Kepler-Coulomb and (isotropic) harmonic oscillator systems are examples of spherically symmetric and maximally superintegrable systems in an $n$ dimensional Euclidean space. In dealing here with a maximally superintegrable system such as Perlick system of type I, rather than relying on an analytic approach one as in [5], we will follow an algebraic one, that can be generally called “factorization approach” or “factorization method”. Through the factorization method the algebra of the integrals of motions can be explicitly constructed, and its features will pave the way to identifying relevant geometric properties such as the shape of the closed orbits. We wish to remark that the factorization method applies both to classical and quantum systems. The method is quite simple in yielding the constants of motion (symmetries) and unveiling their underlying algebra [19, 20, 21, 22, 23, 24, 25, 26]. We should mention that other methods have been successfully applied to find the constants of motion of superintegrable systems. One of them is based on the Hamilton-Jacobi equation, as it is shown in many references [15, 27, 28]. Another interesting way to look for constants of motion is the method of coalgebras developed in [29, 30]. A systematic algebraic method has also been used in other papers [31, 32]. In this work, we will perform a systematic investigation of the constants of motion of the classical superintegrable three dimensional Perlick system type I by using the factorization method in order to derive the trajectories in a purely algebraic way.

This paper is organized as follows. In section 2, we briefly recall the basic definition of the Perlick system of type I which depends essentially on two parameters $\beta$ and $K$. We will introduce new variables more suitable to describe the compact or non compact manifolds where this system may be defined. In section 3, we construct the constants of motion by means of an extension of the factorization method to classical three dimensional systems (it can be applied to higher dimensions too). The trajectories of Perlick I system are derived, discussed and depicted, for different values of the initial conditions as well as of the relevant parameters of the system, i.e, $K$ and $\beta=m/n$. Both open and closed trajectories are presented. The crucial point of the whole treatment, namely the evaluation of the algebra of the constants of motion is also given here. Section 4 is devoted to the special case of the motion in the plane. The key role played by the requirement that $\beta$ be a rational number becomes extremely clear in this somehow simplified setting. Finally, in section 5, we summarize the new results that we have obtained, emphasizing what are in our opinion the most relevant ones. As a closing comment, we will briefly outline the most promising developments.

2 The Perlick system type I

The Hamiltonian for the Perlick system type I in spherical coordinates $(r,\theta,\varphi)$ is

[TABLE]

where ${\bf L}$ is the angular momentum and ${\bf L}^{2}$ can be considered as an angular Hamiltonian $H_{\theta\varphi}$ in the variables $(\theta,\varphi)$, having the form

[TABLE]

being $K$, $G$ real constants and $\beta=m/n$ a rational number. We can also consider $p_{\varphi}^{2}$ as a free Hamiltonian $H_{\varphi}$ in the variables $(\varphi,p_{\varphi})$, defined on the unit circle. The angular variables have the usual range: $0\leq\theta\leq\pi$ and $0\leq\varphi<2\pi$. The radial variable has different ranges depending on $K$. If $K\geq 0$, then $0<r<\infty$, while if $K<0$, $r$ must be restricted to the finite interval $0<r<1/\sqrt{-K}$. In his paper [2] Perlick considered only the negative sign in front of the square root of the potential, that is $\widetilde{H}^{-}$, in order to have bounded motions. However, we will show that for the case $K<0$ both Hamiltonians $\widetilde{H}^{\pm}$ should be taken into account in order to have a well defined Hamiltonian on a three dimensional sphere. The metric associated to this Hamiltonian is [4]

[TABLE]

Another point of view on the Hamiltonians (2.1) is to look at them not as defined in a curved space but as position dependent mass Hamiltonians in a flat space [33, 34].

Since $\{{\bf L}^{2},\widetilde{H}^{\pm}\}=0$, ${\bf L}^{2}$ is a constant of motion and takes the positive values ${\bf L}^{2}=\ell^{2}$. Here, $\{\cdot,\cdot\}$ stands for the Poisson brackets (PBs) that for the functions $f(r,\theta,\phi),\,g(r,\theta,\varphi)$ in spherical coordinates are defined by

[TABLE]

For the sake of simplicity, we also choose $G=0$, so when we replace ${\bf L}^{2}$ by its constant value $\ell^{2}$ we can rewrite the initial Hamiltonian (2.1) as an effective Hamiltonian $\widetilde{H}_{r}^{\pm}$ in the variable $r$:

[TABLE]

Since $\{p_{\varphi},\widetilde{H}^{\pm}\}=0$, $p_{\varphi}$ is another constant of motion: $p_{\varphi}=\ell_{z}=const$. In the same way, after replacing $H_{\varphi}$ by $\ell_{z}$ in (2.2), we have an effective Hamiltonian $H_{\theta}$ in $\theta$:

[TABLE]

Notice that $H_{\theta}$ is singular at the angles $\theta=0$ and $\theta=\pi$, so the trajectories lie between these two values (i.e. the North and South poles cannot be reached unless $\ell_{z}=0$). Once fixed the values of $\ell,\ell_{z}$, the turning points for $\theta$ are given by the solutions of $\ell^{2}={\ell_{z}^{2}}/{\sin^{2}{\theta}}$.

In order to take into account different signs and values of $K$, we will make use of the ${\kappa}$-dependent cosine and sine functions defined by

[TABLE]

The ${\kappa}$-tangent is defined by

[TABLE]

Some relations among these ${\kappa}$-functions are [36, 37]:

[TABLE]

Now, let us introduce the parameter $\kappa$ instead of $K$ and make the following change of canonical variables,

[TABLE]

where the range of $\xi$ is as follows: (a) for ${\kappa}\leq 0$, $0<\xi<\infty$; (b) for $\kappa>0$, we have two natural choices: $0<\xi<\pi/(2\sqrt{{\kappa}})$ or $\pi/(2\sqrt{{\kappa}})<\xi<\pi/\sqrt{{\kappa}})$. This change of coordinates can be interpreted in the following way. The variables $(\xi,\theta,\varphi)$ can be considered as the angular coordinates of the points of a (pseudo) sphere in $\mathbb{R}^{4}$. When ${\kappa}<0$ they parametrize the points of one sheet of a three dimensional (3D) hyperboloid; when ${\kappa}=0$ the coordinates $(\xi,\theta,\varphi)$ represent the spherical coordinates of the points of $\mathbb{R}^{3}$; finally, for ${\kappa}>0$ these variables with $0<\xi<\pi/(2\sqrt{{\kappa}})$ parametrize the points of one half (the north hemisphere) of a deformed 3D sphere, and the values $\pi/(2\sqrt{{\kappa}})<\xi<\pi/\sqrt{{\kappa}}$ give the points of the south hemisphere. In the case ${\kappa}<0$, this choice of coordinates is not important since the north and south hemispheres of a hyperboloid are not connected and can be taken independently without any problem, but in the case ${\kappa}>0$ this parametrization of the points of a sphere is quite relevant.

Next, we introduce a Hamiltonian $H$ in the variables $(\xi,\theta,\varphi)$ defined as follows for any value of ${\kappa}$:

[TABLE]

and the corresponding effective Hamiltonian $H_{\xi}$ by

[TABLE]

We will see the relation of this Hamiltonian with the Perlick Hamiltonians $\widetilde{H}^{\pm}$ for different values of ${\kappa}$.

• •

${\kappa}\leq 0$. In this case, both variables $\xi$ and $r$ vary in the positive semi-line $(0,\infty)$. If we change the variables in (2.1) according to (2.9) it is easy to check that

[TABLE]

• •

${\kappa}>0$. Here, there are two complementary intervals for the range of variable $\xi$ as mentioned above. If we change the variables in (2.1) according to (2.9) we get

[TABLE]

Therefore, in this case we have a unique Hamiltonian $H$ well defined for all the points of the sphere $0<\xi<{\pi}/{\sqrt{{\kappa}}}$, such that on the north hemisphere is described by $\widetilde{H}^{-}$ and on the south by $\widetilde{H}^{+}$. When these points are parametrized in terms of $(r,\theta,\varphi)$ variables, each hemisphere gives rise to the two distinct Hamiltonians $\widetilde{H}^{\pm}$. This is very important since in general the trajectories on the sphere are not restricted to the upper or the lower hemispheres, and a full description of all of them should be done by means of $H$.

Henceforth, we will use the following notation. For all the values of ${\kappa}$ we will take the Hamiltonian $H(\xi,\theta,\varphi)$ as given in (2.10) or the effective Hamiltonian $H_{\xi}(\xi)$ in (2.11). The ranges of the variable $\xi$ are taken according to the previous discussion depending on the values of ${\kappa}$, in particular for ${\kappa}>0$ the interval is $0<\xi<\frac{\pi}{\sqrt{{\kappa}}}$.

3 Constants of motion from factorization properties

In this model, we already have three independent constants of motion: $H,H_{\theta\varphi},H_{\varphi}$ with constant values given by $E,\ell^{2},\ell_{z}^{2}$. Our aim is to find additional constants of motion by means of the factorization method in order to show the maximal superintegrability of the system. A first pair of constants $X^{\pm}$ will be obtained from the effective Hamiltonians $H_{\xi}$ and $H_{\theta}$, and a second pair $Y^{\pm}$ from the next two effective Hamiltonians, $H_{\theta}$ and $H_{\varphi}$.

3.1 The constants of motion $X^{\pm}$

The first set of constants $X^{\pm}$ are constructed in terms of the shift functions of $H_{\xi}$ and the ladder functions of $H_{\theta}$ which are obtained as follows [19].

• •

Shift functions of $H_{\xi}$

The Hamiltonian (2.11) can be factorized as

[TABLE]

where

[TABLE]

The shift functions $B^{\pm}$ are complex conjugate of each other and they satisfy the following PBs together with the Hamiltonian $H_{\xi}$

[TABLE]

The second PB of (3.3) implies that

[TABLE]

From the factorization given in (3.1) or the effective potential (2.11), we conclude that the energy $E$ of the total Hamiltonian $H_{\xi}$ for bounded motions must satisfy the following inequalities depending on ${\kappa}$:

[TABLE]

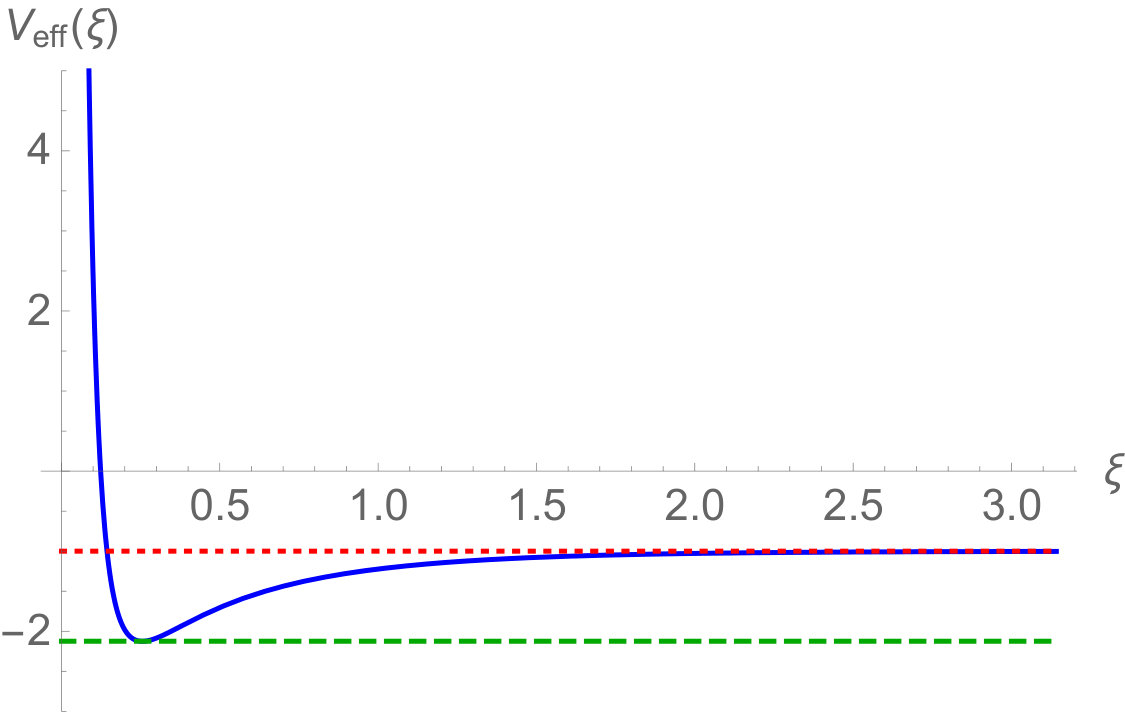

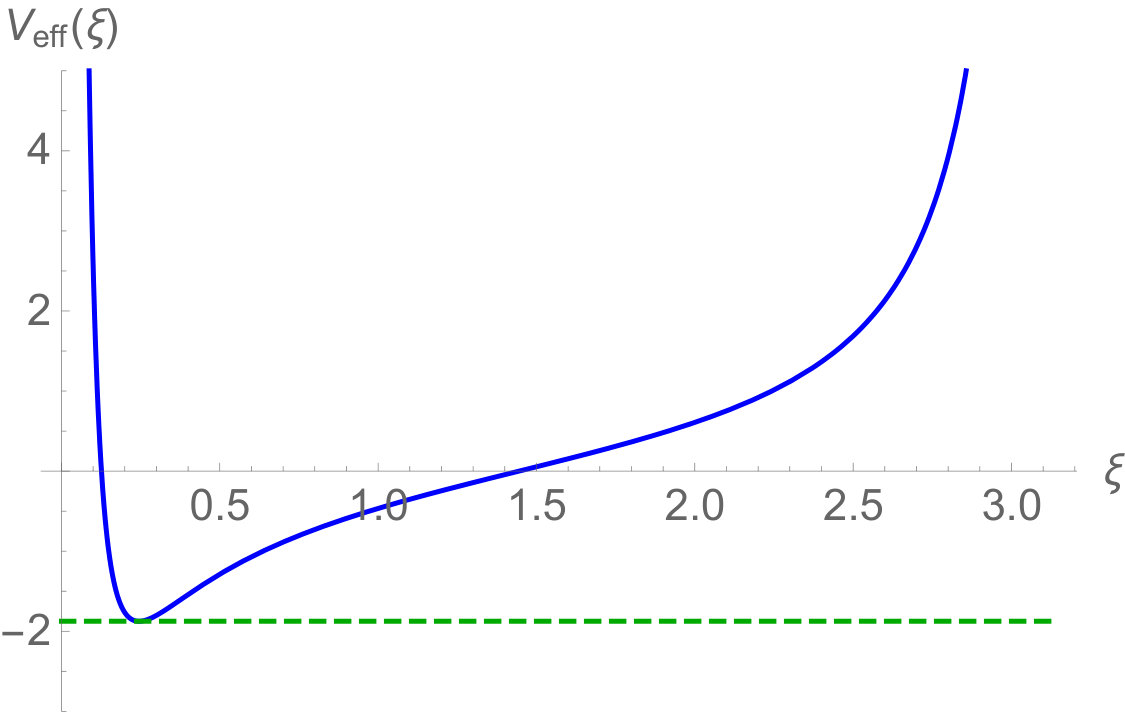

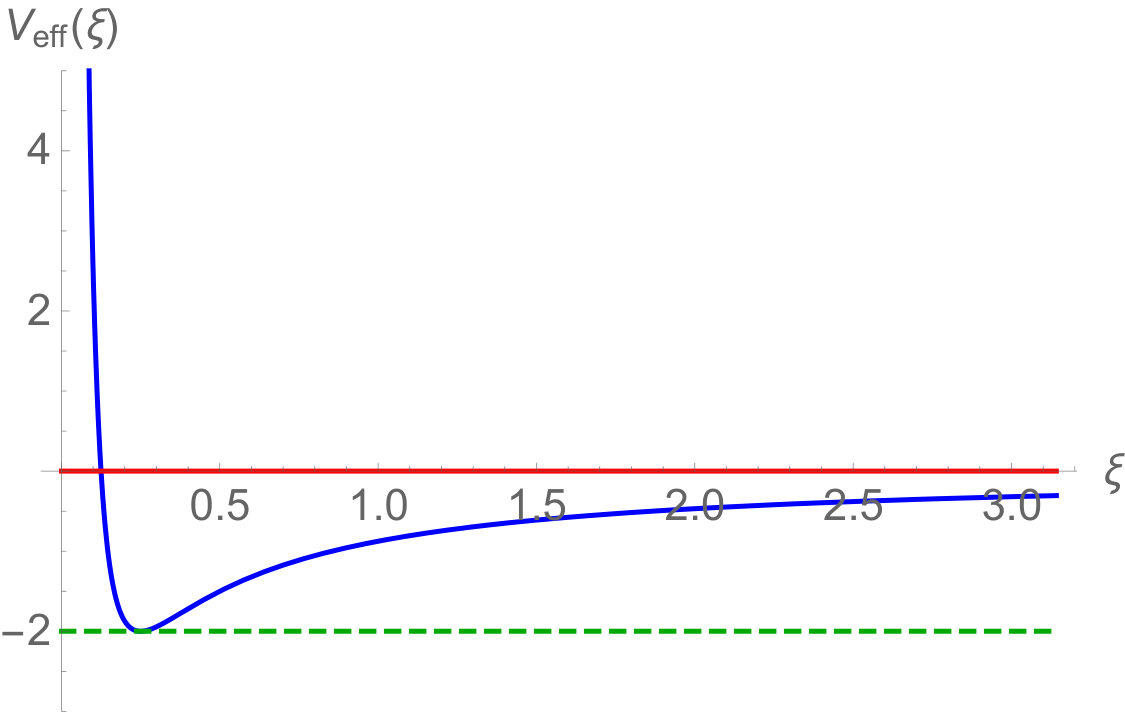

In Fig. 1, it is shown the effective potential $V_{\rm eff}({\xi})$ given by (2.11) together with the conditions on the energy (3.5) for different values of ${\kappa}$. For all these three cases, bounded motions have two turning points in the variable $\xi$ given by $E=V_{\rm eff}({\xi})$. For $E\geq-\sqrt{|{\kappa}|}$ the trajectory will be unbounded with only one turning point for ${\kappa}\leq 0$.

• •

Ladder functions of $H_{\theta}$

In order to find the ladder functions for the angular Hamiltonian $H_{\theta}$, defined by (2.6), first we multiply it by ${\sin^{2}{\theta}}$ and after rearranging, we get

[TABLE]

Now, we can factorize the right hand side of this equality in terms of complex conjugate ladder functions

[TABLE]

where

[TABLE]

These ladder functions $A^{\pm}$ together with the Hamiltonian $H_{\theta}$ satisfy the following PBs

[TABLE]

Therefore, the PB with $H$ is

[TABLE]

Notice that the factorization (3.7) implies the following inequality:

[TABLE]

which is reasonable in view of the physical interpretation of $\ell$ (the total angular momentum) and $\ell_{z}$ (the component of the angular momentum in the $z$-direction).

• •

Construction of $X^{\pm}$

From the PBs (3.4) and (3.10), taking into account that $\beta=m/n$, we obtain the constants of motion $X^{\pm}$ of the Perlick system type I in the following form

[TABLE]

We can denote the values of these constants as follows,

[TABLE]

The absolute value $q_{\rm x}$ is directly obtained from the factorization properties of $A^{\pm}$ and $B^{\pm}$:

[TABLE]

By means of these constants of motion, the relation between the variables $\xi$ (or $r$) and $\theta$ along the trajectories can be found from (3.13) (and the relative frequencies as we will see later). However, when $\ell=\ell_{z}$, this relation breaks, because in this case (2.6) and (3.8) entail $p_{\theta}=0$ and $\theta=\pi/2$. In other words, if $\ell=\ell_{z}$, the motion takes place in the horizontal plane $z=0$. This particular case will be considered in Section 4.

In principle, the constants of motion $X^{\pm}$ given by (3.12) are not polynomial in the momentum functions, since $A^{\pm}$ and $B^{\pm}$ depend on $\ell$ which is a square root (see (2.6)). However, if we expand the powers $m$ and $n$ in (3.12), then the real and imaginary parts of these functions will give rise to polynomial constants of motion in the momenta [23].

3.2 The constants of motion $Y^{\pm}$

This new set of constants of motion is derived from the shift functions of $H_{\theta}$ and the ladder functions of $H_{\varphi}$. They are obtained in a similar way as the previous set.

• •

Shift functions of $H_{\theta}$

The angular Hamiltonian defined by (2.6) is factorized as

[TABLE]

where

[TABLE]

These factor functions $C^{\pm}$ together with the Hamiltonian $H_{\theta}$ satisfy the following PBs

[TABLE]

The second PB of (3.17) implies that

[TABLE]

• •

Ladder functions of $H_{\varphi}$

The Hamiltonian $H_{\varphi}=p_{\varphi}^{2}$ is factorized as

[TABLE]

These ladder functions $D^{\pm}$ together with the Hamiltonian $H_{\varphi}$ satisfy the following PBs

[TABLE]

Then, the PB with the Hamiltonian $H_{\theta\varphi}$ is

[TABLE]

• •

The building of $Y^{\pm}$

The Hamiltonian $H_{\theta\varphi}$ defined by (2.6), besides $H_{\varphi}$, has the constants of motion $Y^{\pm}$ that now can be found with the help of the relations (3.18) and (3.21):

[TABLE]

The geometric meaning of these constants of motion can be appreciated by rewriting them in the form

[TABLE]

where $L_{x}$, $L_{y}$ and $L_{z}$ are the components of the angular momentum in the $x$, $y$ and $z$ direction, respectively:

[TABLE]

If we denote the values of these constants of motion by

[TABLE]

with

[TABLE]

while the angle $\alpha_{\rm y}$ coincides with the azimuthal angle of the angular momentum vector $\boldsymbol{L}=(L_{x},L_{y},L_{z})$. The value of this constant of motion fix the relation of the angles $\theta$ and $\varphi$ along a trajectory. For example, for $\ell_{y}=0$, $\alpha_{\rm y}=\pi$, the relation (3.25) gives the following expression for $\theta(\varphi)$ (or $\varphi(\theta)$ )

[TABLE]

However, as mentioned before, this relation also breaks when $\ell=\ell_{z}$, since in this case $\ell_{x}=0$ and therefore $\theta=\pi/2$. Note that, from expression (3.23), it is clearly seen that $Y^{\pm}$ are polynomial in the momentum variables.

In this subsection, we have arrived at an obvious result: the Hamiltonian ${\bf L}^{2}$ has the symmetries $L_{z}$ and $Y^{\pm}$ or equivalently $L_{x}$, $L_{y}$ and $L_{z}$. Nevertheless, the basis $L_{z}$, $Y^{\pm}$ will be the most adequate to write the symmetry algebra.

3.3 Trajectories of the Perlick system type I

In summary, once fixed the values of the constants of motion $E,\ell,\ell_{z}$, the new constants of motion $X^{\pm}$ and $Y^{\pm}$ determine the relation between the coordinates $r$-$\theta$ and $\theta$-$\varphi$, respectively. In this way, one can obtaine all the trajectories of the system. Now, in order to characterize each trajectory we will use the properties of the ladder and shift functions.

The ladder functions, $B^{\pm}$ of (3.2), and the shift functions, $A^{\pm}$ of (3.8), can be expressed as

[TABLE]

where $b(\xi,p_{\xi})$ and $a(\theta,p_{\theta})$ are real phase functions that depend also on the constants of motion $E,\ell$ and $\ell_{z}$. The effective Hamiltonian $H_{\xi}$ given in (2.11) depends of the variables $(\xi,p_{\xi})$. When the energy $E$ satisfies the restrictions (3.5) the motion is periodic between two turning points. The variables $(\theta,p_{\theta})$ are described by the effective Hamiltonian $H_{\theta}$ given in (2.6). For $\ell_{z}\neq 0$, the motion of these variables will be periodic, the range of $\theta$ is determined by its corresponding turning points. As a consequence, the functions $b(\xi,p_{\xi})$ and $a(\theta,p_{\theta})$ will also be periodic. Now, taking into account the constants of motion $X^{\pm}$ as given in (3.13) the phases of $A^{\pm}$, $B^{\pm}$ and $X^{\pm}$ are related as follows

[TABLE]

This equation fixes the relation of the variables $(\xi,p_{\xi})$ and $(\theta,p_{\theta})$ along the motion. Therefore, if we differentiate (3.29) with respect to time, we get

[TABLE]

This implies that the frequencies $\omega_{\xi}$ and $\omega_{\theta}$ are related by

[TABLE]

In the same way, we can write the functions $C^{\pm}$ and $D^{\pm}$ in the form

[TABLE]

where $c(\theta,p_{\theta})$ and $d(\varphi,p_{\varphi})$ are real phase functions. Due to the constants of motion $Y^{\pm}$ these variables are related by

[TABLE]

As the motion of the $(\theta,p_{\theta})$ variables and the $(\varphi,p_{\varphi})$ is periodic, differentiating (3.33) with respect to time, we obtain

[TABLE]

Hence, the frequencies of the angular variables $\theta$ and $\varphi$ are equal (except for the case $\ell=\ell_{z}$).

In conclusion, when the energy $E$ satisfies the restrictions (3.5), the motion is bounded, and the frequencies of the three variables are related by (3.31) and (3.34). This implies that the bounded motion is periodic and the trajectories are closed. In conclusion, we have checked in this case that the Bertrand’s theorem is satisfied.

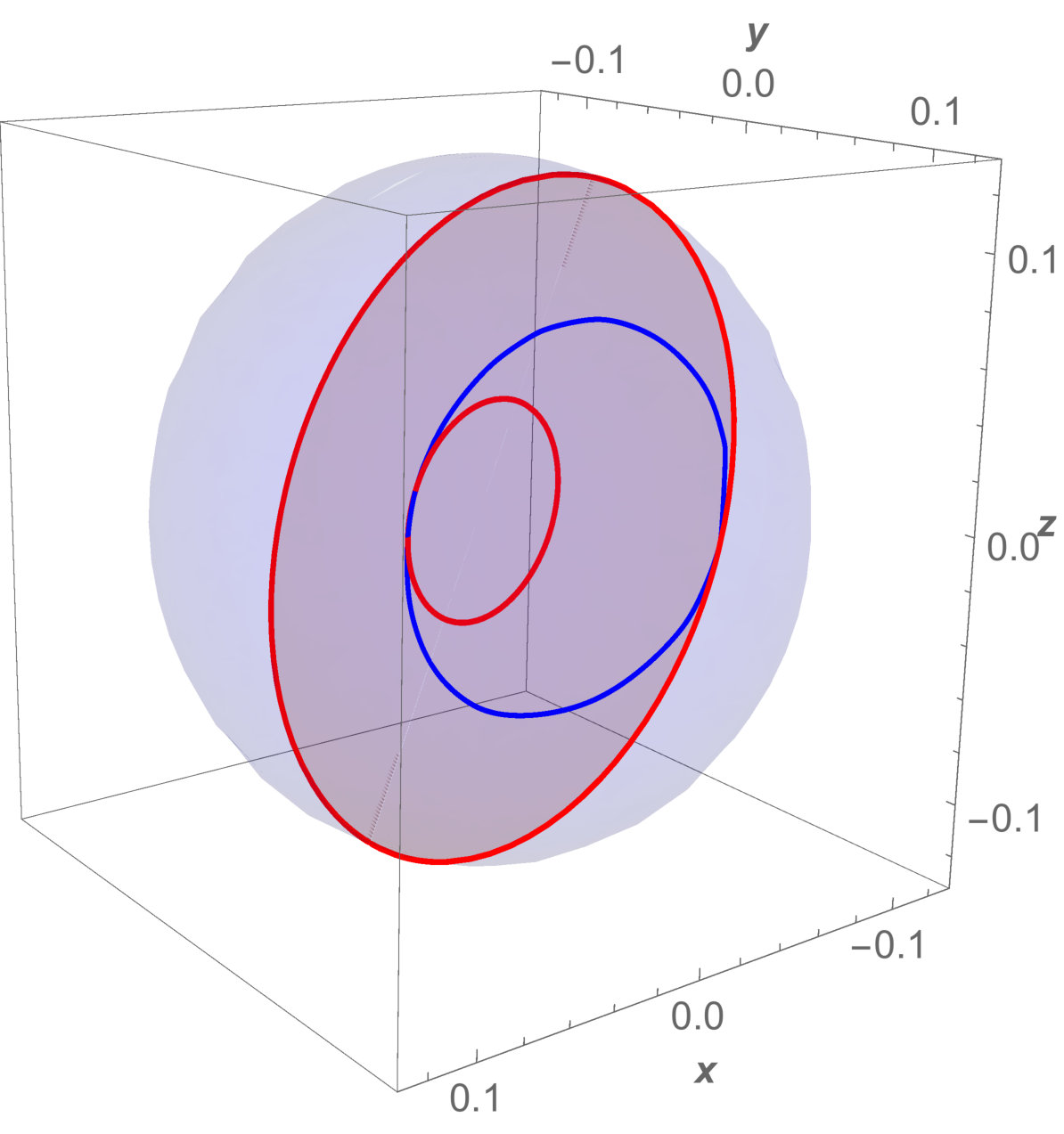

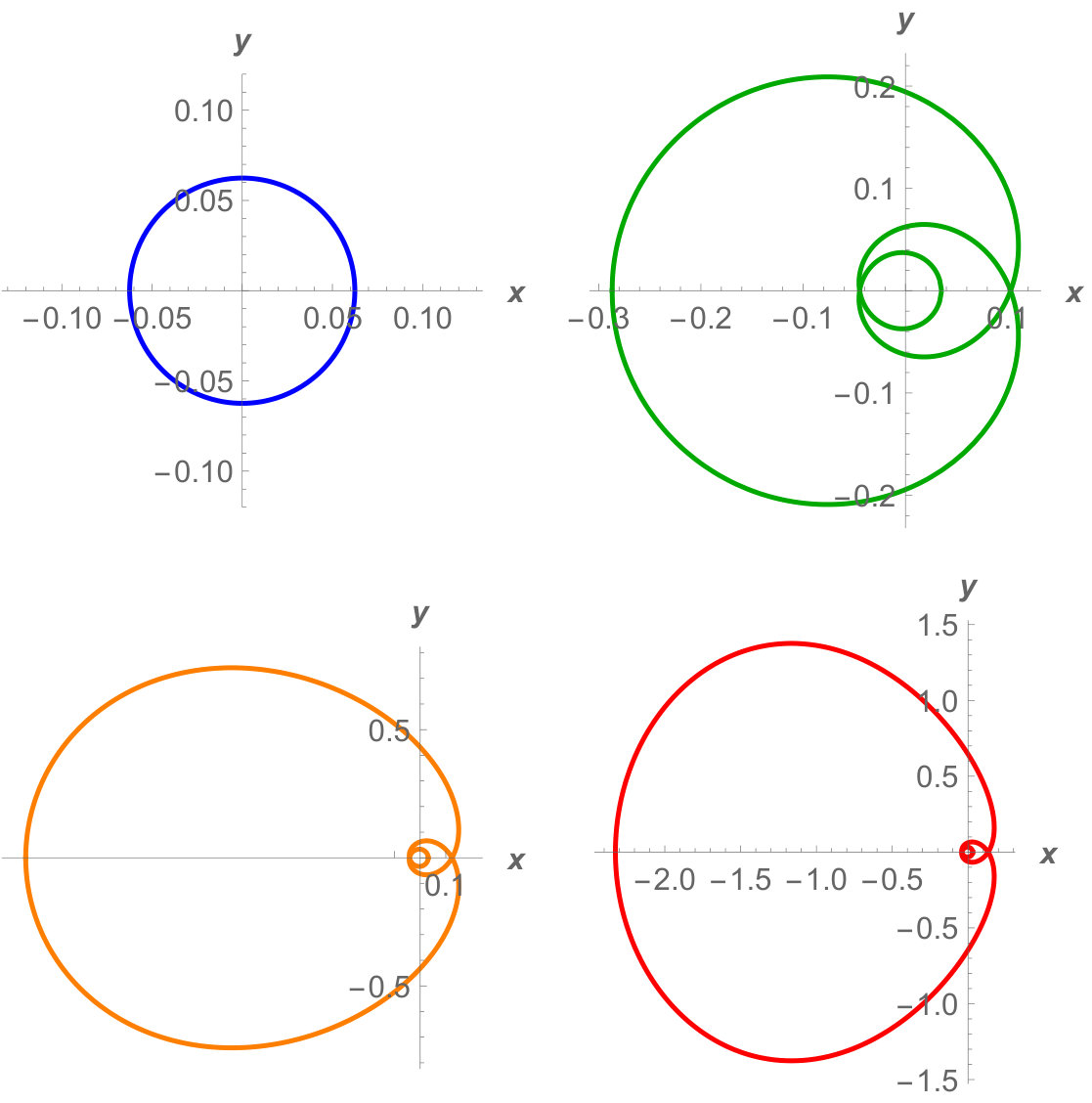

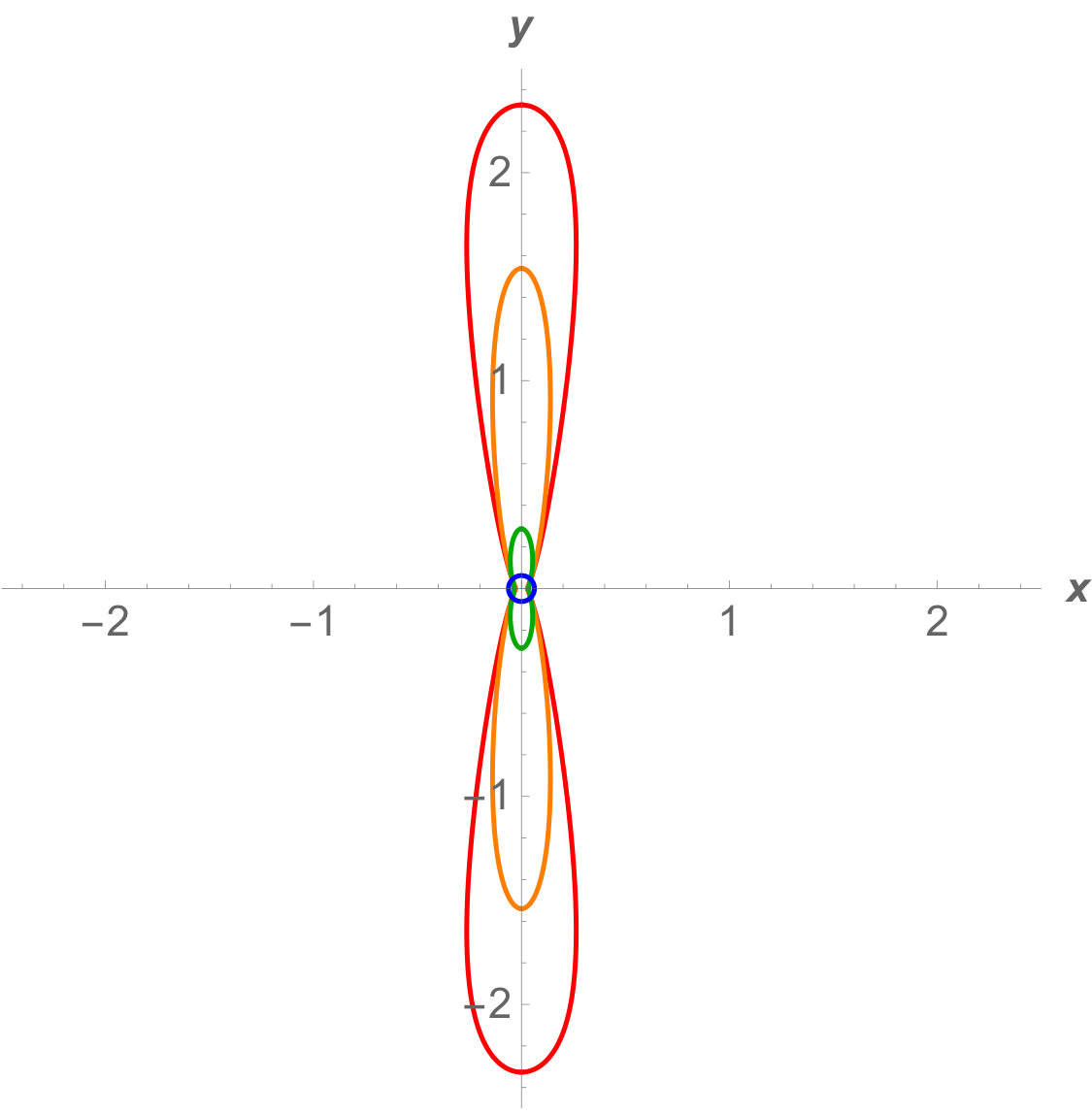

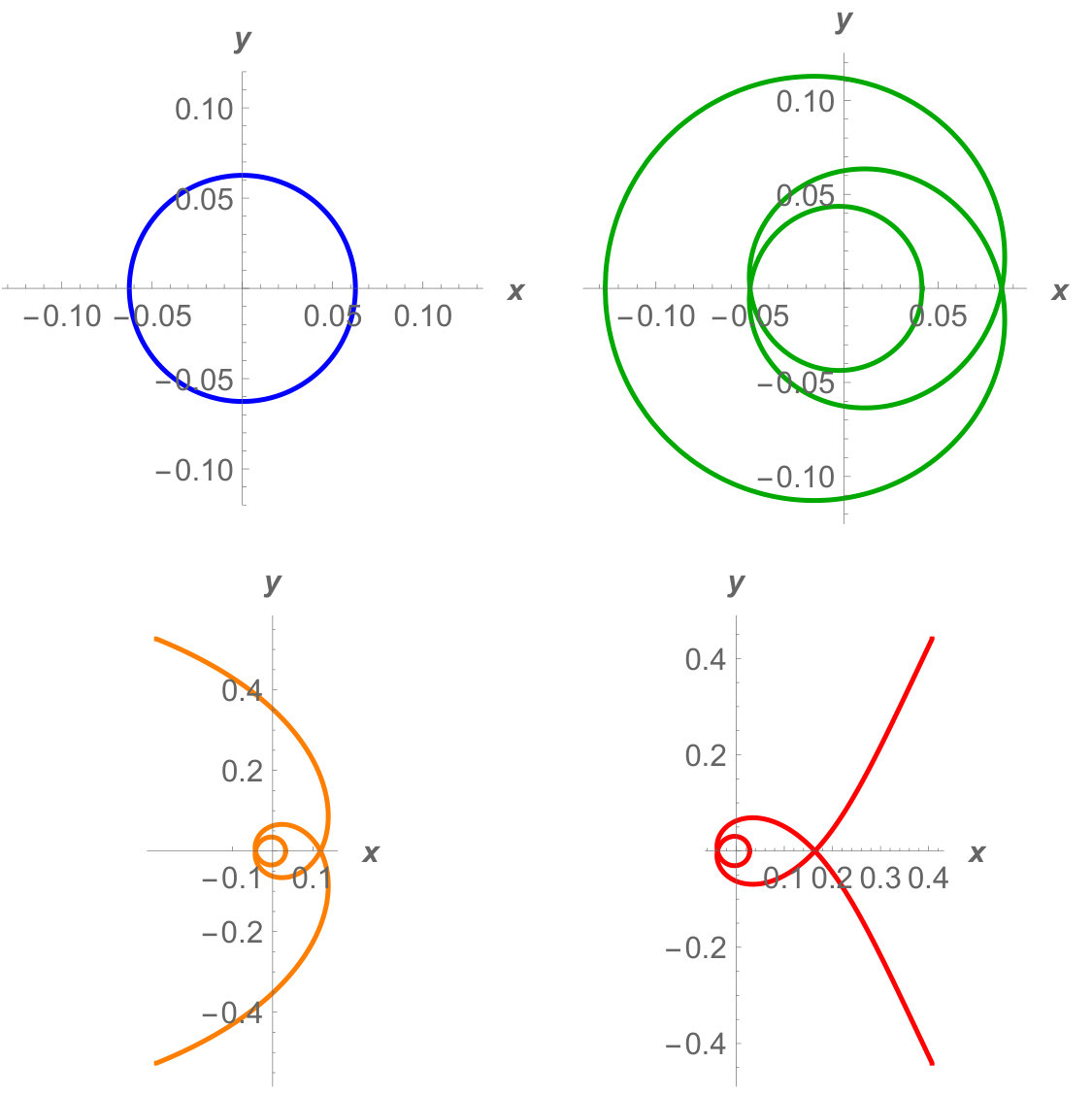

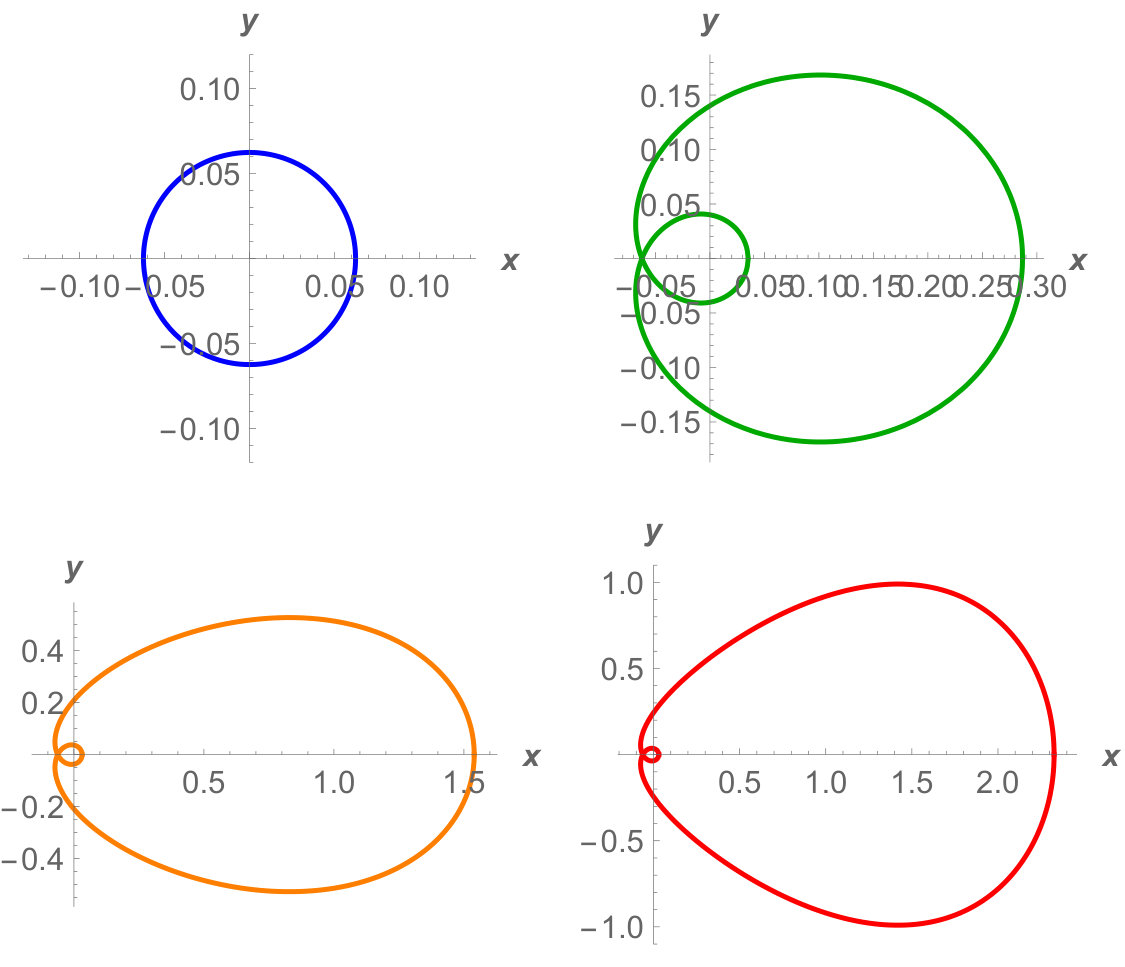

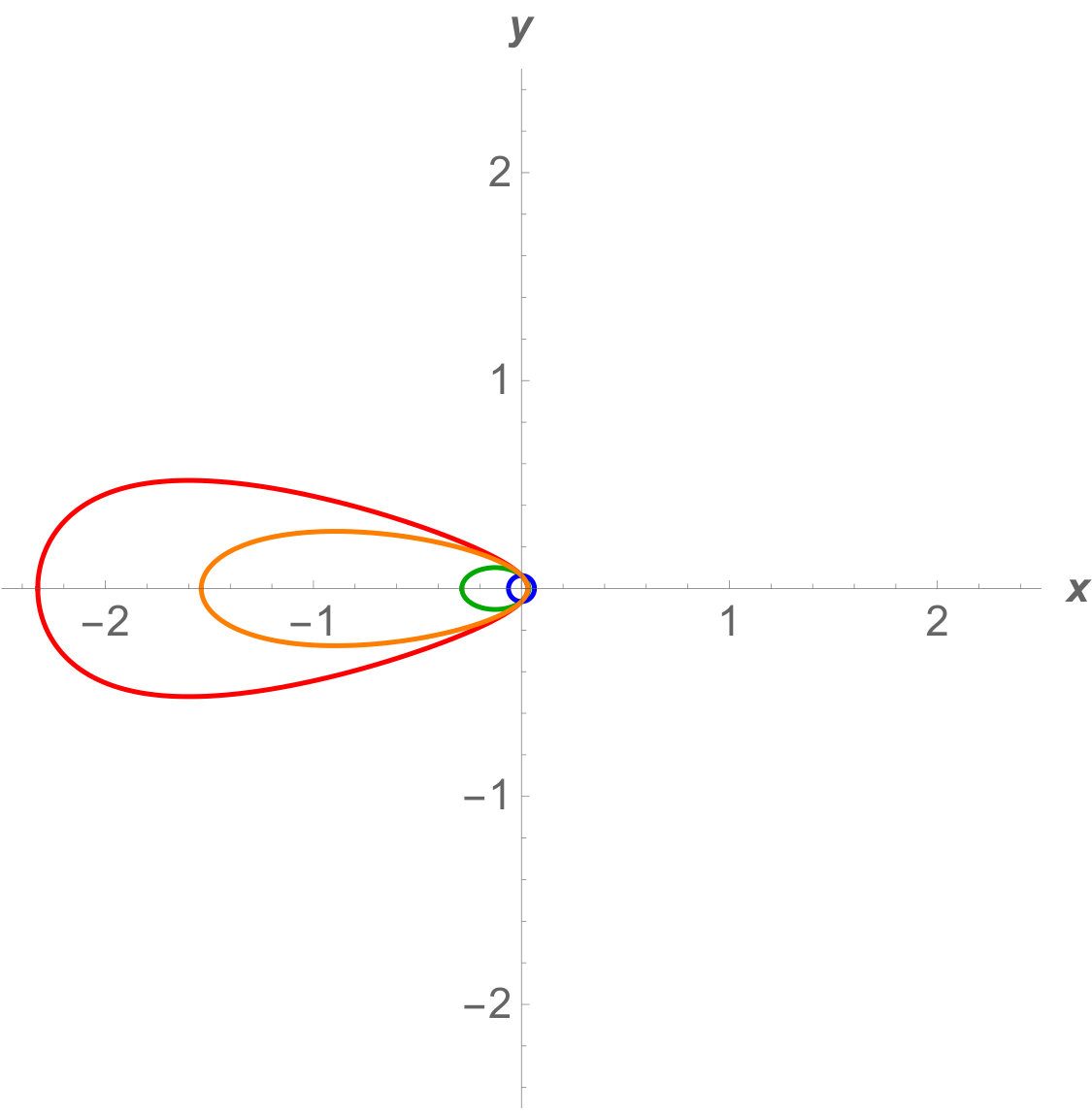

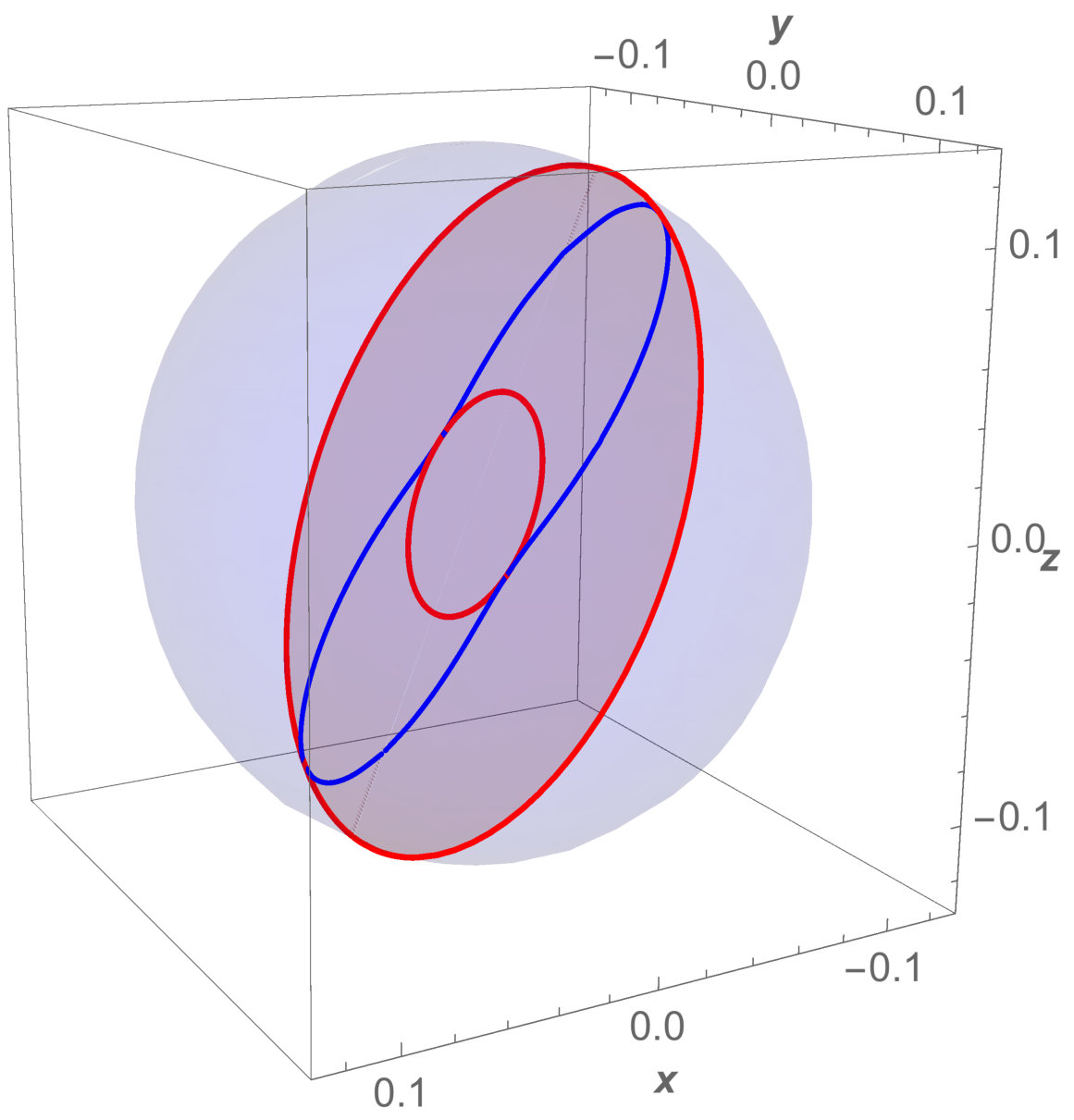

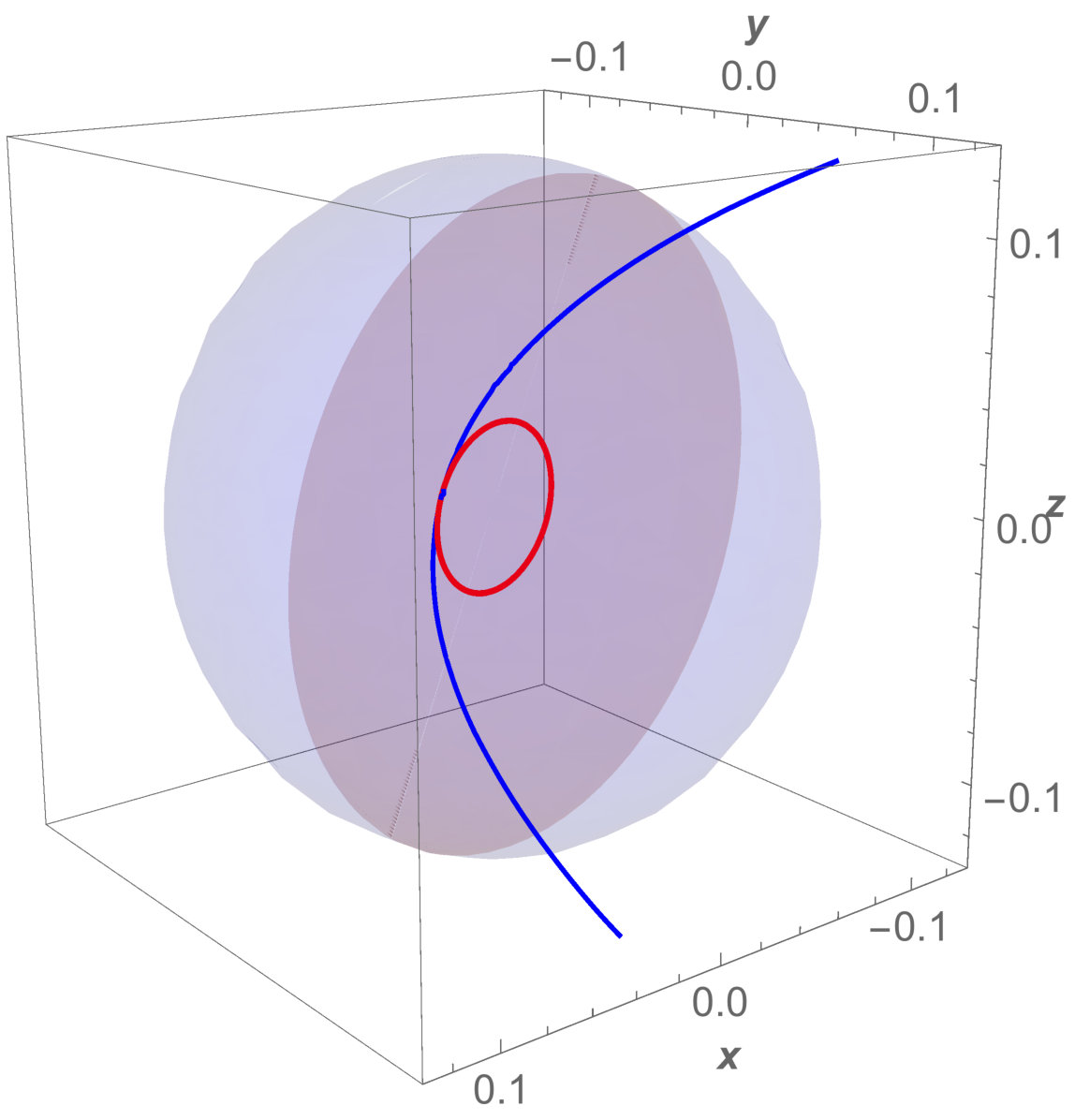

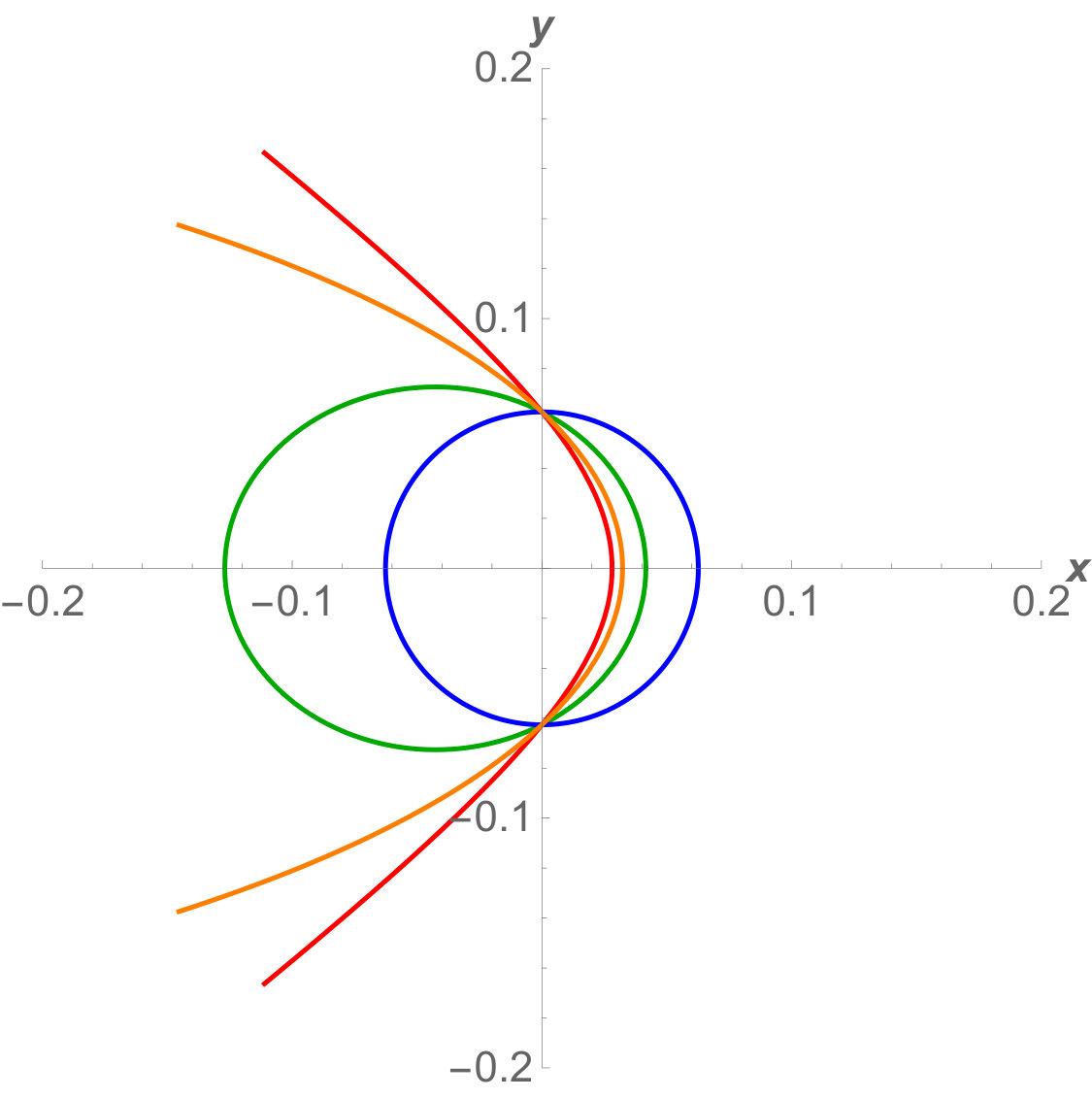

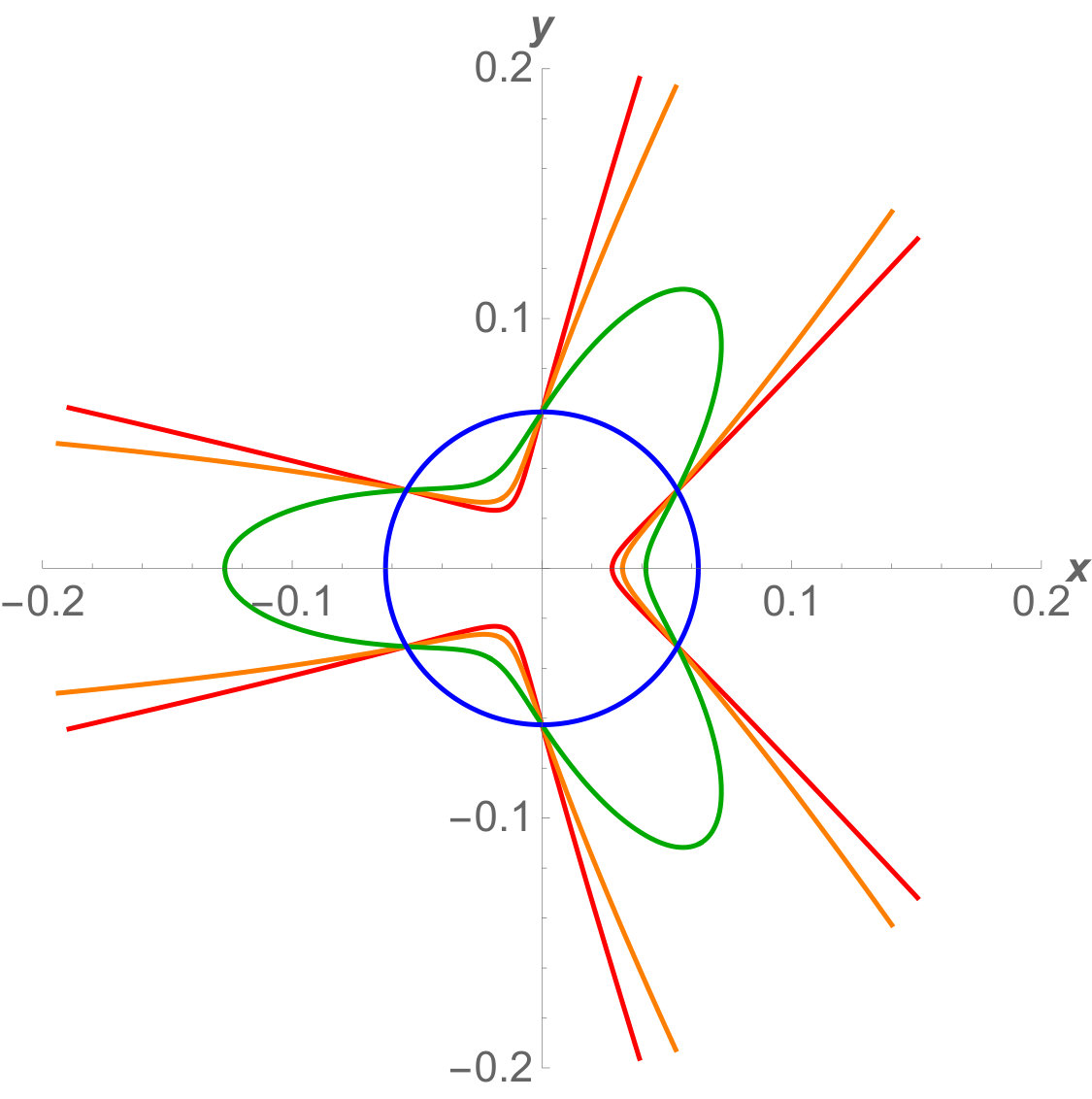

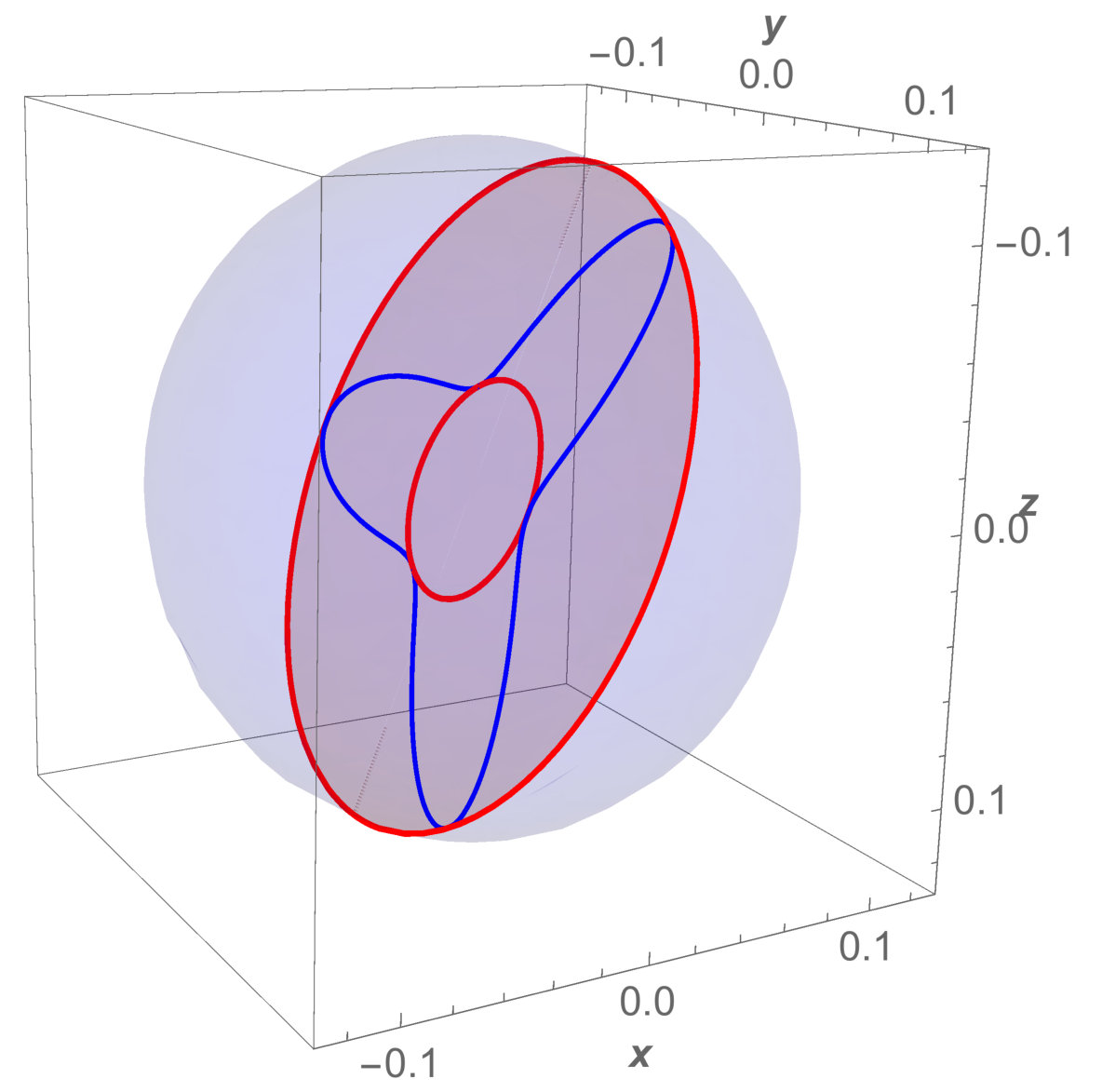

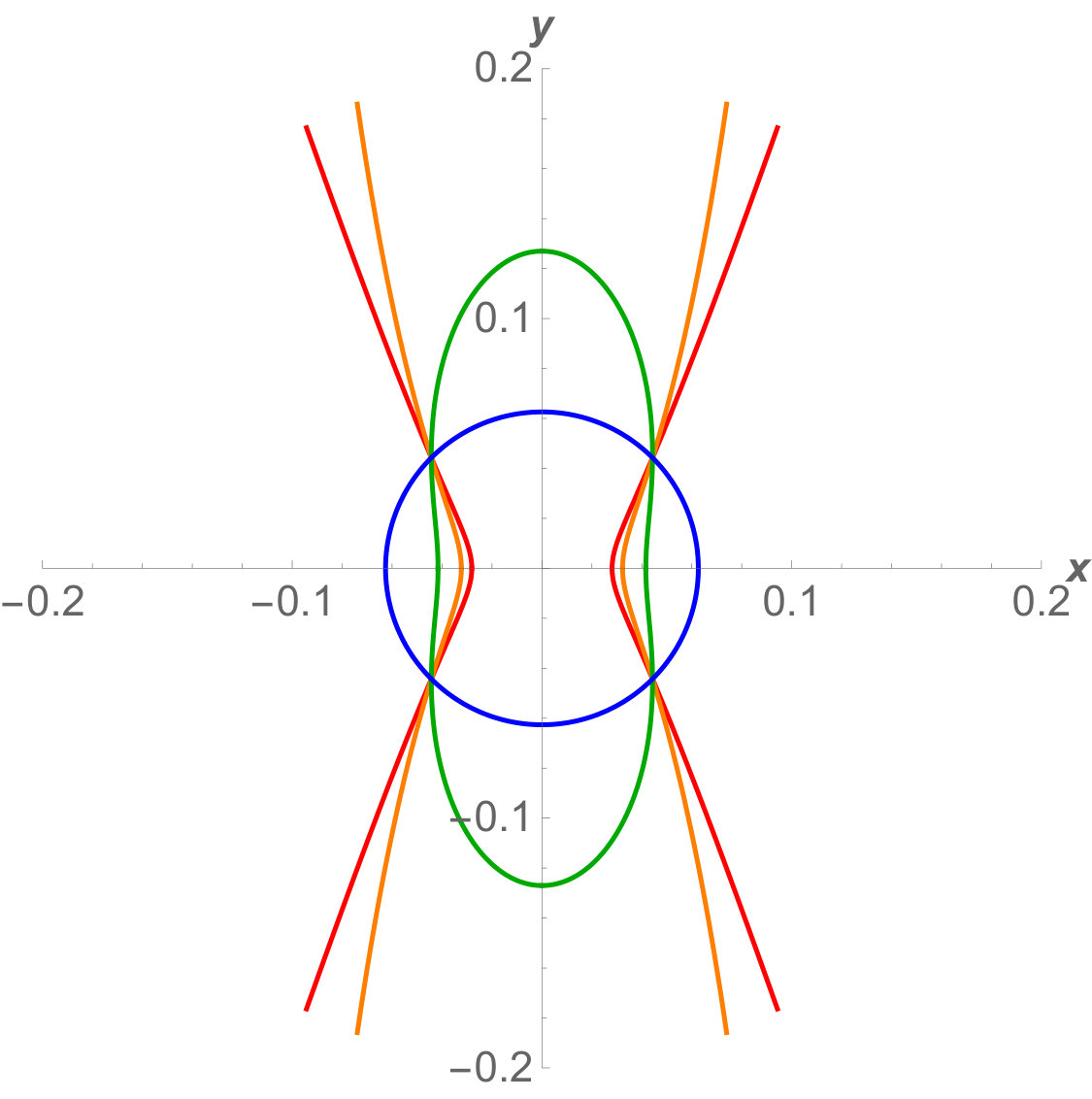

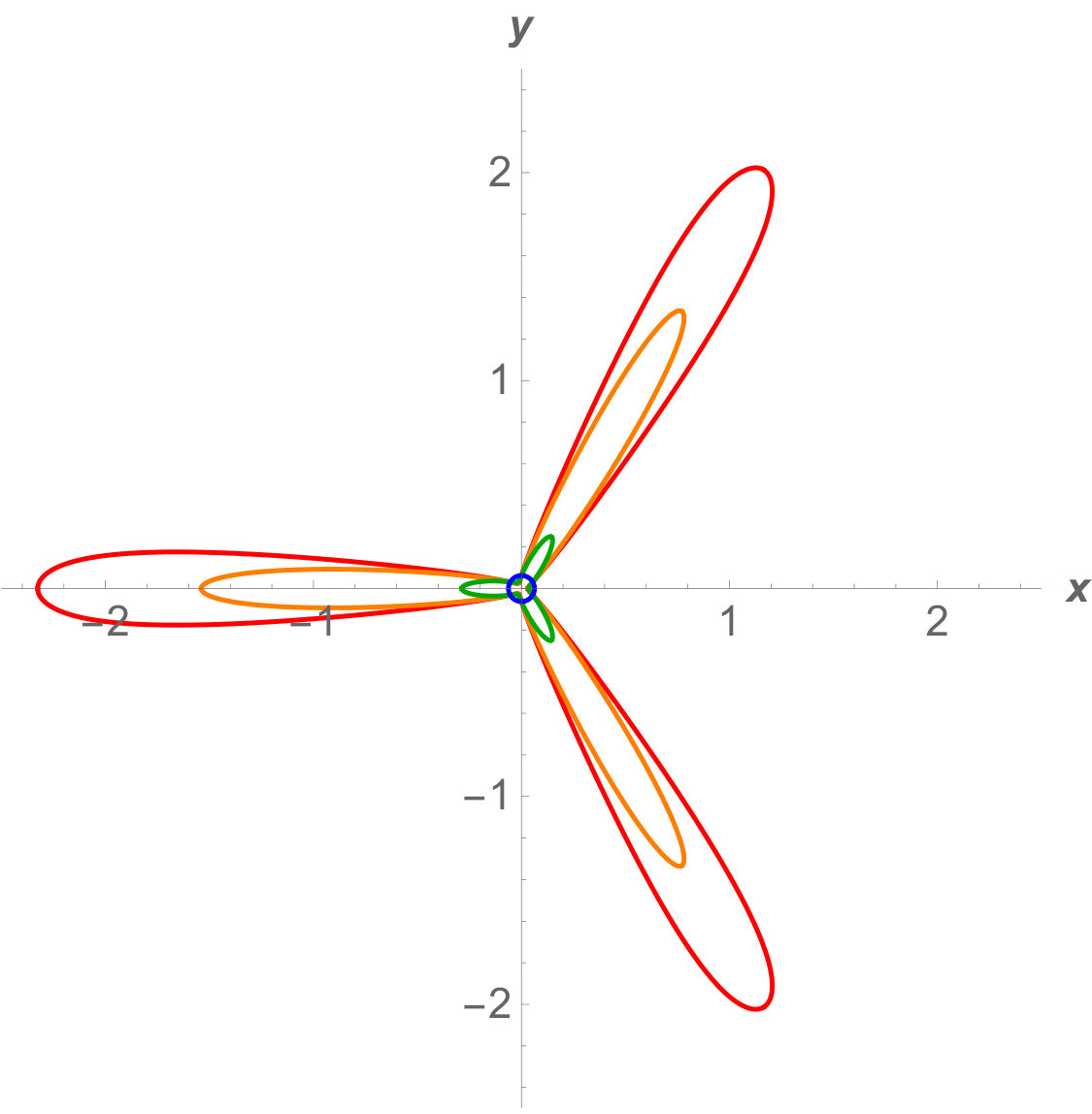

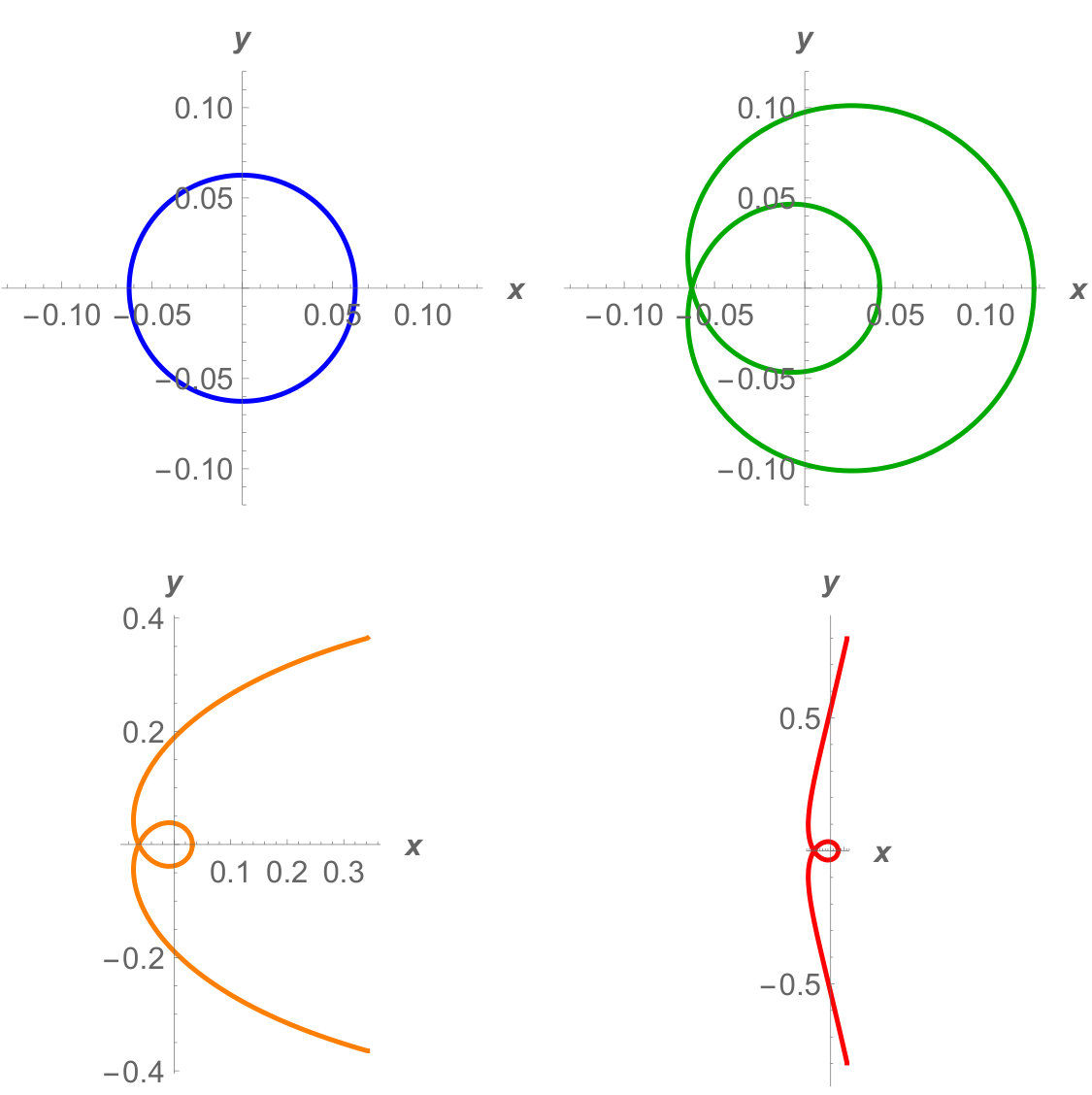

In Fig. 2 and Fig. 3 some examples of the trajectories for different values of the energies $E$ and of the parameter $\beta$ corresponding to bounded and unbounded motions are shown for the case ${\kappa}=-1$. The trajectories of the initial Hamiltonian (2.1) are plotted in a three dimensional space $(r\sin\theta\cos\varphi,r\sin\theta\sin\varphi,r\cos\theta)$, where $(r,\varphi,\theta)$ are the spherical coordinates in $\mathbb{R}^{3}$.
