Giant non-linear interaction between two optical beams via a quantum dot embeddedin a photonic wire

TL;DR

This paper demonstrates a giant optical non-linearity at the single-photon level using a quantum dot in a photonic wire, enabling control of one laser beam's reflectivity by another with very few photons, promising for quantum optical devices.

Contribution

It introduces a novel two-mode non-linearity in a semiconductor quantum dot system, achieving control at the single-photon level with broad bandwidth and high efficiency.

Findings

Achieved control of laser reflectivity with as few as 10 photons per QD lifetime.

Demonstrated a two-mode giant non-linearity in a semiconductor quantum dot system.

Discussed potential applications in ultra-low power optical and quantum gates.

Abstract

Optical non-linearities usually appear for large intensities, but discrete transitions allow for giant non-linearities operating at the single photon level. This has been demonstrated in the last decade for a single optical mode with cold atomic gases, or single two-level systems coupled to light via a tailored photonic environment. Here we demonstrate a two-modes giant non-linearity by using a three-level structure in a single semiconductor quantum dot (QD) embedded in a photonic wire antenna. The large coupling efficiency and the broad operation bandwidth of the photonic wire enable us to have two different laser beams interacting with the QD in order to control the reflectivity of a laser beam with the other one using as few as 10 photons per QD lifetime. We discuss the possibilities offered by this easily integrable system for ultra-low power logical gates and optical quantum gates.

Figures

f of the main text and Fig.[5](#S6.F5) of this supplementary material. For these plots, the two laser frequencies are respectively scanned across the frequencies of lower and upper transitions while the probe reflectivity is recorded. At each step of the scan, the spectrum of the light reflected from the trumpet is recorded on a CCD camera with a typical integration time of $0.1$s. The probe reflectivity is obtained by integrating the counts within a fixed spectral interval of more than $100\mu$eV containing the probe laser scan interval (max $80\mu$eV), and including therefore both fine struc

Equations

$$H=H_0+H_L,$$

$$H_0=E_{{\text{X}}_x}|{\text{X}}_x⟩⟨{\text{X}}_x|+E_{{\text{X}}_y}|{\text{X}}_y⟩⟨{\text{X}}_y|+E_{\text{XX}}|\text{XX}⟩⟨\text{XX}|$$

$$H_L=\frac{\hslash {\Omega }_1}{2}{e}^{i{\omega }_{1}t}|0⟩⟨{\text{X}}_h|+\frac{\hslash {\Omega }_2}{2}{e}^{i{\omega }_{2}t}|{\text{X}}_h⟩⟨\text{XX}|+\text{h.c.},$$

$$\frac{\partial \rho }{\partial t}=\frac{i}{\hslash }[\rho ,H]+{\mathcal{L}}_{\text{decay}}+{\mathcal{L}}_{\text{dephasing}},$$

$$\begin{array}{rl}{\mathcal{L}}_{\text{decay}}& =\gamma L_{|{\text{X}}_x⟩⟨0|}(\rho )+\gamma L_{|{\text{X}}_y⟩⟨0|}(\rho )\\ & +\gamma L_{|\text{XX}⟩⟨{\text{X}}_x|}(\rho )+\gamma L_{|\text{XX}⟩⟨{\text{X}}_y|}(\rho )\end{array}$$

$$\begin{array}{rl}{\mathcal{L}}_{\text{dephasing}}& =\frac{{\gamma }^{\ast }}{2}{L}_{|{\text{X}}_x⟩⟨{\text{X}}_x|+|{\text{X}}_y⟩⟨{\text{X}}_y|-|0⟩⟨0|}(\rho )\\ & +\frac{{\gamma }^{\ast }}{2}{L}_{|\text{XX}⟩⟨\text{XX}|-|{\text{X}}_x⟩⟨{\text{X}}_x|-|{\text{X}}_y⟩⟨{\text{X}}_y|}(\rho )\\ & +\frac{{\gamma }^{\ast }}{2}{L}_{|\text{XX}⟩⟨\text{XX}|-|0⟩⟨0|}(\rho ),\end{array}$$

$$L_C(\rho )=\left[C\rho C^{†}-\frac{1}{2}\left(\rho C^{†}C+C^{†}C\rho \right)\right].$$

$$I_{1,p}^{\text{R}}=\epsilon \frac{\gamma }{2}{n}_{{\text{X}}_p},$$

$$I_{2,p}^{\text{R}}=\epsilon \frac{\gamma }{2}{n}_{\text{XX}},$$

$$I_{1,p}^{\text{R}\text{coh}}=\epsilon \frac{\gamma }{2}|⟨0|\rho |{\text{X}}_p⟩{|}^2,$$

$$I_{2,p}^{\text{R}\text{coh}}=\epsilon \frac{\gamma }{2}|⟨{\text{X}}_p|\rho |\text{XX}⟩{|}^2.$$

$$I^{\text{T}\text{coh}}_{1,h}=\varepsilon\Big{|}\sqrt{\varepsilon I_{1}^{\text{in}}}+i\sqrt{\frac{\gamma}{2}}\langle 0|\rho|\text{X}_{h}\rangle\Big{|}^{2}$$

$$I_{1,h}^{\text{T}}=\epsilon \left[I_1^{\text{in}}+\frac{\gamma }{2}{n}_{{\text{X}}_p}+\sqrt{2\gamma I_{\text{in}}}\text{Im}\left(⟨0|\rho |{\text{X}}_h⟩\right)\right]$$

$$I^{\text{T}\text{coh}}_{2,h}=\varepsilon\Big{|}\sqrt{\varepsilon I_{2}^{\text{in}}}+i\sqrt{\frac{\gamma}{2}}\langle\text{X}_{h}|\rho|\text{XX}\rangle\Big{|}^{2}$$

$$I_{2,h}^{\text{T}}=\epsilon \left[I_2^{\text{in}}+\frac{\gamma }{2}{n}_{\text{XX}}+\sqrt{2\gamma I_2^{\text{in}}}\text{Im}\left(⟨{\text{X}}_h|\rho |\text{XX}⟩\right)\right]$$

$$E_{{\text{X}}_i}=E_{{\text{X}}_i}^0+\delta E_{\text{X}}$$

$$E_{\text{XX}}=E_{\text{XX}}^0+2\delta E_{\text{X}}$$

$$\mathcal{P}(\delta E_{\text{X}})=\frac{1}{{\sigma }_{\text{X}}\sqrt{2\pi }}\exp \left[-\frac{\delta E_{\text{X}}^2}{2{\sigma }_{\text{X}}^2}\right]$$

$$\Gamma =\gamma +{\gamma }^{\ast }+w_{\text{diff}}$$

$$H_L^{\text{eff}}=\frac{\hslash {\Omega }_1^{\text{eff}}}{2}{e}^{i{\omega }_{1}t}|0⟩⟨{\text{X}}_y|+\frac{\hslash {\Omega }_2^{\text{eff}}}{2}{e}^{i{\omega }_{2}t}|{\text{X}}_y⟩⟨\text{XX}|+\text{h.c.},$$

Full text

††preprint: APS/123-QED

Whether classical or quantum, optical communication has proven to be the best approach for long distance information distribution. All-optical data processing has therefore raised much interest in recent years, as it would avoid energy and coherence consuming optics-to-electronics conversion steps Miller10 . Optical logic requires non-linearities to enable photon-photon interactions Turchette95PRL ; Chang07 ; Reiserer ; Tiecke14 ; Sun16 ; Maser16 ; Hacker16 ; Shomroni17 . Low power optical logic faces the challenge of implementing non-linear effects that usually occur at high power. Interestingly, such functionalities ultimately operating at the single photon level can be achieved with giant non-linearities obtained via resonant interactions with system featuring discrete energy levels Turchette95PRL ; Alexia07 ; Chang07 ; Maser16 ; Hacker16 ; Shomroni17 ; Birnbaum05 ; Englund07 ; Fushman08 ; Hwang09 ; Aoki09 ; Rakher09 ; Loo12 ; Volz12 ; Englund12 ; Bose12 ; Lukin13 ; Rempe14PRL ; Chang ; Lodahl ; Javadi15 ; Feizpour15 ; deSantis17 ; Reiserer ; Tiecke14 ; Sun16 . Apart from refs Lukin13 ; Feizpour15 that exploit electromagnetic induced transparency of an atomic cloud, most of the experimental realizations use the concept of "one-dimensional atom" Turchette95APB , wherein a single two-level system is predominantly coupled to a single propagating spatial mode.

During the last decade, "one-dimensional atoms" have been implemented with single atoms Turchette95PRL ; Birnbaum05 ; Aoki09 ; Tiecke14 ; Rempe14PRL ; Reiserer ; Hacker16 ; Shomroni17 , molecules Hwang09 ; Maser16 or semiconductor QDs Englund07 ; Rakher09 ; Volz12 ; Loo12 ; Englund12 ; Bose12 ; Sun16 ; Fushman08 ; Chang ; Lodahl ; Javadi15 ; deSantis17 thanks to resonant optical cavities Birnbaum05 ; Englund07 ; Aoki09 ; Rakher09 ; Volz12 ; Loo12 ; Englund12 ; Bose12 ; Tiecke14 ; Reiserer ; Lodahl ; Sun16 ; Hacker16 ; Shomroni17 ; deSantis17 , as well as via the interaction with a tightly focused optical beam Hwang09 ; Maser16 or non-resonant field confinement such as in single transverse mode waveguides Chang07 ; Javadi15 , Whereas single mode giant non-linearity has been demonstrated with various systems, optical computing requires the non-linear interaction between two different optical channels Maser16 ; Englund12 ; Bose12 ; Hacker16 ; Shomroni17 .

In this letter, we demonstrate a two-modes cross non-linearity in an alternative semiconductor system that offers the perspective of being perfectly compatible with photonic circuits based on planar waveguides, and therefore easily integrable. We use the three level structure of the biexciton-exciton (XX-X) scheme Moreau in a semiconductor QD embedded in a waveguide antenna JClaudon ; Kolchin11 ; Munsch13 ; Hayrynen16 (see Fig. 1a and Supplemental Material SM ). Thanks to the broadband nature of the waveguide, as opposed to microcavities, both excitonic and biexcitonic transitions of a QD located at the center of this structure are efficiently coupled to its fundamental guided mode. We show that turning on the control beam with a power as small as 1 nW alters significantly the reflection of the probe beam at a different wavelength. We present two different schemes depending on whether the control (probe) beam is tuned around the lower (upper) or the upper (lower) transition. We expose their different physical mechanisms and performances and discuss their respective potentials for ultra-low power optical computation and for photonic quantum computation.

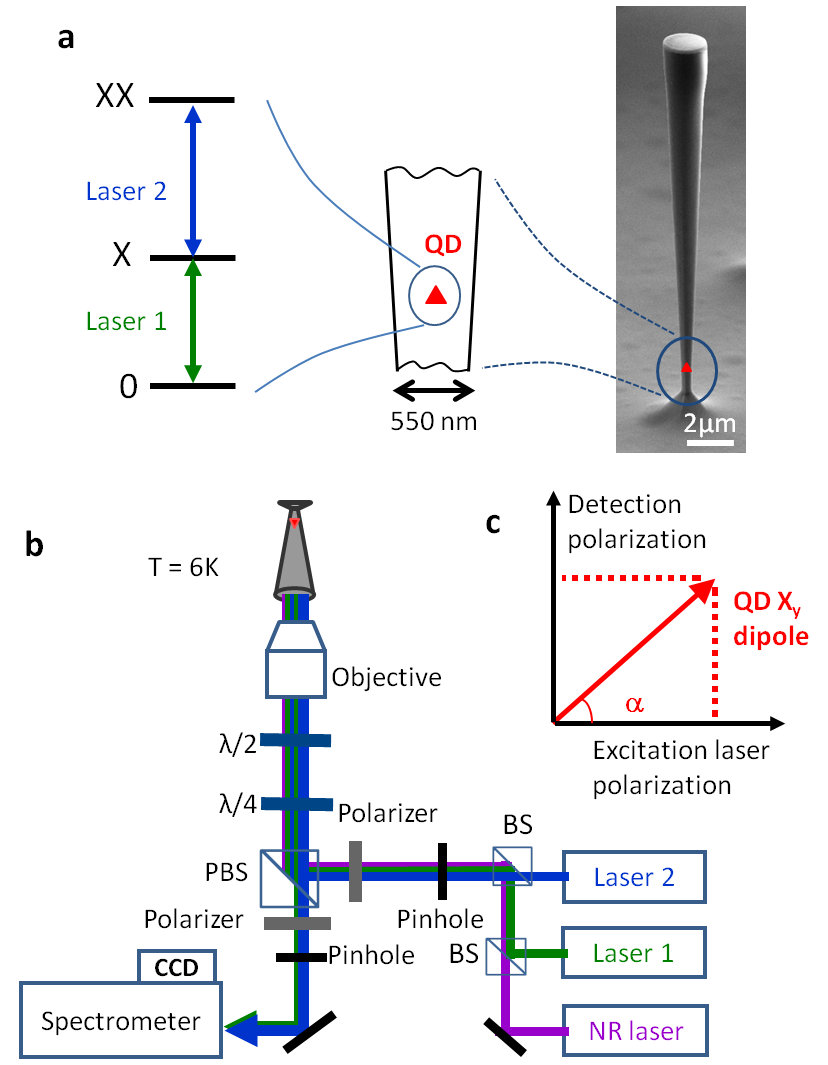

The investigated structure (Fig. 1a) is a vertical GaAs photonic wire containing an InAs QD. The QD is located at the bottom of the wire where its diameter ($500$ nm) ensures a good QD coupling to the fundamental guided mode JClaudon ; Hayrynen16 . This mode expands as it propagates along the conical taper before being out-coupled Munsch13 . The photons of both transitions can then be efficiently collected by a microscope objective and their spatial mode features a large overlap with a Gaussian beam Stepanov_APL . For the same reasons, focusing a mode-matched Gaussian beam on the top facet of the photonic wire leads a large interaction cross-section with both QD transitions.

The experimental set-up is depicted in Fig. 1b. It is based on a micro-photoluminescence set-up at a temperature of T=6K. By first performing standard photoluminescence (PL) measurements of an individual QD using non-resonant laser excitation, we are able to identify the neutral X and XX transition energies, separated by $0.6$ meV around $1.36$ eV. Using a pulsed Titanium Sapphire laser on another set-up, we have measured lifetimes of $1.4$ ns ($0.7$ ns) for the excitonic (biexcitonic) level of the investigated QD.

As shown in Fig. 1, we can perform resonant excitations with two continuous wave (CW) external grating diode lasers which can be finely tuned around each transition of the three-level scheme. Owing to the non-perfect QD circular symmetry, the excitonic level features a fine structure splitting of $25\;\mu$eV of the bright excitons (denoted Xx and Xy), corresponding to two orthogonal optical dipoles oriented along the cristallographic axis $x=[110]$ and $y=[1$-$10]$ of GaAs. In our experiments, the main qualitative effects are explained by only one (Xy) of the two dipoles, but the quantitative modeling requires the inclusion of both excitonic levels SM . The Xy dipole is oriented so that it exhibits a non-vanishing angle $\alpha=27^{o}$ with the laser beams’ linear polarization (see Fig. 1c). Thanks to a polarizing beam splitter, laser parasitic reflections are suppressed by a factor of $10^{-4}$ Kuhlmann13 , while the light emitted by the QD dipoles on the orthogonal polarization is detected by a charge coupled device (CCD) at the output of a grating spectrometer featuring a $12\;\mu$eV spectral resolution. The cross non-linear effect is revealed by measuring the reflectivity of one of the laser beams (probe beam) as a function of the intensity of the other one (control beam). We discuss below the two scenarios corresponding to the control laser being tuned either around the upper or the lower transition of the three-level scheme.

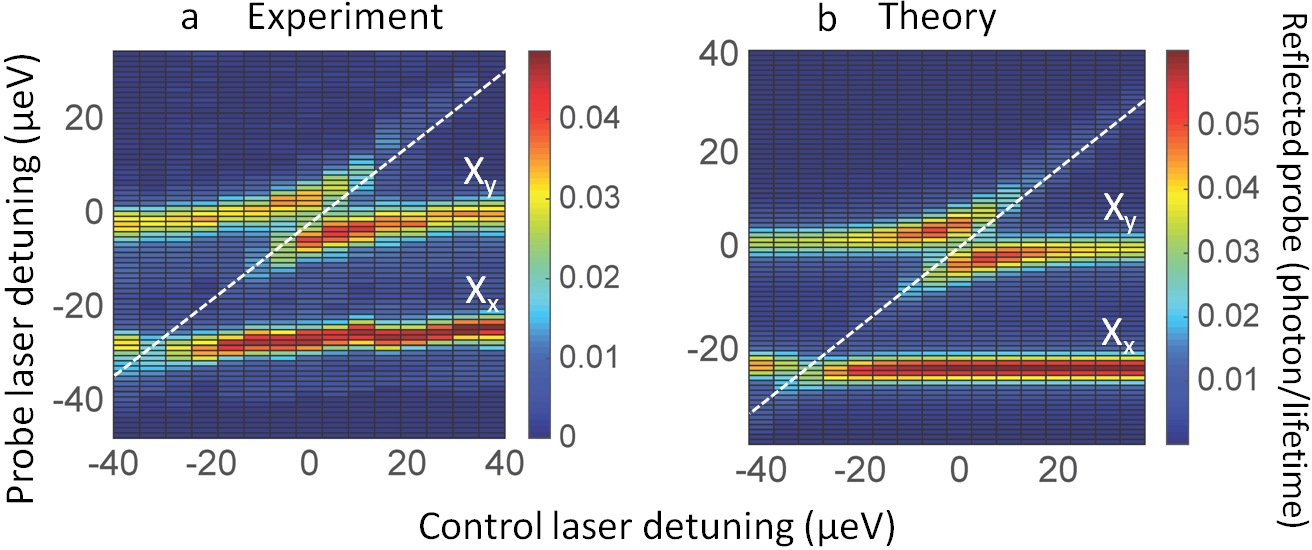

We first consider the case in which the control (probe) laser is tuned on the lower (upper) transition (see Fig. 2). We will refer to this configuration as the "population switch", since the physics at work in this situation is the control of the X state population by the control laser. When the latter is off (Fig. 2a), both X and XX states are empty so that the probe laser beam sees a transparent medium and is totally transmitted. As the control laser intensity is increased towards saturation of the lower transition, the X state becomes populated so that the probe beam experiences a dipole-induced reflection (Fig. 2b).

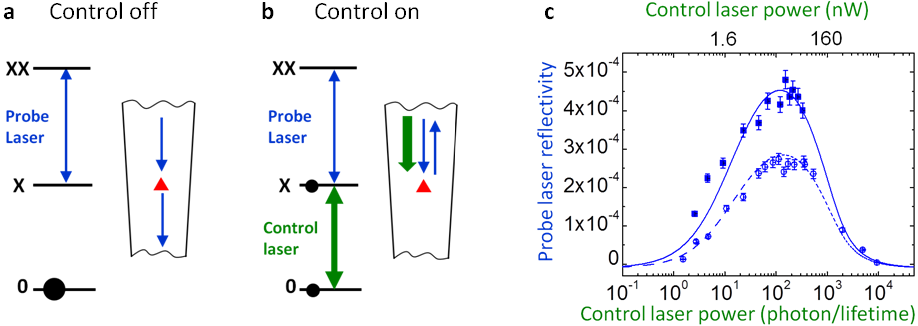

This "population switch" mechanism is evidenced in Fig. 2c, which shows the probe laser reflectivity as a function of the control laser power. The switching threshold is only $1.6$ nW ($10$ photons/lifetime), which is comparable to the best results obtained recently with a single molecule Maser16 . The probe reflectivity reaches a maximum for a control laser power as low as $16$ nW ($100$ photons/lifetime). Increasing further the control laser power leads to an Autler-Townes splitting Autler55 ; Cohen92 ; Xu07 ; Imamoglu08 of the intermediate state, which brings the probe beam out of resonance and reduces its reflectivity (Fig. 2c).

This experimental behaviour is well fitted with our model over 4 orders of magnitude of control laser power, for two different probe powers (see Fig. 2c and Supplemental Material SM ). The values of the reflectivity $R$ and the switching power $P_{s}$ are presently limited by imperfections of our system, and are fully accounted for by our model. The parameters that are affecting the performances are the fraction $\varepsilon$ of input light coupled to the QD, and the linewidth broadening. The quantity $\varepsilon$ is the product of the mode matching efficiency, the taper modal efficiency and the waveguide coupling efficiency $\beta$. From the global fitting of our experimental results, we extract $\varepsilon=0.26\pm 0.01$, which is in line with a Fourier modal method calculation Hayrynen16 based on the sample geometry. In our experiment, the measured linewidth $\Gamma$ is broadened to $\Gamma=10\gamma$, where $\gamma$ is the lifetime limited linewidth. This broadening is shared between homogeneous origin due to pure dephasing, and inhomogeneous origin caused by spectral diffusion SM .

With ideal parameters ($\varepsilon=1$ and $\Gamma=\gamma$), losses are vanishing, so that all input light is used to saturate the QD, and the cross polarized detection scheme can be removed by aligning the laser polarizations to the exciton dipole direction and detect the reflected light along this polarization as well. In this case, based on our theoretical model, we find that the switching power can be as low as $P_{s}^{(0)}=0.1$ photons/lifetime but that the maximum reflectivity can never exceed $R^{(0)}=0.1$. This limitation comes from the partial population of the $X$ state at low control powers and the Autler-Townes induced probe laser detuning for higher control powers. It is also due to the population leaks caused by the presence of the other fine structure split level Xx, which is populated via spontaneous emission from the biexcitonic (XX) state SM .

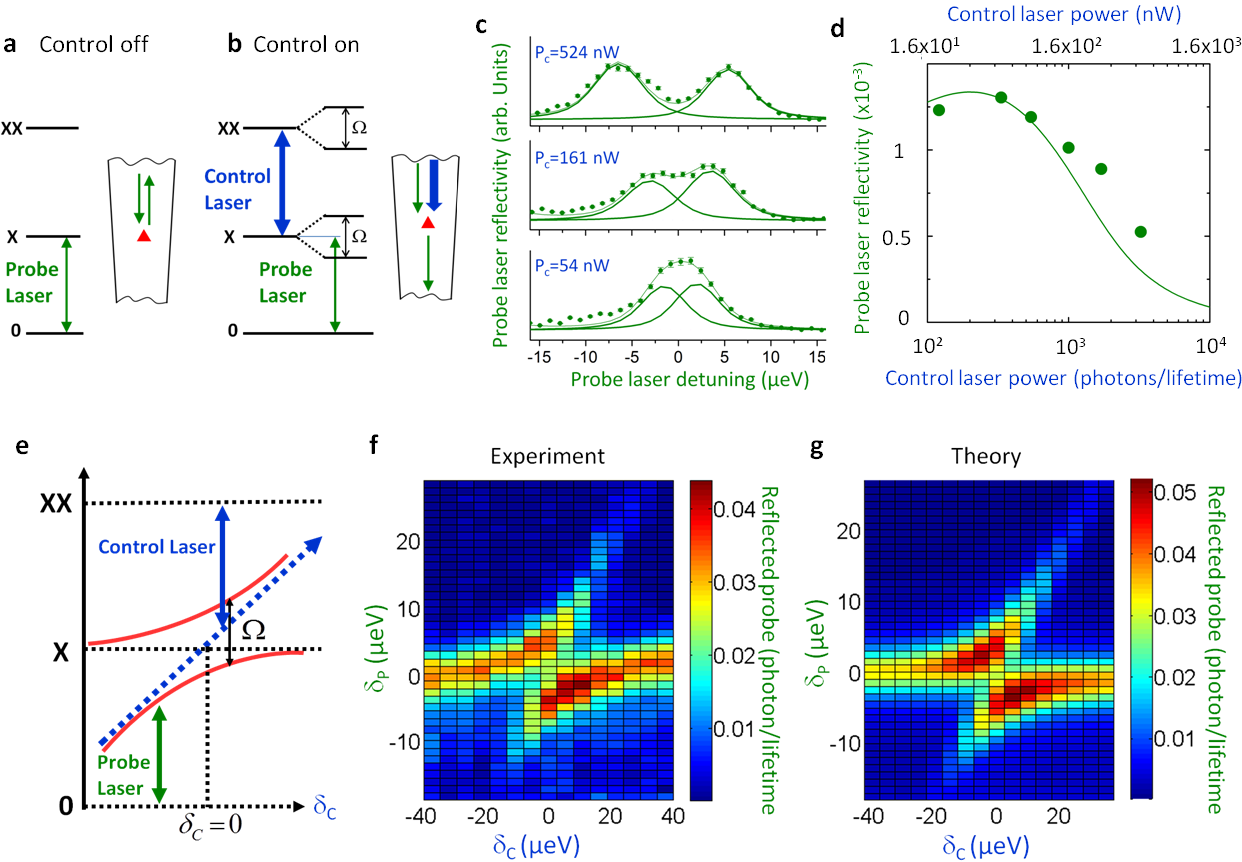

To overcome this fundamental limitation, we explore another switch mechanism in which the control (probe) laser is tuned on the upper (lower) transition (see Fig. 3). The physical effect is here the dressing of the upper transition by the control laser when it is well above saturation. In the absence of the control laser (Fig. 3a), the weak probe beam (below saturation) is reflected when on resonance with the lower transition Alexia07 . When the control laser is turned on above saturation (Fig. 3b,c), the Xy state splits into two dressed states, as a result of the Autler-Townes effect Autler55 ; Cohen92 ; Xu07 ; Imamoglu08 . The probe beam is then no longer resonant and its reflection switched off. In this "Autler-Townes" configuration, the switching threshold is found to be around $200$ nW (cf. Fig. 3d). The Autler-Townes splitting effect is well evidenced in Fig. 3e-g) exhibiting the typical anticrossing of the probe laser reflectivity as a function of the two laser detunings. Using the same set of parameters for all the data presented in this work, our theoretical model is able to quantitatively reproduce all the experimental results (Figs. 2,3).

Interestingly, and contrary to the "population switch" configuration, the "Autler-Townes" configuration potentially shows perfect performances (i.e. $R^{(0)}=1$, $P_{s}^{(0)}=1$ photons/lifetime) with ideal parameters ($\varepsilon=1$ and $\Gamma=\gamma$) in the copolarized setting. Moreover, our theoretical model indicates that, in this case, the reflectivity is almost fully coherent, which is a key feature in the perspective of the realization of quantum logical gates SM .

Using models developed by some of us in deSantis17 , we have also theoretically investigated the pulsed situation for both configurations. We have found that the pulsed regime leads to similar performances for reflectivity switching threshold and predict a pulse bandwidth of a few $10$ MHz, set by the QD lifetime.

Let us mention that combining state of the art optical coupling with a narrow line QD would allow us to come rather close to these ideal parameters and to implement efficient ultra-low power all-optical switch. Optical couplings as high as $\varepsilon=0.75$ have already been reported in slightly narrower waveguides and expected values for optimized designs are as high as $\varepsilon=0.95$ Munsch13 . Additionally, close to lifetime-limited linewidths (i.e. $\Gamma\approx\gamma$) have been obtained recently by applying a voltage bias across the QD Somaschi16 ; Kuhlmann15 . Suitable electrical contacts can be implemented on our photonic wire, without degrading the optical properties, using the designs proposed by some of us in Gregersen10 .

In conclusion, we have experimentally demonstrated a giant two-modes cross non-linearity between two different laser beams in a semiconductor QD embedded in a photonic wire. This non-linearity appears at an optical power as low as $10$ photons per emitter lifetime paving the way for the realization of classical, as well as quantum, ultra-low power logical gates. Importantly, our results can be readily transferred to planar GaAs photonic chips based on ridge waveguides Makhonin14 ; Stepanov_ridge or photonic crystals geometries Bose12 ; Javadi15 , and offer therefore interesting perspectives for on-chip photonic computation.

Acknowledgment

The authors wish to thank E. Wagner for technical support in data acquisition. Sample fabrication was carried out in the Upstream Nanofabrication Facility (PTA) and CEA LETI MINATEC/DOPT clean rooms. H.A.N. was supported by a PhD scholarship from Vietnamese government, T.G. by the ANR-QDOT (ANR-16-CE09-0010-01) project, P.L.d.A. by the ANR-WIFO (ANR-11-BS10-011) project and CAPES Young Talents Fellowship Grant number 88887.059630/2014-00, D.T. by a PhD scholarship from the Rhône-Alpes Region, and N.G. by the Danish Research Council for Technology and Production (Sapere Aude contract DFF-4005-00370).

Supplemental material

In this supplemental material, we give details on the sample geometry, we present the theoretical model and explain how the experimental parameters used in the model are obtained from the experimental data, we give some extra experimental details, and finally we give the performance of our system in ideal conditions.

I A quantum dot in a photonic wire

The sample studied in this work is made of epitaxial GaAs and has the shape of an inverted cone lying on a pyramidal pedestal. The inverted cone is 17.2 $\mu$m high, the diameter at the waist is 0.5 $\mu$m and the top facet diameter is 1.9 $\mu$m. This "photonic trumpet" embeds a single layer of a few tens of self-assembled InAs QDs, located 0.8 $\mu$m above the waist (position determined by cathodoluminescence). To optimize the light extraction efficiency, the top facet is covered by an anti-reflection coating (115 nm thick Si3N4 layer). To suppress spurious surface effects, the wire sidewalls are passivated with a 20 nm thick Si3N4 layer. We define such structures with a top-down process, very similar to the one described in Munsch13 .

II Theoretical model

Master equation for the electronic system.

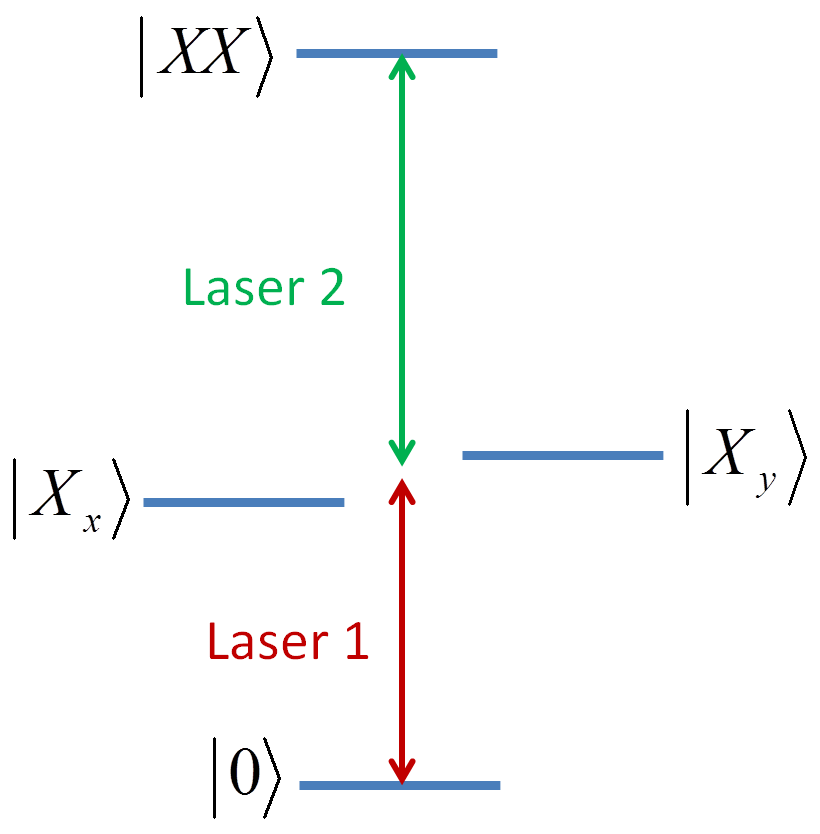

We consider the 4-level system formed by the electronic eigenstates $|0\rangle,|\text{X}_{x}\rangle,|\text{X}_{y}\rangle,|\text{XX}\rangle$. Under laser driving, the system Hamiltonian can be written as

[TABLE]

where $H_{0}$ represents the electronic part, and $H_{L}$ the interaction with a coherent optical drive within the rotating-wave approximation (see e.g. cohen )

[TABLE]

[TABLE]

where $h$ ($v$) is the polarization along ( perpendicular to) the lasers, and $|\text{X}_{h}\rangle=\cos\alpha|\text{X}_{y}\rangle+\sin\alpha|\text{X}_{x}\rangle$ the exciton mode along this polarization ($|\text{X}_{v}\rangle=\sin\alpha|\text{X}_{y}\rangle-\cos\alpha|\text{X}_{x}\rangle$). The quantities $\omega_{1,2}/2\pi$ are the laser frequencies, and $\Omega_{1,2}/2\pi$ the corresponding Rabi Frequencies. The Lindblad master equation for the density matrix $\rho$ reads Carmichael

[TABLE]

where $\mathcal{L}_{\text{decay}}$ describes the radiative decay processes and $\mathcal{L}_{\text{dephasing}}$ the pure dephasing processes. They read respectively

[TABLE]

[TABLE]

where $L_{C}(\rho)$ is the Lindblad superoperator for a collapse operator $C$:

[TABLE]

In the radiative decay term $\mathcal{L}_{\text{decay}}$, we have assumed that the four different possible exciton recombination processes occur at the same rate $\gamma$. In the pure dephasing term $\mathcal{L}_{\text{dephasing}}$, an additional decay of the coherence between the ground state, the excitonic states and the biexciton state is considered with a rate $\gamma^{*}/2$, corresponding to an additional spectral broadening of $\hbar\gamma^{*}$ for the full width at half maximum (FWHM) of these transitions.

Optical nonlinearities.

The optical nonlinearities are calculated following previous studies of quantum electrodynamics in one-dimensional wave-guides Auffeves07 ; valente12 . The total reflected intensity (in photons per unit time) for the transition 1 (2) is proportional to the exciton (biexciton) population:

[TABLE]

[TABLE]

where $p=v$ or $h$ is the polarization, $n_{i}=\rho_{ii}$ is the population of the level $i$, and $\varepsilon$ is the product of the mode matching efficiency with the waveguide coupling efficiency $\beta$ (see main text). The coherent part of these reflected intensities reads

[TABLE]

[TABLE]

In the polarization $v$ (orthogonal to the excitation’s one), the transmitted intensity is equal to the reflected one $I^{\text{T}}_{v}=I^{\text{R}}_{v}$ since the quantum dot (QD) luminescence is distributed symmetrically between the two directions without any interference with the incident beam. In contrast, for the polarization $h$ (parallel to the excitation’s one), an interference effect occurs between the incident field and the scattered field. The coherent and total (i.e. coherent + incoherent) transmitted electric fields are given respectively for the transitions 1 and 2 by

[TABLE]

[TABLE]

[TABLE]

[TABLE]

Spectral diffusion

In addition to pure dephasing, we consider spectral diffusion processes, i.e. fluctuation of the electronic transition energies over timescales which are long compared to the exciton lifetime $1/\gamma$. A fluctuating term $\delta E_{\text{X}}$ in the exciton energy is added as:

[TABLE]

[TABLE]

where $i=x,y$, and $E_{\text{X}_{i}}^{0}$ ($E_{\text{XX}}^{0}$) is the mean exciton (biexciton) energy. This fluctuation is assumed to verify a Gaussian distribution, with a probability density function:

[TABLE]

where $\sigma_{\text{X}}$ is the standard deviation. The corresponding FWHM reads $w_{\text{diff}}=2\sqrt{2\ln(2)}\sigma_{\text{X}}$. The total FWHM of the excitonic and biexcitonic transitions reads

[TABLE]

For each realization of spectral diffusion, we calculate the density matrix $\rho(\delta E_{\text{X}})$ under continuous-wave excitation by finding the steady-state of the above Lindblad equation (Eq. 4). The density matrix and the reflectivities are then averaged over the distribution $\mathcal{P}(\delta E_{\text{X}})$.

Effective 3-level system.

For Rabi frequencies and detunings which remains small compared to the fine structure splitting ($E_{\text{X}_{y}}-E_{\text{X}_{x}}=27\;\mu$eV), the system behaves as a 3-level system ($|0\rangle,|\text{X}_{y}\rangle,|\text{XX}\rangle$), i.e. the influence of the state $|\text{X}_{x}\rangle$ is negligible. The light-matter interaction can be written

[TABLE]

with $\Omega^{\text{eff}}_{i}=\Omega_{i}\sin\alpha$. In addition, a factor $\cos\alpha$ (or $\cos^{2}\alpha$) appears when expressing the coherences (or populations) of the horizontal exciton mode for cross-polarized reflections, such as $\langle 0|\rho|\text{X}_{h}\rangle=\langle 0|\rho|\text{X}_{y}\rangle\cos\alpha$ and $n_{\text{X}_{h}}=n_{\text{X}_{y}}\cos^{2}\alpha$ .

III Extraction of experimental parameters

The unknown parameters of the QD-waveguide system are the input-output coupling efficiency $\varepsilon$, the pure dephasing rate $\gamma^{*}$ and the spectral diffusion factor $w_{\text{diff}}$. The factor $\varepsilon$ is extracted very precisely from the Autler-Townes splitting results (see Fig. 3 of the main text), wherein the control laser is well above saturation and dresses the upper transition for one of the fine structure split level ($|\text{X}_{y}\rangle$ for example), while the well below saturation probe laser probes the Autler-Townes splitting induced by the control laser. The Autler-Townes splitting is given by $\Omega=\sqrt{\delta^{c}_{2}+\Omega^{2}_{c}}$, where $\delta_{c}$ is the detuning between the control laser and the $|\text{X}_{y}\rangle-|\text{XX}\rangle$ transition, and $\Omega_{c}$ is the Rabi frequency of the control laser that directly interacts with the QDs inside the photonic wire. We have $\Omega_{c}^{2}=2\varepsilon\gamma I^{\text{in}}_{c}$, where $I_{c}^{\text{in}}$ is the control laser intensity (in photons per excitonic lifetime) at the input of the photonic wire valente12 . By measuring $\Omega$ at zero-detuning ($\delta_{c}=0$), and comparing with $I_{c}^{\text{in}}$, we find a coupling efficiency factor $\varepsilon=0.26\pm 0.01$.

The next unknown factors are the pure dephasing $\gamma^{*}$ and the broadening induced by spectral diffusion $w_{\text{diff}}$ (see section II above). A total linewidth of $4\mu$eV has been measured from the resonant laser scans (see Fig. 3c,f of the main text). The weight between the two broadening mechanisms is then determined by optimizing the fits with the experimental results. This leads us to take $\gamma^{*}=1\pm 0.5\mu$eV and $w_{\text{diff}}=3\pm 0.5\mu$eV, where the lifetime limited linewidth is $\gamma=0.5\mu$eV.

IV Measurement of the probe reflectivity

For a given set of control and probe powers, the best probe reflectivity is measured at the best laser detunings from the two-dimensional reflectivity plots such as shown in Fig.3f of the main text and Fig.5 of this supplementary material. For these plots, the two laser frequencies are respectively scanned across the frequencies of lower and upper transitions while the probe reflectivity is recorded. At each step of the scan, the spectrum of the light reflected from the trumpet is recorded on a CCD camera with a typical integration time of $0.1$s. The probe reflectivity is obtained by integrating the counts within a fixed spectral interval of more than $100\mu$eV containing the probe laser scan interval (max $80\mu$eV), and including therefore both fine structure split levels (splitting around 25$\mu$eV). In some cases, mainly in the population switch configuration, both excitonic states are populated via the biexcitonic state, so that incoherent photons involving the non-principal excitonic state are also detected. Note that this feature is included in our theoretical model.

V Importance of the non-resonant laser

The obtention of narrow resonant lines of the QD transitions requires the presence of a non-resonant laser ($\lambda=825$nm, i.e. $E=1.5$eV). The power of this laser is always kept around $0.1$nW (i.e. $10^{-3}$ times the saturation power), so that its induced photoluminescence remains negligible compared to the resonant laser luminescence. The carriers generated in the wetting layer by this weak non-resonant laser have been shown to reduce spectral diffusion and hence reduce the linewidth Majumdar11 . This is a standard technique in resonant excitation experiments with individual QDs. In our case the linewidth is reduced by a factor of $3$, from $15\mu$eV down to $5\mu$eV.

VI Experimental data including the fine structure splitting

In this section, we give a complete picture concerning the presence of the other excitonic dipole in the Autler-Townes splitting approach. To this end, we have carried out a broad scan of the probe beam covering both excitonic states $X_{x}$ and $X_{y}$. Fig. 5 shows the experimental and theoretical results for a scan with a control laser power $274$ nW. The Autler-Townes splitting is observed for both states. It should be mentioned that the Autler-Townes splittings are different for each state, since, except for $\alpha=45^{o}$, the two orthogonally polarized excitonic dipoles are excited differently with respect to the resonant laser polarization. The Autler-Townes splittings at resonance for the two dipoles, $\Omega_{x}$ and $\Omega_{y}$ scale as $\Omega_{y}/\Omega_{x}=1/\tan\alpha$, with $\alpha$ the angle between the polarizations of laser and $X_{y}$ as defined in Fig. 1 of the main text. In our experiment, we have chosen $\alpha=27^{o}$ so that $\Omega_{y}/\Omega_{x}\approx 2$.

VII Switch performances in ideal conditions

In this section we compute the reflectivity with ideal parameters ($\varepsilon=1$ and $\Gamma=\gamma$). The total reflectivity is given by equations (8,9), whereas the coherent part is given by equations (10,11).

VII.1 Population switch configuration

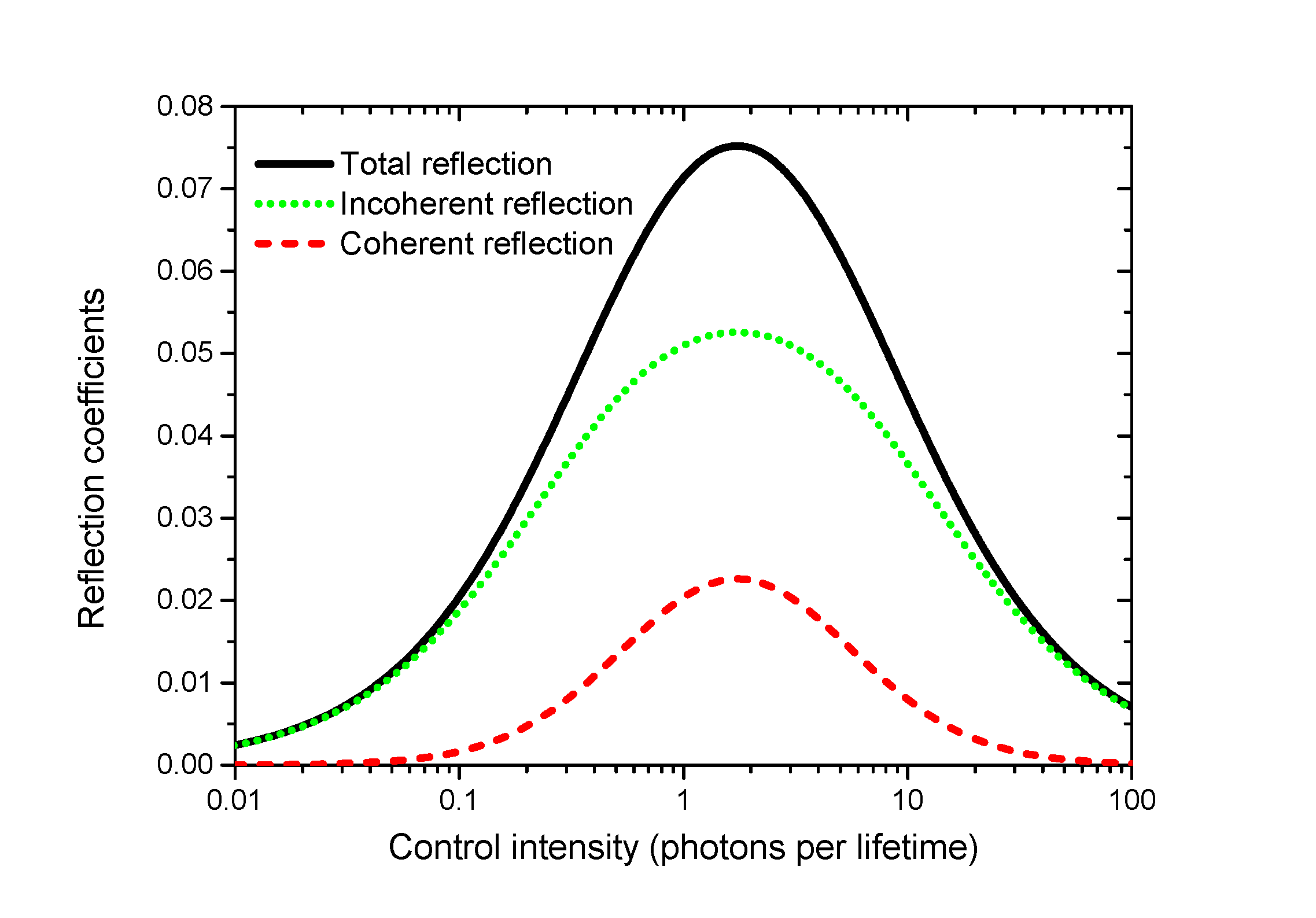

In this approach, the control (probe) beam is tuned on the lower (upper) transition (cf. Fig. 2 of the main text). The switching effect is based on a population effect, so that incoherent scattering is dominant even with ideal parameters (see Fig. 6). Additionally, owing to the never complete population of the Xy state at low power, the Autler-Townes induced probe laser detuning for higher control powers, and population leaks to the other excitonic state Xx via spontaneous emission from the biexcitonic state XX, the maximum reflectivity in the population switch configuration never exceeds $R=0.08$.

Cross-polarized.

Here the detected light is linearly polarized orthogonally to the input laser, as in our experiment, to ensure a low level of parasitic backscattered laser light. Note that the other fine-structure split level Xx, which is also populated via the XX state, is also detected by our experimental set-up via the XX-Xx spontaneous emission, and contributes therefore to the probe reflectivity in an incoherent way, so that the total probe reflectivity is mainly incoherent. For $\alpha=45^{o}$, its maximum value is found to be $R=0.03$ obtained for $1$ photon/lifetime of control laser intensity.

Co-polarized.

In the case of low backscattered light from the trumpet top facet, we can in principle access the light reflected from the trumpet along the same polarization as the input laser. In this situation, the relevant QD dipole Xy orientation is chosen along this polarization. As mentioned above, even in this case, the population switch configuration does not allow for unity reflectivity (see Fig.6). Moreover, since half of the reflectivity is due to the other excitonic state (Xx state), via the XX-Xx spontaneous emission, not more than half of the reflected light is coherent.

VII.1.1 Autler-Townes configuration

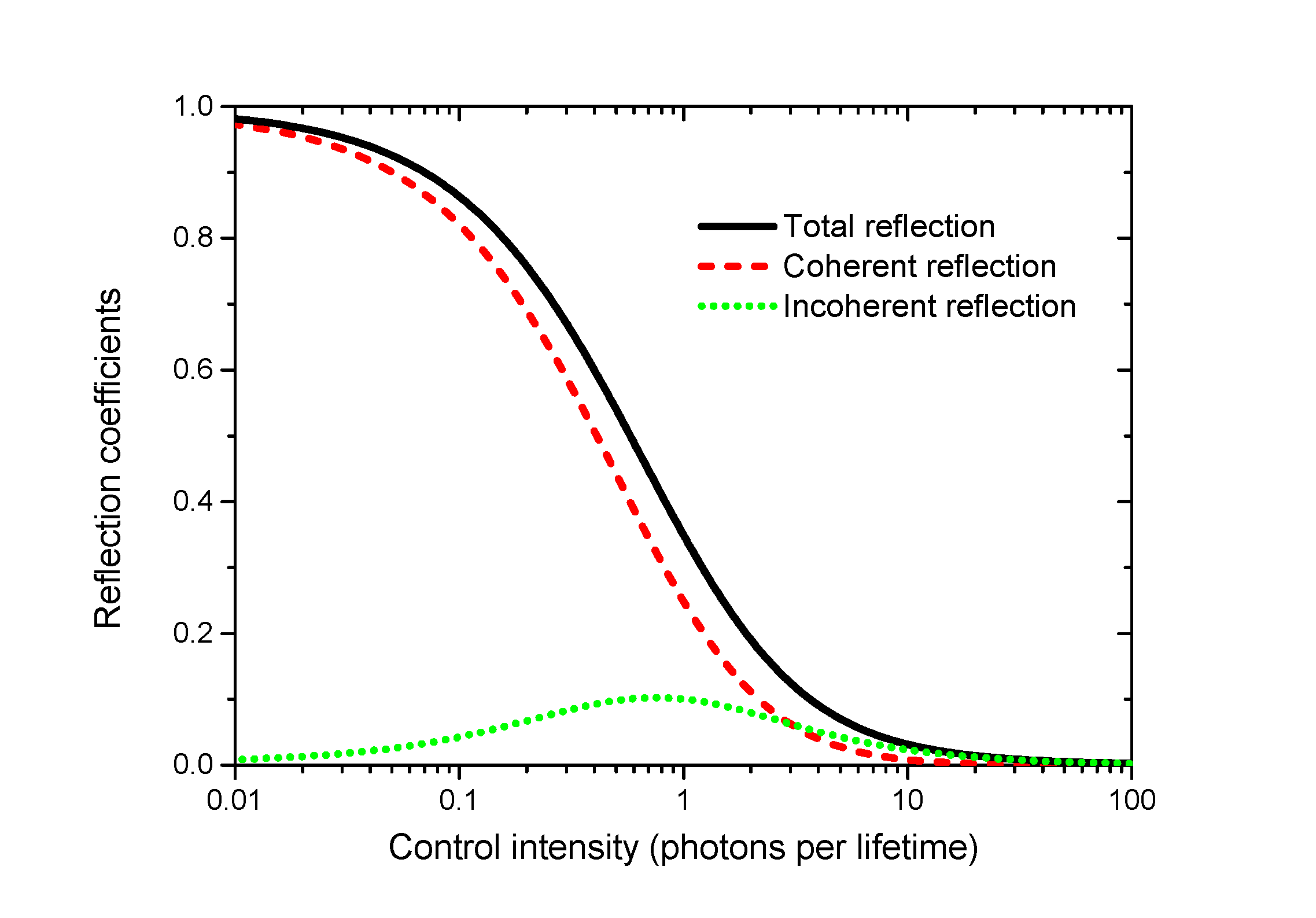

In the Autler-Townes approach, the control (probe) is tuned on the upper (lower) transition. As it is shown below, the Autler-Townes configuration offers very good switching performance, including coherence, for ideal parameters. The presence of the other fine structure split excitonic level has almost no effect on performance, owing to the always low population of the biexcitonic state.

Cross-polarized.

For $\alpha=45^{o}$, the maximum reflectivity is limited by the term $(1/2)\cos^{2}\alpha\sin^{2}\alpha=0.125$, where $\alpha$ is the angle of the relevant dipole with the exciting laser polarization (see Fig. 1 of the main text), and where the $1/2$ factor comes from the fact that, owing to the cross-polarization scheme, the reflected light does not interfere with the incoming laser, so that half of the emitted light is directed towards the substrate. Having the reflectivity switched to half of this ideal value requires, from our model, a control laser power of about $3$ photons/lifetime, and the reflectivity is found mainly coherent.

Co-polarized.

In this configuration, the probe reflectivity reaches unity for a vanishing control laser power, and is fully coherent (see Fig.7). This is a key assets for applications in quantum information processing. The control laser power required to switch the reflectivity down to a value of $0.5$ is $1$ photon/lifetime.

References
