Omnidirectional Transport in Fully Reconfigurable Two Dimensional Optical Ratchets

TL;DR

This paper introduces a reconfigurable 2D optical ratchet system that enables controlled directed transport of particles in multiple directions, highlighting the role of asymmetry over driving orientation.

Contribution

We present a novel holographic optical micromanipulation system capable of creating arbitrary 2D lattice potentials with tunable asymmetry for particle transport studies.

Findings

Directed transport occurs in multiple directions, including on-axis, perpendicular, and oblique.

Transport direction is primarily determined by potential asymmetry, not driving orientation.

The system reveals additional symmetry-breaking effects due to lattice configuration.

Abstract

A fully reconfigurable two-dimensional (2D) rocking ratchet system created with holographic optical micromanipulation is presented. We can generate optical potentials with the geometry of any Bravais lattice in 2D and introduce a spatial asymmetry with arbitrary orientation. Nontrivial directed transport of Brownian particles along different directions is demonstrated numerically and experimentally, including on-axis, perpendicular and oblique with respect to an unbiased ac driving. The most important aspect to define the current direction is shown to be the asymmetry and not the driving orientation, and yet we show a system in which the asymmetry orientation of each potential well does not coincide with the transport direction, suggesting an additional symmetry breaking as a result of a coupling with the lattice configuration. Our experimental device, due to its versatility, opens up a new range of possibilities in the study of nonequilibrium dynamics at the microscopic level.

Figures

Equations

$$\dot{\vec{r}}(t)=-\frac{1}{\gamma }\nabla U\left(\vec{r}(t)\right)+\frac{1}{\gamma }\vec{F}(t)+\vec{\xi }(t),$$

$$U(\vec{r})=-U_0\sum _{m,n}\left[u_{m,n}(x,y)+Q{u}_{m,n}(x-{\delta }_x,y-{\delta }_y)\right],$$

Full text

Initially motivated by the understanding of biological engines and the design of artificial nanodevices, the emergence of directed transport in the presence of unbiased external forces due to a spatiotemporal symmetry breaking has become a major research topic in different scientific areas Hänggi and Marchesoni (2009). This intriguing phenomenon, known as ratchet effect, lies in the heart of nonequilibrium thermodynamics at microscopic scale. This model can explain the functioning of a number of systems in nature, such as molecular motors Hoffmann (2016); Vecchiarelli et al. (2014); Hu et al. (2015) or protein translocation processes Gu and Rice (2010). Additionally, schemes based on this mechanism have been implemented to sort biomolecules Bader et al. (1999) and inorganic microparticles Huang et al. (2004), to rectify the motion of cold atoms in optical lattices Gommers et al. (2006, 2008) and vortices in superconductors Togawa et al. (2005), among others. The rich dynamics arising in ratchets becomes evident from the diverse phenomena that can be observed even in the simplest cases of one-dimensional (1D) systems, such as bidirectional transport depending on size, chaotic behavior and current reversals Mateos (2000); Schreier et al. (1998); Arzola et al. (2011); Malgaretti et al. (2012); Arzola et al. (2013). This is due to the delicate interplay among a whole set of parameters, encompassing the structure of a spatial potential, the modulation of an external driving, the strength of thermal noise and the properties of the particles. Studies on the influence of these aspects have paved the way to broaden our understanding of transport processes at the micro and nanoscale, but this area is far from complete.

Naturally, a degree of complexity and versatility is added in two-dimensional (2D) systems, which become very important in the context of electronic transport in 2D crystals like graphene Drexler et al. (2013) and semiconductor artificial nanomaterials Song (2002), for example. Among the studies of 2D ratchets, an explored path has been the use of symmetric spatial potentials either with a temporally asymmetric drive Denisov et al. (2008); Sengupta et al. (2004); Lebedev and Renzoni (2009) or with an induced symmetry breaking due to a synchronization and phase coupling of two ac signals: a flashing potential and a symmetric rocking driving Libál et al. (2006); Smith et al. (2007). Another common approach has been to tailor microfabriced substrates with posts or wells, introducing a space asymmetry Savel’ev et al. (2005); Derényi and Dean Astumian (1998); Loutherback et al. (2009); Wu et al. (2016). Motion rectification in this microstructured potentials, integrated in microfluidic schemes, as well as electrophoretic, superconductor, or solid-state devices, has been obtained, for example, for cells and bio-particles Morton et al. (2008); Davis et al. (2006) and magnetic flux quanta in superconductors Villegas et al. (2003). In most of these devices, however, there is a static external force to induce transport along one direction, while the ratchet rectifies the transverse motion. There are few examples of ratchets having periodicity and dynamics in 2D involving only unbiased external (ac) forces to drive the system out of equilibrium to produce transport Loutherback et al. (2009); Wu et al. (2016).

In contrast with previous work, in this letter we present a fully reconfigurable 2D ratchet formed with a static asymmetric potential and an unbiased driving generating a rocking mechanism. Our experimental device, based on holographic optical micromanipulation, allows us to create any of the five Bravais lattices in 2D and introduce a spatial asymmetry of the individual potential wells along an arbitrary direction. We demonstrate, numerically and experimentally, controlled transport of Brownian particles in three different schemes of substrate potentials, where the ratcheting arises from the 2D nature of the potential. Motion rectification is obtained along the driving direction (on-axis current), along the transverse direction (lateral current), and also, for the first time to our knowledge, along an oblique direction, without any additional external force. Well beyond a novel micromanipulation device, our system constitutes an ideal experimental model to explore the physics of 2D ratchets.

In the overdamped regime, the dynamics of a Brownian particle in a 2D rocking ratchet is described by:

[TABLE]

where $\vec{r}(t)=\left(x(t),y(t)\right)$, $\gamma$ is an effective drag coefficient, and $\vec{\xi}(t)$ represents the thermal noise, having a correlation function $\langle\xi_{i}(t)\xi_{j}(t^{\prime})\rangle=2D\delta_{ij}\delta(t-t^{\prime})$ with $i,j=x,y$. $D=k_{B}T/\gamma$ is the diffusion coefficient in the proximity of the surface sup , different from that of a particle far from the surface $D_{0}$; $k_{B}$ is the Boltzman constant and $T$ the ambient temperature. The external driving is set along the $x$-direction, $\vec{F}(t)=(F(t),0)$. The time modulation is given by Arzola et al. (2011, 2013): $F(t)=-\gamma v(t)$, with $v(t+\tau)=v(t)$, where $v(t)=v_{0}$ if $0\leq t<\tau_{1}$; $v(t)=0$ if $\tau_{1}\leq t<\tau_{1}+\tau_{0}$; $v(t)=-v_{0}$ if $\tau_{1}+\tau_{0}\leq t<\tau-\tau_{0}$; and $v(t)=0$ if $\tau-\tau_{0}\leq t<\tau$; $v_{0}$ being a constant speed. The parameters $\tau_{0}$ and $\tau_{1}$, referred to as the waiting time and the activation time, respectively, satisfy $\tau=2(\tau_{0}+\tau_{1})$.

The potential is constituted by a collection of gaussian-shaped wells of widht $\sigma$ distributed over a lattice defined by the vectors $\vec{a}=(L_{x},0)$ and $\vec{b}=(b_{x},b_{y})$, illustrated in Fig. 1, and an identical clone-lattice of wells with a smaller depth by a factor $0<Q<1$, and which is shifted with respect to the main lattice to a position defined by $\vec{\delta}=(\delta_{x},\delta_{y})$. It can be expressed as:

[TABLE]

where $u_{m,n}(x,y)=e^{-\frac{\left(\vec{r}-m\vec{a}-n\vec{b}\right)^{2}}{\sigma^{2}}}$. $U_{0}$ denotes the depth of each potential well of the main lattice, and the asymmetry of the potential depends on $Q$ and $\vec{\delta}$, which are related with experimental parameters as described in sup .

The dynamics of the particle is characterized by the current $\vec{J}=\lim_{t\rightarrow\infty}\langle\vec{r}(t)\rangle/t$. However, if the waiting time $\tau_{0}$ is long enough, the particle can relax to an equilibrium position after each activation semi-cycle $\tau_{1}$ Arzola et al. (2011, 2013). Under these conditions, we define the dimensionless normalized current as $\vec{j}=(j_{x},j_{y})\approx\frac{1}{L_{x}}\frac{\vec{r}(q\tau)}{q}$, where $q=1,2,3,...$; this represents the number of periods the particle moves per unit cycle. The numerical calculations were done with the stochastic Runge-Kutta algorithm Honeycutt (1992).

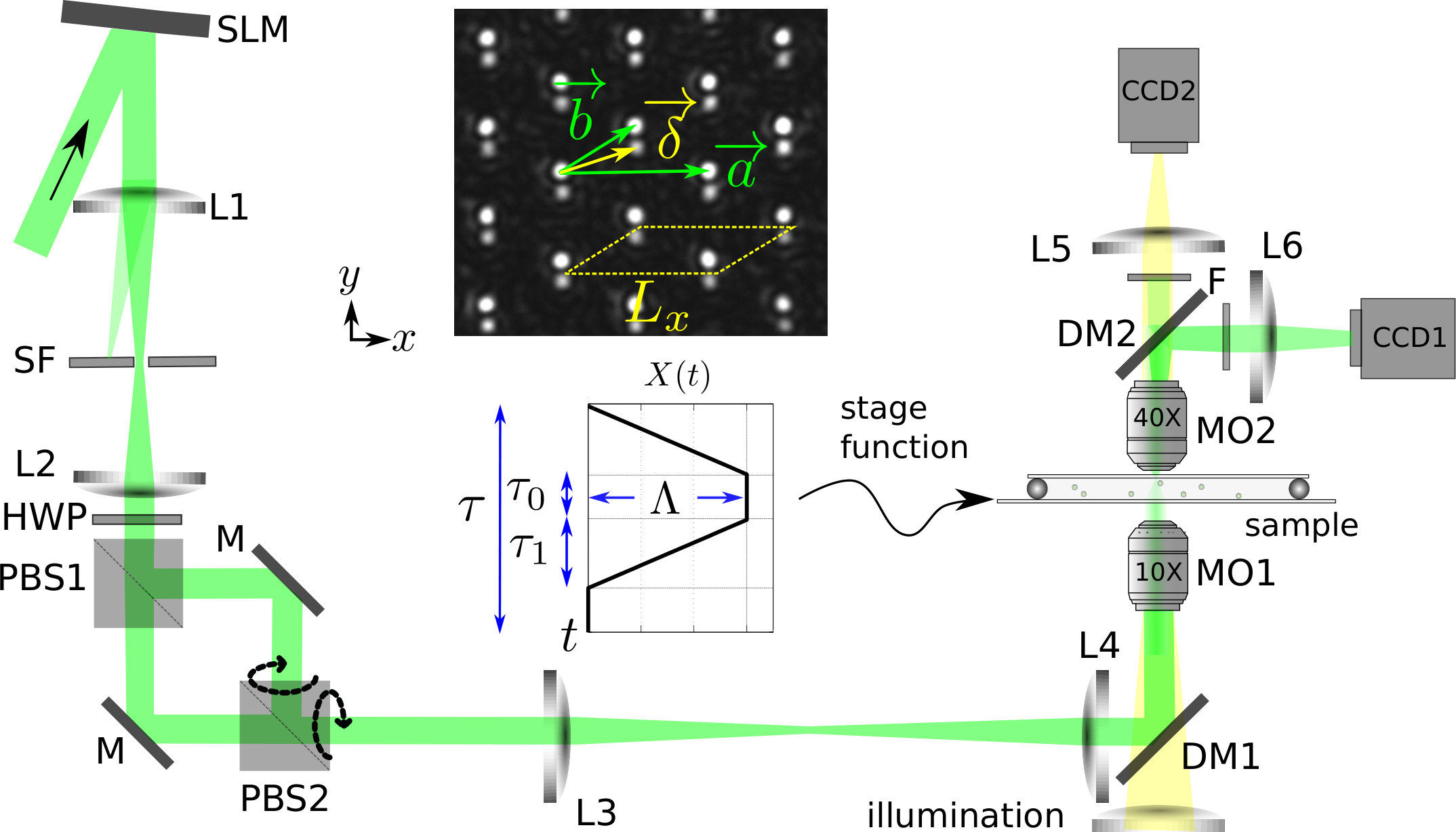

The experimental setup is illustrated in Fig.1. A linearly polarized laser beam (532 nm wavelength) is reflected on a spatial light modulator (SLM) displaying a computer generated hologram, which creates a pattern of multiple light spots of approximately equal intensity distributed over a 2D lattice. A Mach-Zehnder device splits the light beam into two orthogonally polarized components. Their relative intensities are controlled with a halfwave plate (HWP) before the polarizing beam splitter PBS1. The tilt of beamsplitter PBS2 is controlled with piezo actuators to shift the reflected pattern, corresponding to the clone, with respect to the transmitted one. Both co-propagating beams are projected onto the back aperture of a $10\times$ microscope objective (MO1). The dichroic mirror DM1 reflects the laser wavelength while letting pass the illumination of the imaging system. The desired intensity distribution forms at the back focal plane of MO1. With the imaging system we monitored the light pattern and the particles simultaneously.

We used monodisperse polystyrene microspheres with diameter $d=1.99\mu$m immerse in water, with non-negligible Brownian motion at room temperature. The rocking mechanism is introduced by moving the sample cell sideways along the $x$ direction using a piezo-stage driven with velocity modulation $v(t)$, defined above. A plot of the displacement of the stage versus time, $X(t)$, is shown in Fig.1. The activation time, $\tau_{1}$, and the amplitude of the periodic displacement, $\Lambda$, are the control parameters. Hence the maximum driving force on a particle is $|F_{max}|=\gamma v_{0}$, where $v_{0}=\Lambda/\tau_{1}$.

We studied three schemes of 2D rocking ratchets. In all the experiments $\tau_{0}=2$s, and the values $Q=0.465\pm 0.011$ and $|\vec{\delta}|=\delta=(1.42\pm 0.05)\mu$m were chosen according to the calculations, such that each potential well exhibits a maximum spatial asymmetry while its depth is enough to prevent diffusion of a trapped particle sup . Therefore, particles mainly diffuse when they are in the intertraps space. In our simulations, we used an ensemble of 500 particles to determine $\vec{j}=(j_{x},j_{y})$ vs $\Lambda$ for different values of the relative diffusion coefficient $D/D_{0}$, allowing us to compare the experimental results with the deterministic limit, $D\rightarrow 0$, and elucidate the role of noise strength. Experimentally, the positions of dozens of particles were tracked as a function of time from recorded videos, which are exemplified in mov for the cases illustrated in the images of Figs. 2 to 4. The value of the activation time $\tau_{1}$ was adjusted as $\Lambda$ was varied, so as to keep $|F_{max}|$ constant for each set of experiments.

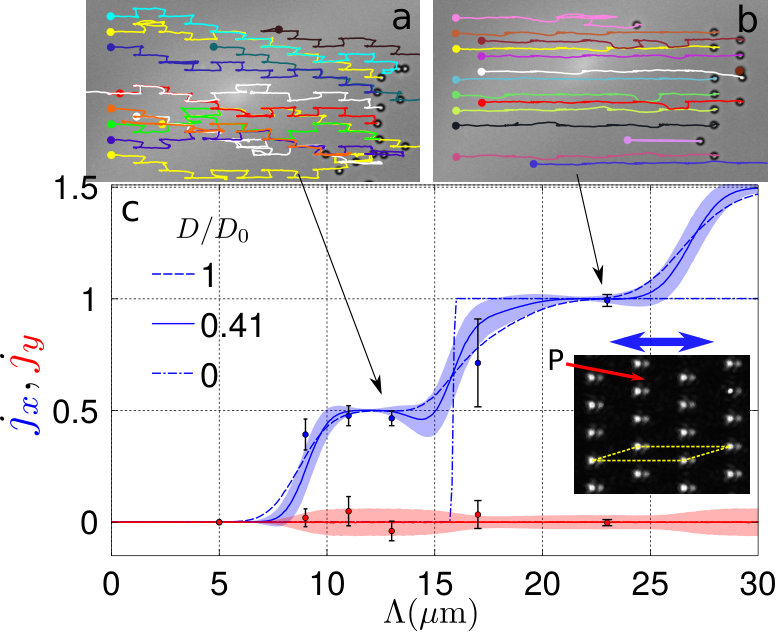

I. Axial current. In the first scheme (Fig. 2), we have a centered rectangular lattice with a spatial asymmetry along $x$, described by: $\vec{a}/L_{x}=(1,0)$ and $\vec{b}/L_{x}=(0.5,0.15)$, with $L_{x}=14.8\,\mu$m, and $\vec{\delta}=(\delta,0)$. The driving velocity is $v_{0}=21\,\mu m/$s; which allows the particles to escape from the wells in one direction (right), but not in the opposite (left). Figure 2c shows the numerical results for $j_{x}$ (blue) and $j_{y}$ (red) vs $\Lambda$ for $D/D_{0}=$0, 0.41, and 1. The shadows around the curves for $D/D_{0}=$0.41, which corresponds to our experiments sup , represent the standard deviation of the simulation. We also plot experimental results (markers). Figures 2a-b illustrate the paths of several particles for two cases, departing from their initial position (colored circles on the left).

Although the asymmetry of the potential and the driving are oriented along $x$, and therefore $j_{y}=0$, the dynamics of the system cannot, in general, be reduced to a 1D system due to diffusion. This is seen in Fig. 2a, which illustrates the role of diffusion and unstable equilibrium positions, such as the point P indicated in the inset of Fig. 2c. Namely, when the displacement of the particle is $\Delta x\sim L_{x}/2$, it ends up equally close to a pair of wells along $y$. Diffusion during the waiting time leads the bead to fall into one of these wells with equal probability. The result is a net current $j_{x}=1/2$, while the ensemble of particles spreads out laterally. In contrast, the current is null in the deterministic limit $D/D_{0}=$0 (dash-dotted curve) for this case. Even the tiniest thermal noise will kick the particle out from the unstable equilibrium position, onsetting the rectified motion. In Fig. 2b $\Delta x\simeq L_{x}$, therefore the particle reaches the next trap along $x$ with negligible role of diffusion, resulting in a practically deterministic 1D motion. Accordingly, when $D/D_{0}=0$, $j_{x}$ is a sharply stepped function with unitary step height, whereas for $D/D_{0}\neq 0$ the curves exhibit twice the number of smoothed steps of height 1/2 starting at smaller values of $\Lambda$.

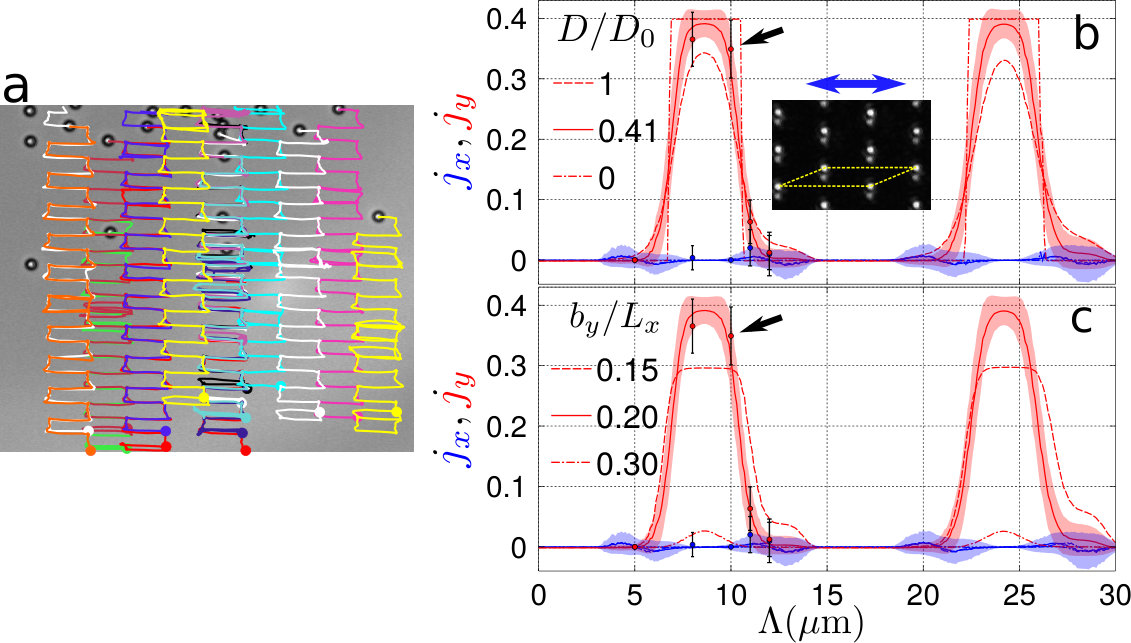

II. Lateral current. In this case, we have a centered rectangular lattice but with a spatial asymmetry along $y$, so the particle is equally able to escape when the driving operates to the left or to the right. The parameters are: $\vec{a}/L_{x}=(1,0)$, $\vec{b}/L_{x}=(0.5,0.2)$, $L_{x}=14.8\,\mu$m, $\vec{\delta}=(0,\delta)$, and $v_{0}=50\,\mu\text{m}/$s. Figure 3a illustrates the paths of several beads for $\Lambda=0.68L_{x}$, indicated with an arrow in Figs. 3b-c. Blue and red curves correspond to $j_{x}$ and $j_{y}$, respectively, for three values of $D/D_{0}$. The current along $x$ is now negligible, while $j_{y}$ exhibits a periodic behavior. This is what we refer to as a lateral current, since it is perpendicular to the driving.

When the displacement of a particle in each activation semi-cycle is $\Delta x\sim L_{x}/2$, it gets attracted towards the potential well above it (along the $+y$ direction) during the waiting time, because of the well asymmetry. This process is repeated when the particle moves along $-x$ in the next activation semi-cycle. As a result, the bead moves a total distance of approximately $2b_{y}$ along $+y$ in each driving period (see the video in mov ). As $\Lambda$ increases, such that $\Delta x\rightarrow L_{x}$ in each semi-cycle, $j_{y}\rightarrow 0$; in that case the particle only moves back and forth between two wells along $x$. The lateral current reaches a second maximum when $\Delta x\sim 3L_{x}/2$.

The magnitude of the lateral current can be optimized by varying the geometric parameter of the lattice $b_{y}/L_{x}$, as illustrated in Fig. 3c for $D/D_{0}=0.41$. The closer the traps are to each other along the $y$ direction, for instance $b_{y}/L_{x}=0.15$ (dashed curve), the easier the particle falls into the top well, but the maximum lateral current is limited due to the small value of $b_{y}$. In contrast, for sufficiently large values of $b_{y}$, such as $b_{y}/L_{x}=0.3$ (dash-dotted curve), the probability for the particle to reach the top well diminishes. Larger values of $b_{y}$ lead to $j_{y}\rightarrow 0$. There is an optimum value of $b_{y}/L_{x}$, however, giving rise to a maximum lateral current. In our example this is close to $b_{y}/L_{x}=0.2$ (solid curve), although in general it depends on $D/D_{0}$ and the depth and shape of the potential wells. Although a lateral current has been observed in other ratchets operated by an ac microfluidic flow Loutherback et al. (2009), the optimization would not be as straightforward as in our system, since we have fine control of the steps along $x$ and $y$.

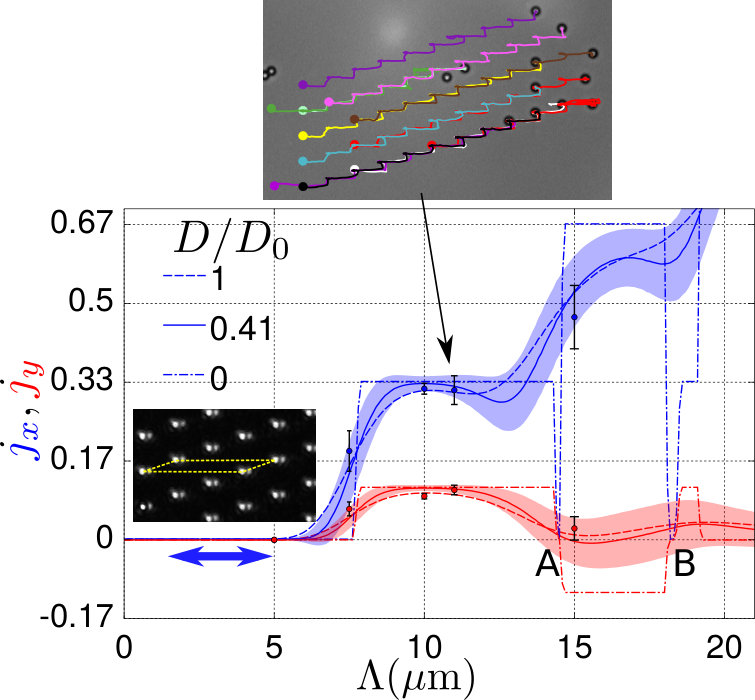

III. Oblique current. In the third scheme, we have an oblique lattice with a spatial asymmetry of each potential well along $x$, parallel to the rocking force, with parameters: $\vec{a}/L_{x}=(1,0)$, $\vec{b}/L_{x}=(1/3,1/9)$, $L_{x}=18.5\,\mu$m, and $\vec{\delta}=(\delta,0)$. The driving velocity is $v_{0}=24\,\mu\text{m}/$s, which allows the particle to escape to the right but not to the left. Figure 4 presents numerical results for $j_{x}$ (blue) and $j_{y}$ (red) for $D/D_{0}=0$, 0.41 and 1. The image on top shows an experiment for $\Lambda=0.6L_{x}$, indicated in the plot. Here the current of particles follows an oblique direction with respect to the forcing. To the best of our knowledge, this is the first time an oblique current is demonstrated in a 2D rachet in the absence of an external constant force. Remarkably, the nonzero current along $y$ suggests an additional symmetry breaking associated with a coupling between the asymmetry of each potential well and the geometry of the lattice itself.

In this case, interesting features arise, particularly in the deterministic limit $D/D_{0}=0$ (dash-dotted curves). When $\Delta x\sim L_{x}/3$ to the right, the particle will be attracted by the nearest potential well along $+y$ during the waiting time, leading to $j_{x}=1/3$ and $j_{y}>0$. As $\Lambda$ increases, there is a value for which the particle reaches an unstable equilibrium position, equally close to a well above it and another below it. In the absence of noise, both components of the current become null (point A in Fig. 4). As $\Lambda$ keeps increasing so that $\Delta x\sim 2L_{x}/3$, the particle will be attracted to the well below it, therefore $j_{x}=2/3$ and $j_{y}<0$, implying a current reversal for $j_{y}$. There is a second unstable equilibrium position for a larger value of $\Lambda$ when the particle ends up equally close to the well below it and the one on its right (point B in Fig. 4). After this point, we can see a small region of the plots for which $j_{y}>0$ and $j_{x}=1/3$. This is because the particle is unable to reach a well when it moves forward, but on its way backwards it ends up close enough to the well above it at a distance $x\sim L_{x}/3$ from its initial position, falling in the well during the waiting time. Finally, when $\Lambda$ is such that $\Delta x\sim L_{x}$, then $j_{x}=1$ and $j_{y}=0$, hence the dynamics is reduced to a 1D motion along $x$. Notice that the effect of diffusion is to soften these sharply stepped curves Arzola et al. (2013). Therefore, we expect the current reversal ($j_{y}<0$) to occur also for small values of $D/D_{0}$ and gradually disappear as diffusion increases.

In summary, we demonstrated directed transport of Brownian particles along different directions in a fully reconfigurable 2D optical ratchet potential activated with a rocking driving, showing in all cases a good agreement between experiment and simulations. The most important aspect to define the current direction was found to be the asymmetry and not the driving direction, and yet we showed a system in which the orientation of the asymmetry of each potential well did not coincide with the transport direction, suggesting an additional symmetry breaking as a result of a coupling with the lattice configuration. We also observed that the presence of unstable equilibrium positions gives rise to noise-induced transport. Our analysis unveiled only a few important aspects on the dynamics, but there is a plethora of effects that may arise as a function of different parameters, such as size-dependent interaction between particle and potential Arzola et al. (2011), chaotic behavior Mateos (2000), negative mobility Cecchi and Magnasco (1996), etc. This illustrates how rich, versatile and powerful our experimental device is, openning up a whole new range of research possibilities in the study of 2D transport at the microscopic scale and colloidal systems as mechanical models for solid state physics, not only at the fundamental level, but also with relevant applications in the design of micro and nanodevices suitable for on-chip implementation.
