Decrease of d-wave pairing strength in spite of the persistence of magnetic excitations in the overdoped Hubbard model

TL;DR

This study uses quantum Monte Carlo simulations of the Hubbard model to show that despite persistent high-energy magnetic excitations in overdoped cuprates, the reduction in pairing strength is due to decreased spectral weight at large momentum transfer, explaining the decline in superconducting transition temperature.

Contribution

The paper demonstrates that the decrease in d-wave pairing strength in overdoped cuprates is caused by reduced spectral weight at large momentum transfer, despite the persistence of magnetic excitations.

Findings

High energy magnetic excitations persist in overdoped regime.

Reduced spectral weight at large momentum transfer diminishes pairing strength.

The decrease in $T_c$ is linked to spectral weight loss, not excitation presence.

Abstract

Evidence for the presence of high energy magnetic excitations in overdoped La$_{2-x}$Sr$_x$CuO$_4$ (LSCO) has raised questions regarding the role of spin-fluctuations in the pairing mechanism. If they remain present in overdoped LSCO, why does $T_c$ decrease in this doping regime? Here, using results for the dynamic spin susceptibility ${\rm Im}\chi(q,\omega)$ obtained from a determinantal quantum Monte Carlo (DQMC) calculation for the Hubbard model we address this question. We find that while high energy magnetic excitations persist in the overdoped regime, they lack the momentum to scatter pairs between the anti-nodal regions. It is the decrease in the spectral weight at large momentum transfer, not observed by resonant inelastic X-ray scattering (RIXS), which leads to a reduction in the $d$-wave spin-fluctuation pairing strength.

Figures

Equations

$$H=-t\sum _{⟨ij⟩\sigma }{c}_{i\sigma }^{†}{c}_{j\sigma }-t^{\prime }\sum _{⟨⟨ij⟩⟩\sigma }{c}_{i\sigma }^{†}{c}_{j\sigma }-\mu \sum _{i\sigma }{n}_{i\sigma }+U\sum _i{n}_{i\uparrow }{n}_{i\downarrow }$$

$$\chi (\mathbf{q},\tau )=\sum _{\mathbf{r}}{e}^{-i\mathbf{q}\cdot \mathbf{r}}\frac{1}{N}\sum _{{\mathbf{r}}^{\prime }}⟨S_z(\mathbf{r}+{\mathbf{r}}^{\prime },\tau )S_z({\mathbf{r}}^{\prime },0)⟩$$

$$\chi (\mathbf{q},\tau )={\int }_0^{\infty }\frac{d\omega }{\pi }\frac{e^{-\tau \omega }+e^{-(\beta -\tau )\omega }}{1-e^{-\beta \omega }}\mathrm{Im}\chi (\mathbf{q},\omega ).$$

$$\lambda_{d}=-\frac{3}{2}U^{2}\left\langle\phi_{d}(\bm{k})\int^{\infty}_{0}\frac{d\omega}{\pi}\frac{{\rm Im}\chi(\bm{k}-\bm{k^{\prime}},\omega)}{\omega}\phi_{d}(\bm{k^{\prime}})\right\rangle_{\rm FS}\Big{/}\left\langle\phi^{2}_{d}(\bm{k})\right\rangle_{\rm FS}$$

$$P_d={\int }_0^{\beta }d\tau \frac{1}{N^2}\sum _{\mathbf{k},{\mathbf{k}}^{\prime }}{\varphi }_d(\mathbf{k})⟨c_{-\mathbf{k}\downarrow }(\tau )c_{\mathbf{k}\uparrow }(\tau )c_{{\mathbf{k}}^{\prime }\uparrow }^{†}(0)c_{-{\mathbf{k}}^{\prime }\downarrow }^{†}(0)⟩{\varphi }_d({\mathbf{k}}^{\prime })$$

$${\overline{P}}_d={\int }_0^{\beta }d\tau \frac{1}{N^2}\sum _{\mathbf{k}}{\varphi }_d^2(\mathbf{k})⟨c_{-\mathbf{k}\downarrow }(\tau )c_{-\mathbf{k}\downarrow }^{†}(0)⟩⟨c_{\mathbf{k}\uparrow }(\tau )c_{\mathbf{k}\uparrow }^{†}(0)⟩$$

$${\Gamma }_d=\frac{1}{P_d}-\frac{1}{{\overline{P}}_d}$$

$$F(\mathbf{q})=-{⟨{\varphi }_d(\mathbf{k}){\varphi }_d(\mathbf{k}+\mathbf{q})⟩}_{\mathrm{FS}}$$

Full text

Recent resonant inelastic X-ray scattering (RIXS) studies of La2-xSrxCuO4 (LSCO) have found that high energy magnetic excitations near the antiferromagnetic zone boundary are present across a wide range of doping in the LSCO phase diagram 1, 2, 3. In particular, while these excitations gradually soften and broaden in the overdoped region, they remain even as the superconducting transition temperature $T_{c}$ decreases. This raises questions regarding the role of spin fluctuations in the pairing mechanism 4. Specifically, if these magnetic excitations persist in the overdoped LSCO, what is responsible for the destruction of high temperature superconductivity?

Here we discuss results for the dynamic spin susceptibility ${\rm Im}\chi(\bm{q},\omega)$, obtained from determinantal quantum Monte Carlo (DQMC) calculations for the doped 2D Hubbard model 5, 6, 7. We find that similar to the RIXS studies, high-energy magnetic excitations persist into the overdoped regime. However at large momentum transfer, beyond the range observed by RIXS 8, a reduction and hardening of the strength of the spin-fluctuation spectral weight is observed. We discuss the doping dependence of magnetic excitations for different momenta $\bm{q}$, segregating regions which promote $d$-wave pairing (near $\bm{q}=(\pi,\pi)$), are indifferent to pairing (along the AF zone boundary), and are hurtful to pairing (near zone center). The overall reduction of strength as well as hardening of magnetic spectral weight near $(\pi,\pi)$ leads to a decrease in the strength of the $d$-wave pair coupling consistent with the suppression of superconductivity in the overdoped regime.

The Hamiltonian for the Hubbard model appropriate for the hole doped cuprates has the usual near neighbor hopping $t$, onsite $U$ and a negative next-near-neighbor hopping $t^{\prime}$.

[TABLE]

Here we will measure energies in units of $t$ and set $t^{\prime}=-0.25$ and $U=6.5$. The chemical potential $\mu$ in Eq. (1) is used to fix the doping. The DQMC calculations were carried out for an $8\times 8$ lattice with 40 imaginary time slices of width $\Delta\tau=0.1$, for an inverse temperature of $\beta=4.0$. For each doping level, 200 independently seeded Markov chains are run, each with $10^{6}$ full spacetime sweeps for measurements.

The imaginary time spin susceptibility is calculated directly from DQMC as

[TABLE]

where $S_{z}(\bm{r})=\frac{1}{2}(n_{\bm{r}\uparrow}-n_{\bm{r}\downarrow})$ is the $z$ component of the spin at site $\bm{r}$. The real frequency susceptibility is related to the imaginary time susceptibility by

[TABLE]

Since inverting Eq. 3 is numerically ill-posed, we use Maximum Entropy analytic continuation 9 to extract ${\rm Im}\chi(\bm{q},\omega)$ from the DQMC data. As described in Ref. 9, 10, a model function based on the first moments of the data is used for the analytic continuation.

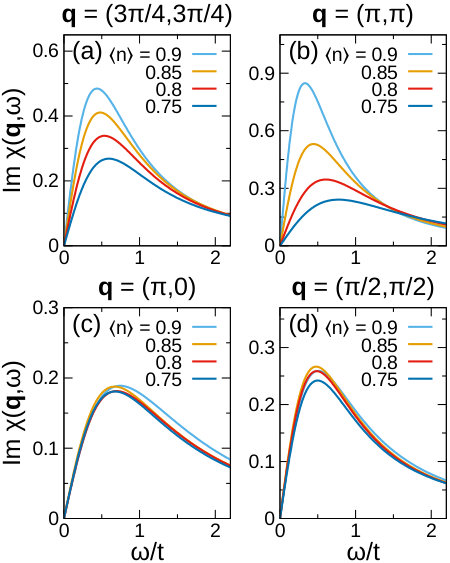

The spin fluctuation spectral weight ${\rm Im}\chi(\bm{q},\omega)$ for some selected $\bm{q}$ values is plotted versus $\omega$ in Fig. 1 for different dopings. For the half-filled system, the $\bm{q}=(\pi,\pi)$ response continues to increase and drop lower in frequency as $T$ decreases. However, for the doped system, the spectral weight is well developed at this temperature and the magnetic spin-fluctuation response evolves smoothly as the doping is increased. For large momentum transfers near $(\pi,\pi)$, the hole doping both reduces and shifts the spin-fluctuation spectral weight to higher frequencies. However, similar to the RIXS data, for smaller anti-nodal momentum transfers $\bm{q}=(\pi/2,\pi/2)$ or for momentum transfers along the nodal direction $\bm{q}=(\pi,0)$, the peak in ${\rm Im}\chi(\bm{q},\omega)$ found in the DQMC calculations remains.

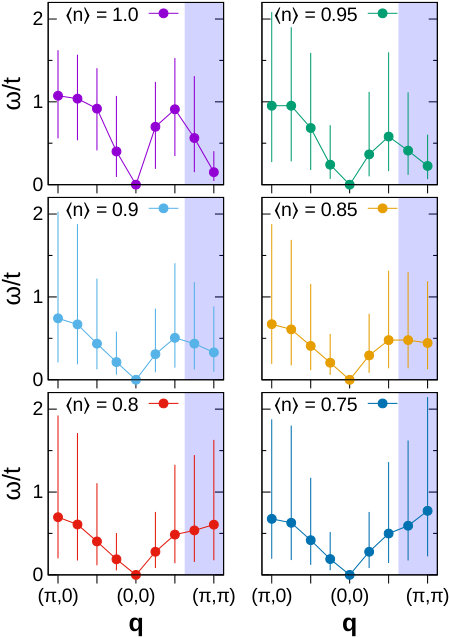

To further illustrate the evolution of the calculated spin-fluctuation spectrum with doping, Fig. 2 shows a plot of the peak in ${\rm Im}\chi(\bm{q},\omega)$ for different dopings versus $\bm{q}$ along the nodal and anti-nodal directions from zone center. The ends of the vertical bars mark the energies where ${\rm Im}\chi(\bm{q},\omega)$ has dropped to half of its maximum value. The unshaded region denotes the momentum transfer regime observed in the RIXS experiments.

From the results shown in Fig. 1 and 2, one can see that while doping leads to changes in the overall magnetic excitation spectrum, the AF excitations accessible to RIXS remain relatively unchanged with doping. There is a clear similarity between the experimental RIXS data for LSCO and the DQMC results. However, the region outside of the reach of transition metal $L-$edge RIXS near $(\pi,\pi)$, due to the overall scale of photon momenta, changes considerably and, as we will discuss, has an impact on the strength of $d$-wave pairing in the Hubbard model.

A measure of the strength of the spin-fluctuation $d$-wave pairing interaction in weak coupling 11 is given by

[TABLE]

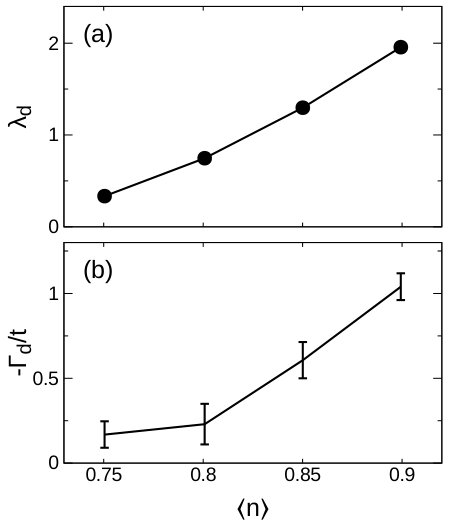

Here $\phi_{d}(\bm{k})=(\cos k_{x}-\cos k_{y})$ and the $\bm{k}$ averages are taken over a region of band energies $\pm 0.5t$ around the Fermi surface. A plot of $\lambda_{d}$ versus doping is shown in Fig. 3a. Here one sees that this coupling strength decreases with doping. This same behavior is observed in a direct calculation of the correlated and uncorrelated $d$-wave pair-field susceptibilities 5, 12 and the corresponding interaction vertex, defined respectively as

[TABLE]

[TABLE]

[TABLE]

The interaction vertex $\Gamma_{d}$ provides another gauge of the $d$-wave pairing strength, with negative values indicating an attractive interaction. As plotted in Fig. 3b, this measure confirms the decrease of the pairing interaction upon doping similar to the behavior of $\lambda_{d}$ seen in Fig. 3a. The decrease of both $\lambda_{d}$ and $-\Gamma_{d}$ reflects the reduction and hardening of the spin-fluctuation spectral weight in the large momentum $\bm{q}\sim(\pi,\pi)$ transfer region marked by the shaded regions of Fig. 2.

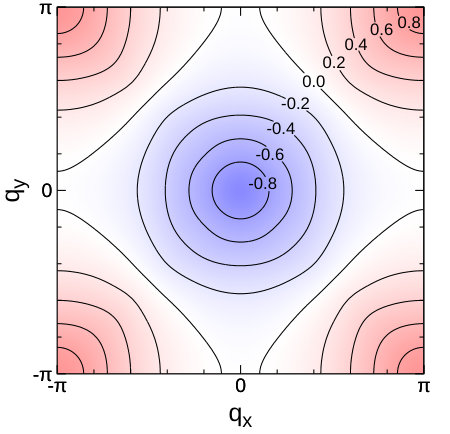

The high energy magnetic excitations seen by RIXS at the edge of the BZ in the anti-nodal direction as well those seen along the nodal direction with $\bm{q}=(\pi/2,\pi/2)$ lack the momentum transfer to scatter pairs between the anti-nodal regions. This is illustrated in Fig. 4 which shows a plot of the convolved $d$-wave form factor

[TABLE]

for $\langle n\rangle=0.9$. The pairing strength $\lambda_{d}$ given by Eq. (4) is proportional to a weighted average of ${\rm Re}\chi(\bm{q},\omega=0)$ with respect to $F(\bm{q})$. As shown in Fig. 4, the spectral weight of the spin-fluctuations at large momenta transfer give rise to the $d$-wave pairing while the small momentum transfers suppress the pairing. The intermediate region, where the RIXS experiments find magnetic excitations, play a marginal role as earlier suggested in Ref 3. Regions near $(\pi,\pi)$ which are accessible via polarized inelastic neutron scattering provide the dominant contribution to the strength of the d-wave pairing interaction. A closer inspection of the momentum regions accessible near the zone center by RIXS would also be useful in understanding the decrease of pairing strength. The DQMC results reported here and elsewhere are consistent with the weakening of spectral intensity and hardening of the spin excitations observed near the magnetic zone center $(\pi,\pi)$ in those measurements 13, 14, 15, 16, 2. Thus we conclude that the evolution of the spin spectrum of excitations with doping in the Hubbard model is consistent with the existing data in the cuprates and can account for the reduction of $d$-wave pairing strength with doping.
