Single magnetic adsorbates on s-wave superconductors

TL;DR

This paper reviews how single magnetic adsorbates on s-wave superconductors create Yu-Shiba-Rusinov states, revealing insights into magnetic interactions, anisotropy effects, quantum phase transitions, and potential links to Majorana modes.

Contribution

It provides a comprehensive review of scanning tunneling microscopy studies on magnetic impurities in s-wave superconductors, highlighting new understanding of Shiba states and their role in topological superconductivity.

Findings

Identification of Shiba states via STM.

Effects of magnetic anisotropy on excitations.

Observation of quantum phase transitions.

Abstract

In superconductors, magnetic impurities induce a pair-breaking potential for Cooper pairs, which locally affects the Bogoliubov quasiparticles and gives rise to Yu-Shiba-Rusinov (YSR or Shiba, in short) bound states in the density of states (DoS). These states carry information on the magnetic coupling strength of the impurity with the superconductor, which determines the many-body ground state properties of the system. Recently, the interest in Shiba physics was boosted by the prediction of topological superconductivity and Majorana modes in magnetically coupled chains and arrays of Shiba impurities. Here, we review the physical insights obtained by scanning tunneling microscopy into single magnetic adsorbates on the $s$-wave superconductor lead (Pb). We explore the tunneling processes into Shiba states, show how magnetic anisotropy affects many-body excitations, and determine the crossing of the many-body groundstate through a quantum phase transition. Finally, we discuss the coupling of impurities into dimers and chains and their relation to Majorana physics.

Figures

Equations

$$\epsilon =\Delta \frac{1-a^2}{1+a^2},$$

$$a\approx \frac{\pi \Delta }{4k_{\mathrm{B}}{T}_{\mathrm{K}}}\ln \frac{4k_{\mathrm{B}}{T}_{\mathrm{K}}}{\pi \Delta }e.$$

$$u(r),v(r)\propto \frac{\sin \left(k_{\mathrm{F}}r+{\delta }^{\pm }\right)}{k_{\mathrm{F}}r}\text{leavevmode}\exp \left[-\left|\sin \left({\delta }^{+}-{\delta }^{-}\right)\right|\frac{r}{\xi }\right]\text{leavevmode}.$$

$$ϵ=\Delta \cos ({\delta }^{+}-{\delta }^{-}).$$

Full text

Here, we review the physical insights obtained by scanning tunneling microscopy into single magnetic adsorbates on the $s$-wave superconductor lead (Pb). We explore the tunneling processes into Shiba states, show how magnetic anisotropy affects many-body excitations, and determine the crossing of the many-body groundstate through a quantum phase transition. Finally, we discuss the coupling of impurities into dimers and chains and their relation to Majorana physics.

Yu-Shiba-Rusinov states, superconductor, magnetic impurity, scanning tunneling microscopy, Andreev bound states

1. I Introduction

2. II Yu-Shiba-Rusinov bound states in $S$-wave superconductors

3. II.1 Dilute limit of paramagnetic impurities on a superconductor

4. II.1.1 Yu-Shiba-Rusinov states in the classical spin model

5. II.1.2 Yu-Shiba-Rusinov states in the quantum spin model

6. II.1.3 Yu-Shiba-Rusinov wave function

7. III Transport through Yu-Shiba-Rusinov states

8. III.1 Resolving Yu-Shiba-Rusinov states in tunneling spectroscopy

9. III.2 Resonantly enhanced Andreev reflections through Yu-Shiba-Rusinov states

10. III.3 From single-particle tunneling to Andreev transport

11. IV Orbital character of Yu-Shiba-Rusinov states

12. V Quantum-phase transition from a Kondo-screened to a free-spin ground state

13. V.1 Multiple magnetic ground states in a magnetic molecular system

14. V.2 Interplay of Kondo correlations with Yu-Shiba-Rusinov excitations

15. V.3 Effect of magnetic anisotropy in Yu-Shiba-Rusinov states

16. VI Lateral extension of Yu-Shiba-Rusinov states

17. VI.1 Enhancement of YSR oscillations by an anisotropic Fermi surface

18. VII Coupling of Shiba impurities – from dimers to topological chains

19. VII.1 Chains of Yu-Shiba-Rusinov impurities

20. VIII Conclusions and future directions

I Introduction

Over the last decade, the interest of condensed matter physicists in low-dimensional hybrid superconductor-magnet systems increased dramatically. It was realized that these are prime candidates to bear topological phases and, in particular, Majorana zero modes. These quasiparticles are envisioned as building blocks for the construction of topologically protected qubits, which could make quantum computing more fault-tolerant Alicea (2012); Beenakker (2013); Elliott and Franz (2015). Such topological phases can be constructed on the basis of magnetic atoms or molecules at the interface to a superconductor. These magnetic impurities exhibit a scattering potential to the quasiparticles of the substrate, which leads to bound states, the so-called Yu-Shiba-Rusinov (YSR or Shiba) states Yu (1965); Shiba (1968); Rusinov (1968, 1969). While their theoretical investigation dates back to as far as the 1960s, their experimental characterization remained in its infancy until very recently. The renewed interest stems, on the one hand, from the arising of new fundamental aspects in connection with topological superconductors and, on the other, from advances of recent technologies to resolve their intriguing properties. These developments enable the in vacuo preparation of clean superconductor surfaces, the deposition of single atoms at low temperatures, and their investigation with high spatial and energy resolution at temperatures well below the critical temperature ($T_{\text{c}}$) of the superconductor. After the pioneering work from the Don Eigler group in 1997 Yazdani et al. (1997) on single Manganese (Mn) and Gadolinium (Gd) adatoms on a Niobium (Nb) single crystal surface at $4$ K, it took more than ten years until new experiments with increased energy resolution were published Ji et al. (2008, 2010). Experiments at lower temperatures and the use of superconducting tips enabled a more detailed analysis of YSR bound states induced by single paramagnetic adsorbates on the $s$-wave superconductor Pb. In addition, the proposal of building topologically protected states from magnetic adsorbates on superconductors has pushed the field even further. These states can be designed by coupling YSR states along one-dimensional chains. For understanding the formation of YSR bands and proximity-induced p-wave superconductivity within these chains, a basic understanding of the individual building blocks and their interaction is required.

The first theoretical descriptions started with classical spin models and already predicted the spectral properties and distance dependence of the YSR wave function Yu (1965); Shiba (1968); Rusinov (1968, 1969); Flatté and Byers (1997a). Models of quantum impurities, i.e., impurities with internal degrees of freedom that can be activated by spin-flip scattering of the host material, require much more demanding calculations. In practice, approximate methods such as mean field calculations Salkola et al. (1997); Martín-Rodero and Yeyati (2012), perturbation theory $\mathbf{Z}$onda et al. (2015, 2016), and numerical renormalization group theory Shiba et al. (1993); Bauer et al. (2007); $\mathbf{Z}$itko (2017) are employed. These give valuable insights into the spectral properties at and around the impurity site. The complexity of crystal-field splitting Moca et al. (2008); $\mathbf{Z}$itko et al. (2011), vibrational degrees of freedom Gole$\mathbf{z}$ et al. (2012), spin-orbit coupling Kim et al. (2015); Pershoguba et al. (2015, 2016); Kaladzhyan et al. (2016), temperature $\mathbf{Z}$itko (2016), or external magnetic fields $\mathbf{Z}$itko et al. (2011) have also been included into the theoretical treatments of single impurities. Theoretical models also discussed the coupling of two magnetic impurities long before their experimental observation Flatté and Reynolds (2000); Morr and Stavropoulos (2003); Morr and Nyberg (2003); Morr and Yoon (2006); Yao et al. (2014a, b); $\mathbf{Z}$itko (2015); Meng et al. (2015). Finally, the theoretical considerations expanded on the coupling of magnetic impurities into one-dimensional chains and led to the prediction of Majorana bound states for helical Nadj-Perge et al. (2013); Pientka et al. (2013) and ferromagnetic chains Nadj-Perge et al. (2014); Li et al. (2014). Very recently, exotic states have also been predicted in two-dimensional lattices of YSR impurities Nakosai et al. (2013); Röntynen and Ojanen (2015); Li et al. (2016a); Ménard et al. (2016); Rachel et al. (2017); Schecter et al. (2017).

Hence, theory anticipates many interesting phenomena, which have become verifiable only with the technological advances in scanning probe techniques over the last few years. In this overview article, we review the progress made in this field from an experimental perspective.

In Section II, we will start with a short introduction to the physical concepts of YSR states but refrain from a detailed theoretical treatment, which can be found, e.g., in the review by Balatsky and coworkers Balatsky et al. (2006). We then will discuss the experimental detection mechanism of YSR states in tunneling experiments, their relation to Andreev bound states as observed in superconducting quantum dot experiments, and the transport processes through subgap states in Sec. III. In Section IV we review the orbital nature of these states. In Sec. V, we explore the effect of magnetocrystalline anisotropy on the many-body phase diagram and determine the ground state’s spin, which undergoes a quantum phase transition caused by a varying exchange coupling strength. In Sec. VI we detail the origin of extended wave functions of the bound states. Finally, in Sec. VII, we explore the hybridization of single impurities and will end the review with a brief outlook on future research directions in Sec. VIII.

II Yu-Shiba-Rusinov bound states in $S$-wave superconductors

Yu-Shiba-Rusinov bound states are a result of an exchange scattering potential, as we describe in the following in more detail. Here, we shall start with a note on the terminology: Andreev bound states describe a general scattering potential, i.e., not necessarily of magnetic origin. In the case of exchange scattering, the quantum dot community typically also refers to Andreev bound states for historical reasons, whereas the magnetic-adatom community names these bound states as YSR or Shiba states.

The presence of paramagnetic impurities in a superconductor is detrimental for superconductivity. Already in the 1950’s Matthias found that the addition of rare earth atoms to the bulk of a superconductor reduces the critical temperature Tc proportionally to the concentration of impurities Matthias et al. (1958). Abrikosov and GorÂ$\mathbf{Z}$kov developed a microscopic theory for high impurity concentrations considering the effect of a scattering potential with broken time-reversal symmetry Abrikosov and Gor‘kov (1960). A localized spin adds an exchange component to the scattering with Cooper pairs, which tends to misalign their spins and, thus, behaves as a pair-breaking potential.

The exchange scattering of a spin with Cooper pairs is described by a term $JS_{imp}$, with $J$ being the exchange coupling strength of the spin state $S_{imp}$ of the impurity with conducting electrons of the substrate. This term adds up to the (non-magnetic) component of the scattering, described by the (time-reversal invariant) potential term $U$.

In the limit of large impurity densities, the local spins yield a gradual reduction of the superconducting gap with concentration. The gap then closes before the superconducting state is fully suppressed. However, in the dilute limit of impurity concentrations with an average separation larger than the superconducting coherence length, the scattering amplitudes $J$ and $U$ compete with the superconducting pairing, which results in bound states localized at the impurity sites.

II.1 Dilute limit of paramagnetic impurities on a superconductor

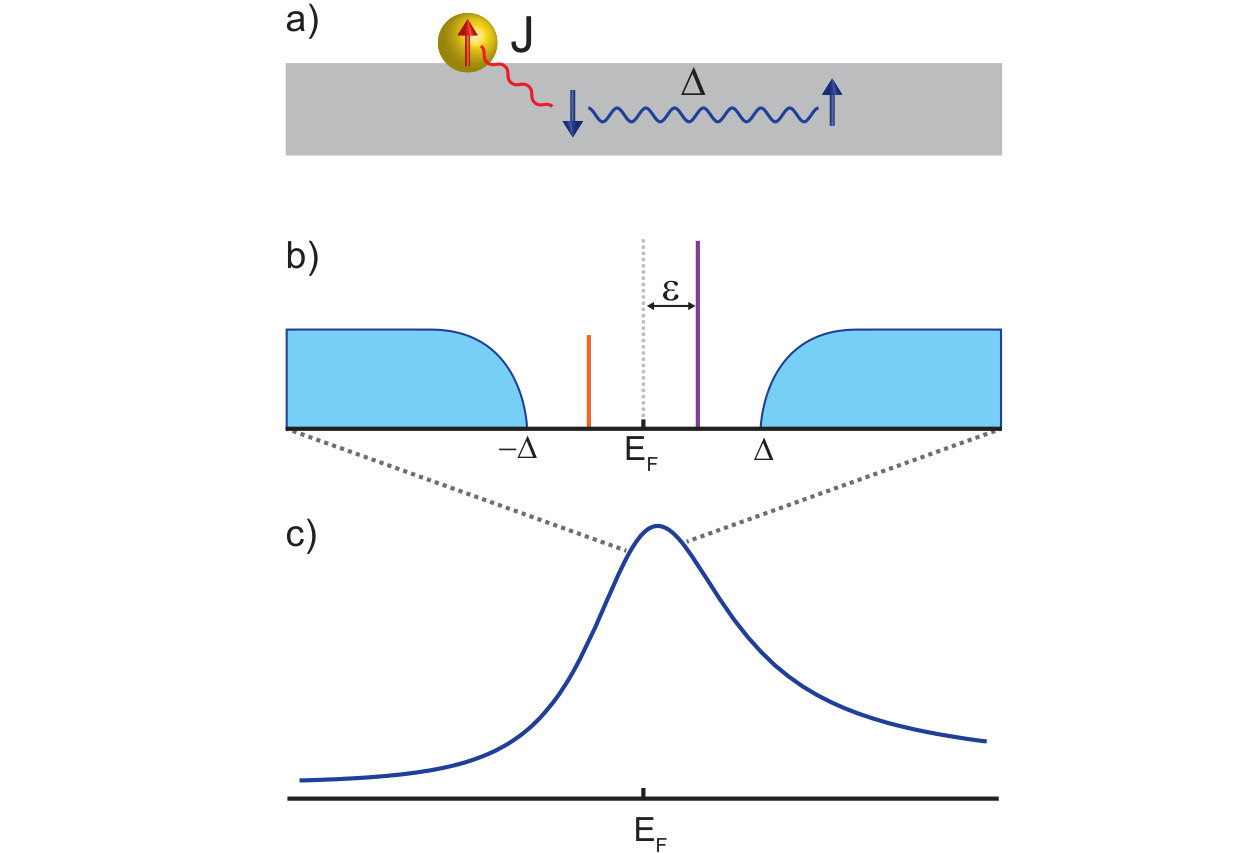

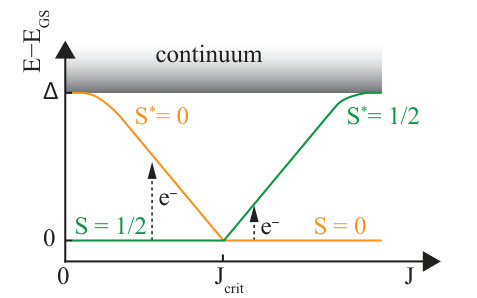

Figure 1a presents a sketch of the important energy scales of the single-impurity problem neglecting the Coulomb scattering: the exchange coupling $J$ with the condensate competes with the superconducting pairing energy $\Delta$. The interaction of the local spin with the Cooper pairs then gives rise to a low-lying excited state within the gap of the quasiparticle excitation spectrum.

II.1.1 Yu-Shiba-Rusinov states in the classical spin model

Classical spin excitations were deduced independently by Luh Yu Yu (1965), Hiroyuki Shiba Shiba (1968), and A. I. Rusinov Rusinov (1968, 1969). The induced YSR bound state is a low-lying excitation of the many-body state within the excitation gap of the superconductor (Fig. 2). In the simplest case of a spin $1/2$ impurity, a YSR bound state gives rise to a pair of resonances symmetric in energy with respect to the Fermi level ($E_{\mathrm{F}}$) in the excitation spectra [Fig. 1 (b)] Zittartz and Müller-Hartmann (1970). These resonances correspond to a quasiparticle excitation from the ground to the first excited state, which exists within the gap of the excitation spectrum. All other excitations of the system lie within the continuum of excitations outside the gap. In general, this first excitation changes the total spin by $\Delta S=\pm 1/2$. The excitation thus transfers either a singlet ground state, in which an electron from the bulk superconductor is bound to the impurity spin, to an excited doublet state, or vice versa (Fig. 3a). The nature of the ground state is determined by the coupling strength $J$. Note that the excitation of the superconducting ground state does not change the orbital occupation of the impurity. For an infinite system, it is irrelevant whether this excitation occurs via the particle- or hole-like component of the state, i.e., via adding or extracting an electron from the system Balatsky et al. (2006). Hence, bias-symmetric subgap resonances are a characteristic of YSR excitations in tunneling spectra.

The energy of the bound state has been derived from a Bogoliubov transformation of the Hamiltonian of the combined impurity–BCS-superconductor system Yu (1965); Rusinov (1968), or via a Green’s function formulation, where the classical single-spin problem is solved via the T matrix Shiba (1968); Rusinov (1969). The bound state possesses an energy:

[TABLE]

where $a=JS_{imp}\pi\rho_{s}$ (neglecting Coulomb scattering), with $\rho_{s}$ being the DoS at $E_{\mathrm{F}}$ in the normal state. Hence, the energy alignment of the YSR resonance within the superconducting energy gap is determined to leading order by the exchange coupling strength $J$.

II.1.2 Yu-Shiba-Rusinov states in the quantum spin model

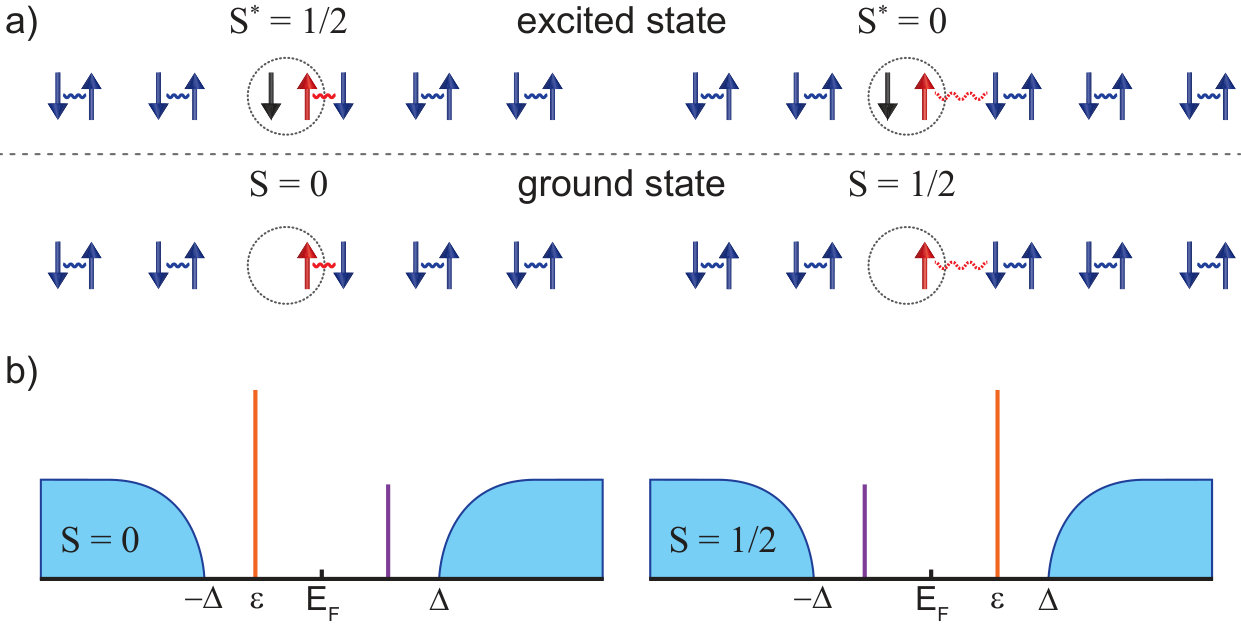

In the case of a quantum spin with antiferromagnetic exchange coupling to the quasi-particle reservoir, Kondo screening occurs on the superconductor as known for spins in normal metals Kondo (1964). The formation of the Kondo singlet state then competes with the superconducting ground state Matsuura (1977). For strong coupling, i.e., $k_{\mathrm{B}}T_{\mathrm{K}}\gg\Delta$, a correlated Kondo state is formed, which screens the impurity spin and reduces the total spin to zero. Here, $k_{\mathrm{B}}$ is the Boltzmann constant and $T_{\mathrm{K}}$ the Kondo temperature. In tunneling spectroscopy, a Kondo resonance is detected with a width of approximately $k_{\mathrm{B}}T_{\mathrm{K}}$ (Fig. 1c), while the bound states merge with the gap edge. In the case of very small coupling, i.e., $k_{\mathrm{B}}T_{\mathrm{K}}\ll\Delta$, no screening occurs because the opening of the superconducting gap depletes the DoS on the Kondo energy scale $k_{\mathrm{B}}T_{\mathrm{K}}$ around $E_{\mathrm{F}}$. Again the bound states lie exponentially close to the gap edge. In this case, the total spin of the system is $S>0$.111We restrict our discussion to the most interesting case, i.e., to antiferromagnetic exchange coupling. For the ferromagnetic case, see, e.g., Balatsky et al. Balatsky et al. (2006). The problem of a quantum spin was first solved by Matsuura Matsuura (1977). The energy of the YSR state depends on the Kondo temperature $T_{K}$ and can be calculated, in the limit of $k_{\mathrm{B}}T_{\mathrm{K}}\gg\Delta$, using Eq. 1 and

[TABLE]

An interesting situation arises, when both involved energy scales are similar: $k_{\mathrm{B}}T_{\mathrm{K}}\sim\Delta$. Then, the YSR excitations lie well within the excitation gap of the superconductor (Fig. 3b). Similar to the classical spin, the YSR resonances correspond to a quasiparticle excitation from the ground to the first excited state. Again, the excitation changes the total spin by $\Delta S=\pm 1/2$. Here, it either excites the system from the free-spin ground state to the Kondo-screened excited state or from the Kondo-screened ground state to the free-spin excited state. The nature of the ground spin depends again on the coupling strength $J$. At $J_{\mathrm{crit}}$ both ground state levels cross. The level crossing signifies a quantum phase transition between the free-spin state for weak coupling and the Kondo-screened state for strong coupling. It occurs at $k_{\mathrm{B}}T_{\mathrm{K}}\approx 0.3\,\Delta$ as calculated by numerical renormalization group theory Satori et al. (1992); Sakai et al. (1993) (Fig. 2). At the point of the quantum phase transition the fermion parity changes from even to odd. The spectral weight of the particle- and hole-like excitation is influenced by the Coulomb potential Balatsky et al. (2006), which breaks particle-hole symmetry, and by asymmetries in the normal state conductance of the superconductor Flatté and Byers (1997a, b); Bauer et al. (2013). The quantum phase transition has been treated in depth theoretically Salkola et al. (1997); Bauer et al. (2007); Balatsky et al. (2006); Matsuura (1977); Satori et al. (1992); Sakai et al. (1993); Bauer et al. (2013); Sakurai (1970).

It is interesting to note that in the case of a quantum spin, only antiferromagnetic coupling to the substrate’s reservoir yields the described quantum phase transition, while ferromagnetic coupling would yield weakly coupled bound states close to the gap edge Satori et al. (1992).

II.1.3 Yu-Shiba-Rusinov wave function

Now, we want to consider the wave functions of the YSR state and their spatial extend. The YSR wave functions can be determined after diagonalisation of the Hamiltonian of the combined BCS–impurity system by a Bogoliubov transformation. Solving the Bogoliubov-de Gennes equations yields the wave function $u$ and $v$, which are used to describe the superposition of electron- and hole-like excitations. For the case of a point-like scatterer in a three-dimensional (3D) superconductor with an isotropic Fermi surface, Rusinov derived the wave functions as a function of distance $r$ as follows Rusinov (1968):

[TABLE]

Both, $u$ and $v$ oscillate with $k_{\mathrm{F}}r$ (the Fermi wave vector times the distance from the impurity), but show a different scattering phase shift $\delta^{\pm}$. Interestingly, the energy of the bound state is related to the difference in the scattering phase shift for $u$ and $v$:

[TABLE]

The wave functions’ fall-off away from the impurity is dominated by the factor $1/({k_{\mathrm{F}}r})$ for short distances. But for large distances, the exponential decay dominates, which depends on the superconducting coherence length $\xi$. $\left|u(r)\right|^{2}$ and $\left|v(r)\right|^{2}$ can be probed, e.g., at positive and negative sample bias in a scanning tunneling microscope. However, we note that the character of $u$ and $v$, i.e., whether it is particle-like or hole-like, changes when undergoing the quantum phase transition. We will discuss this further in Section V.

III Transport through Yu-Shiba-Rusinov states

As described above, YSR states occur as resonance in an excitation spectrum. Such a spectrum can be recorded in different geometries and with different tunnel coupling strengths. The best known examples are tunneling spectroscopy and transport through quantum dots.

III.1 Resolving Yu-Shiba-Rusinov states in tunneling spectroscopy

In a tunnel junction, the above mentioned excitation is induced by particles (holes) tunneling between the two electrodes via the bound state. Hence, $u$ and $v$ are probed in spectra of the differential conductance $dI/dV$ as resonances at opposite bias with respect to $E_{\mathrm{F}}$ within the superconducting gap. As a typical example, Fig. 4 shows $dI/dV$ spectra of a Mn adatom on Pb(111).

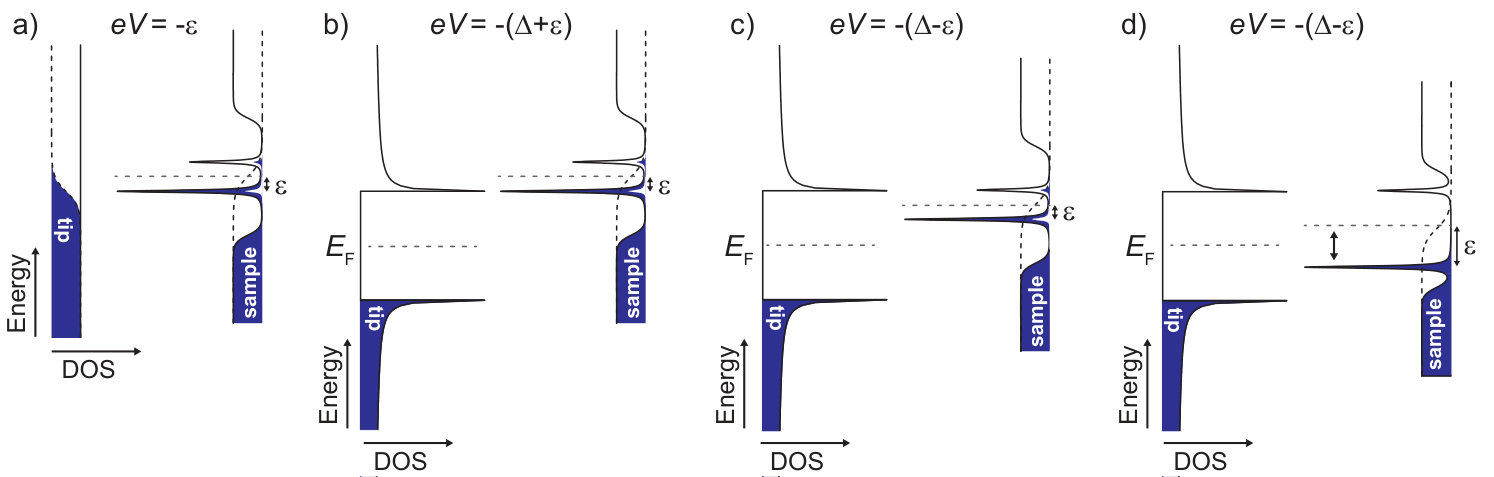

If a metallic tip is used as second electrode (spectrum in Fig. 4a), tunneling into the electron and hole component of the bound state sets in at a sample bias of $eV=\pm\epsilon$ as sketched in Fig. 5a. Tunneling into the excitation continuum occurs only for $|eV|\geq\Delta_{\mathrm{sample}}$. The energy resolution (usually) is limited by the temperature-dependent Fermi-Dirac broadening of the Fermi edge of the tip ($\approx 300\,\mu V$ at 1.2 K), which yields sizeable smearing of the YSR resonances. To illustrate this broadening, we show in Fig. 4a a d$I/$d$V$ spectrum recorded on a Mn atom on Pb(111). We resolve only a single YSR resonance at negative bias. At positive bias, a shoulder appears, which is linked to the particle component $u$ of the YSR state, but cannot be resolved unambiguously.

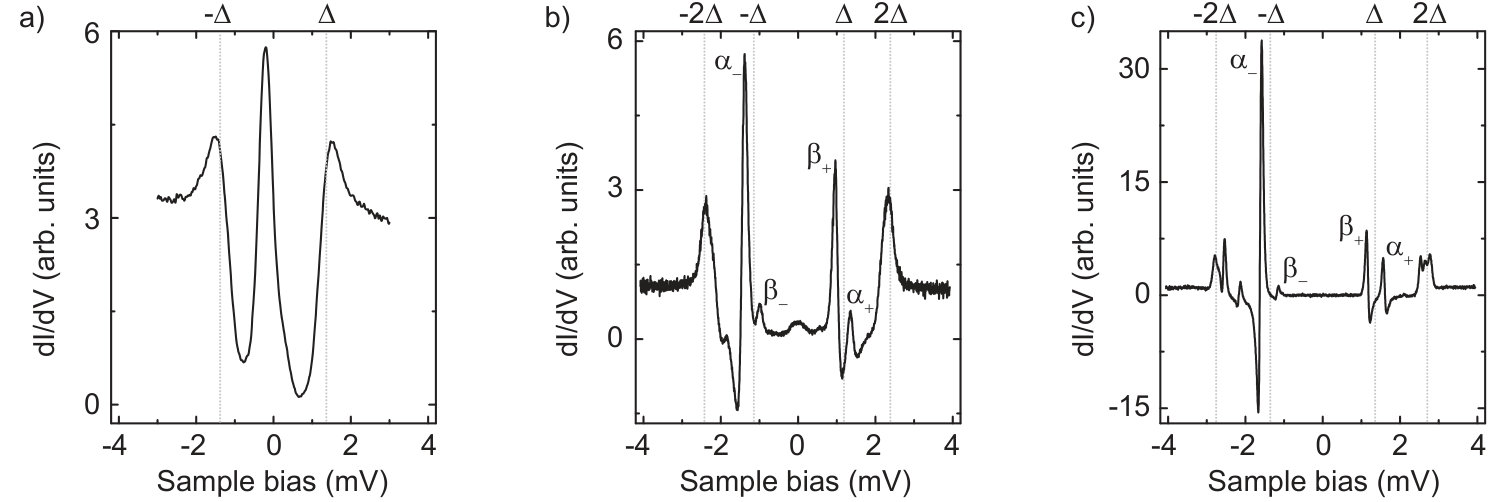

In order to circumvent the thermal limit of the energy resolution, superconducting tips were used by several groups Ji et al. (2008, 2010); Ternes et al. (2006); Franke et al. (2011); Heinrich et al. (2013); Ruby et al. (2015b). These tips probe the sample DoS with the sharp features of the BCS-like tip DoS instead of a temperature-broadened Fermi edge of a metal tip (see Fig. 5b). This yields a considerable gain in energy resolution already at 4.8 K (Fig. 4b). Yet, the spectrum is a convolution of the sharp features in the tip and sample DoS: the spectral function of the sample is probed by the electron and hole quasiparticle resonances at $+\Delta_{\mathrm{tip}}$ and $-\Delta_{\mathrm{tip}}$, respectively ($\Delta_{\mathrm{tip}}$ is the energy of the gap parameter of the tip). Hence, the spectral function of the sample appears shifted by $\pm\Delta_{\mathrm{tip}}$. A subgap resonance with energy $\epsilon$ (e.g., $\alpha_{\pm}$ in Fig. 4b) appears at $eV=\pm(\Delta_{\mathrm{tip}}+\epsilon)$ , i.e., when the particle-like singularity in the tip’s spectral function is aligned with the hole component of the YSR excitation and vice versa (see Fig. 5b for a sketch of the tunneling configuration).

Additionally, thermally activated tunneling Franke et al. (2011); Ruby et al. (2015a); Hatter et al. (2015); Ruby et al. (2016) occurs at finite temperature. The thermal energy can induce an excitation of the YSR state. Hence, there is a finite probability, which scales with $\varepsilon$ and $T$, to find the system in the excited state. This ”thermal” population is probed at $eV=\pm(\Delta_{\mathrm{tip}}-\epsilon)$, i.e., when the hole(electron)-like component of the YSR excitation is aligned with the hole(electron)-like singularity in the tip spectral function (Fig. 5c). This gives rise to the thermal resonances $\beta_{\pm}$ in Fig. 4b, which are (thermal) replicas of resonances $\alpha_{\mp}$.

In order to extract the actual spectral function of the sample, a deconvolution of the $dI/dV$ spectra is possible. However, this requires knowledge of the tip spectral function, which can usually be inferred from spectra of the pristine superconductor. Then, either a direct deconvolution Choi et al. (2017a), or a fit of convoluted spectral functions to the $dI/dV$ Hatter et al. (2015) can be performed.

A further increase in energy resolution is achieved by lowering the experimental temperature. The $dI/dV$ spectrum in Figure 4c was acquired with a superconducting tip at $1.2\,$K. The spectrum resolves particle and hole excitations of three YSR states. The line width is reduced compared to the spectrum acquired at $4.8\,$K. The energy resolution can be as good as $\delta E\approx 50\operatorname{\operatorname{}\mathrm{\mu eV}}$ at $1.1\,$K Ruby et al. (2015b). Interestingly, thermal resonances are only observed for the YSR excitation closest to $E_{\mathrm{F}}$ ($\beta_{\pm}$). The probability of a thermal excitation of a YSR state (and, hence, the intensity of the thermal resonance in $dI/dV$) depends on the ratio of the excitation energy $\epsilon$ and the thermal energy $k_{\mathrm{B}}T$. The larger $\epsilon$, i.e., the further the YSR state is away from $E_{\mathrm{F}}$, the smaller is its thermal population (comp. Fig. 5c and 5d). While at 4.8 K all YSR resonances posses thermal counterparts, at 1.2 K, this is limited to excitations close to $E_{\mathrm{F}}$. It is noteworthy that at 4.8 K, there is also a sizeable amount of thermally excited quasiparticles in the pristine superconductor (sample and tip).

Historically, the investigation of single impurities became possible when ultra-high vacuum (UHV) preparation techniques were combined with low temperatures. In 1997, A. Yazdani and co-workers could, for the first time, access YSR states induced by single paramagnetic impurities with an UHV STM operating at $3.8$ K Yazdani et al. (1997) (Figure 6a). Furthermore, the lateral resolution of the microscope enabled the detection of the wave function fall-off of the YSR state, which happens on atomic distances on 3D superconductors. These experiments provided the first magnetic fingerprint on a single atom resolved by low temperature STM, just before the first evidence of Kondo resonances in 1998 Madhavan et al. (1998); Li et al. (1998), and prior to the detection of inelastic excitations of spin eigenstates in 2004 Heinrich et al. (2004), or of a spin-polarized conduction signal in 2007 Yayon et al. (2007).

Ten years later and with improved energy resolution, multiple Shiba resonances of single Mn and Chromium (Cr) adatoms on Pb films could be resolved using a superconducting Nb tip and lowering the temperature to $0.4$ K by Ji et al. Ji et al. (2008) (Figure 6b). Since then, the field has progressed rapidly. Several groups have focused on resolving the quantum many-body ground state Franke et al. (2011); Hatter et al. (2015, 2017), peculiarities in the spatial decay of the YSR wave functions Ruby et al. (2016); Choi et al. (2017a); Ménard et al. (2015), the interaction of impurities Kezilebieke et al. (2016); Choi et al. (2017b), or different transport processes through the YSR states Ruby et al. (2015a); Randeria et al. (2016). In all these investigations, the substrate are $s$-wave superconductors. We will concentrate on these in this review.

However, we need to mention that even prior to these works, several important results were obtained on subgap resonances in Bi2Sr2CaCu2O8+δ, a high-Tc cuprate superconductors Hudson et al. (1999); Yazdani et al. (1999); Pan et al. (2000); Hudson et al. (2001). Yazdani and coworkers Yazdani et al. (1999) showed that intrinsic defects as well as non-magnetic surface adsorbats induce subgap bound states in the excitation gap of this $d$-wave superconductor. Hudson et al. finally compared the effect of nominally non-magnetic Zn dopands with paramagnetic Ni impurities Hudson et al. (2001). In contrast to $s$-wave superconductors, in a $d$-wave substrate, also these nonmagnetic impurities posses a pair-breaking potential. A more detailed summary of these results can be found in the review of Balatsky, Vekhter, and Zhu Balatsky et al. (2006) and is beyond the scope of this review.

III.2 Resonantly enhanced Andreev reflections through Yu-Shiba-Rusinov states

As described in the previous section, excitations of $u$ and $v$ appear as resonances symmetric to $E_{\mathrm{F}}$ in tunneling spectra of the differential conductance $dI/dV$. Single-particle tunneling into/ out off these subgap states excites the impurity–superconductor system from its many-body ground state to the first excited state, which is of a different fermion parity. It is important to note that a continuous single particle current requires an efficient relaxation mechanism of the excitation (e.g., $\Gamma_{1}$ in Fig. 7c), with a rate faster than the tunneling rate. An intriguing transport mechanism that comes into play when using at least one superconducting electrode is the tunneling of an electron through the barrier and its concomitant retroreflection as a hole. This so-called Andreev reflection transfers a Cooper pair, i.e., two particles, from one electrode to the other. Usually, Andreev processes between the quasiparticle continua of tip and sample are only important at strong tunneling coupling Ternes et al. (2006). This is easily understood considering that the tunneling barrier has to be overcome twice, by an electron and by its reflected hole. However, YSR states resonantly enhance the Andreev transport Martin and Mozyrsky (2014); Andersen et al. (2011); Ioselevich and Feigel’Man (2013). Then, a Cooper pair is transferred into/ out off the condensate via both $u$ and $v$ and the state occupation is unchanged (Fig. 7c, right panel). Hence, the many-body ground state is conserved and no relaxation is required for a continuous current. Both transport mechanisms occur with the same bias threshold and it is a priori ambiguous, which of the two is dominating. It is noteworthy that also multiple Andreev reflections via YSR states have been observed in STS experiment Randeria et al. (2016). These involve the transfer of more than two particles (holes), but occur with different bias thresholds.

Beside single atomic impurities, also quantum dots with odd filling can induce YSR states when they are coupled to at least one superconducting lead. These states can be accessed by transport experiments Deacon et al. (2010); De Franceschi et al. (2010); Pillet et al. (2010); Dirks et al. (2010); Chang et al. (2013); Lee et al. (2014); Zanten et al. (2015); Jellinggaard et al. (2016); Lee et al. (2017). By means of gate potentials, one can tune the energy of the bound state and drive the singlet-doublet phase transition of the quantum ground state Deacon et al. (2010); Lee et al. (2017).

These transport measurements are typically interpreted in terms of Andreev processes due to the strong tunneling coupling strength Deacon et al. (2010); Pillet et al. (2010); Dirks et al. (2010); Lee et al. (2014). They are traditionally referred to as Andreev bound states – as opposed to YSR (or Shiba) states, the denominations commonly used in the STM community. On the contrary, $dI/dV$ spectra in scanning tunneling experiments are usually directly linked to the weight of $u$ and $v$ of the YSR wave function Yazdani et al. (1997); Franke et al. (2011). However, this assumption holds only for single-particle tunneling.

III.3 From single-particle tunneling to Andreev transport

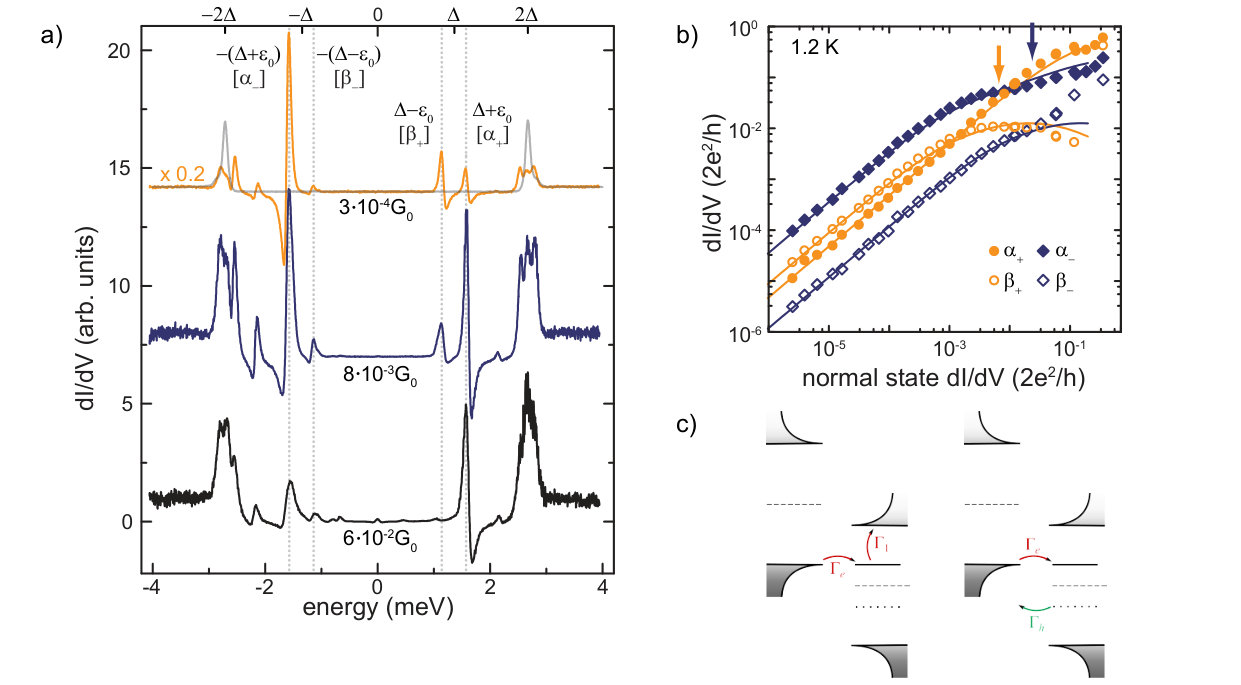

In order to shed light on the different contributions to tunneling, in Ref. Ruby et al. (2015a), the excitation spectrum on Mn adatoms on Pb(111) was probed as a function of junction resistance. In Figure 7a a change in the relative weight of resonances $+\alpha$ and $-\alpha$ is observed when measuring the $dI/dV$ with a superconducting Pb tip at different tip–sample distances, i.e., with decreasing junction resistance from top to bottom. Figure 7b presents a quantitative analysis over five orders of magnitude of normal state junction resistance of this YSR excitation and its thermal counterpart ($\pm\beta$). At large tip–sample distances (low conductance), a linear increase of all intensities is observed over several orders of magnitude of normal state conductance. At higher conductance, a sublinear behavior is detected and a crossover of the intensities of the electron- and hole-like part is observed for both, the YSR resonances ($\pm\alpha$) and their thermal counterparts ($\pm\beta$).

Qualitatively, this is understood considering the transport as sketched in Fig. 7c. A single-particle current at positive bias is proportional to the product of the relaxation rate $\Gamma_{1}$ and the tunneling rate $\Gamma_{e}$, which in turn scales with the weight of the particle-like component Ruby et al. (2015a). It is independent of the hole-like component. Consequently, the intensities in $dI/dV$ spectra at positive and negative bias voltage [$eV=\pm(\Delta_{\mathrm{tip}}+\epsilon)$] reflect the relative weight of $u$ and $v$. As long as $\Gamma_{e}$ is small compared to $\Gamma_{1}$, the single particle current increases linearly with the normal state conductance. When the tunneling rate $\Gamma_{e}$ becomes similar or larger than the relaxation rate $\Gamma_{1}$, then the relaxation is limiting the single particle current and yields a sublinear increase compared to the normal state conductance.

Andreev tunneling, on the contrary, proceeds via both, $u$ and $v$. The tunneling rate is then the convolution of $\Gamma_{e}$ and $\Gamma_{h}$. It is independent of the relaxation rate $\Gamma_{1}$. Therefore, this process becomes important for strong tunneling couplings, i.e., for large currents. Measured with a superconducting tip, the relative intensity of the hole- and electron-like resonances invert in the spectra at large tunnel coupling. It is noteworthy that, with a metallic tip, Andreev transport yields the same intensities for both resonances, i.e., at positive and negative bias Martin and Mozyrsky (2014), while single-particle tunneling again reflects the asymmetry of the $u$ and $v$ component in the wave function Ruby et al. (2015a).

A standard Keldysh calculation of the tunneling current, which used all tunneling rates as well as phenomenological relaxation rates of the excited state ($\Gamma_{1}$ and $\Gamma_{2}$), yielded the fits to the conductance evolution shown in Fig. 7b. The arrows indicate the crossover between single-particle and Andreev-dominated transport. From the fits, the inverse relaxation rates were determined to be in the order of hundreds of picoseconds at $1.2\operatorname{\operatorname{}\mathrm{K}}$. However, it was found that they decreased to $\approx 6\,$ps at a temperature to $4.8\operatorname{\operatorname{}\mathrm{K}}$, which indicates a temperature-driven relaxation process. The analysis, which was based on a single step relaxation as sketched in Fig. 7c, overestimates the temperature-dependence by two orders of magnitude. This discrepancy with the experimental observation was understood by taking into account the presence of additional YSR excitations in the spectrum, which provide additional, more efficient relaxation channels involving more than one YSR resonance and the formation of Cooper pairs.

The measurements show that tunneling experiments can be used to extract quantitative information on the electron and hole component of the YSR states, as well as on the relaxation rates.

IV Orbital character of Yu-Shiba-Rusinov states

In Section III.3, we discussed the transport mechanism through YSR resonances within the superconducting gap disregarding the number of YSR resonances. In literature, several experiments were described, in which more than one pair of subgap resonances had been observed Ji et al. (2008, 2010); Ruby et al. (2015a); Hatter et al. (2015); Randeria et al. (2016). It was suggested that the coupling to other degrees of freedom, like magnetocrystalline anisotropy $\mathbf{Z}$itko et al. (2011), or vibrations Gole$\mathbf{z}$ et al. (2012) can explain the experimental observation of several YSR states Hatter et al. (2015). Before including possible additional excitations in the discussion (see Section V.3 below), we point out that a single impurity can bear multiple YSR states due to the presence of several orbital scattering channels.

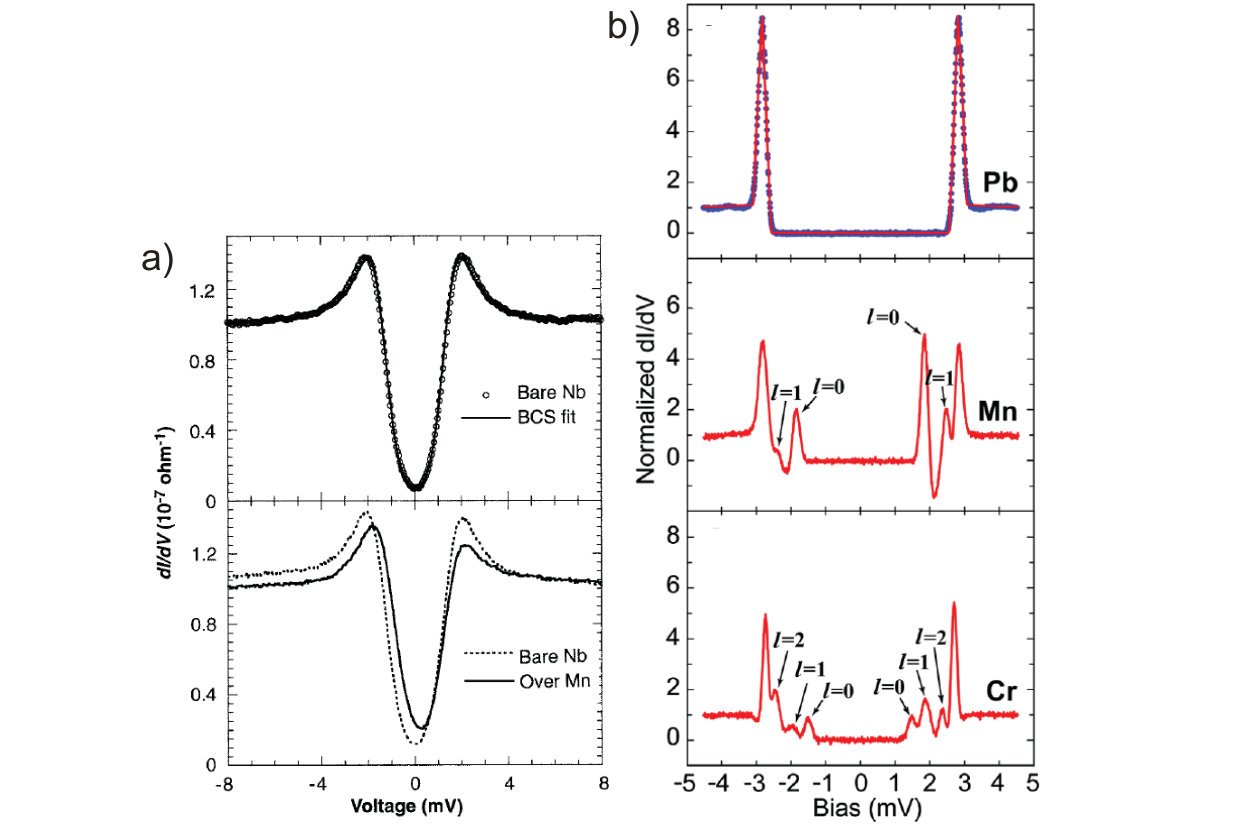

Early experiments Ji et al. (2008, 2010) linked multiple YSR states to scattering channels with different angular momenta ($l=0,1,2,...$) Flatté and Byers (1997a, b). Only in 2008, Moca and coworkers showed theoretically that, beside several scattering channels, the internal, i.e., orbital structure of the impurity plays a decisive role in the number and nature of YSR states in the excitation spectrum Moca et al. (2008). Transition metal atoms carry their spin in form of unpaired electrons in the $d$ shell. The local environment, i.e., the crystal field experienced by the impurity (partially) lifts the degeneracy of the $d$ levels according to their symmetry with respect to the crystal field. This in turn yields an orbital-dependent potential and exchange coupling with the substrate, which is imprinted in the YSR states.

For example, Mn adatoms on Pb are expected to be in a $d^{5}$ configuration and host an unpaired electron in each of the five $d$ levels. Because of the ${}^{6}S_{5/2}$ nature of the ion, only conduction electrons with $l=2$ are scattered Schrieffer (1967). This results in five YSR states, some of which can still be degenerate because of the actual symmetry of the environment.

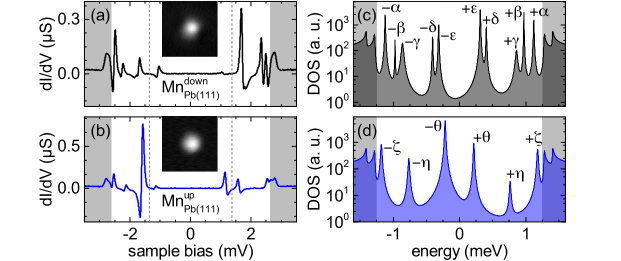

Mn adatoms on Pb(111) acquire two stable adsorption sites which differ in apparent height by $\approx 0.6$ Å (Fig. 8) Ruby et al. (2016). For the higher species with a symmetric appearance three pairs of YSR resonances are observed (Fig. 8b,d). This is in line with a threefold symmetric hollow adsorption site on the (111) lattice, which splits the $d$ levels into three subsets, the two-fold degenerate $d_{xz,yz}$ and $d_{xy,x^{2}-y^{2}}$, and the non-degenerate $d_{z^{2}}$. Each of these subsets is at the origin of one of the pairs of YSR states. Yet, for the second stable adsorption site for adatoms on the (111) surface with an asymmetric topographic appearance and a lower apparent height (Fig. 8a,c), d$I/$d$V$ spectra exhibit five pairs of YSR resonances, which implies a complete lifting of all $d$ level degeneracies caused by the absence of higher spatial symmetry Ruby et al. (2016) . Similarly, also for Cr adatoms on Pb(111), five YSR states are observed (see below) Choi et al. (2017a).

A direct link between a single pair of YSR states and a certain $d$ level can be most easily derived if the symmetry of the surface matches the symmetry of the real space representation of the $d$ level. This is the case for a hollow-site adsorption on a fourfold-symmetric Pb(001) surface, which yields a square pyramidal coordination. This geometry lifts all degeneracies except the degeneracy of the $d_{xz}$ and $d_{yz}$. Yet, the $d_{xy}$ orbital is close in energy to (or even degenerate with) these $d_{\pi}$ orbitals. The energy difference depends on the in-plane and out-of-plane nearest-neighbor distance.

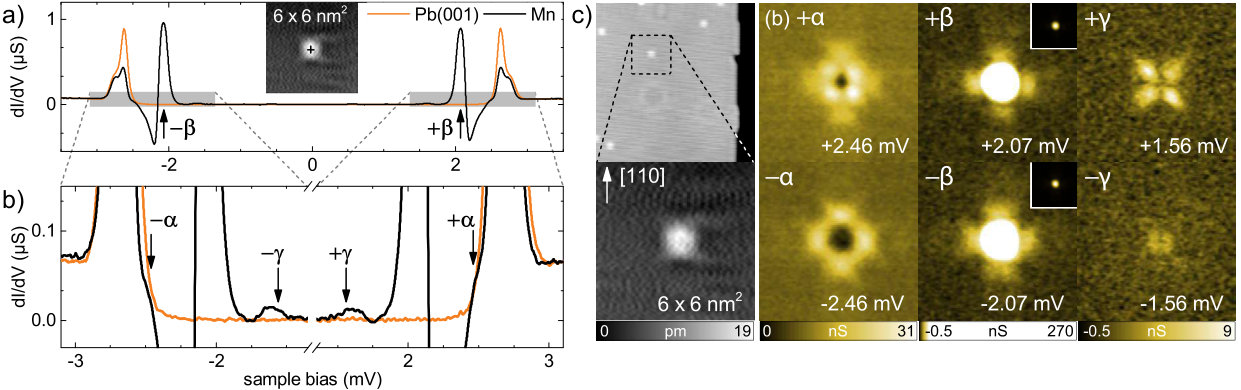

Mn adatoms on Pb(001) (Fig. 9a,b) induce a pair of dominating resonances $\pm\beta$ and two faint pairs of resonances ($\pm\alpha$ and $\pm\gamma$) Ruby et al. (2016). This is in line with the above described coordination geometry assuming (almost) degenerate $d_{xy}$ and $d_{xz,yz}$. Figure 9c presents d$I/$d$V$ maps at the energy of the three intragap resonances, which reveal that each YSR excitation presents a characteristic spatial pattern. $\pm\beta$ are most intense and mainly circular symmetric (note the stretched color code of the d$I/$d$V$ maps). These YSR resonances originate from the $d_{z^{2}}$ orbital because this orbital has a C1 symmetry and the strongest wave function overlap with the tip. The maps of $\pm\alpha$ and $\pm\gamma$ all exhibit fourfold symmetric patterns, which match the symmetries of the remaining $d$ levels. While $\pm\gamma$ is linked to the degenerate $d_{xz,yz}$ and $d_{xy}$ orbitals as can be inferred from a splitting of these resonances in the presence of variations in the local environment, the $d_{x^{2}-y^{2}}$ orbital is at the origin of resonances $\pm\alpha$ Ruby et al. (2016).

The studies performed on Mn/Pb(111) revealed the existence of two atomic configurations, each with a different YSR fingerprint. A similar experimental study on the Cr/Pb(111) system was supported by Density Functional THeory (DFT) simulations Choi et al. (2017a) which unveiled that a subsurface configuration with the impurity atom embedded underneath the top-most Pb layer was energetically preferred (Fig. 10a). DFT results determined that the barrier for Cr atoms to reach the subsurface site through hollow sites of the (111) surface is only 21 meV, which is smaller than the lateral diffusion barriers and can easily be overcome by ”hot” adatoms before thermalisation. Subsurface Cr impurities show spectra full of intra-gap features attributed to five YSR excitation pairs (Fig. 10c). With support of DFT calculations, these were interpreted as originating from the five half-filled $d$ orbitals of Cr, which act as spin-polarized scattering channels. Similar to the case of Mn atoms of lower apparent height (Mndown), the local symmetry around the embedded atom is reduced and, consequently, the degeneracy of the $d$ subshell broken into a multiplet of five spin-polarized $d$ resonances.

Although the DFT simulations reveal that the Cr states are mixed with Pb bands, the five spin-polarized channels maintain some degree of the atomic $d$ character (Fig. 10b). Hence, in a first approximation, they can be treated as five independent channels with a different exchange interaction $J_{\mathrm{n}}$ [$\mathrm{n}=(1,...,5)$], producing five YSR bound states, each with a different excitation energy $\epsilon_{n}$. We can use the computed single-particle wave function of the five scattering channels for a calculation of the Bogoliubov quasiparticle coefficients $|u_{\mathrm{n}}(\boldsymbol{r})|^{2}$ and $|v_{\mathrm{n}}(\boldsymbol{r})|^{2}$. These represent the local DoS of the particle and hole components. The spatial maps of these amplitudes (Fig. 10d) show that, while the $|u_{\mathrm{n}}(\boldsymbol{r})|^{2}$ component resemble closely the shape of the scattering orbital, the corresponding $|v_{\mathrm{n}}(\boldsymbol{r})|^{2}$ component differs strongly. Such asymmetry in the shape of Shiba components was also observed in the experimental maps (Fig. 10c) of the particle- and hole-like YSR excitations. As expected the simulated orbital shapes can be recognized in some of the particle YSR maps (sample bias $>0$), while the corresponding hole maps clearly deviate.

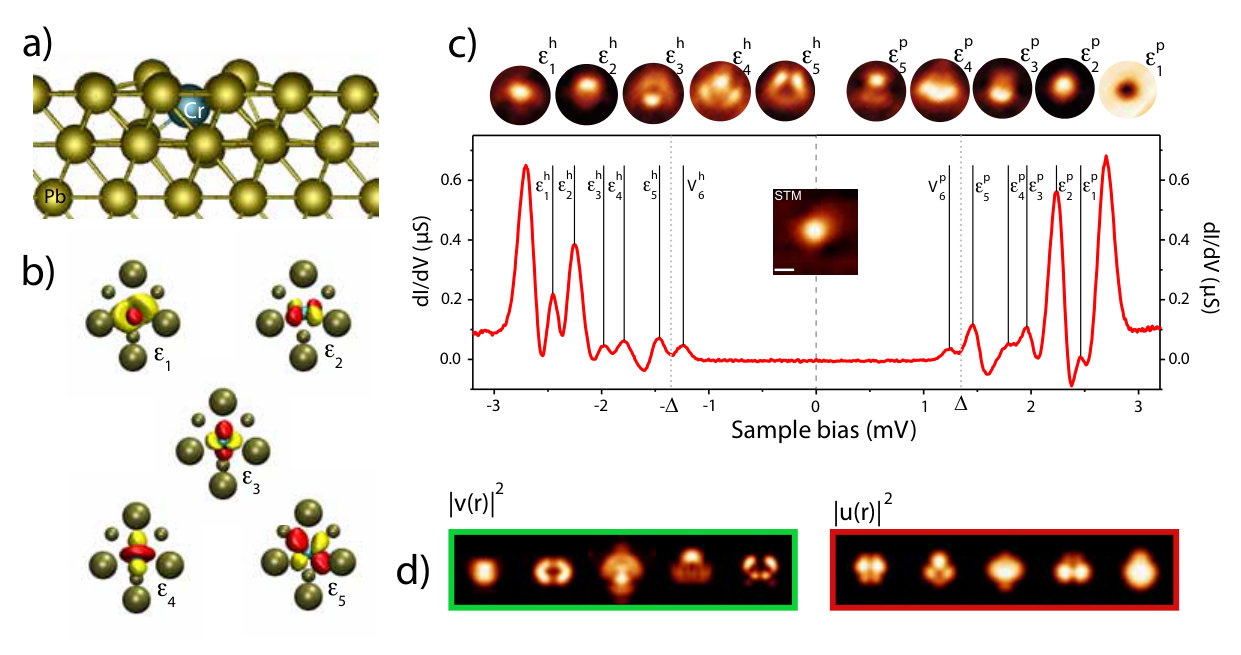

Interestingly, one of the YSR states ($\epsilon_{4}$) shows a particle-hole reversal in the spatial pattern of its YSR excitations: the calculated $|u_{\mathrm{n}}(\boldsymbol{r})|^{2}$ component matches the experimental map at negative bias. This reversal is an indication of this channel undergoing a transition to a new correlated ground state (as described in Fig. 2). As first pointed out by Sakurai Sakurai (1970), a critical point occurs for sufficiently large values of $J_{\mathrm{n}}\rho_{s}$, such that the YSR excitation energy becomes zero. This results in a new ground state of the many-body state (Fig. 2). In this situation, the magnetic impurity becomes locally screened, as pictorially described in Fig. 3. Indeed, for the Cr/Pb(111) system, DFT simulations Choi et al. (2017a) showed that the alignment of the YSR excitations in the gap is very sensitive to the degree of hybridization $\Gamma_{\mathrm{n}}$, the Coulomb constant $U_{\mathrm{n}}$, and the energy of the spin-polarized state. It is thus possible that a fraction of scattering channels undergoes the transition to a screened singlet state, while others remain in the doublet ground state.

V Quantum-phase transition from a Kondo-screened to a free-spin ground state

In Section IV we reported how the reduced symmetry around the magnetic atom results in a lifting of the orbital degeneracy and an orbital-dependent exchange potential $J_{\mathrm{n}}$, which bears multiple bound states in the gap. In realistic systems, the exchange scattering potential $J_{\mathrm{n}}$ also leads to quantum fluctuations of the impurity spin due to scattering with conduction band electrons, bearing the Kondo effect. For a normal metal, Kondo scattering results in screening of the impurity magnetic moment and the formation of a singlet ground state. As discussed in Section II.1, the formation of the superconducting singlet state competes with the Kondo singlet formation. The result is the coexistence of Kondo screening with the formation of YSR states. Changes in the relative strength of the superconducting pairing and the exchange scattering can drive the system through a quantum phase transition separating the two different magnetic ground states.

Ideal systems to study the increasing role of Kondo screening in a superconductor with exchange scattering are hybrid superconductor-quantum dot three-terminal devices. Here, the YSR physics is represented by Andreev bound states (this term is usually used in the quantum-dot community) at the superconductor-quantum dot interface and the strength of their coupling to the superconductor can be continuously tuned by external gating fields.

V.1 Multiple magnetic ground states in a magnetic molecular system

Another approach to trace the quantum phase transition was realised by taking advantage of a multitude of different adsoprtion sites of magnetic metal-organic molecules on top of a superconducting surface. Similar to atomic impurities, magnetic molecules such as transition metal phthalocyanines (Pc) on superconductor surfaces also show YSR excitations Franke et al. (2011); Hatter et al. (2015); Kezilebieke et al. (2016). The magnetism originates from the incomplete $d$ shell of the metal ion and its exchange coupling with substrate electrons and cooper pairs. The (organic) ligand field around the metal ion causes a finite spin anisotropy in these systems, favouring a certain spin orientation over others, and, hence, yields a characteristic excitation multiplet.

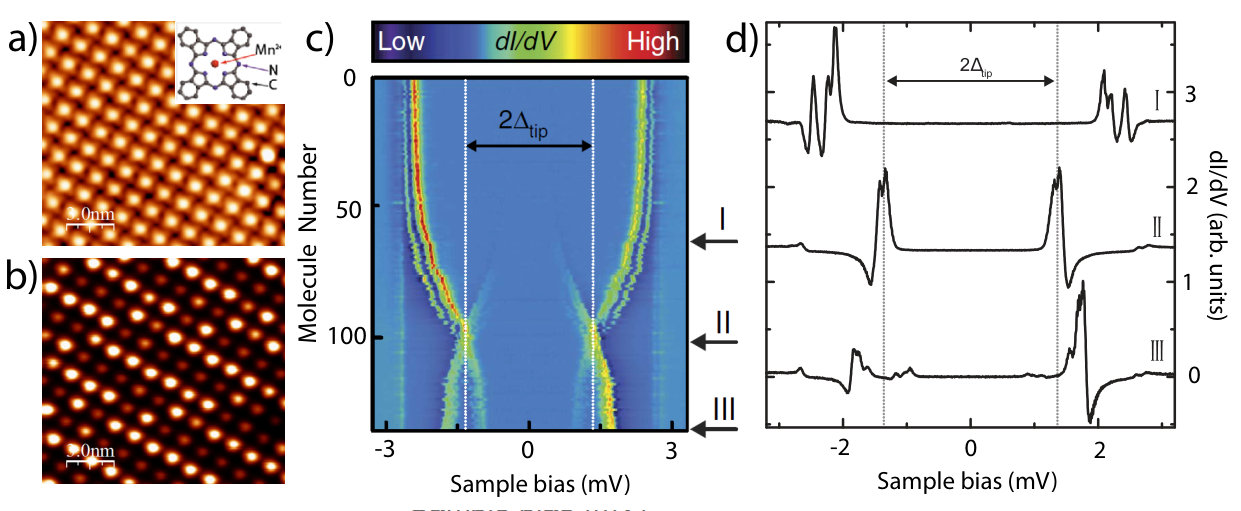

A transition between two different ground states was observed by studying excitation spectra of MnPc molecules on Pb(111). MnPc molecules arrange in square molecular islands (Fig. 11a), where each molecule lies over a distinct atomic site, showing YSR peaks at different energy positions depending on this site. The differences have been ascribed to small variations in the adsorption site, which crucially affect the strength of the exchange scattering. The result is a peculiar Moiré pattern of interaction strength, which can be visualized in constant-height current images at tunneling bias voltages inside the superconducting gap (Fig. 11b).

The diversity of possible sites of MnPc on Pb(111) allows us to explore a continuous range of exchange interaction strengths $J$ in a single experiment simply by selecting different positions in the layer. Figure 11 shows a stack of spectra of $137$ different molecules ordered according to the position of the largest YSR spectral peak. We find a broad range of peak alignments, simulating an experiment with a tunable exchange interaction. If we assume that the largest peak corresponds to the $u(r)$ component, a larger negative bias voltage denotes a larger exchange constant $J$. In this case, the plot is ordered from stronger to weaker $J$, from top to bottom. At $\pm\Delta$, the stack plot also shows the crossings of the YSR resonances corresponding to the $u$ component with the thermal replica of the $v$ component and vice versa. This crossing corresponds to the critical point mentioned above, where YSR excitations reach zero energy and separate two different quantum ground states (Fig. 2). Above the critical point (region I), the larger interaction strength leads to a screened ground state, i.e., a singlet (see Fig. 3), and the YSR peaks denote a doublet (single-particle) excitation. Below, the ground state correspond to a free-like impurity spin (doublet).

V.2 Interplay of Kondo correlations with Yu-Shiba-Rusinov excitations

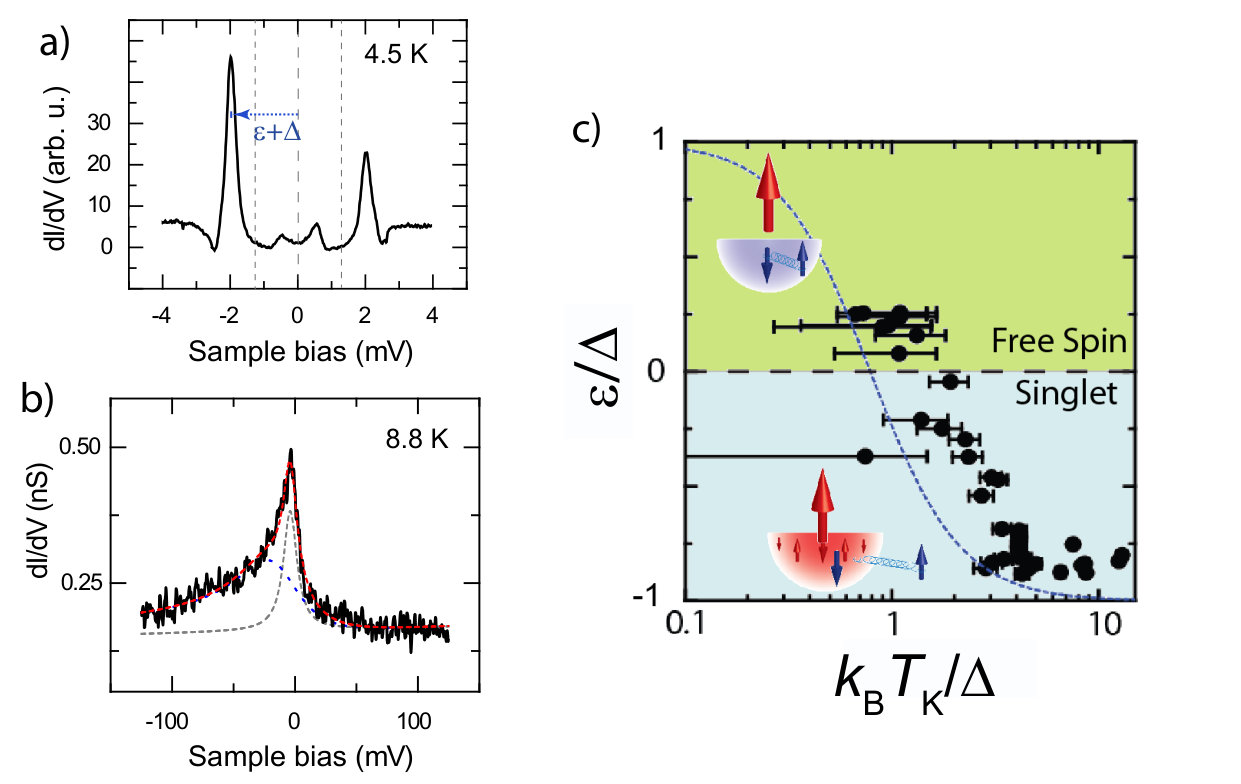

As mentioned above, Kondo correlations participate in the screening of an impurity spin on a superconductor, and their relevance in the ground state of a quantum spin depends on the strength of the exchange scattering. In the regime where the Kondo energy scale $k_{\mathrm{B}}T_{\mathrm{K}}$ competes with the pairing energy $\Delta$, a crossing of two different quantum ground states was predicted by Matsuura Matsuura (1977). To probe the fundamental relationship between the YSR energy $\epsilon$ and $k_{\mathrm{B}}T_{\mathrm{K}}$, both energy scales have to be determined simultaneously.

For the case of MnPc, $dI/dV$ plots measured above the critical temperature ($T_{\mathrm{c}}$) of Pb(111) show a characteristic zero-bias resonance attributed to the Kondo effect (Fig. 12b). The linewidth again depends on the molecule investigated. A second (broader) resonance (fitted by a blue dashed line in the plot), which was originally interpreted as an additional Kondo channel, has been recently attributed to a Mn $d$ state Kügel et al. (2015). Comparison of spectra on each molecule above and below $T_{\mathrm{c}}$ (Fig. 12a and 12b) confirmed a correlation between the Kondo temperature and the YSR excitation energy Franke et al. (2011). Figure 12c plots the energy position $\varepsilon$ of the larger YSR peak vs. $k_{\mathrm{B}}T_{\mathrm{K}}$ as extracted from spectra like the ones shown in Fig. 12b. The YSR peak shifts towards more positive values as the Kondo energy scale becomes smaller. This corroborates that both spin-scattering processes depend similarly on the magnitude of exchange scattering $J$, and their relative strength approaches closely the relation predicted by Matsuura Matsuura (1977). The crossing of the YSR peaks through zero occurs for $T_{\mathrm{K}}\sim\Delta$ and reveals the quantum phase transition. For stronger exchange, the ground state is a Kondo singlet. Beyond the critical point, Kondo correlations cannot screen the spin due to the depletion of states inside the superconducting gap (i.e., $k_{B}T_{K}<\Delta$). In this case, the competing pairing correlations in the superconductor dominate and the impurity’s ground state transforms into a free-spin (doublet).

The exchange coupling to the substrate can be further tuned by the reversible addition of an axial ligand. An ammonia (NH3) molecule bonding to the Mn ion increases the Mn–surface distance and reduces the exchange coupling $J$ such that all MnPc-NH3 complexes are in the free-spin ground state. The concomitant Kondo effect then is in the weak-coupling regime Hatter et al. (2017).

V.3 Effect of magnetic anisotropy in Yu-Shiba-Rusinov states

The spectra in Fig. 11d show that YSR resonances in MnPc appear split into three narrow peaks, typically with $50-100$ $\mu$eV full width at half maximum, with different intensity, and separated by up to 400 $\mu$eV. The split peaks are a result of the intrinsic magnetic anisotropy of the MnPc molecule, as predicted by $\mathbf{Z}$itko and coworkers $\mathbf{Z}$itko et al. (2011), and demonstrated in Ref. Hatter et al. (2015). When the magnetic impurity has a spin larger than 1/2, intra-impurity magnetic anisotropy can split its energy levels into a multiplet of $S_{z}$ components. The spin 3/2 of free MnPc molecules is partially decreased to $S_{imp}=1$ at the Pb(111) surface Jacob et al. (2013), with two spin-polarized orbitals, $d_{z^{2}}$ and $d_{xy}$. The exchange interaction with the surface is dominated by the $d_{z^{2}}$ orbital, whereas the $d_{xy}$ state remains ”hidden” in the molecular plane. Even though there is only one tunneling and scattering channel (the $d_{z^{2}}$ orbital), correlations between the two spin-polarized orbitals split the corresponding YSR state into a multiplet. The energy split of the multiplet reflects the magnetic anisotropy of the impurity spin, but is renormalized by the many-body interactions.

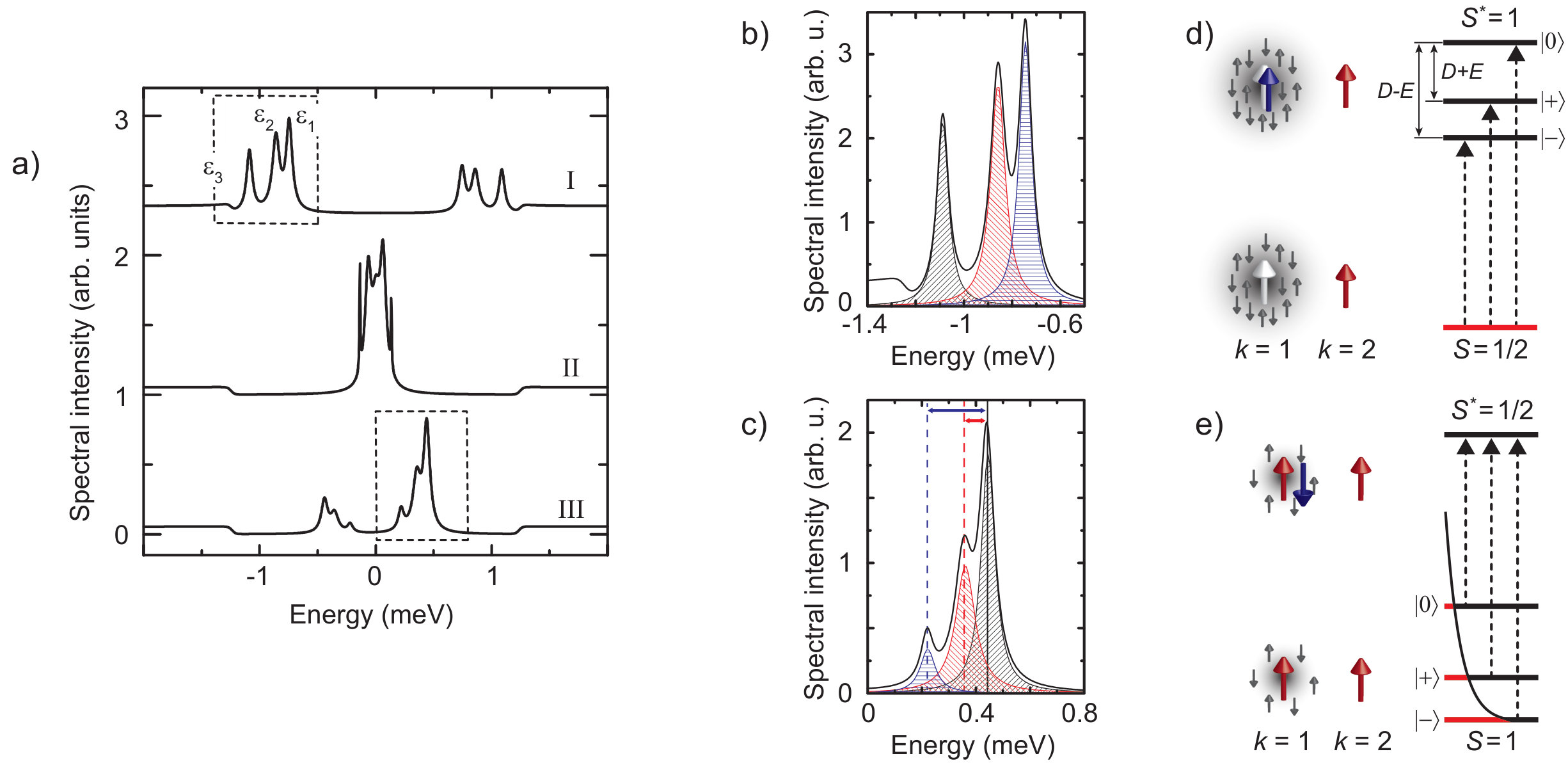

However, the essence behind the fine structure is more complex Hatter et al. (2015). As pictured in Fig. 7 in Sec. III.3, transport in the regime of single particle tunneling involves the formation of an excited many-body state, the YSR excitation, with a different occupation than the ground state. The lifetime of the excited state is, as shown in Sec. III.3, in the order of hundreds of ps at 1.2 K. This reduces the excitation linewidth such that the measurement becomes sensitive to the magnetic anisotropy of the excited state. Hence, the anisotropy splits the excited state into different energy levels.

The spectral multiplet thus shall reflect all possible transitions connecting the many-body ground state multiplet with the excited state multiplet, ensuring conservation of the total angular momentum including the spin of the tunneling electron. We note that, while the population of the many-body ground state’s multiplet should follow a Boltzmann statistics, the excited state’s multiplet can be accessed with similar probability. Therefore, the amplitudes of the peaks in the Shiba substructure shall reflect the strength of each possible transition, allowing to determine its origin.

The sequence of spectral peaks in the deconvolved spectra depicted Fig. 13a illustrates the peculiar variation of the spectral intensity of each peak according to the ground state. As outlined in Figs. 13b and 13c, in the Kondo screened case (region I in Fig. 11c) all spectra show peaks with similar intensity, independently of their position. On the contrary, the spectral intensity of the peaks in the free-spin ground state (region III) follows a thermal-like distribution of intensities: hole and particle excitations become stronger with their energy, following a Boltzmann-like distribution of the peak areas Hatter et al. (2015). From the arguments above, this signals that they correspond to transitions from a multiplet in the $S=1$ ground state. This triplet state originates from the intra-atomic magnetic exchange of the scattering channel ($k=1$ in Fig. 13e) and the hidden spin ($k=2$), while the single-particle tunneling via the $k=1$ channel leads to a $S^{*}$=1/2 excited state.

On the contrary, the similar intensity of triplet excitations in the Kondo-correlated ground state is a fingerprint of transitions to an excited-state multiplet with an excited spin $S^{*}$=1. As depicted in Fig. 13d, this is fully consistent with the existence of the ”hidden” spin in the $k=2$ channel accompanying the screened channel $k=1$. It is remarkable that, due to the long lifetime of the excitations, the YSR excited state is sensitive to the intrinsic magnetic anisotropy of the molecule and split into three levels. It is worth mentioning that, since these results probe properties of the YSR many-body state, the observed split corresponds to the intra-molecular anisotropy but renormalized by the exchange scattering interactions.

VI Lateral extension of Yu-Shiba-Rusinov states

In section IV, we discussed the shape of the YSR states in the close vicinity of the impurity, which reflects the orbital shape of the scattering potential. Moreover, the YSR states show a longer-ranged intensity, which is determined by several characteristic length scales of the superconductor: On the one hand, the coherence length $\xi$ plays a role, as expected intuitively for a superconducting material. The decay of the YSR wave function scales as $\exp(-r/\xi)$ (see Eq. 3) with the distance $r$ from the impurity. On the other hand, scattering at an impurity is governed by fermionic scattering processes, which occur on the length scale of the Fermi wavelength. The physical concept relates to the Friedel-like screening of the impurity site. The YSR wave function thus exhibits an oscillation with the Fermi wavelength $\lambda_{\mathrm{F}}$ and an additional $1/(k_{\mathrm{F}}r)$ decay for an isotropic 3D superconductor (see Eq. 3). We first discuss the contributions to the decay. Typical type I superconductors possess a coherence length in the order of 100 nm, whereas the Fermi wavelength is only in the order of 1 nm. Hence, the decay at close distance around the impurity will be dominated by the Fermi wavelength and, in particular, by the dimensionality of the superconducting substrate, whereas the coherence length has minor influence. Menard and co-workers showed on the quasi-2D superconductor NbSe2 that one can indeed observe a long-range extension of YSR states Ménard et al. (2015). Sub-surface impurities led to an oscillation pattern of the YSR states with significant amplitude of the wave function up to 7 nm away from the impurity site (see Fig. 14). This was explained by the reduced damping of the wave function in 2D compared to 3D, with $u(r)$, $v(r)$ scaling like $1/\sqrt{k_{\mathrm{F}}r}$ in 2D.

VI.1 Enhancement of YSR oscillations by an anisotropic Fermi surface

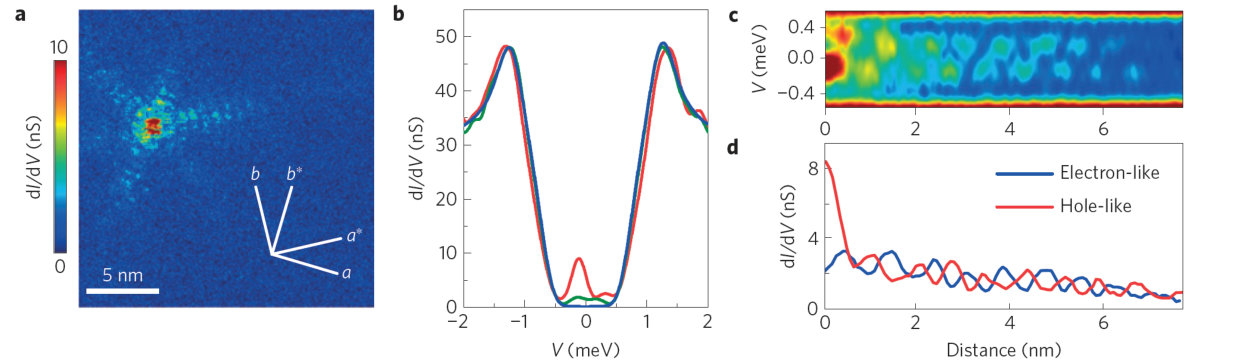

In contrast, Pb is a 3D superconductor. Hence, one may expect a much faster decay of the wave function. Surprisingly, Mn atoms on Pb(111) also showed patterns of YSR states up to 4 nm away from the adsorption site (see Fig. 15). It is, however, interesting to note that the YSR states of Mn on Pb(100) (see Fig. 9) were much shorter ranged (only up to 2 nm). Hence, the surface orientation seems to play an important role. Furthermore, we note that the decay is not spherically symmetric, but ”beams” extend along the high symmetry directions of the surface. This holds true for 2D and 3D superconductors and can be ascribed to the anisotropy of the band structure of the substrate Salkola et al. (1997); Flatté and Byers (1997b). Electrons/holes scattered at an impurity are focused into directions, which originate from flat areas of the Fermi surface Weismann et al. (2009). This focusing effect enhances the YSR amplitude for these directions and gives rise to a fall-off, which is slower than expected for an isotropic decay. Hence, we can observe the YSR wave function nanometers away from the impurity.

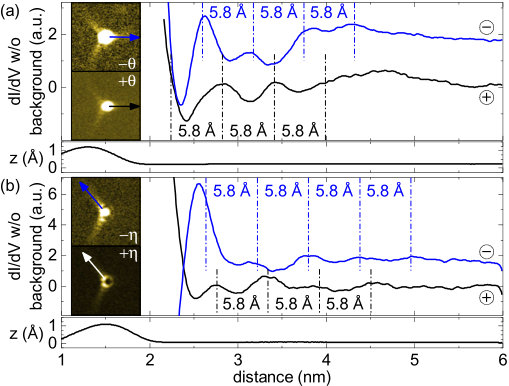

The fermionic properties of the scattering processes are also imprinted in an oscillatory pattern of the YSR states. Hence, the wave function does not only decay with the characteristic $1/(k_{\mathrm{F}}r)$ dependence, but also oscillates with the Fermi wavelength $\lambda_{\mathrm{F}}$. Because STM probes the probability density $\left|\Psi\right|^{2}$, the observed oscillation is periodic in $\lambda_{\mathrm{F}}/2$. Fig. 15 reveals an oscillation around the Mn adatom on Pb(111) with a period of $\sim 5.8$ Å, which thus reflects $\lambda_{\mathrm{F}}\sim 11.6$ Å. Pb exhibits a complex Fermi surface with two disjoint sheets with significantly different values of the Fermi wave vector $k_{\mathrm{F}}$ along the different lattice directions Lykken et al. (1971). Importantly, the electron-phonon coupling strength is different on the two sheets and gives rise to two distinct superconducting energy gaps Ruby et al. (2015b); Floris et al. (2007). The observation of a single, well-defined oscillation period evidences that the magnetic impurity is predominantly coupled to the corresponding Fermi surface sheet. In this case of Mn on Pb(111), it reveals the coupling of the impurity spins to the Fermi surface sheet with mainly $p-d$ orbital character instead of to the Fermi surface sheet with mostly $s-p$ orbital character. Considering the more local nature of the electrons in the $p-d$-like bands, they are affected more strongly by a local impurity than extended bands. More importantly, in Sec. IV we have shown that dominantly $l=2$ fermions scatter with the unpaired spins in the $d$ states of Mn as was early predicted by Schrieffer in the case of Kondo scattering Schrieffer (1967). Hence, the restriction to certain angular momenta for efficient scattering favors the $p-d$-like band. The scattering pattern then is a result of the interplay of orbital symmetry and Fermi surface sheet. While at close distance, the orbital symmetry dominates the pattern, at far (and intermediate) distances, the electron focusing from the flat parts of the Fermi surface prevails.

Interestingly, the scattering pattern of the YSR states obey distinct phase differences between the $u$ and $v$ components. The observed phase difference Ruby et al. (2016) depends on the energy of the YSR state and follows the theoretical prediction of Eq. 4 of a point scatterer.

It is noteworthy that, in the case of Cr atoms on Pb(111) films grown on SiC(0001) Choi et al. (2017a), no oscillatory fall-off was observed. Concurrently, no signs of two-band superconductivity were observed for the Pb films, in contrast to the single-crystal samples Ruby et al. (2015b). Both findings could be linked to the insufficient film thickness, which does not allow for the $p-d$-like band to be fully developed. Hence, there is no preferential scattering with a single band and the focusing effect is absent. Hence, the YSR wave function decays much faster in this case.

VII Coupling of Shiba impurities – from dimers to topological chains

The extension of the YSR states is a promising avenue for coupling magnetic impurities on a superconductor. Theoretically, the coupling of YSR states has already been discussed since the advent of the understanding of the individual states Rusinov (1968). The physical picture is based on the spatial overlap of YSR states. The YSR states thus hybridize, with the hybrid state being described by the linear combination of the YSR states (similar to LCAO theory or to the description of interference patterns due to the overlap of oscillating YSR states Morr and Stavropoulos (2003); Morr and Yoon (2006)). Experimentally, hybrid YSR states have first been seen on dimers of Mn and Cr on Pb(111) Ji et al. (2008). Tunneling spectra revealed a splitting of the YSR states. The corresponding STM images reflected the bonding (anti-bonding) nature of the coupled states via a maximum (zero) intensity at midway between the impurity sites. Recently, a splitting of YSR states has also been observed on dimers of Co-Phthalocyanine molecules adsorbed on the quasi-2D superconductor NbSe2 Kezilebieke et al. (2016) and on dimers of Cr adatoms on the surface of the superconductor $\beta$-Bi2Pd Choi et al. (2017b).

VII.1 Chains of Yu-Shiba-Rusinov impurities

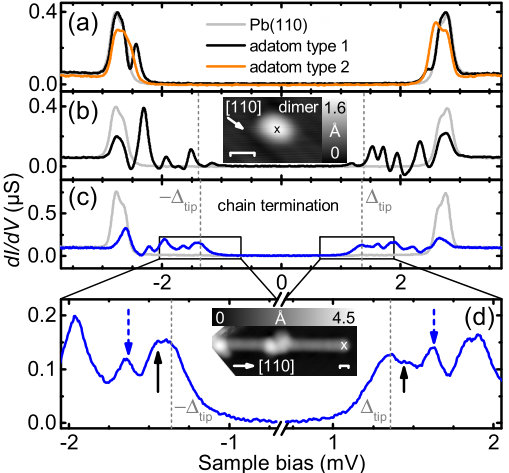

In the limit of dense arrangements of magnetic impurities, the YSR states’ overlap may lead to extended bands. These fill and eventually suppress the superconducting energy gap Ji et al. (2010). An intriguing example for the formation of YSR bands are one-dimensional chains of transition metal adatoms on a superconducting Pb surface. Employing a Pb(110) surface steers the assembly of Fe Nadj-Perge et al. (2014); Ruby et al. (2015c); Pawlak et al. (2016); Feldman et al. (2017) and Co Ruby et al. (2017) chains along the troughs of the surface. Whereas dimers of Fe atoms in these troughs already show an increase in the number of YSR resonances in the superconducting energy gap (Fig. 16b), the chains show a rich resonance structure (Fig. 16c). While the dominant resonances can be interpreted as van Hove singularities of YSR bands, the rich and varying structure along the chain results from confinement effects in the finite chain and variations in the local potential Ruby et al. (2015c, 2017); Peng et al. (2015).

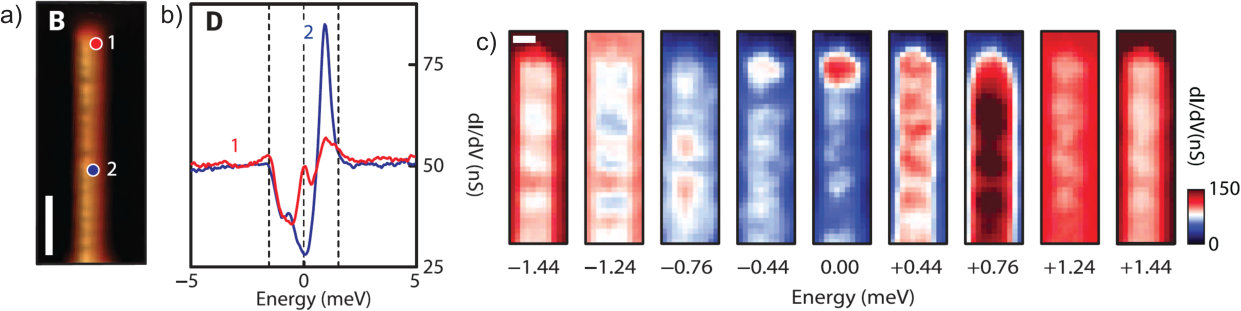

Besides the YSR bands at finite energy, which are found all along the chain, Nadj-Perge and co-workers identified a resonance at zero energy, which is localized at both chain terminations (Fig. 17). These resonances have been interpreted as Majorana zero modes Nadj-Perge et al. (2014).

Topological superconductivity is a crucial prerequisite for the emergence of Majorana zero modes. On an $s$-wave superconductor, this can be realized either by helical spin chains  Nadj-Perge et al. (2013); Pientka et al. (2013); Braunecker and Simon (2013); Klinovaja et al. (2013); Vazifeh and Franz (2013); Schecter et al. (2016); Christensen et al. (2016) or by ferromagnetic chains in the presence of strong spin-orbit coupling, as it occurs in Pb Nadj-Perge et al. (2014); Li et al. (2014); Peng et al. (2015). The induced $p$-wave superconducting gap protects the topological nature of the band structure. The first putative realization of such a system are the above mentioned Fe chains on Pb(110), where an odd number of spin-polarized band cross the Fermi level. These provide the origin of the Majorana states at the chain ends Nadj-Perge et al. (2014); Li et al. (2014).

These zero energy modes are the condensed matter equivalent to Majorana Fermions Majorana (1937) in particle physics. They possess numerous interesting properties, in particular, an non-local character (in the case of the chains, they always appear at both terminations simultaneously), topological protection against perturbations, and obeying non-Abelian exchange statistics Alicea (2012); Beenakker (2013); Elliott and Franz (2015). These properties make them prime candidates for quantum computational applications Sarma et al. (2015). In the simplest approach, Majorana zero modes could be used to store quantum information non-locally. More evolved proposals use networks of Majorana wires in order to allow for braiding operations to realize certain quantum gates Alicea et al. (2011).

The prospect of using Majorana states for topological quantum computing has driven the investigation of the formation of Majorana bound states in proximity-coupled chains of transition metal atoms on a superconductor to the forefront of research in solid state physics. Yet, braiding operations, i.e., the exchange of Majorana modes in, say, a Y-junction requires the physical movement of the zero energy mode along the wire. In the case of atomic wires on an $s$-wave superconductor, both for ferromagnetic and chiral order, the topological phase is determined by the chemical potential relative to the energy of the spin-split bands. A phase transition between a trivial and a nontrivial phase occurs when the chemical potential moves through the bottom of a spin-polarized band, because this changes the number of Fermi points. Hence, in order to move the Majorana mode located at the domain wall between a topologically trivial and a nontrivial phase, one has to tune the chemical potential on the energy scale of the $d$ band width, i.e., some hundreds of meV Oppen et al. (2014). Technologically, such braiding operations would be more than challenging. A loophole to a successful applications could lie in the creation of ring-like quasi-one-dimensional structures on a thin-film superconductor. If the topological phase is then controlled by the amplitude and orientation of a (dynamic) magnetic field, an in-plane rotation of the field can move the topological domain wall and hence the Majorana zero mode, making braiding experiments possible Li et al. (2016b).

VIII Conclusions and future directions

In summary, we described the latest experimental results on individual magnetic adsorbates on $s$-wave superconductors. In combination with theory, tremendous advances have been made in the fundamental understanding of the origin of multiple subgap excitations and their relation to the many-body quantum states. The investigations also bridged the gap between STM-based research and quantum nanoelectronics. Despite of this progress, new experiments are required to go beyond the current state-of-the-art, in particular in view of the construction of adatom-based nanostructures. One interesting aspect is the coupling between adatoms, which is currently treated by theory in great detail. The coupling mechanism, its length scale, as well as resulting magnetic ground states are modeled Morr and Stavropoulos (2003); Meng et al. (2015); Hoffman et al. (2015). Yet, experimental evidence of the different scenarios is mostly still missing. While these questions are again of fundamental nature, they also form the basis for understanding the coupling in larger adatom structures, eventually leading to one-dimensional and two-dimensional topological structures.

Acknowledgments

We are thankful for fruitful discussion with Gelavizh Ahmadi, Tristan Cren, Laëtitia Farinacci, Nino Hatter, Nicolas Lorente, Felix von Oppen, Yang Peng, Falko Pientka, Gaël Reecht, Dimitri Roditchev, Michael Ruby, Gunnar Schulze, and Clemens Winkelmann. We acknowledge financial support by the Deutsche Forschungsgemeinschaft by Grant No. FR2726/4 (K. J. F.) and Grant No. HE7368/2 (B. W. H.), by the European Research Council through Consolidator Grant NanoSpin (K. J. F.).
