Crossing statistics of laser light scattered through a nanofluid

TL;DR

This study analyzes the crossing statistics of speckle patterns in laser scattering through nanofluids, extending zero-crossing analysis to non-Gaussian regimes to better understand particle dynamics.

Contribution

It introduces a generalized crossing statistics framework that accounts for non-Gaussian fluctuations and noise, improving the accuracy of particle speed estimation in nanofluids.

Findings

Increasing temperature enhances Gaussian and non-Gaussian prediction agreement.

Maximum crossings often occur away from the mean level, requiring multi-threshold analysis.

The generalized total crossing effectively quantifies deviations from Gaussianity.

Abstract

In this paper, we investigate the crossing statistics of speckle patterns formed in Fresnel diffraction region by a laser beam scattering through a nanofluid. We extend $zero-crossing$ statistics to assess dynamical properties of nanofluid. According to joint probability density function of laser beam fluctuation and its time derivative, theoretical framework for Gaussian and non-Gaussian regimes are revisited. We count number of crossings not only at {\it zero} level but also for all available thresholds to determine the average speed of moving particles. Using probabilistic framework in determining crossing statistics, {\it a priori} Gaussianity is not essentially considered, therefore even in presence of deviation from Gaussian fluctuation, this modified approach is capable to compute relevant quantities such as mean value of speed more precisely. Generalized total crossing which represents the weighted summation of crossings for all thresholds to quantify small deviation from Gaussian statistics is introduced. This criterion can also manipulate the contribution of noises and trends to infer reliable physical quantities. The characteristic time scale for having successive crossings at a given threshold is defined. In our experimental setup, we find that increasing sample temperature leads to more consistency between Gaussian and perturbative non-Gaussian predictions. The maximum number of crossing does not necessarily occur at mean level indicating that we should take into account other levels in addition to {\it zero} level to achieve more accurate assessments.

Figures

Tables

Table 1. Table 1: The mean value of particle’s speed computed in experiments for different temperatures at 1 ​ σ 1 𝜎 1\sigma confidence interval. Column representing by "Background level" corresponds to the background measurement when we consider only zero-cross . In last column the total crossing for q = 0 𝑞 0 q=0 has been reported.

Temperature	$v\left(0\right)\pm {\sigma }_v$	${⟨v\left(\alpha \right)⟩}_{\alpha }^{\mathrm{Gaussian}}\pm {\sigma }_v$	${⟨v\left(\alpha \right)⟩}_{\alpha }^{\mathrm{non}-\mathrm{Gaussian}}\pm {\sigma }_v$	Background level	$N_{total}\left(0\right)$
50 ∘C	$2.49\pm 0.10$ $\left(\frac{mm}{s}\right)$	$2.44\pm 0.02$ $\left(\frac{mm}{s}\right)$	$2.52\pm 0.02$ $\left(\frac{mm}{s}\right)$	$0.44\pm 0.10$ $\left(\frac{mm}{s}\right)$	8238
70 ∘C	$2.85\pm 0.10$ $\left(\frac{mm}{s}\right)$	$2.76\pm 0.02$ $\left(\frac{mm}{s}\right)$	$2.86\pm 0.02$ $\left(\frac{mm}{s}\right)$	$0.50\pm 0.10$ $\left(\frac{mm}{s}\right)$	10108
90 ∘C	$3.03\pm 0.10$ $\left(\frac{mm}{s}\right)$	$2.99\pm 0.02$ $\left(\frac{mm}{s}\right)$	$3.01\pm 0.02$ $\left(\frac{mm}{s}\right)$	$0.54\pm 0.10$ $\left(\frac{mm}{s}\right)$	10822

Table 2. Table 2: The value of threshold for which we get maximum value of crossing ( N α m ​ a ​ x superscript subscript 𝑁 𝛼 𝑚 𝑎 𝑥 N_{\alpha}^{max} ) and corresponding characteristic time scale for three experiments.

Temperature	$\alpha /{\sigma }_0$	${\tau }_{\alpha }$ (sec)
50 ∘C	$-0.23$	$0.15\pm 0.01$
70 ∘C	$-0.23$	$0.13\pm 0.01$
90 ∘C	$-0.07$	$0.12\pm 0.01$

Equations

$$⟨n_x^{\pm }(t;\alpha )⟩$$

$$x(t)=x(t_{\pm })+(t-t_{\pm })\eta (t_{\pm })+\mathcal{O}(\delta t^2)$$

$$⟨n_x^{\pm }(t;\alpha )⟩$$

$$⟨n_x^{\pm }(\alpha )⟩$$

$$N_{\alpha }$$

$$N_0$$

$$N_{\alpha }=N_0\frac{\mathcal{P}(\alpha )}{\mathcal{P}(0)}$$

$$N_{total}(q)={\int }_{-\infty }^{\infty }{N}_{\alpha }|\alpha -⟨x(t)⟩{|}^{q}d\alpha$$

$${\mathcal{P}}_G(\mathbf{A})=\frac{1}{2\pi \sqrt{Det(\mathcal{M})}}{\mathbf{e}}^{-\frac{1}{2}({\mathbf{A}}^T.{\mathcal{M}}^{-1}.\mathbf{A})}$$

$$\displaystyle\mathcal{M}\equiv{\rm Cov}=\left[\begin{array}[]{cc}\langle x^{2}\rangle&\langle x\eta\rangle\\ \langle\eta x\rangle&\langle\eta^{2}\rangle\end{array}\right].$$

$$C_{xx}(\tau )\equiv ⟨x(t)x(t+\tau )⟩$$

$$C_{xx}(0)\equiv {\sigma }_0^2=⟨x^2⟩$$

$$C_{\eta \eta }(0)\equiv {\sigma }_1^2=⟨{\eta }^2⟩$$

$$⟨n_x^{\pm }(\alpha )⟩$$

$$N_0$$

$$N_{\alpha }$$

$$N_0=\frac{1}{\pi }{\left(-\frac{C_{x\xi }(0)}{C_{xx}(0)}\right)}^{\frac{1}{2}}$$

$$N_{\alpha }=\frac{1}{\pi }{\left(-\frac{C_{x\xi }(0)}{C_{xx}(0)}\right)}^{\frac{1}{2}}{\mathbf{e}}^{-{\alpha }^2/2C_{xx}(0)}$$

$$N_{total}(q)$$

$${\mathcal{Z}}_{\mathbf{A}}(\Lambda )=\int d\mathbf{A}\mathcal{P}(\mathbf{A}){\mathbf{e}}^{-\mathbf{i\Lambda }\cdot \mathbf{A}}$$

$${\mathcal{Z}}_{\mathbf{A}}(\Lambda )={\mathbf{e}}^{-\frac{1}{2}{\Lambda }^T\cdot {\mathcal{M}}^{-1}\cdot \Lambda }{\mathbf{e}}^{{\sum }_{n=3}^{\infty }\frac{i^n}{n!}{\sum }_{{\mu }_1...{\mu }_n}{\mathcal{M}}_{{\mu }_1...{\mu }_n}^{(n)}{\Lambda }_{{\mu }_1}...{\Lambda }_{{\mu }_n}}$$

$$\mathcal{P}(\mathbf{A})={\mathbf{e}}^{{\sum }_{n=3}^{\infty }\frac{(-1{)}^n}{n!}{\sum }_{{\mu }_1...{\mu }_n}{\mathcal{M}}_{{\mu }_1...{\mu }_n}^{(n)}\frac{{\partial }^n}{\partial A_{{\mu }_1}...\partial A_{{\mu }_n}}}{\mathcal{P}}_G(\mathbf{A})$$

$$⟨\mathcal{F}⟩$$

$$\mathcal{P}(\alpha )$$

$$C_{xx}(\tau )=K{\mathbf{e}}^{-v^2{\tau }^2/{\omega }^2}$$

$$\times \int d\mathbf{R}\mathcal{D}(\mathbf{R})\mathbf{exp}\left(-{\left(\frac{\pi \omega }{\lambda \ell }\right)}^2{\left[\mathbf{R}-\left(\frac{\ell }{\rho }+1\right)v\tau \right]}^2\right)$$

$$N_0=v\frac{\sqrt{2}}{\pi }\sqrt{\frac{{\gamma }^2}{{\Delta }^2+d^2}+\frac{1}{{\omega }^2}}$$

Full text

††journal: josaa

1 Introduction

Complexities are ubiquitous in various phenomena due to initial conditions and evolutions. Quantifying relevant observable quantities essentially depends on exploiting robust statistical approaches. Probabilistic framework corresponding to a typical statistical measure, includes joint probability density function (JPDF) of relevant dependent parameters and we should determine mentioned JPDF for further statistical inference. For a typical stochastic field, $x$, in $(1+D)$-Dimension (the index "$1$" refers to $x$ and "$D$" represents the number of independent parameters), statistical properties is fully characterized by JPDF as $\mathcal{P}(\bf A)$ and ${\bf A}\equiv\{x,\partial_{i}x,\partial_{ij}x,...\}$ [1, 2].

Among different statistical quantities to characterize the morphology of a stochastic fluctuation in various dimensions, a promising class is devoted to crossing statistics. This method can be used for 1, 2 and 3 dimensional fluctuations corresponding to crossing statistics, length or contour statistics and area statistics, respectively. Mentioned measures have been extensively utilized and improved after pioneering study done by S. O. Rice in the context of mathematical analysis of random noise [3]. Comprehensive explanation to evaluate geometrical and topological nature of stochastic fields has been given in [1, 2]. This notion has also opened new trends in examining stochastic fields ranging from condensed matter and surface physics, optics to astronomy and cosmological random fields. P. H. Brill et al, provided a brief tutorial on how to apply this method in various stochastic models, such as queues, inventories, dams, risk reserve models in insurance, counter models [4]. We can notice to application of level crossing analysis for the returns of market prices [5] and a wide range of fractional Gaussian noises [7, 6]. Statistical properties of many radiophysical problems have been investigate in [8]. The surface growing processes were examined in [9]. Also the fluctuations of velocity field in the Burgers turbulence were measured [10] and the characterization of anisotropy in a 2D field, e.g. surface height fluctuations based on crossing statistics has been done in [11]. The crossing statistics of the amplitude and the intensity of a monochromatic speckle pattern as well as the behavior of the spatial derivatives of these quantities have been studied theoretically in [12, 13, 14], and a theoretical limits on the light distributions with random phase diffusers were derived in [15, 16]. Laser speckle velocimetry based on the zero-crossing rate of the spatially integrated speckle intensity variations under various optical configurations of illumination and detection has been studied in [17, 19, 20, 18, 21]. R. Barakat presented a closed form for the zero and level-crossing rate of differentiated speckle [22, 23]. Application of level crossing analysis was developed for various probability density functions with primary relevance for optics [24]. It was shown that the sought-for probability density can be expressed in terms of modified Bessel functions of the second kind [25]. Accordingly, crossing statistics has been used to quantify area of isodensity contours of cosmological models and large scale structure [26, 27]. Application of crossing statistics for redshift space and for other complementary perturbative models have been given in [28, 29]. Also to detect cosmic strings networks as a type of topological defects, level crossing has been utilized in [30].

A motivation behind crossing statistics is devoted to possibility derivation of an explicit theoretical prediction based on JPDF of random variables and corresponding derivative with respect to a dynamical variable [31]. A main goal to utilize crossing statistics in various field of researches is examining the capability of number of crossing at a typical threshold to quantify underlying fluctuations. As explained in details by Yura et al., in optical communication and sensors systems, the statistical properties of fade and surge play key role in characterizing associated physical behavior [24].

In recent years, extensive researches have been conducted on applications of nano-materials in nanofluids technologies. Nanofluid is a new kind of heat transfer fluid prepared by dispersing nanoparticles in traditional based fluids [32, 33]. It is shown that they can enhance effective heat transfer properties of the original base fluid [34, 35]. The most common nanoparticles for nanofluids are generally metallic and nonmetallic materials such as Al2O3, Ag, CuO, Cu, SiO2 and TiO2 [36, 37, 38]. The movement of nanoparticles plays a significant role in the anomalously increased heat transfer properties of the nanofluids [39, 40]. So, it is of great importance to find out a robust method to measure the movements of nanoparticles in nanofluids, in order to understanding the heat transfer enhancement mechanism.

Due to the complexity of nanoparticles movement in nanofluids, calculating the velocity of each particles in the fluid is impossible, but using statistical methods, the average speed of particles can be computed with proper experimental configuration [17, 18]. When a coherent laser light passes through a fluid, a non-uniformly illuminated image (speckle pattern) can be formed. The speckle pattern appearances due to the interference of the scattered light with different phases and amplitudes by the nanoparticles. This pattern changes in time as a consequence of the nanoparticle motion due to the aggregation, sedimentation and Brownian motion [39, 40]. Therefore, the speckle pattern analysis can be used to characterize the dynamical behavior of nanofluids.

Some previous studies have almost focused on fluctuations of light intensity around mean level which is so-called zero-crossing [17, 19, 20, 18, 21, 22]. In mentioned method, the spatially integrated speckle intensity fluctuations produced by moving diffuse particles in a plane is investigated by counting the crossing at mean level. In addition, direction of moving particles can be determined by using directional detecting aperture [20]. Central limit theorem is a key assumption for deriving theoretical zero-crossing function leading to an expression including the moving particle’s speed in simple form and now becomes almost useful real time method. Generally, deviation from Gaussianity is occurred in a typical statistical fluctuations, therefore, we should take into account non-Gaussian contributions. Another alternative method to reveal mean-speed of suspended particle in a fluid is Spatial Filtering Velocimetry [41]. In this approach, Fourier space analysis is utilized to compute speed of diffuse particles using optical approach and consequently experimental setup to achieve accurate measurement is somehow difficult [18, 41].

In this paper, we construct an experimental setup to create speckle patterns. Such patterns are formed in Fresnel diffraction region by illumination of a laser beam on the nanoparticles suspended in a nanofluid. As a movement of the nanoparticles, the speckle pattern is not static and varies with time. In this experimental setup, we use a He-Ne laser light at 633 nm wavelength as a light source. By measuring the spatially integrated intensity fluctuation of the speckles and its variations with time, we are able to examine the movement characteristics of the nanofluids [17, 19, 20, 18, 21, 22].

Relying on previous statistical analysis of speckle pattern due to scattering laser light from moving diffuse particles used to determine the magnitude and direction of moving objects [17, 19, 21, 20], present research has following advantages and novelties: we try to use generalized version of zero-crossing which is so-called crossing statistics enumerating crossing for all available thresholds to achieve more precise measurement of relevant quantities, particularly, mean value of speed of diffuse particles. Non-Gaussianity due to the various physical features of moving diffuse particles as well as experimental setup can now be taken into account, theoretically, to find feasible results. Perturbation approach in the context of Edgeworth expansion will be utilized to compute the mean-speed of diffuse particles in weak non-Gaussian case. It is worth noting that for optical applications, previous efforts have been concentrated on deriving JPDF for relevant fluctuations in closed form resulting in analytical expression for level-crossing statistics. While in the present paper, we exploit the perturbative expansion of JPDF known as Edgeworth expansion [42, 43, 44, 29]. Therefore, this approach enables us to investigate various processes irrespective to existence of necessary knowledge concerning functional form of JPDF. In addition we introduce generalized total crossing which is a suitable benchmark for assessment of large and small fluctuations, separately. Finally we will also introduce characteristic time scales in such experimental setup referring to crossing statistics framework.

The rest of this paper is organized as follows: In Section 2, we will explain theoretical background of crossing statistics and its generalizations. Gaussian and non-Gaussian fluctuations will be considered in the context of crossing statistics. Data description and experimental setup to collect data sets will be revealed in section 3. Section 4 is devoted to applications of crossing statistics on intensity fluctuation of scattered laser light through a nano-fluid. In section 5, we will give results and relevant results achieved in this paper. Concluding remarks will be given in section 6.

2 Theoretical Model: Up- and down-crossing statistics

S. O. Rice introduced level crossing or generally crossing statistics [3]. Soon after that, in various disciplines raging from complex systems [4, 7, 8, 5, 6], material sciences [11, 9, 10] optics [12, 13, 14, 15, 16, 17, 19, 20, 18, 21, 22, 23, 24, 25] to cosmology and early universe [26, 27, 28, 30, 29], mentioned method has been used and improved. Crossing statistics represents geometrical properties of a typical stochastic process, therefore, it has proper capability in order to quantify fluctuations in a robust manner.

2.1 Mathematical framework

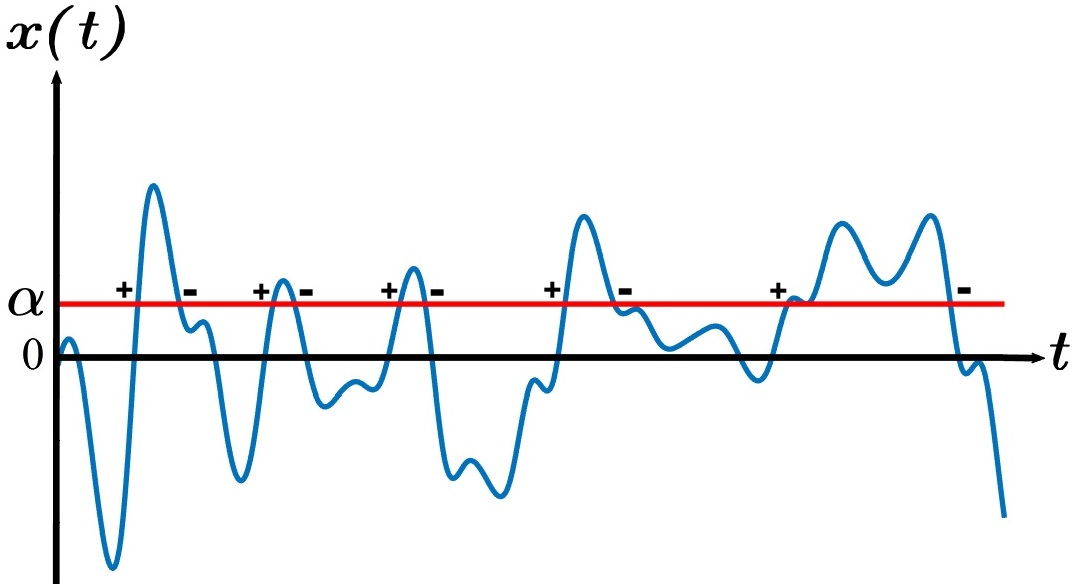

A discrete set of typical fluctuations in $(1+1)$-Dimension recorded in an experiment is represented by: $\{x(t_{i})\},\quad i=1,..,N$, and $\Delta t\equiv t_{i+1}-t_{i}$. For convenient, we set the mean value of recorded series to zero, $\langle x(t)\rangle=0$. In continuous limit, up- and down-crossing are defined according to crossing points with positive and negative slopes at an arbitrary threshold, $\vartheta\equiv\alpha/\sigma_{0}$, respectively. Where $\sigma_{0}^{2}=\langle x(t)^{2}\rangle$ and $\alpha$ is a typical value in domain of $\{x(t_{i})\}$ (see Fig. 1 for more details).

The crossing number density of time series at a given threshold, $\vartheta$, can be written as $n_{x}^{\pm}(t;\alpha)$ (see Fig. 1 for more details). We consider "$+$" for up-crossing and "$-$" for down-crossing. Mathematical description of ensemble average of crossing point is:

[TABLE]

here $\delta_{D}$ is Dirac delta function. An important task to do is making a connection between Dirac delta function and corresponding variables in Eq. (1). To this end, we can expand $x(t)$ around a typical time associated with up- or down-crossings as follows:

[TABLE]

here $\eta\equiv\partial_{t}x$. For crossing at $\alpha$, we should set $x(t_{\pm})=\alpha$, therefore, one can find a useful expression for $\delta_{D}(t-t_{\pm})=\delta_{D}(x(t)-\alpha)|\eta(t_{\pm})|$. Inserting mentioned expression in Eq. (1) results in:

[TABLE]

To have up-crossing (crossing with positive slope) additional constraint should be taken into account on first derivative of record data as $\Theta(\eta)$ ($\Theta(:)$ is step function), while for down-crossing (crossing with negative slope) we have $\Theta(-\eta)$. Using the functional form of JPDF, theoretical prediction for up- and down-crossings are achieved. Finally, number density of crossing has the following form:

[TABLE]

The total expected number of crossings of underlying time series per unit time at the threshold $\vartheta=\alpha/\sigma_{0}$ for all possible values of $\eta$ reads as:

[TABLE]

Above equation represents the expected statistical crossings at threshold $\vartheta=\alpha/\sigma_{0}$ with both positive and negative slopes as shown in Fig. 1. Number of crossing at zero level which is so-called zero-crossing for Gaussian process is given by:

[TABLE]

For a stationary Gaussian statistics, we have: $\mathcal{P}(x,\eta)=\mathcal{P}(x)\mathcal{P}(\eta)$, therefore by using Eqs. (2.1) and (2.1) we have:

[TABLE]

For the generalized total level crossing, $N_{total}$, we have [5, 6]:

[TABLE]

where $q$ represents the order of generalized moment. It turns out, for $q=0$, the quantity $N_{total}(0)$ equates to total number of crossing for all thresholds. Therefore $N_{total}(0)$ reveals a measure for roughness of underlying signal. Eq. (8) represents the general definition of crossing statistics. It is possible to examine the contribution of various size of fluctuations according to $N_{total}(q)$ quantity. For $q<1$, small fluctuations have dominant impact, on the contrary, for $q\geq 1$, large fluctuations play crucial role in computing generalized crossing statistics. Subsequently, weighted analysis is systematically retrieved by this quantity. This measure is also very sensitive to any deviation form Gaussian statistics. In addition it is useful to manipulate the contribution of noises and trends in a recorded series.

In what follows, we are going to examine Gaussian and non-Gaussian processes.

2.2 Gaussian fluctuation

In previous subsection, we derived integration form for crossing statistics. In this subsection, we assume a Gaussian process with variables ${\bf A}\equiv\{x,\eta\}$, subsequently, the functional form of JPDF can be considered as bivariate Gaussian function:

[TABLE]

where $\mathcal{M}$ is the covariance matrix of underlying variables:

[TABLE]

Each element of covariance matrix can be computed using the power spectrum, $S(\omega)$, of given process, accordingly:

[TABLE]

where $\sigma_{0}$ and $\sigma_{1}$ are called spectral indices. In addition $C_{\eta\eta}=-C_{x\xi}=-\langle x(t)\xi(t+\tau)\rangle$, here $\xi(t)=\partial^{2}x(t)/\partial t^{2}$. For stationary time series $\langle x\eta\rangle=0$, consequently, Eq. (4) becomes:

[TABLE]

therefore Eqs. (2.1) and (7) become:

[TABLE]

[TABLE]

Plug in $\sigma_{0}$ and $\sigma_{1}$ into Eq. (17), we have:

[TABLE]

This relation shows that the number of zero-crossing per unit time is proportional to the square root of second derivative autocorrelation function divided by autocorrelation function. For number of crossing at a given threshold one can write:

[TABLE]

In addition the generalized total crossing introduced by Eq. (8) for Gaussian process is:

[TABLE]

Following subsection is devoted to non-Gaussian derivation for crossing statistics.

2.3 Non-Gaussian fluctuations: Perturbation approach

In pervious subsection, we derived the analytical function for $\langle n_{x}^{\pm}(\alpha)\rangle$ for a perfect Gaussian process. There are many reasons causing to have non-Gaussianity, therefore in context of perturbation approach, T. Matsubara tried to calculate an expansion for crossing statistics in terms of various order of $\sigma_{0}$ [29]. To this end, we start from characteristic function which is Fourier transform of JPDF as:

[TABLE]

Using the cumulant expansion theorem [45], above partition function can be read as:

[TABLE]

here $\mathcal{M}^{(n)}_{\mu_{1}...\mu_{n}}$ is cumulant. Inverse Fourier transform of partition function leads to:

[TABLE]

and $\mathcal{P}_{G}({\bf A})$ is multivariate Gaussian function (see Eq. (9)). The mean value of a given statistical quantity, $\mathcal{F}(\bf A)$, can be expressed by ensemble average as:

[TABLE]

in which $\langle\rangle_{G}\equiv\int d{\bf A}\mathcal{P}_{G}(\bf A)\mathcal{F}(\bf A)$. As an illustration, probability density function for weak non-Gaussianity which is known as Edgeworth expansion becomes [29]:

[TABLE]

here $S^{(0)}\equiv\langle x(t)^{3}\rangle/\sigma_{0}^{4}$ and $H_{3}$ is probabilistic Hermite polynomial of rank 3. The Hertmite polynomials (well-known in probability theory) as a complete orthogonal set have been used to expand PDF and the corresponding coefficients of expansion are cumulants which reveal the statistical properties of underlying process. Finally, we obtain a proper expansion for a non-Gaussian distribution in terms of corresponding cumulants. According to Eqs. (25) and (26), the perturbative functions for crossing statistics [29] and generalized total crossing are derived as:

where $S^{(1)}\equiv-\frac{3}{4}\langle x(t)^{2}\xi(t)\rangle/(\sigma_{0}^{2}\sigma_{1}^{2})$ and $\Gamma(:)$ is gamma function. In this section we derived general definition of crossing statistics for a given threshold, subsequently, an extension for computing relevant physical quantities is achieved. In order to use perturbative expansion, second cumulant should be remained finite. In section 4, we will apply this approach on experimental data sets and compute mean-speed of diffuse objects. We will also examine the Gaussianity nature of recorded fluctuations in our experimental setup.

Inspired by formulation for fully-developed turbulent flows, another interesting method to quantify non-Gaussian PDF has been introduced. This approach was originally illustrated to examine fully developed turbulence [46, 47, 48, 49] and recently has been used in wide range of researches such as foreign exchange rate [50], stock index [51], and human heartbeat [52, 53], sol-gel transition [54, 55] and petrophysical quantities [56]. It is also useful to apply this method to examine non-Gaussian behavior of underlying process.

3 Experimental setup and data description

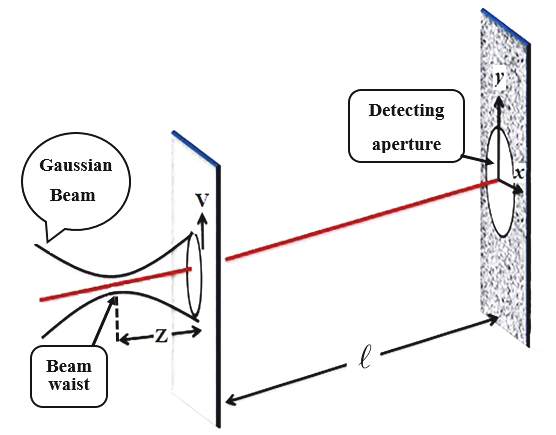

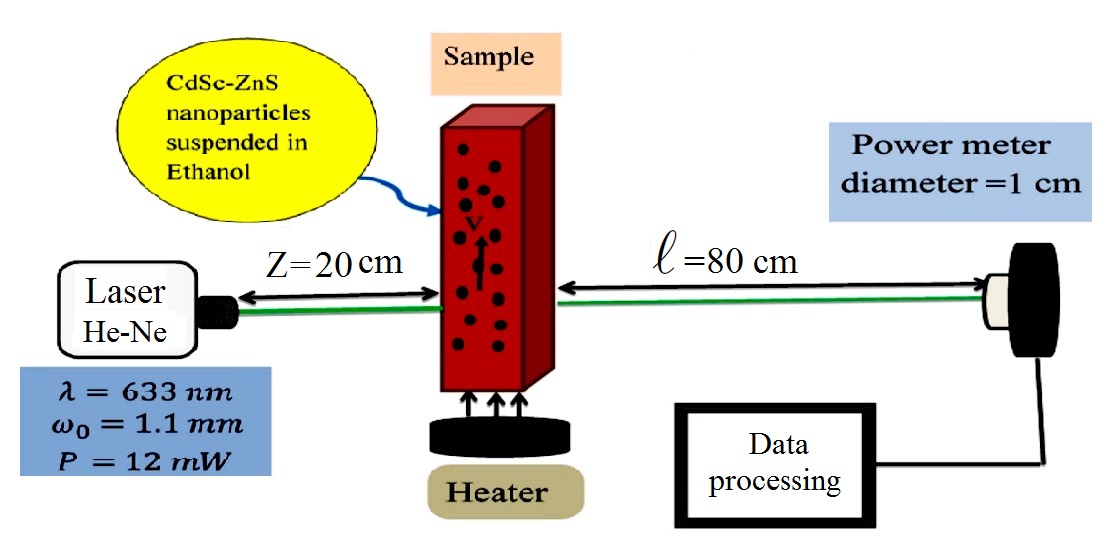

Our versatile experimental setup to examine the intensity of scattered light through nanofluid is conducted by using a combined systems represented in upper panel of Fig. 2. It consists of the optical arrangement for the formation of speckles and the electrical processing of the spatially integrated speckle intensity. The Gaussian beam generated by a single mode He-Ne laser with the wavelength $\lambda=633nm$ with beam waist $w_{0}=1.1mm$ is focused on the sample. Our sample is located with a distance $z=20cm$ away from the position of the beam waist. The speckle patterns are formed by illuminating the CdSc-ZnS nanoparticles suspended in ethanol. These patterns are detected in the Fresnel diffraction field at the plane, a distance $\ell=80cm$ away from the center of sample by a circular aperture with a radius $d=5mm$ in front of power meter. To achieve a drift speed due to convection, a heater is located under the sample. (Fig. 2).

If a coherent light is incident upon a nanofluids containing randomly distributed nanoparticles, a nonuniform illuminated image is obtained. This pattern is generated due to the interference of the scattered lights by the nanoparticles. Subsequently, fluctuations of the image intensity in each location of the interference field, which is so-called "speckle" is appeared. As a movement of the nanoparticles, the speckle pattern is not static and changes with time. So one can consider the time-varying of speckle intensity fluctuation is a stochastic field. Power meter records integrated intensity of all speckles during a given interval time which is called spatially integrated speckle intensity. We define the fluctuations of spatially integrated speckle intensity by $I(t)-\langle I(t)\rangle$ where $\langle\rangle$ denotes the ensemble average of the speckle intensity variation. In the lower panel of Fig. 2 we indicate the optical system for the formation of speckles under the illumination of a Gaussian laser beam over a transmitting diffuse object moving with constant speed in a certain direction of a plane perpendicular to the optical axis. Upper panel of Fig. 3 illustrates the formation of speckles intensity recorded by CCD camera. Lower panel of Fig. 3 represents power fluctuations as a function of time for three different experiments with different physical conditions. These data sets will be used as input for crossing statistics explained in previous section in order to determine magnitude of diffuse object’s speed and relevant statistical properties of intensity fluctuation containing some information about the dynamics of speckle. To measure the direction of diffuse object’s speed, we must utilize rotating directional detecting aperture [20].

4 Implementation on scattered Laser Beam

One of the main purpose of this analysis is devoted to determining the average of diffuse speed of nanoparticle suspended in a solution. The zero-crossing analysis of the dynamic speckles can be used to measure the speed of nanoparticles in nanofluids. According to this method, the crossing statistics of intensity fluctuations of speckles at zero level corresponding to mean value, $\langle I(t)\rangle$ is enumerated [17, 18]. To get reliable result, two following conditions should be satisfied. Firstly, the convection speed of nanofluid must be constant and perpendicular to the direct of Gaussian laser beam. To achieve such situation, a heater is placed at a position in beneath of sample. Therefore, one can control the temperature of sample. Secondly, the transmittance amplitude of speckles should be modeled as a stationary random process. Since the corresponding surface area elements are small enough compared to the illumination area on the diffusion screen, consequently, this condition is almost assured for nanoparticles. It turns out that any deviation from above conditions leads to get inaccurate value for speed of nanoparticles. Therefor, we look for a robust algorithm without changing experimental setup considerably for precise measurement. Suppose that recorded data is represented by $x(t)\equiv I(t)-\langle I(t)\rangle$. The correlation function of the speckle intensity fluctuations produced at the plane of the Fresnel diffraction field under the illumination of the Gaussian beam for arbitrary shape of detector aperture is written by [17, 19, 18, 21, 20]:

[TABLE]

where $K$ is a constant, $\omega$ and $\rho$ indicate the width and wavefront curve of the Gaussian beam at the sample position and ${\mathcal{D}}({\bf R})$ is the spatial correlation function of the detecting aperture [20]. Finally the number of zero-crossing becomes:

[TABLE]

here $\gamma\equiv\frac{\ell}{\rho}+1$ and $\Delta\equiv\frac{\lambda\ell}{\pi\omega}$ representing the average grain size of speckles at the detecting plane. $\ell$ is distance between sample and detector while $d$ is radius of aperture (Fig. 2). Above equation indicates that the number of zero-crossings is directly proportional to the average in-plane speed, $v$, of diffuse nanoparticle [19].

As mentioned before, when the detecting aperture is sufficiently large compared to the average grain size of detected speckles, consequently, the probability density function of the spatially integrated speckle-intensity variation has Gaussian form. In such case, above expression for $N_{0}$ is a good estimation. In real experimental setup, non-Gaussianity is expected to occur. Therefore, to increase the estimation accuracy of nanoparticles speed, we extend our analysis based on crossing statistics instead of using only zero-crossing method.

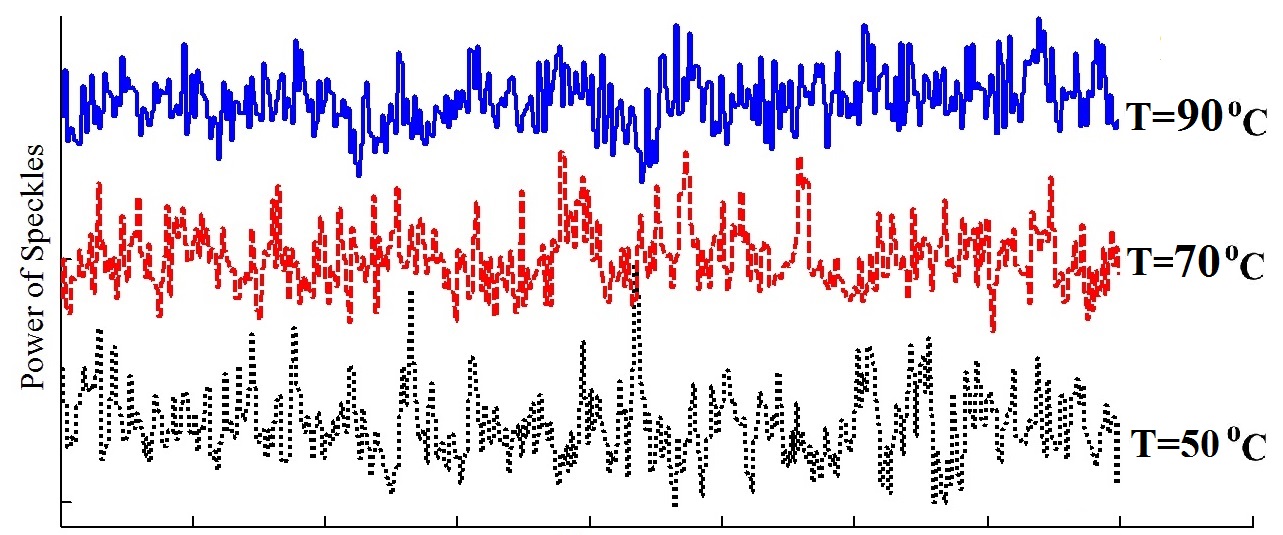

In our experimental setup, we measure the fluctuation of spatially integrated intensity for three different temperatures, namely $50$, $70$ and $90$ *∘*C. In Tab. 1, we report the computed average speed of nanoparticle for various temperature. These values are compatible with those results presented in ref. [57]. The statistical error is reduced due to more available measurements. There is a trade off between desired accuracy and computational time consuming. In our analysis, we only take 50 level to compute mean value of particle’s speed and finally the statistical errors for relevant quantities reduced by one-order of magnitude. Referring to Eq. (8), we also determine $N_{total}(0)$. As represented in this table, by increasing temperature of solution, we expect that fluctuations of recorded signal in this experiment to be increased corresponding to higher roughness of series. These fluctuations are directly related to the high diffusive behavior of nanoparticles. It is wroth noting that, without any net flow for suspended particles, we have fluctuations in recorded spatially integrated intensity causing to obtain background level for computed mean-speed value. In principle, to evaluate the influence of speckle boiling occurring with zero drift velocity at a given temperature, one should put the sample in a heat bath. When sample becomes thermalized, the corresponding values for mean-speed computed by crossing statistics for all available thresholds reveal the background contribution. The mean-speed associated with background is temperature dependent leading to a bias effect. Subsequently, mentioned values should be subtracted from that of computed for the configuration with net heat flow. We repeated our measurements for different temperatures without any net heat flow on sample and our results demonstrated that about 15% portion of speed value is devoted to background level. To clarify this aspect, we add a column in Tab. 1 including the value of background level when we consider zero-crossing. The contribution for other crossing statistics is almost similar. Subsequently, to obtain correct mean value of particle’s speed, we subtract the background level in each threshold and the modified values have been reported in Tab. 1. Hereafter the contribution of background has been subtracted from all given results and plots throughout this paper.

So far, we could compute the value of mean-speed of nano-particles suspended in fluid, but the crossing statics prepares more complete approach to reduce statistical errors arising in experiment. In addition to zero-crossing method, we compute crossing statistics for all available values of threshold and by stacking all results with own weighted errors, we are able to estimate more precise values for relevant physical quantities such as mean value of nanoparticles speed.

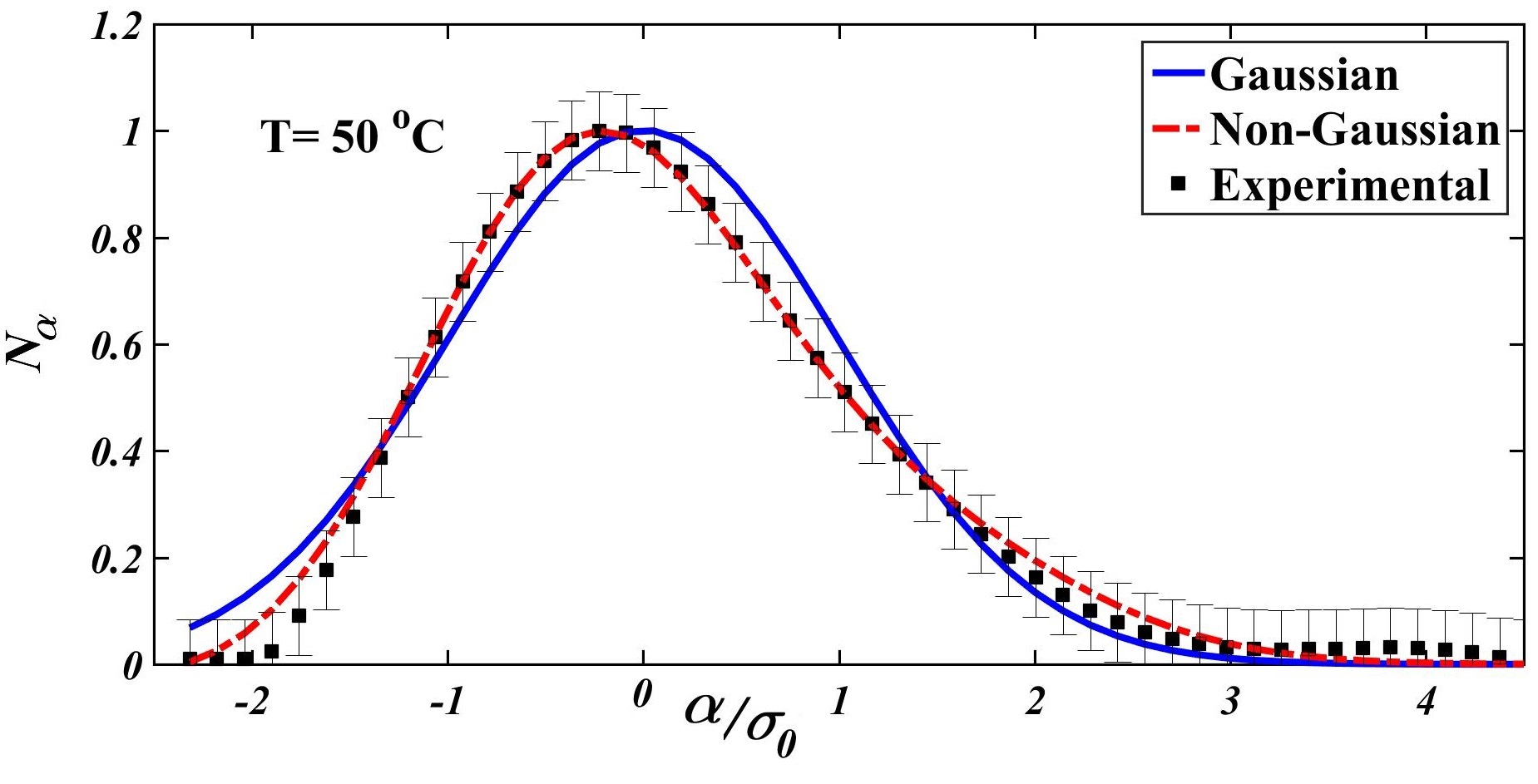

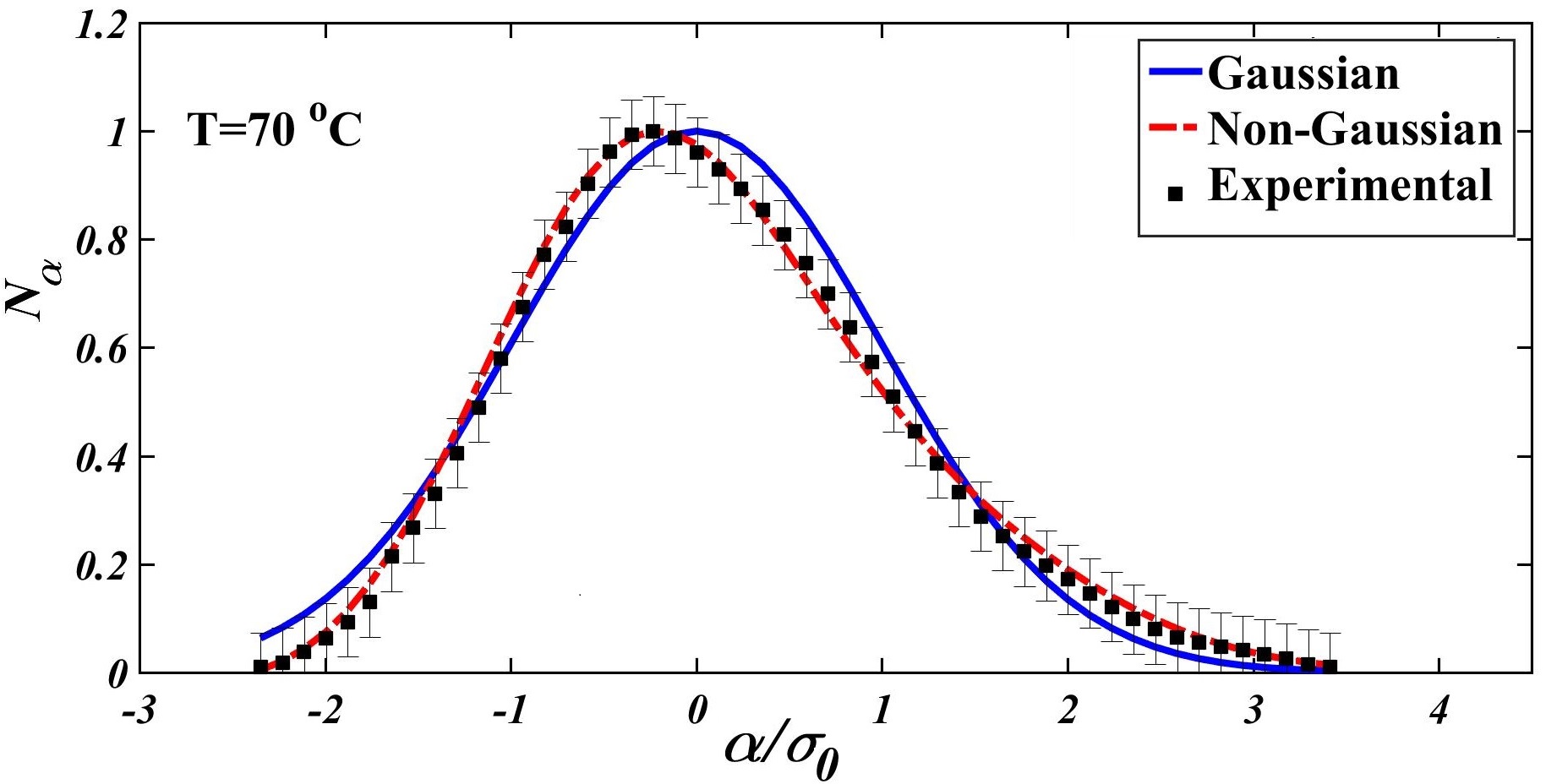

The crossing statistics in terms of threshold for three experiments is represented in Fig. 4. Symbols indicates $N_{\alpha}$ versus $\alpha$ computed numerically, while solid line is devoted to theoretical prediction for Gaussian fluctuations. Dashed line is associated with non-Gaussian theory. These plots demonstrate that our experimental setup produces non-Gaussian fluctuations converging to Gaussian when sample temperature to be increased. This result is compatible with our expectation, because, more randomness leads to have more Gaussian fluctuations. To clarify the source of non-Gaussian behavior of spatially integrated fluctuations which can be thought as combination of different reasons during the light scattering of laser light through sample, we should utilize different layouts for experimental setup. Light scattering includes an average over all fluctuations in both space and time. Therefore, statistical mechanics provides relation between the intensity and frequency distribution of the scattered light to the thermodynamic and transport properties of the fluid [59, 58]. In principle, following reasonable effects can be considered to describe the non-Gaussian statistics of probability density function of light scattering fluctuating intensity: non-homogeneity of particle distribution in the solution and in scattering volume, non-uniformly temperature distribution, temperature dependency of cluster size and mass in solution, wavelength of incident light, polarizability, interaction between particles at different temperatures, absorption factor, viscosity, pair correlation function and so on. Generally, scattered intensity arriving at the detector has two parts. First part is devoted to slow fluctuations due to variations in the total number of scatterers in the scattering volume. While, the second part corresponds to interference fluctuations due to superposition of randomly fluctuating phases [60, 61]. The characteristic time scale of first part corresponds to average time that it takes the scatterers to cross scattering volume. Whereas, the time scale for second part is given by diffusion contribution. The number fluctuations provide slowly varying behavior in fluctuating intensity and it belongs to the deterministic part of particles movement, consequently, sharp peaks in intensity is mostly affected by interference fluctuations which is represented by stochastic portion of particle’s motion. Indeed, the higher value of temperature, the higher rate of multiple scattering leading to more Gaussian fluctuations due to central limit theorem [60, 61]. The fluctuation intensity of light scattering depends on structure factor including the pair correlation function. Lower temperature makes more long-range ordered behavior, while higher temperature corresponds to more randomized particles due to increasing diffusion coefficient of the particles. Consequently, at lower temperature, pair correlation function has more features which deviates from unity leading to have more sharp values in light intensity. In other word, higher temperature washes out any excess probability in finding particles with respect to random case [62]. The deterministic part of particle’s movement due to net flow mainly affects on the overall value of light scattering intensity and higher value of net movement decreases the overall value of detected intensity.

According to theoretical prediction for crossing statistics at a given threshold using Gaussian theory, Eq. (20), we compute mean value of nanoparticle speed. The quantity $\langle v(\alpha)\rangle_{\alpha}$ corresponds to the computed mean-speed averaged on all available levels. These values are in agreement with that of determined by only $zero-crossing$ method. Statistical dispersion of mean-speed, $\sigma_{v}^{2}=\langle(v(\alpha)-\langle v(\alpha)\rangle)^{2}\rangle_{\alpha}$, is reported in Tab. 1. Taking into account the non-Gaussianity of fluctuations leads to more precise value for $v$ (Eq. (LABEL:pertur1)) as reported in Tab. 1. In Fig. 5 we indicate the computed mean value of particle’s speed for each level. Our results demonstrate that the consistency interval for threshold between Gaussian and non-Gaussian theory for computing relevant quantity is less than $2\sigma$ centered by mean value for low temperature. Mentioned interval increases beyond $2\sigma$ for higher temperature. Subsequently for computing mean value of speed, the weak non-Gaussian model should be considered in order to achieve precise values.

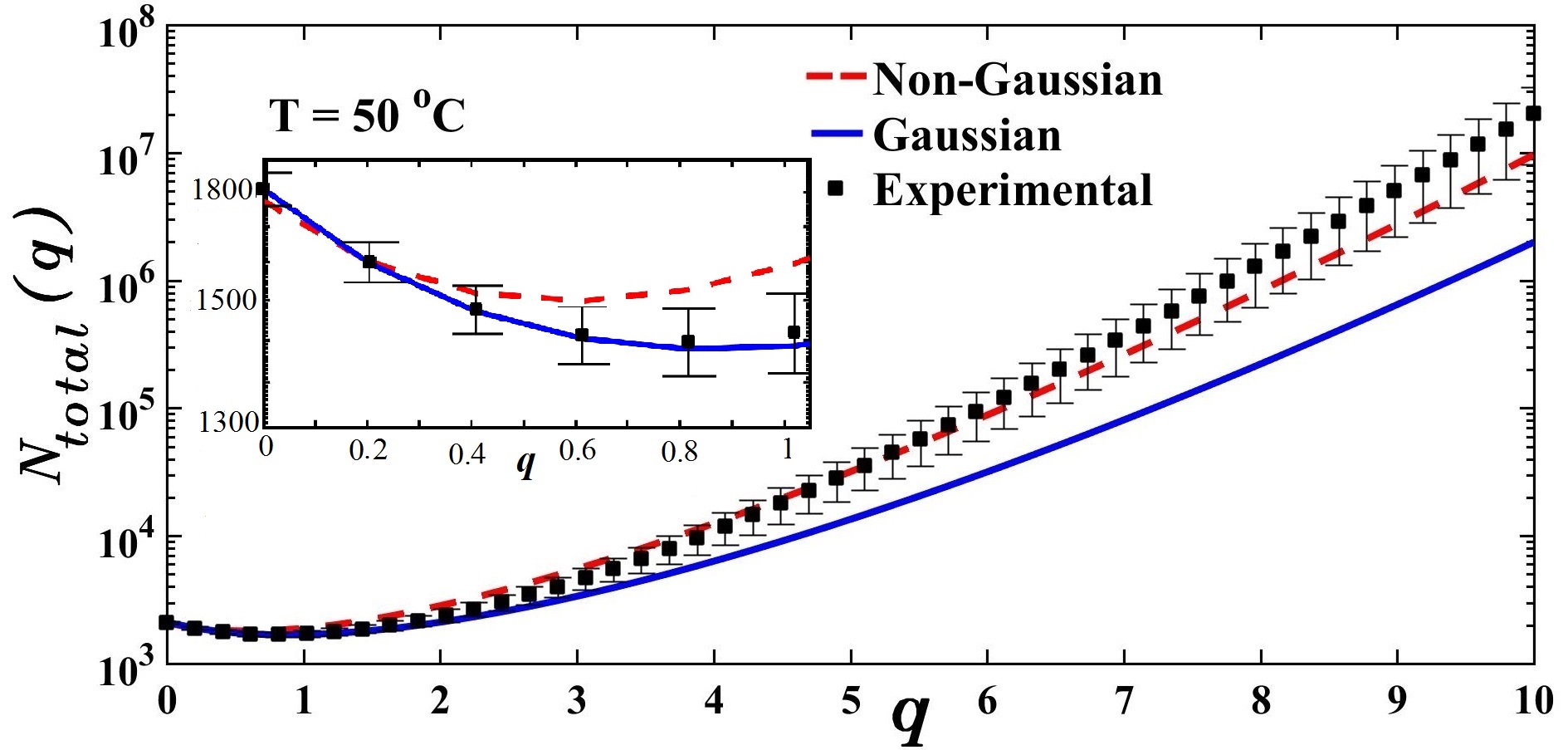

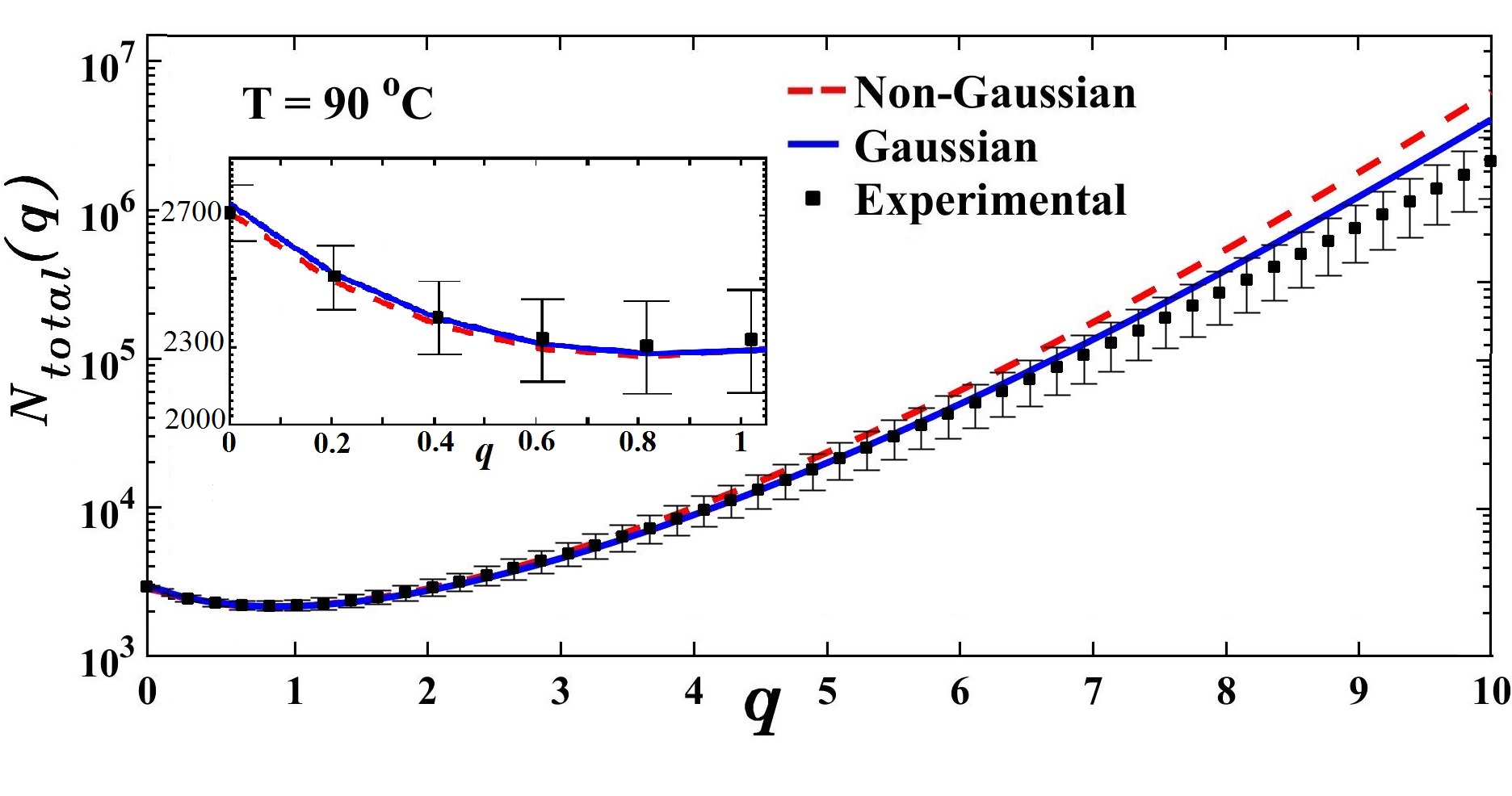

Now we focus on generalized total number of crossing statistics introduced in Eqs. (21) and (26). $N_{total}(q)$ for $q=0$ characterizes the total number of fluctuations for all thresholds. This value is directly devoted to roughness of underlying fluctuations. As we expect, higher sample temperature corresponds to higher value of $N_{total}(q=0)$ (see Fig. 6). The higher value of slope for large $q$ clarifies the higher probability of having large fluctuations in intensity of light fluctuations detected during the measurement. Fluctuations in light passing through the sample in lower temperature are highly encoded with spike-shape due to deviation from Gaussian assumptions as explained before, while by increasing the sample temperature, the rate of multiple scattering grows up. Subsequently, the probability of finding the large fluctuations in beam intensity becomes small as seen in Figs. 3 (lower panel) and 4. In Fig. 7, we plot $N_{total}$ as a function of $q$ for three samples. In this plot symbols correspond to numerical computation of generalized total crossings. Solid line predicted by Eq. (26) while Gaussian model (Eq. (21)) is illustrated by solid line. This measure is very sensitive to existence of rare events. For higher speed of particle, we expect to have more particle collision causing the intensity of speckles varies rapidly, so the average of speckles intensity fluctuations is almost concentrated around the value of mean fluctuations. Therefore, the slope of $N_{total}(q)$ for large value of $q$ becomes smaller than that of given for low temperature. Using the $N_{total}(q)$ quantity, it is possible to examine the contribution of various size of fluctuations. For $q<1$, small fluctuations have dominant impact, on the contrary, for $q\geq 1$ large fluctuations play main role in computing generalized crossing statistics. In our experimental setup, the well-known Gaussian theory can not reveal proper view for mean value of speed of suspended particles in solution which is affected by thermal fluctuations and other relevant phenomena. On the contrary, to achieve more precise characterization of underlying sample, perturbative crossing statistical approach introduced in context of statistical analysis of random fields [29] is an alternative approach. According to Eqs. (26) and (30), the corresponding mean-speed for different $q$ can be written as:

here $\beta=\frac{\sqrt{2}}{\pi}\sqrt{\frac{\gamma^{2}}{\Delta^{2}+d^{2}}+\frac{1}{\omega^{2}}}$ and $N^{\rm exp.}_{total}(q)$ is determined directly in experiment. Taking into account smaller value for $q$ leads to reduce contribution of spurious fluctuations with large values in intensity for computing mean-speed, while for artificial effects in range of small fluctuations, larger value of $q$ becomes more reasonable to employ.

The average time scale that the speckle intensity remains above a given threshold on each crossing has been introduced in [63]. Inspired by mentioned quantity, one can define an interesting measure based on crossing statistics which is characteristic time scale for having statistical successive crossings at a given threshold. To this end, one can define $\tau_{\alpha}\equiv 1/N_{\alpha}$. According to mentioned characteristic time scale, our results show that the minimum value of time interval for having crossing corresponds to maximum value of $N_{\alpha}$ achieves for threshold equates to $\alpha/\sigma_{0}=-0.23$ for $T=50^{\circ}$C, $\alpha/\sigma_{0}=-0.23$ for $T=70^{\circ}$C and $\alpha/\sigma_{0}=-0.07$ for $T=90^{\circ}$C. These values have been reported in Tab. 2. Higher temperature leads to more coincidence between peaks of crossing statistics curve determined by different approaches. This means that $zero$ threshold for only high enough temperature can support reliable physical properties.

5 Results and discussion

The stochasticity nature of spatially integrated speckle intensity fluctuations encoded in scattered laser light leads to look for robust statistical method rather than common approach in analyzing underlying fluctuations. In this paper, we extend the particular case of crossing statistics, namely zero-crossing to measure the mean-speed of moving particles. The crossing events not only at zero level but also for all of available thresholds are considered for further calculations.

As discussed in more details in section 2, we revisited the up- and down-crossing statistics for both Gaussian and non-Gaussian processes. The generalized form for crossing statistics as a function of threshold, $N_{\alpha}$ (Eq. (LABEL:pertur1)), and total crossing, $N_{total}(q)$ (Eq. (26)), have been demonstrated. Using proper experimental setup, we measure the fluctuations of spatial integrated intensity of scattered laser light at different temperatures, namely 50, 70 and 90 *∘*C. We represent the recorded fluctuation as a $1+1$-Dimensional stochastic field by $\{x(t)\}\equiv\{I(t)-\langle I(t)\rangle\}$. For mentioned stochastic field, we compute the number of zero-crossing statistics and by using Eq. (30), the mean value of speed of nanoparticles is determined. In the left second column of Tab. 1, we report the mean value of particles’s speed with corresponding errors at $1\sigma$ confidence interval.

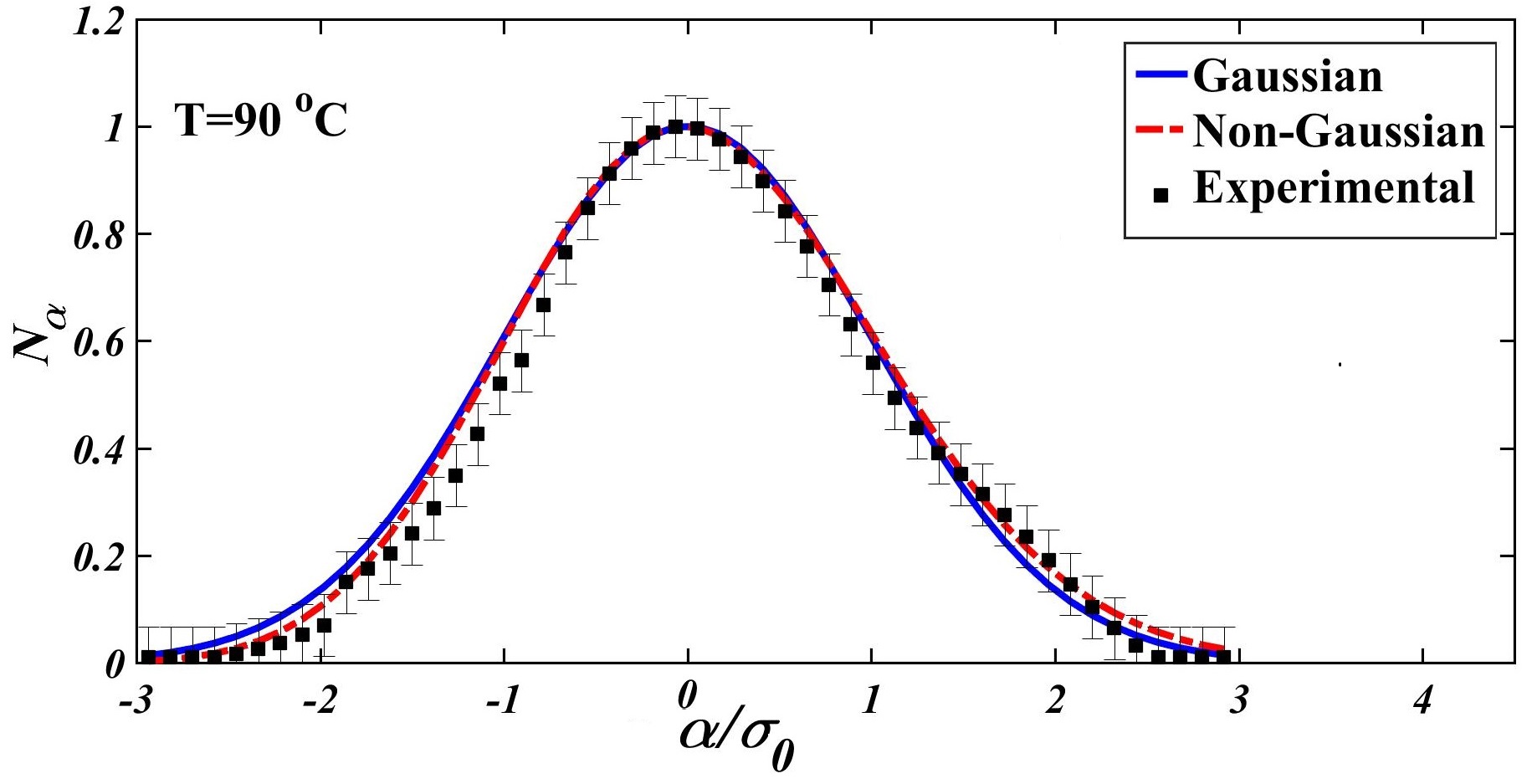

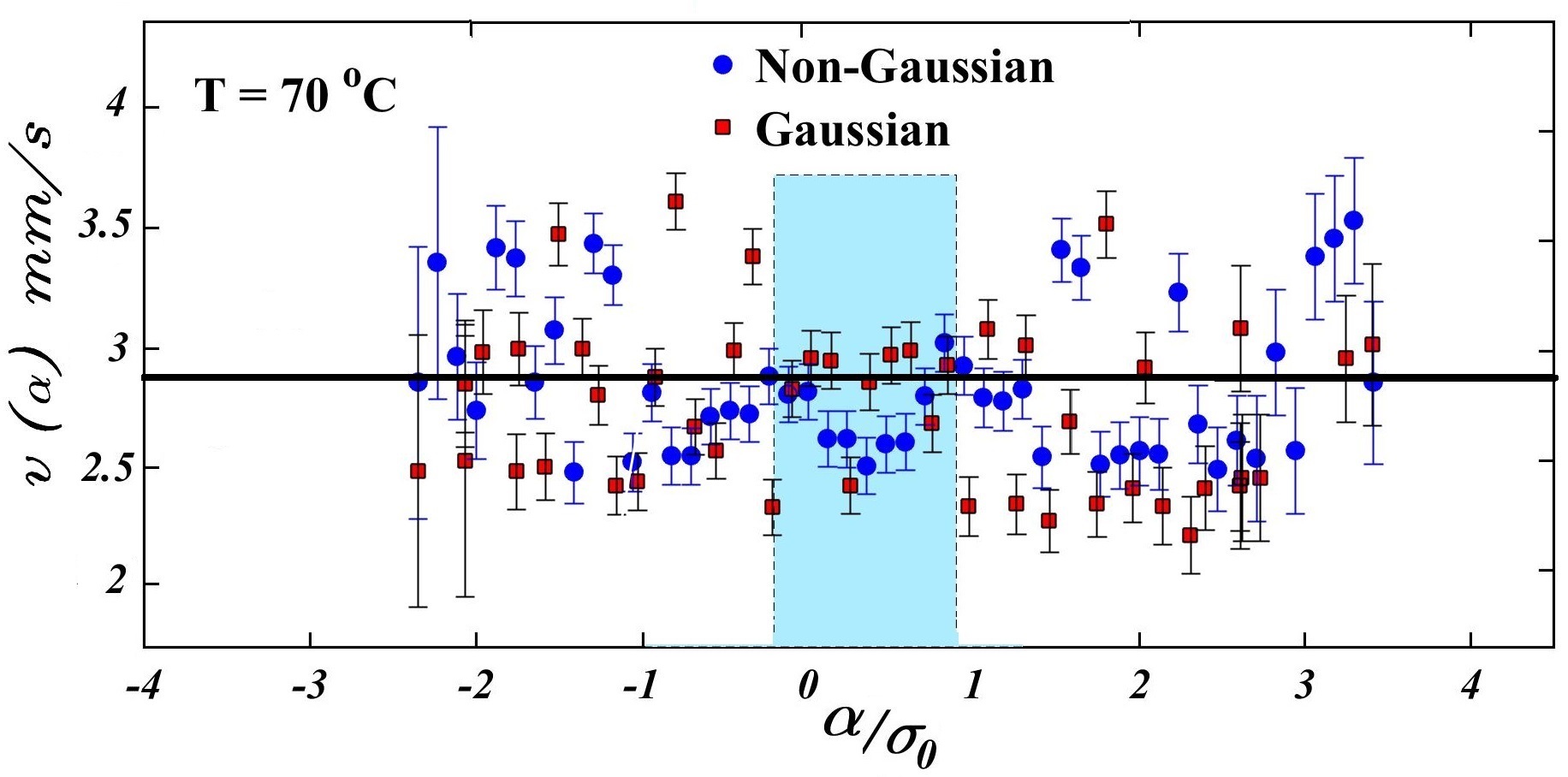

Fig. 4 indicates $N_{\alpha}$ versus $\alpha$ computed numerically (symbols). In this plot solid line is devoted to Gaussian theoretical prediction. Dashed line is associated with non-Gaussian theory. These plots depict our experimental setup produces non-Gaussian fluctuations converging to Gaussian when sample temperature to be increased. To get higher degree of accuracy for mean-speed of particles, we take into account all of available thresholds based on Gaussian and non-Gaussian theories. The value of $\langle v(\alpha)\rangle_{\alpha}$ and corresponding value of statistical dispersion, $\sigma_{v}^{2}$, are reported in Tab. 1. Referring to Fig. 4, it is elucidated that for lower temperature, the probability to achieve crossing at higher threshold is considerable compared to higher temperature. Scattered intensity arriving at the detector has two parts: first part is devoted to slow fluctuations due to variations in the total number of scatterers in the scattering volume, while, second part corresponds to interference fluctuations due to superposition of randomly fluctuating phases [60, 61]. The number fluctuations provide slowly varying behavior in fluctuating intensity and it belongs to deterministic part of particles movement, consequently, sharp peaks in intensity is mostly affected by interference fluctuations which is represented by stochastic portion of particle’s motion. Namely, the higher value of temperature the higher rate of multiple scattering leading to more Gaussian fluctuations due to central limit theorem [60, 61]. From structure factor point of view, we can express that, for lower temperature, pair correlation function has more features which deviates from unity leading to have more sharp values in light intensity. The deterministic portion of particle’s movement due to net flow mainly affects on the overall value of light scattering intensity and higher value of net movement decreases the overall value of detected intensity (see Fig. 3).

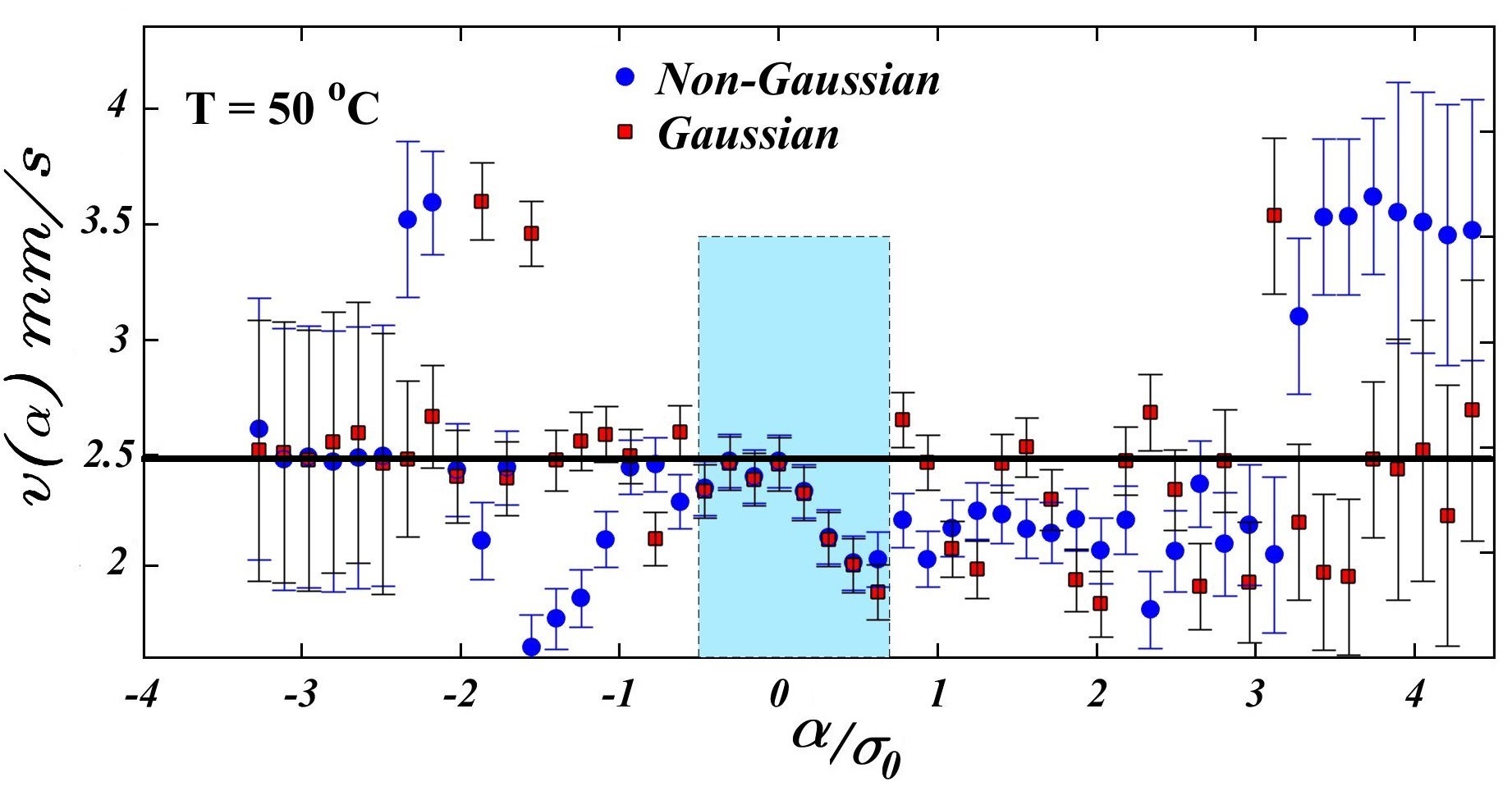

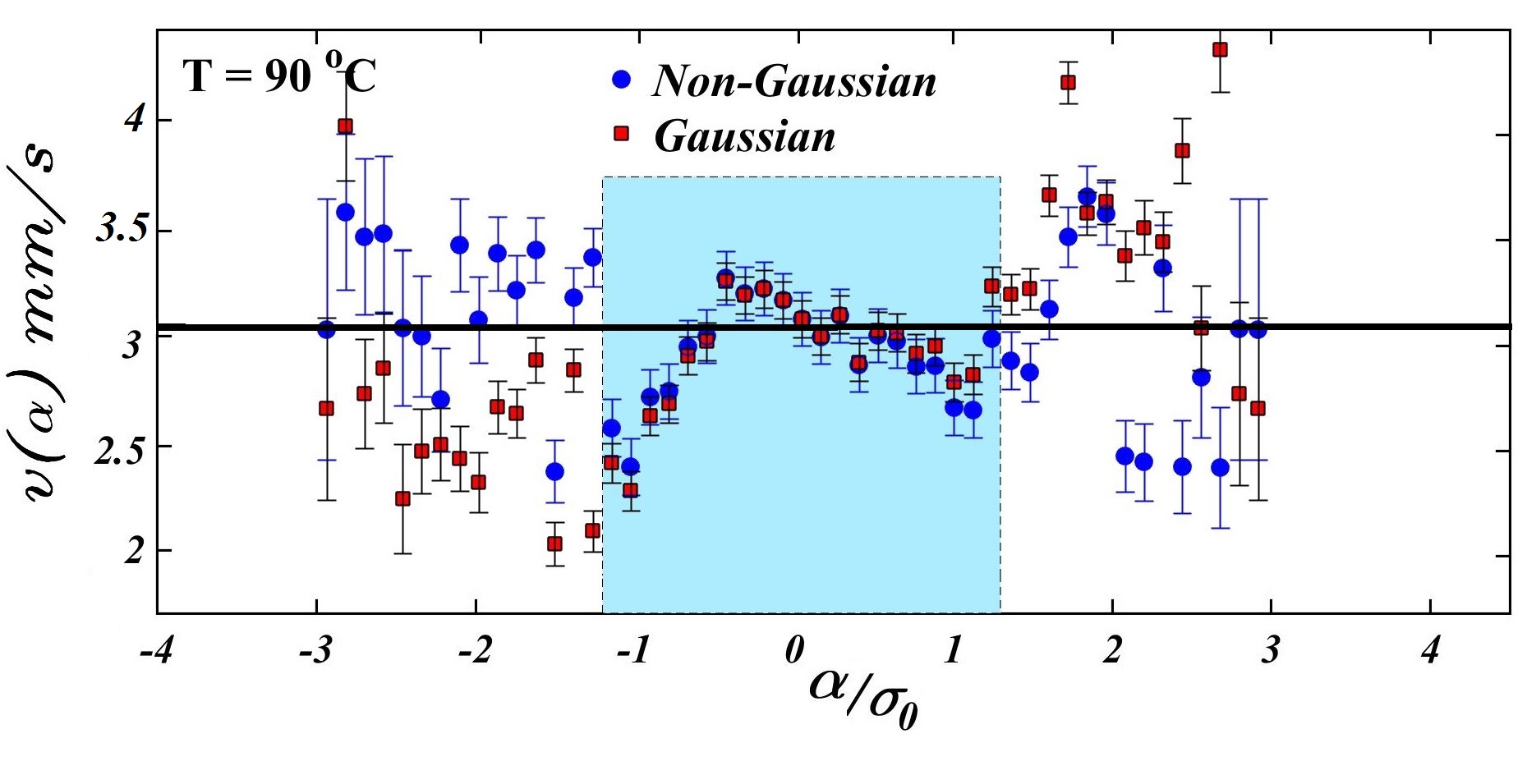

The computed mean value of particle’s speed for each level is indicated in Fig. 5. The consistency interval for threshold between Gaussian and non-Gaussian theory for mean value of particle’s speed is less than $2\sigma$ centered by mean value for low temperature. Mentioned interval increases beyond $2\sigma$ for higher temperature. As we expect, for computing the speed mean value, we should utilize the weak non-Gaussian model.

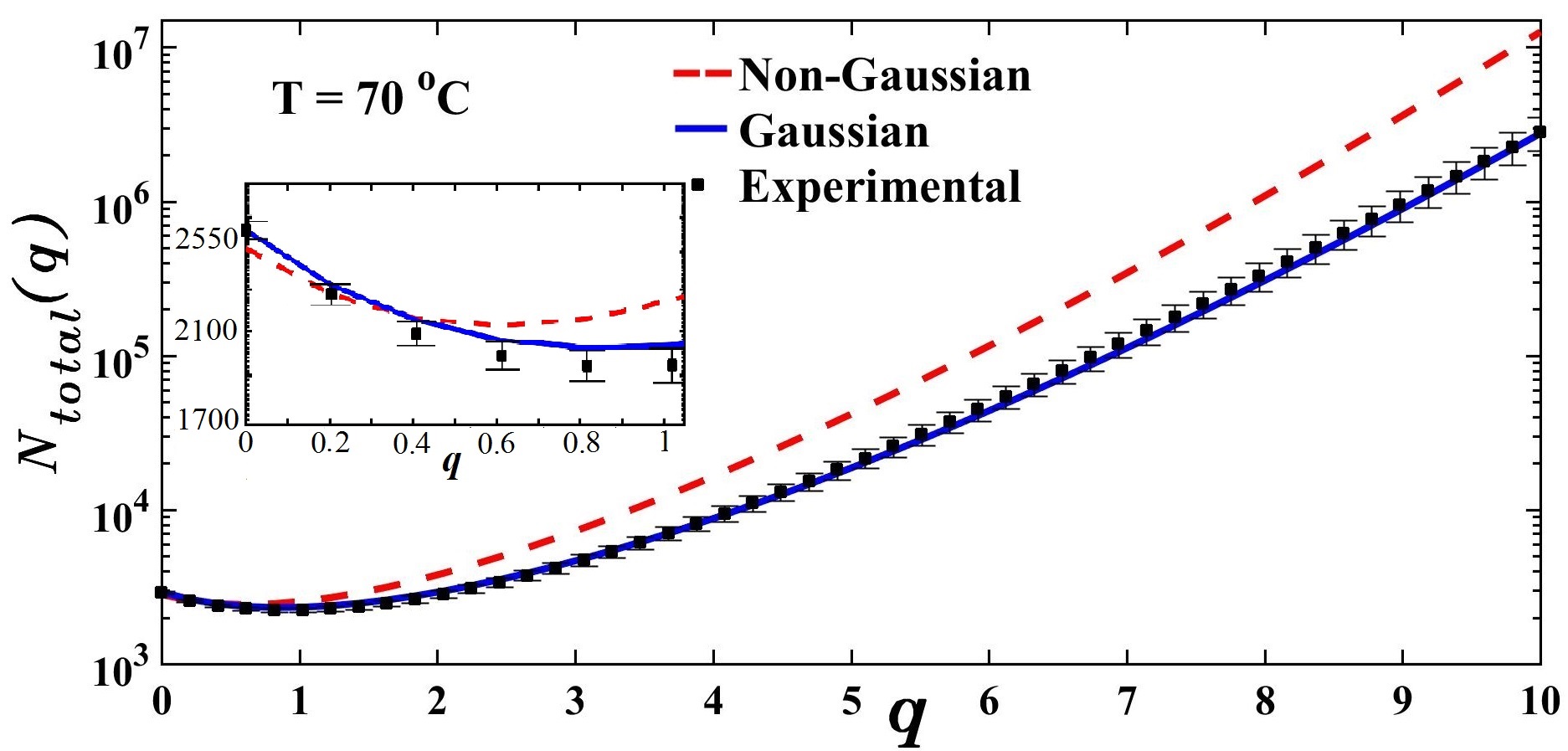

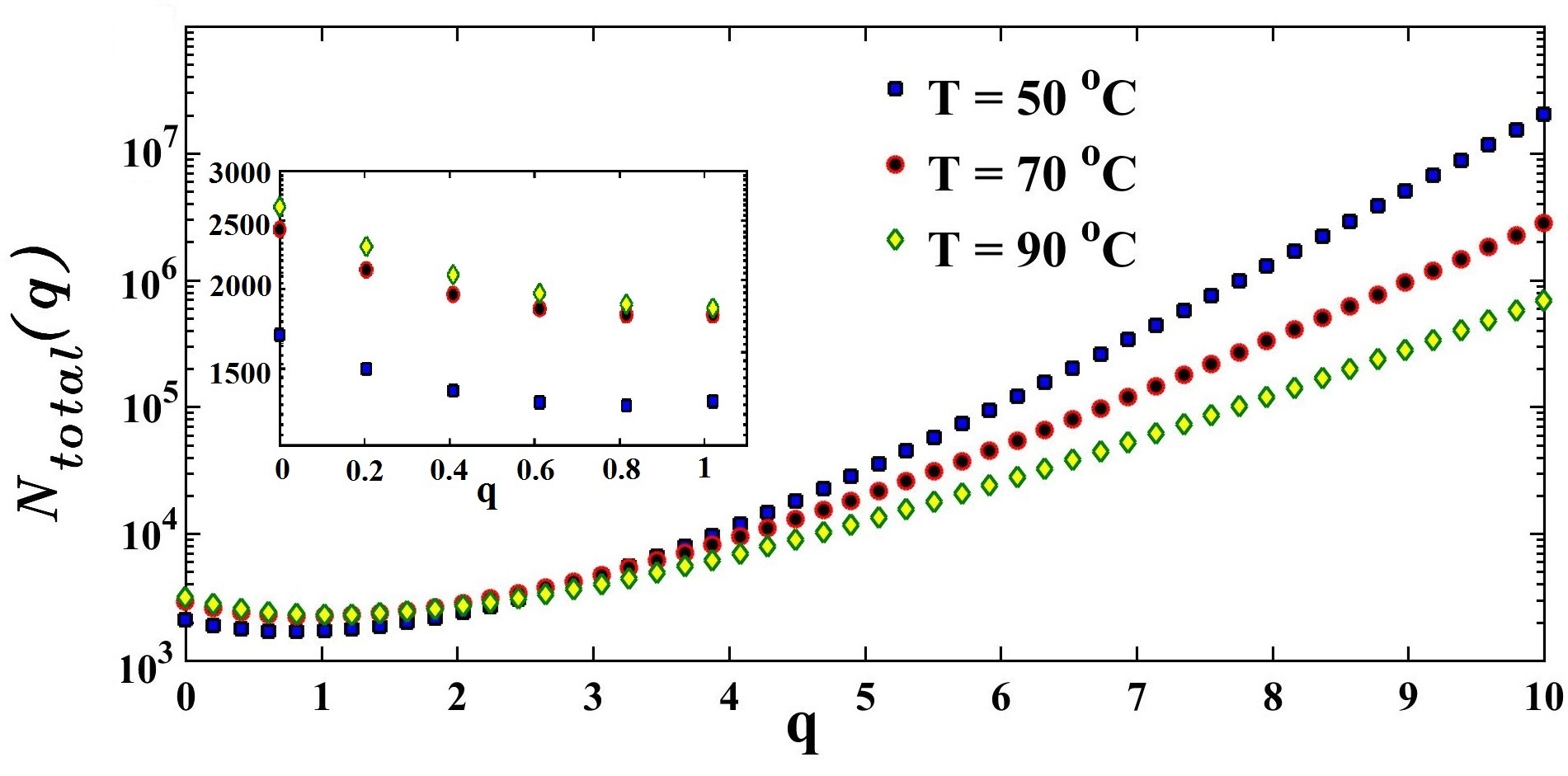

Generalized total number of crossing statistics introduced in Eqs. (21) and (26) specify the weighted total number of fluctuations for all thresholds. As an illustration, for $q=0$, this value is directly devoted to roughness of underlying fluctuations. The higher sample temperature corresponds to higher value of $N_{total}(q=0)$ as indicated in Fig. 6. The $N_{total}$ as a function of $q$ for three samples is plotted in Fig. 7. In this plot symbols correspond to numerical computation of generalized total crossings. Solid line predicted by Eq. (26) while Gaussian model (Eq. (21)) is illustrated by solid line. The higher value of slope for large $q$ clarifies the higher probability of having large fluctuations in underlying process. By increasing the sample temperature, the convection speed becomes dominant in comparison with other effects. Subsequently, the probability of finding the large fluctuations in beam intensity becomes small as seen in Figs. 3 (lower panel) and 4. This measure is very sensitive to existence of rare events. At high temperature the slope of $N_{total}(q)$ for large value of $q$ becomes smaller than that of given for lower temperature. In our experimental setup, the well-known Gaussian theory can not reveal proper view for relevant physical quantities. To quantify the value of deviation from Gaussian theory, we computed $N_{total}$ as a function of $q$ indicated in Fig. 7. For larger value of $q$, higher fluctuations have dominant contribution, on the contrary for $q<1$, small fluctuations play predominant role. We found that by increasing sample temperature, higher value of fluctuations are almost suppressed. Also, the non-Gaussian terms vanish and non-Gaussian model as well as experimental data converge to Gaussian situation.

Interestingly, according to Eqs. (LABEL:pertur1) and (30) it is possible to compute mean-speed for different $q$ which is represented by Eq.  (LABEL:pertur2). Smaller value of $q$ reduces contribution of spurious large fluctuations, while for artificial effects in range of smaller value of fluctuations, larger value of $q$ becomes more reasonable to employ.

All quantities determined in our experimental setup are induced by background effect and in order to find correct values for mean-speed and other values, we should subtract this effect in all measurements.

Characteristic time scale for having statistical successive crossings at a given threshold defined by $\tau_{\alpha}\equiv 1/N_{\alpha}$ has been reported in Tab. 2. Our results demonstrate that lower temperature leads to higher deviation between the level with maximum value of crossing and zero level. This finding confirms that using only $zero$ threshold for high enough temperature is able to support precise physical properties

6 Conclusion

We can extract viable physical quantities concerning dynamical properties of suspended particles by utilizing various statistical analysis of recorded fluctuations of scattered laser beam through a nanofluid. Computing PDF and correlation function of scattered laser beam fluctuations through a nanofluid can reveal the size, shape, clustering of suspended particles and type of interaction [18, 58, 63, 64, 65, 66, 67]. Meanwhile, a proper method to determine mean value of particle’s speed is crossing statistics. A particular case of crossing statistics, namely zero-crossing was carried out to measure the mean-speed of moving particles [17, 19, 20, 18, 21, 22]. This model contains some priors and assumptions. In principle, there is no grantee to satisfy mentioned presumptions in a real experimental setup leading to inaccurate measurements.

In this paper by measuring the spatially integrated speckle intensity fluctuations encoded in scattered laser light, we extend zero-crossing analysis and applied crossing statistics incorporating crossing for all available thresholds in Gaussian and weakly non-Gaussian regimes. This modification prepares following advantages in this regards: Firstly, the crossing statistics not only at mean level but also for any arbitrary thresholds is used for computing more precise dynamical quantities without changing the experimental setup, considerably. Secondly, Gaussianity and non-Gaussianity of underlying process can be examined systematically. In addition, according to perturbation approach, challenges for determining JPDF is replaced by deriving an expansion formula for arbitrary statistical measure if the second cumulant to be finite.

We also introduced generalized total crossing statistics. If fluctuations with larger values are affected by artifacts due to experimental setup and etc. more than smaller fluctuations, therefore considering smaller values of $q$ can reduce spurious results in determining mean-speed. On the contrary, larger values of $q$ is suitable to magnify the contribution of fluctuations far from the mean value, statistically (Eq. (LABEL:pertur2)). Finally according to crossing statistics, some characteristic time scales which probably contain physical properties enabling us to achieve deep insight associated with underlying sample, are introduced.

We determined crossing statistics of laser light fluctuations for three different sample temperatures. Our results demonstrated that by increasing sample temperature, experimental results, Gaussian and non-Gaussian are consistent together around mean level. We found that for low temperature the consistency interval for threshold between Gaussian and non-Gaussian theory for computing relevant quantity is less than $2\sigma$ centered by mean value. Mentioned interval increases beyond $2\sigma$ for higher temperature. Subsequently for computing mean value of speed, the weak non-Gaussian model should be considered in order to achieve robust results. Obviously when we consider all available thresholds, the statistical uncertainty for mean value of speed decreases. For all cases, the mean value of speed determined by weakly non-Gaussian theory is higher than that of computed by Gaussian framework. In our experimental setup, background effect modified the crossing statistics of laser light fluctuations. To achieve reliable results this contribution should be subtracted.

Characteristic time scale using crossing statistics was defined by inverse value of $N_{\alpha}$ for a given threshold. If the maximum value of crossing happens at $zero$ level, therefore, the minimum value of time interval for having crossing ($\tau_{0}=1/N_{0}$) corresponds to $N_{0}^{-1}$. While for our results, the associated threshold for minimum time scale was deviated from $zero$ level.

However, in our experimental setup, the computed mean-speed of diffuse objects according to Gaussian and non-Gaussian model are statistically consistent, but it turns out that this consistency is not essentially satisfied for other range of temperatures and different concentrations.

It could be interesting to apply this method for different experimental configurations to asses the capability of this modification in crossing statistics for determining mean-speed and its dependency to particle size and viscosities of solution. Also based on directionality nature of crossing statistics, this method enables us to examine statistical isotropy of intensity fluctuations which is of interest [11] and it is outside the scope of present study.

7 acknowledgments

SMSM was partially supported by a grant of deputy for researches and technology of Shahid Beheshti University. SMSM also appreciates the school of Physics, Institute for Researches in Fundamental Sciences (IPM), where some parts of this work have been done.
