Native surface oxide turns alloyed silicon membranes into nanophononic metamaterials with ultra-low thermal conductivity

TL;DR

This paper reveals that native oxide layers on alloyed silicon membranes induce local resonances that significantly reduce phonon group velocities and mean free paths, leading to ultra-low thermal conductivity, especially at low temperatures.

Contribution

It uncovers a new phonon interaction mechanism via native oxide layers that enables ultralow thermal conductivity in alloyed silicon membranes, a novel approach for thermal management.

Findings

Native oxide layers induce local phonon resonances.

Alloying with 5% germanium reduces thermal conductivity by 100 times.

Resonance mechanism is effective even at low temperatures.

Abstract

A detailed understanding of the relation between microscopic structure and phonon propagation at the nan oscale is essential to design materials with desired phononic and thermal properties.Here we uncover a new mechanism of phonon interaction in surface oxidized membranes, i.e., native oxide layers interact with phonons in ultra-thin silicon membranes through local resonances. The local resonances reduce the low frequency phonon group velocities and shorten their mean free path. This effect opens up a new strategy for ultralow thermal conductivity design as it complements the scattering mechanism which scatters higher frequency modes effectively. The combination of native oxide layer and alloying with germanium in concentration as small as 5% reduces the thermal conductivity of silicon membranes to 100 time lower than the bulk. In addition, the resonance mechanism produced by native oxide surface layers is particularly effective for thermal condutivity reduction even at very low temperatures, at which only low frequency modes are populated.

Figures

Equations

$$S\left(\vec{q},\omega \right)=\frac{1}{2\pi }\left|{\int }_0^{T_0}\sum _1^N\exp \left[-i\vec{q}\cdot {\vec{r}}_j(t)\right]\exp \left(i\omega t\right)dt\right|$$

Full text

Controlling terahertz vibrations and heat transport in nanostructures has a broad impact on several applications, such as thermal management in micro- and nano-electronics, renewable energies harvesting, sensing, biomedical imaging and information and communication technologies (Pop, 2010; Wan et al., 2015; Zhu et al., 2014; Cottrill and Strano, 2015; Li et al., 2004, 2012; Zhu et al., 2016; Volz et al., 2016). Significant efforts have been made to understand and engineer heat transport in nanoscale silicon due to its natural abundance and technological relevance (Lee et al., 2012; Hsiao et al., 2013; Boukai et al., 2008; Hochbaum et al., 2008). In the past decade researchers explored strategies to obtain silicon based materials with low thermal conductivity (TC) and unaltered electronic transport coefficients, so to achieve high thermoelectric figure of merit and enable silicon-based thermoelectric technology(Boukai et al., 2008; Hochbaum et al., 2008; Joshi et al., 2008; Tang et al., 2010; Aksamija and Knezevic, 2010; Boor et al., 2012; Yu et al., 2012; Xiong et al., 2014).

From the earlier studies it was recognized that low-dimensional silicon nanostructures, such as nanowires, thin films and nano membranes feature a largely reduced TC, up to 50 times lower than that of bulk at room temperature. TC reduction becomes more prominent with the reduction of the characteristic dimension of the nanostructures Li et al. (2003); Ju and Goodson (1999); Liu et al. (2011); Chávez-Ángel et al. (2014). Theory and experiments consistently show that surface disorder and the presence of disordered material at surfaces play a major role in determining the TC of nanostructures Hochbaum et al. (2008); Donadio and Galli (2009); He and Galli (2012); Neogi et al. (2015). However, a comprehensive understanding of the physical mechanisms underlying so large TC reduction is lacking. The effect of surface roughness and surface disorder on phonons has been so far interpreted in terms of phonon scattering Martin et al. (2009); Chen et al. (2008); Kazan et al. (2010); Johnson et al. (2013); Maznev (2015), but scattering would not account for mean free path reduction of long-wavelength low-frequency modes. Recent theoretical work demonstrated that surface nanostructures, such as nanopillars at the surface of thin films or nanowires, can efficiently reduce TC through resonances, a mechanism that is intrinsically different from scattering Davis and Hussein (2014); Xiong et al. (2016). Surface resonances alter directly phonon dispersion relations by hybridizing with propagating modes in the nanostructures, thus hampering their group velocity.

In this Communication we unravel the effect of native oxide surface layers on thermal transport in ultra-thin silicon membrane models that closely resemble experiments, by atomistic molecular dynamics simulations. We show that the observed low TC in these systems, and plausibly in other oxide coated silicon nanostructures, is predominantly due to resonances analogous to those occurring in nanophononic metamaterials. It is worth stressing that surface oxide layers in low dimensional Si materials grow spontaneously at atmospheric conditions, and do not require any specific processing. Our simulations ascertain the occurrence of low frequency resonant modes that hybridize with the acoustic branches ($\omega\lesssim 4$ THz) of the membrane, effectively suppressing their mean free path (MFP). This discovery opens up the possibility to further optimize the TC of ultra-thin silicon membranes by combining resonances with mass scattering, which affects phonons with higher frequency ($\omega\gtrsim 4$ THz). We show that alloying the crystalline core of ultra-thin membranes with a small percentage of substitutional germanium atoms brings forth ultra-low TC in silicon membranes with technologically viable thickness (Shchepetov et al., 2013).

All TCs are calculated with equilibrium molecular dynamics (EMD) simulations at 300 K using LAMMPS (Plimpton, 1995) with interatomic interactions described by the widely used Tersoff potential (Tersoff, 1989; Munetoh et al., 2007; Chuang et al., 2013). The equations of motion are integrated with the velocity Verlet algorithm with a time step of 0.8 fs for the membranes without surface oxide. Due to the stiffness of the Si-O bond and the light weight of oxygen, a timestep of 0.12 fs is used to guarantee energy conservation in systems with surface oxide. The length-dependent phonon transmission functions that provide phonon MFPs, are obtained from non-equilibrium molecular dynamics (NEMD) simulations Jund and Jullien (1999). Surface oxidized samples are about 1 nm thicker than the corresponding pristine Si membranes due to expansion of the oxide layer. To simplify the notation and also facilitate comparisons, we use the original Si membrane thickness to denote the thickness of surface oxidized membranes (real thicknesses are used for all calculations). Simulation details and procedures to generate models with native oxide layers are reported in the supplementary materials Sup .

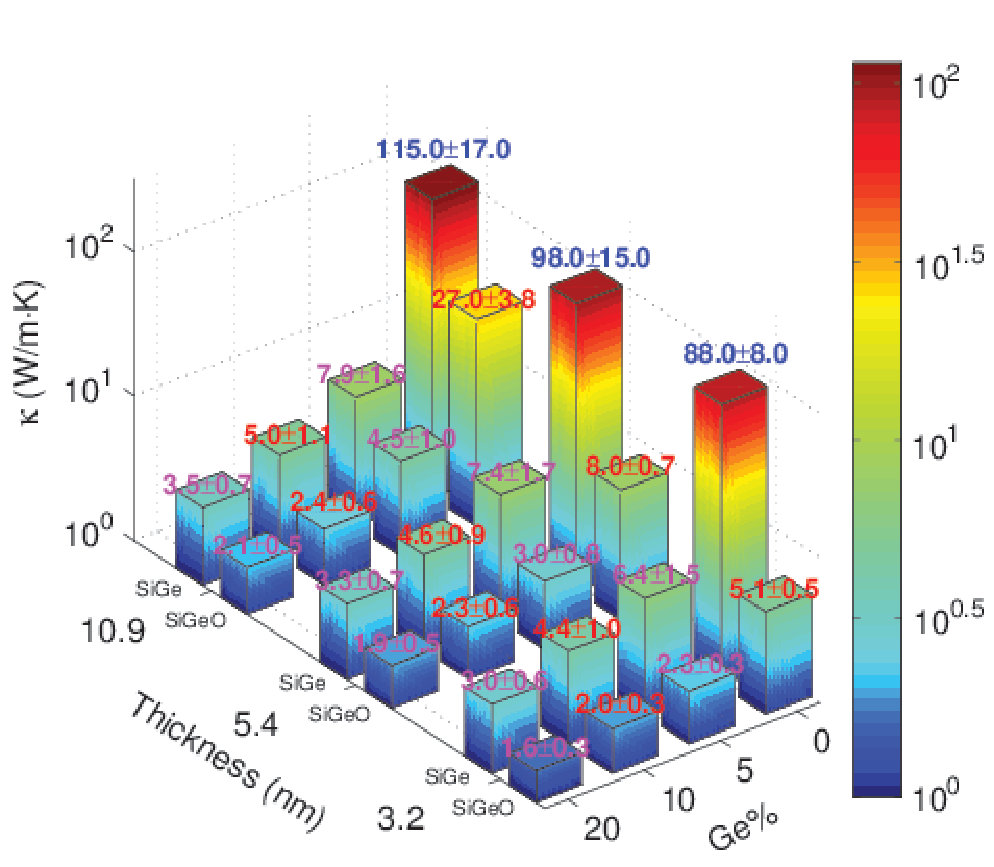

Fig. 1 shows the TC of the pristine and the surface oxidized Si membranes, together with the TC of Si1-xGex membranes with Ge concentration $x$ ranging from 0.05 to 0.2 111All the TCs reported here are the TCs of the whole sample, including the surface oxide if involved.. The TC of crystalline Si membranes with (2x1) surface reconstruction and with native oxide surface layers were calculated in a former study by EMD Neogi et al. (2015). It was revealed that the simulated TCs of Si membranes with ideal surfaces is larger than the experimental results (Chávez-Ángel et al., 2014; Cahill et al., 2003). In turn the TC of models with native oxide surface layers is in excellent agreement with experiments Neogi et al. (2015): $\sim 1$ nm oxide layers abate the TC by about 4, 12 and 17 times for 10.9 nm, 5.4 nm, and 3.2 nm thick membranes , respectively, compared to the corresponding ones with pristine surface reconstruction. The obtained TC of the surface oxidized membranes is much smaller than that estimated by effective medium theory (Nan et al., 1997) as shown in table S1.

Ge alloying, even at fairly low concentration, promotes a dramatic reduction of TC, not only in the membranes with pristine surfaces, which feature high TC, but also in the ones covered with native oxide. The effect of alloying on the TC of ultra-thin membranes is more prominent than in bulk (Gudrun and Sergio, 2014) and it is analogous to the effect observed in nanowires Zhang and Li (2010), where TC keeps decreasing even at Ge concentrations for which the bulk alloy TC has saturated. When alloying is combined to surface oxidation, extremely low values of TC are observed: the TC of the 10.9 nm thick membrane drops to 4.5 Wm*-1K-1* with only 5$\%$ of Ge and to 2.1 Wm*-1K-1* with a Ge concentration of 20$\%$. The lowest TC (1.6 W/mK) achieved in the 3.2 nm thick surface oxidized Si0.8Ge0.2 is much lower than that of bulk amorphous Si (He et al., 2011), thus achieving effectively the phonon-glass paradigm in a crystalline material Mahan and Sofo (1996).

According to former first-principles calculations, Ge alloying strongly reduces the mean free paths of medium and high frequency phonons Garg et al. (2011). Similarly, based on the scattering picture Maznev (2015), surfaces would affect phonons in the same range of frequencies, i.e. modes with wavelengths comparable to the characteristic length of surface features, namely the interfacial and surface roughness, which are in the order of few nm. While further large TC reduction ($\sim$ a factor of 2) produced by surface oxide layers in alloyed membranes suggests that native oxide should hinder the low frequency phonon transport, which cannot be accounted by surface scattering. As a result, a different mechanism to describe the role of surface oxide on TC reduction need to be clarified. Hereafter we offer a detailed explanation of such mechanism, and we elucidate the concerted effects of mass scattering and surface oxidation on phononic transport. We first resolve the frequency ranges that are affected by either native oxide layers or alloying. To this aim we calculate the phonon MFP from length dependent phonon transmission function $\mathcal{T}(\omega)$. For the transmission functions, we exploit an NEMD-based approach developed recently by Sääskilahti et al. (Sääskilahti et al., 2014, 2015) to take into account anharmonic effects at a reasonable computational cost. MFPs $\Lambda(\omega)$ at each frequency are fitted according to the transmission functions at each length, which are averaged over at least 10 data sets (Supplementary material Sup ):

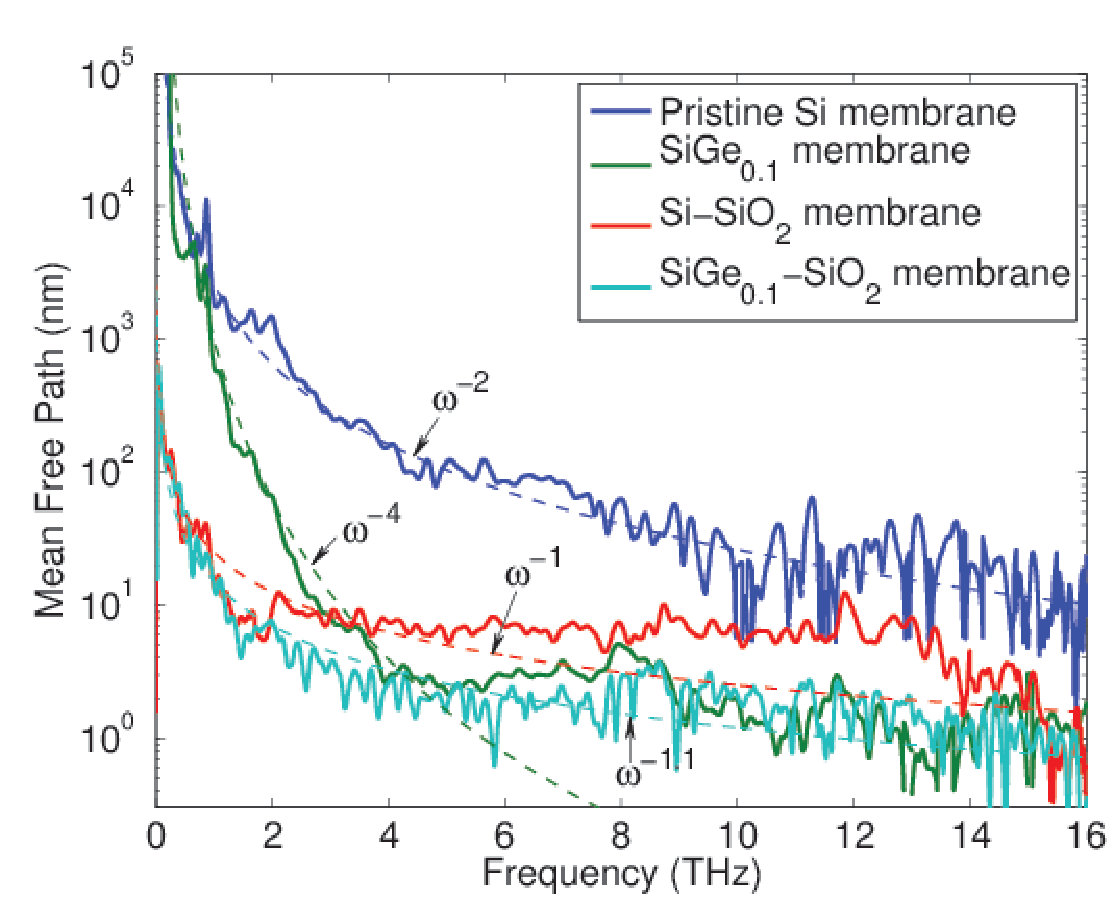

Fig. 2 shows the MFPs obtained from the transmission functions computed for 3.2 nm thick Si and Si0.9Ge0.1 membranes. For the case of pristine Si membrane, the MFP is relatively large in the whole frequency range and it is proportional to $\omega^{-2}$, as a consequence of phonon-phonon scattering Callaway (1959); Holland (1963). The fitted behavior reveals that boundaries almost do not scatter phonons and are highly specular, which is consistent with the observed large and weakly thickness dependent TCs in pristine Si membranes. With 10% random Ge alloyed into the Si membrane (Si0.9Ge0.1 membrane), the MFPs are suppressed by about two orders of magnitude for $\omega$ > 2 THz. The MFPs above 4 THz are even shorter than 3 nm, thus those phonons contribute little to the total TC. In contrast, MFPs below 1 THz are not affected by alloying and those phonons can travel longer than micrometers without being scattered, which is in agreement with experiments showing several $\mu$m long MFP in SiGe nanowires (Hsiao et al., 2013). Since phonons beyond 4 THz in Si0.9Ge0.1 membrane almost do not contribute to the total TC, we fitted the MFP below 4 THz with $\omega^{-4}$, which is in accordance with kinetic theory Holland (1963). In contrast to alloying, surface oxidation also suppresses the MFP of low frequency phonons below 4 THz by more than 2 orders of magnitude. At higher frequency, the effect of native oxide layer on MFP is instead weaker than that of alloying. With surface oxide, $\Lambda(\omega)$ is proportional to $1/\omega$ at low frequency. The large suppression of low frequency phonon MFP makes the resonant structures very efficient at reducing TC at extremely low temperatures (Hudson and Gibbs, 1976; Zen et al., 2014), at which only low frequency modes that are insensitive to mass scattering are populated. The different frequency range response observed in membranes upon surface oxidation and alloying makes them complement each other. This feature enables the suppression of MFPs over the whole phonon spectrum when alloying and native surface oxidation are combined, as evidenced by the MFP of surface oxidized Si0.9Ge0.1 membrane. The suppressed MFP in the whole frequency range finally leads to the observed low TC in surface oxidized SiGe membranes. The ability of blocking both low and high frequency phonons by combining surface oxidation and alloying sets a valuable strategy for the design of ultra-low TC nanostructures.

As scattering relies upon the particle-like nature of phonons, it affects only modes with wavelength comparable to the characteristic length of the scatterers. Our calculated MFPs show that native oxide layers mainly affect phonons at low frequencies, with wavelength much longer than the characteristic interfacial and surface roughness, which is $\sim 1$ nm. Those phonons typically have MFPs ranging from hundreds of nm to several $\mu$m, thus contributing significantly to the total TC. In addition, a portion of the phononic spectrum of these systems still exhibits MFP much larger than the so called Casimir limit–corresponding to the thickness of the membranes Casimir (1938). In general, phonons with frequency below 1 THz have wavelengths larger than several tens of nm and cannot be treated as particles, as assumed in scattering theories. As a result, the commonly employed scattering mechanism cannot explain the frequency dependent MFP reduction induced by oxidized surfaces and new mechanisms have to be explored. Recent works suggested that resonant structures may provide a viable source of TC reduction in nanostructures Davis and Hussein (2014); Xiong et al. (2016). Different from scattering, the resonant mechanism relies on the wave-like nature of phonons. Localized resonant modes have a great effect on TC by interacting with the propagating phonons in the thin films and nanowires, modifying their dispersion relations and reducing their group velocity, especially at low frequency. Because of the lack of periodicity of the amorphous SiO2 surface, the produced resonances are distributed randomly. A similar effect was also proposed for core-shell Si/Ge nanowires, in which resonances occur due to the mismatch of group velocities in the core and shell regions (Chen et al., 2012, 2011).

To prove that the MFP reduction at low frequency is indeed due to random resonant modes, we obtained the effective phonon dispersion relations of pristine and surface oxidized Si membranes, computing the dynamical structure factor (DSF) in an EMD simulation (Zushi et al., 2015):

[TABLE]

where $\vec{q}$ is the phonon wave vector. $\vec{r}_{j}(t)$ refers to the time (t) dependent position of atom j. $T_{0}$ and N denote the total simulation time and the number of atoms, respectively.

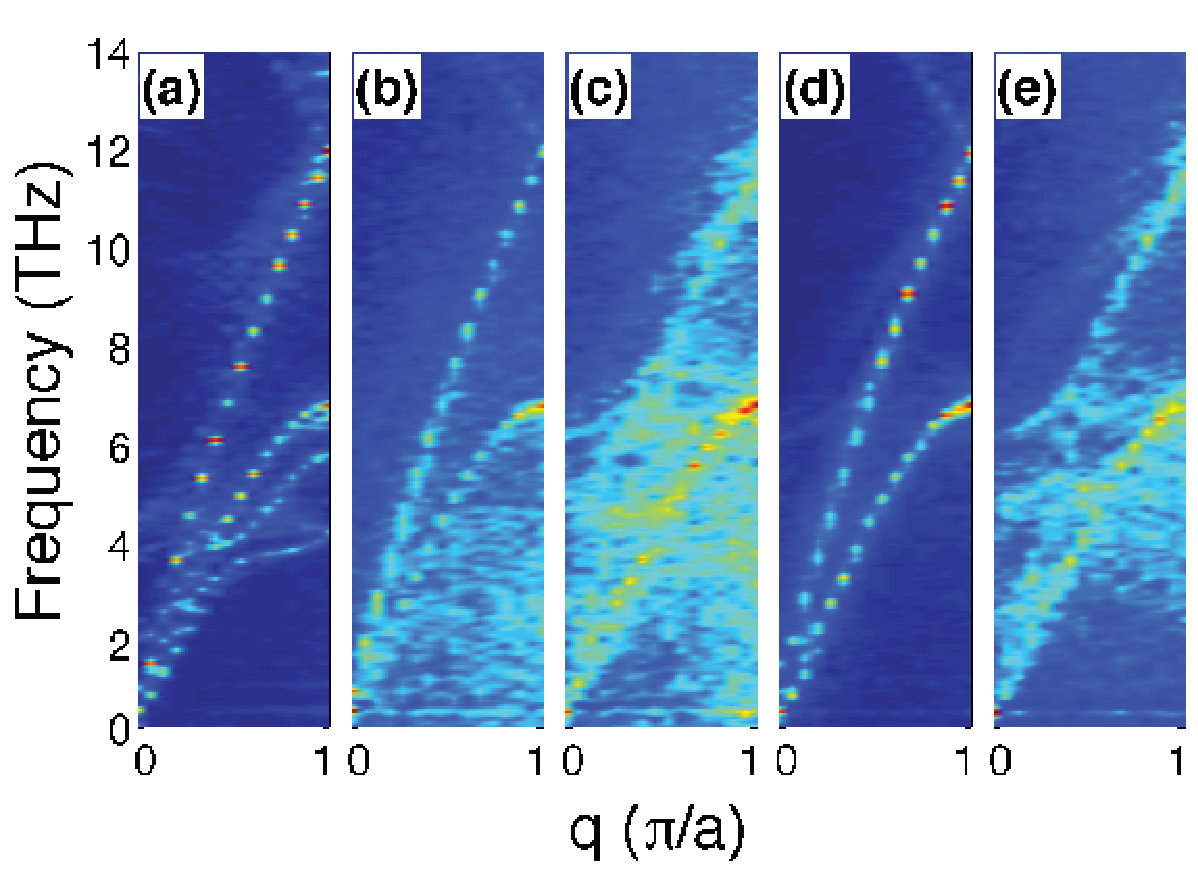

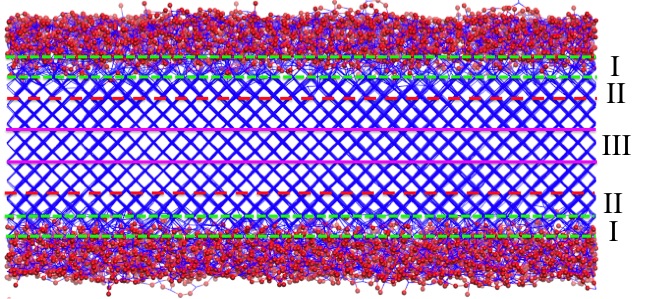

Fig. 3 shows the phonon dispersion curves calculated with the DSF (Eq. 1) of different cases. For the pristine Si membrane (Fig. 3(a)), the dispersion show clearly the longitudinal acoustic (LA) and transverse acoustic (TA) branches. We note that in additional to the normal LA and TA modes, surface branches, typically occurring in membranes, are also visible Neogi et al. (2015). In the system with native oxide at the surfaces, the TA and LA modes show similar behavior as the pristine membrane, but, besides the TA and LA modes, numerous dispersion-less modes appear at random frequencies, especially below 8 THz. A similar observation was made for SiO2 coated SiNWs (Zushi et al., 2015). Such dispersionless modes are resonant modes due to the vibrations of the atoms in the amorphous SiO2 layers. Random resonances produced by the amorphous SiO2 layers can penetrate into the crystalline Si region and interact with the LA and TA modes, thus reducing the group velocity of propagating modes. The penetration of the resonant modes can be examined by comparing the partial DSF of the regions next to the interfaces (region II, Fig. 3(c)) to the middle Si region (region III, Fig. 3(d)). Random resonant modes are mostly localized in the first few layers near the interface (Region II in Fig. 3). The hybridization strength between resonant and propagating modes is proportional to the coupling strength between the oxide layers and the Si core. To probe the effect of varying such coupling strength, we introduce 10 pores of 2.5 Å in diameter in the interface region (region I). The pores are equally spaced and are aligned across one periodic edge of the simulation box. After introducing the pores, we observe that the number of dispersion-less modes in region II (Fig. 3(e)) is reduced, compared to the system without pores (Fig. 3(c)), revealing a weaker interaction between resonating and propagating modes. The ability of modifing phonon dispersion through local resonances tunes native surface oxidized membranes to be a nanophononic material. This new type of nanophononics does not require any periodic structure and it is different from the conventional periodic nanophononics, thus facilitating the fabrication process.

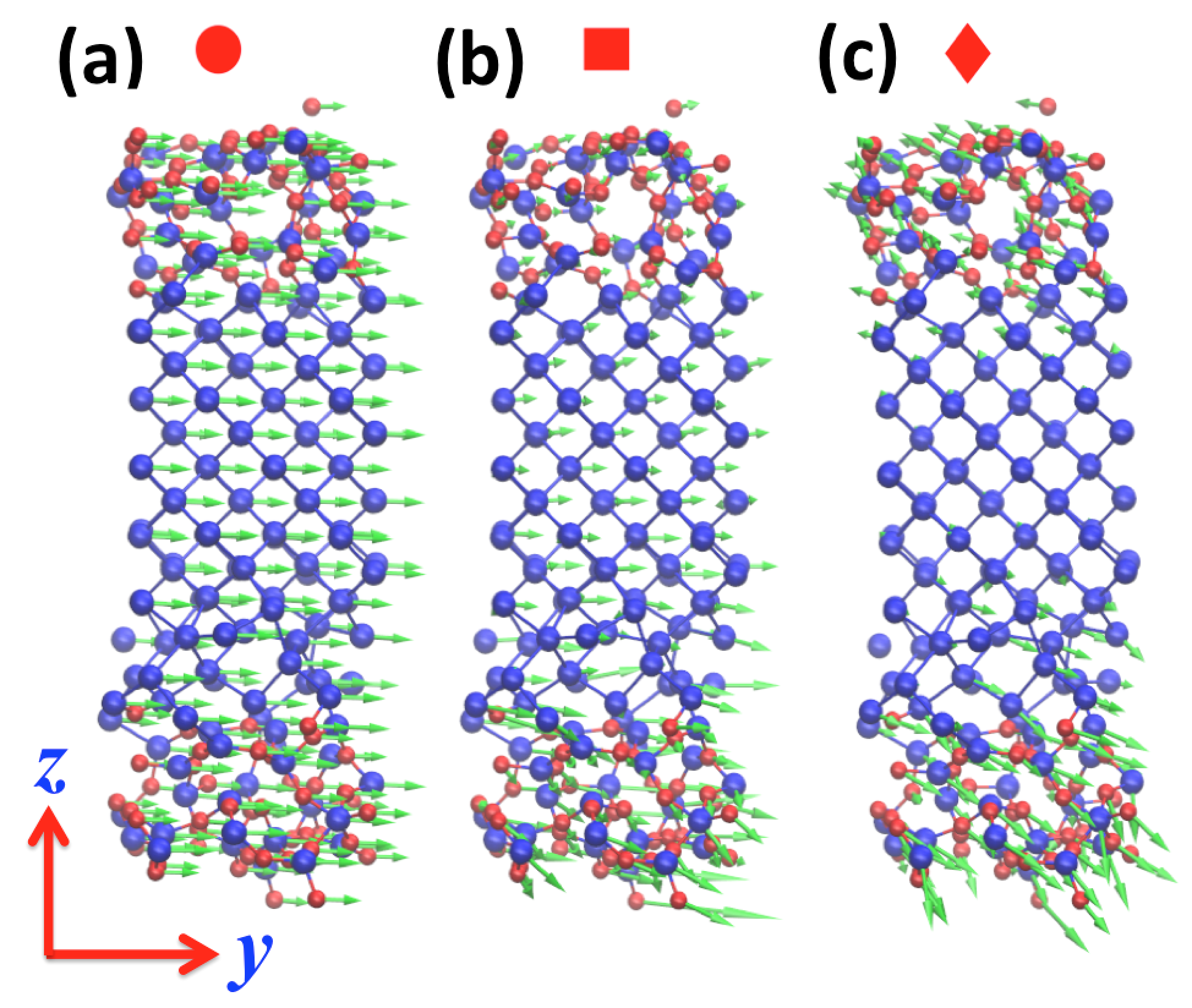

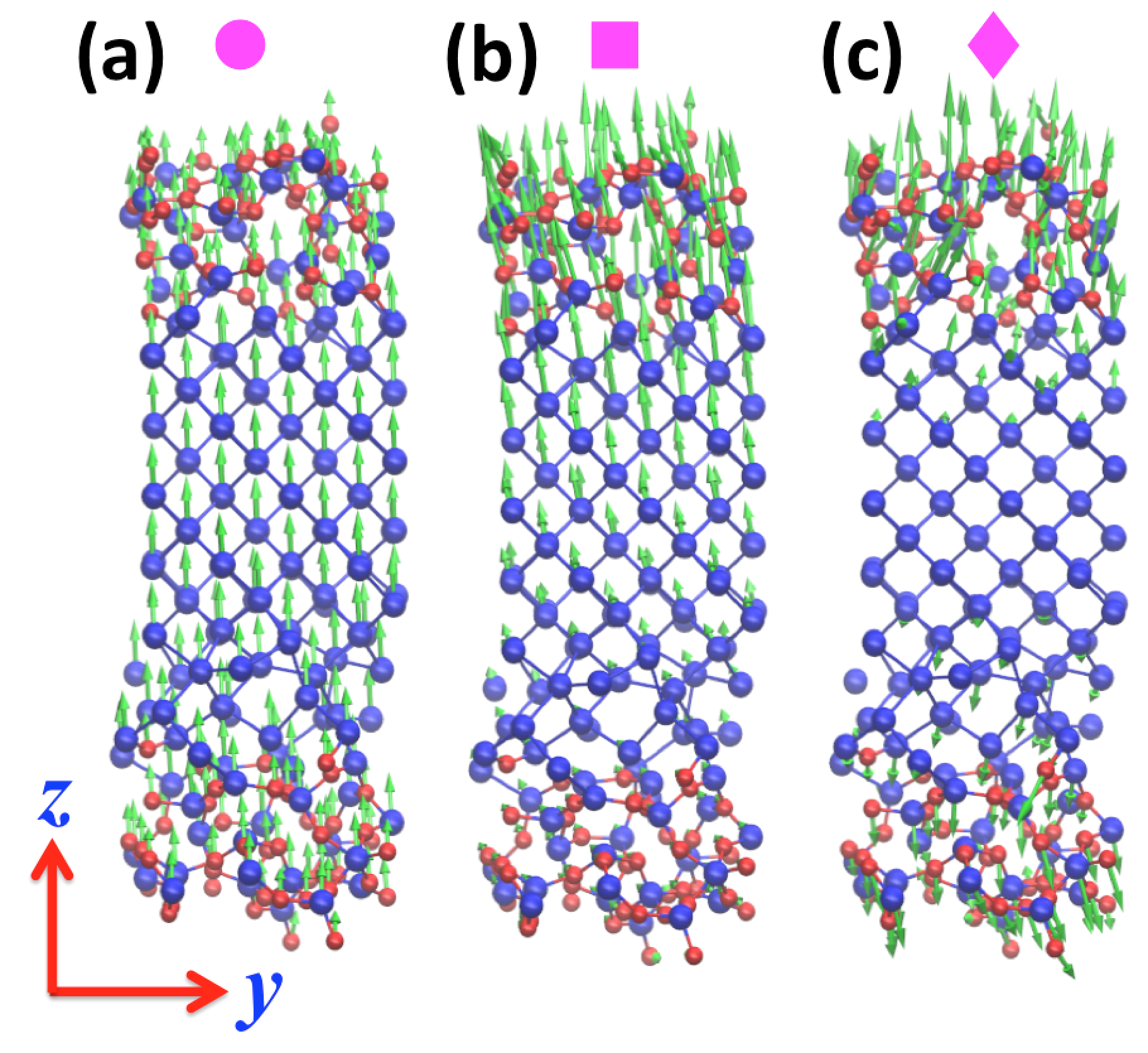

To directly illustrate the resonant modes and their hybridization with the propagating phonons, we have calculated the vibrational eigenvectors by lattice dynamics (Born and Huang, 1998) for the surface oxidized Si membrane of 2$\times$2 unit cell in periodic directions and of 3.2 nm in thickness. Note that the cell in periodic directions is too small to capture the ture amorphous SiO2, while it can still produce some resonances and show the hybridization effect. Fig. 4 visualizes three phonon modes of the same branch at $q=$ 0.2, 0.6 and 0.95, which demonstrates the hybridization effect bewteen the TA mode and a resonant mode. The notations (circle, square and diamond) correspond to the red notations of the same shape in Fig. S2 (Sup, )).

As demonstrated in Fig. 4, at $q=$ 0.2, all atoms vibrate along the transverse direction with the same magnitude (Fig. 4(a)) as in a pure TA mode. Since the vibration of all atoms are in phase, such a mode can propagate with a large group velocity. For the same branch at $q=$ 0.95, only the atoms belonging to the surface oxide layers participate to the vibration, indicating that the mode is a localized resonance (4(c)). Such a mode almost does not propagate and is able to hybridize with the TA mode, which is illustrated by the mode at $q=$ 0.6 (Fig. 4(b)). For this mode, the vibrational amplitude increases gradually from the top surface to the bottom surface, due to the fact that the atom vibrations of the resonant mode on the top and bottom surfaces are in opposite directions; the hybridization between the resonance and LA mode finally resulted in large vibrational mismatch among different atoms, which reduces the group velocity of the original propagating mode.

In conclusion, through a detailed study of heat transport in surface oxidized and alloyed membranes and of the corresponding mechanisms, we conclude that instead of scattering the high frequency phonons, the main effect of native oxide surface layers on TC reduction is to limit the propagation of low frequency acoustic modes in ultra-thin silicon membranes due to hybridization with localized resonances. The mechanism can be effectively combined with mass scattering, which strongly hampers the MFP of higher frequency phonons. Thus the two mechanisms can be combined to design nanostructures with extremely low TC, and make it possible to produce crystalline structures with TC below the corresponding amorphous value. TC from 50 to 100 times lower than that of bulk silicon at room temperature are predicted for Ge concentration as low as 5$\%$, thus enabling efficient thermoelectric energy conversion. Assuming a low impact of Ge on charge transport Mangold et al. (2016), it would be possible to obtain ZT >1 in $\sim$7 nm thick membranes.

We are indebted to Kimmo Sääskilahti for useful discussions and the assistance of transmission calculations. Yuriy A. Kosevich and Mahmoud I. Hussein are acknowledged for fruitful discussions. S.X. acknowledges the scholarship from the Alexander von Humboldt foundation. This work is supported by Jiangsu provincial natural science funding project BK20160308. Simulations are performed on the cluster HYDRA from Rechenzentrum Garching of the Max Planck Society (MPG).
