Scalable System Scheduling for HPC and Big Data

TL;DR

This paper analyzes the performance of job schedulers in HPC and big data systems, develops a theoretical model for scheduler latency, and demonstrates that multilevel scheduling significantly improves short workload utilization.

Contribution

It introduces a detailed feature analysis and a theoretical latency model for schedulers, and shows how multilevel schedulers enhance short workload efficiency.

Findings

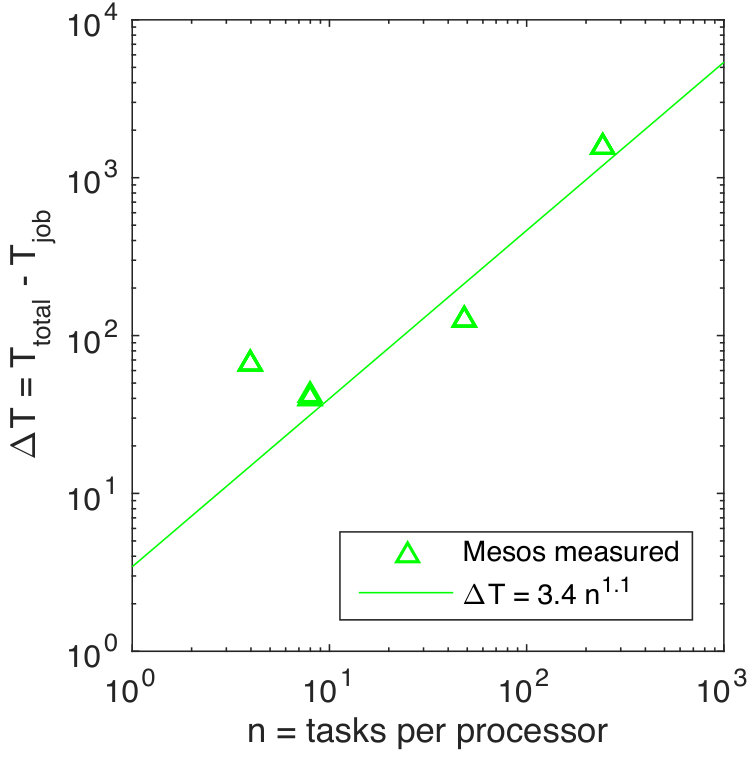

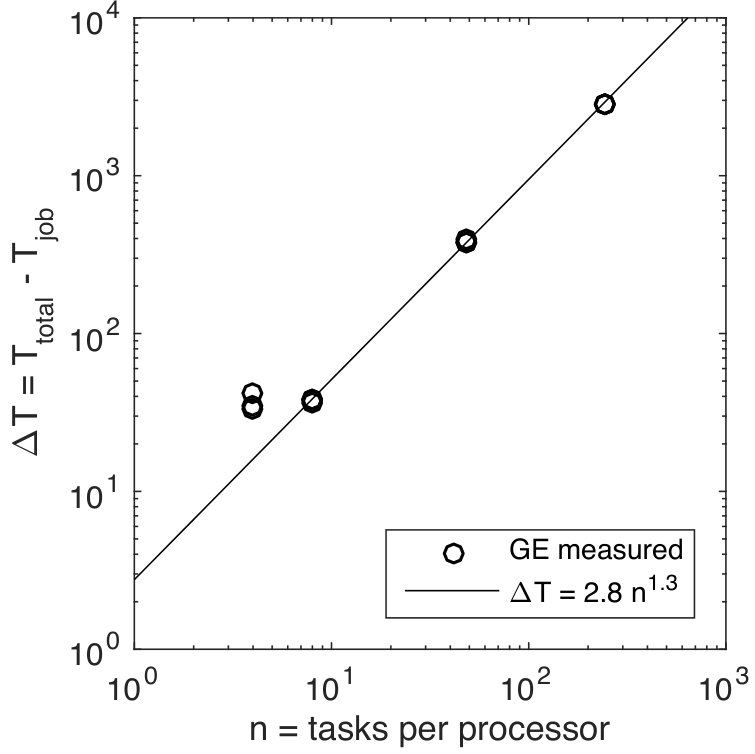

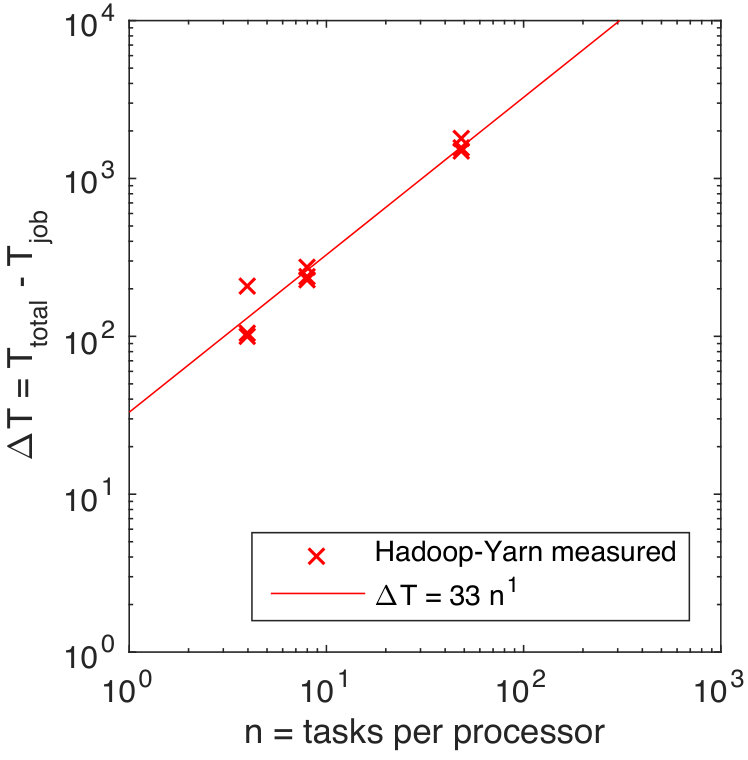

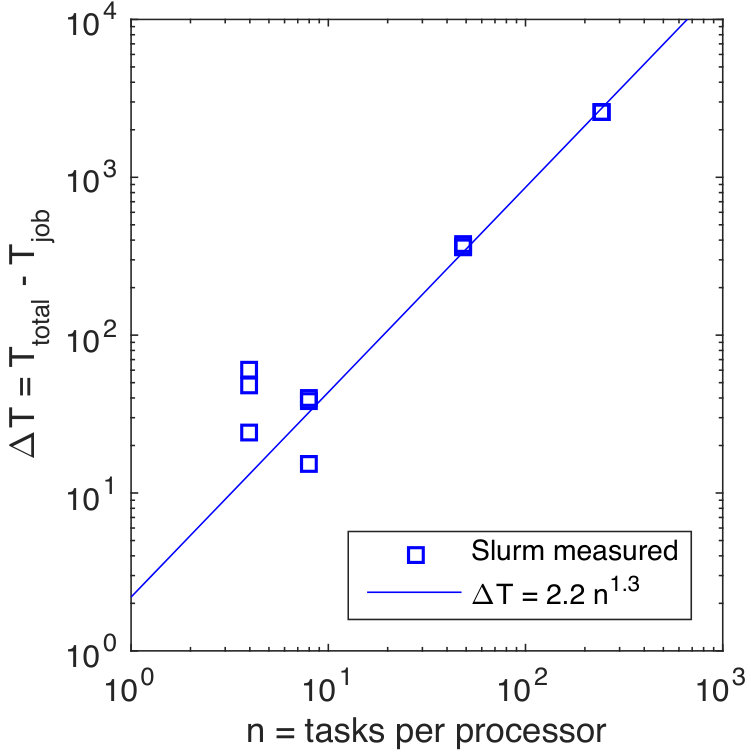

Scheduler performance is characterized by marginal latency and a nonlinear exponent.

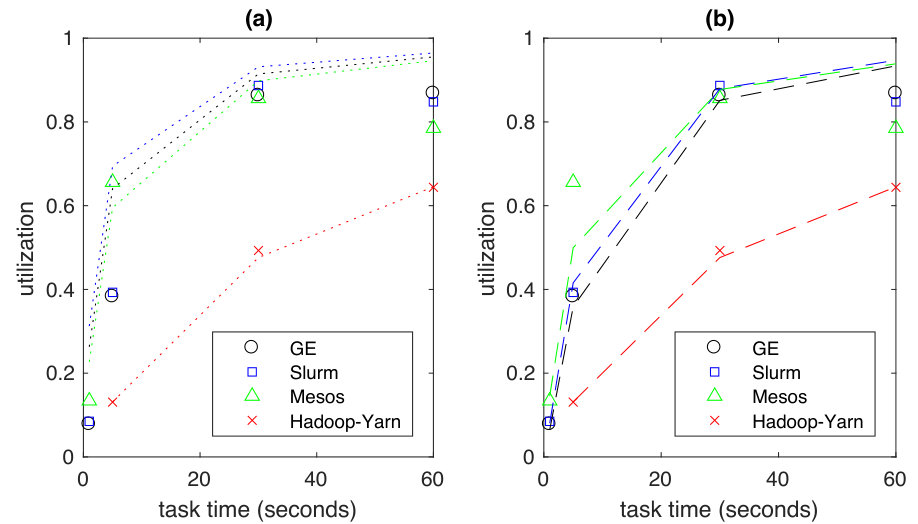

System utilization drops below 10% for short computations without multilevel scheduling.

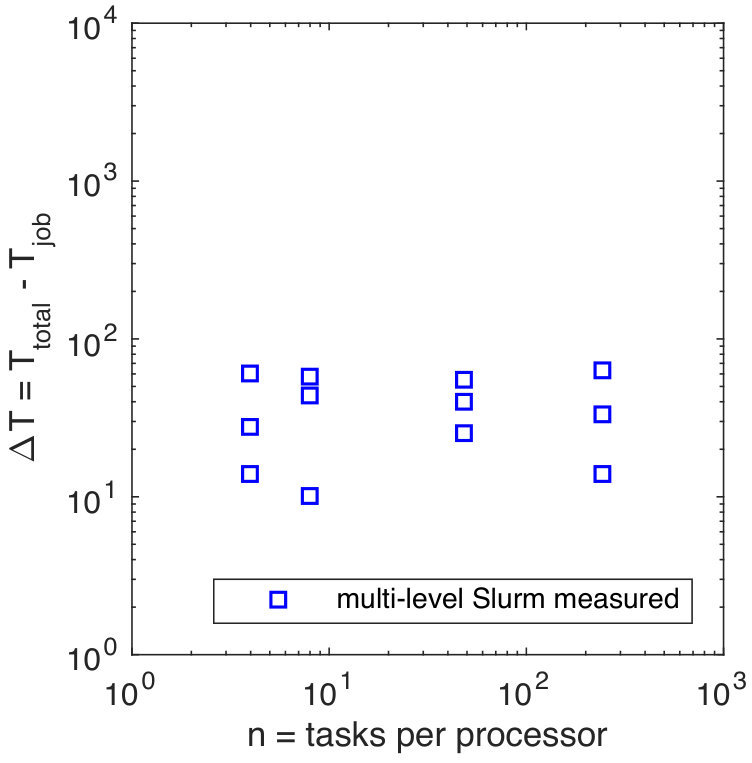

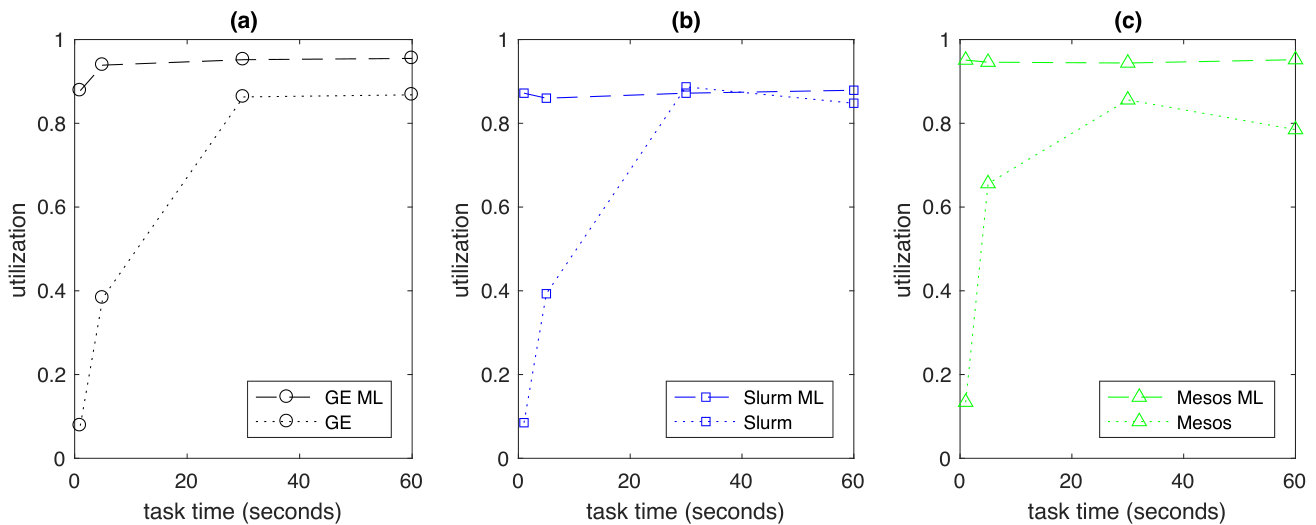

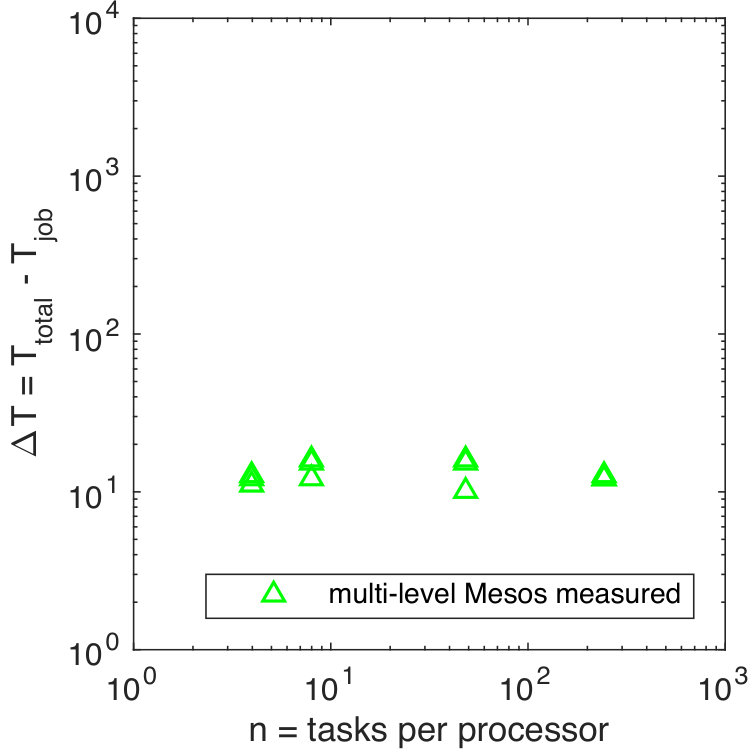

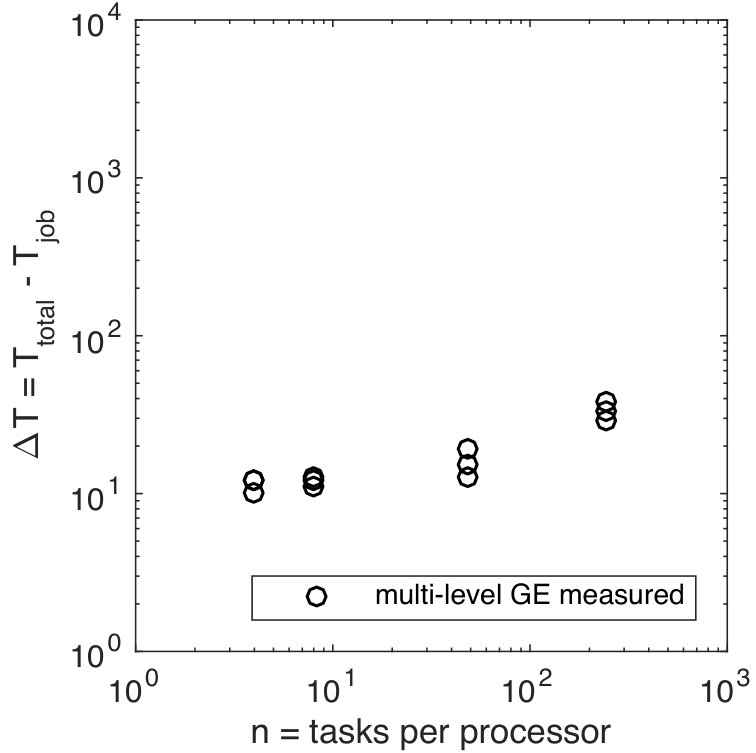

Multilevel schedulers can increase short workload utilization to over 90%.

Abstract

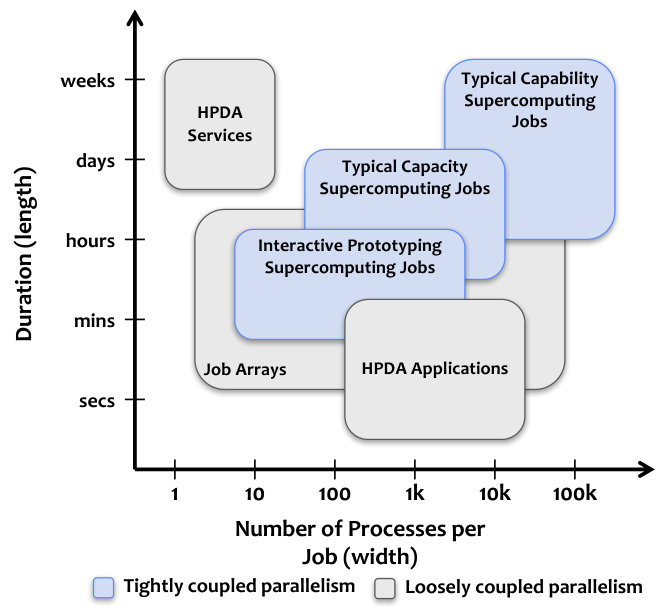

In the rapidly expanding field of parallel processing, job schedulers are the "operating systems" of modern big data architectures and supercomputing systems. Job schedulers allocate computing resources and control the execution of processes on those resources. Historically, job schedulers were the domain of supercomputers, and job schedulers were designed to run massive, long-running computations over days and weeks. More recently, big data workloads have created a need for a new class of computations consisting of many short computations taking seconds or minutes that process enormous quantities of data. For both supercomputers and big data systems, the efficiency of the job scheduler represents a fundamental limit on the efficiency of the system. Detailed measurement and modeling of the performance of schedulers are critical for maximizing the performance of a large-scale computing system. This paper presents a detailed feature analysis of 15 supercomputing and big data schedulers. For big data workloads, the scheduler latency is the most important performance characteristic of the scheduler. A theoretical model of the latency of these schedulers is developed and used to design experiments targeted at measuring scheduler latency. Detailed benchmarking of four of the most popular schedulers (Slurm, Son of Grid Engine, Mesos, and Hadoop YARN) are conducted. The theoretical model is compared with data and demonstrates that scheduler performance can be characterized by two key parameters: the marginal latency of the scheduler $t_s$ and a nonlinear exponent $\alpha_s$. For all four schedulers, the utilization of the computing system decreases to < 10\% for computations lasting only a few seconds. Multilevel schedulers that transparently aggregate short computations can improve utilization for these short computations to > 90\% for all four of the schedulers that were tested.
