Quantum simulators by design - many-body physics in reconfigurable arrays of tunnel-coupled traps

TL;DR

This paper introduces a new platform for quantum simulation using reconfigurable arrays of micro-lens generated dipole traps for ultracold atoms, enabling precise control over many-body quantum systems.

Contribution

It presents a novel method for constructing configurable many-body quantum simulators with tunable parameters and demonstrates its potential through analysis of coupled Josephson contacts.

Findings

Characterized light fields and derived Bose-Hubbard parameters for alkali atoms.

Investigated loading procedures and heating mechanisms.

Analyzed many-body resonances in coupled Josephson contacts.

Abstract

We present a novel platform for the bottom-up construction of itinerant many-body systems: ultracold atoms transferred from a Bose-Einstein condensate into freely configurable arrays of micro-lens generated focused-beam dipole traps. This complements traditional optical lattices and gives a new quality to the field of two-dimensional quantum simulators. The ultimate control of topology, well depth, atom number, and interaction strength is matched by sufficient tunneling. We characterize the required light fields, derive the Bose-Hubbard parameters for several alkali species, investigate the loading procedures and heating mechanisms. To demonstrate the potential of this approach, we analyze coupled annular Josephson contacts exhibiting many-body resonances.

Figures

Tables

Table 1. Table 1: Parameters for different atomic species. Experimental parameters of a square lattice for various bosonic alkalies at U / J = 10 𝑈 𝐽 10 U/J=10 (typical for the superfluid/Mott-insulator transition): tunneling energy J 𝐽 J , on-site interaction energy U 𝑈 U , in-plane and out-of-plane potential depths V 0 ⊥ subscript 𝑉 limit-from 0 bottom V_{0\bot} and V 0 ∥ V_{0\parallel} , adiabatic ramp time τ ramp subscript 𝜏 ramp \tau_{\text{ramp}} , scattering rate per atom Γ sc subscript Γ sc \Gamma_{\text{sc}} , and total number of scattering events N sc subscript 𝑁 sc N_{\text{sc}} for a lattice of N = 100 𝑁 100 N=100 atoms during the loading process. For the computation of U 𝑈 U it is assumed that the atoms are prepared in the state | F = 1 , m F = − 1 ⟩ ket formulae-sequence 𝐹 1 subscript 𝑚 𝐹 1 |F=1,m_{F}=-1\rangle . For the case of 7 Li that the scattering length is tuned to 5.3   nm times 5.3 nm 5.3\text{\,}\mathrm{n}\mathrm{m} via a Feshbach resonance.

Parameter		7Li	23Na	41K	87Rb
$J/h$	[Hz]	$18.6$	$3.5$	$2.3$	$1.5$
$U/h$	[Hz]	$186$	$35$	$23$	$15$
$V_{0\perp }/k_B$	[nK]	$2253$	$786$	$425$	$181$
$V_{0\parallel }/k_B$	[nK]	$4971$	$1736$	$939$	$400$
${\tau }_{\text{ramp}}$	[ms]	$62$	$330$	$502$	$770$
${\Gamma }_{\text{sc}}$	[s-1]	$0.01$	$0.003$	$0.004$	$0.002$
$N_{\text{sc}}$		$0.05$	$0.09$	$0.18$	$0.14$

Table 2. Table 2: Linear susceptibilities of Bose-Hubbard parameters versus mean potential depth V 0 ⊥ subscript 𝑉 limit-from 0 bottom V_{0\bot} for 87 Rb. The uncertainties are 95 % percent 95 95\% confidence intervals of the linear fit.

$V_{0\perp }/k_B$ (nK)	$U/J$	$C_J$	$C_U$	$C_{ϵ}$
$89.5$	1	$1.32\pm 0.07$	$0.87\pm 0.04$	$1.49\pm 0.06$
$150.5$	5	$2.09\pm 0.04$	$0.72\pm 0.03$	$1.36\pm 0.05$
$181.1$	10	$2.43\pm 0.10$	$0.67\pm 0.02$	$1.29\pm 0.04$
$200.3$	15	$2.58\pm 0.09$	$0.68\pm 0.03$	$1.32\pm 0.05$
$225.7$	25	$2.78\pm 0.11$	$0.66\pm 0.02$	$1.29\pm 0.04$

Equations

$${\hat{H}}_A=-J\sum _{⟨ij⟩}({\hat{a}}_i^{†}{\hat{a}}_j^{}+{\hat{a}}_j^{†}{\hat{a}}_i^{})+\frac{U}{2}\sum _{i=0}^{M-1}{\hat{a}}_i^{†}{\hat{a}}_i^{†}{\hat{a}}_i^{}{\hat{a}}_i^{},$$

$$\zeta (t)=\cos ({\omega }_{j}t){\cos }^{N-1}(\pi t/{\tau }_r)\stackrel{t<{\tau }_c}{⟶}\cos ({\omega }_{j}t)e^{-\frac{t^2}{{\tau }_c^2}}.$$

$$E\equiv {\mathcal{E}}_j(N_A,U)+{\mathcal{E}}_{j^{\prime }}(N_B,U)={\mathcal{E}}_0(N_A=N,U),$$

$$V_{\perp }(x,y)=-\sum _{{\mathbf{R}}_i}{V}_{0\perp }^{(i)}{e}^{-2\frac{(x-X_i{)}^2+(y-Y_i{)}^2}{w_{0\perp }^2}},$$

$$U$$

$$J$$

$$ϵ$$

$$\frac{\Delta J}{J}\approx C_J\frac{\Delta V_{0\perp }}{V_{0\perp }},\frac{\Delta U}{U}\approx C_U\frac{\Delta V_{0\perp }}{V_{0\perp }},\frac{\Delta ϵ}{ϵ}\approx C_{ϵ}\frac{\Delta V_{0\perp }}{V_{0\perp }}.$$

$$|n⟩=\frac{{\hat{\alpha }}_0^{†n}{\hat{\beta }}_0^{†N-n}}{\sqrt{n!(N-n)!}}|0⟩,{\hat{\alpha }}_l=\sum _{m=0}^{M-1}\frac{e^{-2\pi ȷ\frac{lm}{M}}}{\sqrt{M}}{\hat{a}}_m,$$

$${\hat{H}}_0=-k({\hat{\alpha }}_0^{†}{\hat{\beta }}_0+{\hat{\beta }}_0^{†}{\hat{\alpha }}_0)+\frac{u}{2}({\hat{\alpha }}_0^{†}{\hat{\alpha }}_0^{†}{\hat{\alpha }}_0{\hat{\alpha }}_0+{\hat{\beta }}_0^{†}{\hat{\beta }}_0^{†}{\hat{\beta }}_0{\hat{\beta }}_0)$$

$$|n)=\frac{{\hat{c}}_{-}^{†n}{\hat{c}}_{+}^{†N-n}}{\sqrt{n!(N-n)!}}|0⟩.$$

$$E_n=k(2n-N)+\frac{u}{4}[N(N-1)+2n(n-N)].$$

$$|\psi (t)⟩=\frac{1}{2^{N/2}}\sum _{n=0}^N{\left(\begin{array}{c}N\\ n\end{array}\right)}^{1/2}{e}^{-ȷE_{n}t/\hslash }|n)$$

$$\zeta (t)$$

$$=\cos ({\omega }_{j}t)\cos (\pi t/{\tau }_r{)}^{N-1}.$$

Full text

I Introduction

With the realization of the superfluid/Mott-insulator transition in optical lattices Greiner et al. (2001), ultracold atoms in periodic optical potentials have become a versatile toolbox for the study of quantum many-body physics Jaksch et al. (1998); Lewenstein et al. (2012). The recent invention of quantum gas microscopes Bakr et al. (2009); Sherson et al. (2010) extended this work to the observation of local properties, such as spreading of correlations Cheneau et al. (2012), dynamics of spin impurities Fukuhara et al. (2013), quantum walks Preiss et al. (2015), and entanglement entropy Islam et al. (2015). Although these setups allow for local modifications of the potential surface and the atom properties using holographic masks Bakr et al. (2009), spatial light modulators Fukuhara et al. (2013); Preiss et al. (2015) or tightly focused laser beams Weitenberg et al. (2011), the underlying lattice structure remains periodic.

Complementing this approach, recent experiments with tightly focused optical tweezers demonstrated efficient trapping and cooling of single atoms to their vibrational ground state Kaufman et al. (2012); Thompson et al. (2013). In combination with acousto-optic deflectors and spatial light modulators (SLM) this approach has been extended to few-well configurations showing tunnel-coupling Kaufman et al. (2014); Murmann et al. (2015) on one side and the deterministic preparation of larger defect-free 1D and 2D arrays with spacing too large for tunneling on the other side Barredo et al. (2016); Endres et al. (2016); Kim et al. (2016).

In this article, we introduce a novel experimental platform for quantum many-body physics by combining the advantages of the above approaches: We create versatile patterns of optical microtraps (see Fig. 1) with comprehensive single-site control using microlens arrays (MLA) Birkl et al. (2001); Kruse et al. (2010); Schlosser et al. (2011, 2012) in combination with spatial light modulators. Achievable trap parameters ensure to enter the tunneling based many-body regime for large-scale systems with full single-site control. Each site corresponds to an individual cross-talk-free diffraction-limited laser spot. Arbitrary periodic and non-periodic 2D potential surfaces on a micrometer scale with dynamic control of the trap parameters can be implemented. For atoms transferred from a Bose-Einstein condensate (BEC) into this optical potential defect free occupation of each site is automatic. In addition, we can dial-up tunneling rates, on-site interactions, and trap frequencies for each site individually or in parallel in order to cross from the superfluid to the strongly interacting many-body regime. This gives a new quality to the experimental study of, e.g., transport phenomena, finite-size effects, crystal defects, quasi-periodic structures, disorder, frustration, 2D magnetism, and their dynamic control. Consequently, this bottom-up approach significantly extends the successful top-down approach to quantum simulation using ’traditional’ optical lattices.

In contrast to interfering laser waves, our architecture provides direct single-site control while beeing phase insensitive and structurally robust. Compared to state of the art holographic trap arrays generated by phase modulating spatial light modulators Barredo et al. (2016); Kim et al. (2016), it accesses the tunneling regime and omits pixelation constraints imposed to trap spacing, homogeneity and system size. With regard to potentials generated by acousto-optics through multi-tone synthesis Endres et al. (2016) or time-averaging Zimmermann et al. (2011), it is scalable and avoids additional heating.

The paper is organized as follows: In section II we give a description of our setup and show measurements and simulations of the light field for several geometries. In section III we analyze a prototypical application consisting of two weakly coupled ring lattices. In section IV we study the experimental feasibility of our approach by characterizing the light fields using measurements and simulations, computing the Bose-Hubbard parameters, and analyzing the impact of light scattering. Finally, in section V we conclude and provide an outlook to additional applications.

II Optical potential and experimental setup

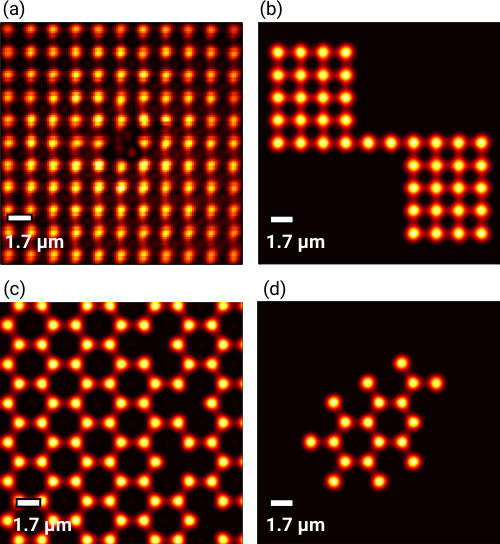

The intensity distributions of selected configurations is depicted in figure 1: (a) square lattice with a defect implemented by site-selective control with the SLM, (b) atomtronic diode Pepino et al. (2009) as a pinboard for various atomtronics devices Amico et al. (2015), (c) hexagonal lattice as in graphene, including defects, (d) or even complex organic molecules Lühmann et al. (2015) like quinolones, a family of antibiotics. A schematic representation of the experimental setup is shown in figure 2. Two subsystems consisting of a microlens array and a spatial light modulator each are combined to create flexible 2D potential geometries (red from left in Fig. 2) and site-selective control of the tunneling rates (blue from right in Fig. 2). The intensity distribution $\mathcal{I}(\mathbf{x})$ is proportional to the optical dipole potential experienced by the atoms: $V(\mathbf{x})=\mathcal{D}^{2}\mathcal{I}(\mathbf{x})/\hbar\delta,$ with $\mathcal{D}$ being the effective atomic dipole and $\delta$ the detuning Cohen-Tannoudji (1992); Steck (2007). We compose the total potential $V(\mathbf{x})=V_{\bot}(\mathbf{x})+V_{\parallel}(\mathbf{x}),$ which confines atoms in a planar lattice-like geometry. Here, $V_{\bot}$ is a microlens-generated 2D optical dipole trap array and the light sheet potential $V_{\parallel}$ provides out-of-plane confinement. In this novel platform, we can implement many-body states with defined particle number in freely configurable geometries. The intensity distribution shown in Fig. 1 (a) is obtained by a $65$-fold demagnification of the focal plane of a fused-silica MLA with $110\text{\,}\mathrm{\SIUnitSymbolMicro m}$-period using relay optics with $\text{NA}=0.68$ giving $d=$1.7\text{,}\mathrm{\SIUnitSymbolMicro}\mathrm{m} and $w_{0}=$0.71\text{\,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}. Linearly polarized light with a wavelength of $\lambda=$780\text{,}\mathrm{n}\mathrm{m} and a liquid-crystal-based SLM for single-site control are used. Figure 1 (b) to (d) and Fig. [3](#S2.F3) (b) depict simulated intensity distributions for an equivalent diffraction-limited optical system and $\lambda=$1064\text{\,}\mathrm{n}\mathrm{m} using optical design software. This results in $d=$1.7\text{,}\mathrm{\SIUnitSymbolMicro}\mathrm{m} and $w_{0}=$0.74\text{\,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}. The value of the trap spacing is the result of an optimization of the trade-off between maximum tunneling strength and cross-talk-free single-site control.

III Coupled Josephson rings

An example for the potential of this approach is a Josephson point contact between two one-dimensional ring lattices (Fig. 3). This paves the road from the investigation of double-well dynamics Albiez et al. (2005); Levy et al. (2007); Kaufman et al. (2014); Murmann et al. (2015) to the study of many-body physics of more complex systems, i. e., quantum dots or superfluid nuclei Kleber and Schmidt (1971), allowing for the investigation of multi-particle resonances in a fully controlled fashion. In the configuration of Fig. 3 (a), ring $A$ constitutes a 1D periodic, $M$-site lattice with a Bose-Hubbard Hamilton operator

[TABLE]

where $J$ is the tunneling energy, $U$ is the on-site interaction strength, ${\hat{a}_{i}}$ is the bosonic particle annihilation operator for site $i$, and $\langle ij\rangle$ denotes the summation over nearest-neighbor pairs. For ring $B$, $\hat{H}_{B}$ is obtained analogously by substitution ${\hat{a}_{i}}\rightarrow{\hat{b}_{i}}$. At the site $i=0$, we introduce a weak link of strength $K<J/M$ between the rings. Thus, the total energy is $\hat{H}=\hat{H}_{A}+\hat{H}_{B}-K({\hat{a}_{0}^{\dagger}}{\hat{b}^{\phantom{{\dagger}}}}_{0}+{\hat{b}^{\dagger}}_{0}{\hat{a}_{0}^{\phantom{{\dagger}}}})$. Experimentally, the weak link can be tuned by increasing the spacing between both rings or by applying a tightly focused blue-detuned beam increasing the potential barrier between the rings (cf. ’blue side’ of Fig. 2). After loading $N$ atoms into the interacting ground state of the isolated ring $A$, we connect the junction and observe oscillations in the population inversion $\zeta=(N_{A}-N_{B})/N$ between both rings, with $N_{A}=\sum_{i}\langle{\hat{a}_{i}^{\dagger}}{\hat{a}_{i}^{\phantom{{\dagger}}}}\rangle$ and $N_{B}=\sum_{i}\langle{\hat{b}^{\dagger}}_{i}{\hat{b}^{\phantom{{\dagger}}}}_{i}\rangle$.

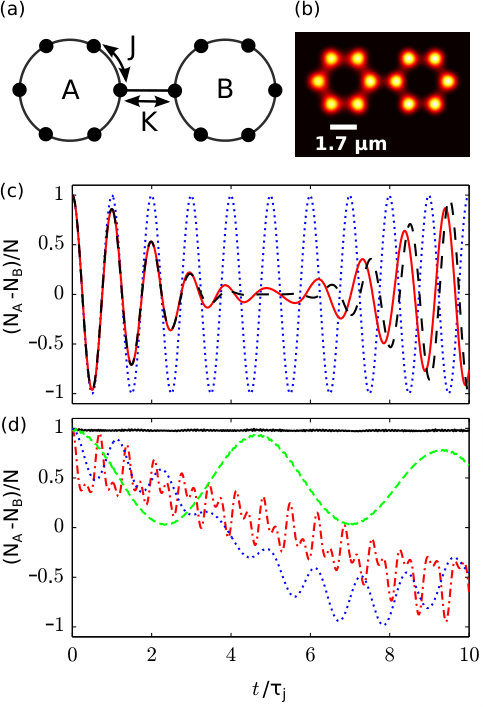

We compute the dynamics for arbitrary interaction strength by exact numerical diagonalization Sidje (1998). In Fig. 3 (c), (d), we show the population oscillations for $M=6$ sites and $N=4$ particles for different on-site interaction strengths. For $NU\ll J$, the non-interacting ground-states of the isolated rings mostly define the dynamics as shown in Fig. 3 (c) for $U=0$ (c, blue) and $U=0.02J$ (c, red), respectively. A two-site Bose-Hubbard model with rescaled interaction energy $u=U/M$ and tunneling strength $k=K/M$ effectively captures the physics. Within first order perturbation theory, the population inversion reads (cf. appendix A)

[TABLE]

For weak on-site interaction ${u\ll k}$, the Josephson oscillations with period $\tau_{j}=2\pi/\omega_{j}=h/2k$ collapse on the time scale $\tau_{c}=\tau_{r}\sqrt{2/(\pi^{2}(N-1))}$ and revive subsequently at $\tau_{r}=h/u$ (dashed black line in Fig. 3 (c)). In the limit $u=0$, these Josephson oscillations persist indefinitely. Both results agree with exact diagonalization, as shown in Fig. 3 (c).

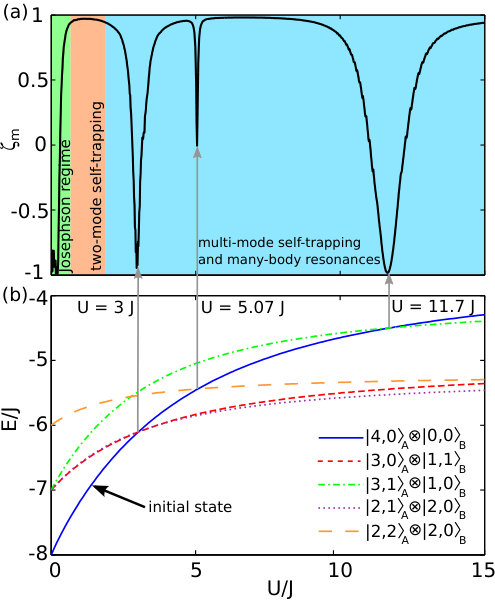

For larger interaction strengths (Fig. 3 (d)), the rich many-body dynamics of the coupled rings moves into focus: For $U\approx J$, the system enters the self-trapping regime and the population remains trapped in ring $A$ (d, black) as in a structureless double well potential Albiez et al. (2005).

However, the salient features are pronounced many-body resonances with significant population transfer for particular interaction strengths deep in the self-trapping regime (d, red, green, blue). To quantify the magnitude of the population transfer, we define $\zeta_{m}(U)$ as the minimal value of the population inversion in the interval $0<t<10\,\tau_{j}$. Figure 4 (a) shows $\zeta_{m}(U)$ as a function of $U$, revealing the Josephson and the self-trapping regimes, as well as the three pronounced many-body resonances of Fig. 3 (d). These can be explained from the energy spectrum $\mathcal{E}_{j}(N,U)$ and the eigenstates $|N,j\rangle$ of isolated rings as a function of particle number $N$ and the interaction strength $U$ (cf. Fig. 4 (b)). Here, $j$ is an integer with $-M/2<j\leq M/2$ corresponding to the quasi momentum $q_{j}=2\pi j/(Md)$ enumerating the degenerate eigenvalues ($\mathcal{E}_{j}=\mathcal{E}_{-j}$) in ascending order with $|j|$. If for a given interaction strength the energy of the initial state $|N,0\rangle_{A}\otimes|0,0\rangle_{B}$ coincides with the energy $E$ of another state $|N_{A},j\rangle_{A}\otimes|N_{B}=N-N_{A},j^{\prime}\rangle_{B}$, i. e.

[TABLE]

we observe a resonance in the population transfer. In our system this will be accessible to direct experimental observation. A comparable effect has been predicted in the mean-field limit of Josephson junctions where resonant coupling to higher modes facilitates population transfer at large interaction strengths Juliá-Díaz et al. (2010). Further, interaction-induced tunneling resonances in tilted optical lattices have been observed Meinert et al. (2016).

IV Experimental feasibility

Can this novel platform for many-body physics work? To give evidence for this, we analyze the reciprocal relations between large, optically accessible trap separations $d$ allowing for single-site addressability on one hand, and sufficiently high tunneling rates on the other hand. These apparently conflicting conditions depend themselves on the in-plane and out-of-plane optical potentials, $V_{\perp}$ and $V_{\parallel}$ respectively, which in addition affect the on-site interaction energy $U$.

IV.1 Light field

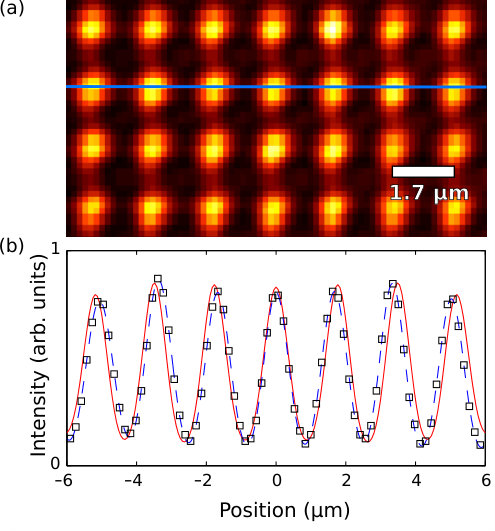

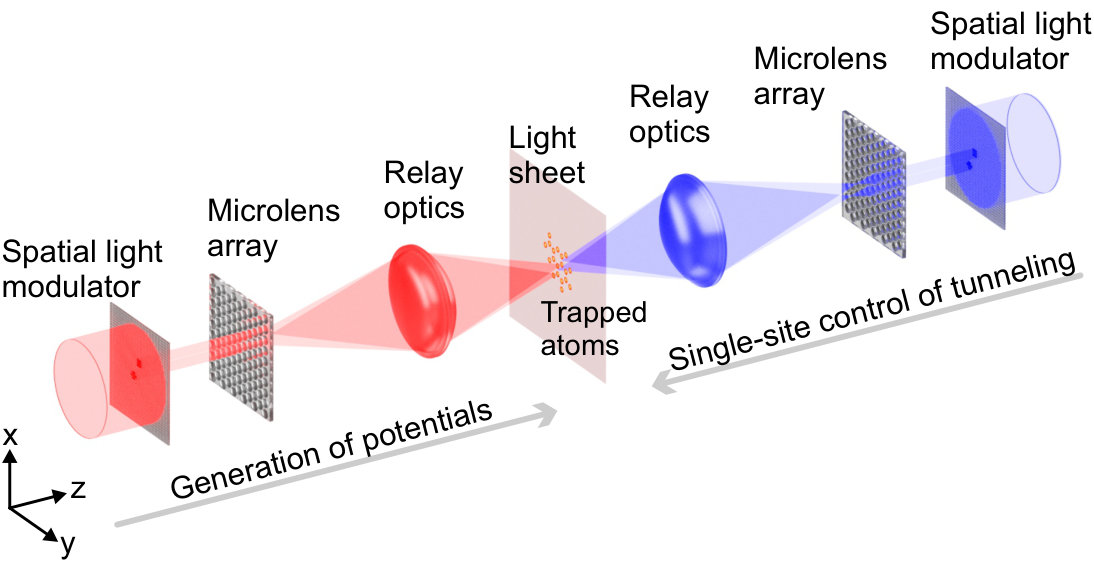

In order to characterize the optical potential we analyze measurements and simulations of the light field. Figure 5 (a) shows the central part of measured intensity distribution using the setup described in section II. In Fig. 5 (b) a cut of this intensity distribution (black squares) is compared to the result of a simulation of the full optical setup using commercial optical design software (red line) and a fit using the sum of seven Gaussian functions (dashed blue line). This analysis reveals that the in-plane potential is well approximated by a sum of Gaussian wavelets representing the trapping sites $\mathbf{R}_{i}=(X_{i},Y_{i})$

[TABLE]

with local potential depths $V_{0\bot}^{(i)}$ controlled by the SLM. For a wavelength of $\lambda=$1064\text{,}\mathrm{n}\mathrm{m} and a diffraction limited objective our simulations yield $d=$1.7\text{\,}\mathrm{\SIUnitSymbolMicro}\mathrm{m} and $w_{0\bot}$ = $0.74\text{\,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}$. Further, the light sheet potential in the relevant region is given by $V_{\parallel}(z)=-V_{0\parallel}\exp(-2z^{2}/w_{0\parallel}^{2})$, assuming an elliptical Gaussian beam with an out-of-plane width set to $w_{0\parallel}=$ $2.5\text{\,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}$.

IV.2 Bose-Hubbard parameters

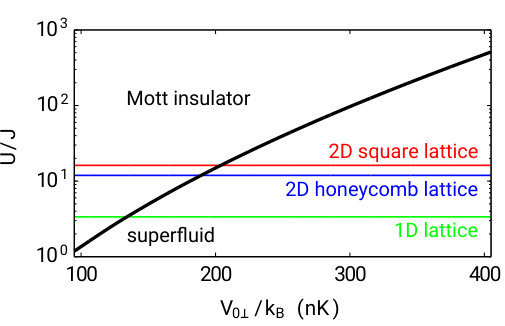

Using the parameters discussed in the preceding paragraph, we compute the interaction- and tunneling strengths from the eigenfunctions of the single particle Hamiltonian operator $\hat{H}_{\text{sp}}=\hat{\mathbf{p}}^{2}/(2m)+V(\hat{\mathbf{x}})$. Since the potential $V(\mathbf{x})\approx V_{\bot}(x,y)+V_{\parallel}(z),$ is approximately separable, the problem factorizes into an in-plane and an out-of-plane part. For the out-of-plane part $\phi(z)$, we choose the ground- state of the corresponding 1D Schrödinger equation. For the in-plane part, we assume periodic boundary conditions and perform a band structure calculation Walters et al. (2013), to obtain the Wannier functions $\varphi_{i}(x,y)$ at lattice site $i$. We proceed by calculating the Bose-Hubbard parameters

[TABLE]

Here, $U$ is the on-site interaction strength, $J$ is the tunneling parameter between adjacent sites $i$ and $j$, and $\epsilon$ is the local single-particle energy. Fig. 6 depicts the results for 87Rb atoms in the state $|5^{2}S_{1/2},F=1,m_{F}=-1\rangle$ with scattering length $a_{s}=$ 100.4 $a_{0}$ in 1D, 2D square, and 2D honeycomb lattices. In table 1 the relevant parameters for various bosonic alkali species are given at $U/J=10$. With reported life times in BECs in optical potentials well above $10\text{\,}\mathrm{s}$, these results confirm that the superfluid/Mott-transition can indeed be reached for various lattice geometries at realistic experimental parameters. The accessible range of $U$ and $J$ is determined by limitations on the potential depth. We expect the lower limit at $V_{0\bot}=h^{2}/(2md^{2})$ as it was shown that the single-band Bose-Hubbard model ceases to be valid for traps shallower than that Pilati and Troyer (2012); Astrakharchik et al. (2016). At this point $J$ is about $20$ times larger and $U$ about $3$ times smaller compared to the values given in table 1. The opposite limit of deep traps allows to effectively implement $U/J\to\infty$ due to the exponential suppression of $J$.

IV.3 Fluctuations of potential depth

Experimental parameters, like the optical potential depth, are afflicted by spatio-temporal fluctuations. Thus, the parameters $U$, $J$, and $\epsilon$ acquire the uncertainties $\Delta U$, $\Delta J$, and $\Delta\epsilon$, respectively. Fortunately, our MLA is inherently robust against temporal changes in spacing or shape of the traps. Therefore, we expect the temporal fluctuations of these quantities to be negligible. However, the depth of each trap is determined by the laser power that illuminates the respective microlens giving rise to temporal fluctuations of this quantity. Further, production tolerances of the MLA and aberrations of the demagnification optics may result in spatial fluctuation of the optical potential parameters. In the following, we will quantify the variations of the Bose- Hubbard parameters due to fluctuations of the trap depths.

In order to compute the influence of the aforementioned fluctuations, we solve the 2D Schrödinger equation for a stochastic potential $V_{\bot}(x,y)$ of equation (4). We draw the local trap depths as identically distributed normal variables $V_{0\bot}^{(i)}$ with mean $V_{0\bot}$ and standard deviation $\Delta V_{0\bot}$. The resulting potential is no longer periodic so instead of using band structure calculation we apply the Lanczos method to compute the lowest energetic eigenstates of the single-particle Hamilton operator $\hat{H}_{\text{sp}}$. We calculate maximally localized superpositions of the lowest energy eigenstates that correspond to the Wannier functions in the periodic case. In the absence of fluctuations, i. e., $\Delta V_{0\bot}=0$, the systematic relative error of both methods is on the $10^{-3}$ level for all Bose-Hubbard parameters. For $\Delta V_{0\bot}>0$, we used $100$ samples to estimate the variance of the Bose-Hubbard parameters. For small fluctuations of the trap depth $\Delta V_{0\bot}/V_{0\bot}\ll 1$, we find linear relations

[TABLE]

with the susceptibilities $C_{J}$, $C_{U}$, and $C_{\epsilon}$ of the respective Bose-Hubbard parameter. They depend on the working point $V_{0\bot}$ and are given in table 2 for 87Rb.

We estimate the experimental fluctuations of the trap depths by assuming that the total power of the laser illuminating the SLM can be stabilized to a relative uncertainty of $0.1\%$. Further, we presume that the illumination of the MLA is controlled by a liquid crystal based SLM with $768$ pixel per dimension combined with a polarizing beam splitter. The transmission of each pixel can be controlled in $256$ steps Kruse et al. (2010). For a square MLA consisting of $25\times 25$ lenses with circular aperture, $741$ pixels per lens are available. This can be used to compensate static imperfections arising from production tolerances, aberrations, or an inhomogeneous beam profile on the $\Delta V_{0\bot}/V_{0\bot}=(741\cdot 256)^{-1}=5.3\cdot 10^{-6}$ level.

In order to allow for tunneling between adjacent traps, the difference between the single particle energies $\Delta\epsilon$ must be smaller than the tunneling parameter $J$. Due to the small ratio of $\epsilon/J$ this was found to be challenging in experiments with optical tweezers Kaufman et al. (2014); Murmann et al. (2015). Our estimate for the spatial fluctuations of the trap depth results in $\Delta\epsilon/J=1\%$ at $U/J=10$. Comparing this value to the parameters of experiments with double-well configurations Kaufman et al. (2014); Murmann et al. (2015) shows that unobstructed tunneling is feasible in our setup. Temporal fluctuations in the laser power result in global changes in the potential depth and are therefore not relevant for this aspect.

Measurements rely on averages over repeated experimental runs. Therefore, in order to resolve structures like the many-body resonances shown in Fig. 4 (a) spatial and temporal fluctuations need to be small compared to the respective structure’s width. For the sharp resonance at $U/J=5.07$, we find a theoretical full width at half maximum of $0.06\;U/J$. Using $\Delta V_{0\bot}/V_{0\bot}=0.1\%$ for the expected experimental fluctuations and the linear susceptibilities from table 2, we obtain an expected uncertainty of $\Delta(U/J)=0.015$. Therefore, even the sharpest resonance in Fig. 4 (a) can be resolved.

IV.4 Light scattering

The heating induced by the loading procedure McKay and DeMarco (2011) is a serious concern. Typically, low-entropy states are produced by preparing a BEC in a large scale harmonic trap and subsequently ramping up the lattice potential. Sufficiently long ramp times $\tau_{\text{ramp}}$ will lead to an adiabatic loading process conserving the entropy of the initial state. To estimate the required $\tau_{\text{ramp}}$, we scale the experimental result of reference Sherson et al. (2010) according to the lattice spacing $d=$1.7\text{,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}. The results are given in table [1](#S4.T1) and range between $\tau_{\text{ramp}}=$62\text{\,}\mathrm{m}\mathrm{s} for 7Li and $\tau_{\text{ramp}}=$770\text{,}\mathrm{m}\mathrm{s}$$ for 87Rb. However, considerably faster ramps might be possible in our platform since it facilitates homogeneous lattice potentials omitting transport through Mott phases which limits ramp speeds in conventional experiments Dolfi et al. (2015).

Finally, the scattering rate of photons $\Gamma_{\text{sc}}$ from the light field generating the optical potential has to be considered. This is the major source of heating in optical lattice experiments McKay and DeMarco (2011). To estimate this effect, we consider the impact of a single scattering event and their total number during the adiabatic loading process lasting $\tau_{\text{ramp}}$. The total number of scattering events $N_{\text{sc}}=N\int_{0}^{\tau_{\text{ramp}}}\Gamma_{\text{sc}}(t)dt$, scales with the number of atoms $N$. We consider a $10\times 10$ lattice filled with one atom per site, giving $N=100$. Table 1 confirms that for a linear ramp with length $\tau_{\text{ramp}}$ and final lattice parameters $V_{0\perp}$ and $V_{0\parallel}$ hardly any scattering event occurs. The impact of a single scattering event can be estimated to be ten times more severe in comparison to traditional optical lattices, however the low overall number of events renders the adverse effect negligible, nevertheless.

V Conclusions and Outlook

In conclusion, we have introduced and analyzed a novel experimental platform for a freely configurable quantum simulator for many-body physics using ultra-cold atoms in lattice-type geometries of focused beam dipole traps. With a large lattice spacing ($d=$1.7\text{,}\mathrm{\SIUnitSymbolMicro}\mathrm{m}$$) this setup enables dynamic individual-site control of each potential well, every trapped atom and individual interaction strength without impact on neighboring sites. Simulations based on measured optical intensities prove the feasibility of the cross-over to the strongly interacting many-body regime. As a first application, we have designed a weak Josephson link of two ring lattices. The analysis of a Bose-Hubbard model exhibits interesting many-body resonances for the enhancement of population transfer in the strongly interacting regime.

In the future, even more advanced options of our scheme can be foreseen: 1) The setup’s dynamic single-site control can be exploited to lower the entropy of the final many-body state by generating an inhomogeneous envelope for the lattice potential resulting in the coexistence of spatially separated Mott-insulator and superfluid phases. The superfluid part carries most of the systems entropy and can be removed by emptying the respective traps Bernier et al. (2009); McKay and DeMarco (2011). The resulting low entropy state opens a route to cold-atom analogs of high-Tc superconductors McKay and DeMarco (2011). 2) The dynamic control over local potential depths can be utilized for Floquet engineering Meinert et al. (2016); Goldman and Dalibard (2014) with modulation frequencies of up to $10\text{\,}\mathrm{k}\mathrm{H}\mathrm{z}$, fully adjustable modulation amplitudes, and single-site addressability. 3) A promising alternative to the loading schemes starting with BECs arises from the implementation of Raman side-band cooling in individual traps Kaufman et al. (2012); Thompson et al. (2013) with the targeted many-body state assembled atom by atom Barredo et al. (2016); Endres et al. (2016); Kim et al. (2016) out of the low entropy Mott-insulator phase. This facilitates studies of the many-body physics of atomic species, which are not accessible to BEC, or arbitrary mixtures of species.

Acknowledgments

We thank J.-N. Schmidt for measuring the experimental intensity distributions. M.R.S. and R.W. acknowledge support from the German Aeronautics and Space Administration (DLR) through grant 50 WM 1557. M.S. and G.B. acknowledge support by the Deutsche Forschungsgemeinschaft (DFG) through grant BI647/6-1 within the Priority Program SPP 1929 (GiRyd).

Appendix A Weak interaction limit

Here, we discuss the regime of weak interactions for the system discussed in section III. For the non-interacting system ($U=K=0$), the ground state manifold $\mathcal{G}_{0}$ is $N+1$-fold degenerate since the distribution of the particles between the rings has no effect on the energy. The eigenstates

[TABLE]

are labeled by $0\leq n\leq N$ and are defined by the Fourier operators $\hat{\alpha}_{l}$ for ring A and $\hat{\beta}_{l}$ for ring B with $0\leq l<M$. For $NU,K\ll J$, only states within $\mathcal{G}_{0}$ contribute to the system’s dynamics. By restricting the dynamics to the two lowest Fourier amplitudes, the Hamilton operator reads

[TABLE]

up to an additive constant. This is an effective two-site Bose-Hubbard model with tunneling strength $k=K/M$ and interaction strength $u=U/M$. For $u=0$, the canonical transformation $\hat{c}_{\pm}=(\hat{\alpha}_{0}\pm\hat{\beta}_{0})/\sqrt{2}$ diagonalizes (10) and the eigenstates read

[TABLE]

To first order in $u$, the energy $E_{n}=(n|\hat{H}_{0}|n)$ reads

[TABLE]

If all $N$ atoms are initially in ring $A$, i. e., $|\psi(0)\rangle=|N\rangle$, it evolves approximately as

[TABLE]

introducing the binomial coefficient. Hence, the population inversion

[TABLE]

follows (cf. Eq. (3) in the main paper). A similar analysis has been performed for the two-site Bose-Hubbard model in the limit of large $N$ where the collapse is predicted to have a Gaussian shape Veksler and Fishman (2015).
