Non-collinear magnetic structure and multipolar order in Eu$_2$Ir$_2$O$_7$

TL;DR

This study uses first-principles calculations to explore the magnetic phases of Eu$_2$Ir$_2$O$_7$, revealing stable all-in/all-out antiferromagnetic order, the importance of lattice distortion, and the presence of multipolar moments.

Contribution

It provides a detailed phase diagram and highlights the role of lattice distortion and multipolar moments in the magnetic properties of Eu$_2$Ir$_2$O$_7$, which is a novel insight.

Findings

Stable all-in/all-out antiferromagnetic ground state identified

Trigonal lattice distortion stabilizes the AIAO state

Presence of significant octupolar moments in magnetic states

Abstract

The magnetic properties of the pyrochlore iridate material Eu$_2$Ir$_2$O$_7$ (5$d^5$) have been studied based on the first principle calculations, where the crystal field splitting $\Delta$, spin-orbit coupling (SOC) $\lambda$ and Coulomb interaction $U$ within Ir 5$d$ orbitals are all playing significant roles. The ground state phase diagram has been obtained with respect to the strength of SOC and Coulomb interaction $U$, where a stable anti-ferromagnetic ground state with all-in/all-out (AIAO) spin structure has been found. Besides, another anti-ferromagnetic states with close energy to AIAO have also been found to be stable. The calculated nonlinear magnetization of the two stable states both have the d-wave pattern but with a $\pi/4$ phase difference, which can perfectly explain the experimentally observed nonlinear magnetization pattern. Compared with the results of the non-distorted structure, it turns out that the trigonal lattice distortion is crucial for stabilizing the AIAO state in Eu$_2$Ir$_2$O$_7$. Furthermore, besides large dipolar moments, we also find considerable octupolar moments in the magnetic states.

Figures

Equations

$$H$$

$$d_{R\alpha }^{†}$$

$${\rho }^R=\sum _{K_1{K}_{2}KM}{C}_{K_1{K}_2}^{KM}{O}_{K_1{K}_2}^{KM},$$

$$C_{K_1{K}_2}^{KM}=\text{Tr}\left[{\rho }^R{\left(O_{K_1{K}_2}^{KM}\right)}^{†}\right].$$

Full text

The ordering of electronic states is one of the fundamental problems in condensed matter physics. In $3d$ transition metal compounds, the ordered states can be described quite well by the product of orders in orbital and spin subspaces Imada et al. (1998), because the spin-orbit coupling (SOC) here is weak and can be treated perturbatively. While in rare-earth compounds Santini et al. (2009), the SOC is strong enough to bind the orbital and spin degrees of freedom into rigid objects described by the total angular momentum, and the ordered states can then be well understood in terms of the moments with high angular momentum which splits into atomic multiplets under crystal field. Unlike the above two limits, the situation in $4d$ and $5d$ transition metal compounds is unique Witczak-Krempa et al. (2014). On one hand, the SOC is strong enough to combine the orbital and spin degrees of freedom to form some complex orders. While on the other hand, the SOC is still far away from the limit where the low energy physics can be entirely determined within the subspace with a fixed total angular momentum. In fact, the SOC strength in these compounds is comparable with that of the crystal field so that the magnetic orders there can involve multiple total angular momentum states.

The pyrochlore iridates Taira et al. (2001); Gardner et al. (2010) are typical $5d$ transition metal compounds with many novel properties already being discussed extensively in the literatures, including the non-collinear magnetic order Wan et al. (2011); Witczak-Krempa and Kim (2012); Disseler et al. (2012); Witczak-Krempa et al. (2013); Zhao et al. (2011); Shinaoka et al. (2015); Prando et al. (2016), the metal-insulator transition Yanagishima and Maeno (2001); Matsuhira et al. (2007); Yang and Kim (2010); Matsuhira et al. (2011); Ishikawa et al. (2012); Tafti et al. (2012); Sakata et al. (2011); Zhang et al. (2017), anomalous Hall effect Machida et al. (2007, 2010); Hu et al. (2012), topological insulator and Weyl semimetal phase Wan et al. (2011); Pesin and Balents (2010); Yang and Kim (2010); Witczak-Krempa and Kim (2012); Witczak-Krempa et al. (2014); Sushkov et al. (2015); Chen and Hermele (2012); Kargarian et al. (2011); Kurita et al. (2011); Guo and Franz (2009); Chen et al. (2015); Hu et al. (2015), and the chiral metallic states in the domain wall Yamaji and Imada (2014); Ma et al. (2015); Yamaji and Imada (2016). Among them, the magnetic order is the most fundamental one which determines most of the electronic properties. In Ref. Wan et al. (2011), by using the density functional theory plus $U$ (DFT+$U$) method Wan et al. obtained an all-in/all-out (AIAO) order in Y2Ir2O7, which will generate the Weyl semimetal phase if the value of the order parameter falls into a proper region. Most recently, Liang et al. Liang et al. (2017) have systematically studied the nonlinear magnetization in Eu2Ir2O7 ($5d^{5}$) by using torque magnetometry, where a magnetic field is applied in $a$-$b$ plane and continuously rotated around $c$-axis by $2\pi$. They found a nonlinear magnetization normal to the $a$-$b$ plane with a $d$-wave pattern as a function of the rotation angle. Surprisingly, they also found that the $d$-wave pattern has a $\pi/4$ phase shift when the direction of the field $\boldsymbol{H_{\text{fc}}}$ applied during the field cooling process changes from $[\bar{1}\,\bar{1}\,0]$ to $[\bar{1}10]$. Their results indicate that there is another low energy metastable magnetic structure besides AIAO, which might be stabilized by the field cooling processes.

Inspired by the experiments on the nonlinear magnetization in Eu2Ir2O7 Liang et al. (2017), in the present letter, we reexamine the magnetic structure of the pyrochlore iridates. By using the DFT together with the unrestricted Hartree-Fock (UHF) mean-field method, we study the full description of the magnetic orders in Eu2Ir2O7. Our numerical studies lead to three important conclusions listed below. i) Besides AIAO there is an additional locally stable magnetic structure in this system, which is very close to AIAO in energy. The existence of this additional metastable magnetic state can perfectly explain the puzzle in the nonlinear magnetization measurements Liang et al. (2017). ii) The real ground state of Eu2Ir2O7 is extremely sensitive to the trigonal lattice distortion of the pyrochlore structure and AIAO magnetic state can be stabilized only with large enough trigonal distortion. iii) In all these magnetic states mentioned above, in addition to the magnetic dipolar moments, we also find high-order multipolar moments (octupole) Santini et al. (2009) with considerable amplitude as well. Recently, possible non-dipolar hidden order has also been implied from the second harmonic generation (SHG) experiments on Sr2IrO4 Zhao et al. (2016). The major difference between the multipolar orders discussed in Sr2IrO4 Zhao et al. (2016) and that in the present paper is that the former one breaks the inversion symmetry. Due to the similarity in the local electronic structure, the results obtained in the present study may also be helpful on revealing the microscopic origin of the hidden orders in Sr2IrO4.

We take the experimental lattice parameters of Eu2Ir2O7 from Ref. Millican et al. (2007), that is $a=10.243\AA$ and $x=0.3334$. For this $x$ value, the Oxygen octahedron has a trigonal distortion (compression along the local [111] direction). We also do calculations for the non-distorted structure ($x=5/16$) for comparison. The DFT part of the calculations have been done by the Vienna Ab-initio Simulation Package (VASP) Kresse and Furthmüller (1996). A tight binding (TB) Hamiltonian consisting of $t_{2g}$ orbitals from four Ir atoms is then obtained from the non-SOC DFT calculation by the maximally localized Wannier functions method Marzari et al. (2012); Mostofi et al. (2008). The $t_{2g}$ orbitals are defined with respect to the local Oxygen octahedron $XYZ$-coordinate sup . An atomic SOC term is added to the TB Hamiltonian to account for the strong SOC of Ir atoms with its strength $\lambda$ being determined by fitting the first principle results. To consider the strong Coulomb interaction among Ir $t_{2g}$ orbitals, an on-site Coulomb interaction term $U$ is included. The total Hamiltonian can be written as,

[TABLE]

where, $i,j$ are the indices of primitive cell, $R,R^{\prime}=1,2,3,4$ are the indices of Ir sites, and $\alpha,\beta,\delta,\gamma$ are the combined orbital-spin indices. Under the UHF approximation, the Coulomb interaction terms are approximated as,

[TABLE]

where, $\rho_{\alpha\beta}^{R}=\Braket{d_{R\alpha}^{\dagger}d_{R\beta}}$ is the local density matrix for Ir atom at site-$R$ and is determined self-consistently. This TB+UHF method is numerically more stable than ab-initio DFT+$U$ method and the total energy can converge to very high accuracy ($\sim 0.01$ meV) sup .

The local density matrix obtained above gives the complete description of the magnetic orders in Eu2Ir2O7. It can be decomposed into 36 single-particle irreducible tensor (or multipolar) operators $O_{K_{1}K_{2}}^{KM}$ defined in the spin-orbital space Santini et al. (2009); Blum (2012),

[TABLE]

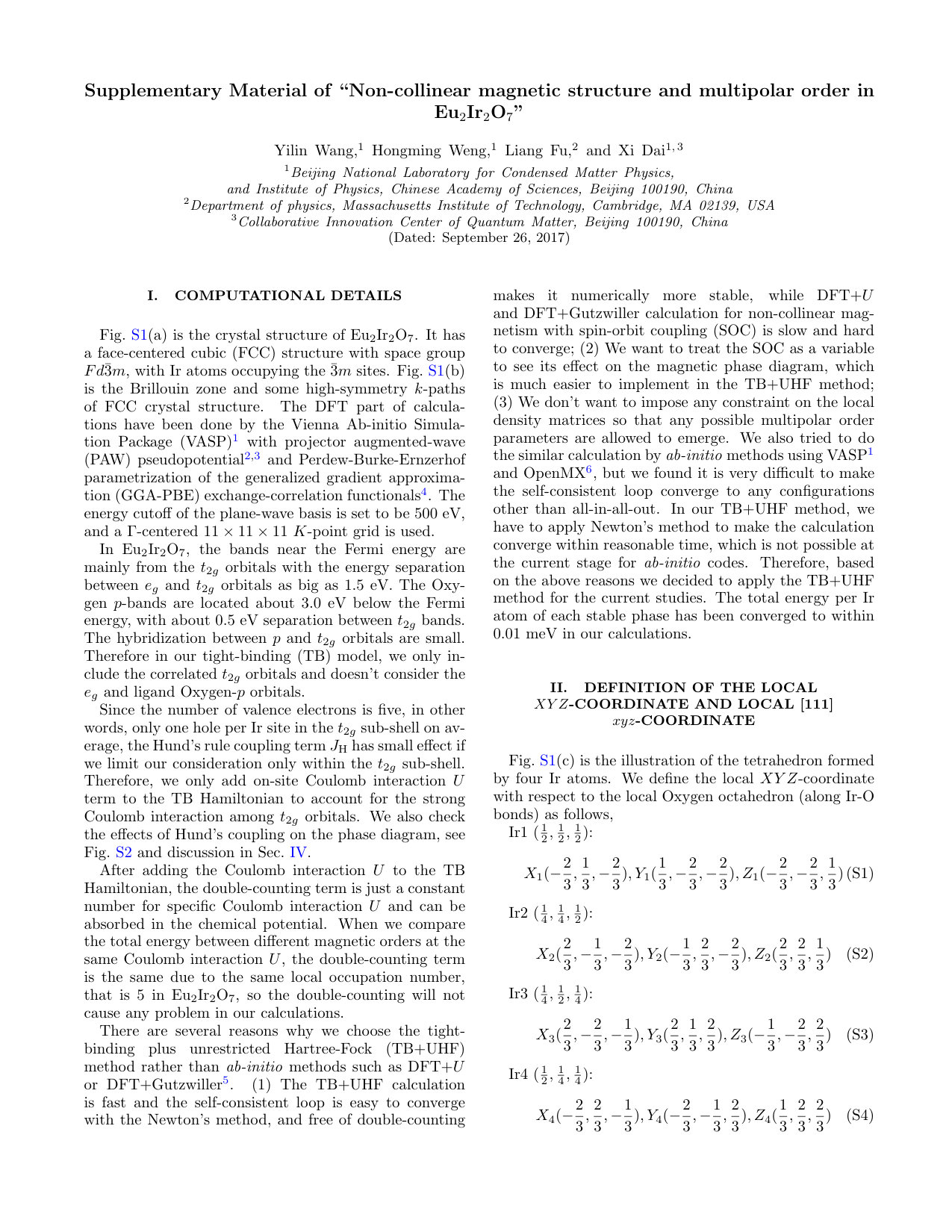

Note that all of these operators are defined with respect to the local [111] $xyz$-coordinate sup for each Ir atom, i.e., $z$ is along local [111] direction. These 36 operators serve as the complete set of the possible order parameters (OPs) and the details of their definition can be found in the Supplementary Material (SM) sup .

The phase diagrams with respect to the strength of SOC $\lambda$ and Coulomb interaction $U$ for both the distorted and non-distorted structures are obtained and shown in Fig. 2. With SOC, the $t_{2g}$ bands will be split into $j_{\text{eff}}=1/2$ and $j_{\text{eff}}=3/2$ subbands, and the $j_{\text{eff}}=1/2$ subbands are half-filled. For small $U$, the ground state is paramagnetic, which is unstable against magnetic oder when $U$ reaches to some critical value. Assume that the magnetic unit cell doesn’t enlarge, all the possible magnetic structures in Eu2Ir2O7 can be classified by finding the magnetic co-representation for the tetrahedron group, which leads to $c\Gamma_{\text{mag}}=1c\Gamma_{3+}+1c\Gamma_{5+}+1c\Gamma_{7+}+2c\Gamma_{9+}$ Wills et al. (2006). We have tried all these possible magnetic configurations in our calculations to determine the most stable magnetic order.

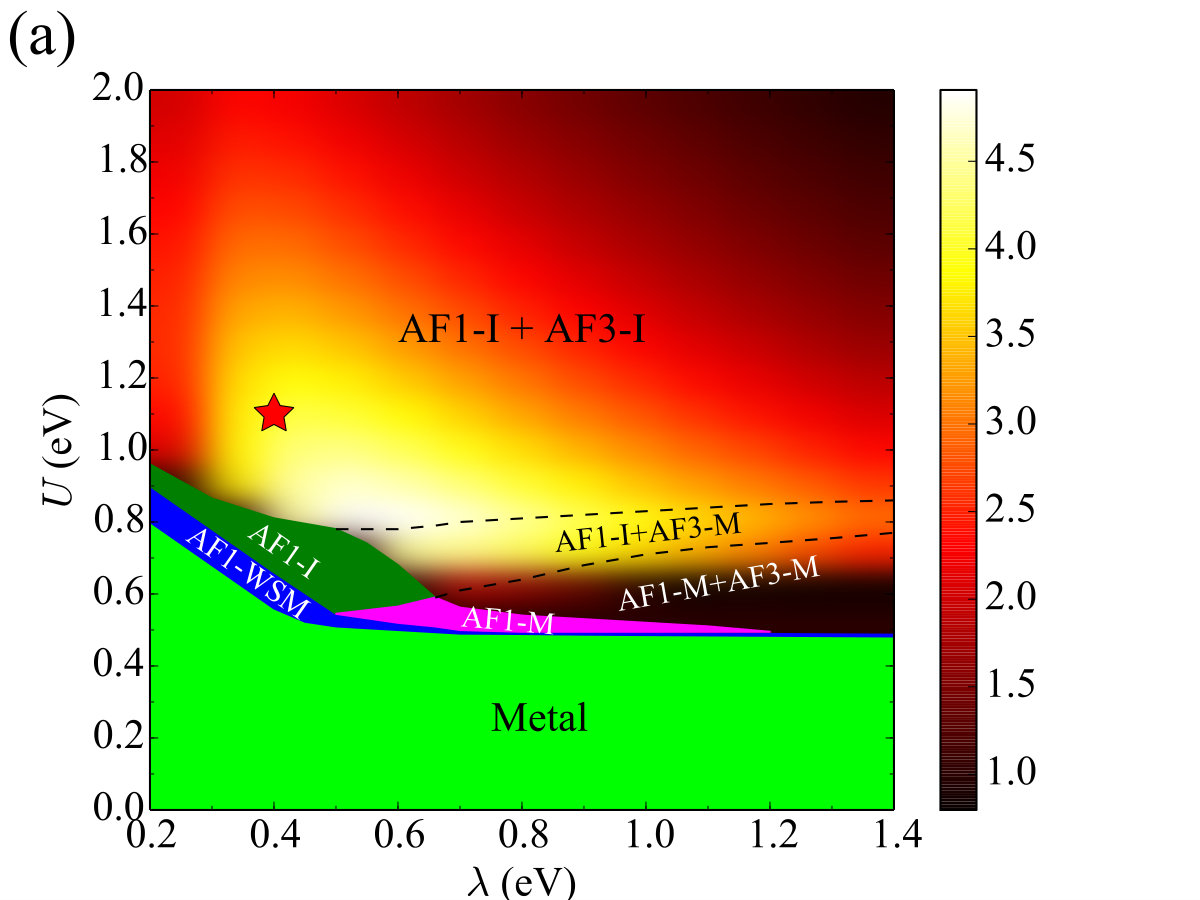

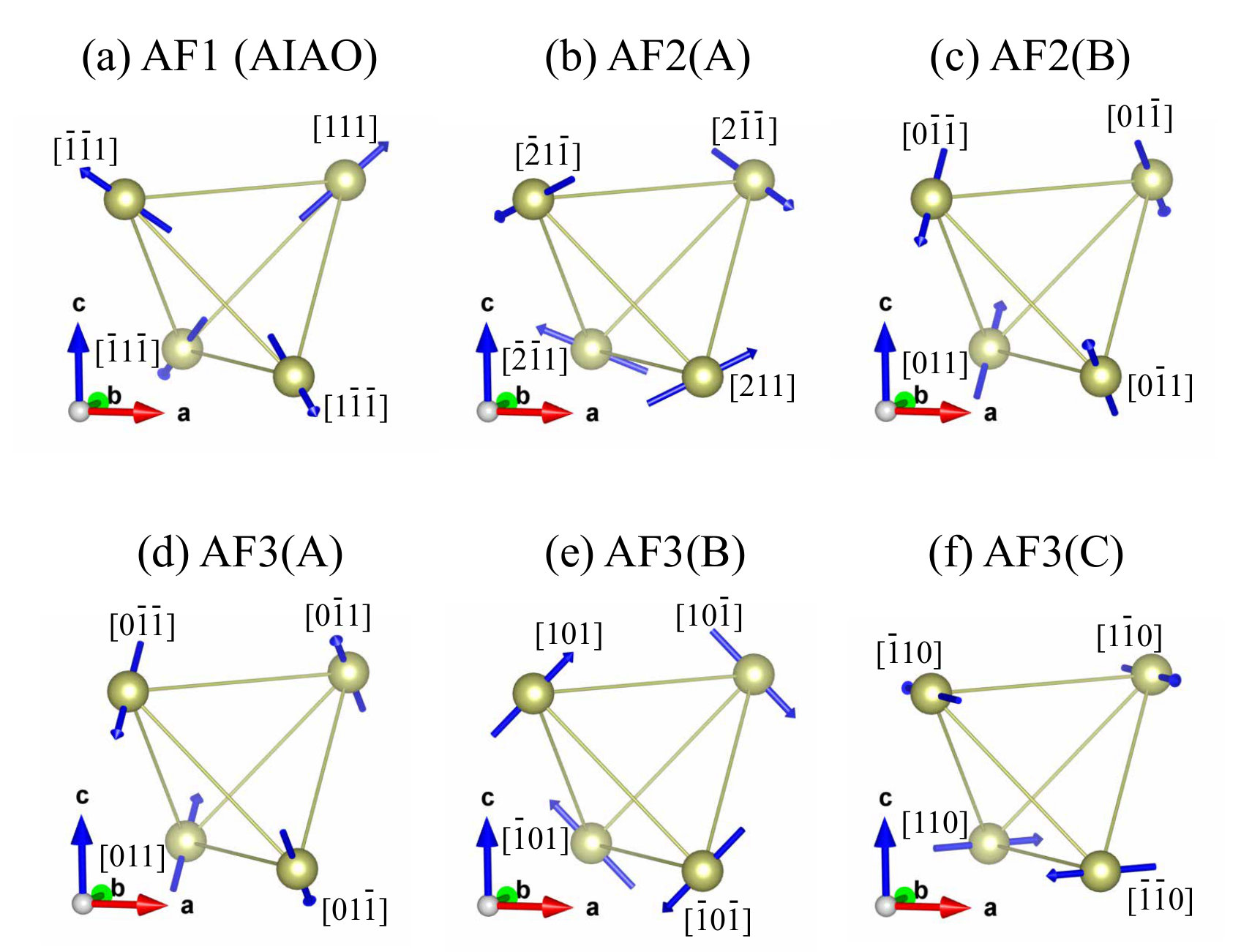

Fig. 2(a) is the phase diagram for the experimental structure of Eu2Ir2O7, which contains finite trigonal distortion. The typical band structures of each phase have been plotted in the SM sup . We find that the one-dimensional $c\Gamma_{3+}$ representation with an AIAO type anti-ferromagnetic configuration (AF1 in Fig. 1(a)) is always the ground magnetic state, which is quite consistent with the previous studies Sagayama et al. (2013); Takatsu et al. (2014); Disseler (2014). Similar to the results obtained in Ref. Wan et al. (2011); Witczak-Krempa and Kim (2012), under the AF1 order, a Weyl semimetal phase can be found in a narrow region of the phase digram. With the increment of $U$, the Weyl semimetal phase disappears quickly leading to a semimetal to insulator transition. Besides $c\Gamma_{3+}$, we find that the three-dimensional $c\Gamma_{7+}$ representation (AF3 in Fig. 1(d,e,f)), where the local moments are perpendicular to the local $[111]$ directions, is also stable in very large parameter region. However, its total energy per Ir atom is always a few meV higher than that of AF1 and a colormap is used to label their total energy difference: $E_{\text{tot}}(\text{AF3})-E_{\text{tot}}(\text{AF1})$ (with units of meV) in Fig. 2. As we can see, their total energy are very close. We choose the reasonable parameters for Eu2Ir2O7 based on the size of the band gap reported in previous studies Ueda et al. (2016); Zhang et al. (2017), where they reported an optical gap of about 0.2 eV Ueda et al. (2016) and a band gap of about 0.3 eV in their LDA+DMFT calculation Zhang et al. (2017). Considering the fact that HF usually overestimates the band gap, here we choose a value $U=1.1$ which will induce a little larger band gap of about 0.4 eV sup . A phase diagram with Hund’s coupling $J_{\text{H}}$ at $J_{\text{H}}/U=0.2$ is also calculated and plotted in SM sup . It turns out that Hund’s coupling doesn’t change the overall phase diagram because there is only one hole per Ir site in $t_{2g}$ subspace.

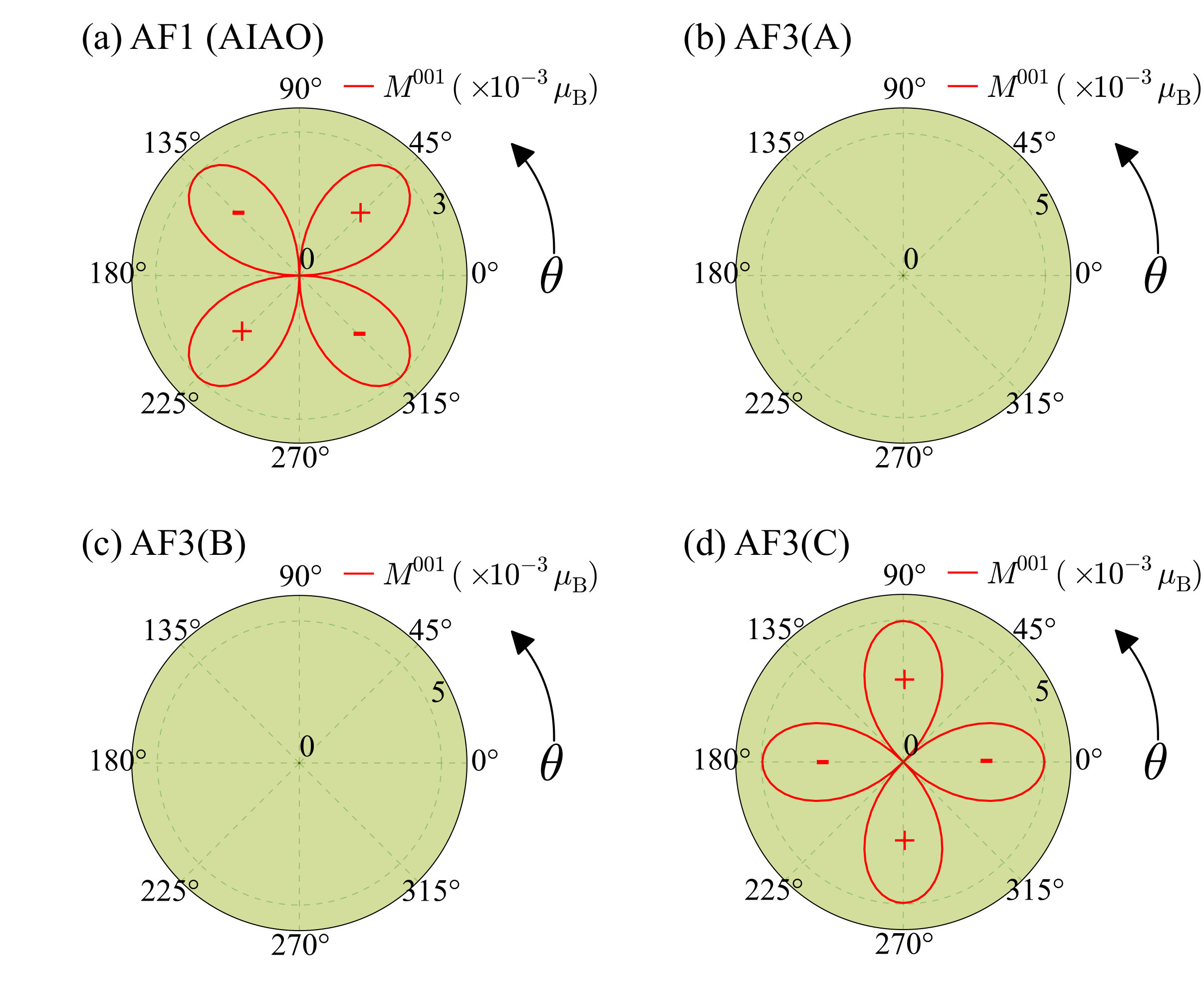

To study the possible nonlinear magnetization discussed in Ref. hisa Arima (2013) and reported in Ref. Liang et al. (2017), we apply an external magnetic field $\vec{H}$ in the [001] plane and continuously rotate it by $2\pi$, and then calculate the net magnetic moments along [001] direction $M^{001}$ induced by the transverse magnetic field. $M^{001}$ as a function of the rotation angle $\theta$ are plotted in Fig. 3 for AF1 and AF3 phase at $U=1.1$ eV and $\lambda=0.4$ eV. We only plot $M^{001}$ for one of the two time-reversal partners, and $M^{001}$ for the other partner will have the same magnitude but with opposite sign. Our numerical results are consistent with the experimental results, where the nonlinear magnetization pattern was rotated by 45 degree under the field cooling process Liang et al. (2017). The calculated $M^{001}$ shows a $d_{xy}$ pattern for AF1, which is corresponding to the results in Fig. 2(a,b) in Ref. Liang et al. (2017) where the field $\boldsymbol{H_{\text{fc}}}$ is along $[\bar{1}\bar{1}0]$ direction. While $M^{001}$ shows a $d_{x^{2}-y^{2}}$ pattern for AF3(C), which is corresponding to the results in Fig. 2(c,d) in Ref. Liang et al. (2017) where the field $\boldsymbol{H_{\text{fc}}}$ is along $[\bar{1}10]$ direction. Note that the measured nonlinear magnetization in Ref. Liang et al. (2017) show distorted $d$-waves which may be caused by an additional order which already exists at 300 K. $M^{001}$ for AF3(A) and AF3(B) configurations are zero due to the symmetry reason. The occurrence of additional metastable magnetic phase AF3 can explain the observed $\pi/4$ phase shift of the magnetization pattern with the assumption that the field cooling processes may stabilize AF3.

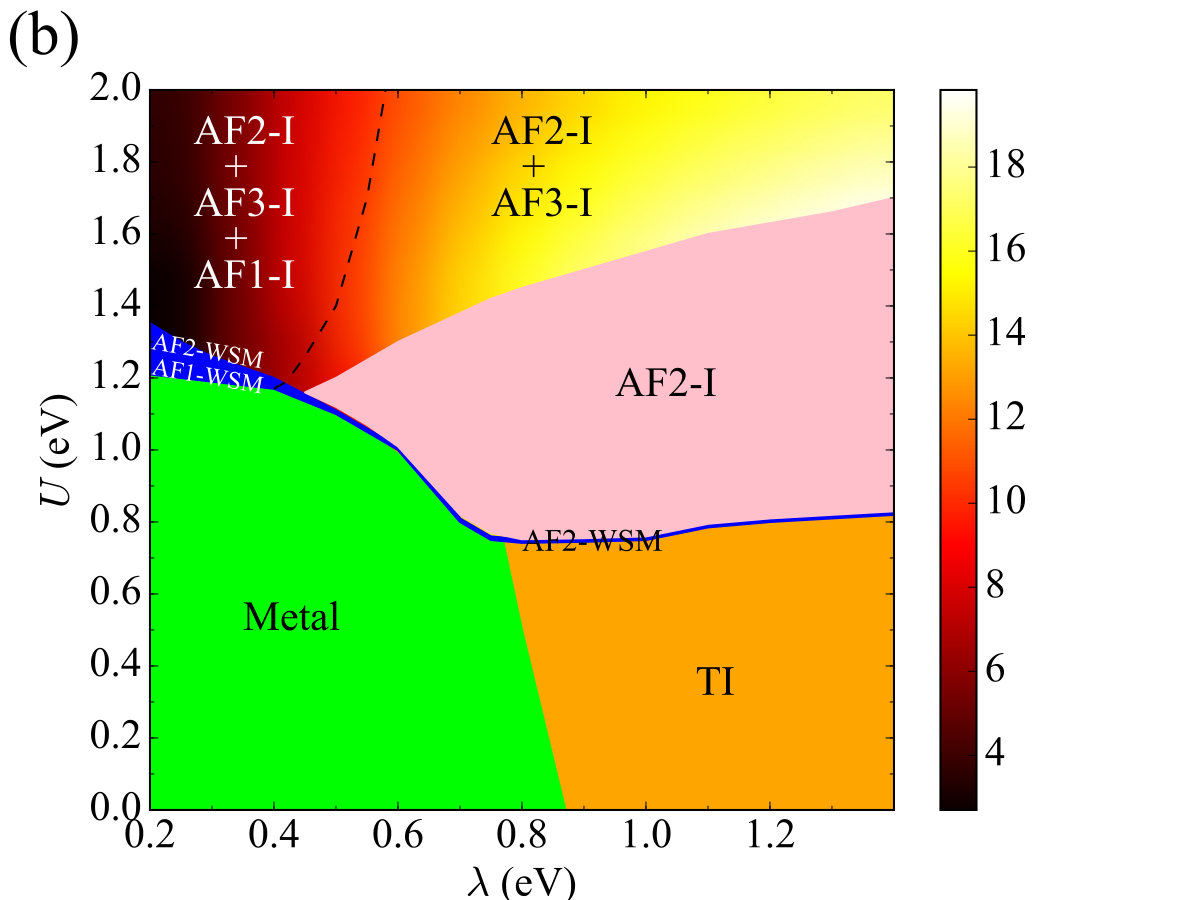

Fig. 2(b) is the phase diagram for the ideal pyrochlore structure without any distortion. We find that the two-dimensional $c\Gamma_{5+}$ representation (AF2 in Fig. 1(b,c)) is always the ground state, which is quite different with the situation in the distorted structure. AF3 and AF1 are both locally stable metastable states here and can also coexist with AF2 in some parameter region. The total energy of all the three phases satisfies $E_{\text{tot}}(\text{AF2})<E_{\text{tot}}(\text{AF3})<E_{\text{tot}}(\text{AF1})$. The colormap is used to label the total energy difference between AF3 and AF2: $E_{\text{tot}}(\text{AF3})-E_{\text{tot}}(\text{AF2})$ (with units of meV). These results indicate that a large enough trigonal distortion Uematsu et al. (2015) may be crucial for stabilizing the AIAO state. For most of the pyrochlore iridates, the trigonal distortion is indeed large enough, which implies that the AIAO is likely to be the ground state.

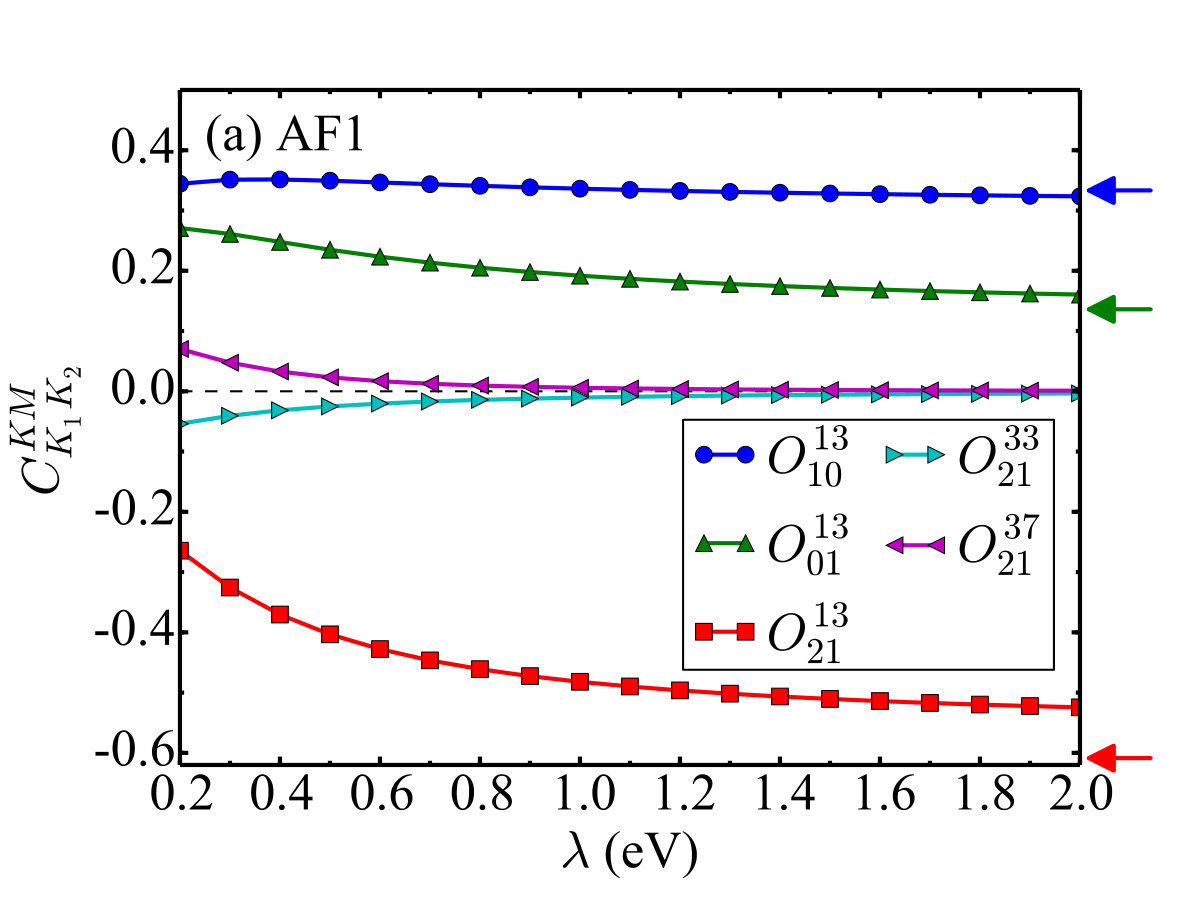

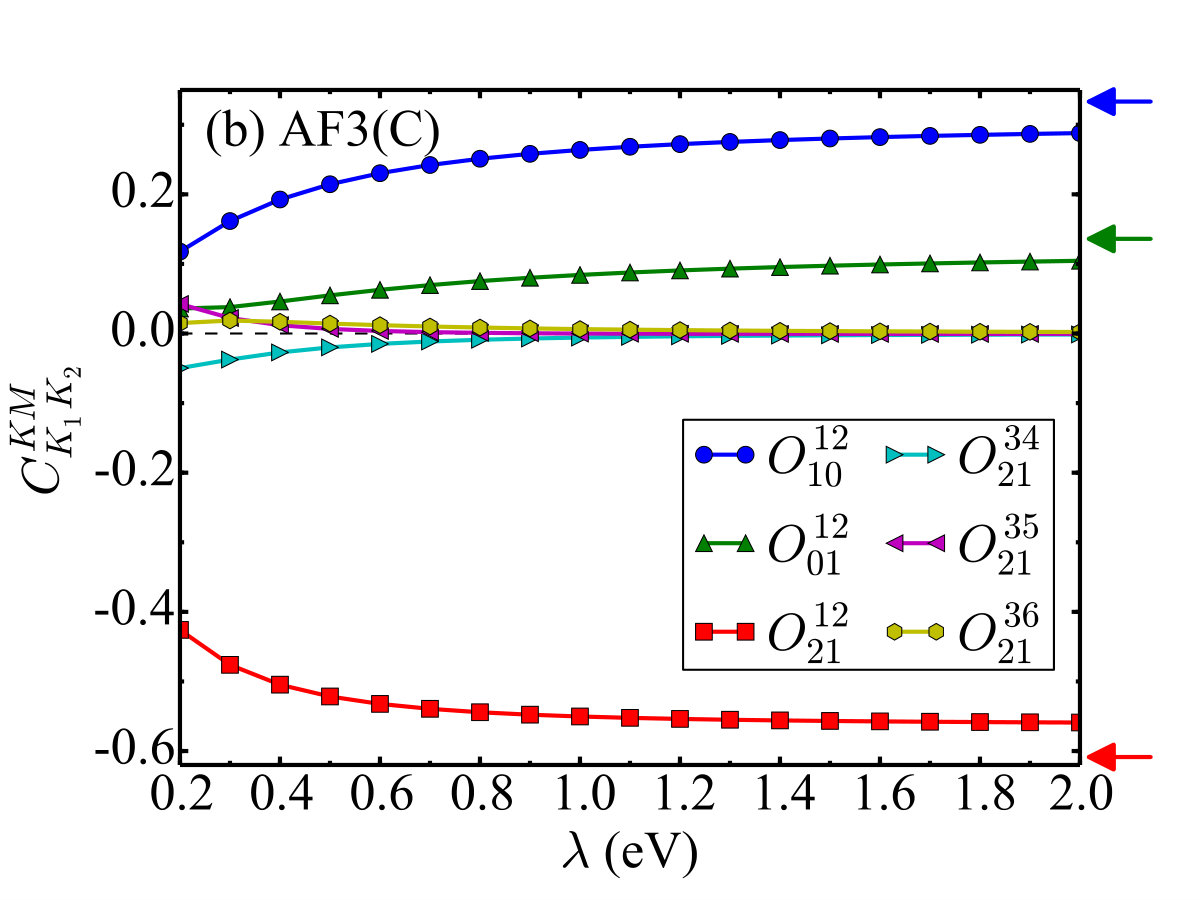

In the anti-ferromagnetic phase of the distorted structure, we expand the local density matrix $\rho$ to measure the weights of the OPs. We plot their weights as a function of $\lambda$ for AF1 and AF3(C) phases at $U=1.1$ eV in Fig. 4. The new finding of our calculations is that, besides large dipoles, there also exist considerable higher-rank octupolar moments.

In AF1 phase, the dipoles are $O_{10}^{13}=l_{z}/2$ and $O_{01}^{13}=\sqrt{2/3}s_{z}$. Besides these dipoles, there is another spin-orbital coupled dipole $O_{21}^{1}$ Carra et al. (1993); Luo et al. (1993) with $O_{21}^{11}$, $O_{21}^{12}$ and $O_{21}^{13}$ being the $x$-,$y$- and $z$-components (Eqn. S45-S47 in SM sup ). In AF1 phase, the nonzero component is $O_{21}^{13}$. In AF3(C) phase, the non-zero components of dipoles are $O_{10}^{12}=l_{y}/2$, $O_{01}^{12}=\sqrt{2/3}s_{y}$ and $O_{21}^{12}$. The arrows on the right side of Fig. 4(a,b) mark the expectation values of the components of $O_{10}^{1}$ (blue), $O_{01}^{1}$ (green) and $O_{21}^{1}$ (red) in the ideal atomic $j_{\text{eff}}=1/2$ state (large SOC limit). At small SOC, their expectation values deviate quite far away from their atomic limits, and approach to the atomic limits with the increment of SOC. At $U=1.1$ eV and $\lambda=0.4$ eV, the calculated ratio $\Braket{L_{z}}/\Braket{S_{z}}$ is about 2.3 for AF1 and the ratio $\Braket{L_{y}}/\Braket{S_{y}}$ is about 6.8 for AF3(c), which deviates quite far away from the value 4 in the atomic $j_{\text{eff}}=1/2$ states Laguna-Marco et al. (2010); Fujiyama et al. (2014). These results indicate that the mixing of $j_{\text{eff}}=1/2$ and $j_{\text{eff}}=3/2$ states is indeed significant in Eu2Ir2O7 and the $j_{\text{eff}}=1/2$ single orbital picture is not applicable here.

The octupoles are defined as the components of a rank-3 irreducible tensor. We find two components $O_{21}^{33}$, $O_{21}^{37}$ (Eqn. S55 and Eqn. S59 in SM sup ) with nonzero weights in AF1 phase, and three components $O_{21}^{34}$, $O_{21}^{35}$, $O_{21}^{36}$ (Eqn. S56-S58 in SM sup ) in AF3(C) phase. As shown in Fig. 4, for both AF1 and AF3(C) phases, with the realistic SOC strength ($\lambda=0.4$ eV) the octupole weight can be comparable with the dipoles and cannot be ignored. With the increment of SOC, the octupole weights will vanish gradually and the magnetic moments of Iridium ions can be described by the dipole moments only formed within the $j_{\text{eff}}=1/2$ subspace in the strong SOC limit. We would emphasize that the mixing of $j_{\text{eff}}=1/2$ and $j_{\text{eff}}=3/2$ subspaces to some extent is the prerequisite for the occurrence of octupoles because $j_{\text{eff}}=1/2$ subspace alone can only induce multipolar moments up to rank-1. We also note that the size ratio of octupoles and dipoles in AF3 phase is a little larger than that in AF1 phase, implying that the effective spin-orbit coupling $\Braket{\boldsymbol{L}\cdot\boldsymbol{S}}$ would be smaller in AF3 than in AF1. This change may be seen in the XAS Ir $L_{2}/L_{3}$ branching ratio Laguna-Marco et al. (2010); Clancy et al. (2012). The occurrence of these octupolar moments may bring some interesting physical consequence, which needs further study.

In summary, we have found stable AIAO magnetic ground state in Eu2Ir2O7 only when the trigonal lattice distortion is fully considered. Besides AIAO, a metastable magnetic phase AF3 with very close energy to AIAO is also found. The appearance of AF3 phase can explain the nonlinear magnetization behavior in Eu2Ir2O7 under field cooling. In the magnetic phase, besides large dipoles, we also find high-order multipolar octupoles with considerable amplitude. These results of Eu2Ir2O7 serve as an example and can be used to explain the magnetic properties for other pyrochlore iridates.

Y.L.W. acknowledges the helpful discussions with Dr. Jianzhou Zhao and Rui Yu about the calculations. X.D. acknowledges the helpful discussions with Professor Nai Phuan Ong, Dr. Tian Liang and Professor Hiroshi Shinaoka. This work was supported by the NSF of China and by the 973 program of China (No. 2011CBA00108 and No. 2013CB921700).
