Aerodynamic noise from rigid trailing edges with finite porous extensions
A. V. Kisil, L. J. Ayton
TL;DR
This study analytically examines how finite porous extensions on flat plates influence trailing-edge noise, revealing that partial porosity can reduce noise but less effectively than full porosity, with a new iterative Wiener-Hopf solution method.
Contribution
It introduces a novel iterative Wiener-Hopf method for solving complex acoustic problems involving porous trailing edges and permeable-impermeable junctions.
Findings
Permeable-impermeable junctions affect far-field noise by causing interference.
Partially porous plates are less effective at noise reduction than fully porous plates.
The new iterative method converges rapidly and avoids full matrix factorization.
Abstract
This paper investigates the effects of finite flat porous extensions to semi-infinite impermeable flat plates in an attempt to control trailing-edge noise through bio-inspired adaptations. Specifically the problem of sound generated by a gust convecting in uniform mean steady flow scattering off the trailing edge and permeable-impermeable junction is considered. This setup supposes that any realistic trailing-edge adaptation to a blade would be sufficiently small so that the turbulent boundary layer encapsulates both the porous edge and the permeable-impermeable junction, and therefore the interaction of acoustics generated at these two discontinuous boundaries is important. The acoustic problem is tackled analytically through use of the Wiener-Hopf method. A two-dimensional matrix Wiener-Hopf problem arises due to the two interaction points (the trailing edge and the…
Click any figure to enlarge with its caption.
Figure 1

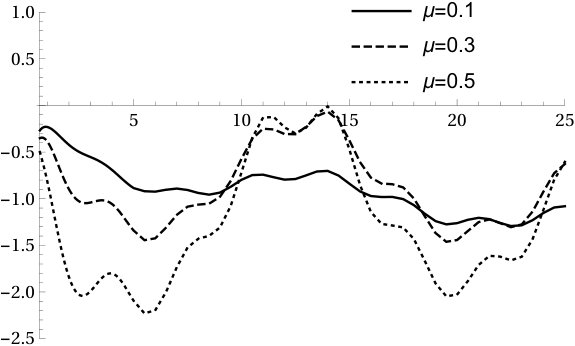

Figure 10
Figure 11

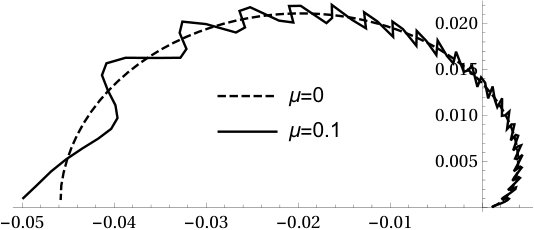

Figure 12

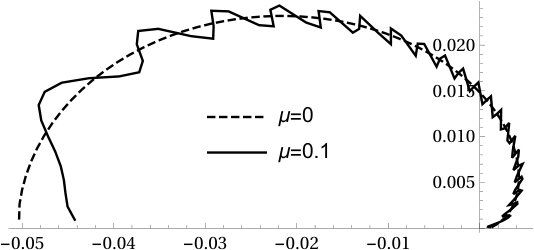

Figure 12

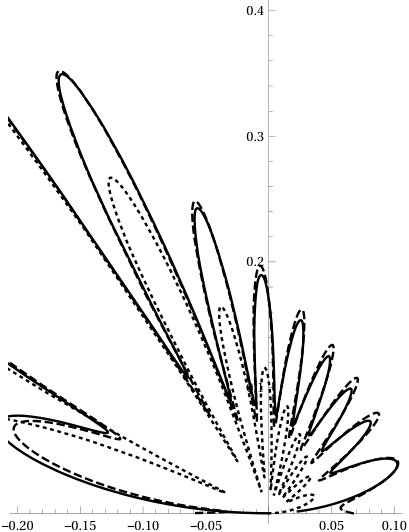

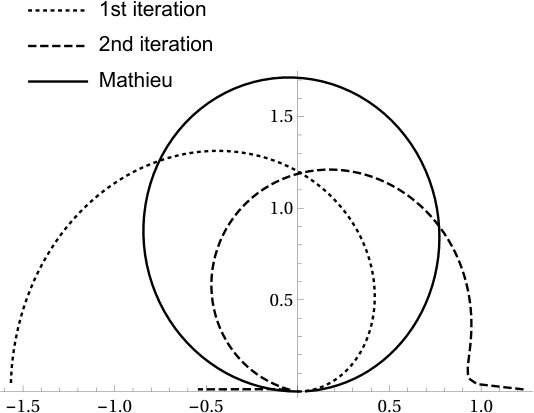

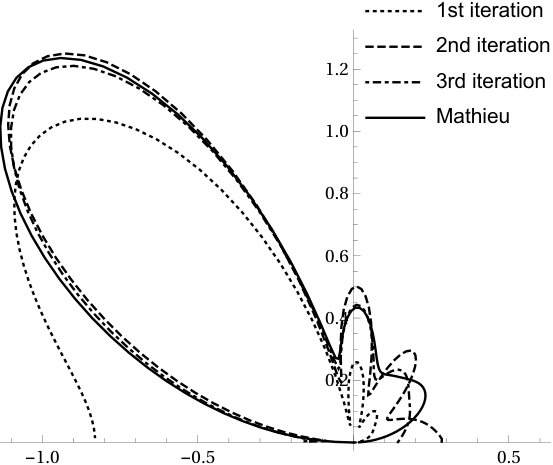

Figure 2
Figure 2

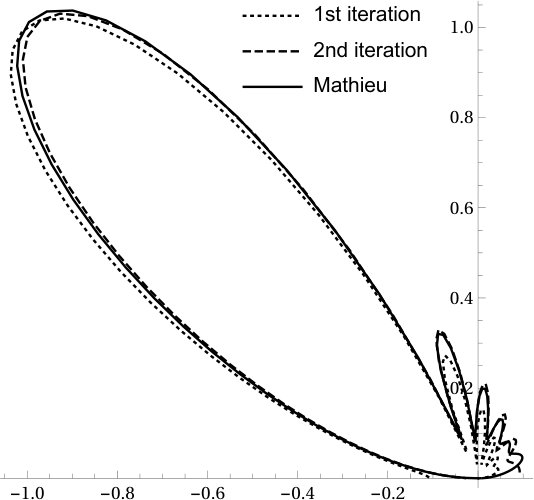

Figure 2

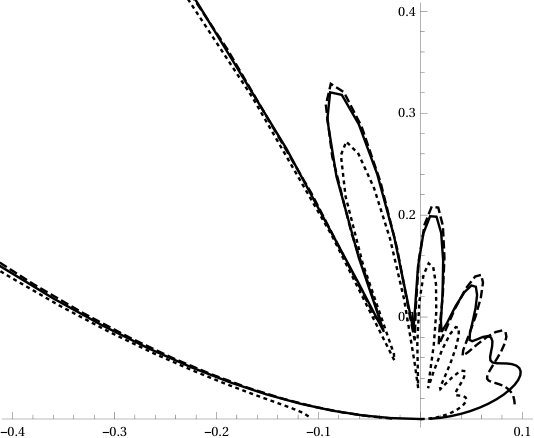

Figure 2

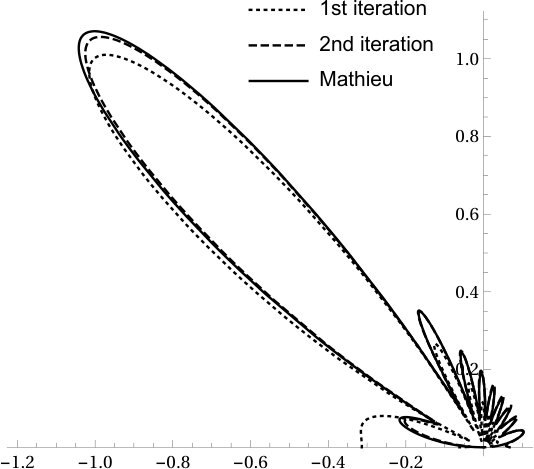

Figure 2
Figure 2

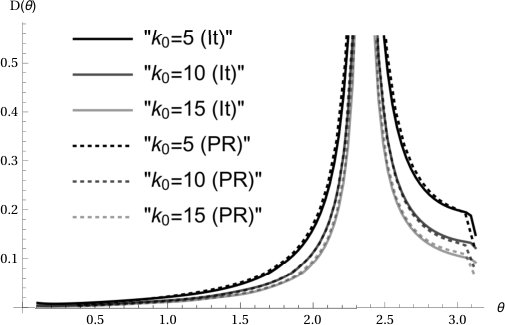

Figure 3

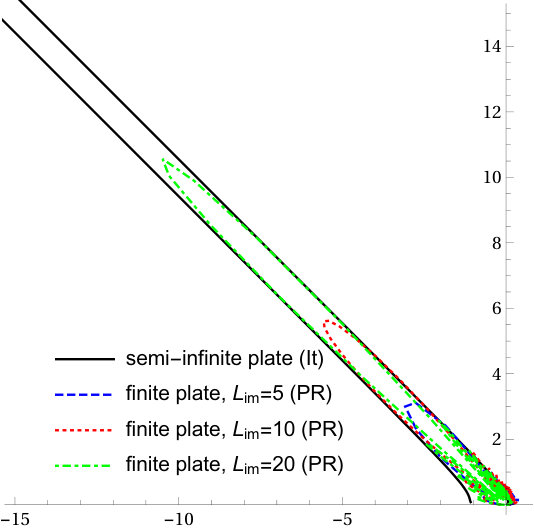

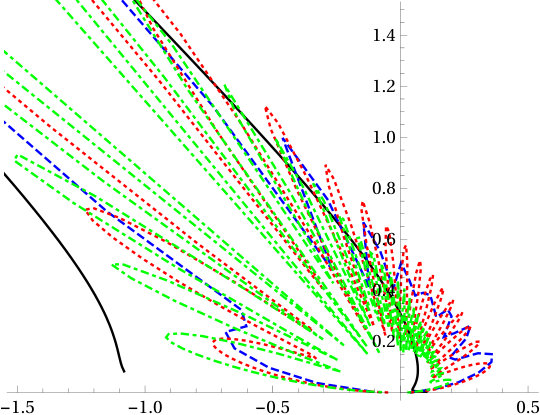

Figure 4
Figure 4

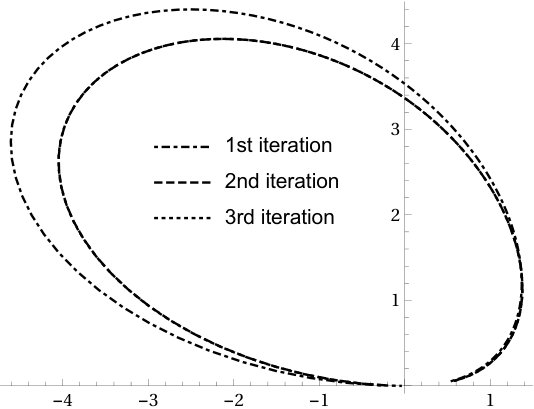

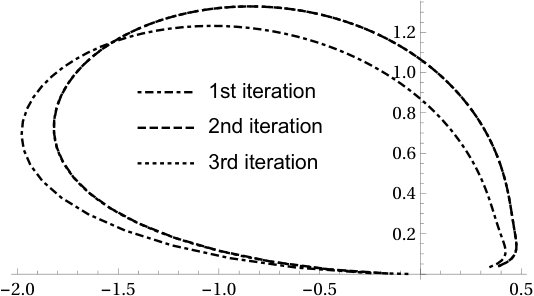

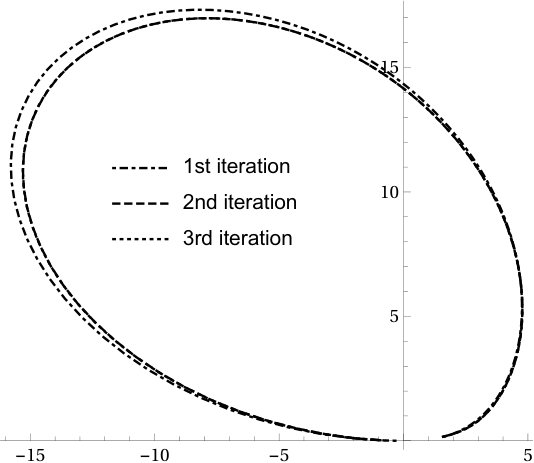

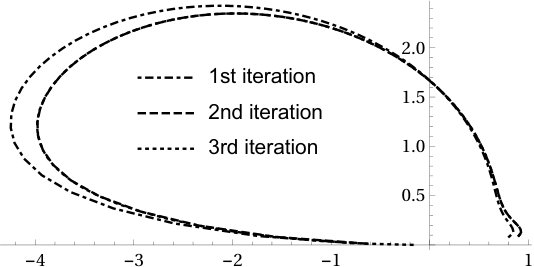

Figure 5
Figure 5
Figure 5
Figure 5

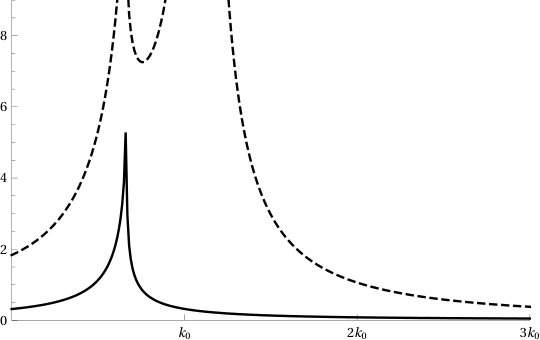

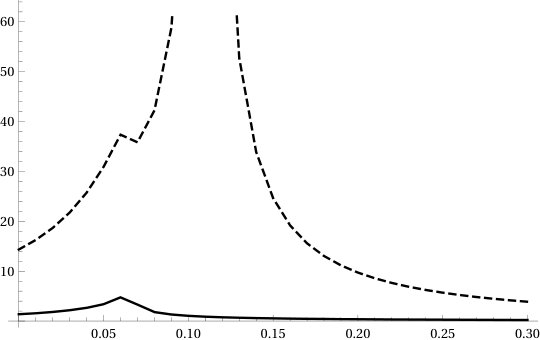

Figure 6
Figure 6

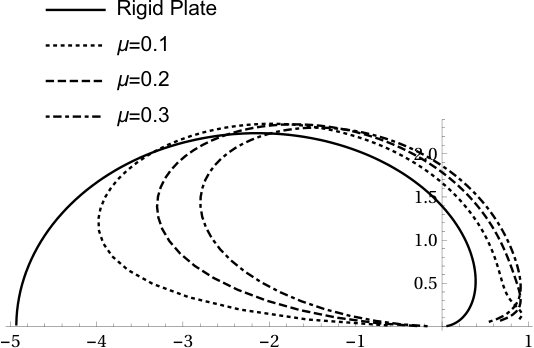

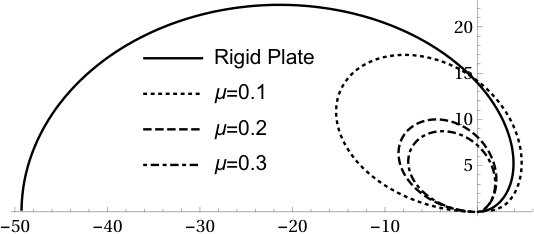

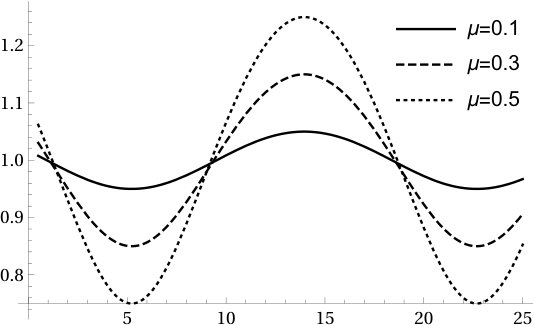

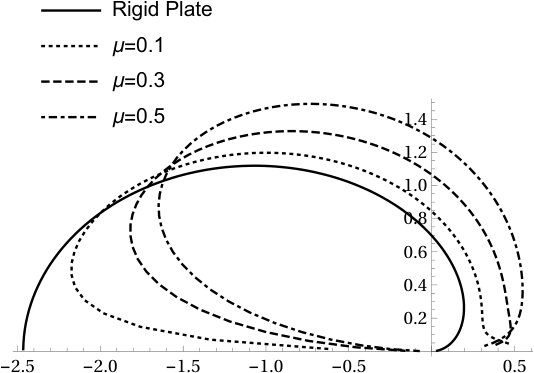

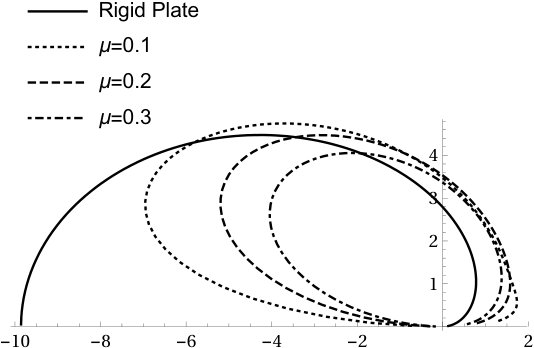

Figure 7
Figure 7
Figure 7
Figure 7

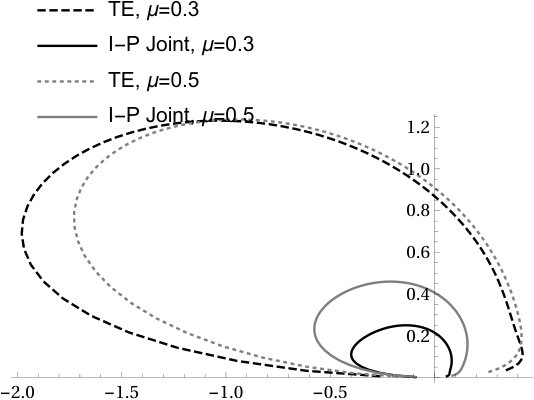

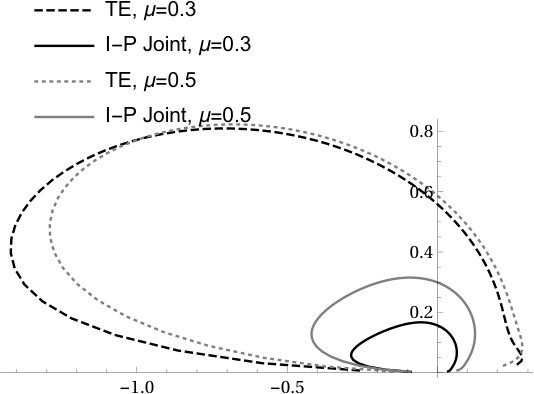

Figure 8
Figure 8

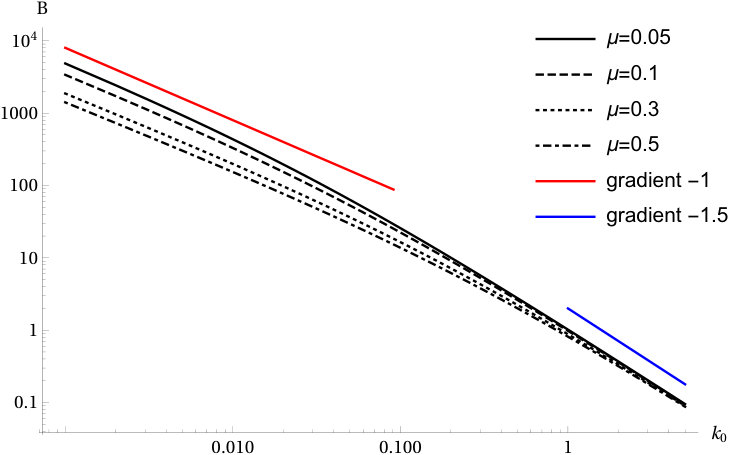

Figure 9Peer Reviews
