Observation of topological links associated with Hopf insulators in a solid-state quantum simulator

TL;DR

This paper reports the first experimental observation of topological links and the Hopf fibration in a solid-state quantum simulator, demonstrating the topological properties of Hopf insulators through direct measurement.

Contribution

It implements a model Hamiltonian for Hopf insulators in a quantum simulator and directly observes their topological invariants and links, bridging knot theory and topological phases.

Findings

Observation of topological links in a quantum simulator

Direct measurement of the Hopf topological invariant

Implementation of a Hopf insulator model in solid-state system

Abstract

Hopf insulators are intriguing three-dimensional topological insulators characterized by an integer topological invariant. They originate from the mathematical theory of Hopf fibration and epitomize the deep connection between knot theory and topological phases of matter, which distinguishes them from other classes of topological insulators. Here, we implement a model Hamiltonian for Hopf insulators in a solid-state quantum simulator and report the first experimental observation of their topological properties, including fascinating topological links associated with the Hopf fibration and the integer-valued topological invariant obtained from a direct tomographic measurement. Our observation of topological links and Hopf fibration in a quantum simulator opens the door to probe rich topological properties of Hopf insulators in experiments. The quantum simulation and probing methods are also applicable to the study of other intricate three-dimensional topological model Hamiltonians.

Figures

A of the main text, the Hopf fibration is drawn under the Hopf map $f$. For a fixed point on the Bloch sphere $\mathbb{S}^{2}$, the preimage (fiber) of the point forms a closed loop in $\mathbb{S}^{3}$, which is then visualized in $\mathbb{R}^{3}$ via the stereographic coordinates. To relate the schematic to our physical system, the preimage of a fixed spin orientation measurement (on the Bloch sphere) lives in the momentum space $\mathbb{T}^{3}$, which can then be mapped to $\mathbb{S}^{3}$ via the map $g$ and subsequently $\mathbb{R}^{3}$ via the stereographic coordinates.

A of the main text, the Hopf fibration is drawn under the Hopf map $f$. For a fixed point on the Bloch sphere $\mathbb{S}^{2}$, the preimage (fiber) of the point forms a closed loop in $\mathbb{S}^{3}$, which is then visualized in $\mathbb{R}^{3}$ via the stereographic coordinates. To relate the schematic to our physical system, the preimage of a fixed spin orientation measurement (on the Bloch sphere) lives in the momentum space $\mathbb{T}^{3}$, which can then be mapped to $\mathbb{S}^{3}$ via the map $g$ and subsequently $\mathbb{R}^{3}$ via the stereographic coordinates.

Equations

$$H=\sum _{\mathbf{k}}{\Psi }_{\mathbf{k}}^{†}{H}_{\mathbf{k}}{\Psi }_{\mathbf{k}}=\sum _{\mathbf{k}}{\Psi }_{\mathbf{k}}^{†}\hslash \Omega \mathbf{u}(\mathbf{k})\cdot \sigma {\Psi }_{\mathbf{k}},$$

$$u_x$$

$$u_y$$

$$u_z$$

$$H_u=\hslash \left|\Omega \right|\left({\sigma }_x\cos \phi +{\sigma }_y\sin \phi \right)+\hslash \Delta {\sigma }_z,$$

$$\chi =-{\int }_{\text{BZ}}\mathbf{F}\cdot \mathbf{A}{d}^{3}k,$$

$$\chi=\left\{\begin{array}[]{ll}1,&1<|h|<3\\ -2,&|h|<1\\ 0,&|h|>3.\end{array}\right.$$

$${\mathcal{F}}_{\mu }({\mathbf{k}}_{\mathbf{J}})$$

$${\mathbb{T}}^3\stackrel{g}{⟶}{\mathbb{S}}^3\stackrel{f}{⟶}{\mathbb{S}}^2.$$

$${\eta }_{\uparrow }(\mathbf{k})$$

$${\eta }_{\downarrow }(\mathbf{k})$$

$$u_x+i{u}_y=2{\eta }_{\uparrow }{\bar{\eta }}_{\downarrow },u_z=(|{\eta }_{\uparrow }{|}^2-|{\eta }_{\downarrow }{|}^2),$$

$$(x,y,z)=\frac{1}{1+{\eta }_4}({\eta }_1,{\eta }_2,{\eta }_3),$$

$$N_{ϵ}({\mathbf{S}}_{\text{th}})=\{{\mathbf{S}}_{\text{exp}}(\mathbf{k}):|{\mathbf{S}}_{\text{exp}}(\mathbf{k})-{\mathbf{S}}_{\text{th}}|\le ϵ\}.$$

Full text

I Introduction

The interplay of topology and symmetry plays a key role in the classification of quantum phases of matter Hasan and Kane (2010); Qi and Zhang (2011); Kitaev (2009); Schnyder et al. (2008); Chen et al. (2012). It gives rise to a notable periodic table for topological insulators and superconductors for free fermions Kitaev (2009); Schnyder et al. (2008). The recently discovered $\mathbb{Z}_{2}$ topological insulators König et al. (2007); Hsieh et al. (2008); Chen et al. (2009) fit into this classification paradigm. Topological insulators are insulating materials featuring conducting surface states protected by time-reversal symmetries Hasan and Kane (2010); Qi and Zhang (2011). Without any symmetry protection, multi-band Hamiltonians in 3D should only exhibit topologically trivial phases according to the periodic table Kitaev (2009); Schnyder et al. (2008).

With broken time-reversal symmetry, Hopf insulators Moore et al. (2008) are intriguing three-dimensional (3D) topological insulators that elude the standard classification paradigm of topological phases for free fermions Kitaev (2009); Schnyder et al. (2008). Recently, Moore, Ran and Wen Moore et al. (2008) realized that the two-band case is special because of the existence of Hopf map, a topological map linking the 3D torus that represents the momentum space with the 2D Bloch sphere that describes the state space of a two-band Hamiltonian. Hence, the topological Hopf insulators could exist for two-band Hamiltonians in 3D space, which lie outside of the standard classification paradigm of topological phases. Implementation of Hopf insulators, however, poses a formidable experimental challenge Deng et al. (2013, 2016). Recently, quantum simulation platforms have proven to be well suited for the experimental study of 1D and 2D topological insulators Roushan et al. (2014); Schroer et al. (2014); Kong et al. (2016). We extend this tool to study more intricate 3D topological models that have not been realized yet in any other experimental platform.

In this paper, we implement Hopf insulator model Hamiltonian in a solid-state quantum simulator and report the first experimental observation of its topological properties, including the topological links associated with the Hopf fibration and the integer-valued topological invariant. Our quantum simulator is realized with the nitrogen-vacancy (NV) center in a diamond sample. The diamond NV center has recently emerged as a promising experimental system for realization of quantum computing, simulation, and precision measurements Gruber et al. (1997); Doherty et al. (2013); Cai et al. (2013); Childress and Hanson (2013); Childress et al. (2014). The key observation here is that the Hamiltonian for free fermions is diagonal in the momentum space, so there is no entanglement between different momentum components in its ground state. We can measure the quantum states for each momentum component separately in experiments Roushan et al. (2014); Deng et al. (2014a), and the properties of the whole system can then be determined by collating individual measurements. We measure the integer-valued topological invariant by a direct 3D integration over the parametric momentum space Deng et al. (2014a). Through quantum state tomography, we experimentally demonstrate the Hopf fibration with fascinating topological links, showing clear signals of topological phase transitions for the underlying Hamiltonian.

II Results

II.1 Quantum simulation of Hopf insulator model Hamiltonian

A general two-band Hamiltonian in the momentum space can be written in the form

[TABLE]

where $\hbar\Omega$ denotes the energy unit, the dimensionless coefficients $\mathbf{u}(\mathbf{k})=(u_{x},u_{y},u_{z})$ represent certain functions of 3D momenta $\mathbf{k=}\left(k_{x},k_{y},k_{z}\right)$, $\Psi_{\mathbf{k}}=(a_{\mathbf{k}\uparrow},a_{\mathbf{k}\downarrow})^{\intercal}$ are fermionic annihilation operators with pseudo-spin states $|{\uparrow}\rangle$ and $|{\downarrow}\rangle$ at momentum point $\mathbf{k}$, and $\mathbf{\sigma}=\left(\sigma_{x},\sigma_{y},\sigma_{z}\right)$ are Pauli matrices. The (composite) Hopf map is a projection from the momentum space (the Brillouin zone) described by the 3D torus $\mathbb{T}^{3}$ to the Bloch sphere $\mathbb{S}^{2}$ for the spin-$1/2$ state. For the Hopf map, the pre-image of each point on the sphere $\mathbb{S}^{2}$ corresponds to a closed loop in the torus $\mathbb{T}^{3}$—all these loops are topologically linked to each other, forming a fascinating topological structure called the Hopf fibration as shown in Fig. 1A. Armed with the Hopf map, Hopf insulators are characterized by an integer $\mathbb{Z}$ rather than a $\mathbb{Z}_{2}$ topological invariant Moore et al. (2008); Deng et al. (2013). Several two-band model Hamiltonians supporting Hopf insulators have been constructed in Refs. Moore et al. (2008); Deng et al. (2013), and all of them involve complicated spin-orbital interactions. We consider a primitive model with the coefficients $\mathbf{u}(\mathbf{k})$ given by

[TABLE]

where $C(\mathbf{k})\equiv\cos k_{x}+\cos k_{y}+\cos k_{z}+h$ with $h$ being a dimensionless parameter. This Hamiltonian features two distinct topologically nontrivial phases with the parameter $|h|<1$ and $1<|h|<3$, respectively Deng et al. (2013). Implementation of the Hamiltonian with cold atoms requires engineering of next-nearest-neighbor spin-orbital couplings Deng et al. (2016), which is particularly challenging for experiments.

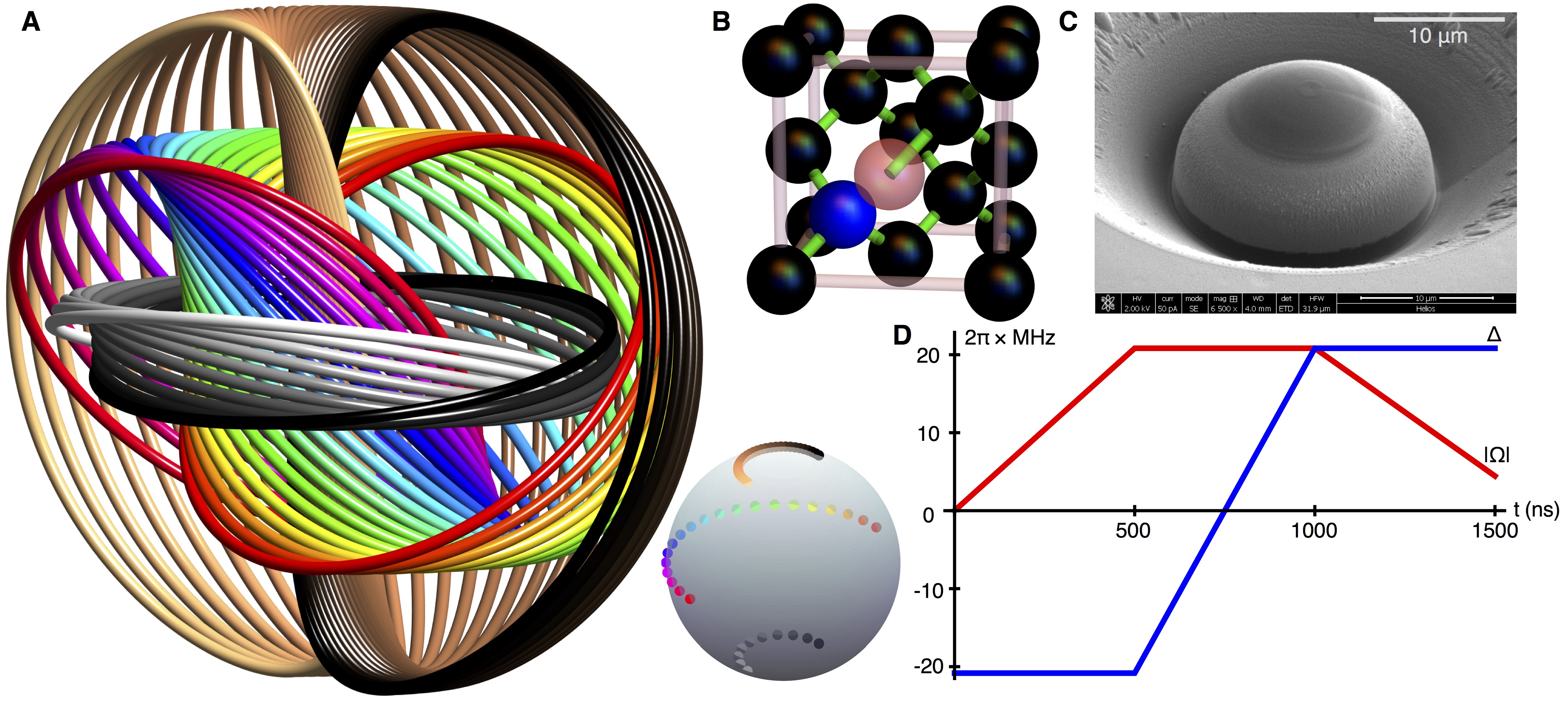

Here, we experimentally implement this Hamiltonian and probe its topological properties with a solid-state quantum simulator represented by a single nitrogen-vacancy (NV) center in a diamond sample at room temperature shown in Fig. 1B. The Hamiltonian (1) is diagonal in the momentum space. To probe its ground state property, we can measure the quantum state for each momentum component separately in experiments Roushan et al. (2014); Deng et al. (2014a), and the properties of the whole system can then be determined by those individual measurements on all momentum components. For each momentum component $\mathbf{k}$, the ground state of $H_{\mathbf{k}}$ corresponding to the lower band of the Hamiltonian (1) can be probed through an adiabatic passage in a two-level system, which is realized through microwave manipulation of the spin levels $\left|0\right\rangle$ and $\left|-1\right\rangle$ of a single NV center. The viability of such an adiabatic procedure is guaranteed by the most salient feature of a topological phase, the topological gap—as long as the gap is maintained, topological properties are insensitive to perturbations or stretching of the energy bands.

We use a NV center under a micro-fabricated solid immersion lens (SIL) to implement the Hamiltonian $H_{\mathbf{k}}$ for each momentum component $\mathbf{k}$. The SIL is used to enhance the data collection rate as we need to scan over many different momentum components to measure the topological properties of the Hamiltonian. By applying a microwave with phase $\varphi$ to the transition $\left|0\right\rangle\rightarrow\left|-1\right\rangle$, we realize the following Hamiltonian in the rotating frame

[TABLE]

where $\left|\Omega\right|$ denotes the Rabi frequency of the microwave and $\Delta$ is the frequency detuning of the spin transition relative to the microwave frequency. Comparing with the Hamiltonian (1), we have $\Omega\mathbf{u}(\mathbf{k})=\left(\left|\Omega\right|\cos\varphi,\left|\Omega\right|\sin\varphi,\Delta\right)$. At the initial time, we take $\left|\Omega\right|=0$ and prepare the spin in state $\left|0\right\rangle$, which is the ground state of $H_{u}\left(t=0\right)$. We then adiabatically tune the microwave Rabi frequency $\left|\Omega\right|$ with phase $\tan\varphi=u_{y}\left(\mathbf{k}\right)/u_{x}\left(\mathbf{k}\right)$ and the detuning $\Delta$ so that for the final state we have $H_{u}\left(t\right)=H_{\mathbf{k}}$ in the Hamiltonian (1) for a certain momentum component $\mathbf{k}$. A typical adiabatic passage for the parameters is shown in Fig. 1D. By this adiabatic passage, we realize the ground state of $H_{\mathbf{k}}$, and through quantum state tomography (QST) measurements, we retrieve its full information. We scan all momentum components $\mathbf{k}$ via the above preparation and detection method to probe the properties of the full Hamiltonian (1).

II.2 Measurement of the topological invariant

To measure the topological properties of the Hamiltonian (1), we use a topological invariant called the Hopf index Moore et al. (2008); Deng et al. (2013), which is defined as

[TABLE]

where $\mathbf{F}$ is the Berry curvature with $F_{\mu}=\left(i/2\pi\right)\epsilon_{\mu\nu\tau}\left(\partial_{k_{\nu}}\!\left\langle\Psi_{\mathbf{k}}\right|\right)\left(\partial_{k_{\tau}}\!\left|\Psi_{\mathbf{k}}\right\rangle\right)$, $\epsilon_{\mu\nu\tau}$ is the Levi-Civita symbol with $\mu,\nu,\tau\in\left\{x,y,z\right\}$, $\left|\Psi_{\mathbf{k}}\right\rangle$ denotes the ground state of the Hamiltonian $H_{\mathbf{k}}$, $\mathbf{A}$ is the associated Berry connection satisfying $\nabla\times\mathbf{A=F}$, and the integration of $\mathbf{k}$ is over the Brillouin zone (BZ). Depending on the parameter $h$, the Hopf index $\chi$ takes the following values for the Hamiltonian (1):

[TABLE]

So the Hamiltonian $H$ supports two topological Hopf insulator phases and one topologically trivial phase with the phase boundaries at $h=\pm 1,\pm 3$.

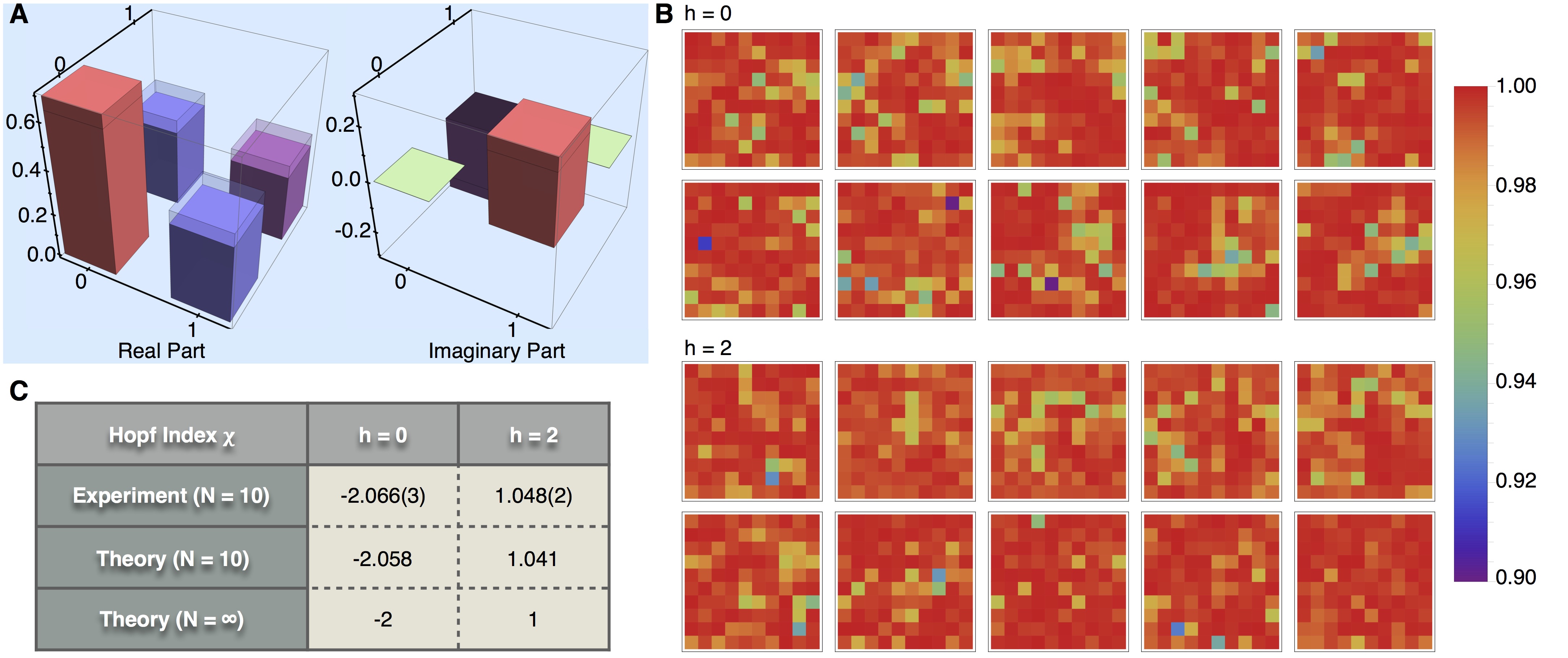

To measure the Hopf index $\chi$, we use the discretization scheme in Ref. Deng et al. (2014a), which provides a general method to probe the topological invariants in any spatial dimension based on QST in the momentum space. As shown in the Supplementary Information, the Hopf index $\chi$ quickly converges to its ideal value through mesh sampling over the momentum space. We sample $\left(k_{x},k_{y},k_{z}\right)$ into a mesh of $10\times 10\times 10$ points with equal spacing and for each $H_{\mathbf{k}}$, we perform QST to measure its ground state density matrix. A typical reconstructed density matrix is shown in Fig. 2A. At each momentum $\mathbf{k}$, we compare the experimentally reconstructed density matrix $\rho_{\mathbf{k}}$ with the ideal ground state $\left|\Psi_{\mathbf{k}}\right\rangle$ and calculate the state fidelity $F_{\mathbf{k}}=\left\langle\Psi_{\mathbf{k}}\right|\rho_{\mathbf{k}}\left|\Psi_{\mathbf{k}}\right\rangle$. The measured fidelities for different momenta $\mathbf{k}$ are shown in Fig. 2B. We have achieved a high average fidelity of $99.2\%$ in our experiment. A large fraction of the $0.8\%$ infidelity is actually from the statistical error associated with a finite number of photon-counts in the spin detection, which contributes to about $0.6\%$ infidelity (see the Supplementary Information). From the measured data, we find the Hopf index shown in Fig. 2C for two different phases with $h=0,2$. The measured non-zero values of the Hopf index, close to the ideal integer numbers, provide an unambiguous experimental signature for the underlying topological structure of the Hopf insulator phase.

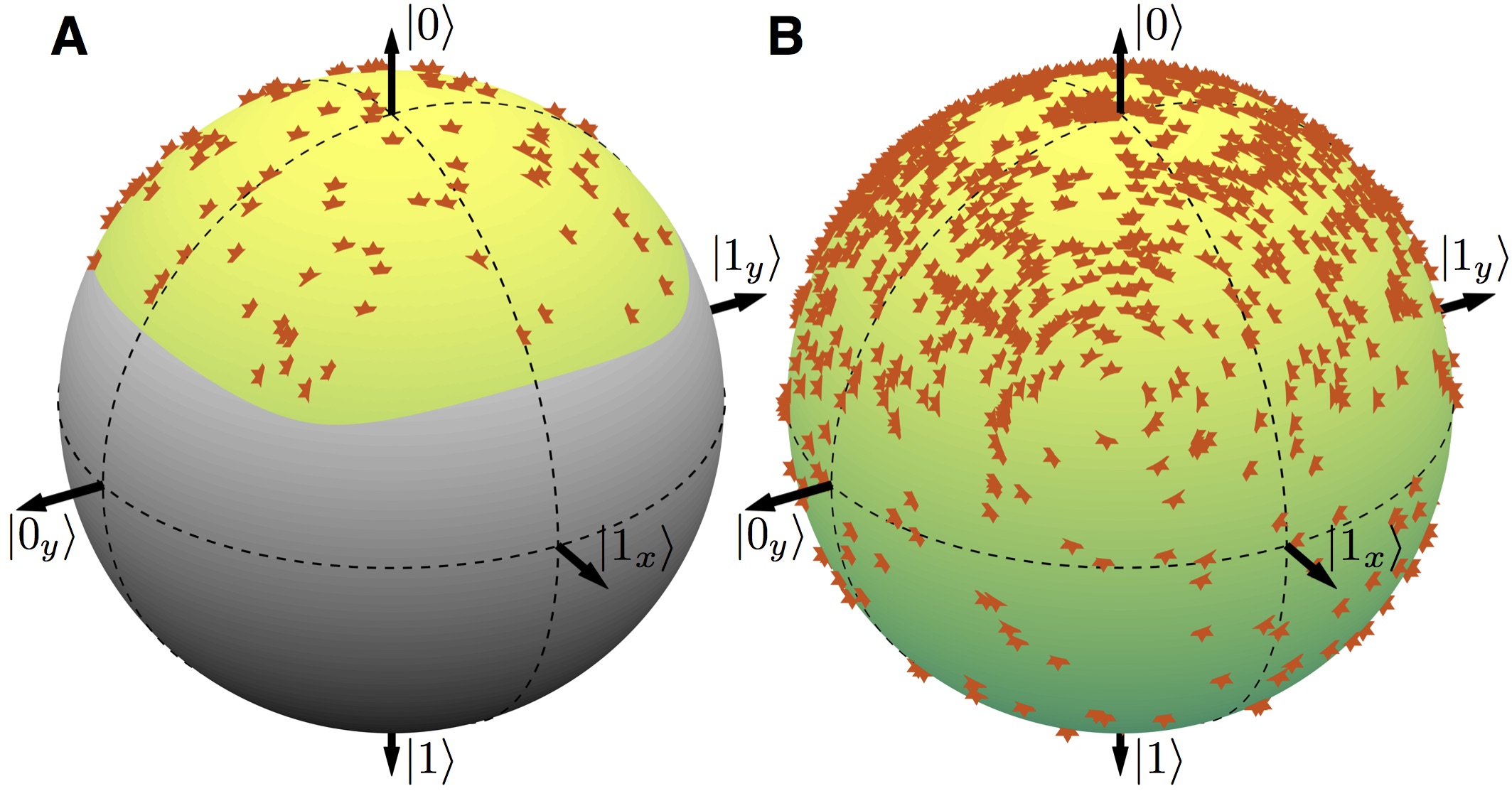

Different from stacking layers of 2D quantum Hall insulators, the Hopf insulator is an intrinsic 3D topological insulator, where the Chern numbers characterizing 2D topological insulators are zero for all 2D momentum layers Moore et al. (2008); Deng et al. (2013). To demonstrate this intuitively, in Fig. 3A we take a layer in the momentum space (e.g., with $k_{z}=0$) and map all the measured spin states at different $k_{x}$ and $k_{y}$ to the Bloch sphere. The Chern number will be zero if these states cannot fully cover the Bloch sphere, which is the case in Fig. 3a. We have also computed the Chern numbers explicitly using our measured data along different 2D momentum layers Deng et al. (2014a) and checked they are all identically zero. On the other hand, if we map the spin states at all 3D momentum points to the Bloch sphere, they fully cover the sphere as shown in Fig. 3B. This provides an intuitive indicator that the Hopf insulator is an intrinsic 3D topological insulator.

II.3 Observation of topological links

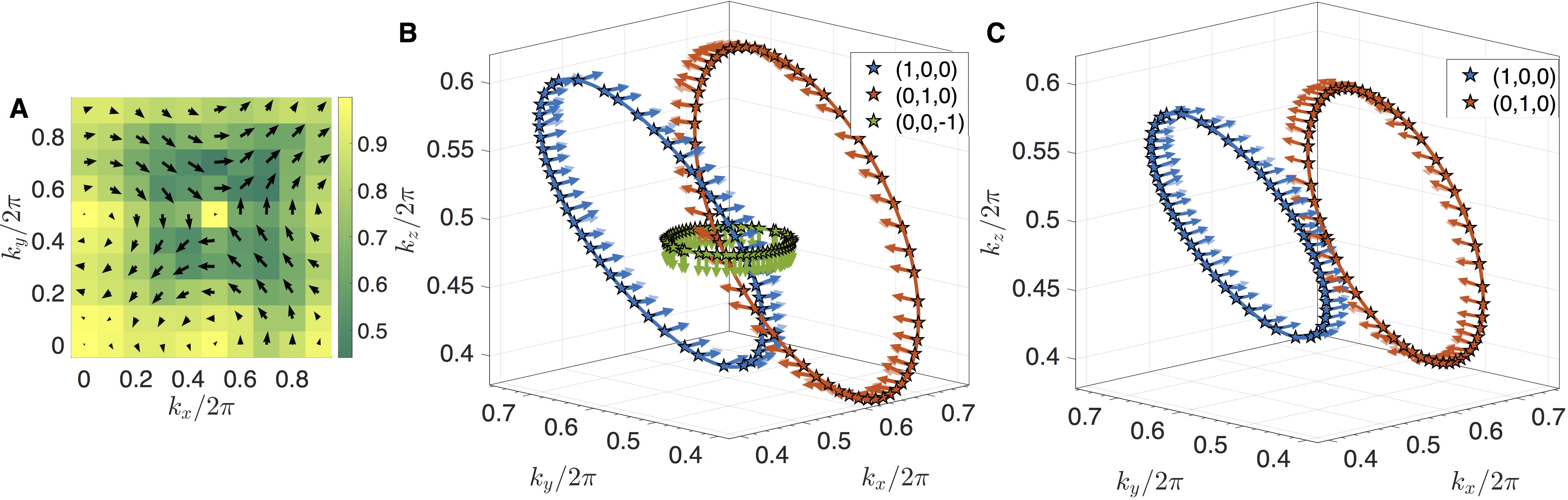

In the Hopf insulator, the momentum-space spin texture forms a representation of the sought-after knotted structure known as the Hopfion Faddeev and Niemi (1997). Distinct from 2D Skyrmion spin configurations where swirling orientations are a salient feature Yu et al. (2010), a 3D Hopfion exhibits a nontrivial twisting. In Fig. 4A, we show a cross-section of the measured spin texture along the $k_{z}=0$ layer, which provides a glimpse of the 3D twisting of the Hopfion (see Supplementary Information for the full 3D spin texture). If we fix a spin orientation on the Bloch sphere and trace its pre-image in the momentum space $\mathbb{T}^{3}$, a closed loop will be formed. For the Hopf insulator phase, the loops corresponding to different points (spin states) on the Bloch sphere are always topologically linked to each other (see Hopf fibration in Fig. 1A). In order to measure these topological links, we experimentally fix three spin states on the Bloch sphere and scan the momentum $\mathbf{k}$ so that the ground state of $H_{\mathbf{k}}$ is along these spin directions. In Fig. 4B, we show the pre-images in the momentum space for the spin states $\mathbf{S}=\left(1,0,0\right)$, $\left(0,1,0\right)$, and $\left(0,0,-1\right)$ on the Bloch sphere with the parameter $h=2.9$. Clearly, these pre-images each form a closed loop and they are pairwise linked with a linking number exactly equal to the Hopf index $\chi$. When we cross the topological phase transition point (at $h=3$) and enter the topologically trivial phase (with $h=3.1$), the corresponding pre-images are shown in Fig. 4C—they are no longer linked. Hence the Hopf links observed here provide a direct and intuitive characterization of topological properties of the Hopf insulator.

III Discussion

Our experimental probe of Hopf insulators in a solid state quantum simulator represents the first experimental observation of 3D topological insulators with integer-valued topological invariants and it paves the way for study of complicated topological models using the powerful quantum simulation toolbox Cirac and Zoller (2012); Georgescu et al. (2014); Roushan et al. (2014); Kim et al. (2010). The framework directly carries over to other types of topological models that are predicted to exist in the periodic table Schnyder et al. (2008); Kitaev (2009); Deng et al. (2014b) but have not yet been observed in any experiments. The observation of Hopf links in our experiment reveals the fascinating topological structure of the Hopf fibration, and similar techniques can be employed to study higher index Hopf insulators Deng et al. (2013) that can host a range of complex knots and links Deng et al. (2016). This raises the possibility for experimental exploration of the intimate connection between topological insulators and mathematical knot theory. Based on measurement of momentum space correlations, our first detection of an integer-valued topological invariant in 3D complements well with other methods for measuring topological invariants in 1D Atala et al. (2013); Kong et al. (2016) and 2D Roushan et al. (2014); Schroer et al. (2014); Aidelsburger et al. (2015); Mittal et al. (2016); Goldman et al. (2016) systems. The demonstrated detection scheme is general and applicable to probe of different topological insulators in any spatial dimension predicted by the periodic table.

IV Supplementary Materials: Observation of topological links associated with Hopf insulators in a solid-state quantum simulator

V Materials and Methods

V.1 Experimental setup

We illuminate the diamond Nitrogen-Vacancy (NV) center and collect its fluorescence with a home-built confocal microscope with a $1.49$ NA objective (Olympus 60X, under oil immersion). A $532\,$nm diode laser (Coherent Sapphire), controlled by an acoustic-optical modulator (AOM,ISOMET 1250C) under double pass configuration, is used to initialize and detect the electron spin. Microwave from a signal generator (Keysight N5181B) is mixed with an arbitrary waveform generator (AWG, Tek AWG70002A) by an IQ mixer (Marki IQ 1545LMP) for phase and amplitude control. A waveguide with impedance matching is deposited onto the cover glass to deliver the microwave. The sample is mounted on the cover glass, which is then mounted on a closed-loop piezo (Physik Instrument P-611.3) with sub-micron resolution.

The sample is a type IIa single crystal diamond synthesized by chemical vapor deposition (Element Six). It is irradiated by $10\,$MeV electron beam with dosage $10^{14}\,$cm*-2* and annealed at $800^{\circ}$C in vacuum for two hours. Solid immersion lens with $10\,\mu$m radius is fabricated on the sample by a focused ion beam. We get about $2.5\times 10^{5}$ counts per second in the single-photon detector with a signal-to-noise ratio $21\colon 1$ through collection by a single mode fiber. A magnetic field of strength $510\,$G from a permanent magnet is applied along the NV axis of the sample to polarize the nuclear spins through spin flip-flop via the excited-state level anti-crossing Jacques et al. (2009).

V.2 Adiabatic passage and data collection

The final Hamiltonian $H_{\mathbf{k}}=\hbar\Omega\,\mathbf{u}(\mathbf{k})\cdot\mathbf{\sigma}$ at a particular momentum point $\mathbf{k}$ is first normalized to $\max\{\Omega\sqrt{u_{x}^{2}+u_{y}^{2}},\Omega u_{z}\}=2\pi\times 20.83\,$MHz. For each adiabatic passage, we start from $u_{x}=u_{y}=0$, $\Omega u_{z}=-2\pi\times 20.83\,$MHz under the initial state $|0\rangle$, which is the ground state of the initial Hamiltonian. We first linearly ramp up $\sqrt{u_{x}^{2}+u_{y}^{2}}$ to the maximum Rabi frequency $2\pi\times 20.83\,$MHz, then linearly ramp $u_{z}$ to the corresponding final value, and linearly ramp down $u_{x}$ and $u_{y}$ to the final $\mathbf{u}(\mathbf{k})$ before taking measurements. Each linear ramp takes $500\,$ns, with the total time of $1.5\,\mu$s for the microwave control. In order to get high-fidelity data, the AWG works at $8\,$ GHz sampling rate.

At each momentum point $\mathbf{k}$, the initialization, adiabatic passage, and measurements are repeated $1.25\times 10^{6}$ times, collecting about $9.3\times 10^{4}$ photons. For each round, the fluorescence of the final state from the adiabatic passage is compared with the fluorescence under the $|0\rangle$ state, where the latter is used for normalization. Experimental density matrices are obtained by state tomography through the maximal likelihood estimation. The fidelity of each density matrix is calculated by comparing it with the ideal state, and the fidelities from all the measured momentum points are distributed with median $99.59\%$ ($99.7\%$-$95.51\%$ with $95\%$ confidence interval) and mean 99.2%. A large contribution to the infidelity is actually from the statistical error associated with a finite number of photon counts. From the numerical simulation, we find that even with a perfectly prepared quantum state, the statistical error alone with the same number of photon counts as we collected in experiments will give a fidelity distribution with median $99.88\%$ ($100\%$-$97.26\%$ with $95\%$ confidence interval) and mean 99.4%. So the fidelity of the prepared state by the process of adiabatic passage is high due to the existence of a significant energy gap for the topological phase.

VI Measuring the Hopf invariant and theoretical scaling

In this section, we present more details on our methods to extract the Hopf index from experimental data. We also theoretically extrapolate the data to larger grid sizes. The central idea is to use tomographic methods to measure the topological invariant. This follows primarily from Ref. Deng et al. (2014a, 2016). We outline the essential procedure here for completeness.

The Hopf invariant is defined in Eq. (4) in the main text. In the experiment, we simulate the ground state of the Hopf Hamiltonian by adiabatically ramping from the $|0\rangle$ state (ground state of the Hopf Hamiltonian at $\mathbf{k}=(0,0,0)$) to other discrete momentum points $\mathbf{k_{J}}$. We can subsequently perform state tomography to map out the ground state manifold $|\psi(\mathbf{k_{J}})\rangle$. However, to calculate the Berry curvature from the states involves taking the derivatives $\partial_{k_{\nu,\tau}}$ (finite difference in our discrete data). This will lead to problems due to the gauge (phase) ambiguities of the wavefunction $|\psi(\mathbf{k_{J}})\rangle\to e^{i\varphi(\mathbf{k_{J}})}|\psi(\mathbf{k_{J}})\rangle$, where $e^{i\varphi(\mathbf{k_{J}})}$ is an arbitrary phase that can vary with $\mathbf{k_{J}}$ and is not experimentally observable. In cases where the Chern number is nonzero, gauge obstruction, in particular, forbids a well-defined global smooth Berry connection. To circumvent this difficulty, we use a discretized version of the Berry curvature defined as Fukui et al. (2005); Deng et al. (2014a)

[TABLE]

where the $U(1)$-link is $U_{\nu}(\mathbf{k}_{\mathbf{J}})\equiv\langle\psi(\mathbf{k}_{\mathbf{J}})|\psi(\mathbf{k_{\mathbf{J+\hat{\nu}}}})\rangle/|\langle\psi(\mathbf{k}_{\mathbf{J}})|\psi(\mathbf{k_{\mathbf{J+\hat{\nu}}}})\rangle|$ with $\hat{\nu}=\hat{x},\hat{y},\hat{z}$, a unit vector in the corresponding direction. Here, the local gauge ambiguity cancels out.

This tomographic method offers a number of advantages Deng et al. (2014a). First, it is generally applicable to any spatial dimension and to all topological invariants that can be expressed as some variant of an integral over Berry curvature (connection). Second, the topological invariants can be extracted from the states alone, without referencing to the Hamiltonian. Third, this method is highly robust to experimental imperfections and, in particular, finite discretizations.

In the experiment, we perform state tomography at various momentum points $\mathbf{k}_{\mathbf{J}}$. Discrete Berry curvature is then computed using Eq. (6). Berry connection $A_{\mu}(\mathbf{k}_{\mathbf{J}})$ can be obtained by Fourier transforming the equation $\nabla\times\mathbf{A}=\mathbf{F}$ with the Coulomb gauge $\nabla\cdot\mathbf{A}=0$. Finally, we attain the value of the Hopf invariant $\chi$ by a discrete sum over all momentum points. As we notice from the main text, a grid size of $10\times 10\times 10$ is already capable of producing highly accurate estimation of the quantized topological invariant (with error $\leq 5\%$).

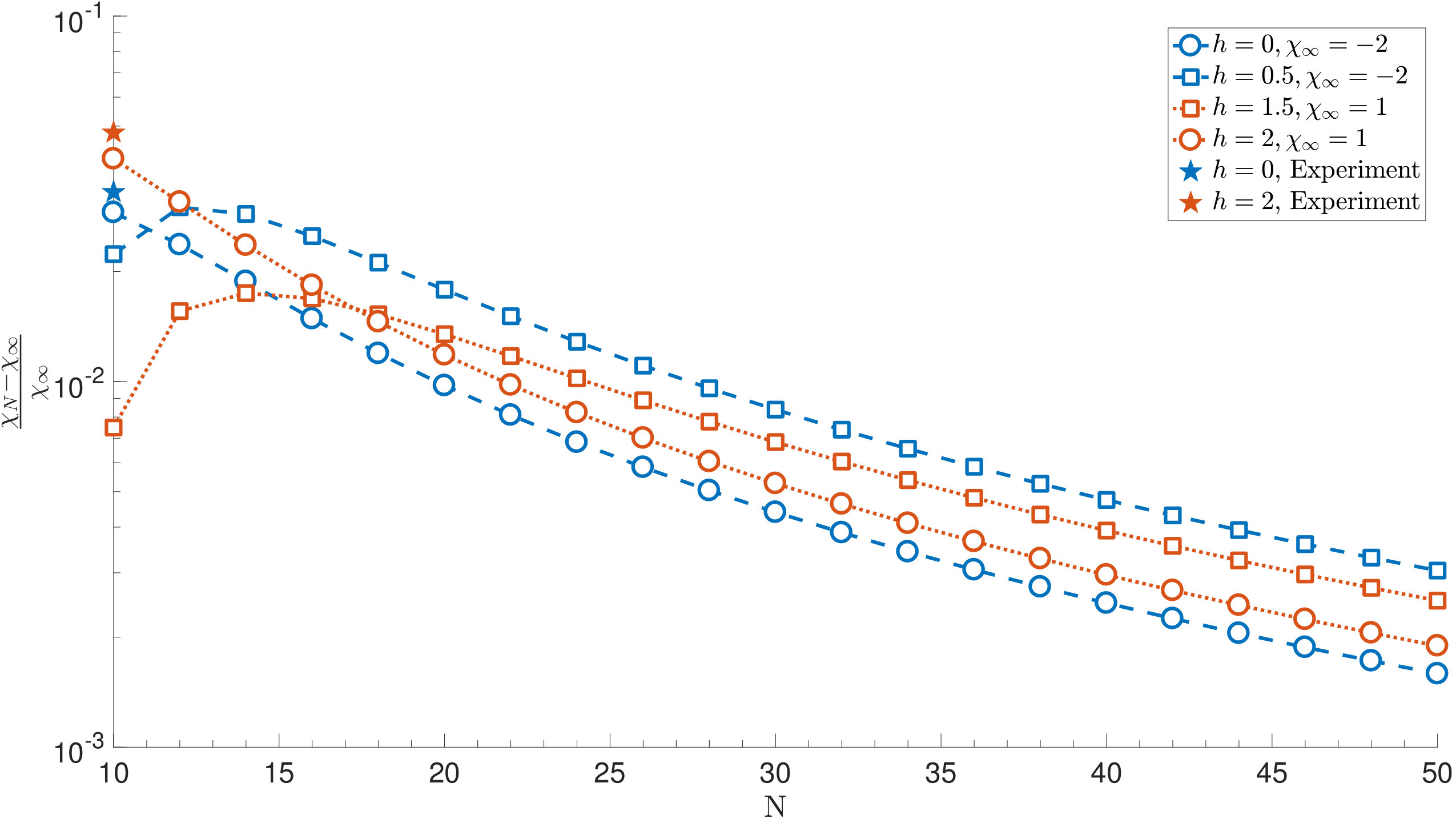

In Fig. 5, we present theoretical scalings to larger grid sizes. We can see that the discretization error reduces when $N$ increases. The deviation from the quantized value drops to around $10^{-2}$ for $N=20$ for $h=0$ and $h=2$. The theoretical calculations for $h=0.5$ and $h=1.5$ are also shown. They are closer to the topological phase transition point $h=1$, resulting in a more pronounced finite size effect. It is apparent, however, for all cases the finite-grid estimation approaches the correct quantized value as $N$ becomes larger. The topological property is robust to perturbations and changes in parameters as long as the topological gap is maintained.

VII Three dimensional Hopf spin texture

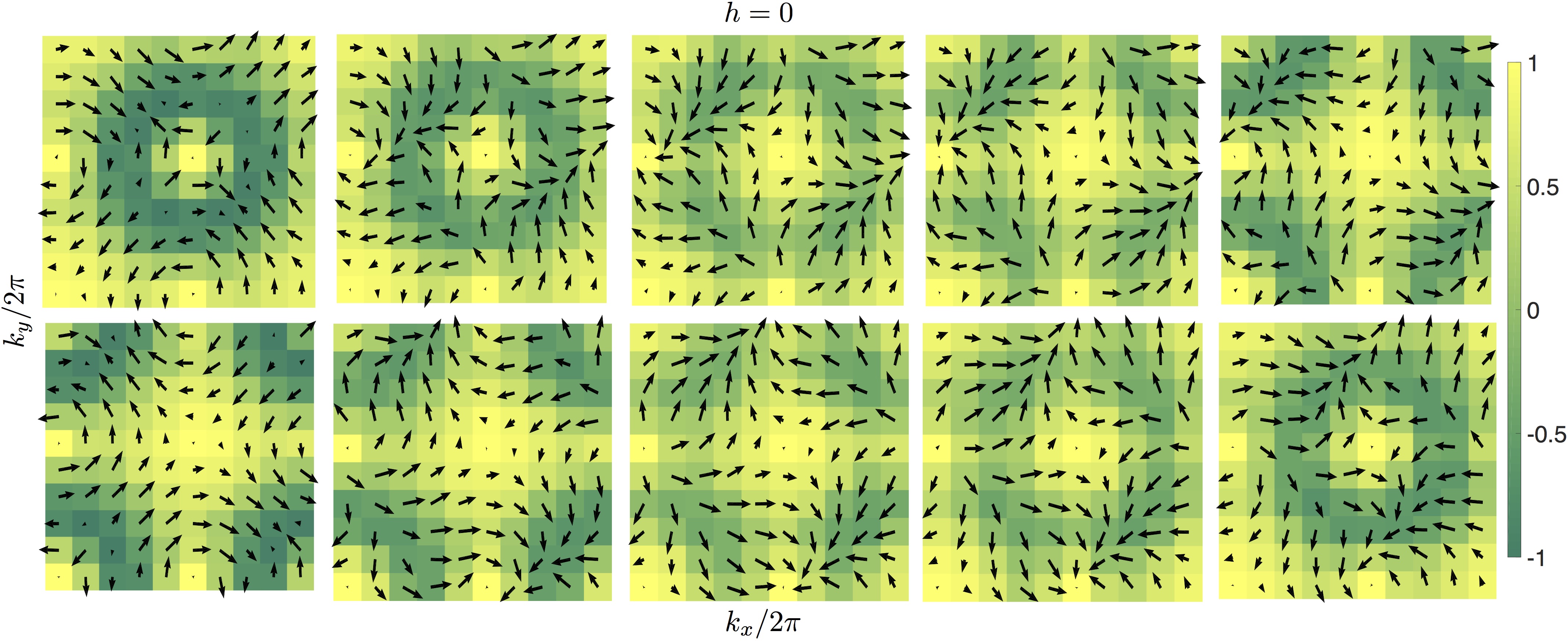

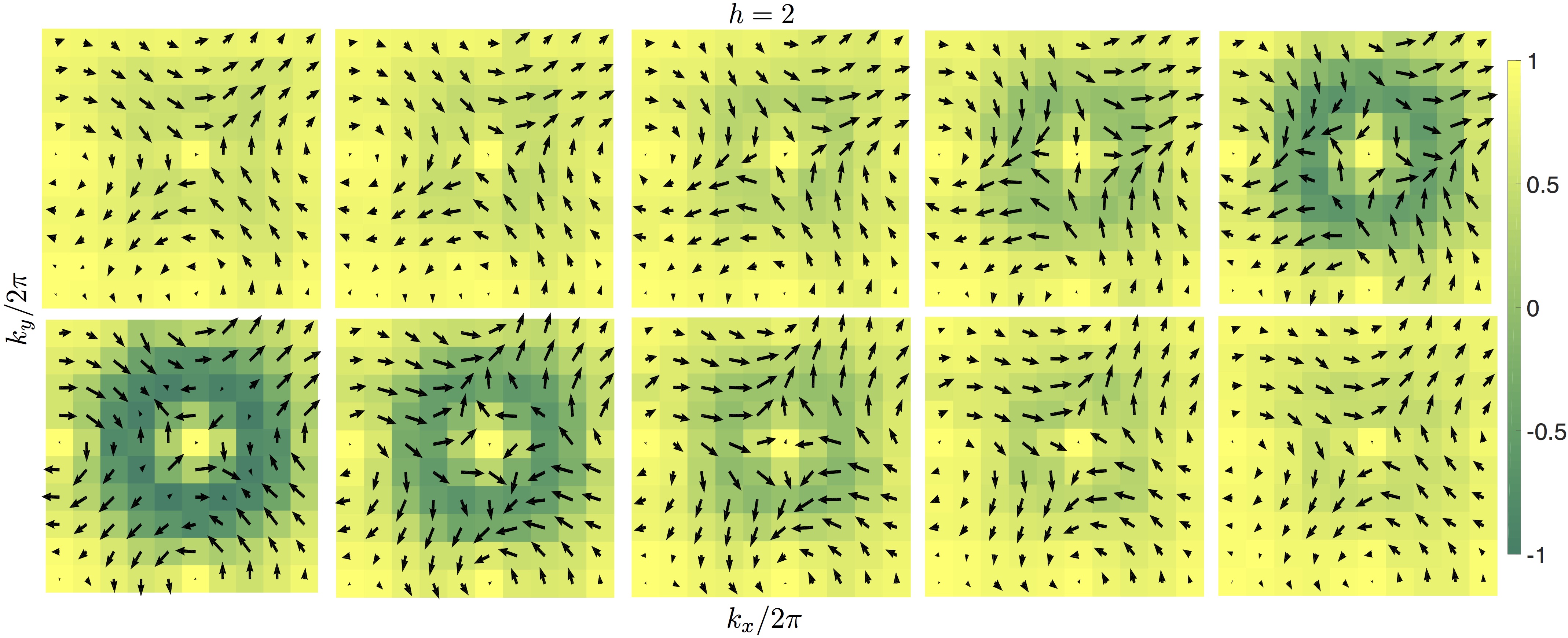

A two-dimentional (2D) slice of the spin texture is presented in the main text. Here, we include the full 3D spin texture from experimental data for both $h=2$ (Fig. 6) and $h=0$ (Fig. 7). Since the Hopf insulator is an intrinsic 3D topological insulator, complete information can be captured only by the 3D spin texture. For $h=0$, we have a higher (magnitude) topological index $\chi=-2$, so the spin texture is considerably more complex than that for $h=2$. Physically, a nonzero Hopf index guarantees the spin texture can never be untwisted to be a trivial one (e.g. all point to the same direction), unless one crosses a topological phase transition. Remarkably, the Hopf spin texture is a representation of the long sought-after Hopfions, which are 3D topological solitions with widespread applications Deng et al. (2016).

VIII Hopf Fibration & Stereographic coordinates

For simplicity and clarity, we did not use stereographic coordinates to represent the experimental data in the main text. The data were depicted in $\{k_{x},k_{y},k_{z}\}\in[0,2\pi)$ without gluing the boundaries. It does not matter for the particular spin preimage contours we measured because they form closed loops without crossing the boundaries (i.e., $k_{x,y,z}=0$ or $2\pi$). However, it may not be the case for other spin preimages, especially for higher Hopf index. When that happens, we have to visualize it properly on the torus $\mathbb{T}^{3}$; however, knots and links on the torus are difficult to see. Instead, we can map them to $\mathbb{R}^{3}$ for visualization. Indeed, our Hamiltonian mapping from the Brillouin zone $\mathbb{T}^{3}$ to the Bloch sphere $\mathbb{S}^{2}$ can be decomposed to two maps Deng et al. (2016)

[TABLE]

The map $g$ is

[TABLE]

where $(k_{x},k_{y},k_{z})$ lives on $\mathbb{T}^{3}$ and $(\eta_{1},\eta_{2},\eta_{3},\eta_{4})=(\text{Re}[\eta_{\uparrow}],\text{Im}[\eta_{\uparrow}],\text{Re}[\eta_{\downarrow}],\text{Im}[\eta_{\downarrow}])$ are points on $\mathbb{S}^{3}$ (up to a trivial normalization). The map $f$ is the Hopf map

[TABLE]

and the composition of the two maps produces the Hamiltonian written in the main text, $H_{\mathbf{k}}/\hbar\Omega=f\circ g(\mathbf{k})=\mathbf{u}(\mathbf{k})\cdot\sigma$. Therefore, the knots and links can be visualized in $\mathbb{R}^{3}$ from the stereographic coordinates of $\mathbb{S}^{3}$, for example, defined as

[TABLE]

where $(x,y,z)$ are points of $\mathbb{R}^{3}$. In Fig. 1A of the main text, the Hopf fibration is drawn under the Hopf map $f$. For a fixed point on the Bloch sphere $\mathbb{S}^{2}$, the preimage (fiber) of the point forms a closed loop in $\mathbb{S}^{3}$, which is then visualized in $\mathbb{R}^{3}$ via the stereographic coordinates. To relate the schematic to our physical system, the preimage of a fixed spin orientation measurement (on the Bloch sphere) lives in the momentum space $\mathbb{T}^{3}$, which can then be mapped to $\mathbb{S}^{3}$ via the map $g$ and subsequently $\mathbb{R}^{3}$ via the stereographic coordinates.

The Hopf map from $\mathbb{S}^{3}\to\mathbb{S}^{2}$ can be modified to the generalized Hopf map Deng et al. (2013) where a variety of knot and link structures can be revealed from Hopf insulators Deng et al. (2016). We emphasize that the change of coordinates is only for the purpose of easy visualization. The nontrivial link induced by the nonzero Hopf invariant cannot be unlinked, in either $\mathbb{R}^{3}$, $\mathbb{S}^{3}$ or $\mathbb{T}^{3}$ since the maps between them are all continuous.

IX Finite resolution & $\epsilon$-neighborhood of spin orientations

To reveal the nontrivial Hopf fibration and linking structures of the spin preimage loops, in the main text, we took experimental data on the theoretically known contours. We observed that the experimentally measured spin orientations agree well with the theory (with fidelity $F\gtrsim 99\%$ and $|\mathbf{S}_{\text{exp}}-\mathbf{S}_{\text{th}}|\lesssim 0.08$). The nontrivial links as well as the topological phase transition were readily detected from experimental data. In situations where the theoretical contours are unknown, one has to measure the spin orientations at discrete momentum data grids and deduce the preimage loops with a prescribed tolerance threshold. In this case, we can define an $\epsilon$-neighborhood of the desired spin orientation, $\mathbf{S}_{\text{th}}$, as Deng et al. (2016)

[TABLE]

The choice of $\epsilon$ depends on the actual experimental data; it should be chosen large enough to contain sufficient data points and small enough to display a clear loop structure. This scheme is also applicable to the case when we are presented with a 3D spin texture data and aim to ascertain whether it exhibits nontrivial knot or loop structures.

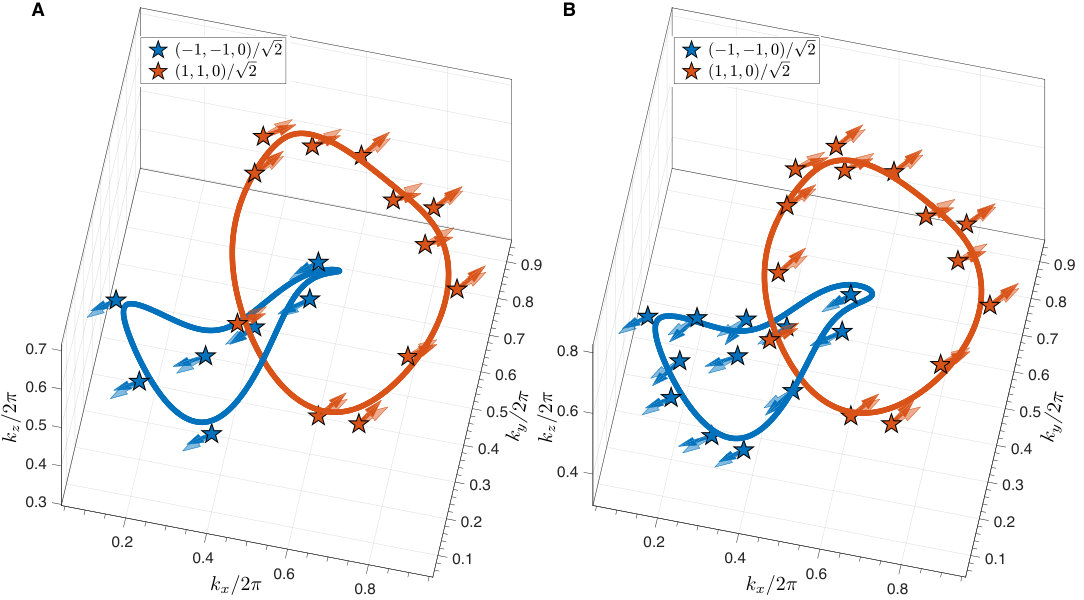

To show the method works well with limited experimental data resolution and is reasonably robust to the choice of $\epsilon$, here we use our experimental data on the $10\times 10\times 10$ grid to map out the nontrivial loops at $h=2$. Fig. 8 shows the results with $\epsilon=0.3$ and $\epsilon=0.35$ respectively. With larger tolerance, it is evident that more experimental data points are included. Being a topological property, the nontrivial loop structure is reasonably robust to the choice of $\epsilon$. Imposing the theoretical curves as guides to the eye, the nontrivial link is discernible with experimental data. We remark that the discrepancies are predominantly due to the coarse discretization. With more experimental data on a finer grid, e.g. a $20\times 20\times 20$ grid, the preimage loops and the nontrivial links should be clearly visible even without the theoretical curve; they are also expected to be highly robust to small perturbations such as experimental errors, change in Hamiltonian parameters, and the choice of the tolerance threshold.
