Prospects for indirect MeV Dark Matter detection with Gamma Rays in light of Cosmic Microwave Background Constraints

TL;DR

This study evaluates the potential for future MeV gamma-ray telescopes to detect light dark matter annihilation signals, considering current and future cosmic microwave background constraints, and identifies promising channels and targets.

Contribution

It analyzes the detectability of MeV dark matter annihilation signals with upcoming gamma-ray telescopes, incorporating the latest CMB constraints and target optimizations.

Findings

Detectable signals possible for certain channels like monochromatic photons and neutral pions.

CMB constraints exclude significant signals for leptonic channels and charged pions in dwarf galaxies.

Galactic center may still reveal signals for some channels despite CMB limits.

Abstract

The self-annihilation of dark matter particles with mass in the MeV range can produce gamma rays via prompt or secondary radiation. The annihilation rate for such light dark matter particles is however tightly constrained by cosmic microwave background (CMB) data. Here we explore the possibility of discovering MeV dark matter annihilation with future MeV gamma-ray telescopes taking into account the latest and future CMB constraints. We study the optimal energy window as a function of the dominant annihilation final state. We consider both the (conservative) case of the dwarf spheroidal galaxy Draco and the (more optimistic) case of the Galactic center. We find that for certain channels, including those with one or two monochromatic photon(s) and one or two neutral pion(s), a detectable gamma-ray signal is possible for both targets under consideration, and compatible with CMB constraints. For other annihilation channels, however, including all leptonic annihilation channels and two charged pions, CMB data rule out any significant signal of dark matter annihilation at future MeV gamma-ray telescopes from dwarf galaxies, but possibly not for the Galactic center.

Figures

Equations

$$\frac{dN}{d{E}_{\gamma }}=2\delta (E_{\gamma }-m_{\chi }).$$

$$\frac{dN}{d{E}_{\gamma }}=\delta (E_{\gamma }-E_0)+\frac{2}{\Delta E}\theta (E_{\gamma }-E_{-})\theta (E_{+}-E_{\gamma }),$$

$$E_{\pm }=\frac{m_{\chi }}{2}\left(\left(1+\frac{m_{{\pi }_0}^2}{4m_{\chi }}\right)\pm \left(1-\frac{m_{{\pi }_0}^2}{4m_{\chi }}\right)\right).$$

$$\frac{dN}{d{E}_{\gamma }}=\frac{4}{\Delta E}\theta (E_{\gamma }-E_{-})\theta (E_{+}-E_{\gamma }),,$$

$$E_{\pm }=\frac{m_{\chi }}{2}\left(1\pm \sqrt{1-\frac{m_{{\pi }^0}^2}{m_{\chi }^2}}\right).$$

$$\frac{dN}{dy}\simeq \frac{\alpha }{\pi }\left(\frac{1-(1-y{)}^2}{y}\right)\left(\ln \frac{s(1-y)}{m_l^2}-1\right),$$

$$E_{\gamma }^{\prime }\sim {\Gamma }_e^2{E}_{\gamma }\sim {\left(0.1\times \frac{m_{\chi }}{m_e}\right)}^2{E}_{\gamma }\ll 1\mathrm{MeV},$$

$$\frac{dE}{dtdV}={\rho }_c^2{c}^2{\Omega }_{\chi }^2(1+z{)}^6{P}_{\text{ann}}(z),$$

$$P_{\text{ann}}\equiv f(z)\frac{⟨\sigma v⟩}{m_{\chi }}$$

$$P_{\text{ann}}<4.1\times 10^{-28}{\text{cm}}^3{\text{s}}^{-1}{\text{GeV}}^{-1},$$

$$f_{\text{eff}}=\frac{1}{2m_{\chi }}{\int }_0^{m_{\chi }}EdE\left(f_{\text{eff}}^{\gamma }(E)\frac{dN}{d{E}_{\gamma }}+2f_{\text{eff}}^{e^{+}}(E)\frac{dN}{d{E}_{e^{+}}}\right),$$

$$⟨\sigma v⟩<\frac{m_{\chi }}{f_{\text{eff}}}{P}_{\text{ann}}.$$

$$\frac{dE}{dVdt}=c^2{\Omega }_{\chi }{\rho }_c^2(1+z{)}^{6}f(z)\frac{⟨\sigma v{⟩}_p}{m_{\chi }},$$

$$⟨\sigma v{⟩}_p=(\sigma v{)}_{\text{ref}}\frac{⟨\upsilon {⟩}^2}{⟨\upsilon {⟩}_{\text{ref}}^2}=(\sigma v{)}_{\text{ref}}\frac{(1+z{)}^2}{(1+z_{\text{ref}}{)}^2},$$

$$\varphi =J(\Delta \Omega )\cdot \frac{1}{4\pi }\frac{⟨\sigma v⟩}{2m_{\chi }^2}\int dE\frac{dN}{d{E}_{\gamma }},$$

$$N_s=A_{\text{eff}}\cdot T_{\text{obs}}\cdot \varphi ,$$

$$⟨\sigma v⟩>10\sqrt{N_b}\frac{1}{{\int }_{E_{\text{min}}}^{E_{\text{max}}}dE\frac{dN}{d{E}_{\gamma }}}\frac{4\pi }{A_{\text{eff}}{T}_{\text{obs}}J}{m}_{\chi }^2.$$

$$\frac{d\varphi }{d\Omega dE}=(2.74)\times 10^{-3}{\left(\frac{\text{MeV}}{E}\right)}^{-2.0}{\text{cm}}^{-2}{\text{s}}^{-1}{\text{sr}}^{-1}{\text{MeV}}^{-1},$$

$$\frac{N_s}{\sqrt{N_b}}\propto f(⟨\sigma v⟩,m_{\chi })$$

$$E^2\frac{d\varphi }{dE}\sim 1.1\times 10^{-2}{E}^{0.23}{\mathrm{cm}}^{-2}{\mathrm{s}}^{-1}\mathrm{s}{\mathrm{r}}^{-1}\mathrm{MeV}.$$

Full text

I INTRODUCTION

Dark matter is a key element in the current cosmological paradigm, the so-called $\Lambda$CDM concordance model of a cosmological constant plus cold dark matter. Such a picture is highly consistent with all latest cosmological observations, including those of the Cosmic Microwave background (CMB) and of galaxy distributions Ade et al. (2016). Little is known, however, about the dark matter fundamental properties as an elementary particle, and about whether or not the dark matter is coupled to the Standard Model other than via gravity. If dark matter particles annihilate (or decay – we will not consider decay here, however) into Standard Model particles, it is possible to discover a non-gravitational signal through astrophysical observations. One way to search for this kind of signal is by looking for excess photon emission, typically in an energy range close to the dark matter particle mass, from dark-matter-rich targets such as the Galactic Center, local clusters of galaxies, Dwarf Spheroidal or local Milky-Way-like galaxies, where the expected signal-to-noise is often optimal Profumo (2013). An especially interesting case is when the dark matter annihilation events produce monochromatic photons in the final state, and the particle mass can be related to the energy of the expected photon lines (in the simplest case of a two-photon annihilation mode, the line approximately corresponds to the dark matter particle mass, for non-relativistic annihilating particles) Bergstrom et al. (1998); Bringmann and Weniger (2012); Goodman et al. (2011); Rajaraman et al. (2012); Bergstrom et al. (2012); Ibarra et al. (2012); Yuksel and Kistler (2008).

The search for gamma rays as indirect probes of dark matter annihilation has been extensively pursued both theoretically and observationally; one of the most recent results is from the Fermi-LAT collaboration, and it covers the energy range $\sim$4.8 GeV up to $\sim$ 250 GeV Abdo et al. (2010a, b); Ackermann et al. (2012). The forthcoming GAMMA-400 space mission Galper et al. (2014) is anticipated to launch at the beginning of 2020 and will search for gamma rays in the energy range from $\sim 100$ MeV up to $3$ TeV, thus overlapping Fermi’s energy range. The energy range between $\sim 0.2$ MeV up to $\sim 100$ MeV is however still vastly untapped and largely unexplored 111With the partial exception of the now defunct COMPTEL Lichti (1994) and EGRET Thompson et al. (1993) telescopes, featuring however relatively low effective area and poor energy resolution., and potentially critical to search for dark matter with a mass in the few MeV to few hundred MeV range. Several proposed mission concepts have recently been discussed to deploy an MeV detector capable to eliminate this “MeV gap” Boddy and Kumar (2016), including for example the e-ASTROGAM gamma-ray space mission Tatischeff et al. (2016) and many others such as GRIPS Greiner et al. (2011), PANGU Wu et al. (2014), ACT Boggs et al. (2006), and AdEPT Hunter et al. (2014).

The MeV range is a new exciting frontier for future indirect dark matter searches with gamma rays. With this motivation in mind, in the present study we analyze the projected capability of future MeV gamma-ray detectors in exploring MeV dark matter models, as a function of the dominant pair-annihilation finals states and compare with the tightest constraints on the allowed annihilation rate as a function of the particle mass stemming from the induced distortions to the spectrum of the CMB Slatyer (2013, 2016). We remain agnostic as to the specific UV realization of the particle models at hand, and assume that one of the kinematically allowed annihilation final states dominates. While previous works have presented detection limits for MeV dark matter Bartels et al. (2017); Boddy and Kumar (2015), as we illustrate in detail in Sec.V our study extends and differs significantly in several aspects from previous analyses.

In this work we exclusively focus on s-wave annihilating dark matter. In the case of p-wave pair-annihilation the constraints from CMB are largely relaxed, as we discuss in section III, but the prospects for gamma-ray detection are also not as promising as in the s-wave case. We compute the parameter space ranges on the ($m_{\chi},\langle\sigma v\rangle_{\text{s-wave}}$) plane allowed by CMB for six different annihilation channels and we then proceed to compare those ranges with the values producing a $5\sigma$ detection for some hypothetical detector specification, inspired by currently proposed experimental designs for future MeV detectors.

This paper is organized as follows: In section II we discuss the particle dark matter models and assumptions, and we present the photon spectrum for the different annihilation channels; In section III we briefly discuss the thermal history of the Universe and how extra energy injection can alter the residual free-electron fraction after recombination, leading to distortions in the CMB Power Spectrum. In section IV we discuss how we construct the hypothetical detector and what energy range can enhance the detection for each channel, in section V we present a brief discussion comparing previous works and our results, and, finally, we conclude in section VI.

II Gamma-rays from MeV Dark Matter Annihilation

We consider dark matter masses in the range between the neutral pion mass ($\sim 135$ MeV) and 1 GeV. We remain agnostic about the underlying UV theory and about the spin of the dark matter particle; rather, we describe a given model realization by the triplet given by the dark matter particle mass $m_{\chi}$, the thermally-averaged zero-temperature pair annihilation cross section times relative velocity $\langle\sigma v\rangle$, and the dominant annihilation final state. For simplicity, we assume that, whenever kinematically open, the two-pion final state dominates over $n\pi$, $n>2$, and over final states involving heavier mesons, although this depends on the matching of the UV theory onto the light meson degrees of freedom Coogan and Profumo (2017). This is somewhat justified, however, because of phase-space suppression of the sub-dominant annihilation final states.

With these assumptions, the two-body final states we consider in this work are:

(i) two photons, $\gamma\gamma$;

(ii) photon and neutral pion, $\gamma\pi^{0}$, open for $\sqrt{s}>m_{\pi^{0}}$;

(iii ) two neutral pions, $\pi^{0}\pi^{0}$, for $\sqrt{s}>2m_{\pi^{0}}$;

(iv) two charged pions, $\pi^{+}\pi^{-}$, for $\sqrt{s}>2m_{\pi^{\pm}}$;

(v ) two charged leptons, $\bar{{l}}l$ (l=$e,\mu$) state, accessible for $\sqrt{s}>2m_{l}$.

Here $\sqrt{s}\simeq 2m_{\chi}$ is the Mandelstam variable, $m_{\pi^{0}}$, $m_{e}$ and $m_{\mu}$ are the pion, electron, and muon mass, respectively. We do not consider channels involving neutrinos since they do not affect the CMB nor do they produce (significant amounts of) photons. The $\gamma$-ray spectrum,$\frac{dN}{dE_{\gamma}}$, generated by the annihilation channels listed above are quite simple for the first three cases. For the $\gamma\gamma$ final-state the spectrum is a delta function centered at the dark matter particle mass,

[TABLE]

The spectrum generated by the $\gamma\pi^{0}$ final state (see e.g. Bartels et al. (2017)) is a delta function for the prompt photon and a box-shaped spectrum for the subsequent decay of the $\pi^{0}$ into two photons,

[TABLE]

where $E_{0}=m_{\chi}-\frac{m_{\pi^{0}}^{2}}{4m_{\chi}}$, $\Delta E=m_{\chi}-\frac{m_{\pi_{0}}^{2}}{4m_{\chi}}$, and

[TABLE]

For the two neutral pions, $\pi^{0}\pi^{0}$, we have a box-shaped spectrum

[TABLE]

where $\Delta E=E_{+}-E_{-}=\sqrt{\frac{s}{4}-m_{\pi^{0}}^{2}}$ and

[TABLE]

For the $\pi^{+}\pi^{-}$ channel we used numerical results from Ref. Coogan and Profumo (2017), the code provided computes the photons coming from a radiative process in the charged pion decay $\pi^{+(-)}\to\mu^{+(-)}\nu_{\mu}(\bar{\nu}_{\mu})\to e^{+(-)}\nu_{e}(\bar{\nu}_{e})\bar{\nu}_{\mu}(\nu_{\mu})$ in a boosted frame, the energy of the charged pions comes from the reference frame of the dark matter annihilation.

In the case of dark matter annihilating into leptons, the spectrum is quite different since the photon final state comes from radiative processes, and it is approximately given by (Bergstrom et al., 2005; Bell and Jacques, 2009)

[TABLE]

where $y\equiv E_{\gamma}/m_{\chi}$ and the approximate leading-log formula applies for $m_{\chi}\gg m_{\mu}$.

Notice that in this study we neglect secondary photon production Profumo and Ullio (2010). The most relevant process would be inverse Compton, but the typical energies for the up-scattered photons, even in the case of the most energetic and sufficiently dense photon background, typically starlight, for which $E_{\gamma}\sim 1$ eV, would be Profumo and Ullio (2010); Colafrancesco et al. (2007, 2006); Jeltema and Profumo (2008)

[TABLE]

where $\Gamma_{e}$ is the typical Lorentz factor of the $e^{\pm}$ produced in the dark matter annihilation event. Secondary photons thus largely fall outside the range of interest for future proposed MeV gamma-ray detectors.

III Thermal history and CMB constraints

The CMB is one of the most important observables on Cosmology. It has been measured with increasingly high precision, and the physics behind it is well understood. As a result, CMB data can be used to constrain dark matter models that inject electromagnetically interacting Standard Model particles, since those would alter the thermal history of the Universe. Specifically, dark matter self-annihilation injects energy in the intergalactic medium (IGM), with possible ionization and heating of the IGM gas, resulting in modifications to the recombination process at redshifts $z\sim 1000$. Free electrons leftover after recombination interact with CMB photons and cause modifications to the CMB power spectrum, which, in turn can be constrained with current CMB data.

The energy per unit volume per unit time successfully injected in the IGM by dark matter particle pair-annihilation is usually cast as  Chen and Kamionkowski (2004):

[TABLE]

where $\rho_{c}$ is the critical density of the Universe, $\Omega_{\chi}$ is the dark matter density and the annihilation parameter,

[TABLE]

is given in terms of the dark matter particle mass, $m_{\chi}$, the thermally averaged cross section $\langle\sigma v\rangle$, and a redshift-dependent efficiency function $f(z)$. Equation (5) is coupled to the evolution of the free-electron fraction and medium temperature, so one has to solve both and include the result in the CMB fluctuations analysis. The standard methodology of solving these equations in presence of dark matter annihilations is extensively described in Ref Chen and Kamionkowski (2004), and is implemented in Boltzmann codes as CLASS Lesgourgues (2011).

In this work, we use the current constrains to the s-wave dark matter annihilation, given by the latest Planck constraints Ade et al. (2016),

[TABLE]

which, by means of equation (5), translates into an excluded region in the mass vs cross-section plane. However, the annihilation probability $P_{\text{ann}}$ is in principle a redshift-dependent quantity through the efficiency function. Fortunately, it has been demonstrated Slatyer (2016) that one can use an effective redshift-independent efficiency function $f_{\text{eff}}$; the authors of Ref. Slatyer (2016) have proved that by making this change, the CMB power spectrum is altered in the same way as if one were including a redshift-dependent efficiency function. Following reference Slatyer (2016), the $f_{\text{eff}}$ is computed as:

[TABLE]

where the functions $f_{\text{eff}}^{(\gamma)(e^{+})}$ are provided in Ref. Slatyer (2016).

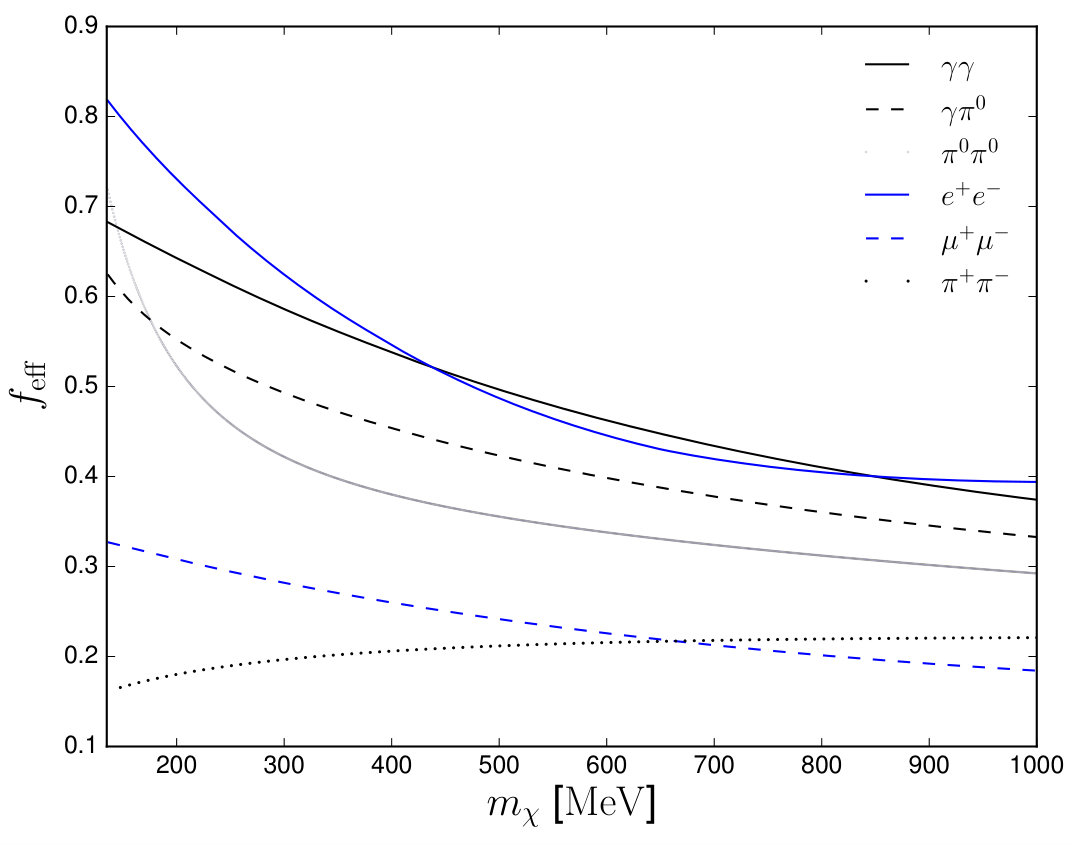

One therefore exclusively needs to know the injected photon and electron-positron spectrum for a given annihilation final state to compute the effective efficiency function and apply the Planck constraints, Eq. (7), for each annihilation channel. For the cases of dark matter annihilating into $\gamma\gamma$, $\gamma\pi^{0}$, $\pi^{0}\pi^{0}$ and $e^{+}e^{-}$ this is straightforward using the spectra presented in Section II, Eq. (1), (2) and (3). For the $e^{+}e^{-}$ case we need to add a delta-like function centered at the dark matter particle mass in addition to the final state radiation spectrum, while for the muon pair case, in addition to the photon spectrum from final state radiation off the muons, Eq. (4), we use the secondary electron-positron spectrum fit given in Ref. Cirelli et al. (2011), valid since we are in the range $m_{\chi}>m_{\mu}$. Finally, for the case of charged pions, the electron-positron spectrum was computed following the results of Ref.  Scanlon and Milford (2014); Medhi et al. (2016); Culverhouse et al. (2006). The effective functions $f_{\rm eff}$ for all these channels as a function of the dark matter particle mass are presented in Fig. 1 222A python code to compute the efficiency functions is available at https://github.com/JavierReynoso/feff.git..

With all these ingredients in hand, one can set constrains on the parameter space ($\langle\sigma v\rangle$, $m_{\chi}$) through:

[TABLE]

Such constraints correspond to the solid lines in Fig. 3 and in the following figures, which will be discussed in detail below.

Thus far we have only discussed CMB constraints for an s-wave annihilating dark matter cross-section, but if we allow the thermally averaged cross section to be velocity dependent, $\langle\sigma v\rangle\propto v^{2}$, CMB constraints relax very significantly. Specifically, the injected energy due to p-wave annihilating dark matter is

[TABLE]

where

[TABLE]

note that $\langle\sigma v\rangle_{p}\propto T_{\chi}$ Profumo (2013). Equation (10) results in a suppression on the energy injection and thus will not alter the thermal history until low redshift. At the redshifts where dark matter contributes one must also consider the clumping effect due to the formation of dark matter halos Liu et al. (2016). In addition, to compute the $z_{\text{ref}}$ one must know the temperature of kinetic decoupling ($T_{\text{kd}}$), which is model dependent (see e.g. Ref. Profumo et al. (2006); Cornell et al. (2013); Cornell and Profumo (2012)). Given that constraints from CMB for p-wave annihilation are both weak and model-dependent, and that, moreover, the corresponding detectability of a gamma-ray signal is highly dependent on the velocity distribution in the target dark matter halo, in this work we exclusively focus on s-wave annihilators. Limits on p-wave annihilating dark matter from CMB for larger dark matter masses in standard WIMP scenarios have been presented in Liu et al. (2016); Dia (2013); Choquette et al. (2016).

IV Gamma-ray Detection

What is the optimal energy window to search for gamma rays from MeV-scale dark matter particles? The question involves at the same time selecting energy windows and targets with a large enough signal to collect a significant number of signal photon events, and on optimizing the signal-to-noise ratio. The photon flux from dark matter pair annihilation is given by:

[TABLE]

where $J$ is the astrophysical “J-factor”, the line of sight integral of the dark matter density squared integrated over an angular window subtending a solid angle $\Delta\Omega$. In this work we focus on the dwarf spheroidal galaxy Draco, with a a J-factor of $\text{log}_{10}(J/\text{GeV}^{2}\text{cm}^{-5})=19.05^{+0.22}_{-0.21}$ Boddy et al. (2016), and on the Galactic center, in which case we will consider a broad range of possible values for J-factor, $\text{log}_{10}(J/\text{GeV}^{2}\text{cm}^{-5})\approx{21}--{23}$. The actual values were computed for the compilations of profiles made in Gammaldi et al. (2016). Such compilation includes profiles found in state-of-the art $N$-body + hydrodynamical simulations of Milky Way like galaxies, namely the MOLL Mollitor et al. (2015), EAGLE Calore et al. (2015), ERIS Guedes et al. (2011), GARROTXA (GARR)Roca-Fàbrega et al. (2016), and it also includes a DM-only profile (EVANS )Evans et al. (2004); all these profiles satisfy the constrain of the DM abundance at the Solar System. This should cover the large uncertainty associated to the inner density profile of the Milky Way. As for the solid angle, in the case of Draco we take $\Delta\Omega=1.6\times 10^{-3}$ sr, corresponding to the angular area subtended in the sky, while for the Galactic center we use the solid angle corresponding to an aperture of $1^{\circ}$ ($\Delta\Omega=9.5\times 10^{-4}$ sr). This corresponds to the angular resolution planned for e-ASTROGAM over most of the energy range of interest here Tatischeff et al. (2016); setting the angular region of interest to the angular resolution is intended to maximize the signal-to-noise for dark matter annihilation in the Galactic center.

The number of photons coming from a given target with a given J-factor is is given by:

[TABLE]

where $A_{\text{eff}}$ is the effective area of the detector, $T_{\text{obs}}$ is the time of observation. The total number of collected signal photons must be large enough so that the corresponding signal-to-noise ratio yields a statistically significant detection. We here assume that a number of signal photon $N_{s}\sim N_{\sigma}\sqrt{N_{b}}$, where $N_{b}$ is the number of background photons that corresponds to a detection of statistical significance $N_{\sigma}$. As mentioned in the introduction, our main goal is to explore the plausibility of a dark matter signal using future MeV gamma-ray telescopes. To perform this analysis we considered a hypothetical detector with specifications similar to the proposed ASTROGAM detector Tatischeff et al. (2016); specifically, we assume an effective area of $A_{\text{eff}}=500\ \text{cm}^{2}$ and an observation time $T_{\text{obs}}=1\hskip 2.84526pt\text{year}$. Using these numbers and requiring a 5$\sigma$ detection, $N_{\sigma}=5$, we can derive an expression for $\langle\sigma v\rangle$ in terms of the mass that would guarantee this detection.

[TABLE]

To fully compute the values for $\langle\sigma v\rangle$ that can satisfy this, we must know the number of background photons $N_{b}$ and the integrated gamma-ray spectrum coming from dark matter annihilations. On one hand, we have that the number of background photons $N_{b}$ is proportional to the integrated background diffuse gamma-ray spectrum, which we assume, following Ref. Boddy et al. (2016), to be given by:

[TABLE]

as obtained from a fit to data from COMPTEL ointner (1999) and EGRET Strong et al. (2004a). For the case of the Galactic center, we utilize the so-called region A of the analysis in Ref. Strong et al. (2004a), giving a level of diffuse emission with a similar spectrum but a factor about 4 times larger. Now, the challenge is to find the optimal integration range for the gamma-ray signal spectrum and background: picking an arbitrarily large integration range may be best for some cases but decreases the detection line in others. We thus proceeded to optimize the search strategy by picking the best integration energy range that gives a maximum $N_{s}/\sqrt{N_{b}}$ for each channel, assuming a lower limit of $m_{\chi}-\Delta E$ and an upper limit of $m_{\chi}$ and analyzing the results as a function of $\Delta E$ to select the $\Delta E$ that maximizes the signal-to-noise ratio,

[TABLE]

The goal of this analysis is, given a certain $m_{\chi}$ and $\langle\sigma v\rangle$, to calculate which $\Delta E$ maximizes $N_{s}/\sqrt{N_{b}}$ while still giving enough photon events $N_{s}$ (we aimed for a minimum of $N_{s}\sim 20$). To do so, we explored the signal to noise as a function of $\Delta E$ for a few different representative sample mass cases. While for the first three final states listed in Sec. II analytical integration is straightforward, for the lepton and charged pion cases we resorted to numerical integration. We found that for the cases of dark matter annihilating into $\gamma\gamma$ and $\gamma\pi^{0}$ the optimal range corresponds to the smallest possible energy window, which we take to be as low as the energy resolution of the detector, $\Delta E/E\sim 1\%$, again having in mind ASTROGAM Tatischeff et al. (2016) which is designed to achieve this energy resolution. For the leptons and charged pion cases, we found that a $5\sigma$ detection is not possible since the number of photons in this energy range of ($m_{\pi^{0}}<E<1$ GeV) are not enough to even have the required event photons with maximal cross sections corresponding to the CMB limits. Nevertheless we picked a $\Delta E/E\sim 0.9$, which is the value that maximizes the signal to noise.

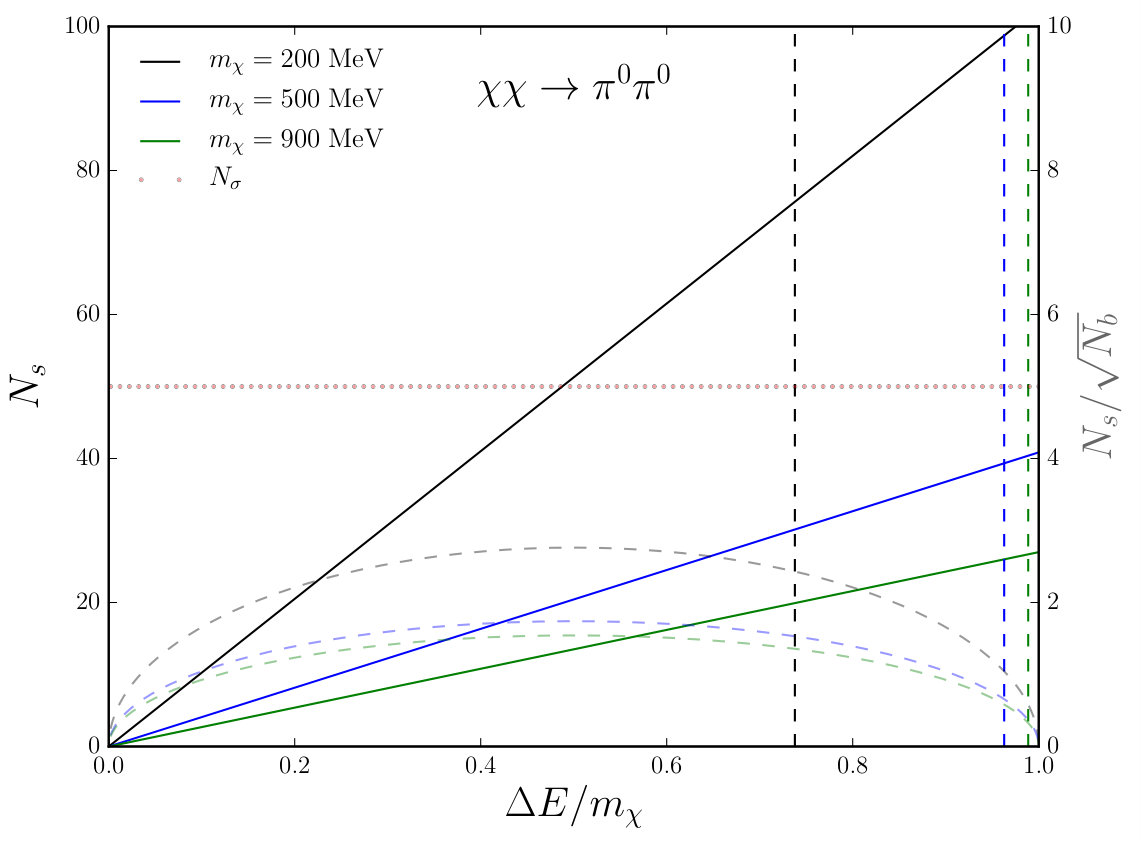

The case of dark matter annihilating into neutral pions is the most interesting one. Given the specific shape of the gamma-ray spectrum, there is a maximum possible integration range, that means our $\Delta E$ cannot be larger that ($\sqrt{s/4-m_{\pi^{0}}^{2}}$), to the expense of only integrating additional background; this led us to consider a mass-dependent $\Delta E$ for each value of the dark matter mass that lies across the allowed integration range. The result of this analysis for the annihilation into neutral pions is presented in Fig. 2, where we present the number of event photons (left axis) in the energy range $\Delta E/m_{\chi}$. The right axis, corresponding to the dashed lines, shows the corresponding signal to noise ratio $N_{s}/\sqrt{N_{b}}$ ($N_{\sigma}$), a proxy of the statistical significance. The vertical dashed lines represent the maximum energy-range possible for a certain mass in the case of neutral pions. We only show three specific masses, the low and high limits, and one in between. As we mentioned before, we chose the maximum possible integration range for the $\pi^{0}\pi^{0}$ case, in Fig. 2 the maximum clearly occurs at $\Delta E/E\sim 0.5$, but for masses near the pion mass, the vertical line, which is the maximum possible integration range, would be positioned before the 0.5 value which lead us to think that a fixed value for $\Delta E/E$ would give an over estimation in some cases. Therefore, and for simplicity, and even though this $\Delta E$ does not always maximizes the detection, we will use the maximum possible $\Delta E$ for each mass given by ($\sqrt{s/4-m_{\pi^{0}}^{2}}$).

Having performed the optimization analysis described above, we proceeded to compare the values of $\langle\sigma v\rangle$ we need for a $5\sigma$ detection with the current s-wave Planck constraints for the different final state channels. In Fig. 3 we present the case of dark matter annihilating into $\gamma\gamma$, $\gamma\pi^{0}$ and $\pi^{0}\pi^{0}$, for the Draco dSph. For all three cases, we find that there is a mass range allowed by Planck constraints where a signal can be detected, although for the case of neutral pions that is limited to masses very close to the pion threshold. In Fig. 4 we present the cases of dark matter annihilating into $e^{+}e^{-}$, $\mu^{+}\mu^{-}$ and $\pi^{+}\pi^{-}$. The figure illustrates how for charged particles no MeV gamma-ray signal is possible from the dSph Draco due to Planck constraints. In addition, future CMB limits are shown, gray lines, indicating the projected constraints from COrE+ (TEP specification), at the level of $P_{\rm{ann}}<1.38\times 10^{-28}\rm{cm}^{3}\rm{s}^{-1}\rm{GeV}^{-1}$ Di Valentino et al. (2016).

Fig. 5 and 6 show a similar analysis for the Galactic Center (GC) as target. As mentioned before in this section, we considered a broad range of possible values for the J-factor leading to different detection values for $\langle\sigma v\rangle$. The dashed lines in Fig. 5 and 6 represent the detection limit at $5\sigma$ taking into account different DM density profiles (different J-factors). The $\gamma$ value corresponds to the slope of the DM profile. The diffuse background for the GC was also obtained from Ref. Strong et al. (2004b), and it corresponds to the Inner Galaxy (Region A) spectrum,

[TABLE]

V Comparison with previous works

As mentioned in Sec. I, previous papers have addressed the topic of annihilating/decaying dark matter in the MeV energy regime, most importantly references Boddy and Kumar (2015) and Bartels et al. (2017). Those studies make significantly different assumptions from what presented in here in essentially all aspects of the analysis, from background, to instrumental performance, to signal intensity and spectral regions, and detectability of a signal. In Boddy and Kumar (2015), for example, they considered a non-minimal dark sector, where the DM annihilates into the two final states: $\gamma\gamma$ and $\gamma\pi^{0}$, with the latest presenting a spectrally unambiguous signal in the hypothetical detector. Their results are largely compatible with the current CMB constraints when using Draco as the source of gamma rays. Here we considered several other annihilation final states, and we also find that the final state $\gamma\pi^{0}$, would be detectable compatibly with current CMB constraints; however that will no longer be the case assuming the projected CMB constraints provided by CORE+. The GC was not considered by Boddy and Kumar (2015) and therefore we can not compare our results with theirs on that target.

Ref. Bartels et al. (2017) presented an overview of the detection opportunities of MeV DM through DM annihilation, especially for the case of leptonic final states, but they do not consider final states we take into consideration here, e.g. $\pi^{+}\pi^{-}$; in addition, their spectra for the $\mu^{+}\mu^{-}$ utilizes extrapolated results from the DarkSUSY package well outside the range of validity of the Monte Carlo simulations used to produce the spectra (in the several GeV range). An extensive work was done in obtaining realistic projected upper bounds by modeling the uncertainties in the diffuse background incorporated into a Fisher forecast analysis. Additionally, Ref. Bartels et al. (2017) includes secondary radiation from stable charged products, which they find (as we claim here) to be largely irrelevant for detection. Our results, for the GC, are quite similar to those presented in Ref. Bartels et al. (2017), especially for the $\gamma\gamma$, the $\gamma\pi^{0}$ and $\pi^{0}\pi^{0}$ final states, in the sense that regardless the details of the analysis, this channels seems to be quite promissory for detection, in light of current and future CMB constraints, unless the DM density profile is flat. For the case of the lepton final states, the ones more carefully studied by Bartels et al. (2017), we find, as they do, that detection in most of these channels would be excluded by current constraints, except in the case that the inner density profile is steeper than a standard NFW density profile.

In summary, the analysis provided in this paper is similar to that in Bartels et al. (2017) with a few important exceptions: i) we have considered the additional $\pi^{+}\pi^{-}$ channel, ii) we utilize a more accurate computation of the gamma-ray production from the $\mu^{+}\mu^{-}$ final state, especially for dark matter masses close to the muon mass, iii) we have provided individual constraints for each channel arising from the assumption that the efficiency function is channel-dependent, iv) we have performed an analysis on the energy integration range $\Delta E$ to optimize the detection limit for each individual channel, resulting in more optimistic results regarding the possible detection, v) we show that the detection limit can vary broadly for different DM density profiles, and we have some cases for which the detection is possible even at the CORE precision level.

VI Discussion

In this work we have considered the indirect detection of s-wave pair annihilation of dark matter with masses in the MeV range (specifically, $m_{\pi^{0}}<E<1$ GeV) with future MeV gamma-ray telescopes. We investigated six different annihilation channels ($\gamma\gamma$, $\gamma\pi^{0}$, $\pi^{0}\pi^{0}$, $e^{+}e^{-}$ and $\mu^{+}\mu^{-}$ and $\pi+\pi^{-}$), and we assumed a hypothetical detector with specifications similar to the proposed ASTROGAM telescope Tatischeff et al. (2016). We then determined the optimal integration energy range for every given channel, and calculated the values of $\langle\sigma v\rangle$ for a given mass and annihilation final state giving a $5\sigma$ detection for the conservative case of a virtually background free target such as the Draco dSph and for the Galactic center. We then compared the required annihilation rate with the current s-wave annihilating dark matter CMB constraints, $f_{\text{eff}}\langle\sigma v\rangle m_{\chi}<4.1\times 10^{-28}\text{cm}^{3}\text{GeV}^{-1}\text{s}^{-1}$, and with future CMB constraints from COrE+, TEP, at the level of $P_{\rm{ann}}<1.38\times 10^{-28}\rm{cm}^{3}\rm{s}^{-1}\rm{GeV}^{-1}$.

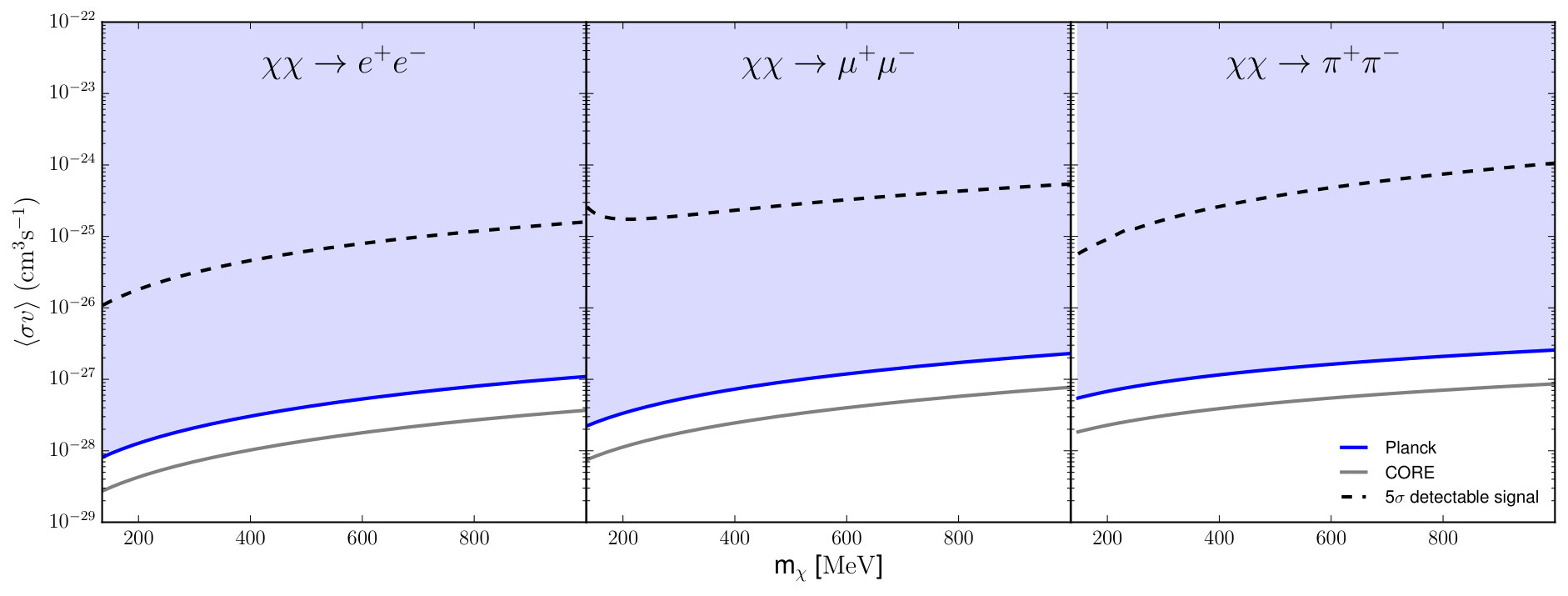

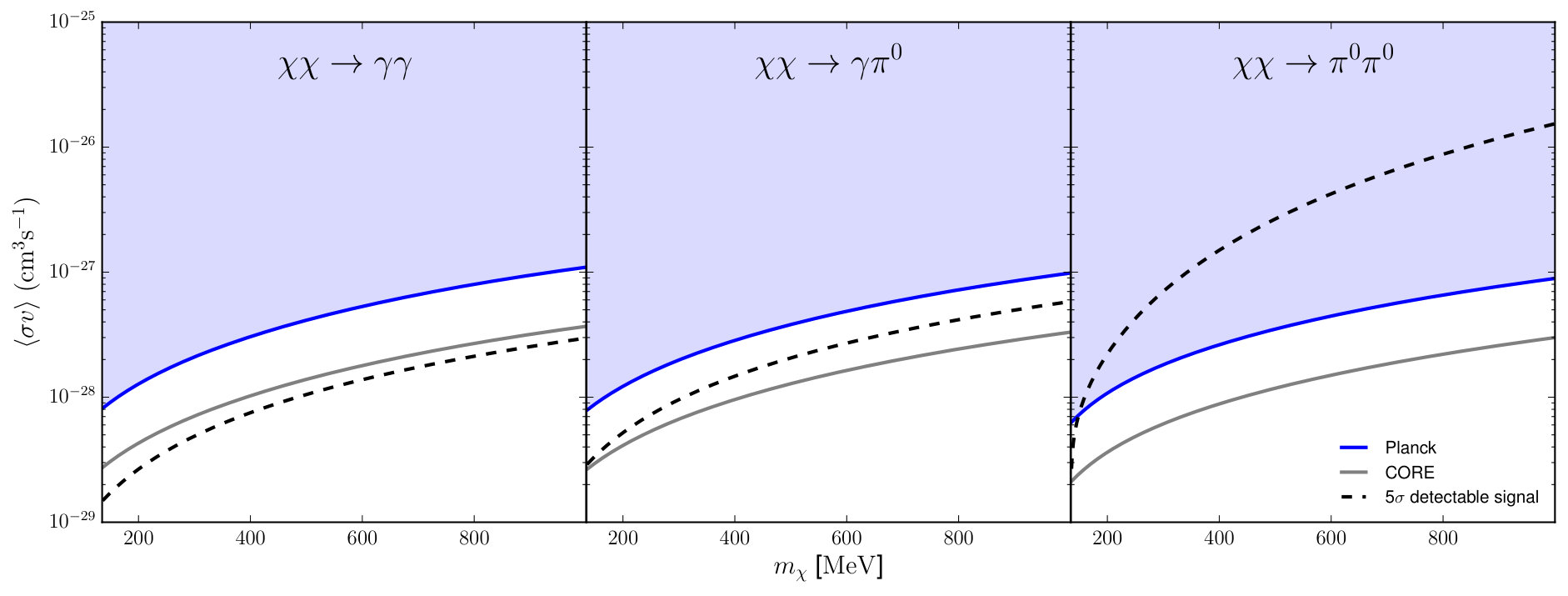

Our main results are presented in Figs. 3, 4, 5 and 6. For the cases of dark matter annihilating into leptons and charged pions, Fig. 4 illustrates that Ade et al. (2016) constraints exclude the possibility of a detection from a dSph such as Draco, Fig. 6 shows that for these channels, a detection is possible for the GC, but just for a selected DM density profiles. If we take the projected constraints from CORE, most of the cases for different J-factors are excluded. For the case of monochromatic photons and neutral pions, 3 and 5 show that a detection is generically possible and compatible with CMB constraints.

We note that our results are generally similar to those presented in Ref. Boddy and Kumar (2015), which also studied MeV dark matter candidates, with the exception that our CMB limits were calculated with information on $f_{\rm eff}$ from each individual channel, and that we here use different assumptions for the dark matter density profile, the energy integration range, and the detector specifications. Our conclusions are, as a result of all these different choices, somewhat more optimistic than those reported in Boddy and Kumar (2015).

One source of uncertainty in our analysis, as in any similar analysis, is the value of the $J$-factors, i.e. the assumed dark matter density profile. Most of the analysis for dwarf spheroidal galaxies report $\log_{10}{J\hskip 2.84526pt\rm{GeV}^{-2}\rm{cm}^{-5}}\approx 18.8$ Chiappo et al. (2017); Martinez (2015) instead of the $\log_{10}(J\hskip 2.84526pt\rm{GeV}^{-2}\rm{cm}^{-5})\approx 19.05$ we are using. The difference is due to the maximum angle of integration used to compute the factor $J$. Our analysis is sensitive to this choice since a lower value of $J$ implies stronger constraints on the $\langle\sigma v\rangle$ vs $m_{\chi}$ plane. If the lower $J$-factor is used together with CORE+ constraints, this would preclude detectability for most channels.

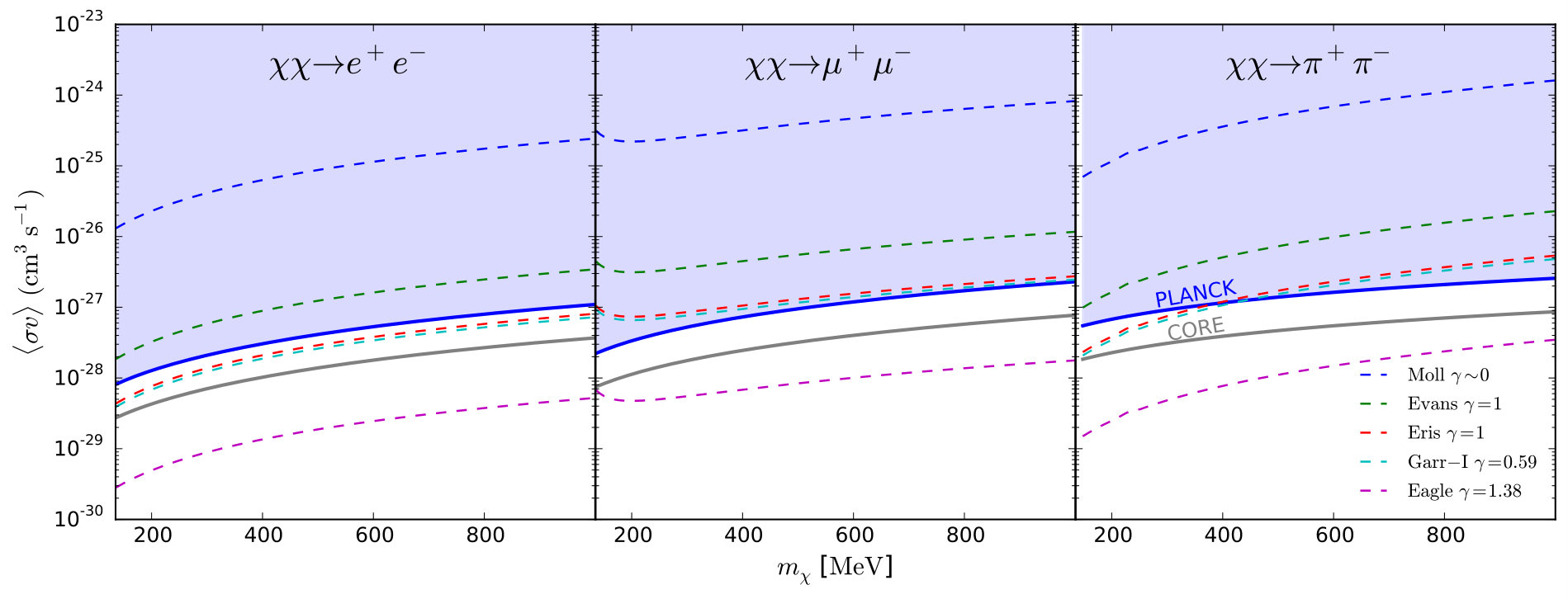

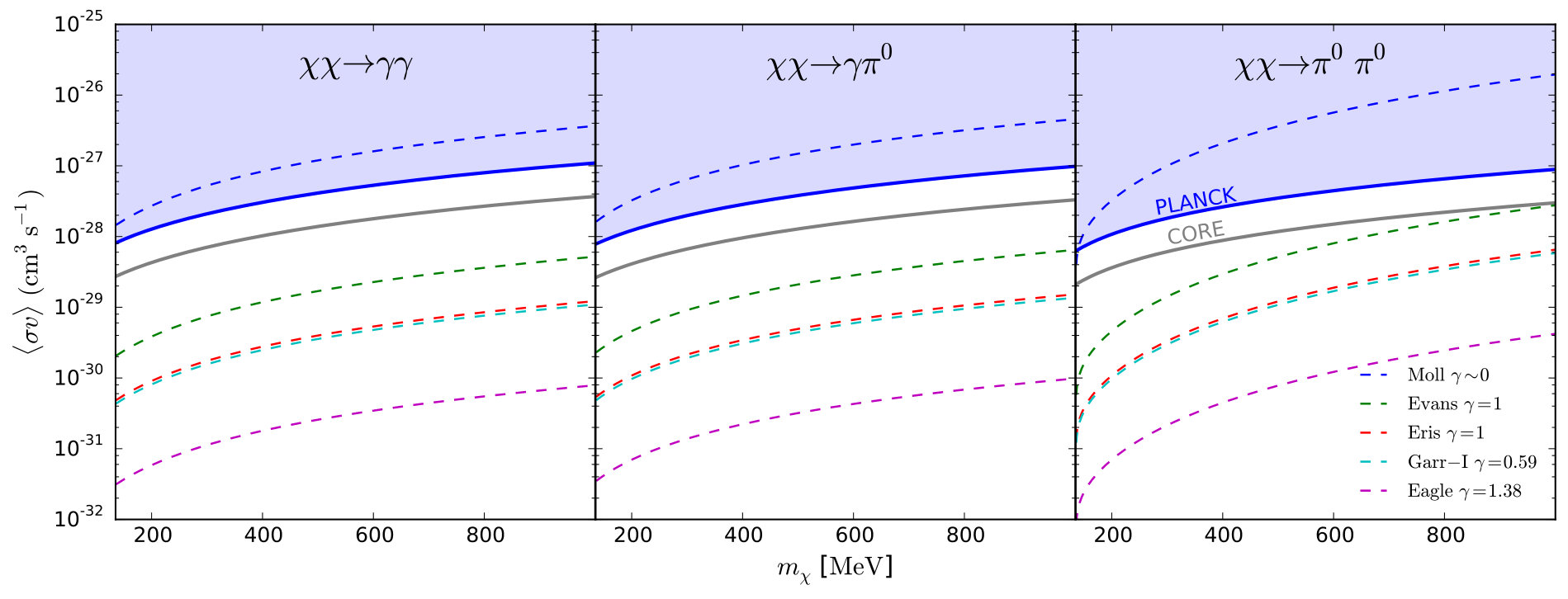

On the other side, we also analyzed the case for the Galactic Center, Figs. 5 and 6 . Given the much larger possible values for the J-factor in this case, the detection line in the $\langle\sigma v\rangle$ vs $m_{\chi}$ plane improves considerably, making all previously excluded channels promising for detection, even if we consider CORE+ projection constraints. The key uncertainty here is, however, the level of the background MeV emission in the Galactic center, which is largely unknown.

Finally, the detection limits and constraints were computed assuming s-wave annihilating dark matter, and the p-wave annihilation case was not included since the CMB constraints relaxes considerably, and the prospects for gamma-ray detectability depend largely on the velocity distribution of the target dark matter distribution.

Acknowledgements

We would like to thank Logan Morrison and Adam Coogan for providing us with the code to compute the electron-positron spectrum generated by dark matter annihilations into charged pions, Francesco D’Eramo for important feedback on this manuscript, and Viviana Gammaldi for helpful discussion about the Galactic J-factor. This work was funded by a UCMEXUS-CONACYT collaborative project. JR acknowledges financial support from CONACYT. AXGM acknowledges support from Cátedras CONACYT DAIP research Grant No. 878/2017 and CONACYT project 182445. SP is partly supported by the US Department of Energy, grant number DE-SC0010107 .
