New Constraints on all flavour Galactic diffuse neutrino emission with   the ANTARES telescope

A. Albert (1); M. Andr\'e (2); M. Anghinolfi (3); G. Anton (4); M.; Ardid (5); J.-J. Aubert (6); T. Avgitas (7); B. Baret (7); J. Barrios-Mart\'i; (8); S. Basa (9); B. Belhorma (10); V. Bertin (6); S. Biagi (11); R. Bormuth; (12,13); S. Bourret (7); M.C. Bouwhuis (12); R. Bruijn (12,14); J. Brunner; (6); J. Busto (6); A. Capone (15,16); L. Caramete (17); J. Carr (6); S. Celli; (15,16,18); R. Cherkaoui El Moursli (19); T. Chiarusi (20); M. Circella (21),; J.A.B. Coelho (7); A. Coleiro (7,8); R. Coniglione (11); H. Costantini (6),; P. Coyle (6); A. Creusot (7); A. F. D\'iaz (22); A. Deschamps (23); G. De; Bonis (15,16); C. Distefano (11); I. Di Palma (15,16); A. Domi (3,24); C.; Donzaud (7,25); D. Dornic (6); D. Drouhin (1); T. Eberl (4); I. El Bojaddaini; (26); N. El Khayati (19); D. Els\"asser (27); A. Enzenh\"ofer (6); A.; Ettahiri (19); F. Fassi (19); I. Felis (5); L.A. Fusco (20,28); S. Galat\`a; (7); P. Gay (29,7); V. Giordano (30); H. Glotin (31,31,32); T. Gr\'egoire; (7); R. Gracia Ruiz (7); K. Graf (4); S. Hallmann (4); H. van Haren (33),; A.J. Heijboer (12); Y. Hello (23); J.J. Hern\'andez-Rey (8); J. H\"o{\ss}l; (4); J. Hofest\"adt (4); C. Hugon (3,24); G. Illuminati (8); C.W. James (4),; M. de Jong (12,13); M. Jongen (12); M. Kadler (27); O. Kalekin (4); U. Katz; (4); D. Kie{\ss}ling (4); A. Kouchner (7,32); M. Kreter (27); I. Kreykenbohm; (34); V. Kulikovskiy (6,35); C. Lachaud (7); R. Lahmann (4); D. Lef\`evre; (36); E. Leonora (11,30); M. Lotze (8); S. Loucatos (38,7); M. Marcelin (9),; A. Margiotta (20,28); A. Marinelli (39,40); J.A. Mart\'inez-Mora (5); R. Mele; (41,42); K. Melis (12,14); T. Michael (12); P. Migliozzi (41); A. Moussa; (26); S. Navas (43); E. Nezri (9); M. Organokov (44); G.E.; P\u{a}v\u{a}la\c{s} (17); C. Pellegrino (20,28); C. Perrina (15,16); P.; Piattelli (11); V. Popa (17); T. Pradier (44); L. Quinn (6); C. Racca (1); G.; Riccobene (11); A. S\'anchez-Losa (21); M. Salda\~na (5); I. Salvadori (6),; D. F. E. Samtleben (12,13); M. Sanguineti (3,24); P. Sapienza (11); F.; Sch\"ussler (38); C. Sieger (4); M. Spurio (20,28); Th. Stolarczyk (38); M.; Taiuti (3,24); Y. Tayalati (19); A. Trovato (11); D. Turpin (6); C. T\"onnis; (8); B. Vallage (38,7); V. Van Elewyck (7,32); F. Versari (20,28); D. Vivolo; (41,42); A. Vizzoca (15,16); J. Wilms (34); J.D. Zornoza (8); J. Z\'u\~niga; (8); and D. Gaggero (45); and D. Grasso (39,40) ((1) GRPHE - Universit\'e de; Haute Alsace - Institut universitaire de technologie de Colmar; 34 rue du; Grillenbreit BP 50568 - 68008 Colmar; France; (2) Technical University of; Catalonia; Laboratory of Applied Bioacoustics; Rambla Exposici\'o; 08800; Vilanova i la Geltr\'u; Barcelona; Spain; (3) INFN - Sezione di Genova; Via; Dodecaneso 33; 16146 Genova; Italy; (4) Friedrich-Alexander-Universit\"at; Erlangen-N\"urnberg; Erlangen Centre for Astroparticle Physics,; Erwin-Rommel-Str. 1; 91058 Erlangen; Germany; (5) Institut d'Investigaci\'o; per a la Gesti\'o Integrada de les Zones Costaneres (IGIC) - Universitat; Polit\`ecnica de Val\`encia. C/ Paranimf 1; 46730 Gandia; Spain; (6) Aix; Marseille Univ; CNRS/IN2P3; CPPM; Marseille; France; (7) APC; Univ Paris; Diderot; CNRS/IN2P3; CEA/Irfu; Obs de Paris; Sorbonne Paris Cit\'e; France,; (8) IFIC - Instituto de F\'isica Corpuscular (CSIC - Universitat de; Val\`encia) c/ Catedr\'atico Jos\'e Beltr\'an; 2 E-46980 Paterna; Valencia,; Spain; (9) LAM - Laboratoire d'Astrophysique de Marseille; P\^ole de; l'\'etoile Site de Ch\^ateau-Gombert; rue Fr\'ed\'eric Joliot-Curie 38; 13388; Marseille Cedex; 13; France; (10) National Center for Energy Sciences and; Nuclear Techniques; B.P.1382; R. P.10001 Rabat; Morocco; (11) INFN -; Laboratori Nazionali del Sud (LNS); Via S. Sofia 62; 95123 Catania; Italy,; (12) Nikhef; Science Park; Amsterdam; The Netherlands; (13); Huygens-Kamerlingh Onnes Laboratorium; Universiteit Leiden; The Netherlands,; (14) Universiteit van Amsterdam; Instituut voor Hoge-Energie Fysica; Science; Park 105; 1098 XG Amsterdam; The Netherlands; (15) INFN - Sezione di Roma,; P.le Aldo Moro 2; 00185 Roma; Italy; (16) Dipartimento di Fisica; dell'Universit\`a La Sapienza; P.le Aldo Moro 2; 00185 Roma; Italy; (17); Institute for Space Science; RO-077125 Bucharest; M\u{a}gurele; Romania; (18); Gran Sasso Science Institute; Viale Francesco Crispi 7; 00167 L'Aquila,; Italy; (19) University Mohammed V in Rabat; Faculty of Sciences; 4 av. Ibn; Battouta; B.P. 1014; R.P. 10000 Rabat; Morocco; (20) INFN - Sezione di; Bologna; Viale Berti-Pichat 6/2; 40127 Bologna; Italy; (21) INFN - Sezione di; Bari; Via E. Orabona 4; 70126 Bari; Italy; (22) Department of Computer; Architecture; Technology/CITIC; University of Granada; 18071 Granada,; Spain; (23) G\'eoazur; UCA; CNRS; IRD; Observatoire de la C\^ote d'Azur,; Sophia Antipolis; France; (24) Dipartimento di Fisica dell'Universit\`a; Via; Dodecaneso 33; 16146 Genova; Italy; (25) Universit\'e Paris-Sud; 91405 Orsay; Cedex; France; (26) University Mohammed I; Laboratory of Physics of Matter; and Radiations; B.P.717; Oujda 6000; Morocco; (27) Institut f\"ur; Theoretische Physik und Astrophysik; Universit\"at W\"urzburg; Emil-Fischer; Str. 31; 97074 W\"urzburg; Germany; (28) Dipartimento di Fisica e Astronomia; dell'Universit\`a; Viale Berti Pichat 6/2; 40127 Bologna; Italy; (29); Laboratoire de Physique Corpusculaire; Clermont Universit\'e; Universit\'e; Blaise Pascal; CNRS/IN2P3; BP 10448; F-63000 Clermont-Ferrand; France; (30); INFN - Sezione di Catania; Viale Andrea Doria 6; 95125 Catania; Italy; (31); LSIS; Aix Marseille Universit\'e CNRS ENSAM LSIS UMR 7296 13397 Marseille,; France; Universit\'e de Toulon CNRS LSIS UMR 7296; 83957 La Garde; France,; (32) Institut Universitaire de France; 75005 Paris; France; (33) Royal; Netherlands Institute for Sea Research (NIOZ); Landsdiep 4; 1797 SZ 't; Horntje (Texel); The Netherlands; (34) Dr. Remeis-Sternwarte; ECAP,; Universit\"at Erlangen-N\"urnberg; Sternwartstr. 7; 96049 Bamberg; Germany,; (35) Moscow State University; Skobeltsyn Institute of Nuclear Physics,; Leninskie gory; 119991 Moscow; Russia; (36) Mediterranean Institute of; Oceanography (MIO); Aix-Marseille University; 13288; Marseille; Cedex 9,; France; Universit\'e du Sud Toulon-Var; CNRS-INSU/IRD UM 110; 83957; La Garde; Cedex; France; (37) Dipartimento di Fisica ed Astronomia dell'Universit\`a,; Viale Andrea Doria 6; 95125 Catania; Italy; (38) Direction des Sciences de la; Mati\`ere - Institut de recherche sur les lois fondamentales de l'Univers -; Service de Physique des Particules; CEA Saclay; 91191 Gif-sur-Yvette Cedex,; France; (39) INFN - Sezione di Pisa; Largo B. Pontecorvo 3; 56127 Pisa,; Italy; (40) Dipartimento di Fisica dell'Universit\`a; Largo B. Pontecorvo 3,; 56127 Pisa; Italy; (41) INFN - Sezione di Napoli; Via Cintia 80126 Napoli,; Italy; (42) Dipartimento di Fisica dell'Universit\`a Federico II di Napoli,; Via Cintia 80126; Napoli; Italy; (43) Dpto. de F\'isica Te\'orica y del; Cosmos \& C.A.F.P.E.; University of Granada; 18071 Granada; Spain; (44); Universit\'e de Strasbourg; CNRS; IPHC UMR 7178; F-67000 Strasbourg; France,; (45) GRAPPA; University of Amsterdam; Science Park 904; 1098 XH Amsterdam,; Netherlands)

arXiv:1705.00497·astro-ph.HE·September 20, 2017

New Constraints on all flavour Galactic diffuse neutrino emission with the ANTARES telescope

A. Albert (1), M. Andr\'e (2), M. Anghinolfi (3), G. Anton (4), M., Ardid (5), J.-J. Aubert (6), T. Avgitas (7), B. Baret (7), J. Barrios-Mart\'i, (8), S. Basa (9), B. Belhorma (10), V. Bertin (6), S. Biagi (11), R. Bormuth, (12,13), S. Bourret (7), M.C. Bouwhuis (12)

PDF

TL;DR

This study uses nine years of ANTARES data to set upper limits on the diffuse Galactic neutrino flux predicted by the Gamma model, constraining its contribution to the observed neutrino spectrum.

Contribution

First to apply the Gamma model for Galactic neutrino flux prediction using ANTARES data, providing new constraints on Galactic diffuse neutrino emission.

Findings

01

No excess neutrino events observed from the Galactic plane.

02

Upper limits set at 1.1-1.2 times the Gamma model prediction.

03

Diffuse Galactic neutrino emission unlikely to explain the IceCube spectral anomaly.

Abstract

The flux of very high-energy neutrinos produced in our Galaxy by the interaction of accelerated cosmic rays with the interstellar medium is not yet determined. The characterization of this flux will shed light on Galactic accelerator features, gas distribution morphology and Galactic cosmic ray transport. The central Galactic plane can be the site of an enhanced neutrino production, thus leading to anisotropies in the extraterrestrial neutrino signal as measured by the IceCube Collaboration. The ANTARES neutrino telescope, located in the Mediterranean Sea, offers a favourable view on this part of the sky, thereby allowing for a contribution to the determination of this flux. The expected diffuse Galactic neutrino emission can be obtained linking a model of generation and propagation of cosmic rays with the morphology of the gas distribution in the Milky Way. In this paper, the so-called…

Figures4

Click any figure to enlarge with its caption.

Tables1

Table 1. Table 1: Results of the presented analysis for the two reference models corresponding to different energy cut-offs. The number of expected signal events, μ ∗ superscript 𝜇 \mu^{*} , is shown, as well as σ ∗ superscript 𝜎 \sigma^{*} , the standard deviation of the distribution of the difference between the number of fitted events and the number of injected events in the pseudo-experiment. For the data sample, the numbers of fitted shower-like events, μ data sh superscript subscript 𝜇 data sh \mu_{\text{data}}^{\text{sh}} , and track-like events, μ data tr superscript subscript 𝜇 data tr \mu_{\text{data}}^{\text{tr}} , are reported with the p-values and the upper limits at 90% confidence level.

Energy cut-off	$μ^{*}$	$σ^{*}$	$μ_{data}^{sh}$	$μ_{data}^{tr}$	p-value	UL at 90% CL
5 PeV	11.6	$13$	$1.9$	$2 \times 10^{- 3}$	$0.67$	$1.1 \times Φ_{ref}^{5}$
50 PeV	13.7	$12$	$2.6$	$7 \times 10^{- 4}$	$0.54$	$1.2 \times Φ_{ref}^{50}$

Equations10

L_{sig+bkg} = T \in {tr, sh} \prod i \in T \prod [μ_{sig}^{T} \cdot p d f_{sig}^{T} (E_{i}, α_{i}, δ_{i}) + μ_{bkg}^{T} \cdot p d f_{bkg}^{T} (E_{i}, θ_{i}, δ_{i})]

L_{sig+bkg} = T \in {tr, sh} \prod i \in T \prod [μ_{sig}^{T} \cdot p d f_{sig}^{T} (E_{i}, α_{i}, δ_{i}) + μ_{bkg}^{T} \cdot p d f_{bkg}^{T} (E_{i}, θ_{i}, δ_{i})]

p d f_{sig}^{T} (E_{i}, α_{i}, δ_{i}) = M_{sig}^{T} (α_{i}, δ_{i}) \cdot E_{sig}^{T} (E_{i}, α_{i}, δ_{i})

p d f_{sig}^{T} (E_{i}, α_{i}, δ_{i}) = M_{sig}^{T} (α_{i}, δ_{i}) \cdot E_{sig}^{T} (E_{i}, α_{i}, δ_{i})

p d f_{bkg}^{T} (E_{i}, θ_{i}, δ_{i}) = M_{bkg}^{T} (δ_{i}) \cdot E_{bkg}^{T} (E_{i}, θ_{i})

p d f_{bkg}^{T} (E_{i}, θ_{i}, δ_{i}) = M_{bkg}^{T} (δ_{i}) \cdot E_{bkg}^{T} (E_{i}, θ_{i})

Q = lo g_{10} (L_{sig+bkg}) - lo g_{10} (L_{bkg})

Q = lo g_{10} (L_{sig+bkg}) - lo g_{10} (L_{bkg})

p d f_{Φ} (Q) = μ_{sig}^{sh+tr} \sum P (μ_{sig}^{sh+tr} ∣ n) \cdot p d f_{μ_{sig}^{sh+tr}} (Q)

p d f_{Φ} (Q) = μ_{sig}^{sh+tr} \sum P (μ_{sig}^{sh+tr} ∣ n) \cdot p d f_{μ_{sig}^{sh+tr}} (Q)

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

New Constraints on all flavour Galactic diffuse neutrino emission with the ANTARES telescope.

A. Albert

GRPHE - Université de Haute Alsace - Institut universitaire de technologie de Colmar, 34 rue du Grillenbreit BP 50568 - 68008 Colmar, France

M. André

Technical University of Catalonia, Laboratory of Applied Bioacoustics, Rambla Exposició, 08800 Vilanova i la Geltrú, Barcelona, Spain

M. Anghinolfi

INFN - Sezione di Genova, Via Dodecaneso 33, 16146 Genova, Italy

G. Anton

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

M. Ardid

Institut d’Investigació per a la Gestió Integrada de les Zones Costaneres (IGIC) - Universitat Politècnica de València. C/ Paranimf 1, 46730 Gandia, Spain

J.-J. Aubert

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

T. Avgitas

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

B. Baret

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

J. Barrios-Martí

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

S. Basa

LAM - Laboratoire d’Astrophysique de Marseille, Pôle de l’Étoile Site de Château-Gombert, rue Frédéric Joliot-Curie 38, 13388 Marseille Cedex 13, France

B. Belhorma

National Center for Energy Sciences and Nuclear Techniques, B.P.1382, R. P.10001 Rabat, Morocco

V. Bertin

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

S. Biagi

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

R. Bormuth

Nikhef, Science Park, Amsterdam, The Netherlands

Huygens-Kamerlingh Onnes Laboratorium, Universiteit Leiden, The Netherlands

S. Bourret

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

M.C. Bouwhuis

Nikhef, Science Park, Amsterdam, The Netherlands

R. Bruijn

Nikhef, Science Park, Amsterdam, The Netherlands

Universiteit van Amsterdam, Instituut voor Hoge-Energie Fysica, Science Park 105, 1098 XG Amsterdam, The Netherlands

J. Brunner

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

J. Busto

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

A. Capone

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

L. Caramete

Institute for Space Science, RO-077125 Bucharest, Măgurele, Romania

J. Carr

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

S. Celli

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

Gran Sasso Science Institute, Viale Francesco Crispi 7, 00167 L’Aquila, Italy

R. Cherkaoui El Moursli

University Mohammed V in Rabat, Faculty of Sciences, 4 av. Ibn Battouta, B.P. 1014, R.P. 10000 Rabat, Morocco

T. Chiarusi

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

M. Circella

INFN - Sezione di Bari, Via E. Orabona 4, 70126 Bari, Italy

J.A.B. Coelho

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

A. Coleiro

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

R. Coniglione

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

H. Costantini

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

P. Coyle

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

A. Creusot

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

A. F. Díaz

Department of Computer Architecture and Technology/CITIC, University of Granada, 18071 Granada, Spain

A. Deschamps

Géoazur, UCA, CNRS, IRD, Observatoire de la Côte d’Azur, Sophia Antipolis, France

G. De Bonis

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

C. Distefano

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

I. Di Palma

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

A. Domi

INFN - Sezione di Genova, Via Dodecaneso 33, 16146 Genova, Italy

Dipartimento di Fisica dell’Università, Via Dodecaneso 33, 16146 Genova, Italy

C. Donzaud

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

Université Paris-Sud, 91405 Orsay Cedex, France

D. Dornic

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

D. Drouhin

GRPHE - Université de Haute Alsace - Institut universitaire de technologie de Colmar, 34 rue du Grillenbreit BP 50568 - 68008 Colmar, France

T. Eberl

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

I. El Bojaddaini

University Mohammed I, Laboratory of Physics of Matter and Radiations, B.P.717, Oujda 6000, Morocco

N. El Khayati

University Mohammed V in Rabat, Faculty of Sciences, 4 av. Ibn Battouta, B.P. 1014, R.P. 10000 Rabat, Morocco

D. Elsässer

Institut für Theoretische Physik und Astrophysik, Universität Würzburg, Emil-Fischer Str. 31, 97074 Würzburg, Germany

A. Enzenhöfer

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

A. Ettahiri

University Mohammed V in Rabat, Faculty of Sciences, 4 av. Ibn Battouta, B.P. 1014, R.P. 10000 Rabat, Morocco

F. Fassi

University Mohammed V in Rabat, Faculty of Sciences, 4 av. Ibn Battouta, B.P. 1014, R.P. 10000 Rabat, Morocco

I. Felis

Institut d’Investigació per a la Gestió Integrada de les Zones Costaneres (IGIC) - Universitat Politècnica de València. C/ Paranimf 1, 46730 Gandia, Spain

L.A. Fusco

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

Dipartimento di Fisica e Astronomia dell’Università, Viale Berti Pichat 6/2, 40127 Bologna, Italy

S. Galatà

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

P. Gay

Laboratoire de Physique Corpusculaire, Clermont Université, Université Blaise Pascal, CNRS/IN2P3, BP 10448, F-63000 Clermont-Ferrand, France

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

V. Giordano

INFN - Sezione di Catania, Viale Andrea Doria 6, 95125 Catania, Italy

H. Glotin

LSIS, Aix Marseille Université CNRS ENSAM LSIS UMR 7296 13397 Marseille, France; Université de Toulon CNRS LSIS UMR 7296, 83957 La Garde, France

Institut Universitaire de France, 75005 Paris, France

T. Grégoire 111Corresponding author. Email addresses: [email protected] (T. Grégoire)

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

R. Gracia Ruiz

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

K. Graf

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

S. Hallmann

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

H. van Haren

Royal Netherlands Institute for Sea Research (NIOZ), Landsdiep 4, 1797 SZ ’t Horntje (Texel), The Netherlands

A.J. Heijboer

Nikhef, Science Park, Amsterdam, The Netherlands

Y. Hello

Géoazur, UCA, CNRS, IRD, Observatoire de la Côte d’Azur, Sophia Antipolis, France

J.J. Hernández-Rey

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

J. Hößl

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

J. Hofestädt

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

C. Hugon

INFN - Sezione di Genova, Via Dodecaneso 33, 16146 Genova, Italy

Dipartimento di Fisica dell’Università, Via Dodecaneso 33, 16146 Genova, Italy

G. Illuminati

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

C.W. James

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

M. de Jong

Nikhef, Science Park, Amsterdam, The Netherlands

Huygens-Kamerlingh Onnes Laboratorium, Universiteit Leiden, The Netherlands

M. Jongen

Nikhef, Science Park, Amsterdam, The Netherlands

M. Kadler

Institut für Theoretische Physik und Astrophysik, Universität Würzburg, Emil-Fischer Str. 31, 97074 Würzburg, Germany

O. Kalekin

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

U. Katz

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

D. Kießling

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

A. Kouchner

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

Institut Universitaire de France, 75005 Paris, France

M. Kreter

Institut für Theoretische Physik und Astrophysik, Universität Würzburg, Emil-Fischer Str. 31, 97074 Würzburg, Germany

I. Kreykenbohm

Dr. Remeis-Sternwarte and ECAP, Universität Erlangen-Nürnberg, Sternwartstr. 7, 96049 Bamberg, Germany

V. Kulikovskiy

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

Moscow State University, Skobeltsyn Institute of Nuclear Physics, Leninskie gory, 119991 Moscow, Russia

C. Lachaud

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

R. Lahmann

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

D. Lefèvre

Mediterranean Institute of Oceanography (MIO), Aix-Marseille University, 13288, Marseille, Cedex 9, France; Université du Sud Toulon-Var, CNRS-INSU/IRD UM 110, 83957, La Garde Cedex, France

E. Leonora

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

INFN - Sezione di Catania, Viale Andrea Doria 6, 95125 Catania, Italy

M. Lotze

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

S. Loucatos

Direction des Sciences de la Matière - Institut de recherche sur les lois fondamentales de l’Univers - Service de Physique des Particules, CEA Saclay, 91191 Gif-sur-Yvette Cedex, France

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

M. Marcelin

LAM - Laboratoire d’Astrophysique de Marseille, Pôle de l’Étoile Site de Château-Gombert, rue Frédéric Joliot-Curie 38, 13388 Marseille Cedex 13, France

A. Margiotta

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

Dipartimento di Fisica e Astronomia dell’Università, Viale Berti Pichat 6/2, 40127 Bologna, Italy

A. Marinelli 222Corresponding author. Email addresses: [email protected] (A. Marinelli)

INFN - Sezione di Pisa, Largo B. Pontecorvo 3, 56127 Pisa, Italy

Dipartimento di Fisica dell’Università, Largo B. Pontecorvo 3, 56127 Pisa, Italy

J.A. Martínez-Mora

Institut d’Investigació per a la Gestió Integrada de les Zones Costaneres (IGIC) - Universitat Politècnica de València. C/ Paranimf 1, 46730 Gandia, Spain

R. Mele

INFN - Sezione di Napoli, Via Cintia 80126 Napoli, Italy

Dipartimento di Fisica dell’Università Federico II di Napoli, Via Cintia 80126, Napoli, Italy

K. Melis

Nikhef, Science Park, Amsterdam, The Netherlands

Universiteit van Amsterdam, Instituut voor Hoge-Energie Fysica, Science Park 105, 1098 XG Amsterdam, The Netherlands

T. Michael

Nikhef, Science Park, Amsterdam, The Netherlands

P. Migliozzi

INFN - Sezione di Napoli, Via Cintia 80126 Napoli, Italy

A. Moussa

University Mohammed I, Laboratory of Physics of Matter and Radiations, B.P.717, Oujda 6000, Morocco

S. Navas

Dpto. de Física Teórica y del Cosmos & C.A.F.P.E., University of Granada, 18071 Granada, Spain

E. Nezri

LAM - Laboratoire d’Astrophysique de Marseille, Pôle de l’Étoile Site de Château-Gombert, rue Frédéric Joliot-Curie 38, 13388 Marseille Cedex 13, France

M. Organokov

Université de Strasbourg, CNRS, IPHC UMR 7178, F-67000 Strasbourg, France

G.E. Păvălaş

Institute for Space Science, RO-077125 Bucharest, Măgurele, Romania

C. Pellegrino

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

Dipartimento di Fisica e Astronomia dell’Università, Viale Berti Pichat 6/2, 40127 Bologna, Italy

C. Perrina

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

P. Piattelli

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

V. Popa

Institute for Space Science, RO-077125 Bucharest, Măgurele, Romania

T. Pradier

Université de Strasbourg, CNRS, IPHC UMR 7178, F-67000 Strasbourg, France

L. Quinn

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

C. Racca

GRPHE - Université de Haute Alsace - Institut universitaire de technologie de Colmar, 34 rue du Grillenbreit BP 50568 - 68008 Colmar, France

G. Riccobene

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

A. Sánchez-Losa

INFN - Sezione di Bari, Via E. Orabona 4, 70126 Bari, Italy

M. Saldaña

Institut d’Investigació per a la Gestió Integrada de les Zones Costaneres (IGIC) - Universitat Politècnica de València. C/ Paranimf 1, 46730 Gandia, Spain

I. Salvadori

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

D. F. E. Samtleben

Nikhef, Science Park, Amsterdam, The Netherlands

Huygens-Kamerlingh Onnes Laboratorium, Universiteit Leiden, The Netherlands

M. Sanguineti

INFN - Sezione di Genova, Via Dodecaneso 33, 16146 Genova, Italy

Dipartimento di Fisica dell’Università, Via Dodecaneso 33, 16146 Genova, Italy

P. Sapienza

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

F. Schüssler

Direction des Sciences de la Matière - Institut de recherche sur les lois fondamentales de l’Univers - Service de Physique des Particules, CEA Saclay, 91191 Gif-sur-Yvette Cedex, France

C. Sieger

Friedrich-Alexander-Universität Erlangen-Nürnberg, Erlangen Centre for Astroparticle Physics, Erwin-Rommel-Str. 1, 91058 Erlangen, Germany

M. Spurio

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

Dipartimento di Fisica e Astronomia dell’Università, Viale Berti Pichat 6/2, 40127 Bologna, Italy

Th. Stolarczyk

Direction des Sciences de la Matière - Institut de recherche sur les lois fondamentales de l’Univers - Service de Physique des Particules, CEA Saclay, 91191 Gif-sur-Yvette Cedex, France

M. Taiuti

INFN - Sezione di Genova, Via Dodecaneso 33, 16146 Genova, Italy

Dipartimento di Fisica dell’Università, Via Dodecaneso 33, 16146 Genova, Italy

Y. Tayalati

University Mohammed V in Rabat, Faculty of Sciences, 4 av. Ibn Battouta, B.P. 1014, R.P. 10000 Rabat, Morocco

A. Trovato

INFN - Laboratori Nazionali del Sud (LNS), Via S. Sofia 62, 95123 Catania, Italy

D. Turpin

Aix Marseille Univ, CNRS/IN2P3, CPPM, Marseille, France

C. Tönnis

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

B. Vallage

Direction des Sciences de la Matière - Institut de recherche sur les lois fondamentales de l’Univers - Service de Physique des Particules, CEA Saclay, 91191 Gif-sur-Yvette Cedex, France

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

V. Van Elewyck

APC, Univ Paris Diderot, CNRS/IN2P3, CEA/Irfu, Obs de Paris, Sorbonne Paris Cité, France

Institut Universitaire de France, 75005 Paris, France

F. Versari

INFN - Sezione di Bologna, Viale Berti-Pichat 6/2, 40127 Bologna, Italy

Dipartimento di Fisica e Astronomia dell’Università, Viale Berti Pichat 6/2, 40127 Bologna, Italy

D. Vivolo

INFN - Sezione di Napoli, Via Cintia 80126 Napoli, Italy

Dipartimento di Fisica dell’Università Federico II di Napoli, Via Cintia 80126, Napoli, Italy

A. Vizzoca

INFN - Sezione di Roma, P.le Aldo Moro 2, 00185 Roma, Italy

Dipartimento di Fisica dell’Università La Sapienza, P.le Aldo Moro 2, 00185 Roma, Italy

J. Wilms

Dr. Remeis-Sternwarte and ECAP, Universität Erlangen-Nürnberg, Sternwartstr. 7, 96049 Bamberg, Germany

J.D. Zornoza

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

J. Zúñiga

IFIC - Instituto de Física Corpuscular (CSIC - Universitat de València) c/ Catedrático José Beltrán, 2 E-46980 Paterna, Valencia, Spain

and D. Gaggero

GRAPPA, University of Amsterdam, Science Park 904, 1098 XH Amsterdam, Netherlands

D. Grasso

INFN - Sezione di Pisa, Largo B. Pontecorvo 3, 56127 Pisa, Italy

Dipartimento di Fisica dell’Università, Largo B. Pontecorvo 3, 56127 Pisa, Italy

{onecolabstract}

The flux of very high-energy neutrinos produced in our Galaxy by the interaction of accelerated cosmic rays with the interstellar medium is not yet determined. The characterization of this flux will shed light on Galactic accelerator features, gas distribution morphology and Galactic cosmic ray transport. The central Galactic plane can be the site of an enhanced neutrino production, thus leading to anisotropies in the extraterrestrial neutrino signal as measured by the IceCube Collaboration. The ANTARES neutrino telescope, located in the Mediterranean Sea, offers a favourable view on this part of the sky, thereby allowing for a contribution to the determination of this flux. The expected diffuse Galactic neutrino emission can be obtained linking a model of generation and propagation of cosmic rays with the morphology of the gas distribution in the Milky Way. In this paper, the so-called “Gamma model” introduced recently to explain the high-energy gamma ray diffuse Galactic emission, is assumed as reference. The neutrino flux predicted by the “Gamma model” depends of the assumed primary cosmic ray spectrum cut-off. Considering a radially-dependent diffusion coefficient, this proposed scenario is able to account for the local cosmic ray measurements, as well as for the Galactic gamma ray observations. Nine years of ANTARES data are used in this work to search for a possible Galactic contribution according to this scenario. All flavour neutrino interactions are considered. No excess of events is observed and an upper limit is set on the neutrino flux of $1.1$ ( $1.2$ ) times the prediction of the “Gamma model” assuming the primary cosmic ray spectrum cut-off at 5 (50) PeV. This limit excludes the diffuse Galactic neutrino emission as the major cause of the “spectral anomaly” between the two hemispheres measured by IceCube.

1 Introduction

The Fermi-LAT telescope obtained detailed measurements of diffuse high-energy gamma ray emission along the Galactic plane after the subtraction of point-like contributions [1]. Above a few GeV most of this observed diffuse emission can be attributed to photons produced in neutral pion decays coming from primary cosmic ray (CR) interactions with the ambient medium (dust, molecular clouds, etc). In these hadronic processes, a neutrino counterpart emission is also expected from $\pi^{+/-}$ decays. The good coverage of the Southern Hemisphere, as well as its large effective area and good angular resolution, allows the ANTARES neutrino telescope to probe models for this expected flux.

Detailed computations of the neutrino flux produced in this context have been carried out. Using radially-dependent CR diffusion properties, a novel comprehensive interpretation of CR transport in our galaxy was used. With this model the observed local CR features [2, 3, 4], as well as the diffuse Galactic gamma ray emission measured by Fermi-LAT [1], H.E.S.S. [5] and Milagro [6], can be reproduced. The new model, developed under this scenario, called “KRAγ” or “Gamma model” [7, 8, 9] is used in this paper. It allows the prediction of the expected full sky neutrino flux induced by Galactic CR interactions. Compared to conventional scenarios where a homogeneous CR transport is assumed for the whole Galactic plane [10], an enhanced neutrino emission up to five times larger in its central part is predicted [11]. The spectrum of primary interacting CRs of the “Gamma model” presents a hardening around 250 GeV per nucleon as observed by PAMELA [3] and AMS-02 [4] experiments. Above this energy, the CR source spectra extend steadily up to an exponential cut-off on the energy per nucleon E ${}_{\text{cut}}$ . Two representative values of this quantity have been considered, namely E ${}_{\text{cut}}$ = 5 and 50 PeV, which – for the “Gamma model” setup – match CREAM proton and helium data [12] and roughly reproduce KASCADE [13] and KASCADE Grande data [2]. While the KASCADE proton data favor the lowest cut-off (5 PeV), the highest one (50 PeV) is favored by the KASCADE-Grande all-particle spectrum.

The two different cut-off cases of the “Gamma model” will be referred to as the two “reference models” in this article. The morphological and energetic characteristics of the neutrino fluxes computed from these models are obtained by linking the DRAGON code [14] for Galactic CR transport, using the gas 3D distribution described in Ref. [15] for Galactocentric radii $R<1.5$ kpc, and the gas ring model used by the Fermi collaboration [1] for larger radii.

In the last few years, the IceCube Collaboration has reported a significant excess of high-energy neutrinos with respect to the expected atmospheric background [16, 17, 18]. The spectral energy distribution obtained with 4 years of “high-energy starting events” (HESE) through a full sky analysis results in a one flavour normalisation factor $E^{2}\Phi(E)=2.2(\pm 0.7)\cdot(E/100\text{ TeV})^{-0.58}\times 10^{-8}$ GeV cm*-2* s*-1* sr*-1* with a fitted spectral index $\alpha=2.58\pm 0.25$ [17]. Nevertheless, a dedicated analysis with 6 years of muonic neutrinos from the Northern Hemisphere shows a normalisation factor of $E^{2}\Phi(E)=0.90^{+0.3}_{-0.27}\cdot(E/100\text{ TeV})^{-0.13}\times 10^{-8}$ GeV cm*-2* s*-1* sr*-1* and a spectral index $\alpha=2.13\pm 0.13$ [19] generating a non-negligible discrepancy between the measured neutrino spectral energy distributions of the two hemispheres, the so-called “spectral anomaly”.

Different explanations have been put forth for the tension in the normalisation versus spectral index between the two contributions leading to a relative enhanced emission in the Southern Hemisphere. One of them is a cut-off in the spectrum as these two analyses have a different energy threshold. Another one comes from the position of the Milky Way. As its central region is at negative declinations, the sum of a Galactic and an extragalactic component [20, 21] can result in different spectral behaviours in the two hemispheres. From a statistical point of view, $50\%$ of the observed IceCube cosmic neutrino signal events are compatible with a Galactic plane origin [22]. Conversely, when considering the reference model with 50 PeV cut-off, it is possible to account for a maximum of $18\%$ of the full sky HESE flux measured by IceCube, while in the conventional scenario, only $8\%$ of this flux can be related to Galactic diffuse emission [7].

The ANTARES view of the Southern Sky, its exposure towards the Galactic centre region and its very good angular resolution makes it well suited to either detect the neutrino flux predicted by the reference models over several decades in energy, or place competitive upper limits on the flux normalisation. In order to fully exploit the particular morphology of the expected signal, as well as the angular dependency of the energy spectrum, a maximum likelihood analysis is performed assuming the signal events have the angular and energy distributions obtained from the reference models. With this technique, a new stringent upper limit is obtained on the neutrino flux over three decades in energy based on 9 years of data taking.

The paper is structured as follows: A description of the detector and the dataset is provided, followed by a description of the maximum likelihood analysis and then a discussion on the results. A very important consequence of this paper is the strong disfavour of the diffuse Galactic emission as the origin of the spectral anomaly observed by IceCube.

2 The ANTARES detector and data sample

The ANTARES neutrino telescope [23] is installed at 2475 m depth in the Mediterranean sea, 40 km off the coast of Toulon, France. It is made of an array of photomultipliers, which detect Cherenkov light induced by particles created during high energy neutrino interactions. Two detection channels are available for neutrinos above a few tens of GeV: charged current interactions of muon neutrinos, with the subsequent Cherenkov emission by the outgoing muon, which constitute most of the so-called “track events”. All other interactions, which produce electromagnetic or hadronic showers in the detector, representing the so-called “shower events”. For the former, the sub-degree angular resolution and an energy accuracy of the order of a fraction of a decade can be obtained; they benefit from the kilometer-scale muon track length to enlarge the effective detection volume thereby increasing the event rates. The latter type of events has an angular accuracy of a few degrees, but an energy resolution of 10%; these performances are achievable only in a smaller effective detection volume, thus reducing the neutrino effective area.

A Monte Carlo simulation of electron and muon neutrinos and antineutrinos has been used in this analysis. The contribution of tau neutrinos has been estimated by scaling up in a consistent manner the number of electron and muon neutrinos. The data used in this search was recorded between the 29th of January 2007 and the 31st of December 2015 for a total livetime of 2423.6 days. Monte Carlo simulations reproduce the time variability of the detector conditions according to a “run-by-run” approach [24].

The background consists of atmospheric neutrinos and downward-going muons created by CR-induced atmospheric air showers. While atmospheric neutrinos cannot be distinguished on an event-by-event basis from cosmic neutrinos, the event selection aims at suppressing events from downward-going muons by selecting events reconstructed as upward-going. This procedure follows the same steps as the one used for the search of point-like sources in Ref. [25]. The selection of events in this analysis maximizes the discovery power (defined in section 3) of the flux predicted by the reference model with the 50 PeV cut-off when using the search method described below.

An event is selected as track-like if it is reconstructed by the tracking algorithm [26] as upward-going and if it passes the selection cuts defined in the searches for point-like neutrino sources [27]. This rejects most of the background from CR-induced atmospheric muons. Shower-like events are selected if they are not present in the track sample and if the event is reconstructed within a fiducial volume surrounding the apparatus with high quality by the shower reconstruction algorithm [25]. These events must also be reconstructed as upward-going. The dataset consists of 7300 tracks and 208 showers events. The median angular resolution for tracks and showers is $0.6^{\circ}$ and $2.7^{\circ}$ respectively, when considering the reference model with the 5 PeV cut-off. For the reference model with the 50 PeV cut-off, the median angular resolution for tracks improves to $0.5^{\circ}$ whereas the one for showers does not change significantly.

3 Search Method

The analysis presented in this work is based on a likelihood ratio test, widely used in neutrino astronomy, e.g. in the search for neutrinos from individual point-like or extended sources by ANTARES [28, 29, 30, 31]. It is adapted here to a full-sky search where the signal map is built according to the reference models mentioned above. A probability density function of observables was defined according to given expectations/models. Data are considered to be a mixture of signal and background events, so the likelihood function is defined as:

[TABLE]

where $E_{i}$ is the reconstructed energy, $\alpha_{i}$ and $\delta_{i}$ the right ascension and declination (equatorial coordinates), and $\theta_{i}$ the zenith angle of the event $i$ . For each event topology $\mathcal{T}$ (track or shower), given a total number of events $\mu_{\text{tot}}^{\mathcal{T}}$ , the number of background events $\mu_{\text{bkg}}^{\mathcal{T}}$ corresponds to $\mu_{\text{tot}}^{\mathcal{T}}-\mu_{\text{sig}}^{\mathcal{T}}$ . The number of signal events $\mu_{\text{sig}}^{\mathcal{T}}$ is fitted by maximising the likelihood, allowing only non-negative values. The signal and background probability density functions of an event are defined as:

[TABLE]

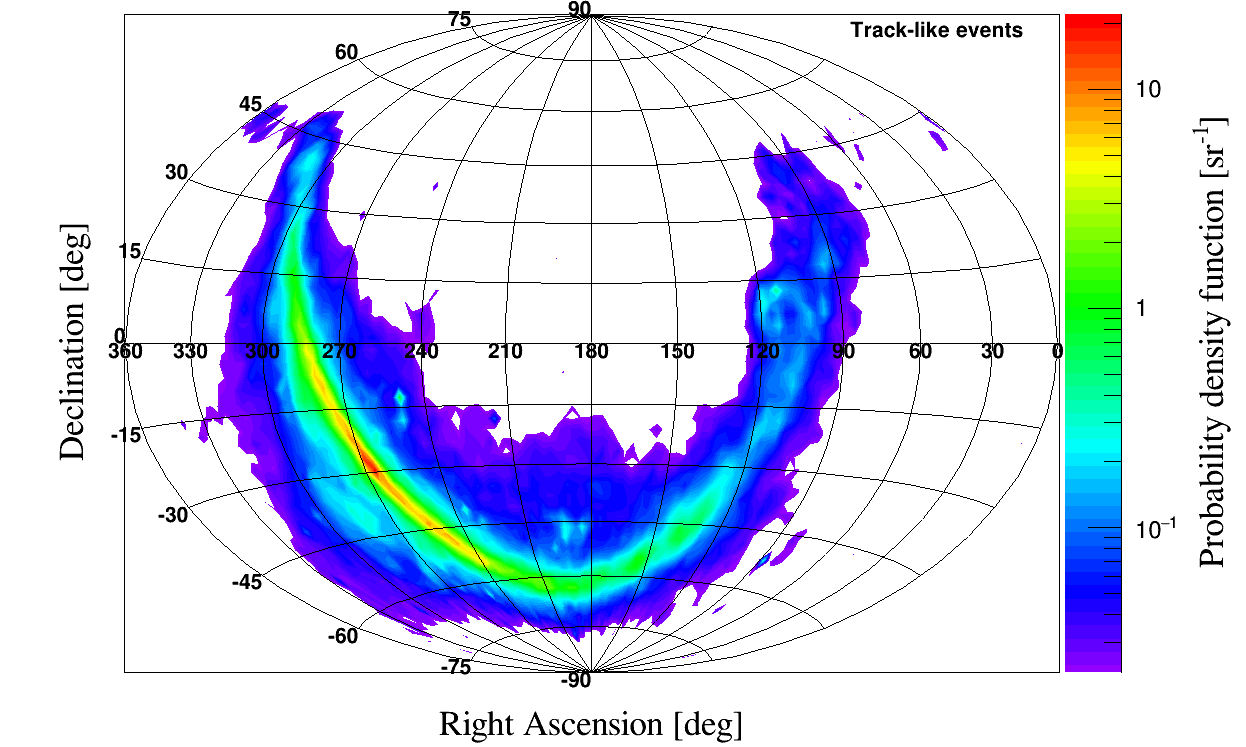

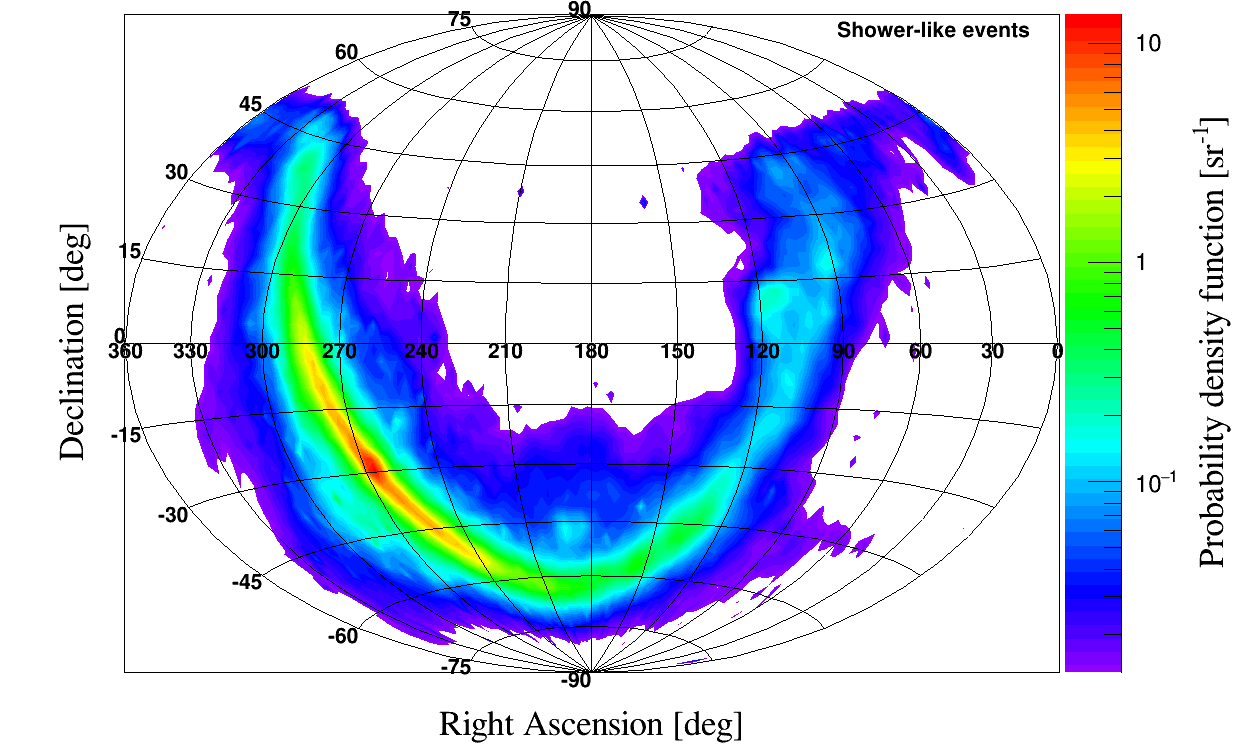

where $\mathcal{M}^{\mathcal{T}}$ are the probability density functions to reconstruct an event in a given position in the sky. The probability density functions $\mathcal{M}_{\text{sig}}^{\mathcal{T}}$ , shown in Figure 1 (for the 5 PeV energy cut-off model) as obtained from Monte Carlo simulation, depend on the differential neutrino fluxes predicted by the reference models folded with the detector response to a given direction in the sky. The background distribution $\mathcal{M}_{\text{bkg}}^{\mathcal{T}}$ is obtained from the data, by scrambling the time of events which results in a randomisation of the corresponding right ascension. This is a conservative estimate of the background. Moreover, provided that the signal is weak enough (which is the case given the non detection of a diffuse flux from the Galactic ridge [32]), this procedure produces a background distribution which only depends on the declination. This is due to the fact that Earth’s rotation and uniform distribution of the time the detector was operational imply a flat atmospheric background right ascension distribution. The parameter $\mathcal{E}^{\mathcal{T}}$ is the probability density function of the reconstructed energy. For the signal, $\mathcal{E}_{\text{sig}}^{\mathcal{T}}$ depends on the equatorial coordinates as the energy spectra of the reference models depend on the position in the sky. The parameter $\mathcal{E}_{\text{bkg}}^{\mathcal{T}}$ depends on the corresponding local zenith $\theta_{i}$ to account for potential reconstruction systematic effects due to the detector response.

The test statistic $\mathcal{Q}$ is then defined as the logarithm of the likelihood ratio:

[TABLE]

with $\mathcal{L}_{\text{bkg}}=\mathcal{L}_{\text{sig+bkg}}(\mu_{\text{sig}}^{\text{sh}}=\mu_{\text{sig}}^{\text{tr}}=0)$ .

The discovery power and sensitivity of the search are computed by building the probability density functions of the test statistic $pdf_{\Phi}(\mathcal{Q})$ assuming different values of the normalisation factor $\Phi$ of the reference model fluxes. The discovery power is defined as the probability for a given signal normalisation to yield a test statistic value corresponding to a $3\sigma$ significance excess on top of the expected background. For a given value of the test statistic $\mathcal{Q}_{obs}$ compatible with background expectation, the $90\%$ upper limit will be defined as the highest signal normalisation which would yield a test statistic value above $\mathcal{Q}_{obs}$ $90\%$ of the time. The sensitivity of the search is then defined as the average of the upper limits corresponding to all possible $\mathcal{Q}$ values in the background hypothesis ( $\Phi=0$ ) weighted by their probabilities $pdf_{\Phi=0}(\mathcal{Q})$ . Pseudo-experiments are thus produced, varying the number of signal events $\mu_{\text{sig}}^{\text{sh+tr}}$ accordingly. They are generated using the probability density functions $\mathcal{M}^{\mathcal{T}}$ and $\mathcal{E}^{\mathcal{T}}$ defined above. A total of $10^{5}$ pseudo-experiments are produced in the background case ( $\mu_{\text{sig}}^{\text{sh+tr}}=0$ ) and $10^{4}$ for each value of $\mu_{\text{sig}}^{\text{sh+tr}}$ in the range [1,55] where the rate of showers, taken from the Monte Carlo simulation, is $\sim$ 20% of $\mu_{\text{sig}}^{\text{sh+tr}}$ . For each pseudo-experiment, the number of fitted track ( $\mu_{\text{fit}}^{\text{tr}}$ ) and shower ( $\mu_{\text{fit}}^{\text{sh}}$ ) events can be obtained.

The distribution of $[\mu_{\text{sig}}^{\text{sh+tr}}-(\mu_{\text{fit}}^{\text{tr}}+\mu_{\text{fit}}^{\text{sh}})]$ has a median value close to zero and a standard deviation $\sigma^{*}=13$ for the model with the 5 PeV cut-off and $\sigma^{*}=12$ with the 50 PeV cut-off. It is worth noticing that the value of $\sigma^{*}$ is related to the background fluctuation, which does not change when varying the true number of signal events for a given model. This means that, if the exposure increases by a given factor, $\sigma^{*}$ increases less rapidly. The probability density functions of $\mathcal{Q}$ for integer numbers of signal events $pdf_{\mu_{\text{sig}}^{\text{sh+tr}}}(\mathcal{Q})$ are obtained from pseudo-experiments. They are linked to $pdf_{\Phi}(\mathcal{Q})$ , with $\Phi$ leading to a mean number of detected signal events $n$ , by:

[TABLE]

where $P$ is the Poissonian probability distribution.

The systematic uncertainty on the acceptance of the ANTARES photomultipliers implies an uncertainty of 15% on the effective area [33]. To account for this, the number of expected signal events $n$ from a given flux is fluctuated using a Gaussian distribution with a standard deviation of 15%. An uncertainty on the background distribution due to statistical fluctuations in the data is also taken into account by fluctuating $\mathcal{M}_{\text{bkg}}^{\mathcal{T}}(\delta_{i})$ .

The p-value for a given $\mathcal{Q}$ is defined as the probability to measure a test statistic larger than this one in the background-only case. It is given by the anti-cumulative probability density function of $\mathcal{Q}$ with no injected signal (Figure 2). Upper limits at a given confidence level are set according to the corresponding distributions with injected signal events.

For the model with the 5 PeV cut-off, 90% of signal events are in the energy range [ $3.5\cdot 10^{-1}$ , $1.3\cdot 10^{2}$ ] TeV for track-like events and between [ $2.0$ , $1.5\cdot 10^{2}$ ] TeV for shower-like events. For the 50 PeV cut-off, these energy ranges are [ $4.0\cdot 10^{-1}$ , $2.3\cdot 10^{2}$ ] TeV for the tracks and [ $2.2$ , $2.6\cdot 10^{2}$ ] TeV for the showers. To avoid biasing the analysis, the data have been blinded by time-scrambling. Both the sensitivity and the discovery power of the analysis are derived from this blinded dataset. The sensitivity, defined as the average upper limit at 90 $\%$ confidence level, is $1.4\times\Phi_{\text{ref}}^{5}$ when a cut-off for CR primary protons at $5$ PeV is set. A mean of $\mu^{*}=11.6$ signal events is expected from the model. It corresponds to the sum of track-like and shower-like events, with showers representing $\sim$ 20% of the total. The resulting discovery power at 3 $\sigma$ confidence level is $7\%$ . For the model with a 50 PeV cut-off, the sensitivity is $1.05\times\Phi_{\text{ref}}^{50}$ and $\mu^{*}=13.7$ signal events are expected, resulting in a discovery power of $14\%$ for a 3 $\sigma$ confidence level.

4 Results

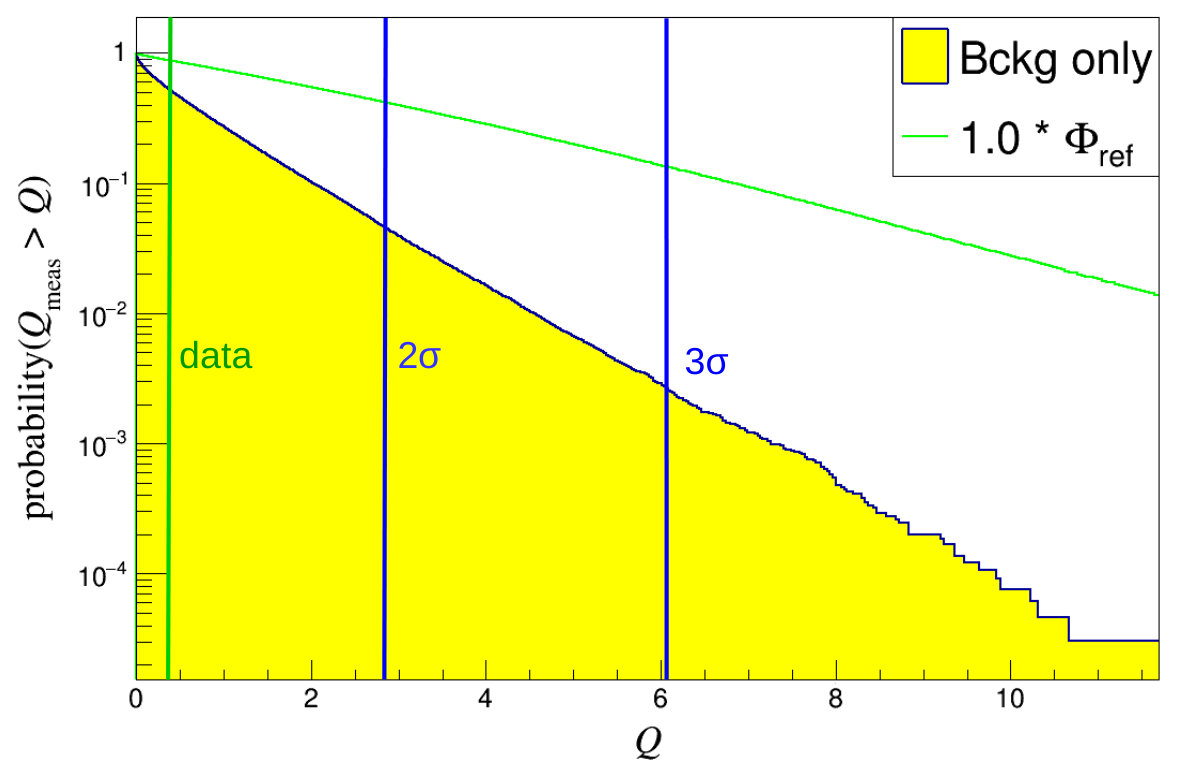

After unblinding, the test statistic of the data is computed. The corresponding $\mathcal{Q}$ value is shown as the green line in Figure 2. Table 1 presents the results for the two different cut-off energies (column 1) considered by the models. Column 2 reports the number of expected events, $\mu^{*}$ , and column 3 the standard deviation of the distribution of the number of fitted events, $\sigma^{*}$ , which are defined in section 3.

For the data sample, the numbers of fitted track-like events, $\mu_{\text{data}}^{\text{tr}}$ , and shower-like events, $\mu_{\text{data}}^{\text{sh}}$ , are reported in columns 4 and 5, respectively. Their sum is smaller than $\mu^{*}$ , but still compatible with the expected fluctuations. These include the Gaussian fluctuations. due to the background (which is within $1\sigma^{*}$ ) and the Poissonian fluctuations on the number of signal events.

Finally, using the anti-cumulative distribution of the background test statistic, the p-value of the data – as defined in section 3 – is computed and reported in column 6. The derived upper limits at 90% confidence level on the reference models are reported in the last column of Table 1.

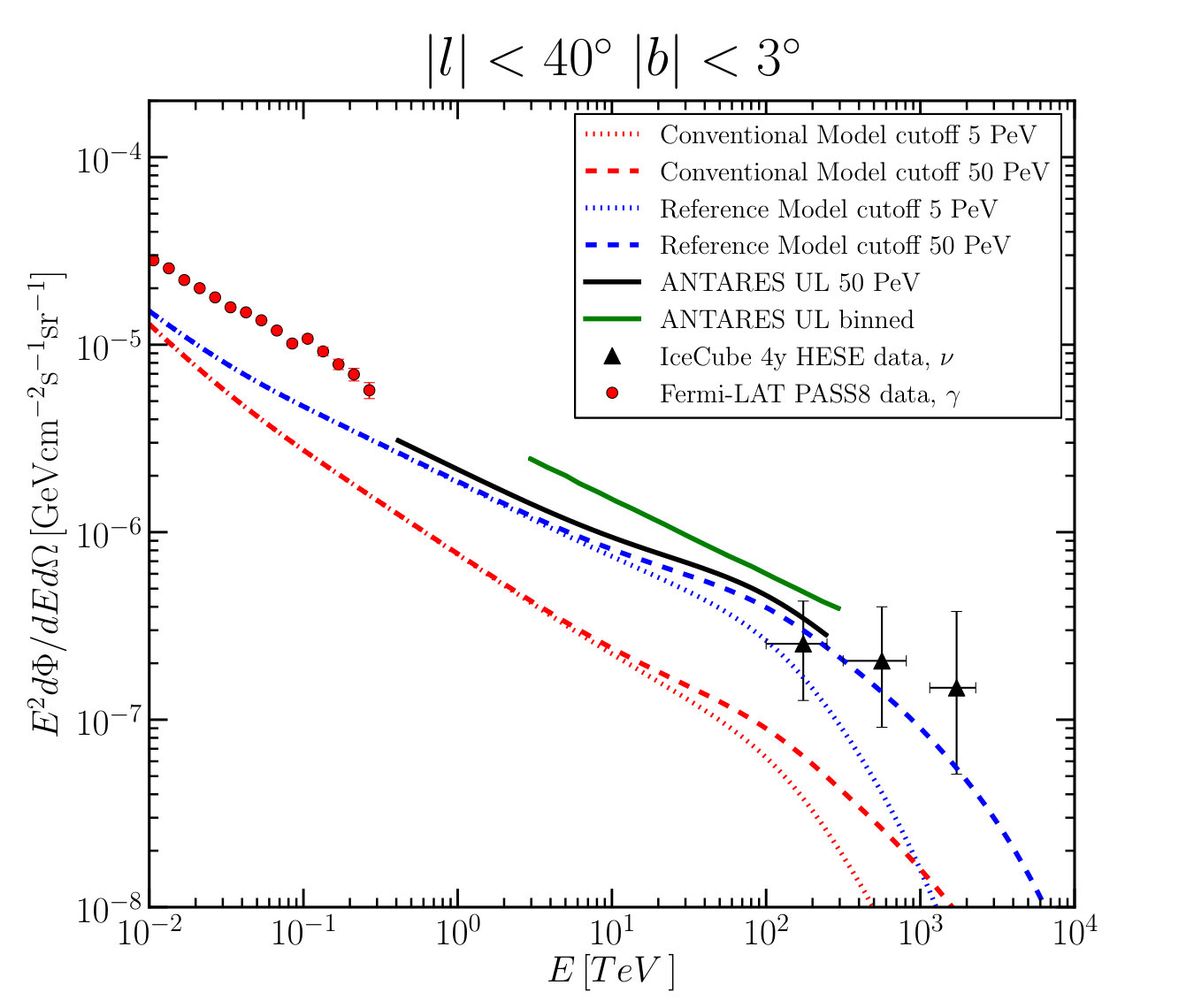

Figure 3 shows the 90% confidence level upper limit of this analysis that relies on the particular morphology and energy spectrum of the reference model. The dotted blue line refers to the reference model assuming a cut-off of 5 PeV for the primary protons, which produce neutrinos when interacting with gas. Although full sky data were used in this analysis, the expectations and the results concerning the inner Galactic plane region ( $|l|<40^{\circ}$ and $|b|<3^{\circ}$ ) are shown on this plot. This allows the presented limit and the previous ANTARES constraint on the neutrino emission [32] from the same region to be compared. The diffuse gamma ray spectral energy distribution derived from PASS8 Fermi-LAT data [34] obtained after the subtraction of point-like components comprised in this region is also shown for comparison. And the red dashed line shows the predicted spectrum from the conventional model with homogeneous CR diffusion. The neutrino flux from the 4 year IceCube HESE catalog for individual events with origin compatible with this region is shown as black triangles. All flavour neutrino fluxes are represented in this figure.

5 Conclusions

The study reported here is based on nine years of ANTARES data collected from 2007 to 2015. It uses a likelihood ratio test to search for a diffuse Galactic-dominated neutrino flux, characterised by the recently introduced “Gamma model” used as reference model. As a result, a neutrino flux with normalisation factor of $1.1\times\Phi_{\text{ref}}^{5}$ (resp. $1.2\times\Phi_{\text{ref}}^{50}$ ) is excluded at 90% confidence level when the model with the 5 PeV cut-off (resp. 50 PeV) is considered.

Using neutrinos of all flavours as well as a larger amount of data leads to an improvement in the sensitivity and more stringent upper limits with respect to the previous ANTARES analysis [32]. The new upper limits do not extend above $\sim$ 200 TeV due to the significant softening of the spectrum. The additional gain in sensitivity below 3 TeV with respect to the previous analysis results from the usage of a new unbinned method that uses spatial and energy information. At low energies, the limit obtained from this analysis reaches almost the high-energy tail of the Fermi-LAT sensitivity.

Noticing the enhanced Galactic hadronic emission predicted by the reference models with respect to a conventional scenario, the obtained limits represent a strong constraint on a possible diffuse neutrino emission from the Galactic plane.

Considering the flux upper limit with 90% confidence level shown in Table 1 for the 50 PeV cut-off, at most 18% of the cosmic neutrino events measured by IceCube with the HESE dataset can originate from diffuse Galactic CR interaction. This corresponds to about 5.2 out of the 28.6 HESE with energy above 60 TeV expected to be cosmic neutrinos, as reported in Ref. [35]. This limit is more restrictive than that allowed in Ref. [20, 22]. The reference model produces a larger North/South asymmetry than the conventional scenario: more than $\sim$ 80% of the events are expected from the Southern hemisphere. Nevertheless, the contribution of the diffuse Galactic component to the difference between the observed number of HESE arising from the two hemispheres cannot be larger than 3.3 HESE, i.e. $\sim$ 10% of the full sky flux. As a result, the neutrino flux produced by the Galactic CR interaction with gas cannot explain by itself the IceCube spectral anomaly. These considerations are even more restrictive for the case of the 90% confidence level upper limit corresponding to a primary CR cut-off of 5 PeV, as evident from the predicted flux given in Figure 3.

6 Acknowledgements

The authors acknowledge the financial support of the funding agencies: Centre National de la Recherche Scientifique (CNRS), Commissariat à l’énergie atomique et aux énergies alternatives (CEA), Commission Européenne (FEDER fund and Marie Curie Program), Institut Universitaire de France (IUF), IdEx program and UnivEarthS Labex program at Sorbonne Paris Cité (ANR-10-LABX-0023 and ANR-11-IDEX-0005-02), Labex OCEVU (ANR-11-LABX-0060) and the A*MIDEX project (ANR-11-IDEX-0001-02), Région Île-de-France (DIM-ACAV), Région Alsace (contrat CPER), Région Provence-Alpes-Côte d’Azur, Département du Var and Ville de La Seyne-sur-Mer, France; Bundesministerium für Bildung und Forschung (BMBF), Germany; Istituto Nazionale di Fisica Nucleare (INFN), Italy; Stichting voor Fundamenteel Onderzoek der Materie (FOM), Nederlandse organisatie voor Wetenschappelijk Onderzoek (NWO), the Netherlands; Council of the President of the Russian Federation for young scientists and leading scientific schools supporting grants, Russia; National Authority for Scientific Research (ANCS), Romania; Ministerio de Economía y Competitividad (MINECO): Plan Estatal de Investigación (refs. FPA2015-65150-C3-1-P, -2-P and -3-P, (MINECO/FEDER)), Severo Ochoa Centre of Excellence and MultiDark Consolider (MINECO), and Prometeo and Grisolía programs (Generalitat Valenciana), Spain; Ministry of Higher Education, Scientific Research and Professional Training, Morocco. We also acknowledge the technical support of Ifremer, AIM and Foselev Marine for the sea operation and the CC-IN2P3 for the computing facilities.

Bibliography35

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1[1] M. Ackermann et al. Fermi-LAT Observations of the Diffuse γ 𝛾 \gamma -Ray Emission: Implications for Cosmic Rays and the Interstellar Medium. Astrophys. J. , 750:3, 2012.
2[2] W. D. Apel et al. KASCADE-Grande measurements of energy spectra for elemental groups of cosmic rays. Astropart. Phys. , 47:54–66, 2013.
3[3] O. Adriani et al. PAMELA Measurements of Cosmic-Ray Proton and Helium Spectra. Science , 332:69, 2011.
4[4] M. Aguilar et al. Precision Measurement of the Proton Flux in Primary Cosmic Rays from Rigidity 1 GV to 1.8 TV with the Alpha Magnetic Spectrometer on the International Space Station. Phys. Rev. Lett. , 114(17):171103, 2015.
5[5] F. Aharonian et al. Discovery of very-high-energy γ 𝛾 \gamma -rays from the Galactic Centre ridge. Nature , 439:695–698, 2006.
6[6] A. A. Abdo et al. A Measurement of the Spatial Distribution of Diffuse Te V Gamma-Ray Emission from the Galactic Plane with Milagro. Astrophys. J. , 688:1078–1083, 2008.
7[7] D. Gaggero, D. Grasso, A. Marinelli, A. Urbano, and M. Valli. The Gamma-Ray and Neutrino Sky: A Consistent Picture of Fermi-LAT, Milagro, and Ice Cube Results. Astrophys. J. Lett. , 815:L 25, 2015.
8[8] D. Gaggero, A. Urbano, M. Valli, and P. Ullio. The gamma-ray sky points to radial gradients in cosmic-ray transport. Phys.Rev. , D 91:083012, 2014.
