Alpha Cluster Formation and Decay in Quartetting Wave Function Approach

TL;DR

This paper develops a microscopic model to understand alpha-cluster formation and decay in heavy nuclei, emphasizing the effects of the mean field and Pauli blocking, and successfully reproduces observed shell effects.

Contribution

It introduces a quartetting wave function approach with local density approximation to analyze alpha-cluster formation in heavy and superheavy nuclei.

Findings

Reproduces alpha-cluster formation probability across major shell closures.

Highlights the sensitivity of cluster formation to the mean field and Pauli blocking.

Analyzes shell effects on alpha-cluster formation in superheavy nuclei.

Abstract

We present a microscopic calculation of alpha-cluster formation in heavy nuclei by using the quartetting wave function approach. The interaction of the quartet with the core nucleus is taken in local density approximation. The alpha-cluster formation is found to be particularly sensitive to the interplay of the mean field felt by the alpha-cluster and the Pauli blocking as a consequence of antisymmetrization. The striking feature of alpha-cluster formation probability across the major shell closures of 82 protons and 126 neutrons is reproduced. The shell (or subshell) effects on the alpha-cluster formation in superheavy nuclei are also analyzed.

Figures

Tables

Table 1. Table 1: The α 𝛼 \alpha -cluster formation probabilities of even-even superheavy nuclei by the quartetting wave function approach.

Mass	$Z$	$N$	$Q_{\alpha }$	Half-life	$c$	$d$	Fermi energy	$E_{\mathrm{tunnel}}$	$E_{\mathrm{tunnel}}-{\mu }_4$	$P_{\alpha }$
			MeV	$T_{1/2}$[s]	[MeV fm]	[MeV fm]	${\mu }_4$[MeV]	[MeV]	[MeV]
294	118	176	11.810	1.4$\times {10}^{-3}$	17066.70	4847.61	-16.889	-16.490	0.399	0.110
292	116	176	10.774	2.4$\times {10}^{-2}$	19237.20	5365.62	-17.772	-17.526	0.246	0.197
290	116	174	10.990	8.0$\times {10}^{-3}$	19027.50	5315.41	-17.568	-17.310	0.258	0.191
288	114	174	10.072	7.5$\times {10}^{-1}$	18743.70	5251.07	-18.549	-18.228	0.320	0.156
286	114	172	10.370	3.5$\times {10}^{-1}$	17237.40	4892.79	-18.349	-17.930	0.419	0.104
270	110	160	11.117	2.1$\times {10}^{-4}$	17079.10	4847.45	-17.547	-17.183	0.364	0.144
268	108	160	9.623	1.4$\times {10}^0$	15653.10	4516.39	-19.171	-18.677	0.494	0.077
264	108	156	10.591	1.1$\times {10}^{-3}$	17054.60	4843.76	-18.088	-17.709	0.379	0.140
260	106	154	9.901	1.2$\times {10}^{-2}$	17488.80	4948.93	-18.759	-18.399	0.360	0.152

Equations

$$P_{\alpha }={\int }_0^{\infty }{d}^{3}r|\Phi (r){|}^2\Theta \left[n_B^{\mathrm{Mott}}-n_B(r)\right].$$

$$n_n(r)=\frac{N}{1343.62}/[1+e^{(r-6.7)/0.55}],$$

$$n_p(r)=\frac{Z}{1303.76}/[1+e^{(r-6.68)/0.447}]$$

Full text

Introduction. Although the radioactive $\alpha$-decay is an important issue dating back to the early days of nuclear physics, the $\alpha$-cluster formation problem as a major challenge in $\alpha$-decay theory has still not been fully understood up to now Mang60 . The description of $\alpha$-cluster formation in heavy nuclei, in principle, involves a complicated many-body problem and is very difficult to handle technically Delion09 ; DLW . Only a few microscopic calculations were carried out to estimate the $\alpha$-cluster formation probability in the typical nucleus 212Po ($\alpha$+208Pb) Varga ; Patial . The fully microscopic treatment of $\alpha$-like correlations in heavy nuclei is still not feasible with present computer capabilities. This is in contrast to the situation in light nuclei where the $\alpha$-like correlations of selfconjugate nuclei have been investigated extensively using microscopic approaches THSR ; RGM ; GCM ; FMD ; AMD . Systematics of $\alpha$-cluster formation probability $P_{\alpha}$ in heavy nuclei have been considered for a long time Brown ; Hatsukawa . Empirical values of $P_{\alpha}$ were extracted from measured data by using analytical formulas or semi-classical approximations Brown ; Hatsukawa ; Batchelder ; Xu ; Denisov ; Buck . The main message is that there exists a striking change of $\alpha$-cluster formation probability across the closed shells, especially the neutron shell closure $N=126$ and proton one $Z=82$. This shell (or subshell) effect may also be crucial for the $\alpha$-decay of superheavy nuclei Hamilton .

Method. In this work, $\alpha$-cluster formation in both heavy and superheavy nuclei is investigated by a quartetting (four-nucleon) wave function approach, which is inspired by the THSR wave function concept for light nuclei and has been successfully applied to the $\alpha$-decay of 212Po Po ; Xu2016 . In this approach, the wave function of quartetting state is subdivided in a unique way in the center of mass (c.o.m.) part and the intrinsic part Po ; Xu2016 . The separation of the c.o.m. motion is a key to simplify the problem of $\alpha$-cluster formation. A coupled system of wave equations is obtained describing the c.o.m. motion and a similar equation for the intrinsic motion. To make the approach practicable, we use a local-density approximation for the lead core nucleus neglecting the derivative terms of the intrinsic wave function. The Schrödinger equation for c.o.m motion contains the kinetic part as well as the potential part which is approximated by an effective c.o.m. potential $W({r})=W^{\rm intr}(r)+W^{\rm ext}(r)$ Po ; Xu2016 . The intrinsic part $W^{\rm intr}(r)$ approaches for large $r$ the bound state energy of the free $\alpha$-particle: $E_{\alpha}^{(0)}=-28.3$ MeV. This binding energy will be reduced at short distance $r$ because of Pauli blocking effects. The external part $W^{\rm ext}(r)$ is determined by the mean-field interaction $V_{\tau}^{\rm mf}(r)$ including the strong nucleon-nucleon interaction as well as the Coulomb interaction. Using the two-potential approach Gurvitz1988 , the effective c.o.m. potential is separated into two parts at the separation point $r_{\rm sep}$. By solving the corresponding c.o.m. Schrödinger equation, the bound state wave function $\Phi(r)$ will be calculated. Here the $\alpha$-transition probability is given as product of the formation probability $P_{\alpha}$, the pre-exponential factor $\nu$, and the exponential factor ${\cal T}$ Xu2016 . The $\alpha$-cluster formation probability $P_{\alpha}$ is obtained by integrating the bound state wave function $\Phi(r)$ from the critical radius $r_{c}$ (corresponding to the critical density $n_{B}^{\rm Mott}$, see below) to infinity Po ; Xu2016 :

[TABLE]

In the region $r>r_{\rm sep}$, the scattering state wave function $\chi(r)$ is obtained as a combination of regular and irregular Coulomb functions Gurvitz1988 ; Xu2016 . The decay width is then calculated by using the values of $\Phi(r)$ and $\chi_{k}(r)$ at the separation point $r_{\rm sep}$ Gurvitz1988 ; Xu2016 .

Model parameters. To avoid the problems of odd-nucleon blocking and angular momentum, only the favored transitions of even-even $\alpha$-emitters are considered. Firstly we focus on the most important case, i.e. the $\alpha$-decay of polonium isotopes (Po $\rightarrow$ Pb+ $\alpha$). We start with the nucleon density in the lead core and determine the critical radius $r_{c}$ where the $\alpha$-like bound state is dissolved Po : $n_{B}(r_{c})=0.02917$ fm*-3*. We use the following neutron and proton densities for the lead nucleus Tarbert2014

[TABLE]

(in units of fm). To calculate the different isotopes of Po, we fix the proton number $Z=82$ and vary the neutron number $N$ only. The Pauli blocking term is determined by the baryon density $n_{B}$=$n_{n}$+$n_{p}$ with a fitted formula (in units of MeV, fm) $W^{\rm Pauli}(n_{B})=4515.9\,n_{B}-100935\,n_{B}^{2}+1202538\,n_{B}^{3}$, which is valid in the density region $n_{B}\leq 0.03$ fm*-3* with relative error below 1% Po . Both the nuclear and Coulomb potentials of the $\alpha$-core system are obtained from a double-folding model using the matter (and charge) densities of the core and the $\alpha$-particle. For the nuclear potential, the M3Y-type nucleon-nucleon interaction with a short-range repulsion part ($c$) and a long-range attraction part ($d$) are used, $v(s)=c\exp(-4s)/(4s)-d\exp(-2.5s)/(2.5s)$, in which $s$ denotes the nucleon-nucleon distance M3YReview . In a first attempt, the parameters $c$ and $d$ are fitted to the experimental $\alpha$-decay energy ($Q_{\alpha}$) and half-life ($T_{1/2}$) for each polonium isotope Audi . Below we discuss the systematics of these parameters which shows the predictive power of our approach.

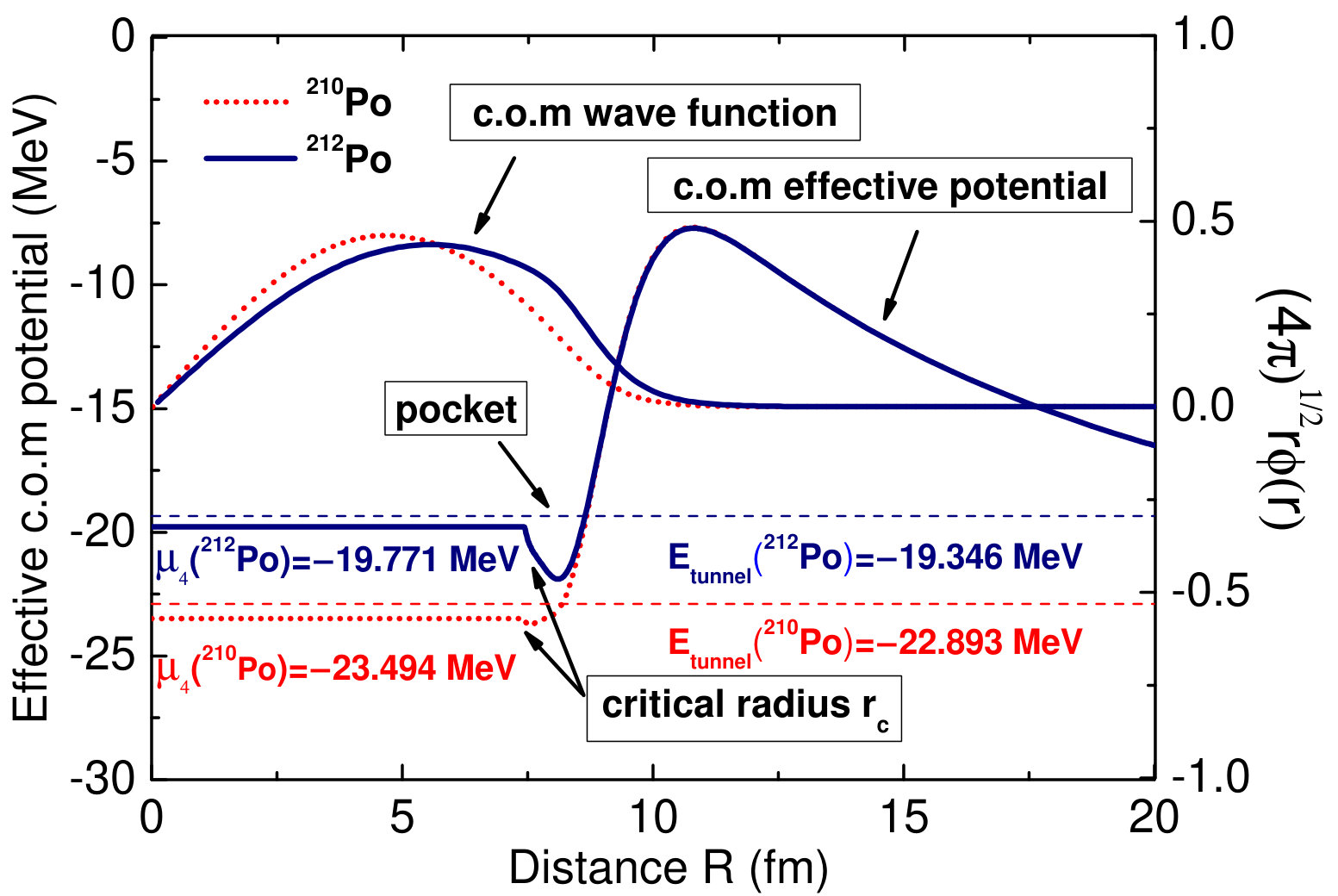

Results. In Fig. 1, we compare the c.o.m effective potentials and the corresponding c.o.m motion wave functions for two neighbouring polonium isotopes 210Po and 212Po. Note that their empirical $\alpha$-cluster formation probability has the most significant change across the $N=126$ major shell. As shown in Fig. 1, the c.o.m effective potentials of both 210Po and 212Po are dominated by the Coulomb repulsion for large distances. At short distances, both the attractive nuclear potential and repulsive Pauli blocking between the $\alpha$-cluster and the lead core become relevant. At a critical radius $r_{c}$, the $\alpha$-cluster is suddenly dissolved and the four nucleons added to the core are implemented on top of the Fermi energy $\mu_{4}$ Po . The critical radii are $r_{c}(^{210}{\rm Po})=7.432$ fm and $r_{c}(^{212}{\rm Po})=7.438$ fm, respectively. The bound state energy $E_{\rm tunnel}$ is above the Fermi energy $\mu_{4}$ for the c.o.m. potential at $r<r_{c}$. Interestingly, there exists a deep “pocket” for 212Po while a very shallow one for 210Po. This “pocket” is of particular importance in calculating the c.o.m. wave function $\Phi(r)$.

The c.o.m. wave functions $\Phi(r)$ are also numerically computed for 210Po and 212Po. As shown in Fig. 1, both wave functions exhibit an approximately linear increase up to the region of the critical radius and then decreases. However, the c.o.m. wave function of 212Po is more extended to the surface region ($r>r_{c}$) because of the deep “pocket”. This is different to the case of 210Po. As the $\alpha$-cluster formation probability is calculated by an integral of $\Phi(r)$ in the surface region ($r>r_{c}$) (see Eq. (1)), the difference between the c.o.m. wave functions of 210Po and 212Po explains why there is an abrupt change across the $N=126$ major shell. As seen in Fig. 1, the deep “pocket” of 212Po yields a bound state energy $E_{\rm tunnel}=-19.346$ MeV very close to the Fermi energy $\mu_{4}=-19.771$ MeV, which is also different from the case of 210Po.

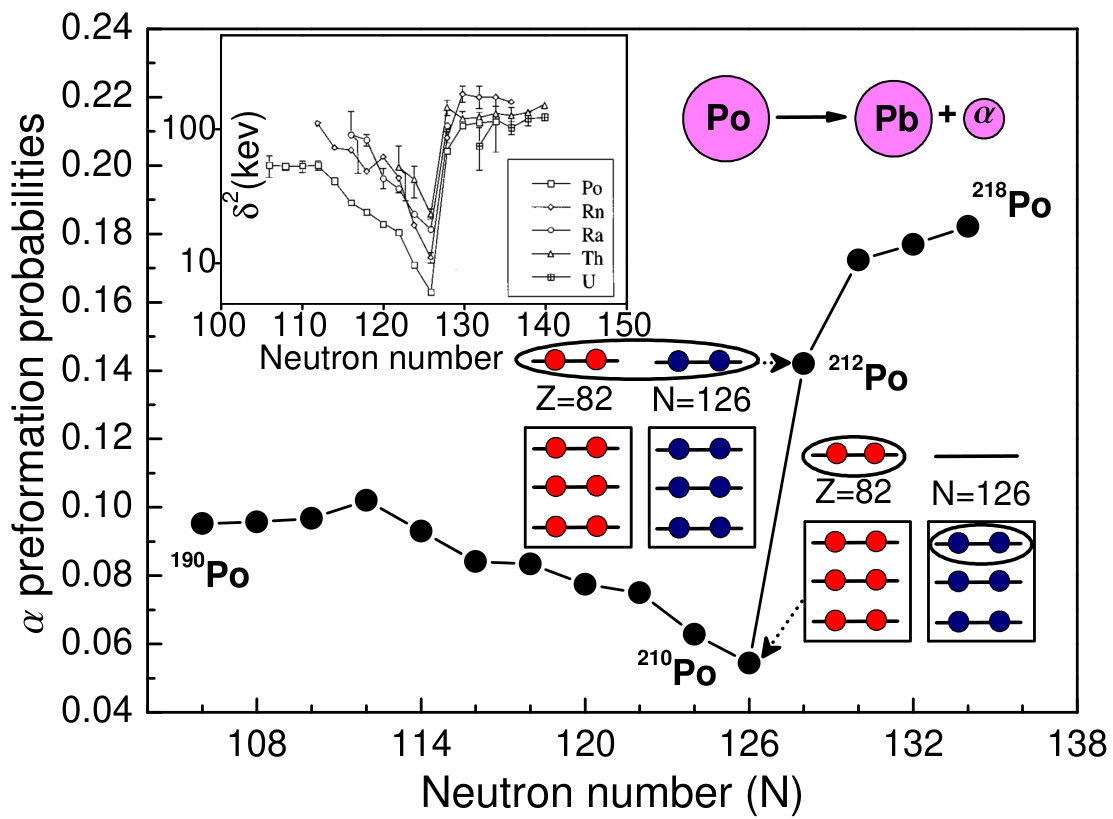

It is of interest to present the calculated $\alpha$-cluster formation probability $P_{\alpha}$ of all even-even polonium isotopes by using our quartetting wave function approach. A plot of $P_{\alpha}$ as a function of neutron number $N$ is given in Fig. 2. For comparison, in the insert the empirical values of the $\alpha$-decay reduced width $\delta^{2}=2\pi\hbar\lambda/P$ are shown, as given in Ref. Batchelder . Here, $\lambda$ is the measured decay constant and $P$ penetrability factor for the $\alpha$ particle to tunnel through the Coulomb and centrifugal barriers. Taking the same penetration probability $P$ as ${\cal T}$ calculated in our quartetting wave function approach as introduced above, we have the relation $P_{\alpha}$=$\delta^{2}$/(2$\pi\nu$). Therefore both quantities, the empirical $\alpha$-decay reduced width $\delta^{2}$ and the formation probability $P_{\alpha}$, are closely related, and the behavior of $P_{\alpha}$ in Fig. 2 is in excellent agreement with the empirical analysis Batchelder . As shown in Fig. 2, the values of $P_{\alpha}$ are quite close to each other from 190Po to 196Po. This feature is called as the “saturation effect” in previous studies Batchelder . Then the values of $P_{\alpha}$ decrease with the increasing of neutron number until a sudden jump from $P_{\alpha}$(${}^{210}{\rm Po})=0.054$ to $P_{\alpha}$(${}^{212}{\rm Po})=0.142$ appears. This is clearly due to the effect of $N=126$ neutron shell closure. As demonstrated by the two sketches in Fig. 2, the formation of an $\alpha$-cluster in 210Po involves two neutrons below the major closed shell. This is in contrast to the case of 212Po, in which two neutrons are on top of the lead core. In contrast to the empirical analysis, here the formation probabilities are consistently computed in a microscopic way, which reveals very clearly the shell structure of heavy nuclei. It is also found that there exists strong correlation between the difference of $E_{\rm tunnel}-\mu_{4}$ and the $\alpha$-cluster formation probability, cf. Ref. Xu2016 . A systematic dependence of the energy difference $E_{\rm tunnel}-\mu_{4}$ on the neutron numbers $N$ is shown in Fig. 3 for the Po isotopes. As clearly shown by Fig. 2 and Fig. 3, if the bound state energy $E_{\rm tunnel}$ is close to the Fermi energy $\mu_{4}$, a large $\alpha$ preformation probability is obtained.

Another typical example is the $\alpha$-cluster formation probability of the even-even $N=126$ isotones (daughter nuclei). We show in Fig. 4 the calculated $\alpha$-cluster formation probability of $\alpha$-emitters 210Pb, 212Po, 214Rn, 216Ra, and 218Th as a function of proton number $Z$. As expected, there is large increase of $\alpha$-cluster formation probability from $P_{\alpha}$(${}^{210}{\rm Pb})=0.081$ to $P_{\alpha}$(${}^{212}{\rm Po})=0.142$ because of the effect of $Z=82$ closed shell.

For Superheavy nuclei, shell effect is considered to be the determining factor for their stability. In the majority of cases, the superheavy nuclei decay via $\alpha$-decay. It is expected that the shell effect also manifests itself in the $\alpha$-cluster formation in superheavy nuclei. In Table 1, the details of the calculated $\alpha$-cluster formation probabilities of all even-even superheavy nuclei available are presented. The parameter values $c$ and $d$ in the nucleon-nucleon interaction are carefully chosen so that both the measured decay energy $Q_{\alpha}$ and half-life $T_{1/2}$ are reproduced Audi . Also, the experimental bound state energy $E_{\rm tunnel}=Q_{\alpha}-28.3$ MeV is reproduced, which is above the value of Fermi energy $\mu_{4}$. Interestingly, an abrupt jump of $\alpha$-cluster formation probability from ${}^{268}108$ ($P_{\alpha}=0.077$) to ${}^{270}110$ ($P_{\alpha}=0.144$) is observed. They belong to the $N=160$ isotones. This shows that $Z=108$ is a possible proton shell (or subshell) closure in superheavy mass region. More discussion of $Z=108$ shell effect can be found in Ref. Dvorak .

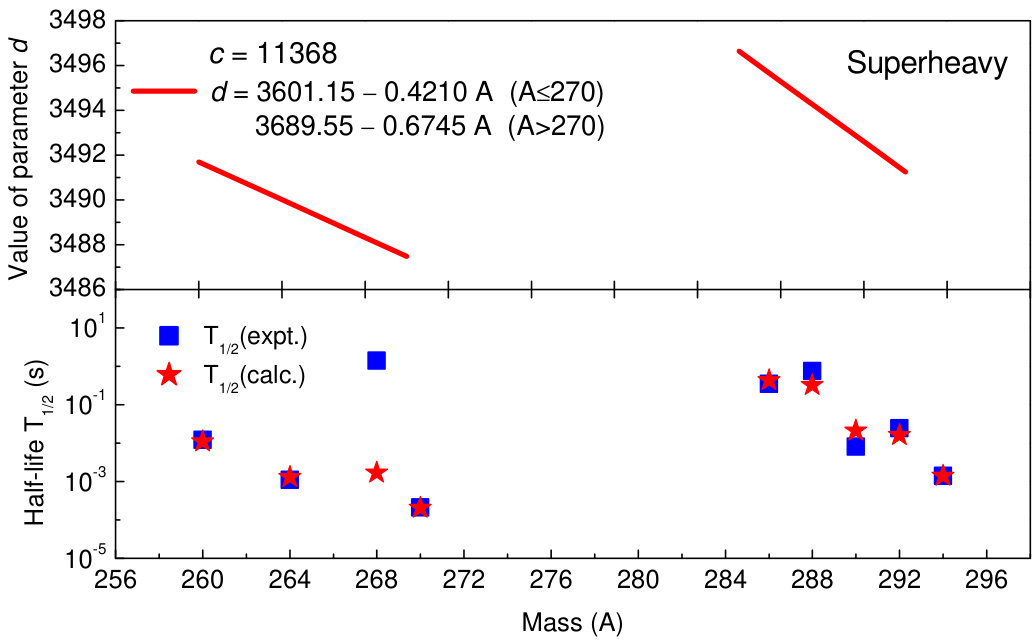

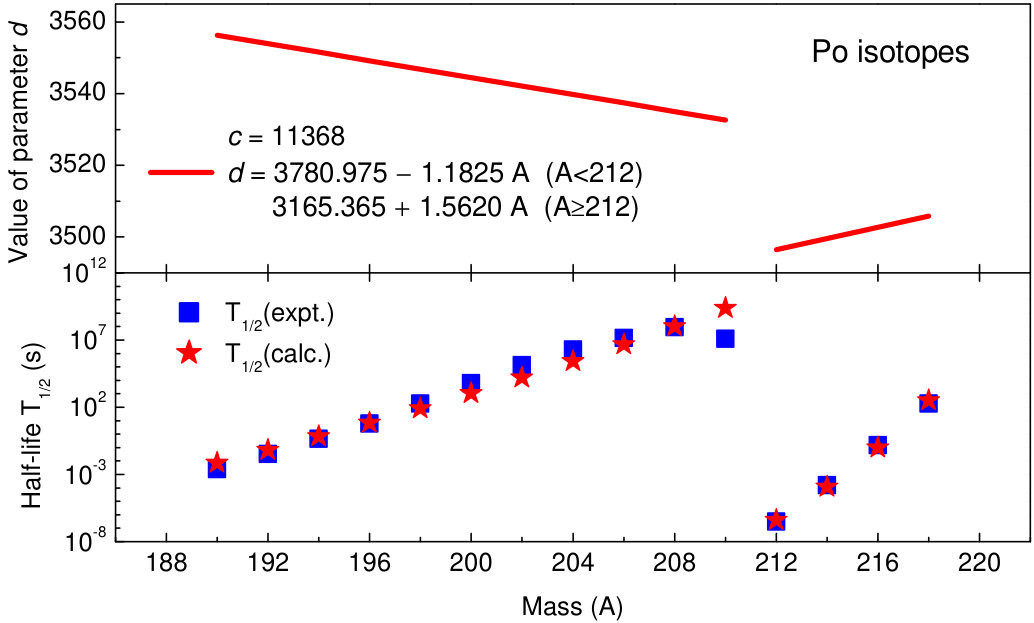

Discussion on model parameters. By adjusting the strengths c and d in the M3Y interaction for each nucleus, we find the gap in the $\alpha$-formation probability $P_{\alpha}$ which is a signature of shell closure. At present we are not explicitly performing shell structure calculations for the core nucleus. An attempt is made to construct a “smooth” mass depending parametrization of M3Y interaction strengths. As shown in Fig.5, the strength c of M3Y interaction is chosen as an arbitrary constant and the strength d is found to have linear mass dependence for the Po isotopes with $A<212$ and $A\geq 212$, respectively (see the upper panel). A comparison between the experimental and calculated half-lives is given in the lower panel of Fig.5. This may be considered as predictive power of our approach where only five parameters are fitted to describe the half-lives of the entire range of Po isotopes. A similar analysis is presented for superheavies in Fig.6 where the strength c is the same constant but d has different linear mass dependence with $A\leq 270$ and $A>270$. For both the Po isotopes and superheavies, a reasonable agreement between data and theory is obtained, but deviations occur at shell closures, e.g. $N=126$ and $Z=108$. To further improve the agreement and make reliable prediction, a rigorous treatment of shell structure for the core nucleus which is missing in the present calculation based on a local-density (Thomas-Fermi) approach will be needed in future.

Summary. The physics of cluster formation in heavy and superheavy nuclei is not fully understood and the numerical treatment is quite complex. In this work, we consider $\alpha$-cluster preformation in both the heavy and superheavy nuclei. The approach presented here to include four-nucleon correlations, in particular bound states, is based on a first-principle approach to nuclear many-body systems. The c.o.m. motion as a collective degree of freedom is introduced to characterize the cluster and the equation for c.o.m motion is numerically solved. An important point is that the $\alpha$-cluster can only be formed on the surface region of the core with $r>r_{c}$ because of the Pauli blocking effects. The interplay of the mean field and the Pauli blocking as a consequence of antisymmetrization leads to the formation of a “pocket” in the effective c.o.m. potential. We found a deeper “pocket” results in a more extended c.o.m wave function on the surface region and consequently a larger cluster formation probability. Systematics of $\alpha$-cluster formation probability in heavy nuclei is well reproduced by our quartetting wave function approach. We also found that the shell (or subshell) effect of $Z=108$ manifests itself in $\alpha$-cluster formation for superheavy nuclei which has been derived from data, see Table 1.

Acknowledgments. This work was discussed and prepared during the Workshop on Nuclear Cluster Physics (WNCP2016) in Yokohama, Japan (organizer T. Yamada). The work is supported by the National Natural Science Foundation of China (Grants No.11575082, No.11235001, No.11535004, No.11375086, and No.11120101005).
