This paper reviews recent updates to the Inert Doublet Model (IDM), showing how new direct detection constraints limit its parameter space and exploring an extended version with a complex singlet.

Contribution

It provides updated constraints on IDM and introduces the IDMS extension with a complex singlet, expanding the model's scope.

Findings

Updated direct detection constraints significantly reduce IDM parameter space

Inclusion of IDMS extension broadens the model's phenomenology

The allowed parameter space for IDM is more restricted than previously thought

Abstract

In this note, we discuss recent updates to a previous scan for the Inert Doublet Model, a two Higgs doublet model with a dark matter candidate. We explicitly show the inclusion of updated constraints on direct detection reduces the allowed parameter space significantly. We furthermore discuss the IDMS - an extension of the IDM with a complex singlet.

Figures

Equations

$${\varphi }_S\to {\varphi }_S,{\varphi }_D\to -{\varphi }_D,\text{SM}\to \text{SM}.$$

$${\varphi }_S\to {\varphi }_S,{\varphi }_D\to -{\varphi }_D,\text{SM fields}\to \text{SM fields},\chi \to \chi .$$

$$\begin{array}[]{c}V=-\frac{1}{2}\left[m_{11}^{2}(\phi_{S}^{\dagger}\phi_{S})\!+\!m_{22}^{2}(\phi_{D}^{\dagger}\phi_{D})\right]+\frac{\lambda_{1}}{2}(\phi_{S}^{\dagger}\phi_{S})^{2}\!+\!\frac{\lambda_{2}}{2}(\phi_{D}^{\dagger}\phi_{D})^{2}\\[5.69054pt] +\!\lambda_{3}(\phi_{S}^{\dagger}\phi_{S})(\phi_{D}^{\dagger}\phi_{D})\!\!+\!\lambda_{4}(\phi_{S}^{\dagger}\phi_{D})(\phi_{D}^{\dagger}\phi_{S})+\frac{\lambda_{5}}{2}\left[(\phi_{S}^{\dagger}\phi_{D})^{2}\!+\!(\phi_{D}^{\dagger}\phi_{S})^{2}\right],\end{array}$$

$$M_H,M_A,M_{H^{\pm }},{\lambda }_2,{\lambda }_{345},$$

$$\text{BR}(h\to \gamma \gamma )\in \left[1.77;3.45\right]\times 10^{-3}$$

$${\text{BR}}^{\text{old}}(h\to \gamma \gamma )\in \left[1.76;3.84\right]\times 10^{-3}.$$

$$D:{\varphi }_S\to {\varphi }_S,{\varphi }_D\to -{\varphi }_D,\text{SM fields}\to \text{SM fields},\chi \to \chi ,$$

$$\begin{array}[]{c}V=-\frac{1}{2}\left[{m_{11}^{2}}\phi_{S}^{\dagger}\phi_{S}+{m_{22}^{2}}\phi_{D}^{\dagger}\phi_{D}\right]+\frac{1}{2}\left[\lambda_{1}\left(\phi_{S}^{\dagger}\phi_{S}\right)^{2}+\lambda_{2}\left(\phi_{D}^{\dagger}\phi_{D}\right)^{2}\right]\\[17.07164pt] +\lambda_{3}\left(\phi_{S}^{\dagger}\phi_{S}\right)\left(\phi_{D}^{\dagger}\phi_{D}\right)+\lambda_{4}\left(\phi_{S}^{\dagger}\phi_{D}\right)\left(\phi_{D}^{\dagger}\phi_{S}\right)+\frac{\lambda_{5}}{2}\left[\left(\phi_{S}^{\dagger}\phi_{D}\right)^{2}\!+\!\left(\phi_{D}^{\dagger}\phi_{S}\right)^{2}\right]\\[8.53581pt] -\frac{m_{3}^{2}}{2}\chi^{*}\chi+\lambda_{s1}(\chi^{*}\chi)^{2}+\Lambda_{1}(\phi_{S}^{\dagger}\phi_{S})(\chi^{*}\chi)\\[5.69054pt] -\frac{m_{4}^{2}}{2}(\chi^{*2}+\chi^{2})+\kappa_{2}(\chi^{3}+\chi^{*3})+\kappa_{3}[\chi(\chi^{*}\chi)+\chi^{*}(\chi^{*}\chi)].\end{array}$$

Full text

1 Introduction

The second run of the LHC is currently in full swing, with more and more data becoming available for an increased center-of-mass energy111See e.g. [1].. While the experiments acquire further data to rediscover and establish the scalar sector of the Standard Model (SM), beyond the Standard Model (BSM) scenarios need to be further scrutinized.

In this work, we discuss a two Higgs doublet model with a discrete symmetry, which we label $D$-symmetry, with transformations defined as:

[TABLE]

This discrete symmetry is respected by the Lagrangian and the vacuum. The $\phi_{S}$ doublet plays the same role as the corresponding doublet in the SM, providing the SM-like Higgs particle. This doublet is even under the $D$ symmetry, while the second doublet, $\phi_{D}$, is $D$-odd. This so called inert or dark doublet contains 4 scalars, two charged and two neutral ones, with the lightest neutral scalar being a natural DM candidate. This Inert Doublet Model (IDM) was first discussed in [2, 3, 4]. The model was studied in context of discovery at the LHC, both for the Higgs boson discovery [4, 3] as well as dark matter discovery e.g. in two lepton + MET channel [5, 6]. Other collider studies and scans of the models parameter space have been presented in [7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17]. Moreover the model offers rich cosmological phenomenology. It was shown that the Universe evolution to the current Inert phase may lead through one, two or three phase transitions [18], and especially may lead to a strong enough first-order transition, fulfilling one of the Sakharov conditions for the baryogenesis [19, 20, 21]. The metastability of the potential was equally discussed, see [22, 23, 24]. The dark matter arising from IDM is also referred to as ”archetypical WIMP” [25], and thus many astrophysical observations can be reinterpreted in its context.

In this work, we present updates of the scan presented in [26] (see also [27, 28]) and especially discuss how they influence the benchmark planes proposed therein. We include updated limits on direct dark matter detection, as well as the total width and branching ratios of the 125 GeV  Higgs. Our results should be considered as an intermediate step to a full update of our previous work.

We also present some results on the extension of the IDM by a neutral complex singlet with a complex vacuum expectation value. Here, as in the IDM, the only $D$-odd field in the model is $\phi_{D}$, while all other fields are $D$-even:

[TABLE]

This IDMS model, in a constrained version called cIDMS, offers a possibility of a spontaneous violation of CP, while at the same time retaining the main properties of the IDM, therefore being in agreement with LHC and astrophysical data [29].

2 The IDM

The scalar sector of IDM consists of two SU(2) doublets of complex scalar fields, $\phi_{S}$ and $\phi_{D}$, with the $D$-symmetric potential:

[TABLE]

Due to this symmetry the scalar fields in $\phi_{D}$ do not mix with the SM-like field from $\phi_{S}$ , and the lightest particle of the dark sector is stable. After electroweak symmetry breaking (EWSB), only $\phi_{S}$ acquires a nonzero vacuum expectation value ($v$). The dark sector contains 4 new particles: $H$, $A$ and $H^{\pm}$. We here choose H to denote the dark matter (DM) candidate222 A priori, any of the new scalars can function as a dark matter candidate. However, we neglect the choice of a charged dark matter candidate, as these are strongly constrained [30]. Choosing A instead of H changes the meaning of $\lambda_{5}$, but not the overall phenomenology of the model, cf. [26]..

After EWSB, the model contains a priori seven free parameters. Agreement with the Higgs boson discovery and electroweak precision observables fixes the SM-like Higgs mass $M_{h}$ and $v$, and we are left with 5 free parameters, which we take as

[TABLE]

where the $\lambda$’s correspond couplings within the dark sector and to the SM-like Higgs respectively. In the following, we will use the shortcut $\lambda_{345}=\lambda_{3}+\lambda_{4}+\lambda_{5}$.

2.1 Updates on limits on the total width of $h$, branching ratios, and direct dark matter detection

The work presented here follows previous work [26] (see also [27, 28]) and introduces updates on several of the experimental constraints. In particular

• •

We use an updated constraint on the total width of the SM-like Higgs $h$, $\Gamma_{h}\,\leq\,13\,{\rm MeV}$ [31];

• •

We update the limits on the invisible decay of $M_{h}$: we take the results presented in [32], leading to $\text{BR}_{h\,\rightarrow\,\text{inv}}\,\leq\,0.16$.

• •

We also use new limits on the branching ratio $h\,\rightarrow\,\gamma\,\gamma$, taken from [32], and rendering $\mu\,=\,1.14^{+0.19}_{-0.18}$, which, in combination with the Standard Model value [15] of $\text{BR}\,(h\,\rightarrow\,\gamma\,\gamma)\,=\,2.270\,\times\,10^{-3}$, gives

[TABLE]

on a two-sigma level, leading to slightly more stringent results than the previous constraint [26]

[TABLE]

• •

We also implement an update on direct detection bounds, presented in [33].

• •

We confront the model agains the newest experimental bounds as implemented in HiggsBounds-5.0.0 [34, 35, 36] and HiggsSignals-2.0.0 [37]. 333Available from http://higgsbounds.hepforge.org/downloads.html. Note that current releases are beta versions, and thus should be treated with care.

We plan to extend our scan in the future, e.g. in the direction presented in [17]. In this note, we focus on how the above bounds limit the parameter space and benchmark planes presented in [26] (see also [15]). All other theoretical and experimental constraints follow our scan in [26], and we refer to this work for more details.

2.1.1 Results

The improved constraint on the total width of $M_{h}$ cited above does not have any direct consequence for the allowed parameter space. While it is important in an intermediate step, we found this always to be superseded by constraints from Higgs signal rates, which we implemented using HiggsSignals. The same holds for the updated value on the branching ratio to invisible particles. The update on $h\,\rightarrow\,\gamma\,\gamma$ decay rates leads to slightly stronger constraints for $M_{H}\,\leq\,M_{h}$444Note that in the previous study, we included constraints using HiggsSignals, which corresponds to a global fit over all signal strength measurements. Limits obtained with a cut on one of these only might therefore render slightly different results due to the difference in statistical treatment.. Afterwards the surviving points were also confronted with the most updates results, including 13 TeV analysis as implemented in HiggsBounds-5.0.0 and HiggsSignals-2.0.0, but showed no additional impact on the allowed parameter space.

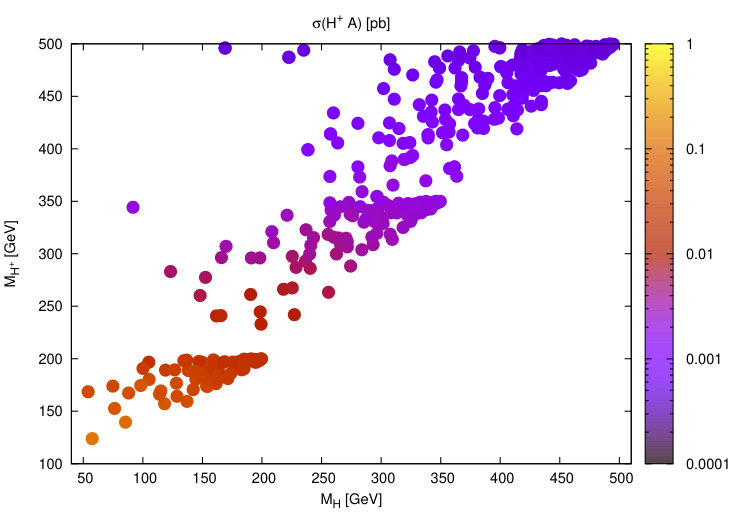

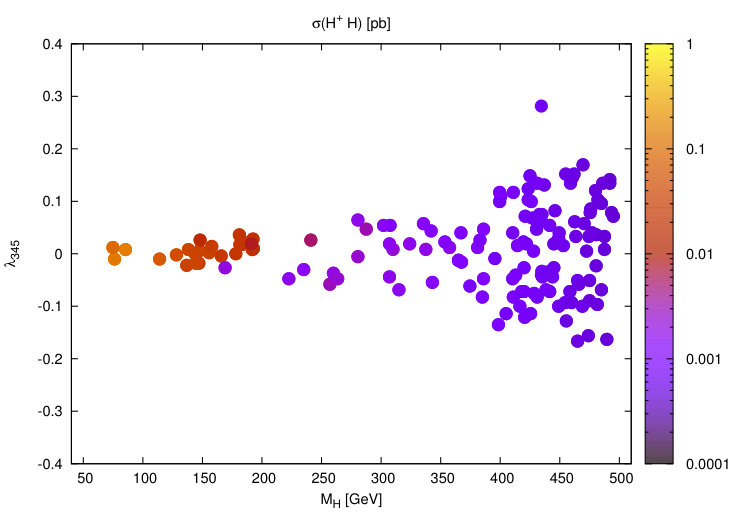

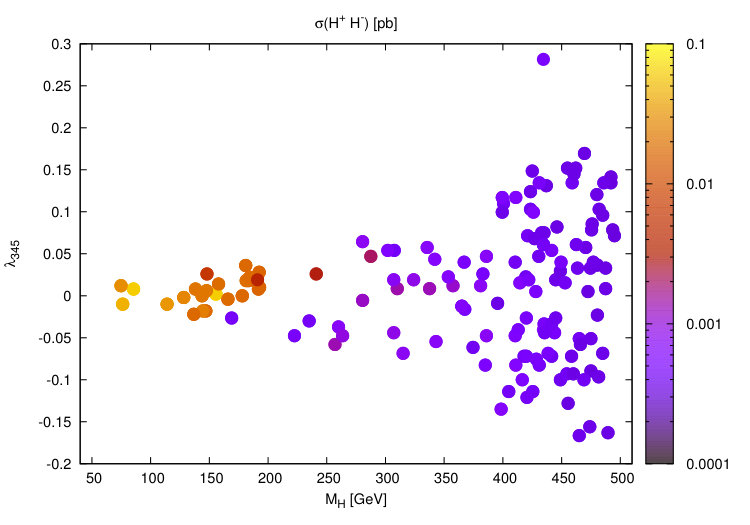

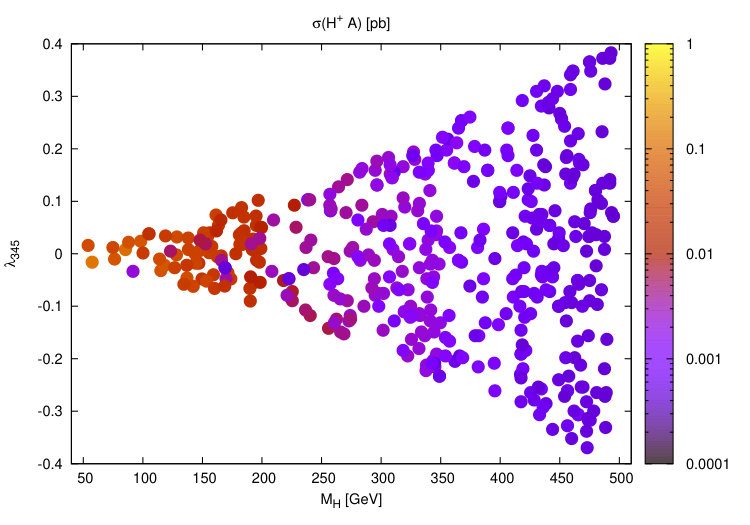

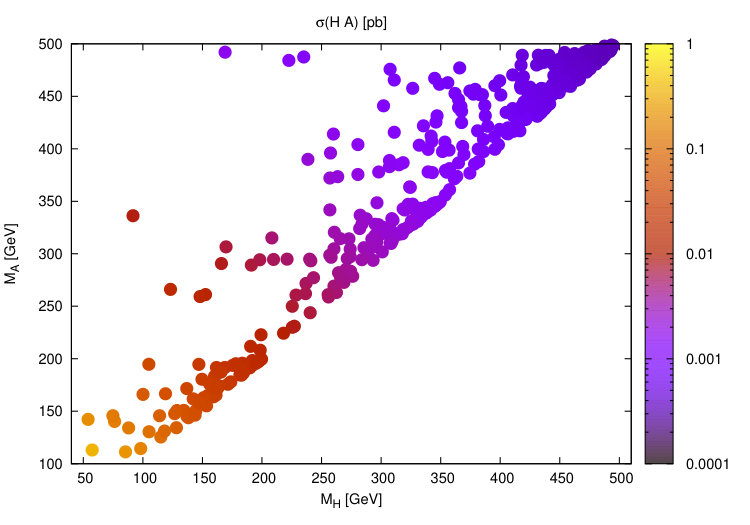

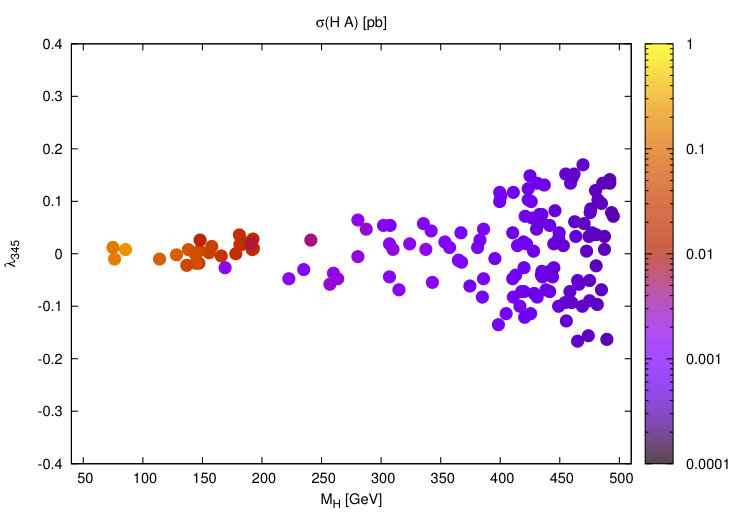

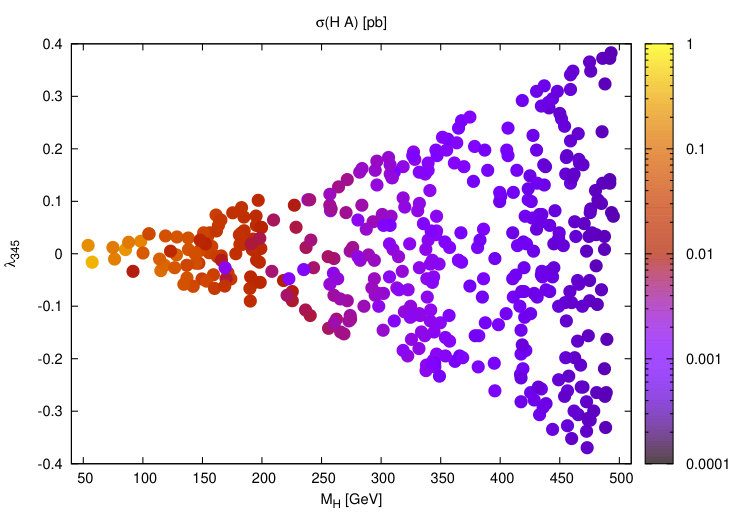

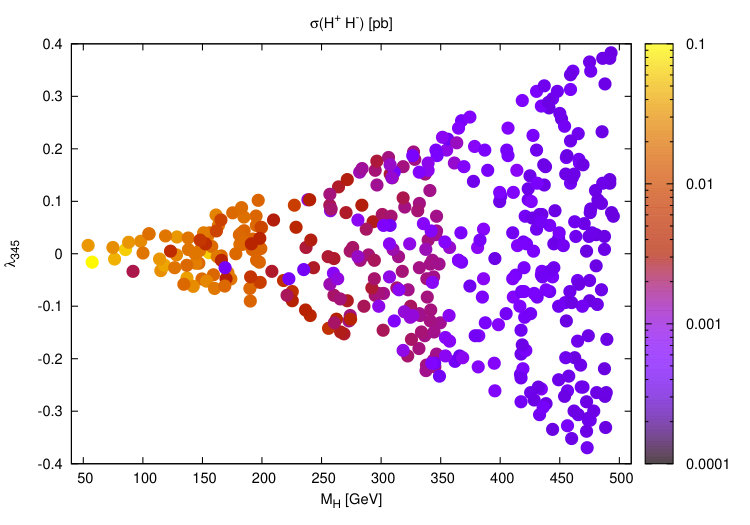

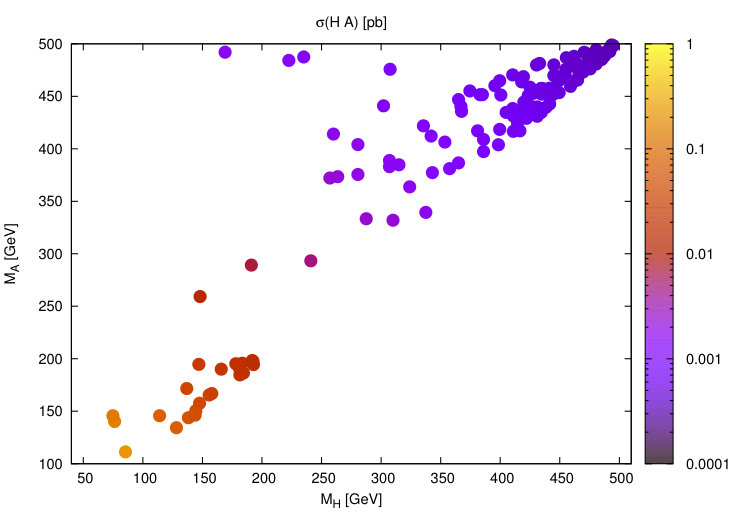

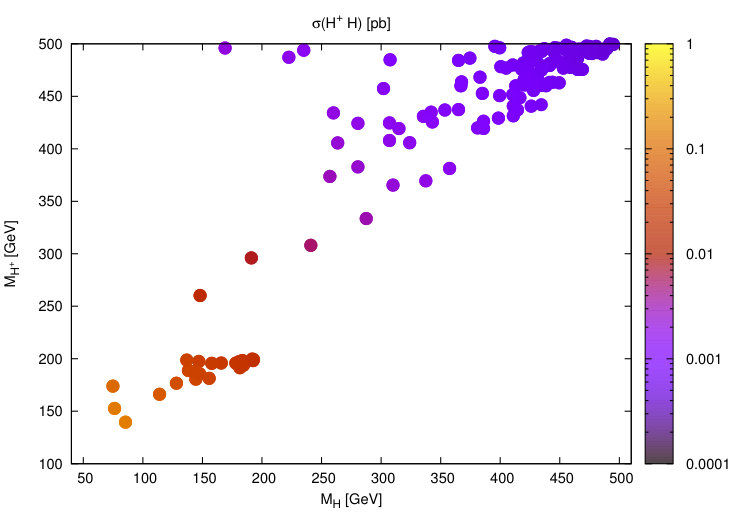

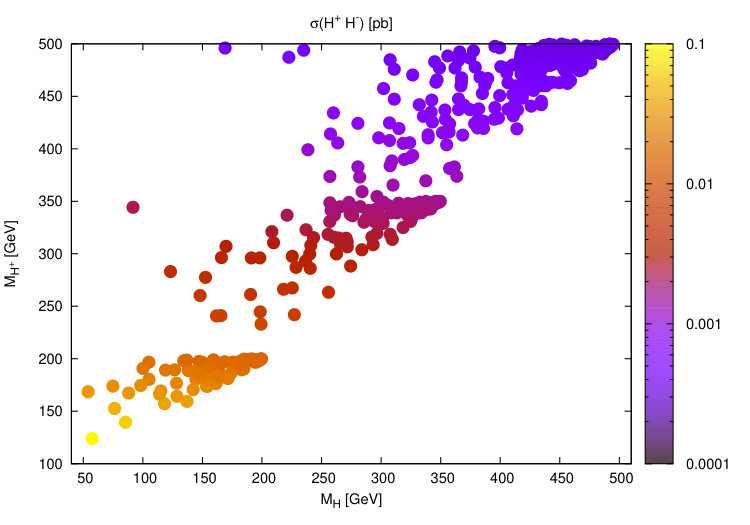

On the other hand, the inclusion of new LUX bounds [33] significantly reduces the allowed parameter space. For illustration, we show the benchmark planes before ([26]) and after the new constraint has been applied. We do this exemplarily for $HA$ and $H\,H^{\pm}$ production cross sections at a 13 TeV  LHC in Figs. 1 and 2, respectively. Implementation of the new direct detection bounds leads to a significant reduction of valid points in the $(M_{H};\lambda_{345})$ plane, while still rendering similar orders of magnitude for the respective production cross sections.

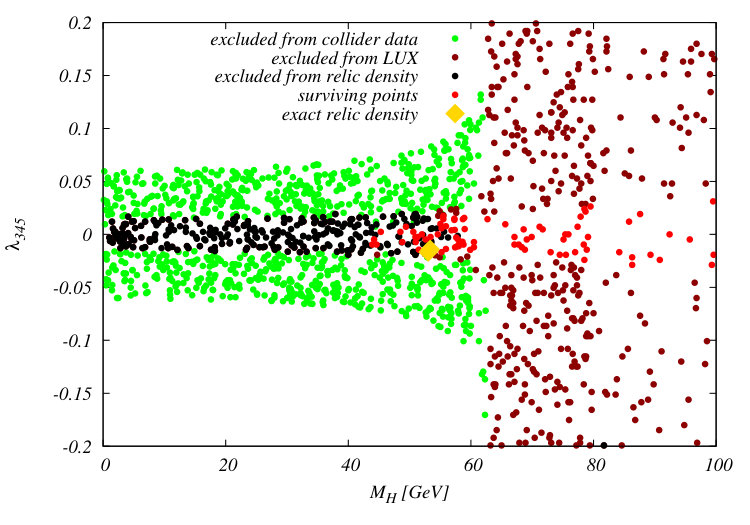

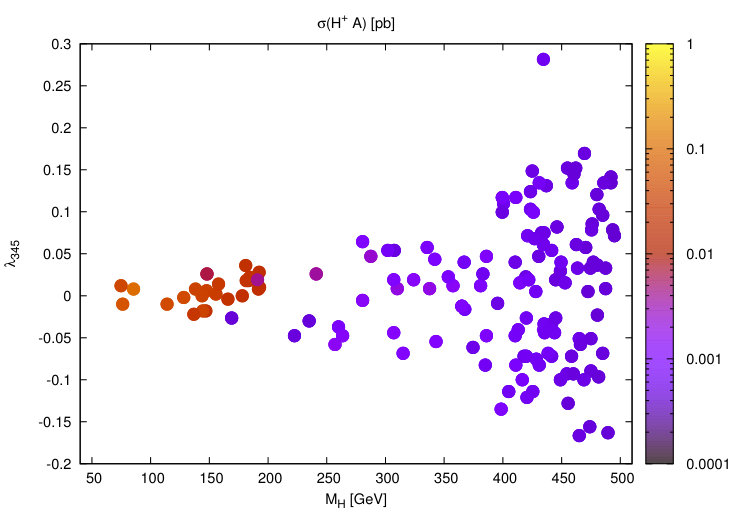

For the case where $M_{H}\,\leq\,M_{h}$, the updates on bounds from direct detection mainly play a role in the region where $M_{H}\,\geq\,M_{h}/2$, see Fig. 3. In this case, however, the new limits do not diminish the available parameter space significantly.

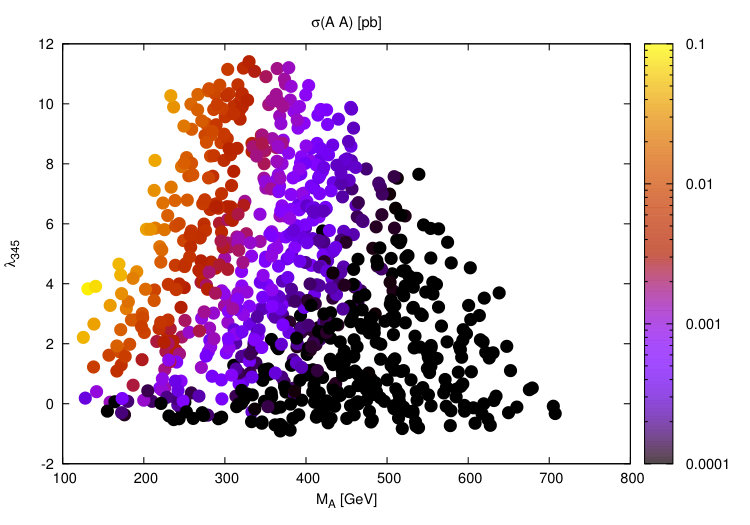

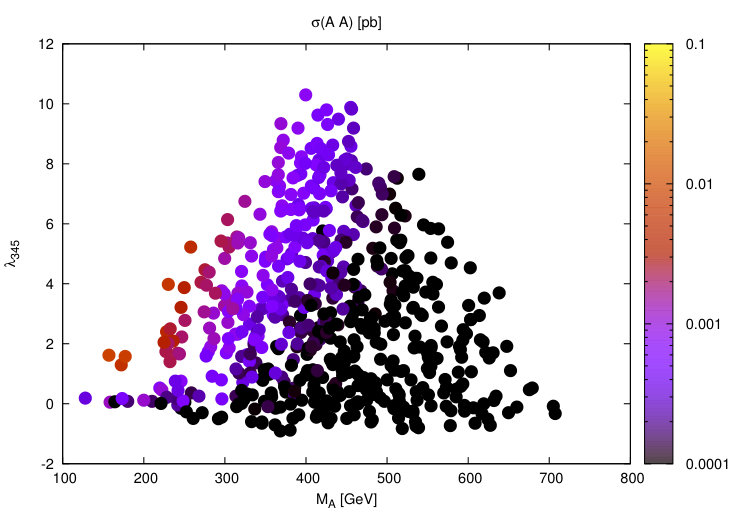

In [26], we also discussed the case of multi-component dark matter scenarios, pointing out that especially the allowed parameter space for $AA$ pair-production is largely enhanced in such a scenario. When we apply a strict lower limit on $\text{BR}(h\,\rightarrow\,\gamma\gamma)$ instead of a softer limit using HiggsSignals, we see that the parameter space is significantly reduced in the low $M_{A}$/ low $\lambda_{345}$ plane, leading to the reduction of available production cross sections by about one to two orders of magnitude, cf. Fig. 4. As discussed in our previous work, this limit can directly be related to regions in the $(\lambda_{3};M_{H^{\pm}}/M_{h})$ plane, the important parameters in the corresponding BSM contribution in the IDM, see Fig. 5.

3 The cIDMS

The IDM provides a simple, yet compelling candidate for a DM particle, and in general is in agreement with experimental data. However, one significant feature is missing from the IDM: an additional source of CP violation. One possibility of introducing it is by adding a complex field $\chi$ with a complex VEV. This was done in the model called the IDMS: a $D$-symmetric Two-Higgs Doublet Model, the IDM, with a complex singlet [29]. As in the IDM, the only $D$-odd field in the model is $\phi_{D}$, while all other fields are $D$-even:

[TABLE]

The constrained version of the model, called cIDMS, is based on the following potential:

[TABLE]

with all parameters real. The first part of the potential corresponds to the doublet interactions from Eq. (3). New parameters include the mass and interaction terms for the singlet, as well as the portal interaction with the SM-like doublet $\phi_{S}$ through $\Lambda_{1}$.

In this model a $D$-odd scalar doublet provides a good DM candidate (the lightest particle among the $D$-odd $H,A,H^{\pm}$ – as in the IDM we chose $H$ to be the lightest), while a complex singlet with a non-zero complex VEV, $\langle\chi\rangle=we^{i\xi}$, can introduce additional sources of CP violation. The physical Higgs spectrum consists of three scalar particles, $h_{1},h_{2},h_{3}$, and one of them (typically the lightest one, labelled $h_{1}$) can play the role of the SM-like Higgs particle. In that sense the cIDMS can be treated as an extension of the IDM, with many features repeated from the IDM. However, additional Higgs particles can influence Higgs and DM phenomenology.

There are two phenomenolgically interesting cases: (i) only one Higgs particle, playing a role of the SM-like Higgs, is light, while the remaining two are significantly heavier, (ii) where at least one of additional Higgs particles has a mass of the order of $2\,M_{H}$.

3.1 The one and two light Higgs particles scenarios

The first scenario, with two additional Higgs particles heavier than the SM-like Higgs and DM particles, resembles the IDM. The low DM mass region, defined as $M_{H}<M_{h_{1}}/2$, reproduces the known behaviour of Higgs-portal DM models, like the IDM. For $M_{H}\lesssim 53$ GeV it is impossible to fulfil LHC constraints for the Higgs invisible decay branching ratio and relic density measurements at the same time. For $53\,{\rm GeV}\lesssim M_{H}\lesssim 63\,{\rm GeV}$ we are in the resonance region of enhanced annihilation where a very small value of the coupling $\lambda_{345}$ reproduces the proper relic density. This region is partially in agreement with DM direct detection constraints, however both indirect detection and the LHC results constrain the parameter space, as in the IDM. For $M_{H}>M_{h_{1}}/2$ DM annihilation into gauge boson final states becomes important, and the Higgs-DM couplings are generally larger, leading to strong constraints from direct detection experiments. However, as in the IDM, it is still possible to find solutions that are in agreement with all the data.

The most striking change with respect to the IDM arises in the relic density analysis with the possibility of having an additional resonance region if the mass of one of additional Higgs particles is smaller than $2\,M_{W}$. In this case the coupling of SM-like Higgs to DM candidate is very small, therefore it will escape direct detection limits.

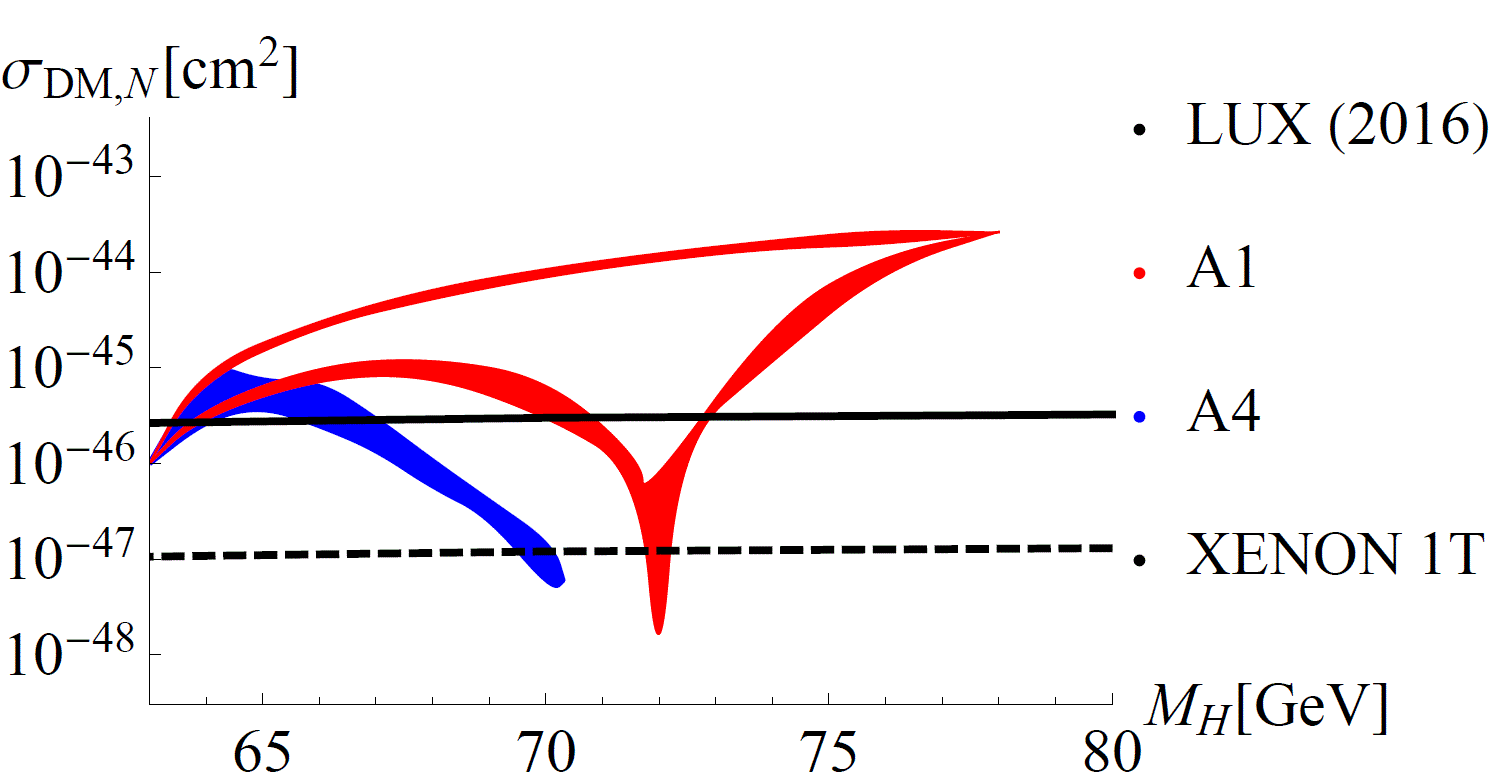

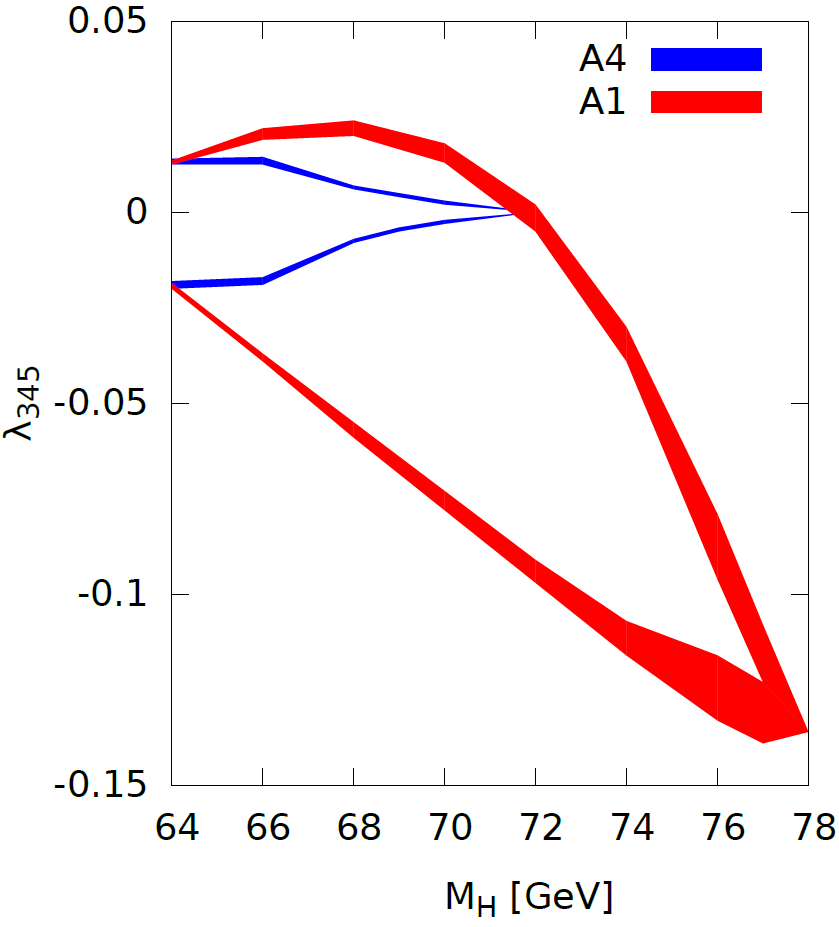

Below (Figs. 6 and 7) we compare these two scenarios for the corresponding two benchmarks denoted $A1$ and $A4$.

• •

A1:  $M_{h_{1}}=124.83\,{\rm GeV},\;M_{h_{2}}=194.46\,{\rm GeV},\;M_{h_{3}}=239.99\,{\rm GeV},$

• •

A4:   $M_{h_{1}}=125.36\,{\rm GeV},\;M_{h_{2}}=149.89\,{\rm GeV},\;M_{h_{3}}=473.95\,{\rm GeV}$.

3.2 LHC constraints

It is important to stress that in a large part of the parameter space it is the LHC that provides the strongest constraints for the model. If the Higgs-DM coupling is small, we generally escape the direct or indirect detection limits. Therefore, from the point of view of dedicated DM experiments, the small Higgs-DM coupling in the resonance region(s) is favoured. However, even in this region we can expect significant modifications which influence LHC measurements in the Higgs sector.

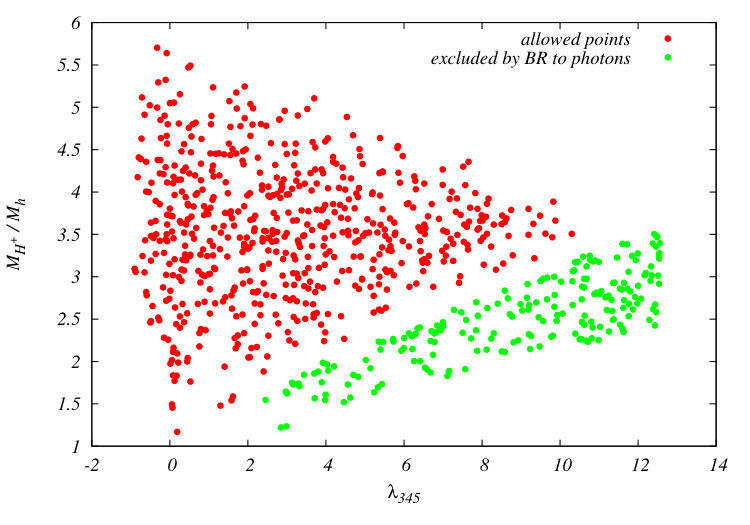

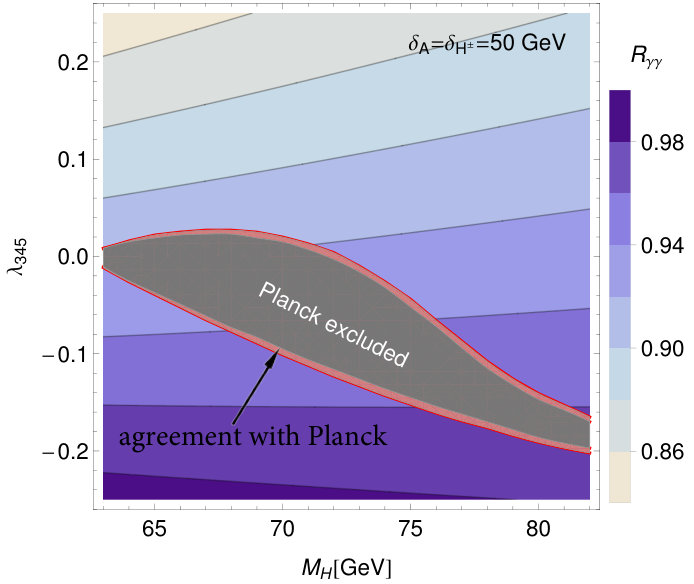

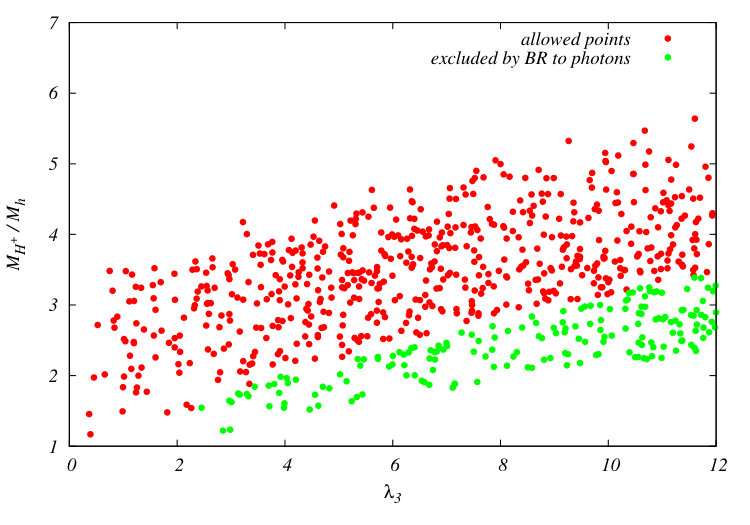

Strong constraints for the model come particularly from measurements of the 125 GeV Higgs decay to $\gamma\gamma$. In general, in the cIDMS this value is reduced with respect to the SM prediction $\mu^{\text{SM}}_{h\,\rightarrow\,\gamma\gamma}$. In the IDM-like case the preferred values for $h_{1}$ are $0.95\,\,{\times}\,\mu^{\text{SM}}_{h\,\rightarrow\,\gamma\gamma}$. In cases where there are two relatively light Higgs particles we obtain much smaller values of $h_{1}\to\gamma\gamma$ and $h_{1}\to Z\gamma$ signal strengths. These can differ up to 20 % from the SM value, and – while not being yet excluded by the experiments within current experimental errors, they are not favoured. Noting the fact that the very small Higgs-DM coupling leads to a scattering cross-section that will not be seen at the DM direct detection experiments, it will be the LHC that will provide us with the strongest exclusion limits for this scenario.

3.3 Strong 1st order phase transition, CP violation and bariogenesis

A significant difference between the cIDMS and the IDM is a mixing between the SM-like doublet and a singlet, resulting in three Higgs states $h_{1}$, $h_{2}$ and $h_{3}$. Note, however, that all three Higgs particles couple to vector boson pairs (e.g. $h_{i}ZZ$, $h_{i}W^{+}W^{-}$) in a similar manner, with a reduced strenght compared to the SM- Higgs particles. LHC constraints for the 125 GeV Higgs boson coupling to gauge bosons being close to the SM value (e.g. for ZZ the 1-$\sigma$ interval is 0.92-1.00) [32]), if applied to the $h_{1}ZZ$ within the cIDMS, leads to small corresponding couplings of $h_{2}$ and $h_{3}$, as they fulfill corresponding sum rules [42].

In principle the vacuum state with a non-zero phase for a singlet can induce CP violation. CP violating vacuum and possible CP-violation in the scalar sector are due to the singlet cubic terms in the potential, which are proportional to parameters $\kappa_{2}$ or $\kappa_{3}$, as shown in [43]. These terms are also crucial to obtain strong enough first order phase transition already in the high temperature approximation. Note, that for IDM these conditions were obtained using the one-loop effective potential approach [19, 20, 21]. It suggests that the cIDMS can lead to an even stronger first order phase transition, as it contains two sources for it.

For parameter regions providing a sufficiently strong first-order phase transition, the next step is to check whether the correct baryon asymmetry in the Universe can be generated in the model. It is known that a Standard Model with a complex singlet can provide a strong enough first-order phase transition [44] and enough CP violation if an iso-doublet vector quark is added to the model, since in this case the Yukawa Lagrangian acquires additional terms, which depend on the CP-violating phases. More studies are needed to establish whenever it is also possible to have a stable DM particle at the same time, in agreement with all experimental constraints. If it is indeed the case, the cIDMS would be a model that could address these important problems, while being testable at the LHC.

4 Conclusions and Outlook

In this note, several extensions of the SM scalar sector were discussed. These extensions are based on the Inert Doublet Model, a two-Higgs doublet model with a discrete $Z_{2}$ symmetry rendering a dark matter candidate. First, we presented an update of previous work [26], where we thoroughly investigated the parameter space of the Inert Doublet Model. Here, we include more recent constraints on signal strength for 125 GeV  Higgs from a combined ATLAS and CMS analysis [32], as well as updates on direct detection for dark matter candidates from the LUX experiment [33]. We show how these modify our previous work, and lead to relatively large restrictions in the models parameter space, partially decreasing the available production cross sections by at least one order of magnitude.

We also discuss an extension of the IDM, denoted the cIDMS, where a complex scalar field with a complex VEV is added to the model. It shares a lot of features of the IDM, but the presence of additional Higgs particles can change DM annihilation scenarios, opening new parameter regions. By introducing an additional source of CP violation we make a step towards explaining the origin of baryon asymmetry of the Universe – a feature that is missing from the IDM.
