Thermodynamically-consistent semi-classical $\ell$-changing rates

TL;DR

This paper compares semi-classical and quantum-mechanical methods for calculating angular-momentum changing rates in Rydberg atom collisions, finding good agreement and implications for early universe recombination modeling.

Contribution

It introduces a revised semi-classical formalism that aligns well with quantum results, addressing divergence issues in impact parameter integration.

Findings

Revised semi-classical formalism agrees with quantum results.

Quantum rates are suitable for modeling recombination in the early universe.

Identifies the cause of divergence in impact parameter integration as finite collision time.

Abstract

We compare the results of the semi-classical (SC) and quantum-mechanical (QM) formalisms for angular-momentum changing transitions in Rydberg atom collisions given by Vrinceanu & Flannery, J. Phys. B 34, L1 (2001), and Vrinceanu, Onofrio & Sadeghpour, ApJ 747, 56 (2012), with those of the SC formalism using a modified Monte Carlo realization. We find that this revised SC formalism agrees well with the QM results. This provides further evidence that the rates derived from the QM treatment are appropriate to be used when modelling recombination through Rydberg cascades, an important process in understanding the state of material in the early universe. The rates for $\Delta\ell=\pm1$ derived from the QM formalism diverge when integrated to sufficiently large impact parameter, $b$. Further to the empirical limits to the $b$ integration suggested by Pengelly & Seaton, MNRAS 127, 165 (1964), we suggest that the fundamental issue causing this divergence in the theory is that it does not fully cater for the finite time taken for such distant collisions to complete.

Figures

Equations

$$⟨L^2⟩=\left[\ell (\ell +1)+\frac{1}{2}\right]{\hslash }^2,$$

$$\begin{array}{rl}& {⟨P^{\mathrm{SC}}⟩}_{n\ell {\ell }^{\prime }}=\\ & {\int }_{\ell /n}^{(\ell +1)/n}\mathrm{d}\lambda {\int }_{{\ell }^{\prime }/n}^{({\ell }^{\prime }+1)/n}\mathrm{d}{\lambda }^{\prime }{P}^{\mathrm{SC}}(\lambda ,{\lambda }^{\prime },\chi )g(\lambda )g({\lambda }^{\prime })\\ & /{\int }_{\ell /n}^{(\ell +1)/n}\mathrm{d}\lambda g(\lambda ),\end{array}$$

$$\displaystyle\begin{split}P^{\rm SC}(\lambda,\lambda^{\prime},\chi)&=\\ &{2\lambda^{\prime}/n\over\pi\hbar\sin\chi}\left\{\begin{array}[]{ll}0,&|\sin\chi|<|\sin(\eta_{1}-\eta_{2})|\\ {K(B/A)\over\sqrt{A}}&|\sin\chi|>|\sin(\eta_{1}+\eta_{2})|\\ {K(A/B)\over\sqrt{B}}&\mbox{otherwise},\\ \end{array}\right.\end{split}$$

$$A$$

$$B$$

$$\cos {\eta }_1$$

$$\cos {\eta }_2$$

$$\cos \chi$$

$$\alpha$$

$$\sum _{l^{\prime }}{P}_{n\ell {\ell }^{\prime }}=1,$$

$$(2\ell +1)P_{n\ell {\ell }^{\prime }}=(2{\ell }^{\prime }+1)P_{n{\ell }^{\prime }\ell },$$

$$2\lambda P^{\mathrm{SC}}(n,\lambda ,{\lambda }^{\prime })=2{\lambda }^{\prime }{P}^{\mathrm{SC}}(n,{\lambda }^{\prime },\lambda ),$$

$$(2\ell +1){⟨P^{\mathrm{SC}}⟩}_{n\ell {\ell }^{\prime }}=(2{\ell }^{\prime }+1){⟨P^{\mathrm{SC}}⟩}_{n{\ell }^{\prime }\ell }.$$

$${⟨P⟩}_{n\ell {\ell }^{\prime }}\simeq \frac{2{\ell }^{\prime }+1}{n^2},$$

Full text

††: J. Phys. B: At. Mol. Opt. Phys.

1 Introduction

There has been significant recent interest in the rates for $\ell$-changing collisions in Rydberg atoms. While this may seem a somewhat obscure corner of atomic physics, the time to pass through the ladder of high-angular momentum levels in highly excited atoms proves to be a bottleneck in the process of atomic (re-)combination in the early universe. The details of the $\ell$-changing rates therefore have a major impact on our understanding of this important stage in cosmic development [1].

The atomic physics of these rates can be calculated by a variety of approximations, as described in detail by [2] and [3] (hereafter VF01 and VOS12, respectively). In this paper, we will concentrate on the differences between the most detailed of these formulations, those based on quantum-mechanical perturbation theory (QM) and semi-classical trajectory theory (SC). As discussed elsewhere ([4, 5], and references therein), these theories result in predictions for integrated rates which differ by up to an order of magnitude, sufficient to have a major impact on the interpretation of observations. This difference is primarily the result of the different range in impact parameter over which $|\Delta\ell|=1$ transitions are active in the different theories: the QM theory has a logarithmic divergence in transition rate, which requires a limit to be placed on the largest impact parameter for which collisions are active in causing transitions, while in the VF01/VOS12 SC approach, this limit arises as a result of the finite domain in impact parameter over which a single collision can cause a complete $|\Delta\ell|=1$ transition.

In this paper, we will present the results of calculations using the semi-classical theory of VF01, but using an alternative Monte Carlo formalism. We find that with this alternative approach, the classical results agree well with those of the quantum theory. The differences which there are, are of the kind that would usually be expected when relating a quantum theory to its classical approximation, and are consistent with the correspondence principle. When integrated over impact parameter, $b$, and a thermal spectrum of colliders, it is clear that the differences in rates computed using this modified SC approach and the original QM formalism will be minimal.

In Section 2 we compare the quantum mechanical transition probabilities with semi-classical probabilities as calculated by VF01 and VOS12, and with our revised approach. In Section 3, we briefly discuss how the discretely-sampled VF01 SC approach can be made somewhat more accurate, and consistent with the discrete detailed balance relations. Finally, in Section 4, we summarize our results, and discuss the processes which prevent the overall dipole transition rate from diverging in a plasma of finite density.

2 Calculations

VF01 and VOS12 provide detailed formulae for the rates of transitions $\ell\to\ell^{\prime}$ for precise values of $\ell$, $\ell^{\prime}$. They derive their semi-classical formulae using approximations which correspond to the continuum limit $n,\ell,\ell^{\prime}\to\infty$, with $\ell/n$ and $\ell^{\prime}/n$ finite, and then apply them in the case of finite quantum numbers. They apply what they term as a microcanonical ensemble, sampling the fundamentally continuous classical-limit expressions at discrete values of incoming and outgoing angular momentum appropriate for the angular momentum quantum number. Using this procedure provides values for the overall collision rate which are finite for all $\Delta\ell$, as noted above.

The process of returning from the continuum to the discrete limit is not, however, unique. In the present paper, we use a method similar to that discussed by [6]. To ensure thermodynamic consistency for the derived total rates, it is better to follow a finite-volume formalism (see, e.g., [7]), where each of the discrete quantum numbers is taken to correspond to a finite range of continuum values. The simplest assumption which will ensure results are consistent with the thermodynamical equilibrium is to assume that the probability density of states in the continuum band corresponding to each of the aggregate states is internally in thermodynamic equilibrium. As there is no energy difference between states in the case considered by Vrinceanu et al., this corresponds to assuming a uniform population. This procedure provides results consistent with the thermodynamic requirements of unitarity and detailed balance and with the quantum and classical limits, as well as with usual practice in Monte Carlo simulation of off-lattice systems [8]. However, it leaves us looking to statistical physics, rather than numerical convention, to resolve the divergence in dipole transition rates.

For the standard quantum mechanical association of the radial quantum number $n$, the total angular momentum quantum number $\ell$ satisfies $0\leq\ell\leq n-1$. If we assume that each value of $\ell$ maps to a shell with total angular momentum between $\ell\hbar$ and $(\ell+1)\hbar$, with a classical density of states $\propto\ell$ (which may be visualized as a two-dimensional polar coordinate system), then the area of this shell is $\propto 2\ell+1$. This is consistent with the number of $z$-angular momentum eigenstates $|m|\leq\ell$ corresponding to each total angular momentum eigenstate. It results in a mean-squared angular momentum in the shell of

[TABLE]

which is a constant $\hbar^{2}/2$ greater than the value which enters in quantum mechanical calculations, $\left\langle L^{2}\right\rangle=\ell(\ell+1)\hbar^{2}$. For comparison, assuming that the total angular momentum corresponding to a quantum number $\ell$ is exactly $\ell\hbar$ underestimates $\left\langle L^{2}\right\rangle$ by $\ell\hbar^{2}$, which is a significantly larger error for large $\ell$. [Taking the angular momentum for the discrete state to be $\left(\ell+{1\over 2}\right)\hbar$ is more accurate, with the classical and quantum density of states being equivalent, and the mean-square angular momentum $\left\langle L^{2}\right\rangle$ over-estimated by $\hbar^{2}/4$.]

Transition probabilities in the finite volume regime can be derived from the semi-classical results of VF01/VOS12 by interpreting them as probability density functions in the continuum limit, so the transition probability from the state $(n,\ell)$ to $(n,\ell^{\prime})$ becomes

[TABLE]

where $g(\lambda)=2\lambda$ is the classical density of states, normalized so that $\int_{0}^{1}g(\lambda){\rm d}\lambda=1$, and

[TABLE]

is the SC transition probability given by VOS12. In this expression, $K$ is the complete elliptic integral,

[TABLE]

and $\chi$ is given in terms of $n$ and other implicit parameters of the collision by

[TABLE]

where the swept angle $\Delta\Phi$ is assumed to be $\pi$.

This procedure replaces the closed-form expressions of VF01 and VOS12 with a double integral, so is not as suitable for numerical work. However, it seems worthwhile to compare the results with those of the discrete interpretation in order to inform possible modifications to the VF01/VOS12 formalism which might be made to ensure compatibility with the limit of thermodynamic equilibrium.

There are a number of desirable properties for any set of approximate transition probabilities. These include unitarity, i.e. that the system must reside in one of the angular momentum states at the end of the transition

[TABLE]

and detailed balance, i.e.

[TABLE]

for the quantum level degeneracy $g(\ell)=2\ell+1$. Note that the sum for the unitarity requirement includes the probability that the scattering leads to no transition, $P_{n\ell\ell^{\prime}}$ with $\ell^{\prime}=\ell$. It is possible to determine this rate using the same analytic forms as for the $\ell$-changing interactions, and this rate is included in the plots shown below.

The symmetry of the expressions for $A$ and $B$ in $\lambda$ and $\lambda^{\prime}$, together with the overall factor of $\lambda^{\prime}$ in equation (3), means that equation (3) satisfies the detailed balance relations in the continuum limit,

[TABLE]

given the classical density of states $g(\lambda)=2\lambda$. As a result of this, it is simple to verify that the phase-space average, equation (2), satisfies the discrete detailed balance relation

[TABLE]

Beyond these absolute requirements, we also suggest that the rates should be subject to another statistical requirement for collisions at small impact parameter. For these scatterings, the output state of the interaction is dependent on complex interference phenomena, sensitive to many details of the atomic physics. However, the net effect of this complexity, when averaged over some small range of incoming particle properties, would be expected to be asymptotically close to the output states being in statistical equilibrium (cf., for the classical case, [9]). We therefore suggest that, in the limit of close scatterings $b\to 0$, the rates should be subject to an ergodicity property

[TABLE]

i.e. when the collider passes close enough to the core of the target atom, the effect of the collision is to randomize the output state, when the input state is coarse-grained over a suitable domain. Of course, in reality scatterings will cease to be purely $\ell$-changing in this limit. Even so, it is to be expected that the output state angular momentum will become statistically independent within the shell. This requirement seems to be the best physical interpretation which can be put on the statement in [10], hereafter PS64, that in the core the scattering probability becomes a rapidly-oscillating function with mean value $1\over 2$. This is what would result from the core ergodicity principle in the case of a two-level system, so the core ergodicity principle seems like a reasonable generalization, agreeing with the work of PS64 at least in spirit. As we will see, it is also a reasonable description of what in fact happens when the quantum and shell-averaged classical transition probabilities are calculated in detail.

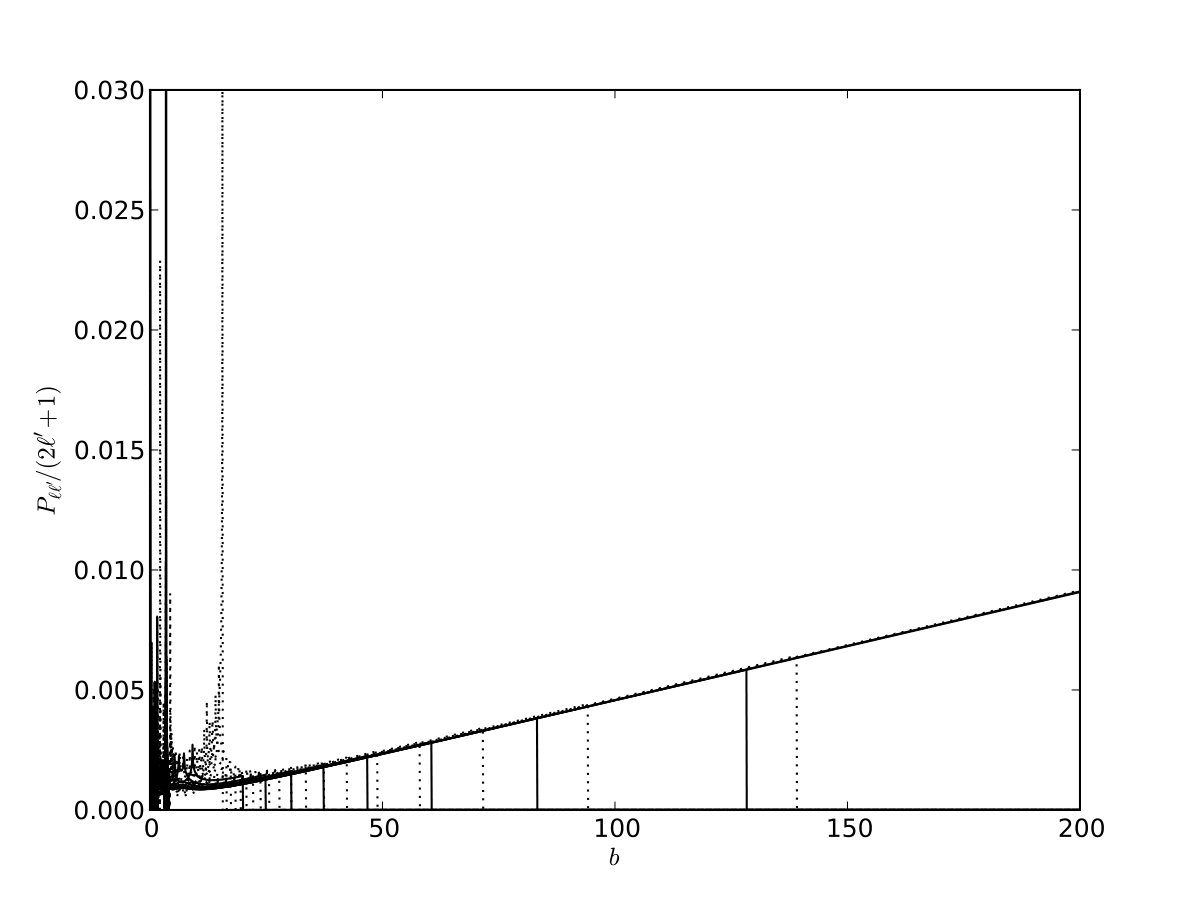

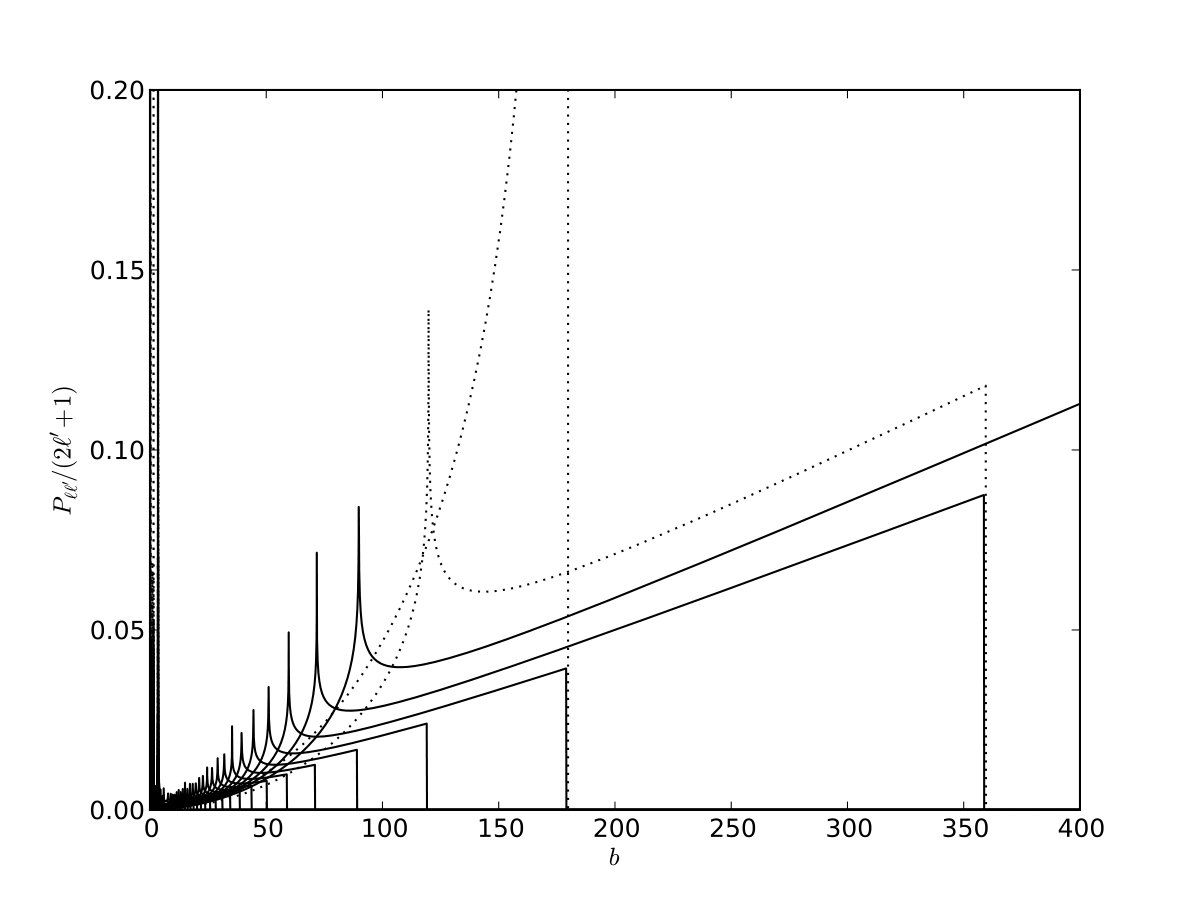

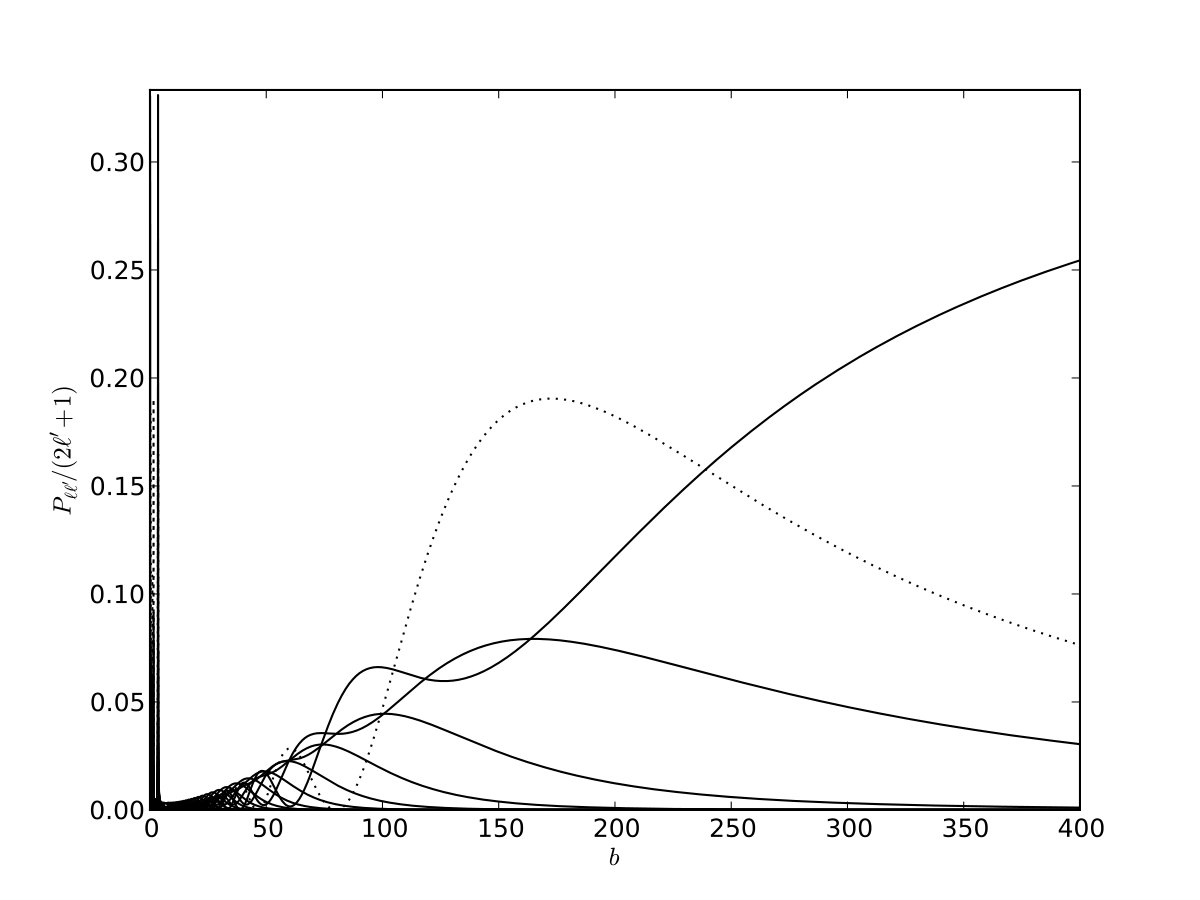

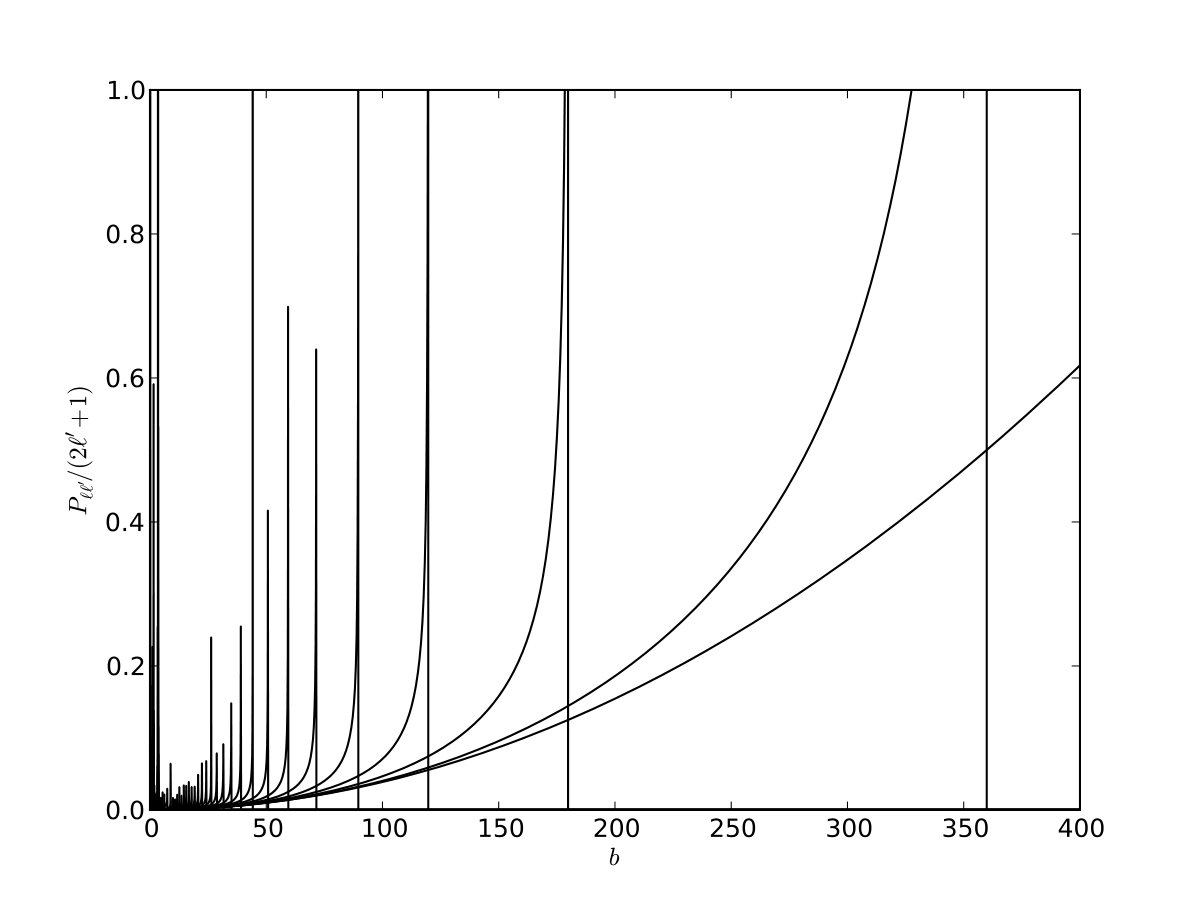

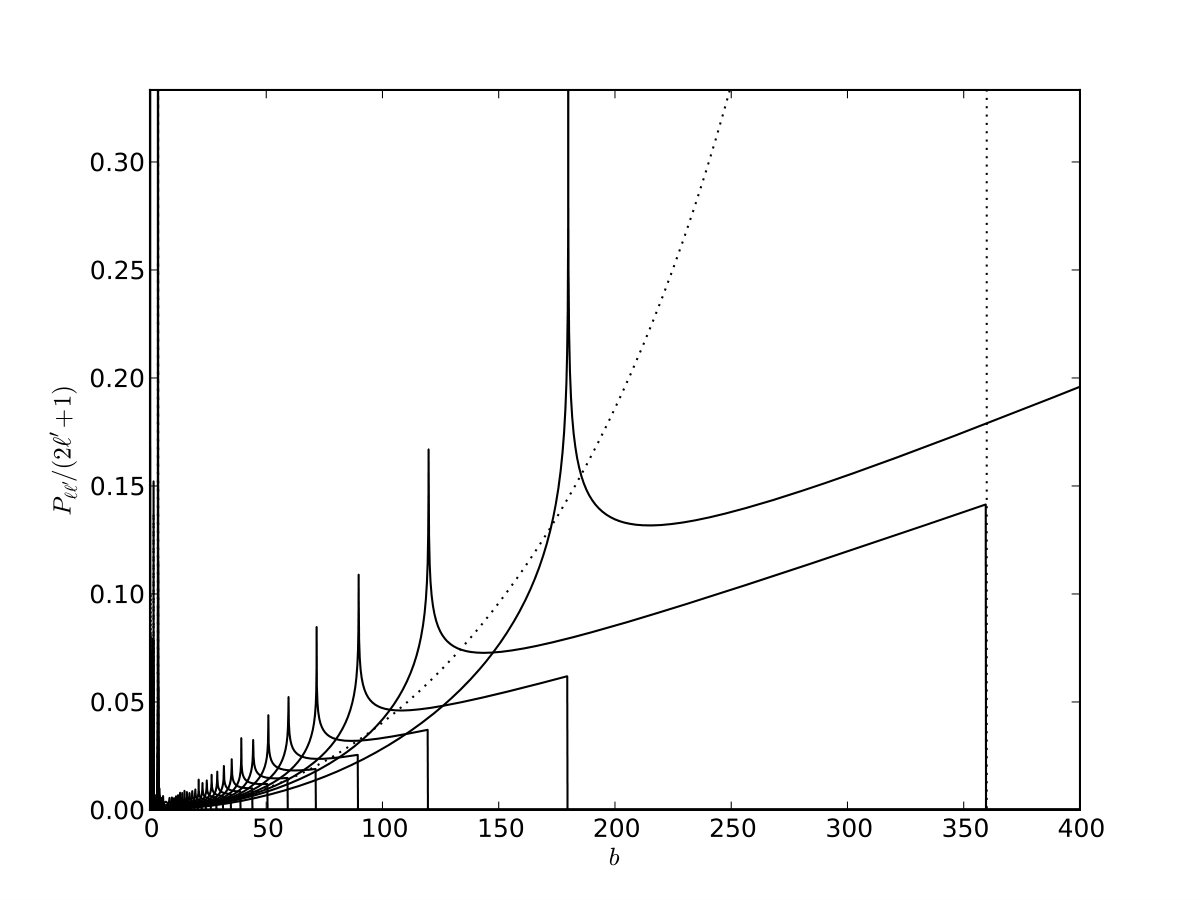

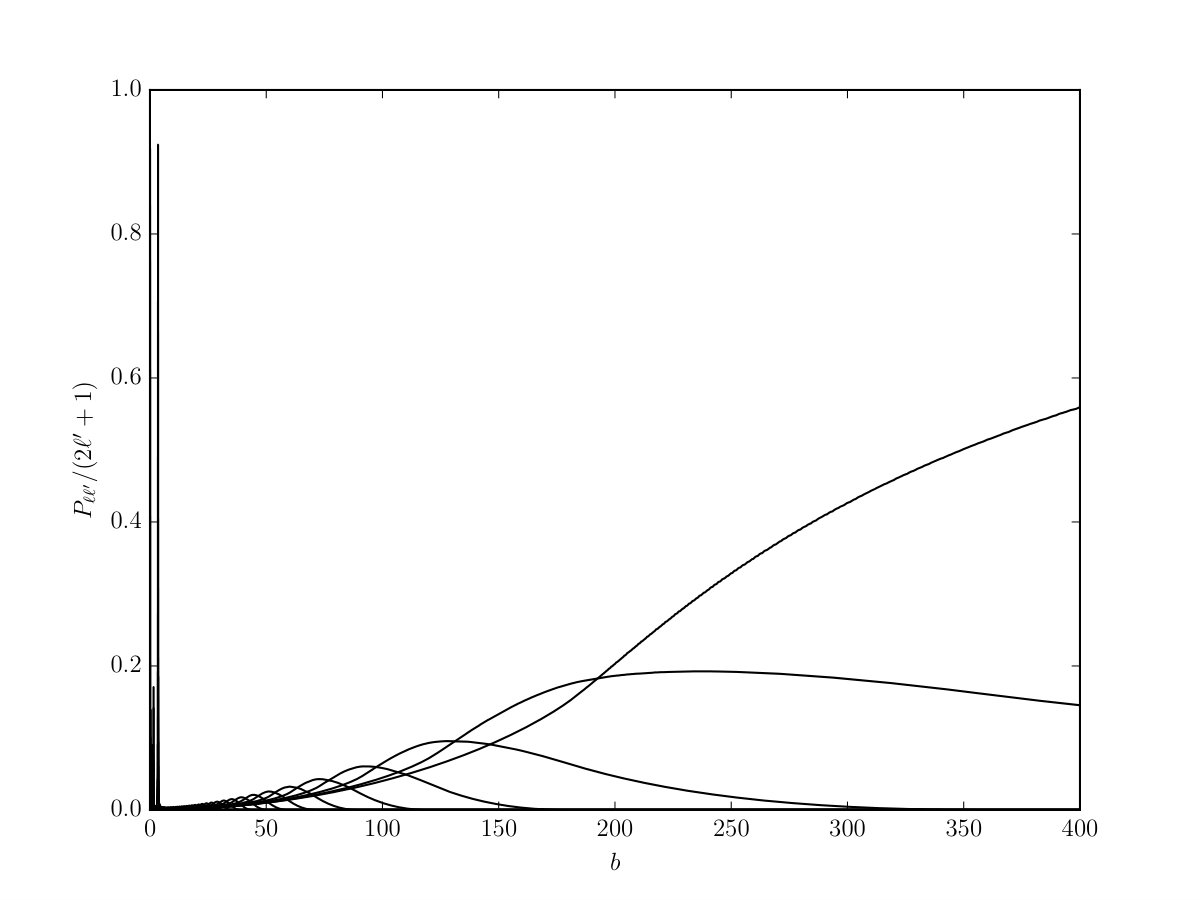

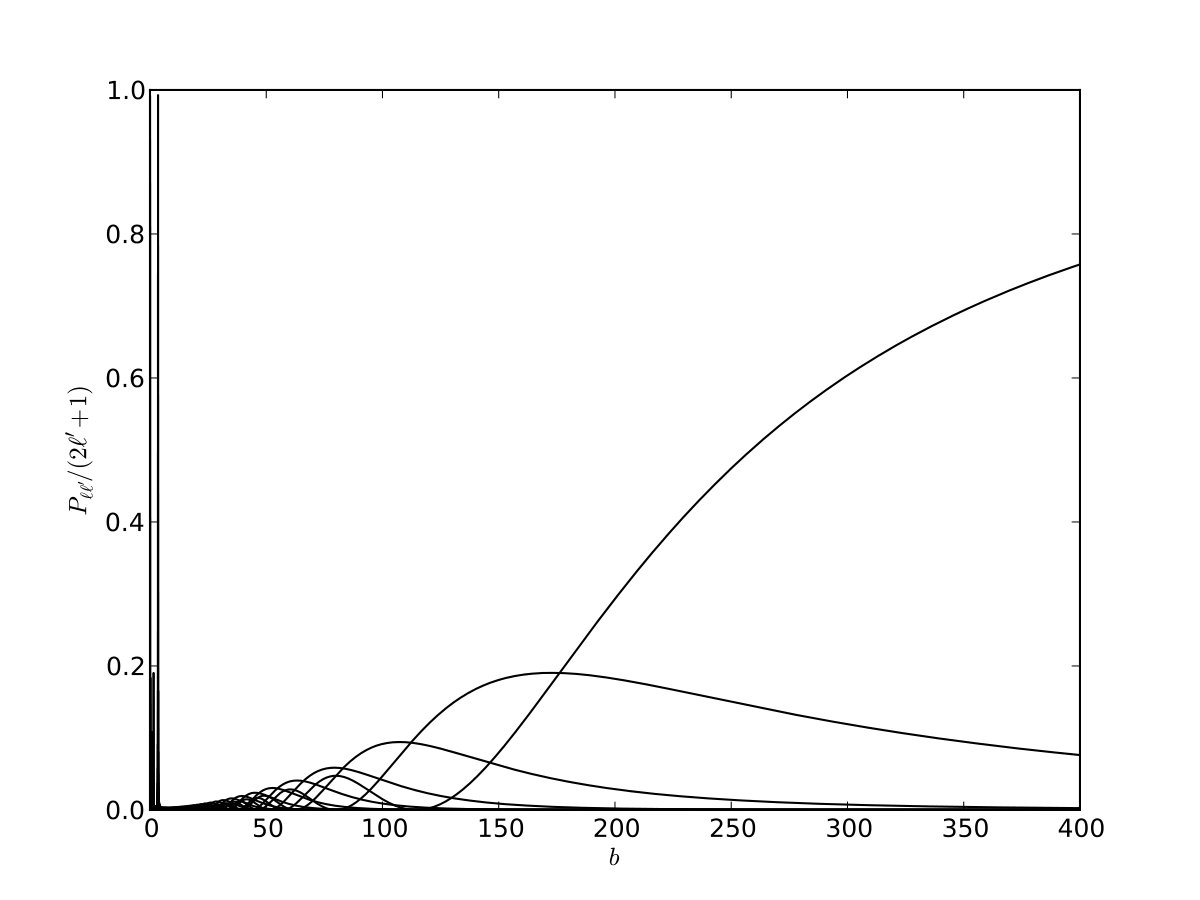

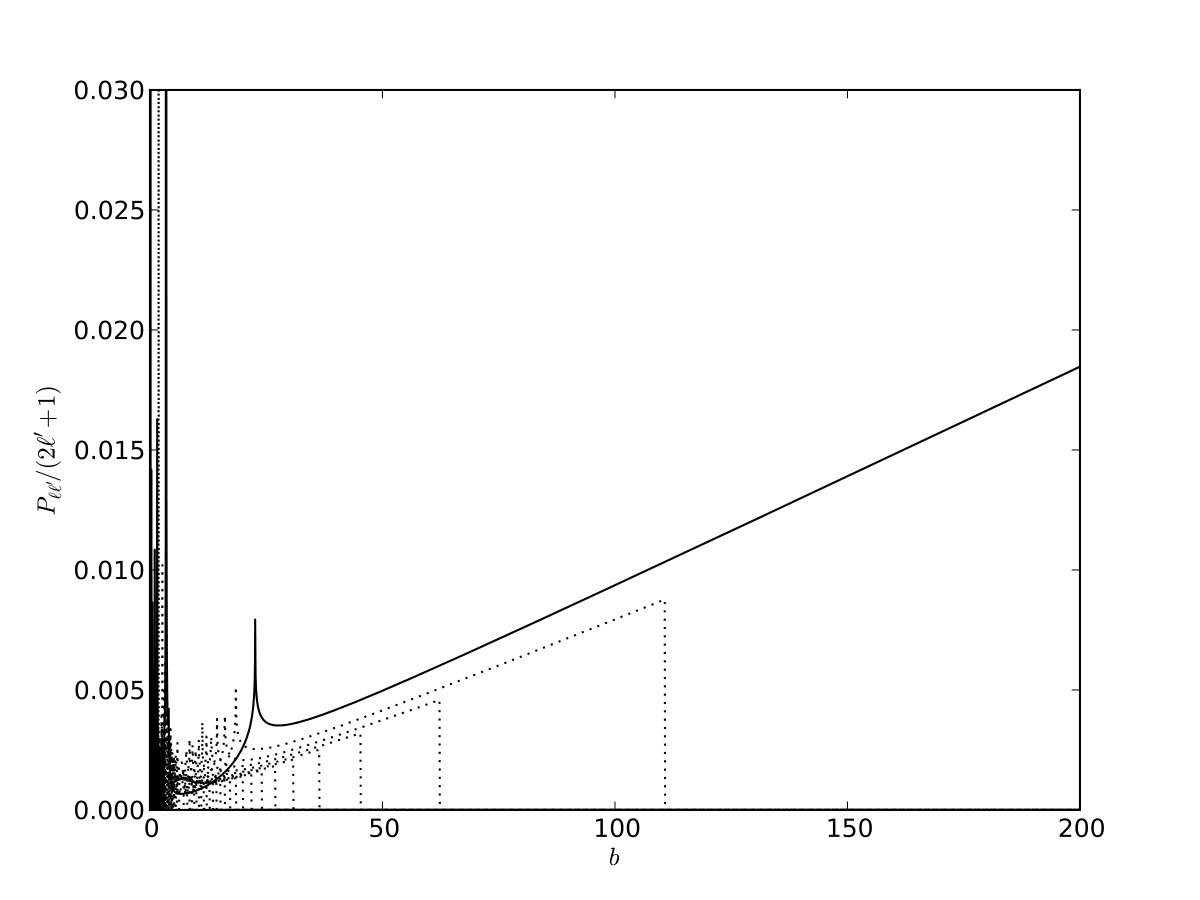

In Figures 1 and 2, we compare the quantum mechanical probability distributions with the classical transition probabilities sampled at specific $\ell$, $\ell^{\prime}$. The QM dipole transition rates, $\Delta\ell=\pm 1$ decay slowly as $b$ increases, which is the origin of the divergence of the rate integral for these transitions. The classical transition probabilities show sharp edges where the transitions first become allowed, for all $\Delta\ell$: the transition rates for all $\Delta\ell$ are similar, as there is nothing in the SC formulation which fundamentally distinguished a $|\Delta\ell|=1$ transition from one with a larger change in angular momentum. There are also internal peaks for many cases, corresponding to orbital resonances. These are used by VOS12 to limit the domain over which $|\Delta\ell|=1$ transitions are allowed, avoiding the divergence in the integrated transition rate found for the QM dipole transition rate.

It is clear that the classical transition probabilities cannot satisfy unitarity, as where any transition ceases to be allowed, there is no corresponding increase in the others. Indeed, at sufficiently large radii, the probability of no transition, $P_{n\ell\ell}$, increases above unity, which is inconsistent with usual definition of probability. The quantum transition probabilities do satisfy unitarity (note that the curves as plotted are divided by $2\ell^{\prime}+1$ to make the ergodicity property at small $b$ more obvious, but this means that this summation property for the probabilities is less obvious as shown).

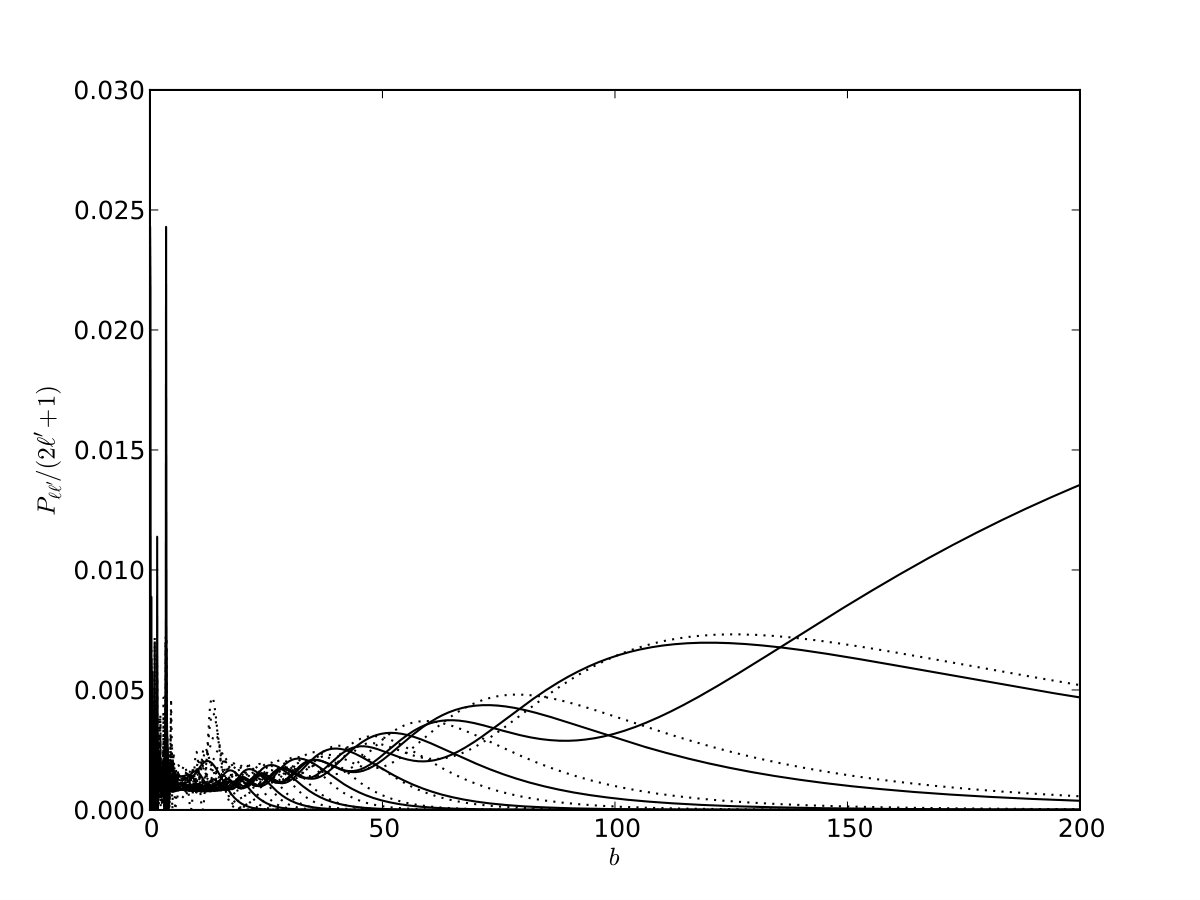

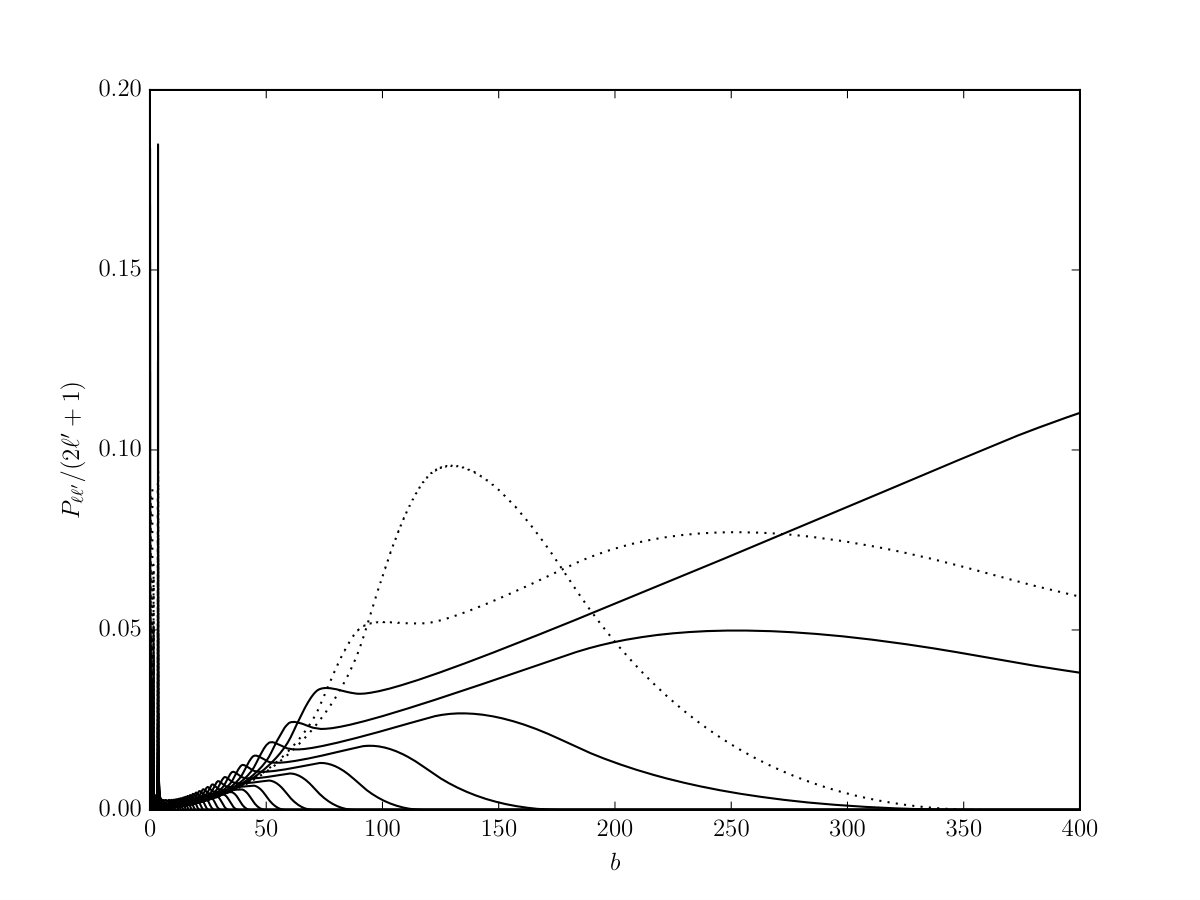

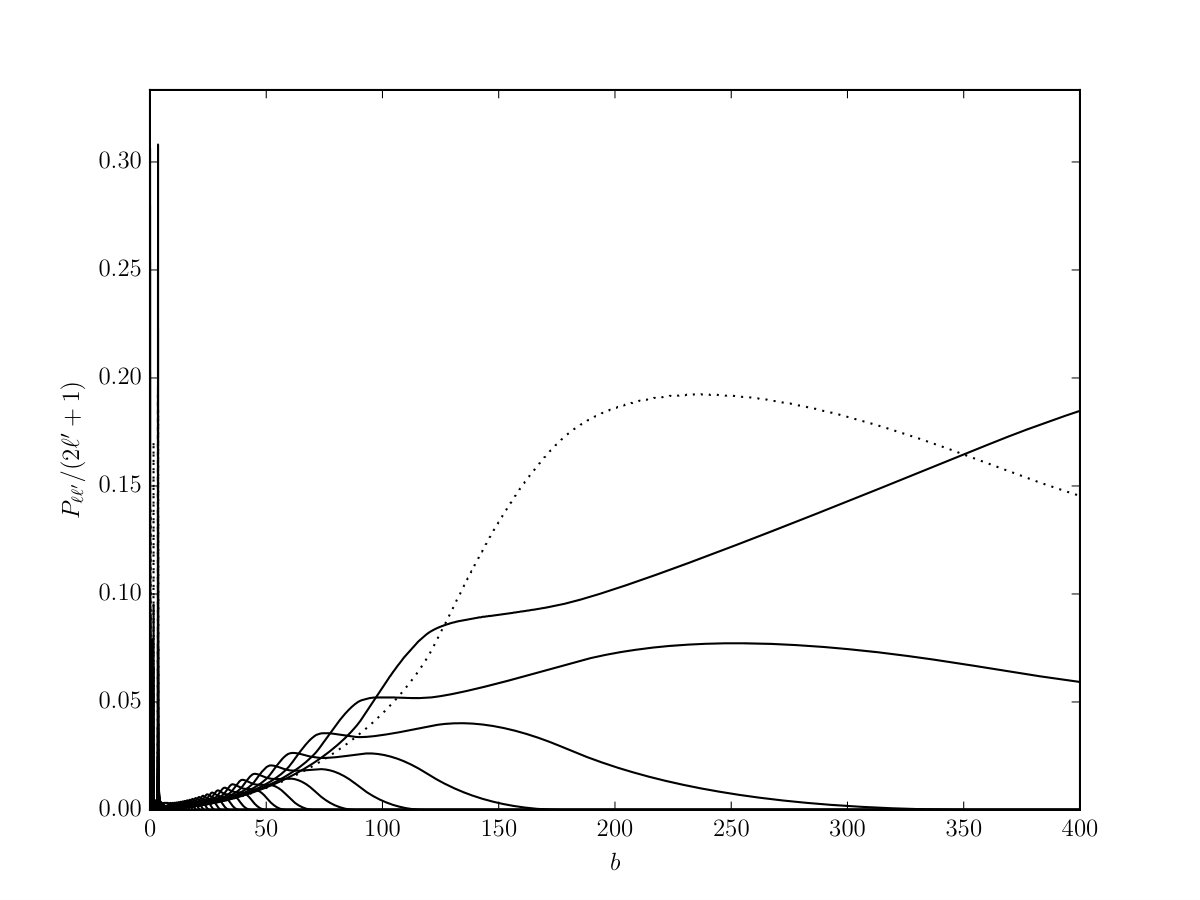

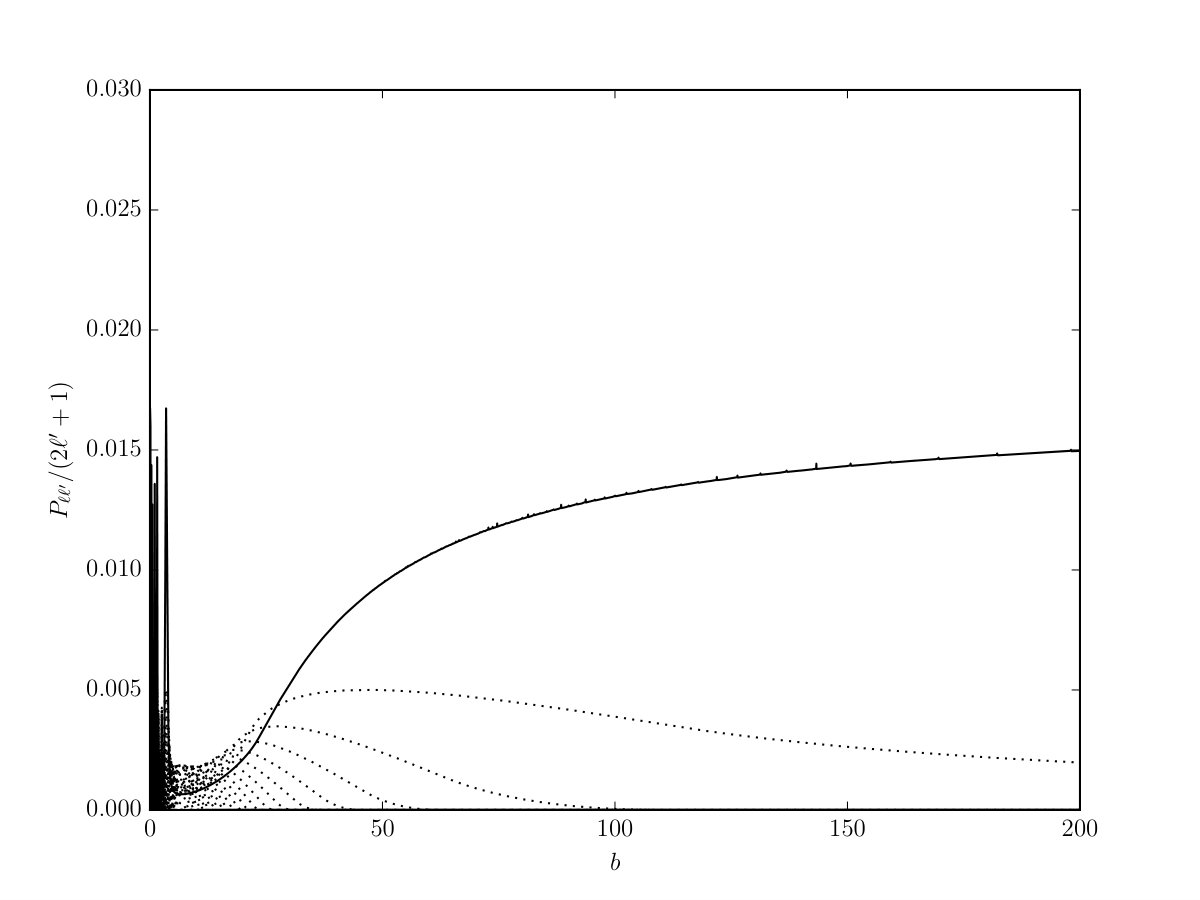

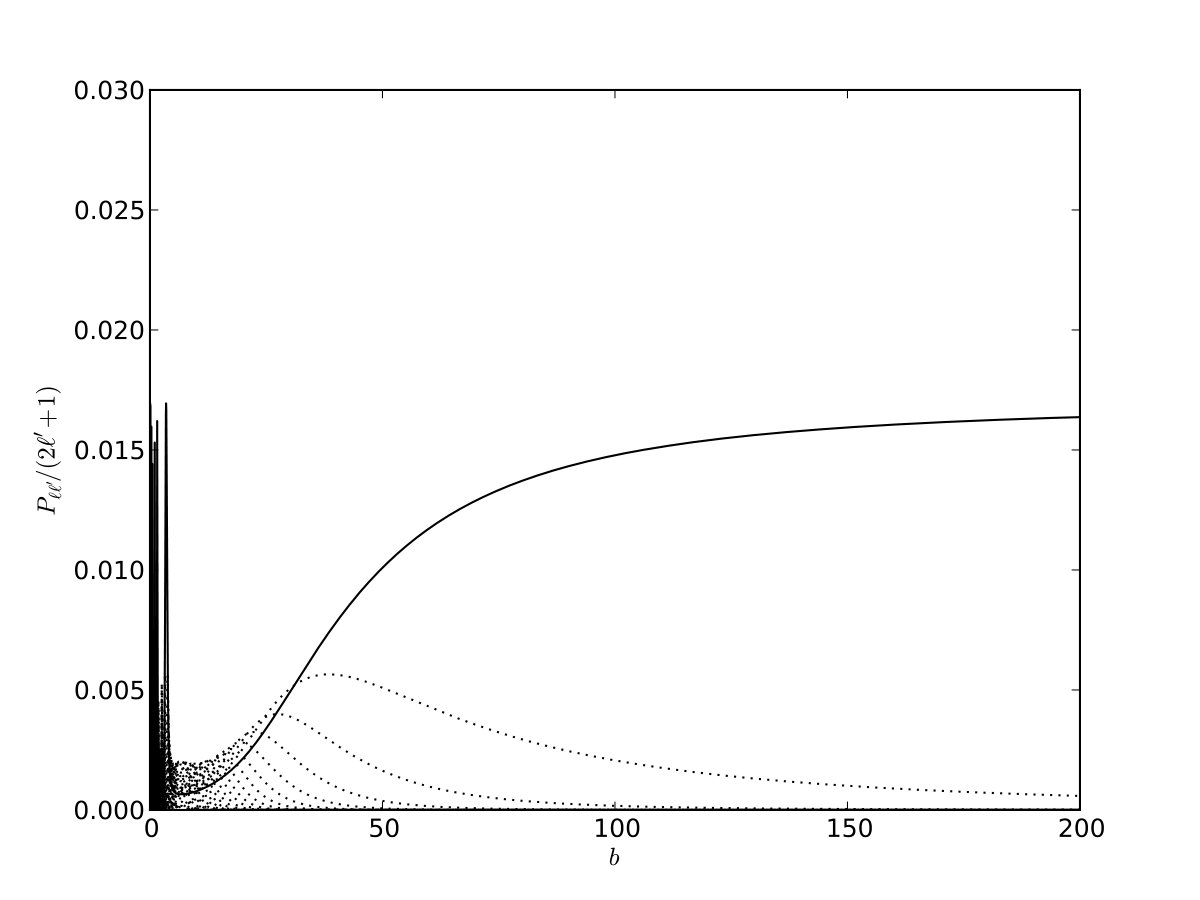

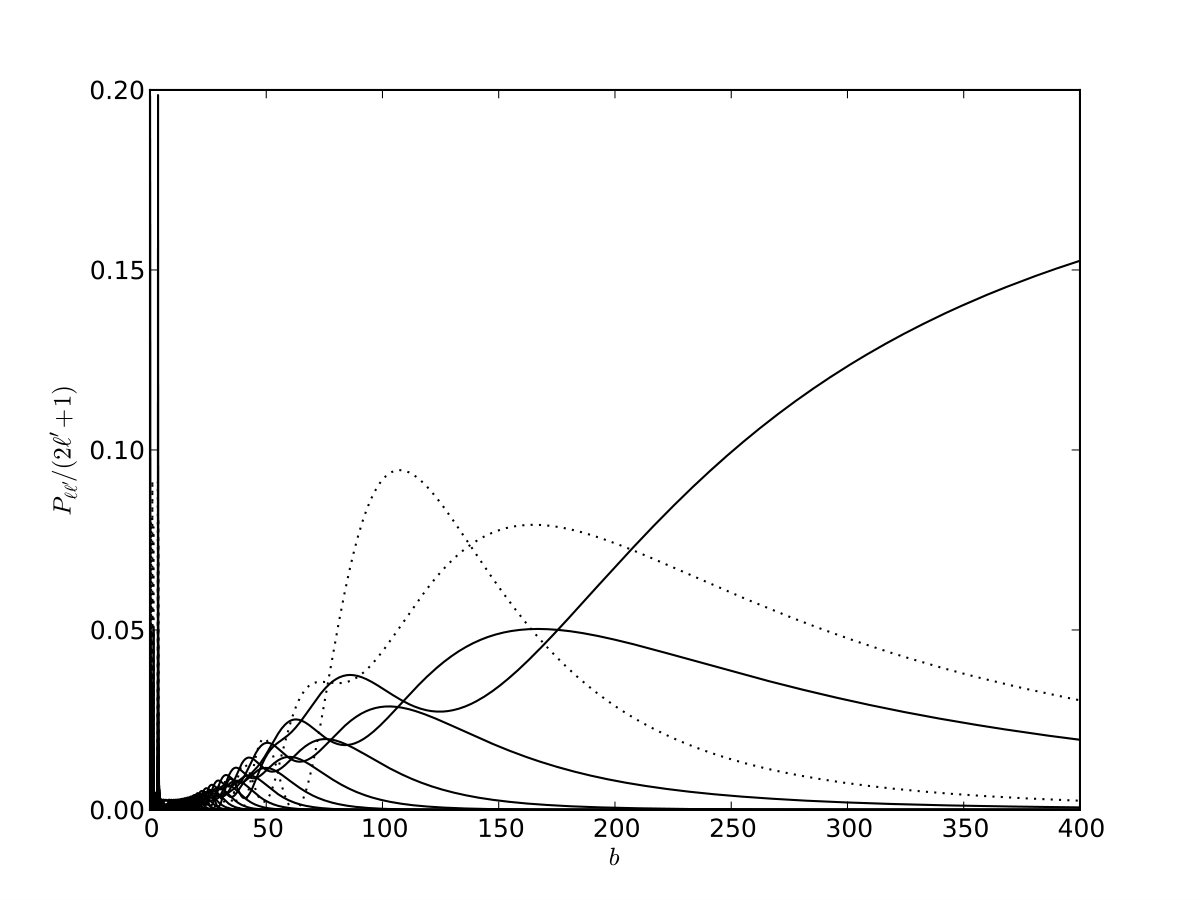

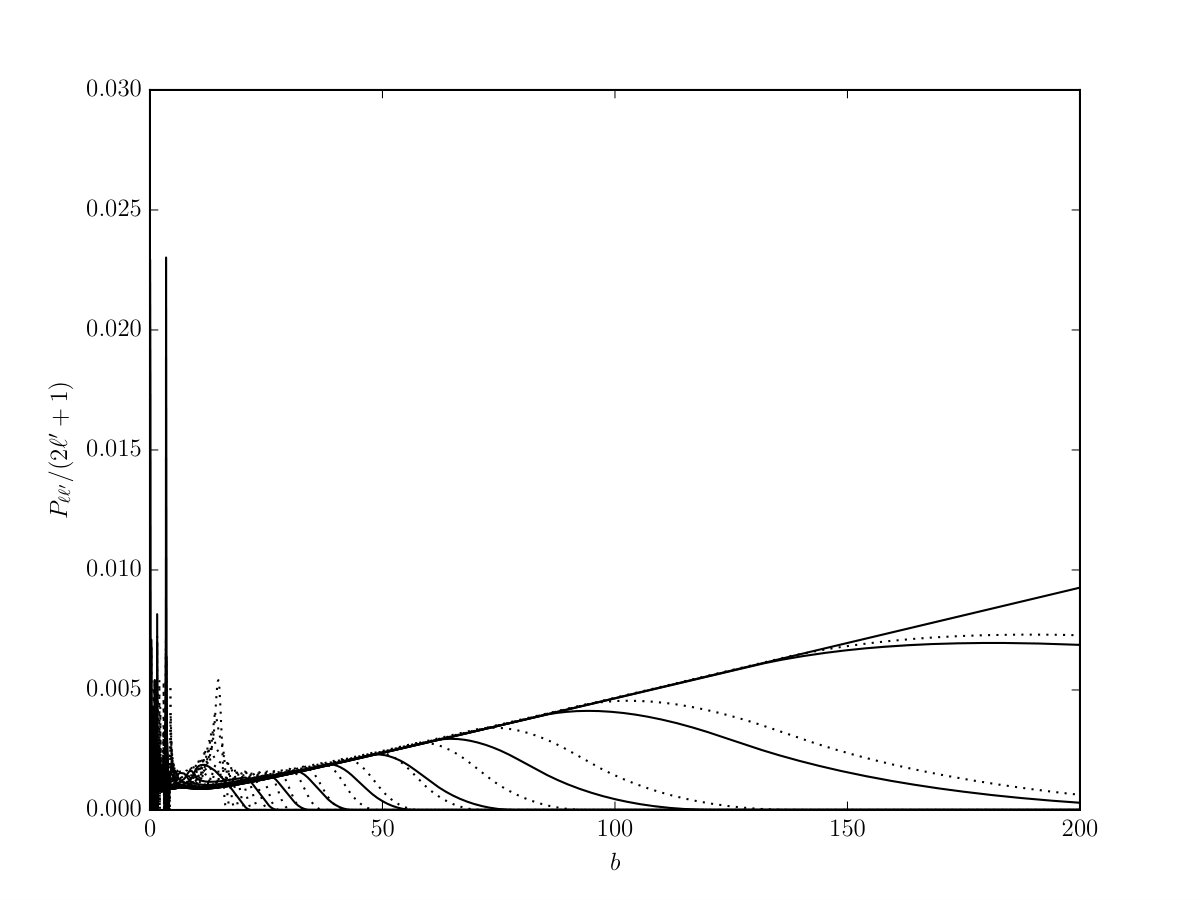

In Figures 3 and 4, we compare the quantum mechanical probability distributions with the classical probability distributions averaged over angular momentum shells. These plots are significantly more alike than those for the comparison between the quantum mechanical probability and the discretely-sampled classical transition probability. While there are no longer any sharp edges in the shell-averaged classical probabilities, for $|\Delta\ell|>1$ they will be non-zero only within some range of $\alpha$ values. (The integration over a quantized shell width means that there is now a genuine distinction in qualitative behaviour between transitions with different $|\Delta\ell|$.) The shell-averaged classical probabilities also satisfy unitarity and the quantum-weighted detailed balance constraint.

Away from the region where the discretely-sampled transition probability is zero, the binning has a relatively minor effect, simply smoothing out the steepest peaks.

The general form of the transition probability distributions shown in these figures is of interest. Working from large $b$ inwards, it is initially most likely that no change in $\ell$ will result. At least in the QM case, all other values of $\Delta\ell$ are possible, with probabilities reducing as $|\Delta\ell|$ increases. As $b$ becomes smaller, the probabilities of the higher $|\Delta\ell|$ transitions increase, following a smooth power law dependency, until the statisical weight of the output state reaches a similar level to that of the $\Delta\ell=0$ transition. Thereafter, the probabilities are subject to significant oscillations, around an average level consistent with statistical balance, apart from a strong spike at the very smallest values of $b$. This suggests that the combination of the asymptotic behaviour at large $b$, the core ergodicity principle, and the fundamental requirements of unitarity and detailed balance, should be sufficient to provide thermodynamically-consistent estimates of the impact-parameter and thermal-averaged rates which would be acceptably accurate for many applications.

3 Use of semi-classical probabilities

The shell-sampled probabilities presented in the previous section are determined using a computationally expensive double integral. It may be possible to perform one or both of these integrals analytically, but numerical results were sufficient for the present analysis.

However, given that the use of a classical transition rate is already a significant approximation, using a point sample of the transition rate rather than an integral is likely to be an acceptable approximation, at least away from the case of $\Delta\ell=\pm 1$, $b\to\infty$. As these rates are being attributed to quantum mechanical rather than classical states, it makes sense to ensure the rates are chosen so as to satisfy quantum mechanical rather than classical statistics. The most consistent identification of quantum mechanical states with a continuum band has $\ell\hbar$ as the angular momentum at the innermost edge of the band. Hence, if a single value based on the classical transition probability is to be used for this quantum number, it will be accurate to a higher order if the angular momentum used in this expression is somewhat higher than $\ell\hbar$. In particular, in order to be consistent with the quantum mechanical detailed balance condition, the value $2\ell^{\prime}+1$ should be used in the numerator of the prefactor of equation (6) of VOS12. This means that the $\ell\to\ell^{\prime}=0$ rates will not be strictly zero, as required by the expressions given by VF01. Given that VF01 provide expressions for the transition rate out of an $\ell=0$ state, a zero inward rate is in clear violation of the detailed balance requirement.

The values used in the elliptic integral terms must be symmetric functions of $\ell,\ell^{\prime}$, as is true for the expressions given. Ideally they should also be chosen to satisfy unitarity, but in reality the correction to the overall transition rates as a result of violating this constraint will be small compared to the other approximations underlying this approach. Using $\cos\eta_{1}=(\ell+{1\over 2})/n$, etc., will be at least somewhat more accurate than without the ${1\over 2}$, and also means that the cases $\ell=0$, $\ell^{\prime}=0$ do not require a special treatment.

4 Conclusions

We have shown that, by using an alternative form for the Monte Carlo realization, the results for the SC and QM formalisms described by VF01 and VOS12 can be brought closely into line. As this is consistent with what is expected as a result of the correspondence principle, it provides further evidence that the results of the QM formalism of VF01 and VOS12 should be preferred over their SC formalism.

While finding agreement between the different forms of theory is satisfying, this does not take into account the major reason given by VF01 and VOS12 for preferring their semi-classical results, specifically the need for an outer limit to be imposed on the integration over impact parameters to prevent the total collision rate diverging for $\Delta\ell=\pm 1$ when using the QM theory. This type of divergence is common in other areas of collision rate physics (in particular, the two-body relaxation time, [11, 12]), so is not unexpected, and the empirical limits of PS64 are similar to those applied to the Coulomb logarithm in these contexts.

However, as $b$ increases, so does the time over which the collision takes place: the treatment of collisions as independent events must therefore eventually become inaccurate. Following the reasoning underlying the diffusion-based approach to modelling transition rates between degenerate levels discussed by [13] (which requires no empirical cut-offs), we note that during the extended period taken to complete the most distant encounters, there will potentially be time for many collisions at smaller impact parameters. While, at first order, the effects of these collisions will superpose linearly, for collisions at sufficiently large $b$, a limit will be reached where the smaller impact parameter collisions together are sufficient to randomize the angular momentum of the target orbital. Once $b$ increases above the level where this occurs, $b_{\rm eq}$, the effect of collisions at larger impact parameter will be felt, in effect, as a superposition of $N_{\rm{}coll}\sim\tau_{\rm{}coll}/\tau_{\rm{}eq}$ partial interactions adding in quadrature, rather than linearly (where $\tau_{\rm{}coll}$ is the collision time at the large $b$ of interest, and $\tau_{\rm{}eq}$ is the collision time at the smallest radius leading to effective randomization). A reduction in contribution to the transition probability by $\sim N_{\rm{}coll}^{-1/2}\propto b^{-1/2}$ at the largest $b$ will be sufficient to prevent the weak logarithmic divergence in the overall rate. This is a somewhat academic argument, as radiative lifetimes and plasma particle correlations of the type discussed by PS64 will often result in more stringent limits to the range of $b$ over which collisions are effective. Nevertheless, given that the agreement we now find between the SC and QM gives greater confidence in SC results for the Rydberg scattering problem, it may be possible to investigate the corrections required for these multiple interactions in a believable manner using explicit classical trajectory calculations.
