Coupling hydrodynamics with comoving frame radiative transfer: I. A unified approach for OB and WR stars

TL;DR

This paper introduces a new hydrodynamically consistent stellar atmosphere modeling approach that integrates radiative transfer and wind dynamics, demonstrated on a well-studied O star, improving the physical realism of stellar wind simulations.

Contribution

It presents a novel method for creating hydrodynamically consistent non-LTE stellar atmosphere models using a comoving-frame radiative transfer, applied to a massive O star for the first time.

Findings

Successfully modeled a massive O star with consistent wind and radiation fields.

Obtained stellar and wind parameters within literature ranges.

Demonstrated the importance of radiative acceleration elements in wind shaping.

Abstract

CONTEXT: For more than two decades, stellar atmosphere codes have been used to derive the stellar and wind parameters of massive stars. Although they have become a powerful tool and sufficiently reproduce the observed spectral appearance, they can hardly be used for more than measuring parameters. One major obstacle is their inconsistency between the calculated radiation field and the wind stratification due to the usage of prescribed mass-loss rates and wind-velocity fields. AIMS: We present the concepts for a new generation of hydrodynamically consistent non-local thermodynamical equilibrium (non-LTE) stellar atmosphere models that allow for detailed studies of radiation-driven stellar winds. As a first demonstration, this new kind of model is applied to a massive O star. METHODS: Based on earlier works, the PoWR code has been extended with the option to consistently solve the hydrodynamic equation together with the statistical equations and the radiative transfer in order to obtain a hydrodynamically consistent atmosphere stratification. In these models, the whole velocity field is iteratively updated together with an adjustment of the mass-loss rate. RESULTS: The concepts for obtaining hydrodynamically consistent models using a comoving-frame radiative transfer are outlined. To provide a useful benchmark, we present a demonstration model, which was motivated to describe the well-studied O4 supergiant Zeta Pup. The obtained stellar and wind parameters are within the current range of literature values. CONCLUSIONS: For the first time, the PoWR code has been used to obtain a hydrodynamically consistent model for a massive O star. This has been achieved by a profound revision of earlier concepts used for Wolf-Rayet stars. The velocity field is shaped by various elements contributing to the radiative acceleration, especially in the outer wind. (...)

Figures

Tables

Table 1. Table 1: Input parameters for the ζ 𝜁 \zeta  Pup model

Parameter	Value
$T_{\ast }$ [kK]	$42.0$
$R_{\ast }$ [$R_{\odot }$]	$15.9$
$\log L$ [$L_{\odot }$]	$5.85$
$M_{\ast }$ [$M_{\odot }$]	$45$
$\log g$ [cm s-2]	$3.7$
$D_{\infty }$	$10$
${\text{varv}}_{\text{mic}}$ [km/s]	$15$
abundances	mass fractions
$X_{\text{H}}$a𝑎aa𝑎a$a$Abundance taken from Bouret et al. (2012)	$0.6$
$X_{\text{He}}$a𝑎aa𝑎a$a$Abundance taken from Bouret et al. (2012)	$0.383$
$X_{\text{C}}$a𝑎aa𝑎a$a$Abundance taken from Bouret et al. (2012)	$2.86\times {10}^{-4}$
$X_{\text{N}}$a𝑎aa𝑎a$a$Abundance taken from Bouret et al. (2012)	$1.05\times {10}^{-2}$
$X_{\text{O}}$a𝑎aa𝑎a$a$Abundance taken from Bouret et al. (2012)	$1.30\times {10}^{-3}$
$X_{\text{Ne}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$1.26\times {10}^{-3}$
$X_{\text{Mg}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$6.92\times {10}^{-4}$
$X_{\text{Si}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$0.70\times {10}^{-3}$
$X_{\text{P}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$6.15\times {10}^{-6}$
$X_{\text{S}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$3.09\times {10}^{-4}$
$X_{\text{Cl}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$8.20\times {10}^{-6}$
$X_{\text{Ar}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$7.34\times {10}^{-5}$
$X_{\text{K}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$3.14\times {10}^{-6}$
$X_{\text{Ca}}$b𝑏bb𝑏b$b$Solar abundances, taken from Asplund et al. (2009)	$6.13\times {10}^{-5}$
$X_{\text{Fe}}$b,c𝑏𝑐b,cb,c𝑏𝑐b,cfootnotemark: $b,c$	$1.40\times {10}^{-3}$

Table 2. Table 2: Atomic data used in the hydrodynamic model

Ion	Levels	Linesa𝑎aa𝑎a$a$The number of lines refers to those transitions that have non-negligible oscillator strengths and are therefore considered in the radiative transfer calculation.		Ion	Levels	Linesa𝑎aa𝑎a$a$The number of lines refers to those transitions that have non-negligible oscillator strengths and are therefore considered in the radiative transfer calculation.
H i	10	45		P iv	12	16
H ii	1	0		P v	11	22
He i	17	55		P vi	1	0
He ii	16	120		S iv	11	14
He iii	1	0		S v	10	13
C ii	32	148		S vi	22	75
C iii	40	226		Cl iii	1	0
C iv	25	230		Cl iv	24	34
C v	29	120		Cl v	18	29
C vi	1	0		Cl vi	23	46
N ii	38	201		Ar ii	20	33
N iii	87	507		Ar iii	14	13
N iv	38	154		Ar iv	13	20
N v	20	114		Ar v	10	11
N vi	14	48		Ar vi	9	11
N vii	2	1		Ar vii	20	34
O ii	37	150		Ar viii	11	24
O iii	33	121		Ar ix	10	10
O iv	29	76		Ar x	3	1
O v	36	153		K iii	20	40
O vi	16	101		K iv	23	27
O vii	1	0		K v	19	33
Ne i	8	14		K vi	28	38
Ne ii	18	40		K vii	1	0
Ne iii	18	18		Ca iv	24	43
Ne iv	35	159		Ca v	15	12
Ne v	25	37		Ca vi	15	17
Ne vi	25	53		Ca vii	20	28
Ne vii	25	61		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. ii	1	0
Ne viii	25	101		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. iii	13	40
Ne ix	23	51		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. iv	18	77
Mg ii	1	0		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. v	22	107
Mg iii	11	16		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. vi	29	194
Mg iv	10	9		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. vii	19	87
Mg v	10	9		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. viii	14	49
Mg vi	10	19		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. ix	15	56
Mg vii	10	11		Feb𝑏bb𝑏b$b$For Fe, the number of levels and lines refer to superlevels and superlines. Fe includes also the further iron group elements Sc, Ti, V, Cr, Mn, Co, and Ni. See Gräfener et al. (2002) for concept details and relative abundances. x	1	0
Mg viii	1	0
Si iii	24	69
Si iv	55	465
Si v	52	265		Total	1450	5221

Table 3. Table 3: Results from the hydrodynamically consistent ζ 𝜁 \zeta  Pup model with input parameters as in Table  1

Quantity	Value
$\log R_{\text{t}}$ [$R_{\odot }$]	$2.00$
$\log Q_{\text{ws}}$ [cgs]	$-12.1$
$T_{2/3}$ [kK]	$40.7$
$q_{\text{ion}}$	$0.79$
${\Gamma }_{\text{e}}$	$0.38$
${\overline{\Gamma }}_{\text{rad}}$a𝑎aa𝑎a$a$Effective gravity calculated via ${\overline{\Gamma }}_{\text{rad}}$ as described in Sander et al. (2015)	$0.77$
$\log g_{\text{eff}}$ [cm s-2]a𝑎aa𝑎a$a$Effective gravity calculated via ${\overline{\Gamma }}_{\text{rad}}$ as described in Sander et al. (2015)	$3.63$
$r_{\text{c}}$ [$R_{\ast }$]	$1.16$
$\mathrm{𝐥𝐨𝐠}\dot{𝐌}$ [$M_{\odot }{\text{yr}}^{-1}$]	$-5.80$
${\text{varv}}_{\infty }$ [km/s]	$\mathrm{𝟐𝟎𝟒𝟔}$
$\eta =\dot{M}{\text{varv}}_{\infty }c/L$	$0.23$
$\log D_{\text{mom}}$b𝑏bb𝑏b$b$Modified wind momentum, defined as $D_{\text{mom}}=\dot{M}{\text{varv}}_{\infty }\sqrt{R_{\ast }/R_{\odot }}$ (see, e.g., Kudritzki & Puls 2000) [g cm s-2 R${}_{}{}^{-1/2}{}_{\odot }{}^{}$]	$29.4$

Equations

$$\text{varv}\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}+\frac{GM}{r^2}=a_{\text{rad}}(r)+a_{\text{press}}(r),$$

$$a_{\text{rad}}(r):=$$

$$=$$

$$a_{\text{press}}(r):=-\frac{1}{\rho }\frac{\mathrm{d}P}{\mathrm{d}r}.$$

$$a^2(r):=\frac{k_{\text{B}}T(r)}{\mu (r)m_{\text{H}}}+\frac{1}{2}{\text{varv}}_{\text{mic}}^2,$$

$$\dot{M}=4\pi r^2\text{varv}(r)\rho (r)\text{,}$$

$$\text{varv}\left(1-\frac{a^2}{{\text{varv}}^2}\right)\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}$$

$$=\frac{GM}{r^2}\left({\Gamma }_{\text{rad}}-1\right)+2\frac{a^2}{r}-\frac{\mathrm{d}{a}^2}{\mathrm{d}r}$$

$$\tilde{\mathcal{F}}$$

$$\tilde{\mathcal{G}}$$

$$r^2\text{varv}\left(1-\frac{a^2}{{\text{varv}}^2}\right)\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}$$

$$r^2\text{varv}\text{leavevmode}\tilde{\mathcal{G}}\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}$$

$$\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}$$

$$\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}=\frac{g\text{varv}}{a^2}\text{leavevmode}\tilde{\mathcal{F}}\text{,}$$

$$\tilde{\mathcal{F}}(r_{\text{c}})\stackrel{!}{=}\tilde{\mathcal{G}}(r_{\text{c}})\stackrel{!}{=}0\text{.}$$

$$R_{\text{t}}:=R_{\ast }{\left[\frac{{\text{varv}}_{\infty }}{2500\text{km/s}}/\frac{\dot{M}\sqrt{D}}{10^{-4}{\text{M}}_{\odot }\text{/yr}}\right]}^{\frac{2}{3}},$$

$$Q_{\text{ws}}:=\frac{\dot{M}\sqrt{D}}{{\left(R_{\ast }{\text{varv}}_{\infty }\right)}^{3/2}},$$

$$\text{varv}\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}+\frac{G{M}_{\ast }}{r^2}$$

$$\dot{M}\int \left(\text{varv}\frac{\mathrm{d}\text{varv}}{\mathrm{d}r}+\frac{G{M}_{\ast }}{r^2}\right)\mathrm{d}r$$

$$L_{\text{wind}}$$

$$Q:=\frac{W_{\text{wind}}}{L_{\text{wind}}}\text{.}$$

$${\tau }_{\text{Ross}}(R_{\ast })$$

$$=\underset{R_{\text{max}}}{\overset{R_{\ast }}{\int }}\rho (r)\text{leavevmode}{\varkappa }_{\text{Ross}}(r)\mathrm{d}r$$

$$=\frac{\dot{M}}{4\pi }\underset{R_{\text{max}}}{\overset{R_{\ast }}{\int }}\frac{{\varkappa }_{\text{Ross}}(r)}{r^2\text{leavevmode}\text{varv}(r)}\mathrm{d}r\text{.}$$

$$s_{\text{max}}=\underset{R_{\text{max}}}{\overset{R_{\ast }}{\int }}\rho (r)\text{leavevmode}\mathrm{d}r=\frac{\dot{M}}{4\pi }\underset{R_{\text{max}}}{\overset{R_{\ast }}{\int }}\frac{1}{r^2\text{leavevmode}\text{varv}(r)}\mathrm{d}r,$$

$$M_{\text{atm}}=4\pi \underset{R_{\ast }}{\overset{R_{\text{max}}}{\int }}\rho (r)r^2\mathrm{d}r=\dot{M}\underset{R_{\ast }}{\overset{R_{\text{max}}}{\int }}\frac{1}{\text{varv}(r)}\mathrm{d}r\text{.}$$

$$a_{\text{rad}}(r)$$

$$=\frac{16{\pi }^2}{c}\frac{r^2\text{varv}(r)}{\dot{M}}\underset{0}{\overset{\infty }{\int }}{\kappa }_{\nu }{H}_{\nu }\mathrm{d}\nu ,$$

$$\text{textsc}resp(r)=\frac{1}{1-f}\left[1-\frac{a_{\text{rad}}(\dot{M})}{f\cdot a_{\text{rad}}(f\cdot \dot{M})}\right]\text{.}$$

$$a_{\text{rad}}(f\cdot \dot{M})=\frac{1}{f}{a}_{\text{lines}}(\dot{M})+a_{\text{cont}}(\dot{M})\text{,}$$

$$f=\frac{{\Gamma }_{\text{lines}}(r_{\tilde{\mathcal{G}}})}{1-{\Gamma }_{\text{cont}}(r_{\tilde{\mathcal{G}}})-2\frac{a(r_{\tilde{\mathcal{G}}})\cdot r_{\tilde{\mathcal{G}}}}{GM}\left[a(r_{\tilde{\mathcal{G}}})-r_{\tilde{\mathcal{G}}}{\frac{\mathrm{d}a}{\mathrm{d}r}|}_{r=r_{\tilde{\mathcal{G}}}}\right]},$$

$$f_{\text{V}}(r)=f_{\text{V},\infty }+(1-f_{\text{V},\infty })\cdot \exp \left(-\frac{\text{varv}(r)}{{\text{varv}}_{\text{cl}}}\right),$$

$$f_{\text{V}}(r)=f_{\text{V},\infty }+(1-f_{\text{V},\infty })\cdot \exp \left(-\frac{{\tau }_{\text{cl}}}{{\tau }_{\text{Ross}}(r)}\right)\text{,}$$

$$\text{varv}(r)={\text{varv}}_{\infty }{\left(1-\frac{R_{\ast }}{r}\right)}^{\beta }\text{.}$$

$$\text{varv}(r)=p{\left(1-\frac{R_{\ast }}{r+R_{\text{s}}}\right)}^{\beta }$$

Full text

*Aims. * We present the concepts for a new generation of hydrodynamically consistent non-local thermodynamical equilibrium (non-LTE) stellar atmosphere models that allow for detailed studies of radiation-driven stellar winds. As a first demonstration, this new kind of model is applied to a massive O star.

*Methods. * Based on earlier works, the PoWR code has been extended with the option to consistently solve the hydrodynamic equation together with the statistical equations and the radiative transfer in order to obtain a hydrodynamically consistent atmosphere stratification. In these models, the whole velocity field is iteratively updated together with an adjustment of the mass-loss rate.

*Results. * The concepts for obtaining hydrodynamically consistent models using a comoving-frame radiative transfer are outlined. To provide a useful benchmark, we present a demonstration model, which was motivated to describe the well-studied O4 supergiant $\zeta\,$Pup. The obtained stellar and wind parameters are within the current range of literature values.

*Conclusions. * For the first time, the PoWR code has been used to obtain a hydrodynamically consistent model for a massive O star. This has been achieved by a profound revision of earlier concepts used for Wolf-Rayet stars. The velocity field is shaped by various elements contributing to the radiative acceleration, especially in the outer wind. The results further indicate that for more dense winds deviations from a standard $\beta$-law occur.

1 Introduction

In order to understand massive stars and their winds, stellar atmosphere models have become a powerful and widely used instrument. Typically applied for spectroscopic analysis, these models yield quantitative information on the stellar wind properties together with fundamental stellar parameters. The special conditions in stellar winds lead to the development of sophisticated model atmosphere codes performing several complex calculations. The outer layers are not even close to local thermodynamical equilibrium (LTE), requiring the population numbers to be calculated from a set of statistical equations. For a sufficient treatment, large model atoms with hundreds of levels in total have to be considered. Furthermore, the line-driven winds of hot stars demand a proper description of the radiative transfer in an expanding atmosphere.

Basically three different approaches exist to tackle the radiative transfer problem: The first are analytical descriptions, usually based on the concept of CAK theory (named after pioneering work of Castor et al. 1975), which allow for rapid calculation of the radiative acceleration at the cost of several approximations. While the theory has undergone several extensions relaxing the original assumptions (see, e.g., Friend & Abbott 1986; Pauldrach et al. 1986; Kudritzki et al. 1989; Gayley 1995; Puls et al. 2000; Kudritzki 2002), it has opened up the whole area of time-dependent and even multi-dimensional calculations (e.g., Owocki et al. 1988; Feldmeier 1995; Owocki & Puls 1999; Dessart & Owocki 2005; Sundqvist et al. 2010). CAK-like concepts are therefore not only used in stellar atmosphere analyses, but also in most cases where a more detailed radiative transfer would be too costly from a computational standpoint; for example, detailed multi-dimensional hydrodynamical simulations of a stellar cluster or the interaction with a companion (e.g., Blondin et al. 1990; Manousakis et al. 2012; van Marle et al. 2012; Čechura & Hadrava 2015).

An alternative to (semi-)analytical approximations is to calculate the radiative force with the help of Monte Carlo (MC) methods. Motivated already by the work of Lucy & Solomon (1970), this approach was first applied by Abbott & Lucy (1985) and later used for a variety of mass-loss studies (e.g., de Koter et al. 1993, 1997; Vink et al. 1999, 2000, 2001). More recently the application has been widely extended, including velocity field and clumping studies as well as multi-dimensional calculations (e.g., Müller & Vink 2008, 2014; Muijres et al. 2011, 2012; Šurlan et al. 2012; Noebauer & Sim 2015). Using the MC approach allows one to include effects such as multiple line scattering, but is computationally much more expensive than CAK-like calculations, especially in multi-dimensional approaches. It is therefore mostly used for fundamental studies and rarely applied when analyzing a particular stellar spectrum.

A third method to tackle the radiative transfer is the calculation in the comoving frame (CMF). Built on the conceptual work of Mihalas et al. (1975), it is essentially a brute-force integration over the frequency range, using the advantage that opacity $\kappa$ and emissivity $\eta$ are isotropic in the comoving frame. Various studies using a CMF approach have been performed since the 1980s (e.g., Hamann 1980, 1981; Hillier 1987; Pauldrach et al. 1986; Sellmaier et al. 1993; Baron et al. 1996), culminating in the development of a handful of stellar atmosphere codes using the CMF radiative transfer either partially or exclusively, including phoenix (Hauschildt 1992; Hauschildt & Baron 1999), wmbasic (Pauldrach et al. 1994, 2001), fastwind (Santolaya-Rey et al. 1997; Puls et al. 2005), cmfgen (Hillier 1990b, a; Hillier & Miller 1998), and PoWR (Hamann 1985, 1986; Gräfener et al. 2002; Hamann & Gräfener 2003). For studying stars with denser winds and especially Wolf-Rayet stars, almost all spectral analyses are performed with CMF-based atmosphere codes (e.g., Hillier & Miller 1999; Crowther et al. 2002; Hamann et al. 2006; Sander et al. 2012; Hainich et al. 2014). Due to the complexity of the CMF calculation, these codes typically assume spherical symmetry, allowing for a $1$- or $1.5$-dimensional treatment, and a stationary wind situation.

Given that on top of the two major tasks, that is, solving the statistical equations and the radiative transfer, several further challenges exist, such as iron-line blanketing or the need for a consistent calculation of the temperature stratification in an expanding, non-LTE environment, it is not that surprising that only a few codes exist that can adequately model a stellar atmosphere for a hot star with a dense, line-driven wind. So far, these codes are typically used for either measuring stellar and wind parameters or predicting fluxes and related quantities for a given set of parameters. Yet, only a few examples exist where they are used to actually predict the wind parameters. This lack of examples results from the fact that – at least in the wind part – most stellar atmosphere models use a prescribed velocity field instead of consistently calculating the wind stratification. While this approach is mostly sufficient for the current use of the atmosphere models, it also cuts off a variety of potential applications. In order to open up this perspective, we present a new approach for hydrodynamically consistent stellar atmosphere models using the Potsdam Wolf-Rayet (PoWR) model atmosphere code. Originally starting from earlier efforts for Wolf-Rayet (WR) stars, we have developed a brand new scheme to update the mass-loss rate and the velocity stratification that can finally be applied to both WR and OB models. For the first time, we will present a hydrodynamically consistent PoWR model for an O supergiant, closely reproducing most of the spectral features for $\zeta$ Pup.

In Sect. 2 of this work, we briefly discuss the underlying stationary wind hydrodynamics and introduce a special notation that is helpful in analyzing the status of PoWR models with respect to hydrodynamical consistency. A special emphasis is given in the following Sect. 3 on the meaning of the critical point. Afterwards, the basic concepts of the PoWR code and its set of input parameters are outlined in Sect. 4. Sect. 5 then deals with all the techniques used for obtaining a hydrodynamically consistent model before showing and discussing the results for an example model in Sect. 6. Finally, conclusions are drawn in Sect. 7.

2 Stationary wind hydrodynamics

In a hot stellar wind, which we here describe as a one-dimensional, stationary outflow, the accelerations due to radiation and gas pressure have to balance gravity $g(r)=GM_{\ast}r^{-2}$ and inertia $\varv\frac{\mathrm{d}\varv}{\mathrm{d}r}$. The corresponding equation of motion is therefore

[TABLE]

with $a_{\text{rad}}$ representing the total radiative acceleration, that is,

[TABLE]

using the same notation as in Sander et al. (2015). The term $a_{\text{press}}$ describes the gas (and potentially turbulence) pressure, that is,

[TABLE]

To replace the pressure $P$ with the density, we use the equation of state for an ideal gas $P(r)=\rho(r)\cdot a^{2}(r)$ and define

[TABLE]

with $\mu$ being the mean particle mass (including electrons) in units of the hydrogen atom mass $m_{\text{H}}$, $T$ being the electron temperature, and $\varv_{\text{mic}}$ the microturbulence velocity, which is a free parameter in our models. For vanishing turbulence, $a(r)$ is identical to the isothermal sound speed.

With the equation of state together with the equation of continuity

[TABLE]

the $a_{\text{press}}$-term in Eq. (1) can be rewritten in three terms that remove all explicit $\rho$-dependencies in favor of terms containing only $\varv$, $r$, and $a$ (see, e.g., Sander et al. 2015, for an explicit calculation). As a consequence, the hydrodynamic equation for a spherically-symmetric wind reads

[TABLE]

with $\Gamma_{\text{rad}}(r):=a_{\text{rad}}(r)/g(r)$. For an easier reading, we have dropped the explicit notation of the radius dependencies in Eqs. (7) and (8) and continue to do so unless absolutely necessary for the context. Using the two definitions

[TABLE]

one can write Eq. (7) in a more compact way:

[TABLE]

The quantities $\mathcal{\tilde{F}}$ and $\mathcal{\tilde{G}}$ are dimensionless and therefore ideal for visualizations. We note that in the subsonic regime, that is, $\varv\ll a$, we obtain $\mathcal{\tilde{G}}\rightarrow-a^{2}/\varv^{2}$ and thus Eq. (13) reduces to

[TABLE]

which is a form of the hydrostatic equation discussed in a previous paper (Sander et al. 2015).

3 The critical point

The crucial difference between Eq. (14) and the full hydrodynamic equation (13) is the denominator $\mathcal{\tilde{G}}$. In contrast to the quasi-hydrostatic case, the hydrodynamic equation has a critical point at $\varv=a$, that is, where the denominator $\mathcal{\tilde{G}}$ becomes zero. In order to allow for a finite solution for the velocity gradient at the corresponding radius $r_{\text{c}}$, the nominator $\mathcal{\tilde{F}}$ must also vanish at exactly this point. This leads to the constraint

[TABLE]

As will be discussed below, this constraint implies a fixing of the mass-loss rate $\dot{M}$, even though this quantity does not appear explicitly in the hydrodynamic Eq. (7). Since the hydrostatic equation does not have this constraint, it can provide a solution for $\varv(r)$ for any non-vanishing value of $\dot{M}$.

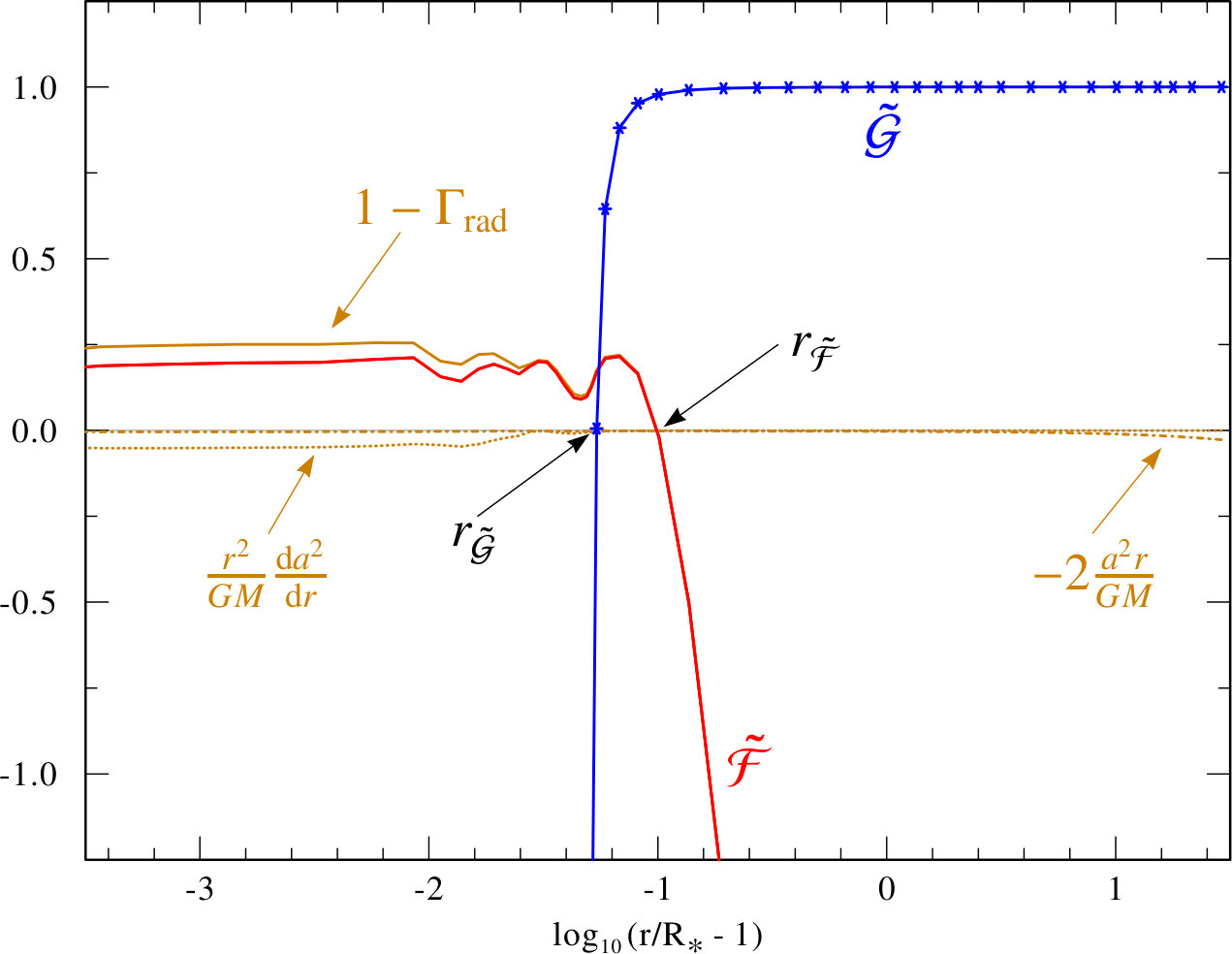

An illustration of $\mathcal{\tilde{F}}(r)$ and $\mathcal{\tilde{G}}(r)$ for a converged hydrodynamically consistent model is shown in Fig. 1. Unlike in the CAK-type approaches, the critical point in Eq. (13) and Fig. 1 is identical to the sonic point, potentially corrected for a turbulence contribution. This is a direct consequence of our approach where we do not assume any semi-analytical expression for the radiative acceleration $a_{\text{rad}}$. Instead, we simply treat $a_{\text{rad}}(r)$ as a given quantity that can be expressed as a function of radius. Of course $a_{\text{rad}}$ also reacts on changes of the velocity field and the mass-loss rate, but instead of trying to parametrize this in analytical form, we use an iterative approach and recalculate $a_{\text{rad}}(r)$ after any adjustment of $\varv(r)$ or $\dot{M}$ until the thereby calculated acceleration does not enforce further velocity or mass-loss rate updates.

The PoWR code has already been used in the past for hydrodynamically consistent calculations of WR stars by Gräfener & Hamann (2005, 2008). In their approach, which turned out to be suitable only for thick-wind WR stars, the critical point was not identical to the sonic point due to a semi-analytical approach where the radiative acceleration was described with the help of an effective force multiplier parameter $\alpha(r)$. In the present work, we do not use such a parametrization and therefore the critical point in our hydrodynamic equation is identical to the sonic point. The implementation of the new method is also conceptually different from the one described in Gräfener & Hamann (2005) and will be further outlined in Sect. 5.

4 PoWR

4.1 Basic concepts

For the Potsdam Wolf-Rayet (PoWR) model atmospheres we assume a spherically symmetric atmosphere with a stationary mass outflow. In order to properly describe the situation of an expanding atmosphere without the LTE approximation, the equations of statistical equilibrium and radiative transfer have to be solved iteratively until a consistent solution for the radiation field and the population numbers are obtained. In addition, the temperature stratification is updated iteratively to ensure energy conservation in the expanding atmosphere. This is performed using the improved Unsöld-Lucy method described in Hamann & Gräfener (2003) or alternatively via the electron thermal balance which has recently been added to the PoWR code (see Sander et al. 2015, and references therein).

If then all changes to the population numbers are smaller than a defined threshold, the atmosphere model is considered to be converged and the synthetic spectrum is calculated using a formal integration in the observer’s frame. The iron group elements are treated in a superlevel approach: The levels are grouped into energy bands, which are then represented by superlevels. While we assume LTE for the relative occupations of the individual levels inside a superlevel, the superlevels themselves are treated in full non-LTE. The detailed cross-sections for the superlevel transtions have been prepared on a sufficiently fine frequency grid prior to the model iteration and contain all the individual transitions to ensure that radiative transfer treats each of these transitions at their proper frequency. (See Gräfener et al. 2002, for more details). PoWR is furthermore able to account for wind inhomogeneities in the so-called “microclumping” approximation (see Hamann & Koesterke 1998). In the calculation of the formal integral, PoWR can also account for optically thick clumps in an approximate way, see Oskinova et al. (2007) for details.

The radiative transfer is calculated in the CMF, thereby implicitly accounting for multiple scattering and avoiding all simplifications, which are done in the faster but more approximate concepts used, for example, in time-dependent calculations. In particular, the solution is obtained by solving the moment equations via a differencing scheme based on the concepts of Mihalas et al. (1976a, b). The variable Eddington factors required in this scheme are obtained from a so-called “ray-by-ray solution” where an angle-dependent radiation transfer is performed using short-characteristics integration (see Koesterke et al. 2002, for details). The CMF radiative transfer requires a strictly monotonic velocity field. Even in a stationary wind, this might not always be the case and therefore in some cases the solution for $\varv(r)$ resulting from the hydrodynamic equation cannot be applied. This will be discussed in more detail in a future paper and does not apply to the models presented in this work.

In the case of stars with low or moderate $\log g$ it is sufficient to assume that the intrinsic line profiles are Gaussians with a constant Doppler broadening velocity $\varv_{\text{dop}}$ during the CMF calculations while in the formal integral, where the emergent spectrum is eventually obtained, detailed thermal, microturbulent, and pressure broadening are accounted for with their depth dependence.

The necessary atomic data required for our calculations are taken from a variety of sources, combining Wiese et al. (1966), Eissner et al. (1974), Bashkin & Stoner (1975), the opacity project (OP, Cunto & Mendoza 1992), the Kurucz atomic database111http://kurucz.harvard.edu/atoms.html, the NIST atomic database222https://www.nist.gov/pml/atomic-spectra-database, private communication with K. Butler, and several minor sources listed in Hamann et al. (1992). For argon, which turns out to be one of the more important elements driving the outer wind of our demonstration model, we use opacity project data combined with level energies from the NIST atomic database. The iron group elements, which are treated as one generic element with the help of the superlevel approach described in detail in Gräfener et al. (2002), are modeled using Kurucz data if available (usually up to ionization stage X), while opacity project data are applied to also cover the higher ions. The collisional cross-sections are described with different formulae depending on the element and ion, most notably from Jefferies (1968, Eqs. 6.24, 6.25), K. Butler (priv. comm.), and van Regemorter (1962, Eq. 22). The latter is also used for all collisional transitions of argon and the iron group superlevels if the corresponding radiative transition is allowed. The collisional cross-sections of forbidden transitions are mostly approximated by Mendoza (1983, appendix 4), though for very few ions a more specialized treatment is applied (e.g., Berrington et al. 1982, for He i). For the bound-free transitions, we use Jefferies (1968, Eq. 6.39) for all collisional ionizations while we branch between OP data fits, Mihalas (1967) and Seaton (1960), depending on the ion for the photoionization cross-sections. The hydrogenic approximation (e.g., Cowan 1981) is widely used as fallback, which also applies for Ar and the iron group.

4.2 Model parameters

PoWR model atmospheres can be specified by a set of fundamental parameters. These are:

• •

The chemical abundances of all considered elements, typically given as mass fractions $X_{i}.$

• •

Two out of the three quantities connected by Stefan-Boltzmann’s law, namely:

• –

The stellar radius $R_{\ast}$, defined at a specified Rosseland continuum optical depth $\tau_{\ast}$ (default: $\tau_{\ast}=20$).

• –

The effective temperature $T_{\ast}$ at the radius $R_{\ast}.$

• –

The luminosity $L_{\ast}=4\pi R_{\ast}^{2}\sigma_{\textsc{sb}}T_{\ast}^{4}$.

• •

The stellar mass $M_{\ast}$, either given explicitly via input of $M_{\ast}$ or $\log g$, or calculated from the luminosity if the stellar mass is not given otherwise. In the latter case, depending on the stellar type, the mass-luminosity-relations from Langer (1989) or Gräfener et al. (2011) are used.

• •

The mass-loss rate $\dot{M}$ or an implying quantity (see below).

• •

The terminal wind velocity $\varv_{\infty}$ and the wind velocity law $\varv(r)$, directly implying the density stratification via the continuity Eq. (6).

• •

The clump density contrast $D(r)=\rho_{\text{cl}}(r)/\overline{\rho}(r)=f_{\text{V}}^{-1}(r)$ (cf. Hamann & Koesterke 1998, for a detailed description).

As an alternative to the mass-loss rate $\dot{M}$, one can also specify a line emission measure in the form of either the transformed radius

[TABLE]

(Schmutz et al. 1989; Hamann & Koesterke 1998, for the current form) or the wind strength parameter

[TABLE]

(Puls et al. 1996, 2008, for the current form). Since all other quantities in Eqs. (16) and (17) have to be specified anyhow, these quantities imply a certain value of $\dot{M}$. Using $R_{\text{t}}$ or $\log Q_{\text{ws}}$ can be helpful when calculating model grids or searching for models with a similar emission line strength in their normalized spectra.

In hydrodynamically consistent models, $\dot{M}$ and $\varv(r)$ are adjusted in order to ensure that the hydrodynamic equation is fulfilled throughout the atmosphere. However, as they also define the density stratification, starting values are still required as an input for the calculations. Depending on the starting model, the resulting $\dot{M}$ and $\varv(r)$ of a converged hydrodynamically consistent model can differ significantly from their initial specifications.

4.3 Iteration scheme

With the main concepts and parameters given in the previous paragraphs, the overall iteration scheme for a PoWR model can now be summarized by the following steps:

Model start: Setup of radius and frequency grids, first velocity stratification, start approximation for the population numbers $\@vec{n}(r)$ and the radiation field $J_{\nu}$(r) 2. 2.

Main iteration

1. (a)

Solution of the radiative transfer in the comoving frame 2. (b)

Temperature corrections (if necessary) 3. (c)

Solution of the statistical equations 4. (d)

(optional:) Solution for the hydrostatic or hydrodynamic equation to update the velocity/density stratification 3. 3.

Formal integration: Calculation of the emergent spectrum in the observer’s frame

For efficiency, we use the method of variable Eddington factors, where the Eddington factors $f_{\nu}$ and $g_{\nu}$, which have to be obtained from the more costly ray-by-ray radiative transfer, are only updated every few iterations while otherwise only the momentum equations are solved in order to obtain the new radiation field and the radiative acceleration. For convenience, we schedule stratification updates immediately before the next renewal of the Eddington factors.

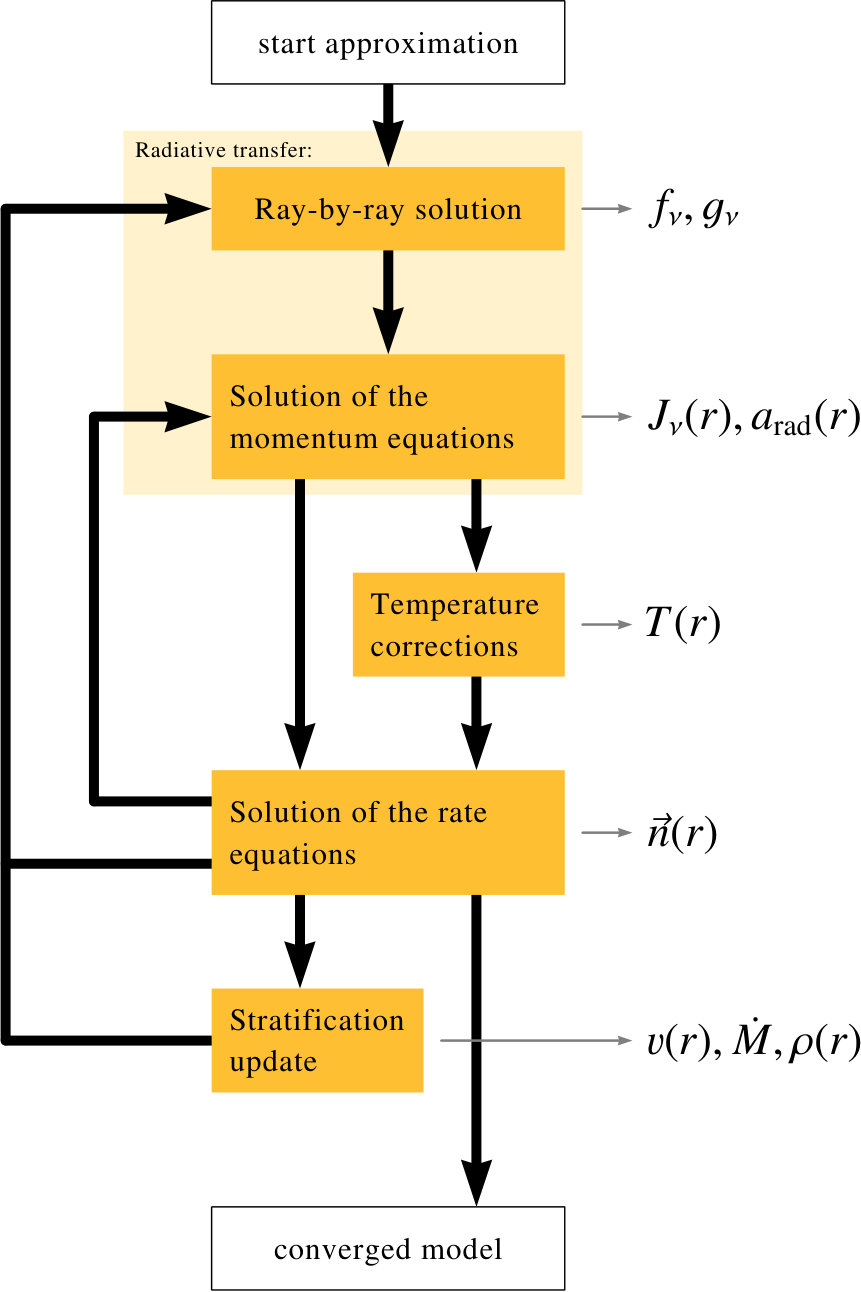

A sketch of this iteration scheme is given in Fig. 2. The stratification update, which can be either restricted to the quasi-hydrostatic part as outlined in Sander et al. (2015) or the full hydrodynamical update described in this work, is fully integrated into the main iteration. The particular details of the hydrodynamic stratification update are discussed in Sect. 5.

5 Hydrodynamically consistent models

5.1 Start approximation

In order to integrate the hydrodynamic equation in the form of Eq. (13), the quantities $a(r)$ and $a_{\text{rad}}(r)$ have to be specified as a function of radius. This cannot be done from scratch and therefore a starting approximation for the stellar atmosphere has to be given, including a velocity stratification. Unless the new model is only a small variation of an already existing hydrodynamically consistent model, where one could employ the old velocity field, usually a model with a $\beta$-law connected to a consistent hydrostatic solution (Sander et al. 2015, see) is adopted as a starting approximation. For the mass-loss rate, it has turned out to be helpful, if at least the global energy budget is close to consistency. To obtain this budget, the hydrodynamic equation is written in the form

[TABLE]

and then integrated over $r$ and multiplied with $\dot{M}$:

[TABLE]

This last equation (Eq.19) describes the balance between the modeled wind luminosity $L_{\text{wind}}$ and the provided power $W_{\text{wind}}$. Dividing Eq. (19) by $L_{\text{wind}}$ yields the so-called work ratio

[TABLE]

While stellar atmosphere models with $Q<1$ do not provide a radiative acceleration that is sufficient to drive the wind, models with $Q>1$ exhibit a radiation acceleration that could actually drive a stronger wind. Models with $Q=1$ exactly supply the power that is required to drive the wind. The corresponding models are therefore consistent on a “global” scale, as they fulfill the integrated form of the hydrodynamic equation. Although they usually do not fulfill this equation locally, models with $Q\approx 1$ are usually well suited as a starting model for the full hydrodynamic calculations. A similar approach to identify proper start approximations has been used by Gräfener & Hamann (2005) in their calculation of a hydrodynamically consistent WC atmosphere.

5.2 Obtaining a consistent velocity field

With a given starting model, all terms in the hydrodynamic equation are known, including the radiative acceleration $a_{\text{rad}}(r)$ as a function of radius, and the terms $\mathcal{\tilde{F}}(r)$ and $\mathcal{\tilde{G}}(r)$ can be calculated. Since the ratio of the latter two essentially defines the right hand side of Eq. (13), both terms have to vanish at exactly the same radius $r_{\text{c}}$, defining the critical point of the equation. For the non-consistent starting model, this is generally not the case and thus the radius $r_{\mathcal{\tilde{G}}}:=r(\mathcal{\tilde{G}}=0)$ will differ from the radius $r_{\mathcal{\tilde{F}}}:=r(\mathcal{\tilde{F}}=0)$. In some cases, $\mathcal{\tilde{F}}$ can become zero at more than one point, thus indicating a non-monotonic solution for $\varv(r)$. While this does not prevent the integration of the hydrodynamic equation, a non-monotonic $\varv(r)$ cannot be used in the CMF radiative transfer and thus such cases are discarded at the moment.

Assuming that there is only one radius $r_{\mathcal{\tilde{F}}}$ at which we have $\mathcal{\tilde{F}}=0$, this point acts as the current candidate for the critical point. Starting at $r_{\mathcal{\tilde{F}}}$ with $\varv(r_{\mathcal{\tilde{F}}})=a(r_{\mathcal{\tilde{F}}})$, Eq. (13) is then integrated inwards and outwards to obtain the new velocity field. By setting the wind velocity to the current value of $a$ at $r_{\mathcal{\tilde{F}}}$, the critical point condition is automatically fulfilled and we achieve a velocity field that smoothly passes through the critical point. In principle it would also be possible to start the integration at $r_{\mathcal{\tilde{G}}}$ or any point in-between $r_{\mathcal{\tilde{F}}}$ and $r_{\mathcal{\tilde{G}}}$, but this would require a modification of $r_{\mathcal{\tilde{F}}}$ during the hydrodynamic iteration in order to fulfill the critical point condition. Several approaches have been tested during the development phase and none of them turned out to be favorable. Essentially, the approach by Gräfener & Hamann (2005, 2008) made use of modifying $\mathcal{\tilde{F}}$ when changing the mass-loss rate. While this worked fine for some WR models, it turned out to fail for OB models. Furthermore, their approach required the calculation of a force multiplier parameter $\alpha(r)$, which can only be obtained by a modified radiative transfer calculation, thereby essentially doubling the calculation times for the radiative transfer before each hydro stratification update. On the other hand, modifications of the $\Gamma_{\text{rad}}$-term in $\mathcal{\tilde{F}}$ without any prediction on how the radiative acceleration will react on changes of $\varv(r)$ or $\dot{M}$ turn out not to be precise enough. Thus the direct integration from $r_{\mathcal{\tilde{F}}}$ proved to be the best method, both in terms of stability and performance.

5.3 Calculation of the mass-loss rate

By starting the integration of the velocity field outwards from the critical point of the hydrodynamic equation, one automatically obtains the terminal velocity $\varv_{\infty}$ when reaching the outer boundary, since $\varv_{\infty}\approx\varv(R_{\text{max}})$ as long as $R_{\text{max}}$ is chosen to be sufficiently large. This method so far provides a new velocity field that fulfills the hydrodynamic equation, but does not perform any update of the mass-loss rate $\dot{M}$. This is already a powerful tool, but the major issue with such a solution is their inconsistency with some of the initial stellar parameters; since the integration starts from the critical point, also the inner boundary value $\varv_{\text{min}}:=\varv(R_{\ast})$ is not fixed, but instead obtained from integrating the hydrodynamic equation. As long as $r_{\mathcal{\tilde{F}}}$ and $r_{\mathcal{\tilde{G}}}$ are not identical before the integration, the total optical depth at $R_{\ast}$ will change after the velocity update. This especially means that $T_{\ast}$ and the corresponding $R_{\ast}$ in a converged model would refer to a different optical depth than in the starting model. As long as the total optical depth is larger than the old one, one could infer the values for the original optical depth. However, the consequence would be that the obtained hydrodynamic model refers to a different temperature and radius than the starting model, thereby being inconsistent with the radiative transfer calculation.

This problem can be solved by introducing another constraint, namely the conservation of the total optical depth. More precisely, for practical reasons we demand the conservation of the total Rosseland continuum optical depth, which we denote as $\tau_{\text{Ross}}(R_{\ast})$ throughout this work. As a consequence, the mass-loss rate $\dot{M}$ needs to be updated, but the main model parameters $T_{\ast}$ and $R_{\ast}$ now keep their intended reference. Unfortunately, finding a proper update method for $\dot{M}$ is not a trivial task. A simple approach would be to use the definition of the optical depth and replace the density via Eq. 6 to obtain an expression that explicitly contains $\dot{M}$:

[TABLE]

However, even though Eq. (23) seems like a straight-forward approach to extract the density and thus the mass-loss rate, one must keep in mind that $\varkappa_{\text{Ross}}(r)$ is not generally depth-independent, as some of the contributions (e.g., the bound-free opacities) do not just have a linear dependence on $\rho(r)$. In fact, using this expression leads to large changes in $\dot{M}$, often over-predicting the required changes by orders of magnitude. Since the critical point tends to change significantly even for moderate $\dot{M}$ updates, this method can only be successfully applied in very few cases and thus cannot be considered as a standard approach. The sensitivity of the critical point was already found by Pauldrach et al. (1986) when they used an early form of this concept with the Thomson opacity instead of the Rosseland continuum opacity as they did not account for the free-free and bound-free continuum in their radiative force. Similar problems occur when employing other quantities with analog descriptions, such as the integrated density without the mass absorption coefficient

[TABLE]

or the total atmosphere mass

[TABLE]

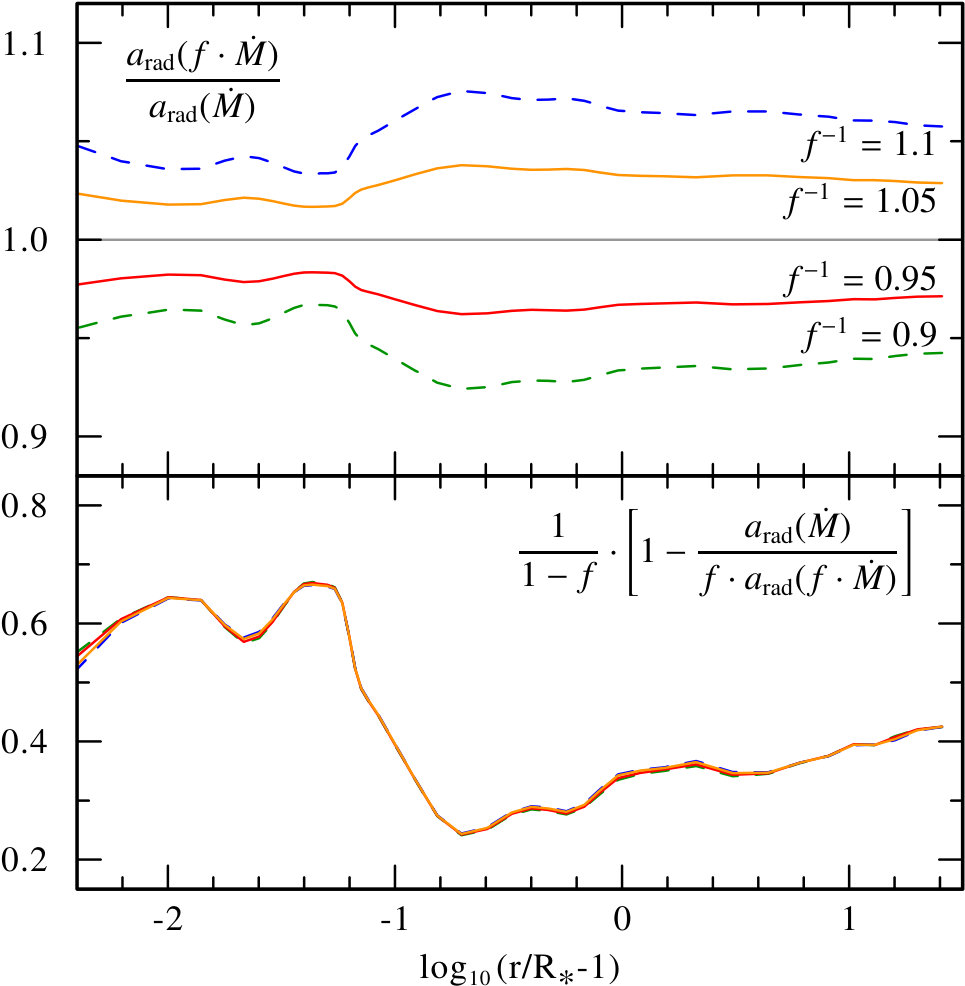

In order to obtain a more stable method, this work utilizes a completely different approach, where we approximate the response of the radiative acceleration $a_{\text{rad}}$ to a change of the mass-loss rate by a factor $f$. A typical example for an O-star model is shown in Fig. 4, where the ratio of unmodified to modified acceleration is shown for different values of $f^{-1}$. As the radiative acceleration is defined as

[TABLE]

there is a leading dependence with $\dot{M}^{-1}$, therefore making $f^{-1}$ the more interesting quantity for the plots. The lower panel of Fig. 4 also illustrates that the particular value of $f$ changes the amplitude, but not the general behavior of the response, since one can scale all the results almost perfectly to the same curve $\textsc{resp}(r)$ using the relation

[TABLE]

With the help of Eq. (28) it would therefore be possible to implement the detailed response of $a_{\text{rad}}(r)$ to suggested changes of $\dot{M}$ in order to improve the calculation of the mass-loss rate in a hydro iteration. However, similar to what has been discussed for the $\alpha(r)$-approach from Gräfener & Hamann (2005), this would double the CMF calculation time before each update of the velocity field. Furthermore, the relation (28) cannot account for the typically more complex changes of $\varv(r)$ and thus even a mass-loss rate obtained in this detailed way does not lead to a better model convergence. In fact, such methods have been tested and have turned out not to be better than the more approximate way described below.

Apart from calculating the total response of the radiative acceleration in our test calculations, we also calculated the isolated response of the line and the total continuum term. In Fig. 5 the results for two different mass-loss modification factors $f$ are shown. As we can see, the continuum shows only a very small response that can be neglected, while the line response is stronger and roughly of the order $f^{-1}$. In fact $f^{-1}$ is never completely reached, especially not in the outer wind, but since we want to use our approximation only for the calculation of the mass-loss rate, this is not a problem. By slightly over-predicting the effect of the change in $\dot{M}$, we avoid potential “overshooting” of the correction. We therefore assume for our calculations of the mass-loss rate update, that the radiative acceleration $a_{\text{rad}}$ changes for a mass-loss rate modified by the factor $f$ such that

[TABLE]

with $a_{\text{rad}}(\dot{M})=a_{\text{lines}}(\dot{M})+a_{\text{cont}}(\dot{M})$ denoting the acceleration with the original mass-loss rate. Using this assumption, we calculate the factor $f$ which would be necessary to obtain $\mathcal{\tilde{F}}=0$ at the current $r_{\mathcal{\tilde{G}}}$. For a converged model, this is automatically fulfilled and we obtain $f=1$, that is, no more change in $\dot{M}$. In the general case, the condition $\mathcal{\tilde{F}}(f\,\dot{M})\stackrel{{\scriptstyle!}}{{=}}0$ leads to

[TABLE]

with $\Gamma_{\text{lines}}=a_{\text{lines}}/g$ and $\Gamma_{\text{cont}}=a_{\text{cont}}/g$. To avoid overly large corrections, which could significantly disturb the model convergence, only 50% of the calculated change for $\dot{M}$ is usually applied in one iteration.

The described update of the mass-loss rate now leads to a convergence of $r_{\mathcal{\tilde{F}}}$ and $r_{\mathcal{\tilde{G}}}$. However, there is so far no guarantee that the total optical depth of the converged model will be identical to that of the starting model. To ensure also the latter, the whole atmosphere stratification is radially adjusted before integrating the hydrodynamic equation. This adjustment is performed already with the new mass-loss rate and ensures the conservation of the total Rosseland continuum optical depth.

5.4 Scheme of the hydrodynamic stratification update

The implementation concept of the hydrodynamical stratification update in regards to the overall model iteration is similar to the one described in Sander et al. (2015) for models with a consistent quasi-hydrostatic part. In fact, the full hydrodynamic treatment and quasi-hydrostatic update are alternative branches for the step (2d) in the overall iteration scheme outlined in Sect. 4.3. In order to ensure that the overall model calculations are not vastly disrupted by a stratification update, such updates are not performed during each iteration, but only immediately before the Eddington factors in the following radiative transfer job are recalculated and if the overall corrections to the population numbers are below a certain prespecified level (in addition, it is also possible to require a certain level of flux consistency for a stratification update).

The hydrodynamic stratification update itself can be described by the following scheme:

Check whether the hydrodynamic equation is fulfilled at all depth points: If so, no update needs to be performed. 2. 2.

The quantities $\Gamma_{\text{rad}}(r)$ and $a(r)$ are calculated based on the current model stratification. 3. 3.

If $r_{\mathcal{\tilde{F}}}\neq r_{\mathcal{\tilde{G}}}$, the mass loss rate $\dot{M}$ is updated by a factor $f$ as described in Eq. (30) 4. 4.

Iteration:

1. (a)

Starting from $\varv(r_{\mathcal{\tilde{F}}})=a(r_{\mathcal{\tilde{F}}})$, the new velocity field is obtained via integrating Eq. (13) with a fourth-order Kunge-Kutta method using adaptive step sizes. The quantities $\mathcal{F}$ and $\mathcal{G}$ are calculated on the fly. To avoid numerical issues near the critical point, we make use of l’Hôpital’s rule. As the hydrodynamic integration requires a resolution below the regular depth grid, we use spline interpolation to obtain the interstice values for $\Gamma_{\text{rad}}$ and $a$. 2. (b)

With the new $\varv(r)$ now given, we calculate the resulting new density stratification and total Rosseland continuum optical depth $\tau_{\text{Ross}}(R_{\ast})$ 3. (c)

If the $\tau_{\text{Ross}}(R_{\ast})$ is conserved, the iteration ends. Otherwise $\Gamma_{\text{rad}}(r)$ and $a(r)$ are shifted radially and the next iteration cycle is started. 5. 5.

If necessary, the depth grid spacing is updated to better reflect the new stratification. All necessary quantities are interpolated from the old to the new grid.

After the hydrodynamic stratification update is complete, the overall iteration cycle continues with the next radiative transfer calculation (we refer also to Sect. 4.3 for details of the overall iteration). Due to the inclusion in the overall iteration cycle, the values of $\Gamma_{\text{rad}}(r)$ and $a(r)$ used in the next hydrodynamic stratification update implicitly include all effects of the former stratification and mass-loss rate update. While this procedure can significantly increase the total number of overall iterations compared to non-HD models, this iterative approach allows us to refrain from any (semi-)analytical assumptions for the radiative acceleration, making this method essentially applicable for the whole range of stars that can be described by PoWR atmosphere models. The atmosphere model is eventually considered to be converged if all of the following requirements are met:

• •

The relative corrections to the population numbers are below a certain level (typically $10^{-3}$).

• •

Flux consistency is achieved within a certain accuracy (typically setting: relative departures may not be larger than $10^{-2}$).

• •

The hydrodynamical equation is fulfilled throughout the whole atmosphere within a specified accuracy (typically $5\%$, but we allow larger deviations at the inner and outer boundary).

With the exception of the last point of course, these criteria are the same as for non-HD models, which are used for reproducing observed spectra and empirically obtain stellar and wind parameters. Based on the converged atmosphere model, the emergent spectrum is subsequently calculated in the observer’s frame, allowing us to cross-check the results with observed spectra.

6 Results

In order to test whether or not our new method is applicable to OB stars, where the approach from Gräfener & Hamann (2008) failed, we calculated a hydrodynamically consistent model for the well-studied O supergiant $\zeta$ Pup/HD 66811. Starting from the parameters given in Bouret et al. (2012), we first calculated a standard PoWR model using a prescribed $\beta$-law connected to a consistent quasi-hydrostatic part as described in Sander et al. (2015). While a model reproducing most spectral features already requires Ne, Mg, Si, P, and S to be considered, the work ratio of such a model is only $Q=0.74$. By adding further elements, most notably Ar, the work ratio was close to unity and the model could be used as a starting approach for the hydrodynamic calculations.

In our first approach, we applied the same clumping stratification as Bouret et al. (2012), that is, depth-dependent (micro-)clumping with a maximum value of $D_{\infty}=20$ or $f_{\text{V},\infty}=D^{-1}_{\infty}=0.05$ and no interclump medium. This is a standard approach in state-of-the-art atmosphere models for hot and massive stars (e.g., Hamann & Koesterke 1998; Hillier & Miller 1999) and allows one to calculate the population numbers for the clumped wind, which has a density increased by a factor $D(r)$ compared to a smooth wind. For the radiative transfer, on the other hand, one can average between the clump and interclump medium as clumps are assumed to have a small size in comparison to the mean-free path of the photons. Furthermore, instead of the standard description of depth-dependent clumping in PoWR (Gräfener & Hamann 2005), we employed the same parametrization as in the CMFGEN model from Bouret et al. (2012), namely

[TABLE]

introduced in Martins et al. (2009), where the clumping “onset” is described by a velocity $\varv_{\text{cl}}$. In their analysis for $\zeta$ Pup, Bouret et al. (2012) use $\varv_{\text{cl}}=100\,$km/s. We started with a similar stratification, but quickly realized that the value for $\varv_{\text{cl}}$ is not sufficient and leads to solutions with an overly high terminal velocity together with an overly low mass-loss rate. Stratifications where we set $\varv_{\text{cl}}=0.5\,\varv_{\text{sonic}}$ lead to better results, but since the sonic point can change during the iterations, we decided to implement another clumping stratification with

[TABLE]

that is, where we specify the clumping onset via an optical depth $\tau_{\text{cl}}$ instead of a particular velocity. This approach was eventually applied in the final model presented in this work. As we discuss later on, it was furthermore necessary to reduce the maximum clumping value to $D_{\infty}=10$ in our model. The complete set of input parameters for the final hydrodynamical model is compiled in Table 1.

In models with a predefined velocity law in the wind part, it is usually sufficient to include only those elements that can either be seen in the spectrum or contribute significantly to the blanketing. However, for the hydrodynamic models, it is essential to include all ions that have a significant contribution to the radiative force, even if they neither leave a noticable imprint in the spectrum nor significantly affect the blanketing. Yet, accounting for all elements and their ions from hydrogen up to the iron group would be numerically extremely expensive and thus practically impossible. Fortunately, various elements and ions are only important in a certain parameter regime and thus can be neglected outside of these. A list of the ions considered in the model presented in this work is given in Table 2.

The acceleration balance of the hydrodynamically consistent model is shown in Fig. 6. Throughout the atmosphere, an excellent agreement between the outward and inward forces is obtained. Up until the critical point, not only the line acceleration and the Thomson term are important, but there are also significant contributions from the gas pressure and the true continuum, that is, the continuum not produced by Thomson scattering, to the driving. In the wind part, both of the latter terms become negligible. However, it has to be noted that this is not necessarily the case for all kinds of hot stars. In the more dense Wolf-Rayet winds, situations can occur where the true continuum is not negligible in the wind (see, e.g., the consistent model for WR 111 in Gräfener & Hamann 2005). The importance of the pressure term strongly depends on the assumptions for microturbulence. In this model, a constant value of $\varv_{\text{mic}}=15\,$km/s was used in the hydrodynamic calculations. When using larger values or depth-dependent descriptions with $\varv_{\text{mic}}$ increasing outwards, the $a_{\text{press}}$-term can become significant again in the outer wind.

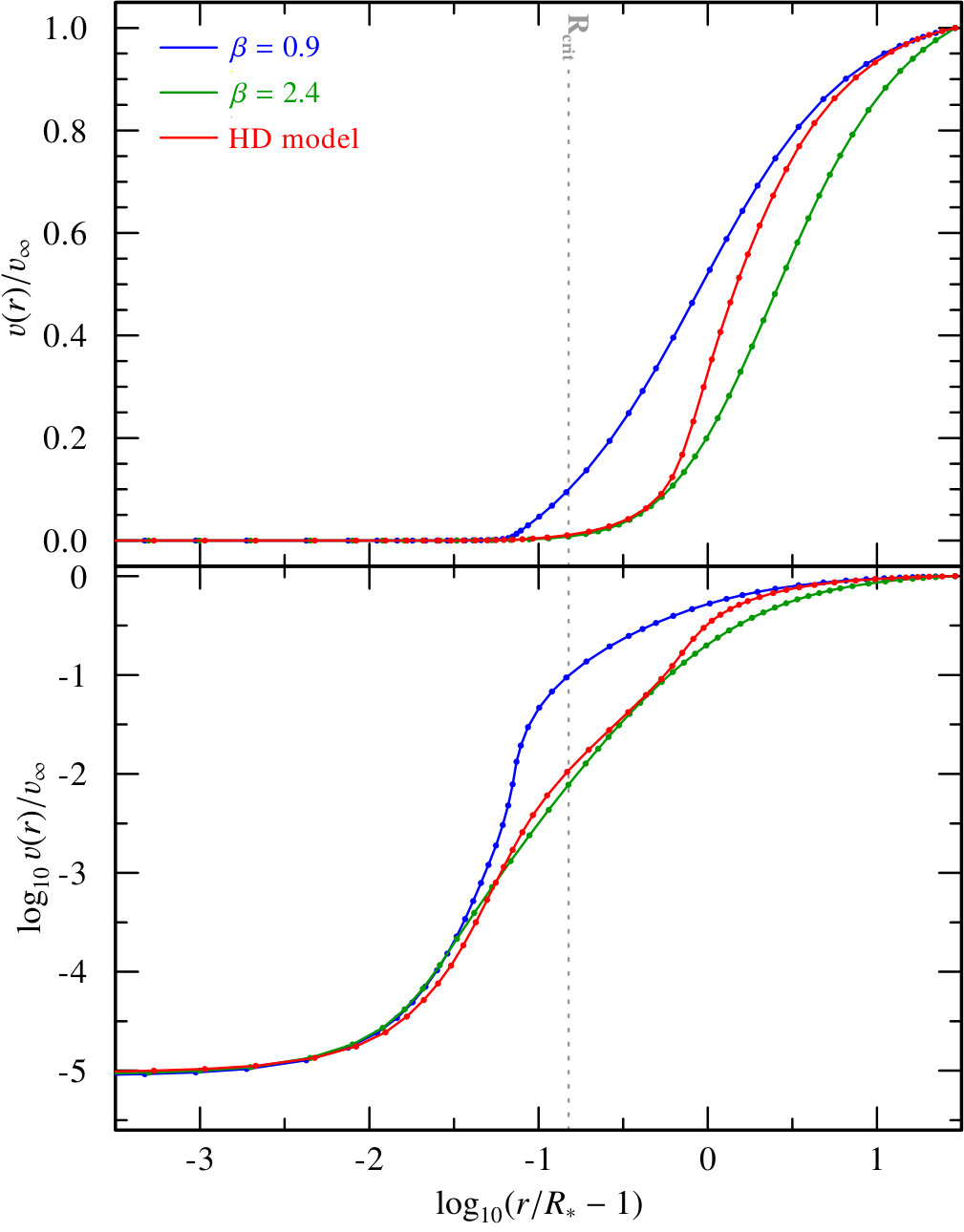

The resulting velocity field for the converged hydrodynamic models is shown in Fig. 7, where it is compared to the stratification of two standard models using a prescribed velocity field in the form of so-called $\beta$-laws, that is,

[TABLE]

When implementing the $\beta$-law into a stellar atmosphere model, Eq. (33) is usually slightly modified due to several reasons, most prominently the necessity to connect the wind domain with a proper quasi-hydrostatic domain (see Sander et al. 2015, for more details) and the numerical issues that would occur for $\varv(R_{\ast})=0$. This modification can be done in more than one way and thus also differ between different stellar atmosphere codes. In PoWR, two ways of “fine parametrization” for the $\beta$-law are available, namely

[TABLE]

and

[TABLE]

with their fine parameters $p$ and $R_{\text{s}}$ or $f_{\text{s}}$, respectively. While $R_{\text{s}}$ or $f_{\text{s}}$ are responsible for a proper connection of the wind and the quasi-hydrostatic domain, $p\approx\varv_{\infty}$ ensures that the specified terminal velocity is reached at the outer boundary. All fine parameters are automatically calculated depending on the choices of the velocity field, the connection criterion and whether the parametrization from Eq. (34) or from Eq. (35) should be used.

For the hydrodynamically consistent model presented in this work, there is of course no prescribed wind velocity field, but for the comparison calculations we had to make a choice and used Eq. (34) since it is more widely used in modern PoWR models. Interestingly the velocity field in the lower part of the wind, just above the sonic point, can be approximated with a beta law using $\beta=2.4$, but the outer part of the wind is best matched with $\beta=0.9$. Due to the fact that the fine parametrization is not unique as described above, these deduced $\beta$-law approximations can vary slightly ($10$ to $20$%) when using different fine parametrizations. In-between the two parts there is a steep increase of the velocity, steeper than could be modeled by a $\beta$-law connected to the quasi-hydrostatic part. The reasons for this kind of velocity field are revealed when looking at the particular contributions to the radiative acceleration plotted in Fig. 8. Around and shortly above the critical point, only the iron group elements and the electron scattering contribute significantly to the radiative acceleration. In contrast, further outwards, many more elements contribute, and for $r>1.6\,R_{\ast}$ N, O, and Ar start to exceed not only $\Gamma_{\text{e}}$, but also the contribution of the iron group elements. S, Cl, and Ne follow further out and for $r\gtrsim 2\,R_{\ast}$ also the contributions of C and P are comparable to $\Gamma_{\text{e}}$, having even a bit more impact than the iron group at this distance.

The complex contribution to the radiative force from the various elements is directly imprinted in the resulting velocity field and thus “naturally” explains the deviations from a standard $\beta$-law which has been derived from a taylored fit of the UV resonance line profiles already by Hamann (1980). While we do not see a noticeable velocity plateau in the final model, such a plateau occurred in several of the test models derived during the preparation of this work. The plateau becomes visible if the iron group contribution already exceeds $\Gamma_{\text{e}}$ around or even below the sonic point, which can already happen for slightly higher mass-loss rates than derived for $\zeta$ Pup here.

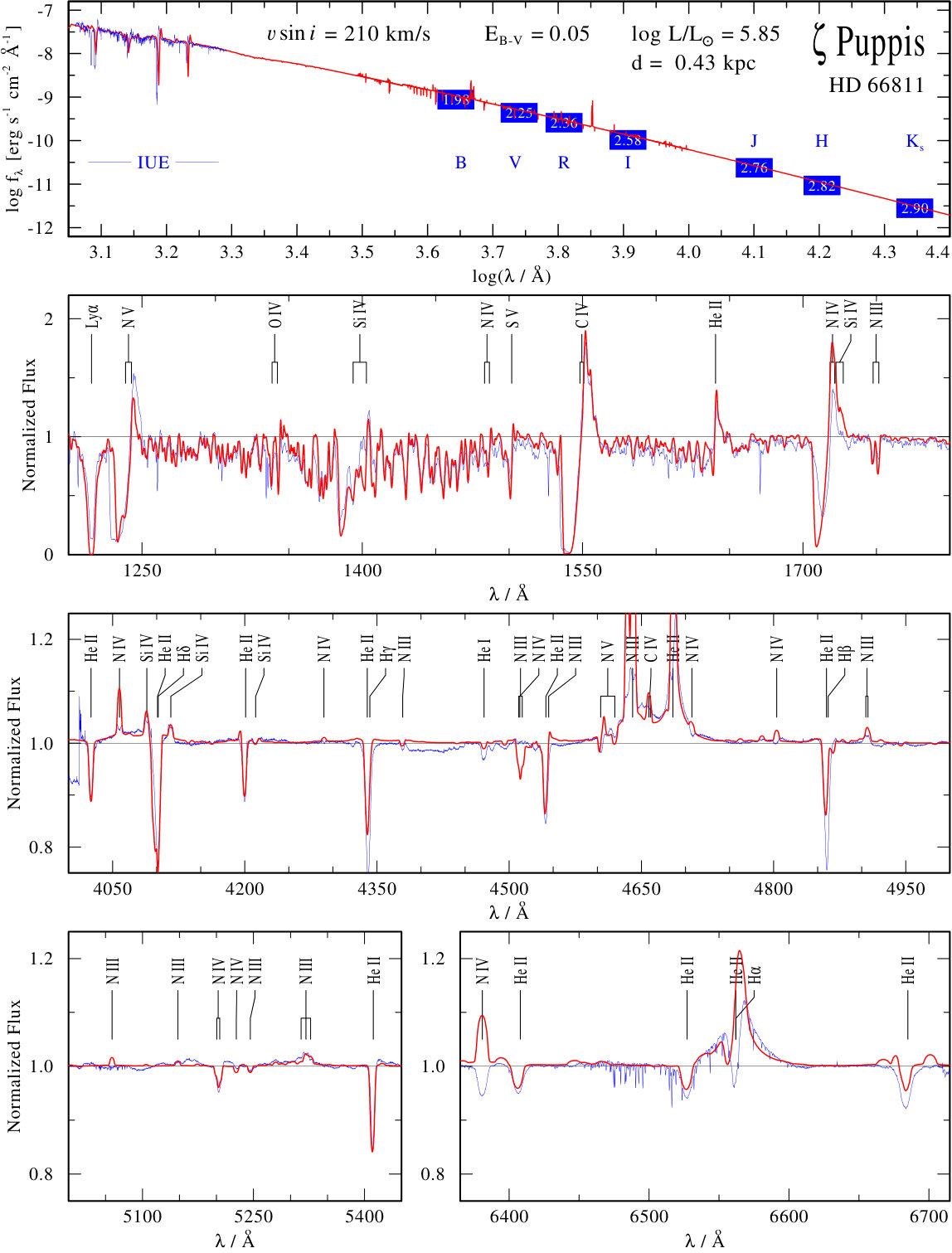

The derived parameters of our hydrodynamically consistent model are compiled in Table 3, while the spectral energy distribution and important parts of the normalized spectrum are compared to observations in Fig. 9. The UV observation was obtained with the IUE satellite (SWP15296) while the optical spectrum stems from an earlier observation within our group (Hamann, priv. comm.). The photometric data used in the SED plot have been taken from Ducati (2002). While the displayed model is rather to demonstrate the new technique described in the previous section and therefore has not been fine-tuned to precisely reproduce the spectral features of $\zeta$ Pup, one can still compare the main parameters to spectral analyses. While the starting parameters were motivated by the non-hydrodynamical model results from Bouret et al. (2012), their high clumping factor of $20$ would lead to an underprediction of the H$\alpha$ electron scattering wings and thus was reduced to the more typical value of $10$. The mass-loss rate of $\log\dot{M}=-5.8$ is slightly lower than in Bouret et al. (2012), but higher than the value obtained by Pauldrach et al. (2012).

The emergent spectrum of our hydrodynamical model shows all the typical features of an early Of-type star with a fast wind and strong emission in both N iii $\lambda 4634$-$40$-$42$ and He ii $\lambda 4686$ (see, e.g., Sota et al. 2011, for a classification scheme). When comparing the detailed spectral appearance to the observation of $\zeta$ Pup in Fig. 9, one can conclude that the UV spectrum, including the iron forest, is well reproduced apart from the precise shape of the nitrogen profiles, which can be affected by various parameters including so-called “superionization” due to X-rays, which were not included in our model. The optical spectrum reveals that the mass-loss rate might be slightly too high to reproduce this observation, since emission in H$\alpha$ and the other prominent emission lines appears slightly too strong. Also H$\beta$ and H$\gamma$ seem to be filled up by wind emission. The overall appearance, however, as well as the spectral energy distribution, are nicely reproduced, illustrating that we have a realistic stellar atmosphere model that would require only minor parameter adjustments to allow for a more detailed discussion. Unfortunately even these minor changes can lead to a significant amount of calculation effort when constructing hydrodynamically consistent models, which is why we refrain from further efforts in this introductory paper.

7 Conclusions

In this work we constructed the first hydrodynamically consistent PoWR model for an O supergiant. A new method for the consistent solution of the hydrodynamic equation, together with the solution of the statistical equations, the temperature stratification, and the radiative transfer has been developed and successfully applied. This new technique enables us to construct a new generation of PoWR models where the velocity field and the mass-loss rate are calculated consistently. To obtain the velocity field, the hydrodynamic equation is integrated inwards and outwards from the critical point. Since we provide the radiative acceleration calculated in the comoving frame as a function of radius, the critical point in our hydrodynamic equation is identical to the sonic point. The uniqueness of the critical point also provides the necessary condition to obtain the mass-loss rate.

As we calculate the velocity field from the hydrodynamic equation, it is mandatory to include all ions that significantly contribute to the radiative acceleration somewhere in the atmosphere. In the case of our demonstration model, especially the inclusion of Ar was crucial as it provides a major contribution to the driving in the outer wind, comparable to N and O, although it does not leave detectable features in the spectral ranges typically observed.

In the region around the critical point, the most important line driving contribution stems from the iron group elements. Although these elements turn out to be important contributors throughout the whole atmosphere for our demonstration model, there are several other elements exceeding their input in the outer part, namely N, O, S, Ar, Cl, C, P and partly Ne. Further follow-up calculations for a wider parameter range will be necessary to shed light on details; namely, which ions are responsible, and how this picture will change when transitioning to different mass-loss or temperature regimes.

The obtained velocity field cannot be approximated by a $\beta$-law. The resulting mass-loss rate of our hydrodynamic model is in the range of what has been determined by empirical analyses for the O4 supergiant $\zeta$ Pup, and the resulting spectrum resembles the observed line spectrum and the spectral energy distribution (cf. Fig. 9). Our calculations confirm that the value of the mass-loss rate crucially depends on the location of the critical point, which in turn reacts to several factors, such as the assumed microturbulence, the onset of clumping, and the Fe abundance. Follow-up research will therefore be required in order to study the precise influence of these and other parameters.

Acknowledgements.

We would like to thank the anonymous referee for the fruitful suggestions that helped to improve this paper. We would also like to acknowledge helpful discussions with D. John Hillier. The first author of this work (A.S.) is supported by the Deutsche Forschungsgemeinschaft (DFG) under grant HA 1455/26. T.S. is grateful for financial support from the Leibniz Graduate School for Quantitative Spectroscopy in Astrophysics, a joint project of the Leibniz Institute for Astrophysics Potsdam (AIP) and the Institute of Physics and Astronomy of the University of Potsdam. This research made use of the SIMBAD and VizieR databases, operated at CDS, Strasbourg, France.
