Ultra-small moment incommensurate spin density wave order masking a ferromagnetic quantum critical point in NbFe$_2$

TL;DR

This study reveals a long-wavelength spin density wave state in NbFe$_2$ that masks a ferromagnetic quantum critical point, with the SDW wavevector depending on composition and temperature, challenging simple band structure explanations.

Contribution

First characterization of a SDW state in NbFe$_2$ that conceals a ferromagnetic quantum critical point, with detailed phase diagram and Landau theory analysis.

Findings

SDW order depends on Fe excess y and temperature

SDW wavevector decreases approaching ferromagnetism

Results suggest a common origin for SDW and ferromagnetic order

Abstract

In the metallic magnet Nb$_{1-y}$Fe$_{2+y}$, the low temperature threshold of ferromagnetism can be investigated by varying the Fe excess $y$ within a narrow homogeneity range. We use elastic neutron scattering to track the evolution of magnetic order from Fe-rich, ferromagnetic Nb$_{0.981}$Fe$_{2.019}$ to approximately stoichiometric NbFe$_2$, in which we can, for the first time, characterise a long-wavelength spin density wave state burying a ferromagnetic quantum critical point. The associated ordering wavevector $\mathbf{q}_{\rm SDW}=$(0,0,$l_{\rm SDW}$) is found to depend significantly on $y$ and $T$, staying finite but decreasing as the ferromagnetic state is approached. The phase diagram follows a two order-parameter Landau theory, for which all the coefficients can now be determined. Our findings suggest that the emergence of SDW order cannot be attributed to band structure effects alone. They indicate a common microscopic origin of both types of magnetic order and provide strong constraints on related theoretical scenarios based on, e.g., quantum order by disorder.

Figures

Equations

$$F/{\mu }_0=\frac{a}{2}{M}^2+\frac{b}{4}{M}^4+\frac{\alpha }{2}{P}^2+\frac{\beta }{4}{P}^4+\frac{\eta }{2}{P}^2{M}^2$$

Full text

ferromagnetism, quantum phase transitions, quantum criticality, new phases, emerging modulated order, intermetallic systems

The exploration of ferromagnetic quantum phase transitions in metals has motivated numerous theoretical and experimental studies Brando et al. (2016), which have led to the discovery of non-Fermi liquid states Uhlarz et al. (2004); Niklowitz et al. (2005) and of unconventional superconductivity (e.g. Pfleiderer and Huxley (2002); Saxena et al. (2000); Alireza et al. (2010)). The underlying question, however, whether a ferromagnetic quantum critical point (QCP) can exist in clean band magnets, remains controversial. Fundamental considerations Pfleiderer (2004); Vojta et al. (1999); Chubukov et al. (2004) suggest that the ferromagnetic QCP is avoided in clean systems by one of two scenarios: either the transition into the ferromagnetic state becomes discontinuous (first order), or the nature of the low temperature ordered state changes altogether, for instance into nematic or long-wavelength spin density wave (SDW) order Vojta et al. (1999); Chubukov et al. (2004). Whereas there are many examples for the first scenario, including ZrZn2 Uhlarz et al. (2004), Ni3Al Niklowitz et al. (2005) and UGe2 Pfleiderer and Huxley (2002), the transition into a modulated state on the border of band ferromagnetism has proven to be more challenging to investigate. Recent reports show that this scenario may apply more widely beyond the comparatively simple band ferromagnets for which it was first discussed: (i) the masking of the field-tuned quantum-critical end point of the continuous metamagnetic transition of Sr3Ru2O7 by two SDW phases Lester et al. (2015), (ii) the evolution of FM into long-wavelength SDW fluctuations in the heavy-fermion system YbRh2Si2 Stock et al. (2012), which displays a high Wilson ratio Gegenwart et al. (2005) and becomes FM under Co-doping Lausberg et al. (2013), (iii) the emergence at finite temperature of SDW order in the ferromagnetic local moment system PrPtAl Abdul-Jabbar et al. (2015), and the appearance of modulated magnetic order at the border of pressure-tuned FM systems CeRuPO Lengyel et al. (2015), MnP Cheng et al. (2015), or LaCrGe3 Kaluarachchi et al. (2017).

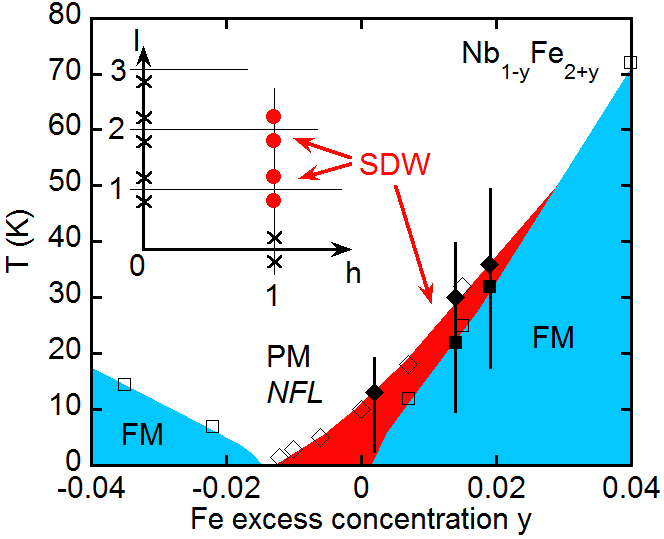

The band magnet NbFe2 is a particularly promising candidate for investigating the SDW scenario in a clean itinerant system, because it is located near the border of ferromagnetism at ambient pressure Shiga and Nakamura (1987), enabling multi-probe studies and, in particular, neutron scattering. Ferromagnetic order can be induced at low temperature by growing Fe-rich Nb1-yFe2+y with $y$ as small as 1% (Figure 1 Moroni-Klementowicz et al. (2009)). Compton scattering results on the Fe-rich side of the phase diagram have been analyzed by assuming ferrimagnetism as the ground state Haynes et al. (2012), but more direct probes of the local fields by Mößbauer spectroscopy point to ferromagnetism as the ground state Rauch et al. (2015). The precise low temperature state for $y=0$ has remained unidentified since early NMR studies first suggested that stoichiometric NbFe2 may display low-moment SDW order Yamada and Sakata (1988). Repeated attempts to detect the SDW order in neutron scattering were unsuccessful, but recent results from ESR, $\mu$SR, and Mößbauer spectroscopy also point strongly towards SDW order Rauch et al. (2015). Non-Fermi liquid forms of resistivity and low temperature heat capacity have been observed in slightly Nb-rich NbFe2. Brando et al. (2008)

Here, we present the outcomes of a neutron diffraction study, which for the first time demonstrates unambiguously the existence of a long-wavelength modulated magnetic state (SDW) forming on the border of ferromagnetic order at low temperature in stoichiometric single crystals of NbFe2. We track its evolution with temperature and composition and probe the underlying ferromagnetic order. We find that the SDW state indeed displays a very small ordered moment $\mu_{\rm s}<0.1$ $\mu_{\rm B}/(\mbox{Fe atom})$, which explains why previous neutron scattering experiments failed to detect it. Our data confirms the second order nature of the PM-SDW phase transition and a temperature hysteresis in the SDW ordering wavevector suggests that the SDW-FM phase transition is first order. The observed characteristics of the SDW order including the evolution of its ordering wavevector, which we find decreases on approaching the FM transition, as well as our theoretical analysis of the resulting phase diagram suggest that the occurrence of long wavelength SDW order on the border of FM in NbFe2 is not coincidental, but rather emerges from the proximity to a FM quantum critical point, which is buried within the SDW dome.

Experimental.—

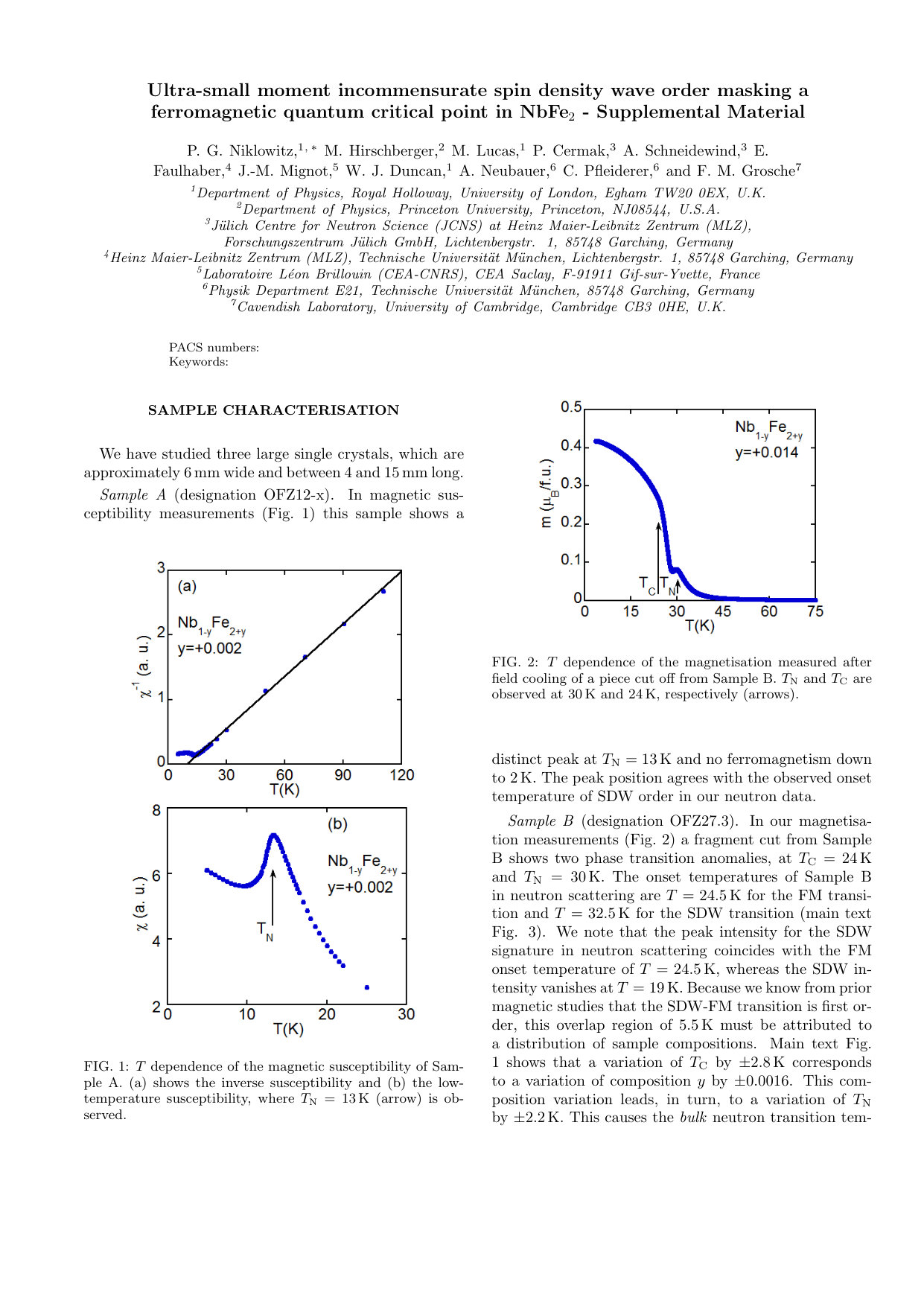

Large single crystals of C14 Laves phase NbFe2 (lattice constants $a=4.84$ Å and $c=7.89$ Å) with compositions chosen across the iron-rich side of the homogeneity range have been grown in a UHV-compatible optical floating zone furnace from polycrystals prepared by induction melting Neubauer et al. (2011). The single crystals have been characterised extensively by resistivity, susceptibility, and magnetisation measurements, as well as by x-ray diffraction and neutron depolarization Pfleiderer et al. (2010); Neubauer (2011); Duncan (2011), the latter showing homogeneity in structure and chemical composition. In this study, three samples have been measured: (i) sample A, which is almost stoichiometric ($y=+0.003$); (ii) sample B, which is slightly Fe-rich ($y=+0.015$); and (iii) sample C, which is more Fe-rich still ($y=+0.020$) nik .

For the neutron scattering experiments the samples were mounted on Al holders and oriented with ($h0l$) as the horizontal scattering plane. In order to enhance the signal to background ratio neutron diffraction was carried out at two cold triple-axis spectrometers in elastic mode: Panda at the Heinz Maier-Leibnitz Zentrum (MLZ) Heinz Maier-Leibnitz Zentrum (2015) (2015) and 4F2 at the Laboratoire Léon Brillouin (LLB). Panda was run with neutron wavevectors $k_{\rm i}=k_{\rm f}=1.57$ Å*-1* and 4F2 was used with $k_{\rm i}=k_{\rm f}=1.30$ Å*-1* nik .

Results.—

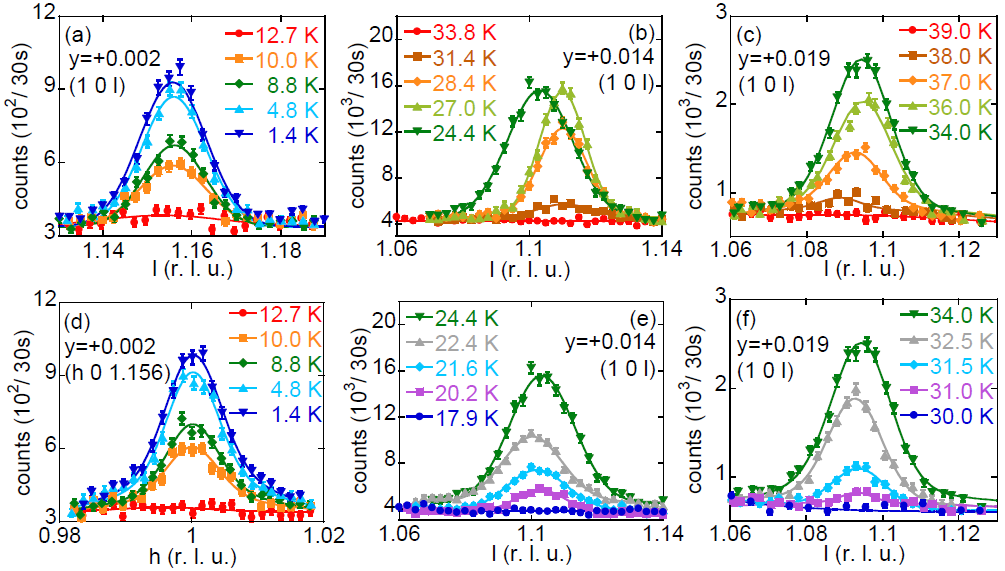

The principal discovery of SDW Bragg reflections in the Nb1-yFe2+y system is presented in Fig. 2, which focuses on the reflection $(101)^{+}$ at $\mathbf{Q}=(1,0,1)+\mathbf{q}_{\rm SDW}$ with $\mathbf{q}_{\rm SDW}=(0,0,l_{\rm SDW})$. SDW Bragg reflections corresponding to an ordering wavevector $\mathbf{q}_{\rm SDW}$ have been confirmed for all samples of this study. $l_{\rm SDW}$ shows a significant $y$ and $T$ dependence, which will be discussed further below. We have also established the SDW’s long-range character nik . In addition to the data discussed above of the $(101)^{+}$ reflection, the vicinity of nuclear Bragg reflections has been scanned for further SDW satellite peaks. SDW satellite peaks are present at $\mathbf{Q}=(1,0,1)\pm\mathbf{q}_{\rm SDW}$ and $\mathbf{Q}=(1,0,2)\pm\mathbf{q}_{\rm SDW}$ but they are absent at $\mathbf{Q}=(1,0,0)\pm\mathbf{q}_{\rm SDW}$ and at $\mathbf{Q}=(0,0,l)\pm\mathbf{q}_{\rm SDW}$ with $l=1,2,3$ (see inset of Fig. 1). This distribution of allowed and forbidden satellite Bragg peaks is consistent with moment orientation along the $c$-axis, suggesting a lineary polarized SDW state rather than spiral order. Based on AC susceptibility and torque magnetometry data, the $c$-direction has been determined to be the magnetic easy-axis independent of the chemical composition Kurisu et al. (1997); Hirschberger (2011).

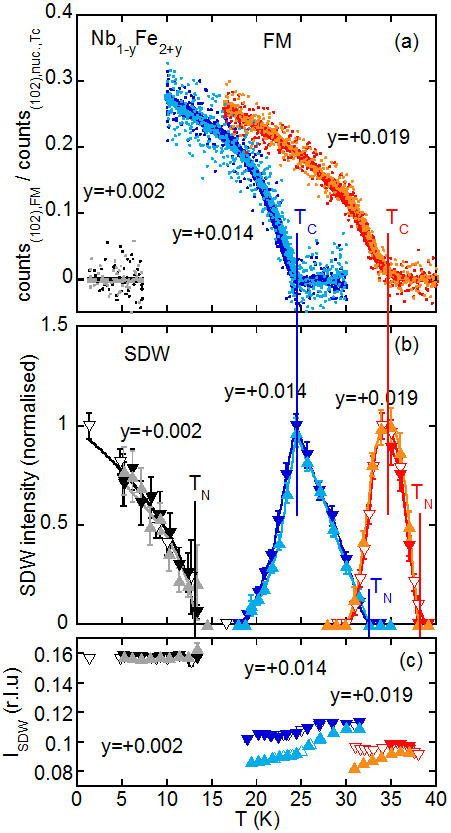

Magnetic neutron scattering from the FM order has been observed at the position of the weak nuclear Bragg point $(102)$. Fig. 3a shows the $T$ dependence of the intensities of the FM $(102)$ Bragg reflections normalised by the intensities of the nuclear $(102)$ reflections at $T_{\rm C}$ for all three compositions. Conversion to FM ordered moments $\mu_{\rm FM}$ has been obtained as described in nik . In the Fe rich Samples B and C, FM order is observed at low temperatures. The measurements of the FM $(102)$ signals (Fig. 3a) and peaks of the SDW signals (Fig. 3b, see below) reveal onset temperatures at $T=24.5$ K in sample B and $T=34$ K in sample C.

The $T$ dependences of the SDW ordered moments $\mu_{\rm s}$ for all samples are shown in Fig. 3b. $\mu_{\rm s}$ has been obtained from integrated intensities at $\mathbf{Q}=(1,0,1+l_{\rm SDW})$ and comparison with nuclear and FM $(102)$ intensities as described in nik . In the almost stoichiometric Sample A, SDW order emerges below $T_{\rm N}=14.5$ K and is present down to the lowest measured temperature of $1.4$ K. In the slightly Fe-rich Sample B SDW order appears below $T=32.3$ K and is fully suppressed below $T=18.5$ K. Finally, in the most Fe-rich Sample C SDW order appears below $T=38.3$ K and is fully suppressed below $T=30.5$ K. The small size of the SDW moments ($\mu_{\rm s}<0.1$ $\mu_{\rm B}/(\mbox{Fe atom})$) explains the difficulties in observing the SDW order in previous neutron diffraction experiments.

In all three samples, the SDW intensity rises continuously below the onset temperature $T_{\rm N}$, suggesting a second-order PM-SDW transition. The peak SDW intensity coincides with the FM onset temperature $T_{\rm C}$ in samples B and C, and there is a $T$-range below $T_{\rm C}$, in which SDW and FM order appear to coexist. This overlap can be attributed to a distribution of transition temperatures within the sample, giving bulk $T_{\rm N}=30.1$ K, $T_{\rm C}=21.5$ K, (Sample B) and $T_{\rm N}=37.1$ K, $T_{\rm C}=32.2$ K (Sample C) in good agreement with bulk magnetic response nik .

The SDW ordering wavevector $\mathbf{q}_{\rm SDW}=(0,0,l_{\rm SDW})$ is found to depend significantly on composition and temperature (Fig. 3c): (i) the $c$-axis pitch number shifts from $l_{\rm SDW}(T_{\rm N})=0.157(1)$ in Sample A to $l_{\rm SDW}(T_{\rm N})=0.095(1)$ in Sample C (corresponding to an incommensurate modulation along the $c$-axis with a pitch in the range $\lambda_{\rm SDW}\approx 50-100$ Å); (ii) in Samples B and C $l_{\rm SDW}$ shows a significant $T$ dependence, decreasing by about 20% with decreasing $T$; (iii) $l_{\rm SDW}(T)$ stays finite at the SDW-FM transition, so there is a discontinuous change in the magnitude of the magnetic ordering wavevectors there from finite ($q_{\rm SDW}$) to zero ($q_{\rm FM}$); (iv) in Samples B and C $l_{\rm SDW}(T)$ reproducibly displays significant thermal hysteresis with lower $l_{\rm SDW}$ values when warming into the SDW phase from the FM state. (i) and (ii) means that $l_{\rm SDW}$ is being reduced on approaching FM and (iii) and (iv) point to the first-order nature of the SDW-FM transition.

Discussion.—

The delicate SDW state of the Nb1-yFe2+y system occurs in a narrow composition and temperature range attached to the threshold of FM order (Fig. 1). Because the SDW-FM transition is first order, the emergence of the SDW state masks the FM QCP and buries it inside a SDW dome. Our neutron diffraction results have revealed the following main characteristics of the SDW state: (i) an incommensurate ordering wavevector $\mathbf{q}_{\rm SDW}$ with its striking dependence on $y$ and $T$, (ii) the long range nature in contrast to what would be expected for a spin glass Binder and Young (1986), and (iii) a small linearly polarised ordered moment. The small ordered moments, which contrast with the large fluctuating moments $\mu_{\rm eff}\approx 1$ $\mu_{\rm B}$ derived from the temperature dependence of the magnetic susceptibility, and the linearly polarized rather than helical order suggest that the SDW state should be understood within a band picture, not a local moment picture. However, the $y$ and $T$ dependent values of $\mathbf{q}_{\rm SDW}$ cannot be explained based on the electronic band structure alone.

Within density functional theory (DFT), the implications of the electronic band structure for magnetic order have been examined in detail. Direct total energy calculations for different ordering patterns Subedi and Singh (2010); Tompsett et al. (2010); Neal et al. (2011) suggest that energy differences between a number of magnetic ground states are very small. Moreover, the wavevector dependence of the bare band structure derived susceptibility $\chi_{\mathbf{q}}^{(0)}$ or Lindhard function Subedi and Singh (2010); Tompsett et al. (2010) is not consistent with the long-wavelength SDW order reported here as it does not feature a significant enhancement near the measured $\mathbf{q}_{\rm SDW}$ range, suggesting that SDW order in NbFe2 has a more subtle origin. The observed dependence of $q_{\rm SDW}$ (Fig. 3c), which decreases as the FM state is approached, indicates that $\chi_{q}$ is strongly modified by order parameter fluctuations on the threshold of FM.

The close connection between modulated and uniform magnetic order in NbFe2 is striking. It can be modelled effectively with the help of a Landau expansion of the free energy in terms of the two order parameters $M$ (for FM) and $P$ (for SDW order) Friedemann et al. (2018), which in zero field reduces to

[TABLE]

The use of this model is corroborated in this study by the observation that $q_{\rm SDW}$ does not go to zero but stays finite at the SDW-FM transition. While the parameters $a$ and $b$ can be obtained from magnetization measurements, this is not possible for the parameters $\alpha$, $\beta$ and $\eta$. They can, however, be determined from the SDW ordered moment $P$ observed in our neutron scattering study. We make use of the Landau theory result that $P^{2}=-\alpha/\beta$ and that within the SDW phase the intercept $a^{*}$ and slope $b^{*}$ of the Arrott plot $H/M$ vs. $M^{2}$, which can be determined in bulk magnetization measurements, become $a^{*}=a-\alpha\eta/\beta$ and $b^{*}=b-\eta^{2}/\beta$ Friedemann et al. (2018). Writing $a=a_{1}(T-T_{0})$ and $\alpha=\alpha_{1}(T-T_{N})$, we find that the parameters characterising the SDW order vary slowly with composition and are of similar magnitude as those characterising the FM order: $\alpha_{1}/\alpha\simeq\beta/b\simeq 2\pm 1$ and that the coupling parameter $\eta\simeq\beta$ nik . This implies that the ratio $\eta/\sqrt{\beta b}>1$ throughout, which rules out phase coexistence within the two-parameter Landau theory, in agreement with experimental observations. Most importantly, the parameter values point towards a common microscopic origin of both types of magnetic order and puts strong constraints on a microscopic theory of magnetism in NbFe2.

A number of theoretical studies Belitz et al. (1997); Vojta et al. (1999); Chubukov et al. (2004); Brando et al. (2016) have noted that the FM quantum critical point is unlikely to be observed in clean, 3D ferromagnets, and will instead either be avoided by a change of the magnetic transition from second order to first order or masked by the emergence of long-wavelength SDW. Both scenarios can be attributed to nonanalytic terms in the free energy associated with soft modes. These contribute a singular $q$-dependence of the form $q^{2}\ln q$ to $\chi_{q}^{-1}$ and thereby produce an intrinsic tendency towards long-wavelength modulated order as the FM QCP is approached. An alternative approach Karahasanovic et al. (2012) arrived at similar conclusions by considering the contribution of order parameter fluctuations to the free energy, when different ordered states were imposed, causing differences in the phase space available to critical fluctuations of FM and modulated magnetic order. Helical order in the local moment system PrPtAl Abdul-Jabbar et al. (2015) has recently been presented as a likely manifestation of this scenario, but a demonstration in a band magnet is still outstanding.

New neutron data demonstrate that SDW order emerges near the border of ferromagnetism in the C14 Laves phase system Nb1-yFe2+y, burying an underlying FM QCP. This suggests that the SDW order in Nb1-yFe2+y is caused by an intrinsic instability of a ferromagnetic quantum critical point to modulated magnetic order, which has been postulated on the basis of fundamental considerations but has not before been detected in a band magnet.

This work is based upon experiments performed at the PANDA instrument operated by JCNS at the Heinz Maier-Leibnitz Zentrum (MLZ), Garching, Germany, and at the 4F2 instrument at LLB, CEA-Saclay, France. We acknowledge support by the EPSRC through grant EP/K012894/1 and by the German Science Foundation (DFG) through FOR 960 (CP) and SFB/TR 80 (CP). This research project has also been supported by the European Comission under the 7th Framework Programme through the ’Research Infrastructures’ action of the ’Capacities’ Programme, Contract No: CP-CSA_INFRA-2008-1.1.1 Number 226507-NMI3. We thank S. Friedemann, M. Brando, and S. Süllow for helpful discussions.
