BCS theory of time-reversal-symmetric Hofstadter-Hubbard model

TL;DR

This paper investigates how competing length scales in a Hofstadter-Hubbard model with time-reversal symmetry influence superfluid phases and phase transitions in a two-component Fermi gas on an optical lattice.

Contribution

It introduces a detailed analysis of the many-body BCS pairing in a Hofstadter-Hubbard model with opposite synthetic magnetic fields, revealing complex phase diagrams with lobe structures.

Findings

Identification of superfluid, semi-metal, and quantum spin-Hall phases.

Discovery of lobe-shaped phase boundaries similar to Mott insulators.

Analysis of phase transitions from various insulating and metallic states.

Abstract

The competition between the length scales associated with the periodicity of a lattice potential and the cyclotron radius of a uniform magnetic field is known to have dramatic effects on the single-particle properties of a quantum particle, e.g., the fractal spectrum is known as the Hofstadter butterfly. Having this intricate competition in mind, we consider a two-component Fermi gas on a square optical lattice with opposite synthetic magnetic fields for the components, and study its effects on the many-body BCS-pairing phenomenon. By a careful addressing of the distinct superfluid transitions from the semi-metal, quantum spin-Hall insulator or normal phases, we explore the low-temperature phase diagrams of the model, displaying lobe structures that are reminiscent of the well-known Mott-insulator transitions of the Bose-Hubbard model.

Figures

Equations

$$H_{MF}$$

$$\frac{1}{U}=-\frac{1}{M}\sum _{n\mathbf{k}}\frac{1}{2E_{\mathbf{k}n}}\tanh \left(\frac{E_{\mathbf{k}n}}{2k_{B}T}\right),$$

$$F=\frac{1}{qM}\sum _{n\mathbf{k}}\left[1-\frac{{ϵ}_{\mathbf{k}n}}{E_{\mathbf{k}n}}\tanh \left(\frac{E_{\mathbf{k}n}}{2k_{B}T}\right)\right],$$

Full text

Introduction.— The discoveries of integer and fractional quantum-Hall effects in 1980s brought a new breath in solid-state and condensed-matter physics, attracting a never-ending interdisciplinary attention since then QHE . For instance, some mathematical ideas from the topology turned out to be very successful in explaining the robustness of these effects, making the so-called topological insulators a very popular research theme in modern physics. These materials are intrinsically insulating in the bulk but have conducting edge/surface states that are robust against local perturbations TI review . While the earlier proposals require a broken $\mathcal{T}$ symmetry as can be realized under an external magnetic field, the quantum spin-Hall insulators (SHI) preserved it Kane ; QSH experiment in such a way that the currents carried by electrons with different spin states flow in opposite directions along the edges of the sample without dissipation.

In the mean time, the successful creation of atomic BECs in 1990s and the tunable BCS-BEC crossover in 2000s ignited researchers to transfer many of the model Hamiltonians developed in physics all across-the-board into the realm of ultra-cold atomic systems Cold atoms . For instance, the recent production of synthetic magnetic fields for neutral atoms Artificial was followed by the realization of the celebrated Harper-Hofstadter model Harper ; Hofstadter in the presence of an optical lattice Hofstadter experiment 1 ; Hofstadter experiment 2 ; ketterle13 ; ketterle15 ; goldman15 ; spielman15 ; greiner16 , the $\mathcal{T}$-preserving schemes of which were also developed to realize the quantum spin-Hall Hamiltonians Hofstadter experiment 1 ; ketterle13 . Besides having an intriguing fractal spectrum, the generic Harper-Hofstadter model not only features the integer quantum-Hall effect Thouless but it also hosts Dirac-cone physics for certain magnetic fluxes. These cones are at the heart of certain phenomena in graphene-type materials with a honeycomb lattice, including the quantum spin-Hall effect with an additional gap-opening mechanism Kane 2 and the semi-metal (SM)-BCS superconductivity transition Paramekanti ; Sonin .

The Hofstadter physics is enriched even more by the effects of interactions. For instance, while it gives rise to a complicated shape for the transition boundary between the superfluid (SF) and Mott-insulator phases in the context of repulsive Bose-Hubbard model BoseHubbard ; BosonicHH , it promotes a playground for a variety of inhomogeneous SF phases with vortex-lattice or stripe orders in the context of attractive Hubbard model Zhai ; Iskin ; umucalilar16 . Furthermore, the $\mathcal{T}$-preserving Hofstadter-Hubbard models have also been investigated soon after its reazilations with cold atoms Hofstadter experiment 1 ; ketterle13 , offering a wealth of phase transitions. For instance, while the repulsive interactions may pair up the fractional quantum-Hall states to form fractional quantum spin-Hall states Ueda in a Bose gas, it may drive a phase transition from an SM to an antiferromagnetic insulator in a Fermi gas Hofstetter . In addition, the attractive interactions in a Fermi gas may drive phase transitions from an SM or an SHI to an SF phase Troyer ; Torma ; Nishida , motivating this work.

In this paper, we present a systematic analysis of the SF transition in a $\mathcal{T}$-symmetric Hofstadter-Hubbard model, and explore the resultant phase diagrams for a wide-range of model parameters. Unlike the existing literature on the Hofstadter-Hubbard model with a broken $\mathcal{T}$-symmetry Zhai ; Iskin ; umucalilar16 , we first show that the SF phase is characterized by a spatially-uniform order parameter, despite the presence of a complicated single-particle spectrum brought about by the interplay of the lattice potential and the magnetic field. Based on this observation, we identify distinct transitions from the SM, SHI, normal (N), and vacuum (V) phases to the homogenous SF phase with respect to the single-particle density of states of the multi-band energy spectrum. See Fig. 1 for a typical illustration, whose lobe structures are reminiscent of the Mott-insulator transitions of the SF Bose gas on a lattice. We also pay special attention to the magnetic-flux dependence of the interaction threshold for the SM-SF triple point and determine the hallmark attributes of the SF order parameter depending on the type of the transition, providing analytical expressions in various limits. Besides capturing the essential physics of the model Hamiltonian, we hope that our simpler mean-field results may also work as a benchmark for more accurate but numerically-demanding QMC simulations Troyer .

Mean-field theory.— To describe the kinematics of a quantum particle in a tight-binding square lattice potential, we start with the following single-particle Hamiltonian, $H_{B}=-t\sum_{\langle ij\rangle\sigma}(e^{\mathrm{i}2\pi\phi_{ij}^{\sigma}}c^{\dagger}_{i\sigma}c_{j\sigma}+\text{h.c.}),$ where $t>0$ is the hopping amplitude between nearest-neighbor sites $\langle ij\rangle$, i.e., $c^{\dagger}_{i\sigma}$ ($c_{i\sigma}$) creates (annihilates) a fermion at site $i\equiv(i_{x},i_{y})$ with pseudo-spin index $\sigma\equiv\{\uparrow,\downarrow\}$, and h.c. is the Hermitian conjugate. The perpendicular magnetic field is taken into account via minimal coupling, where the hopping particle acquires a spin-dependent phase, $\phi_{ij}^{\sigma}=(s_{\sigma}/\phi_{0})\int_{{\bf r}_{j}}^{{\bf r}_{i}}{\bf A}\cdot d{\bf r},$ with $s_{\uparrow}=+1$ and $s_{\downarrow}=-1$. Here, $\phi_{0}$ is the magnetic-flux quantum and ${\bf A}=(0,Bx)$ is the vector potential in the Landau gauge with $B$ the magnitude of the effective magnetic field. For a given magnetic-flux quanta per unit cell $\alpha=Ba^{2}/\phi_{0}$, with $a\to 1$ the lattice constant, the particle gains an Aharonov-Bohm factor $\exp(\mathrm{i}2\pi s_{\sigma}\alpha)$ after traversing a loop around the unit cell. This is the so-called time-reversal-symmetric Hofstadter model Troyer ; Hofstetter as realized in recent cold-atom experiments Hofstadter experiment 1 ; ketterle13 . When $\alpha$ is a rational fraction $p/q$ with $p$ and $q$ relatively-prime integers, the spectrum for each spin state consists of $q$ subbands which split from the tight-binding $s$-band of the field-free case. Energy versus $\alpha$ diagram has a fractal structure and is usually called the Hofstadter butterfly Hofstadter .

Under the validity of this model, the non-interacting Fermi gas is described by $H_{0}=H_{B}-\mu\sum_{i\sigma}n_{i\sigma},$ where $n_{i\sigma}=c^{\dagger}_{i\sigma}c_{i\sigma}$ is the number operator and $\mu$ is the common chemical potential for both spin states. Furthermore, having short-ranged attractive interactions in mind, we adopt a BCS-like mean-field approximation for pairing, and consider an on-site term, $H_{I}=-\sum_{i}(\Delta_{i}c^{\dagger}_{i\uparrow}c^{\dagger}_{i\downarrow}+\text{h.c.})-\sum_{i}|\Delta_{i}|^{2}/U,$ where $\Delta_{i}=U\langle c_{i\uparrow}c_{i\downarrow}\rangle$ is the SF order parameter. Here, $U\leq 0$ and $\langle\ldots\rangle$ denotes the thermal average. Next, we switch to the momentum-space representation, and define $n=1,\ldots,q$ band operators $d_{{\bf k}n\sigma}$ in terms of the Fourier-expansion coefficients of $c_{i\sigma}$, i.e., $c_{{\bf k}\beta\sigma}=\sum_{n}g^{n}_{\beta\sigma}({\bf k})d_{{\bf k}n\sigma},$ where $g^{n}_{\beta\sigma}({\bf k})$ is the $\beta$th component of the $n$th eigenvector of the single-particle problem with energy $\varepsilon_{{\bf k}n\sigma}$. Since the magnetic field imposes a new translational symmetry and enlarges the unit cell by a factor of $q$ in the $x$ direction, the Brillouin zone is reduced to ${\bf k}_{x}\in[-\pi/q,\pi/q)$ and ${\bf k}_{y}\in[-\pi,\pi)$ Hofstadter ; Kohmoto , and we label inequivalent sites in the enlarged cell by $\beta=0,\ldots,q-1$, where $i_{x}=sq+\beta$ with $s$ locating the supercell. The total $\mathbf{k}$-space Hamiltonian $H_{MF}=H_{0}+H_{I}$ can be written as

[TABLE]

where $\epsilon_{{\bf k}n\sigma}=\varepsilon_{{\bf k}n\sigma}-\mu$, and the $q\times q$ order parameter set $\Delta^{l}_{\beta}=-(qU/M)\sum_{nn^{\prime}{\bf k}}g^{n}_{\beta\uparrow}({\bf k}^{l}_{+})g^{n^{\prime}}_{\beta\downarrow}({\bf k}^{l}_{-})\langle d_{{\bf k}^{l}_{-}n^{\prime}\downarrow}d_{{\bf k}^{l}_{+}n\uparrow}\rangle$ determines $\Delta_{i}$ through $\Delta_{i}=\sum_{l}\Delta^{l}_{\beta}e^{\mathrm{i}(Q_{lx}s+Q_{ly}i_{y})}.$ Here, $M$ is the total number of lattice sites and ${\bf k}^{l}_{\pm}=\pm{\bf k}+{\bf Q}_{l}/2$ with ${\bf Q}_{l}=(Q_{lx},Q_{ly})$ the center-of-mass momentum of Cooper pairs. As $\varepsilon_{{\bf k}n\sigma}$ is $q$-fold degenerate in any given band for momenta ${\bf k}$ and ${\bf k}+{\bf K}_{l}$ with ${\bf K}_{l}\equiv\{(0,2\pi lp/q)\}$ and $l=0,\dots,q-1$, we treat pairing with ${\bf Q}_{l}\equiv{\bf K}_{l}$ on equal footing Zhai .

By solving these self-consistency equations for a wide range of parameters, we confirm that the thermodynamic potential is minimized by the solution $\Delta^{l}_{\beta}=\Delta\delta_{l0}$ with $\delta_{ij}$ the Kronecker-delta, in such a way that a single order parameter $\Delta=-(U/M)\sum_{n{\bf k}}\langle d_{{\bf k}n\downarrow}d_{-{\bf k}n\uparrow}\rangle$ characterizes the resultant homogenous SF phase BdG . This is unlike the usual Hofstadter-Hubbard model with a broken $\mathcal{T}$ symmetry, where inhomogenous SF phases require a non-trivial set of $q\times q$ parameters, e.g., a vortex-lattice solution Zhai ; umucalilar16 . The large $|U|/t$ limit is particularly illuminating beyond which the entire Fermi gas consists of many-body bound states that eventually form two-body bound states, i.e., bosonic molecules, experiencing no net magnetic field. Thus, thanks to the $\mathcal{T}$ symmetry of the present model, the order parameter equation simplifies to

[TABLE]

where $E_{{\bf k}n}=\sqrt{\epsilon_{{\bf k}n}^{2}+\Delta^{2}}$ is the quasiparticle energy in a given band $n$ as the dispersion $\varepsilon_{{\bf k}n}$ is equal for both spin states, $\Delta$ is taken as a real parameter without loosing generality, $k_{B}$ is the Boltzmann constant, and $T$ is the temperature. Here, $\mu$ is determined by the total number of particles $N=\sum_{i\sigma}\langle n_{i\sigma}\rangle,$ leading to the number equation

[TABLE]

where $0\leq F=N/M\leq 2$ is the total particle filling. While we recover the familiar expressions $\Delta=(|U|/2-4t^{2}/|U|)\sqrt{F(2-F)}$ and $\mu=-(|U|/2-8t^{2}/|U|)(1-F)$ for the bosonic molecules in the strong-coupling limit when $\Delta\gg t$ or equivalently $|U|\gg t$, the weak-coupling limit turns out to be quite rich showing a variety of distinct phases and transitions in between. Next, we construct typical phase diagrams for $\mu\leq 0$, as the solutions are mirror-symmetric around $\mu=0$ or equivalently $F=1$ due to the particle-hole symmetry of the parent Hamiltonian.

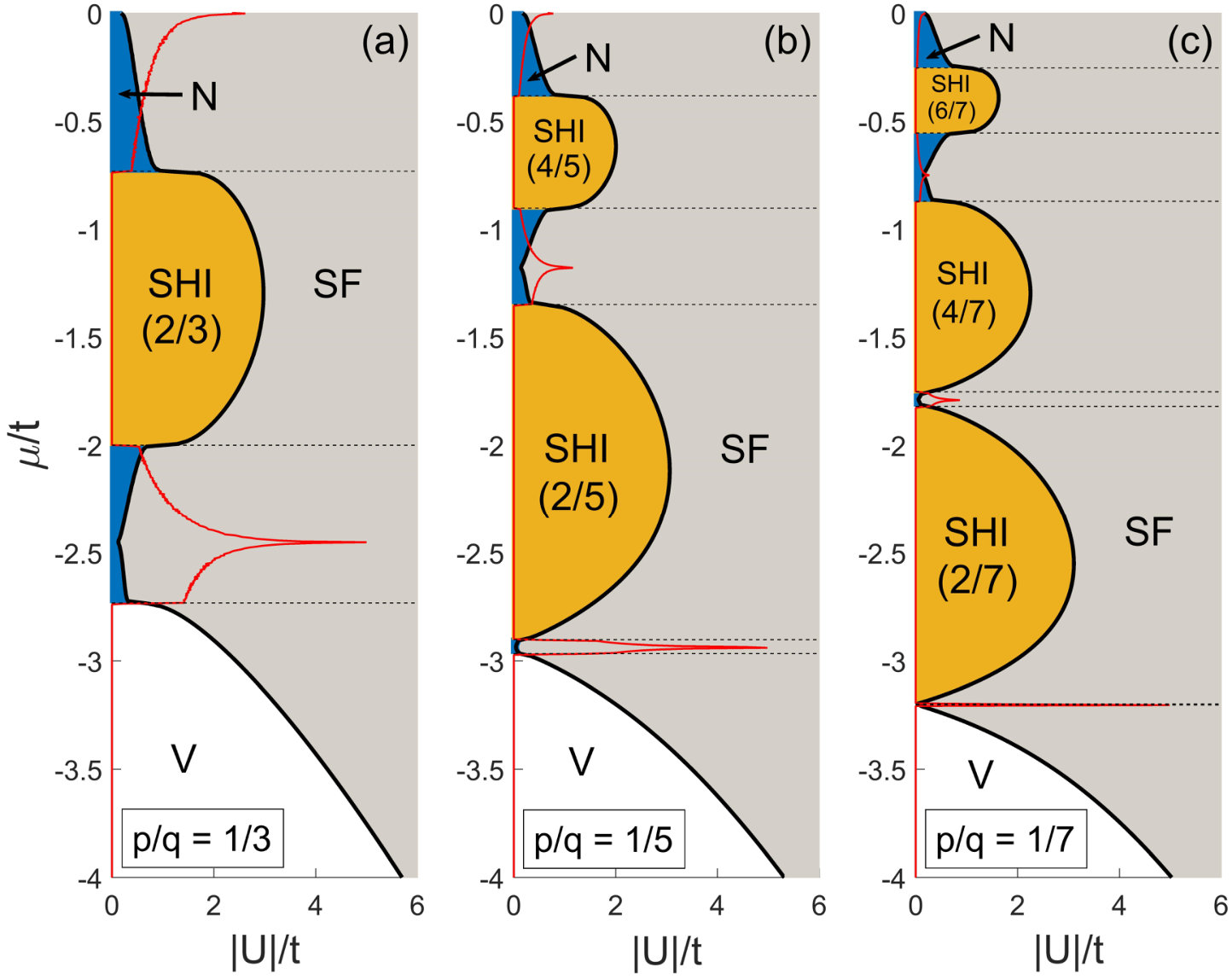

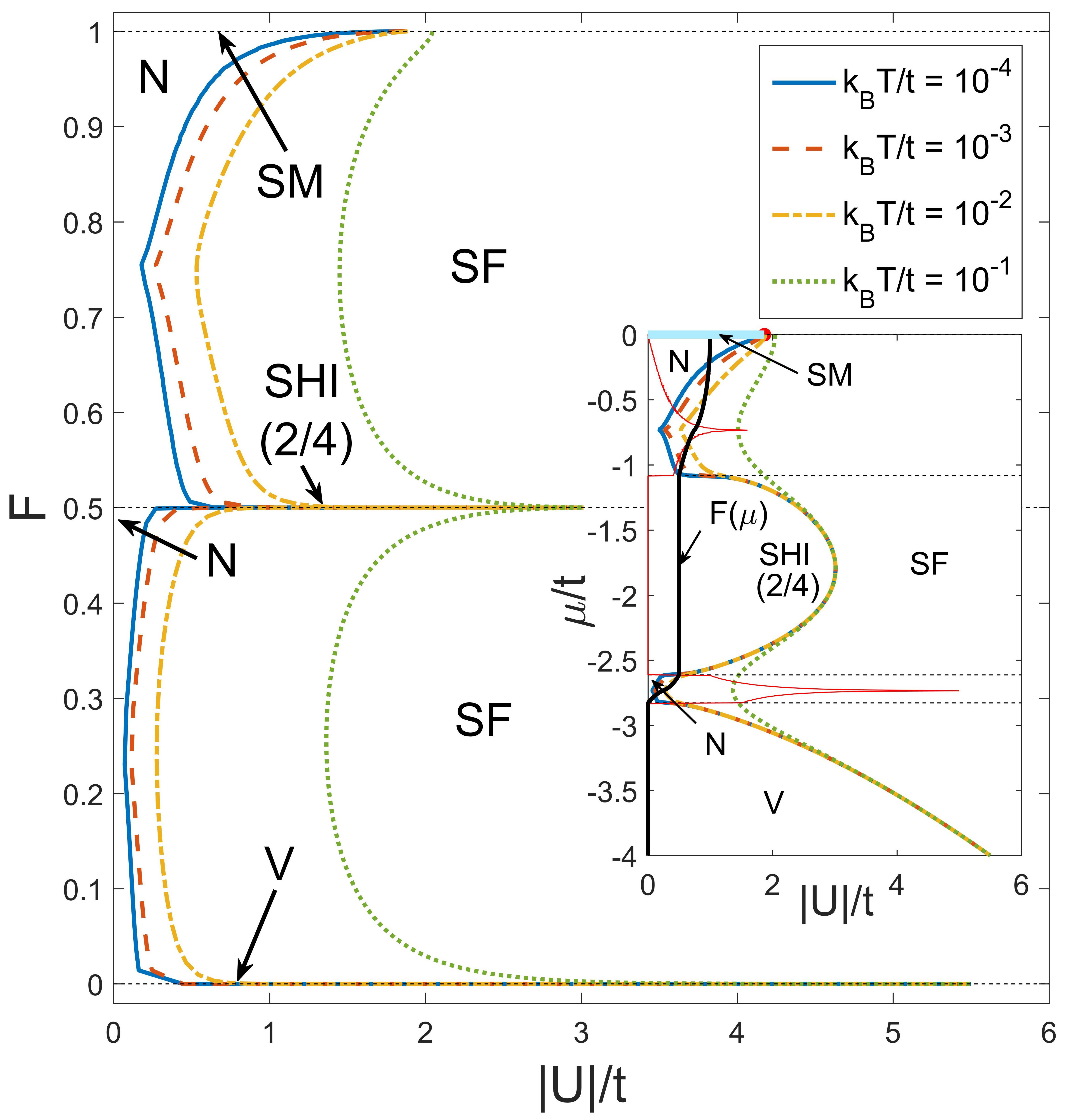

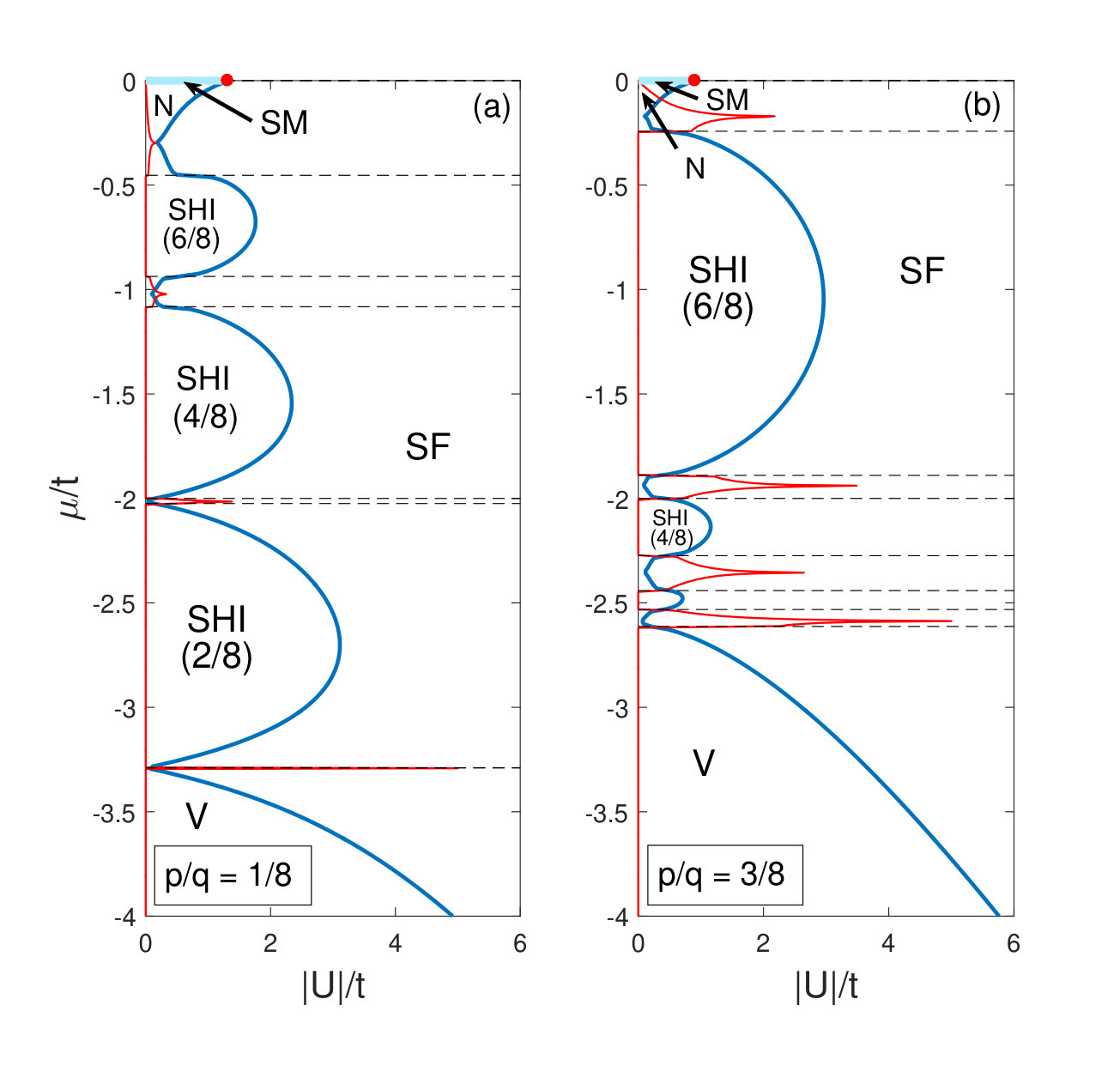

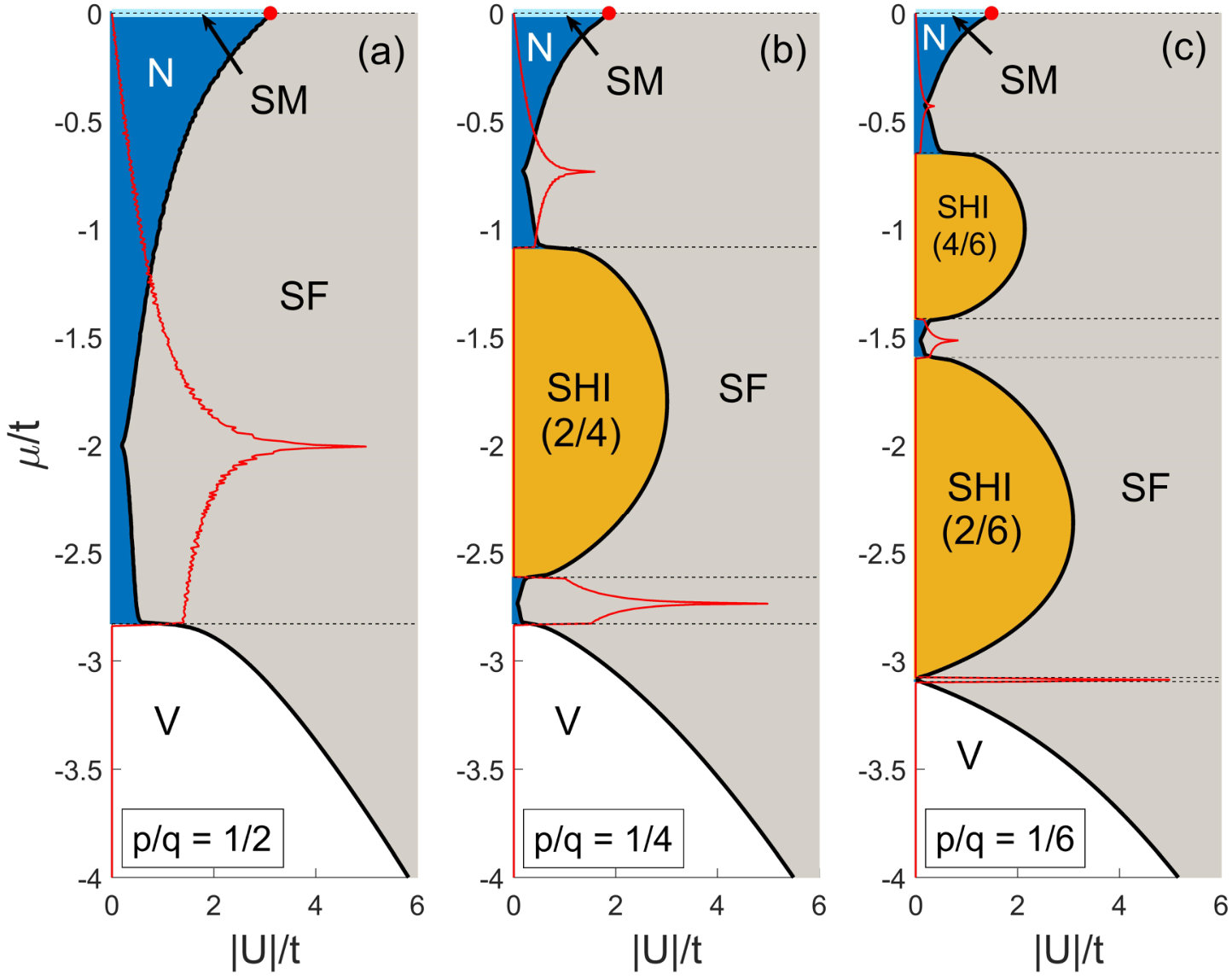

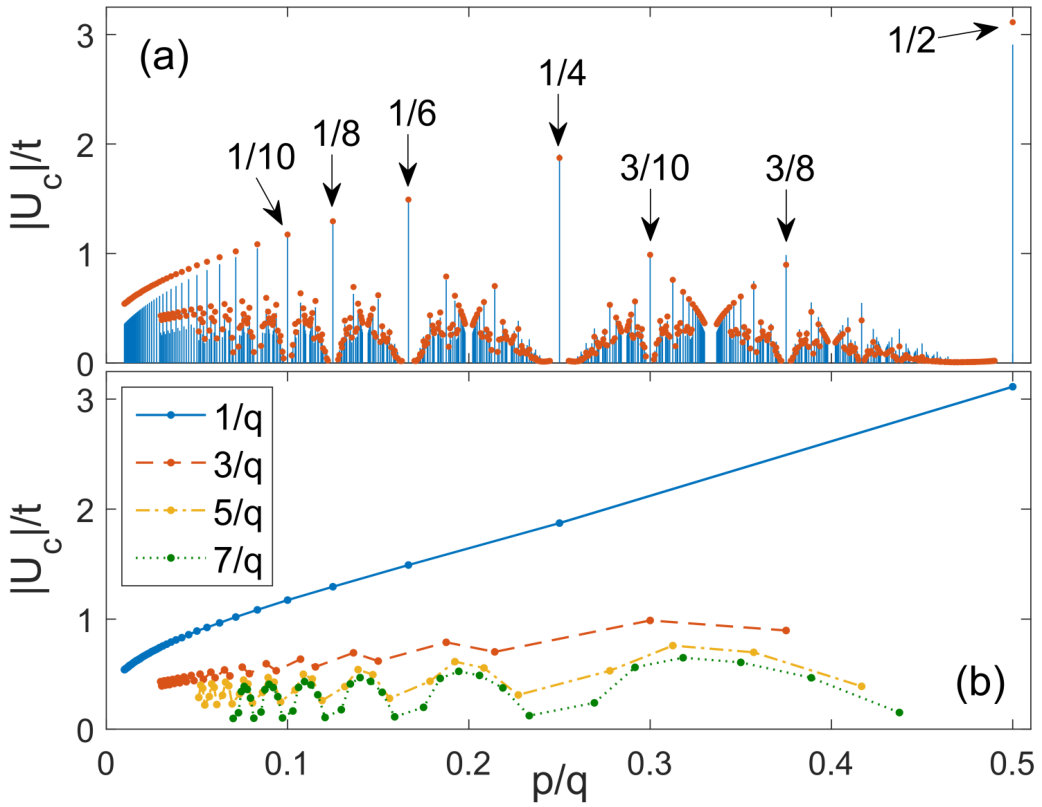

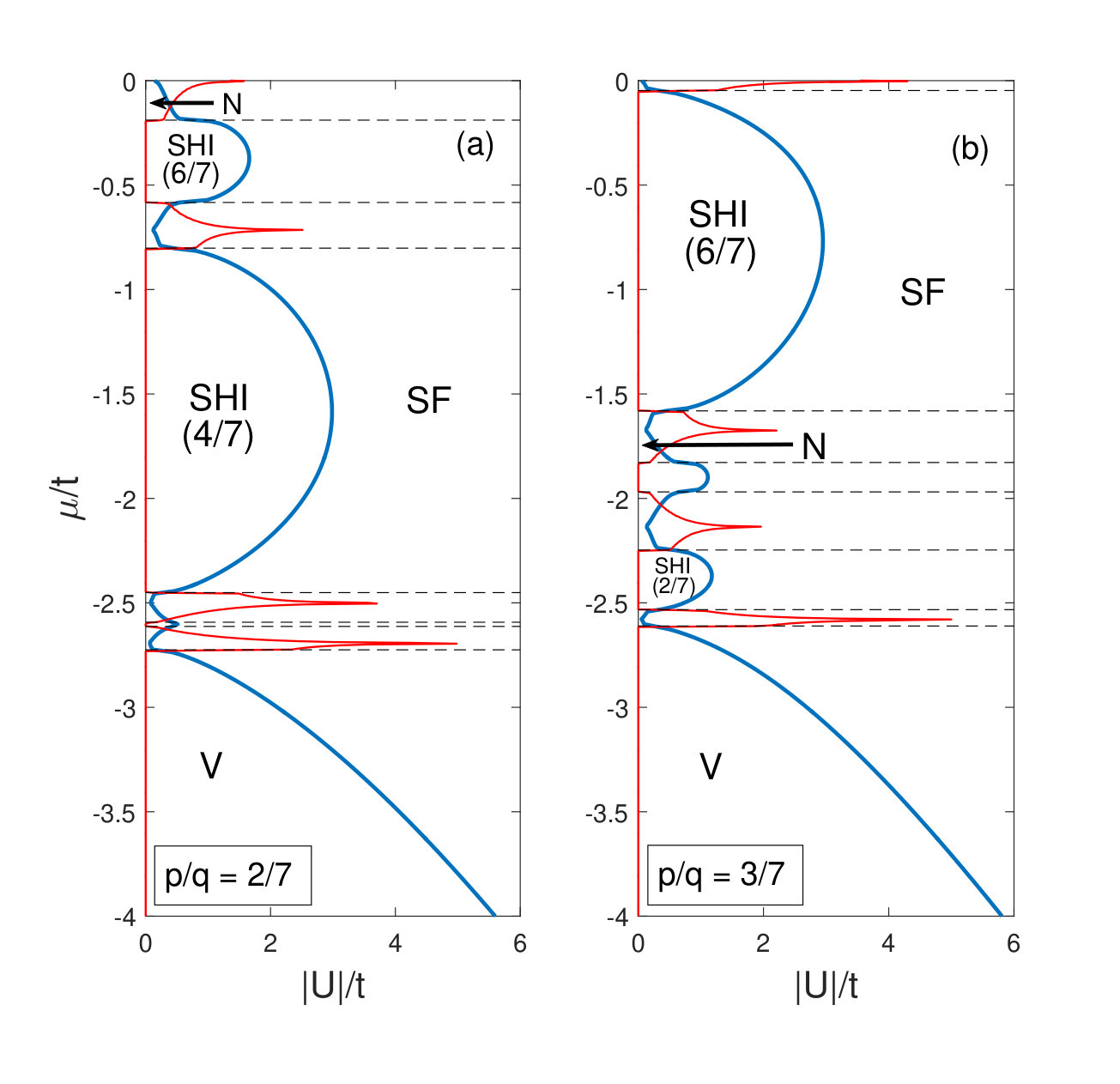

Low-temperature phase diagrams.— The critical interaction threshold $|U_{c}|$ above which the system develops SF correlations with $\Delta\neq 0$ can be obtained by setting $\Delta\to 0$ in Eqs. (2) and (3). For instance, our low-$T$ phase diagrams that are shown in Figs. 1 and 2 reveal four distinct SF transitions: (i) an SM-SF transition when $\mu=0$ or $F=1$ for even $q$, (ii) an SHI-SF transition when $\mu$ lies within a band gap or $F=2s/q$ with $s\leq q$ an integer, (iii) an N-SF transition when $\mu$ lies within a band or $F\neq 2s/q$, and (iv) a V-SF transition when $\mu$ lies below the lowest available band or $F\to 0$. We note that even though the mean-field framework is known to be less-accurate in two dimensions, not to mention the critical role played by the multi-band spectrum, it should be considered as a qualitative description of the system at the best-case scenario. Furthermore, given its semi-analytic nature, it not only helps us build the intuition behind these competing phases but it also serves as an ultimate benchmark for fully-numerical QMC simulations Troyer .

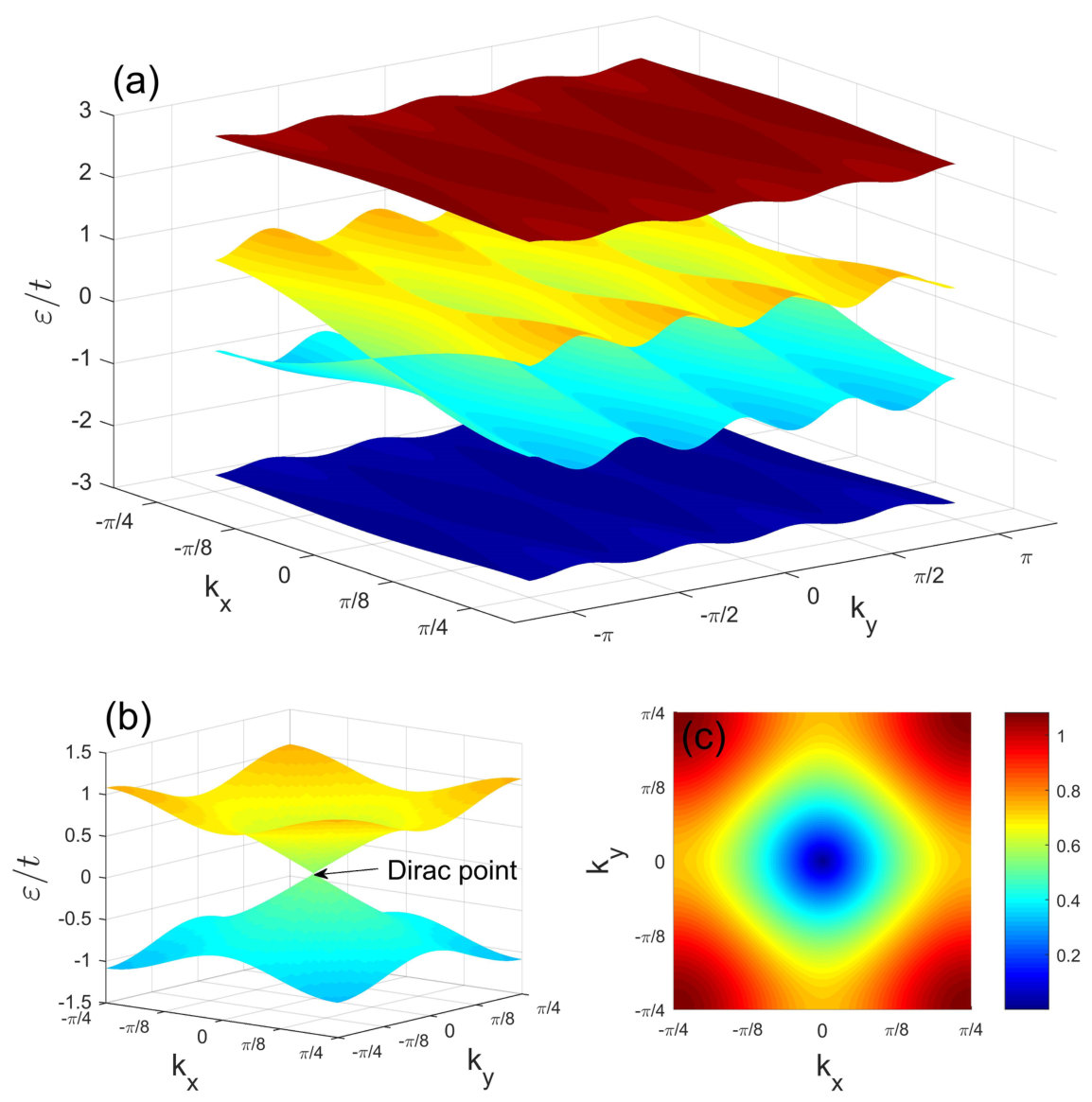

First of all, the SM-SF transition at $F=1$ (i.e., half-filling) for even-$q$ denominators is caused by the presence of $q$ linearly-dispersing Dirac cones in the magnetic Brillouin Zone. It turns out that even though $\Delta\to 0$ at the transition boundary, the Dirac cones guarantee a small energy window of $\mathbf{k}$-space region around $\varepsilon=0$ with $\Delta>|\varepsilon|$, no matter how small the energy window is. This leads to a finite triple point $U_{c}\neq 0$ as shown in Fig. 1. The $T=0$ limit of $U_{c}$ is determined by $M/U_{c}=-\sum_{n{\bf k}}1/(2|\varepsilon_{{\bf k}n}|),$ near which $\Delta_{0}=(U_{c}-U)/(CU_{c}^{2})$ increases linearly with $|U|$, where $D(\varepsilon)=C|\varepsilon|$ is the low-energy density of states near the cones. At $T=0$, we find $|U_{c}|/t\approx 3.111$ and $1.871$ for $q=2$ and $4$, respectively, and the complicated dependence of $U_{c}$ on $q$ is closely related to the band width of the central bands as shown in Fig. 3(a) for $q$ up to 100. For a given prime number $p$, the oscillatory dependence shown in Fig. 3(b) is a consequence of the self-similar fractal spectrum in such a way that each $\alpha$ interval between $1/q$ and $1/(q+2)$ contains $p-1$ data points with distinct $p/q$ ratios.

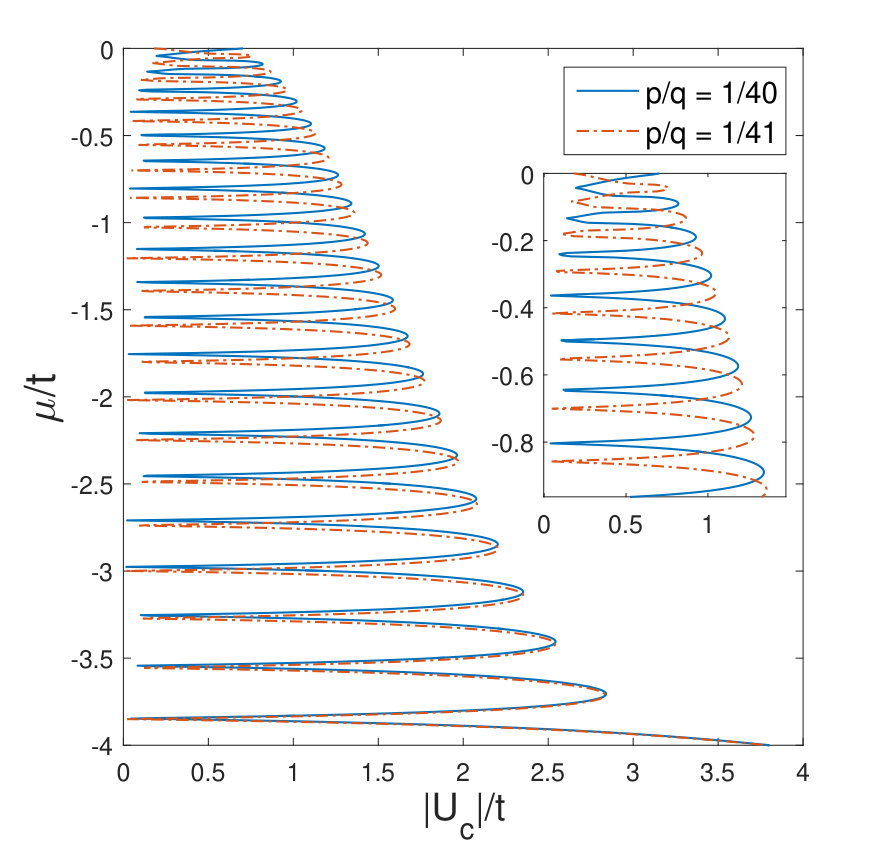

Away from half filling, when the filling fraction is $F=2s/q$ with $s\leq q$ an integer, there are $s$ fully-occupied bands and the system is an SHI. At $T=0$, the SHI-SF transition boundary is determined by $M/U_{c}=-\sum_{n{\bf k}}1/(2|\epsilon_{{\bf k}n}|),$ near which $\Delta_{0}=\sqrt{(U_{c}-U)/(C_{0}U_{c}^{2})}$ increases as a square-root with $|U|$, where $MC_{0}=\sum_{n{\bf k}}1/(4|\epsilon_{{\bf k}n}|^{3})$ is a constant for a given $q$. On the other hand, since $F\neq 2s/q$ corresponds to an N phase with a partially-occupied band, we find that $U_{c}\to 0$ as $T\to 0$ supmat , near which $\Delta_{0}=2|\mu|\exp\{1/[D(\mu)U]-1\}$ increases exponentially with $|U|$ for even-$q$ values close to the half filling when $\Delta_{0}\ll|\mu|\approx 0$. The BCS-like $D(\varepsilon)$ dependence is clearly seen in Figs. 1 and 2, where, while $T\neq 0$ causes $U_{c}\neq 0$ in general, its magnitude is inversely related to $D(\varepsilon)$. Note that, since the total band width is constrained by $8t$ in the $q\to\infty$ limit, increasing $q$ flattens the band widths of each of the $q$ bands, leading to a singular $D(\varepsilon)$ with discrete structure. As the N regions shrink and become hardly visible even at $T\neq 0$, our large-$q$ phase diagrams supmat are reminiscent of the Mott-insulator transitions of the SF Bose gas on a lattice Cold atoms ; Fisher89 .

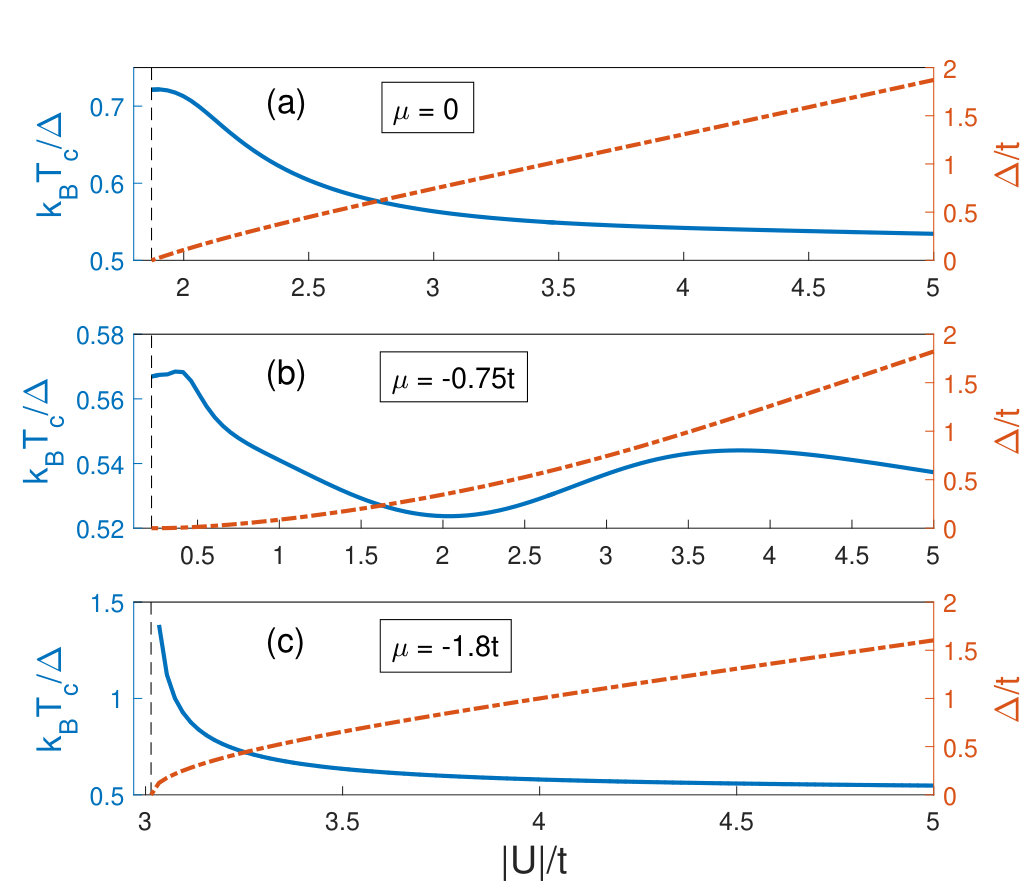

This low-$T$ analysis clearly show that, depending on whether $\Delta_{0}$ increases as a linear, square-root or exponential function of $|U|$, one can distinctly characterize the corresponding type of the SF transition. For instance, we illustrate $\Delta$ for all 3 types on the right axis of Fig. 4, where we set $\alpha=1/4$ and $k_{B}T=10^{-4}t$. To further support this finding, we also show the ratio $k_{B}T_{c}/\Delta$ on the left axis of the same figure, where $T_{c}$ is the corresponding SF transition temperature. Setting $\Delta=0$ and $\mu=0$ in Eq. (2), and assuming $T_{c}$ is small, we find $k_{B}T_{c}=(U_{c}-U)/(2\ln 2CU_{c}^{2})$ as $U\to U_{c}$ in the weak-coupling limit near the $T=0$ SM-SF transition boundary. This suggests $k_{B}T_{c}/\Delta_{0}=1/(2\ln 2)\approx 0.721$ in the $U\to U_{c}$ limit, which is in perfect agreement with Fig. 4(a). Similarly, setting $\Delta=0$ and $\mu\approx 0$ in Eq. (2), and assuming $k_{B}T_{c}\ll|\mu|$, we find $k_{B}T_{c}=(2|\mu|/\pi)\exp\{1/[D(\mu)U]+\gamma-1\}$ for even-$q$ values as $U\to 0$ in the weak-coupling limit near the N-SF transition boundary, where $\gamma\approx 0.577$ is the Euler’s constant. This suggests $k_{B}T_{c}/\Delta_{0}=e^{\gamma}/\pi\approx 0.567$ in the $U\to U_{c}=0$ limit, which is again in perfect agreement with Fig. 4(b). Lastly, setting $\Delta=0$ in Eq. (2), and assuming $\mu$ is in the middle of one of the band gaps and $k_{B}T_{c}\ll A$ is small, we find $k_{B}T_{c}\sim-A/\{2\ln[Aq(U_{c}-U)/(4U_{c}^{2})]\}$ as $U\to U_{c}$ in the weak-coupling limit near the $T=0$ SHI-SF transition boundary, where $A$ is approximately the corresponding band gap between the highest-occupied and lowest-unoccupied band. This suggests $k_{B}T_{c}/\Delta_{0}\to\infty$ in the $U\to U_{c}$ limit, i.e., a logarithmic divergence of the form $\lim_{x\to 0}1/|\sqrt{x}\ln x|$, which is also in perfect agreement with Fig. 4(c). In the strong-coupling limit when $|U|\gg t$, it is well-known that the mean-field $T_{c}$ is solely related to the formation of pairs and it has nothing to do with the actual SF transition. Setting $\Delta=0$ in Eq. (2), and assuming $k_{B}T_{c}\gg|\mu|$ leads to $k_{B}T_{c}=|U|/4$ which is the case around $\mu\approx 0$ (or half filling $F\approx 1$), while assuming $k_{B}T_{c}\ll|\mu|$ leads to $k_{B}T_{c}=-|\mu|/\ln(F/2)$ and $|\mu|\approx|U|/2$, which is the case for low filling $F\ll 1$. Therefore, in the $|U|\gg t$ limit, while all 3 of our numerical results approach $k_{B}T_{c}/\Delta_{0}\to 0.5$ in Fig. 4, we expect a diverging $k_{B}T_{c}/\Delta_{0}\simeq-1/[\sqrt{2F}\ln(F/2)]$ ratio as $F\to 0$. It is notable that this logarithmic divergence is quite similar in structure to that of the weak-coupling one near the SHI-SF transition discussed just above.

Furthermore, in the weak-coupling limit near the SF transition boundary, using $\Delta\ll k_{B}T_{c}$ near $T_{c}$, we find $\Delta=\sqrt{8\ln 2}k_{B}T_{c}\sqrt{1-T/T_{c}}\approx 1.698\Delta_{0}\sqrt{1-T/T_{c}}$ for even-$q$ values when $\mu=0$ is at half filling, $\Delta=\sqrt{8\pi^{2}/[7\xi(3)]}k_{B}T_{c}\sqrt{1-T/T_{c}}\approx 1.736\Delta_{0}\sqrt{1-T/T_{c}}$ for even-$q$ values when $\mu\approx 0$ is in the band, and $\Delta=\{[1/(MC_{0}k_{B}T_{c})]\sum_{n{\bf k}}e^{-|\epsilon_{{\bf k}n}|/(k_{B}T_{c})}\}^{1/2}\sqrt{1-T/T_{c}}\sim\sqrt{A/(2k_{B}T_{c})}\Delta_{0}\sqrt{1-T/T_{c}}$ when $\mu$ is in the band gap with $A\gg k_{B}T_{c}$. Lastly, in the large-$q$ limit when $|\epsilon_{\mathbf{k}n}|\ll k_{B}T_{c}$ for any one of the bands, we find $\Delta=\sqrt{12}k_{B}T_{c}\sqrt{1-T/T_{c}}=\sqrt{3}\Delta_{0}\sqrt{1-T/T_{c}},$ the coefficient $\sqrt{3}\approx 1.732$ of which almost coincides with that of the BCS expression. Therefore, the $T$-dependences of $\Delta$ are all alike near $T_{c}$ up to the prefactor, in the characteristic form of a second-order phase transition.

We end this paper by noting that, in addition to the recent proposals for distinguishing different SHI lobes ketterle13 ; Troyer , the SM-SF and SHI-SF transitions may be directly probed by measuring the density profiles, and studying the resultant ‘wedding cake’ structures Cold atoms . In addition, the SHI phases can be further identified by the density profiles via an effective ‘Hall conductance’ introduced through the well-known Streda formula Streda-density .

Conclusions.— In summary, we used the $\mathcal{T}$-symmetric Hofstadter-Hubbard model on a square optical lattice in order to describe and study the BCS-pairing correlations of a two-component Fermi gas that is experiencing opposite synthetic magnetic fields for its components. We found rich phase diagrams involving distinct SF transitions from the SM, quantum SHI or N phases, the lobe structures of which are reminiscent of the Mott-insulator transitions of the SF Bose gas on a lattice Cold atoms ; Fisher89 . Given the ongoing cold-atom experiments in simulating such models Hofstadter experiment 1 ; ketterle13 , there is no doubt that even though our mean-field description may only capture qualitative physics of the model Hamiltonian in two dimensions, which is further complicated by the multi-band spectrum, it not only offers a less-accurate but analytically-tractable analysis in helping us shape the intuition behind the competing phases but it also paves the way as an ultimate benchmark for more-accurate yet fully-numerical QMC simulations Troyer .

I Supplementary Online Material
