No evidence for a significant AGN contribution to cosmic hydrogen reionization

TL;DR

This study reexamines high-redshift AGN data and finds minimal AGN contribution to cosmic hydrogen reionization, supporting the idea that young galaxies primarily drove reionization.

Contribution

It provides a rigorous reanalysis of X-ray AGN detections at z > 4, reducing the estimated AGN contribution to reionization compared to previous claims.

Findings

Only 7 robust AGN at z > 4 in GOODS-S field

AGN ionizing emissivity declines rapidly from z=4 to 6

AGN contribution falls short of reionization requirements

Abstract

We reinvestigate a claimed sample of 22 X-ray detected active galactic nuclei (AGN) at redshifts z > 4, which has reignited the debate as to whether young galaxies or AGN reionized the Universe. These sources lie within the GOODS-S/CANDELS field, and we examine both the robustness of the claimed X-ray detections (within the Chandra 4Ms imaging) and perform an independent analysis of the photometric redshifts of the optical/infrared counterparts. We confirm the reality of only 15 of the 22 reported X-ray detections, and moreover find that only 12 of the 22 optical/infrared counterpart galaxies actually lie robustly at z > 4. Combining these results we find convincing evidence for only 7 X-ray AGN at z > 4 in the GOODS-S field, of which only one lies at z > 5. We recalculate the evolving far-UV (1500 Angstrom) luminosity density produced by AGN at high redshift, and find that it declines rapidly from z = 4 to z = 6, in agreement with several other recent studies of the evolving AGN luminosity function. The associated rapid decline in inferred hydrogen-ionizing emissivity contributed by AGN falls an order-of-magnitude short of the level required to maintain hydrogen ionization at z ~ 6. We conclude that all available evidence continues to favour a scenario in which young galaxies reionized the Universe, with AGN making, at most, a very minor contribution to cosmic hydrogen reionization.

Figures

Tables

Table 1. Table 1: The positions and spectroscopic+photometric redshift information for the 22 z > 4 𝑧 4 z>4 X-ray AGN candidates selected by Giallongo et al. (2015). I ​ D G ​ 15 𝐼 subscript 𝐷 𝐺 15 ID_{G15} , I ​ D X ​ 11 𝐼 subscript 𝐷 𝑋 11 ID_{X11} and I ​ D 3 ​ D − H ​ S ​ T 𝐼 subscript 𝐷 3 𝐷 𝐻 𝑆 𝑇 ID_{3D-HST} represent respectively the identification number for each source as published in the Giallongo et al. (2015), Xue et al. (2011) and Skelton et al. (2014) catalogues. 3D-HST, G15 and H15 indicate the photometric redshifts of the optical/near-IR sources as determined by Skelton et al. (2014), Giallongo et al. (2015) and Hsu et al. (2014). The photometric redshifts determined in this study are then given under the heading ‘This Work’, followed in the final three columns by the χ 2 superscript 𝜒 2 \chi^{2} value achieved in the SED fit, the SED type T (G for Galaxy, A for AGN) of the best fitting template, and finally the dust reddening of the best-fitting template, E ​ ( B − V ) 𝐸 𝐵 𝑉 E(B-V) , assuming the dust attenuation law of Calzetti et al. (2000).

ID			RA	Dec	$z_{spec}$	$z_{phot}$				${\chi }^2$	T	$E\left(B-V\right)$ / mag
G15	X11	3D-HST				3D-HST	G15	H14	This Work
273	403	471	53.1220463	$-$27.9387409	4.76	4.76	4.49	4.70	4.25	12.49	G	0.5
4285	-	7895	53.1664941	$-$27.8716803	-	4.32	4.28	-	0.46	6.31	G	0.0
4356	485	8052	53.1465968	$-$27.8709872	-	5.12	4.70	2.47	3.62	0.42	A	0.6
4952	-	-	53.1605007	$-$27.8649890	-	4.32	4.32	-	4.34	14.77	A	0.0
5375	331	10474	53.1026292	$-$27.8606307	-	4.37	4.41	0.70	0.23	1.79	A	0.5
5501	-	10764	53.1280240	$-$27.8593930	-	5.76	5.39	-	3.96	4.14	G	0.5
8687	-	17724	53.0868634	$-$27.8295859	-	4.43	4.23	-	3.57	7.97	G	0.1
8884	-	18119	53.1970699	$-$27.8278566	-	4.76	4.52	-	4.40	3.95	G	0.5
9713	-	19509	53.1715890	$-$27.8208052	5.70	5.76	5.86	-	5.97	10.64	G	0.1
9945	-	19906	53.1619508	$-$27.8190897	4.48	4.43	4.34	-	4.28	8.44	G	0.1
11287	-	22175	53.0689924	$-$27.8071692	-	4.82	4.94	-	4.90	5.02	G	0.2
12130	-	23582	53.1514304	$-$27.7997601	4.62	4.54	4.43	-	4.39	18.17	G	0.1
14800	-	27960	53.0211735	$-$27.7823645	4.82	4.88	4.92	-	4.80	1.23	G	0.1
16822	371	31374	53.1115637	$-$27.7677714	-	4.82	4.52	3.24	4.50	2.32	G	0.4
19713	392	36223	53.1198898	$-$27.7430349	-	5.49	4.84	2.4	2.88	1.29	G	0.8
20765	521	37989	53.1583449	$-$27.7334854	-	3.15	5.23	2.59	1.17	2.44	A	0.7
23757	-	41824	53.2036444	$-$27.7143907	-	3.86	4.13	-	0.14	4.52	A	0.4
28476	-	-	53.0646867	$-$27.8625539	-	-	6.26	-	6.16	1.41	G	0.7
29323	156	15927	53.0409764	$-$27.8376619	-	5.24	9.73	4.65	1.21	1.27	A	1.0
31334	-	27976	53.2131871	$-$27.7816486	-	0.80	4.73	-	4.86	4.78	A	0.0
33073	-	37292	53.0547529	$-$27.7368325	-	4.76	4.98	-	4.93	0.05	G	0.0
33160	85	37803	53.0062504	$-$27.7340678	-	5.06	6.06	3.36	2.52	1.02	A	0.7

Table 2. Table 2: The high-redshift co-moving hydrogen ionizing emissivity provided by AGN based on a a simple rescaling of the number of confirmed X-ray sources in each redshift bin.

Redshift Bin	Giallongo et al. 2015		This Work
	${ϵ}_{912}/{10}^{24}\mathrm{erg}{s}^{-1}{\mathrm{Hz}}^{-1}{\mathrm{Mpc}}^{-3}$	Nobj	${ϵ}_{912}/{10}^{24}\mathrm{erg}{s}^{-1}{\mathrm{Hz}}^{-1}{\mathrm{Mpc}}^{-3}$	Nobj
4.0 - 4.5 (4.25)	6.80	6	3.40	3
4.5 - 5.0 (4.75)	5.92	8	2.20	3
5.0 - 6.5 (5.75)	2.50	5	0.50	1

Table 3. Table 3: AGN luminosity functions and resulting derived ionizing emissivities. Binned number densities derived from the V m ​ a ​ x subscript 𝑉 𝑚 𝑎 𝑥 V_{max} method are given for the luminosity bins which contain GOODS-S objects in our revised X-ray AGN sample, and best-fitting parameter values are given for the double power-law parameterisation of the far-UV LF given by Equation 2. The resulting derived ionizing emissivities, ϵ 912 subscript italic-ϵ 912 \epsilon_{912} , given in the final column have been calculated from the LFs using Equation 1, integrating down to M 1450 = − 18 subscript 𝑀 1450 18 M_{1450}=-18 . As in Table 2, ϵ 912 subscript italic-ϵ 912 \epsilon_{912} is given in units of 10 24 ​ erg ​ s − 1 ​ Hz − 1 ​ Mpc − 3 superscript 10 24 erg superscript s 1 superscript Hz 1 superscript Mpc 3 10^{24}\,{\rm erg\,s^{-1}Hz^{-1}Mpc^{-3}} . Note that the single object in the 4.0 < z < 4.5 4.0 𝑧 4.5 4.0<z<4.5 , M 1500 = − 20 subscript 𝑀 1500 20 M_{1500}=-20 bin is the single extra source reported in Section 3.3.

$\Delta z$	$M_{1500}$	$\log {\varphi }_{obs}$	Nobj	$\beta$	$\gamma$	$M^{\ast }$	$\log {\varphi }^{\ast }$	${ϵ}_{912}$
$4.0-4.5$				$1.75\pm 0.91$	$2.74\pm 0.14$	$-23.37\pm 1.25$	$-5.82\pm 0.72$	3.09
	$-19$	$-3.99\pm 0.50$	1
	$-20$	$-5.07\pm 0.56$	1
	$-21$	$-5.20\pm 0.56$	2
$4.5-5.0$				$1.75$ (fixed)	$2.56\pm 0.24$	$-23.10\pm 4.02$	$-6.13\pm 2.08$	1.25
	$-19$	$-$	0
	$-20$	$-$	0
	$-21$	$-4.80\pm 0.40$	2
	$-22.5$	$-5.30\pm 0.70$	1
$5.0-6.5$				$1.75$ (fixed)	$2.41\pm 0.40$	$-22.58\pm 4.88$	$-6.62\pm 2.21$	0.26
	$-19$	$-$	0
	$-20$	$-5.99\pm 0.66$	1
	$-21$	$-$	0

Equations

$$\begin{array}{rl}& {ϵ}_{ion}(z)=⟨f⟩{ϵ}_{912}=\\ & ⟨f⟩\int \varphi (L_{1450},z)L_{1450}{\left(\frac{1200}{1450}\right)}^{0.44}{\left(\frac{912}{1200}\right)}^{1.57}d{L}_{1450}\end{array}$$

$$\varphi =\frac{{\varphi }^{\ast }}{10^{0.4(M^{\ast }-M)(\beta -1)}+10^{0.4(M^{\ast }-M)(\gamma -1)}}$$

$${ϵ}_{912}=10^{24.9}(1+z{)}^{4.68}\frac{e^{-0.28z}}{e^{1.77z}+26.3}$$

Full text

††pagerange: No evidence for a significant AGN contribution to cosmic hydrogen reionization–LABEL:lastpage††pubyear: 2014

1 Introduction

Our understanding of cosmic reionization has advanced steadily in recent years. The latest microwave background measurements now indicate a (model dependent) ‘mean’ redshift for hydrogen reionization of $\langle z\rangle\simeq 7.8-8.8$ (Planck Collaboration 2016), while observations of the Gunn-Peterson effect (Gunn & Peterson 1965) in high-redshift quasar spectra (e.g. Fan et al. 2006; Bolton et al. 2011; McGreer et al. 2015; Barnett et al. 2017), and the decline in observable Lyman-$\alpha$ emission from high-redshift galaxies (e.g. Stark et al. 2010, 2015; Pentericci et al. 2011, 2014; Curtis-Lake et al. 2012; Schenker et al. 2012, 2014; Treu et al. 2013; Tilvi et al. 2014; Dijkstra et al. 2014) suggest the process was essentially complete by $z\simeq 6$.

Through parallel efforts, our knowledge of early galaxy evolution has been pushed back to within $\simeq 0.5$ Gyr of the Big Bang (see Dunlop 2013, Madau & Dickinson 2014, and Stark 2016 for reviews charting this progress), with the latest high-redshift galaxy surveys now enabling measurement of the evolving rest-frame UV galaxy luminosity function out to at least $z\simeq 10$ (e.g. Ellis et al. 2013; Dunlop et al. 2013; McLure et al. 2013; Oesch et al 2014; Bowler et al. 2014, 2015, 2017a; Bouwens et al. 2015a; McLeod et al. 2015, 2016; Parsa et al. 2016; Ishigaki et al. 2017).

As a consequence, it now appears highly likely that the rapidly growing population of early star-forming galaxies could indeed have bathed the Universe in sufficient high-energy photons to produce/maintain cosmic hydrogen reionization on a timescale consistent with the aforementioned observational constraints (Robertson et al. 2010, 2013, 2015; Bouwens et al. 2015b). However, two key uncertainties remain to be resolved. First, analyses combining all available constraints indicate that most of the relevant ‘action’ has yet to be discovered, with the ionizing photon budget dominated by low-luminosity galaxies undetected by the Hubble Space Telescope (HST) (although see Sharma et al. 2016). Second, the ionizing photon escape fraction from the high-redshift galaxies is generally required to be $\simeq 10-20$% to achieve timely reionization (e.g. Robertson et al. 2013, 2015; Fontanot et al. 2014; Finkelstein et al. 2015; although see Weisz & Boylan-Kolchin 2017) significantly higher than typically found for lower-redshift star-forming analogues (e.g. Siana et al. 2010; Grazian et al. 2017).

Arguably these are not serious problems, and further observational advances can be expected from 2019 with the James Webb Space Telescope (JWST), given its potential to detect rest-frame UV emission out to $z\simeq 30$. Moreover, there are good theoretical reasons to expect typical ionizing-photon escape fractions to grow at high redshift (e.g. Sharma et al. 2017), and problems related to escape fraction (or, equivalently, the duration of hard ionizing radiation from young star-forming galaxies) may be further aleviated by the inclusion of binary stars in spectral synthesis models of galaxies (Eldridge, Izzard & Tout 2008; Eldridge & Stanway 2009; Stanway et al. 2016; Bowler et al. 2017b).

Nonetheless, such concerns, coupled with the knowledge that supermassive black-holes are certainly known to exist at $z>7$ (Mortlock et al. 2011), continue to generate interest in the possibility that active galactic nuclei (AGN) could have played a significant role in cosmic hydrogen reionization.

Given that the accretion process within AGN generates a hard radiation spectrum, with a potentially large escape fraction, AGN are obviously excellent sources of ionizing photons, and the key issue is whether they are sufficiently numerous at early times to contribute significantly to the hydrogen reionziation process. Indeed, there is very little debate that quasars/AGN are responsible for He reionization, which observations indicate is completed by $z\simeq 2.5-3$, and requires a radiation field with $h\nu>54.4$ eV photons (e.g. Miralda-Escude et al. 2000; McQuinn et al. 2009; Haardt & Madau 2012; Compostella et al. 2013). This follows empirically from the fact that the emissivity of quasars at $z\simeq 3$ is likely sufficient to reionize HeII atoms (Furlanetto & Oh 2008; Faucher-Giguere et al. 2008; Haardt & Madau 2012).

However, the number density of bright quasars and AGNs declines at $z>3$ (Fan et al. 2000; Richards et al. 2006; Jiang et al. 2009, 2016; Willott et al. 2010; Glikman et al. 2011; Fontanot et al. 2012; Masters et al. 2012; McGreer et al. 2013; Akiyama et al. 2017) and, using parametric extrapolations for the form/evolution of the AGN luminosity function (LF), Haardt & Madau (2012) estimated that the ionizing emissivity of AGNs at $z\simeq 6$ was only $\simeq 10^{23}\,{\rm erg\,s^{-1}Hz^{-1}Mpc^{-3}}$, an order-of-magnitude smaller than required to maintain hydrogen reionization in the intergalactic medium (IGM) at that redshift.

Nevertheless, it can be argued that this issue is still not closed because of remaining uncertainty over the faint-end slope of the AGN LF at high redshifts. Attempts to better measure the faint end slope of the optical quasar LF at $z\simeq 3-4$ indicate that it remains relatively flat, with $\beta\simeq 1.5$, similar to measurements at lower redshift (Siana et al. 2008; Glikman et al. 2011). Attempts have also been made to extend measurement of the X-ray LF of AGN to high redshifts, utilising XMM and Chandra imaging of the COSMOS field (Brusa et al. 2010; Civano et al. 2011) and, more recently, the 4 Ms Chandra imaging in the Chandra Deep Field South (CDF-S) survey (Xue et al. 2011). In particular, Fiore et al. (2012) adopted a new approach to try to exploit the full power of the 4 Ms Chandra CDFS imaging to uncover high-redshift AGN, by searching for X-ray detections at the positions of known high-redshift galaxies in the deep optical–near-IR imaging within the central GOODS-S field. However, at the time of that study, the full CANDELS imaging (Grogin et al. 2011) of GOODS-S had yet to be completed, and although Fiore et al. (2012) reported the discovery of several new X-ray AGN at $z>3$, a meaningful determination of the faint-end slope of the AGN X-ray LF at higher redshifts still proved elusive.

Motivated by this approach, following completion of the CANDELS WFC3/IR imaging (Guo et al. 2013), Giallongo et al. (2015) undertook a new search for high-redshift X-ray sources in GOODS-S, and reported the detection of a substantial population of faint X-ray AGN at $z>4$, which, they claimed, could have produced sufficient co-moving far-UV emissivity, even at $z\simeq 6$, to maintain hydrogen ionization in the IGM. Specifically, Giallongo et al. (2015) reported the discovery of 22 X-ray AGN at $z>4$ in the GOODS-S field (only 8 of which featured in the purely X-ray selected Chandra 4 Ms catalogue of Xue et al. 2011), and derived a new enhanced estimate of the comoving ionizing emissivity of AGN at early times, based on a new determination of the far-UV ($\lambda_{rest}=1450$ Å) LF of AGN over the redshift range $4<z<6$. This work has inspired theorists to reappraise the potential role of AGN in cosmic reionization (e.g. Madau & Haardt 2015; Qin et al. 2017; Mitra, Choudhury & Ferrara 2018).

However, these results have proved somewhat controversial. First, while the detection of additional X-ray sources with the aid of near-infrared positional priors is not unexpected, the application of a similar technique by Cappelluti et al. (2016) to the same datasets found significantly fewer high-redshift X-ray detections than claimed by Giallongo et al. (2015). In addition, again utilising essentially the same Chandra 4 Ms, HST CANDELS and Spitzer imaging, Weigel et al. (2015) failed to find convincing evidence for any X-ray source at $z>5$ within GOODS-S. Moreover, recent studies of the X-ray AGN LF (Aird et al. 2015; Fotopoulou et al. 2016) out to $z\simeq 4-5$ suggest that the faint-end slope of the total X-ray AGN LF stays unchanged, or if anything flattens with increasing redshift. Most recently, Vito et al. (2016) used the new 7 Ms Chandra imaging in the CDF-S, coupled with the CANDELS optical+near-IR imaging, to measure the total X-ray emission from 2076 galaxies in GOODS-S over the redshift range $3.5<z<6.5$. They used stacking methods and derived the first meaningful constraints on the faint-end slope of the X-ray LF at $z>4$, again finding evidence for fairly flat slopes, consistent with previous studies at comparable redshifts (Vito et al. 2014; Georgakakis et al. 2015). Futhermore, Vito et al. (2016) found no evidence of significant X-ray emission in galaxy stacks at redshifts higher than $z\simeq 5$.

In an attempt to contribute to this debate, and help clarify the origin of the some of the disagreements outlined above, we have undertaken a reanalysis of the 22 $z>4$ X-ray AGN reported by Giallongo et al. (2015). We have determined new photometric redshifts for the proposed optical+near-IR counterparts, and have reassessed the robustness of the proposed X-ray detections. Based on the revised sample of high-redshift AGN we have then re-estimated the high-redshift evolution the far-UV comoving emissivity produced by AGN, and the consequent potential contribution of AGN to cosmic hydrogen reionization.

The layout of the rest of this paper is as follows. In Section 2 we summarize the available X-ray and supporting optical+near-IR data, and the sample of 22 objects discussed by Giallongo et al. (2015). Then, in Section 3 we describe our new determination of the photometric redshifts of the optical+near-IR objects, and present a reassessment of the reliability of the claimed X-ray detections in the 4 Ms Chandra imaging. In Section 4 we use the resulting revised sample of high-redshift AGN in tandem with results from brighter AGN surveys to re-determine the likely form and evolution of the high-redshift far-UV LF of AGN, and hence the contribution of AGN to hydrogen ionizing emissivity at early times. We discuss our results in the context of other recent studies in Section 5, and summarize our conclusions in Section 6. Throughout, all magnitudes are quoted in the AB system (Oke 1974; Oke & Gunn 1983), and all cosmological calculations assume a flat cosmology with $\Omega_{m}=0.3$, $\Omega_{\Lambda}=0.7$ and H0 = 70 km s*-1* Mpc*-1*.

2 Data

2.1 X-ray Data

The X-ray data utilised here is that provided by the Chandra X-ray Observatory through the first 4 Ms of imaging undertaken within the Chandra Deep Field South (CDF-S) survey (Xue et al. 2011). The publicly-available X-ray imaging, spanning the energy range $0.5-10$ keV, was reduced following the procedures described in Luo et al. (2008).

2.2 Optical and near-IR data

In this study we have used the publicly-available HST WFC3/IR and HST ACS imaging of the Great Observatories Origins Deep Survey South (GOODS-S) field provided by the Cosmic Assembly Near-Infrared Deep Extragalactic Legacy Survey (CANDELS) (Grogin et al. 2011; Koekemoer et al. 2011; Windhorst et al. 2011), and the associated pre-existing HST optical (Giavalisco et al. 2004), ground-based VLT $U$-band (Nonino et al. 2009) and $K_{s}$-band (Retzlaff et al. 2010; Fontana et al. 2014), and Spitzer IRAC imaging (Ashby et al. 2013), as summarized by Guo et al. (2013). The sources were detected, and their iso-photal fluxes in the $HST$ bands measured using sextractor v2.8.6 (Bertin & Arnouts 1996) in dual-image mode, with $H_{160}$ as the detection image. As described in Guo et al. (2013), in this field the Template FITting (tfit) method (Laidler et al. 2007) has been applied to generate the matched photometry from the lower angular resolution $U$, $K_{s}$ and IRAC imaging. The GOODS-S catalogue provided by Guo et al. (2013) contains 34930 sources within a sky area of 173 arcmin2, with photometry in the $U$, $B_{435}$, $V_{606}$, $i_{775}$, $z_{850}$, $Y_{098}$, $Y_{105}$, $J_{125}$, $H_{160}$, $K_{s}$, $IRAC_{3.6{\mu}m}$ and $IRAC_{4.5{\mu}m}$ bands.

2.3 The Giallongo et al. (2015) sample

To extract their new sample of proposed high-redshift $z>4$ X-ray AGN, Giallongo et al. (2015) first isolated a sample of $z>4$ optical/near-IR sources from within the Guo et al. (2013) GOODS-S catalogue, using the photometric redshifts assembled by the CANDELS team (Dahlen et al. 2013). This resulted in a sample of 1113 sources in the CANDELS/GOODS-S region with photometric or spectroscopic redshifts $z>4$. They then used the positions of these proposed $z>4$ sources as derived from the HST WFC3/IR $H_{160}$ imaging as priors in the procedure proposed by Fiore et al. (2012) to search for significant X-ray flux at these input positions. In essence, Giallongo et al. (2015) pushed the sensitivity limit of the Chandra imaging by looking for clustering of X-ray counts in space–time-energy parameter space. The result was a claimed sample of 22 significant X-ray detections from within the parent sample of 1113 $z>4$ sources. This sample is presented in Table 1. As noted by Giallongo et al. (2015), 8 of these 22 sources were already reported in the X-ray selected catalogues of Xue et al. (2011) and Hsu et al. (2014), with a further 3 previously reported by Fiore et al. (2012), albeit with somewhat different photometric redshifts. Thus, 14 of these 22 sources were newly ‘discovered’ with the aid of the $H_{160}$ input prior positions, and are presumably therefore too faint to have been discovered utilising straightforward established X-ray source detection techniques applied purely to the Chandra imaging.

Table 1 summarizes the available information on these sources (prior to the present study) including catalogue numbers from Giallongo et al. (2015), Xue et al. (2011), and 3D-HST (Skelton et al. 2014), $H_{160}$ positions, spectroscopic redshifts (available for 5 optical/near-IR sources) and photometric redshifts as derived by Giallongo et al. (2015), Hsu et al. (2014), and the 3D-HST team (Skelton et al. 2014). This table also contains our own new photometric redshift determinations which we discuss and present in the next Section.

3 Reanalysis of the 22-source sample

3.1 Photometric redshifts

A comparison of columns 7, 8 and 9 in Table 1 shows that, whilst for many sources the various pre-existing photometric redshifts are in reasonable agreement, this is certainly not the case for all of the objects. In particular, for several sources the photometric redshifts reported by Hsu et al. (2014) (who included AGN templates in their SED fitting) are substantially lower than those reported by Giallongo et al. (2015) or Skelton et al. (2014) (who considered only galaxy templates). The differences may be due to the inclusion of different data (e.g. Hsu et al. included medium-band photometry), different template sets, different allowed ranges of reddening, or a different treatment of the photometric errors, but (unsurprisingly) the precise reasons for these differences are hard to isolate.

Therefore, given the importance of properly establishing the redshift distribution of these candidate high-redshift AGN, we decided to reinvestigate in detail the photometric redshifts of all 22 claimed optical+near-IR AGN counterparts, building on the photometric redshift work performed in Parsa et al. (2016), utilising a mix of both galaxy and AGN templates, and (crucially) allowing for dust reddening extending up to $E(B-V)=1.6$ (as demonstrated by Dunlop et al. (2007), allowing dust-reddening to range up to values as high as $A_{V}\simeq 6$, or equivalently $E(B-V)\simeq 1.5$, is essential to avoid dusty intermediate-redshift galaxies being mis-classified as Lyman-break galaxies at $z>4$).

As in Parsa et al. (2016), we used the public code Le Phare (PHotometric Analysis for Redshift Estimate; Ilbert et al. 2006) to determine the photometric redshifts. This utilises a standard template fitting technique, with the best-fitting spectral template and associated photometric redshift determined by comparing the template SEDs with the observed photometry via $\chi^{2}$ minimisation.111http://www.cfht.hawaii.edu/~arnouts/LEPHARE/lephare.html

To ensure the correct treatment of non-detections, we performed the fitting in flux-density–redshift space (rather than magnitude–redshift space) and set realistic floors to the photometric uncertainties as described in Parsa et al. (2016). The increasing absorption of the IGM with redshift was modelled according to Madau (1995), and dust reddening was implemented using the Calzetti et al. (2000) attenuation law, with reddening allowed to vary over the range $0<E(B-V)<1.6$ (with steps of $\Delta{E(B-V)}=0.1$).

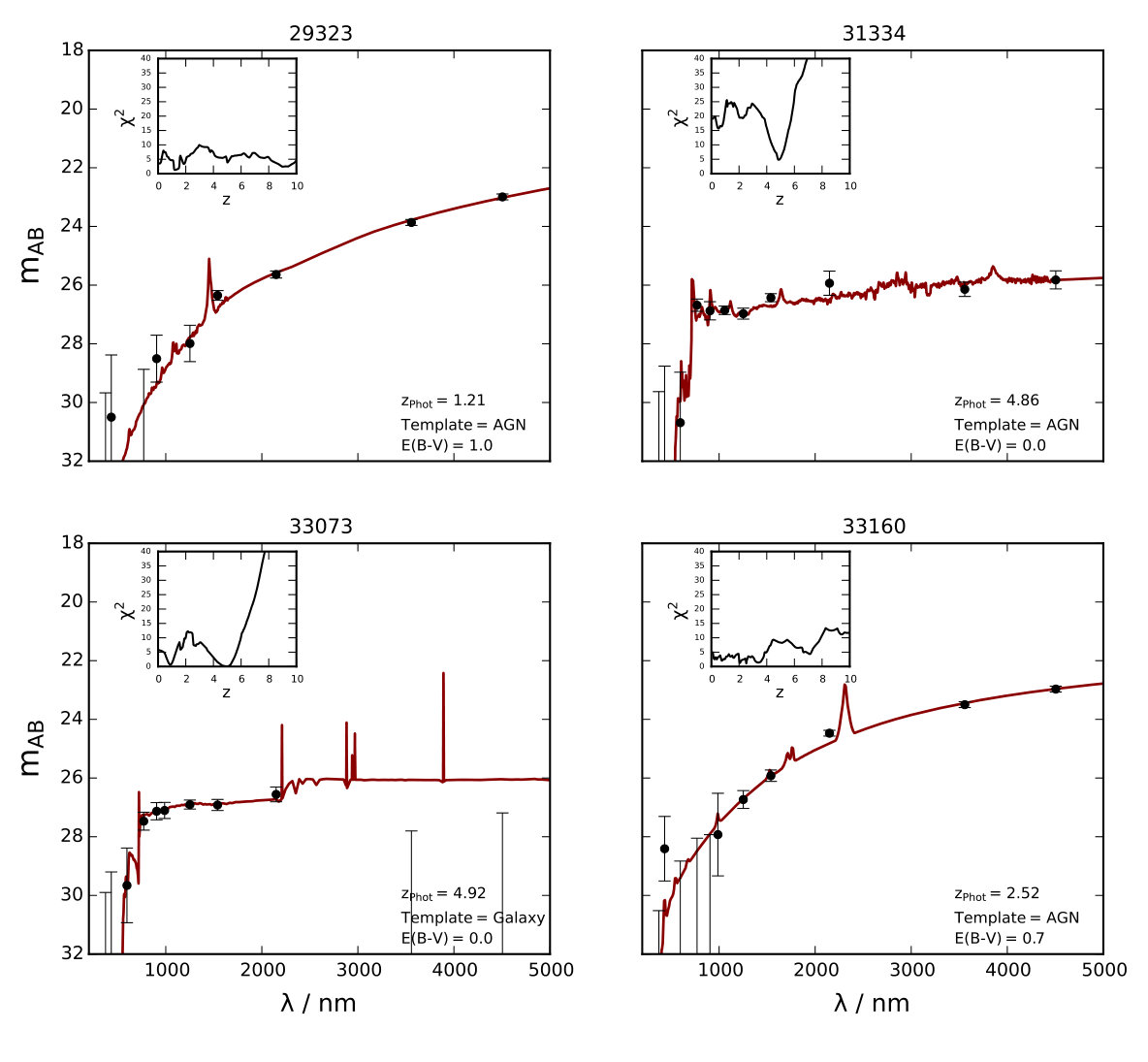

This implementation of the Le Phare code was applied to the sample of 22 sources in two-template mode, allowing for combinations of galaxy and AGN model SEDs. For the galaxy template set, we adopted PEGASEv2.0 (Fioc & Rocca-Volmerange 1999) template SEDs with emission lines switched on over the redshift range $z=0.1-10$, and, in addition, we adopted four sets of AGN model templates over the same redshift range. The best solution was then selected based on the lowest $\chi^{2}$ achieved over the complete galaxy+AGN template set, and the associated photometric redshift adopted. The best-fitting SEDs are shown in Fig.  1, and the corresponding preferred photometric redshifts are recorded in column 10 of Table 1. As can be judged from the $\chi^{2}$ values of the best-fitting SEDs (column 11 of Table 1), acceptable fits were achieved in all cases. The inserts in Fig. 1 showing $\chi^{2}$ versus redshift can be used to judge the uncertainties in each photometric redshift.

Reassuringly, in the 5 cases where a robust spectrosopic redshift has already been determined (see column 6 in Table 1) our photometric redshifts are in good agreement both with the spectroscopic values, and with the photometric redshifts derived in the other pre-existing studies (note that this does not, however, mean that we agree they are X-ray detected AGN; see below). However, for many other sources our new photometric redshifts are substantially lower than those reported by either Giallongo et al. (2015) or Skelton et al. (2014), and are often in better accord with (or even lower than) the values reported by Hsu et al. (2014). In the most dramatic examples of such discrepancies it appears that our best-fitting solution has been achieved with an AGN template (column 12 of Table 1) but it is also the case that, for several sources, the preferred fit has a high level of dust reddening ($E(B-V)$; column 13 of Table 1).

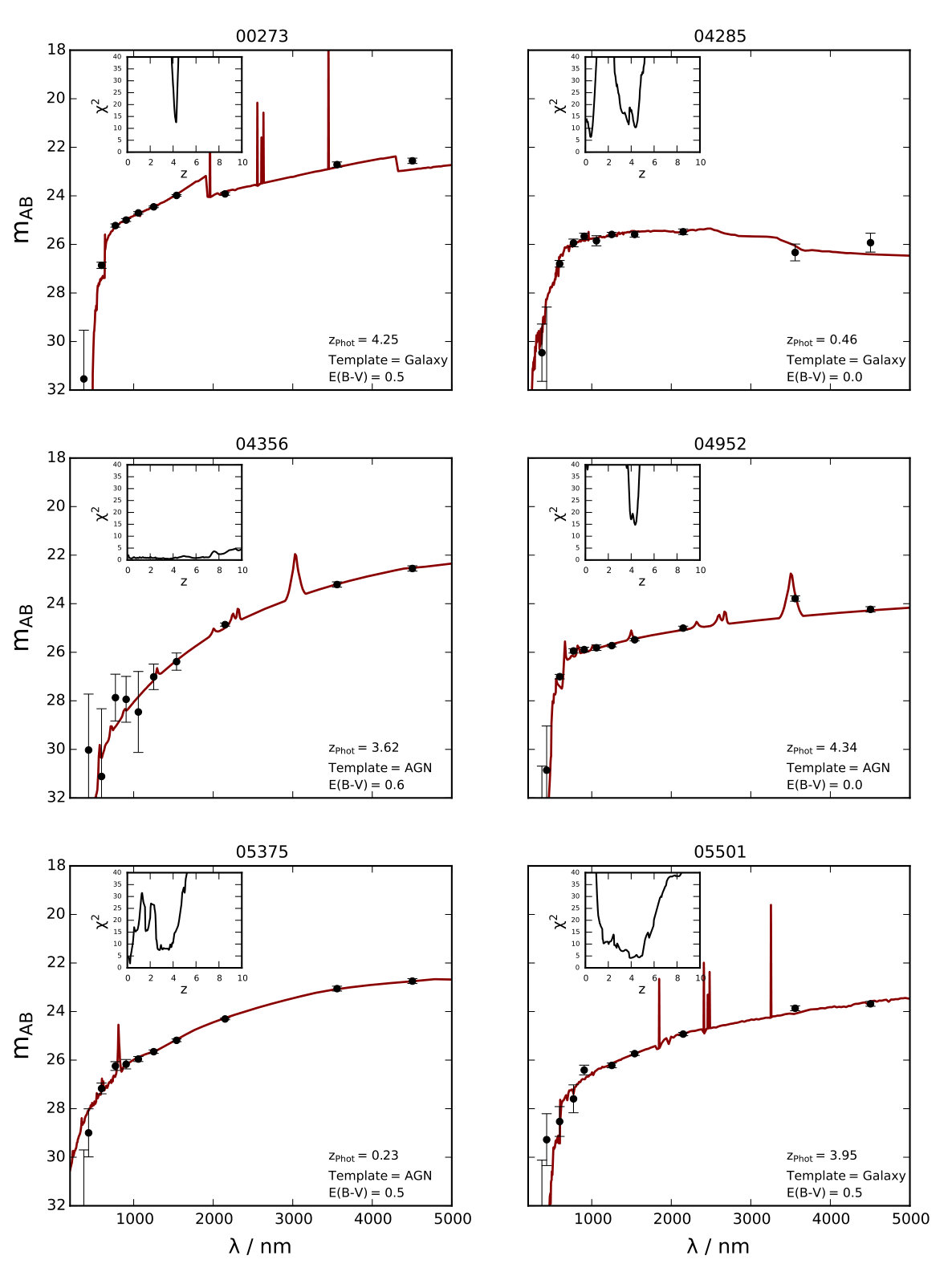

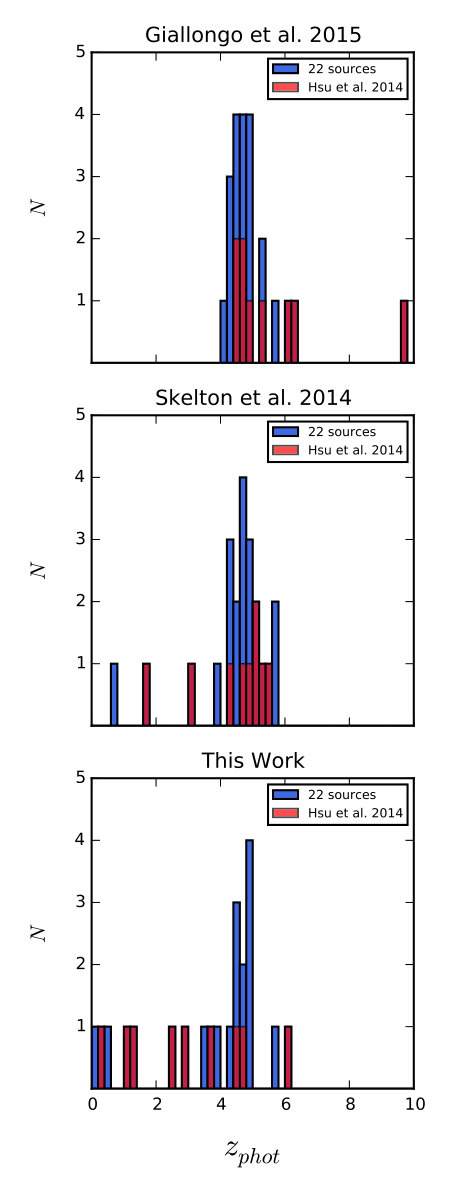

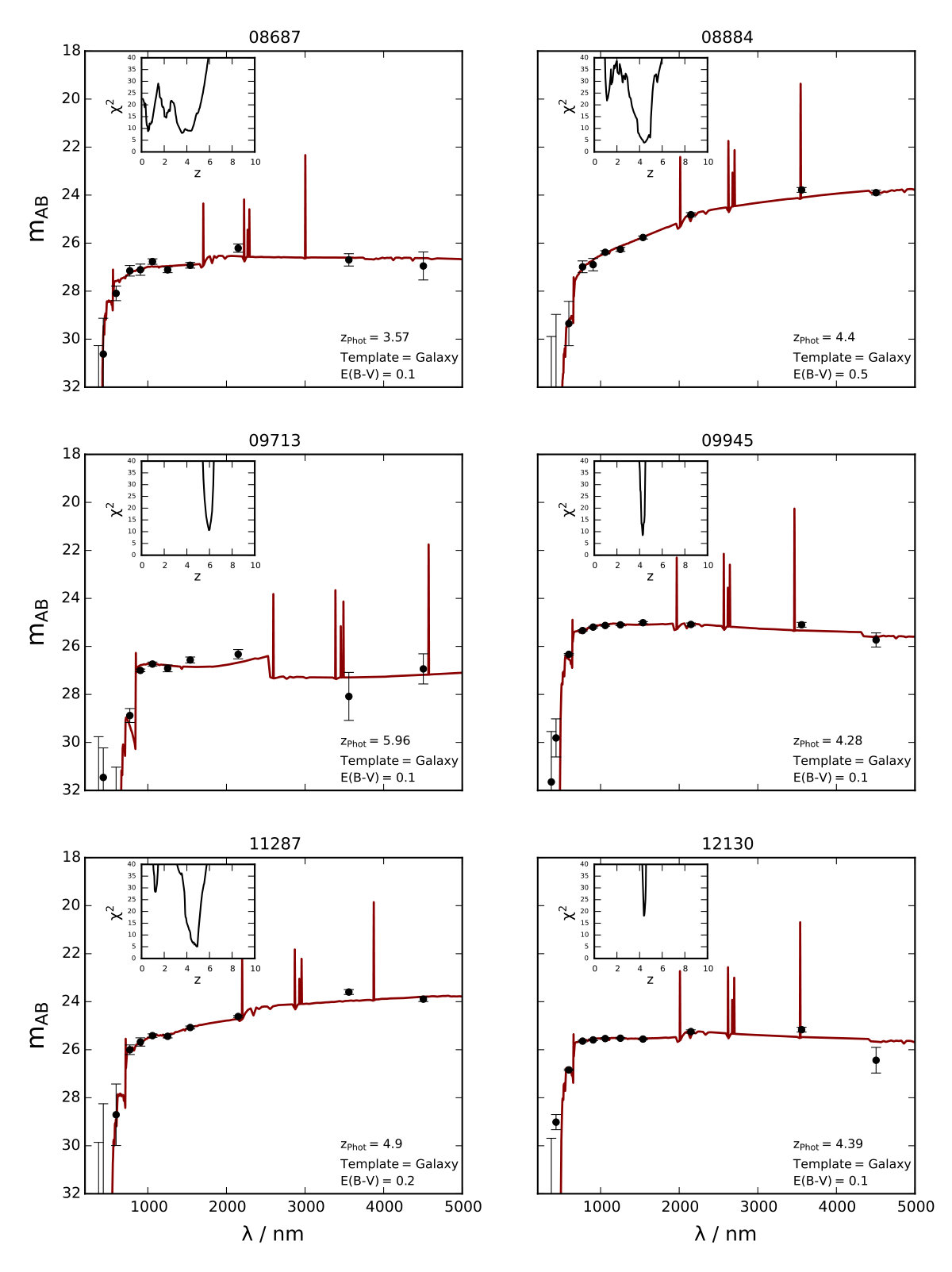

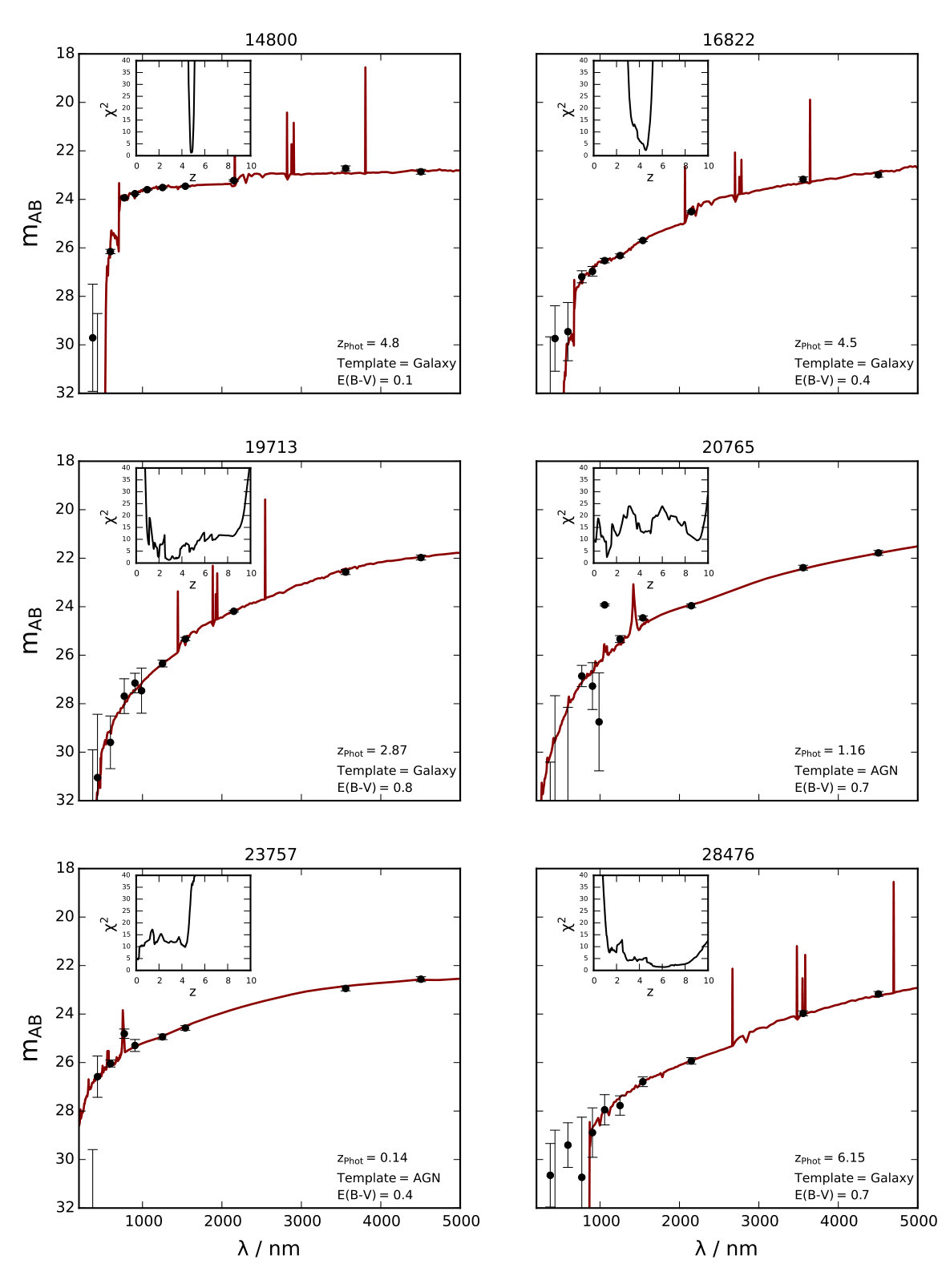

The differences between the resulting redshift distributions derived for this 22-source sample are illustrated in Fig. 2.

3.2 Robustness of the X-ray detections

We next carefully inspected the 4 Ms Chandra X-ray imaging of each of the 22 sources. In Appendix A (Fig. A1) we show the soft, hard and full X-ray energy-band images (0.5–2 keV, 2–10 keV and 0.5–10 keV respectively) of each source, after smoothing with a Gaussian function with $\sigma=1.5$ arcsec.

The 8 sources already found in the X-ray catalogue of Xue et al. (2011) are clearly detected in all three X-ray images. We also (possibly in some cases optimistically) confirm the detection of another 7 sources, at least in the soft X-ray imaging (ID: 8687, 8884, 9945, 11287, 14800, 23757, 28476). However, we are not able to confirm the detection of the remaining 7 candidates. Based on analysis of the raw or smoothed images, we can find no evidence of significant emission in the soft, hard or full bands at the optical/near-IR positions of these 7 sources (ID: 4285, 4952, 5501, 9713, 12130, 31334, 33073).

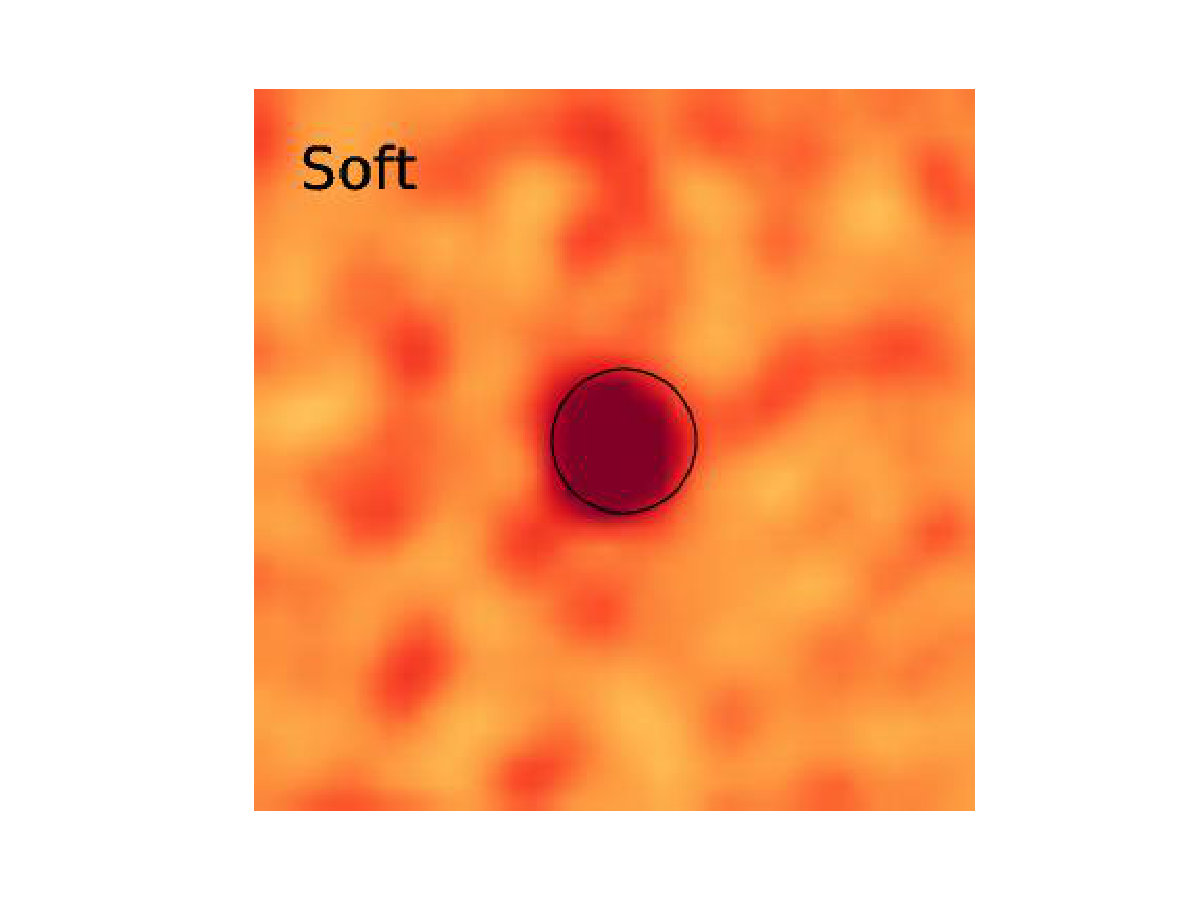

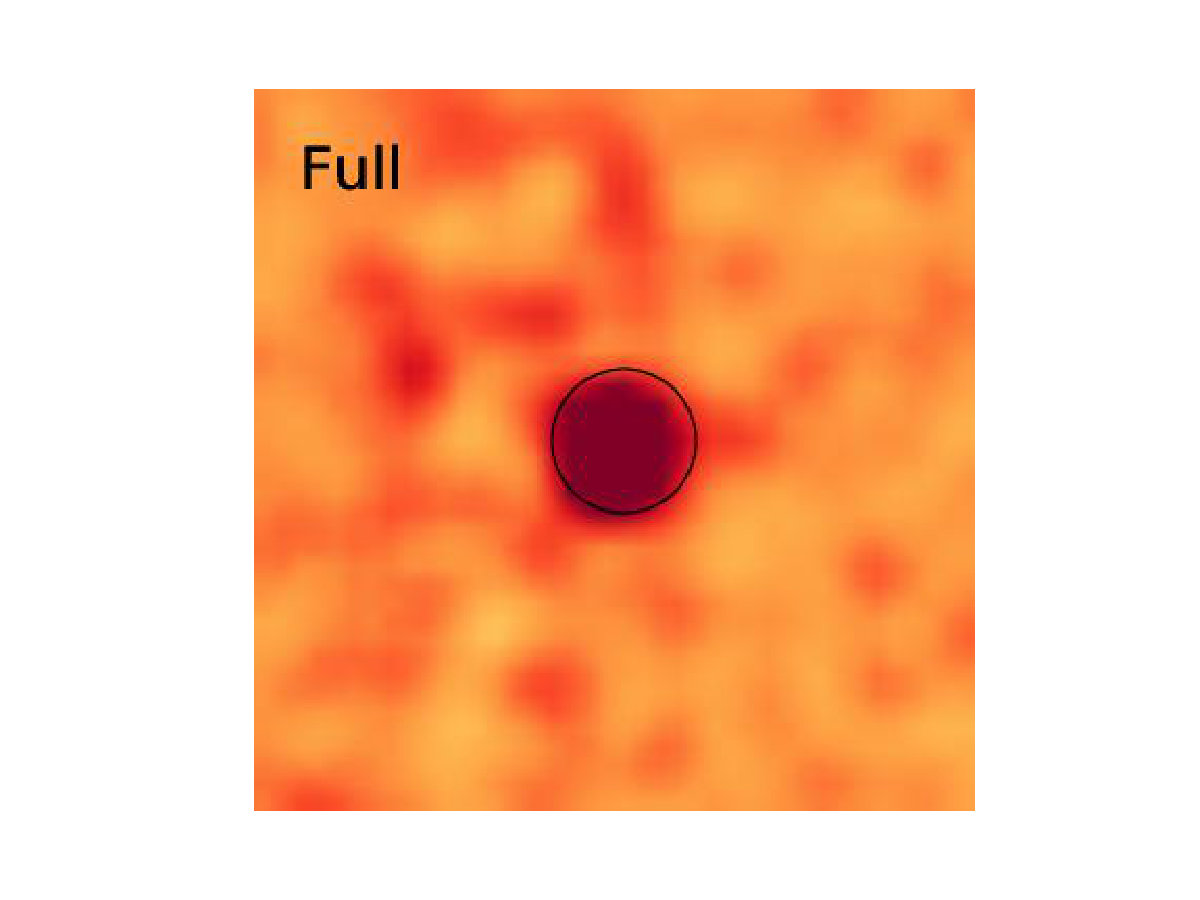

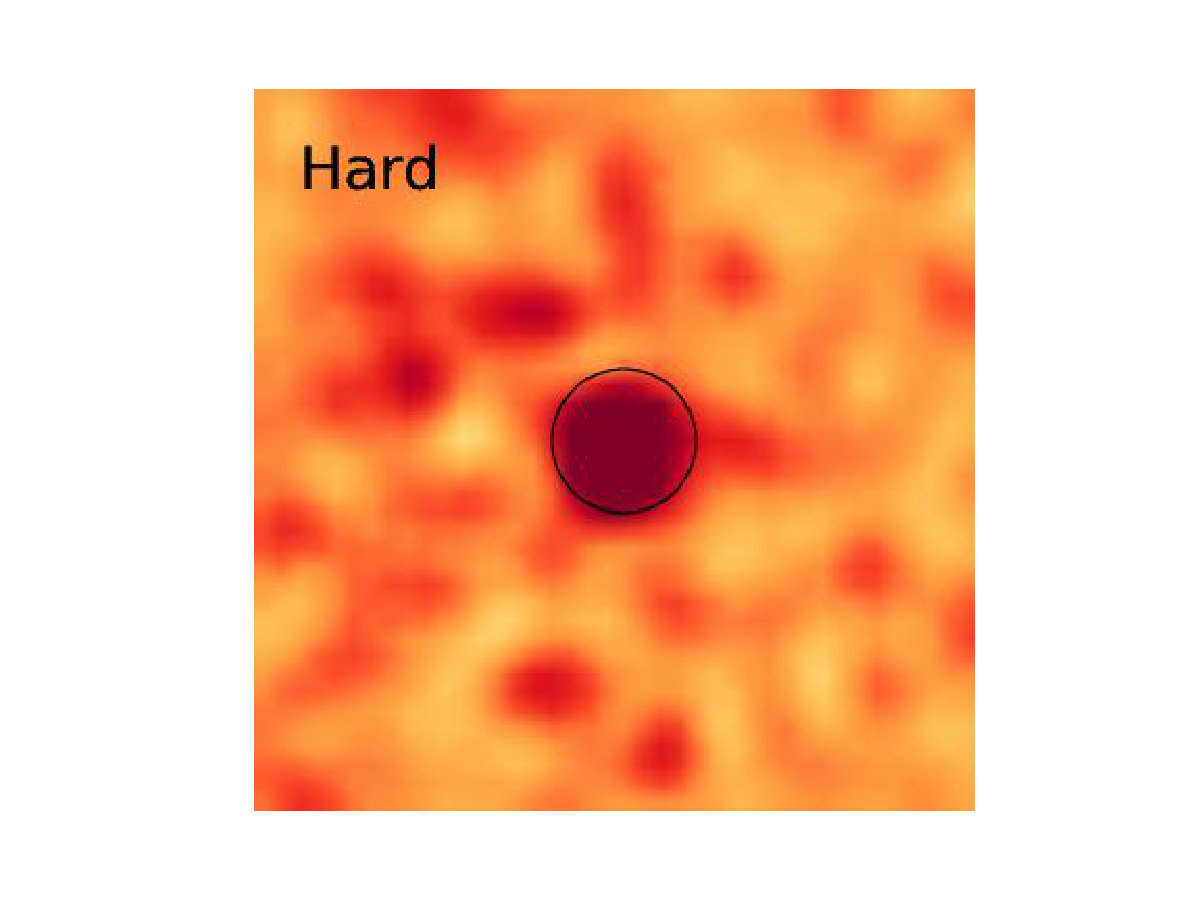

To explore this further we created stacks of the X-ray images. In Fig. 3 we show the stacked soft, hard and full band images for the 15 X-ray sources for which we find at least some evidence for individual source detections. Obviously the resulting stacked detection is highly-significant (it contains the 8 brightest X-ray sources, as well as the 7 more marginal detections), but this figure also provides reassurance of the accurate astrometric alignment between the X-ray and optical/near-IR positions that can be expected for genuine X-ray detections.

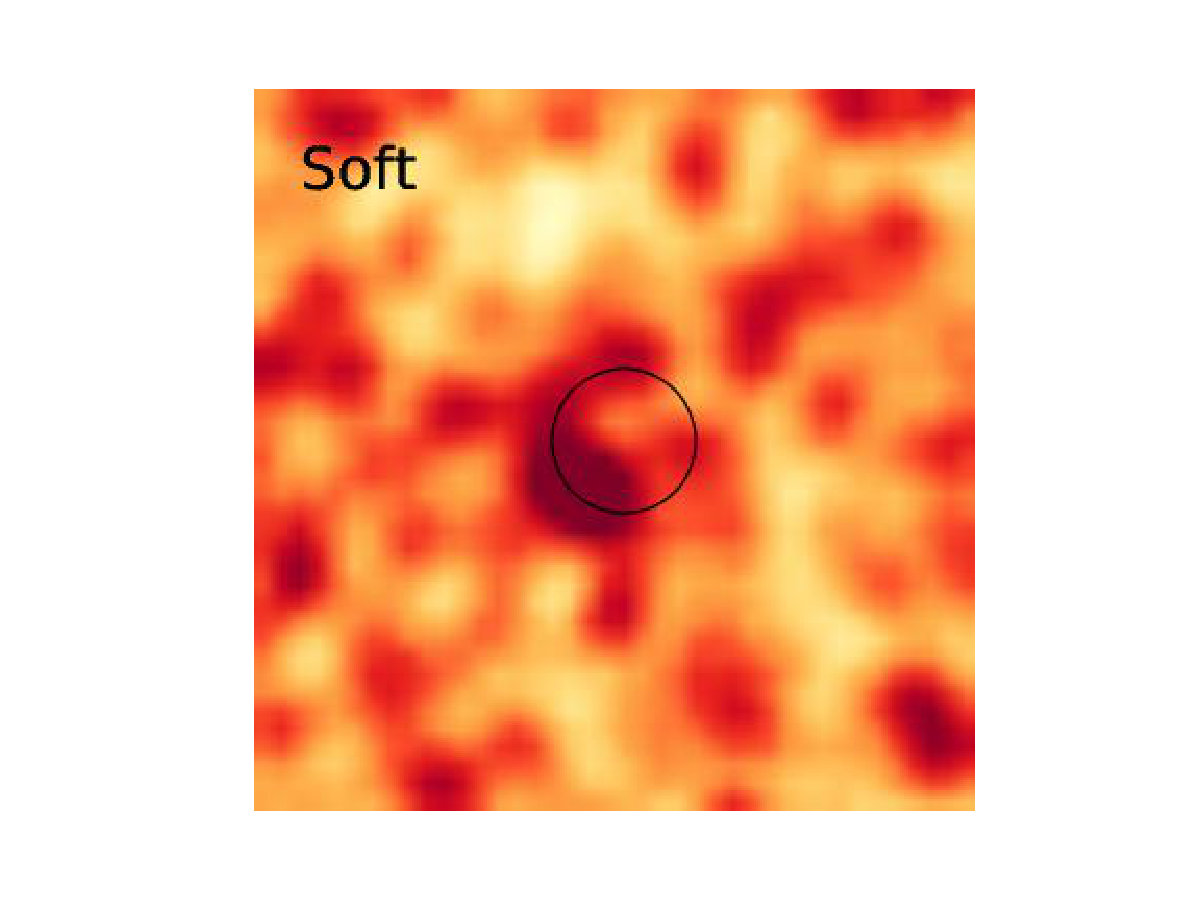

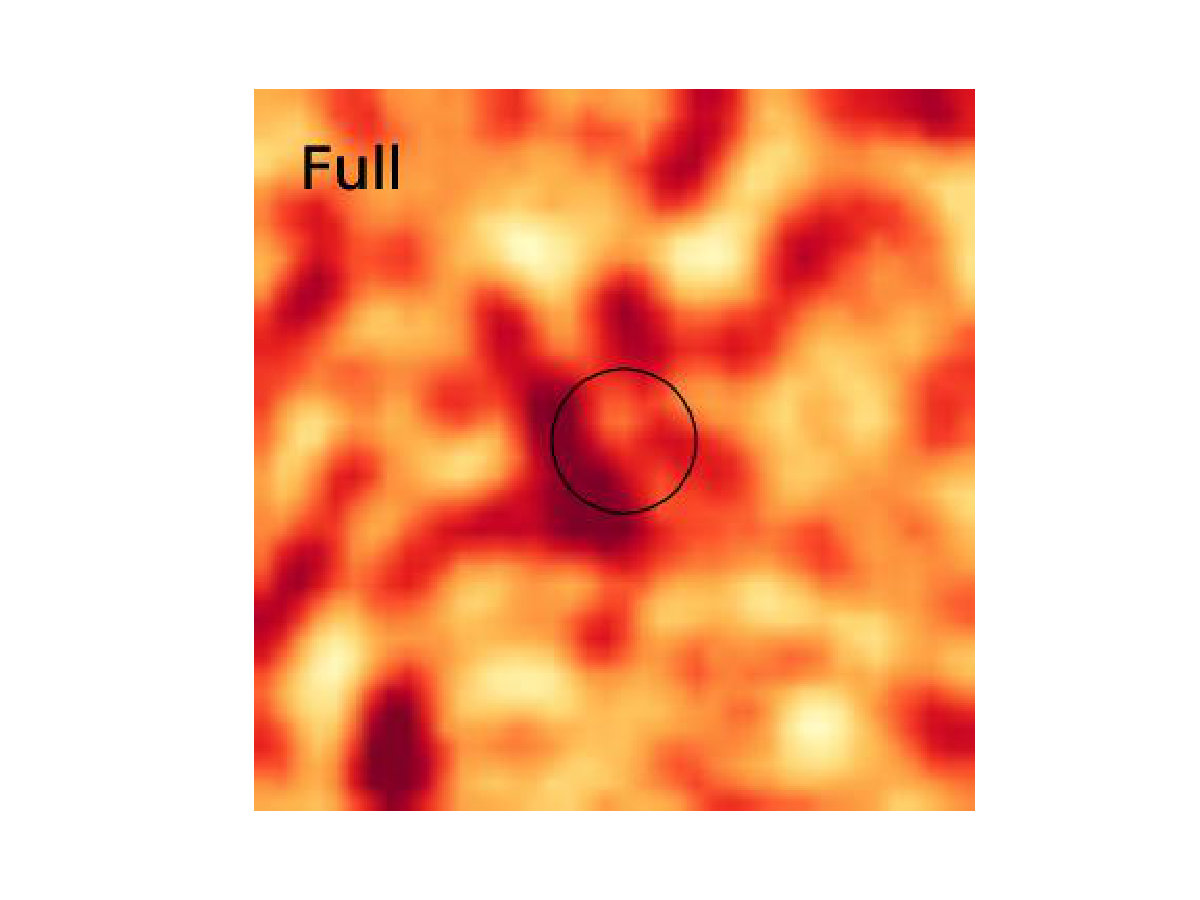

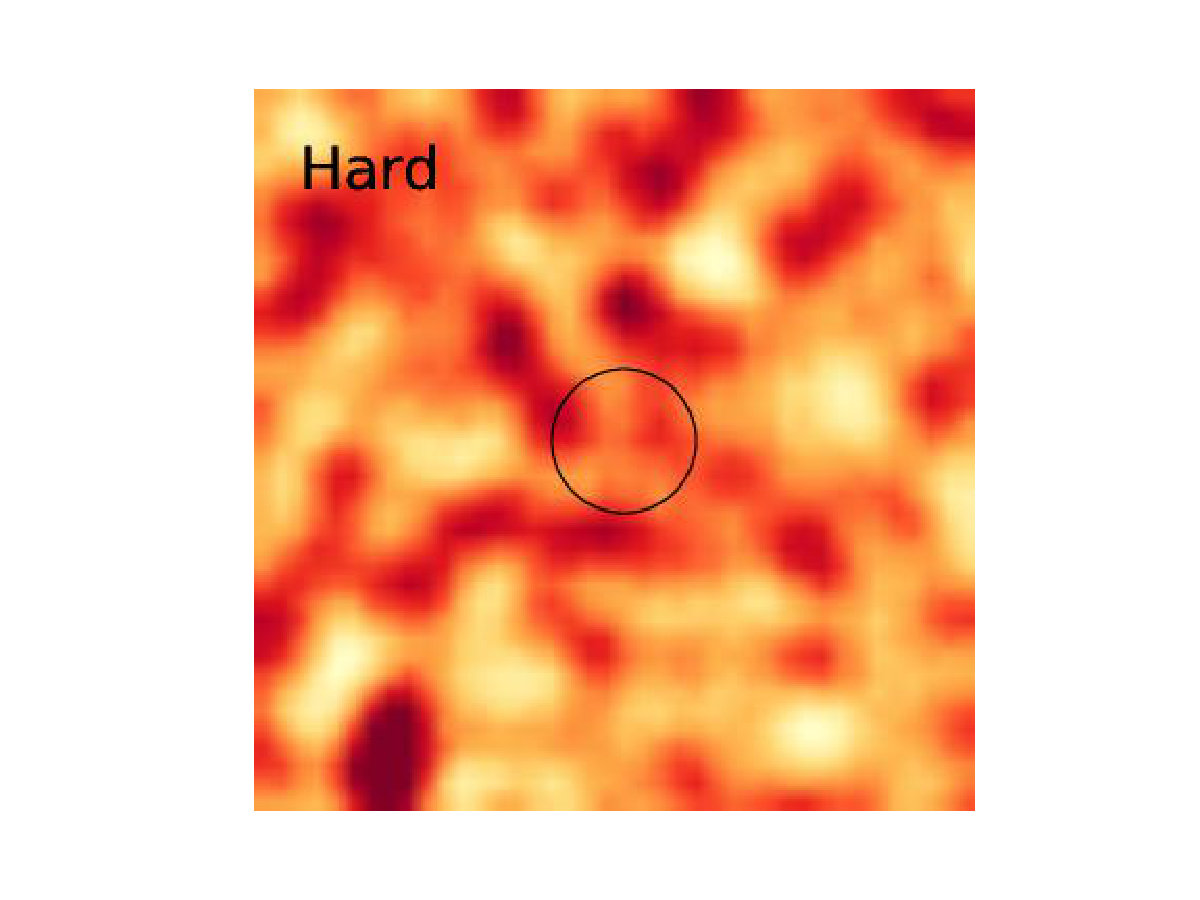

Then, in Fig. 4 we show the corresponding stacked X-ray imaging of the 7 individually undetected sources. Even after stacking, there is no evidence for any significant X-ray flux from this group of sources, casting further doubt on the reality of the X-ray detections claimed for these objects by Giallongo et al. (2015). It can of course be argued that the approach adopted here is somewhat cruder than the more sophisticated approach adopted in Giallongo et al. (2015) (which also incorporated the photon clustering in time), but we still regard it as a matter of serious concern that a stack of these 7 sources shows no significant X-ray emission coincident with the optical/near-IR central position.

In summary, we find that while the approach of using $H_{160}$ prior positions to push the detection limits of the Chandra imaging has probably successfully revealed an additional 7 sources which eluded detection in the X-ray catalogue produced by Xue et al. (2011), a further 7 of the X-ray detections reported by Giallongo et al. (2015) appear to be erroneous (indeed, we predict these 7 sources will also remain undetected in the 7 Ms Chandra imaging; Vito et al. 2016).

Combining this re-inspection of the X-ray data, and our re-analysis of the photometric redshifts, we can find evidence for only one possible X-ray source in GOODS-S at $z>6$ (ID: 28476). However, even for this remaining high-redshift AGN candidate the SED fit shown in Fig. 1 does not formally exclude the possibility of a significantly lower redshift solution. Indeed, this object is arguably suprisingly bright to lie at $z>6$, and in Fig. 5 we show a zoom-in on the $\chi^{2}-z$ plot for this source, which shows that, within $\Delta\chi^{2}=4$ of the best-fitting solution, a redshift as low as $z\simeq 3$ cannot be excluded.

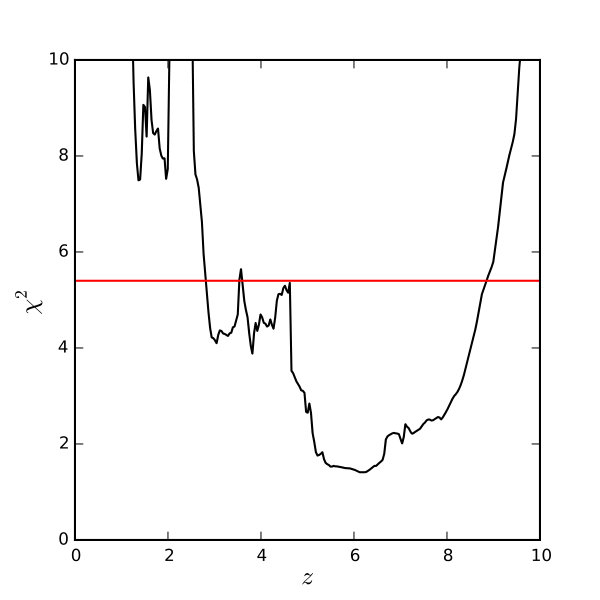

For the remainder of this paper we retain the $z\simeq 6.15$ redshift solution for this source, but the uncertainty over its redshift means that our final estimate of AGN UV emissivity at $z\simeq 6$ should arguably be regarded as an upper limit.

3.3 Completeness check

The focus of this study is on revisiting the claimed 22-source $z>4$ sample presented by Giallongo et al. (2015). However, before proceeding to determine the implications of our revised results for this sample, it is important to check whether our photometric redshift analysis within GOODS-S yields any new X-ray detected sources at $z>4$ which were not reported by Giallongo et al. (2015).

Considering all sources in GOODS-S with $H_{160}<27$, we find that there are 455 objects which Dahlen et al. (2013) found to lie at $z>4$ that we find lie at $z<4$. However, we also found 95 objects for which our photometric redshift lies at $z>4$, while the Dahlen et al. (2013) results indicate $z<4$. So, while it is true that, in general, our photometric redshift technique (allowing higher reddening) yields many fewer high-redshift objects than inferred from the Dahlen et al. (2013) results, there are inevitably cases where the opposite is true.

We inspected the X-ray imaging for all 95 of these objects, and found one detection, corresponding to the GOODS-S source ID: 09035. For this source, we derive $z_{\rm phot}=4.25$, whereas Dahlen et al. (2013) report $z_{\rm phot}=0.64$. We have therefore included this object in our analysis of the luminosity function and resulting luminosity density as presented in the next section (with our inferred redshift, this object has an absolute UV magnitude of $M_{1500}=-20.45$).

4 Revised emissivity estimates

4.1 Calculating AGN hydrogen ionizing

emissivity

Since our focus here is on revisiting the results of Giallongo et al. (2015), we follow their approach to calculating the ionising emissivity of the high-redshift AGN population.

Giallongo et al. (2015) applied the standard $1/V_{max}$ approach (Schmidt 1968) to determine the rest-frame Far-UV (1450 Å) LF of the X-ray AGN by binning their proposed sample of 22 $z>4$ sources into three redshift bins corresponding to $z=$ 4.25, 4.75 and 5.75. Absolute magnitudes, $M_{1450}$, were computed from the apparent magnitudes in the filters closest to sampling $\lambda_{rest}=1450$ Å within each redshift bin. Using this technique, they reported new measurements of the far-UV LF for AGN down to a faint limit corresponding to $M_{1450}\simeq-18.5$ over the redshift range $z=4-6.5$.

After deriving the shape of LF at these three redshifts, Giallongo et al. (2015) then calculated the inferred hydrogen ionizing emissivity of these AGNs using:

[TABLE]

where $\langle f\rangle$ is the average escape fraction of ionizing radiation from the AGN host galaxies and $\epsilon_{912}$ is the co-moving emissivity produced by the volume-averaged AGN activity. The shape of the AGN SED from $\lambda=1450$ Å to $\lambda=912$ Å was represented by a double power-law with slopes adopted following Schirber et al. (2003) and Telfer et al. (2002).

In applying the above formula, Giallongo et al. (2015) calculated the integral down to a faint-luminosity limit corresponding to $M_{1450,limit}=-18$, and assumed an average escape fraction of $\langle f\rangle$ = 1.

4.2 Emissivity estimates from re-scaling of the high-redshift AGN number counts

We first perform the basic calculation of simply rescaling the emissivities reported by Giallongo et al. (2015) according to the number of GOODS-S X-ray AGN that we now find lie in each of the redshift bins considered (i.e. at redshifts $z=4.25$, 5.25 and 5.75). The numbers in each bin change both because we can confirm only 15 of the original 22 sources as X-ray emitters, and because of the revised photometric redshifts given in Table 1 and Fig. 2.

The results are compared in Table 2, where it can be seen that the estimates are not only reduced at all three redshifts, but progressively so with increasing redshift (because we find only 50% of the original number of X-ray sources in the redshift range $z=4-4.5$, only 38% at $z=4.5-5.0$, and only 20% at $z=5.0-6.5$). Note that only one X-ray source remains in our sample at $z>5.0$, approaching the reionization epoch. Moreover, as discussed above, even this source (ID: 28476) could in fact lie at a redshift as low as $z\simeq 3$ (see Fig. 5).

The revised ionizing emissivity estimates given in Table 2 are plotted and discussed further in Section 5.

4.3 Emissivity estimates from a new determination of the evolving AGN LF

The simple calculation presented above helps to clarify the extent to which the proposed high-redshift sample of X-ray AGN is altered by the reinvestigation presented here. However, a more careful reassessment of the resulting impact on inferred ionizing emissivity requires a redetermination of the far-UV LF to be utilised in Equation 1.

We therefore fitted a double power-law LF, parameterised as:

[TABLE]

where $\phi^{*}$, $M^{*}$, $\beta$ and $\gamma$ are the normalization, the break magnitude, the faint-end slope and the bright-end slope respectively.

We fitted this parametric LF to our revised GOODS-S comoving number densities along with the results at brighter magnitudes from the studies of Jiang et al. (2009), Glikman et al. (2011) and McGreer et al. (2013). Again, we attempted to calculate the far-UV LF for the three redshift bins corresponding to $z=4.25$, 4.75 and 5.75.

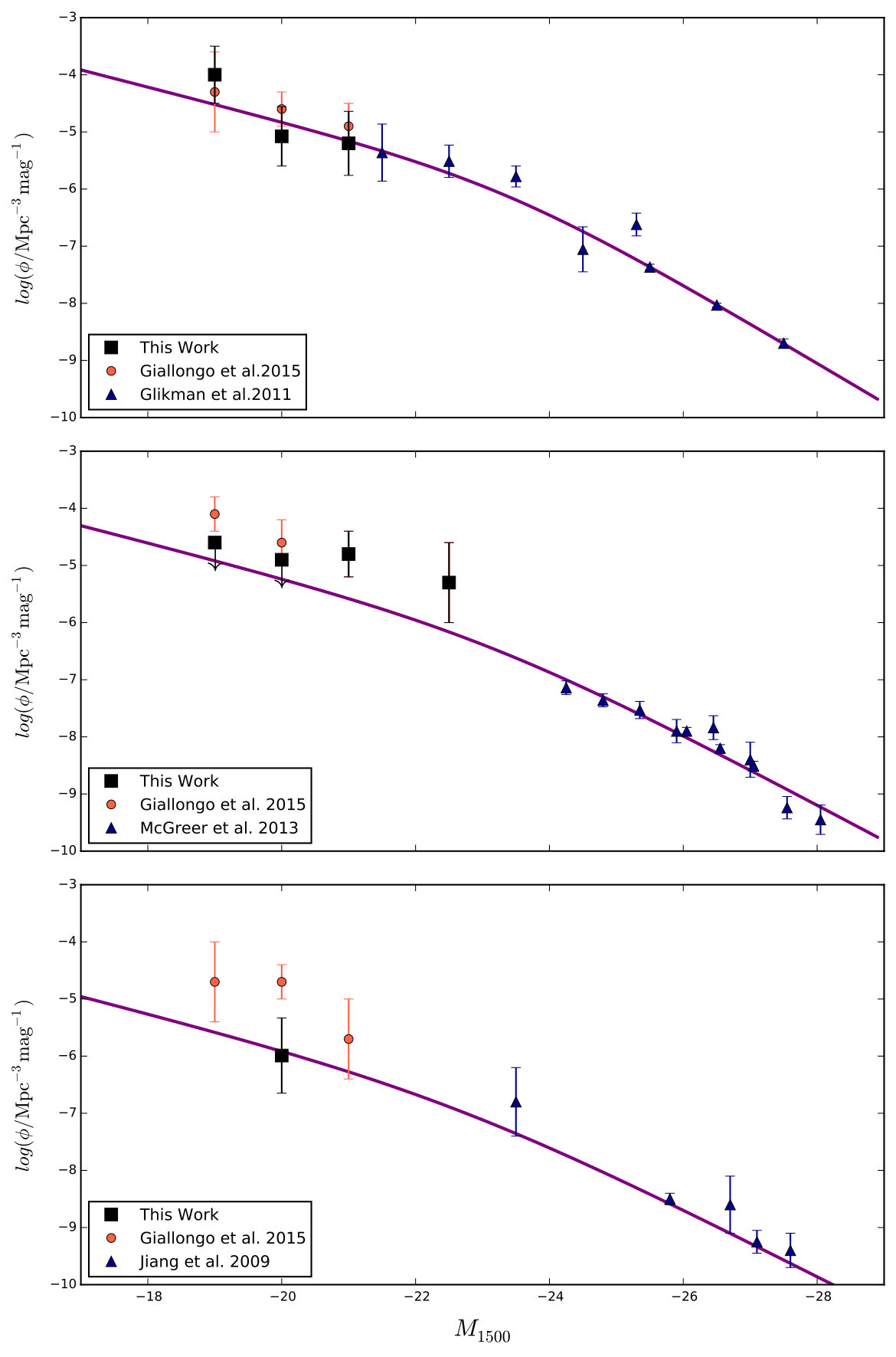

The results of this fitting are shown in Fig. 6, where, for the faintest three bins ($M_{1500}=-21,-20,-19$) we show our new values along with the values calculated by Giallongo et al. (2015) for ease of comparison. We performed a completely free fit of the double power-law LF to the data in the $z=4.25$ bin, because within this bin the data are of sufficient quality to enable a meaningful estimate of the faint-end slope, $\beta=1.75\pm 0.91$. We then fixed the faint-end slope at this value for the two higher-redshift bins, and fitted for $M^{*}$ and $\phi^{*}$. The resulting fits are shown by the curves in Fig. 6, and the best-fitting parameter values are given in Table 3.

The double power-law LF fitted at $z\simeq 4.25$, with a faint-end slope $\beta\simeq 1.75$, is very similar to that derived by Giallongo et al. (2015) (who actually report a slightly flatter faint-end slope), and indeed essentially identical to that recently derived by Manti et al. (2017). In the two higher redshift bins, the relative lack of faint AGN in our revised sample results in a steady reduction in $\phi^{*}$, and a mild monotonic reduction in the break luminosity. In contrast, Giallongo et al. (2015) reported essentially no evolution between $z\simeq 4.75$ and $z\simeq 5.75$.

To calculate the the ionizing emissivities inferred by these far-UV LFs we follow Giallongo et al. (2015), and use Equation 1, with the same double power-law SED to extrapolate from 1450 Å to 912 Å, again integrate down to $M_{1450}=-18$, and assume an average ionizing photon escape fraction of $\langle f\rangle=1$. The resulting emissivity estimates are given in the final column of Table 3, and are even lower than the values estimated in Table 2. These values are plotted and discussed further in the next Section.

5 Discussion

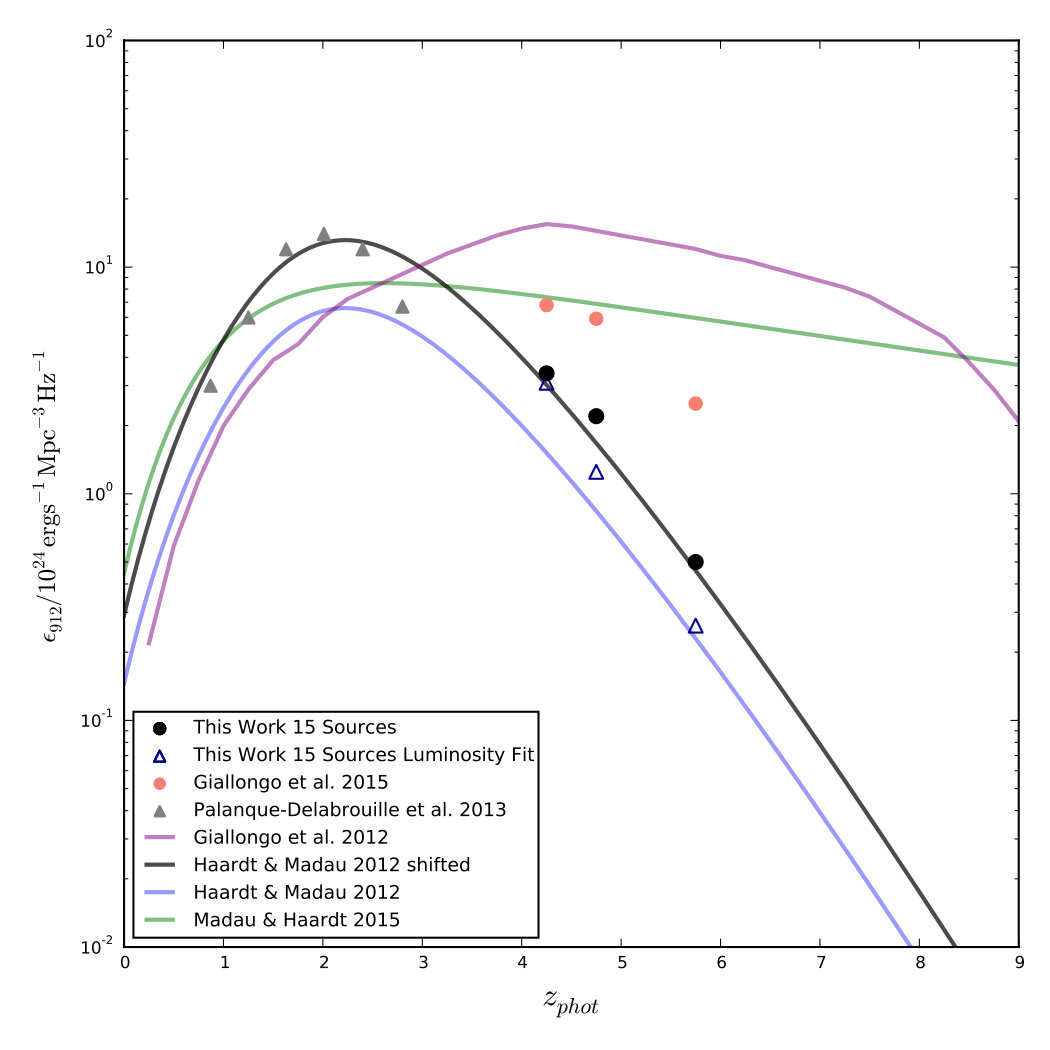

Our revised AGN hydrogen ionizing emissivity results at $z>4$ are plotted in Fig. 7, along with the results from Giallongo et al. (2015), values derived at lower redshifts by Palanque-Delabrouille et al. (2013), and the predictions of the studies of Giallongo et al. (2012), Haardt & Madau (2012) and Madau & Haardt (2015). The observational results of Giallongo et al. (2015) are in reasonable accord with the predictions of the theoretical modelling undertaken by Giallongo et al. (2012), which suggested that AGN could indeed make a significant contribution to cosmic hydrogen reionization. However, it can be seen that our revised results, either from the revised number counts (Table 2) or from the luminosity-weighted integration of the revised LFs (Table 3), are in much better accord with the predictions of the parametric model of Haardt & Madau (2012), in which comoving ionizing emissivity of the AGN population peaks at $z\simeq 2$ and then declines rapidly at higher redshift. Indeed our revised emissivity estimates at $z>4$, combined with the results derived from the quasar LFs produced by Palanque-Delabrouille et al. (2013) at lower redshifts, are very well described by the model of Haardt & Madau (2012), simply boosted in amplitude by a factor of $\simeq 2$ (the solid black curve in Fig. 7). This relation is given by the equation:

[TABLE]

in units of ${\rm erg\,s^{-1}Hz^{-1}Mpc^{-3}}$.

It is clear that our results fall far short of the emissivity curves produced by Giallongo et al. (2012) and Madau & Haardt (2015), both of which suggested that high levels of AGN-produced emissivity might be maintained back into the reionization epoch. Thus, as a result of our revised photometric redshifts, and our reanalysis of the claimed X-ray detections, our findings support the conclusion, originally reached by Haardt & Madau (2012) (and more recently reaffirmed by Vito et al. 2016, Qin et al. 2017and Ricci et al. 2017), that the contribution of AGN to cosmic hydrogen ionization is essentially neglible.

Of course it is important to note that the revised model of reionization presented by Madau & Haardt (2015) (green curve in Fig. 7) was motivated, at least in part, by the observational results of Giallongo et al. (2015), and hence renewed interest in a model in which cosmic hydrogen reionization was produced entirely by early AGN. However, Fig. 7 shows that our revised estimate of AGN ionizing emissivity at $z>5$ now lies over an order-of-magnitude below that required by such a model. This is despite the fact that we have assumed an AGN ionizing photon escape fraction of unity in calculating $\epsilon_{912}$, which is almost certainly excessive (e.g. Micheva et al. 2017). Finally, we also note that models in which AGN are responsible for HI reionization struggle to reproduce the $\tau_{HeII}$ measurements (Khaire et al. 2016; Khaire 2017).

We conclude that all available evidence continues to favour a scenario in which young galaxies reionized the Universe, with AGN playing an essentially negligible role in cosmic hydrogen reionization.

6 Conclusions

We have reinvestigated the properties of a claimed sample of 22 X-ray detected active galactic nuclei (AGN) at redshifts $z>4$ within the GOOD-S/CANDELS field. While 8 of these X-ray sources were already known from existing X-ray catalogues derived from the 4 Ms Chandra imaging within the CDF-S (Xue et al. 2011), the remaining 14 were identified by Giallongo et al. (2015). This was done using positional priors derived from the HST $H_{160}$ images of a catalogue of 1113 sources with claimed photometric redshifts $z>4$, and searching for clustering of X-ray photons in time coincident with these positions.

We have re-examined the robustness of the claimed X-ray detections (within the Chandra 4 Ms imaging), and find that, even taking an optimistic approach to apparent detections, only 15 of the 22 X-ray sources can be confirmed in the 4 Ms data, with a stack of the remaining 7 sources yielding no significant detection. We have also carefuly re-investigated the photometric redshifts of the 22 $H_{160}$ counterparts, using both galaxy and AGN SEDs, and find that many of the claimed high-redshift sources more likely lie at lower redshifts. Specifically, we can only confirm 12 of the 22 HST sources to lie robustly at $z>4$.

Combining these results, we have found convincing evidence for only 7 X-ray AGN at $z>4$ in the GOODS-S field, of which only one lies at $z>5$. We have re-calculated the evolving far-UV (1500 Å) luminosity density produced by AGN at high redshift (using both revised number counts and a new determination of the evolving LF) and find that it declines rapidly from $z\simeq 4$ to $z\simeq 6$, in agreement with several other recent studies of the evolving AGN luminosity function.

Finally, we have calculated the resulting inferred high-redshift evolution of comoving hydrogen-ionizing emissivity density ($\epsilon_{912}$), and compared this with other recent observations and models. We conclude that, at $z\simeq 6$, the contribution towards $\epsilon_{912}$ from AGN falls over an order-of-magnitude short of the level required to maintain cosmic hydrogen ionization, and that the redshift evolution of $\epsilon_{912}$ from AGN is better described by the model of Haardt & Madau (2012) (albeit possibly boosted in overall amplitude by a factor $\simeq 2$) than by the revised model of Madau & Haardt (2015) (which was inspired, in part, by the results of Giallongo et al. 2015). Our results support a scenario in which the emerging population of young galaxies reionized the Universe, with AGN making at most a minor contribution to cosmic hydrogen reionization.

Acknowledgments

SP acknowledges the support of the University of Edinburgh via the Principal’s Career Development Scholarship. This work is based in part on observations made with the NASA/ESA Hubble Space Telescope, which is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS5-26555. This work is also based in part on observations made with the Spitzer Space Telescope, which is operated by the Jet Propulsion Laboratory, California Institute of Technology under NASA con- tract 1407. This work uses data taken with the Hawk-I instrument on the European Southern Observatory Very Large telescope from ESO programme: 092.A-0472

Appendix A X-ray images

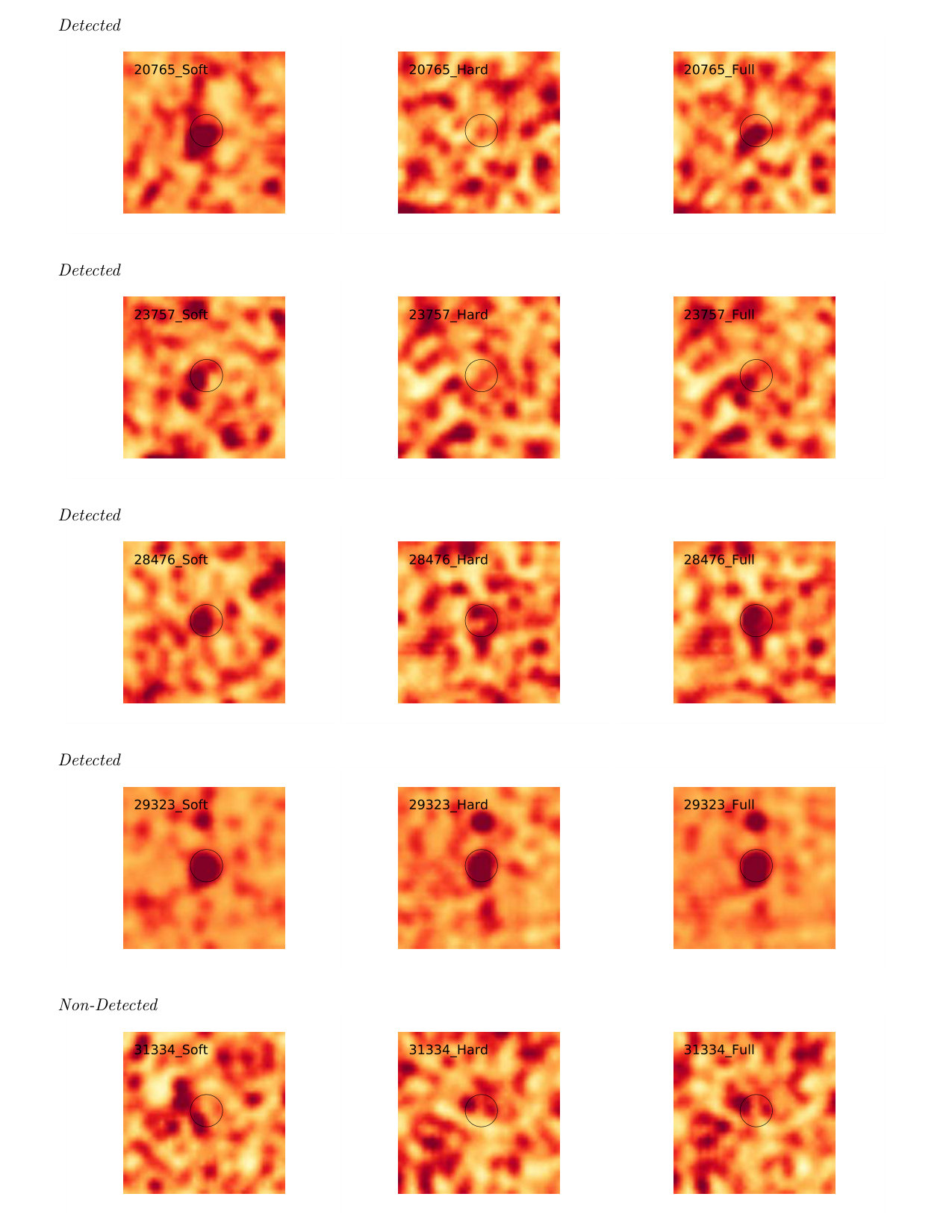

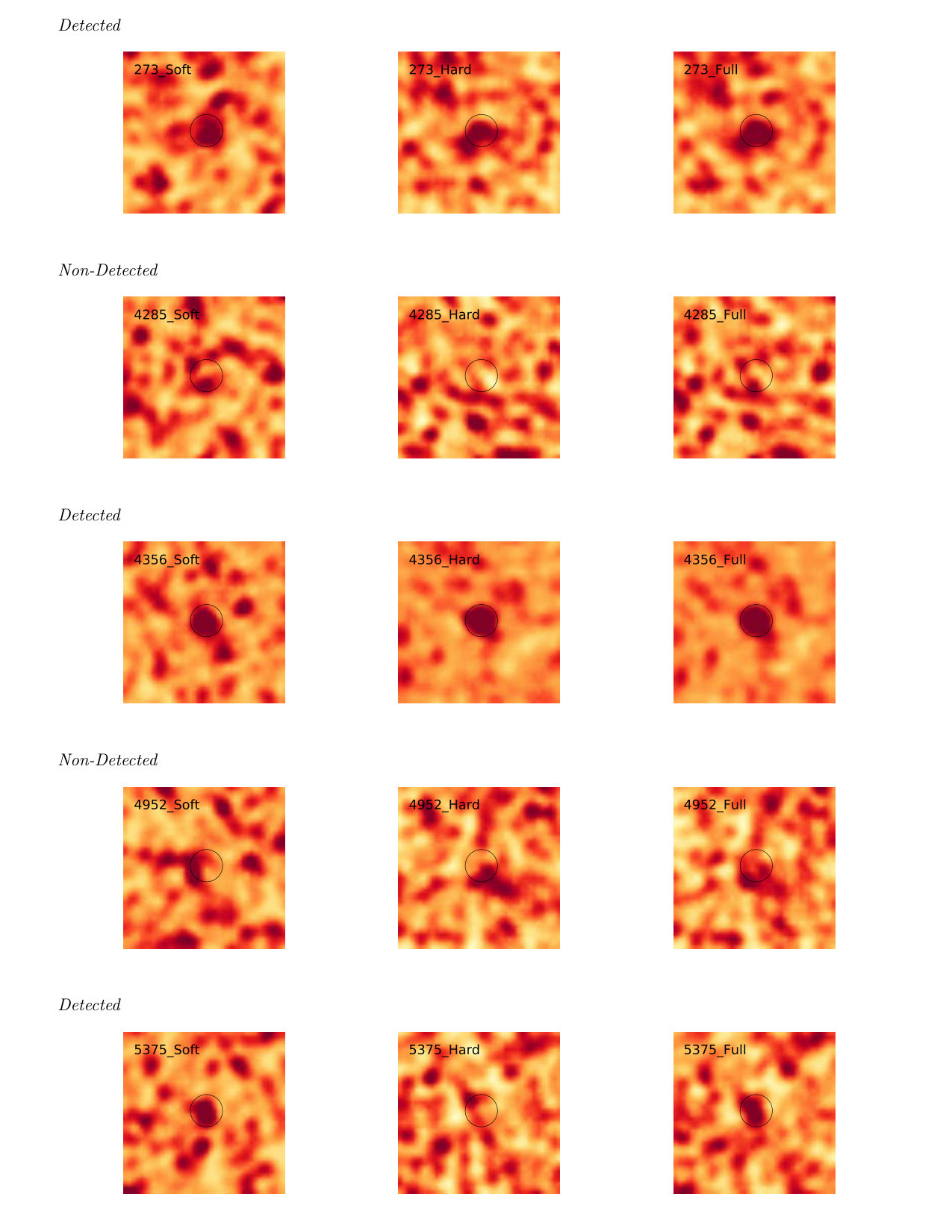

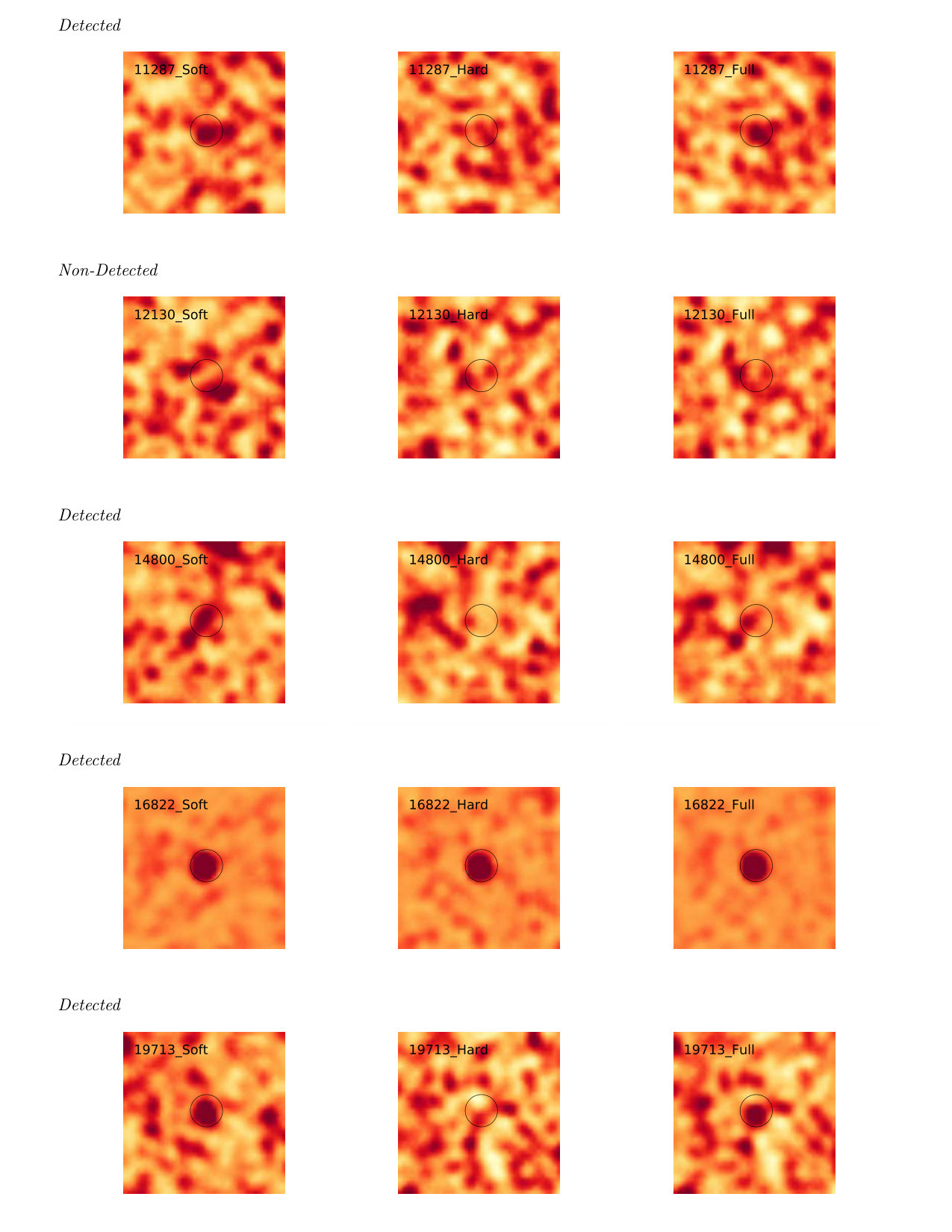

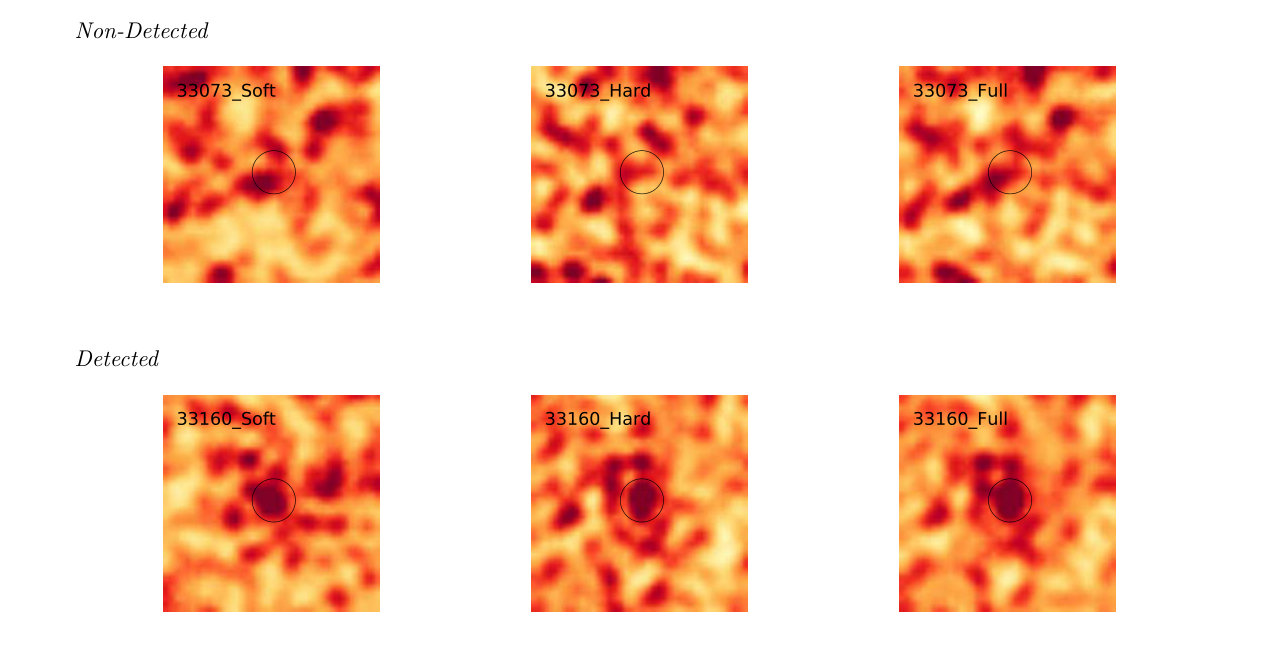

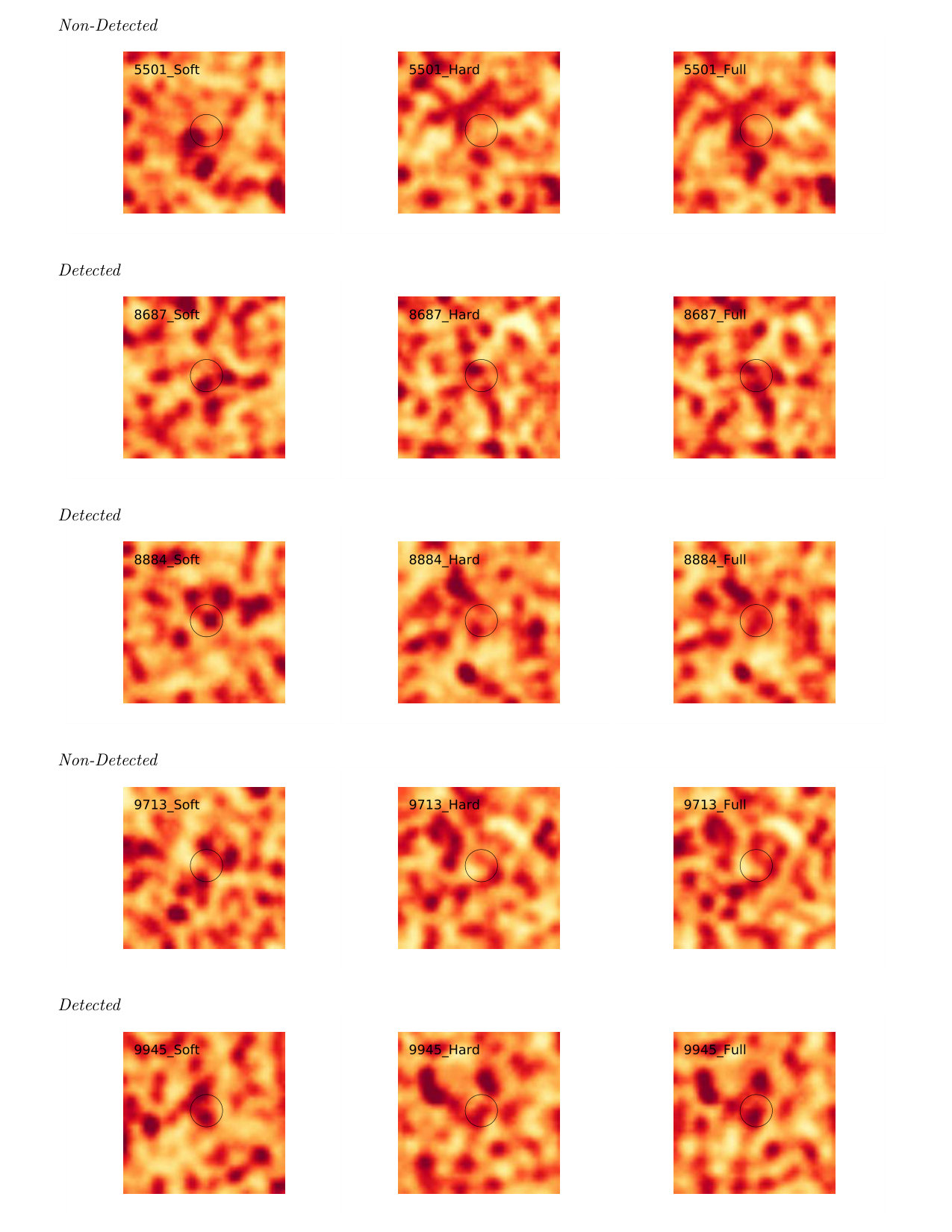

For each of the individual X-ray sources reported by Giallongo et al. (2015), we have revisited and inspected the soft, hard and full X-ray energy-band ($0.5-2$ keV, $2-7$ keV and $2-10$ keV respectively) imaging provided by the Chandra 4 Ms imaging of the CDF-S. To increase the chances of a significant detection we smoothed the images and sought a significant detection in any one of the three X-ray images. The results are shown in Fig. A1. Even taking an optimistic approach to detections, we can confirm only 15 of the claimed 22 X-ray sources. These 15 include the 8 previously known X-ray sources (Xue et al. 2011) plus 7 of the new sources claimed by Giallongo et al. (2015) with their positional prior-based detection technique. This leaves 7 sources for which we can find no evidence of significant X-ray flux in any band coincident with the position of the claimed HST counterpart (ID: 4285, 4952, 5501, 9713, 12130, 31334, 33073). As discussed in the text, and shown in Fig. 4, a stack of the X-ray imaging of these 7 sources also yields no significant X-ray detection consistent with the HST position.
