Percolation based architecture for cluster state creation using photon-mediated entanglement between atomic memories

TL;DR

This paper introduces a percolation-based quantum architecture that enables rapid, scalable creation of large entangled states of atomic memories via photon-mediated entanglement, advancing quantum computing capabilities.

Contribution

It presents a novel percolation theory approach for efficient large-scale entanglement generation in atomic memory lattices, reducing resource and time requirements.

Findings

Percolation theory enables rapid large graph state creation.

The architecture can operate within current experimental coherence times.

It is resilient to site imperfections and does not require feed-forward or high-cooperativity interfaces.

Abstract

A central challenge for many quantum technologies concerns the generation of large entangled states of individually addressable quantum memories. Here, we show that percolation theory allows the rapid production of arbitrarily large graph states by heralded photonic entanglement in a lattice of atomic memories. This approach can greatly reduce the time required to produce large cluster resource states for quantum information processing, including states required for universal one-way quantum computing. This reduction puts our architecture in an operational regime where demonstrated collection, coupling and detection efficiencies are sufficient for generating resource states for universal quantum computing within an experimentally demonstrated coherence time. The approach also dispenses the need for time consuming feed-forward, high-cooperativity interfaces and ancilla single photons, and can also tolerate a high rate of site imperfections. We also derive the minimum coherence time for the atomic memory to scalably create large-scale photonic-entanglement without feed-forward as a function of collection efficiency, setting a critical benchmark for future experimental demonstrations. We also propose a variant of the architecture with long-range connections that makes our architecture even more resilient to low site yields. We analyze our architecture for nitrogen-vacancy (NV) centers in diamond, though the approach applies to any atomic or atom-like system.

Figures

Tables

Table 1. Table 1: Bell measurement success probability ( p 0 subscript 𝑝 0 p_{0} ), Bond trial time ( t 0 subscript 𝑡 0 t_{0} ) and readout time for three different coupling schemes

Collection	Bullseye or SIL	Waveguide	Cavity
Bond success prob. $p_0$	$5\times {10}^{-5}$	$2\times {10}^{-4}$	$5\times {10}^{-2}$
Bond trial time $t_0$111including state initialization	5 us	5 us	5 us
Readout time	$4$ us	$800$ ns	$100$ ns

Full text

Introduction

The past years have seen rapid advances in controlling small groups of qubits encoded in atomic or atom-like quantum memories. An important question now concerns the development of architectures to efficiently combine these memories into large-scale systems capable of general-purpose quantum computing Nemoto et al. (2014); Monroe et al. (2014); Nickerson et al. (2014), quantum simulation Cai et al. (2013), and metrology near the quantum limit Giovannetti et al. (2011). A promising approach is entangling the atomic qubits with optical links to generate cluster states which can perform general-purpose quantum computing with adaptive single-qubit measurements Raussendorf and Briegel (2001). A key challenge is to produce this cluster state fast enough to allow computation and error correction within a coherence time of memories.

Here, we show that percolation of heralded entanglement allows us to create arbitrarily large cluster states. Our cluster state based architecture does not require reconfiguration of physical qubits by the result of the entanglement success unlike conventional approaches Duan and Raussendorf (2005). Instead, the optical network reconfigures the connectivity. Meanwhile, the concept of percolation greatly relaxes the high success probability required in the previous proposals Nemoto et al. (2014); Monroe et al. (2014); Nickerson et al. (2014). The process is fast enough for implementation with the device parameters demonstrated; one does not need high cooperativity cavities and ancilla single photons. It requires ‘feed-forward’, operations conditioned on the previous measurement results. In the absence of errors, the missing bonds can be compensated with constant overhead Kieling et al. (2007); Gimeno-Segovia et al. (2015); Zaidi et al. (2015); Browne et al. (2008). In the presence of errors, the scheme can be adapted to be fault-tolerant Raussendorf et al. (2006, 2007). Our approach also provides tolerance for site imperfections, and we show trade-offs between reaching percolation threshold and site loss-resilience. Combined with transparent nodes implemented on nanophotonic platform, long range connections are possible, reducing the percolation threshold. We derive a theoretical lower bound on the minimum time required to percolate in any lattice, and found that the proposed lattices are only a factor of $1.6\sim 3$ above this limit.

We focus on nitrogen vacancy (NV) centers in diamond Doherty et al. (2013) and propose the control sequence to map the physical properties to cluster state quantum computation. NV centers have favorable properties as quantum memories. The NV- charge state has a robust optical transition for heralded entanglement between remote NV centers Bernien et al. (2013); Hensen et al. (2015) and a long electronic spin ($S$=1) coherence time approaching one second Abobeih et al. (2018). Recently, single qubit gates with fidelities up to 99$\%$ were achieved with optimal control techniques Dolde et al. (2014). Electronic spins of NV centers can be coupled with nearby nuclear spins, which have coherence times exceeding one minute Bradley et al. (2019). In addition, they can be coupled with integrated nanophotonic devices Mouradian et al. (2015).

Our approach possibly applies to a number of physical systems, including atomic gases Chou et al. (2005), ion traps Moehring et al. (2007), semiconductor quantum dots Delteil et al. (2015), and rare earth ions Kolesov et al. (2012).

Results

Protocol

Figure 1 illustrates the percolation approach to generate cluster states with NV centers. We work in the framework of cluster states where nodes represent qubits in the superposition state $(\ket{0}+\ket{1})/\sqrt{2}$ and bonds represent the controlled-Z (CZ) gate. Consider a square lattice where edges exist with probability $p$ (Fig. 1(a)-(c)). The computational power of the cluster state corresponding to the graph is related to the size of the largest connected component (LCC) (shown in red). When $p<0.5$, the graph produces small disconnected islands. For a lattice with $N$ nodes, the size of the LCC is $O(\log(N))$ Bazant (2000). Single-qubit measurements on such a cluster state can be efficiently simulated on classical computers. When the bond probability $p$ exceeds the critical value $p_{c}=0.5$, called the percolation threshold of the lattice, there is a sudden transition in the size of the LCC. On crossing this boundary, the size of the LCC jumps to $\Theta(N)$ and the lattice is ‘percolated’. A large percolated lattice can be ‘renormalized’ with single qubit measurements to obtain a perfect lattice Kieling et al. (2007). Renormalization consumes a constant fraction of qubits Kieling et al. (2007) and requires classical computation (pathfinding) Herr et al. (2018); Morley-Short et al. (2017). Resulting perfect lattice is a resource for universal quantum computation. Thus, the percolation transition is accompanied by a sudden transition in computational power; adaptive single-qubit measurements on the cluster state enable universal quantum computing Browne et al. (2008).

Figure 1(d) shows the physical implementation of bond creation (entanglement) with NVs. The nuclear spins (red spheres) are ‘client qubits’ that store entanglement. They are coupled to NV electronic spins (‘broker qubits’), that can be entangled remotely by photon-mediated Bell measurements. In each time step, we attempt to create one bond (entanglement) at each node. We consider the Barrett-Kok protocol  Barrett and Kok (2005) on the broker qubits of neighboring nodes. If the probabilistic Bell measurement succeeds, the electron spins in each node are entangled. This entanglement is transferred to the nuclear spins with the entanglement swapping procedure, as illustrated in Fig. 1(d) sup ; Nemoto et al. (2014). The whole cycle from initialization to entanglement swapping is assumed to be approximately $t_{0}=5~{}\upmu$s based on experimental demonstrations Hensen et al. (2015); sup .

If the Bell measurement fails, one needs to restore the nuclear spins as before the trial. In addition, the electronic spins should be initialized to spin ground state without disrupting the nuclear spin. For the first problem, we just wait for the nuclear spin and electronic spin to be decoupled, which happens after a time period of the hyperfine interaction sup . This time period serves as a global clock and can be synchronized across the whole graph only using the 15N nuclear spin, which is the host atom of NV centers. For the electron spin initialization, optical pumping technique cannot be used as in many experiments Bernien et al. (2013); Hensen et al. (2015), because hyperfine coupling persists during a random amount of time when the electronic spin is in $\ket{m_{s}=1}$ states. Instead, we read out the spin state via $\ket{m_{s}=0}$ optical transition where the electronic spin decouples from the nuclear spin. If the spin is in the other state, one can use a fast microwave pulse to put it in the spin ground state sup .

We assume the Barrett-Kok protocol because it does not require ancilla single-photons or high cooperativity cavities, unlike reflection based protocols Nemoto et al. (2014). Furthermore, unlike single photon detection protocols Cabrillo et al. (1999), photon loss does not degrade the entanglement fidelity $\bra{\Psi}\hat{\rho}\ket{\Psi}$ where $\ket{\Psi}$ is the Bell state, and $\hat{\rho}$ is density matrix operator of the system after successful heralding. High entanglement fidelity is important for reducing the error correction overhead in a fault-tolerant architecture. High fidelity comes at the price of low bond success probability Barrett and Kok (2005), that can be overcome in the percolation based architecture.

Physical unit

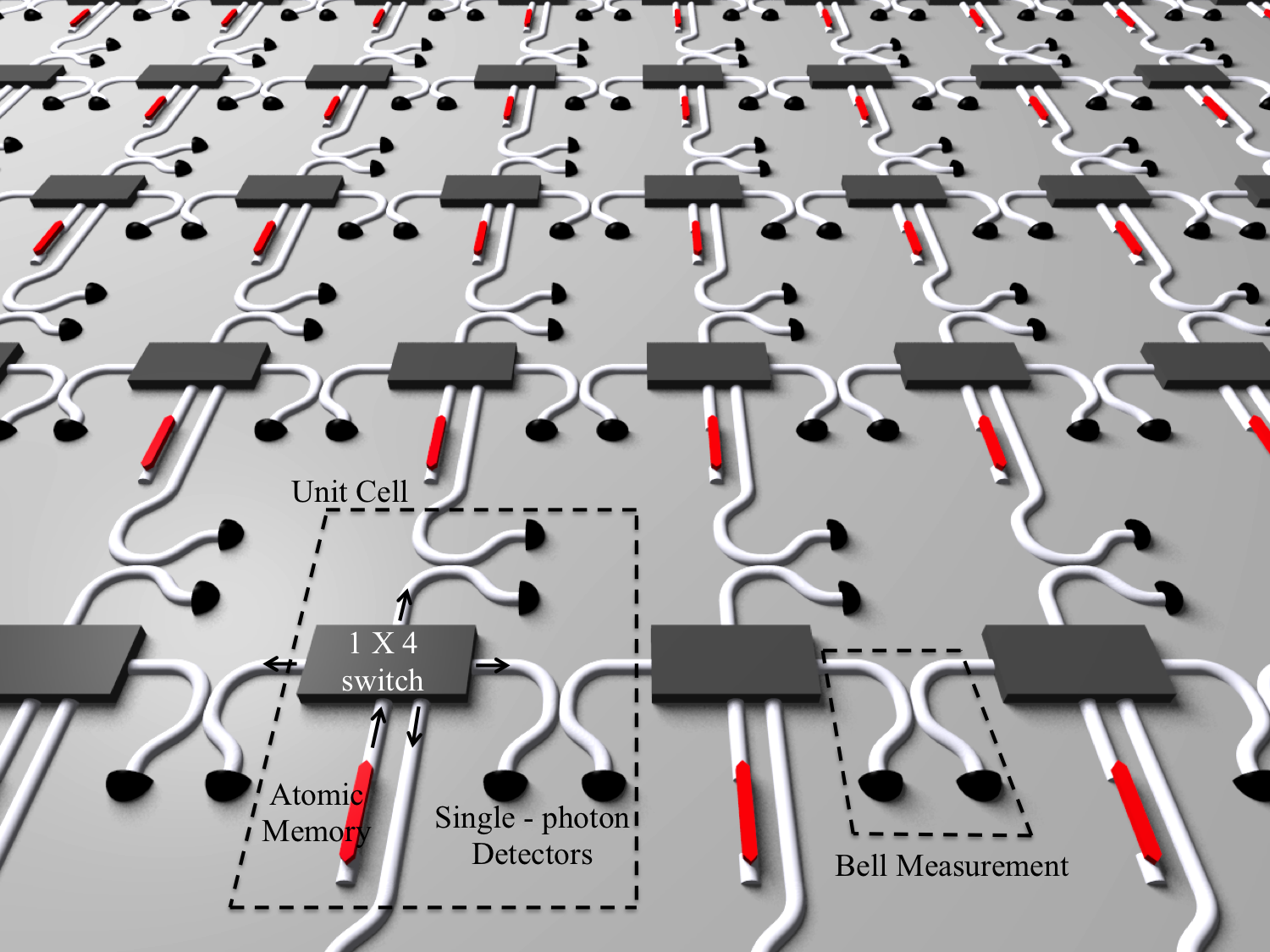

The physical unit cell could be very small, on the order of tens of microns, so that the entire lattice may be integrated on a chip, as illustrated in Fig. 2. Each node in the architecture requires an atomic memory and a $1\times d$ switch, where $d$ is the number of nearest neighbors in the underlying lattice, i.e., the degree of the lattice. Each bond in the lattice requires waveguides, a beam-splitter, and two detectors for the Bell measurement.

At each time step, a state-selective optical $\pi$-pulse entangles a photonic mode with the electronic spin. Photonic modes coupled to neighboring electronic spins undergo probabilistic linear optic Bell measurement. Successful Bell measurement corresponds to the creation of a bond in the lattice.

Let us define $n_{\rm att}$ as the total number of entanglement trials per node. Then each bond is attempted $n_{\rm att}/d$ times. If a bond is created before $n_{\rm att}/d$ allocated trials, the node idles on the rest of the attempts for that bond. Each switch only needs to be flipped $d-1$ times during cluster generation, and hence the switching time is negligible compared to the whole process. For example, electro-optic modulators can switch at sub-nanosecond time scales, but the time spent on each bond is on the order of milliseconds as we will see.

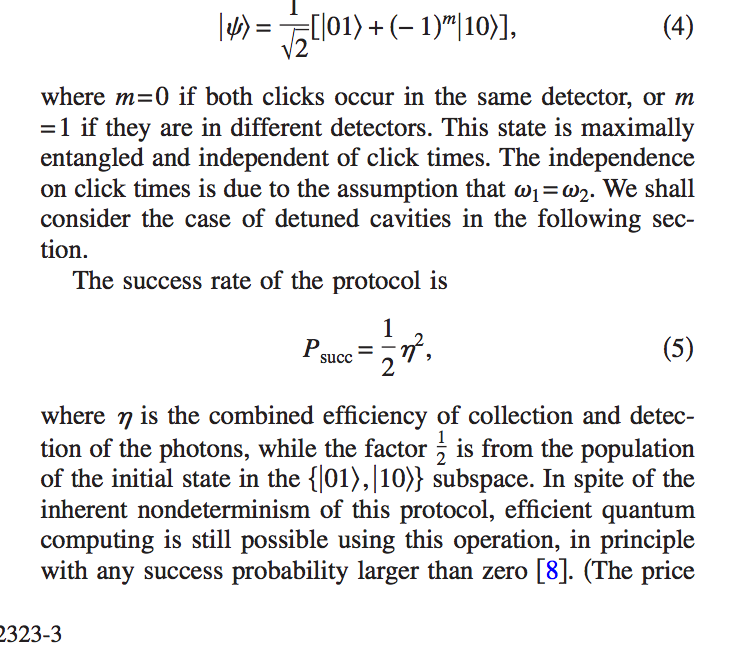

The probability of successfully heralding entanglement of two NV centers is $p_{0}=\eta^{2}/2$ Barrett and Kok (2005), where $\eta$ is the efficiency of emitting, transmitting, and detecting the photon entangled with the electronic spin (zero phonon line, ZPL) from the NV excited state. Table 1 summarizes $p_{0}$ for three representative types of emitter-photon interfaces: low-efficiency interfaces with $p_{0}=5\times 10^{-5}$ representative of today’s state of the art circular gratings or solid immersion lenses (SILs) Bernien et al. (2013); Hensen et al. (2015); Li et al. (2015a), medium-efficiency interfaces with $p_{0}=2\times 10^{-4}$ for NV centers coupled to diamond waveguides Mouradian et al. (2015), and high-efficiency $p_{0}=5\times 10^{-2}$ for nanocavity-coupled NV centers Li et al. (2015b). For all three coupling mechanisms, we assumed coupling efficiencies that are realistic today sup . After $n_{\rm att}/d$ entanglement attempts with a nearest neighbor, the probability of having generated a bond is $p=1-(1-p_{0})^{n_{\rm att}/d}$.

Percolation thresholds

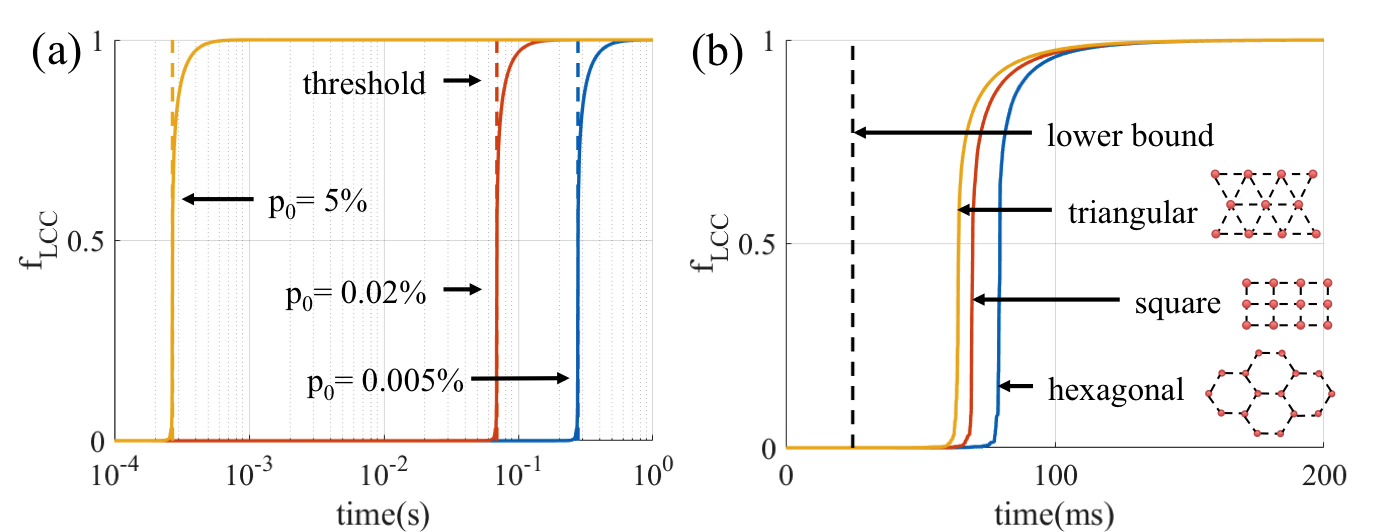

We evaluate the growth of clusters using the Newman-Ziff algorithm with $9$ million nodes. Figure 3(a) plots the fraction of nodes that are in the largest cluster component ($f_{\rm LCC}$), as a function of time from the start of the protocol for the three values of $p_{0}$, assuming $t_{0}=5~{}\upmu$s, with an underlying square lattice. Initially, $f_{\rm LCC}$ is O($\log(N)/N$) Bazant (2000) where $N$ is the total number of nodes in the lattice. As the bond success probability passes the bond percolation threshold ($p_{c}$), $f_{{\rm LCC}}$ rapidly rises approaching $\Theta(1)$. For a degree $d$ lattice, the bond probability after time $t$ is $p=1-(1-p_{0})^{t/t_{0}d}$. The time required to obtain a resource for universal quantum computation is $t_{c}=t_{0}d\ln(1-p_{c})/\ln(1-p_{0})$, which is shown with vertical dashed lines in the figure. The transition becomes sharper as the number of nodes in the lattice ($N$) increases.

In all collection schemes, the bond success probability exceeds the percolation threshold within one second, which is a conservative estimate of the nuclear-spin coherence time in nanostructured, integrated systems based on the experimentally demonstrated coherence time, one minute Bradley et al. (2019). These simulations reveal that an arbitrarily large cluster can be generated even with free space couplings.

Degree of the lattice and imperfection

It is known that higher degree lattices have a lower percolation threshold. However, $t_{c}$ is nearly the same for the honeycomb ($d=3$), the square ($d=4$) and the triangular ($d=6$) lattices (fig. 3(b)). This is because increasing $d$ lowers the bond percolation threshold, but it also decreases the number of entanglement attempts per bond, $n_{\rm att}/d$; a single broker qubit per NV requires entanglement attempts to proceed serially. Increasing $d$ would in fact substantially lower $t_{c}$ if each site contained multiple broker qubits that could be entangled simultaneously. We do not explore the possibility of multi-NV nodes due to a lack of studies Dolde et al. (2013). Ion trap systems are presently more mature for this purpose Monroe et al. (2014).

Let’s consider the most general case where we can attempt Bell measurements on any pair of NVs at any time step. What is the minimum time, $t^{(LB)}_{c}$, required to obtain a resource for universal quantum computation over all lattice geometries? The bond probability after time $t$ is $p=1-(1-p_{0})^{t/t_{0}d}$. For percolation, $p\geq p_{c}$ i.e. $t\geq t_{0}d\cdot{\ln(1-p_{c})}/{\ln(1-p_{0})}$. For a degree $d$ lattice, $p_{c}\geq 1/(d-1)$ Broadbent and Hammersley (1957), with equality for a degree-$d$ Bethe lattice (infinite tree with fixed degree at each node). This leads to $t_{c}\geq t_{0}d\cdot{\ln(1-1/(d-1))}/{\ln(1-p_{0})}$. $t_{c}$ is minimized as $d\rightarrow\infty$ in which case we obtain $t^{(LB)}_{c}=-{t_{0}}/{\ln(1-p_{0})}$. $t^{(LB)}_{c}$ is plotted as a black dashed line in Fig. 3(b). The lattice corresponding to the lower bound is the infinite-degree Bethe lattice, and such lattices are not a resource for universal quantum computing Van den Nest et al. (2006). Meanwhile, we find that the simple 2D lattices with nearest neighbor connectivity are only a factor $~{}3$ above this limit and are resources for universal quantum computing.

Practically, a scalable architecture should be able to tolerate non-functional sites. For example, trapping in a metastable state, a far-detuned transition, failed charge initialization greatly reduced the system performance in the recent state-of-the-art experiment Humphreys et al. (2018). Even if all faulty nodes and the bonds connected to it are removed, the lattice can retain enough bonds for a percolated lattice (Fig. 4(a), inset). The problem maps to site-bond percolation. We define the site-yield $q$ as the fraction of functional nodes. Figure 4(a) plots the minimum time required to obtain a percolated lattice as a function of $q$, assuming NVs coupled to diamond waveguides ($p_{0}=0.02\%$). In general, a reduced site-yield can be compensated with a larger bond probability which would require a longer time (more attempts). The site percolation threshold, $q_{c}$, corresponds to the minimum possible site-yield for percolation with all bonds having succeeded ($p=1$). The triangular ($q_{c}=0.5$) performs better than the square lattice ($q_{c}\approx 0.593$) that outperforms the honeycomb lattice ($q_{c}\approx 0.697$).

The architecture that we have discussed thus far only allows for nearest neighbor interaction. Adding long range connections shown in the inset of Fig. 4(b) can decrease the threshold time and increase tolerance to imperfect site yield. Such an architecture can be implemented by replacing the $1\times 4$ switch in Fig. 2 with a $5\times 5$ optical switch, which is depicted in supplementary Fig. S1. Seven Mach-Zehnder interferometers (MZIs) with two phase shifters can implement switching between the set of input and output modes (fig. S1(c)) sup . The MZI arrays allow a node to be ‘transparent’. If a node is transparent, photons pass through the node to the next adjacent node for interference (fig. 4(b) inset). By turning multiple adjacent nodes transparent, this bypass enables long range entanglement in a planar architecture.

Interestingly, this transparent node architecture can be used to reduce percolation threshold by randomly turning a fraction $1-\epsilon$ of the nodes transparent. Figure 4(b) plots $f_{\rm LCC}$ vs. time. As $\epsilon$ decreases, the maximum possible value of $f_{\rm LCC}$ is reduced from one to $\epsilon$ because only a fraction $\epsilon$ nodes are active. However, reduced $\epsilon$ decreases $t_{c}$ because the transparent nodes increase the effective dimensionality of the lattice. Therefore, there is an optimum value of $\epsilon$ that maximizes LCC for a given time. We numerically found a minimum $p_{c}$ of $0.33$ with transparent nodes, which is achieved when $1/N\ll\epsilon\ll 1$, i.e., $\epsilon\rightarrow 0$ but the number of non-transparent nodes in the lattice is still $\Theta(N)$. Faulty sites can be incorporated into the fraction of transparent nodes as long as the yield exceeds $1/N$.

Small size system

We used $9$ million qubits (nodes) in the simulations above in order to show the limiting behavior of the cluster creation. However, the same qualitative behavior is also observed in smaller systems. In Fig. 5 (a), we plot the mean (line) and the standard deviation (shade) of $f_{LCC}$ as a function of time for a $5\times 5$ (green) and $10\times 10$ (red) square lattices ($p_{0}=0.02\%$). In the simulation, we generated 300 lattice instances at each time with a periodic boundary condition and calculated the statistical mean and standard deviation. The transition from small disconnected islands to a large cluster on the order of the lattice size becomes sharper as the size of the system increases, but even for a $5\times 5$ qubit system, there is a clearly visible transition near the percolation threshold (dashed line). Because of the small system size, there is statistical variation in $f_{LCC}$ and the shaded regions represent one standard deviation. As expected, the relative variation become smaller in larger systems.

Fault Tolerance

It is possible to obtain a regular lattice from the percolated lattices in Fig. 3 with a constant overhead by finding crossing paths and using single qubit measurements (renormalization) Kieling et al. (2007); Gimeno-Segovia et al. (2015); Zaidi et al. (2015); Browne et al. (2008). The single qubit measurements used to obtain the regular lattice may bring additional errors, but we can adapt our architecture to the Raussendorf lattice Raussendorf et al. (2006, 2007). The Raussendorf lattice is a 3D lattice with degree-4 (fig. S3 (a)) and a means of translating surface-code error correction into the cluster state model of quantum computation. The Raussendorf lattice can be constructed in a 2+1D architecture Rudolph (2017) where qubits are arranged in 2D, and an additional dimension is constructed in time (fig. S3 (b)) Nemoto et al. (2014); sup . Then, one needs only two layers of 2D lattices to implement a 2+1D lattice because memories are reused after measurement (fig. S3 (c)). This architecture requires a small number of waveguide-crossings, which can be implemented with low loss Han et al. (2018). Alternatively, they can be absorbed in the optical switches sup .

Recent results have evaluated the fault-tolerance in the Raussendorf lattice with non-deterministic entangling gates Auger et al. (2018); Herr et al. (2018). Following Auger et al. (2018), fault-tolerance requires the bond probability ($p$) and measurement error to be in the two shaded regions in Fig. 5(b), which correspond to adaptive and non-adaptive measurement schemes; in the non-adaptive scheme, qubits are measured in the $X$-basis regardless of the failure of bonds; in the adaptive scheme, one of the qubits connected to the missing bond is measured in the $Z$-basis transforming bond-loss to site-loss. The error threshold of each scheme vanishes at $p\sim 0.935$ and $p\sim 0.855$, respectively. These correspond to the site percolation threshold of the Raussendorf lattice ($q_{c}\sim 0.75$) when lost bonds are transformed to missing sites (see more details in Auger et al. (2018)).

We assume that the single qubit measurement error probability increases with time as $1-e^{-t/t_{coh}}$, where we use $t_{coh}=1$ sec. At $t=0$, the measurement error probability and bond probability ($p$) are both zero. Both of these probabilities increase as we spend more time attempting entanglement generation, resulting in the curves shown in Fig. 5(b) depending on the entanglement success probability per attempt ($p_{0}$). Assuming a bond trial time $t_{0}=5$ $\mu$s (Table 1), we find that a value of $p_{0}\approx 4\times 10^{-3}$ is required to meet the fault-tolerance threshold which corresponds to an NV to detector coupling efficiency of $\sim 9$ $\%$.

As an example, we estimated the resource overhead for fault-tolerant factorization of 2000-bit numbers using Shor’s algorithm (Fig. 6). Various methods from Fowler et al. (2012); Gidney and Fowler (2018); Gidney and Ekerå (2019); Vedral et al. (1996); Beauregard (2002); Cuccaro et al. (2004); Nielsen and Chuang (2010); Jones (2013); Gidney (2018); Bravyi and Kitaev (2005); Horsman et al. (2012); Fowler and Gidney (2018); Gidney and Fowler (2019) are used for the calculation (See Supplemental Material for more details). Ref. Gidney and Ekerå (2019), in particular, has the least resource overhead even with the additional overhead from spacetime layout and routing. With the assumptions on the error model described in the supplemental sup , 2000-bit Shor’s algorithm requires 2.9 billion (280 million) qubits and 2.2 hours (43 minutes) of computation given a physical error rate $p=10^{-3}~{}(10^{-5})$. Alternatively, 57 million (3.8 million) physical qubits can run the algorithm in a day (half a day) as a result of space-time trade-off sup . Essentially, a large number of high purity $T$-gates for modular exponentiation in Shor’s algorithm require a formidable amount of physical qubits. On the other hand, a lower bound is set at 12.2 million (1.46 million) physical qubits for 6000 logical qubits (2028 (243) physical qubits per a logical qubit) for distance-25 (8) surface code.

Discussion

We assumed here that both bit and phase-flip probabilities are the same. However, our results may be significantly improved using recent work on tailoring the surface code Tuckett et al. (2018) if the noise is biased. We consider other important properties of NVs in the supplemental material sup . For example, NVs can be ionized under strong optical pulses, but their charge state can be recovered by optical repumping. We designed the microwave and optical pulse sequences so that the nuclear spin is not disturbed by failed trials and subsequent spin-state initialization. However, precise control of the microwave and optical transitions presents technical challenges and mark an area of active research Reiserer et al. (2016); Dolde et al. (2014). Future work should also refine the error model to explicitly include contributions from the higher order internal dynamics of NVs.

Though there have been huge progress in reducing the resource overhead in fault-tolerant quantum computing, it still requires a large number of physical qubits and long computation time due to slow clock cycles. In this aspect, noisy intermediate scale quantum (NISQ) technology Preskill (2018) can be a more near to medium term path for our proposal. Two observations are favorable to the NISQ direction; the proposed system well behaves with only 25 qubits as shown in Fig. 5(a); the LCC size scales linearly with the total number of qubits in the supercritical regime. Thus, the quantum simulation on this architecture quickly reaches thermodynamic behavior Mohammady et al. (2018).

We emphasize that the architecture is compatible with any quantum memories with enough coherence time. Especially, silicon vacancy centers and other group IV emitters such as GeV, SnV or PbV showed promising emission properties Trusheim et al. (2019, 2018). For example, silicon vacancy centers have higher Debye-Waller factor of $\sim 0.7$, with narrow inhomogeneous distribution of $\sim 51$ GHz Schröder et al. (2017). Emission wavelength of emitters can be matched by strain tuning with tuning range upto $\sim 440$ GHz Sohn et al. (2018). The spin coherence time of $10$ ms has been shown at dilution fridge temperature Sukachev et al. (2017).

Data Availability

All the numerical data presented in this paper is the results of C simulations. The code used to generate this data will be made available to the interested reader upon request.

Acknowledgements.

We would like to thank Simon Devitt for helpful comments on the manuscript. H.C., M.P. and D.E. acknowledge support from the Air Force Office of Scientific Research MURI (FA9550-14-1-0052) and the Army Research Laboratory (ARL) Center for Distributed Quantum Information (CDQI). H.C. and D.E. acknowledge support from the Defense Advanced Research Projects Agency (DARPA) DRINQS (HR001118S0024) and the National Science Foundation (NSF) RAISE TAQS (CHE-1839155) and EFRI ACQUIRE (EFMA-1838911). H.C. was also supported in part by a Samsung Scholarship. S. G. acknowledges support from the Office of Naval Research MURI (N00014-16-C-2069). H.C. and M.P. contributed equally to this work.

Author Contributions

H.C., M.P. and D.E. conceived the idea. M.P. derived the analytical limits. H.C. and D.E. analyzed the properties and entanglement protocols of NVs as a physical layer of the architecture. H.C. estimated resource overheads. H.C, M.P. and S.G. developed the simulation codes. D.E. supervised the project.
