Using Speech Technology for Quantifying Behavioral Characteristics in Peer-Led Team Learning Sessions

TL;DR

This paper presents a speech-based system for analyzing behavioral characteristics in Peer-Led Team Learning sessions, aiding in understanding group dynamics and best practices through robust speech processing techniques.

Contribution

It introduces novel methods for detecting question inflection and emphasized speech, and develops a comprehensive speech analysis system for behavioral assessment in small-group learning.

Findings

Effective speech activity detection combining DNN and voicing measures

Robust speaker diarization using bottleneck features and HMM-based clustering

Successful extraction of participation, dominance, curiosity, and engagement metrics

Abstract

Peer-Led Team Learning (PLTL) is a learning methodology where a peer-leader co-ordinate a small-group of students to collaboratively solve technical problems. PLTL have been adopted for various science, engineering, technology and maths courses in several US universities. This paper proposed and evaluated a speech system for behavioral analysis of PLTL groups. It could help in identifying the best practices for PLTL. The CRSS-PLTL corpus was used for evaluation of developed algorithms. In this paper, we developed a robust speech activity detection (SAD) by fusing the outputs of a DNN-based pitch extractor and an unsupervised SAD based on voicing measures. Robust speaker diarization system consisted of bottleneck features (from stacked autoencoder) and informed HMM-based joint segmentation and clustering system. Behavioral characteristics such as participation, dominance, emphasis, curiosity and engagement were extracted by acoustic analyses of speech segments belonging to all students. We proposed a novel method for detecting question inflection and performed equal error rate analysis on PLTL corpus. In addition, a robust approach for detecting emphasized speech regions was also proposed. Further, we performed exploratory data analysis for understanding the distortion present in CRSS-PLTL corpus as it was collected in naturalistic scenario. The ground-truth Likert scale ratings were used for capturing the team dynamics in terms of student's responses to a variety of evaluation questions. Results suggested the applicability of proposed system for behavioral analysis of small-group conversations such as PLTL, work-place meetings etc.. Keywords- Behavioral Speech Processing, Bottleneck Features, Curiosity, Deep Neural Network, Dominance, Auto-encoder, Emphasis, Engagement, Peer-Led Team Learning, Speaker Diarization, Small-group Conversations

Figures

Tables

Table 1. Table 1: Description of evaluation datasets derived from CRSS-PLTL corpus that were used for validating the proposed algorithms. The evaluation datasets were disjoint, i.e., chosen from different PLTL session to avoid bias in annotation process.

Eval dataset	Duration(minute)	Description
Eval-Set-1	70	Diarization
Eval-Set-2	21	Participation
Eval-Set-3	70	Dominance rating
Eval-Set-4	30	Emphasis
Eval-Set-5	30	Curiosity (question-inflection)
Eval-Set-6	70	Engagement (speech rate)
Eval-Set-7	87	Speech Activity Detection

Table 2. Table 2: The questions designed to assess the ground-truth Likert-scale ratings from students. PLTL group (PG) and students performance (SP) refers to two categories of questions developed to assess the student’s view on group characteristics and his/her own characteristics, respectively. The Q8 refers to overall assessment.

S.No.	Description	Assessment Type
Q1	My PLTL group was friendly today	PG
Q2	My PLTL group was engaging today	PG
Q3	My PLTL group was helpful today	PG
Q4	My PLTL group was motivated today	PG
Q5	I learned a lot in today’s PLTL session	SP
Q6	I felt comfortable with the interaction with my PLTL group today	SP
Q7	My participation in today’s PLTL session increased my confidence in the course	SP
Q8	Overall, the PLTL sessions are helping me do better in my course	Overall

Table 3. Table 3: Spearman’s rank correlation between ground-truth responses of question shown in Table  2 for five PLTL groups over 11 sessions for each group, i.e., 55 PLTL sessions in total. We can see high pair-wise correlation in these responses providing hints for combining these into three dimensional scores as shown in Figure  2 . We combine PG questions (Q1-Q4) together and SP questions (Q5-Q7) together and left Q8 (overall) as it is. This resulted in three dimensional space for each team that is visualized in Figure  2 . The students along with peer leaders are color coded. The peer leaders for each team are marked with asterisk above their numerical index.

S.No.	Q1	Q2	Q3	Q4	Q5	Q6	Q7	Q8
Q1	1	0.93	0.91	0.90	0.89	0.93	0.89	0.91
Q2	0.93	1	0.92	0.93	0.90	0.92	0.0.90	0.89
Q3	0.91	0.0.93	1	0.90	0.91	0.91	0.91	0.92
Q4	0.90	0.93	0.90	1	0.88	0.91	0.88	0.90
Q5	0.89	0.90	0.92	0.88	1	0.91	0.89	0.91
Q6	0.93	0.92	0.91	0.91	0.91	1	0.92	0.92
Q7	0.89	0.90	0.91	0.88	0.89	0.92	1	0.94
Q8	0.91	0.89	0.92	0.90	0.91	0.92	0.94	1

Table 4. Table 4: System parameters for robust pitch extraction method as depicted in Figure  9 . The pitch was used for measuring curiosity (in terms of question-inflection) and emphasis detection. The super-segments of size 2s were used for detecting emphasis and question-inflection.

Parameter	Value
Sampling rate	8000Hz
Frame rate	25ms
Skip-rate	10ms
Super-segment size	2s
Features	Pitch Estimation Filter with Amplitude Compression Gonzalez and Brookes [29]
Splicing context (past)	2 frames
Splicing context (future)	2 frames
Number of Hidden Layers in DNN	3
Number of Hidden Nodes (three layers)	1600
Hidden Layer activation	Sigmoid
Output Layer activation	Soft-max
Output Layer dimension (pitch states)	68

Table 5. Table 5: The parameters set for proposed diarization system that consisted of three main parts: (1) acoustic feature extraction, (2) stacked autoencoder (autoencoder)-based bottleneck features, and (3) informed HMM-based diarization system.

Parameter	Value
Stacked autoencoder input layer dim.	1001
Stacked autoencoder second layer dim.	91
Stacked autoencoder bottleneck layer dim.	21
Number of hidden layers 7	3
First layer activation	tanh
Hidden layer activation	sigmoid
Initial states in HMM	12-18
Number of GMM components	2-5
Minimum duration of HMM states	0.2s-1s
Splicing context (past)	5 frames
Splicing context (future)	5 frames
Features	MFCC
Window length	25ms
Skip-rate	10ms
Sampling rate	8000Hz

Table 6. Table 7: Speech activity detection was evaluated on Eval-Set-7 data (See Table  1 ) explained in Section  2.3 . Figure  4 shows the duration-distribution of speech, non-speech and overlapped-speech segments. Non-speech often contained several noise-sources such as mumbling of far speakers, writing-on-white-board noise in addition to noise from fan and other background sources. We used DNN-based pitch extractor (see Section  3.3 ) for SAD. The frames that were assigned zero(0) pitch were declared non-speech. TO-combo-SAD  Sadjadi and Hansen [ 66 ], Ziaei et al. [ 88 ] used voicing measures for detection of speech activity. Later, we fused the output of both SAD systems. If both system’s output were not same, we consider those frames as non-speech. Consequently, false alarms were reduced. The non-speech had multiple simultaneous noise-sources that resulted in high false alarm for individual SAD systems. We compared our system with a state-of-the-art SAD system that is a supervised neural network trained over multiple features stream. This system was developed at USC for DARPA RATS data  Van Segbroeck et al. [ 74 ] . It is interesting to note that comboSAD  Sadjadi and Hansen [ 66 ] was an unsupervised SAD algorithm developed for DARPA RATS.

System	System	Pmiss$\%$	Pfa$\%$
(A)	DNN-based pitch	16.54	28.45
(B)	TO-combo-SAD Ziaei et al. [88]	15.68	42.64
(C)	Fusion of (A) + (B)	16.00	16.64
(D)	USC-supervised-NN Van Segbroeck et al. [74]	14.68	31.70

Equations

$$DER=\frac{L_f+L_m+L_e}{L_t}$$

$${\mathcal{L}}_{{\mathcal{H}}_m}=\log (p({\mathbf{X}}_1|{\psi }_{X_m}))+\log (p({\mathbf{X}}_2|{\psi }_{X_m})),$$

$${\mathcal{L}}_{{\mathcal{H}}_0}=\log (p({\mathbf{X}}_1|{\psi }_{X_1}))+\log (p({\mathbf{X}}_2|{\psi }_{X_2})),$$

$$D_{merging}={\mathcal{L}}_{{\mathcal{H}}_m}-{\mathcal{L}}_{{\mathcal{H}}_0},$$

$$D_{BIC}={\mathcal{L}}_{{\mathcal{H}}_m}-{\mathcal{L}}_{{\mathcal{H}}_0}-\frac{1}{2}\nu \Delta \log N_m,$$

$$D{S}_i=\frac{e^{p_i}}{{\sum }_{j=1}^N{e}^{p_j}},$$

Full text

††journal: Computer Speech & Language

1 Introduction

Peer-Led Team Learning (PLTL) is a structured methodology where a team leader facilitate collaborative problem solving among small-group of students. PLTL have shown positive outcomes towards learning Snyder et al. [70]. The traditional teaching model lacks one-to-one interaction and peer-feedback unlike PLTL. Peer leaders are expected to give helpful hints and comments during students’ discussion. Peer leaders are not supposed to reveal solutions, in contrast to the traditional teaching model Cracolice and Deming [17].

We established the CRSS-PLTL corpus in Dubey et al. [20] for audio-based analysis of PLTL sessions. Earlier, we developed a robust diarization system that combined bottleneck features (from a stacked autoencoder) with an informed HMM-based joint segmentation and clustering approach Dubey et al. [21]. The minimum-duration of short conversational-turns and number of students were incorporated as side information to the HMM-based diarization system. The output probability density function of each HMM state was modeled using a Gaussian Mixture Model (GMM). Each HMM state was allowed to have several sub-states for ensuring the minimum-duration constraint of conversational-turns. A modified form of Bayesian Information Criterion (BIC) was used for iterative merging and re-segmentation. We continued the merging of HMM states till the number of states was same as that of the speakers.

Authors established the domain of behavioral signal processing in Narayanan and Georgiou [58]. It refers to the use of computational methods and signal processing tools for extracting the behavioral patterns in human-human and human-machine communication. The present paper is a step towards extracting behavioral characteristics of students attending a PLTL session using acoustic analysis of their speech signal. Behavioral speech processing block performed acoustic analyses for extracting features that encapsulate behavioral aspects of conversations (See Figure 1). Particularly, the proposed extracted five features namely (1) participation; (2) dominance; (3) emphasis; (4) curiosity and (5) engagement from the speech signal. These features could be used for quantifying the behavioral characteristics in peer-led team learning sessions.

This paper made the following contributions in area of speech technology for behavioral analysis of PLTL sessions:

Improved speech activity detection using DNN-based pitch and TO-comboSAD Ziaei et al. [88];

• 2.

Informed-HMM diarization system using bottleneck features obtained from stacked autoencoder;

• 3.

Extracting behavioral characteristics such as participation, dominance, emphasis, curiosity and engagement features from speech signal;

The developed methods were evaluated over disjoint evaluation datasets taken from CRSS-PLTL corpus (See Table 1).

2 Peer-Led Team Learning

Peer-led team learning (PLTL) is a methodology used for improving learning outcomes in small-group of students attending the same course. PLTL had been adopted in several US universities for various undergraduate courses. Each team is assigned a peer leader who coordinated discussions among students, and facilitated collaborative problem solving. The peer leaders had passed the same course in earlier semester and thus they were aware of the challenges in learning the subject. Peer leader knew the strategies that could help in mastering the technical content of the course. Peer leaders were not supposed to tell the solutions, rather they provided helpful hints and direction that could guide the students to collaboratively solve the problems.

2.1 CRSS-PLTL Corpus

This section briefly describes the CRSS-PLTL corpus that motivated the research discussed in this paper. The CRSS-PLTL corpus contains audio data from five PLTL teams for eleven weeks. Thus, a total of 55 PLTL sessions were recorded, each of which have multi-stream audio data. Each PLTL team had five to eight students and a peer leader. All the five PLTL teams were attending an undergraduate Chemistry course at the University of Texas at Dallas. The audio data collection was longitudinal over a three month window. Each PLTL session was organized for approximately 70 to 80 minutes. Each student wore a wearable pouch containing LENA digital recorder as shown in Figure 1. Thus, we have as many audio streams as students attending the PLTL session. LENA device could record audio signals for long-duration of up to sixteen hours and had been used for a variety of human-to-human communication research, for example adult-child interaction Sangwan et al. [67] etc..

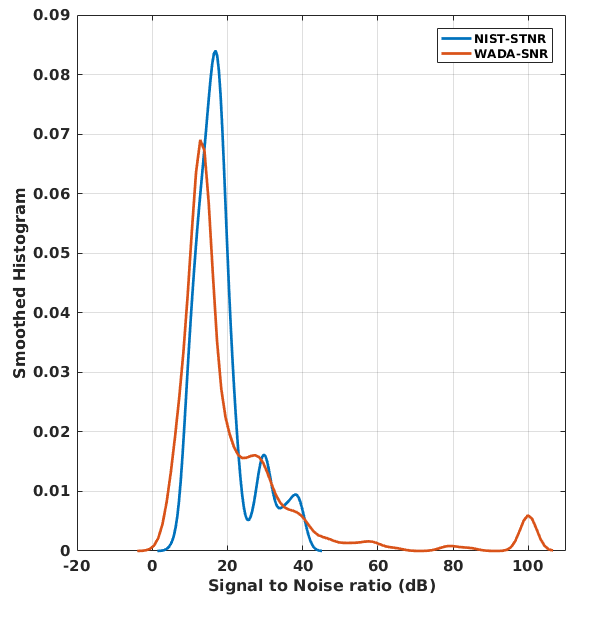

The CRSS-PLTL data contained huge reverberation and noise that pose challenges for speech processing 3. Several instances of significant degradation due to noise and reverberation were common. During such instances, the speech was not intelligible over several streams. After the PLTL session was concluded, each student and the peer leader completed a questionnaire. The questionnaire sought Likert-scale ratings for subjective questions regarding behavior, communication and learning etc. as given in Table 2. We would discuss these questions in Section 2.2, and Table 3. The ground-truth Likert scale ratings were combined into three dimensional scores as explained in Section 2.2 and visualized in Figure 2. Earlier, we introduced the CRSS-PLTL corpus in Dubey et al. [20].

2.2 Listening Tests & Annotation

Table 1 shows the duration and brief description of six evaluation set that were derived from CRSS-PLTL corpus for validation experiments. These seven evaluation datasets were annotated for diarization segments (Eval-Set-1), speech activity detection (Eval-Set-7), participation (Eval-Set-2), dominance(Eval-Set-3), emphasis (Eval-Set-4), curiosity in terms of question-inflection (Eval-Set-5), and engagement in terms of speech rate (Eval-Set-6). The duration of these evaluation sets were provided in Table 1. For analysis of behavioral characteristics such as dominance, emphasis, curiosity (in terms of question-inflection), engagement, we performed intelligent listening test. The annotators performed the listening test for labeling the behavioral characteristics. Different evaluation sets were made out of CRSS-PLTL data for evaluation of each of the behavioral characteristics. Using different (disjoint) evaluation dataset was to make sure that annotation bias was the least as some of the studied behavioral characteristics were correlated.

The evaluation set for question-inflection detection was thirty minute audio data. We used another thirty minutes of data for evaluation of emphasis detection algorithm. For the listening test, an annotator marked the start-time and end-time of audio segments composed of (1) emphasized-speech regions and (2) interrogative utterances/questions. The goal of audio analysis was to detect the temporal boundaries of segments with emphasized-speech and question-inflection.

It is important to note that the semantic aspects were taken into account during ground-truth annotations. For instance, the emphasis was marked on the basis of what was said and how it was spoken in the given context. The same procedure was applied for question-inflections. However, the algorithms developed for detecting these two phenomenon are based on acoustics features only (fundamental frequency and energy). The speaker diarization ground-truth was obtained on Eval-Set-1 that contained 70 minute audio. Participation refers to annotating the percentage time for which a speaker was active in the PLTL session (Eval-Set-2). For measuring the engagement in terms of speech rate, annotators listened to each five minute segment of PLTL session and note down the number of words spoken. Five minutes segment were derived for Eval-Set-6 that consists of 70 minutes audio data. We discuss the results in Section 6. The speech activity detection was evaluated on 87 minutes of audio data from a PLTL session (Eval-Set-7).

The dominance ratings (ground-truth) were obtained on each five minute segment of Eval-Set-3 (70 minutes). There were seven students in Eval-Set-3. For each five-minute segment, we compute a dominance score ($DS$) for each of the seven students using unsupervised acoustic analysis explained in Section 5.2. Each five-minute segment of Eval-Set-3 was assigning a ground-truth dominance rating ($D_{rate}$) for each student per segment. Three annotators listened to each five-minute segment and assigned a dominance rating ($D_{rate}$) for each student per segment. The ground-truth dominance rating, $D_{rate}$, was a number between 1 and 5. The speakers who were present in the whole session but did not speak in the chosen segment were assigned a dominance rating, $D_{rate}=1$. The scores of $D_{rate}=2$ and $D_{rate}=5$ were assigned to the least-and most-dominant students who spoked in that segment. For students who spoke in that segment and were neither least-dominant nor most-dominant, we assigned them a $D_{rate}$ between 2.25 and 4.75. It was possible to score 2.25, 2.50, 2.75, 3.0, 3.25, 3.50, 3.75, 4.0, 4.25, 4.50 and 4.75. However, no fractions other than these were used to ensure consistency in evaluations. We averaged the ground-truth rating ($D_{rate}$) of all three annotator to get a final ground-truth that was used for computing the correlation with unsupervised dominance score ($DS$).

2.3 Exploratory Data Analysis

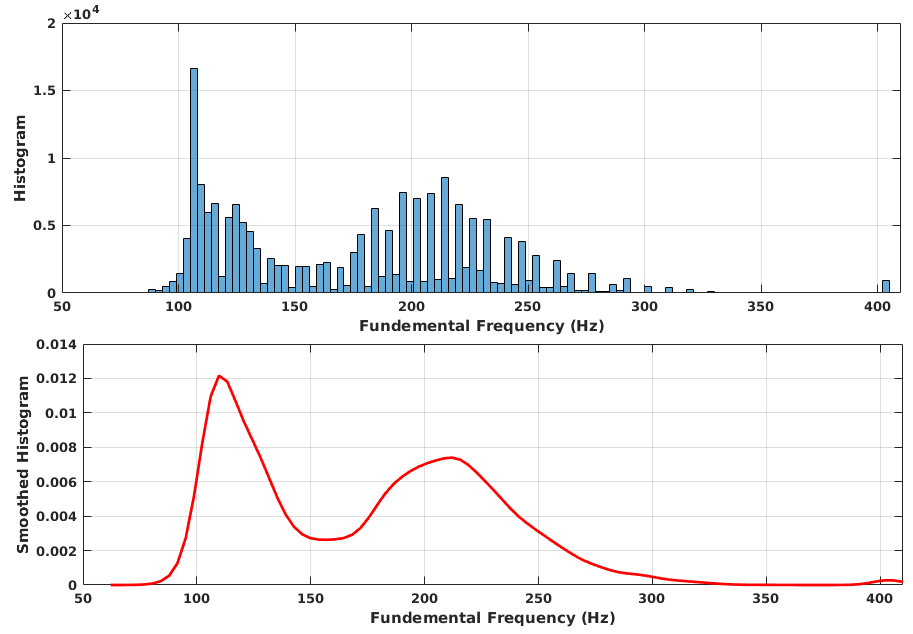

In this section, we discuss general characteristic of PLTL data. Figure 3 shows the distribution of WADA-SNR Kim and Stern [40] and NIST-STNR NIST 60 signal to noise ratios computed over five-minute segments of 36 hours of PLTL data from three teams. Each team has nine audio streams. The NIST-STNR has tri-modal distribution with significant first model. One the other had, WADA-SNR has bi-modal distribution where first model is significant. The SNR over five-minute segments was mostly between 0 and 15 dB that showed moderate-to-high noise levels. In addition, huge reverberation was also present that could not be visualized in this plot.

At the end of PLTL sessions, each student and their peer leader completed a form that contained eight behavioral question with four options on Likert-scale (see Figure 2). Questions (Q1, Q2,…,Q8) were given in Table 2. These questions belong to three categories, namely PLTL group (PG) assessment, students performance (SP) and overall. The questions Q1, Q2, Q3 and Q4 were regarding the PLTL group (PG) and questions Q5, Q6 and Q7 were based on students performance (SP). The last question, Q8 summarizes the overall assessment. These responses were done on a Likert-scale with four choices, namely strongly disagree(1), disagree(2), agree(3), strongly agree(4) (see Figure 2). Each of these eight questions had a response from each student while team leader responded to only PG and overall category of questions.

Table 2 shows the statement of these questions and its categorization as PLTL group (PG) assessment, students performance (SP) and overall. The Spearman’s rank correlation uses ranks instead of the actual values used by the Pearson’s correlation. Table 3 shows the pair-wise Spearman’s rank correlation between ground-truth responses of each question. We could see that among pair-wise correlation between questions Q1 to Q4, the minimum and maximum values were 90% and 93% respectively. The same values for questions Q5, Q6 and Q7 were 89% and 92%. This showed the responses were consistent with respect to categorization. If we see the correlation between Q8 and other questions, we have minimum and maximum values of 89% and 94%. This table gave hints that instead of using responses from eight questions, we could reduce this to a smaller set.

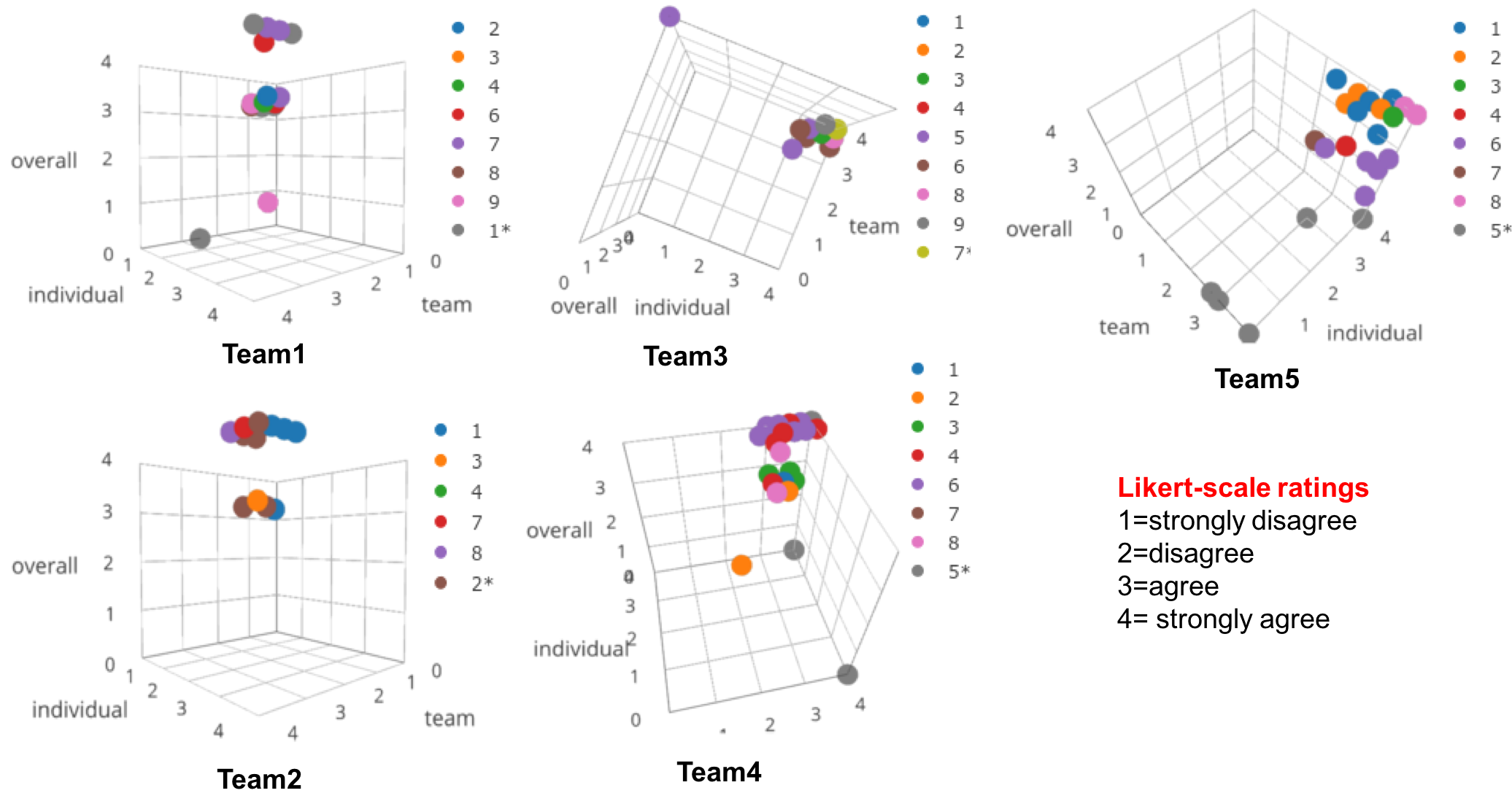

Finally, we averaged the responses to question Q1 to Q4 and called it $team$ feature. Similarly, the average of Q5, Q6 and Q7 was called as $individual$ feature. The Q8’s response was denoted as $overall$ feature. We did the averaging operations over all responses from each participant. Figure 2 showed these three features $team$, $individual$, and $overall$ for all sessions of each team separately. This serves as visualization of behavioral dynamics of each team.

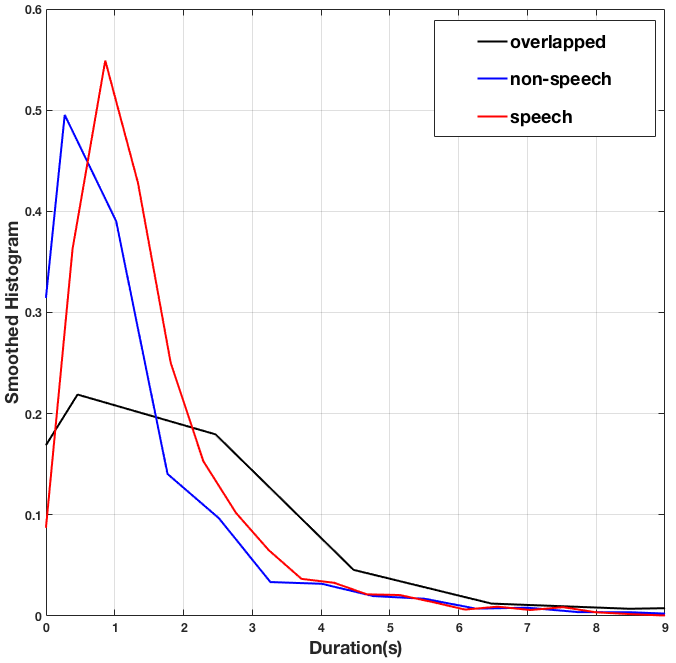

Figure 4 showed the distribution of duration of segments with speech, non-speech and overlapped-speech. We could see that most segments were short with less than 1 second duration. Short-duration segments were challenging with respect to speaker diarization and behavioral speech processing. We used ground-truth information from a PLTL session with approximately 87 minutes of audio data for generating this figure (Eval-Set-7, see Table 1). The overlapped-speech and non-speech accounted for 28.71% and 29.57% of total duration leaving behind 41.72% speech. The total number of overlapped-speech, non-speech and speech segments were 205, 738 and 1316 respectively, for this data. The data used for this analysis were Eval-Set-7 as given in Table 1. We used this dataset for validating the speech activity detection based on fusion of DNN-based pitch estimation and TO-combo-SAD Sadjadi and Hansen [66], Ziaei et al. [88]. The results were shown in Table 7.

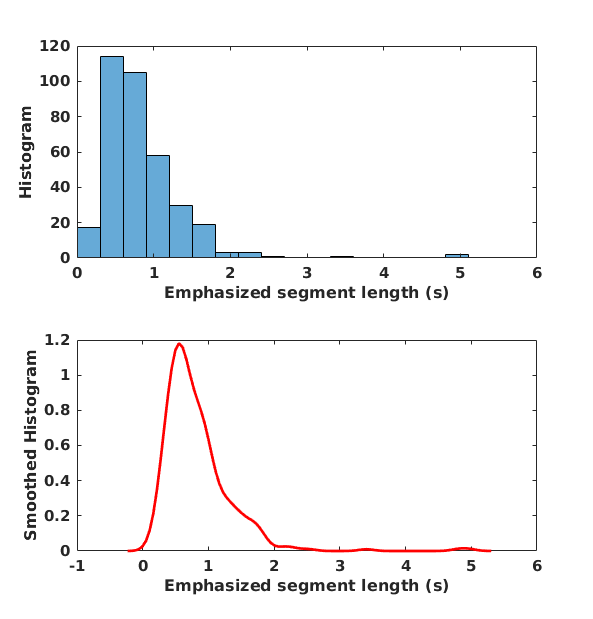

Figure 5 shows the distribution of duration of emphasized speech segments. Ground-truth information from a PLTL session with approximately 80 minute duration was used for generating this figure. It showed that most of the emphasized segments had duration less than 1 second.

3 Proposed Speech System

Figure 1 shows the block diagram of the proposed speech pipeline. The multi-stream audio data from PLTL sessions was first processed with speech activity detection (SAD) and speaker diarization module to get the individual speaker segments. The output of diarization system facilitate behavioral speech processing in second stage. The behavioral speech processing refers to a set of acoustic analyses that extracts the behavioral characteristics such as participation, dominance, emphasis, curiosity and engagement from speech segments.

3.1 Speech Activity Detection

Speech activity detection (SAD) was evaluated on Eval-Set-7 (See Table 1 and the dataset was explained in Section 2.3. The evaluation results of SAD algorithms are collected in Table 7). Figure 4 shows the distribution of duration of speech, non-speech and overlapped-speech segments. Non-speech often contained several noise sources such as mumbling of far-speakers, writing-on-the-white-board noise (impulsive) in addition to noise from fan and other background sources.

We used DNN-based pitch extractor(see Section 3.3) along with TO-combo-SAD Ziaei et al. [88] for SAD. The frames that were assigned zero (0 Hz) pitch were declared non-speech. TO-combo-SAD Sadjadi and Hansen [66], Ziaei et al. [88] was SAD system developed for DARPA RATS data. TO-combo-SAD had shown good performance on naturalistic audio streams such as NASA Apollo mission data. TO-combo-SAD assigned zero (0) for non-speech and one (1) for speech. We fused the output of both systems for accurate speech activity detection. The frames with non-zero pitch were taken as speech frames and assigned one (1) as SAD output. If both system’s output (DNN-based pitch and TO-combo-SAD) were not same, we consider those frames as non-speech. As a results, false alarms were greatly reduced. The non-speech in evaluation dataset has multiple simultaneous sources that results in high false alarm for individual SAD system. We evaluated the SAD system on Eval-Set-7 data as shown in Table 7. $Pmiss$ and $Pfa$ refers to miss rate (true-speech detected as non-speech in $\%$) and false alarm rate (true non-speech detected as speech in $\%$), respectively.

In addition to the proposed fused SAD system, we used a supervised SAD system trained on DARPA RATS data Van Segbroeck et al. [74] and compare its performance with proposed SAD system. The comparison results were shown in Figure 7. This was a supervised Neural Network-based SAD system. The Gammatone, Gabor, long-term spectral variability and voicing features were combined together and used for training the neural network. This system was developed for DARPA Robust Automated Transcription of Speech (RATS) program Van Segbroeck et al. [74]. Authors extracted features using speech characteristics such as spectral shape, spectro-temporal modulations, periodicity (pitch harmonics), and long-term spectral variability. Authors used the features from long context-windows to get combined feature vector. These features were used for training a neural network Van Segbroeck et al. [74]. The evaluation on DARPA RATS corpora showed accurate results, thus validating the applicability of developed SAD system for highly distorted conditions such as those in DARPA RATS Van Segbroeck et al. [74].

It is important to note that the PLTL data has (1) not-so-close microphone; and (2) small movement in students, such as moving to white board and writing something, was frequent event that made SAD a challenging task. In addition, huge reverberation and noise corrupted the speech data further. The informed HMM-based diarization system was shown in Figure 7. We would discuss the proposed bottleneck features and informed HMM-based diarization system in Section 4.3.

3.2 Speech Energy

Earlier, we used the formant energy for computing the speaker energy. This energy was leveraged for separating the primary and secondary speakers on each channel of the multi-channel PLTL data (wearer was primary speaker and rest secondary) Dubey et al. [20]. More often than not, the wearer was assumed to be the closest to their LENA device as compared to other LENA devices. Thus, the audio channel with highest energy could identify the primary speaker. These intensity differences helped in refining diarization output in one of our previous studies Dubey et al. [20]. Later, we computed the energy of speech signal using wavelet packet decomposition Dubey et al. [21]. We choose wavelet packets over formant energy that was used in our earlier studies Dubey et al. [20].

Formant energy was noise-robust, unlike short-time Fourier transform at the cost of huge computational load. Wavelet packet decomposition was noise-robust and possessed good resolution in time-frequency space with moderate computational load Wickerhauser [82]. Wavelet packets provided good time-frequency resolution with reasonable computational expense. The position, scale and frequency parameters characterize the wavelet packets Wickerhauser [82]. Traditional wavelet decomposition had only two parameters, namely (1) position; and (2) scale. Wavelet packets could be viewed as a generalized form of wavelet decomposition. Wavelet packets provide better signal resolution in terms of scale, position and frequency dependence. Wavelet packets are bases generated from decomposition of a signal using orthogonal wavelet functions. There are several computationally simple methods for estimating wavelet packets, that made them a better choice for signal decomposition than computationally expensive continuous wavelet transforms.

Traditional wavelet decomposition generates approximation coefficient vector and detailed coefficient vector after first level of decomposition. At next level and successive levels of decomposition, only approximation coefficient vector is re-decomposed into its approximate and detailed components. On the other hand, wavelet packet decomposition allows each detailed coefficient vector to be decomposed in the same way as the approximate coefficient vector Wickerhauser [82]. For a speech segment, wavelet packet decomposition generated a complete binary tree allowing a more generic decomposition of the signal. Symlets6 (sym6) wavelet with six levels of decomposition were used for computing the energy. We added the squared wavelet packet coefficient corresponding to the frequency range [50, 2000] Hz for capturing the speech intensity while ignoring the spurious background artifacts and noise. We used the speaker energy for estimating the unsupervised dominance score as discussed in Section 5.2 and also in emphasis detection (see Section 5.4).

3.3 Robust Pitch Estimation

This section describes the robust pitch extraction using deep neural network trained on stacked spectral features (Pitch Estimation Filter with Amplitude Compression) Gonzalez and Brookes [29]. The pitch estimates were later used for detecting curiosity (in terms of question-inflection) and emphasized speech.

We tested various pitch estimation algorithms such as modified autocorrelation method De Cheveigne and Kawahara [19], Sawtooth Waveform Inspired Pitch Estimator Camacho and Harris [13], Subband Autocorrelation Classification Lee and Ellis [45] and deep neural network (DNN) Han and Wang [31]. The state-of-the-art pitch tracking method use a deep neural network (DNN) trained on spectral features Han and Wang [31] for predicting the pitch states. DNN-based pitch tracker was the best among four alternatives we tested. The parameters of system used for pitch extraction is given in Table 4.

We would briefly cover the DNN-based pitch estimator adopted from Han and Wang [31]. The stacked spectral features (Pitch Estimation Filter with Amplitude Compression) Gonzalez and Brookes [29] were used to train three-hidden-layer DNN to learn the pitch states. Viterbi decoding was used to connect the probabilistic pitch states, thus fetching the pitch contours. DNN pitch tracker was robust to high amount of noise and worked well for PLTL data. Authors compared the accuracy of DNN pitch tracker with other methods in Han and Wang [31]. Spectral features used for training DNN (See Figure 9) were developed in Gonzalez and Brookes [29]. The log-frequency power spectra was normalized to capture long-term information and further filtered to suppress the noise and enhance the harmonic structure in speech frames Gonzalez and Brookes [29].

Pitch Estimation Filter with Amplitude Compression features were earlier used for pitch tracking in noise by peak-picking Gonzalez and Brookes [29]. These features were stacked using two past and two future frames as shown in Figure 9 (see Table 4). The reverberation and noise in CRSS-PLTL data posed challenge for pitch extraction that necessitated use of DNN-based pitch tracker. We smoothed the DNN extracted pitch using Savitzky-Golay filter Schafer [68] with third order and 11 frames. The smoothing helped in further correction of pitch values for PLTL data. Figure 6 show the distribution of pitch estimates obtained using DNN-based system. It was obtained on a 80 minute audio from a PLTL session. DNN could accurately estimate the pitch eliminating the pitch doubling that was common in unsupervised methods for pitch estimation. The non-speech frames (corresponding to fundamental frequency of 0 Hz) were dropped for plotting this distribution.

4 Robust Speaker Diarization

4.1 Baseline LIUM Diarization System

We used the LIUM speaker diarization system as the baseline Meignier and Merlin [52]. The standard LIUM system has poor performance as shown in Table 6. Sampling rate of 8 kHz was used for all experiments reported in this paper. The speech data was divided into 25ms frames with 10ms skip-rate. LIUM system uses ILP clustering on i-vectors. LIUM performed best on broadcast news recordings where turns were significantly longer than $shorter-than-1-second$ turns in PLTL. The reason LIUM could not accurately segments the speakers in PLTL data is due several factors such as (1) short conversational-turns; (2) reverberation; (3) non-speech such as noise, laughter etc.; (4) overlapped speech.

We used diarization error rate (DER) as the figure of merit for diarization systems. DER, as defined by the NIST Rich Transcription Evaluation NIST [61], could be computed as,

[TABLE]

where $L_{f}$ was the total number of non-speech segments detected as speech(false alarm), $L_{m}$ is the total number of the speech segments detected as non-speech (miss), $L_{e}$ is the total number of speech frames that were clustered as incorrect speakers (error in clustering), and $L_{t}$ is the total number of ground-truth speech frames.

4.2 Stacked Autoencoder-based Bottleneck Features for Diarization

The proposed scheme was depicted in Figure 7. Deep neural network (DNN) could be used for dimension reduction for high dimensional feature vectors Hinton and Salakhutdinov [32]. Autoencoders were found useful in dimension reduction task Wang et al. [81]. This network was trained in a way that allowed it to learn low-dimensional hidden representation of the data such that taking noisy input, it could reconstruct the input.

Input feature vectors were corrupted with additive random noise. We used 13 dimensional Mel-Frequency Cepstral Coefficients (MFCC). Each feature dimension was mean and variance normalized. We performed splicing of normalized feature vectors by taking five past and future frames. The stacked autoencoder was used for extracting the bottleneck features (bottleneck) from spliced and normalized MFCC features. Several autoencoders were stacked to form a deep network with five layers. Stacked autoencoder was trained using spliced features. Stacked autoencoders were first trained in layer-wise fashion that is a standard way of pre-training. After pre-training, stacked autoencoder was fine-tuned so that it could reconstruct the input features. The input to the stacked autoencoder was corrupted before feeding into it. The reconstruction-loss was minimization criterion for training this network Vincent et al. [77].

We used PDNN toolkit Miao [53] with corruption parameter 0.2, learning rate, and momentum factor parameters of 0.01 and 0.05, respectively for realizing the stacked autoencoder. The parameters of the stacked autoencoder used for bottleneck feature extraction was given in Table 5. The feature vectors (13-MFCC) were first mean and variance normalized. Let $\mathbf{m}$ was the feature vector, $\mathbf{\mu_{m}}$ and $\mathbf{\sigma_{m}}$ were the mean and standard deviation vectors, respectively. The normalized feature vector, $\mathbf{\bar{m}}$, is given by $\mathbf{\bar{m}}=\frac{\mathbf{m}-\mathbf{\mu{m}}}{\mathbf{\sigma_{m}}}$.

Since all the channel were delayed and scaled versions of the same speech signal at a given frame, using all channels for diarization was important. Time-spliced feature vectors from each channel were concatenated to form a supervector that consisted of feature vectors corresponding to all PLTL channels. The room where PLTL data was collected has dimensions of 7X10 meters. Thus, the maximum distance between a LENA device and any students (other than the wearer) can be assumed to be within ten meters. Taking the speed of sound in air to be 343 meters per second (m/s), we have the maximum time delay, to be of the order 30ms. This calculation did not accounted for reverberation. We used 25ms windows with 10ms skip-rate for our experiments as given in Table 5. We concatenated the features from all streams. The normalized feature super-vectors were spliced by taking five past and future frames. The concatenation was done to incorporate time and intensity differences between various channels of multi-stream PLTL data. The splicing incorporates the long-term context leading to a better quantification of reverberant and noisy speech frames. For a PLTL group with seven streams, the final dimension of spliced features was 11713-MFCC, i.e., 1001.

4.3 Informed-HMM based Diarization System

In this section, we discuss informed-Hidden Markov Model (HMM) for joint speaker segmentation and clustering. HMM system incorporate the bottleneck features from stacked autoencoder system Gehring et al. [27] along with two dimensions of side information, i.e., (1) number of speakers; and (2) minimum duration of conversational-turns. Hence, we called the system as informed HMM system. The iterative diarization procedure had three steps: (i) initial segmentation, (ii) merging, and (iii) re-estimation.

The diarization for PLTL sessions was different with respect to information available such as speaker-count and turn-statistics. The rapid short-turns, overlapped-speech and significant noise and reverberation made the task challenging. Most of the studied diarization system did not address such challenges Dubey et al. [20], Anguera et al. [3]. PLTL sessions had frequent short-segments of size 0.2s to 1s and few segments of size 1-3s. HMMs had been used in previous studies for various audio segmentation tasks in varied forms Fredouille and Senay [24], Madikeri and Bourlard [48], Kotti et al. [42], Ajmera et al. [1], Huang and Hansen [33]. However, using side information, application to PLTL and using stacked autoencoder-based bottleneck features were novel contributions with respect to speaker diarization.

Initially, we performed over-segmentation by dividing speech into $OS$ segments where $OS$ was four to six times the expected number of speakers. A HMM with $OS$ states was assumed for initial segments. Each HMM state had an output probability density function that was modeled by $M$ component Gaussian Mixture Model (GMM). Each state of HMM was allowed to have $T$ sub-states to incorporate the minimum duration constraint. All sub-states of a given HMM state (hypothesized speaker cluster) share the GMM corresponding to their state. The HMM system was trained using Expectation-Maximization (EM) algorithm. One step aimed to segment the data such that their likelihoods given corresponding GMM parameters were maximized. In next step, the GMM parameters were re-estimated based on new segmentation. Once HMM was trained, we obtained the Viterbi path for each frame. Following it, we used the Viterbi path for checking the binary merging hypothesis based on modified $G^{3}$ algorithm Dubey et al. [20]. After the merge iteration finished, a new HMM with less number of states was trained. The whole process was repeated again till the number of HMM states equaled the number of speakers.

We performed merging based on $G^{3}$ algorithm that was a variant of BIC and eliminated the need of the penalty term. The unsupervised $G^{3}$ algorithm Dubey et al. [20] was used for deciding the binary hypothesis of merging two segments. This trick was first developed to improve the speaker change detection as compared to BIC Ajmera et al. [2]. In this paper, we used the same techniques for a different binary hypothesis to decide merging of two over-segmented segments or equivalently two HMM states. There are some modifications to $G^{3}$ algorithm applied for merging most-similar segments (HHM states) at each iteration of the informed HMM-based diarization system. First, the minimum duration of staying in a HMM state was much lower, 0.2s to 0.5s owing to the rapid short conversational-turns. The initial segments were modeled with a Gaussian Mixture Model (GMM) with only $M_{s}$ components. After merging two initial segments modeled with $M_{s}$ components, the merged segment was modeled with $2M_{s}$ components. Thus, the number of parameters in GMM model for merged segment is same as the sum of number of parameters in child segments. Consequently, the number of parameters remains the same at each merging step, and hence the penalty term in BIC criterion (See Equation 5) is eliminated.

Let $\mathbf{X_{m}}=[\mathbf{X_{1}},\mathbf{X_{2}}]$ be the feature matrix corresponding to the merged HMM states. Merging two segments, $\mathbf{X_{1}}$ and $\mathbf{X_{2}}$ into $\mathbf{X_{m}}$ can be formulated as the following binary hypothesis: $\mathcal{H}_{0}$ vs. $\mathcal{H}_{m}$, where $\mathcal{H}_{m}$ denotes merging, and $\mathcal{H}_{0}$ denotes no merging. To facilitate the test, we build models for both hypotheses. GMMs were used to model $\mathbf{X_{1}}$ , $\mathbf{X_{2}}$ and merged segment $\mathbf{X_{m}}$. Let $\psi_{X_{m}}$ be the parameter vector of the GMM with $M_{s}=M_{1}+M_{2}$ component estimated for the merged segment, $\mathbf{X_{m}}$. Let, $\psi_{X_{1}}$ and $\psi_{X_{2}}$ be the parameter vector of the GMMs with $M_{1}$ and $M_{2}$ components, estimated for the child segments, $\mathbf{X_{1}}$ and $\mathbf{X_{2}}$, respectively. Under the assumption of independence and identical distribution of feature vectors in segments $\mathbf{X_{1}}$ and $\mathbf{X_{2}}$, we can represent the log likelihood $\mathcal{L}_{\mathcal{H}_{0}}$ and $\mathcal{L}_{\mathcal{H}_{m}}$ for hypotheses $\mathcal{H}_{0}$ and $\mathcal{H}_{m}$, respectively as

[TABLE]

[TABLE]

where $p(\mathbf{X_{m}}|\psi_{X_{m}})$ is the likelihood of merged segment, $X_{m}$ given the model, $\psi_{X_{m}}$, and so on. The merging decision is made based on the $D_{merging}$, defined as

[TABLE]

However, if we used Bayesian Information Criterion (BIC) for making the merging decision, then corresponding to Equation 4, we have following expression for BIC merging:

[TABLE]

where $\nu$ is a constant usually assigned a value of $1.0$ and $N_{m}$ is the number of feature vectors in merged segment, $\mathbf{X_{m}}$. Here, $\Delta$ is the difference in number of parameters in merged model, $\psi_{X_{m}}$ and sum of parameters in child models, $\psi_{X_{1}}$ and $\psi_{X_{2}}$. All segments were evaluated for $D_{merging}$. The segments with $D_{merging}\geq 0$ were merged. Once the merging done, the new HMM of smaller size was estimated where the GMM for each state was re-estimated using the EM algorithm. The acoustic features belonging to that HMM state (cluster) were used to re-estimate the corresponding GMM.

5 Behavioral Characteristics

5.1 Participation Analysis

Diarization output could be used for extracting participation analysis, that refers to the percentage of total time for which each speaker and their team leader occupied the conversation floor. Figure 8 shows the participation analysis obtained using 21 minutes of data, Eval-Set-2 (See Table 1) from a PLTL session. The comparison between diarization-based participation analysis and ground-truth clearly shows that even if diarization error rate is non-zero, we can still derive meaningful participation analysis from it. The percentage values were rounded-up for better visualization.

5.2 Dominance Score

Dominance in human-to-human communication had been studied for several decades Young [86]. Dominance is a fundamental aspect of interactions in PLTL sessions. The researchers in social psychology have studied dominance in human interactions Dunbar and Burgoon [22]. The speaking time of speakers were found to be correlated with perceived dominance of individuals in groups Mast [49]. Researchers in social signal processing studied dominance models developed from multi-modal data.

Authors measured the dominance in meeting using the speaker diarization techniques Hung et al. [34]. Authors developed a supervised model for dominance using short-utterances Basu et al. [10]. However, the model was developed and evaluated on a constrained settings that was very different from real-life situations such as PLTL sessions. Authors analyzed the interaction between two individuals who debated for 60 seconds. Such controlled settings and short-duration analyses were not applicable for spontaneous conversations such as those in PLTL sessions. Authors used multi-modal features derived from audio and video streams for analyzing the dominant persons in meetings Hung et al. [35].

Authors used manual transcriptions of meetings for generating semantic metrics that were later used for training static and dynamic models of dominance Rienks et al. [64]. However, they did not process the audio rather the text was processed to build the supervised models. Such systems could not be deployed for analysis of PLTL groups as they required scripting and training supervised classifiers. Authors proposed a dominance model for meetings based on supervised learning using multi-modal data (multi-microphone audio and multi-camera video). The audio and visual data were used for training support vector machine classifier. It was used for training the supervised dominance model for meeting conversations Jayagopi et al. [37]. However, such a system need supervised training on huge amount of labeled multi-modal data and was likely to perform poorly under mismatched conditions. Another limitation was that it could not be used if only audio data were available from PLTL sessions.

We developed an unsupervised feature for measuring dominance Dubey et al. [21]. Dominance score (DS) was assigned to each student by unsupervised acoustic analysis of their speech segments. The proposed DS encapsulates the probability of a given student to be dominant in collaborative problem solving. We considered three features derived from speech corresponding to each speaker. This information was available from informed HMM-based diarization system (see Figure 7).

The three features are turn-taken-sum ($turns$) Larrue and Trognon [44], speaking-time-sum ($spts$), and speaking-energy-sum ($spens$). These features were motivated from social psychology literature where the dominance of a speaker was found to be correlated with taking more turns in a conversation, speaking for longer duration Mast [49], and with higher energy Dunbar and Burgoon [22].

These features were correlated among themselves. For example, a person who was taking many turns was likely to speak for longer duration than others. Also, adding the speaker energy for a longer duration would result in higher $spens$. The turn-taken-sum ($turns$) was the number of turns taken by the speaker in a given session. A conversation turn was decided by a speech segment from the speaker cascaded between that from other speakers and/or speech pauses (non-speech). The speaking-time-sum ($spts$) was the sum of duration of all time-segments (in seconds) belonging to that speaker. The overlapped speech was not taken into account in this sum. Speaking-energy-sum ($spens$) was sum of energies for that speaker’s segments.

The speech energy was computed using wavelet packet decomposition Wickerhauser [82] as discussed in Section 3.2. The PLTL data had huge reverberation and noise, that necessitated development of better metric for computing speaking energy. We used the Symlets6(sym6) wavelet with six levels of decomposition for computing the speech energy. The coefficients corresponding to frequency range [50, 2000] Hz were summed to get the energy.

After extracting these three features, $turns$, $spts$ and $spens$, we normalized each feature dimension. Let $\mathbf{f}$ be the three dimensional feature-vector, $\mathbf{\mu}$ and $\mathbf{\sigma}$ being the mean vector and standard deviation vector. The normalized feature vector, $\mathbf{\bar{f}}$, is given by $\mathbf{\bar{f}}=\frac{\mathbf{f}-\mathbf{\mu}}{\mathbf{\sigma}}$. Here, the division is point-wise, the mean and variance were calculated over the entire PLTL session (approximately 70-80 minute audio).

We projected these normalized features onto eigen space corresponding to the highest eigen value of the feature space. This was realized by principal component analysis (PCA) that combined the three features into a single feature, named $comb$ feature (short form for combined feature). Let us denote the $comb$ feature by $p$. We computed the $comb$ feature for each speaker in each segment of the PLTL session. PCA was performed for the whole PLTL session. In this paper, we divided the entire PLTL session into five-minute segments. A dominance score was estimated for each speaker during five-minute segments.

Lets say, $p_{i}$ was the $comb$ feature corresponding to $i-th$ speaker. For CRSS-PLTL corpus we have six to nine speakers in sessions including team leader. We defined $comb$ feature-vector as, $\mathbf{p}=[p_{1},p_{2},..,p_{N}]$, where $N$ was the number of speakers. The dominance score (DS) for each speaker was estimated by processing the dominance feature-vector, $\mathbf{p}$, through a soft-max function that convert these numbers into probability scores. Thus, we had

[TABLE]

for $i=1,2,..,N$; where $DS_{i}$ was the dominance score (DS) of the $i-th$ speaker.

Once we have the dominance score, finding the most and least dominant speaker was trivial. The one with highest score was the most dominant person while the one with lowest was least dominant. In PLTL sessions, the dominance score of each students is an important metric with respect to inter-session variability for all sessions of that team. From previously studied supervised dominance models that predicted only the most dominant speaker, such a comparison would not be possible Jayagopi et al. [37], Hung et al. [35], Huang and Hansen [33]. Dominance analysis could help in understanding the role of each team member in a PLTL session with respect to learning of their own and others. It could help in choosing suitable candidates for a PLTL session so as to maximize the learning outcome for each one of them.

5.3 Curiosity: Question-Inflection Detection

Curiosity refers to a desire for gaining new information or skill Renner [63]. Curiosity was defined in the study as "aurally identifiable trait of the internal desire" of PLTL participants to acquire new information or skills. The curiosity is an important trait in learning Renner [63]. A pitch transform was used for synthesis of interrogative sentence in Nagy and Nemeth [57].

Eval-Set-5 (30 minute audio data) was used for evaluating the algorithm for question-inflection detection. The audio data was annotated for start-time and end-time of each question. The annotation was done over five minute super-segments. The time-stamps for each question-inflection were located. Gradient of the pitch contour for each speaker segment was computed to find the local maximum. Question inflection was detected when the pitch gradient goes above the value of $meanGradPitch+4*stdGradPitch$ (the mean and std are computed using gradient contour over that segment).

We annotated the start-time and end-time of the segment when question was asked. The mid-point of ground-truth question-boundary was used for computing correlation and root mean squared error with algorithm detected question-inflection point. Figure 10 shows the pitch variations on a question onset and its neighborhood. It also shows the gradient contour and detection of question-inflection.

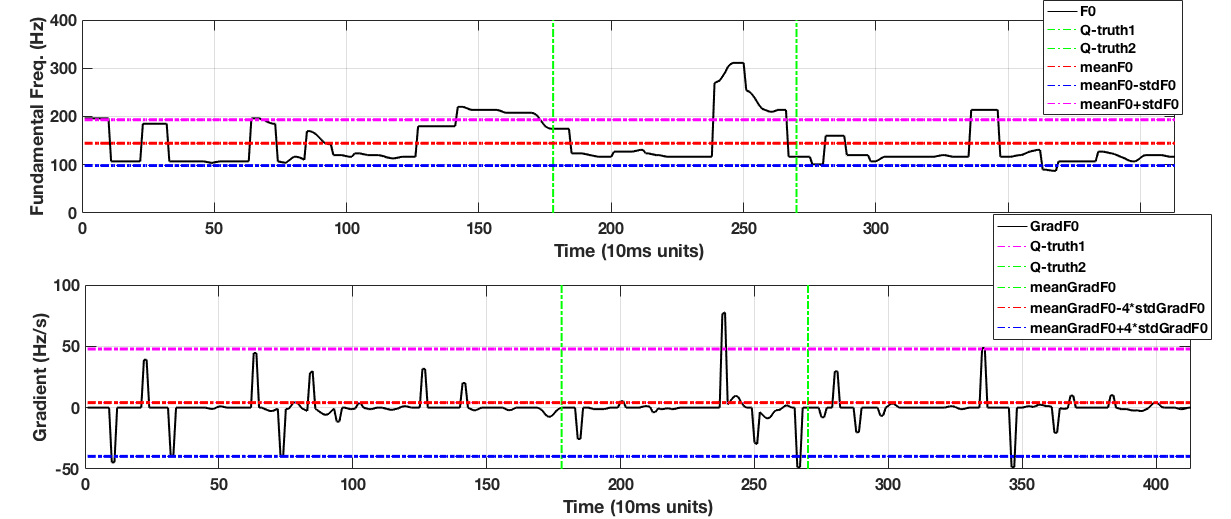

We designed another experiment to study the pitch-based question-inflection detection. We took the evaluation audio data and estimated the pitch contour for complete signal regardless of speaker-change boundaries. We performed the mean and variance normalization of pitch contour over each two-second non-overlapping segments. Normalization compensated the long-term effects making the pitch contour robust to acoustic variability. Normalized pitch was used for detecting the question-inflection by choosing a threshold. We varied the threshold from minimum to maximum value (of pitch contour) in small steps. For each threshold values, we get miss probability, $Pmiss$ and probability of false alarm , $Pfa$ (in %) with respect to detection of question-inflection.

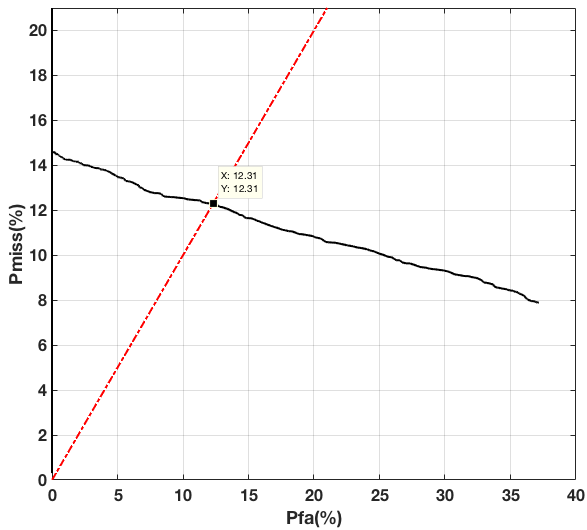

For EER calculation (DET curve), all frames belonging to the time-interval during which a question was asked, were taken as question-inflection points. This is different from root mean squared error and correlation computation where the mid-point of ground-truth question-boundary was compared with point of question-inflection detection. Figure 11 shows the detection error trade-off (DET) curve for Eval-Set-5 data. The equal error rate (EER) was 12.31%. Here, $Pmiss$ refers to the frames where we had the questions asked but the system failed to detect it (miss). $Pfa$ refers to the frames where question-inflection was falsely detected (false alarm). In this paper, we used only single channel data for annotation and evaluation for pitch-based question-inflection detection for simplicity in evaluation.

5.4 Emphasis Detection

Detection of emphasized speech could help in discovering the "hot-spots" in PLTL sessions wherein important discussions might have happened. Such segments could help education researchers in understanding and designing the best practices. Student’s excitement could be captured by detecting such segments. Emphasized speech regions were important with respect to semantic analysis. Such segments could be further processed with natural language processing (NLP) tools. We have the option of using NLP tools on complete session, however using NLP only on few emphasized segment could reduce computations by eliminating segments that were relatively less important. We used the pitch contour and speech energy for detecting the emphasized speech. These regions identify the important regions in audio data.

The emphasis detection from audio had been studied previously Chen and Withgott [15], Arons [6, 5, 7]. Detecting the emphasized regions helped in quick summarization of spoken documents Arons [7]. Such summaries collected the salient features of the recordings and were useful for analysis of technical discussions and daily-life conversations. A HMM-based model trained on huge amount of data was used for emphasis detection in Chen and Withgott [15]. Pitch changes were leveraged for detection of emphasized regions in meetings Kennedy and Ellis [39].

However, the past works Chen and Withgott [15], Arons [6, 5, 7] had not been tested over long-duration spontaneous speech with several speakers (such as six to eight participants in PLTL session). CRSS-PLTL data had short conversational-turns at several instances in addition to noise and reverberation, thus making the task challenging. Since we estimated the pitch contour and do the analysis for each speaker segment, the pitch range of each speaker is automatically taken into account. As the pitch could change abruptly due to speaker changes (for example, from a male to female speaker), it was important to have accurate speaker segments. The proposed algorithm adapted to the pitch and energy range of a speaker (by operating over non-overlapping two-second windows), and then automatically selected the regions of increased pitch-and energy-activity as a measure of emphasis. Increase pitch and speech energy are markers of an emphasized region while pitch information was found to be more important Chen and Withgott [15].

We proposed detection of emphasized speech using inflated speech energy and increased pitch. The wavelet packet decomposition was used for robust estimation of speech energy as explained in Section 3.2. The correlation and root mean squared error between ground-truth (mid-point) and estimated point of emphasis detection were used as figure of merit for this method. Figure 13 showed the distribution of emphasized regions in each five-minute segments of a PLTL session (approximately 80 minutes). We could see the highest number of emphasized speech segment lies in mid of the session. It showed that the "hot-spots" in PLTL sessions were more often during the mid-time.

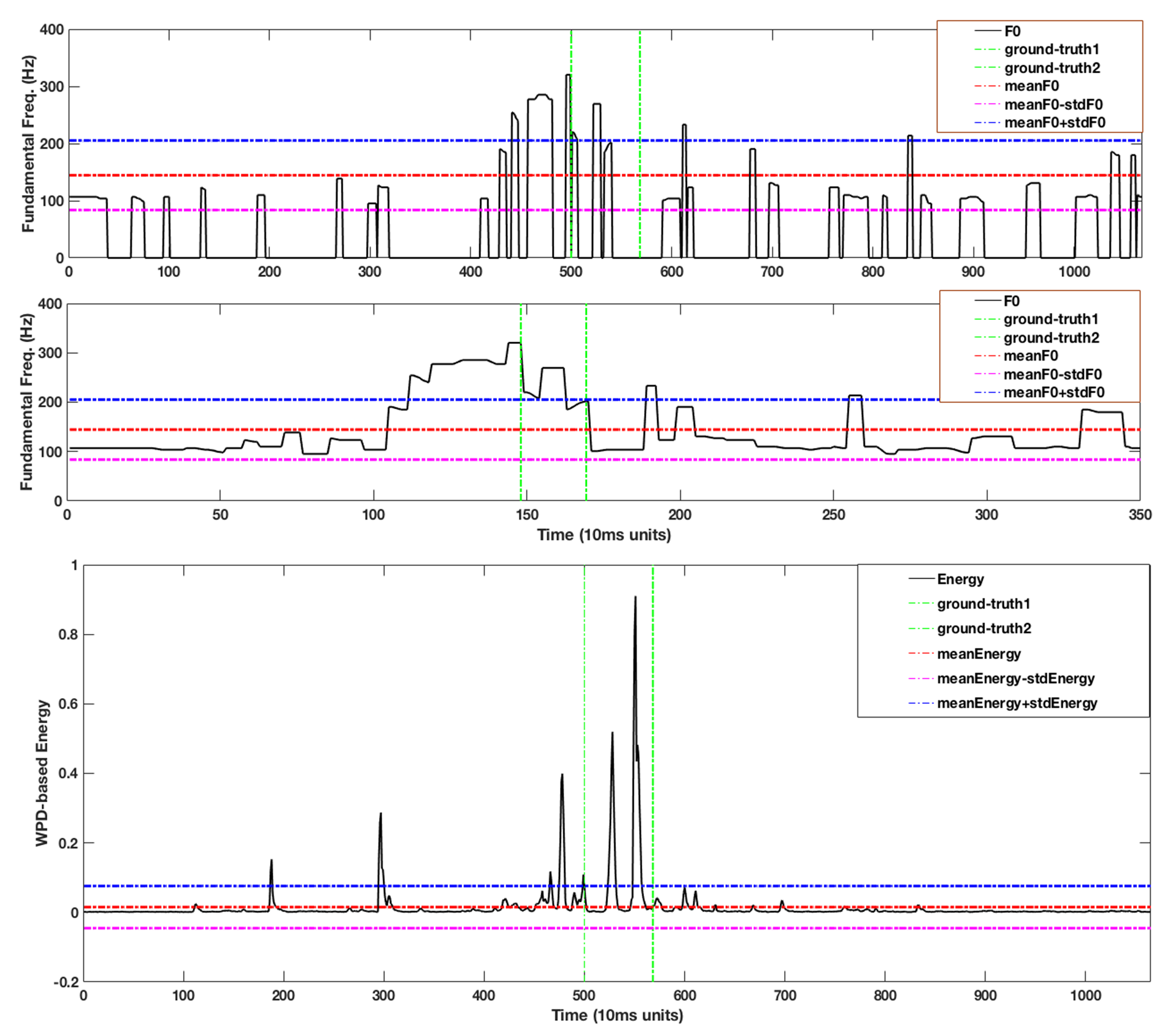

Figure 12 shows detection of emphasized segments using pitch and energy. Emphasis was detected based on two conditions: 1) energy higher than $meanEnergy+stdEnergy$, and 2) pitch higher than $meanPitch+std-Pitch$. Simultaneous satisfaction of these conditions detected emphasized speech regions. We had the start-time and end-time boundaries for emphasized regions from manual annotation as described in Section 2.2. We took the mid-point of ground-truth emphasis-boundary and estimated its correlation with algorithm computed point of emphasis detection. Also, we calculated the root mean squared error (in units of second), between these two quantities, i.e., ground-truth and estimated detection point. Table 8 shows the evaluation results.

5.5 Engagement: Speech Rate

The speech rate was considered an important aspect of vocal communication Cummins [18]. Speech rate was useful for quantifying the engagement behavior. Increased speech rate showed more engagement. Authors used prosodic cues for studying engagement behaviors in children Gupta et al. [30]. Several interaction scenarios between a child and psychologist were used for validating the developed algorithms. Engagement was predicted using vocal and prosodic cues. Authors concluded that the engagement information was not only reflected in global cues but also in short-term local cues. Three levels of engagement were used for experimental validation. Fusing global and local cues gave the best results. Even though the experiments were validated in constrained settings, it showed that certain prosodic patterns captured the engagement in dyadic interactions Gupta et al. [30].

Several algorithms were developed for estimating the speech rate Morgan and Fosler-Lussier [55], Jiao et al. [38], Wang and Narayanan [80], Ziaei et al. [90]. We benchmarked the method developed in Ziaei et al. [90] on Eval-Set-6 (see Table 1) derived from the CRSS-PLTL corpus. It consisted of 70 minute audio from a PLTL session.

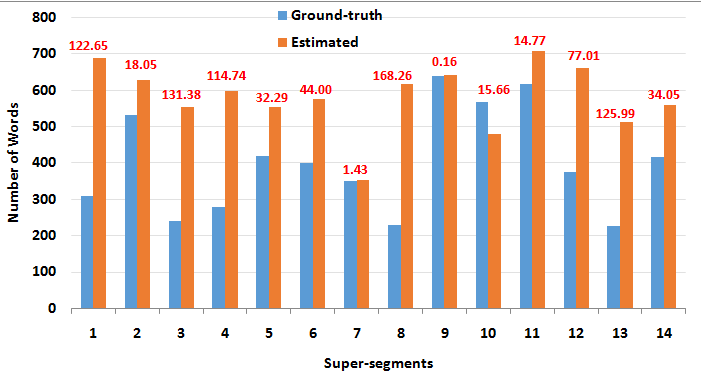

Figure 14 shows the evaluation of word count algorithm Ziaei et al. [90] on Eval-Set-6. We divided the PLTL session into five-minute segments and performed the word count estimation using method proposed in Ziaei et al. [90]. The red numbers above the bars showed the percentage error rate with respect to ground-truth word count. We could see the performance varying from very low to high error rate. The low errors occurred when speaker wore the LENA device and high error was possibly due to the speech of a distant speaker and rapid short-turns from several speakers (six to eight student were in a PLTL session). The reverberation levels were different for each unique position of speakers. Very low error in seventh and ninth segments showed that method worked well when speech quality was good and very high errors in first, third and thirteenth segment shows that method in Ziaei et al. [90] got worse when speaker changes were rapid and some of the speaker were far from the LENA device. It showed the necessity to investigate reverberation-and noise-robust methods for speech rate estimation that could work accurately for naturalistic audio streams.

6 Results & Discussions

This section discussed the results obtained on various evaluation sets derived from the CRSS-PLTL corpus. Output of the diarization system was used for getting the participation dynamics as explained in Section 5.1. Figure 8 shows the participation analysis of Eval-Set-2 (see Table 1) that consisted of 21 minutes audio data. It was observed that most of the student could speak for comparable time-duration. The team leader occupied the conversation floor for most of the time as peer leader had to facilitate the collaborative problem solving.

Table 7 shows the evaluation results on Eval-Set-7 data using methods described in Section 3.1. Figure 4 showed the duration-distribution of speech, non-speech and overlapped-speech segments. Non-speech often contained several noise sources such as mumbling of far speaker, writing-on-white-board noise in addition to noise from fan and other background sources. We used DNN-based pitch extractor (see Section 3.3) for SAD. The frames that were assigned zero(0) pitch were declared non-speech. TO-combo-SAD Ziaei et al. [88] was second SAD system used. Later, we fused the output of both systems. For frames where both system’s output were not same, we consider those frames as non-speech. Consequently, false alarm was greatly reduced. The non-speech in evaluation set had multiple simultaneous sources that resulted in high false alarm for each SAD system. Further, we compared the proposed SAD system a state-of-the art SAD that consists of a neural network trained on multiple feature streams Van Segbroeck et al. [74]. This system was developed at USC for DARPA RATS data. We can see from Table 7 that proposed SAD is competitive with respect to lower false alarm rate and lower miss rate unlike USC-supervised-NN method that had significant false alarm.

The parameters of proposed diarization system was shown in Table 5. The results of diarization system were given in Table 6. It is important to note that MFCC features from all the seven streams were used in HMM-based diarization for comparing its performance with bottleneck features. We could see that bottleneck feature captured useful statistics of multi-stream audio data that resulted in better accuracy using informed HMM-based diarization system.

We extracted 13-dimensional MFCC features from each of the seven streams of the PLTL session. After concatenating the features from each stream we get a feature super-vector of dimensions 91 (=137). After splicing the feature super-vectors with five past and future frames (see Figure 7), we get the final dimension of features as 1001 (=1191). Spliced feature super-vector was fed to a stacked autoencoder for extracting the bottleneck features of dimension 21. Stacked autoencoder with three hidden layers was chosen where the middle hidden layer acted as bottleneck layer. The bottleneck features were fed to the informed HMM-based diarization system. We used the Oracle SAD in the proposed system to validate the accuracy of HMM-based joint segmentation and clustering. However, we performed another case-study by formulating non-speech as an additional HMM state. We compared the diarization accuracy of bottleneck features (derived from raw MFCC features form each of the seven steams) and raw acoustic features (13-MFCC from each of the seven streams). Thus, the concatenation of MFCC features from multi-stream was done in both cases ensuring that it was a fair comparison between two approaches (raw features and bottleneck).

Table 6 showed the diarization accuracy in various cases. The "NO SAD" case refers to not using any SAD labels and modeling non-speech as an additional HMM state. We knew that the non-speech has several distinct varieties, such as silences (with extreme noise of varied types), overlapped speech etc.. This made the diarization, a challenging task without SAD labels. It led to degradation in diarization accuracy (see Table 6). We could see that the bottleneck features combined with HMM was robust with respect to change in minimum duration constraints and to some extent is robust to absence of SAD labels. The state-of-the-art LIUM baseline Meignier and Merlin [52] was borrowed from our earlier work for comparison Dubey et al. [20]. We could see an absolute improvement of approximately 27% in terms of DER over the baseline LIUM system and approximately 12% improvement was due to bottleneck features instead of using raw MFCC features (Oracle SAD, one second time-constraint).

Since the proposed dominance score, $DS$ (see Section 5.2) was derived using unsupervised acoustic analysis, we used Pearson’s correlation between ground-truth dominance rating ($D_{rate}$) and proposed dominance score ($DS$). The correlation between ground-truth $D_{rate}$ and proposed $DS$ was 0.8748 for Eval-Set-3 (70 minutes). The high correlation value validates the efficacy of proposed dominance score, $DS$, for characterizing dominance in PLTL sessions.

We computed pitch contour for each 25ms frame with 10ms skip-rate. For each speaker segment, we incorporated two-second of past and future speech and did the processing using non-overlapping super-segments of two-second duration. The pitch contour of each speaker segment was processed separately for possibility of detecting emphasis or question-inflection. We computed the speech energy based on wavelet packet decomposition as discussed in section 3.2. We computed the correlation between ground-truth mid-point and algorithm detection point as figure of merit for both emphasis and question-inflection detection. We also computed root mean squared error using ground-truth mid-point and detected points. Thus, we have two figures of merits namely correlation and root mean squared error for both, question-inflection and emphasis detection.

Table 8 showed the results on respective evaluation set. In addition, we did the detection error trade-off (DET) analysis for question-inflection as depicted in Figure 11. For getting DET curve we did not use the oracle diarization. We estimated the pitch contour for complete signal and performed the mean and variance normalization over non-overlapping super-segments of duration two-seconds. Thus, the newly generated normalized pitch contour was used for detecting the question-inflection by choosing a threshold. The values that were higher than the threshold corresponds to question-inflection. All frames between start-time and end-time of ground-truth question boundary were used as question-inflection points for the DET analysis. For each of the chosen threshold, we get a probability of false detection, $Pfa$ and probability of missing a true question-inflection, $Pmiss$. Figure 11 shows the detection error trade-off (DET) curve and the equal error rate (EER), where $Pmiss=Pfa$. The EER value comes out to be 12.31%. The DET and EER analysis supported the hypothesis that pitch was a robust feature for detecting the question-inflection. Table 8 shows the results on evaluation datasets.

7 Conclusions

This paper is a first step towards leveraging speech technology for extracting behavioral characteristics in small-group conversations such as PLTL sessions. Proposed methods were evaluated on CRSS-PLTL corpus. However, these algorithms can be extended to other similar applications such as small-group meetings/conversations.

We established the CRSS-PLTL corpus that contains audio recording of five Peer-Led Team Learning (PLTL) team. Each team has six to eight students and a peer leader. This corpus provides an opportunity for researching speaker diarization and behavioral signal processing for multi-stream data collected in naturalistic scenarios.

We used robust front-end for speech activity detection (SAD) and speaker diarization. Speech segments from all speaker were later processed with behavioral speech processing block that incorporate several acoustic analyses. Speech algorithms extract features capturing the behavioral characteristics such as participation, dominance, emphasis, curiosity and engagement. Results obtained on CRSS-PLTL corpus using proposed techniques are encouraging and motivate use of behavioral speech processing for understanding practical problems in education, human-to-human communication and small-group conversations.
