A new high-temperature quantum spin liquid with polaron spins

TL;DR

This paper reports the experimental realization of an almost ideal quantum spin liquid state in 1T-TaS2, characterized by gapless spin dynamics and no magnetic order down to very low temperatures, revealing a new quantum spin state.

Contribution

It demonstrates the existence of a nearly perfect quantum spin liquid in a real material, with detailed experimental evidence of gapless spin dynamics and emergent quantum order.

Findings

Gapless quantum spin liquid dynamics observed down to 70 mK.

No long-range magnetic order detected in the system.

Emergence of a new gapless quantum spin state below 55 K.

Abstract

The existence of a quantum spin liquid (QSL) in which quantum fluctuations of spins are sufficiently strong to preclude spin ordering down to zero temperature was originally proposed theoretically more than 40 years ago, but its experimental realisation turned out to be very elusive. Here we report on an almost ideal spin liquid state that appears to be realized by atomic-cluster spins on the triangular lattice of a charge-density wave (CDW) state of 1T-TaS$_2$. In this system, the charge excitations have a well-defined gap of $\sim 0.3$ eV, while nuclear magnetic quadrupole resonance and muon spin relaxation experiments reveal that the spins show gapless quantum spin liquid dynamics and no long range magnetic order down to 70~mK. Canonical $T^{2}$ power-law temperature dependence of the spin relaxation dynamics characteristic of a QSL is observed from 200~K to $T_f= 55$ K. Below this temperature we observe a new gapless state with reduced density of spin excitations and high degree of local disorder signifying new quantum spin order emerging from the QSL.

Figures

B), from where it extremely sensitively probes small-moment magnetism, irrespective of whether it is long- or short-ranged, spatially inhomogeneous or even incommensurate Yaouanc and de Réotier ([2010](#bib.bib22)). Significantly, in the zero-field (ZF) $\mu^{+}$SR experiment conducted at 70 mK (Fig. 1C), we did not observe any oscillation of the $\mu^{+}$SR signal that would imply a presence of frozen local magnetic fields. Further direct evidence ruling out any long-range magnetic order comes from $\mu^{+}$SR measurements in a weak-transverse-field (wTF) of 2 mT at the same temperature (Fig.

A). All peaks are due to the *181*Ta transitions between the nuclear spin states $m_{I}=1/2\leftrightarrow 3/2$. The NQR resonance frequency $\nu$ is proportional to the largest eigenvalue of the electric field gradient (EFG) tensor and is thus an extremely sensitive function of the charge distribution around a given nucleus. Therefore, the individual peaks in the measured NQR spectrum reflect variations of EFG values over the three different Ta sites. The isolated peak at 78 MHz is assigned to the central Ta $\alpha$ site Naito *et al.* ([1984](#bib.bib23), [1986](#bib.bib24)), whereas the pe

B). Measurements with $p<1$ suggest the growth of the local-field inhomogeneities at Ta sites leading to a very broad distribution of $1/T_{1}$ values below $T_{f}$. The observed change of the $1/T_{1}$ dependence also coincides with the anomaly in the *181*Ta spin-spin relaxation rate $1/T_{2}$ (Fig. 3A, Fig. S6), which shows a clear maximum at $T_{f}$ for all the Ta sites. Whereas $1/T_{2}$ matches $1/T_{1}$ at 200 K, it is very weakly temperature dependent and 2-3 orders of magnitude larger than $1/T_{1}$ below $T_{f}$. Since $1/T_{2}$ probes local field fluctuations with much lower frequen

Full text

A resonating valence bond (RVB) state Anderson (1973) as a new kind of insulator was proposed to be the ground state of the triangular-lattice $S=1/2$ Heisenberg antiferromagnet instead of a more conventional Néel state to account for the unusual magnetic properties of a perfect triangular atomic lattice of Ta atoms in the layered transition metal dichalcogenide 1T-TaS2. Since then, the list of materials with triangular lattice and with properties indicating the existence of a quantum spin-liquid (QSL), i.e., a state without spontaneously broken triangular lattice symmetry and whose behavior is dominated by emergent fractional excitations Balents (2010), is still remarkably short: it includes YbMgGaO4 Shen et al. (2016); Paddison et al. (2017) and the organic molecular solids $\kappa$-(ET)2Cu2(CN)3 and EtMe3Sb[Pd(dmit)2]2 Itou et al. (2010); Pratt et al. (2011). However, the latter organic molecular solids do not form a perfect triangular lattice implying that they are not ideal model systems. A promising recent example, YbMgGaO4 has a perfect triangular lattice, but the presence of strong spin-orbit coupling makes the nearest-neighbor magnetic interactions anisotropic, again making the system far from an ideal realization of the original idea. Compared to these compounds, layered dichalcogenides have perfect triangular lattice geometry and a weaker spin-orbit coupling Rossnagel (2011), offering a possibility for obtaining a unique insight into the competition between antagonistic QSL and Néel states Huse and Elser (1988); White and Chernyshev (2007), however, so far no signatures of QSL behaviour have been observed with spins on atomic lattice sites.

1T-TaS2 is a remarkably versatile model system for studying a variety of unusual physical phenomena Rossnagel (2011); Stojchevska et al. (2014); Yoshida et al. (2015); Vaskivskyi et al. (2016), and is at the same time an experimentally amenable testing ground for new theoretical concepts in correlated electron systems. It’s low-temperature state is particularly interesting because it supports a commensurate arrangement of polarons on a triangular lattice. At high temperatures, the material is a metal, which first undergoes a transition to an incommensurate charge-density wave (IC-CDW) state due to a Fermi surface instability at 545 K. To minimize the strain arising from the IC-CDW and the underlying lattice, this state transforms to a nearly commensurate (NC) and eventually becomes commensurate (C-CDW) below $T_{\rm NC-C}=180$ K on cooling. In this low-temperature phase, the Ta atoms are grouped into 13-atom clusters forming a Star-of-David arrangement with large in-plane Ta atom displacements towards the central Ta atom (Fig. 1A). Experimentally, 1T-TaS2 is insulating in the C-CDW phase Rossnagel (2011), which is unexpected, since it has an odd number of valence electrons per unit cell. This remarkable behaviour does not allow an interpretation of the insulating state in terms of the conventional band theory. To resolve this puzzle, the Mott-Hubbard mechanism has been invoked Fazekas and Tosatti (1979), according to which one electron is localized on each Ta-atom cluster due to electron correlation effects giving rise to a Mott insulating state with $S=1/2$ spins, approximately 1 nm apart, arranged on an ideal triangular-based lattice (Fig. 1A). In this state, charge excitations exhibit a large charge gap $\Delta_{\rm c}\sim 0.3$ eV Hellmann et al. (2012); Perfetti et al. (2005); Gasparov et al. (2002); Ma et al. (2016); Cho et al. (2016), while transport anisotropy measurements show that the system remains essentially two-dimensional (2D) Svetin et al. (2016). Given that we have an apparently ideal realization of $S=1/2$ spins arranged on a perfect triangular lattice, the question that arises is: what is the spin state of 1T-TaS2? If the material is a band insulator, a large gap should be observed also in the spin excitation spectrum. On the other hand, theoretically, within the 2D Heisenberg model of localized spins on nearest-neighbor sites of the triangular lattice, such a spin lattice is known to be magnetically ordered with coplanar spins oriented at 120 degrees with respect to one another Huse and Elser (1988); White and Chernyshev (2007). Alternatively, it may form a new and unusual state of matter, perhaps the elusive QSL, as originally proposed by Anderson Anderson (1973), if the spin interactions go beyond the Heisenberg model Lee and Lee (2005); Motrunich (2005).

Here we present the first muon-spin-relaxation ($\mu^{+}$SR) measurements on 1T-TaS2, which reveal the spin state over a very broad range of temperatures from 70 mK to 210 K, and measurements of electronic spin fluctuations using nuclear quadrupole resonance (NQR), which reveal a gapless QSL-like behavior in part of the C-CDW phase. Remarkably, below $\sim 55$ K a new and unusual spin state emerges, which does not show any evidence of any kind of magnetic ordering down to 70 mK. These new findings not only confirm the prediction of QSL in 1T-TaS2, which has been unresolved for over 40 years, but also raise questions about the nature of emergent states out of QSLs.

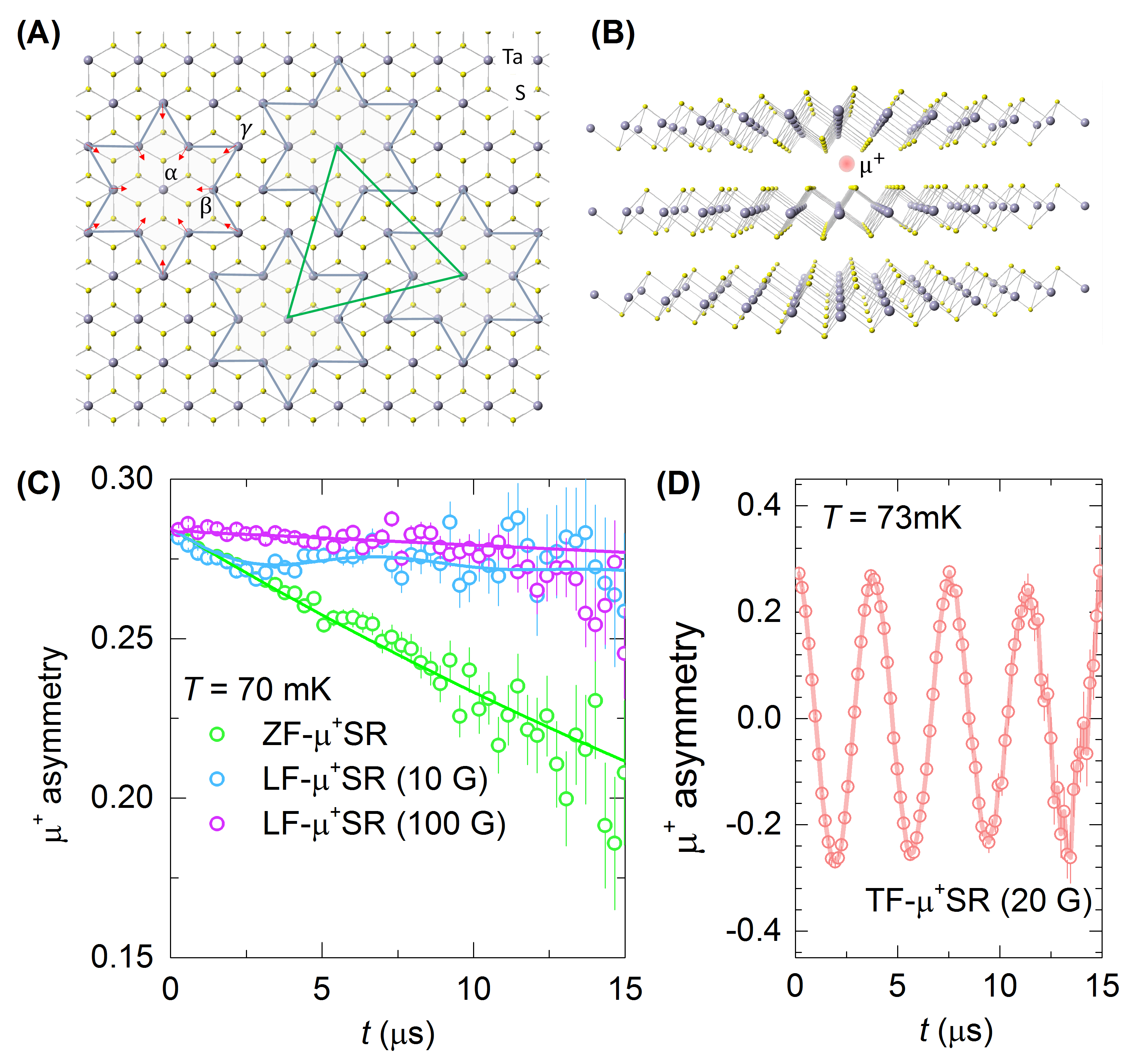

To probe the potential magnetic order or spin freezing we initially performed muon spin relaxation spectroscopy. The positively charged $\mu^{+}$ particle is assumed to localize in between the TaS2 layers close to negatively charged S2- ions (Fig. 1B), from where it extremely sensitively probes small-moment magnetism, irrespective of whether it is long- or short-ranged, spatially inhomogeneous or even incommensurate Yaouanc and de Réotier (2010). Significantly, in the zero-field (ZF) $\mu^{+}$SR experiment conducted at 70 mK (Fig. 1C), we did not observe any oscillation of the $\mu^{+}$SR signal that would imply a presence of frozen local magnetic fields. Further direct evidence ruling out any long-range magnetic order comes from $\mu^{+}$SR measurements in a weak-transverse-field (wTF) of 2 mT at the same temperature (Fig. 1D). The local magnetic field at the muon site is the sum of the applied and the internal magnetic fields. In magnetically ordered phases, the latter is typically of the order of several tens of  mT and thus exceeds the small applied wTF. However, the oscillation frequency of the wTF $\mu^{+}$SR asymmetry, $\nu_{\rm wTF}=265.4$ kHz, corresponds to the expected $\mu^{+}$ precession frequency in the applied wTF ($\nu_{\rm wTF}=\gamma_{\mu}B_{\rm wTF}/2\pi$, $\gamma_{\mu}/2\pi=135.5$ MHz/T) thus conclusively ruling out any static local field at the $\mu^{+}$ site. Moreover, the amplitude of the wTF $\mu^{+}$SR signal corresponds to the full muon asymmetry, thus proving that the absence of any long-range magnetic order in 1T-TaS2 pertains to the bulk of the sample. Complementary longitudinal field (LF) $\mu^{+}$SR measurements (Fig. 1C, Fig. S1) show a weak relaxation process due to the dynamics of the local fields of electronic origin. This yields a very small muon relaxation rate $\lambda$ (i.e., $\lambda=0.0023$ $\mu{\rm s}^{-1}$ at 70 mK) with no (or very little) temperature dependence (Fig. S2).

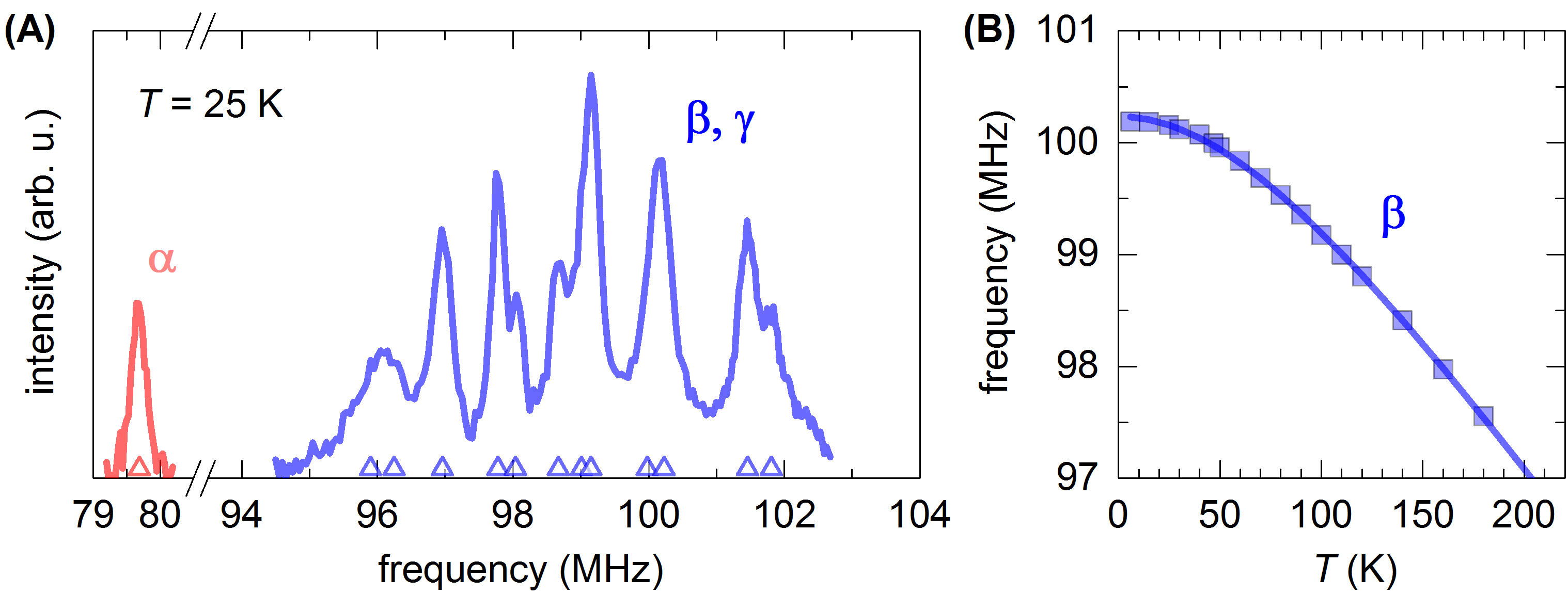

Given the absence of magnetic order and the fact that the observed spin dynamics is not well resolved in $\mu^{+}$SR measurements, we have further studied the electron spin excitations by another local magnetic probe, the 181Ta nuclear magnetic moments. The 181Ta (nuclear spin $I=7/2$) NQR spectrum of a collection of 1T-TaS2 single crystals measured at $T=25$ K comprises an isolated peak centered at 78 MHz and a group of 12 overlapping peaks in the frequency region spanning from 96 to 102 MHz (Fig. 2A). All peaks are due to the 181Ta transitions between the nuclear spin states $m_{I}=1/2\leftrightarrow 3/2$. The NQR resonance frequency $\nu$ is proportional to the largest eigenvalue of the electric field gradient (EFG) tensor and is thus an extremely sensitive function of the charge distribution around a given nucleus. Therefore, the individual peaks in the measured NQR spectrum reflect variations of EFG values over the three different Ta sites. The isolated peak at 78 MHz is assigned to the central Ta $\alpha$ site Naito et al. (1984, 1986), whereas the peaks around 100 MHz are assigned to the peripheral Ta $\beta$ and $\gamma$ sites (Fig. 1A). The fact that this part of the spectrum is fully split into two sets of $6+6$ peaks is consistent with the symmetry and structure of the Ta deformations surrounding the central Ta atom in the star of David cluster and rules out bilayer lattice dimerization where the singlet formation between layers breaks the trigonal symmetry and which would give rise to $3+3$ multiplet of peaks Naito et al. (1984). A characteristic temperature dependence of the $\alpha$ site 181Ta resonance frequency, where the dependence gradually changes from the linear at high to the quadratic at lower temperatures (Fig. 2B), is understood to arise from the two-dimensional character of the phonon spectrum in layered materials Torgeson and Borsa (1976). Importantly, a smooth and monotonic variation of $\nu_{\beta}(T)$ [and likewise also of $\nu_{\alpha}(T)$ and $\nu_{\gamma}(T)$, Fig. S4] proves that the same charge superlattice structure is present for all temperatures below $T_{\rm NC-C}$.

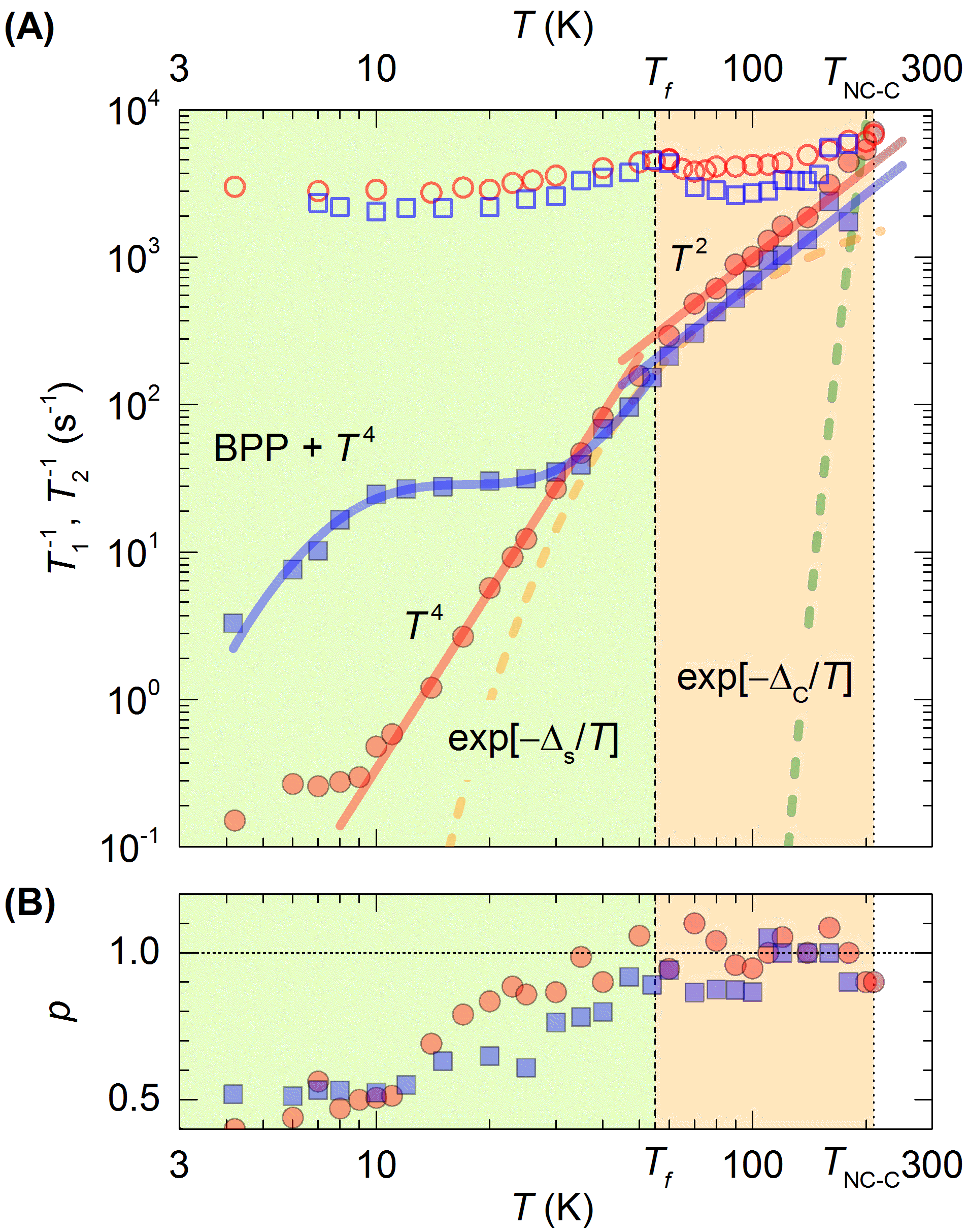

In Fig. 3A we show the temperature dependence of the 181Ta spin-lattice relaxation rate, $1/T_{1}$, for the Ta $\alpha$ and $\beta$ sites ($\gamma$ sites behave very similarly to the $\beta$ sites). In a wide temperature range, $55-200$ K, the relaxation rate follows what appears to be a power law temperature dependence. It is of primary importance that the observed dependence cannot be attributed to excitations across the charge gap $\Delta_{\rm c}$, which is expected to follow a much steeper $1/T_{1}\propto\exp\left(-\Delta_{\rm c}/T\right)$ dependence (green line in Fig. 3A). Alternatively, one might try to fit the measured dependence by assuming the presence of an independent spin gap $\Delta_{\rm s}$ leading to a thermally activated $1/T_{1}\propto\exp(-\Delta_{\rm s}/T)$ temperature dependence. In this scenario the obtained $\Delta_{\rm s}\sim 160$ K (orange line in Fig. 3A) could be interpreted as either a spin gap emerging from in-plane spin singlet-triplet excitations or from out-of-plane spin excitations. The size of $\Delta_{\rm s}$ is not unreasonable for the 1T-TaS2 out-of-plane charge bandwidth and the effective Coulomb repulsion Darancet et al. (2014). However, this scenario fits the observed temperature dependence of $1/T_{1}$ only over a very narrow temperature range between 35 and 70 K. Therefore, the presence of $\Delta_{\rm s}$ cannot explain the observed $1/T_{1}$ data, nor can it explain the ubiquitously observed small and temperature-independent spin susceptibility (Fig. S3). Thus, dismissing activated behavior arising from the presence of any kind of gap, $1/T_{1}$ for all Ta sites obeys a convincing power-law dependence $1/T_{1}\propto T^{n}$ with two different power-law exponents $n$ in two different temperature regimes. At high temperatures, $T>55$ K, all three Ta sites show a similar spin-lattice relaxation with $n=2\pm 0.2$. Such a temperature dependence is, for instance, found when the nuclear spin-lattice relaxation is dominated by thermal lattice vibrations. However, the estimated phonon-driven relaxation rate $1/T_{1}^{\rm ph}\approx 0.45$ s*-1* at $T=200$ K (see electronic supplementary file for details) is by at least 3-4 orders of magnitude too small to account for the measured relaxation rates in 1T-TaS2. Altogether, these arguments rule out relaxation by charge excitations across $\Delta_{\rm c}$, singlet-triplet excitations separated by $\Delta_{\rm s}$ and thermal lattice vibrations, leaving us with the only alternative that the power-law temperature dependences of $1/T_{1}$ are governed by fluctuations of the electron spins.

Below $T_{f}=55$ K, the temperature dependence of $1/T_{1}$ changes, but this change is markedly different on different Ta sites. For the $\alpha$ site, a transition to another power-law dependence with $n=4$ is observed. On the other hand, for the $\beta$ and $\gamma$ sites $1/T_{1}$ first approximately levels off and then starts to decrease rapidly again below $\sim 10$ K. The difference of $1/T_{1}$ between different Ta sites in this low-temperature regime is really striking, with $1/T_{1}$ of the $\alpha$ site being by up to two orders of magnitude smaller compared to the other two sites. Although any long range magnetic order has been clearly ruled out by $\mu^{+}$SR, the presence of spin fluctuations at ${\bf q}=\pm(2\pi/3,2\pi/3)$, which are reminiscent of the $120^{\circ}$ spin ordering Kaneko et al. (2014), cannot be a priori neglected. However, the expected broad diffusive peaks in $\chi^{\prime\prime}({\bf q},\omega)$ resulting from such spin correlations cannot account for the unusually efficient filtering of $q$-dependent spin fluctuations required to explain the variation in $1/T_{1}$ values between different Ta sites by two orders of magnitude and thus alternative explanations are needed. An alternative possibility is the presence of an additional relaxation channel, for which the characteristic frequency of local field fluctuations crosses the NQR frequency on cooling below $T_{f}$ and whose symmetry is such, that they mainly affect 181Ta moments at the periphery of the Ta-cluster (i.e., on $\beta$ and $\gamma$ sites). Therefore, the temperature dependence of $1/T_{1}$ below $T_{f}$ for the Ta $\beta$ and $\gamma$ sites is empirically modeled (Fig. 3A) by two parallel nuclear spin-lattice relaxation channels: $1/T_{1}=aT^{n}+b{\tau_{\rm c}\over 1+(\omega\tau_{\rm c})^{2}}$. The first term describes the power-law dependence with $n=4$, i.e., the relaxation channel effectively detected by all three Ta sites. The second term is introduced at the periphery of the Star-of-David Ta-cluster and signifies that the autocorrelation function of local field fluctuations is decaying exponentially with the correlation time $\tau_{\rm c}$. Assuming that $\tau_{\rm c}$ is thermally activated, i.e., $\tau_{\rm c}=\tau_{0}\exp\left[E_{\rm a}/k_{\rm B}T\right]$, we find agreement with the data yielding an activation energy of $E_{\rm a}/k_{\rm B}=18.4$ K and the attempt frequency of $1/\tau_{0}=2.1$ GHz. Plausible candidates for such low-frequency fluctuations may be low-frequency librational-like modes of the entire Star-of-David, which need to retain the cluster’s symmetry in order to be consistent with the data.

The transition at $T_{f}\simeq 55$ K is accompanied by a change in the form of the 181Ta nuclear magnetization recovery curves. Whereas we find nearly perfect single-exponential recovery curves for $T>T_{f}$, implying a homogeneous spin system, below $T_{f}$ we need to employ a stretched-exponential fit $M_{z}(\tau)\propto\exp\left[-\left(\tau/T_{1}\right)^{p}\right]$ (here, $M_{z}(\tau)$ is the $z$-component of the 181Ta nuclear magnetization, Fig. S5) with a stretching exponent $p$ significantly smaller than $1$ (Fig. 3B). Measurements with $p<1$ suggest the growth of the local-field inhomogeneities at Ta sites leading to a very broad distribution of $1/T_{1}$ values below $T_{f}$. The observed change of the $1/T_{1}$ dependence also coincides with the anomaly in the 181Ta spin-spin relaxation rate $1/T_{2}$ (Fig. 3A, Fig. S6), which shows a clear maximum at $T_{f}$ for all the Ta sites. Whereas $1/T_{2}$ matches $1/T_{1}$ at 200 K, it is very weakly temperature dependent and 2-3 orders of magnitude larger than $1/T_{1}$ below $T_{f}$. Since $1/T_{2}$ probes local field fluctuations with much lower frequencies than $1/T_{1}$, we conclude that the observed maximum in $1/T_{2}$ is a signature of critical behaviour in the low-frequency part $(\omega\rightarrow 0)$ of the local-field dynamics associated with the transition to the low-temperature emergent state.

The central finding of this work is that the magnitude and the temperature dependence of the 181Ta NQR relaxation rates can only be described by the fluctuations of electron spins within a state that withstands long-range magnetic ordering and whose absence down to 70 mK is unambiguous from the $\mu^{+}$SR data. The first and most obvious clue about the nature of the spin state in the range $T_{f}<T<T_{\rm NC-C}$ comes from the experimental findings revealing that the system is magnetically homogeneous ($p=1$ indicates that the relaxation is the same on all Ta sites), and that the relaxation rate shows a convincing power-law temperature dependence with $n=2\pm 0.2$. These findings have important implications for the triangular lattice of the Star-of-David Ta-atom clusters for which QSL emerges as the most probable low-energy state. The relaxation rate $1/T_{1}\propto T\int\left(\chi^{\prime\prime}(q,\omega)/\omega\right)dq\propto T^{n}$ with $n=2$ means that the $q$-integrated imaginary part of dynamic spin susceptibility $\chi^{\prime\prime}(q,\omega)$ is linear in temperature. For gapless spin liquids with a spinon Fermi surface we expect $1/T_{1}T=const$ Itou et al. (2010), which is inconsistent with the experimental $n=2$. In the case of a fully opened spin gap, $1/T_{1}T$ should decay exponentially with temperatures, which is also inconsistent with the experiment. Therefore, the only candidate among the quantum spin liquids that fits the present experimental data is the one where the spin excitations have nodes in $q$-space, and whose energy dependence of the spinon density of states is such that it gives $n=2$. Such power-law dependences with $n=2$ were encountered previously in several QSL systems, such as the organic triangular-lattice antiferromagnets Itou et al. (2010); Pratt et al. (2011) and the disordered triangular lattice systems Sc2Ga2CuO7 Khuntia et al. (2016).

Below $T_{f}=55$ K, the QSL state of 1T-TaS2 appears to support the emergence of a new exotic low-temperature state characterized by:

• (i)

a broad distribution of $1/T_{1}$ values (Fig. 3B) where the stretching exponent $p\approx 0.5$ implies a highly inhomogeneous magnetic phase at all Ta sites,

• (ii)

a slowing down of the spin fluctuations leading to an unusually high power-law exponent $n=4$ of the 181Ta relaxation (Fig. 3A), which implies a suppression of spinon density of states, and

• (iii)

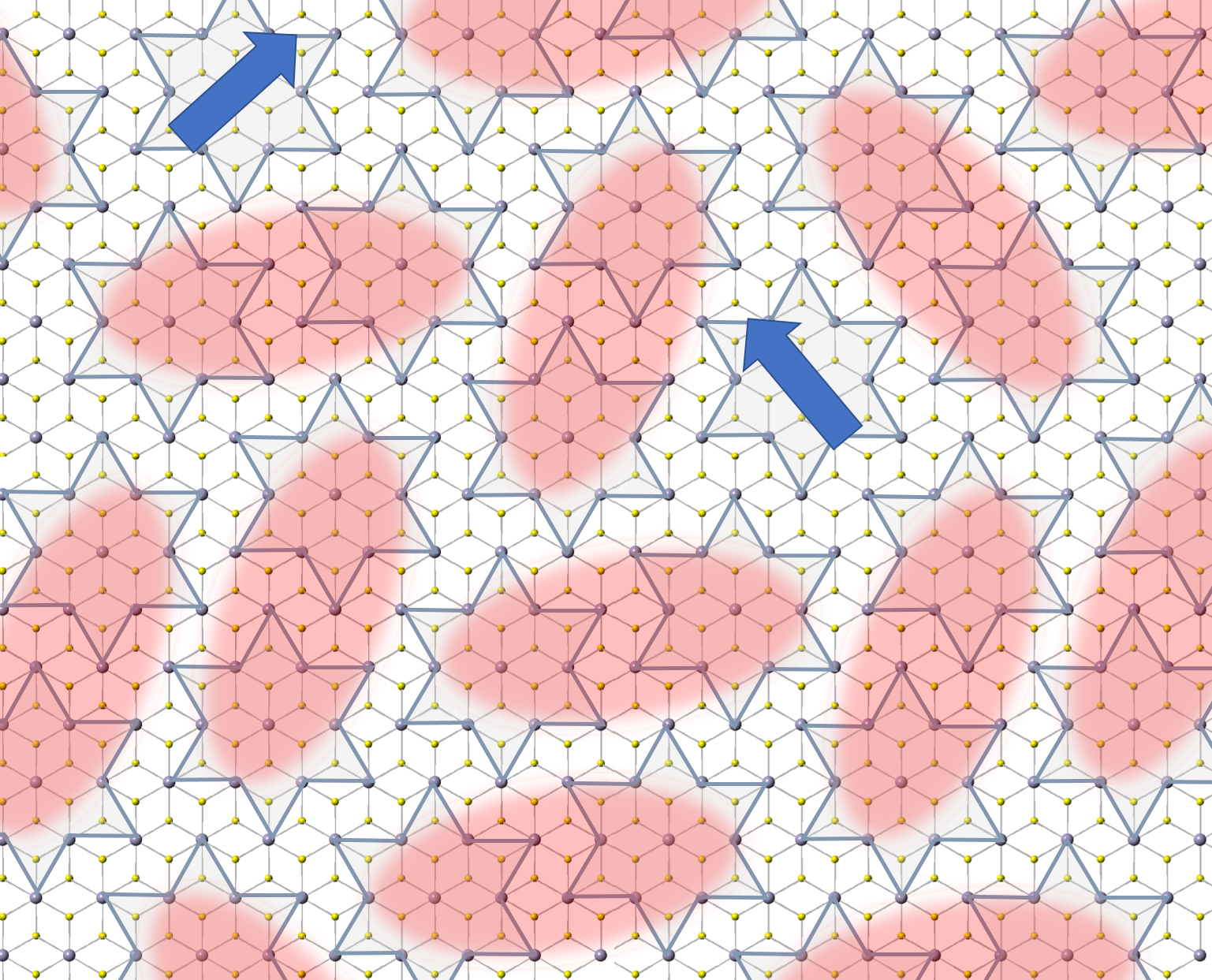

symmetry breaking of the homogeneous spin structure of the Star-of-David Ta-atom clusters, in which the central $\alpha$ site Ta atom shows very different relaxation than the surrounding 12 atoms (Fig. 3A).

The extremely broad distribution of the 181Ta relaxation rates is a compelling evidence for the growing randomness in the spin system as temperature decreases below $T_{f}$. If the out-of-plane hopping were important, we can imagine that spin chains of stacked Star-of-David Ta clusters may form along the crystallographic $c$-axis. Stacking disorder would then introduce randomness into the quasi-1D spin chain. Indeed, similar values of $p$ have been recently encountered in the random Heisenberg chain compound BaCu2(Si1-xGex)2O7 Shiroka et al. (2011), which is known to adopt the random-singlet state Fisher (1994). However, in a one-dimensional limit, the nuclear $1/T_{1}$ relaxation rate, which can be elegantly treated within the Tomonaga-Luttinger-liquid formalism Klanjšek et al. (2008, 2015), shows a power-law temperature dependence with $n\leq 3/2$ (for example, $n=1$ in BaCu2(Si1-xGex)2O7 Shiroka et al. (2011)). In other words, the large exponent $n=4$ is not consistent with such one-dimensional spin interactions and thus the system also for $T<T_{f}$ remains 2D as 1D out-of-plane spin order can be excluded. The observed slowing down of spin fluctuations is consistent with the freezing of singlets, with $p\approx 0.5$ suggesting a random 2D arrangement shown schematically in Fig. 4. This phase differs from canonical spin glasses in one important aspect: the average value of the spin is zero for each Ta-cluster, $\langle S_{i}\rangle$, which explains our $\mu^{+}$SR data. The frozen in-plane singlets lead to a spinon “pseudogap” with a large slope of the spinon density of states near the spinon Fermi energy, consistent with $n=4$. Finally, the commonly observed very small paramagnetic spin susceptibility (Fig. S3) with a weak Curie-like component is also consistent with such a state and may even explain the generation of a small fraction of free spins at low temperatures, but the large exchange interaction between them derived from the susceptibility of $J\sim 0.13$ eV remains anomalous (see Supplemental Material for discussion of this estimate). At this point, the source of randomness is unclear, but either stacking disorder of TaS2 planes, or slight off-stoichiometry of the sample are likely candidates.

The present study reveals the physics behind a more than 40 years old mystery of the magnetic properties of the low-temperature spin state in 1T-TaS2 and broadly the physics behind the quantum spin liquids on a triangular lattice. The geometrical frustration on the antiferromagnetic triangular lattice of Star-of-David $S=1/2$ spins is responsible for the formation of a QSL state below $T_{\rm NC-C}$, which is stable over a remarkably large temperature range and implies a surprisingly large exchange interaction. Out of the QSL, a novel quantum phase with amorphous tiling of frozen singlets emerges at $T_{f}=55$ K, extending down to 70 mK. The properties of this state are highly unusual. While gapless, it shows indications of a pseudogap in the spinon density of states, with a high-degree of local disorder, yet for each Ta-atom cluster the average value of the spin is zero. The origin of the emergent state is proposed to be due to freezing of singlets in the QSL, where the value of $T_{f}$ is determined by the distribution of exchange interactions between Star-of-David spins. It would be interesting to see if such a low-temperature state is generic in other triangular lattices where disorder, next-nearest interactions and/or magneto-elastic effects are present.
