Lattice calculations and the muon anomalous magnetic moment

TL;DR

This paper reviews recent progress in lattice calculations of hadronic contributions to the muon anomalous magnetic moment, aiming to reduce theoretical uncertainties and resolve discrepancies with experimental measurements.

Contribution

It presents new lattice calculation results for hadronic contributions to improve the theoretical prediction of $a_{}$.

Findings

Lattice calculations are increasingly precise in estimating hadronic effects.

Recent results help narrow the gap between theory and experiment.

Progress supports potential resolution of the muon g-2 discrepancy.

Abstract

Anomalous magnetic moment of the muon, $a_{\mu}=(g_{\mu}-2)/2$, is one of the most precisely measured quantities in particle physics and it provides a stringent test of the Standard Model. The planned improvements of the experimental precision at Fermilab and at J-PARC propel further reduction of the theoretical uncertainty of $a_{\mu}$. The hope is that the efforts on both sides will help resolve the current discrepancy between the experimental measurement of $a_{\mu}$ and its theoretical prediction, and potentially gain insight into new physics. The dominant sources of the uncertainty in the theoretical prediction of $a_{\mu}$ are the errors of the hadronic contributions. I will discuss recent progress on determination of hadronic contributions to $a_{\mu}$ from lattice calculations.

Figures

Tables

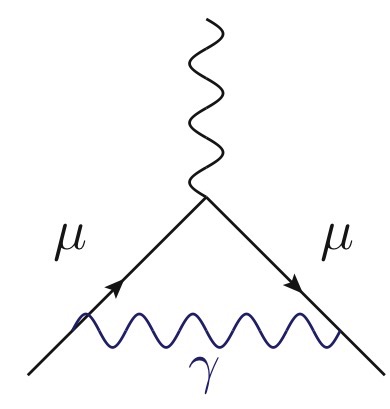

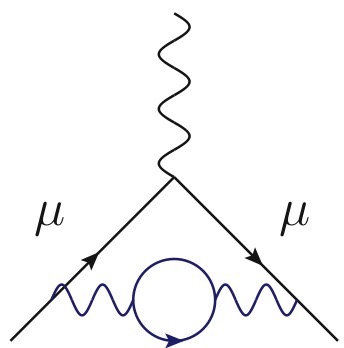

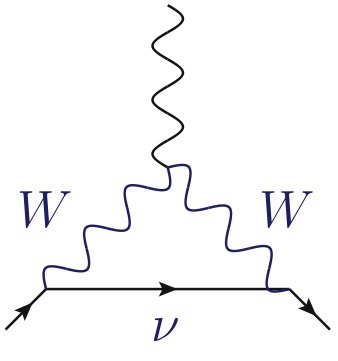

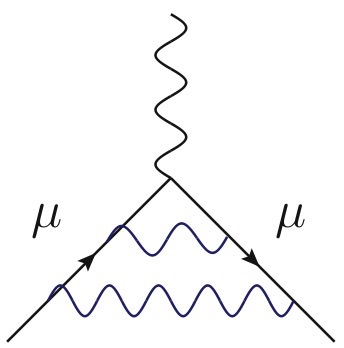

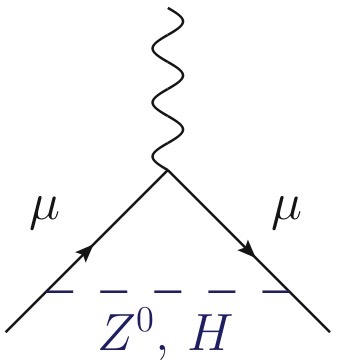

Table 1. Table 1: Comparison between a SM prediction and the experimental result for a μ subscript 𝑎 𝜇 a_{\mu} . The last column contains example Feynman diagrams for the individual contributions to the total theoretical estimate.

Contribution	Value	Uncertainty	Sample Diagrams
QED $O\left(\alpha \right)$	116 140 973.21	0.03
QED $O\left({\alpha }^2\right)$	413217.63	0.01
QED $O\left({\alpha }^3\right)$	30 141.90	0.00	⋮
QED $O\left({\alpha }^4\right)$	381.01	0.02
QED $O\left({\alpha }^5\right)$	5.09	0.01
QED, total Aoyama:2014sxa	116 584 718.95	0.04
electroweak, total Gnendiger2013	153.6	1.0
HVP (LO) Hagiwara:2011af	6949.9	43.0
HVP (NLO) Hagiwara:2011af	-98.0	1.0
HLbL Jegerlehner2009	116.0	40.0
HVP(NNLO) Kurz2014a	12.4	0.1
HLbL(NLO) Colangelo2014	3.0	2.0
theory, total	116 591 855.0	59.0
experiment Mohr2016	116 592 089.0	63.0

Equations

$$a_{\mu }^{\mathrm{HVP}}={\left(\frac{\alpha }{\pi }\right)}^2{\int }_0^{\infty }d{Q}^{2}f(Q^2)\times \hat{\Pi }(Q^2),$$

$${\Pi }_{\mu \nu }(Q)=a^4\sum _x{e}^{iQx}⟨J_{\mu }^{em}(x)J_{\nu }^{em}(0)⟩.$$

Full text

††journal: Few-Body Systems

1 Introduction

The contributions of new physics (NP) beyond the Standard Model (SM) to the anomalous magnetic moment of a lepton, $a_{\ell}=\frac{g_{l}-2}{2}$, are expected to scale as $a_{\ell}-a_{\ell}^{\rm SM}\propto(m^{2}_{\ell}/\Lambda^{2}_{\rm NP})$ for leptons $\ell=e,\mu,\tau$ and some new physics scale $\Lambda_{\rm NP}$. The muon magnetic moment, $a_{\mu}$, is therefore $m_{\mu}^{2}/m_{e}^{2}$ times more sensitive to NP than the one of the electron, while the magnetic moment of $\tau$ is not yet experimentally accessible. Additionally, $a_{\mu}$ can be obtained with high precision both from the experiment Bennett2006 , as well as from the SM prediction Jegerlehner2016 ; Davier2016 and as such serves as one of the most sensitive tests of the SM.

The experimental measurement of $a_{\mu}$ currently shows a $3\sigma$ to $4\sigma$ deviation from the SM estimate Jegerlehner2016 ; Davier2016 . The summary of various SM contributions to $a_{\mu}$ given in Table 1 shows that the dominating uncertainty comes from the hadronic contributions. The value of the hadronic vacuum polarization (HVP) entering the theoretical average in Table 1 is obtained via a dispersion integral of the total hadronic $e^{+}e^{-}$ annihilation and $\tau$-decays cross sections (for comprehensive reviews see Passera2005 ; Jegerlehner2016 ), while the value of hadronic Light by Light contribution (HLbL) quoted in Table 1 is purely based on low energy effective QCD hadronic models. Due to the plans of Fermilab Venanzoni2016 and J-PARC Saito2012 experiments to reduce the experimental uncertainty by a factor of four, performing an independent check of the phenomenological estimate of the hadronic contributions is of crucial importance in order to confirm or resolve current discrepancy between theory and experiment, and potentially gain insight into new physics beyond the SM. Lattice discretization of gauge theories provides a way to compute the contributions to $a_{\mu}$ with prevailing uncertainties, HVP and HLbL, from first principles. We will present in the following sections the ongoing progress of these calculations, aiming to achieve sub-percent precision for the HVP and $\approx 10\%$ precision for HLbL.

2 Hadronic Vacuum polarization in Euclidean space-time

Ever since the first attempt to perform a lattice QCD computation of the HVP is made by T. Blum Blum:2002ii , a precise computation of this quantity has become one of the long-standing goals of the lattice comunity. The leading order HVP correction to $a_{\mu}$ at Euclidean space-time is obtained as Lautrup1968 ; Blum:2002ii :

[TABLE]

where $\hat{\Pi}(Q^{2})={\Pi}(Q^{2})-{\Pi}(0)$ is the renormalized scalar vacuum polarization, $\alpha$ is the fine structure constant, $m_{\mu}$ is the muon mass and $f(Q^{2})$ is analytically known111$f(Q^{2})=m_{\mu}^{2}Q^{2}Z^{3}(Q^{2})\frac{1-Q^{2}Z(Q^{2})}{1+m_{\mu}^{2}Q^{2}Z^{2}(Q^{2})}$, where $Z(Q^{2})=\frac{\sqrt{(Q^{2})^{2}+4m_{\mu}^{2}Q^{2}}-Q^{2}}{2m_{\mu}^{2}Q^{2}}$. function. Gauge and Lorentz invariance relate scalar hadronic vacuum polarization function and vacuum polarization tensor $\Pi_{\mu\nu}(Q)=(Q^{2}\delta_{\mu\nu}-Q_{\mu}Q_{\nu})\Pi(Q^{2})$, which can be computed using a lattice discretization of the vector current $J^{em}_{\mu}$:

[TABLE]

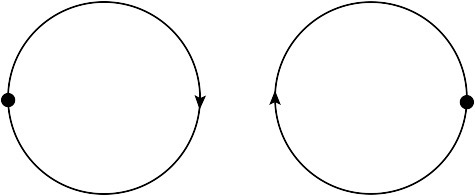

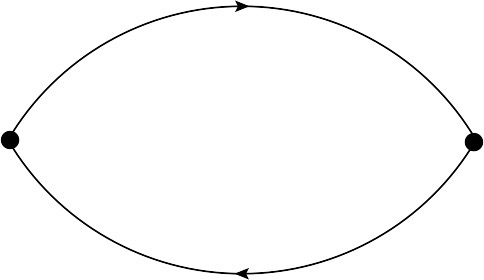

The vector two-point correlator in Eq. 2 consists of the quark-connected and quark-disconnected contributions illustrated in the leftmost panel of Fig. 1, whose continuum and infinite volume limits are usually computed independently.

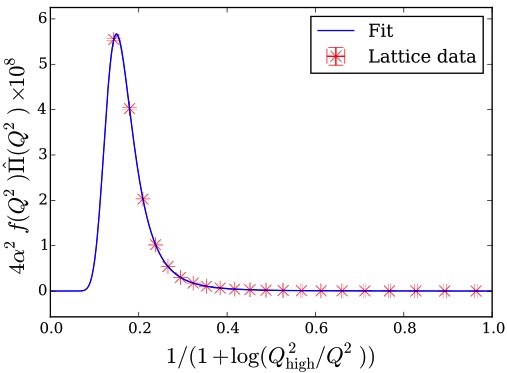

The integrand of Eq. 1 is strongly peaked at $Q^{2}\approx\frac{m^{2}_{\mu}}{4}$ and the integral corresponding to the $a_{\mu}^{\mathrm{HVP}}$ is therefore dominated by the low momentum region (see Fig. 1). Lattice computation is in practice performed in a finite box, with time and spatial extents $L_{\mu}$ and periodic boundary conditions. The lattice momenta are thus quantized: $Q_{\mu}=\frac{2\pi}{L_{\mu}}n_{\mu}$, $n_{\mu}=0,\dots,L_{\mu}-1,\mu=0\dots 3$, and this condition leaves us with few lattice points in the most important region for the evaluation of the HVP integral: around and bellow the peak of the integrand. The latter calls for the usage of models or parametrizations that would estimate the value of $\Pi(Q^{2})$ in the low momentum region. Moreover, the signal to noise ratio worsens at small $Q^{2}$. For all these reasons, a number of tricks for noise reduction and control of the systematic uncertainties needed to be developed in order to bring the accuracy of the lattice computation of $a_{\mu}^{\mathrm{HVP}}$ closer to the precision of the estimates coming from the phenomenology and experiment.

2.1 Strategies for the evaluation of the HVP on the lattice

Initially, computing $a_{\mu}^{HVP}$ in lattice QCD required performing a fit of the lattice data in order to obtain the renormalized amplitude $\hat{\Pi}(Q^{2})$ Blum:2002ii ; Boyle2012 ; Aubin:2012me . The fits were introducing model dependence that made systematics difficult to control. We discuss several recent proposals for the non-perturbative determinations of the HVP, whose development was motivated by overcoming the aforementioned difficulty of model-dependent extraction of the additive renormalization ${\Pi}(0)$ and a slope of the HVP near $Q^{2}=0$.

Padé approximants. In order to avoid uncontrolled systematics originating from performing model dependent fits of the HVP (usually based on Vector Meson Dominance), a model independent approach for constructing the functional form of $\Pi(Q^{2})$ has been proposed by the authors of Ref. Aubin:2012me . The suggested method is based only on known mathematical properties of the vacuum polarization, and consists of fitting a sequence of Padé approximants to the lattice data. The Padés are such that the full sequence converges to the actual polarization for any compact region in the complex plane excluding the cut along the negative real axis. Increasing the order of the Padé approximation allows for testing the stability of the fits and guarantees a more reliable estimate of the systematics that come mainly from the decreasing precision of lattice data at low $Q^{2}$.

Time Moments. Recently proposed approach by the HPQCD collaboration Chakraborty2014 obtains the HVP by reconstructing the Adler function from its derivatives. From the space-averaged current-current correlator $G(x_{0})=-\frac{a^{3}}{3}\sum_{\vec{x}}\langle J_{\mu}^{em}(x)J_{\nu}^{em}(0)\rangle$, one computes the time-moments of the renormalized HVP by taking the $Q^{2}$-derivatives at zero spatial momenta: $G_{2n}=(-1)^{n}\frac{\partial^{2n}}{\partial Q^{2n}}\{Q^{2}\hat{\Pi}(Q^{2})\}|_{Q^{2}=0}=a\sum_{x_{0}}x_{0}^{2n}G(x_{0})$. The relation of the HVP form factor with the constructed time-moments allows us to determine the coefficients of a given HVP function parametrization (Padé approximants, conformal polynomials etc.). Further developments of this idea, which replace continuous time-moments with discrete- and/or spatial-moments, have been applied in more recent works by RBC/UKQCD, Mainz group and BMW collaboration Blum2016a ; HorchPoS ; Lellouch2016 .

Time-Momentum Representation. An approach revived in many recent HVP computations Francis:2014hoa ; Feng2013a ; Blum2015 proposes an alternative to the computation of the HVP in momentum space captured in Eq. 2. One starts from the spatially summed vector correlator $G(x_{0})$, and writes a renormalized HVP as $\hat{\Pi}(Q^{2})=\frac{1}{Q^{2}}\int_{0}^{\infty}dx_{0}G(x_{0})[Q^{2}x_{0}^{2}-4\sin^{2}(\frac{1}{2}Qx_{0})]$. The challenge is here transferred to understanding the large time behavior of $G(x_{0})$. It can be shown that the TMR representation is equivalent to the previously discussed Time Moments approach WittigPoS .

Analytic Continuation. The method discussed in Ref. Feng2013a computes the $a_{\mu}^{\mathrm{HVP}}$ at small space-like momenta, simultaneously with the time-like momenta. This is achieved by keeping the spatial Fourier transform of Eq. 2 and only integrating in the time direction with a factor $e^{wt}$, such that continuous values of $Q^{2}$, Q=(→q,-iw), are accessed: $\bar{\Pi}(Q^{2})(\delta_{\mu\nu}Q^{2}-Q_{\mu}Q_{\nu})=\int dt~{}e^{wt}\int d^{3}\vec{x}~{}e^{i\vec{q}\vec{x}}~{}\langle J_{\mu}^{em}(\vec{x},t)J_{\nu}^{em}(\vec{0},0)\rangle$. $w$ is a continuous parameter, and $\bar{\Pi}(Q^{2})$ is a modified HVP form factor, which has been proven to lead to an evaluation of the physical $a_{\mu}^{\mathrm{HVP}}$. The integration range is divided into two parts: the interval $[0,Q_{max}]$, where the analytic continuation is applied and the integration range $[Q_{max},\infty)$ that is treated in a standard way. An advantage of this approach is that the model dependence comes only from the region $[Q_{max},\infty)$. Unfortunately, the method does not seem to lead to an increased precision in the overall calculation of $a_{\mu}^{\mathrm{HVP}}$. The described approach is utilized in the computation of $a_{\mu}^{\mathrm{HVP}}$ for $N_{f}=2+1+1$ QCD with twisted mass fermions by ETMC Burger2014 .

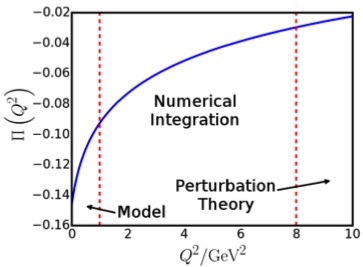

Hybrid Method The approach proposed in Ref. Golterman2014b allows for better control of the systematics arising from the decreasing precision of lattice data in the range of low-$Q^{2}$. The integral that gives $a_{\mu}^{\mathrm{HVP}}$ is this time divided into three non-overlapping regions: $[0,Q^{2}_{low}]$,$[Q^{2}_{low},Q^{2}_{high}]$ and $[Q^{2}_{high},\infty)$ (cf. Fig. 2). One then applies different fits/moment methods in the range $[0,Q^{2}_{low}]$, and performs a simple numerical integration in the region $[Q^{2}_{low},Q^{2}_{high}]$. Taking into account that roughly 80% of the contribution to the HVP integral comes from $Q^{2}<0.2\mathrm{GeV}^{2}$ domain Golterman2014b , this approach helps us give a better estimate of the systematics in the computation of $a_{\mu}^{\mathrm{HVP}}$ by probing different integration boundaries $Q^{2}_{low}$ and $Q^{2}_{high}$. In the application of this method by RBC/UKQCD Blum2016a , the parametrization in the low-$Q^{2}$ region is varied, alongside the method used to match the parametrization in this region and the numerical methods used to integrate the mid-$Q^{2}$ region. This allowed obtaining a reliable estimate of the overall systematic error, which for the strange quark, interestingly, came out to be smaller than the statistical error.

2.2 Summary of current lattice evaluations of the connected HVP

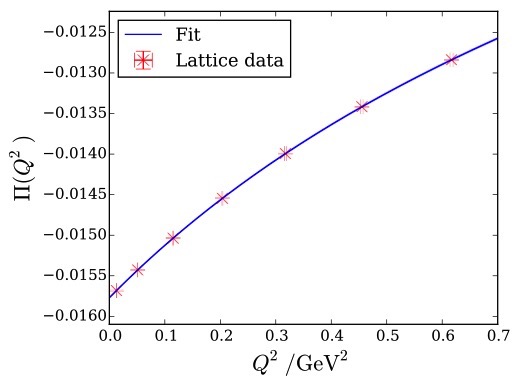

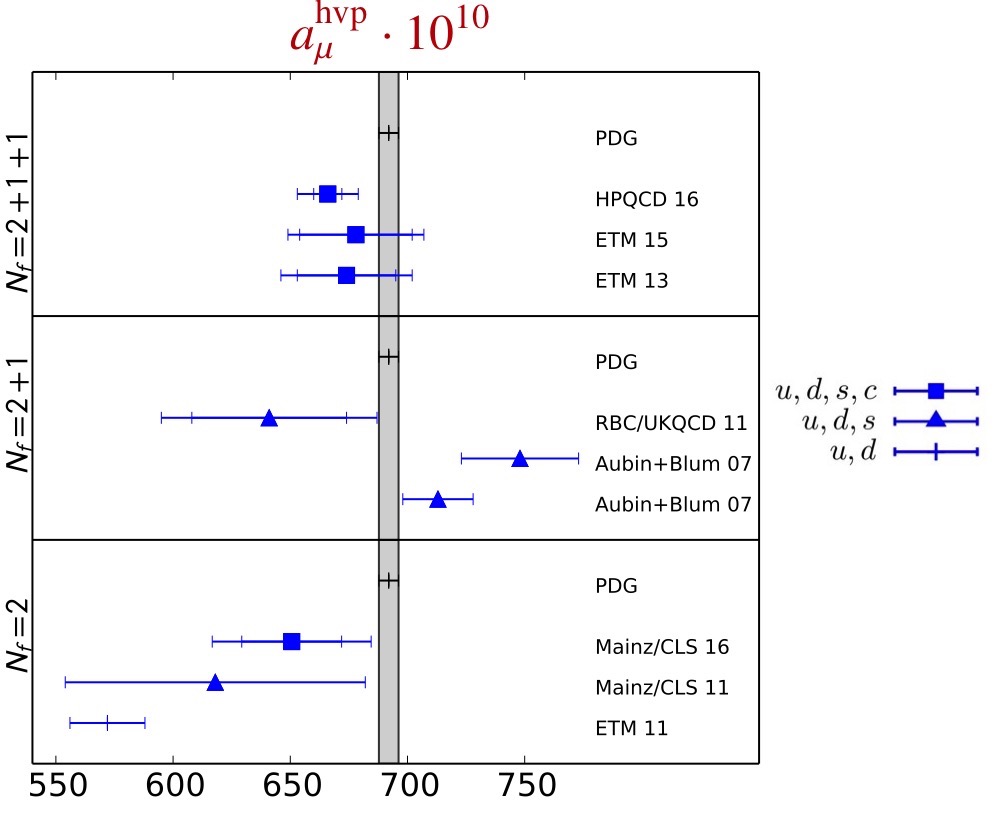

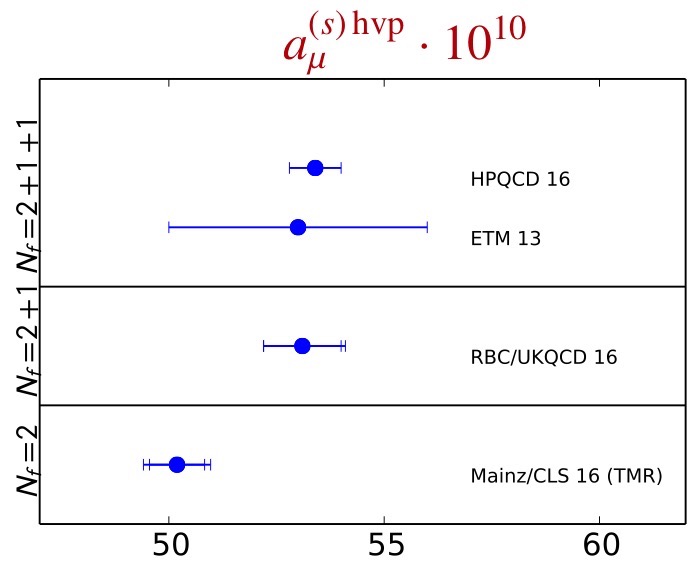

Fig. 2 shows the summary of the determinations of different contributions to the HVP by several lattice collaborations previously presented at Lattice 2016 WittigPoS . In the left panel the strange contributions by Mainz group on CLS ensembles HorchPoS , RBC/UKQCDBlum2016a , ETMBurger2014 and HPQCD Chakraborty2014 collaborations are compared and the results are mutually consistent. The right panel contrasts the PDG estimate of the HVP with the results by various lattice collaborations, which are treating two, three or all four (u,d,s,c) quark flavors dynamically. Lattice estimates agree with the PDG value, although the accuracy is still several times lower than the one from non-lattice methods that are the sole contributors to the PDG result.

Recent lattice works on the connected HVP front that are not covered in this review include the computation of the HVP by introducing a background magnetic field Bali2015 , a suggestion to perform a subtraction of $\Pi(0)$ using the derivative of the twisting angle deDivitiis:2012vs , computing HVP directly at an arbitrary momentum and in a finite volume (FV) AntoninProc , as well as a systematic study of the FV effects on the BMW ensembles Malak:2015sla . Additionally, Ref. Aubin2016a gives an estimate of FV effects for the connected HVP from chiral perturbation theory (ChPT) and an interesting proposal to reduce FV effects by twist averaging has been described in Ref. Lehner2015 . The most recent addition to the rapidly growing literature on lattice determinations of the HVP is the systematic study of the slope and curvature of the HVP by the BMW collaboration Lellouch2016 , where for the first time continuum limit of these quantities is performed using six different lattice spacings.

2.3 Disconnected HVP contribution

Quark-disconnected contributions to vector correlation functions (see Fig. 1) are known to have a bad signal to noise ratio, and represented one of the main sources of unquantified uncertainties in the earlier computations of the HVP from the lattice Boyle2012 ; DellaMorte2012 . An estimate of the disconnected HVP from one-loop FV lattice ChPT DellaMorte:2010aq and an earlier ETMC work Feng2011 that included the disconnected contribution for almost half of the ensembles used in the study, have been followed by several contemporary computations of this quantity Guelpers2014 ; Chakraborty2016a ; Toth2015 ; Bali2015 . The latter have rendered this contribution relevant in achieving the aimed sub-percent precision for the total HVP from the lattice. Recent work by RBC/UKQCD Blum2016 is the first to statistically resolve the signal of the disconnected HVP with physical light quarks. The success of the latter is due to pinpointing the mechanisms related solely with the nature of the disconnected contribution, in addition to the application of the noise reduction techniques such as all-mode-averaging strategy Blum2013 , all-to-all quark propagators Foley2005 , and sparse random sources. Moreover, light-strange quark difference is computed directly, as previously proposed in Ref. Guelpers2014 , and a result for the disconnected HVP amounting to $\approx 1.5\%$ of the total HVP at $3\sigma$ level is obtained Blum2016 .

2.4 Isospin breaking correction to the HVP

Similarly to the disconnected piece, the isospin breaking corrections to the HVP are expected to be at a few percent level. However, the goal precision for the HVP from the lattice cannot be achieved before we control the effect of performing the lattice computation in the isosymmetric limit: with up ad down quark masses degenerate and no electromagnetic effects taken into account. Up to now, only a limited number of efforts have been invested in lattice community, in order to determine the isospin breaking effects to the hadronic observables in high precision lattice simulations (for a recent review see PatellaPoS ). The existing estimates of the isospin breaking corrections to the HVP based on phenomenological input Jegerlehner2011 ; Chakraborty2016b , speak in favor of the importance of this correction for reaching a sub-percent precision of the HVP from the lattice. In particular, the error budget of Chakraborty2016b quotes precisely the unaccounted isospin breaking effects as the largest contribution to the total uncertainty. The definite answer regarding the significance of these effects can be obtained only by carrying out a lattice calculation and several such studies are on the way MyProc ; VeraProc .

2.5 HVP from new experiments combined with lattice QCD

Note that an alternative way to write Eq. 1 features the running of the fine structure constant: $a_{\mu}^{\mathrm{HVP}}=(\frac{\alpha}{\pi})\int_{0}^{1}dx(1-x)\Delta\alpha_{had}(-Q^{2})$ Lautrup1968 , where $Q^{2}=\frac{x^{2}m_{\mu}^{2}}{1-x}$. Recently, a couple of novel approaches to perform a direct space-like measurement of the hadronic contributions to the running of the fine structure constant, $\Delta\alpha_{had}(-Q^{2})$, have been proposed CarloniCalame2015 ; Abbiendi2017 . A precise value of $\Delta\alpha_{had}(-Q^{2})$ could be obtained either in Bhabha scattering with a small modification of the existing experiments CarloniCalame2015 , or in the recently proposed measurement of the scattering of the high-energy muons on the fixed electron target Abbiendi2017 . The statistical precision of the value of $a_{\mu}^{\mathrm{HVP}}$ obtained from the latter of the two proposed experiments is estimated to be O(0.3%) after two years of data taking, while the systematics still need to be accounted.

The original proposals assume using time-like dispersive data and/or perturbation theory beyond the maximal space-like momenta that can be achieved in space-like scattering experiments, $Q^{2}_{exp}$. Similarly to the Hybrid Method described in Sec. 2.1, one could instead combine the input from the newly proposed experiments in some low momentum integration range $[0,Q^{2}_{exp}]$ with lattice QCD calculation of the contribution to the $a_{\mu}^{\mathrm{HVP}}$ from the region $[Q^{2}_{exp},Q^{2}_{high}]$, and finally make contact with perturbation theory at some value $Q^{2}_{high}$. Due to the complementarity of the integration ranges where the proposed space-like experimental measurements and lattice QCD give precise results, the value of $a_{\mu}^{\mathrm{HVP}}$ obtained by combining the two methods is expected to be comparable to the projected accuracy of the $g-2$ experiments at Fermilab and J-PARC.

3 Hadronic Light by Light contribution

The value for the Hadronic Light by Light contribution entering the phenomenological estimate of $a_{\mu}$ Jegerlehner2009 (cf. Table 1) is based on model calculations and lattice methods allow for the model independent evaluation of these estimates. In the previously described HVP calculations, one would first separate QED and QCD contributions, such that only the QCD piece is computed on the lattice. Following a similar approach for HLbL would require to resolve the four point correlation function $a_{\mu}^{HLbL}\propto\int dQ^{2}f^{\prime}(Q^{2})\sum_{x_{1},x_{2},x_{3},x_{4}}e^{iQx}\langle J_{\mu}(x_{1})J_{\nu}(x_{2})J_{\rho}(x_{3})J_{\sigma}(x_{4})\rangle$ from the lattice, which is computationally very demanding. A feasible methodology to compute the HLbL contribution to $a_{\mu}$ by factorizing the QED part has been first proposed by T.Blum, T. Izubuchi and M. Hayakawa Hayakawa2006 . An original approach of combining lattice QCD and stochastically generated photon propagators Hayakawa2006 ; Blum2015 has recently been superseded with a more promising approach of replacing stochastic QED with the analytic photon propagatorsBlum2017 ; Blum2016d . On the other hand, recent progress in the dispersive-based analysis inspired by a data-driven HVP calculations Colangelo2014a ; Colangelo2015a ; Colangelo2017c ; Pauk2014b has motivated lattice practitioners to revisit the mentioned approach of calculating HLbL by computing the four-point correlator on the lattice. Its recent implementation by the Mainz group assumes the computation of the multidimensional integral over a position-space QED kernel in the continuum Green2016 . This proposal has recently been tested by evaluating the $\pi_{0}$-pole contribution to the HLbL scattering amplitude Green2017 and a more complete calculation is underway.

In the lattice calculation of the HLbL contribution, again both the connected and the disconnected pieces have to be taken into account. Despite the tremendous advances the computations of connected HLbL have seen in the previous years, the disconnected contribution still remains a challenge, particularly due to the fact that unlike for the HVP, for the HLbL there is no reason to expect its suppression with respect to the connected part. This concern has been confirmed in a recent calculation by RBC Blum2017 , which estimates the leading disconnected piece for HLbL to be as as much as $\approx 50\%$ of the connected one.

4 Summary and Outlook

Due to its high sensitivity to the potential physics beyond the Standard Model, muon magnetic moment is an optimal channel to unravel new physics. The dominating uncertainties in the theoretical estimate of $a_{\mu}$ come from the hadronic contributions: the leading order HVP and HLbL. The computation of the connected contribution to the HVP has become a mainstream calculation for lattice QCD by now, and it is particularly encouraging to see that more and more lattice studies are focused on computing the disconnected and isospin breaking corrections to the HVP, as well as the HLbL contributions. It is expected that once the effect of the isospin breaking to the HVP is known with a precision of O(10%), the sub-percent accuracy of the HVP contribution from the lattice will already be achieved. The experimental precision of the anomalous magnetic moment will be improved four times in the next couple of years at the Fermilab new experiment E989 Venanzoni2016 and at J-PARC, E34 Saito2012 , making the verification and improvement of the current theoretical prediction of $a_{\mu}$ a timely task. For all these reasons, it is crucial to invest in further development of the lattice methods described in this review and to devise new methods, in order to take full advantage of the first principles calculations of the hadronic contributions to $a_{\mu}$.

Acknowledgements.

I would like to thank the members of the RBC/UKQCD for an enjoyable collaboration on $a_{\mu}^{\mathrm{HVP}}$ related topics, and to Nazario Tantalo and Fred Jegerlehner for enlightening discussions on the muon g-2. Many thanks to the organizers of Light Cone 2016 for the friendly and stimulating atmosphere of the meeting. Furthermore, I am especially indebted to Massimo Passera and Marija Vranic for valuable comments on the manuscript and to Hartmut Wittig, who generously allowed reproduction of the unpublished figures.
