Explaining the $R_K$ and $R_{K^*}$ anomalies

TL;DR

This paper investigates the anomalies in $R_K$ and $R_{K^*}$ measurements, analyzing potential new physics explanations and highlighting the need for light vector bosons to account for the observed deviations.

Contribution

It provides a model-independent analysis of the anomalies and shows heavy new physics cannot fully explain the data, proposing light vector bosons as a possible solution.

Findings

Heavy new physics operators cannot explain all measurements within 1σ.

Light vector bosons could potentially explain the low $R_{K^*}$ anomaly.

The anomalies suggest lepton non-universal new physics in semi-leptonic B decays.

Abstract

Recent LHCb results on $R_{K^*}$, the ratio of the branching fractions of $B \to K^* \mu^+ \mu^-$ to that of $B \to K^* e^+ e^-$, for the dilepton invariant mass bins $q^2 \equiv m_{\ell\ell}^2 = [0.045 - 1.1]$ GeV$^2$ and $[1.1 - 6]$ GeV$^2$ show approximately $2.5 \sigma$ deviations from the corresponding Standard Model prediction in each of the bins. This, when combined with the measurement of $R_K \, (q^2=[1-6]\, \rm GeV^2)$, a similar ratio for the decay to a pseudo scalar meson, highly suggests for lepton non-universal new physics in semi-leptonic $B$ meson decays. In this work, we perform a model independent analysis of these potential new physics signals and identify the operators that do the best job in satisfying all these measurements. We show that heavy new physics, giving rise to $q^2$ independent local 4-Fermi operators of scalar, pseudo-scalar, vector or axial-vector type, is unable to explain all the three measurements simultaneously, in particular $R_{K^*}$ in the bin [0.045 - 1.1], within their experimental $1\sigma$ regions. We point out the possibility to explain $R_{K^*}$ in the low bin by an additional light ($\lesssim 20 \, \rm MeV$) vector boson with appropriate coupling strengths to ($\bar b \, s$) and ($\bar e \, e$).

Figures

Tables

Table 1. Table 1: The observables used in our analysis along with their SM predictions and experimental measurements. Note that the QED corrections to R K subscript 𝑅 𝐾 R_{K} and R K ∗ subscript 𝑅 superscript 𝐾 R_{K^{*}} in the bin q 2 = [ 1 , 6 ] ​ GeV 2 superscript 𝑞 2 1 6 superscript GeV 2 q^{2}=[1,6]\,\text{GeV}^{2} were first calculated in [ 2 ] . However, no such calculation exists for R K ∗ subscript 𝑅 superscript 𝐾 R_{K^{*}} in the bin q 2 = [ 0.045 , 1.1 ] ​ GeV 2 superscript 𝑞 2 0.045 1.1 superscript GeV 2 q^{2}=[0.045,1.1]\,\text{GeV}^{2} .

Observable	SM prediction		Measurement
$R_K:q^2=[1,6]{\text{GeV}}^2$	$1.00\pm 0.01$	[1, 2]	${0.745}_{-0.074}^{+0.090}\pm 0.036$	[3]
$R_{K^{\ast }}^{\mathrm{low}}:q^2=[0.045,1.1]{\text{GeV}}^2$	$0.92\pm 0.02$	[4]	${0.660}_{-0.070}^{+0.110}\pm 0.024$	[5]
$R_{K^{\ast }}^{\mathrm{central}}:q^2=[1.1,6]{\text{GeV}}^2$	$1.00\pm 0.01$	[1, 2]	${0.685}_{-0.069}^{+0.113}\pm 0.047$	[5]
$ℬ\left(B_s\to {\mu }^{+}{\mu }^{-}\right)$	$\left(3.57\pm 0.16\right)\times {10}^{-9}$	[6, 7]	$\left(3.00\pm 0.5\right)\times {10}^{-9}$	[8, 9, 7]
$ℬ\left(B_s\to e^{+}{e}^{-}\right)$	$\left(8.35\pm 0.39\right)\times {10}^{-14}$	[6, 7]		[10]

Equations

$$R_{K^{(\ast )}}=\frac{\mathcal{B}\left(B\to K^{(\ast )}{\mu }^{+}{\mu }^{-}\right)}{\mathcal{B}\left(B\to K^{(\ast )}{e}^{+}{e}^{-}\right)}.$$

$${\mathcal{H}}_{\mathrm{eff}}=-\frac{4G_F}{\sqrt{2}}\left({\lambda }_t^{(s)}{\mathcal{H}}_{\mathrm{eff}}^{(t)}+{\lambda }_u^{(\mathrm{s})}{\mathcal{H}}_{\mathrm{eff}}^{(u)}\right)+h.c.,$$

$${\mathcal{H}}_{\mathrm{eff}}^{(t)}$$

$${\mathcal{H}}_{\mathrm{eff}}^{(u)}$$

$${\mathcal{H}}_{\mathrm{eff}}^{(t),\mathrm{New}}$$

$${\mathcal{O}}_7$$

$${\mathcal{O}}_9$$

$${\mathcal{O}}_{10}$$

$${\mathcal{O}}_S$$

$${\mathcal{O}}_P$$

$${\mathcal{O}}_T$$

$${\mathcal{O}}_{7^{\prime }}$$

$${\mathcal{O}}_{9^{\prime }}$$

$${\mathcal{O}}_{10^{\prime }}$$

$${\mathcal{O}}_{S^{\prime }}$$

$${\mathcal{O}}_{P^{\prime }}$$

$${\mathcal{O}}_{T5}$$

$$C_7^{\mathrm{eff}}(\mu )$$

$$C_9^{\mathrm{eff}}(\mu )$$

$$\mathcal{B}(B_s\to {\mu }^{+}{\mu }^{-})$$

$$\mathcal{L}\supset -({\kappa }_{bs}\bar{b}{\gamma }_{\mu }{P}_{L}s{A}_{\mu }^{\prime }+h.c.)-{\kappa }_{ee}\bar{e}{\gamma }_{\mu }{P}_{L}e{A}_{\mu }^{\prime }.$$

$$\Delta C_9^e=-\Delta C_{10}^e$$

$$=$$

$$\mathcal{L}\supset -(\bar{b}{\gamma }_{\mu }({\kappa }_{bs}^L{P}_L+{\kappa }_{bs}^R{P}_R)s{A}_{\mu }^{\prime }+h.c.)-{\kappa }_{ee}^V\bar{e}{\gamma }_{\mu }e{A}_{\mu }^{\prime },$$

$${\kappa }_{bs}{\kappa }_{ee}=-0.6\times 10^{-9}$$

$$R_K=0.69,R_{K^{\ast }}^{\mathrm{central}}=0.69\text{and}{R}_{K^{\ast }}^{\mathrm{low}}=0.65,$$

Full text

**Explaining the $R_{K}$ and $R_{K^{*}}$ anomalies

**

Diptimoy Ghosh

Department of Particle Physics and Astrophysics, Weizmann Institute of Science,

Rehovot 76100, Israel.

Abstract

Recent LHCb results on $R_{K^{*}}$, the ratio of the branching fractions of $B\to K^{*}\mu^{+}\mu^{-}$ to that of $B\to K^{*}e^{+}e^{-}$, for the dilepton invariant mass bins $q^{2}\equiv m_{\ell\ell}^{2}=[0.045-1.1]$ GeV2 and $[1.1-6]$ GeV2 show approximately $2.5\sigma$ deviations from the corresponding Standard Model prediction in each of the bins. This, when combined with the measurement of $R_{K}\,(q^{2}=[1-6]\,\rm GeV^{2})$, a similar ratio for the decay to a pseudo scalar meson, highly suggests for lepton non-universal new physics in semi-leptonic $B$ meson decays. In this work, we perform a model independent analysis of these potential new physics signals and identify the operators that do the best job in satisfying all these measurements. We show that heavy new physics, giving rise to $q^{2}$ independent local 4-Fermi operators of scalar, pseudo-scalar, vector or axial-vector type, is unable to explain all the three measurements simultaneously, in particular $R_{K^{*}}$ in the bin [0.045 - 1.1], within their experimental $1\sigma$ regions. We point out the possibility to explain $R_{K^{*}}$ in the low bin by an additional light ($\lesssim 20\,\rm MeV$) vector boson with appropriate coupling strengths to ($\bar{b}\,s$) and ($\bar{e}\,e$).

diptimoy.ghosh@weizmann.ac.il

1 Introduction

The LHCb collaboration has recently reported hints of new physics (NP) in lepton flavour non-universal observables $R_{K}$ and $R_{K^{*}}$,

[TABLE]

While the result for $R_{K}$ was presented only in the dilepton invariant mass squared, $q^{2}\in$ [1 - 6] GeV2, $R_{K^{*}}$ has been measured in two bins, [0.045 - 1.1] GeV2 and [1.1 - 6] GeV2. The experimental results are summarised in table 1.

While the deviations from the Standard Model (SM) in the individual ratios are only at the level of $2.2\sigma-2.5\sigma$, the combined deviation (the exact number depends on how one combines the 3 results) is large enough to look for NP explanations 111Similar anomalies have also been observed in the charged current decays $(B\to D^{(*)}\tau\nu/B\to D^{(*)}\ell\nu)$ that call for lepton non-universal new physics. See [11, 12] for some recent studies.. For recent studies, see [4, 13, 14, 15, 16, 17, 18, 19].

At the quark level, the decays $B\to K^{(*)}\mu^{+}\mu^{-}$ proceed via $b\to s$ flavour changing neutral current (FCNC) transitions. These decays are particularly interesting because they are highly suppressed in the SM and many extensions of the SM are capable of producing measurable effects beyond the SM. In particular, the three body decay $B\to K^{*}\mu^{+}\mu^{-}$ offers a large number of observables in the angular distributions of the final state particles, hence providing a lot of opportunities to test the SM, see for example, [20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49] and references therein for related studies.

The individual branching ratios $\mathcal{B}\left(B\to K^{(*)}\mu^{+}\mu^{-}\right)$ and $\mathcal{B}\left(B\to K^{(*)}e^{+}e^{-}\right)$ are predicted with comparatively larger hadronic uncertainties in the SM. However, their ratio is a theoretically clean observable and predicted to be close to unity in the SM. This is in contrast to some of the angular observables (for example, $P_{5}^{\prime}$) where considerable debate exists surrounding the issue of theoretical uncertainty due to (unknown) power corrections to the factorization framework and non-local charm loops, see for example, [50, 51, 52, 53, 29, 54, 55, 56, 57]. Hence the observed deviation from the SM might be (at least partly) resolved once these corrections are better understood.

Therefore, in this work we will only consider the theoretically clean observables $R_{K^{(*)}}$ listed in table 1. Additionally, we also consider the branching ratios of the fully leptonic decays $B_{s}\to\mu^{+}\mu^{-}$ and $B_{s}\to e^{+}e^{-}$, as they are very well predicted in the SM.

The paper is organised as follows. In the next section, we show the complete set of operators at the dimension 6 level for $b\to s\,\ell\,\ell$ transition. In section 3 we discuss in detail how these various operators perform in explaining the $R_{K^{(*)}}$ anomalies, and point out the possibility of explaining $R_{K^{*}}$ in the low $q^{2}$ bin by a very light gauge boson. We close in section 4 with a brief summary.

2 $b\to s$ effective Hamiltonian

The effective Hamiltonian for $b\rightarrow s$ transitions in the Standard Model is given by

[TABLE]

with the CKM matrix combinations $\lambda_{q}^{(s)}=V_{qb}V_{qs}^{*}$, and

[TABLE]

$C_{i}\equiv C_{i}(\mu)$ and ${\cal{O}}_{i}\equiv{\cal{O}}_{i}(\mu)$ are the Wilson coefficients and the local effective operators respectively. In order to study the most general NP in $b\to s\,l^{+}l^{-}$ transitions, we augment ${\cal{H}}_{\mathrm{eff}}^{(t)}$ by

[TABLE]

where the definitions of the local operators are given by,

[TABLE]

[TABLE]

where $P_{L,R}=(1\mp\gamma_{5})/2$ and $m_{b}\equiv m_{b}(\mu)$ denotes the running $b$ quark mass in the $\overline{\mathrm{MS}}$ scheme.

Since $C_{7}$ and $C_{9}$ always appear in particular combinations with other $C_{i\leq 6}$ (the operators ${\cal O}_{i\leq 6}$ are identical to the $P_{i\leq 6}$ given in [58, 59]) in matrix elements, it is customary to define the following effective Wilson coefficients [58, 59],

[TABLE]

where the one loop expression for the function $Y(q^{2},\mu)$ can be found in [59, 21].

Note that, the photonic dipole operators $\mathcal{O}_{7}$ and $\mathcal{O}_{7^{\prime}}$ lead to lepton universal contributions modulo lepton mass effects and hence, can not provide an explanation of the $R_{K^{*}}$ anomalies once bound from $B\to X_{s}\gamma$ is taken into account [25]. Moreover, as the tensor operators do not get generated at the dimension 6 level if the full SM gauge invariance is imposed [60, 61], we ignore them in this work.

3 Results

As the branching ratio of the fully leptonic decay $B_{s}\to\mu^{+}\,\mu^{-}$ poses strong constraints on some of the Wilson coefficients, we first show the expression of this branching ratio as a function of the relevant couplings [23],

[TABLE]

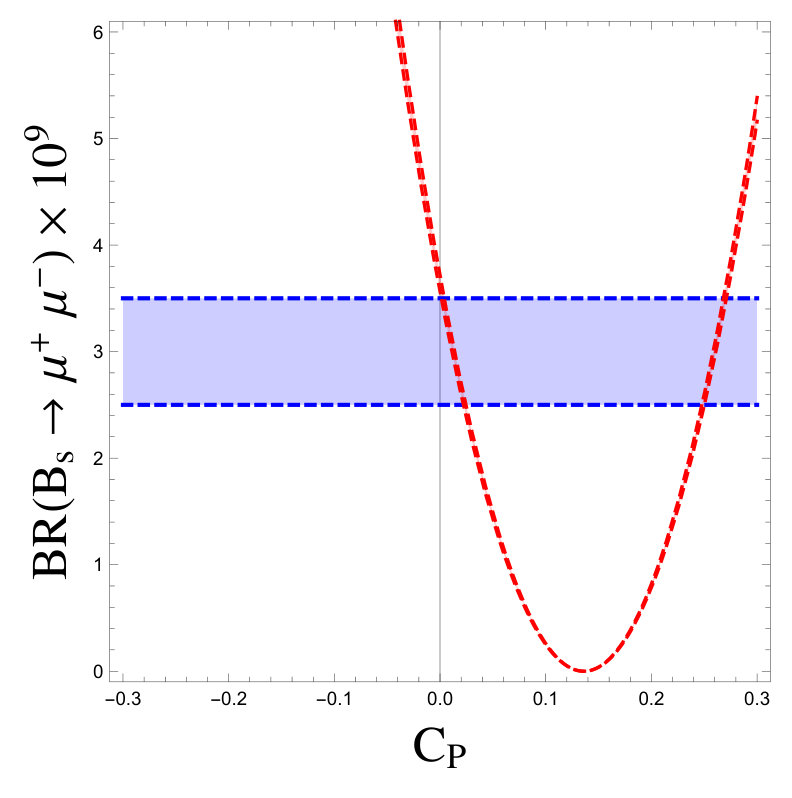

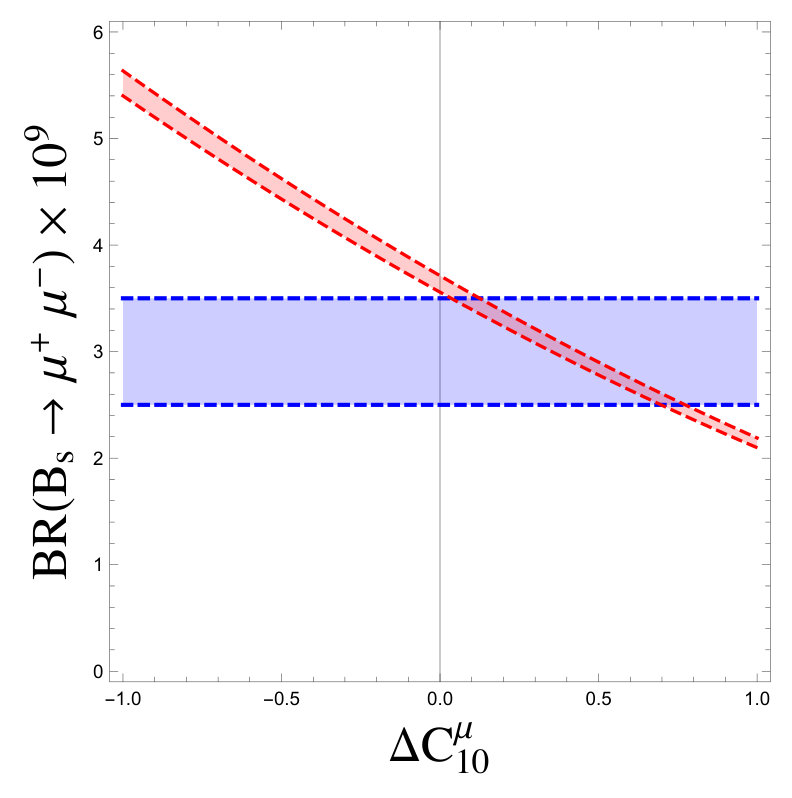

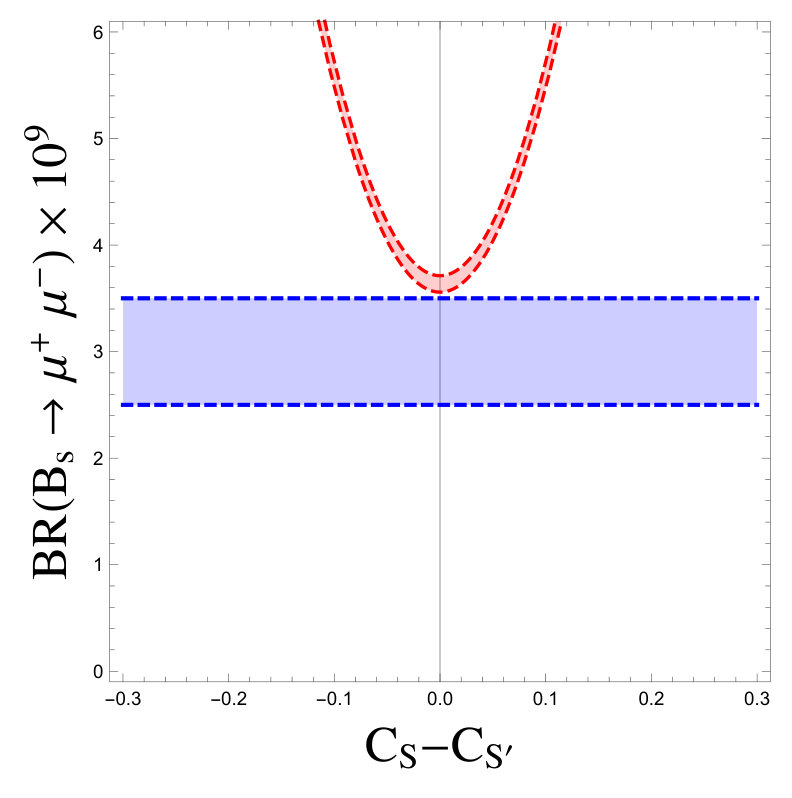

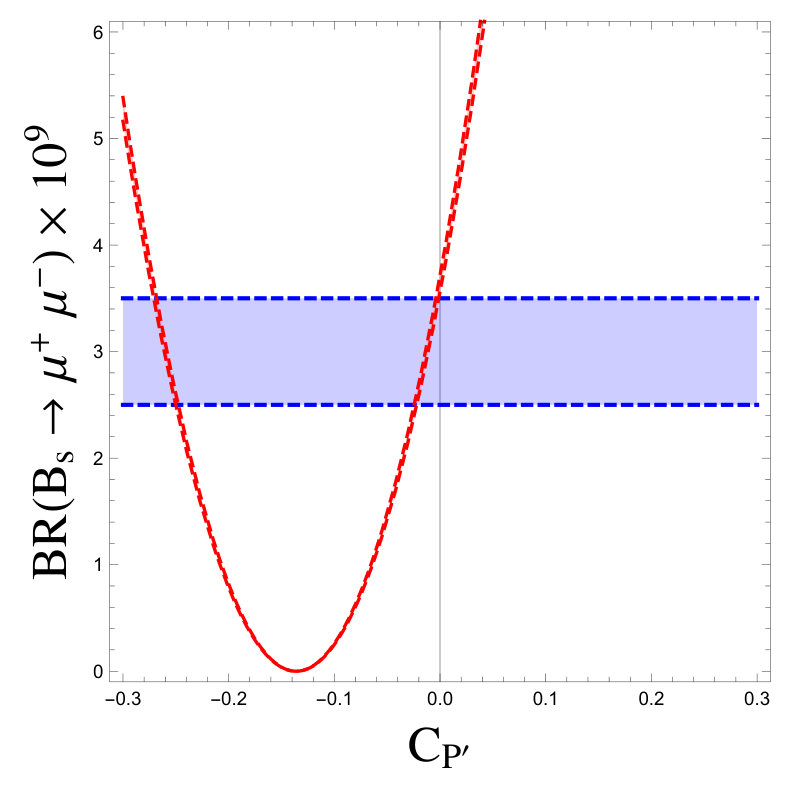

In Fig. 1, we show how ${\cal B}(B_{s}\to\mu^{+}\,\mu^{-})$ constraints $\Delta C_{10}^{\mu}$, and also the scalar and pseudo scalar operators. The horizontal blue band shows the $1\sigma$ experimentally allowed region. Hence, $\Delta C_{10}^{\mu}$ ($\Delta C_{10^{\prime}}^{\mu}$) should satisfy $0\lesssim\Delta C_{10}^{\mu}\lesssim 0.7$ ($-0.7\lesssim\Delta C_{10^{\prime}}^{\mu}\lesssim 0$).

Note that, unlike $\Delta C_{10}^{\mu}$ and $\Delta C_{10^{\prime}}^{\mu}$, there are practically no bounds on $\Delta C_{10}^{e}$ and $\Delta C_{10^{\prime}}^{e}$ because the experimental upper bound, $2.8\times 10^{-7}$ [10], is many orders of magnitude above the SM prediction $(8.35\pm 0.39)\times 10^{-14}$ [6, 7].

The constraints on the scalar operators are extremely severe, as can be seen from the figures.

3.1 One Wilson coefficient at a time

In this section, we consider one Wilson coefficient at a time and investigate whether it can explain all the experimental results within their $1\sigma$ values simultaneously. All the numerical results in this section are based on the analytic formulas given in [22, 23]. As for the form-factors, we use [62] for $B\to K$ matrix elements and [63] for the $B\to K^{*}$ matrix elements.

Scalar and pseudo scalar operators:

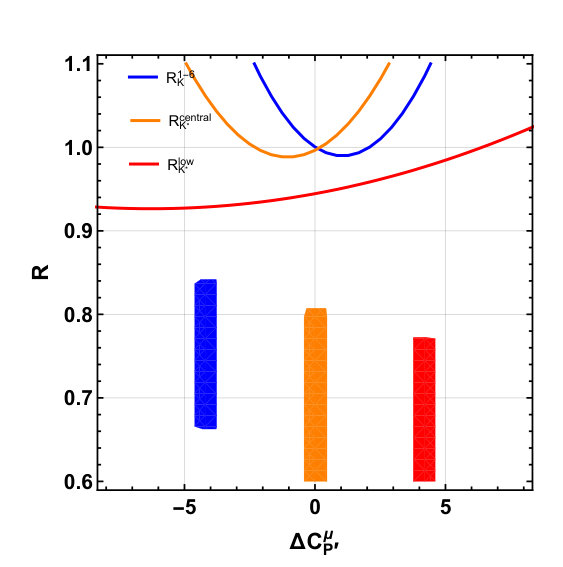

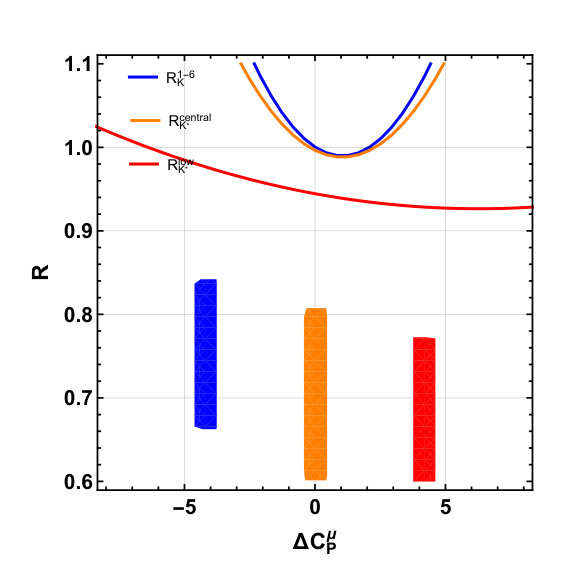

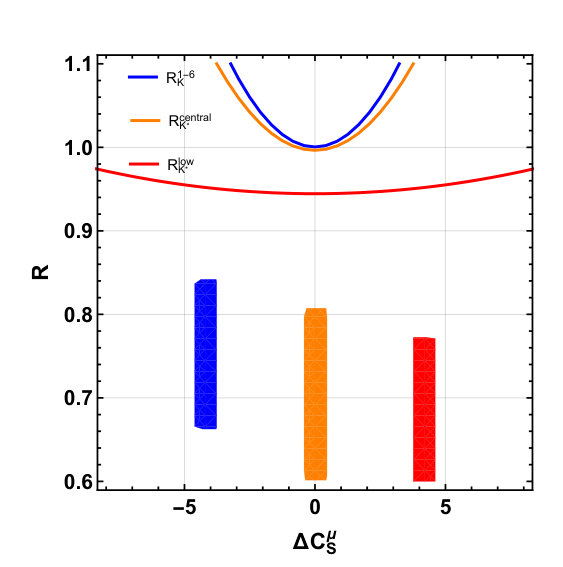

We first present our results for the scalar operators. In Fig. 2 we show $R_{K}$, $R_{K^{*}}^{\rm low}$ and $R_{K^{*}}^{\rm central}$ as functions of the scalar and pseudo-scalar Wilson coefficients $C_{S}$, $C_{S^{\prime}}$, $C_{P}$ and $C_{P^{\prime}}$ assuming that they only affect the muon mode. It is clear from the plots that (pseudo) scalar operators involving muons are unable to provide solutions to these anomalies, irrespective of their size.

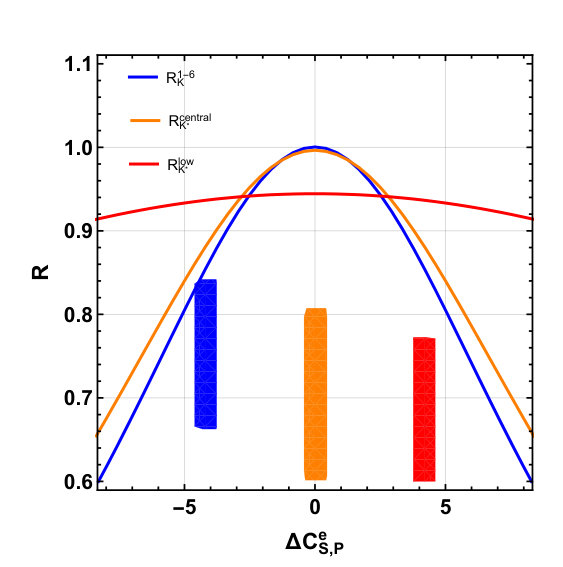

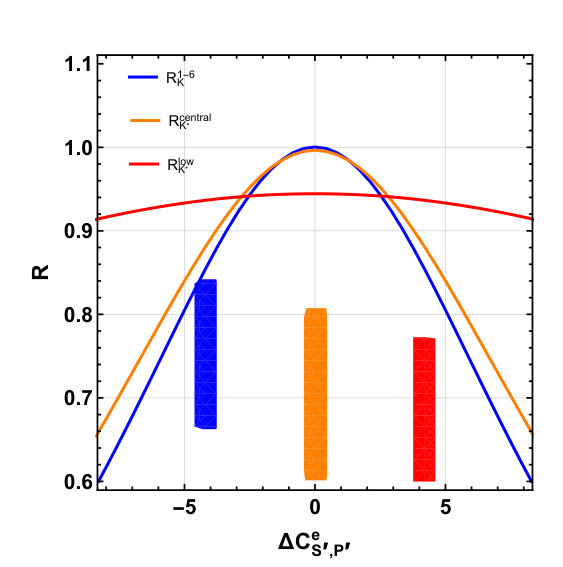

It can be seen form Fig. 3 that the same statement is also true for the (pseudo) scalar operators involving electrons. However, for the operators involving electrons, solutions to two of the anomalies, $R_{K}$ and $R_{K^{*}}^{\rm central}$, are in principle possible. But, the upper bound on $\mathcal{B}\left(B_{s}\to e^{+}e^{-}\right)$ (see table 1) constrains the couplings $C_{S,S^{\prime},P,P^{\prime}}\lesssim 1.2$, and rules out the possibility of any such explanations.

Vector and axial vector operators:

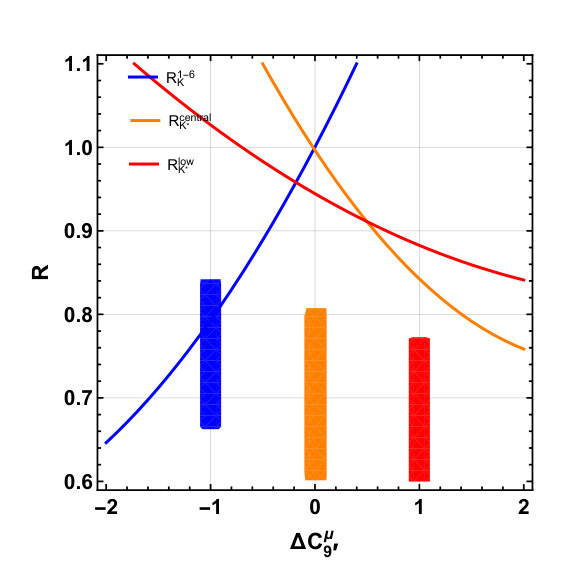

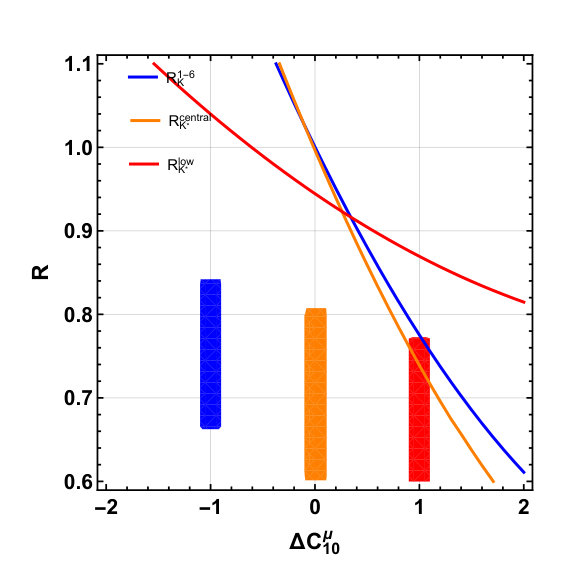

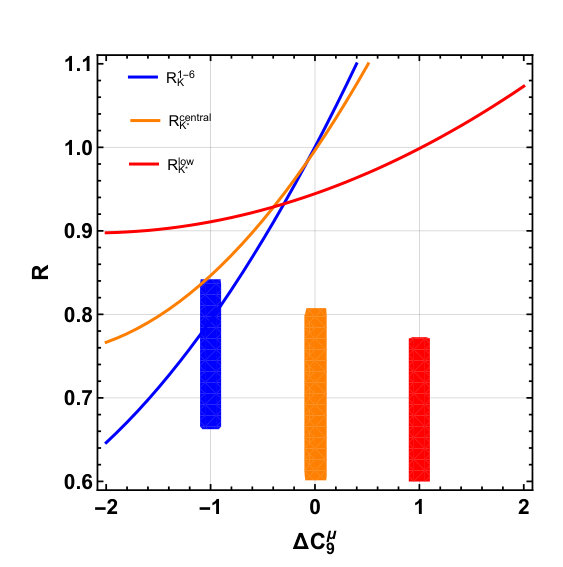

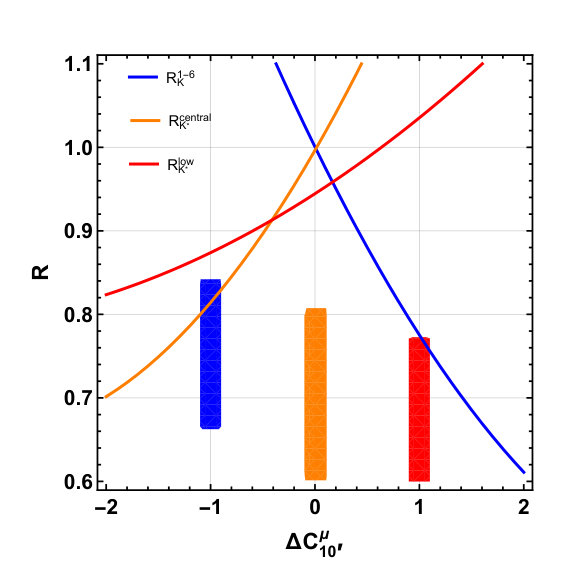

We now turn to the vector and axial vector operators. Fig. 4 shows the variations of $R_{K}$, $R_{K^{*}}^{\rm low}$ and $R_{K^{*}}^{\rm central}$ with respect to the Wilson coefficients $C_{9}^{\mu}$, $C_{9^{\prime}}^{\mu}$, $C_{10}^{\mu}$ and $C_{10^{\prime}}^{\mu}$. It can be seen that even the vector and axial vector operators in the muon mode, when taken one at a time, can not explain all the anomalies within their experimental $1\sigma$ regions. Additionally, as mentioned after Eq. 3.1, the axial vector operators $\Delta C_{10}^{\mu}$ and $\Delta C_{10^{\prime}}^{\mu}$ are constrained rather strongly by measurement of the branching ratio of $B_{s}\to\mu^{+}\,\mu^{-}$ : $0\lesssim\Delta C_{10}^{\mu}\lesssim 0.7$ and $-0.7\lesssim\Delta C_{10^{\prime}}^{\mu}\lesssim 0$. This makes the axial-vector explanation even more unlikely.

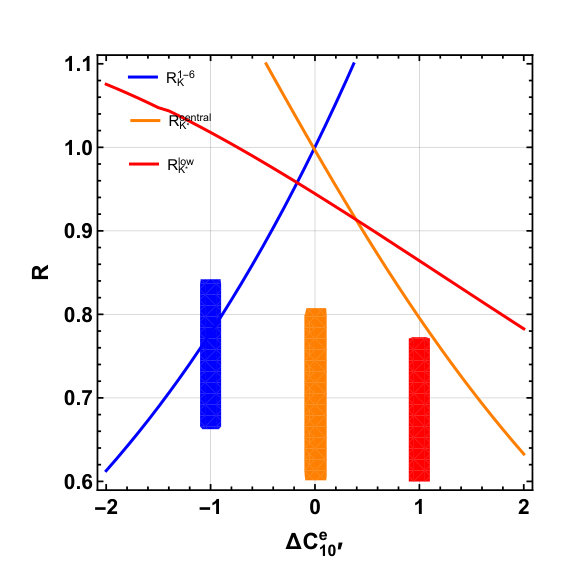

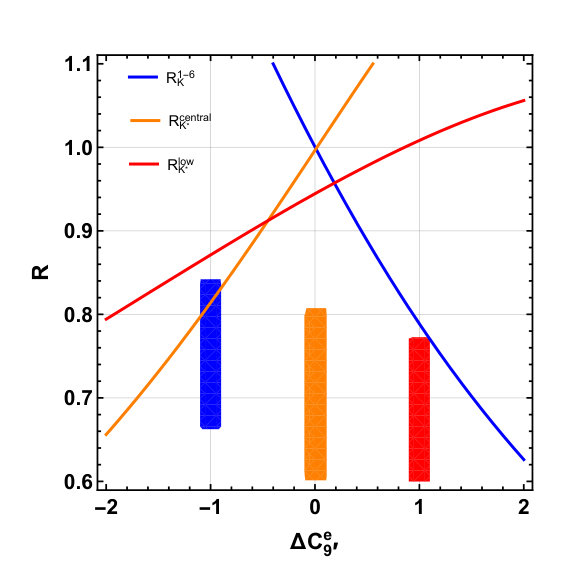

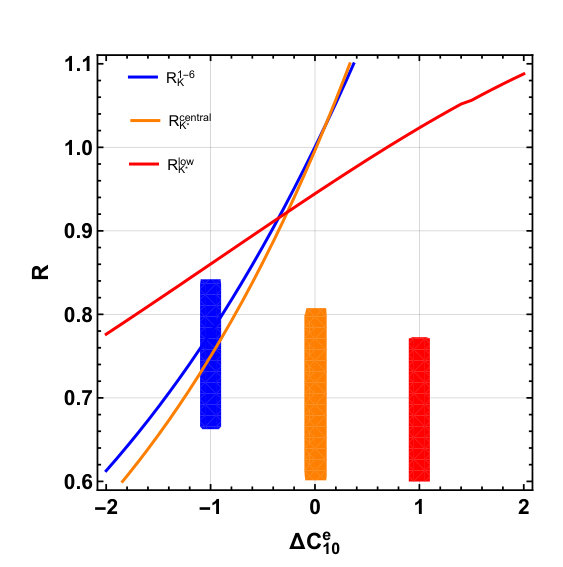

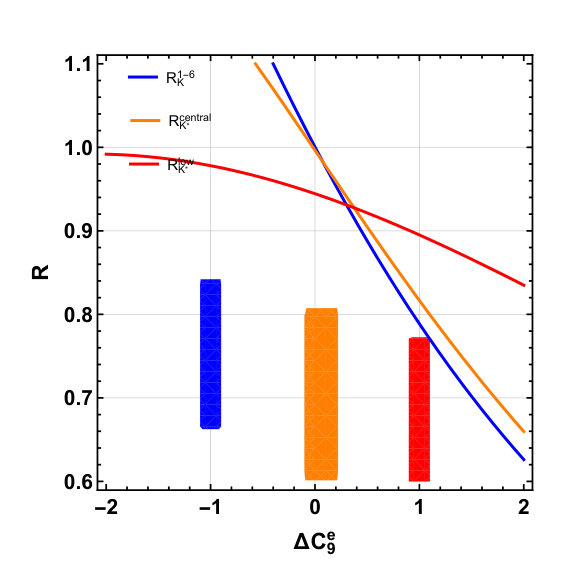

Similar statement can also be made about the (axial) vector operators in the electron sector, as can be seen in Fig. 5. However, they do a better job compared to their counterparts in the muon sector. While the primed operators are strongly disfavoured, the operator $\Delta C_{10}^{e}$ does comparatively better. For example, $\Delta C_{10}^{e}=-1.5$ gives $R_{K}=0.69,R_{K^{*}}^{\rm central}=0.66,R_{K^{*}}^{\rm low}=0.81$, the first two numbers being inside their experimental $1\sigma$ regions, and the value of $R_{K^{*}}^{\rm low}$ is $\sim 1.4\sigma$ away from the experimental central value.

3.2 Combination of Wilson coefficients

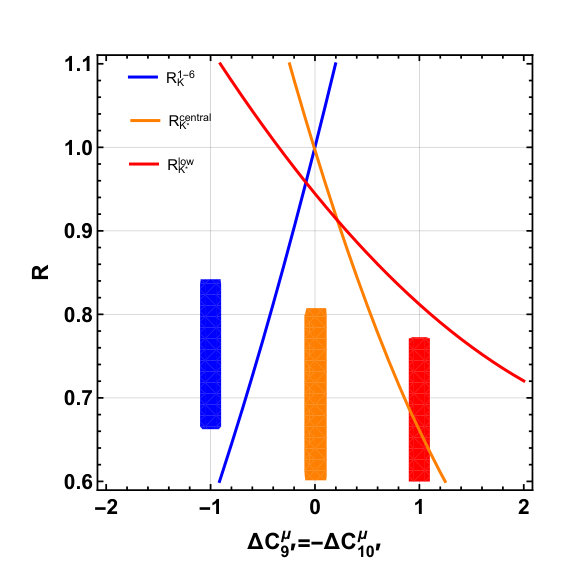

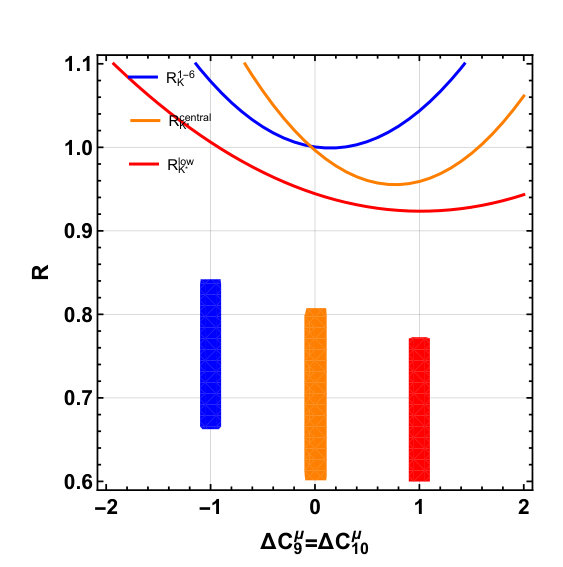

In this section, we consider the four cases $\Delta C^{\ell}_{9^{(^{\prime})}}=\pm\Delta C^{\ell}_{10^{(^{\prime})}}$ for each of $\ell=\mu$ and e. The results are shown in Fig. 6 and 7 for Wilson coefficients involving muons and electrons respectively. The hypotheses $\Delta C^{\mu}_{9^{(^{\prime})}}=\Delta C^{\mu}_{10^{(^{\prime})}}$ (which correspond to the operators $(\bar{s}\gamma_{\alpha}P_{L}b)(\bar{\mu}\gamma^{\alpha}P_{R}\mu)$ and $(\bar{s}\gamma_{\alpha}P_{R}b)(\bar{\mu}\gamma^{\alpha}P_{R}\mu)$) and $\Delta C^{\mu}_{9^{\prime}}=-\Delta C^{\mu}_{10^{\prime}}$ (which corresponds to the operator $(\bar{s}\gamma_{\alpha}P_{R}b)(\bar{\mu}\gamma^{\alpha}P_{L}\mu)$) are clearly strongly disfavoured.

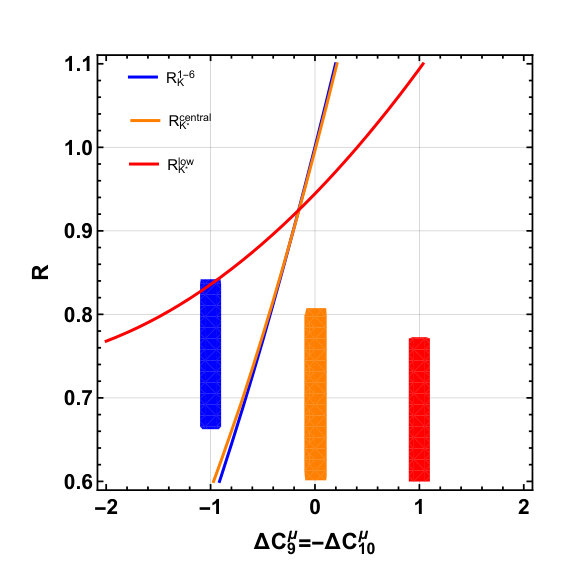

The other chiral operator $(\bar{s}\gamma_{\alpha}P_{L}b)(\bar{\mu}\gamma^{\alpha}P_{L}\mu)$ (our hypothesis $\Delta C^{\mu}_{9}=-\Delta C^{\mu}_{10}$) turns out to be the closest to explain all the anomalies. However, even this operator fails to satisfy all the experimental results within their $1\sigma$ ranges, in particular the value of $R_{K^{*}}^{\rm low}$.

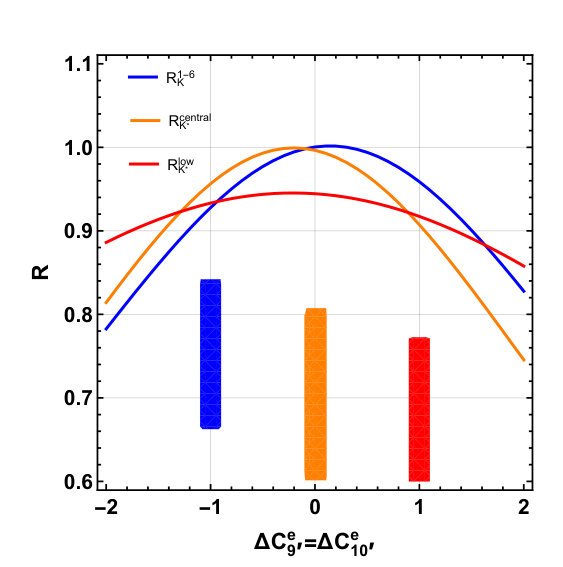

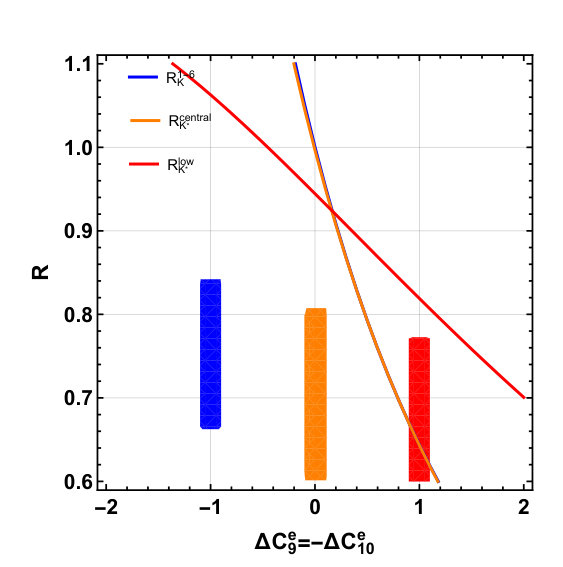

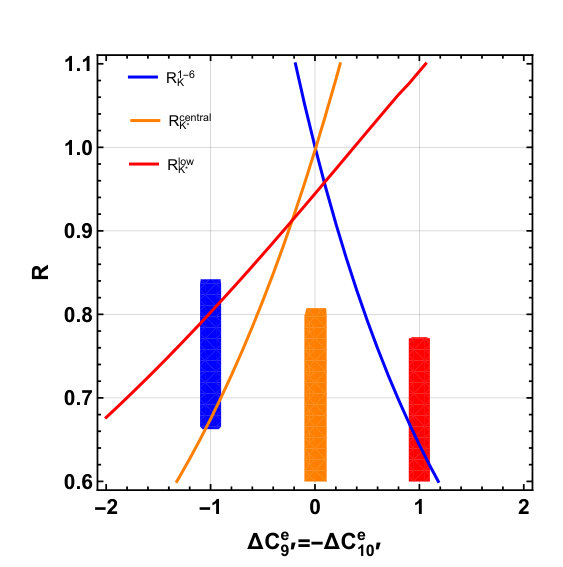

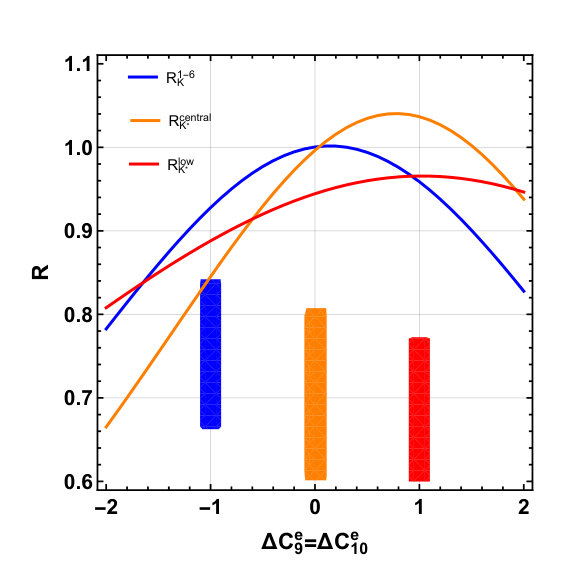

The situation is slightly better for the operators involving electrons. It can be seen from Fig. 7 that, while the primed operators are strongly disfavoured, the other two cases: $\Delta C^{e}_{9}=-\Delta C^{e}_{10}\approx 0.8$ and $\Delta C^{e}_{9}=\Delta C^{e}_{10}\approx-2$ work much better. In these two cases, $R_{K}$ and $R_{K^{*}}^{\rm central}$ can be satisfied within $1\sigma$, and $R_{K^{*}}^{\rm low}$ within $\sim 1.5\sigma$ and $\sim 1.3\sigma$ respectively.

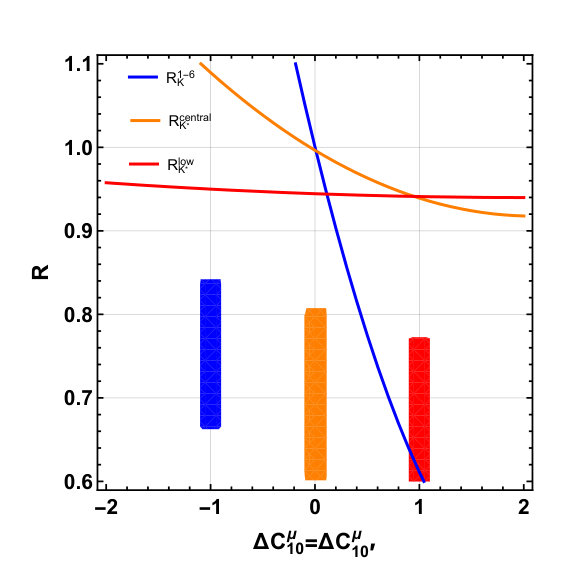

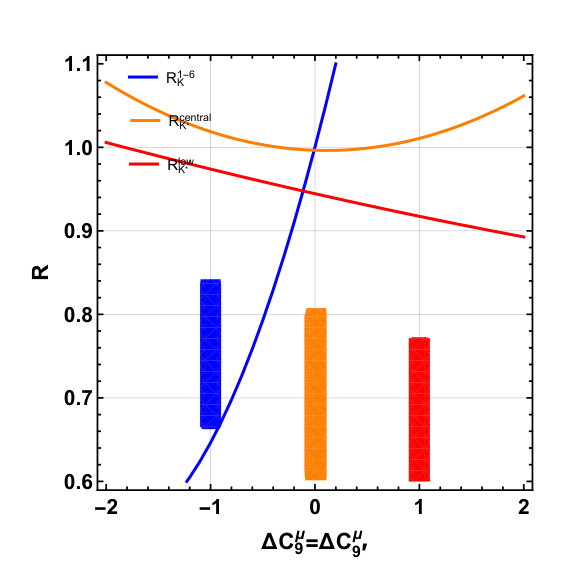

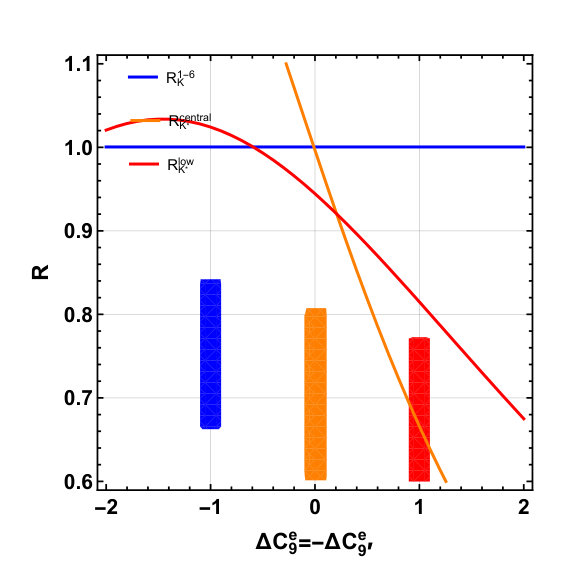

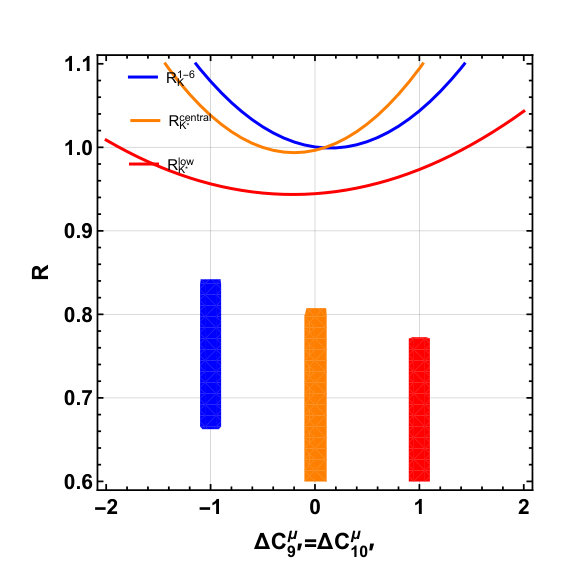

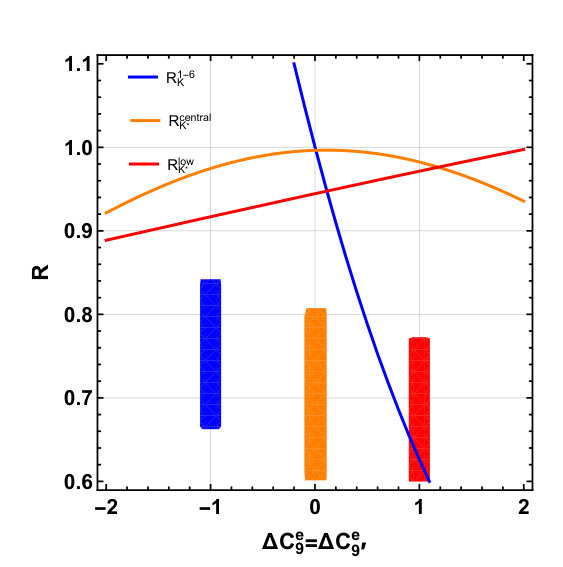

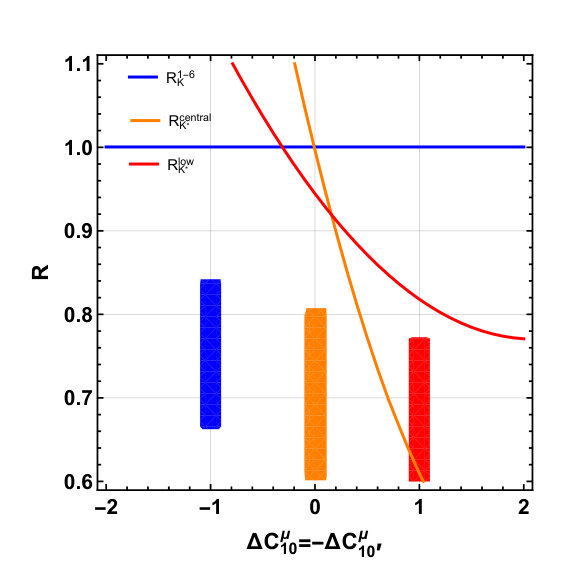

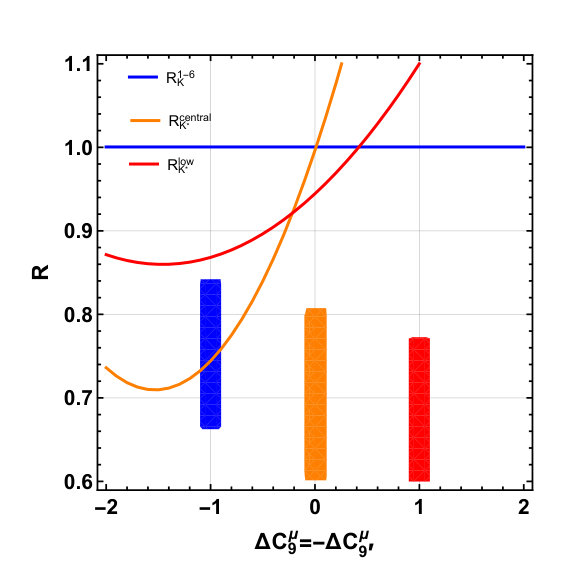

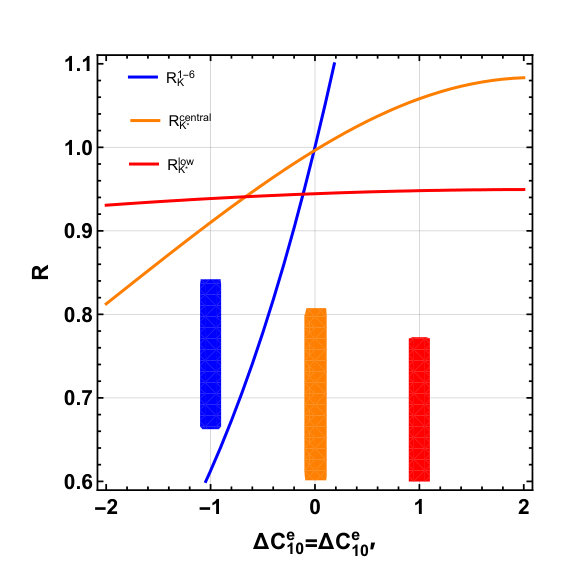

The scenarios $\Delta C^{e,\mu}_{9}=\pm\Delta C^{e,\mu}_{9^{\prime}}$ and $\Delta C^{e,\mu}_{10}=\pm\Delta C^{e,\mu}_{10^{\prime}}$ are shown in Fig. 8 and 9. It can be seen that they do not do a good job in explaining the anomalies simultaneously.

Before closing this section, we would like to mention that we have also explored the possibility of existence of a pair of NP operators simultaneously with unrelated Wilson coefficients. For example, we have tried the following combinations: ($\Delta C_{9}^{\mu},\Delta C_{9}^{e}$), ($\Delta C_{10}^{\mu},\Delta C_{10}^{e}$), ($\Delta C_{9}^{\mu}=-\Delta C_{10}^{\mu},\Delta C_{9}^{e}=-\Delta C_{10}^{e}$), ($\Delta C_{9}^{\mu}=\Delta C_{10}^{\mu},\Delta C_{9}^{e}=\Delta C_{10}^{e}$) and all the 6 possible combinations ($\Delta C_{X}^{\mu},\Delta C_{Y}^{\mu}$) ($X,Y=9,10,9^{\prime},10^{\prime}$). However, even in these cases, we have not found solutions that explain $R_{K}$, $R_{K^{*}}^{\rm central}$ and $R_{K^{*}}^{\rm low}$ simultaneously within their respective $1\sigma$ allowed regions.

Hence, we conclude that, while local 4-Fermi operators of certain Lorentz structures (for example, $\Delta C^{e}_{9}=-\Delta C^{e}_{10}\approx 0.8$ as advertised above) can definitely reduce the tension with the SM considerably, they fail to bring all the 3 ratios within their experimental $1\sigma$ regions, in particular $R_{K^{*}}$ in the bin $q^{2}=[0.045-1.1]$ GeV2.

3.3 Light vector boson to explain $R_{K^{*}}$ in the bin $q^{2}=[0.045-1.1]$ GeV2.

Our investigations above show that local new physics (i.e., $q^{2}$ independent Wilson coefficients) is unable to simultaneously explain $R_{K}$, $R_{K^{*}}^{\rm central}$ and $R_{K^{*}}^{\rm low}$ at the $1\sigma$ level. The main obstacle is to explain the result of $R_{K^{*}}$ in the low bin. This can be understood by noting that the branching ratio in the low $q^{2}$ region is dominated by the Wilson coefficient $C_{7}$ which is always lepton flavour universal. Quantitatively, in the $q^{2}$ bin $[0.045-1.1]$ GeV2, the pure $C_{7}$ contribution constitutes approximately 73% of the total branching ratio in the SM. On the other hand, the pure $C_{7}$ contribution is just about 16% for the $q^{2}$ bin $[1.1-6]$ GeV2.

However, the situation can change in the presence of light degrees of freedom, for example, a very light ($\lesssim 20$ MeV) vector boson $A^{\prime}_{\mu}$, with couplings

[TABLE]

The tree level exchange of the vector boson $A^{\prime}_{\mu}$ generates ‘$q^{2}$ dependent Wilson coefficients’,

[TABLE]

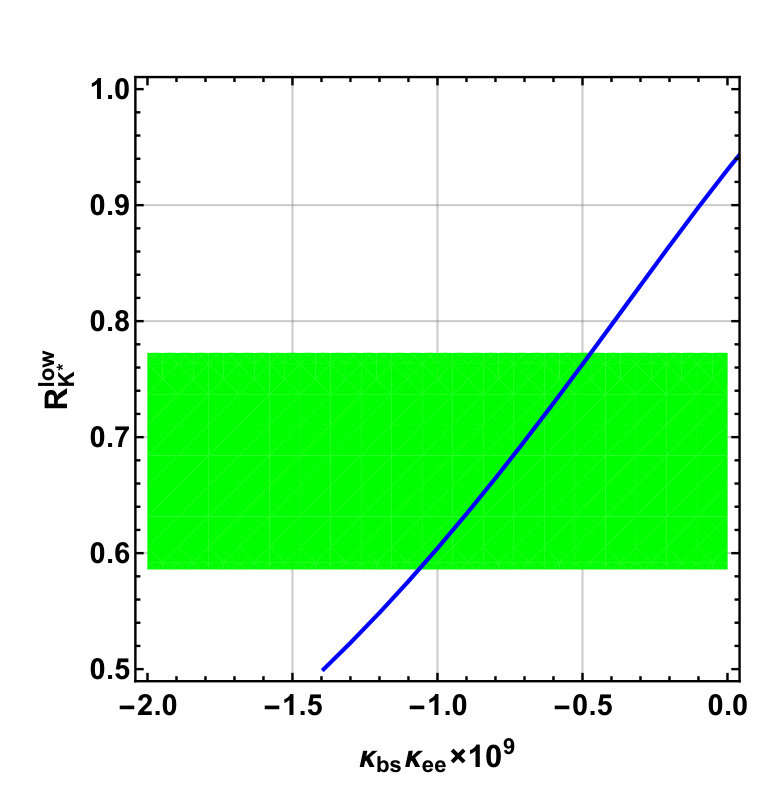

The coupling combination $\kappa_{bs}\kappa_{ee}=-0.8\times 10^{-9}$ generates $R_{K^{*}}^{\rm low}$ close to its experimental central value 222We find that a light gauge boson that couples to muons, instead of electrons, is unable to reproduce $R_{K^{*}}^{\rm low}$ below 0.8.. In Fig. 10, we show how $R_{K^{*}}^{\rm low}$ varies with $\kappa_{bs}\kappa_{ee}$. It can be seen that $-1.1\times 10^{-9}\lesssim\kappa_{bs}\kappa_{ee}\lesssim-0.5\times 10^{-9}$ is consistent with the experimental $1\sigma$ range of $R_{K^{*}}^{\rm low}$. We have also checked that values of $\kappa_{bs}\kappa_{ee}$ in the above range can be easily made consistent with the constraints coming from $\bar{B}_{s}-B_{s}$ mixing and anomalous magnetic moment of electron.

However, the range $-1.1\times 10^{-9}\lesssim\kappa_{bs}\kappa_{ee}\lesssim-0.5\times 10^{-9}$ generates $R_{K}$ and $R_{K^{*}}^{\rm central}$ in the range $0.89\lesssim R_{K},R_{K^{*}}^{\rm central}\lesssim 0.95$, well outside the experimental $1\sigma$ regions. Thus, separate local NP contributions, as discussed in the previous sections, are needed to explain $R_{K}$ and $R_{K^{*}}^{\rm central}$.

We have checked that instead of a completely left-chiral coupling in Eq. 3.2, one can also use the following scenario

[TABLE]

which generates both $\Delta C_{9}^{e}$ and $\Delta C_{9^{\prime}}^{e}$, and works better than the previous case. For example, ($\kappa_{bs}^{L}\kappa_{ee}^{V}\approx-3.4\times 10^{-9}$, $\kappa_{bs}^{R}\kappa_{ee}^{V}\approx-1.8\times 10^{-9}$) produces $R_{K^{*}}^{\rm low}\approx 0.67,R_{K^{*}}^{\rm central}\approx 0.93,R_{K}\approx 0.75$.

4 Summary

In this paper, we have performed a model independent analysis of the recent LHCb measurements of $R_{K^{*}}$ in the two dilepton invariant mass bins $q^{2}\equiv m_{\ell\ell}^{2}=[0.045-1.1]$ GeV2 and $[1.1-6]$ GeV2, along with an older measurement of a similar ratio $R_{K}$ in the pseudo scalar meson mode. We consider various possible $[\bar{b}\Gamma_{\mu}s][\bar{\ell}\Gamma^{\mu}\ell]$ operator structures (both for the muon and electron modes), switching one operator at a time and also for specific combinations of them. We show that all the NP (pseudo) scalar operators and most of the (axial) vector operators are strongly disfavoured by the data. While some (axial) vector operators can explain $R_{K}$ and $R_{K^{*}}^{\rm central}$ at the same time, we found no operator that can explain all the three ratios (in particular, $R_{K^{*}}^{\rm low}$) simultaneously within their $1\sigma$ experimental ranges.

In order to explain also the $R_{K^{*}}^{\rm low}$, we proposed the existence of a very light ($\lesssim$ 20 MeV) vector boson with flavour specific couplings. We gave two examples shown in Eqs. 3.2 and 3.5. In the first case, we find that this new gauge boson, with couplings that explain $R_{K^{*}}^{\rm low}$, can neither explain $R_{K}$ or $R_{K^{*}}^{\rm central}$. Thus, additional local operators will be required to explain them together. As an example, a light gauge boson with coupling

[TABLE]

and additional local NP Wilson coefficients $\Delta C_{9}^{\mu}=-\Delta C_{10}^{\mu}=-0.6$ generates

[TABLE]

all close to their experimental central values.

In the second case, both $R_{K^{*}}^{\rm low}$ and $R_{K}$ could be explained by the light vector only, however an explanation of $R_{K^{*}}^{\rm central}$ as well would require additional, perhaps short distance, new physics.

It remains a challenge to connect the existence of the light vector boson (with specific couplings) to heavy NP that generates the required short distance Wilson coefficients. We leave that for future work.

We close with the comment that there might be issues with both the theoretical SM prediction (in particular, the uncertainty due to QED corrections) and the experimental measurement of $R_{K^{*}}$ in the low bin. In this work, we have taken the most recent SM prediction, the associated theoretical uncertainty and the experimental measurement at face value. Needless to mention that our conclusions may change if either of SM prediction/uncertainty or the experimental measurement changes in future.

Acknowledgement

We thank Daniel Aloni for many useful discussions, comments on the manuscript and help with numerical calculations. Fruitful discussions with Ryosuke Sato, Masahiro Takimoto and Gilad Perez are also gratefully acknowledged. We also acknowledge the public code flavio [64] which has been used to cross-check some of the numerical results.
