Kinematically Redundant Octahedral Motion Platform for Virtual Reality Simulations

TL;DR

This paper introduces a novel kinematically redundant octahedral motion platform designed for virtual reality, enhancing immersion by providing feedback through an omni-directional treadmill, with detailed analysis of its kinematics and singularities.

Contribution

It presents a modified octahedral manipulator with one degree of redundancy and analyzes its kinematic behavior and singularities for VR applications.

Findings

Identified and characterized unavoidable singularities.

Demonstrated improved VR immersion capabilities.

Analyzed the mechanism's kinematic redundancy and reconfigurability.

Abstract

We propose a novel design of a parallel manipulator of Stewart Gough type for virtual reality application of single individuals; i.e. an omni-directional treadmill is mounted on the motion platform in order to improve VR immersion by giving feedback to the human body. For this purpose we modify the well-known octahedral manipulator in a way that it has one degree of kinematical redundancy; namely an equiform reconfigurability of the base. The instantaneous kinematics and singularities of this mechanism are studied, where especially "unavoidable singularities" are characterized. These are poses of the motion platform, which can only be realized by singular configurations of the mechanism despite its kinematic redundancy.

Figures

Equations

$$r_i{\dot{r}}_i=({\mathbf{n}}_i-{\mathbf{M}}_i)({\dot{\mathbf{n}}}_i-{\dot{\mathbf{M}}}_i)\Rightarrow {\dot{r}}_i={\mathbf{l}}_i({\dot{\mathbf{n}}}_i-{\dot{\mathbf{M}}}_i),$$

$${\dot{r}}_i+{\mathbf{l}}_i{\dot{\mathbf{M}}}_i={\mathbf{l}}_i\hat{\mathbf{q}}+{\mathbf{l}}_i(\mathbf{q}\times {\mathbf{n}}_i)\Rightarrow {\dot{r}}_i+\dot{g}{\mathbf{g}}_i{\mathbf{l}}_i={\mathbf{l}}_i\hat{\mathbf{q}}+{\hat{\mathbf{l}}}_i\mathbf{q},$$

$$\left(\begin{array}{c}{\dot{r}}_1\\ ⋮\\ {\dot{r}}_6\end{array}\right)+\dot{g}\left(\begin{array}{c}{\mathbf{g}}_1{\mathbf{l}}_1\\ ⋮\\ {\mathbf{g}}_6{\mathbf{l}}_6\end{array}\right)=\mathbf{J}\left(\begin{array}{c}\mathbf{q}\\ \hat{\mathbf{q}}\end{array}\right)\text{with}\mathbf{J}:=\left(\begin{array}{cc}{\hat{\mathbf{l}}}_1^T& {\mathbf{l}}_1^T\\ ⋮& ⋮\\ {\hat{\mathbf{l}}}_6^T& {\mathbf{l}}_6^T\end{array}\right).$$

$${\mathbf{m}}_{1,2}$$

$${\mathbf{M}}_{4,5}$$

$$\mathbf{R}=\left(\begin{array}{ccc}{e}_0^2+e_1^2-e_2^2-e_3^2& 2(e_1{e}_2-e_0{e}_3)& 2(e_1{e}_3+e_0{e}_2)\\ 2(e_1{e}_2+e_0{e}_3)& e_0^2-e_1^2+e_2^2-e_3^2& 2(e_2{e}_3-e_0{e}_1)\\ 2(e_1{e}_3-e_0{e}_2)& 2(e_2{e}_3+e_0{e}_1)& e_0^2-e_1^2-e_2^2+e_3^2\end{array}\right),$$

$$\Sigma :83\sqrt{3}N{g}^3(Q[12]N^2{g}^2+L[56]Ng+A_1[29]A_2[8])=0,$$

$$z$$

$$x$$

$$y$$

$$x$$

$$y$$

$${\mathsf{M}}_{i,a},{\mathsf{M}}_{i,b},{\mathsf{M}}_{i-1}\text{are collinear for i=1,3,5 (mod 6)},$$

$$z^3(e_0^2+e_3^2)(e_0-e_3)(e_0+e_3)=0.$$

$$2e_3^3(e_1+e_2)(e_1-2e_2-\sqrt{3}{e}_2)(e_1-2e_2+\sqrt{3}{e}_2).$$

$$\begin{array}{rl}L& =4e_1^2{e}_3(z-2e_1{e}_3)(e_{1}z+2e_1^2{e}_3+2e_3^3+y{e}_3),\\ A_1{A}_2& =4x{e}_1{e}_3(z-2e_1{e}_3)(2e_1{e}_{3}y-e_3^{2}z+e_1^{2}z),\end{array}$$

$$(e_0{e}_1+e_2{e}_3)(e_2^2{e}_3^2-3e_2^2{e}_0^2+8e_2{e}_1{e}_0{e}_3-3e_1^2{e}_3^2+e_1^2{e}_0^2).$$

$$2(e_2^2+e_1^2)(e_0-e_3)(e_0+e_3)(e_0{e}_1-e_2{e}_3)(e_0{e}_2+e_1{e}_3)$$

$$e_3^4(e_1-e_2)(e_1+e_2)(e_2^2+e_1^2{)}^3(2e_2{e}_1^2-y{e}_1+2e_2{e}_3^2).$$

Full text

1 Introduction

The geometry of a Stewart-Gough (SG) platform is given by the six base anchor points ${\sf M}_{i}$ with coordinates ${\mathbf{M}}_{i}:=(A_{i},B_{i},C_{i})^{T}$ with respect to the fixed frame and by the six platform anchor points ${\sf m}_{i}$ with coordinates ${\mathbf{m}}_{i}:=(a_{i},b_{i},c_{i})^{T}$ with respect to the moving frame (for $i=1,\ldots,6$). Each pair $({\sf M}_{i},{\sf m}_{i})$ of corresponding anchor points of the fixed body (base) and the moving body (platform) is connected by an SPS-leg, where only the prismatic joint (P) is active and the spherical joints (S) are passive. The distance between the centers of the two S-joints of the $i$th leg is denoted by $r_{i}$. Note that for a SG platform, $({\sf M}_{i},{\sf m}_{i})\neq({\sf M}_{j},{\sf m}_{j})$ holds for pairwise distinct $i,j\in\left\{1,\ldots,6\right\}$. Moreover if two base points ${\sf M}_{i}$ and ${\sf M}_{j}$ (resp. platform points ${\sf m}_{i}$ and ${\sf m}_{j}$) coincide, then we just write ${\sf M}_{i,j}$ (resp. ${\sf m}_{i,j}$).

A certain drawback of such 6-degree of freedom (dof) robotic platforms is the limitation of their singularity-free workspace. A promising approach for overcoming this problem is redundancy, where basically two types can be distinguished:

1. (a)

Actuation redundancy: One possibility is to add a 7th SPS-leg to the manipulator (e.g. dasgupta ; zhang ; cao ), but it should be noted that there exist dangerous locations for the attachments ${\sf m}_{7}$ and ${\sf M}_{7}$ (cf. hmm ), which do not result in a reduction of singularities. Clearly more than one SPS-leg can be attached, but we have to keep in mind that every extra leg may yields a restriction of the workspace due to leg constraints and leg interference dasgupta . Moreover schreiber pointed out that this so-called branch redundancy111A further possibility to imply actuation redundancy in a SG platform is to replace passive joints by active ones. No attempts to this so-called in-branch redundancy are known to the authors. causes internal loads, whose control increases considerably the complexity and costs. 2. (b)

Kinematic redundancy: This can be achieved by attaching active joints in a way that the geometry of the platform or base (or both) can be modified. Therefore they are also known as reconfigurable manipulators222The modules in a variable geometry truss (VGT) can also be seen as reconfigurable manipulators (cf. (merlet_redundant, , Fig. 9)). In this context see also stoughton , where a VGT is combined with a SG structure. of SG type. In bande a design is suggested, which has six redundant dofs (3 in the platform and 3 in the base). The weak points of this so-called dodekapod are that on the one hand additional mass/inertia (motor of active joints) is added to the platform and that on the other hand passive prismatic joints are used, which are difficult to implement in practice (cf.  schreiber ). Not faced with these points of criticism are the designs suggested in wang ; kotlarski , where one base point is traced on a circle (realized by an extra R-joint wang ) or a straight line (realized by an extra P-joint kotlarski ).

We complete this review by noting a different approach to kinematic redundancy; namely the usage of parallel redundant legs introduced in schreiber .

Another advantage of approach (b) over (a) beside the already mentioned ones above is that (a) increases the workspace only by removing singularities, but (b) additionally enlarges the workspace itself due to the reconfigurability of the anchor points. Further differences between both concepts are pointed out at the end of Section 2.1.

1.1 Aim and basic concept

Within the Doctoral College ”Computational Design” of the Vienna University of Technology, we are interested amongst other things in the optimization of motion platforms of SG type for virtual reality (VR) application of single individuals. In detail, we want to mount an omni-directional treadmill onto the motion platform (cf. Fig. 2) in order to improve VR immersion by giving feedback to the human body (e.g. simulating slopes, earthquakes, …). There are different locomotion systems commercially available; e.g. Cyberith Virtualizer (cyberith.com), Omni Virtuix (www.virtuix.com), SpaceWalkerVR (spacewalkervr.com), Kat Walk (www.katvr.com) and Wizdish ROVR (www.wizdish.com).

Due to safety reasons we prefer a system where the individuals are fixed inside a hip-ring by belts and straps. Thus we are only left with the Omni Virtuix and the Cyberith Virtualizer. We favor the latter system as it has one more dof, which allows to kneel/crouch/sit down or even to jump up, and a flat base plate with a suitable friction coefficient for simulating slopes. Contrary, the Omni Virtuix’s base has a very low friction (too slippery for slope simulations) and a concave shape.

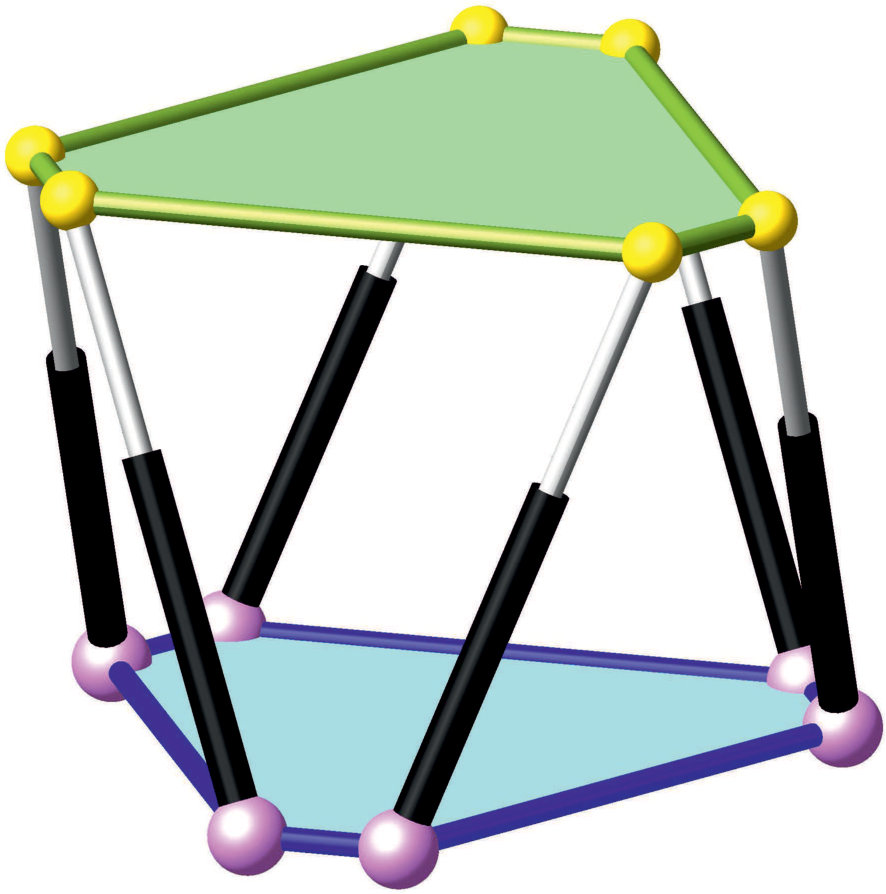

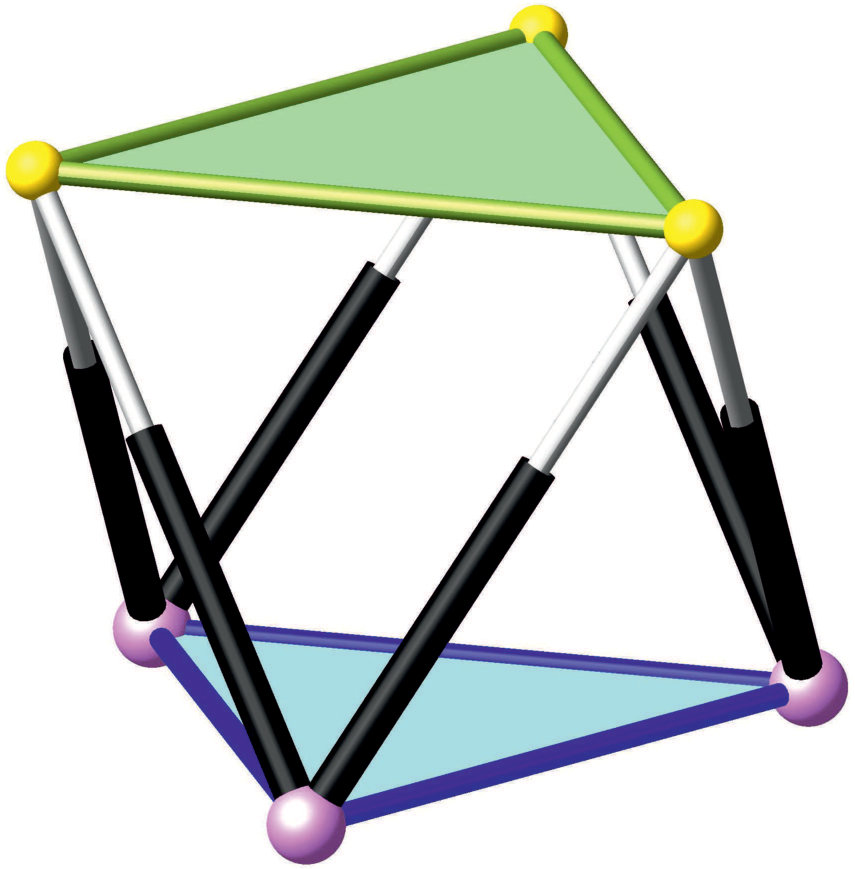

All currently offered 6-dof motion simulators of SG type have a planar semi-hexagonal base and platform (see Fig. 1 (left)). This design is preferred over the so-called octahedral SG manipulator (see Fig. 1 (right)) as it avoids double S-joints, which have a lot of disadvantages regarding costs, stiffness and joint-range. Nevertheless we focus within this concept study on the octahedral design (as many other academic studies e.g. stoughton , (wang, , Section 4), merlet_buch ; fichter ; hunt ; quality ; downing ; hamdoon ; jiang , …done in the past), due to its kinematic simplicity. But this application-alien abstraction can also be brought back to real-world solutions as pointed out in Section 3.

Due to the arguments given above we want to use concept (b) of kinematic redundancy in order to increase the singularity-free workspace of the octahedral manipulator. Having our practical application in mind, the resulting reconfigurable manipulator should still be of kinematic simplicity (the symmetry of the manipulator should not be destroyed) and cheap ; i.e. we want to get by with standard components (less or even no expensive custom products).

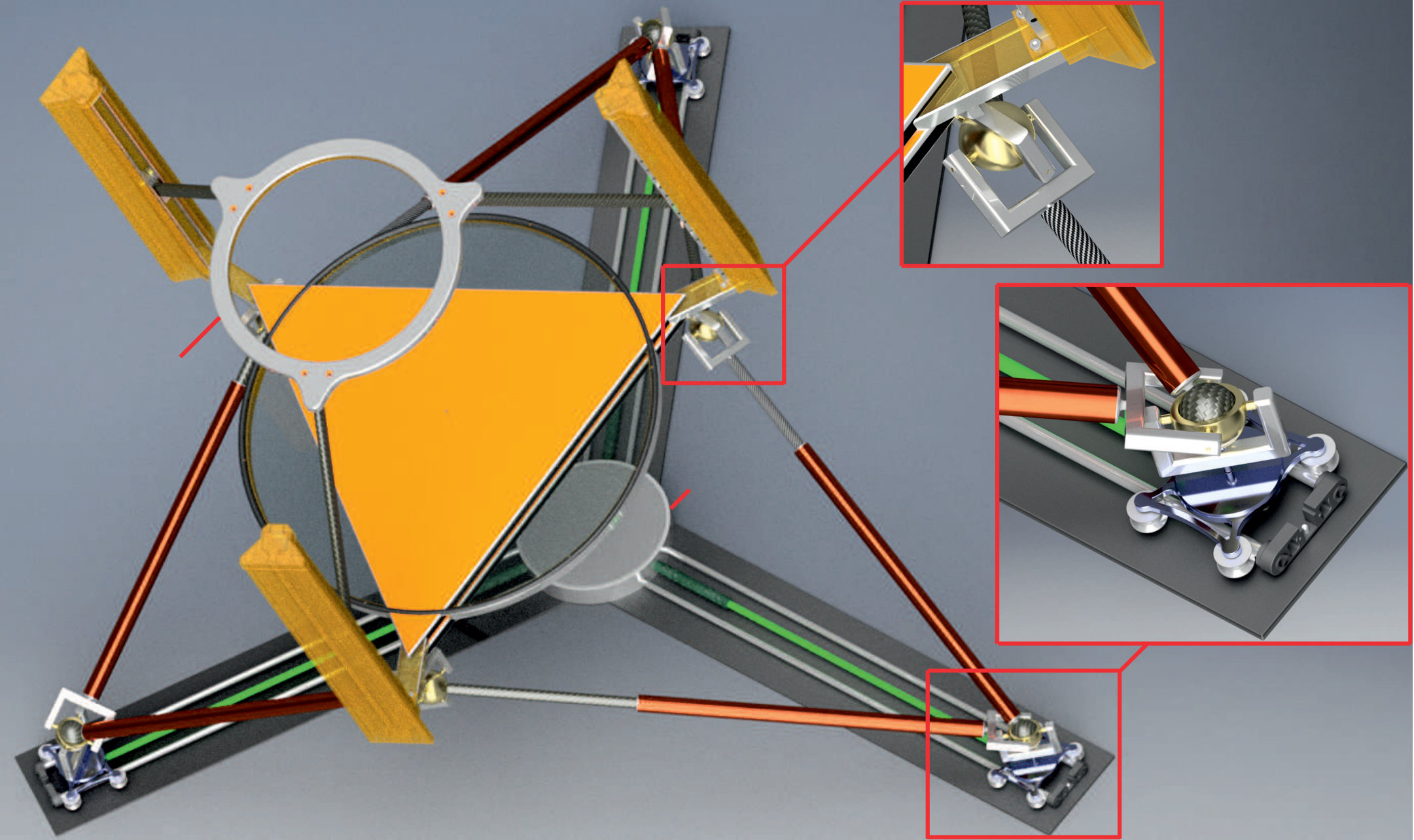

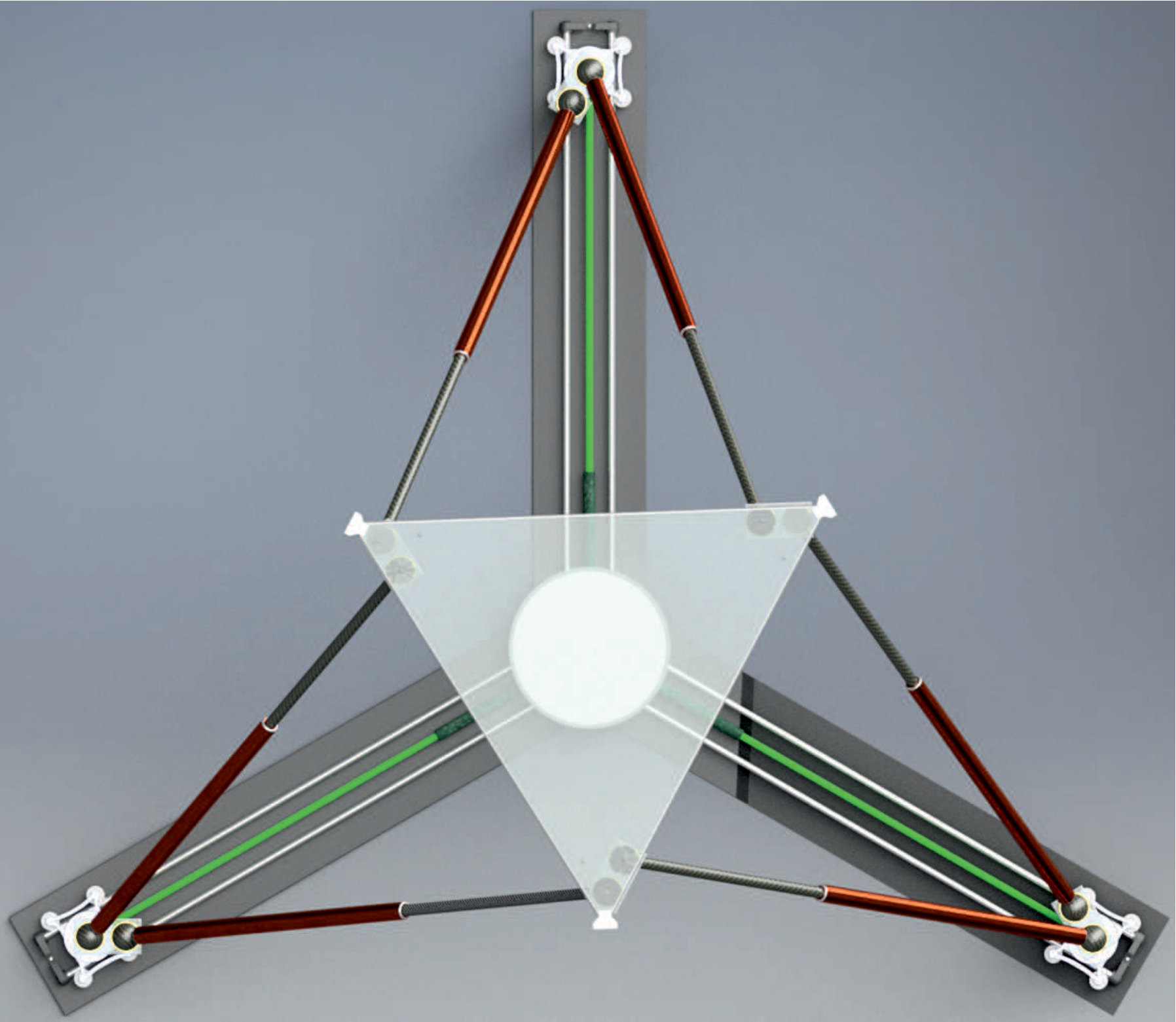

Taking all these requests under consideration, we came up with the design illustrated in Fig. 2. We use three additional active P-joints (green), which are driven simultaneously by only one motor mounted at the center of the base. Therefore the base triangle remains equilateral during the reconfiguration process. The proposed manipulator can be seen as a combination of a SG hexapod and a so-called hexaglide (e.g. bhebsacker ). As the linear sliding of the points ${\sf M}_{i,i+1}$ along the lines ${\sf g}_{i,i+1}$ can be realized by parallel guiding rails, the whole structure can still be built very stiff with a high load-carrying capacity. Moreover the complete additional equipment for the performance of the reconfiguration (motor, rails, …) is placed on the resting base such that the legs and platform are not stressed by additional mass/inertia.

Remark 1

Let us assume that the three additional prismatic joints are passive instead of active (but still coupled). Moreover we lock the six P-joints of the legs. Then the base has in each pose of the manipulator at least a 1-dimensional self-motion with respect to the platform, due to the equiform reconfigurability of the base. These relative motions (of the base with respect to the platform) are studied in hamdoon . $\diamond$

2 Instantaneous kinematics and singularities

The $i$th leg of the 7-dof reconfigurable manipulator fulfills the basic relation $r_{i}(\tau)^{2}=\|{\mathbf{n}}_{i}(\tau)-{\mathbf{M}}_{i}(\tau)\|^{2}$, where ${\mathbf{n}}_{i}$ is the coordinate vector of ${\sf m}_{i}$ with respect to the fixed system. Differentiation with respect to the time $\tau$ yields:

[TABLE]

where ${\mathbf{l}}_{i}$ is the unit-vector along the $i$th leg (pointing from the base point to the platform point). As the velocity of ${\mathbf{n}}_{i}$ can be expressed in terms of the instantaneous screw $({\mathbf{q}},\widehat{{\mathbf{q}}})$ of the platform with respect to the fixed system by $\dot{{\mathbf{n}}}=\widehat{{\mathbf{q}}}+{\mathbf{q}}\times{\mathbf{n}}_{i}$ we get:

[TABLE]

where ${\mathbf{g}}_{i}$ is the unit-vector along ${\sf g}_{i}$, $\dot{g}$ the velocity along ${\sf g}_{i}$ and $\widehat{{\mathbf{l}}}_{i}$ the moment vector of the $i$th leg. Note that $({\mathbf{l}}_{i},\widehat{{\mathbf{l}}}_{i})$ are the spear coordinates of the $i$th leg. Thus we end up with:

[TABLE]

This equation relates the velocities $\dot{r}_{1},\ldots,\dot{r}_{6},\dot{g}$ of the active P-joints with the instantaneous screw $({\mathbf{q}},\widehat{{\mathbf{q}}})$ of the platform. If we fix all prismatic joints the left side of Eq. (3) equals the zero vector. Then an infinitesimal motion of the platform is only possible if the Jacobian matrix ${\mathbf{J}}$ of the octahedral manipulator is singular; which is well studied problem (e.g. hunt ; downing or (merlet_buch, , pages 202–204)).

2.1 Unavoidable singularities

Definition 1

If for a given pose of the platform the corresponding configuration of the mechanism is singular for all kinematically redundant dofs, we call this singular pose of the platform an ”unavoidable singularity”.

To the best knowledge of the authors there are no studies on ”unavoidable singularities” in the literature, with the following two exceptions:

1. $\bullet$

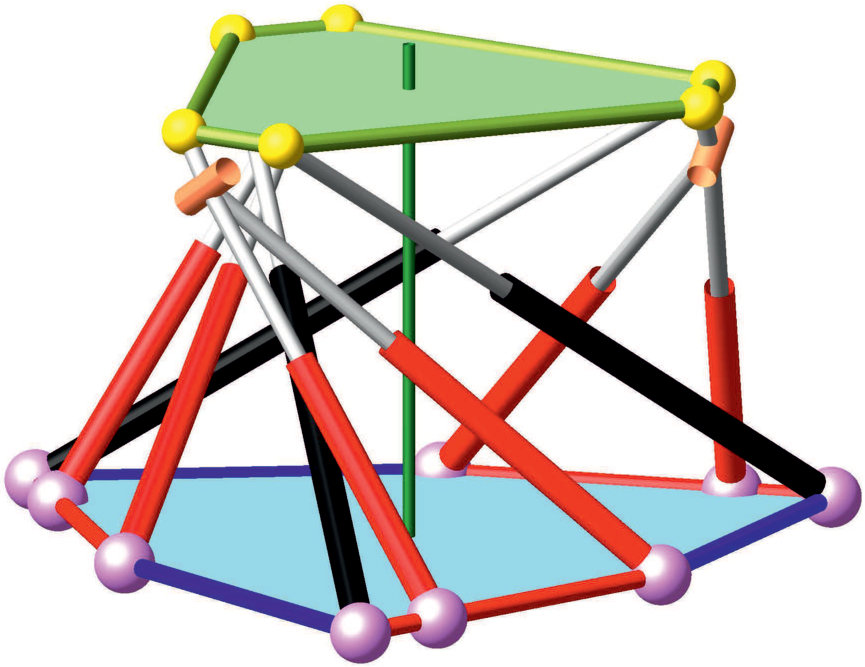

In (schreiber, , Section V(D)) it is stated that for the octahedral manipulator with three redundant legs ”any Cartesian pose of the moving platform can be reached with a non-singular configuration of the mechanism”. Moreover, it is ”conjectured that this result can be extended to mechanisms whose spherical joints on the platform do not coincide by pairs”, but this is disproved in Appendix A. 2. $\bullet$

For the kinematically redundant SG manipulator of wang , there exist up to 40 positions of the platform causing an unavoidable singularity for a given orientation (cf. (wang, , Section 4.4.2)). Some special orientations causing a higher-dimensional set of unavoidable singularities were studied in (wang, , Section 4.4.3).

For the proposed mechanism of the paper at hand, we can chose an appropriate scaling factor and coordinate systems in the fixed and moving space in a way that:

[TABLE]

hold, where $g>0$ is the reconfiguration variable ($=$ radius of the circumcircle of the equilateral base triangle). Based on this coordinatization we can compute the entries of ${\mathbf{J}}$ by $({\mathbf{l}}_{i}:\widehat{{\mathbf{l}}}_{i}):=({\mathbf{R}}{\mathbf{m}}_{i}+{\mathbf{s}}-N{\mathbf{M}}_{i}:{\mathbf{M}}_{i}\times{\mathbf{l}}_{i})$ with the rotation matrix

[TABLE]

$N=e_{0}^{2}+e_{1}^{2}+e_{2}^{2}+e_{3}^{2}$ and the translation vector ${\mathbf{s}}=(x,y,z)^{T}$. Note that $(e_{0}:e_{1}:e_{2}:e_{3})\neq(0:\ldots:0)$ are the so-called Euler parameters.

Then the singularity condition $\Sigma$: $\det{\mathbf{J}}=0$ has the following structure:

[TABLE]

where the number in the brackets gives the number of terms. Note that $Q$ and $A_{2}$ depend linearly on $x,y,z$ and that $L$ and $A_{1}$ are polynomials in $z^{2},xz,yz,x,y,z$.

Theorem 2.1

The unavoidable singularities of the 1-dof kinematic redundant octahedral manipulator of SG type studied in the paper at hand are listed in the following table containing the positions of the unavoidable singularities in the 3rd column for the orientations given in the 2nd column and the 4th column gives the dimension of the singularity set:

[TABLE]

*with *

[TABLE]

Proof

For an unavoidable singularity the conditions $Q=L=A_{1}A_{2}=0$ have to hold. This system of equations can be solved explicitly333In contrast to wang , where the unavoidable singularities are obtained as the numeric solution of an univariate polynomial of degree 40. for $x,y,z$. The detailed case study yielding the above table is presented in Appendix B. Note that for a given orientation the positions are (unions of) affine subspaces of ${\mathbb{R}}^{3}$. $\hfill{\square}$

As the unavoidable singularities are low-dimensional varieties (cf. Theorem 2.1) in the $6$-dimensional workspace, they can always be bypassed during path-planning. But this does not imply the existence of a singularity-free path as the singularity variety is a hypersurface in the mechanism’s configuration space.444For our mechanism this is a $7$-dimensional space, as a mechanism configuration is given by the pose of the platform (6 dofs) and by the size of the base triangle (1 dof). Due to topological reasons two points of the configuration space can be separated by this hypersurface.

In contrast, actuation redundancy reduces the dimension of the singularity variety by the number of redundant dofs (cf. (dasgupta, , Section 3)) and therefore a singularity can always be avoided during path-planning.

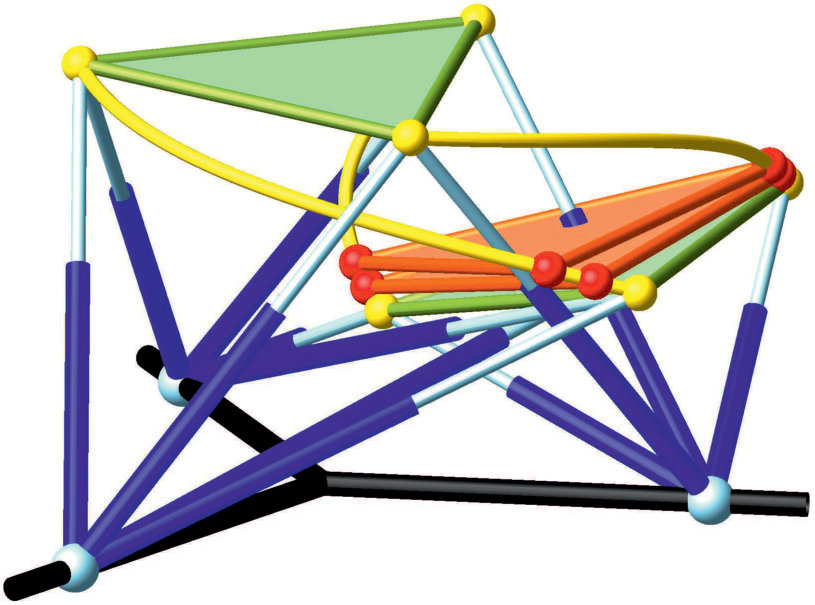

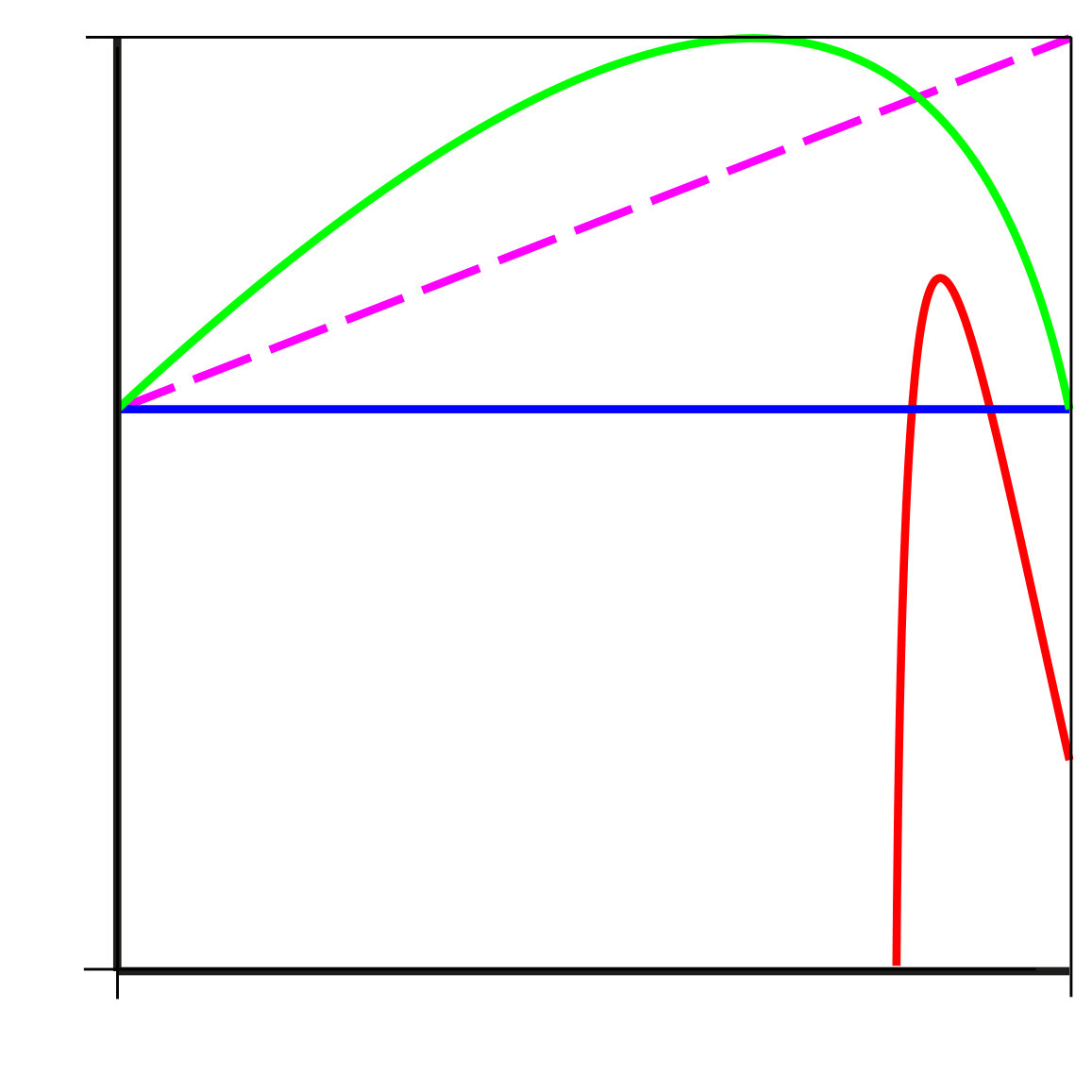

But in the case of a given path of the platform, kinematic redundancy is superior to actuation redundancy, as kinematically redundant dofs can be used to avoid singularities (if possible) and to increase the performance of the manipulator during the prescribed motion (cf. Fig. 3). The study of the optimal reconfiguration of the base of the proposed mechanism during a given motion is dedicated to future research.

Remark 2

Note that a so-called modular parallel robot merlet_modular also changes its geometry with respect to a given end-effector motion, but there is no reconfiguration of the robot’s base/platform during the motion of the end-effector. $\diamond$

3 Conclusion

This paper contains a concept study of an octahedral SG manipulator with one degree of kinematic redundancy (equiform reconfigurability of the base) for VR simulations of single individuals (see Fig. 2). In a side-note we also proposed SU-joints (see Fig. 2) as an alternative to the problematic double S-joints within the octahedral structure. Clearly a deeper study of these SU-joints (regarding stiffness, joint-range, dynamic behavior, …) has to be done in order to judge their applicability. Another possibility is the substitution of all double S-joints by double U-joints (e.g. see (fichter, , Fig. 16) and (quality, , Section 4)) and to replace the P-joints by cylindrical joints, with a passive rotation and an active translation component.

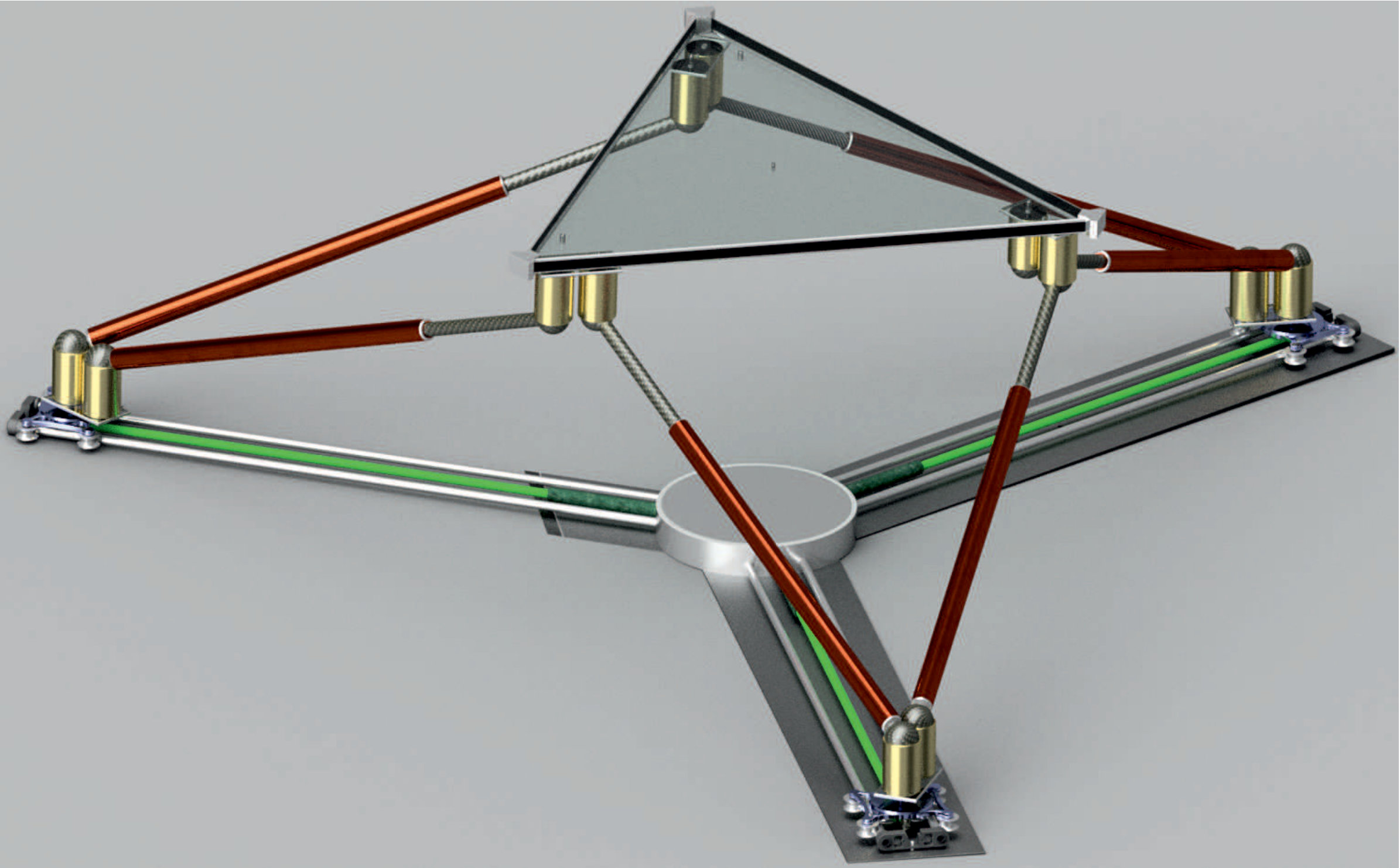

But we pursue another strategy for the technical realization; namely the usage of a design which is totally free of double joints but kinematically equivalent to the octahedral manipulator (cf. rojas ). Therefore the resulting design illustrated in Fig. 4 can be built with standard components; i.e. without expensive custom products.

Acknowledgements.

The first author is supported by Grant No. P 24927-N25 of the Austrian Science Fund FWF. The second author is funded by the Doctoral College ”Computational Design” of TU Vienna. Moreover the authors want to thank Hannes Kaufmann of the ”Center for Geometry and Computational Desgin” at TU Vienna for fruitful discussions on VR motion simulations.

Appendix A

As already mentioned in the first bullet of Subsection 2.1, the authors of schreiber stated in Section Section V(D) that for the octahedral manipulator with three redundant legs ”any Cartesian pose of the moving platform can be reached with a non-singular configuration of the mechanism”.555This is only true under Assumption 2 of (schreiber, , Section V(D)). Without this assumption all poses where the platform and the base are coplanar are ”unavoidable singularities”. Moreover, it is ”conjectured that this result can be extended to mechanisms whose spherical joints on the platform do not coincide by pairs”. In this section we construct a counter example to the conjecture.

According to Assumption 1 of (schreiber, , Section V(D)) the base anchor points have to fulfill the following property:

[TABLE]

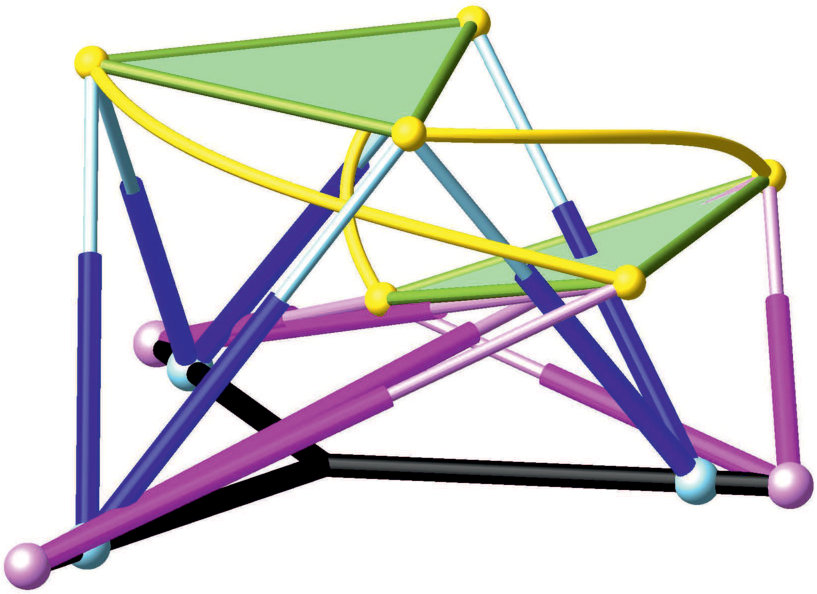

where ${\sf M}_{i-1}$ is the base point of a non-redundant leg and ${\sf M}_{i,a},{\sf M}_{i,b}$ denote the two base anchor points of a redundant leg. The geometric structure of the redundant leg can be seen in Fig. 5 (upper left). It should only be noted that the orange cylinders represent passive rotational joints and that the 3 gray bars linked by this joint are coplanar.

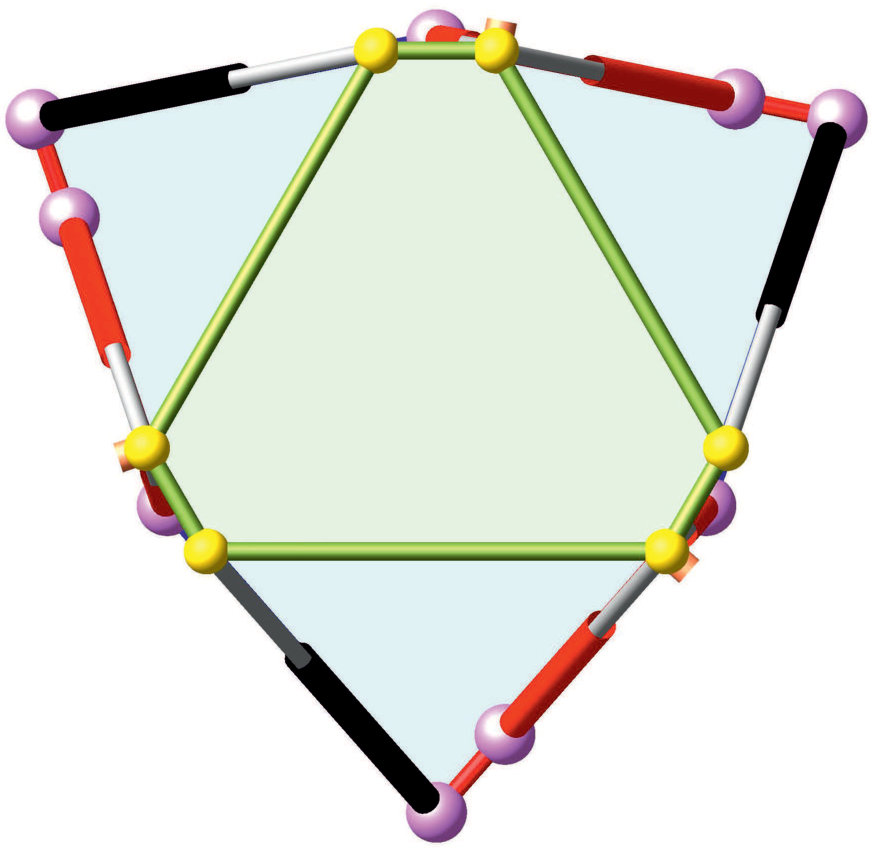

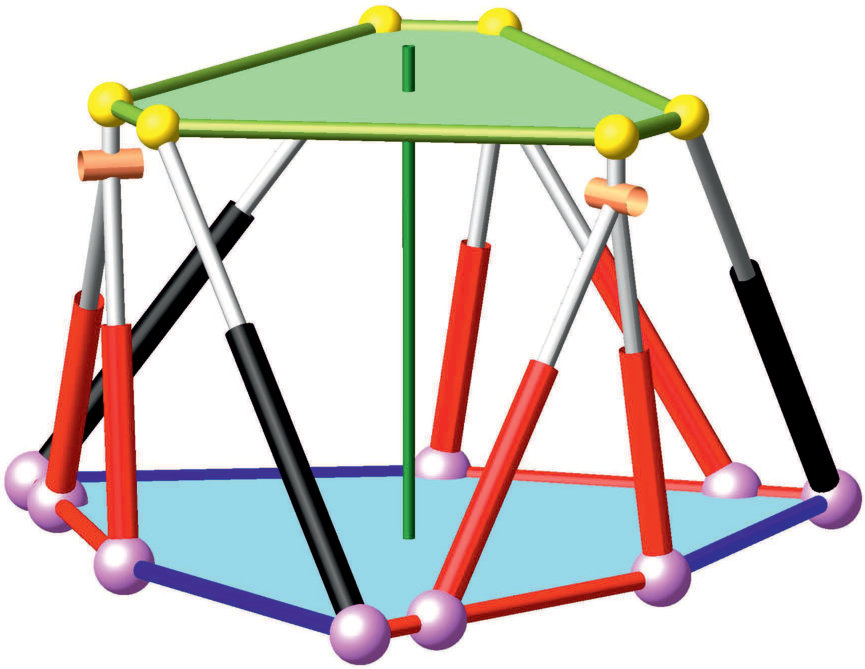

We start with a semi-hexagonal platform parallel to the base plane $\delta$. Then we determine the corresponding base point(s) of ${\sf m}_{j}$ as follows: We construct a plane $\varepsilon_{j}$ orthogonal to $\delta$, which touches the circumcircle of the semi-hexagonal platform in ${\sf m}_{j}$. The intersection line of $\varepsilon_{j}$ and $\delta$ is illustrated in Fig. 5 (left) in red (for $j=1,3,5$) and blue (for $j=2,4,6$), respectively. Under consideration of (12) we select the base point(s) on these intersection lines.

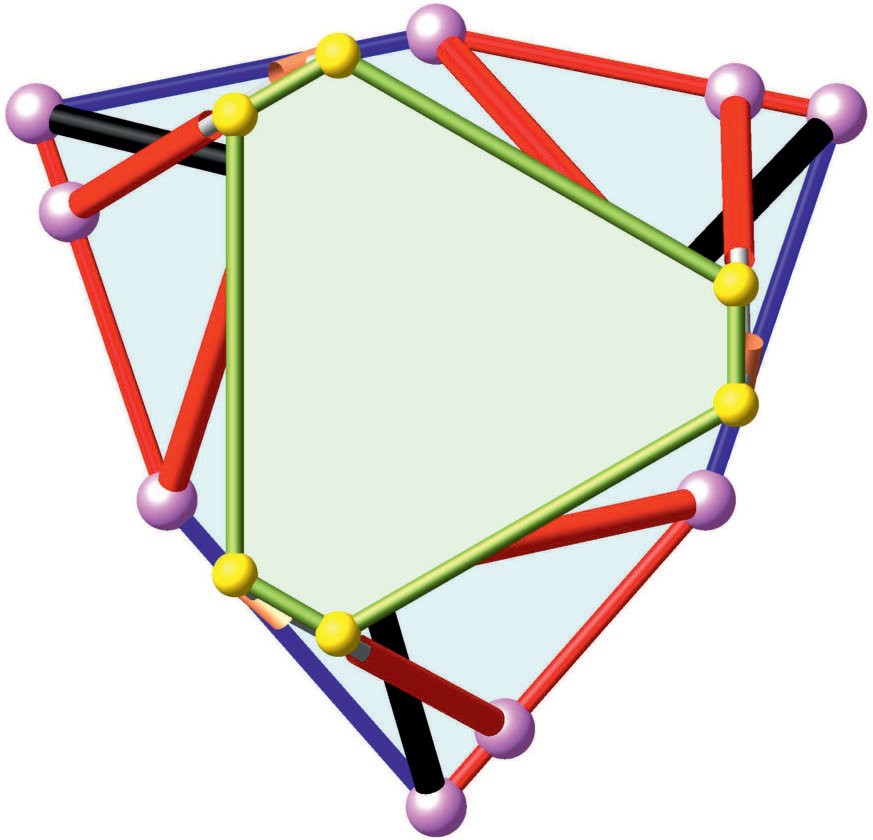

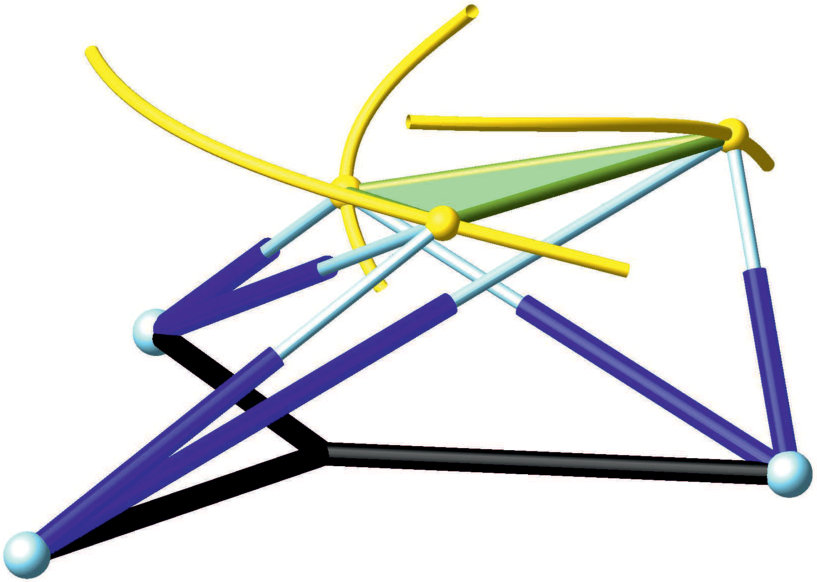

Then we rotate the platform by $-90$ degrees about the center axis ${\sf a}$ and end up with a singular configuration (so-called Fichter singularity fichter ) illustrated in Fig. 5 (right). It can easily be checked that this is an unavoidable singularity.

Appendix B

We split the proof of Theorem 2.1 into two subsections. In the first one very special cases are discussed and in the second one we attack the general case.

Special cases

Within this first item we study all cases where at least two of the four Euler parameters are zero.

1. (a)

$e_{1}=e_{2}=0$: Then $Q$ and $L$ are fulfilled identically and we remain with $A_{1}A_{2}=0$, which factors into

[TABLE]

For $z=0$ the legs are in a field of lines, whose carrier plane is the base ($\Rightarrow$ row 1 of the table given in Theorem 2.1). For $e_{0}=\pm e_{3}$ we get the Fichter singularity (cf. fichter ); i.e. rotation of the platform by $\pm 90^{\circ}$ about the z-axis ($\Rightarrow$ row 2). 2. (b)

$e_{0}=e_{3}=0$: This is already a singular configuration ($\Rightarrow$ row 3), which is not of practical relevance as the platform is upside down. 3. (c)

$e_{0}=e_{2}=0$ and $e_{1}e_{3}\neq 0$: It can easily be seen that $Q=L=A_{1}A_{2}=0$ can only hold for $z=e_{1}e_{3}$ ($\Rightarrow$ row 13). The lines are in a singular linear line complex. 4. (d)

$e_{1}=e_{3}=0$ and $e_{0}e_{2}\neq 0$: Analogous considerations as in item (1c) yield $z=-e_{0}e_{2}$ ($\Rightarrow$ row 14). The lines are in a singular linear line complex. 5. (e)

$e_{0}=e_{1}=0$ and $e_{2}e_{3}\neq 0$: It is not difficult to verify that the unavoidable singularities are given by $y=z=0$ ($\Rightarrow$ row 15). 6. (f)

$e_{2}=e_{3}=0$ and $e_{0}e_{1}\neq 0$: Analogous considerations as in item (1e) yield $y=z=0$ ($\Rightarrow$ row 16). 2. 2.

$e_{0}=e_{3}\neq 0$: In this case $Q$ factors into

[TABLE]

We remain with the following three cases:

1. (a)

$e_{2}=-e_{1}$ and $e_{3}\neq 0$: Now we get

[TABLE]

thus the following cases can occur:

1. i.

$e_{1}=0$: We get again the Fichter singularity. 2. ii.

$z=2e_{1}e_{3}$ and $e_{1}\neq 0$: In this case all legs intersect a line and therefore they belong to a singular linear line complex ($\Rightarrow$ row 4, upper sign). 3. iii.

$e_{1}z+2e_{1}^{2}e_{3}+2e_{3}^{3}+ye_{3}=0$ and $(z-2e_{1}e_{3})e_{1}\neq 0$: We can solve this equation for $z$ and then $A_{1}A_{2}$ can only vanish without contradiction for $x=0$ ($\Rightarrow$ row 5, upper sign) or $y=2e_{1}^{2}-2e_{3}^{2}$ ($\Rightarrow$ row 6, upper sign). Therefore we get two lines in the position space. 2. (b)

$e_{1}=(2+\sqrt{3})e_{2}$ and $(e_{1}+e_{2})e_{3}\neq 0$: By inspecting $L$ and $A_{1}A_{2}$ in a similar way as done in very detail in item (a) we get the following solutions:

1. i.

$z=-\frac{4e_{2}e_{3}}{\sqrt{3}-1}$: In this case all legs intersect again a line and therefore they belong to a singular linear line complex ($\Rightarrow$ row 7, upper sign). 2. ii.

$x=\tfrac{16e_{2}^{2}+8e_{2}^{2}\sqrt{3}+y-4e_{3}^{2}}{\sqrt{3}}$ and $z=\frac{8e_{2}e_{3}}{\sqrt{3}-1}$: For a given orientation we get a line in the position space ($\Rightarrow$ row 8, upper sign). 3. iii.

$x=-y\sqrt{3}$ and $z=\frac{2e_{3}(e_{3}^{2}+4e_{2}^{2}+2e_{2}^{2}\sqrt{3}-y)}{e_{2}(\sqrt{3}+1)}$: For a given orientation we get again a line in the position space ($\Rightarrow$ row 9, upper sign). 3. (c)

$e_{1}=(2-\sqrt{3})e_{2}$ and $(e_{1}+e_{2})e_{3}\neq 0$: Exactly the same computations as in item (b) yield the solutions given in the rows 7, 8, and 9, but now for the lower signs. 3. 3.

$e_{0}=-e_{3}\neq 0$: This is the same discussion as in item (2). The resulting solutions are given in the rows 4, 5 and 6, but now for the lower signs, and in the rows 10, 11 and 12 (upper and lower signs).

General case

We start by solving $Q=0$ for $z$ which yields Eq. 7. The denominator vanishes only for the special cases (1a), (1b), (2) and (3), respectively. We insert this expression for $z$ into $L=0$ and $A_{1}A_{2}=0$ and consider the greatest common divisor of the resulting numerators, which reads as follows:

[TABLE]

If one of these two factors vanish we get the solutions given in the rows 17 and 18, respectively. The remaining factor of $L$ has $40$ terms and is linear in $x$. As the coefficient of $x$ equals

[TABLE]

we have to distinguish the following three cases:

$e_{0}e_{1}-e_{2}e_{3}=0$: If one of the $e_{i}$’s is equal to zero, this equation implies that also a second one has to vanish. Therefore we get one of the already discussed special cases (1a,b,c,d). As a consequence we can set $e_{0}=\frac{e_{2}e_{3}}{e_{1}}$. Then the numerator of $L$ simplifies to

[TABLE]

As $e_{1}=\pm e_{2}$ implies $e_{0}=\pm e_{3}$ we can only end up with a case studied in the special case (2) and (3), respectively. Therefore we only remain with $2e_{2}e_{1}^{2}-ye_{1}+2e_{2}e_{3}^{2}=0$ which implies row 19. 2. 2.

$e_{0}e_{2}+e_{1}e_{3}=0$: For the same reasons as in item (1) of the general case we can set $e_{0}=-\frac{e_{1}e_{3}}{e_{2}}$. Analogous considerations imply the condition $2e_{1}e_{2}^{2}-2e_{1}e_{3}^{2}+ye_{2}=0$ resulting in row 20. 3. 3.

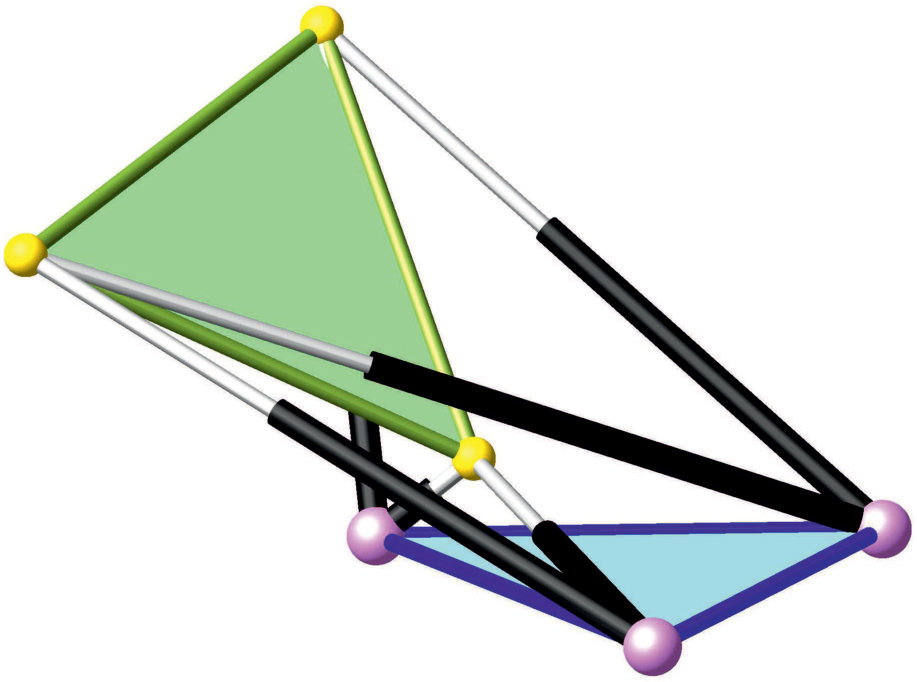

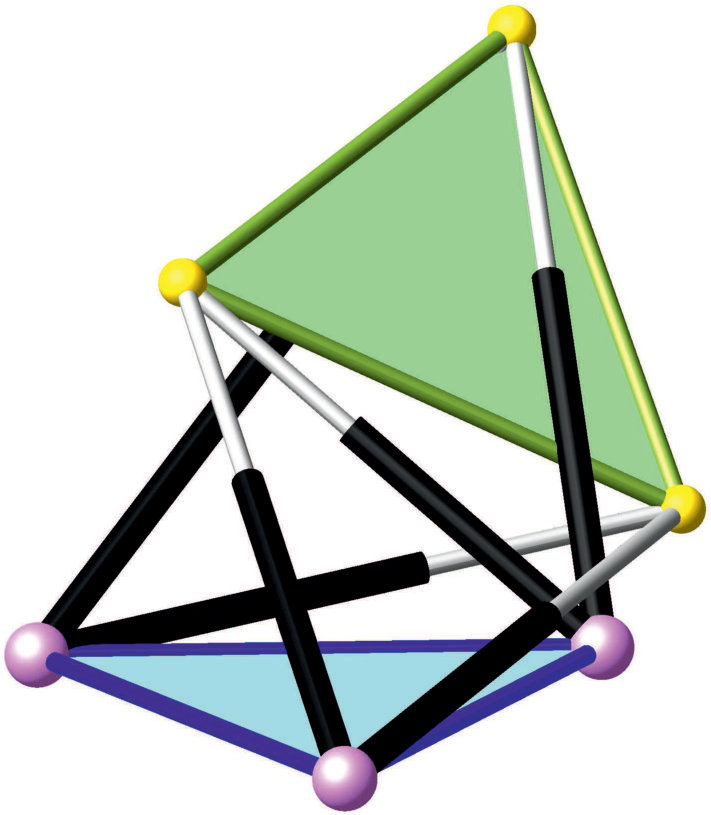

$(e_{0}e_{1}-e_{2}e_{3})(e_{0}e_{2}+e_{1}e_{3})\neq 0$: In this case we can solve $L=0$ for $x$. Plugging the resulting expression into $A_{1}A_{2}$ yields two factors, which are linear in $y$. They imply the solutions given in row 21 and 22, which are illustrated in Fig. 6.

End of all cases. $\hfill{\square}$
