Separation of pulsar signals from noise with supervised machine learning algorithms

TL;DR

This paper evaluates four machine learning algorithms for effectively distinguishing pulsar signals from noise and interference, demonstrating high accuracy and significantly reduced false positive rates compared to previous methods.

Contribution

It compares multiple ML algorithms using a pulsar dataset, incorporating SMOTE for class imbalance, and identifies key features influencing pulsar detection.

Findings

All ML methods achieved high accuracy and G-mean scores.

ML algorithms reported false positive rates an order of magnitude lower than previous approaches.

Feature importance analysis identified the signal-to-noise ratio of the folded profile as the most significant feature.

Abstract

We evaluate the performance of four different machine learning (ML) algorithms: an Artificial Neural Network Multi-Layer Perceptron (ANN MLP ), Adaboost, Gradient Boosting Classifier (GBC), XGBoost, for the separation of pulsars from radio frequency interference (RFI) and other sources of noise, using a dataset obtained from the post-processing of a pulsar search pi peline. This dataset was previously used for cross-validation of the SPINN-based machine learning engine, used for the reprocessing of HTRU-S survey data arXiv:1406.3627. We have used Synthetic Minority Over-sampling Technique (SMOTE) to deal with high class imbalance in the dataset. We report a variety of quality scores from all four of these algorithms on both the non-SMOTE and SMOTE datasets. For all the above ML methods, we report high accuracy and G-mean in both the non-SMOTE and SMOTE cases. We study the feature importances using Adaboost, GBC, and XGBoost and also from the minimum Redundancy Maximum Relevance approach to report algorithm-agnostic feature ranking. From these methods, we find that the signal to noise of the folded profile to be the best feature. We find that all the ML algorithms report FPRs about an order of magnitude lower than the corresponding FPRs obtained in arXiv:1406.3627, for the same recall value.

Figures

Tables

Table 1. Table 1: Confusion matrix for a binary classification problem. The rows correspond to the ground truth labels and the columns correspond to the labels as assigned by the classifier. Definitions of the symbols used here can be found in Section   2.1

	POSITIVE	NEGATIVE
TRUE	TP	TN
FALSE	FP	FN

Table 2. Table 2: Hyper parameters of all the machine learning (ML) models discussed here. We have used the same set of hyper parameters for both the non-SMOTE and SMOTE datasets.

ML	Hyper-parameters
ANN(MLP)	6:6:4 network
	activation function : Leaky RLeU
	output layer : softmax
	learning rule : adam
	learning rate = 0.001
	batch size = 32
	number of iterations = 750
Adaboost	number of estimators = 250
	learning rate = 0.1
	base estimator: decision stump
GBC	number of estimators = 250
	learning rate = 0.1
	max depth = 5
	minimum number of samples at leaf node = 2
XGBoost	number of estimators = 500
	learning rate = 0.001
	maximum depth = 3
	regularization alpha = 0.0001
	gamma = 0.1

Table 3. Table 3: Averaged confusion matrices of all the algorithms used in this paper. Elements of the confusion matrix are counts, which are integers. However, we have averaged over the 20 × 5 20 5 20\times 5 -fold Stratified CV, and hence, the floating point numbers are reported for each of the scores. Refer to Section  2 for details about the various definitions used here. The error bars for all the elements of all the averaged confusion matrices are of 𝒪 ​ ( 0.01 ) 𝒪 0.01 \mathcal{O}(0.01) and hence not reported in the table explicitly. We note that T, F stand for True and False respectively, whereas N, P stand for negative and positive respectively. Refer to Table  1 to understand the confusion matrix. The shaded values are for the SMOTE dataset, whereas non-shaded values are for the non-SMOTE ones.

ML Model	ANN(MLP)		Adaboost		GBC		XGBoost
	N	P	N	P	N	P	N	P
F	1.4	10.4	1.2	3.3	1.1	2.9	0.8	5.2
T	17525.6	237.0	17532.8	237.2	17533.0	237.3	17530.8	237.7
F	0.4	9.6	0.5	5.6	1.3	3.5	0.6	6.3
T	17526.4	238.0	17530.4	237.9	17532.5	237.0	17529.7	237.8

Table 4. Table 4: Various scores averaged over 20 × 5 20 5 20\times 5 -fold stratified CV. Refer to Section  2 for definitions of the scores used here, and for the methodology applied to compute these scores. Error bars are negligible (variation in the third decimal digit only) for all the scores, and hence not reported here. The shaded values are for the SMOTE dataset, whereas the non-shaded values are for the non-SMOTE ones.

ML Model	Recall	Precision	Accuracy	$f_1$	log-loss	G-Mean	AuROC	FPR[%]
ANN (MLP)	0.990	0.964	0.999	0.977	0.021	0.995	0.994	0.059
ANN (MLP)	0.998	0.961	0.999	0.979	0.019	0.998	0.994	0.055
Adaboost	0.995	0.986	0.999	0.990	0.008	0.997	0.994	0.019
Adaboost	0.997	0.976	0.999	0.986	0.012	0.998	0.994	0.032
GBC	0.995	0.987	0.999	0.991	0.008	0.997	0.994	0.017
GBC	0.995	0.986	0.999	0.990	0.008	0.997	0.993	0.020
XGBoost	0.996	0.978	0.999	0.987	0.012	0.998	0.994	0.030
XGBoost	0.997	0.974	0.999	0.985	0.013	0.998	0.994	0.036

Equations

$$\frac{TP}{TP+FN}.$$

$$\frac{TP}{TP+FP}.$$

$$\frac{TP+TN}{TP+TN+FP+FN}.$$

$$\frac{2\times \mathrm{Precision}\times \mathrm{Recall}}{\mathrm{Precision}+\mathrm{Recall}}.$$

$$\mathrm{logloss}=-\frac{1}{\mathrm{N}}\sum _{\mathrm{i}=1}^{\mathrm{N}}({\mathrm{y}}_{\mathrm{i}}\log ({\mathrm{p}}_{\mathrm{i}})+(1-{\mathrm{y}}_{\mathrm{i}})\log (1-{\mathrm{p}}_{\mathrm{i}})).$$

$$\sqrt{\mathrm{Recall}\times \mathrm{Specificity}}.$$

$$\frac{FP}{TN+FP}.$$

$$S/N=\frac{1}{\sigma \sqrt{w}}\sum _{s_i\in W}(s_i-\bar{b}),$$

$$D_{eq}=\frac{w_{eq}-\Delta \tau }{P},$$

$$V_{DM}=\tanh (DM-D{M}_{min}),$$

$$\chi (s)=\{\begin{array}{ll}1-\exp (-s/b)& \text{if}s\ge 0\\ s/b& \text{if}s<0,\end{array}$$

$$D_{RMS}=\sqrt{\frac{1}{w{n}_{sub}}\sum _{i\in W}\sum _j(p_i-s_{ij}{)}^2},$$

$$MI=\int \int p(x,y)\log \frac{p(x,y)}{p(x)p(y)},$$

$${\mathrm{Score}}_{\mathrm{i}}=\mathrm{MI}({\mathrm{x}}_{\mathrm{i}};\mathrm{y})-\frac{1}{\mathrm{d}-1}\sum _{\mathrm{j}\ne \mathrm{i}}\mathrm{MI}({\mathrm{x}}_{\mathrm{i}};{\mathrm{x}}_{\mathrm{j}}),$$

Full text

††journal: Astronomy & Computing

\useunder

\ul

1 INTRODUCTION

Ever since the accidental discovery of ‘The Little Green Man’ (Hewish et al., 1968) fifty years ago, a massive amount of work force and computing resources have been invested in exploring the observable Universe to detect radio pulsars. Pulsars are highly magnetized rotating neutron stars, with misaligned magnetic and rotation axes, which emit pulsed radio emission. Their radio signals are observable when the axis of their emission cone is directed along the line of sight to the observer. Subsequently, they have also been observed throughout the electromagnetic spectrum. An updated review of the various observational properties of pulsars and other kinds of neutron stars can be found in  Kaspi and Kramer (2016).

Pulsars have provided a remarkable laboratory for tests and applications of nearly all branches of physics, from condensed matter physics to quantum chromodynamics, and also on a wide variety of topics in astrophysics spanning stellar evolution, interstellar medium, cosmology etc. (Blandford, 1992; Ransom, 2013). They can also be used to provide insights into the nature and distribution of dark matter (Baghram et al., 2011; Desai and Kahya, 2016). Pulsar observations led to the first confirmed discovery of extrasolar planets (Wolszczan and Frail, 1992), provided the first indirect evidence for gravitational waves (Taylor, 1994), and could also provide evidence for the direct detection of gravitational waves in the nHz regime (Detweiler, 1979). Therefore, it is imperative to discover new pulsars in order to harness their tremendous physics potential.

As of April 2017, there are 2613 known pulsars in the ATNF catalog (Manchester et al., 2005). However, the total observable pulsar population in our galaxy has been estimated to be from $20,000$ to $10^{5}$ (Yusifov and Küçük, 2004; Faucher-Giguère and Kaspi, 2006; Johnston and Karastergiou, 2017). If these estimates are correct, $\sim 90\%$ of the Galactic pulsar population is yet to be discovered.

Pulsar searches from modern radio surveys involve sifting through candidates detected by pulsar search pipelines, consisting of either periodicity or single-pulse searches. These pulsar search algorithms are often computationally very expensive (although improvements continue to be made to their speed and sensitivity e.g., Smith 2016; Cameron et al. 2017). The output of these pipelines yield millions of candidates, out of which a small fraction consists of pulsars and the remaining candidates arise from radio frequency interference (RFI) or other sources of noise (Keith et al., 2010). Many of these candidates are visually inspected and manually vetted by domain experts. For current generation pulsar surveys, it takes about 1-300 seconds to vet each candidate (Eatough et al., 2010). Therefore, it would require up to 80,000 person hours to visually vet the million or so candidates. Such a manual visual classification of the pulsar candidates becomes intractable during the SKA era, where we expect to discover around 20,000 new pulsars (Kramer and Stappers, 2015). Even though the sifting of real pulsar signals from noise can be facilitated with graphical utilities such as JREAPER (Keith et al., 2009), these have limitations and one is prone to make mistakes (Bates et al., 2012; Eatough et al., 2010). Therefore, to maximize the detection of pulsars in the SKA era, the computational costs during all the steps of the pulsar search pipeline should be reduced and human intervention should be minimized at every step. An important step in this process would be to automate the filtering of pulsar candidates obtained from pulsar search pipelines as much as possible.

Therefore, for the autonomous identification of true signals from noise, the radio pulsar community has resorted to machine learning to solve this problem (Eatough et al., 2010; Bates et al., 2012; Lyon et al., 2013, 2014; Morello et al., 2014; Lyon et al., 2016; Zhu et al., 2014; Wagstaff et al., 2016; Devine et al., 2016). In most of these papers, the machine learning algorithm used is some variant of an Artificial Neural Network (ANN). Supervised machine learning using an ANN was first used in the pulsar community by  Eatough et al. (2010) to process 16 million pulsar candidates obtained by reprocessing data from the Parkes multi-beam survey. Bates et al. (2012) also used an ANN in the data-processing pipeline for the High Time Resolution Universe (HTRU) mid-latitude survey. They were able to reject 99% of the noise candidates and detect 85% of the pulsars through a blind analysis.  Zhu et al. (2014) used a combination of three different supervised algorithms, namely an ANN, Support Vector Machine (SVM), and Convolution Neural Nets in their image recognition based post-processing pipeline dubbed PICS (Pulsar Image-based Classification System) AI. PICS was trained with data from the Pulsar Arecibo L-band Feed Array (PALFA) survey and validated with data from the Green Bank North Celestial Cap survey (GBNCC). From the validation set, PALFA was able to rank 100% of the pulsars in the top 1% of all candidates, while 80% were ranked higher than any noise or interference events. Lyon et al. (2013) studied the performance of various stream classifiers, such as very fast decision trees on pulsar data from the HTRU survey. They demonstrated the susceptibility of the pulsar data to the imbalanced learning problem and how the imbalance severely reduces pulsar recall. Thereafter, Lyon et al. (2014) presented a new classification algorithm for imbalanced data streams using Hellinger distance measure, which they applied to pulsar data from the HTRU survey. They were able to demonstrate that the algorithm can effectively improve minority class recall rates on imbalanced data.  Morello et al. (2014) used neural networks in a pulsar ranking pipeline dubbed Straightforward Pulsar Identification using Neural Networks (SPINN). This pipeline was able to identify all the pulsars in the HTRU-S survey with a false positive rate of 0.64% and also helped reduce the amount of candidates to scan by up to four orders of magnitude. In this work, we apply multiple machine learning algorithms to the same dataset, as the candidates used for the cross-validation of the SPINN pipeline were made publicly available 111http://astronomy.swin.edu.au/~vmorello/. Lyon et al. (2016) presented a new method for on-line filtering of pulsars from noise candidates using a tree-based machine learning classifier called Gaussian Hellinger Very Fast Decision Tree. This algorithm was able to process millions of candidates in seconds and had recall rates of close to 98%, when applied to data from the HTRU-1 and LOTAAS surveys with recall rates $>90\%$ and false positive rates $<0.5\%$. It also helped discover about 20 new pulsars from the LOTAAS survey (Lyon et al., 2016). Wagstaff et al. (2016) incorporated a machine learning based classifier, based on random forests in their radio transient detection pipeline, called V-FASTR. This was able to automatically filter out known event types (pulsars and artifacts) with an accuracy of 98.6% and achieved a 99-100% accuracy on newly collected data. Most recently, Devine et al. (2016) used six different machine learning algorithms to classify dispersed pulsar groups in the second stage of their single-pulse search pipeline, which is also sensitive to other “siblings” of radio pulsars, such as Rotating Radio Transients (RRATs) (McLaughlin et al., 2006) and Fast Radio Bursts (FRBs) (Lorimer et al., 2007) These six algorithms included an ANN (Bishop, 2006), SVM (Cortes and Vapnik, 1995), direct rule learner (Cohen, 1995), standard tree rule learner (Salzberg, 1994), hybrid rule-and-tree learner (Frank and Witten, 1998), and Random Forests (Breiman, 2001). Their benchmark dataset consisted of over 300 pulsar signals and about 9,600 noise candidates using observations from the Green Bank Telescope. They found that multiclass ensemble tree learners were the most efficient. Therefore, in most of the above papers, some variant of an ANN has been used for the post-processing of candidates from the pulsar search pipelines. Here, we start out with an ANN and showcase other algorithms which perform as good as or better than an ANN.

The outline of this paper is as follows. In Section 2, we provide an abridged pedagogic introduction to machine learning, including the definition of various quality scores. The pulsar dataset from the HTRU-S survey along with the features used for training are described in Section 3. In Section 4, we list the various machine learning algorithms applied to the pulsar dataset. Our implementation of ANN, Adaboost, Gradient Boosting Classifier, and XGBoost are described in Sections 4.1, 4.2, 4.3, and  4.4 respectively. We discuss the feature selection procedure in Section 5. We report the results of our machine learning algorithms in Section 6. We then conclude in Section 7.

2 SUPERVISED MACHINE LEARNING TERMINOLOGY

There are two types of supervised machine learning problems, namely classification and regression. Given a collection of samples, where each sample uniquely belongs to a group (also known as it’s class), classification is the process of putting samples into their respective classes as accurately as possible. Each sample is described via a collection of variables called ‘features’, which in some way is representative of the characteristics of each class. If for a given collection of samples, its true class labels (used to denote class membership) are also known, it is possible to build a mathematical model, which maps the ‘features’ (input) of a sample to the predicted class label (i.e., the class to which a sample belongs to) with high accuracy. A collection of samples for which both the feature data and class labels are known, is referred to as “labeled data”. Labeled data is usually bifurcated into two distinct sets: i) a ‘training set’ used to ‘learn’ a function that maps a sample’s features to a label, and ii) a test set used to assess the classification performance. A special case of classification involving only two classes is called binary classification. The separation of real pulsar signals from noise is an example of binary classification. The relationship between the features and their class variables is determined using a training set, which is a subset of the data for which we know both the features and the class labels.

It is a commonplace to use cross-validation to split randomly the available data into training and testing folds (independent samples) for analysis, to avoid problems associated with over-fitting or under-fitting, which leads to sub-optimal performance in practice. Cross-validation is used to build and test classification models iteratively, yielding an indication of aggregate data set performance (i.e. test on fold 1, train on remaining folds, then test on fold 2 and so on, aggregate results). Cross-validation is thus important for checking that the models we build are capable of generalizing beyond small training sets. The performance on the test set is used as the criterion to select the best algorithm.

More details on supervised machine learning techniques can be found in various monographs (Bishop, 2006; Michalski et al., 2013) and their astronomical applications are reviewed in (Ball and Brunner, 2010; Cavuoti, 2013).

2.1 Evaluation measures

In order to comparatively rank the performance of various machine learning algorithms, we calculate various performance scores for each algorithm, which we define in this section. We have used eight different scores222Score is a floating point number, which quantifies the performance of an algorithm to quantify the model performance, viz. recall, precision, accuracy, $f_{1}$ score, log loss, G-Mean, Area under Receiver Operating Characteristics (AuROC) and False Positive Rate (FPR).

In addition to these eight scores, we also evaluate the confusion matrix for every algorithm. A confusion matrix is a $c\times c$ matrix, where $c$ indicates the number of class labels. Each element ($C_{jk}$) of a confusion matrix is the number of observations labeled by the classifier as $j$, but which belong to class $k$. For our binary classification problem, the target class is considered to be positive if the candidate being classified is a pulsar and assigned the label of one. If the target class is a noise or RFI candidate, the candidate is assigned a negative class with label equal to 0 or -1. In the case of binary classification problem (our case), each element of the confusion matrix corresponds to TP, TN, FP, and FN, which are defined in Table 1. In a multi-class classification setting, such a correspondence is absent.

TP: True Positive. Those observations belonging to the TRUE class, which are correctly labeled by the classifier as positive. 2. 2.

TN: True Negative. Those observations belonging to the FALSE class, which are correctly labeled by the classifier as negative. 3. 3.

FP: False Positive. Those observations belonging to the FALSE class, which are incorrectly labeled by the classifier as positive. Hence, the name False Positive. This type of error is also called Type-I error. 4. 4.

FN: False Negative. Those observations belonging to the TRUE class, which are incorrectly labeled by the classifier as negative. This is also referred to as Type-II error.

Now, we define each of the eight scores used to evaluate the algorithms used in this paper.

Recall

(also known as Sensitivity) is defined as,

[TABLE]

A pristine machine learning classifier will have a recall value of $1$ and the minimum value for an egregious classifier would be [math]. A Recall of one implies that all positively classified observations belong to the TRUE class. This score is given prominence, when misclassifying a TRUE class observation has a higher cost than misclassifying a FALSE class observation, or in other words when Type-II error has a higher penalty than Type-I error. This is the case we need to consider for the pulsar separation problem discussed in this work.

Precision

is defined as,

[TABLE]

Precision is the ratio of TRUE class observations labeled correctly to the total number of observations, which were labeled as positive (irrespective of whether they are true positives or not). Similar to recall, even here the best value is $1$ and worst value is [math]. Higher the value of this score, better is the classifier in ascertaining the TRUE class observations.

Accuracy

is the most popular score in any classification scenario, where the class distributions are equally balanced, and is defined as,

[TABLE]

This score has the value of $1$ as the best value and [math] as the worst. An accuracy of $1$ implies that the classifier isn’t making any error whatsoever.

$f_{1}$** score**

also known as F-measure or balanced F-score (Bishop, 2006) is defined as,

[TABLE]

In other words, $f_{1}$ score is the harmonic mean of precision and recall. It provides an alternate measure of accuracy and has the best value at $1$ and worst value at [math]. We note that precision, recall, and accuracy range between values of 0 and 1, where a value of 1 indicates the absence of errors for that score.

Log Loss

also known as logistic loss or cross-entropy loss is defined as,

[TABLE]

In Eqn. 5, $y_{i}$ represent the class labels and $p_{i}$ are the corresponding probabilities. Unlike the other scores discussed above, the range of values of logloss falls between $[0,\infty)$, where a score of [math] is achieved in the case of a perfect classifier. Interested readers are advised to refer to  Bishop (2006) for more details.

G-Mean

is the geometric mean of recall and specificity. It is defined as,

[TABLE]

Specificity (Fawcett, 2006) is a measure of how well the classifier is able to label a negative class. It is analogous to recall, which is a measure of how well the classifier is able to label a positive class. The best and worst values of G-Mean score are $1$ and [math] respectively. This score has been given prominence in unbalanced datasets (He and Garcia, 2009).

Area under the Receiver Operating Characteristics

AuROC (Hanley and McNeil, 1983) is a score, whose best value is $1$ and worst is $0.5$. Receiver Operating Characteristics (ROC) is a plot showing the true positive rate versus false positive rate for a classifier. AuROC is the area under this curve, which is computed using the trapezoidal rule. A perfect classifier has an area of $1$. AuROC actually is an area and hence should have values less than $0.5$ as well. However, we can always swap our definitions of what we call ‘positive’ and ‘negative’ classes to get an AuROC score of greater than $0.5$. We get an AuROC score of $0.5$ for a completely random classification.

False Positive Rate

FPR is defined as the ratio of false positives to all the class observations that belong to the FALSE class in the dataset. It is defined as,

[TABLE]

Additionally, since our problem is a binary classification problem, it is also equal to $1-{\rm specificitiy}$.

3 PULSAR DATASET and SMOTE

3.1 Pulsar Detection

We briefly outline the steps involved in the detection of pulsars from raw radio data using periodicity searches. More details on each of these steps can be found in  Lorimer and Kramer (2004) and  Lyon et al. (2016) and references therein. The first major step in the pulsar search pipeline after data digitization, channelization, RFI excision and ‘clipping’ (Hogden et al., 2012), involves de-dispersion, which corrects for the frequency dependent delay the incoming signals experience due to the presence of free electrons in the interstellar medium. The amount of dispersion is governed by the integrated electron density along the line of sight, also known as the dispersion measure (DM). However, the DM is generally not known in advance. Therefore, we must search over a large range of possible DMs, to find the optimum DM that achieves the highest S/N for a suspect detection. A brute force search algorithm for pulsars involves a grid search in DM and acceleration space. For each putative DM and acceleration, periodic signals are searched for using FFT techniques and potential pulsar candidates are then selected from these searches. These candidates are then manually inspected to identify the pulsar-like sources, which later can be analyzed.

3.2 HTRU Survey

The dataset we have used in this manuscript for testing various algorithms is obtained through the reprocessing of data from the Southern High Time Resolution mid-latitude survey (Keith et al., 2010) by the PEASOUP pipeline. Briefly, the Southern HTRU Latitude survey (HTRU-S) is a survey of the southern sky ($30^{\circ}>l>-120^{\circ}$; $|b|<15^{\circ}$), carried out using the 13-beam receiver on the Parkes Radio Telescope to detect radio pulsars and also short-duration radio transients. A similar survey of the Northern skies has also been conducted using the Effelsberg radio telescope with a seven-beam receiver (Ng, 2013). More details of the HTRU-S survey strategy and specifications can be found in  Keith et al. (2010). This data has been reprocessed using a GPU-based PEASOUP pipeline with acceleration searches turned on (Morello et al., 2014) (hereafter M14). The pipeline searched for dispersion measures between 0 and 400 $\mathrm{cm^{-3}}$ pc and accelerations between $-50$ and $50$ $\mathrm{m/s{{}^{2}}}$. M14 manually processed their candidate set and constructed a dataset for machine learning purposes. This dataset consisted of 1200 real pulsars and to this, 90,000 non-pulsar observations (from RFI and other sources of noise) were added. The pulsar candidates encompass a diverse range of periods, duty cycles, and signal to noise ratios. It is unlikely that there are undiscovered pulsars in the set of noise candidates. This dataset (with the pulsar and noise candidates tagged for each event), was made publicly available by M14 for the development and testing of various machine learning algorithms by the wider scientific community. Our goal is to find a machine learning solution with the maximum efficiency in detecting pulsars and minimum contamination from noise candidates. In machine learning parlance as discussed earlier, we are tackling a binary classification problem.

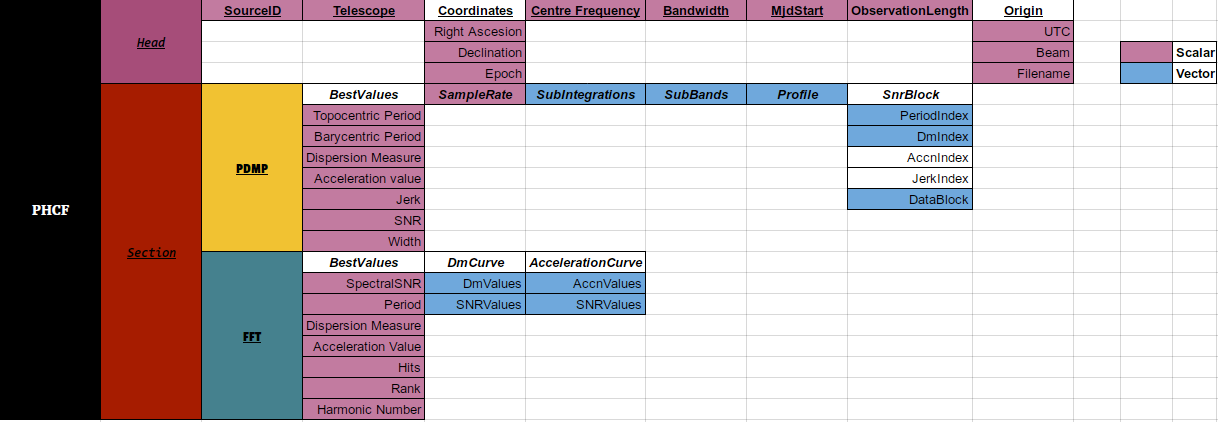

Each pulsar candidate is described in a PulsarHunter Candidate XML file, having the extension .phcx. See Figure 1 to view the schema of the xml tree.

For all the machine learning algorithms herein, we have used the same feature set as defined by M14. They are listed below, and henceforth we shall denote each feature with a corresponding numerical index (called feature index, $f_{ID}$), using [math]-based indexing. More details on each of these features can be found in  Lorimer and Kramer (2004). We have also included a Python script file in the Github repository, by the name of ExtractFeatures, which can be used to extract the following features from the PHCX files.

S/N Ratio of the folded profile: S/N ratio is a measure of the signal significance and is defined for a contiguous pulse window $W$ as (Lorimer and Kramer, 2004; Morello et al., 2014),

[TABLE]

where $s_{i}$ is the amplitude of the $i$-th bin of the folded profile, $w$ is the width of the pulse region in each bin, $\bar{b}$ and $\sigma$ represent the mean value and the standard deviation of the folded profile in the off-source region. Because of the large dynamic range of the S/N ratio, its logarithm is used as a feature. 2. 1.

Intrinsic equivalent duty cycle of the pulse profile: This is an approximate proxy for the total duration of the signal and is defined as the the ratio of the pulse width to its spin period. However, for millisecond pulsars one needs to correct for the large duty cycles due to dispersive smearing. The intrinsic equivalent duty cycle of a candidate is defined as,

[TABLE]

where $P$ is the period of the candidate and $\Delta\tau$ is the approximate dispersive smearing time and is defined in M14. 3. 2.

Ratio between barycentric period and dispersion measure (log scale): This is the logarithm of the ratio of the period and the dispersion measure. 4. 3.

Validity of dispersion measure: This is a figure of merit to bifurcate the dispersion measures of pulsars and RFI signals and is defined as,

[TABLE]

where $DM$ is the dispersion measure of the candidate and $DM_{min}=2$ for HTRU data. This feature is used to reject non-pulsar candidates below a certain threshold. 5. 4.

Persistence of signal in the time domain: This is based on the ansatz that a true pulsar will be consistently visible in the time domain for most of the observation and is defined following Lee et al. 2012,

[TABLE]

where $s$ is the S/N ratio of a candidate in a sub-integration, and $b$ is the benchmark S/N ratio, which is a user-defined parameter and the choice adopted by M14 is $b=\frac{2S_{min}}{\sqrt{n_{sub}}}$. 6. 5.

RMS distance between the folded profile and the sub-integrations. This is a measure of the variability of the pulse shape from the observations. The folded profile as well as every sub-integration is normalized to values between 0 and 1. The root mean square distance between the folded profile of candidate and each of its sub-integrations is defined as,

[TABLE]

where $p_{i}$ is the value of the $i$-th bin of the folded pulse profile, $s_{ij}$ is the value of $i$-th bin of the $j$-the sub-integration.

All of the above features were scaled to have zero mean and unit variance, before training. There are only $1,192$ pulsar observations in the dataset, whereas there are $87,680$ non-pulsar observations. For completeness, we report the performance of all the ML algorithms on both the original dataset and on an artificially inflated version of the dataset using Synthetic Minority Over-sampling Technique (SMOTE) (described in the next subsection), which accounts for the mismatch between the ratio of the pulsar to non-pulsar candidates. The motivation behind doing so is to compare how these algorithms perform on highly skewed datasets and also not to bias the results from the ML algorithms.

3.3 SMOTE

Synthetic Minority Over-sampling Technique, popularly known as SMOTE (Chawla et al., 2002), is a very well known technique employed in high class imbalance problems. We note that high class imbalance occurs when the class distribution in a classification problem is skewed toward a particular category (either in the training data, or the real-world data). A ratio of 1:10 is generally considered as imbalanced, and 1:100 or greater is considered as highly imbalanced (He and Garcia, 2009). Our dataset has a ratio of 1:73 making it a high class imbalance problem. The crux of this technique involves manufacturing artificial vectors in the feature space to create synthetic datasets, so as to make the ratio more uniform. This generation of mock data is done until the ratio of the minority to the majority class population reaches a user specified threshold, which is passed as an argument to the SMOTE algorithm. For our implementation of SMOTE, k-Nearest Neighbors (kNN, Altman 1992, Chapter 13 of Hastie et al. 2001) is employed in the process of creation of synthetic feature vectors. For every feature vector belonging to the minority class, it’s $k$ nearest neighbors are determined, from which a random neighbor is chosen and in-between this randomly chosen neighbor and initial feature vector, synthetic feature vectors are interpolated randomly. This is a bird’s-eye view of the algorithm. Interested readers should refer to Chawla et al. (2002) for more details.

SMOTE has been previously used for the classification of unknown point sources from the Fermi-LAT catalog (Abdo et al., 2013) and classification of variable stars from Kepler (Bass and Borne, 2016). Two years ago, it has also been used in a pulsar search pipeline to address the class imbalance problems (Devine et al., 2016).

We run all our machine-learning algorithms on two datasets, the original one, on which no SMOTE has been applied, which we refer to as “non-SMOTE” applied data, and another one with SMOTE applied, which we refer to as “SMOTE”. We use SMOTE to artificially balance the dataset, i.e. to have a 1:1 ratio of pulsar to non-pulsar samples.

Our approach of addressing the high class imbalance problem is complementary to what M14 have done. M14 performed oversampling of the pulsar-only dataset, until they have four non-pulsar (negative) samples for each pulsar (positive) sample in the training dataset. On the contrary, we employed SMOTE to artificially balance the dataset. We have used the Python module called imbalanced-learn to apply the SMOTE technique to our datasets.

4 MACHINE LEARNING METHODS

In this work, we have applied four different algorithms to this pulsar classification problem:

Artificial Neural Network (ANN) 2. 2.

Adaboost 3. 3.

Gradient Boosting Classifier (GBC) 4. 4.

eXtreme Gradient Boosting (XGBoost)

To the best of our knowledge, among these four algorithms, Adaboost, GBC, and XGBoost have never been used before in the core pulsar search pipelines or during the post-processing of pulsar candidates. Although, we are only reporting the aforementioned techniques, we also tried the Naïve Bayes algorithm. However, the performance of the Naïve Bayes was unsatisfactory. The core premise of the Naïve Bayes algorithm is conditional independence between the features for a given target label. We find that there is significant amount of correlation between the features. Hence, Naïve Bayes fails on this dataset (Zhang, 2004). Therefore, we do not report the results from the Naïve Bayes algorithm. We note that this agrees with the conclusions from Devine et al. (2016) and  Smithbauer (2013), who also found that Naïve Bayes performs poorly on pulsar data. However, Lyon et al. (2014) and Lyon et al. (2016) observed reasonable performance with this algorithm using a different feature set on the HTRU-1, HTRU-2, and LOTAAS-1 datasets.

We now describe in detail our implementation of the four algorithms and present their classification results. All four algorithms have been implemented in Python using the scikit-learn module (Pedregosa et al., 2011). The implementation code, along with the dataset, is available in the Github repository333https://github.com/shiningsurya/pulsarml. We have also added the Python code to generate the dataset (csv) file from the PHCX Candidates files. More details about the code can be found in the Github repository. In a typical $k$-fold cross-validation (CV) procedure, the entire dataset is split into $k$-folds and the classifier under test is trained on $(k-1)$-folds and assessed on the remaining one fold, which was not used for training. This process is repeated $k$ times so that the classifier under test can be assessed (by computing the scores) on each fold of the dataset. To further reduce the variance in the scores, the complete $k$-fold CV is performed multiple times and the scores are averaged over these iterations. A variant of the CV procedure, where the dataset is judiciously broken into folds such that the ratio of positives to negatives in each fold is preserved as best as possible, is called stratified CV, which we use here. In the non-SMOTE case, the classifier under test is simply trained on the training fold. However, in the case of SMOTE, we employ SMOTE in the CV procedure to artificially balance the training fold (and only the training fold) and on this inflated training fold, the classifier under test is trained. It is crucial to note that in both the cases (SMOTE and non-SMOTE), the classifier is tested on the same test fold. We also note that the hyper parameters for all the ML models (cf. Table 2) are the same in both the non-SMOTE and the SMOTE cases.

We carry out $20$ iterations of $5$-fold stratified CV for each of the machine learning algorithms discussed in this work using the procedure discussed above. We therefore get $100$ values for each of the scores, which we aggregate and report.

4.1 ANN (MLP)

An Artificial Neural Network (ANN) is a popular tool in the machine learning community. Complete details of an ANN can be found in Bishop (2006) and Hastie et al. (2001). Most machine learning algorithms used by the pulsar community are some variant of the ANN. ANNs are also widely used in optical astronomy (Sadeh et al., 2016), in particular for photometric redshift estimation (eg. Desai et al. 2012).

We have used a simple Multi-Layer Perceptron (MLP) similar to M14. The hyper parameters used for training the ANN are specified in Table 2. We make use of the SKNN Python module to implement this MLP.444Please note of the dependency issue of SKNN with theano.

More details on our implementation can be found in the Github repository. The hyper parameters, along with all the connection weights, form a functional mapping from the input features to the output (target variable). The loss function is defined on the predicted target and the true target (which comes from the labeled data).

Minimization of this loss function is a high dimensional non-convex problem. Hence, we use a gradient-based method to perform the optimization. The heuristics are as follows: Our choice of hyper parameters and training data yields a specific level of training error. We then compute the gradient and update the connection weights accordingly (in the direction of negative gradient) so as to reduce the training error. Our aim is to find the most optimum set of connection weights that lead to the lowest training error. The most crucial step here is the computation of the connection weights from the gradient, and for this purpose, we employ the learning rate. Learning rate is defined as the hyper parameter which regulates the magnitude of the distance we want to traverse against the direction of its gradient. For all the gradient-based solutions, determining the optimal learning rate is often the trickiest problem. If we choose too high a value of this hyper parameter, we might never converge to the global minima (maxima) but could pass right by it, whereas too low a value of the learning rate could possibly increase the convergence time and the possibility of getting stuck in a local minimum (maximum). At times, finding an optimal parameter becomes so difficult that switching to alternate machine learning solutions may seem more prudent. In order to mitigate this issue, we have used Adam (a method for stochastic optimization) as our gradient descent optimization algorithm (learning rule), instead of the default Stochastic Gradient Descent (SGD) in SKNN. In the SGD optimization algorithm, the learning rate is either a constant or is reduced after a fixed number of epochs. Adam, instead computes the running first and second-order (un-centered) moments of the gradients and dynamically adjusts the learning rate on the fly. The base learning rate (‘original learning rate’) is normalized by dividing by the square-root of the non-centered and bias corrected second-order moment of the gradients, and followed by scaling using the running bias-corrected first-order moment of the gradient as the scale parameter. It is important to note that these gradients essentially decay exponentially, since the neural network is converging. There is also an additional fudge factor added to this square-root (second order moment), in order to ensure that the division operation doesn’t throw a ‘divide-by-zero’ exception. More details about Adam can be found in Kingma and Ba (2014). It is also worthwhile to note that Adam draws it’s name from “ADAPTIVE” moments, since the running moments determine the learning rate.

We note that M14 employed a single hidden layer with eight hidden units and used $\tanh$ as the output layer activation function. They have trained using the ‘mini-batch’ approach, wherein the weight updates happen after a batch (subset) of the data has been processed. On the other hand, we have implemented a 6:6:4 MLP and also used a different learning rule (Adam), activation function (Leaky RLeU Maas et al. 2013), and the output layer of softmax (Hinton and Salakhutdinov, 2009). The softmax layer ensures that the final output lies between $[0,1]$ (analogous to probabilities), contrary to $\tanh$ function, whose range is $[-1,1]$.

4.2 Adaboost

Adaboost, an acronym for Adaptive Boosting, takes a collection (an ensemble) of ‘weak learners’ and recursively trains them on copies of the original dataset, all the while focusing on the ‘difficult’ (or outlier) data points (hence the word ‘Adaptive’) (Freund and Schapire, 1995). This, in turn, ensures that such an ensemble performs drastically better on the test data. A natural choice of weak learners are simple rules or logic, which are realized as decision trees, also known as algorithmic flowcharts (Breiman et al., 1984).

Those decision trees which are of depth one, are called ‘decision stumps’ (Ai and Langley, 1992). More details about Adaboost can be found in Section 2 of Mayr et al. (2014). Adaboost has been shown to outperform other machine learning algorithms for many different supervised classification problems in optical astronomy (Hoyle et al., 2015; Sevilla-Noarbe and Etayo-Sotos, 2015; Elorrieta et al., 2016; Acquaviva, 2016; Zitlau et al., 2016).

We have used the same implementation of Adaboost as in  Hoyle et al. (2015), where it was applied to photometric redshift estimation of SDSS DR10 data and shown to be more robust against outliers and provided better matches with spectroscopic redshifts than the ANNs. We have defined our Adaboost model using two properties (specified in Table 2), viz., the number of trees and the learning rate. The former corresponds to the number of weak learners in the ensemble and the latter determines how strongly each weak learner should contribute to the weights. For a large number of estimators, each estimator would have it’s own effect on calculating the weights, which would get enhanced strongly. On the contrary, for a smaller number of estimators, the weights assigned may not be sufficient for the model to learn a ‘tricky’ sample (hard to classify). In other words, there exists a trade-off between the number of estimators and the learning rate. Please note that Adaboost is a meta-classifier (Sammut and Webb, 2011), which takes N copies of the weak learner and trains them on the same feature set but with different weights assigned. These N copies correspond to the number of weak-learners. See Belanich and Ortiz (2012), which extols the power of Adaboost on mathematical grounds.

4.3 Gradient Boosting Classifier

A Gradient Boosting Classifier (GBC) is a form of ensemble classification system. Much like Adaboost, which was discussed in the previous subsection, GBC iteratively adds simple classifiers (decision trees, although not necessarily of depth one), which are successively trained on the errors of the predecessor classifier. In other words, the very first classifier of the ensemble is trained on the dataset, whereas the second classifier is trained on the errors of the first classifier and added to the first classifier and so on. The merging takes place in an aggressive fashion; the successor tree couples with the predecessor tree using a coupling parameter, which is optimized so that the error of the combined system is minimized. Note that, this is formally a linear optimization problem. This hierarchical procedure is also known as boosting. See Friedman (2001); Tramacere et al. (2016) for a thorough understanding of Gradient Boosting Machines. Gradient boosting has also been widely used in astrophysics for photometric classification of Type 1a supernovae (Möller et al., 2016) and for automated galaxy detection and classification using the Galaxy Zoo catalog (Tramacere et al., 2016). Another hyper parameter in GBC is the ‘learning rate’, which governs how strongly a classifier should be merged with it’s predecessor. Learning rate lends itself to GBC as a regularization mechanism. In GBC, we employ $4$ hyper parameters: learning rate as defined above, number of estimators (n_estimators, number of trees in ensemble), maximum depth, and minimum samples per leaf, the last two are actually hyper parameters of the decision tree (member of the ensemble). We note that all the members of the ensemble have the same hyper parameter set which can be found in Table 2. We followed the same procedure as discussed at the start of this section. We used the scikit-learn implementation of GBC.

4.4 XGBoost

XGBoost (Chen and Guestrin, 2016), is an acronym for eXtreme Gradient Boosting, and works in the same way as Gradient Boosting but with the addition of Adaboost-like feature of assigning weights to each sample.

XGBoost is a tree-based model which gained a lot of popularity right since it’s inception in the machine learning community in 2016. This model was also the winner of HEP meets ML Kaggle challenge (Chen and He, 2015) and our problem is no exception to that. In astrophysics, XGBoost was recently used for the classification of unknown point sources in the Fermi-LAT catalog (Mirabal et al., 2016) and also for studying the stability of planetary systems using physically motivated features with the help of supervised learning (Tamayo et al., 2016).

Unlike in GBC, where every member of the ensemble (tree) is built sequentially, XGBoost on the other hand, can parallelize this task and give substantial speed boost (See Sections 4,5 of  Chen and Guestrin (2016) and references therein). Moreover, the regularization techniques, such as L1 and L2, which are used to control over-fitting are available in XGBoost, but not in Adaboost and GBC. Another key feature of XGBoost is the scalability it offers (Alves, 2017). This means that it can be efficiently run on distributed systems and can also work on very large datasets with ease555Refer to this url for the list of use-cases: https://github.com/dmlc/xgboost/blob/master/demo/README.md#usecases. XGBoost can also be trained using Graphical Processing Units (GPUs, See Mitchell and Frank 2017) and can offer extremely high speed boosts. While our dataset is not as onerous as those on which XGBoost is usually run, ours is the first proof of principles application of XGBoost to the pulsar classification problem.

XGBoost is readily available as a Python package, which is used in this work. We use five hyper parameters for training in XGBoost. We build an ensemble of $500$ estimators with a learning rate of 0.1% (doubled the number of trees compared with Adaboost, GBC because learning rate was changed to $0.001$ to account for the ‘learning-rate/number of trees‘ trade-off 666For a large number of trees, higher learning rate would make our model over-fit to the data. Hence, a smaller learning rate should go with a larger number of trees so that our model can learn the overall structure and not the intricate nuances (noise) of the signal). Every tree in the ensemble has a maximum depth of $3$ with $L1$ regularization parameter of 0.01%. We have also used the gamma hyper parameter which controls the tree building process by constraining the amount of gain a split should have.

5 Feature Selection

We now delve into the process of feature selection. In any supervised ML algorithm, the features that a model learns from largely determine the accuracy of the model. An information-theoretic way to quantify the efficacy of a feature is to compute the Mutual Information (MI) between a feature and its corresponding class label (Macedo et al., 2017). MI is defined as the amount of information conveyed by one random variable through another random variable (Here, we treat the features as some random variables). Mathematically,

[TABLE]

where $p$ represents the probability density function (p.d.f), whereas $x$ and $y$ are two continuous random variables. Estimating the entropy from first principles (by computing the p.d.f from the histogram and carrying out the integration) is a very computationally challenging task. To alleviate this, we use the sklearn.FeatureSelection 777This functionality was added in version 0.19 module, which has functions to compute MI. These functions actually use the estimator which is based on Kraskov et al. 2004.

We use the minimum Redundancy Maximum Relevance

(mRMR) procedure (Peng et al., 2005; He et al., 2013; Macedo et al., 2017) to determine the feature rankings using the non-SMOTE and SMOTE datasets. This procedure is widely used in the machine learning community for feature selection (Chandrashekar and Sahin, 2014), as it provides an algorithm-agnostic criterion for selecting the best feature and its computational cost is not onerous. Although, mRMR has never been used in electromagnetic astronomy before (to the best of our knowledge), it is routinely used in neutrino astronomy, in particular for the IceCube event selection pipeline to select the neutrino events from the background of cosmic ray muons (The IceCube Collaboration et al., 2015). For this procedure, we assign a rank to the feature based on it’s score which is defined as:

[TABLE]

where $x_{i}$ denotes the $i^{th}$ feature column and $d$ represents the number of features. This score takes into account the mutual information (MI) between a feature and its class label (or how powerful the feature is) and also penalizes for any correlations between the features. Naturally, higher the score, more conspicuous is the feature, and hence its rank should be higher. MI between a feature and the corresponding class label (relevance) doesn’t involve any other feature, and hence does not measure the inter-feature relationships. Therefore, by definition, mutual information does not include any correlation between the features. The score is defined in such a way to account for ‘relevance’ and ‘redundancy’.

Tree-based ML methods, discussed in this work, provide ‘feature importances’ out of the box. At the grassroot level of any tree-based ML method, a feature is chosen, which is used to make a split (corresponding to a branch in the decision tree), and the number of times a feature is chosen to split can be treated as a measure of the importance of the feature. However, in practice the maximum reduction in the error when a feature is used to make the split is used to gauge it’s feature importance. But, still our understanding is valid because if a feature is frequently used, it has better descriptive power and naturally is assigned a higher rank. The criteria for selecting a feature to partition the data is related to our problem statement. In a regression setting, the objective is to reduce the variance in the partitions so that every sample in any partition is representative of each other. On the other hand, in a classification setting (such as the problem at hand), only a feature which separates the data in such a way that each partition is homogeneous and doesn’t contain any contamination is chosen. However, the motivation that the samples belonging to a particular partition are representative of each other remains the same as in a regression setting. Naturally, features which are chosen larger number of times are more powerful (in terms of their separation ability) and as a natural outcome, the tree-based methods provide additional diagnostic insights about the data on which they are trained. More details on these aspects of feature selection can be found in  Hoyle et al. (2015) and Chapter 10 of  Hastie et al. (2001).

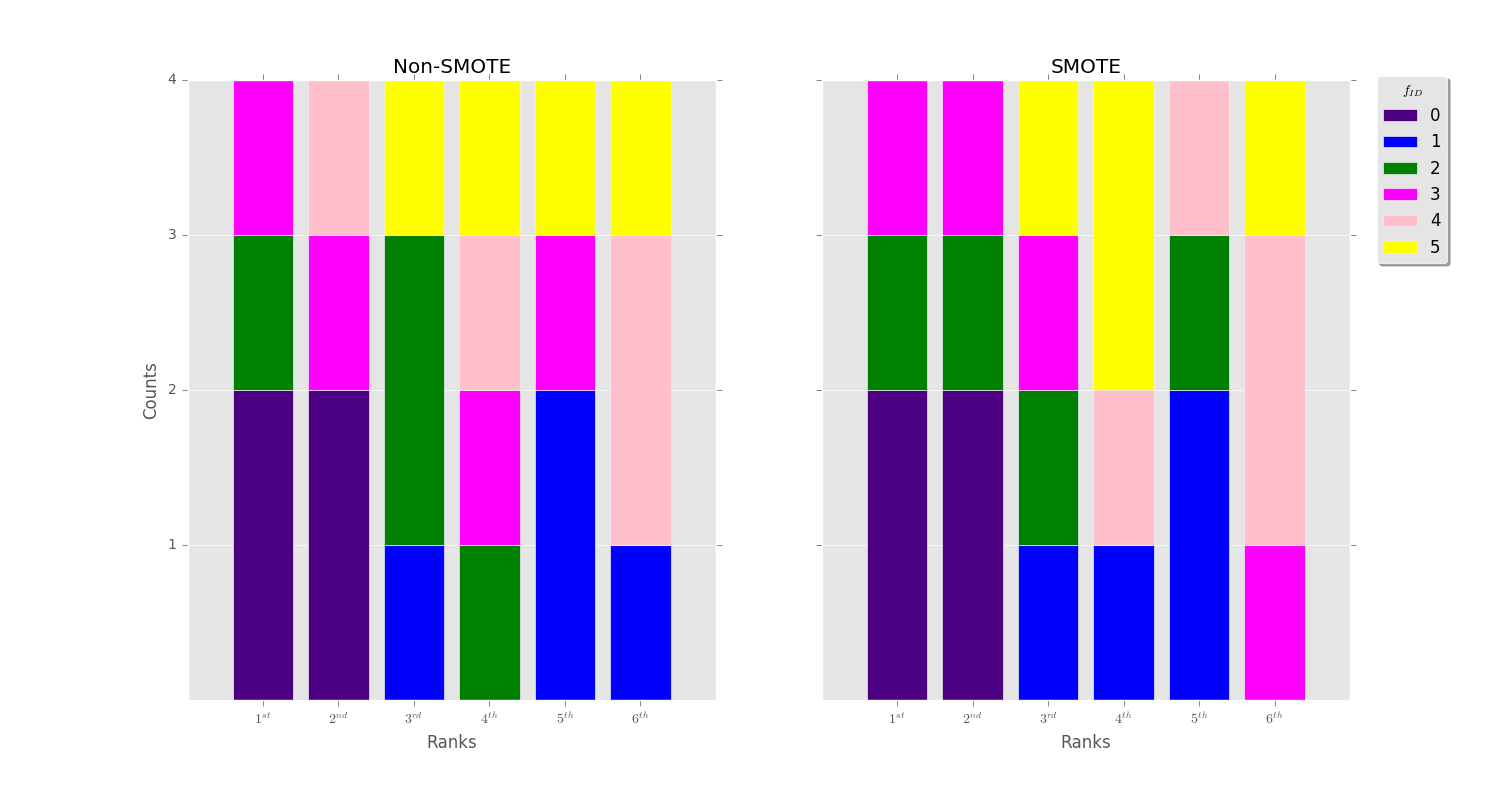

To interpret the feature rankings coherently, we have presented the data using a stacked bar plot in Fig. 2. For both the non-SMOTE and SMOTE cases, we have four different rankings based on Adaboost, GBC, XGBoost and mRMR. For every rank, we plot the number of times a given feature was assigned that rank in a stacked bar plot, with each feature having a unique color code. For instance, $f_{ID}=0$ ranks in first and second places twice in both the non-SMOTE and SMOTE cases, which means, that this feature has the most descriptive power. This result is in agreement with Lyon et al. (2016). Lastly, we note that the distribution of features with respect to the ranks is similar in both the non-SMOTE and SMOTE cases, which implies that our technique of artificially inflating the dataset has not significantly altered the descriptive power of the features in the dataset.

6 Results

We now report the salient results from applications of all the four ML methods.

The confusion matrices of all the ML algorithms, on both the SMOTE and non-SMOTE datasets are shown in Table 3. A tabular summary of the various quality metrics can be found in Table 4. We make the following observations:

• •

All the algorithms give approximately the same values for the confusion matrices for both the datasets. The number of false pulsars is largest for the ANN (MLP).

• •

The recall, accuracy, $f_{1}$ score, G-mean, and AuROC perform about the same for all the four algorithms, for both the SMOTE and non-SMOTE datasets.

• •

Precision varies across the datasets, depending on the ML algorithm applied. In case of Adaboost, the difference between non-SMOTE and SMOTE precision is the largest, and is smallest in the case of GBC, which is surprising, since both these ML algorithms are tree-based.

• •

The log-loss for the ANN (MLP) using the non-SMOTE datasets is about an order of magnitude worse than that for the other algorithms. However, they are comparable, when considering the SMOTE datasets.

• •

For all the algorithms, we have been able to achieve a recall value of close to 100%, but with a FPR about an order of magnitude lower than the value of 0.64%, obtained in M14. Among the four algorithms, ANN (MLP) shows the largest FPRs for both the non-SMOTE and SMOTE cases, compared to the others.

7 Discussions and Conclusions

We have run multiple supervised machine learning algorithms to evaluate the efficacy and robustness of the separation of true pulsar signals from noise and RFI candidates, using data from the HTRU-S survey, a part of which has been made publicly available by M14. We have reported our implementation and results from four of these algorithms, namely an ANN Multi Layer Perceptron (ANN (MLP)), Adaboost, Gradient Boosting Classifier (GBC), and XGBoost, all of which report high accuracy and G-mean. The last three algorithms have never been previously applied either in the core pulsar searches, or in any post-processing pipeline used to separate the real pulsars from noise candidates.

In addition to the feature ranking based on importances, as returned by the tree-based machine learning methods (Adaboost, GBC and XGBoost), we have also implemented feature selection using the Minimum Redundancy and Maximum Relevance Feature Selection (mRMR) approach. This is the first application of mRMR in electromagnetic astronomy. To alleviate the high class imbalance (high non-pulsars candidates to pulsars candidates), we have used the Synthetic Minority Over-sampling Technique, also known as SMOTE, to artificially balance the datasets. For the same set of hyper parameters, each ML method was trained on the original (non-SMOTE) as well as the SMOTE applied dataset in a $20\times 5$-fold Stratified CV fashion. We evaluated the various scores for all four of these algorithms and reported the average scores, which can be found in Table 4.

Compared to M14, which achieved a FPR of $0.64\%$ at a recall of $100\%$, our ANN (MLP) implementation achieved FPRs of $0.059\%$, $0.055\%$ for the values of recall of $0.990$, $0.998$ in non-SMOTE and SMOTE cases respectively, . However, M14 performed over-sampling to alleviate the high-class imbalance, whereas, we did not address it for the non-SMOTE case, and applied SMOTE to balance the dataset in the other case artificially. Our alternate implementation of ANN (MLP) as well as the tree-based ML methods resulted in FPRs about an order of magnitude lower than that of M14 for both the non-SMOTE and SMOTE cases.

An ideal classifier must be able to classify both the pulsars and non-pulsars correctly. In other words, it should have zero misidentified pulsars and zero misidentified non-pulsar candidates. This essence is conveyed in the accuracy, but, given the high-class imbalance in the dataset, the accuracy score is susceptible to be misleading. An ‘all-negative’ classifier (which labels all the candidates as a non-pulsar irrespective of input data) would report an accuracy of $0.9$, if applied to a dataset with $10$ pulsars (positive instances) and $90$ non-pulsars (negative instances), whereas recall, precision, $f_{1}$, G-Mean would all vanish. To alleviate this issue, we have employed SMOTE to artificially inflate the pulsar-set (positive instances) to make the dataset more balanced. We note that the SMOTE dataset led to no significant improvement in the scores compared to the non-SMOTE dataset, which is counterintuitive.

One possible reason for the above result could be that the tree-based algorithms are inherently more robust to class imbalance. Similar results have also been observed by Lyon et al. (2014, 2016), wherein Gaussian Hellinger Very Fast Decision Tree (GH-VFDT) was shown to maximize the classification performance in heavily imbalanced data streams. In the case of an ANN (MLP), where the class imbalance is known to have a strong impact on its performance, we assert that our choice of learning rule and amount of iterations for which we need to train, allowed the ANN (MLP) to overcome the high class-imbalance at the expense of large amount of training time and computational resources.

Tree-based machine learning algorithms automatically yield ‘feature importances’, which provide many insights about the data. We have reported these feature importances along with mRMR based rankings on both the non-SMOTE and the SMOTE datasets (cf. Fig. 2.) Considering all the feature rankings, we found that the S/N of the folded profile ($f_{ID}=0$) was the most descriptive feature. Note, that this is in agreement with similar conclusions from  Lyon et al. (2016).

In our set of machine learning methods, which we have successfully implemented, we note that recall, accuracy, and G-Mean varied only after the third significant digit. Therefore, for our dataset it was not possible to comparatively rank these algorithms on the basis of the above performance scores. So, we considered a heuristic approach, based on qualitative aspects to compare them. ANNs, which have been shown to work quite well on classification tasks such as this in earlier works provide no diagnostic information or interpretation of what is happening ’behind the scenes’. Interpretation of ANNs is a long standing problem in the Machine learning community, which renders ANNs as nothing more than black boxes (See (Benitez et al., 1997; Mantas et al., 2006), which try to provide some insight into the working of an ANN). Furthermore, they require huge amount of computational resources for training and testing, and offer a vast palette of hyper parameters, which makes it somewhat cumbersome to tune. While there are still some use-cases where, the ANNs and their variants , e.g. Convolutional Neural Networks (CNNs), are the state-of-the-art and unmatched by any other machine learning methods, the problem at hand is not one, where the choice of an ANN would be ideal. Tree-based methods, on the other hand, seem very well suited as they are fast in training/testing, provide powerful insights about the data and are much simpler to train.

Adaboost, which is strictly not a tree-based ML method but a meta-classifier also does well on the problem at hand. It assigns and manipulates the weights of each datum in the training set so that even the ‘tricky‘ points are modeled and accounted for. One immediate concern this methodology raises is: how would it perform on noisy data? The scores reported may obfuscate the underlying requirement of clean, superior quality data for the algorithm to train on, which unfortunately, is never at our disposal all the time.

The ideology of Gradient Boosting Classifier (GBC) to sequentially train the classification trees on the errors of the predecessor tree in an additive fashion is almost identical to that of Adaboost. The main high level difference between the two algorithms is that, Adaboost assigns a high weight to the ‘tricky’ datum, whereas GBC takes the help of another tree to learn that ‘tricky’ datum. Quite interestingly, the idea of assigning weights was conceived before the idea of using the gradient, which is used to train the successor trees. Adaboost were first used in 1995 and GBC in 2001. Similar to the ANNs, the learning rate hyper parameter plays a decisive role in controlling the performance of GBC. One serious drawback of GBC is its sequential algorithm, which makes it powerless in the face of an enormous onslaught of data.

We note that XGBoost supersedes Adaboost and GBC, and provides a parallelization capability (including GPU support), has the ability of regularization, and is tailor-made for extreme value problems. In the SKA era, which is akin to Big Data era for the radio astronomers, one would expect XGBoost to be the de-facto algorithm for most ML purposes.

We end, by pointing out that our results and conclusions are based on a single dataset and feature set, used in  Morello et al. (2014), and we have not yet tested these algorithms on other datasets. So it is possible that our results are specific to the dataset been used. We do plan to implement these algorithms on other publicly available pulsar datasets (for eg. Lyon et al. 2016) in future works. We also plan to apply other ML-based post-processing pipelines such as PICS (Zhu et al., 2014) on this same dataset.

We hope that our results based on publicly available post-processing data from the HTRU-S survey processed with the PEASOUP pipeline provide impetus to the pulsar community to consider implementing XGBoost as well as Adaboost and GBC in their pulsar (and other radio transient search) pipelines to aid in the automated separation of RFI and other noise candidates. Conversely, we hope that this work spurs other pulsar groups to make their post-processing data public (similar to what is done for optical large-scale structure photometric and spectroscopic surveys), so that people outside the pulsar community can run and tune their favorite machine learning algorithms on these datasets. We have also made available our ipython notebooks containing all the codes to reproduce our results at https://github.com/shiningsurya/pulsarml

Acknowledgments

We would like to thank Robert Lyon and Vincent Morello for invaluable feedback and comments on the manuscript, and to Vincent Morello and Ewan Barr for useful correspondence about the HTRU dataset and the SPINN algorithm, and for making their data public. We are also grateful to P.K. Srijith and Ben Hoyle for many enlightening discussions about machine learning.
