Gas gap studies about streamer operated RPCs

TL;DR

This paper compares two RPC geometries operated in streamer mode to evaluate their suitability for low rate experiments, considering recent developments for high rate capabilities at LHC.

Contribution

It introduces a comparison between standard and new RPC geometries in streamer mode, addressing their potential for low rate applications amidst high rate upgrade needs.

Findings

New geometry shows improved streamer operation stability

Standard geometry remains suitable for low rate experiments

Comparison informs detector design choices for future experiments

Abstract

The requirement of high rate capability for operation at LHC, led 20 years ago to the achievement of Resistive Plate Chambers operated in avalanche mode, thanks to the introduction of new gas mixtures and to the development of the Front-End electronics. The need for a further increase of the rate capability, in view of the upgrades of LHC, is imposing new detector geometries with thinner gas gaps and electrodes. Streamer operation of RPCs may still be suitable for low rate experiments, and therefore in this paper a comparison between two different detector geometries, the old standard and the newly proposed one, is performed in streamer mode.

Figures

Tables

Table 1. Table 1: Summary of the gas mixtures used in the tests.

Mixture	Ar/HFO-1234ze/SF6 volume ratios
1	76.8/23.1/0.1
2	65.6/34.2/0.2
3	54.4/45.4/0.2
4	44.3/55.5/0.2

Full text

\keywords

Gaseous detectors, Resistive plate chambers, Electrical discharge in gases.

1 Introduction

Resistive Plate Chambers (RPCs) are gaseous detectors used in LHC experiments [1] because of their high rate capability and time resolution in avalanche mode. Operated in streamer mode, they have been also used in large area apparatuses for neutrino [2] and cosmic ray [3] physics.

Present studies about bakelite electrode RPCs are mainly addressed to the improvement of the rate capability in avalanche mode for the upgrades of ATLAS and CMS experiments at LHC, involving the reduction of the gas gap and of the electrode thickness [4].

In view of a possible use of single gap streamer-operated RPCs at low rates, a comparison has been done between the detector performances with two geometries:

• •

geometry 1: 2 mm thick gas gap and 2 mm thick bakelite electrodes (so far the standard in use);

• •

geometry 2: 1 mm thick gas gap and 1.2 mm thick bakelite electrodes.

All the chambers used in the tests have been produced by the General Tecnica, where RPCs have been produced for many experiments, such as ATLAS, CMS, ALICE, BABAR, ARGO and OPERA.

In section 2 the experimental set-up is briefly described, together with the analysis. The results are displayed in section 3, in terms of efficiency, multi-streamer probability, timing properties and streamer signal parameters. A summary of the main conclusions is given in section 4.

2 Experimental set-up and analysis description

The experimental set-up is composed by five RPCs, $10\times 10$ cm2 wide, piled up. Three chambers, made according to geometry 2, are used to trigger cosmic rays. In between them, there are two other RPCs under test, one similar to the trigger ones and the other one produced according to geometry 1. All the chambers are read-out by means of copper pads covering the whole detector surface. Negative polarity induced signals are discriminated at 100 mV (150 mV) for 1 mm (2 mm) gas gap RPCs and sampled by means of a CAEN N6742 digitizer [5] at 5 GS/s. Pedestals are evaluated on a single waveform basis, averaging the first 200 samples.

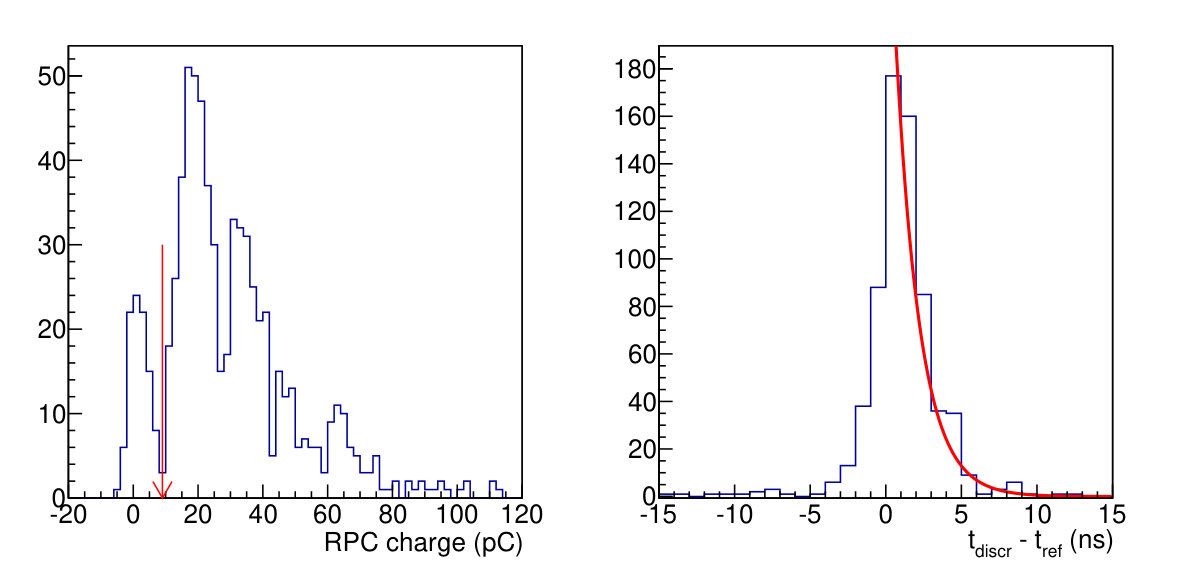

The efficiency is measured using the prompt charge distribution, obtained by integrating the read-out signal waveform. The detector is considered efficient if the measured charge is greater than a cut value defined in such a way to separate the events without streamers, as shown in figure 1. The obtained values are compatible within statistical errors with the efficiencies measured by counting the events with the signal waveform crossing the discrimination threshold.

The multi-streamer probability is estimated checking by eye a sub-sample of the acquired events; multi-streamer events are defined as those with either after-pulsing or streamer signals with very high amplitude (twice that of standard events). In a similar way a sample of events is selected in order to measure the single streamer parameters: prompt induced charge, amplitude, rise-time (from 10% to 90% of the amplitude) and Full Width Half Maximum (FWHM).

The timing parameters, i.e. the streamer formation time and the detector time resolution are measured from the time difference between the discriminated signals of the RPCs under test and one of the trigger chambers, used as a reference ($t_{discr}-t_{ref}$). The time of the maximum is used as estimator for the difference between the streamer formation times of the RPC under test and of that used as a reference. The right queue of the distribution is fitted with an exponential and the time constant is taken as an estimation of the time resolution. An example of the distribution with the fit is shown in figure 1.

The induced signal amplitude is influenced both by the charge ionized in the gas (dependent on the gap) and also by the ratio between the electrode thickness and the gas gap. Indeed, according to the Shockley-Ramo theorem applied to RPC detectors, the induced signal is attenuated by a factor $A_{geom}=1+2d/\epsilon_{r}g$, where $d$ is the electrode thickness, $g$ is the gas gap and $\epsilon_{r}$ is the bakelite relative dielectric constant. However, in a wide range of $\epsilon_{r}$ values from 3.5 to 22, less than a 10% decrease of the attenuation factor for geometry 2 with respect to geometry 1 is expected. Therefore a comparison between the two considered geometries is basically a comparison between the discharges in the two different gas gaps.

The tests described in this paper have been performed on RPCs operated in streamer with gas mixtures made of Argon, TetraFluoroPropene (HFO-1234ze) and Sulphur Hexafluoride (SF6), shown in table 1. It is worth noticing that mixtures containing HFO-1234ze have been recently proposed for use in RPCs (see for instance [6] and [7]), both for avalanche and streamer mode operation, due to its low Global Warming Potential.

3 Results

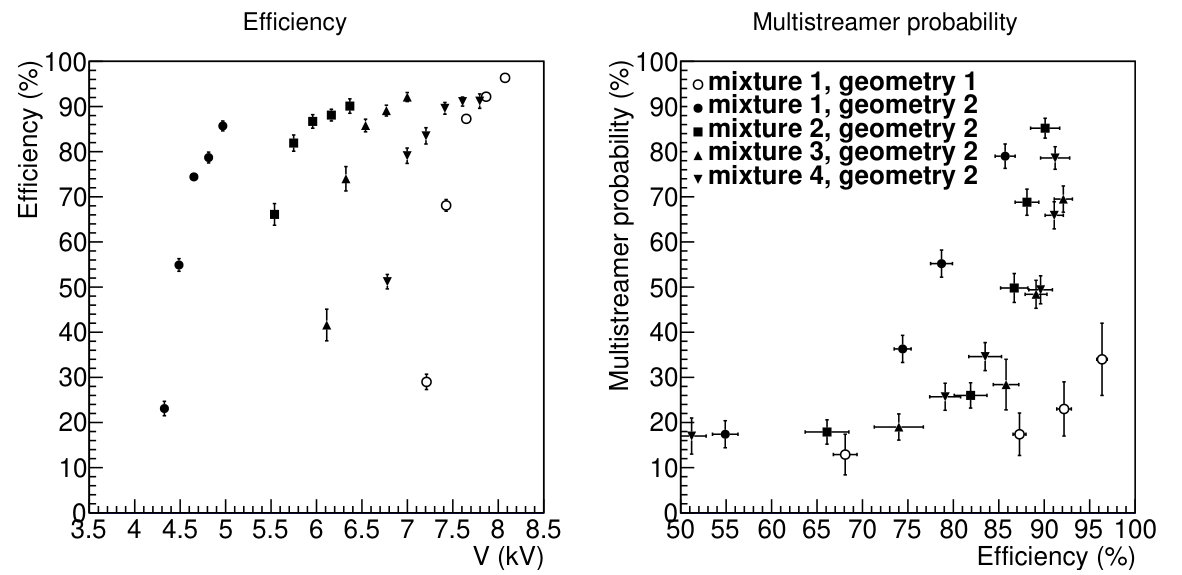

In figure 2 the efficiency is shown as a function of the operating voltage, for all the considered mixtures and geometries. A comparison of all the efficiency plots for the 1 mm gas gap RPC shows similar results as observed for 2 mm gap RPCs [6]: the higher the HFO concentration, the higher the operating voltage; low HFO concentrations lead to higher multi-streamer probability, also shown in figure 2 as a function of the efficiency. For 1 mm gas gap RPC the efficiency plateau value is around 90%, lower than for 2 mm gap RPC, independently from the HFO-1234ze concentration.

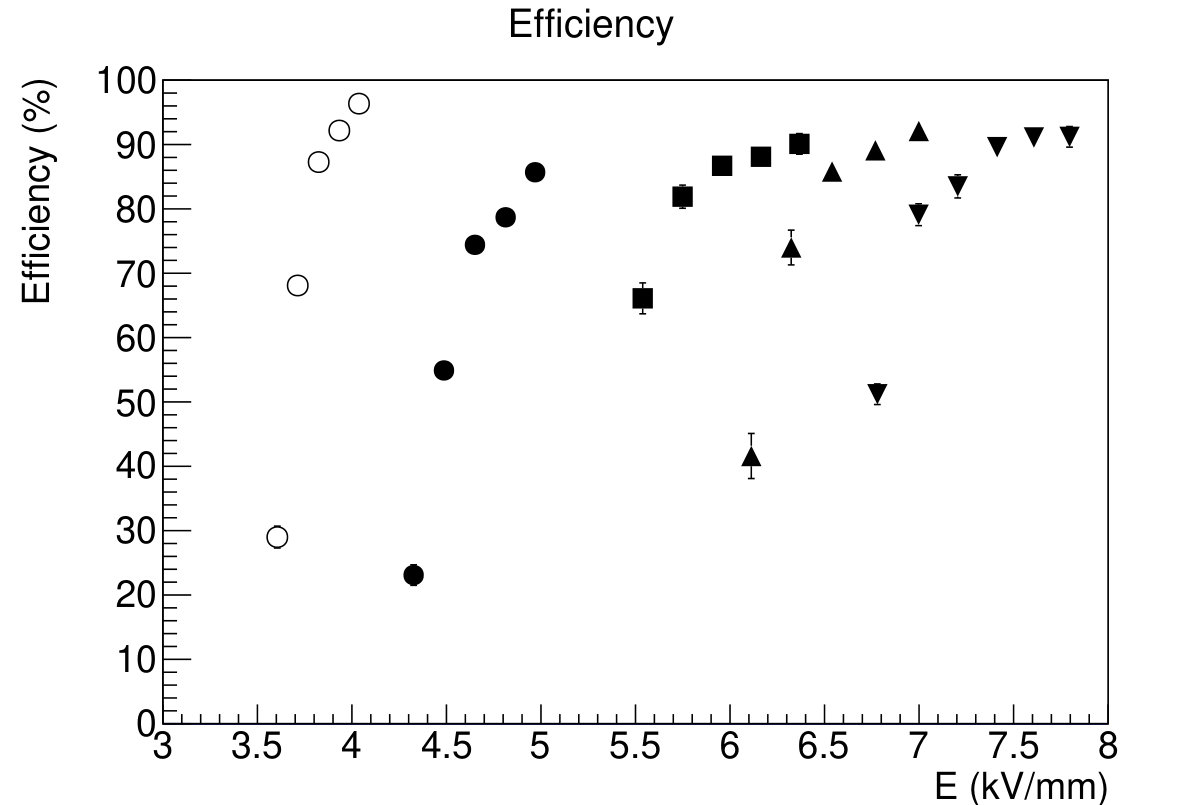

A direct comparison between 1 mm and 2 mm gas gaps has been made using mixture 1: the efficiency plateau for 1 mm gap is reached at a much lower voltage with respect to the RPC with 2 mm gas gap. In figure 3 the efficiencies are shown as a function of the nominal electric field, E, in the gas gap. Assuming that the streamer is obtained when $\alpha(E)\times d\sim 20$ (Raether condition), where $\alpha(E)$ is the first Townsend coefficient and $d$ is the gas gap, decreasing the gas gap d, $\alpha$ must reach higher values (at higher electric fields) to operate the detector with good efficiency.

Despite the greater easiness in streamer formation (higher efficiency plateau values and operation at lower electric field values), the RPC with 2 mm gas gap shows a significant better quenching power (lower multi-streamer probability) with respect to the one with 1 mm gas gap, even for much lower concentrations of the quencher (HFO-1234ze) in the gas mixture, as can be deduced from the multi-streamer probabilities shown in figure 2. Assuming that multi-streamer events are due to UV photons, produced either in the avalanche precursor or in the following streamer, ionizing the gas or extracting an electron from the cathode, in 2 mm gas gap such photons have on average a larger path in the gas before hitting the cathode. Therefore the plots of figure 2 suggest that the production of multi-streamers is mainly due to electron extraction from the cathode rather than to gas ionization.

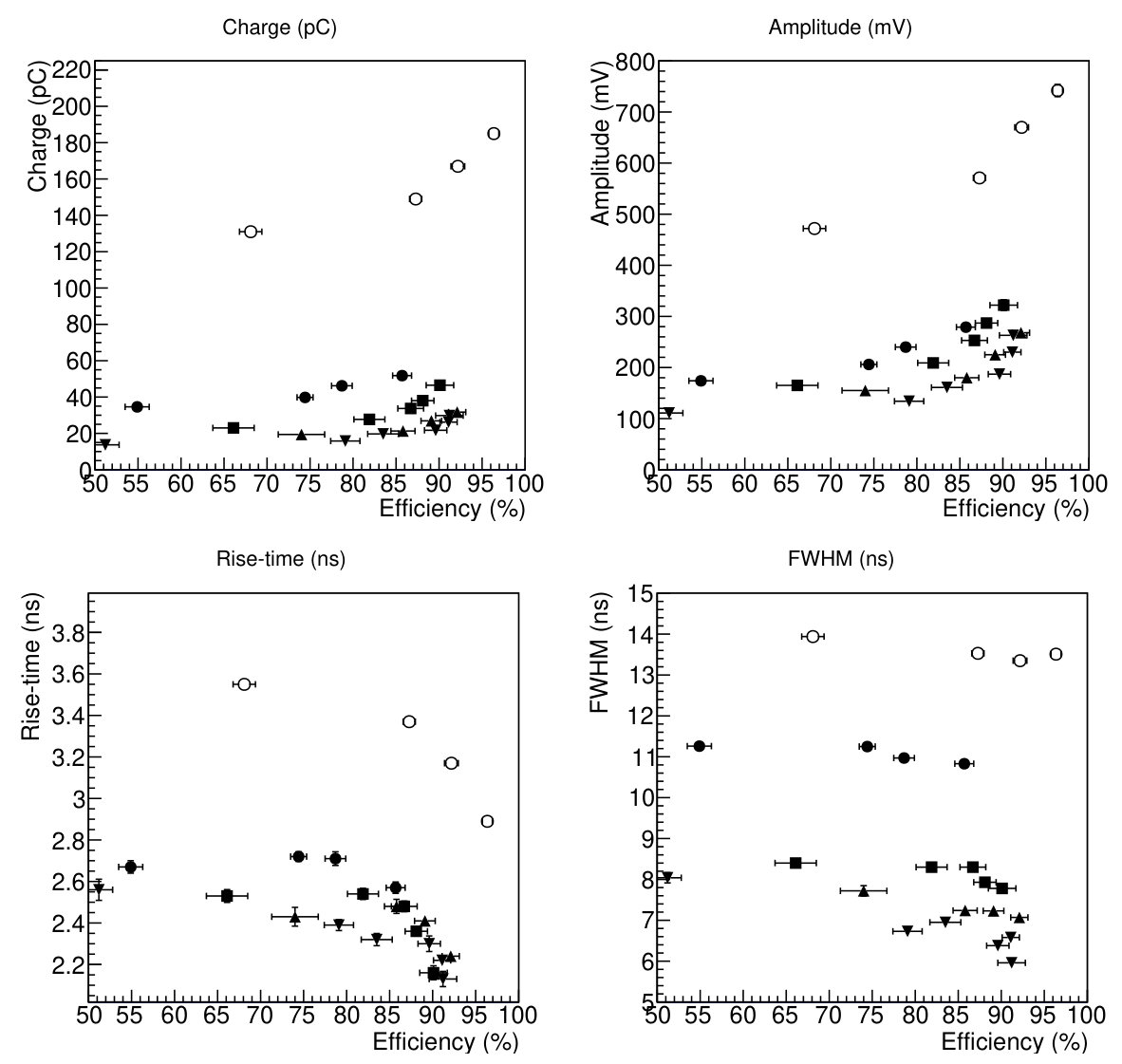

In figure 4 the single streamer parameters (total prompt charge, signal amplitude, rise-time and FWHM) are shown as a function of the efficiency.

Comparing data acquired on the RPC built according to geometry 2 with the considered gas mixtures, a decrease of the signal amplitude, FWHM and charge is observed for raising HFO-1234ze concentrations. The signal amplitude for geometry 1 is between 2 and 3 times higher than for geometry 2 at fixed efficiency values; the ratio is even higher for the prompt charge, due to the different signal FWHM. The rise-time is slightly lower for 1 mm with respect to 2 mm gas gap, while an even small dependence is observed from the HFO-1234ze concentration, among the considered gas mixtures, in a wide range of electric field values from 4 to 8 kV/mm.

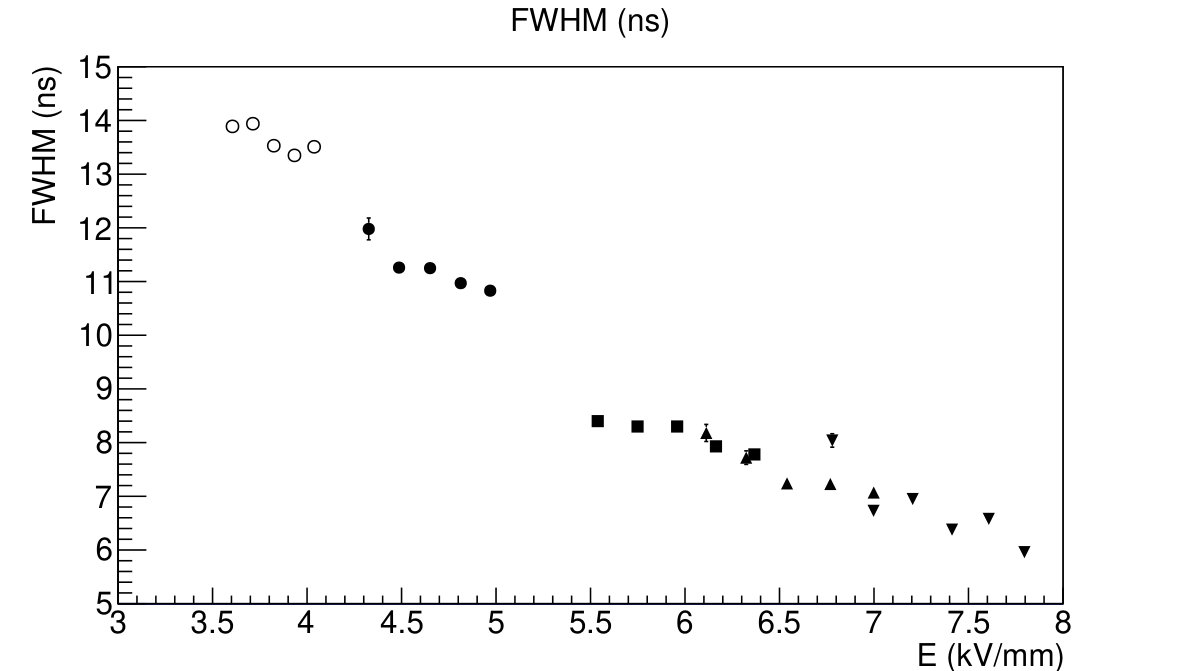

By comparing results obtained both with different RPC geometries and with the different considered gas mixtures, an almost linear dependence is observed between the induced signal FWHM and the electric field, about 2 ns every kV/mm, as shown in figure 5.

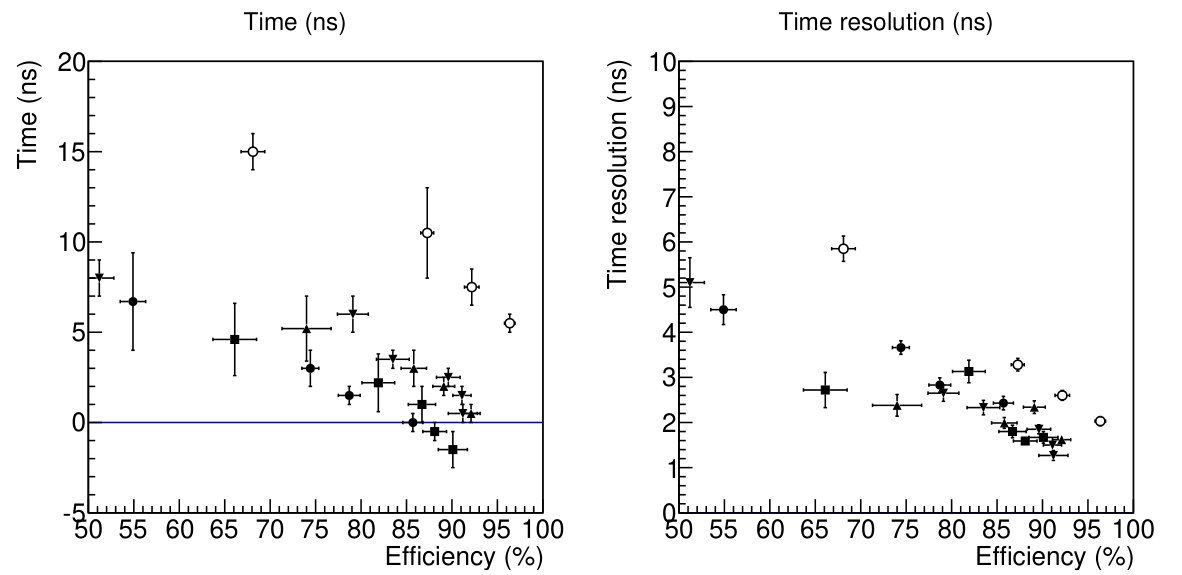

Finally in figure 6 the streamer formation time, measured with respect to one of the trigger RPCs, used as a reference, and the time resolution are shown. Good time resolutions are obtained both with 1 mm and 2 mm gas gaps. The increased gap value and the lower electric field delay the formation of the streamer by about 5 ns in the 2 mm gas gap RPC with respect to the one with 1 mm gas gap.

The average total charge ionized in the gas gap has been estimated, using mixture 1 for the two considered detector geometries, from the ratio between the operating current and the counting rate, after the subtraction of ohmic contributions to the current. The measured total charges, at the different operating voltages, are comprised between 1 and 2 nC (0.5 and 1 nC) for 2 mm (1 mm) gas gap; they are not much different because of the higher multi-streamer probability with 1 mm gap compensating the lower charge.

4 Conclusions

In this paper a comparison is shown between the performances of RPCs operated in streamer with two different detector geometries, the old-fashioned 2 mm gas gap and the newly proposed 1 mm gap; in both cases the electrode thickness is similar to the gas gap, not to change the geometrical attenuation factor of the signal induced on the read-out electrodes.

The 1 mm gap delays the formation of streamer to higher electric field values, with a decrease of the plateau efficiency value to 90%. Streamer induced signals with 1 mm gap are smaller both in amplitude and width, but the multi-streamer probability is about as twice as that with 2 mm gap.

Though in low rate applications multi-streamers could be not a problem, the dramatic increase observed in streamer operated RPCs built according to the new proposed geometry (1 mm thick gas gap and 1.2 mm thick bakelite electrodes) makes the old one (2 mm thick gas gap and 2 mm thick bakelite electrodes) the preferred choice, at least with the mixtures used in the tests reported here.
