Cross effect of magnetic field and charge current on antiferromagnetic dynamics

TL;DR

This paper theoretically investigates how combining magnetic fields with charge currents can control antiferromagnetic domain wall dynamics, revealing a new method for field-assisted manipulation of antiferromagnets.

Contribution

It introduces the novel concept that magnetic fields, when combined with charge currents, can influence antiferromagnetic domain wall motion, which was previously thought to be insensitive to magnetic fields.

Findings

Magnetic field and charge current jointly affect domain wall motion.

Spatially-varying magnetic fields can shift domain-wall velocity.

The effect depends on domain-wall structure and field-gradient direction.

Abstract

We theoretically examine a cross effect of magnetic field and charge current on antiferromagnetic domain wall dynamics. Since antiferromagnetic materials are largely insensitive to external magnetic fields in general, charge current has been shown recently as an alternative and efficient way to manipulate antiferromagnets. We find a new role of the magnetic field in the antiferromagnetic dynamics that appears when it is combined with charge current, demonstrating a domain wall motion in the presence of both field and current. We show that a spatially-varying magnetic field can shift the current-driven domain-wall velocity, depending on the domain-wall structure and the direction of the field-gradient. Our result suggests a novel concept of field-control of current-driven antiferromagnetic dynamics.

Figures

Equations

$$w(z)=w_{\mathrm{exc}}(z)+w_{\mathrm{ani}}(z)+w_{\mathrm{zmn}}(z).$$

$$\mathbf{n}$$

$$\mathbf{m}=\frac{1}{2\gamma H_E}\left({\mathcal{D}}_t\mathbf{n}+\mathbf{n}\times \gamma \mathbf{H}\right)\times \mathbf{n},$$

$${\mathcal{D}}_t={\partial }_t-u{\partial }_z,$$

$$\theta \left(z\right)$$

$$\chi$$

$$Q=\frac{1}{\pi }{\int }_{-\infty }^{\infty }{\partial }_z\theta dz=\pm 1,$$

$$\Delta =\sqrt{\frac{A}{K}}.$$

$${\partial }_t^{2}q+\lambda {\partial }_{t}q=-2u\beta \gamma H_E+Q\chi \frac{\pi \gamma \Delta }{2}u{\partial }_{z}H,$$

$$\lambda =2\alpha \gamma H_E.$$

$${\partial }_{t}q(t)=V\left(1-e^{-\lambda t}\right)+{{\partial }_{t}q|}_{t=0}{e}^{-\lambda t},$$

$$q(t)=Vt+\frac{V-{{\partial }_{t}q|}_{t=0}}{\lambda }{e}^{-\lambda t}+q(0)-\frac{V-{{\partial }_{t}q|}_{t=0}}{\lambda },$$

$$V\equiv {{\partial }_{t}q|}_{t\to \infty }=-\frac{u}{\alpha }\left(\beta -\frac{\pi Q\chi }{4}\frac{{\partial }_{z}H}{H_E/\Delta }\right).$$

$$\frac{1}{\beta }\left|\frac{\pi Q\chi }{4}\frac{{\partial }_z({\mu }_{0}H)}{{\mu }_0{H}_E/\Delta }\right|\simeq 0.79\times 10^{-8}\frac{|{\partial }_z({\mu }_{0}H)|}{\beta }$$

Full text

I Introduction

In recent years, antiferromagnets (AFMs) are generating more attention due to their potential to play pivotal roles in spintronics applicationsreview1 ; review2 ; review3 . AFMs are robust against external magnetic fields, produce no or negligibly small stray fields, and exhibit faster magnetic dynamics compared to ferromagnets. The insensitivity of AFMs to magnetic fields, however, may also indicate that an external magnetic field does not provide an efficient method to manipulate AFMs, a fact that has hindered active applications of AFMs in today’s technology. In the emergent field of antiferromagnetic spintronics, charge current is proving to be capable of offering promising ways to access the AFM dynamics, via the spin-transfer effectstt1 ; stt2 ; stt3 ; stt4 ; stt5 ; stt6 ; dw1 ; dw2 ; dw3 ; dw4 ; dw5 ; yamane ; barker ; ezawa ; hristo and the Néel spin-orbit torquensot1 ; nsot2 ; nsot3 ; e.g., current-driven motion of AFM textures such as domain wallsdw1 ; dw2 ; dw3 ; dw4 ; dw5 ; yamane ; nsot3 and skyrmonsbarker ; ezawa ; hristo have been proposed.

However, it may be too hasty to conclude that the magnetic field will not find its place in future spintronics applications. The equation of motion for a two-sublattice AFM is a second order differential equation of timeandreev ; bary , where an external magnetic field ${\bm{H}}$ and a charge current density ${\bm{v}}$ (in the unit of velocitynote3 ) enter as the factors $\gamma{\bm{H}}$, with $\gamma$ the gyromagnetic ratio, and $({\bm{v}}\cdot\nabla)$dw2 ; dw3 ; dw4 ; dw5 ; yamane , respectively, each being in the unit of $t^{-1}$. The AFMs therefore can allow for cross terms of magnetic field and charge current to appear directly in their equation of motionyamane , unlike the ferromagnetic counterpart. The magnetic field may thus be able to play some roles in the AFM dynamics when it is combined with charge current. Very recently, the equation of motion that contains such cross terms has been indeed derived for certain classes of two-sublattice AFMsyamane . It remains to be examined, however, how the cross terms manifest themselves and make impacts in concrete and practical systems.

In this work, we theoretically demonstrate a cross effect of external magnetic field and charge current on AFM domain wall (DW) dynamics in a thin nanowire. To specify the effective spin-transfer effect, we restrict ourselves to a class of AFMs where the inter-sublattice electron transport is strongly suppressed. We derive an equation of motion of the DW based on a collective-coordinate model, in the presence of both charge current and magnetic field. It is shown that a spatially-varying magnetic field applied in the out-of-plane, which cannot drive the DW into motion by itself, either increases or decreases the current-driven DW velocity depending on the DW structure and the direction of field-gradient. Our results suggest the possibility of a novel way to manipulate AFMs, namely, field-control of the current-driven AFM dynamics.

II Model

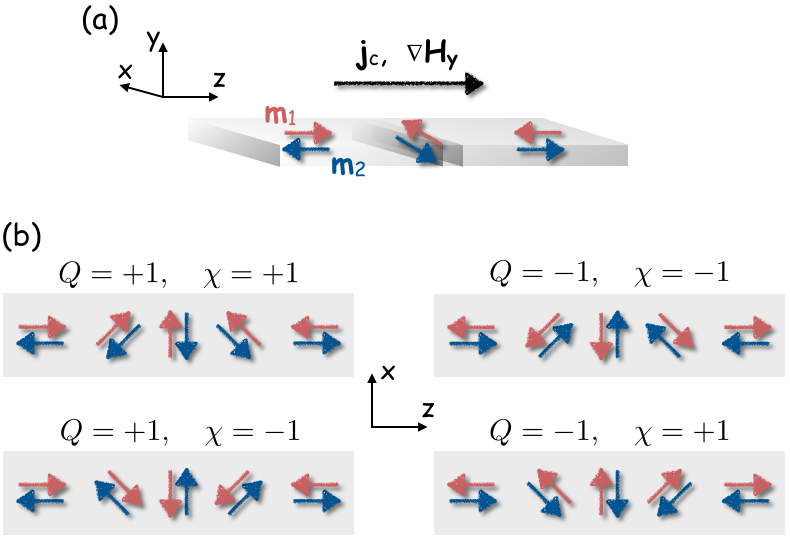

We consider a thin nanowire of metallic AFM, which is composed of two sublattices (1 and 2) with equal saturation magnetization $M_{\rm S}$. We employ the one-dimensional model along the $z$-axis, where we assume the uniformity of the magnetizations in the lateral directions, i.e., the $x$-$y$ plane. (See Fig. 1 for our coordinate system.) In order to treat the magnetizations classically, the coarse graining for the magnetic channel is performedneel ; lifshitz . The classical vector ${\bm{m}}_{1}(z,t)$ $(|{\bm{m}}_{1}(z,t)|=1)$ is a continuous function in space that represents the local magnetization direction in the sublattice 1, with a similar definition for ${\bm{m}}_{2}(z,t)$; here the lattice structure is smeared out and the magnetizations of both sublattices are defined at every point in space. This classical treatment is allowed when the spatial variation of each magnetization is sufficiently slow compared to the atomistic length scale.

As more experimentally relevant quantities, we here introduce the ferromagnetic canting vector ${\bm{m}}(z,t)=[{\bm{m}}_{1}(z,t)+{\bm{m}}_{2}(z,t)]/2$ and the Néel order vector ${\bm{n}}({\bm{r}},t)=[{\bm{m}}_{1}(z,t)-{\bm{m}}_{2}(z,t)]/2$. The conditions of ${\bm{m}}^{2}+{\bm{n}}^{2}=1$ and ${\bm{m}}\cdot{\bm{n}}=0$ are a direct consequence of the definitions of ${\bm{m}}$ and ${\bm{n}}$ given above.

We employ the following magnetic energy density $w(z)$ to describe the AFM;

[TABLE]

The first term, $w_{\rm exc}=\mu_{0}M_{\rm S}H_{E}({\bm{m}}^{2}-{\bm{n}}^{2})+A(\partial_{z}{\bm{n}})^{2}+A^{\prime}(\partial_{z}{\bm{m}})^{2}$, describes the exchange interactions between the local magnetizations, with $H_{E}$ representing the homogeneous exchange field, and $A$ and $A^{\prime}$ being the inhomogeneous exchange constants. The second term, $w_{\rm ani}=K_{y}(m_{y}^{2}+n_{y}^{2})-K_{z}(m_{z}^{2}+n_{z}^{2})$, is the magnetic anisotropy energy, where the easy and hard-axes along the $z$ and $y$ directions, respectively, are assumed, with the anisotropy constants $K_{y}(>0)$ and $K_{z}(>0)$. The third term, $w_{\rm zmn}=2\mu_{0}M_{\rm S}{\bm{H}}\cdot{\bm{m}}$, is the Zeeman energy. In this study we assume that the AFM exchange coupling between ${\bm{m}}_{1}$ and ${\bm{m}}_{2}$ is the leading energy scale, as usually is the case, being strong enough to ensure $|{\bm{m}}(z,t)|\ll 1$.

The equations of motion for ${\bm{n}}$ and ${\bm{m}}$ can be obtained by assuming two coupled Landau-Lifshitz-Gilbert equations for the sublattice magnetizations, where ${\bm{H}}^{\rm eff}_{1}=-(\mu_{0}M_{\rm S})^{-1}\delta w/\delta{\bm{m}}_{1}$ and ${\bm{H}}^{\rm eff}_{2}=-(\mu_{0}M_{\rm S})^{-1}\delta w/\delta{\bm{m}}_{2}$ act as the effective magnetic fields on ${\bm{m}}_{1}$ and ${\bm{m}}_{2}$, respectively, and then reading these equations in terms of ${\bm{n}}$ and ${\bm{m}}$.

In the presence of charge current, the effective interaction between the conduction electrons and the local magnetizations depends on the detail of the electron transport through the two sublatticesdw5 ; yamane ; barker . For the present purpose to explore the possibility of cross effects by charge current and magnetic field, we here focus on a simple limiting case where the inter-sublattice electron transport is virtually suppressedbarker ; yamane ; this is the case when the local exchange coupling between the conduction electron spin and the magnetization is strong compared to the electron’s kinetic energy corresponding to the inter-sublattice hopping. In this case, the equation of motion for ${\bm{n}}$ including the spin-transfer effectnote can be derived in an analytical and quantitative fashion asyamane

[TABLE]

while ${\bm{m}}$ is determined as a function of ${\bm{n}}$;

[TABLE]

where $\alpha$ and $\beta$ are dimensionless parameters describing the dissipative process, and $c^{2}=2\gamma^{2}H_{E}/\mu_{0}M_{\rm S}$. The spin-transfer effects brought on by the charge current are reflected in the Lagrange derivative ${\cal D}_{t}$ that is defined by

[TABLE]

where $u=(g\mu_{B}P_{\rm sub}/2eM_{\rm S})j_{\rm c}$, with $g$ the g factor, $\mu_{B}$ the Bohr magneton, $e$ the elementary charge, $j_{c}$ the charge current density, and $P_{\rm sub}$ the spin polarization defined in each sublatticenote2 . In deriving Eqs. (2) and (3) we have used the conditions $\mu_{0}M_{\rm S}H_{E}\gg K_{y},K_{z}$, $|{\bm{m}}|\ll 1$, and ${\bm{n}}^{2}\simeq 1$. Eqs. (2) and (3) respect the Galilean invariance with respect to the charge current when $\alpha=\beta=0$.

The third and forth terms in Eq. (2) contain both ${\cal D}_{t}$ and ${\bm{H}}$, i.e., they are cross terms of charge current and magnetic field. Although the possibility of field-current cross effects due to these terms was already pointed outyamane , it remains to be confirmed in concrete and practical systems. In the following, we demonstrate domain wall (DW) motion in the presence of uniform dc charge current and spatially-varying dc magnetic field, where the third term in Eq. (2) plays a role.

III Domain wall motion

In equilibrium with no magnetic field, it is seen from Eq. (3) that ${\bm{m}}=0$. A one-dimensional DW solution for ${\bm{n}}(z)=(\sin\theta(z)\cos\phi(z),\sin\theta(z)\sin\phi(z),\cos\theta(z))$ is obtained by locally-minimizing the magnetic energy $\sigma\equiv\int_{-\infty}^{\infty}w\ dz$ with the boundary condition $\theta(\pm\infty)=(0,\pi)$ or $(\pi,0)$;

[TABLE]

where $q$ represents the position of the DW center, $Q$ is the topological charge of the DW;

[TABLE]

and $\Delta$ is the DW-width parameter defined by

[TABLE]

Schematics of the DW configurations with different sets of $(Q,\chi)$ are shown in Fig. 1 (b). Because of the equivalence of the two sublattices, ($+1,+1$) and ($-1,-1$) are indistinguishable, and so are ($+1,-1$) and ($-1,+1$); the DW can be characterized by $Q\chi=\pm 1$. Eq. (5) is plotted in the inset of Fig. 2.

A charge current and magnetic field can drive the DW into motion according to Eq. (2). Here we assume that the driving forces due to the current and field are weak enough that the DW sustains its structure given by Eqs. (5) and (6), except that the DW center $q(t)$ becomes time-dependent; the DW dynamics is described by the time evolution of the collective coordinate $q(t)$. In the presence of uniform dc charge current flowing along the nanowire (the $z$ axis) and spatially-varying dc magnetic field applied in the our-of-plane (the $y$ axis), Eq. (2) with the above ansatz is reduced to

[TABLE]

where $\partial_{z}H$ is assumed to be constant, and

[TABLE]

In the right-hand side of Eq. (9), we find the two driving forces on $q(t)$; the first term is solely by the charge current, having its origin in the last term in Eq. (2), whereas the second term is a cross term of the current and field, whose origin is the third term in Eq. (2). Notice that the sign of the cross term depends on $Q\chi=\pm 1$.

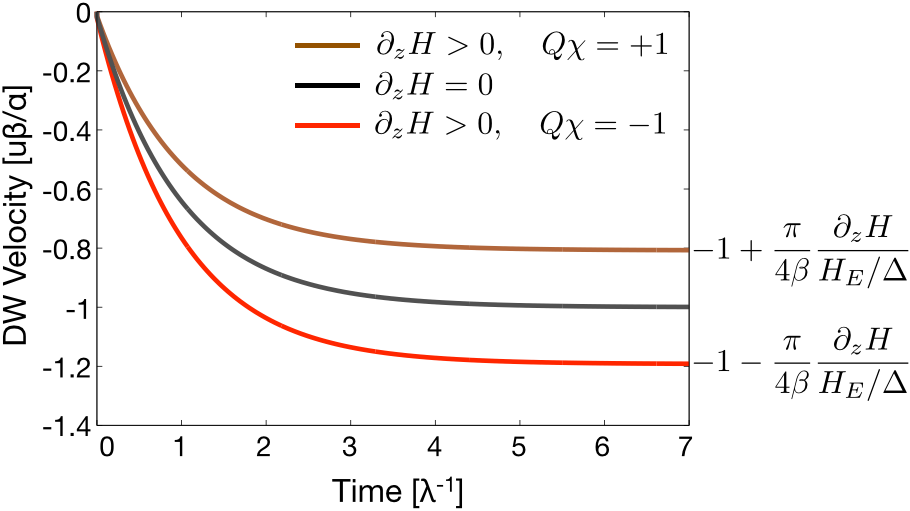

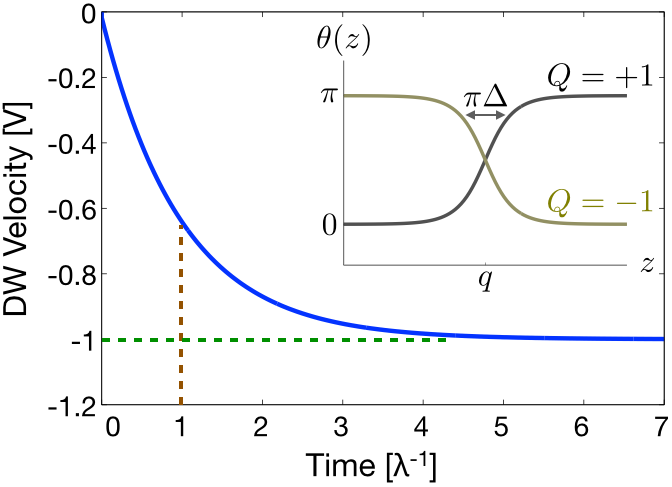

General solutions, $\partial_{t}q(t)$ and $q(t)$, of Eq. (9) are obtained as (see Fig. 2)

[TABLE]

[TABLE]

where

[TABLE]

In the absence of field gradient, the terminal velocity $V$ is proportional to the ratio $-\beta/\alpha$ of the dissipative parameters, being consistent with the existing studydw2 ; dw3 ; dw4 ; yamane . The coexistence of the magnetic field and charge current leads to either increase or decrease in $V$, depending on the direction of the field-gradient and $Q\chi=\pm 1$ (see Fig. 3).

IV Discussions and Conclusions

Our attempt to estimate the terminal velocity $V$ faces the difficulty that for most AFMs there is only little or almost no experimental data available on the values of the crucial material parameters such as $\alpha$ and $\beta$. Employing $\mu_{0}H_{E}=10$ T and $\Delta=100$ nm, which are in the reasonable range for typical AFMsgurevich , the ratio of the absolute values of the first and second terms in Eq. (13) is given by

[TABLE]

Assuming $|\partial_{z}(\mu_{0}H)|=100$ T/m, and borrowing the typical value $\beta=0.01$ of the nonadiabatic parameter for the ferromagnets, Eq. (14) is evaluated as $\sim 10^{-4}$; in typical AFMs the field-current cross term in Eq. (13) is expected to be small compared to the other term. To identify the proposed field-current cross effect on DW dynamics, therefore, material should be chosen carefully. The presence of field-gradient would lead to a visible shift in the current-driven DW velocity when smaller $\beta$ and $H_{E}$, and larger $\Delta$ (that is, smaller anisotropy constant $K_{z}$) are realized.

Effects of an inhomogeneous magnetic field was also investigated in Ref. tveten . It was proposed that a spatially-varying external magnetic field, applied along the nanowire unlike our case, can drive a DW motion even in the absence of charge current. Their argument is based on the observation that the spatial variation of the Néel order vector around the DW is accompanied by finite ferromagnetic canting moment, which directly couples to the external magnetic field. This effect is emphasized when the DW width becomes as small as a few lattice spacings; we have neglected this effect because our model assumes the slow spatial variation of the magnetizations compared to the atomistic length scale. At any rate, the authors of Ref. tveten and we look at different effects, which may be compatible with each other.

While we have for simplicity restricted ourselves to the limiting case where the inter-sublattice electron transport is suppressed, the equations of motion (2) and (9) would not simply apply to other classes of AFMsyamane ; the role played by a magnetic field in the DW dynamics should be reformulated and reexamined there. Lastly, while the other field-current cross term, the forth term in Eq. (2), can be neglected in the one-dimensional DW dynamics, it would not be the case in more complex structures. Detailed investigations into these quenstions would be possible directions for further research.

In conclusion, we have theoretically studied antiferromagnetic domain wall dynamics in the presence of charge current and magnetic field. It has been shown that a spatially-varying magnetic field can either increase or decrease the current-driven domain-wall velocity depending on the domain wall structure and the direction of the field-gradient. This is the first demonstration of a field-current cross effect on antiferromagnetic dynamics. We believe that our result has made an important step towards the field-control of the current-driven antiferromagnetic dynamics.

This research was supported by Research Fellowship for Young Scientists from Japan Society for the Promotion of Science, the Alexander von Humboldt Foundation, the ERC Synergy Grant SC2 (No. 610115), the Transregional Collaborative Research Center (SFB/TRR) 173 SPIN+X, and Grant Agency of the Czech Republic grant No. 14-37427G.
