Evidence against a supervoid causing the CMB Cold Spot

TL;DR

This study investigates whether a supervoid could explain the CMB Cold Spot and finds that the observed voids are too small and insufficient to account for the Cold Spot via the ISW effect, suggesting a primordial origin.

Contribution

The paper provides the first detailed galaxy redshift survey of the Cold Spot region, demonstrating that voids are too small to explain the Cold Spot through the ISW effect, challenging the supervoid hypothesis.

Findings

Void sizes are too small to explain the Cold Spot via ISW effect.

The Cold Spot's galaxy distribution resembles control fields without temperature decrements.

Results suggest a primordial origin for the Cold Spot rather than line-of-sight effects.

Abstract

We report the results of the 2dF-VST ATLAS Cold Spot galaxy redshift survey (2CSz) based on imaging from VST ATLAS and spectroscopy from 2dF AAOmega over the core of the CMB Cold Spot. We sparsely surveyed the inner 5$^{\circ}$ radius of the Cold Spot to a limit of $i_{AB} \le 19.2$, sampling $\sim7000$ galaxies at $z<0.4$. We have found voids at $z=$ 0.14, 0.26 and 0.30 but they are interspersed with small over-densities and the scale of these voids is insufficient to explain the Cold Spot through the $\Lambda$CDM ISW effect. Combining with previous data out to $z\sim1$, we conclude that the CMB Cold Spot could not have been imprinted by a void confined to the inner core of the Cold Spot. Additionally we find that our 'control' field GAMA G23 shows a similarity in its galaxy redshift distribution to the Cold Spot. Since the GAMA G23 line-of-sight shows no evidence of a CMB temperature decrement we conclude that the Cold Spot may have a primordial origin rather than being due to line-of-sight effects.

Figures

b) which covers $\sim 3500$ deg2 of the SGC (the 6dFGS-SGC area marked in orange in their Fig. 1 with coordinate ranges given in their Table 3). Based on the $0.06<z<0.11$ void seen in the 2dFGRS $n(z)$ shown in Fig. 14 of Busswell et al. ([2004](#bib.bib4)), these authors have speculated that the void runs to $z\sim 0.1$. In passing, we note that the $\sim 8\%$ gradient between the regions surrounding G23 and the Cold Spot may represent Local Hole sub-structure.

Tables

Table 1. Table 1: 2CSz survey parameters.

Main Selection	$i\le 19.2$
Area	$66$ deg2
Number of Galaxies*	$6879$
Completeness	$89\%$
Redshift Range	$0.0\le z\le 0.5$
Galactic coordinates ($l,b$)	(209, -57)

Table 2. Table 2: The minimum AIC values for each value of N perturbations for the Cold Spot and G23. k 𝑘 k is the number of free parameters. The minimum AIC values best fits for are shown in parenthesis.

$N$	$k$	${\mathrm{AIC}}_{\min }$
		Cold Spot	G23
1	3	248.85	441.97
2	6	147.17	240.14
3	9	131.65	197.66
4	12	(123.91)	154.64
5	15	125.18	151.07
6	18	132.33	(141.45)
7	21	-	149.86

Table 3. Table 3: Best fit 3-D Λ Λ \Lambda LTB parameters for compensated perturbations (eq. 1 ) estimated from the Cold Spot and GAMA G23 density contrast profiles in Fig. 3 . The central temperature decrement, δ ​ T 𝛿 𝑇 \delta T , predicted from the ISW effect is also given.

	$z_0$	$r_0$	${\delta }_0$	$\delta T\left(\theta =0\right)$
		(h-1Mpc)		($\mu$K)
Cold Spot
	0.14$\pm$0.007	119$\pm$35	-0.34$\pm$0.08	-6.25$\pm$5.7
	0.26$\pm$0.004	50$\pm$13	-0.87$\pm$0.12	-1.02$\pm$0.8
	0.30$\pm$0.004	59$\pm$17	-1.00$+$0.72	-1.80$\pm$2.1
	0.42$\pm$0.008	168$\pm$33	-0.62$\pm$0.16	-22.6$\pm$14.7
G23
	0.15$\pm$0.004	82$\pm$33	-0.49$\pm$0.17	-2.92$\pm$3.7
	0.21$\pm$0.006	88$\pm$21	+0.89$\pm$0.35	+6.09$\pm$5.1
	0.28$\pm$0.007	85$\pm$29	-0.36$\pm$0.24	-2.06$\pm$2.6
	0.35$\pm$0.006	74$\pm$22	-1.00$+$0.10	-3.40$\pm$3.1
	0.42$\pm$0.005	150$\pm$20	-0.63$\pm$0.13	-16.1$\pm$7.4
	0.42$\pm$0.002	50$\pm$5	+4.16$\pm$1.6	+3.96$\pm$2.0

Equations

$$\text{centering}{\delta }_m(r)={\delta }_{0}g(a)\left(1-\frac{2}{3}\frac{r^2}{r_0^2}\right)\exp \left(-\frac{r^2}{r_0^2}\right),\text{@add@centering}$$

$$\text{centering}\begin{array}{r}\frac{\delta T}{T}(\theta )\approx \frac{3\sqrt{\pi }}{22}\frac{H(z_0){\Omega }_{\Lambda }{F}_4(-{\Omega }_{\Lambda }/{\Omega }_M(1+z_0{)}^3)}{H_0(1+z_0{)}^4{F}_1(-{\Omega }_{\Lambda }/{\Omega }_M)}\times \\ \left(1+\text{erf}\left(\frac{z_0}{H(z_0)r_0}\right)\right){\delta }_0(H_0{r}_0{)}^3\exp \left[-\frac{r^2(z_0)}{r_0^2}{\theta }^2\right],\end{array}\text{@add@centering}$$

$$F_1={}_2{F}_1\left[1,\frac{1}{3},\frac{11}{6},\frac{-{\Omega }_{\Lambda }{a}^3}{{\Omega }_M}\right],$$

$$F_4={}_2{F}_1\left[2,\frac{4}{3},\frac{17}{6},\frac{-{\Omega }_{\Lambda }{a}^3}{{\Omega }_M}\right].$$

$$\text{centering}{\delta }_g(z)=\frac{n(z)}{n_{\mathrm{model}}(z)}-1\text{@add@centering}$$

$${\delta }_m(z)=\frac{{\delta }_g(z)}{b_g}$$

$$\begin{array}{rl}\mathrm{AIC}& =2k-2ln(\hat{L})+\frac{2k(k+1)}{N_{\mathrm{data}}-k-1}\\ & =2k+{\chi }^2+\frac{2k(k+1)}{N_{\mathrm{data}}-k-1}.\end{array}$$

$$w_i=\frac{e^{-\Delta {\mathrm{AIC}}_i/2}}{{\sum }_{k=1}^{k_{\max }}{e}^{-\Delta {\mathrm{AIC}}_k/2}}.$$

$$\text{centering}{\sigma }_N^2=⟨(N-\bar{N}{)}^2⟩=\bar{N}+n^2{\int }_V\xi (s_{12})d{V}_{1}d{V}_2,\text{@add@centering}$$

Full text

††pubyear: 2017††pagerange: Evidence against a supervoid causing the CMB Cold Spot–Evidence against a supervoid causing the CMB Cold Spot

1 Introduction

The Cosmic Microwave Background (CMB) provides the earliest snapshot of the evolution of the Universe. Detailed observations of its structures by the Wilkinson Microwave Anisotropy Probe (WMAP) and Planck missions have shown a universe broadly in concordance with the $\Lambda$CDM paradigm. There remain a few anomalies which have been a source of tension with standard cosmology and one such example is the CMB Cold Spot (Vielva et al., 2004). The CMB Cold Spot is an $\sim 5^{\circ}$ radius, -150 $\mu$K feature in the CMB in the Southern Hemisphere which represents a departure arising in between $<0.2$% (Cruz et al., 2005) to $<1-2$% (Planck Collaboration et al., 2016b) Gaussian simulations. It consists of a cold 5*∘* radius core surrounded by a less extreme 10*∘* radius halo. The Cold Spot is also surrounded by a high temperature ring which is important for its original detection using a Spherical Mexican Hat Wavelet (SMHW).

A number of proposals have been put forward to explain the Cold Spot, including a non-Gaussian feature (Vielva et al., 2004), an artefact of inflation (Cruz et al., 2005), the axis of rotation of the universe (Jaffe et al., 2005) and the imprint of a supervoid via the Integrated Sachs-Wolfe (ISW) effect (Inoue & Silk, 2006). The ISW effect (Sachs & Wolfe, 1967) occurs in accelerating cosmologies due to the decay of gravitational potentials over time. There is tentative statistical evidence to support the existence of the ISW effect from the cross-correlation of large-scale structure with the CMB, typically up to $3\sigma$ with single tracers and $4-4.5\sigma$ in some combined analyses (e.g. Cabré et al., 2006, Ho et al., 2008, Giannantonio et al., 2008, Sawangwit et al., 2010, Giannantonio et al., 2012, Planck Collaboration et al., 2016c). The ISW effect must be measured statistically as the primary anisotropy dominates on most scales. It has been hypothesized that a very large void at $z<1$ could imprint itself on the CMB and explain the Cold Spot in part (e.g. Inoue & Silk, 2006), however the ability of this to explain the Cold Spot has been disputed (e.g. Nadathur et al., 2014). The argument, prior to a detection of such a void, was that the probability of any void occurring in $\Lambda$CDM was much lower than the probability of the Cold Spot arising from primordial Gaussian fluctuations.

The significance of the Cold Spot as an anomaly has been widely discussed. The main problem is to quantify the amount of a posteriori selection in the originally claimed 0.2% significance of Cruz et al. (2005). In particular, Zhang & Huterer (2010) pointed out that the use of top-hat or Gaussian kernels provided much lower significance for the Cold Spot than the original SMHW kernel and Bennett et al. (2011) emphasised this viewpoint in their review. Vielva (2010) argued that as long as the original Cold Spot detection was ‘blind’ and the SMHW kernel well-motivated in a search for non-Gaussian features then this ‘look elsewhere’ effect in terms of kernels was less relevant. Zhao (2013), Gurzadyan et al. (2014) and Planck Collaboration et al. (2016b) tried a related approach to address the Cold Spot significance and chose the coldest pixels in CMB simulations to look at the small-scale statistics within the surrounding pixels. In the version of Planck Collaboration et al. (2016b), it was found that the temperature profile of the Cold Spot was poorly described by the simulations with $<1-2$% having a higher $\chi^{2}$ compared to the mean than the data. Here we shall essentially adopt this approach, now following Nadathur et al. (2014) and Naidoo et al. (2016), and ultimately test how much any foreground void that is found can reduce this 1-2% significance assuming the original SMHW kernel.

Motivated by theoretical discussion there have been many attempts to detect a void associated with the CMB Cold Spot. Rudnick et al. (2007) searched NVSS radio sources and claimed to find a lower density of objects in the Cold Spot region but this was disputed by Smith & Huterer (2010). Granett et al. (2010) used 7 CFHT MegaCam fields to make a photo-$z$ survey for large under-densities. They found no evidence of a void $0.5<z<0.9$ but their data was consistent with a low-$z$ void. This was in line with Francis & Peacock (2010) who found evidence for an under-density in 2MASS in the Cold Spot direction but the ISW imprint was $\sim 5\%$ of the CMB Cold Spot temperature decrement. Bremer et al. (2010) used VLT VIMOS to make a $21.9<i_{AB}<23.2$ galaxy redshift survey in 6 small sub-fields of the Cold Spot area. The total area covered was $0.37$deg2 and the redshift range covered was $0.35<z<1$. Using VVDS (Le Fèvre et al., 2005) data as control fields, Bremer et al. (2010) found no evidence for anomalously large voids in the Cold Spot sightline. At lower redshifts, Szapudi et al. (2015) using a Pan-STARRS, 2MASS and WISE combined catalogue, constructed photometric redshifts and detected a 220h*-1Mpc radius supervoid with a central density contrast, $\delta_{m}\sim-0.14$, spanning $z\approx 0.15-0.25$. However, this supervoid would not explain the entirety of the CMB Cold Spot as a $\Lambda$CDM ISW effect. The authors argued that the alignment of the Cold Spot and the supervoid could be evidence of a causal link due to some mechanism beyond standard cosmology. It has been argued that there is evidence for voids showing an ISW-like effect above the standard prediction (e.g. Granett et al., 2008) but at marginal significance and other analyses have found results consistent with standard cosmology (e.g. Nadathur & Crittenden, 2016, Hotchkiss et al., 2015). Kovács & García-Bellido (2016) extended this work to include photometric redshifts from 2MASS (2MPZ) and spectroscopic redshifts from 6dFGS. Using these datasets it was claimed that the under-density detected by Szapudi et al. (2015) extends along the line of sight back to $z\sim 0$ with a void radius of up to $500$ h-1Mpc. The void was suggested to be elongated in the redshift direction and had a smaller radius of $195$h-1*Mpc in the angular direction. Even with these larger estimates of the $z\approx 0.15$ void’s scale the Cold Spot temperature may only be partly explained by the $\Lambda$CDM ISW effect. But significant uncertainties remain in the void parameters due to the nature of photometric redshifts, and in order to test claims of divergence from $\Lambda$CDM, the parameters of the supervoid must be better determined. The sightline must also be unique in order to explain the uniqueness of the Cold Spot in the CMB.

We have therefore carried out the 2dF-VST ATLAS Cold Spot Redshift Survey (2CSz) over the inner 5*∘* radius core of the Cold Spot in order to test the detection made by Szapudi et al. (2015) and, if the supervoid were confirmed, to measure its parameters to assess any tension with $\Lambda$CDM. Throughout the paper we use Planck 2015 cosmological parameters (Planck Collaboration et al., 2016a), with $H_{0}=100$h kms*-1Mpc-1*, $h$=0.677, $\Omega_{M,0}$=0.307, $T_{cmb,0}$=2.725 K.

2 Survey and Data Reduction

The first goal of 2CSz was to probe the supervoid of Szapudi et al. (2015) with spectroscopic precision. We therefore targeted the inner 5*∘* radius with 20 contiguous 2dF fields (see Fig. 1). A further 2 fields were targeted at larger radii in the sightlines of two $z\sim 0.5$ quasars, which, in other work, will be used with HST COS spectra to probe the void structure in the Lyman $\alpha$ forest as well as in the galaxy distribution. In all fields, 2dF galaxies were sampled at a rate of $\sim$110 deg*-2* to a limit of $i_{AB}<19.2$. The survey was selected analogously to the GAMA G23 survey111 The Galaxy And Mass Assembly (GAMA) survey (Driver et al., 2009, Driver et al., 2011) includes 3 Equatorial fields at R.A. $\sim$ 9hrs, 12hrs and 15hrs, each covering about 60 deg2, highly spectroscopically complete to $r_{AB}<19.8$. There is also one SGC field (G23) covering 50 deg2 similarly complete to $i_{AB}=19.2$ (Liske et al., 2015). , but sub-sampled to the number density matched to a single 2dF pointing per field ($\sim 1/8$ sampling). This provided us with a highly complete control field.

The imaging basis for this spectroscopic survey was the VLT Survey Telescope (VST) ATLAS (Shanks et al., 2015), an ongoing $\sim$4,700deg2 $ugriz$ survey at high galactic latitude over the two sub-areas in the North and South Galactic Caps (NGC and SGC respectively), the latter of which includes the Cold Spot region. VST ATLAS reaches an $i$ band 5$\sigma$ depth of 22.0 AB mag for point sources and has a median $i$ band seeing of $0.81^{\prime\prime}$, allowing clean star-galaxy classification to our magnitude limit. The main selection criterion was to select extended sources with $i_{Kron,AB}\leq 19.2$ where $Kron$ indicates a pseudo-total magnitude with the usual definition. Additional quality control cuts were applied to the data to ensure the removal of stars and spurious objects from the galaxy catalogue. Although the extended source classification removes most stars, an additional star-galaxy cut was applied ($i_{Kron,AB}-i_{ap3,AB}<0.1\times i_{Kron,AB}-1.87$) where $i_{ap3,AB}$ denotes the magnitude corresponding to the flux within a $2^{\prime\prime}$ diameter aperture (c.f. Fig. 22 of Shanks et al., 2015). To reject spurious objects (e.g. ghosts around bright stars), sources without $z$ band detections were rejected, as were objects near Tycho-2 stars at radii calibrated to VST ghosts. Additionally, a cut of SKYRMS $\leq 0.2$ ADU was applied to the RMS of the sky measurement for each source in the catalogue to remove further artefacts. These cuts were validated with GAMA G23. All magnitudes were corrected for Galactic extinction (Planck Collaboration et al., 2014).

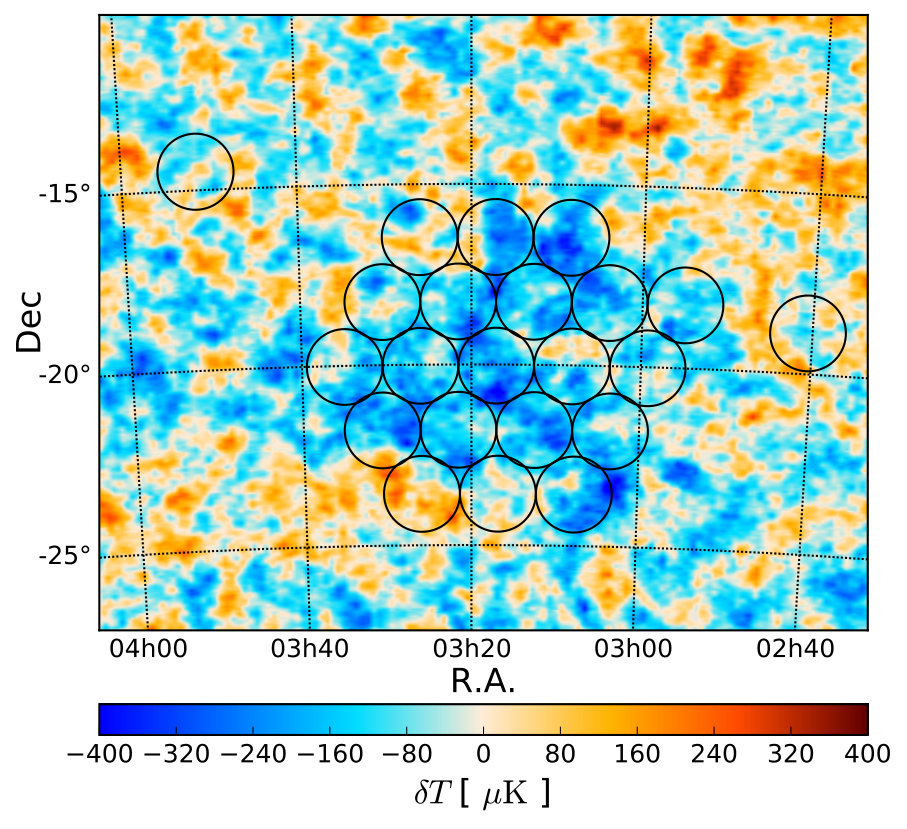

The spectroscopic survey was completed in 22 2dF fields with 20 covering the inner 5*∘* radius of the Cold Spot. The survey footprint is shown in Fig. 1. 2dF covers a 3 deg2 area with approximately 392 fibres, $\sim 25$ of which were used as sky fibres. The number density of selected galaxies was 722 deg*-2*, further randomly sampled down to $\sim 200$deg*-2* in order to provide sufficient targets to utilise all fibres. Many targets cannot be observed due to limitations in positioning of the fibres to avoid fibre collisions and to limit fibre crossings. This down-sampled target list was finally supplied to the 2dF fibre allocation system Configure.

The spectroscopic observations were carried out in visitor mode on $16^{th}$, $17^{th}$ and $18^{th}$ of November 2015, during grey (Moon phase) conditions with typical seeing of $\sim 2.0^{\prime\prime}$. We observed using AAOmega with the 580V and 385R gratings and the 5700Å  dichroic. This gives a resolution of $R\sim 1300$ between 3700Å and 8800Å. Each field was observed with $3\times 15$ minute exposures; flats and an arc frame were also taken with each plate configuration. Fields observed at high airmass at the beginning and end of the night had additional 15 minute exposures where possible. Dark and bias frames were taken during the day before and after each night.

Spectroscopic observations were reduced and combined using the $2dFdr$ pipeline (Croom et al., 2004, Sharp & Parkinson, 2010). The data was corrected with the fibre flat and median sky subtracted. Dark frames were not ultimately used as on inspection they did not improve the data quality. The sky correction parameters used were throughput calibration using sky lines, iterative sky subtraction, telluric absorption correction and PCA after normal sky subtraction. The resulting reduced spectra were then redshifted manually using the package $runz$ (Colless et al., 2001a). Redshifts were ranked in quality from 5 (Template quality), 4 (Excellent), 3 (Good), 2 (Possible) and 1 (Unknown redshift). Only redshifts of quality 3 or greater were used in the final science catalogue. Typically excellent quality redshifts had multiple strong spectra features (e.g. H$\alpha$, [OII] and Ca II K and H lines) and good redshifts contained at least one unambiguous feature. Overall the redshift success rate was approximately $89\%$ ranging from $71\%$ to $97\%$; typically the success rate is a strong function of the phase and position of the Moon.

With an $89\%$ success rate, incompleteness will have only a small effect if redshift failures are random rather than systematic and we modeled this with GAMA G23. To test what effect magnitude dependent completeness could have on these results we measured the completeness with magnitude for our survey, finding that completeness is $\sim 96\%$ for $i_{AB}\leq 18.2$ and decreases to $\sim 82\%$ for $18.7<i_{AB}\leq 19.2$. This magnitude dependent completeness will bias the $n(z)$ towards the redshift distribution of the brighter galaxies. To estimate the effect this has on the $n(z)$ we weight the GAMA G23 $n(z)$ with the completeness as a function of magnitude from 2CSz. Taking the ratio of the weighted and unweighted $n(z)$ we obtain the completeness fraction as a function of redshift, $f(z)\approx 0.95-0.232z$ for $z<0.45$. This linear modulation of the $n(z)$ does not significantly affect the results but this analysis assumes that redshift failures depend only on the magnitude of the object and not the redshift. We do not apply a correction to the data as we do not believe this assumption holds (see Section 4.1).

3 Results

3.1 Redshift Distributions

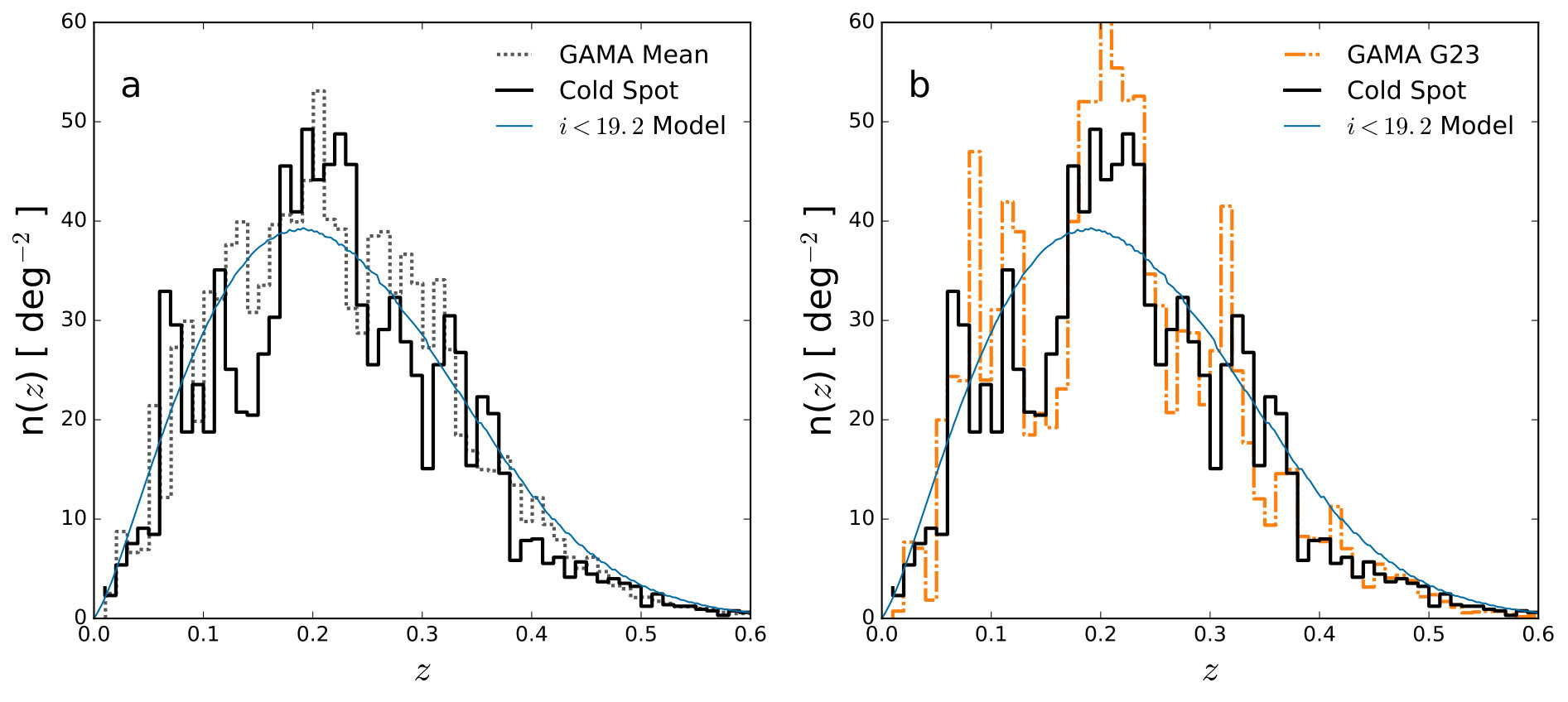

The 2CSz redshift distribution of the $\sim$6879 quality $>2$ galaxies is shown in Fig. 2(a), along with the mean GAMA redshift distribution and a homogeneous model (Metcalfe et al., 2001). Comparison with the homogeneous model allows for under and over-densities to be identified. Due to the sub-sampling of the spectroscopic survey we normalised the $n(z)$’s to the galaxy number magnitude counts in the Cold Spot and G23 regions using an ATLAS $iz$ band-merged catalogue. We found that the 75deg2 Cold Spot area was $16\pm 3$% under-dense relative to the $\sim 1000$deg2 around G23. We also found that the Cold Spot had a $7.4\pm 0.7$% number density deficit relative to a similarly large $\sim 1000$deg2 region surrounding the Cold Spot whereas the G23 galaxy count was consistent with the SGC average over its full $\sim 2600$deg2 area. Both the SGC number count and the mean galaxy density averaged over the 4 complete GAMA fields are in good agreement with the homogeneous model. To allow comparison with G23 we chose to normalise the Cold Spot observed $n(z)$ by 7.4% lower in total counts than both the homogeneous model and the G23 observed $n(z)$ and this is what is shown in Fig. 2. Ignoring the large scale gradient like this is certainly correct if it is a data artefact. But there is also a case to be made for it even if it is real since the Cold Spot is essentially a small-scale, $\sim 75$deg2, feature rather than a $\sim 1000$deg2 feature.

Here and throughout field-field errors are used. These are based on a (2dF) field size of $\sim 3$ deg2.

The mean GAMA redshift distribution comes from the 4 GAMA fields, G23, G09, G12 and G15 selected with $i_{AB}\leq 19.2$. The latter three $r$-limited fields were checked to be reasonably complete at the $i_{AB}\leq 19.2$ limit for this analysis. The stacked GAMA redshift distribution fits well with the Metcalfe et al. (2001) homogeneous model for galaxies with $i_{AB}\leq 19.2$. Fig. 2(a) shows indications of inhomogeneity in the Cold Spot sightline where we see evidence of an under-density spanning $0.08<z<0.17$ and there is also a hint of a smaller under-density at $0.25<z<0.33$. This would be consistent with the Szapudi et al. (2015) supervoid but we also see evidence for an over-density at $0.17<z<0.25$, apparently in conflict with the previous claim that the supervoid was centred in this range. Given the photometric redshift error, there may be no real contradiction between the datasets but their single void model does appear inconsistent with our spectroscopic data (see Section 4.2). Another under-density is seen at $0.37<z<0.47$ but systematic errors, such as spectroscopic incompleteness, become more important at this point (see Section 4.1).

3.2 Void Model

In order to obtain the parameters of an under-density and determine its ISW imprint a void profile must be selected and fit to the redshift distribution. Some previous work has used simple top-hat void models as the measured profile was dominated by photo-$z$ error. In the case of our well sampled spectroscopic survey the structure of the void is important to the fitting and allows us to estimate the ISW imprint of any void. Following Kovács & García-Bellido (2016), we have chosen the $\Lambda$LTB void profile described by a Gaussian potential (i.e. $\alpha=0$ in Finelli et al., 2016, eq. 1) which will allow us to use the analytic expression for the ISW temperature profile given by these authors. This compensated void profile is described by eq. 1,

[TABLE]

where $\delta_{m}(r)$ is the matter density contrast at radius $r$ from the void centre, $\delta_{0}$ is the matter density contrast at the void centre, $g(a)$ is the growth factor at scale factor, $a$, and $r_{0}$ is the void radius. As shown by Finelli et al. (2016) the ISW imprint of a void described by eq. 1 can be calculated using eq. 2,

[TABLE]

where $\frac{\delta T}{T}(\theta)$ is the ISW temperature imprint at angle $\theta$ away from the centre of the void and $z_{0}$ is the central redshift of the void. $F_{1}$ and $F_{4}$ are described by eq. 3 and 4 respectively where ${}_{2}F_{1}$ is the hypergeometric function,

[TABLE]

[TABLE]

Finelli et al. (2016) also give an expression for the Rees-Sciama effect (Rees & Sciama, 1968), the second order ISW effect. As the Rees-Sciama effect is sub-dominant to the ISW effect at the scale of the CS at low redshift in the standard cosmology (Cai et al., 2010) , we will neglect its contribution in our calculations.

3.3 Perturbation Fitting in the Cold Spot

In order to estimate the ISW imprint of the observed inhomogeneities we have fitted the redshift distribution with compensated perturbations with the profile given by eq. 1. Although our spectroscopic survey has 3D information we pursue this 1D analysis to mimic the void finding used in past photo-$z$ analyses, so the same large under-densities are selected. In order to do this it was first necessary to transform the $n(z)$ to the matter density contrast, $\delta_{m}(z)$, done by first converting to the galaxy density contrast, $\delta_{g}(z)$, and then dividing by the galaxy bias, $b_{g}$. These transformations are shown in eq. 5 and 6,

[TABLE]

[TABLE]

where $n_{model}(z)$ is the predicted redshift distribution from the homogeneous model (Metcalfe et al., 2001). Since the magnitude limits for the 2CSz and G23 galaxies are the same, the bias for both samples can be estimated from the GAMA G23 correlation function, obtaining a linear bias of $b_{g}=1.35$. Although simplistic, this linear bias assumption is accurate enough for the large scales of interest here.

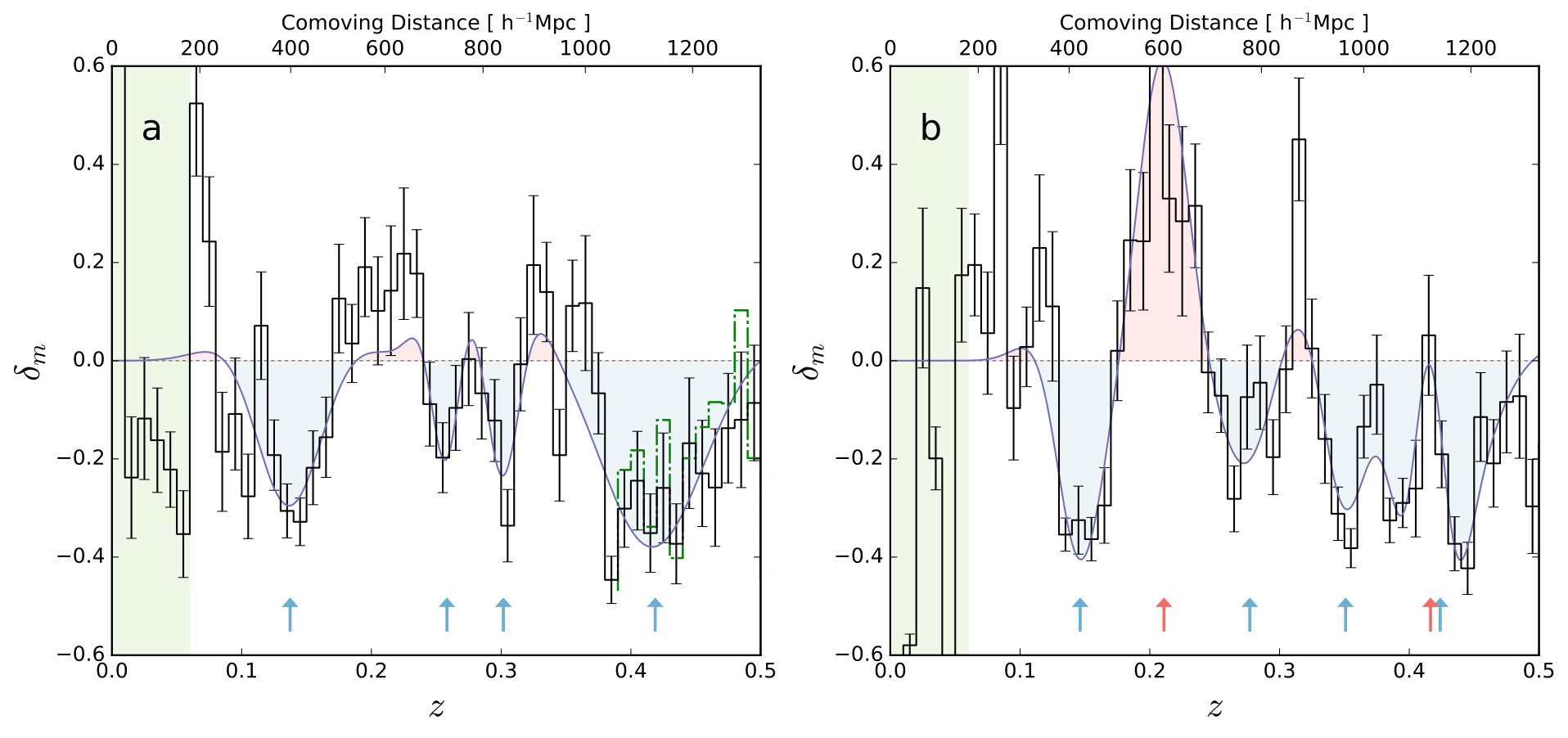

Fig. 3(a) shows the matter density contrast for the 2CSz survey, assuming field-field errors. A number of features can be seen in Fig. 3(a). At the lowest redshifts ($z<0.06$) the ‘Local Hole’ can be seen as a $\sim 25\%$ under-density. This is well studied in the literature and seems to extend across the SGC (e.g Whitbourn & Shanks, 2014). At $z=0.06$ there is an over-density separating the ‘Local Hole’ from a $\sim 40\%$ under-density which extends to $z=0.17$. Another peak in the distribution is followed by two under-densities ($z=0.23$, 0.25 and 0.3 respectively). Lastly there is a clear break at $z=0.38$ and a $\sim 30\%$ under-density extending to $z=0.5$ where it converges towards the homogeneous model. This feature may be due to redshift dependent incompleteness as we will discuss later (see Section 4.1).

In order to fit the redshift distributions in an unbiased way we have adopted an iterative fitting procedure that minimises the necessary complexity of any fit, quantified with the Akaike information criterion (AIC) (e.g. Porciani & Norberg, 2006). The AIC statistic takes into account the improvement in the fit of a more complex model but additionally penalizes it for this increased complexity. We use the AIC statistic specifically because it can be corrected in the case when the number of data points is not much larger than the number of parameters. We have fitted individual under-densities, $\delta_{m}(r)$, with 3D perturbations described by eq. 1, averaged over the 5 deg radius of 2CSz. In order to describe the features seen in Fig. 3 we model the line of sight $n(z)$ as a combination of perturbations. The fitting assumes the void is centred on the Cold Spot. The whole redshift range was fitted simultaneously, with the ‘Local Hole’, at $z\leq 0.0625$ excluded from the fit as it is not unique to the Cold Spot. We do not believe this will affect our results as there is a clear over-density, which appears to be a wall, separating the Local Hole and the lowest redshift void we consider. Our iterative method initially assumed N perturbations seeded with random parameters and fitted them to the data. Fitting was carried out with a Levenberg-Marquardt algorithm and quoted errors are standard errors calculated from the covariance matrix. Iterating over new random values and fitting we converge on the best fit parameters for N perturbations. The best fits for each value of N were then compared via the corrected AIC statistic, the minimum of which gave the optimum fit and the relative likelihood allowed for other values of N to be rejected if significantly poorer. The corrected AIC statistic is given by eq. 7 (Porciani & Norberg, 2006) where $k$ is the number of parameters being fit, $N_{\mathrm{data}}$ is the number of data points and $\hat{L}$ is the maximised likelihood function,

[TABLE]

The second line of eq. 7 holds in the case of normally distributed residuals. The relative probability of one model over another with a greater AIC value is given by the Akaike weights (eq. 8) where $\mathrm{AIC}_{\mathrm{min}}$ is the minimum AIC, $\Delta\mathrm{AIC}_{i}=\mathrm{AIC}_{i}-\mathrm{AIC}_{\mathrm{min}}$ and $k_{\mathrm{max}}$ is the maximum k considered,

[TABLE]

Hence a $p=0.05$ rejection of the weaker model corresponds to a $\Delta\mathrm{AIC}\sim 6$ and we shall adopt $\Delta\mathrm{AIC}=6$ as a threshold for rejecting models over the best fit. More complex models were considered until one was rejected over a simpler model.

This analysis suffers from degeneracies in that we cannot discern the difference between two voids and a wide void with an interior, narrow over-density. For this reason, the fitting ranges of parameters were restricted in range to provide sensible fits. Specifically we restricted the void radius to be between 50 and 150 h*-1*Mpc and the central density contrast was constrained to lie in the physical range, $\delta_{0}\geq-1$. Parameters at the radius limits were individually re-fit. Fits were also rejected which had perturbations at the very edges of the fitting range, i.e. $z_{0}<z_{min}+0.01$ or $z_{0}>z_{max}-0.01$. Additionally the compensated profile we have adopted cannot describe sharp narrow under-densities as they are averaged out in the survey field; however the purpose of this analysis is to detect large voids and this places upper limits on ISW contributions. We have allowed over-densities to be fitted with the perturbation described by eq. 1 but as this profile was derived for voids the resulting $\delta T$ values should be treated with caution. The minimum AIC values for each value of N perturbations are shown in Table 2. The resulting best fits are shown in Fig. 3. For the Cold Spot, the iterative procedure selected N$=4$ perturbations as the best fit (all under-densities) to give the fits summarized in Table 3. The AIC test does not strongly reject the N$=5$ solution but we note the difference between the models is only in the fitting of the $z\sim 0.42$ void with one profile or two and the resulting total $\delta T$ differs by just $2.7\mu K$ which is not significant.

3.4 Perturbation Fitting in GAMA G23

As noted above, we originally planned to use GAMA G23 as a control field but analysis showed that even on 50 deg2 scales there was sufficient sample variance to merit using a model which we validated with the stacked $i_{AB}\leq 19.2$ $n(z)$ from all four GAMA fields with a combined area of $\sim$240deg2. Indeed, Fig. 2(b) shows that upon comparison the Cold Spot redshift distribution bears remarkable similarity with G23 in the under-densities at $z\sim 0.15$, $0.3$ and $0.4$. In particular, the significant under-density $0.35<z<0.5$ that occurs in both fields could point to a selection effect in the survey. However, the mean GAMA redshift distribution shown in Fig. 2(a) shows little evidence for this. It also raises the question of whether or not some of these features could be coherent between G23 and the Cold Spot. Certainly at the lowest redshifts of $z<0.05$ the under-density is consistent with the ‘Local Hole’ which spans the SGC (Whitbourn & Shanks, 2014). In Section 4.3 we shall use the 2dF Galaxy Redshift Survey (2dFGRS, Colless et al., 2001b), whose Southern Strip spans the SGC between GAMA G23 and the Cold Spot, to check if this apparent coherence is real or accidental.

Meanwhile, the $n(z)$ similarities open up the possibility of G23 still acting as a control field because it does not show a CMB Cold Spot. Therefore due to the similarities in the redshift distributions of G23 and 2CSz we have fitted the density contrast in the same way as the Cold Spot as shown in Fig. 3(b). The parameters of the best fit are summarised in Table 3 with N=6 perturbations selected (see Table 2), including 4 under-densities and 2 over-densities. We note that the highest redshift feature has been fitted with an under-density with an interior, narrower over-density which together fit the two $z>0.37$ under-densities seen in Fig. 3(b). The fitting procedure selects this over two under-densities because the under-densities are sharp and the density profile provides a poor fit individually. As we will discuss in Section 4.1 we believe these features are affected by systematics and therefore we did not re-fit them.

4 Discussion

We have detected three large under-densities along the CMB Cold Spot sightline, the largest with radius $r_{0}=119\pm 35$h*-1Mpc centred at $z_{0}=0.14$ with a central density contrast of $\delta_{0}=-0.34$. This supervoid is smaller but more under-dense than that proposed by Szapudi et al. (2015) which has $r_{0}\sim 220$h-1Mpc and $\delta_{g}=-0.25$. The Szapudi et al. (2015) void also has a higher central redshift at $z\sim 0.22$ and may include the other 2CSz voids at $z_{0}=0.26$ and $z_{0}=0.30$ (see Table 3), seen as a single supervoid due to the photo-$z$ errors. Kovács & García-Bellido (2016) drew upon additional datasets to suggest that the proposed supervoid extended back to zero redshift with radius 500h-1Mpc and with a smaller 195h-1*Mpc radius in the angular direction. From eq. 2 we estimate the central temperature decrement due to our $z=0.14$ void at $-6.25\pm 5.7\mu K$, small compared to some previous work (Kovács & García-Bellido, 2016), as expected due to the strong relationship between void radius and its ISW imprint. The combined ISW imprint of the three Cold Spot voids is $-9.1\pm 6.1\mu K$ and even adding the fourth questionable void this rises to just $-31.7\pm 15.9\mu K$. As we will discuss in section 4.1 we believe the $z=0.42$ void is exaggerated by systematics. We also note that these estimates of the ISW imprint depend on the chosen void density profile used in the fitting process. Although the profile used here (eq. 1) is not unique it is at least representative of what previous studies have done and allows for direct comparison with literature (e.g. Kovács & García-Bellido, 2016, Finelli et al., 2016).

The strongest evidence against an ISW explanation for the Cold Spot that may arise from our results is due to the similarity in the $n(z)$ between GAMA G23 and the Cold Spot. Despite this, G23 has no CMB Cold Spot. Indeed, the predicted central ISW decrement for G23 from summing the contributions in Table 3 above (excluding the features at $z>0.4$) is $-3.6\pm 7.5\mu K$, statistically consistent with the $-9.1\pm 6.1\mu K$ predicted similarly for the Cold Spot. The predicted central ISW decrement for G23 is also consistent with that of the Cold Spot, even if no features in Table 3 are excluded. However, the CMB in the G23 sightline shows only a small central temperature decrement of $-15.4\pm 0.3\mu$K, some $\sim 10\times$ lower than for the Cold Spot. Thus the similarity in the large-scale structure between G23 and the Cold Spot fields forms a further qualitative argument against foreground voids playing any significant role in explaining the Cold Spot. On this evidence alone the detected void cannot explain the CMB Cold Spot because a similar void in G23 has no such effect.

4.1 The reality of the $z=0.42$ void

In the Cold Spot $n(z)$ an apparent, relatively strong, void can be seen at $0.37<z<0.5$ but we have already noted this is in a range where not only are the statistics poorer but where we know that magnitude dependent incompleteness becomes more important. The similarity of this feature with the $0.34<z<0.5$ under-densities in G23 suggests there may be some sort of selection effect or systematic which we will now investigate.

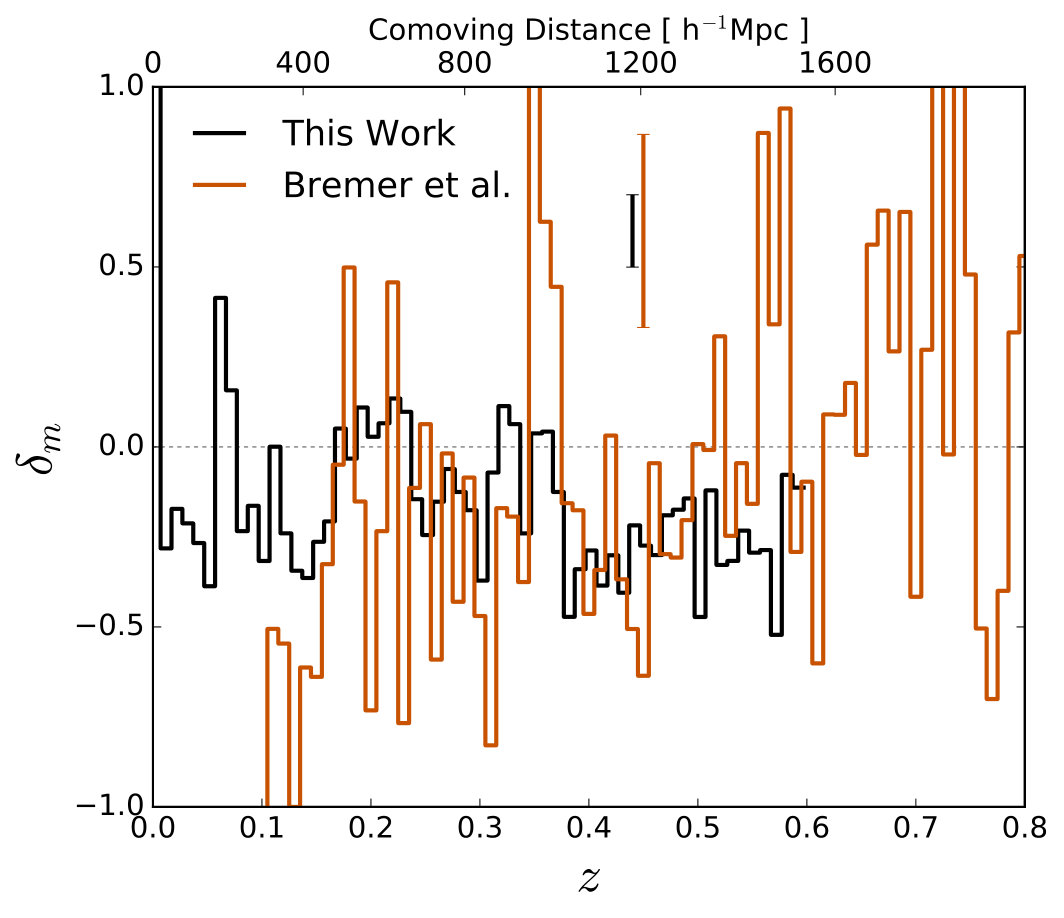

We therefore test the reality of this void in Fig. 4 where we compare the 2CSz $\delta_{m}(z)$ and the previous Bremer et al. (2010) VLT VIMOS $\delta_{m}(z)$ and see that an under-density at $z=0.42$ may also be detected in that dataset, albeit at low $\sim 2\sigma$ significance. A lower bias of $b=1$ has also been assumed here for the VIMOS $\delta_{m}(z)$ compared to $b=1.35$ for 2CSz, on the grounds that the VIMOS galaxies are intrinsically fainter. This is consistent with results from the VVDS survey (Marinoni et al., 2005). We note that despite this apparent agreement the VLT VIMOS data probes a much smaller volume at this low redshift end and therefore would have large sample variance.

The absence of this feature from the mean GAMA $n(z)$ indicates that this feature cannot be intrinsic to the $i_{AB}<19.2$ selection criteria. We instead suggest that it may be due to a systematic selection effect. Although the other GAMA fields are apparently unaffected by this systematic, this may be explained by the Cold Spot (and G23) data having slightly lower S/N due to somewhat shorter 2dF exposure times and redshift success rate viz. Cold Spot (45mins, 89.0$\%$), G23 (30-50mins, 94.1$\%$) vs. the other 3 Equatorial GAMA fields used here (50-60 mins, 98.5$\%$). 2CSz was also conducted in gray time which will further reduce the S/N with respect to GAMA. The lower S/N ratio will increase spectroscopic incompleteness and we note that the 4000Å break and Ca II H and K absorption lines transition though the dichroic over this redshift range while the H$\alpha$ emission line also leaves the red arm of the spectrograph. It is possible that these two effects make accurate redshifting more difficult over this redshift range and would create an apparent under-density. To test this we split 2CSz into pointings with high and low spectroscopic success rate, with half having a success rate greater than $90\%$ and half with less. The result of this is shown for $z\geq 0.38$ in Fig. 3(a) by the dashed histogram. All fitting used the full dataset. The success rate of the 2dF field strongly affects the depth of the $z=0.42$ void indicating that it is affected by systematic incompleteness.

Also, at $z>0.4$, small differences in the homogeneous model will lead to large differences in the derived $\delta_{m}(z)$. To investigate whether the model $n(z)$ could be over-predicting the galaxy density at the higher redshifts creating spurious under-densities, we have explored a model $n(z)$ constructed from random catalogues built for the GAMA survey (Farrow et al., 2015) and find that indeed this different model $n(z)$ decreases the depth of the $z=0.42$ void. When compared to the mean GAMA $n(z)$ however this model $n(z)$ appears to under-predict the galaxy density at higher redshift and therefore we do not replace our homogenous model with the GAMA random catalogue constructed $n(z)$. Whether the void seen by 2CSz in this $z$ range is accentuated by such systematics or not does not matter for our main conclusion since even including this void’s contribution the total ISW decrement from Table 3 is still only $\sim-32\mu$K compared to the $\sim-150\mu$K needed to explain the Cold Spot.

Additionally we note that the bias of galaxies will not be constant throughout the redshift range as assumed. Because the survey is magnitude limited the galaxies at the high redshift end of the survey will be brighter than the low redshift end. The brighter 2CSz galaxies at $z=0.42$ may actually be as large as $b\sim 2$ (e.g. Zehavi et al., 2011) and increasing the bias would linearly decrease the depth of the void $\delta_{0}$ (by eqn 6) and hence its ISW imprint.

Together these arguments cast doubt on the existence of the $z=0.42$ void and for this reason we neglect it in our conclusions. A sample of galaxies with a magnitude limit intermediate between that of 2CSz and Bremer et al. (2010) et al is needed to determine finally the status of the $z=0.42$ void.

4.2 Photo*-z* and spectroscopic $n(z)$

In order to assess why the spectroscopic 2CSz survey results apparently differ from the photometric redshift survey of Kovács & García-Bellido (2016) we convolved the 2CSz spectroscopic redshift distribution with an estimated error of $0.034(1+z)$ photo*-z* error, which is the quoted photo-$z$ error from Szapudi et al. (2015). Kovács & García-Bellido (2016) used 2MPZ with a very small photo-$z$ error of $0.015(1+z)$, but the 2MPZ sample is limited by low number densities at higher redshifts so we do not compare to this directly.

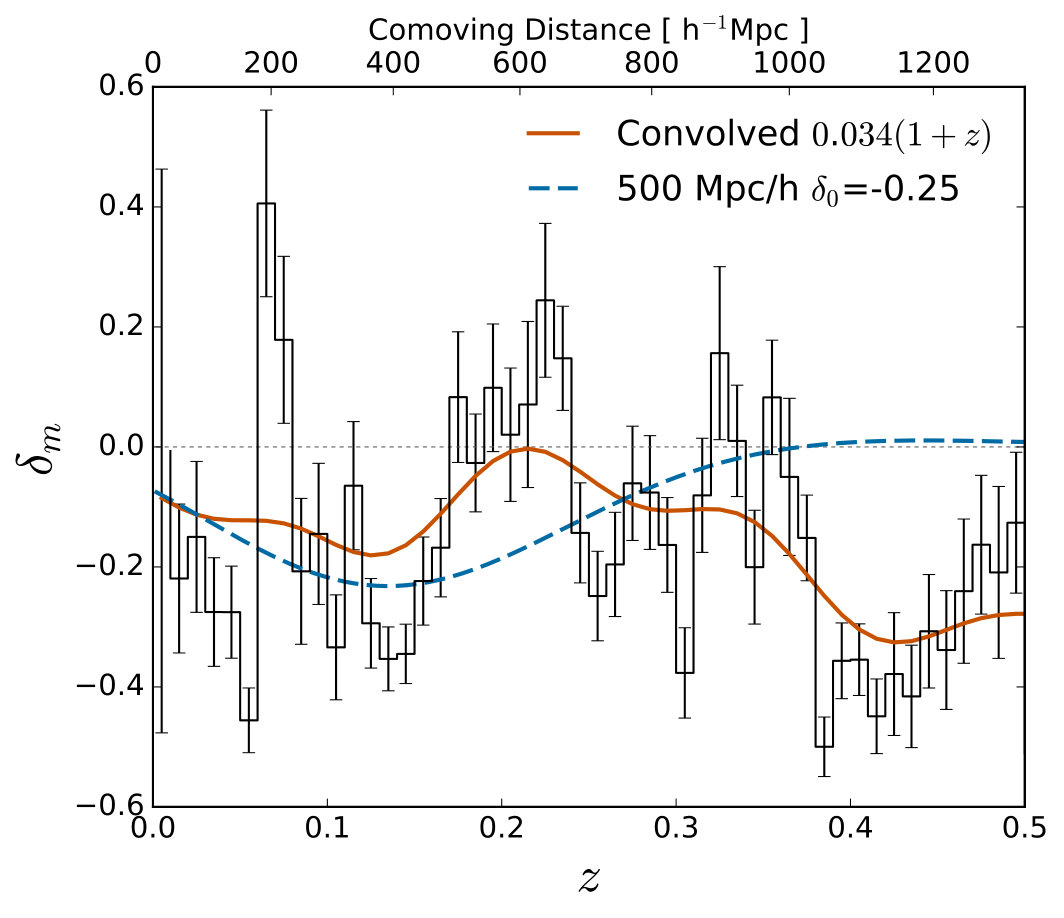

The resulting model $\delta_{m}(z)$ is shown in Fig. 5 where we see that there is limited consistency with the model result of Kovács & García-Bellido (2016) with $r_{0}=500$h*-1Mpc and $\delta_{0}=-0.25$ when convolved with a photo-$z$ error. The main source of disagreement is the lack of an under-density at $z\sim 0.2$ in 2CSz which seems difficult to reconcile with the model void but we note that at $z>0.15$ the 2MPZ data is consistent with no under-density due to a large uncertainty. While our data is not consistent with an $r_{0}=500$h-1*Mpc void we believe it is consistent with the photo-$z$ data.

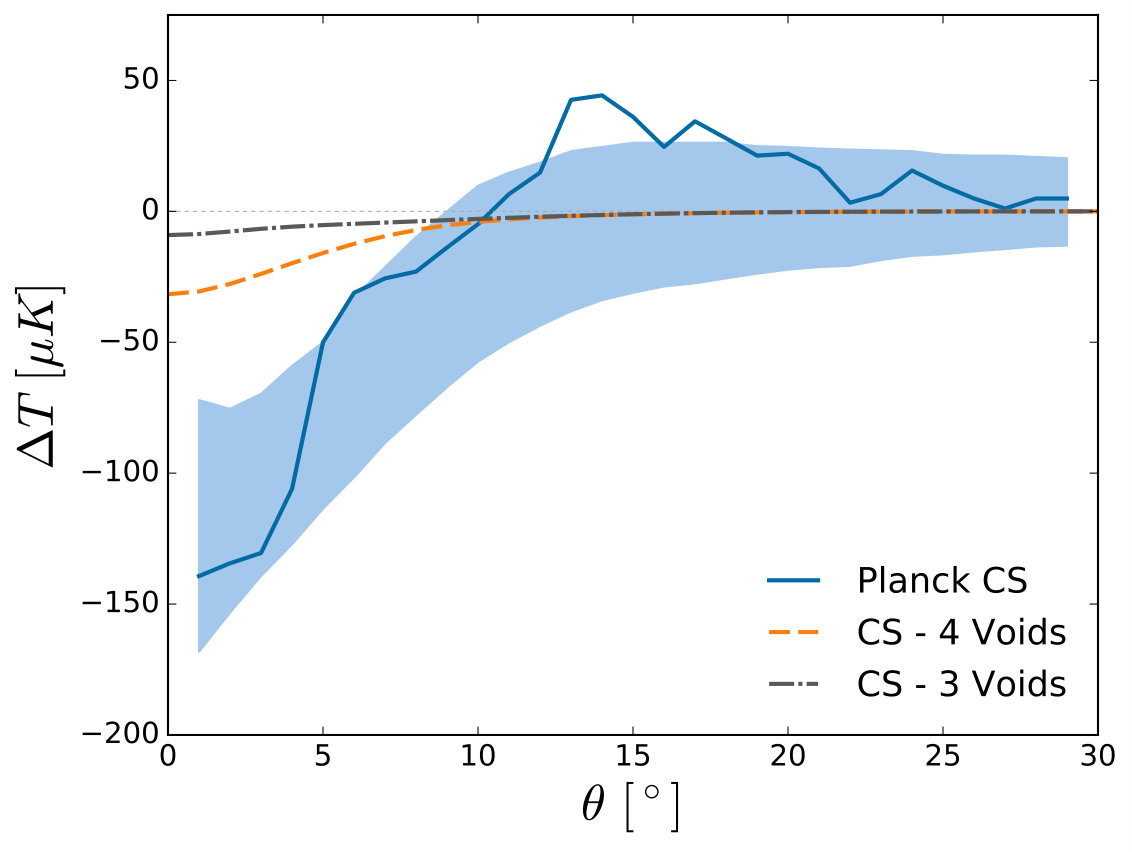

When we compare our predicted ISW central decrement to previous work we see some consistency. With the 3-void model of the Cold Spot line of sight the combined temperature decrement is $-9.1\pm 6.1\mu K$ which is consistent with the $\sim-20\mu K$ of Szapudi et al. (2015) but not with the $\sim-40\mu K$ of Kovács & García-Bellido (2016). One could argue the 4-void model at $-31.7\pm 16.0\mu K$ is consistent with Kovács & García-Bellido (2016) values, but $\sim\frac{2}{3}$ of that decrement is due to the $z=0.42$ void which is likely to be contaminated by systematic effects as discussed previously. Additionally the void of Kovács & García-Bellido (2016) did not extend to $z>0.4$ and it is beyond the range of the 2MPZ data.

4.3 A coherent SGC galaxy distribution?

We have already discussed the important question of the normalisation of the Cold Spot $n(z)$. Both G23 and the Cold Spot areas are contained in the Local Hole under-density known to extend at least to $z=0.06$ across the SGC. Moreover we have noted that the galaxy count in the 5*∘* radius Cold Spot area is $\sim 16$% under-dense relative to G23 and the rest of the SGC at our $i_{AB}<19.2$ limit. When compared to a surrounding $\sim 1000$deg2 area the 5*∘* core of the Cold Spot is $7.4\%$ under-dense. The Cold Spot area therefore appears to exist in an environment exhibiting a significant global gradient stretching across the SGC. Finally we have noted the similarity of the 2CSz and GAMA G23 redshift distributions which again may suggest evidence for coherent structure extending between them.

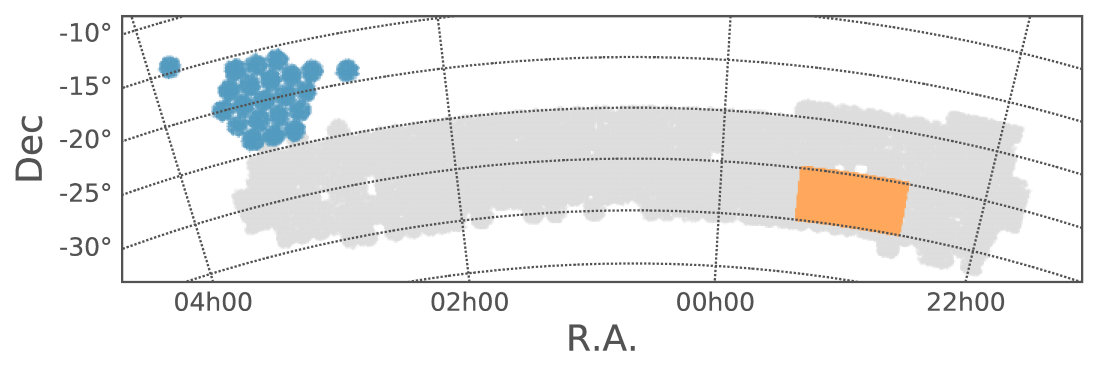

To investigate further this possibility, we now exploit the 2dF Galaxy Redshift Survey (2dFGRS, Colless et al., 2001b) which spans the SGC between GAMA G23 and the Cold Spot at $-35^{\circ}<$ Dec $<-25^{\circ}$ (see Fig. 6). With a magnitude limit $b_{J}(\sim g)\leq 19.6$, 2dFGRS is shallower than the $i_{AB}\leq 19.2$ surveys so only probes the low $z$ structures but has a large area. Busswell et al. (2004) shows the redshift distribution of the 2dFGRS survey in the SGC in their Fig. 14 (also shown in Norberg et al., 2002 Fig. 13). The distribution shows peaks at $z=0.06$, $z=0.11$ and $z=0.21$ which are very similar to those shown in 2CSz and roughly similar to those shown in G23. We have attempted to track these features across 2dFGRS to see if they do in fact span the sky between G23 and 2CSz. When we split 2dFGRS by R.A. as in Fig. 7 we generally see coherence in that at $z<0.06$ we consistently see under-density in this range. This is the ‘Local Hole’ of Whitbourn & Shanks (2014) (see their Fig. 2b) which covers $\sim 3500$ deg2 of the SGC (the 6dFGS-SGC area marked in orange in their Fig. 1 with coordinate ranges given in their Table 3). Based on the $0.06<z<0.11$ void seen in the 2dFGRS $n(z)$ shown in Fig. 14 of Busswell et al. (2004), these authors have speculated that the void runs to $z\sim 0.1$. In passing, we note that the $\sim 8\%$ gradient between the regions surrounding G23 and the Cold Spot may represent Local Hole sub-structure.

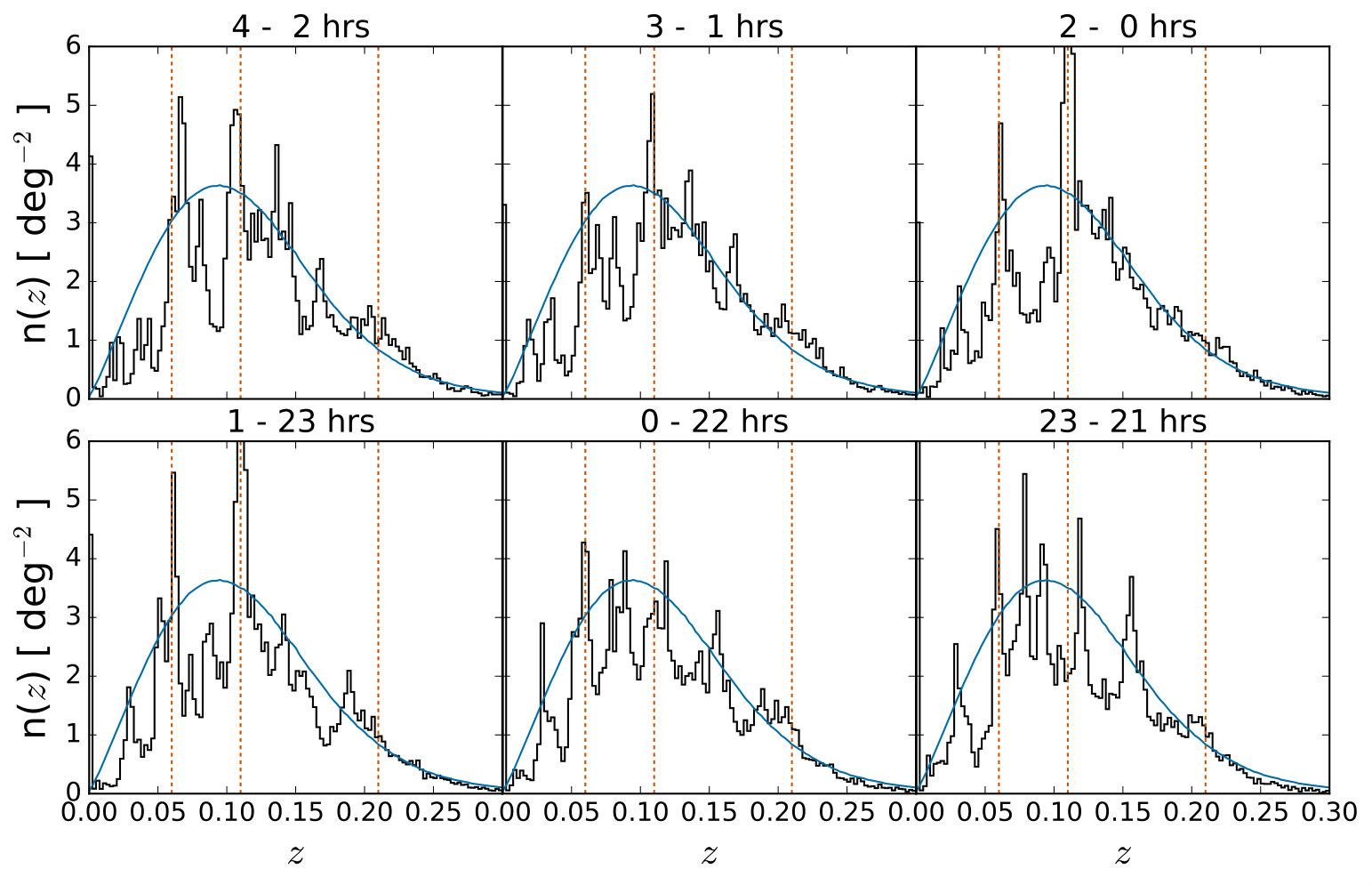

In Fig. 7 we see that the eastern half of 2dFGRS ($0<$ R.A. $<4$hrs) more clearly exhibits the peaks at $z=0.06$ and $z=0.11$ (with intervening under-density) than does the range at $21<$ R.A. $<0$hr. We have checked that restricting 2dFGRS to the G23 area produces very good agreement in $\delta_{m}(z)$ out to $z<0.25$. More speculatively, even the $z=0.21$ peak may be seen in at least some of the R.A. ranges If so, this possible coherence may also explain why 2CSz and G23 have such similar $n(z)$ distributions. However in the $23<$ R.A. $<1$hr and $0<$ R.A. $<2$hr ranges the feature at $z=$0.21 is less obvious and perhaps argues against coherence extending to $z\sim 0.2$. This would leave the similarity of the 2CSz and G23 $n(z)$’s at $0.1<z<0.2$ appearing accidental. We note that the absence of these structures from the NGC 2dFGRS survey (c.f. Figs. 13, 14 of Busswell et al., 2004) makes systematic effects unlikely as the cause.

How likely is it, in the standard cosmological model, that coherent structure extends out to $z<0.2$ across the 2dFGRS SGC strip? We assume an $\sim$1000deg2 area for 2dFGRS SGC and a power-law correlation function, $\xi(s)=(s/s_{0})^{-\gamma}$, with $s_{0}\sim 6.92$h*-1Mpc and $\gamma\sim 1.51$ for $s<50$h-1*Mpc, as measured for 2dFGRS by Hawkins et al. (2003). The variance, $\sigma_{N}^{2}$, of galaxy numbers, $N$, around average $\bar{N}$ in a volume, $V$, where the galaxy space density, $n$ $(=N/V)$, is (e.g. Peebles, 1980)

[TABLE]

implying $\sigma_{N}\sim 20\times\sqrt{\bar{N}}$. Given that $\bar{N}\sim 140000$ galaxies in the 2dFGRS SGC volume, a nominal 10% under-density (or over-density) across 2dFGRS SGC even out to $z\sim 0.2$ would amount to a $\sim 1.9\sigma$ fluctuation. On the same assumptions, a similar over- or under-density out to $z=0.1$ would represent a significance of $\sim 1.3\sigma$. Now these may be taken as a rough measure of the significance of coherence in a survey modeled by some of its $z$ range being 10% overdense and the rest being 10% underdense. So at $\sim 1.3-1.9\sigma$, we conclude that galaxy clustering coherence across 2dFGRS SGC can plausibly explain the 2CSz-G23 coherence out to $z\sim 0.1$ and more speculatively to $z\sim 0.2$. However the observational evidence for coherence at $z\sim 0.2$ is mixed.

4.4 Origin of The CMB Cold Spot

As noted in Section 1, several authors have calculated the significance of the Cold Spot with respect to the coldest spots in CMB sky simulations (e.g. Nadathur et al., 2014, Planck Collaboration et al., 2016b). The significances are typically at the $\sim 1$% level. As shown by these authors, the significance of the Cold Spot in the standard cosmology comes not from the central temperature but from the temperature profile seen in Fig. 8 which closely matches the compensated SMHW that was originally used to detect it (Vielva et al., 2004). On this basis when assessing what impact the detected voids have on the significance of the Cold Spot we have to go beyond central temperature and look at the significance of the SMHW filtered temperature subtracted for the detected voids. This removes the ISW imprinted signal and assesses the significance of the residual primordial profile. Following Naidoo et al. (2016), subtracting our best 3-void (i.e. the voids with $z_{0}<0.4$ in Table 3) model ISW contribution would reduce the significance of the Cold Spot only slightly, typically to $\sim 1.9\%$ (Naidoo et al., 2016) i.e. only 1 in $\sim 50$ $\Lambda$CDM Universes would produce such a feature by chance. Fig. 8 shows the ISW imprints of the 3 and 4-void models and the measured CMB Cold Spot temperature profile. This significance would be reduced if our 4-void model was trusted but, as previously argued, the void at $z=0.42$ may be unduly affected by systematics.

Kovács & García-Bellido (2016) claimed the Cold Spot supervoid is an elongated supervoid at $z=0.14$ with $r_{0}=500$h*-1Mpc in the redshift direction and $r_{0}=195$h-1*Mpc in the angular direction with $\delta_{0}=-0.25$. The ISW effect on the central decrement is estimated to be a reduction of $\sim 40\mu$K. At the central redshift of $z=0.14$ this supervoid would extend $27.5^{\circ}$ on the sky. We note that the 2dFGRS SGC strip covers the area to the South of the Cold Spot. In the 2h$<$R.A.$<$4h range, all of this R.A. bin is within $27.5^{\circ}$ of the Cold Spot. Fig. 7 shows that although there is a 2dFGRS void at $z=0.08$ within the supervoid redshift range, the peak at $z=0.11$ and plateau out to $z=0.15$ is near the claimed $z=0.14$ centre of the supervoid; there seems little evidence of a void at $0.1<z<0.25$ in this 2dFGRS 2h$<$R.A.$<$4h range. The $z=0.2$ peak may still be present indicating there may be an under-density at $0.15<z<0.2$. So at least in the direction South of the Cold Spot, evidence for an extended simple void structure around its centre is again not present.

Various authors (e.g. Cai et al., 2014a, b; Kovács et al., 2017 and references therein) have also discussed the possibility of an enhanced ISW effect in voids being produced by modified gravity models. This has been done to explain observations where a larger than expected ($2-4\times$ under $\Lambda$CDM) ISW-like signal has been found around voids (Granett et al., 2008, Cai et al., 2017), these results are however low significance. It may be speculated whether our 2CSz Cold Spot results may also be explained similarly. But again the similarity between the galaxy redshift distributions in 2CSz and the G23 control field tends to argue against this possibility. If some modified gravity model did give an enhanced ISW effect to explain the Cold Spot then why is there no similar Cold Spot seen in the G23 line-of-sight? This argument should be tempered with the facts that, first, the $n(z)$ agreement between the Cold Spot and G23 is inexact given that the $n(z)$ peak at $z=0.21$ is more pronounced in G23. This difference is reflected in the predicted ISW decrements, $-9.1\pm 6.1\mu K$ and $-3.6\pm 7.5\mu K$ for the Cold Spot and G23 respectively. Second, the $n(z)$’s used to construct the $\delta_{m}(z)$’s were normalised with respect to their surroundings and so don’t contain all the information of the largest scale fluctuations. As discussed previously the region surrounding the Cold Spot is under-dense with respect to the region surrounding G23 by $\sim 8\%$ so the two fields are not exactly equivalent and the structures detected in this analysis are embedded in different large scale potentials. This could have an effect on the Cold Spot ISW imprint but likely at larger scales than the 5*∘* radius feature we have mainly investigated here. One could argue that the alignment of the CMB Cold Spot and the large $z=0.14$ void implies a causal link though the improbability of alignment but voids of this scale are not expected to be unique (Nadathur et al., 2014, Kovács et al., 2017) and our search was not blind nor the only attempt to detect for a void.

If not explained by a $\Lambda$CDM ISW effect the Cold Spot could have more exotic primordial origins. If it is a non-Gaussian feature, then explanations would then include either the presence in the early universe of topological defects such as textures (Cruz et al., 2007) or inhomogeneous re-heating associated with non-standard inflation (Bueno Sánchez, 2014). Another explanation could be that the Cold Spot is the remnant of a collision between our Universe and another ‘bubble’ universe during an early inflationary phase (Chang et al., 2009, Larjo & Levi, 2010). It must be borne in mind that even without a supervoid the Cold Spot may still be caused by an unlikely statistical fluctuation in the standard (Gaussian) $\Lambda$CDM cosmology.

To conclude, based on the arguments and caveats above we have ruled out the existence of a void at which could imprint the majority of the CMB Cold Spot via a $\Lambda$CDM ISW effect. The predicted decrement is consistent with some previous studies (Szapudi et al., 2015), although certainly at the low end of literature values. We have additionally placed powerful constraints on any non-standard ISW-like effect which must now show how voids, apparently unremarkable on $5^{\circ}$ scales, can imprint the unique CMB Cold Spot. The presence of the detected voids only slightly relaxes the significance of the primordial residual of the CMB Cold Spot in standard cosmology to approximately 1 in 50, tilting the balance towards a primordial and also possibly non-Gaussian origin. But at this level of significance clearly any exotic explanation will have to look for further evidence beyond the Cold Spot temperature profile.

5 Conclusions

We have conducted a spectroscopic redshift survey of the CMB Cold Spot core in order to test claims from photo-$z$ analyses for the existence of a large low-$z$ void that could be of sufficient scale and rarity to explain the CMB Cold Spot.

$\bullet$ We have detected an $119$ h*-1Mpc, $\delta_{g}=-0.34$ under-density at $z=0.14$. This under-density is much less extended than found in photo-z* analyses in the literature but is more under-dense. The estimated $\Lambda$CDM ISW effect from this void is estimated at $-6.25\mu$K, much too small to explain the CMB Cold Spot.

$\bullet$ Two further small under-densities were observed at $z=0.26$ and $0.30$. The effect of these voids is even smaller than the $z=0.14$ void.

$\bullet$ A further candidate void was detected at $z=0.42$ although we conclude this is most likely due to redshift incompleteness in the survey. Even if real this void would still not explain the CMB Cold Spot.

$\bullet$ Without detailed calculation we have shown that the rarity of this void is not sufficient to motivate it as the cause of the CMB Cold Spot because of the similarity with GAMA G23. The comparability of under-densities at $z\sim 0.4$ between G23 and the Cold Spot again means that even if the $z=0.42$ void in the Cold Spot was not a systematic effect, it is not unique enough to suggest an effect beyond standard cosmology.

$\bullet$ Combining our data with previous work (Bremer et al., 2010) the presence of a very large void which can explain the CMB Cold Spot can be excluded up to $z\sim 1$, beyond which the ISW effect becomes significantly reduced as the effect of the Cosmological Constant is diluted.

$\bullet$ The similarity between the 2CSz and G23 $n(z)$ distributions may have some explanation in the similar $n(z)$ seen in the 2dFGRS SGC strip that spans the $\sim 60^{\circ}$ angle between these sightlines. This includes the ‘Local Hole’ at $z<0.06$ but may also include further structures out to $z\sim 0.2$.

Our 2CSz results therefore argue against a supervoid explaining a significant fraction of the Cold Spot via the ISW effect. This suggests a primordial origin for the Cold Spot, either from an unlikely fluctuation in the standard cosmology or as a feature produced by non-Gaussian conditions in the early Universe.
