PdBI U/LIRG Survey (PULS): Dense Molecular Gas in Arp 220 and NGC 6240

TL;DR

This study uses advanced millimeter observations to analyze the physical conditions and molecular gas properties in the merging galaxies Arp 220 and NGC 6240, revealing temperature, density, and chemical abundance variations.

Contribution

It provides new high-resolution molecular line observations and detailed radiative transfer modeling, offering insights into the gas conditions and chemical enrichment in these luminous infrared galaxies.

Findings

Optically thick lines show smooth ratio variations.

Optically thin lines exhibit east-west gradients.

Arp 220 has high HCN/HCO+ ratios above 2.

Abstract

Aims. We present new IRAM Plateau de Bure Interferometer observations of Arp 220 in HCN, HCO$^{+}$, HN$^{13}$C J=1-0, C$_{2}$H N=1-0, SiO J = 2-1, HNCO J$_{k,k'}$ = 5$_{0,4}$ - 4$_{0,4}$, CH$_{3}$CN(6-5), CS J=2-1 and 5-4 and $^{13}$CO J=1-0 and 2-1 and of NGC 6240 in HCN, HCO$^{+}$ J = 1-0 and C$_{2}$H N = 1-0. In addition, we present Atacama Large Millimeter/submillmeter Array science verification observations of Arp 220 in CS J = 4-3 and CH$_{3}$CN(10-9). Various lines are used to analyse the physical conditions of the molecular gas including the [$^{12}$CO]/[$^{13}$CO] and [$^{12}$CO]/[C$^{18}$O] abundance ratios. These observations will be made available to the public. Methods. We create brightness temperature line ratio maps to present the different physical conditions across Arp 220 and NGC 6240. In addition, we use the radiative transfer code RADEX and a Monte Carlo Markov Chain likelihood code to model the $^{12}$CO, $^{13}$CO and C$^{18}$O lines of Arp 220 at ~2" (~700 pc) scales, where the $^{12}$CO and C$^{18}$O measurements were obtained from literature. Results. Line ratios of optically thick lines such as $^{12}$CO show smoothly varying ratios while the line ratios of optically thin lines such as $^{13}$CO show a east-west gradient across Arp 220. The HCN/HCO$^{+}$ line ratio differs between Arp 220 and NGC 6240, where Arp 220 has line ratios above 2 and NGC 6240 below 1. The radiative transfer analysis solution is consistent with a warm (~40 K), moderately dense (~10$^{3.4}$ cm$^{-3}$) molecular gas component averaged over the two nuclei. We find [$^{12}$CO]/[$^{13}$CO] and [$^{12}$CO]/[C$^{18}$O] abundance ratios of ~90 for both. The abundance enhancement of C$^{18}$O can be explained by stellar nucleosynthesis enrichment of the interstellar medium.

Figures

Tables

Table 1. Table 1: Source Summary

	(0,0) Position			Center Velocity
Source	RA	Dec	$L_{\mathrm{FIR}}$	czlsr	zlsr	DL	Linear Scale
	(J2000)	(J2000)	($L_{☉}$)	(km s-1)		(Mpc)	(pc arcsec-1)
Arp 220	15 34 57.24	+23 30 11.2	1.4 $\times$ 1012	5434	0.018126	81.3	390
NGC 6240	16 52 58.89	+02 24 03.7	5.4 $\times$ 1011	7340	0.02448	108	520

Table 2. Table 2: Line Observations Summary

Source	Line	${\nu }_{\mathrm{rest}}$	Resolution	rms	Channel Width	Flux
		(GHz)	(arcsec)	(mJy beam-1)	(km s-1)	(Jy km s-1)
Arp 220	13CO $J$=1$-$0	110.201	2.0 x 1.3	1.5	40	8.0
	13CO $J$=2$-$1	220.399	0.9 x 0.7	1.9	20	47.0
	HCO+ $J$ = 1$-$0	89.189	1.3 x 0.8	0.7	20	17.8
	HCN $J$ = 1$-$0	88.631	1.3 x 0.8	0.7	20	45.0
	CS $J$ = 2$-$1	97.981	1.6 x 1.1	1.3	20	17.1
	CS $J$ = 4$-$3	195.954	0.9 x 0.7	1.4	20	61.0
	CS $J$ = 5$-$4	244.936	0.9 x 0.7	2.5	40	40.5
	C2H $N$ = 1$-$0	87.3/4	1.3 x 0.8	0.8	20	8.8
	CH3CN(6-5)	110.328 - 110.385	2.0 x 1.3	1.5	40	$>$3.9
	CH3CN(10-9)	183.674 - 183.964	0.9 x 0.8	2.4	20	19.7
	HNCO $J_{k,k^{\prime }}$ = 50,4 - 40,4	109.906	2.0 x 1.3	1.5	40	$>$2.0
	HN13C $J$ = 1-0	87.091	1.3 x 0.8	0.8	40	0.7
	SiO $J$=2-1	86.847	1.3 x 0.8	0.8	40	5.5
NGC 6240	HCO+ $J$ = 1$-$0	89.189	1.1 x 1.1	1.0	20	9.9
	HCN $J$ = 1$-$0	88.63	1.1 x 1.1	1.0	20	6.3
	C2H $N$ = 1$-$0	87.3/4	1.1 x 1.1	0.3	40	1.3

Table 3. Table 3: Line Ratios

	Position
	RA (J2000)	Dec (J2000)	r21	r32	R10	R21	13r21	H10
Arp 220E	15 34 57.342	+23 30 11.610	0.8 $\pm$ 0.1	0.8 $\pm$ 0.1	23 $\pm$ 3	19 $\pm$ 2	0.9 $\pm$ 0.1	2.4 $\pm$ 0.2
Arp 220W	15 34 57.197	+23 30 11.595	1.1 $\pm$ 0.1	0.60 $\pm$ 0.08	38 $\pm$ 4	19 $\pm$ 2	2.3 $\pm$ 0.3	2.7 $\pm$ 0.2
Arp 220C	15 34 57.258	+23 30 11.592	1.2 $\pm$ 0.1	0.60 $\pm$ 0.08	31$\pm$ 3	26 $\pm$ 3	1.3 $\pm$ 0.1	2.5 $\pm$ 0.2
NGC 6240	16 52 58.900	+02 24 03.810	1.0 $\pm$ 0.1	…	…	…	…	0.80 $\pm$ 0.09

Table 4. Table 4: Radiative Transfer Results

		$T_{\mathrm{kin}}$	log10($n_{H_2}$)	log10(P)	log10(${\Phi }_A$)	log10($N_{{}_{}{}^{12}\mathrm{CO}}$ $>$)	log10($M_{H_2}$)	${\alpha }_{\mathrm{CO}}$	[12CO]/[13CO]	[12CO]/[C18O]
		(K)	(cm-3)	(K cm-3)		(cm-2)	($M_{☉}$)	($M_{\odot }$ (K km s-1 pc2)-1)
	[1]	[2]	[3]	[4]	[5]	[6]	[7]	[8]	[9]	[10]
Arp 220C	Mean	130	2.99	5.2	-0.30	19.33	8.81	0.4	125	125
	Best Fit	38	3.35	4.9	-0.036	19.20	8.69	0.3	90	91
	-1$\sigma$ Value	37	2.55	4.9	-0.53	18.97	8.46	0.2	58	56
	+1$\sigma$ Value	690	3.40	5.4	-0.074	19.74	9.23	1.0	309	323
Arp 220E	Mean	240	2.54	4.9	-0.22	19.04	8.53	0.4	93	93
	Best Fit	34	3.10	4.6	-0.017	19.24	8.73	0.6	159	159
	-1$\sigma$ Value	10	2.8	4.3	-0.17	19.03	8.52	0.4	100	100
	+1$\sigma$ Value	110	3.4	4.9	0.0	19.45	8.94	1.0	255	255
Arp 220W	Mean	105	3.78	5.8	-0.32	19.36	8.85	0.5	151	149
	Best Fit	300	3.2	5.7	-0.7	19.34	8.83	0.5	142	143
	-1$\sigma$ Value	90	2.3	5.0	-0.91	18.96	8.45	0.2	62	62
	+1$\sigma$ Value	1000	4.1	6.3	-0.48	19.71	9.20	1.1	330	330

Table 5. Table 5: Continuum Emission

	Continuum Position			Flux Density		Resolution
Source	RA	Dec	Frequency	Peak	Total
	(J2000)	(J2000)	(GHz)	(mJy beam-1)	(mJy)	(arcsec)

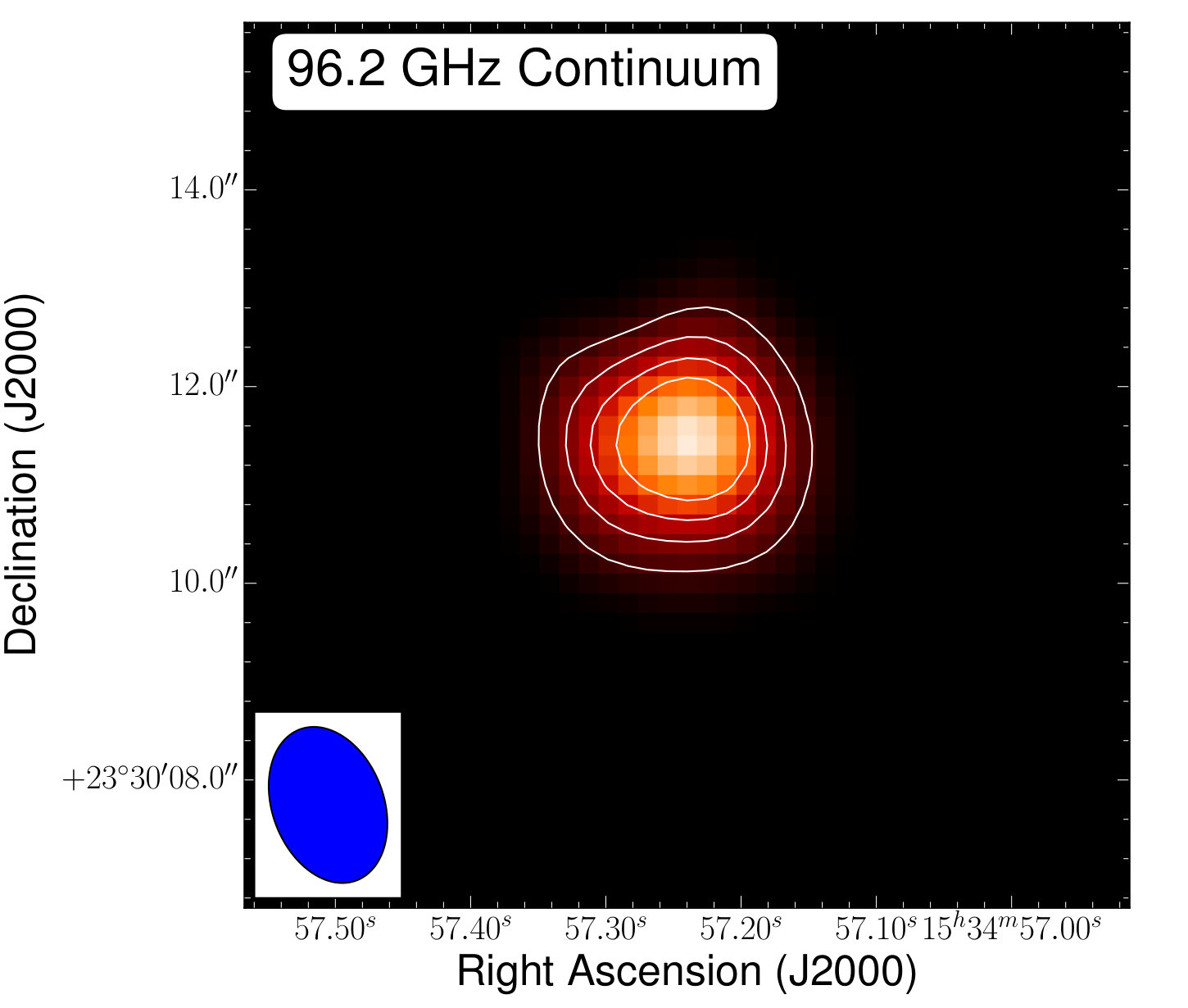

Arp 220	15 34 57.24	+23 30 11.2	87.0	23.0	31.0	1.3 $\times$ 0.8
			96.2	17.8	26.0	1.6 $\times$ 1.1
			105.1	22.0	25.0	2.0 $\times$ 1.3
			113.2	30.0	41.0	2.0 $\times$ 1.3
			219.5	42.0	99.0	0.9 $\times$ 0.7
			237.5	62.0	150.0	0.9 $\times$ 0.7
NGC 6240S	16 52 58.893	+02 24 03.4	86.5	4.6	5.1	1.1 $\times$ 1.1
NGC 6240N	16 52 58.918	+02 24 04.8	86.5	1.7	1.8	1.1 $\times$ 1.1
NGC 6240			86.5	1.7	6.9	1.1 $\times$ 1.1

Table 6. Table 6: Sources Observed

Source	Lines
IRAS 00057+4021	HCN (1-0), 12CO (1-0), 12CO (2-1)
VII Zw 31	HCN (1-0), 12CO (1-0), 12CO (2-1), 13CO (1-0), 13CO (2-1)
UGC 5101	HCN (1-0), 12CO (1-0), 12CO (2-1)
IRAS 10565+2448	HCN (1-0), 12CO (2-1)
Mrk 231	HCN (1-0), HCO+ (1-0), 12CO (2-1)
Arp 193	HCN (1-0), 12CO (1-0), 12CO (2-1), 13CO (2-1)
Mrk 273	HCN (1-0), 12CO (1-0), 12CO (2-1), 13CO (2-1)
IRAS 17208-0014	HCN (1-0), 12CO (1-0), 12CO (2-1)
IRAS 23365+3604	HCN (1-0), 12CO (1-0), 12CO (2-1)

Equations

$$\begin{array}{rl}\mathrm{R}& =\frac{T_{\mathrm{B}}^{{}^{12}\mathrm{CO}}}{T_{\mathrm{B}}^{{}^{13}\mathrm{CO}}}\\ \mathrm{R}& =\frac{T_{\mathrm{EX}}^{{}^{12}\mathrm{CO}}}{T_{\mathrm{EX}}^{{}^{13}\mathrm{CO}}}\frac{(1-{\mathrm{e}}^{-{\tau }_{{}^{12}\mathrm{CO}}})}{(1-{\mathrm{e}}^{-{\tau }_{{}^{13}\mathrm{CO}}})}\end{array}$$

$$\mathrm{R}=\frac{(1-{\mathrm{e}}^{-{\tau }_{{}^{12}\mathrm{CO}}})}{(1-{\mathrm{e}}^{-{\tau }_{{}^{13}\mathrm{CO}}})}$$

$$\begin{array}{rl}\mathrm{R}& =\frac{1}{{\tau }_{{}^{13}CO}}\\ \mathrm{R}& =\frac{{\tau }_{{}^{12}CO}}{{\tau }_{{}^{13}CO}}\frac{1}{{\tau }_{{}^{12}CO}}\\ \mathrm{R}& =\frac{{[}^{12}CO]}{{[}^{13}CO]}\frac{1}{{\tau }_{{}^{12}CO}}\end{array}$$

$${}^{13}{\mathrm{C}}^{+}+{}^{12}\mathrm{CO}\rightleftharpoons {}^{12}{\mathrm{C}}^{+}+{}^{13}\mathrm{CO}+35\mathrm{K}$$

Full text

Methods. We create brightness temperature line ratio maps to present the different physical conditions across Arp 220 and NGC 6240. In addition, we use the radiative transfer code RADEX and a Monte Carlo Markov Chain likelihood code to model the 12CO, 13CO and C18O lines of Arp 220 at $\sim$2″ ($\sim$700 pc) scales, where the 12CO and C18O measurements were obtained from literature.

Results. Line ratios of optically thick lines such as 12CO show smoothly varying ratios while the line ratios of optically thin lines such as 13CO show a east-west gradient across Arp 220. The HCN/HCO+ line ratio differs between Arp 220 and NGC 6240, where Arp 220 has line ratios above 2 and NGC 6240 below 1. The radiative transfer analysis solution is consistent with a warm ($\sim$40 K), moderately dense ($\sim$ 103.4 cm*-3*) molecular gas component averaged over the two nuclei. We find [12CO]/[13CO] and [12CO]/[C18O] abundance ratios of $\sim$ 90 for both. The abundance enhancement of C18O can be explained by stellar nucleosynthesis enrichment of the interstellar medium.

1 Introduction

Ever since the discovery of a class of objects with extremely bright infrared emission called Ultra/Luminous Infrared Galaxies (LIRG: $L_{\rm{FIR}}$ = 1011-12$L_{\sun}$; ULIRG: $L_{\rm{FIR}}$ $>$1012$L_{\sun}$) with the The Infrared Astronomical Satellite ($IRAS$; e.g. Houck et al., 1984, 1985; Soifer et al., 1984a, b), these objects have been studied at every wavelength. High-resolution optical imaging show that most of these systems resemble merging/interacting systems (e.g. Murphy et al., 1996). Larson et al. (2016) showed that major mergers play a significant role for all sources with $L_{\rm{IR}}$ $\geq$ 1011.5$L_{\sun}$. In addition, optical wavelengths show that these systems are highly dust obscured. Various star formation tracers have shown extreme star formation rates (e.g. U et al., 2012) suggesting that local U/LIRGs are great laboratories to study extreme modes of star formation. Mid-infrared observations are used to reveal the contribution of an active galactic nucleus (AGN), if present, to the far infrared luminosity (e.g. Genzel et al., 1998; Veilleux et al., 2009). Molecular gas observations via carbon monoxide (12CO) have revealed rich concentrations of fuel for current and future star formation (e.g. Downes & Solomon, 1998; Bryant & Scoville, 1999; Wilson et al., 2008) and also massive, energetic molecular outflows on kiloparsec scales in several sources (e.g. Cicone et al., 2014, and references therein).

Gao & Solomon (2004a) used HCN $J$ = 1$-$0 observations to show that there exists a tight correlation between infrared luminosity ($L_{\rm{IR}}$; proxy for star formation rate) and HCN $J$ = 1$-$0 (proxy for amount of dense molecular gas). This tight relation was extended to span over 7-8 orders of magnitude of $L_{\rm{IR}}$ by Wu et al. (2005). These results are interpreted to mean that HCN $J$ = 1$-$0 is tracing the molecular gas component that is directly related to the star formation.

Single dish observations of the 12CO isotopologue, 13CO (e.g. Casoli et al., 1992; Garay et al., 1993; Aalto et al., 1991, 1995; Greve et al., 2009; Papadopoulos et al., 2012) in U/LIRGs have shown a trend of extremely weak emission relative to 12CO. The integrated brightness temperature line ratios of 12CO/13CO in U/LIRGs were found to be usually high ($>$20) when compared to normal disk galaxies suggesting different interstellar medium (ISM) environments between the two classes of galaxies. High-resolution observations (e.g Aalto et al., 1997; Casoli et al., 1999; Sliwa et al., 2012, 2013, 2014) show a similar trend with values evening exceeding 50 for some sources (Sliwa et al., 2017a). Possible explanations for the unusually high ratios include, photodissociation of 13CO, excitation and/or optical depth effects, or abundance variations (e.g Casoli et al., 1992; Henkel & Mauersberger, 1993; Taniguchi et al., 1999). While photodissociation is likely ruled out as the dominant process due to the strong C18O emission (see Casoli et al., 1992), recent radiative transfer studies are showing that the [12CO]/[13CO]111Square brackets denote abundances while no brackets around ratios denote brightness temperature line ratios unless specifically stated abundance ratio is higher ($\geq$100) than what we perceive as normal (Sliwa et al., 2013, 2014, 2017b; Papadopoulos et al., 2014; Henkel et al., 2014; Tunnard et al., 2015b). In this paper, we model the molecular gas of the well studied ULIRG Arp 220 to determine whether it follows the [12CO]/[13CO] trend seen in the literature.

Arp 220: Arp 220 (IRAS 15327+2340, UGC 9913, VV 540, IC 1127) is the nearest example of a ULIRG and thus well studied at every wavelength. In this advanced merger, the two nuclei are still distinguishable, separated by 1*′′* ($\sim$390 pc; Norris, 1988) and is modelled to finish merging within 6 $\times$ 108 years (König et al., 2012). With one of the most powerful star-forming environments in the local universe, it is a popular starburst template for dusty, star forming high redshift galaxies. Recently, Barcos-Muñoz et al. (2015) observed 33 GHz continuum at very high-resolution ($\sim$30 pc) revealing that synchrotron radiation is dominant at this frequency. Combining the sizes measured from the 33 GHz continuum and infrared observations, Barcos-Muñoz et al. (2015) derived very high molecular gas surface densities ($>$2 $\times$ 105 $M_{\sun}$ pc*-2*) and infrared surface luminosities ($>$4 $\times$ 1013 $L_{\sun}$ pc*-2*). Although there is no clear evidence of an AGN with the 33 GHz continuum (Barcos-Muñoz et al., 2015), Downes & Eckart (2007) showed that the dust in the western nucleus is hot ($\sim$ 170 K) and the size of the dust source is small that it implies a large surface luminosity that can only be plausible by an AGN. Wilson et al. (2014) used 691 GHz continuum to also show that the western nucleus has a very high luminosity surface density that requires either the presence of an AGN or a ”hot starburst”. Lockhart et al. (2015) were able to resolve previously observed H$\alpha$+[NII] emission into a bubble-shaped feature that is aligned with the western nucleus. Either an AGN or extreme star formation within the inner $\sim$100 pc of the nuclei are the likely possibilities for the origin of this bubble. Zschaechner et al. (2016) confirm an outflow from the western nucleus by comparing their high-resolution Very Large Array (VLA) data of several molecular species to the ALMA data.

Over the last two decades, Arp 220 has been observed in high-resolution CO many times (Scoville et al., 1997; Downes & Solomon, 1998; Sakamoto et al., 1999; Downes & Eckart, 2007; Sakamoto et al., 2008; Matsushita et al., 2009; Martín et al., 2011; König et al., 2012; Rangwala et al., 2015; Scoville et al., 2017). The observations reveal a large concentration of molecular gas ($\sim$ 5 $\times$ 109 $M_{\sun}$; e.g. Downes $\&$ Solomon 1998) within two compact nuclei surrounded by a diffuse kiloparsec-scale disk. Observations of rare CO isotopologues (i.e. 13CO and C18O) have been mainly obtained using single dish telescopes resulting in global fluxes (e.g. Greve et al., 2009; Papadopoulos et al., 2012); however, Matsushita et al. (2009) published high-resolution Submillimeter Array (SMA) 13CO and C18O $J$=2$-$1 ($\sim$ 3.5″) observations showing that the two isotopologues have similar intensities where they suggest that either the lines are optically thick or there is an overabundance of C18O compared to 13CO.

Using $Herschel$ Fourier Transform Spectrometer (FTS) spectra, Rangwala et al. (2011) modelled the global 12CO emission from $J$ =1-0 to $J$ = 13-12 with a 2-component molecular gas: cold, moderately dense ($T_{\rm{kin}}$ = 50 K and $n_{\rm{H_{2}}}$ = 102.8 cm*-3*) and warm, dense ($T_{\rm{kin}}$ = 1350 K and $n_{\rm{H_{2}}}$ = 103.2 cm*-3*) molecular gas components. The dust continuum from the FTS spectrum was also shown to be consistent with a warm dust ($T_{\rm{dust}}$ = 66 K) with a large optical depth ($\tau_{\rm{dust}}$ $\sim$ 5 at 100 $\mu$m; Rangwala et al. 2011).

Dense gas tracers such as HCN, HCO*+, HNC and CS have also been observed in Arp 220 (e.g. Aalto et al., 2009, 2015; Greve et al., 2009; Sakamoto et al., 2009; Imanishi et al., 2010; Scoville et al., 2015; Martín et al., 2011, 2016; Tunnard et al., 2015a, Barcos-Muñoz et al. in preparation). Sakamoto et al. (2009) reported P-Cygni profiles in the HCO+ $J$ = 3$-$2 and $J$ = 3-2 suggesting a $\sim$100 km s-1* outflow originating from the inner regions of the nuclear disks. Aalto et al. (2009) found that HNC $J$ = 3-2 is bright and, perhaps, amplified in the western nucleus and weak in the east suggesting very different physical conditions. Martín et al. (2016) find that HCN and HCO+ $J$ = 4$-$3 and $J$ = 3-2 are optically thick and affected by different absorption systems that can hide up to 70$\%$ of the total intrinsic emission from these lines.

NGC 6240: NGC 6240 (IRAS 16504+0228, UGC 10592, VV 617, IC 4625) is unusual among the class of LIRGs in having exceptionally strong emission in the near and mid-IR lines of molecular hydrogen. The consensus of the infrared observers is that the strong H2 lines are due to shocked gas, not star formation (Rieke et al., 1985; Depoy et al., 1986; Lester et al., 1988; Herbst et al., 1990; Elston & Maloney, 1990; van der Werf et al., 1993; Mori et al., 2014). Since the cooling time of this shocked gas is short ($\sim$107 yr), we may be seeing NGC 6240 at a privileged moment during the merger process (e.g. Sugai et al., 1997). Recent work of Meijerink et al. (2013) showed that the 12CO spectral line energy distribution (SLED), obtained using the $Herschel$ FTS, is consistent with either an X-ray dominated region (XDR) or with shocked molecular gas; however, the lack of the ionic species OH*+* and H2O*+*, normally found in high abundance in gas clouds near elevated X-ray or cosmic ray fluxes, ruled out the XDR models and once again, shocks are the most likely scenario to explain the observations.

The near and mid-infrared H2 emission peaks between the two nuclei (e.g., Lester et al. 1988; Herbst et al. 1990), suggesting several possible scenarios. Two of the more recent ideas are those of Ohyama et al. (2003) and Nakanishi et al. (2005). The preferred model of Ohyama et al. (2003) is that the merger’s tidal forces have channeled the molecular gas into the space between the two nuclei, where it is being shocked by a superwind from the southern nucleus, the stronger source in radio continuum, X-rays, and near- and mid-IR. Nakanishi et al. (2005) propose instead that the two nuclei have had a nearly head-on collision, after which the two supermassive black holes, the older bulge stars, and the recent starburst stars all moved onwards to the present sites of the two nuclei. Due to drag and stripping forces, however, the circumnuclear gas was left behind at the original collision site. This resembles the well-known Bullet Cluster scenario, except that collision speeds are lower, and NGC 6240’s gas densities are 107 times higher than those of the Bullet Cluster, so the gas left behind in the middle is cool molecular gas rather than hot X-ray-emitting plasma.

NGC 6240 has also been observed in high-resolution 12CO many times (Wang et al., 1991; Bryant & Scoville, 1999; Tacconi et al., 1999; Nakanishi et al., 2005; Iono et al., 2007; Wilson et al., 2008; Feruglio et al., 2013a, b). The CO emission is peaked in between the two nuclei as is observed for the warm H2 emission. Feruglio et al. (2013b) detected blueshifted CO emission between -200 km s*-1* and -500 km s*-1* peaking near the southern AGN position at the same position where an H2 outflow was found (Ohyama et al., 2000, 2003). A redshifted CO component peaks in between the two nuclei, similar to the CO emission at the systemic velocity, with a large velocity dispersion ($\sim$500 km s*-1* at the maximum) suggesting highly turbulent gas (Feruglio et al., 2013b).

In addition to CO, dense gas tracers have also been observed, however, not to the extent as that for Arp 220. Nakanishi et al. (2005) observed HCN and HCO+ $J$ = 1$-$0 at 2-3″, where both lines peak in between the two nuclei, similar to CO. Wilson et al. (2008) observed part of the HCO+ $J$ = 4$-$3 line, where it still peaks in between the two nuclei. Tunnard et al. (2015b) observed the rarer 13C isotopologues of HCN and HCO+ in NGC 6240 and found line ratios $>$ 30.

In this paper, we present new Plateau de Bure Interferometer (PdBI) observations of HCN and HCO+ $J$ = 1$-$0 and C2H $N$ = 1$-$0 for both Arp 220 and NGC 6240 (Table 1). In addition, we present new PdBI observations of 13CO $J$=1$-$0 and $J$ = 2-1, CS $J$ = 2$-$1 and $J$ = 5-4, HNCO $J_{k,k^{\prime}}$ = 50,4 - 40,4, CH3CN(6-5), SiO $J$ = 2-1, and HN13C $J$ = 1-0 and Atacama Large Millimeter/submillimeter Array (ALMA) Science Verification (SV) observations of CS $J$ = 4$-$3 and CH3CN(10-9) for Arp 220. These observations will be made available to the public. The paper is broken down into the following sections: In Section 2, we describe the observations and reduction. In Section 3, we present integrated brightness temperature line ratio maps to show the varying conditions of the ISM across these sources. In Section 4, we present a radiative transfer analysis of 12CO, 13CO and C18O for Arp 220 at $\sim$700 pc scales. In Section 5, we discuss the molecules detected in both sources, the results of the radiative transfer analysis of Arp 220, the [12CO]/[13CO]  and [12CO]/[C18O] abundance ratios found in Arp 220 and a comparison of the HCN/HCO*+* line ratios. In Section 6, we summarize the major results. We end the paper with an appendix describing the release of the data online and the continuum from the observations.

2 Observations

2.1 PdBI

For the line-ratio investigations in this paper, we used 12CO $J$=1$-$0 and $J$ = 2–1 PdBI data sets on Arp 220 and NGC 6240, that were partly data from earlier publications (for Arp 220: Downes & Solomon 1998; Downes & Eckart 2007; König et al. 2012; and for NGC 6240: Taconni et al. 1999). We also use the SMA observations of 12CO $J$=3$-$2 in Arp 220 published in Sakamoto et al. (2008) and the PdBI observations of 12CO $J$=1$-$0 in NGC 6240 published in Feruglio et al. (2013a).

Other, previously unpublished, data sets are, for Arp 220, 13CO $J$=1$-$0 at 3 mm and 13CO $J$=2$-$1 at 1.4 mm observed simultaneously, and also CS $J$ = 2$-$1 at 3 mm and CS $J$ = 5$-$4 at 1 mm observed simultaneously. Additional data sets included HCN, HN13C, HCO+ $J$ = 1$-$0, C2H $N$ = 1$-$0, and SiO $J$ = 2–1 (v=0) all observed simultaneously.

For most of these observations, the six 15 m antennas were arranged with spacings from 24 m to 400 m. The longer baselines, observed in winter, had phase errors $\leq 40^{\circ}$ at 1.4 mm, and $\leq 15^{\circ}$ at 3 mm. Short spacings ($\leq 80$ m), observed in summer at 3 mm, had r.m.s. phase errors $\leq 20^{\circ}$.

The SIS receiver noise plus spillover and sky noise gave typical equivalent system temperatures outside the atmosphere of 150 K at 3 mm (86 GHz) in the lower sideband, and 250 to 400 K at 1.3 mm in upper and lower sidebands separated by 3 GHz, with the upper band typically at 215 to 225 GHz. The spectral correlators covered 1700 km s*-1* at 3 mm and 800 km s*-1* at 1.4 mm, with instrumental resolutions of 8 and 4 km s*-1*, respectively.

These raw data were then smoothed to channels of 10, 20, and 40 km s*-1*. The primary amplitude calibrators were 3C273 (a variable source, but typically 18 Jy at 3 mm and 13 Jy at 1.4 mm, at the time of the observations), and MWC349 (a mostly non-varying source, with 1.0 and 1.7 Jy at 3 and 1.4 mm during the years of the observations). The uncertainties in the flux scales are typically $\pm 5$% at 3 mm and $\pm 10$% at 1.4 mm.

In some of the observing epochs, the observing program monitored phases every 20 min, at 3 and 1.4 mm simultaneously, with the same phase calibrators used in earlier observations of these sources (see Table 1 of Downes & Solomon 1998). Prior to 2004, the data processing program used the 1.4 mm total power to correct amplitudes and phases at 3 and 1.4 mm for short-term changes in atmospheric water vapor. After 2004, this was done with water-vapour monitoring receivers at 22 GHz on each antenna. A post-observation calibration program took the 3 mm curve of phase versus time, scaled it to 1.4 mm, then subtracted it from the observed 1.4 mm calibrator phases, and then fit the phase difference between the two receivers. All visibilities are weighted by the integration time and the inverse square of system temperature. Most maps were made with this “natural weighting” of the $uv$ data.

Some sources were observed with improved IRAM receivers in February 2008, in a $2\times 1$ GHz spectroscopic mode that simultaneously covered the lines of HCN, HCO+ $J$ = 1$-$0 and C2H $N$ = 1$-$0, in the newer PdBI extended configuration with antenna spacings up to 760 m. For these later observations, typical receiver temperatures were 50 K at 3 mm.

All data reductions were done with the MAPPING program in the standard IRAM GILDAS333http://www.iram.fr/IRAMFR/GILDAS package.

The datacubes were converted to FITS files and imported into CASA (McMullin et al., 2007) v4.7.1 for data analysis. We created integrated intensity maps using a 1$\sigma$ cutoff for weak lines such as, for example, HN13C and a 5$\sigma$ cutoff for strong emission lines such as, for example, 12CO, HCN and HCO+. These integrated intensity maps are presented in Figures 1 and 2. Table 2 presents the various molecular lines detected and their observational properties. We also present spectra in Figures 3 and 4.

2.2 ALMA

Arp 220 was a target for Band 5 SV observations on 16 July 2016. The four spectral windows, of 1.875GHz bandwidth each, were placed on H2O (313 - 220), HNC $J$=2-1, CS $J$=4-3 and CH3OH (431 - 330). After checking for any obvious calibration flaws, we use the once phase-only self-calibrated delivered visibility dataset. We image the CS $J$ = 4$-$3 and what we have identified as CH3CN(10-9) lines. The H2O line has been presented in König et al. (2016). Using CASA v4.7.1, we create datacubes of 20 km s*-1* channel widths with a natural weighting for maximum sensitivity. We created integrated intensity maps using a 2$\sigma$ cutoff (Figure 1.)

2.3 Short-Spacings Flux for 12CO

Greve et al. (2009) present single dish fluxes for both Arp 220 and NGC 6240. Comparing the fluxes measured for Arp 220 in Downes & Solomon (1998, ;12CO $J$=1$-$0 and $J$=2-1) to that of Greve et al. (2009) shows that the PdBI maps have recovered nearly all flux (12CO $J$=1$-$0: 410 Jy km s*-1* vs 420 Jy km s*-1*; 12CO $J$=2$-$1: 1100 Jy km s*-1* vs 1130 Jy km s*-1*). Sakamoto et al. (2008) made comparisons to single dish observations for 12CO $J$=3$-$2 and concluded that $\sim$10% of the total flux is missing. Since 10% of the total flux is likely spread over the entire source, each point in Arp 220 will have insignificant missing 12CO $J$=3$-$2 flux when compared to the calibration uncertainty ($\pm$ 15%).

For NGC 6240, Feruglio et al. (2013a) made a comparison with single dish observations for 12CO $J$=1$-$0 and found an agreement in fluxes. The 12CO $J$=2$-$1 observations of Tacconi et al. (1999) are missing $\sim$30% of the total flux when compared to the flux measured in (Greve et al., 2009, 1220 Jy km s*-1* vs 1740 Jy km s*-1*).

3 Line Ratios

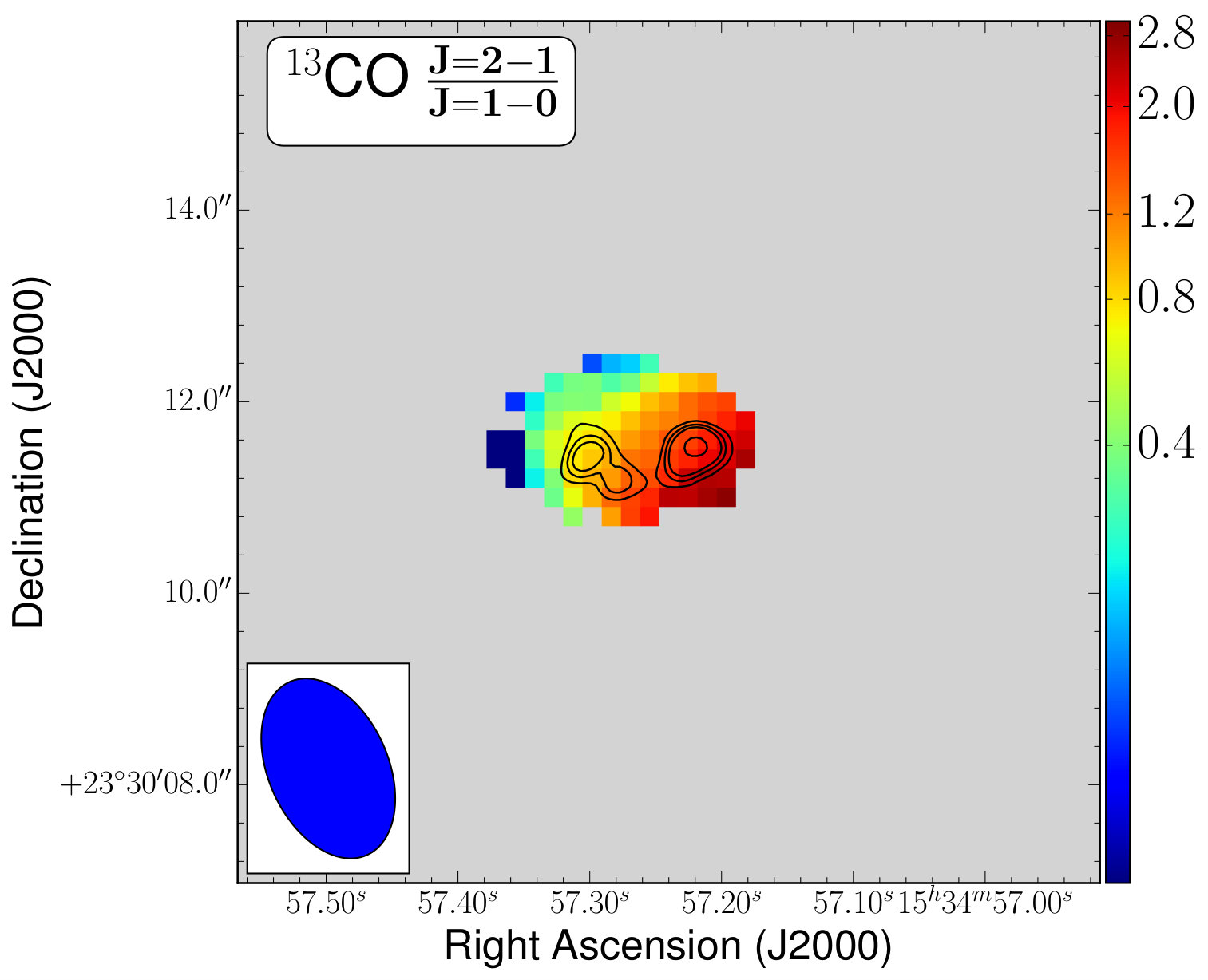

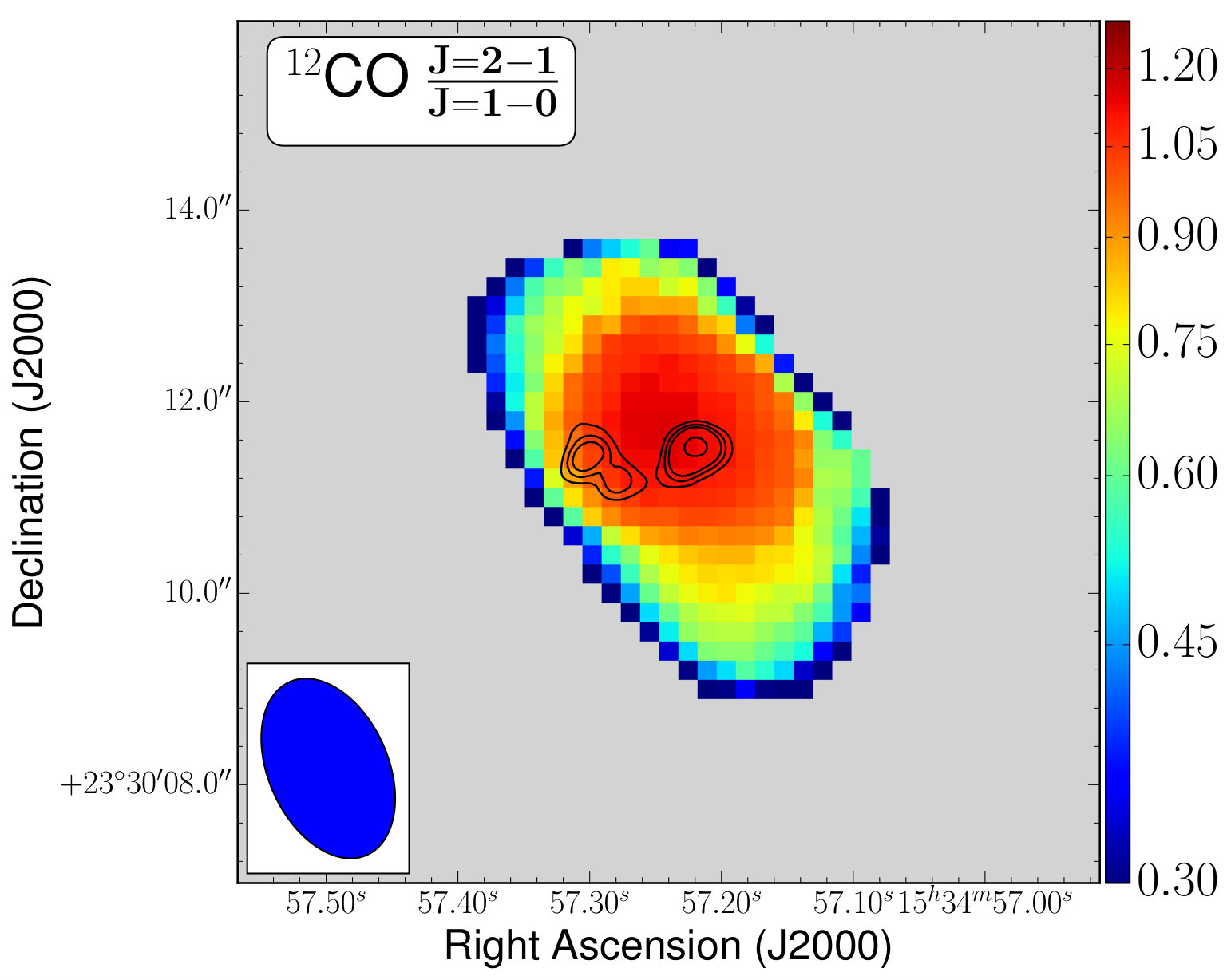

For Arp 220, we create the following integrated line brightness temperature (TB) ratio maps for 12CO and 13CO:

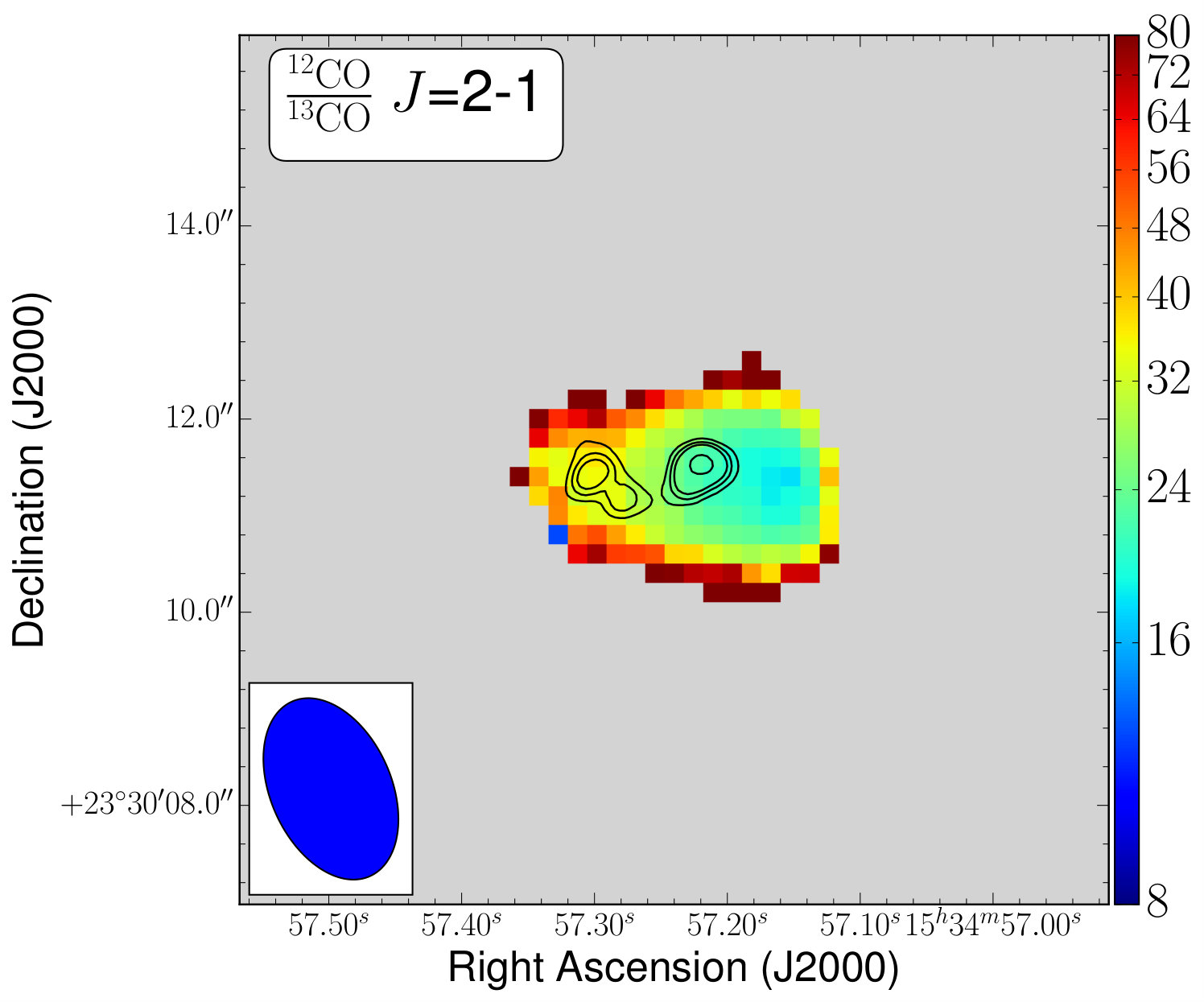

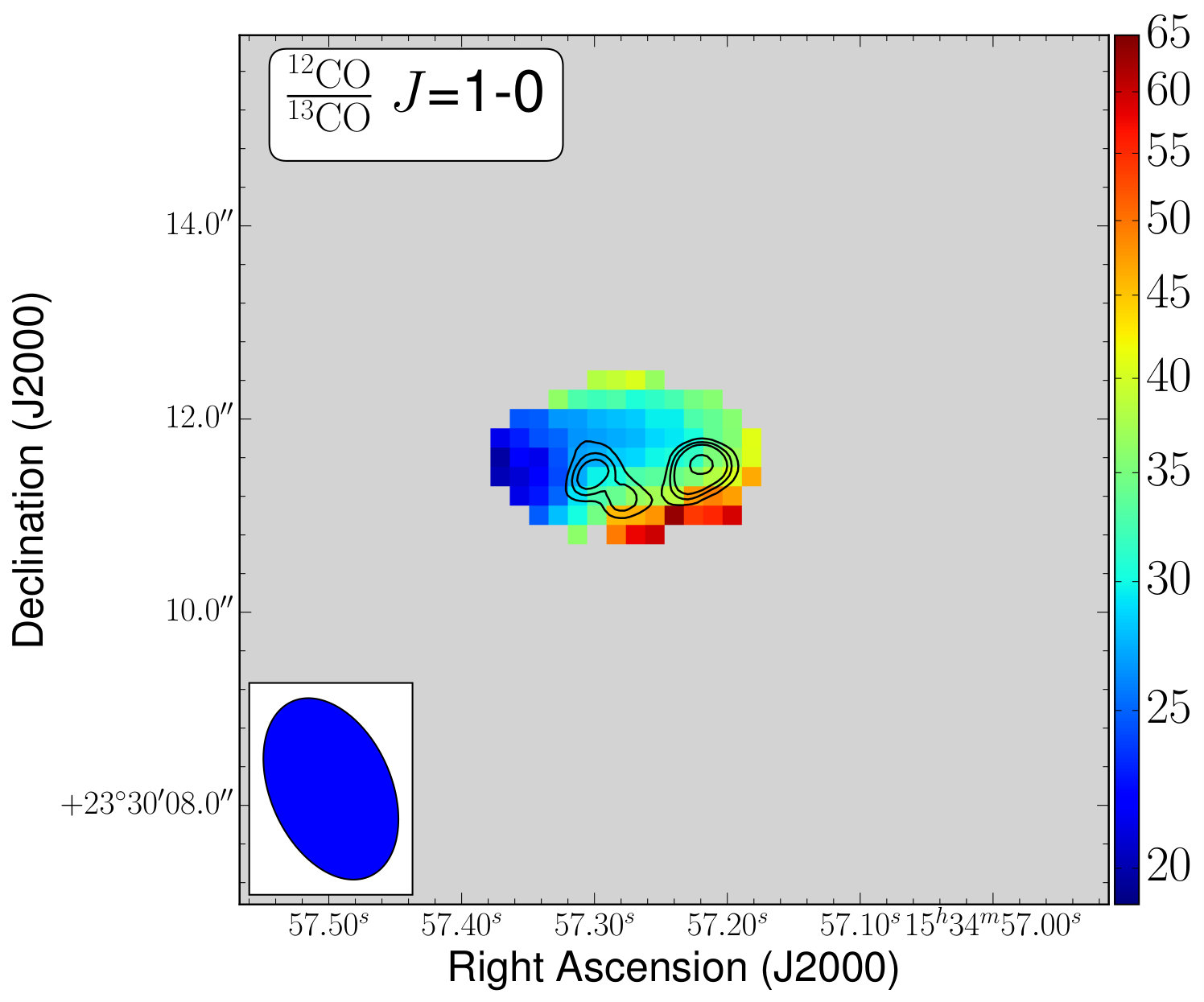

r21 = T${}_{\rm{B}}^{{}^{12}\rm{CO}(2-1)}$ / T${}_{\rm{B}}^{{}^{12}\rm{CO}(1-0)}$,

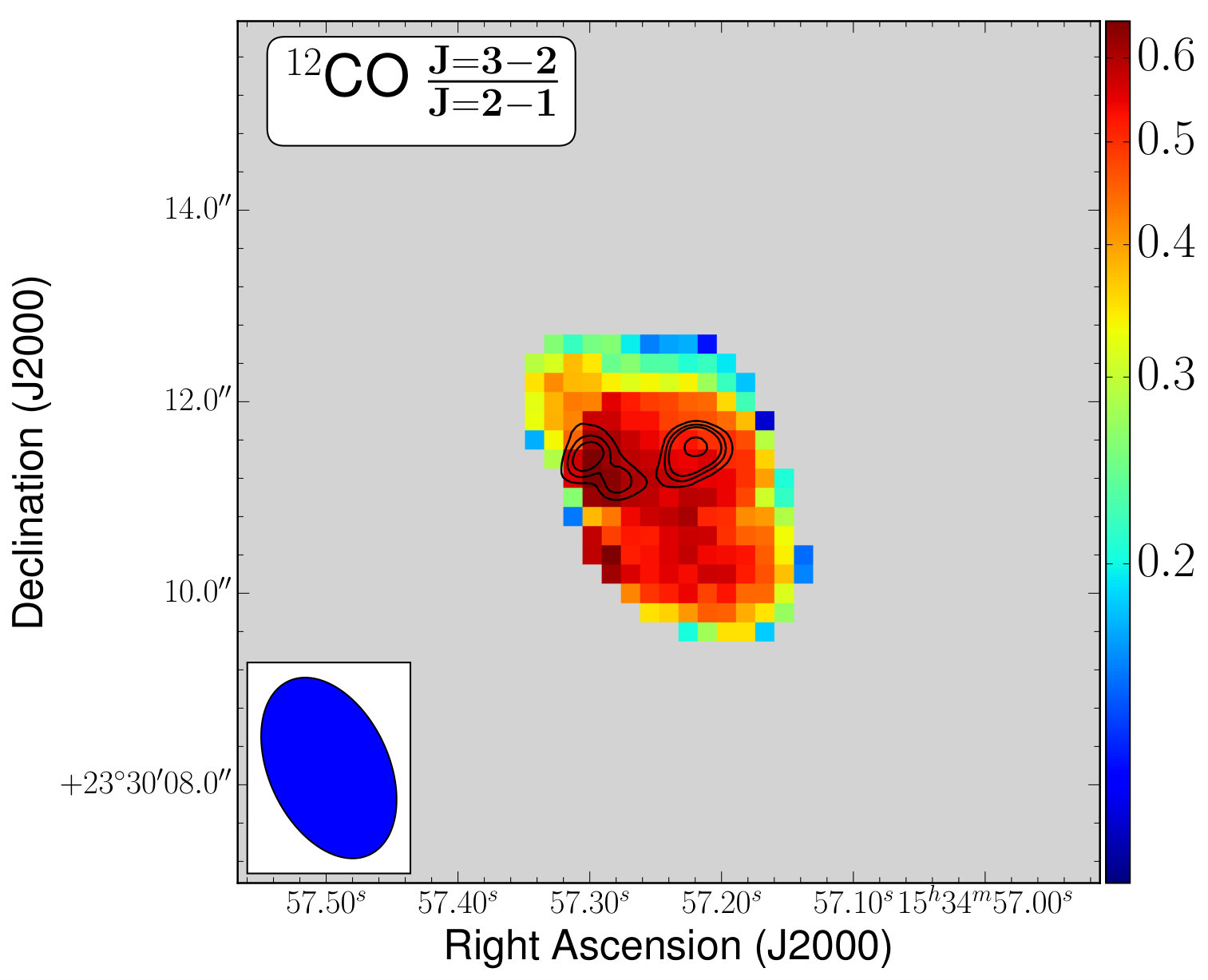

r32 = T${}_{\rm{B}}^{{}^{12}\rm{CO}(3-2)}$ / T${}_{\rm{B}}^{{}^{12}\rm{CO}(2-1)}$,

13r21 = T${}_{\rm{B}}^{{}^{13}\rm{CO}(2-1)}$ / T${}_{\rm{B}}^{{}^{13}\rm{CO}(1-0)}$,

R10 = T${}_{\rm{B}}^{{}^{12}\rm{CO}(1-0)}$ / T${}_{\rm{B}}^{{}^{13}\rm{CO}(1-0)}$,

R21 = T${}_{\rm{B}}^{{}^{12}\rm{CO}(2-1)}$ / T${}_{\rm{B}}^{{}^{13}\rm{CO}(2-1)}$.

We also create integrated TB line ratio maps for molecules other than CO as follows:

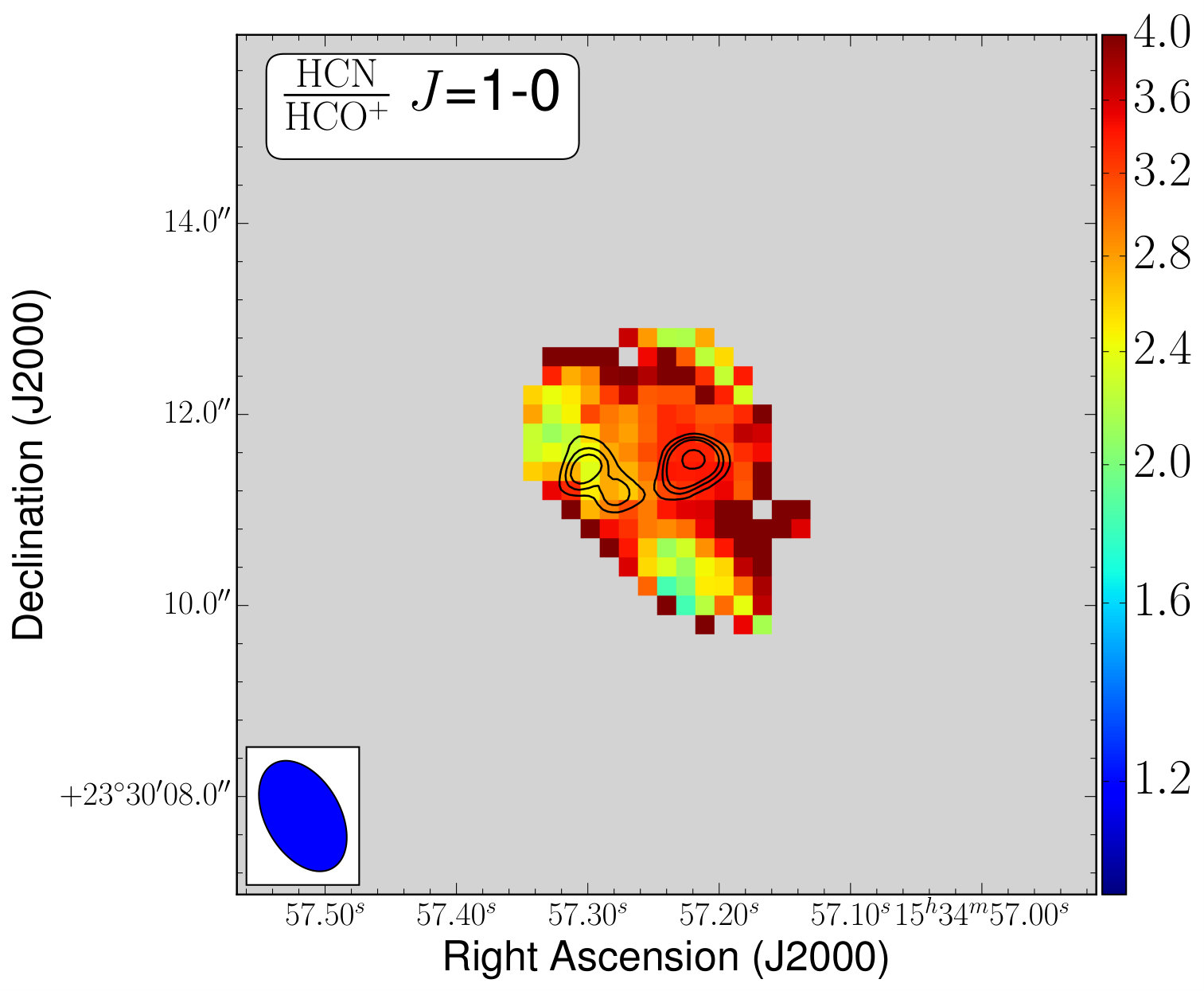

H10 = T${}_{\rm{B}}^{\rm{HCN}(1-0)}$ / T${}_{\rm{B}}^{\rm{HCO^{+}}(1-0)}$ and

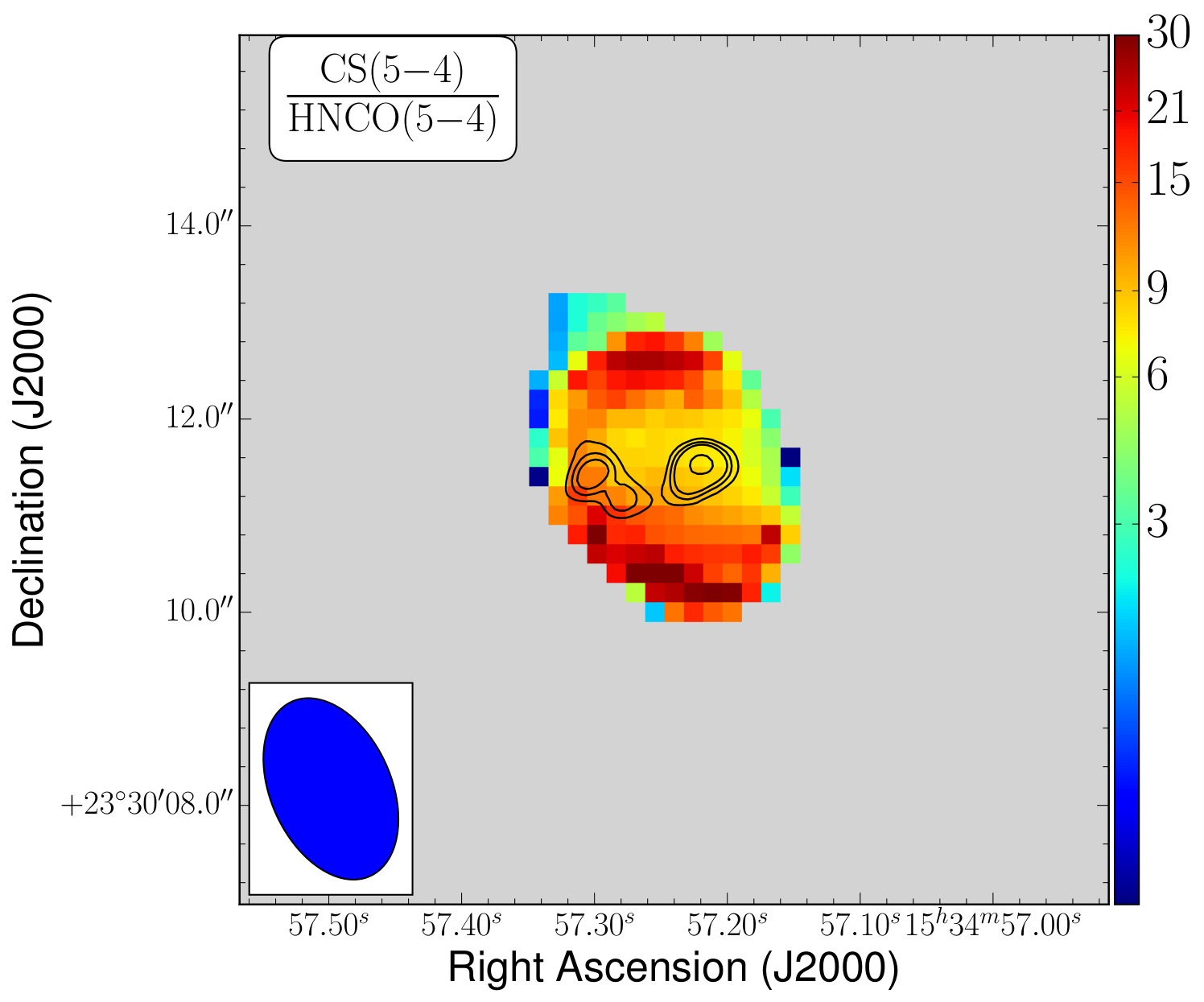

CS / HNCO = T${}_{\rm{B}}^{\rm{CS(5-4)}}$ / T${}_{\rm{B}}^{\rm{HNCO(5-4)}}$ (Figure 5).

For NGC 6240, we show maps of the TB line ratios of r21 and H10 (Figure 6; with both quantities defined as for Arp 220). Table 3 gives a summary of the observed line ratios.

To match the physical scales that we analyze, we smooth the data cubes using a Gaussian kernel to match angular resolution. For Arp 220, we smooth the data to the resolution of 13CO $J$=1$-$0 (Table 2) and for NGC 6240, we use a compromised resolution of 1.2″, limited by the resolution of the 12CO $J$=1$-$0 observations of Feruglio et al. (2013a). We applied a 5$\sigma$ cut to each map used to produce the the ratio maps.

Since 12CO is believed to be optically thick, the R10 and R21 line ratios give a lower limit to the true [12CO]/[13CO] abundance ratio. To illustrate this point, we start with the most general equation for the R line ratios,

[TABLE]

where TEX is the excitation temperature, $\tau_{\rm{{}^{12}CO}}$ and $\tau_{\rm{{}^{13}CO}}$ are the optical depths of 12CO and 13CO, respectively. If both 12CO and 13CO were to be in local thermal equilibrium (LTE) so that their excitation temperatures were equal, then Equation 3 simplifies to

[TABLE]

. In addition, if the 12CO emission is sufficiently optically thick, so that $(1-\rm{e}^{-\tau_{{}^{12}CO}})$ $\rightarrow$ 1 and if 13CO is sufficiently optically thin, so that $(1-\rm{e}^{-\tau_{{}^{13}CO}})$ $\rightarrow$ $\tau_{{}^{13}CO}$, then Equation 2 can be further simplified to

[TABLE]

where the ratio of the optical depths of the isotopologues are equivalent to the abundance ratio ($\tau$ $\propto$ column density). In this case, the observed ratio R of line brightness temperatures, will always be less than the true abundance, [12CO]/[13CO], because of the attenuating factor of the 12CO optical depth.

Only if 12CO and 13CO are both optically thin, will the observed ratio of line brightness temperatures directly trace the abundance ratio, providing that the 12CO and 13CO excitation temperatures are equal.

As is well-known, however, because of resonant trapping in the CO lines, a more realistic approach is to use one of the standard non-LTE approximations, which allows for different excitation temperatures in the different CO lines, and this is what we actually do (Section 4).

4 Radiative Transfer Analysis

To model the 12CO emission (and that of the rarer CO isotopologues), we use the escape-probability radiative transfer program RADEX (van der Tak et al., 2007). To find the most likely RADEX solution, given the observed line strengths, and other constraints, we use the Monte Carlo Markov Chain code444https://github.com/jrka/pyradexnest of Kamenetzky et al. (2014). This code implements the nested sampling algorithm MultiNest (Feroz et al., 2009) using its Python wrapper PyMultiNest (Buchner et al., 2014) to constrain parameters. As stated in Kamenetzky et al. (2014), “The algorithm ‘nests inward’ to subsequently smaller regions of high-likelihood parameter space. Unlike calculating the likelihood using a grid method, the algorithm can focus on high likelihood regions and thus estimate parameter constraints more efficiently.” Model points are generated using RADEX with the following input parameters: kinetic temperature ($T_{\rm{kin}}$), column density of molecular species X per unit line width ($N_{\rm{X}}$/$\Delta$V) and volume density of the collision partner, molecular hydrogen ($n_{\rm{H_{2}}}$). In addition, the resulting flux is allowed to scale uniformly down by an area filling factor, $\Phi_{\rm{A}}$ $\leq$1. We also implement three priors:

A column length to constrain the diameter of the molecular emission region. This prior assists in constraining the column and volume densities. We estimate the upper limit to the column length to be the diameter of the synthesized beam ($\sim$ 700 pc). 2. 2.

A dynamical mass ($M_{\rm{dyn}}$) as an upper limit to the total mass that can be contained within the column density. We use the equation from Wilson & Scoville (1990) assuming a diameter of $\sim$700 pc and velocity FWHMs from literature presented below. 3. 3.

An optical depth range of 0 to 100. An optical depth below 0 implies maser emission and the upper limit of 100 is recommended by the RADEX documentation.

We refer the reader to Kamenetzky et al. (2014) for more details.

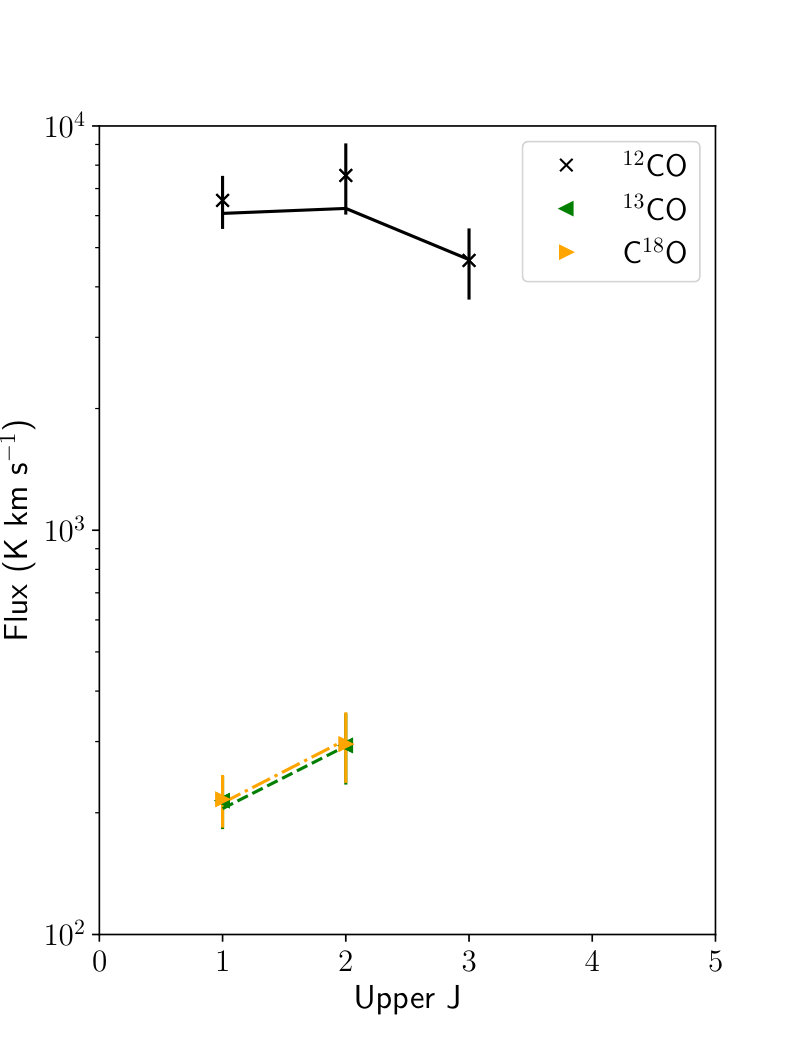

We model three molecular species simultaneously: 12CO, 13CO and C18O. The 12CO lines modelled are the $J$=1-0, 2-1 (Downes & Solomon, 1998) and 3-2 (Sakamoto et al., 2008). We use a line ratio of 13CO/C18O = 1 (Matsushita et al., 2009; Greve et al., 2009) to estimate the emission of C18O at our angular resolution ($\sim$2″). Due to the lack of resolution elements across the 13CO emission of Arp 220, we model the molecular gas at the central peak position of 13CO $J$=1$-$0 (see Table 2; Arp 220C) since the peak emission falls in between the two nuclei and 1″ to each side of Arp 220C, which will place Arp 220E/W more than one resolution beam apart. We stress that Arp 220E/W are not the positions of the nuclei and are only modelled for completeness. For Arp 220W, we used only the $J$=1-0 and 2-1 lines because the addition of the $J$=3-2 line resulted in poor SLED fits, likely indicating the presence of a second molecular gas component that cannot be fit with our data. We adopt the following linewidths: 120 km s*-1* and 250 km s*-1* for Arp 220W and Arp 220E measured using ALMA 12CO $J$=1$-$0 observations at 0.09″ (37 pc) (Scoville et al., 2017), respectively, and 320 km s*-1* for Arp 220C (Downes & Solomon, 1998) measured from PdBI 12CO $J$=1$-$0 observations. The mean, best fit and $\pm$1$\sigma$ results of $T_{\rm{kin}}$, $n_{\rm{H_{2}}}$, $N_{\rm{{}^{12}CO}}$, $\Phi_{\rm{A}}$, thermal pressure, molecular gas mass, CO-to-H2 conversion factor ($\alpha_{\rm{CO}}$) and the relative abundances of 13CO and C18O to 12CO per model point are presented in Table 4. The best fit SLED for Arp 220C is presented in Figure 7. The (marginal) probability of a single parameter is computed by integrating over all other parameters. We present the marginal probability distributions of $T_{\rm{kin}}$, $n_{\rm{H_{2}}}$, $N_{\rm{{}^{12}CO}}$ and relative abundances of 13CO and C18O as well as the 2D probability distribution of log10($T_{\rm{kin}}$) versus log10($n_{\rm{H_{2}}}$) in Figure 8.

We do not model NGC 6240 due to the lack of available high-resolution observations of 13CO and the significant missing 12CO flux in the existing high-resolution maps. We refer the reader to Tunnard et al. (2015b) for an extensive radiative transfer modelling of the molecular gas in NGC 6240.

5 Discussion

5.1 Molecules Detected

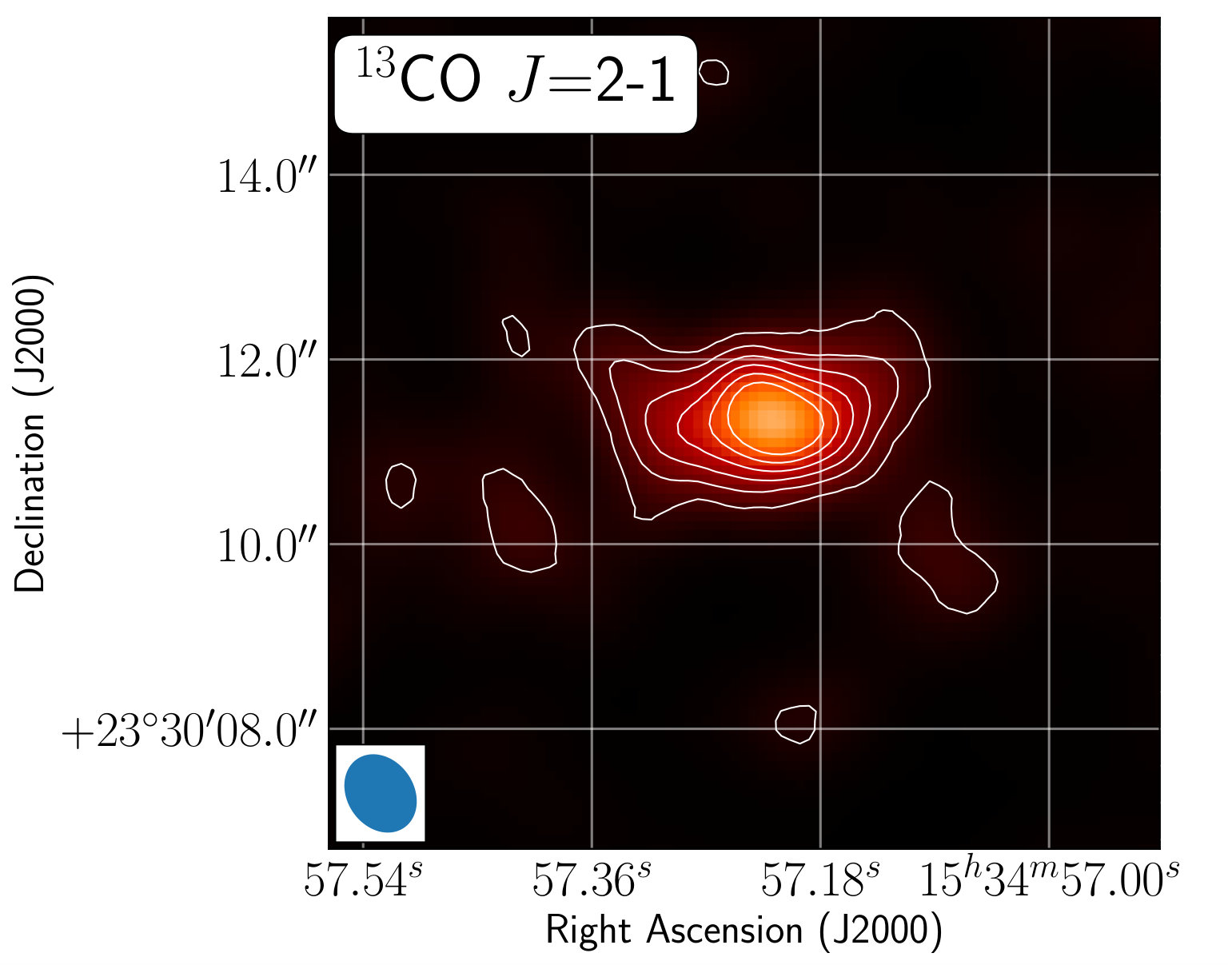

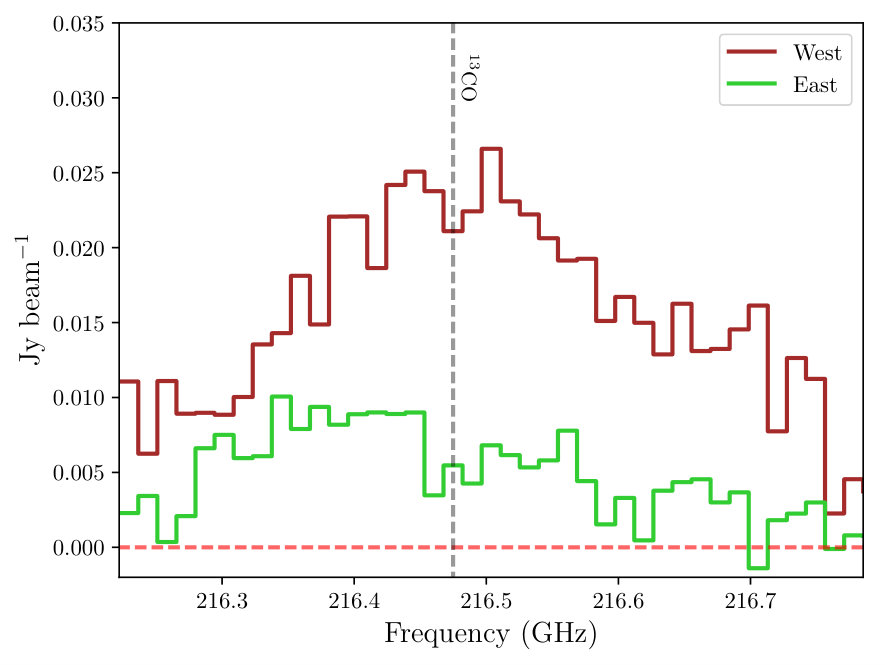

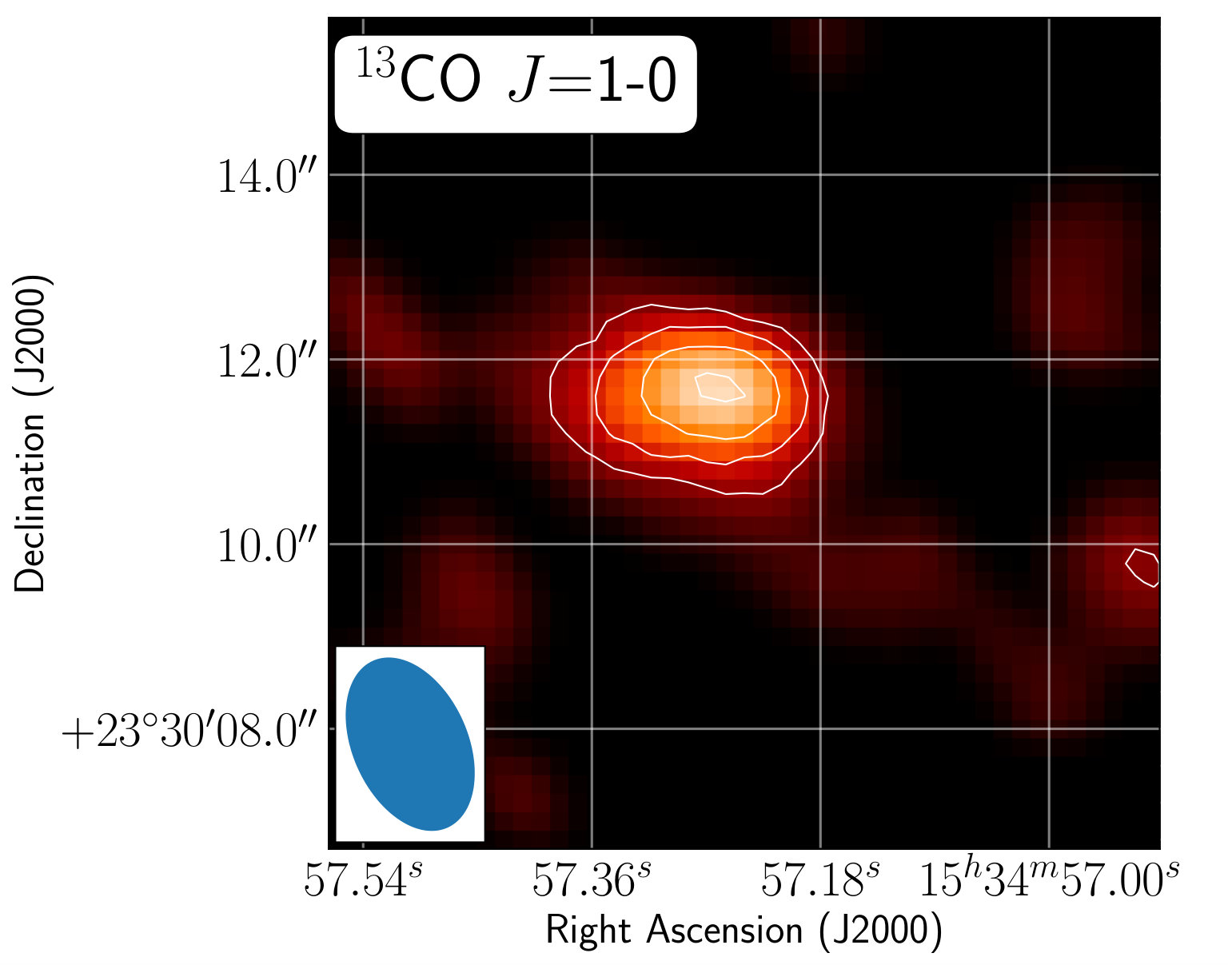

13CO (Second most common isotopologue of carbon monoxide, after 12CO. ) -The 13CO $J$=2$-$1 peak falls near the western nucleus of Arp 220 while the 13CO $J$=1$-$0 peak falls in between the two nuclei. Both 13CO $J$=1$-$0 and $J$ = 2-1 have an east-west morphology instead of a north-east south-west morphology of the 12CO maps which suggests that very little 13CO emission originates from the diffuse kiloparsec disk surrounding the nuclei. The 13CO lines (and other optically thin tracers) are important to truly trace the physical conditions of the molecular gas as they can probe deeper into the molecular gas ensemble than the optically thick 12CO (i.e. brick wall effect). This is apparent in the line ratio maps (Figure 5) where the 12CO line ratios do not vary greatly across the system while the 13CO line ratios show an east-west gradient.

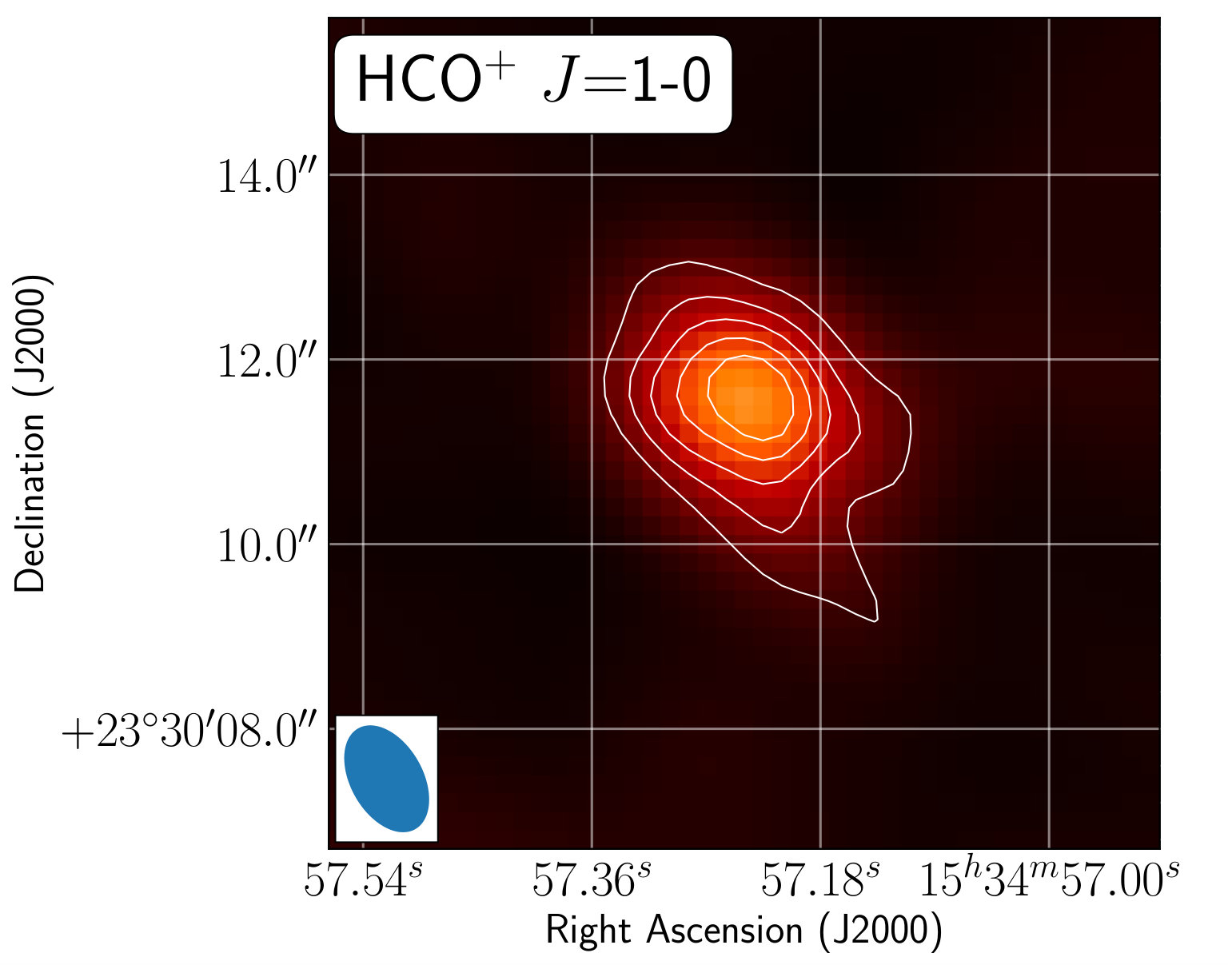

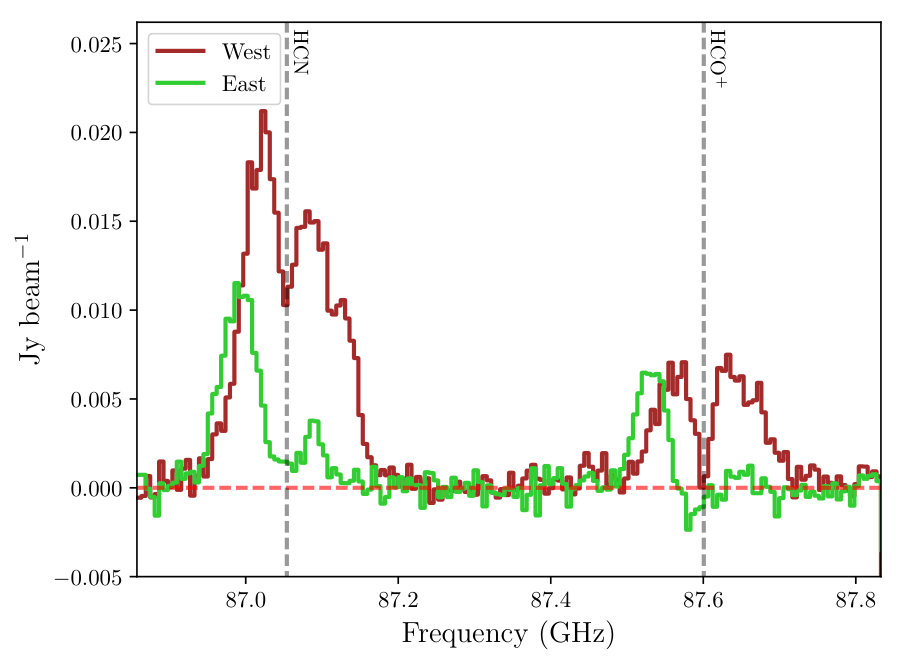

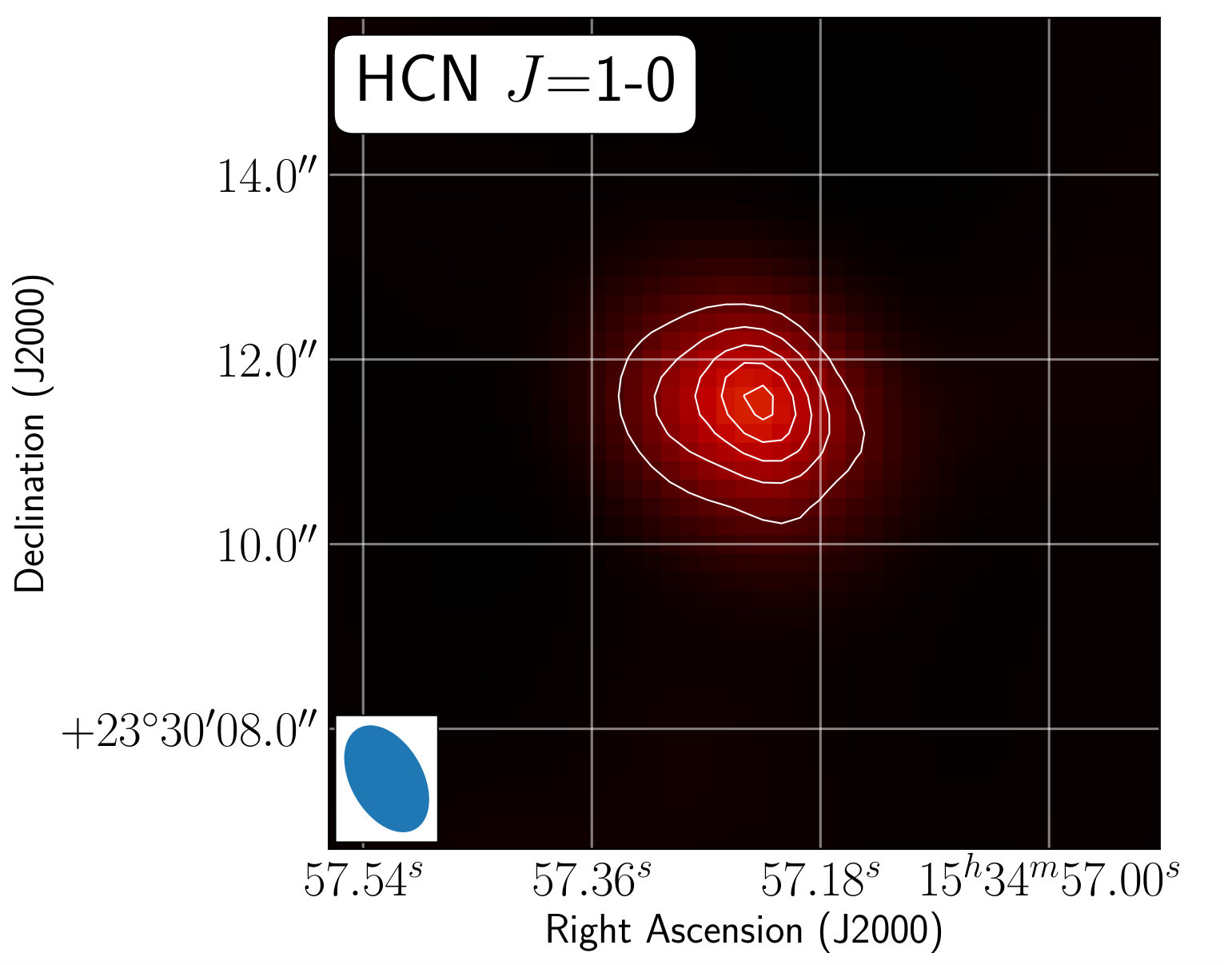

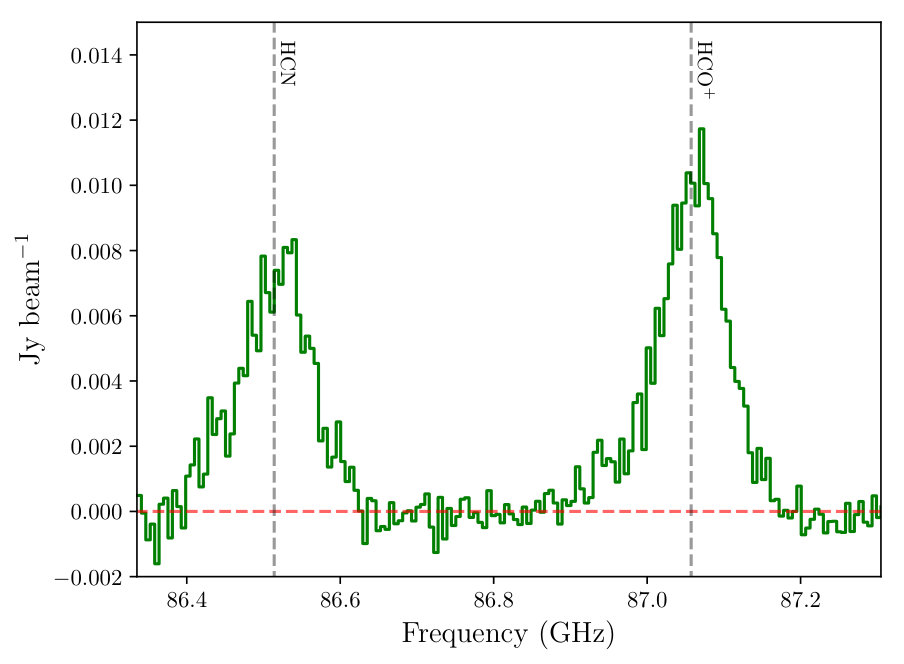

HCN (Hydrogen cyanide) and HCO+ (Formyl ion) - Arp 220: The HCN and HCO+ $J$ = 1$-$0 emission in Arp 220 peaks at the same position near the western nucleus which may suggest more dense gas in the west than found near the eastern nucleus. A 2D Gaussian fit of the emission shows that the size of HCN (1.4″ $\times$ 1.0″; size deconvolved from the beam assuming a Gaussian structure) is more compact than HCO+(1.9″ $\times$ 1.4″). The spectra (Figure 3 show absorption features in both HCN and HCO*+* similar to that seen in Martín et al. (2016) and Scoville et al. (2017). The absorption appears to have the same depth in both lines, which seem to be absorbing nearly all of the continuum. The main difference between the two lines is that HCN has more emission.

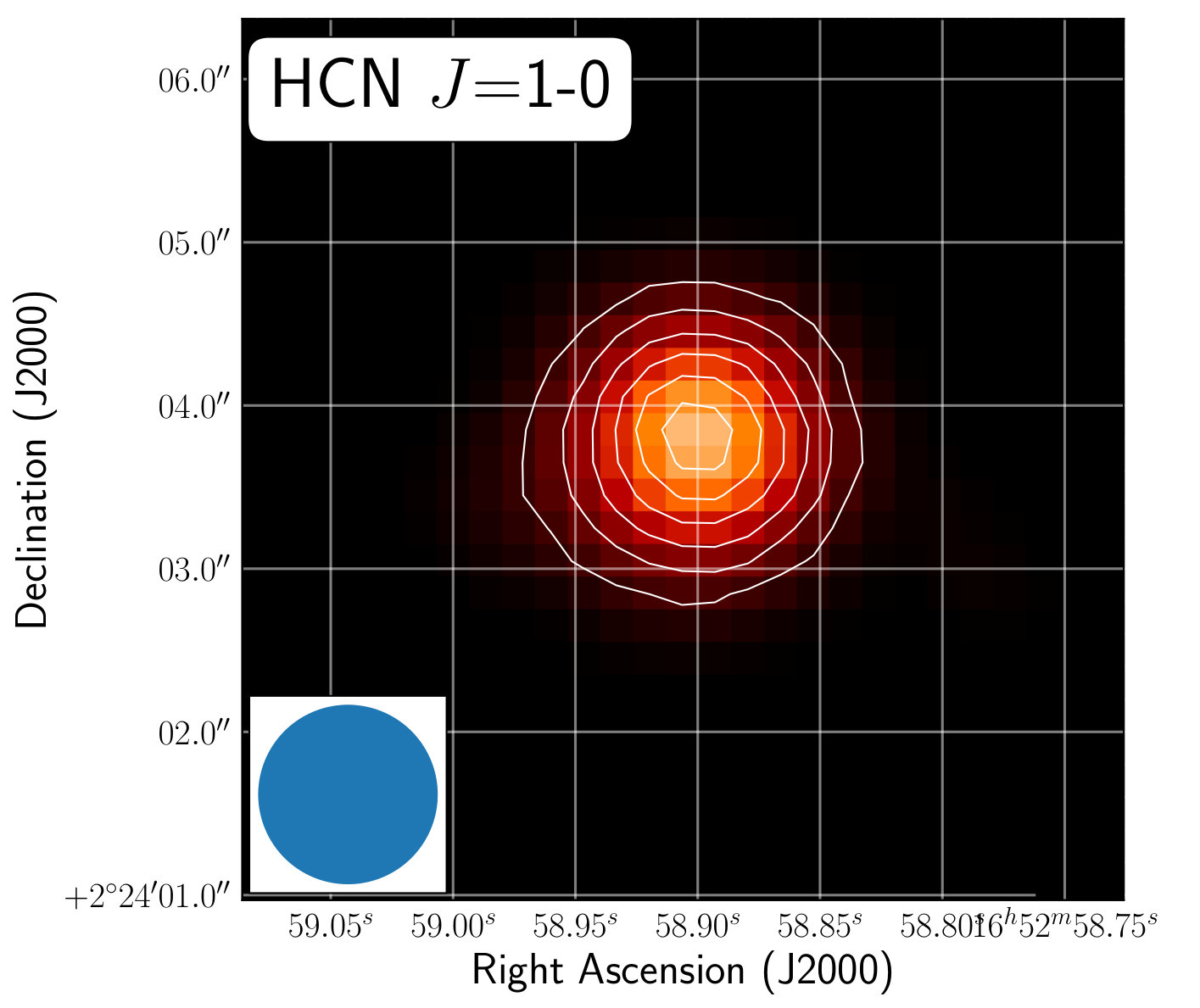

NGC 6240: The integrated line flux from the HCN and HCO+ $J$ = 1$-$0 is roughly half the single-dish flux measured by Greve et al. (2009). This is evidence of a larger scale HCN and HCO+ $J$ = 1$-$0 emission that is filtered out by the interferometer. With our shortest baseline ($\sim$ 80 m), 50% of the flux is at scales greater than 3″ ($\sim$1.5 kpc). Future observations need to include shorter spacings to recover all flux.

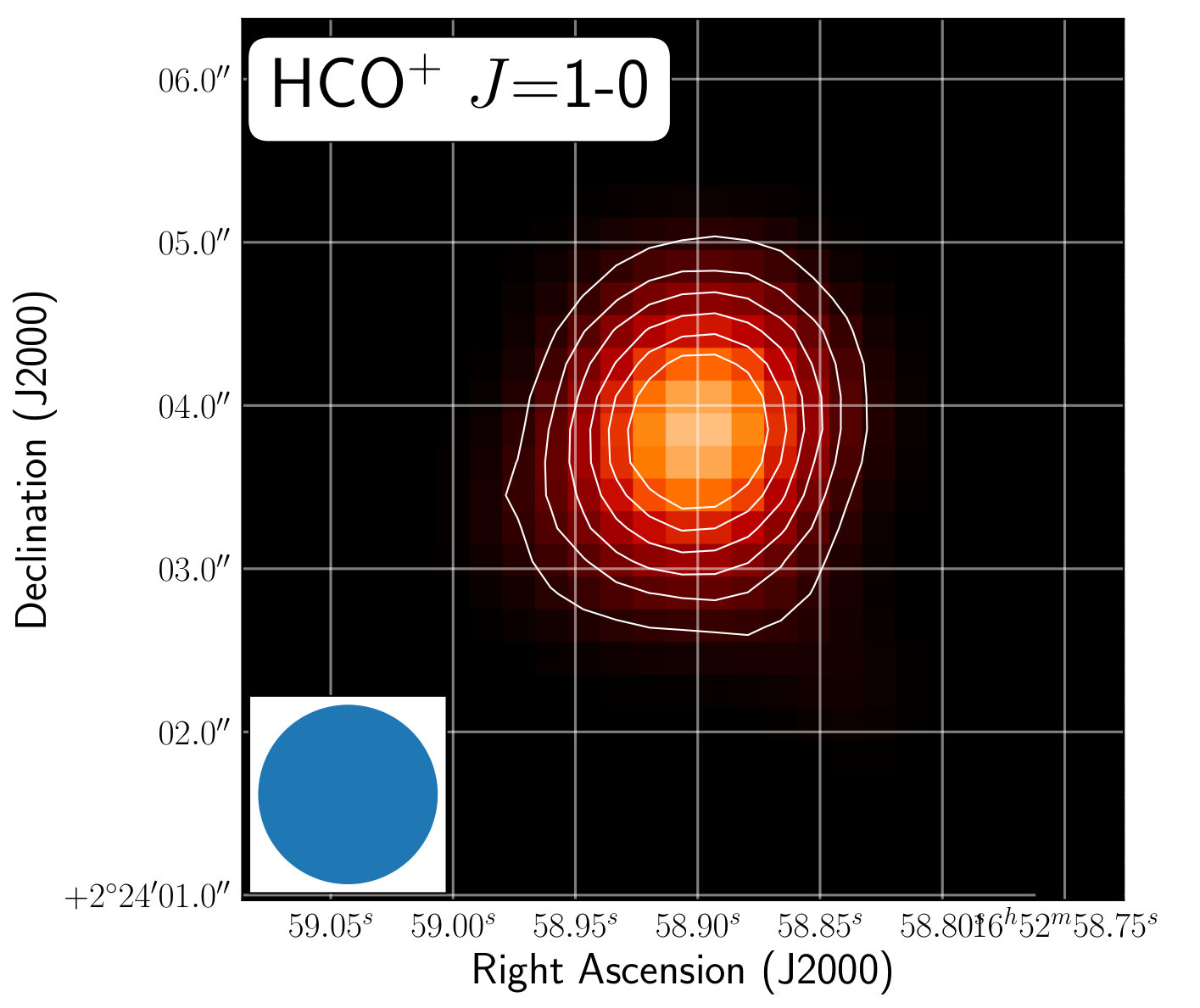

As also observed for Arp 220, the HCN emission is more compact than that for HCO+ which is evident in the integrated intensity maps (Figure 2). A 2D Gaussian fit on the integrated intensity maps shows that HCN and HCO+ $J$ = 1$-$0 are unresolved at our angular resolution (1.1″) with an upper limit to the source size of 0.5″ for HCN and 0.9″ $\times$ 0.5″ for HCO+. The upper limits still indicate that HCO+ $J$ = 1$-$0 is coming from a more extended component which supports the analysis of Greve et al. (2009) suggesting that HCN traces a denser gas phase than HCO+.

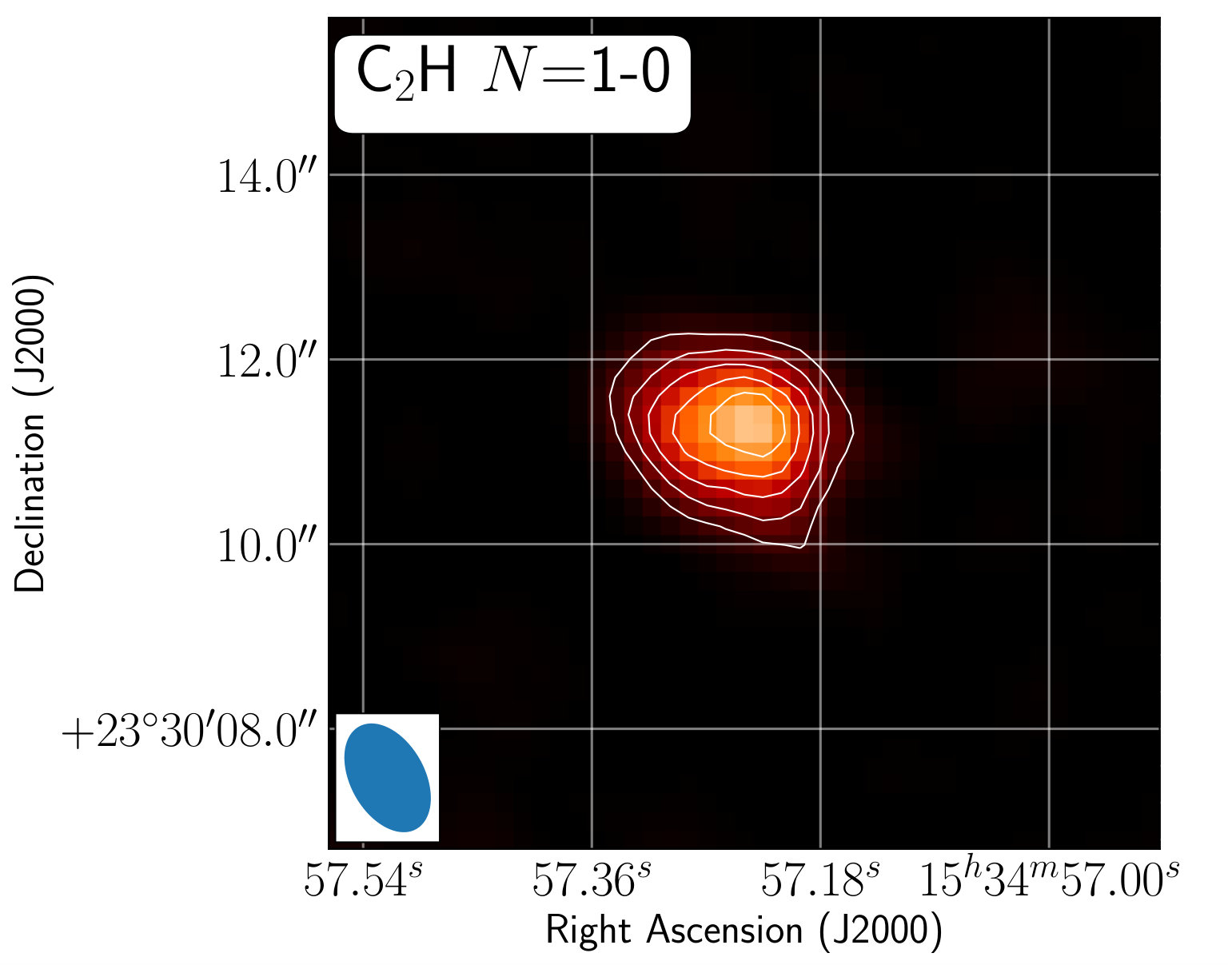

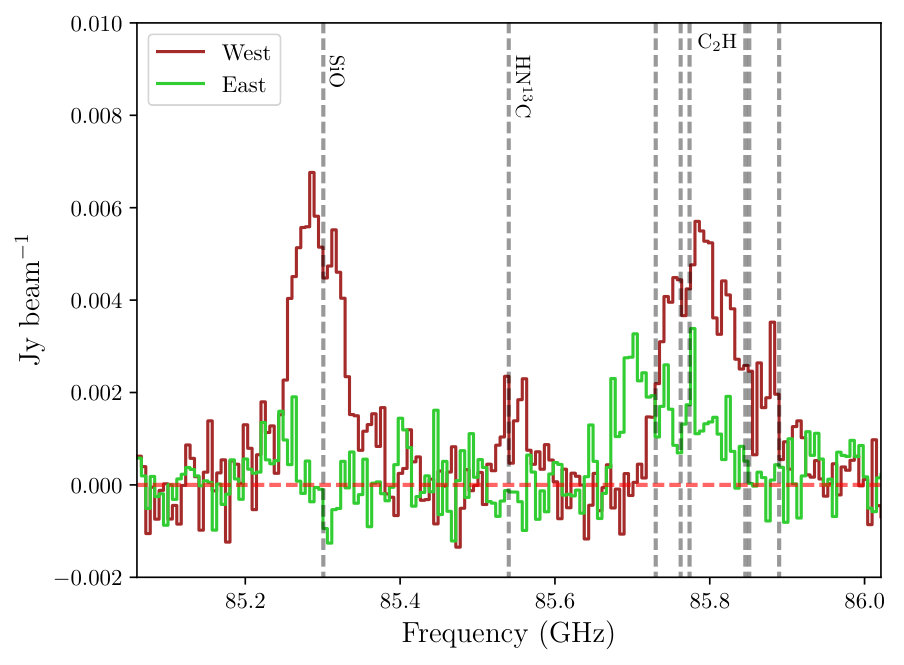

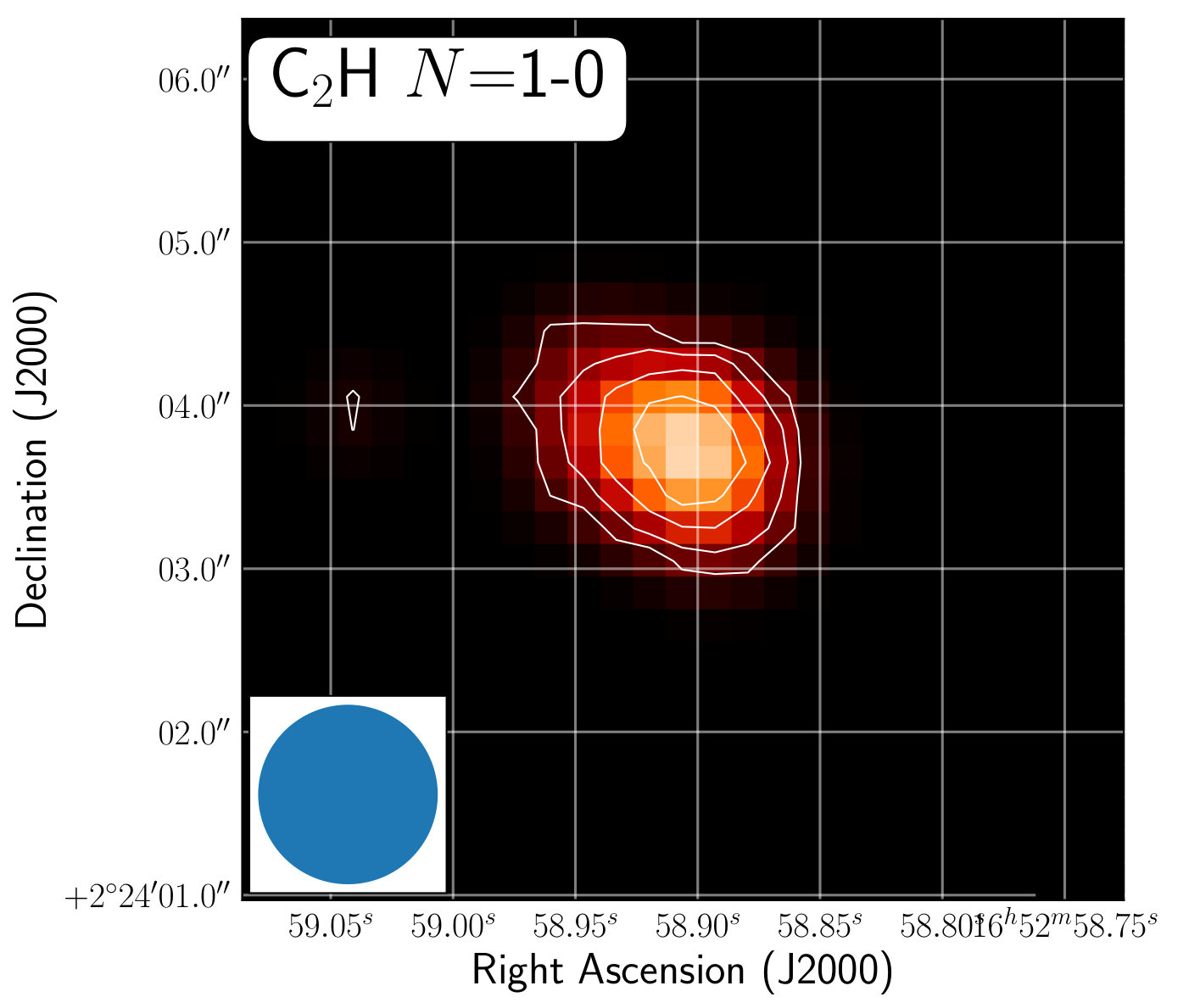

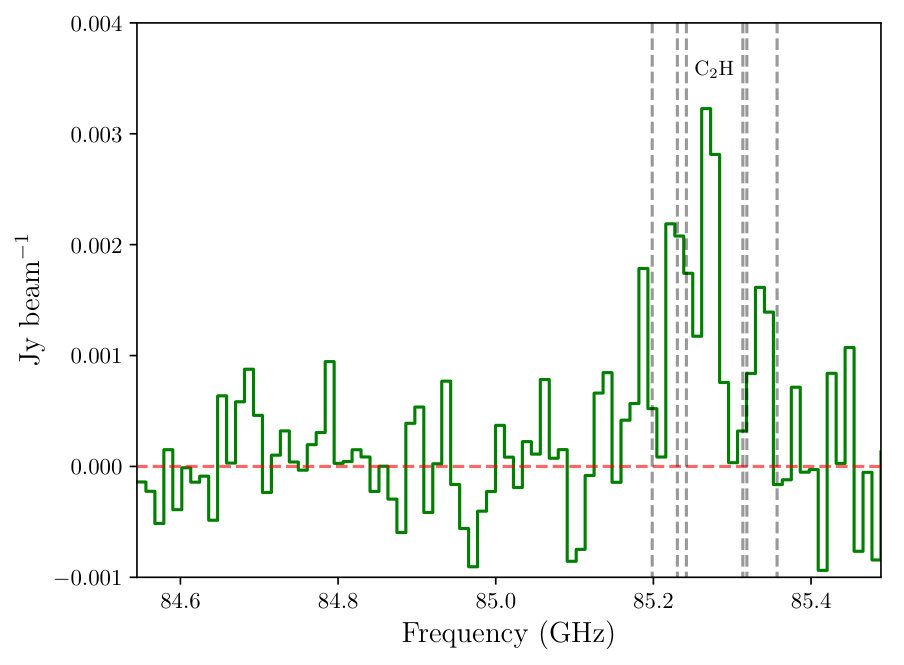

C2H (Ethynyl) - The C2H $N$ =1-0 transition consists of six hyperfine structure lines ($J$=3/2 -1/2 F=1-1, 2-1, 1-0 and $J$=1/2-1/2 F=1-1, 0-1, 1-0). Due to the low spectral resolution, the six lines are blended in our observations for both sources. Arp 220: The C2H emission is peaked near the western nucleus. NGC 6240: The C2H emission is peaked in between the two nuclei, similar to the HCN and HCO+ emission.

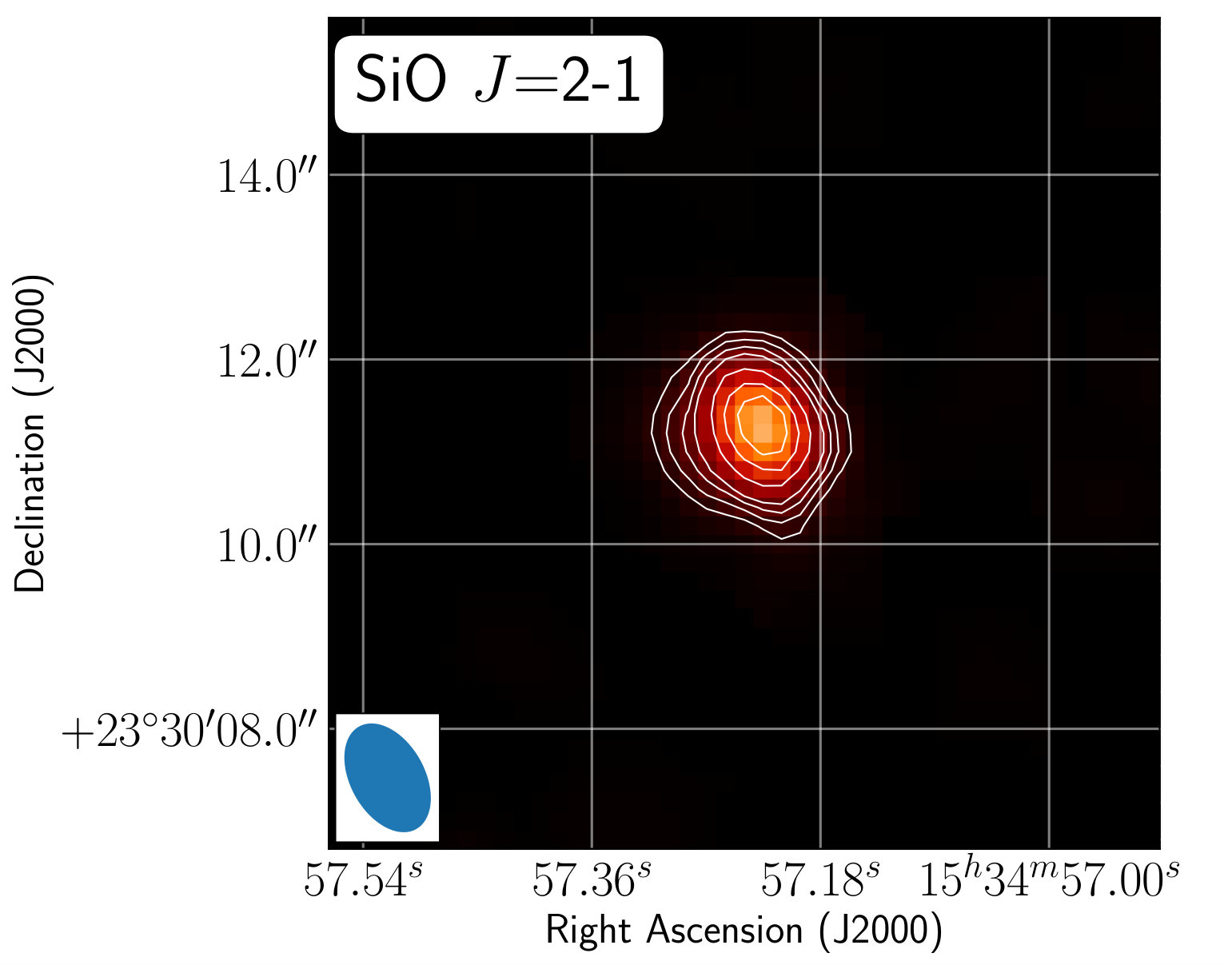

SiO (Silicon monoxide) - The SiO $J$=2-1 emission from Arp 220 has been previously observed by Tunnard et al. (2015a) at a similar spatial resolution. The total flux we measure agrees with Tunnard et al. (2015a); however, we note that there may be contamination from H13CO*+* $J$=1-0. Tunnard et al. (2015a) explore this possible contamination. We also do not see an absorption feature with the SiO $J$=2-1 line profile in Arp 220W, however, for Arp 220E there is a hint of an absorption feature (Figure 3). Since the detection in the Arp 220E is poor, it is difficult to conclude whether this is a real feature. We note that Tunnard et al. (2015a) do not see an absorption feature in SiO $J$=2-1.

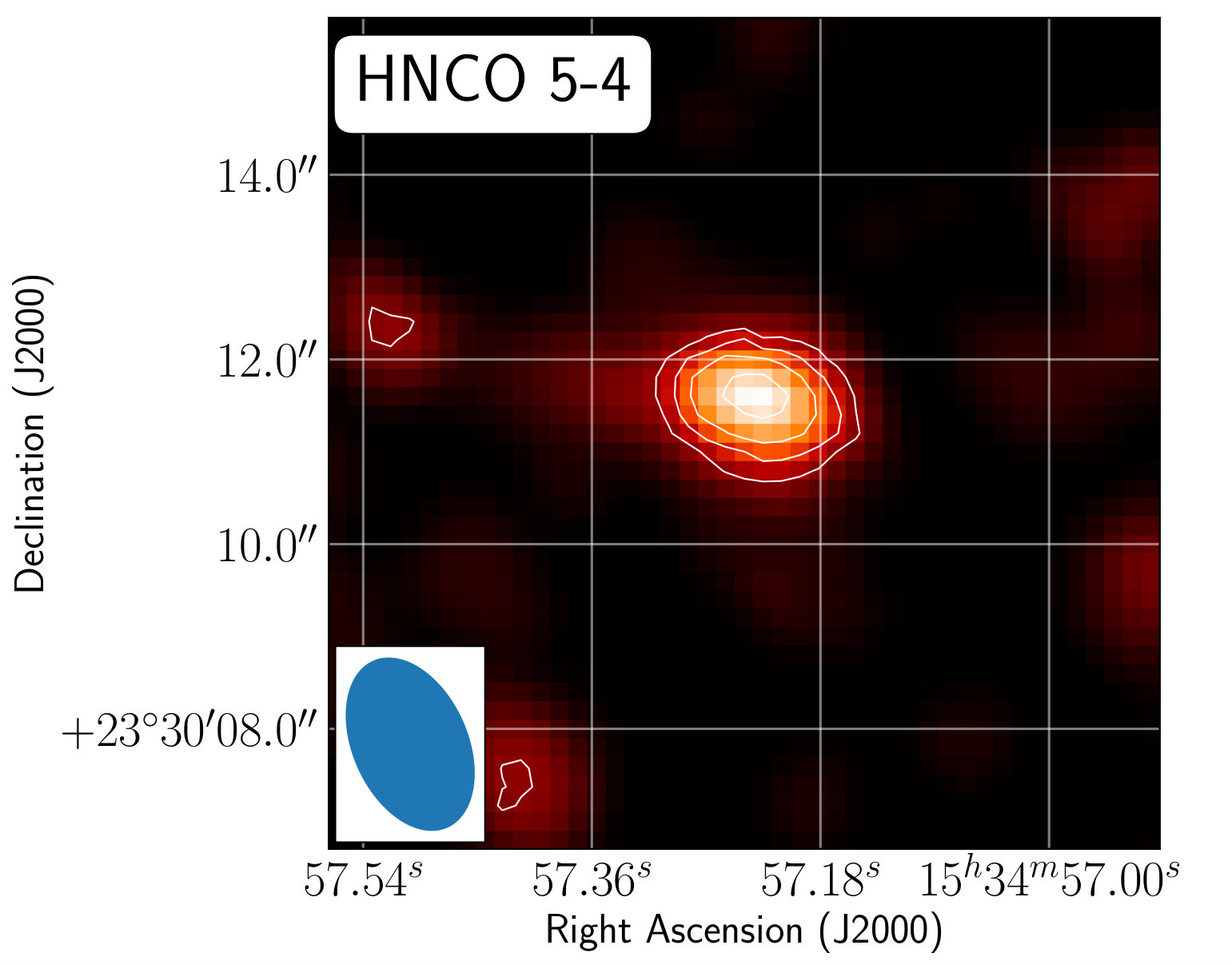

HNCO (Isocyanic acid) and CS (Carbon monosulfide): Only part of the HNCO line is observed due to bandwidth constraints and may contain contamination from C18O due to the broad linewidths of Arp 220. Martín et al. (2009) observed HNCO $J_{k,k^{\prime}}$ = 50,4 - 40,4 in Arp 220 using the IRAM 30m and measured a flux of $\sim$5.5 Jy km s*-1*, more than twice our measured flux. The emission of HNCO has a horizontal elongation in the vicinity of the two nuclei with very little emission in the surrounding disk. The peak of the emission of HNCO is near the position of the western nucleus (Figure 1); however, this may be influenced by the lack of the eastern portion of the line profile.

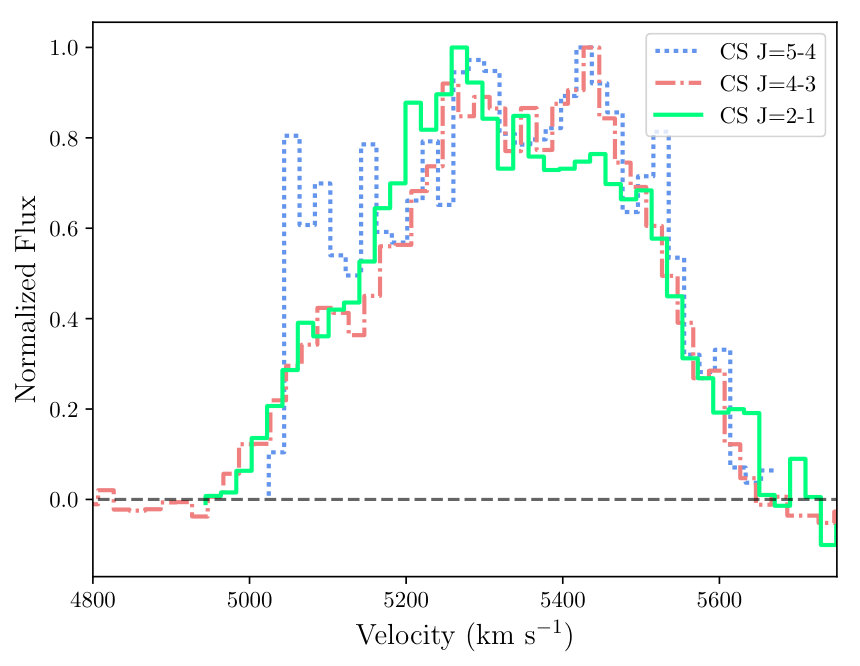

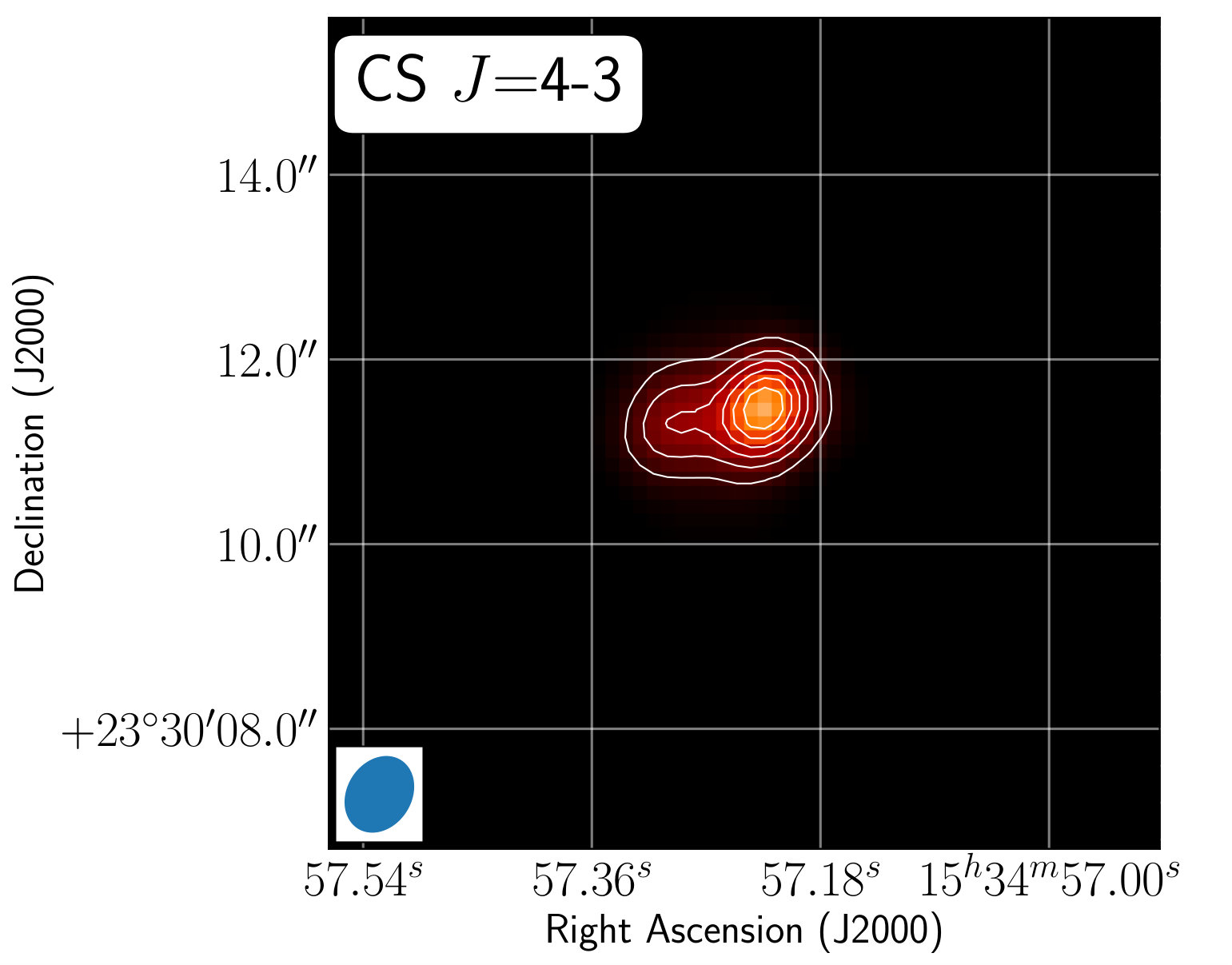

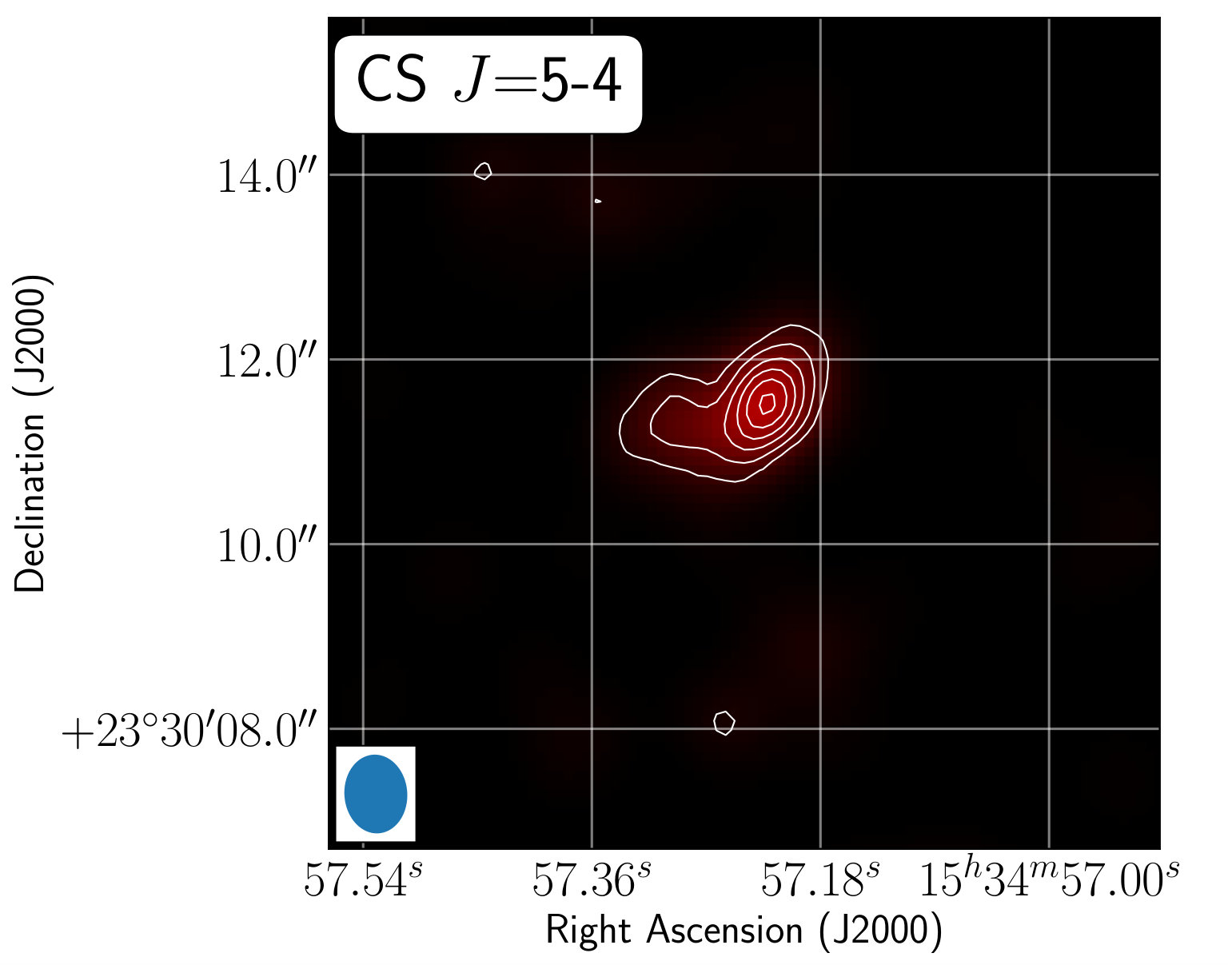

Greve et al. (2009) observed CS $J$ = 2$-$1 and $J$=5-4 in Arp 220. Our high-resolution observations of CS $J$ = 2$-$1 agree with the total flux within uncertainties while the CS $J$ = 5$-$4 is missing 37$\pm$12$\%$ of the total flux in the single dish map. Galametz et al. (2016) observed the CS $J$ = 4$-$3 emission from Arp 220 using APEX. The ALMA SV CS $J$ = 4$-$3 observations total flux agrees with the single dish observations. A comparison of the three CS lines (Figure 3), shows small differences in the line profiles. The CS $J$ = 4$-$3 and $J$=5-4 have a double peak profile similar to what Greve et al. (2009) noted, while the CS $J$ = 2$-$1 line profile lacks the peak at higher velocities. The CS $J$ = 5$-$4 line also has a third peak around an observed frequency of $\sim$ 240.8GHz, but this may be due to line contamination from perhaps CH3OH and/or CH2NH lines. Martín et al. (2009) observed a similar third peak in the CS $J$ = 5$-$4 line.

CS is a known tracer of photo-dominated regions (PDRs), where the CS is enhanced through S*+* chemistry (Sternberg & Dalgarno, 1995). HNCO, however, is photodissociated easily by UV photons, but is enhanced in regions with shocks (Zinchenko et al., 2000). Martín et al. (2008) proposed that the relative abundance of HNCO to CS can be used as a good diagnostic tool to distinguish between the influence of shocks and molecular clouds illuminated by UV radiation. They determined that an offset region in IC 342 (denoted by IC 342* in their analysis) is dominated by shocks with a CS(5-4)/HNCO(5-4) line ratio of $\sim$0.3. M82 was determined to be dominated by PDRs with a CS(5-4)/HNCO(5-4) line ratio $>$64. In the analysis of Martin et al., Arp 220 is a composite system with contributions from PDRs and shocks. Since we only observe part of the HNCO, our line ratios of CS(5-4)/HNCO(5-4) (Figure 5) is strictly an upper limit to the true line ratios; however, despite this handicap, we see significant variations of the line ratio between the region of the two nuclei ($\sim$7) and the kiloparsec disk ($\sim$ 12-30). Assuming both lines are optically thin and in LTE, the line ratios trace the relative abundance and this strongly suggests that the ISM in the kiloparsec disk is not strongly influenced by shocks while there is very likely a more significant contribution of shocks, likely from stellar winds, possible outflows as suggested by Sakamoto et al. (2009) and/or supernova explosions, near the two nuclei. Higher spatial resolution imaging is required to properly separate these two regions.

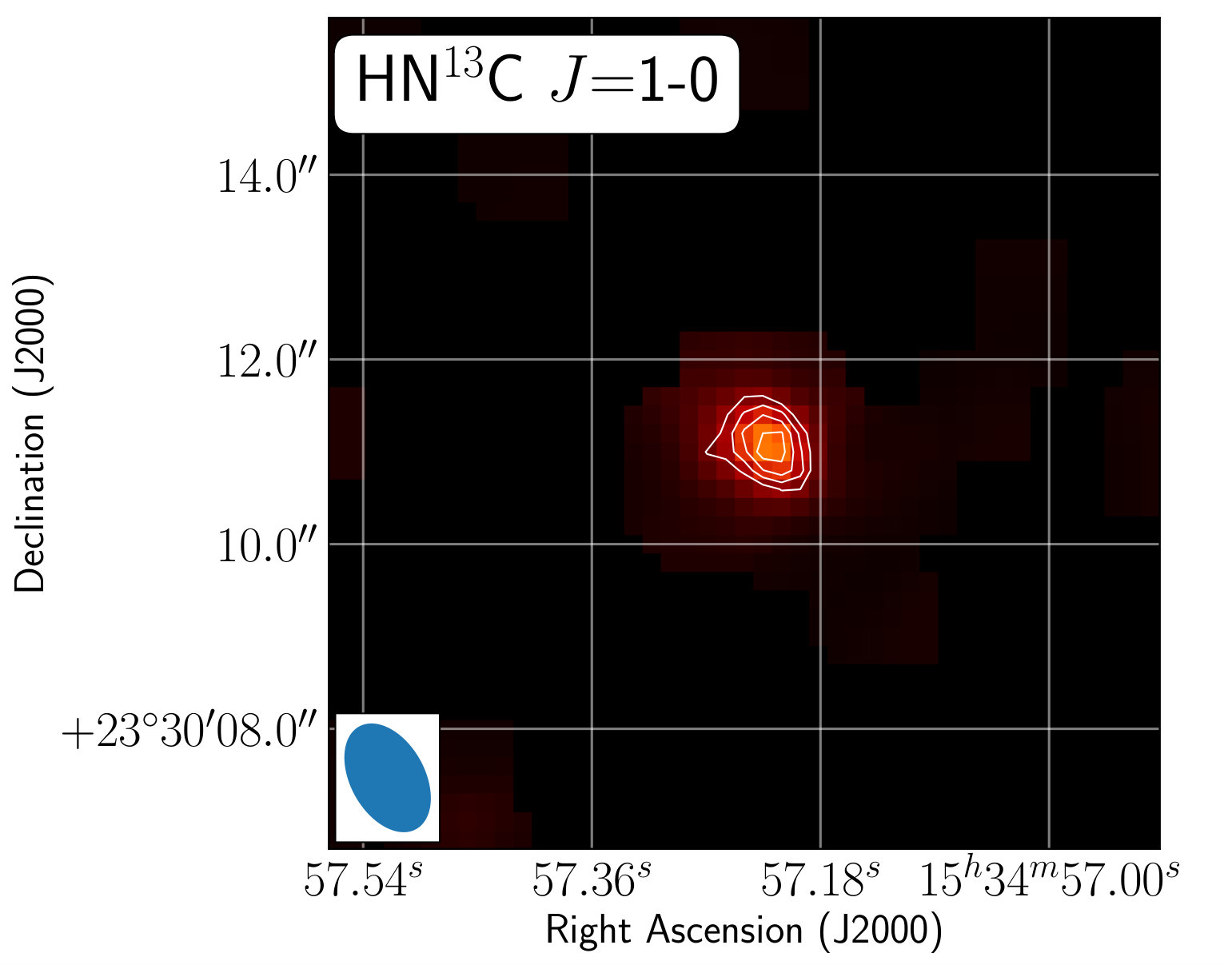

HN13C (Rare isotopologue of hydrogen isocyanide) - The HN13C emission is peaked oddly below the western nucleus by $\sim$0.5 $\pm$ 0.1″. Nearly the entire emission is originating from the western side of Arp 220 which may be due to sensitivity since the line is weak and the eastern nucleus is the weaker emitter of the two. Wang et al. (2016) observed HN13C $J$=1-0 and 3-2 using the IRAM 30m and APEX single dish telescopes. They find that the emission is only detected in the blue component of Arp 220 (i.e. the western nucleus region) similar to what we see and our flux measurement (Table 2) agrees with theirs. Tunnard et al. (2015a) observed HN13C $J$=3-2 in Arp 220 with the PdBI. The peaks of HN13C $J$=3-2 are within the positions of the nuclei (both east and west; see Figure 7 of Tunnard et al. 2015a). The flux measured by Tunnard et al. (2015a) is a factor of $\sim$2.5 times higher than that of Wang et al. (2016); however, the line in the observations of Tunnard et al. (2015a) is near the bandpass edge and as noted by Wang et al. (2016), the observations may have been difficult to continuum subtract properly. If the case is that the line was poorly continuum subtracted, the peak positions of HN13C $J$=3-2 in the PdBI map may not be due to the molecular emission but of the 1.2mm continuum contamination. Using the total flux of HNC $J$ = 1-0 published in Greve et al. (2009) and our flux measurement for HN13C (Table 2), the line ratio of HNC/HN13C is $\sim$ 52. Since HNC is likely optically thick, this measured line ratio is a lower limit to the [12C]/[13C] abundance.

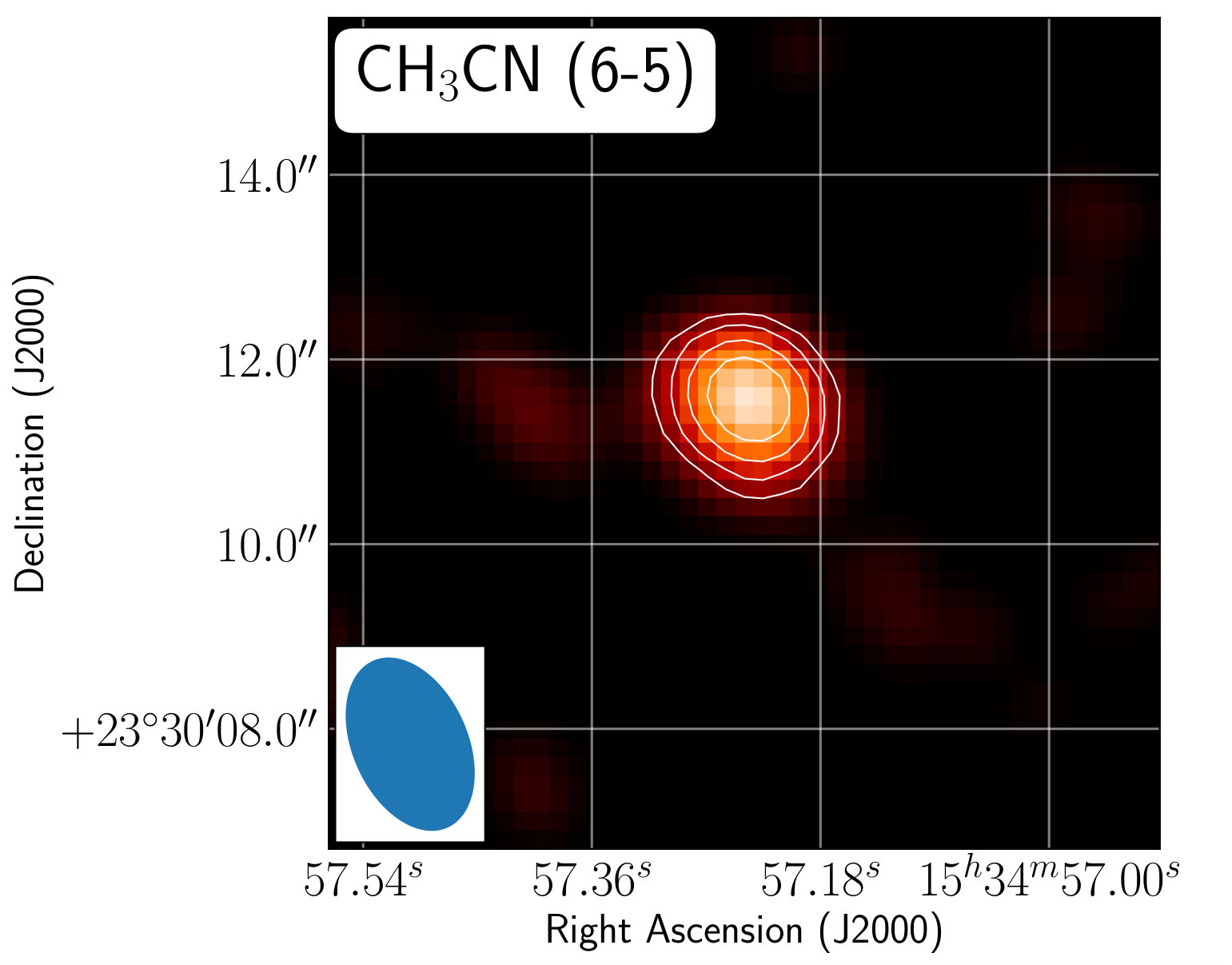

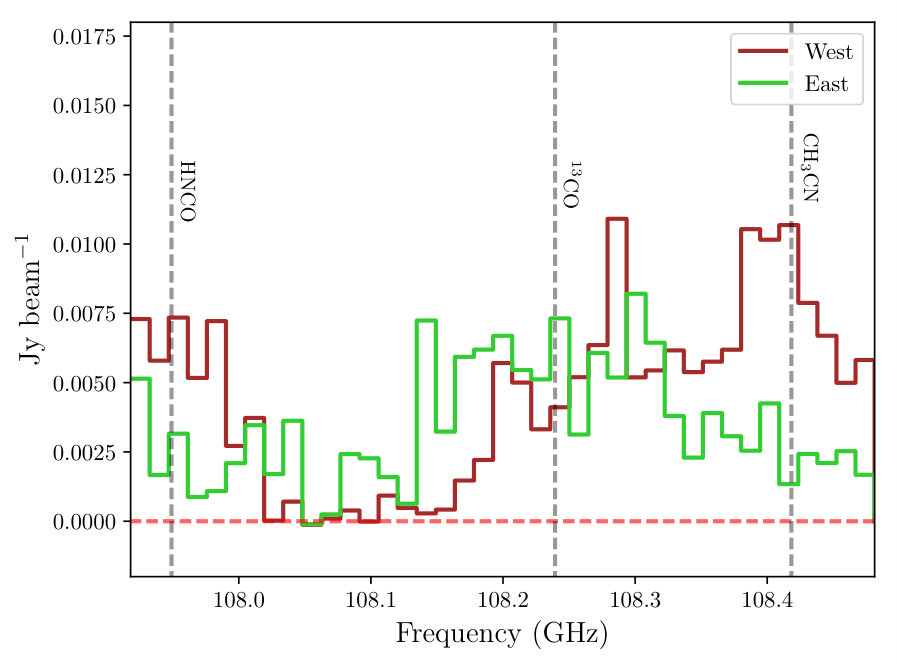

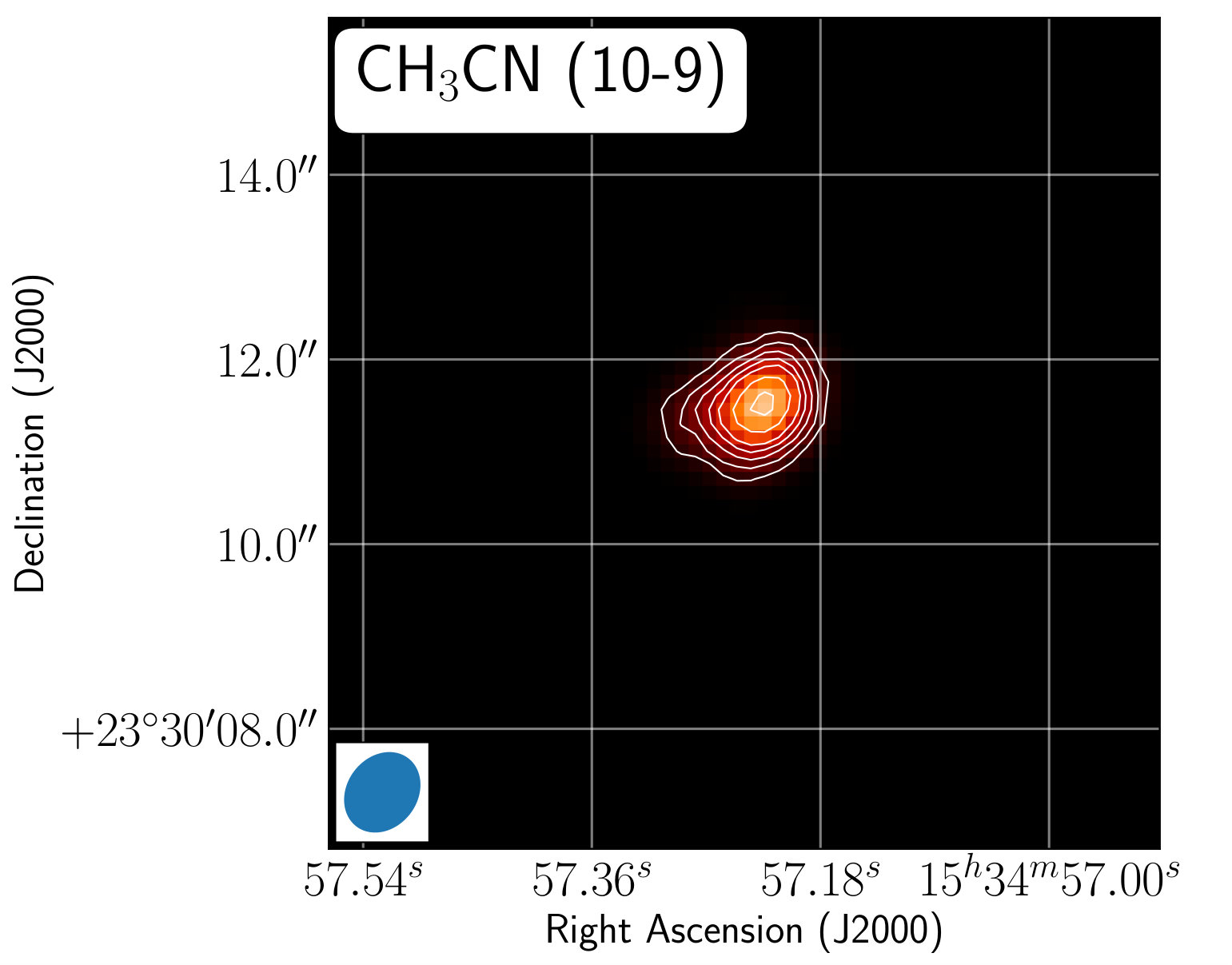

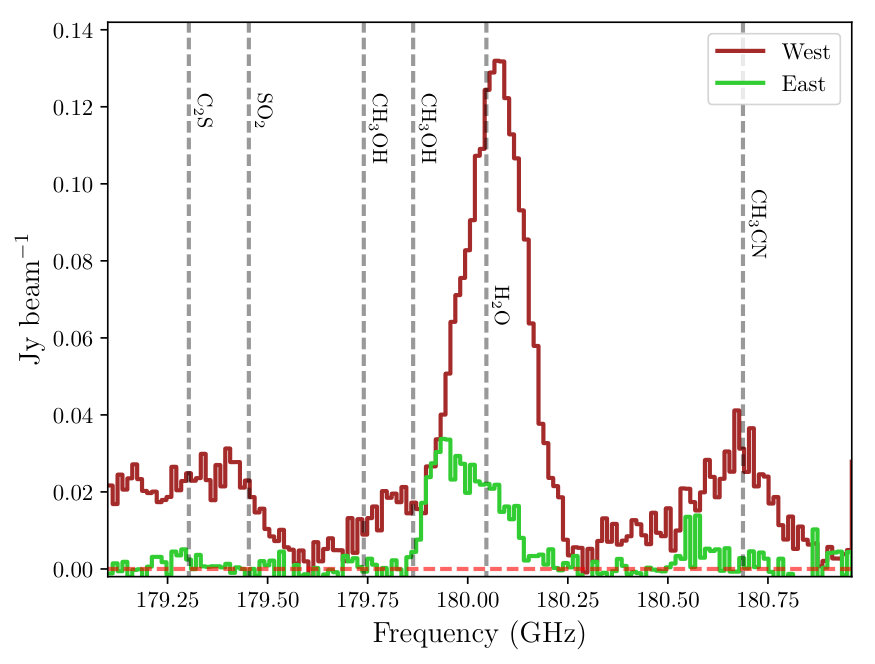

CH3CN (Methyl cyanide) - Due to bandwidth limitations, only part of the CH3CN (6-5) line is observed. The CH3CN is partially blended with the 13CO $J$=1$-$0 line and is nearly as strong in emission as 13CO $J$=1$-$0. The CH3CN (12-11) line, which would be near the 13CO $J$=2$-$1, is not included in our bandpass; however a very small part of the CH3CN (12-11) line may be blended in the blue side of the 13CO $J$=2$-$1 line profile. The ALMA CH3CN (10-9) observations observed the entire line profile (Figure 3).

Since only the emission on the blue side of the CH3CN (6-5) line is observed, it is not surprising that the emission is peaked near the western nucleus; however, when compared to the CH3CN (10-9), the peak positions agree. CH3CN is believed to be a tracer of hot cores with the relative ease of detecting the line near hot cores (e.g. Remijan et al., 2004; Purcell et al., 2006) and is a good ISM thermometer (Guesten et al., 1985) if multiple transitions are observed. Gratier et al. (2013) find that CH3CN is more abundant in UV illuminated gas and thus may be a PDR tracer. Since U/LIRGs do experience intense massive star formation, CH3CN should be relatively bright (and is in Arp 220). Observations of other transitions of CH3CN will be relatively easy in the ALMA/NOEMA era as demonstrated by the ALMA SV and early PdBI observations.

5.2 Molecular Gas Conditions in Arp 220

The radiative transfer modelling of the molecular gas in Arp 220 is consistent with a warm ($\sim$ 40 K), moderately dense (103.4 cm*-3* molecular gas component. The best fit molecular gas density is a factor of $\sim$4 higher than what was found by Rangwala et al. (2011) using $Herschel$ FTS observations; however, the best fit $n_{\rm{H_{2}}}$ and $T_{\rm{kin}}$ of the two sets of models are consistent within the 1$\sigma$ uncertainties. We note that this result should not be perceived as a lack of very dense molecular gas as been presented in Scoville et al. (2015). Our results are averaged over a $\sim$700 pc scale which may be dominated by a less dense medium, most likely from the diffuse kiloparsec disk.

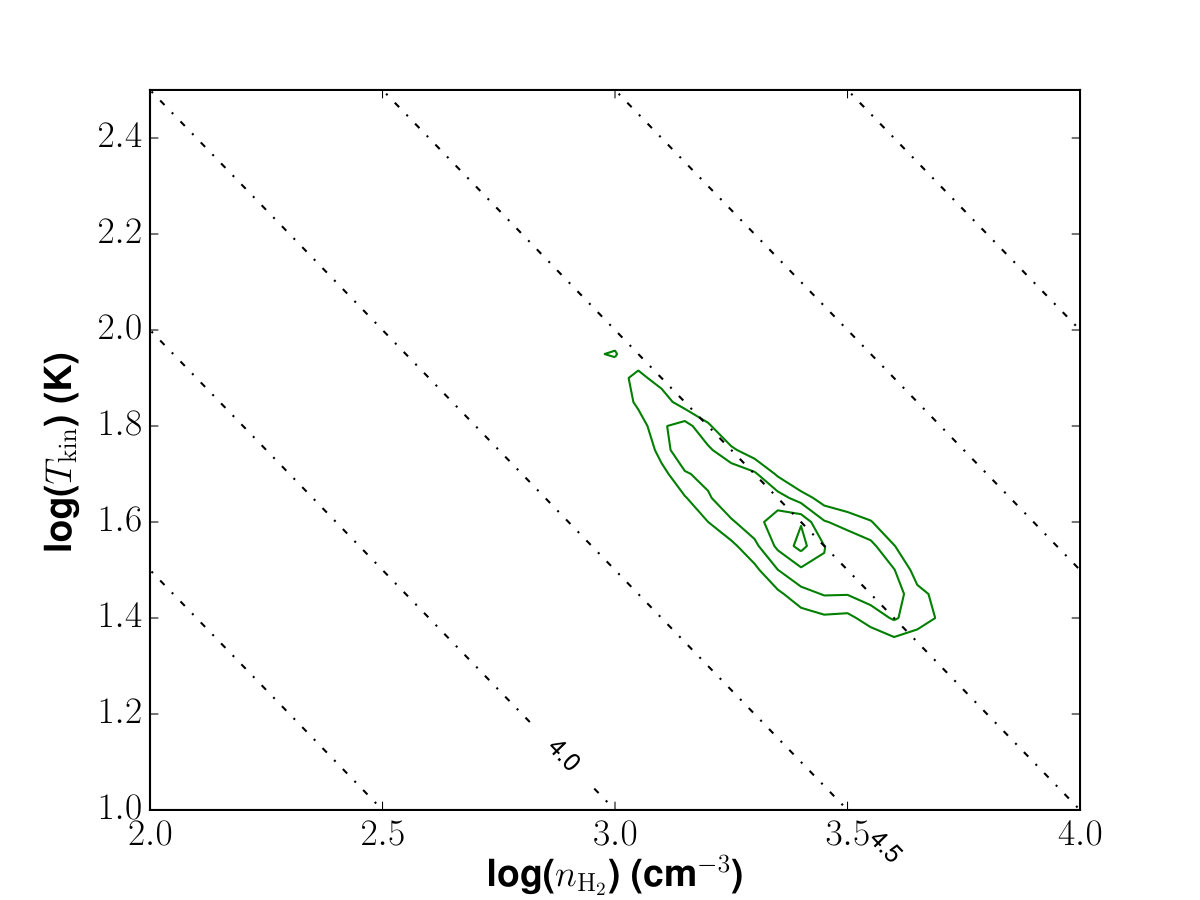

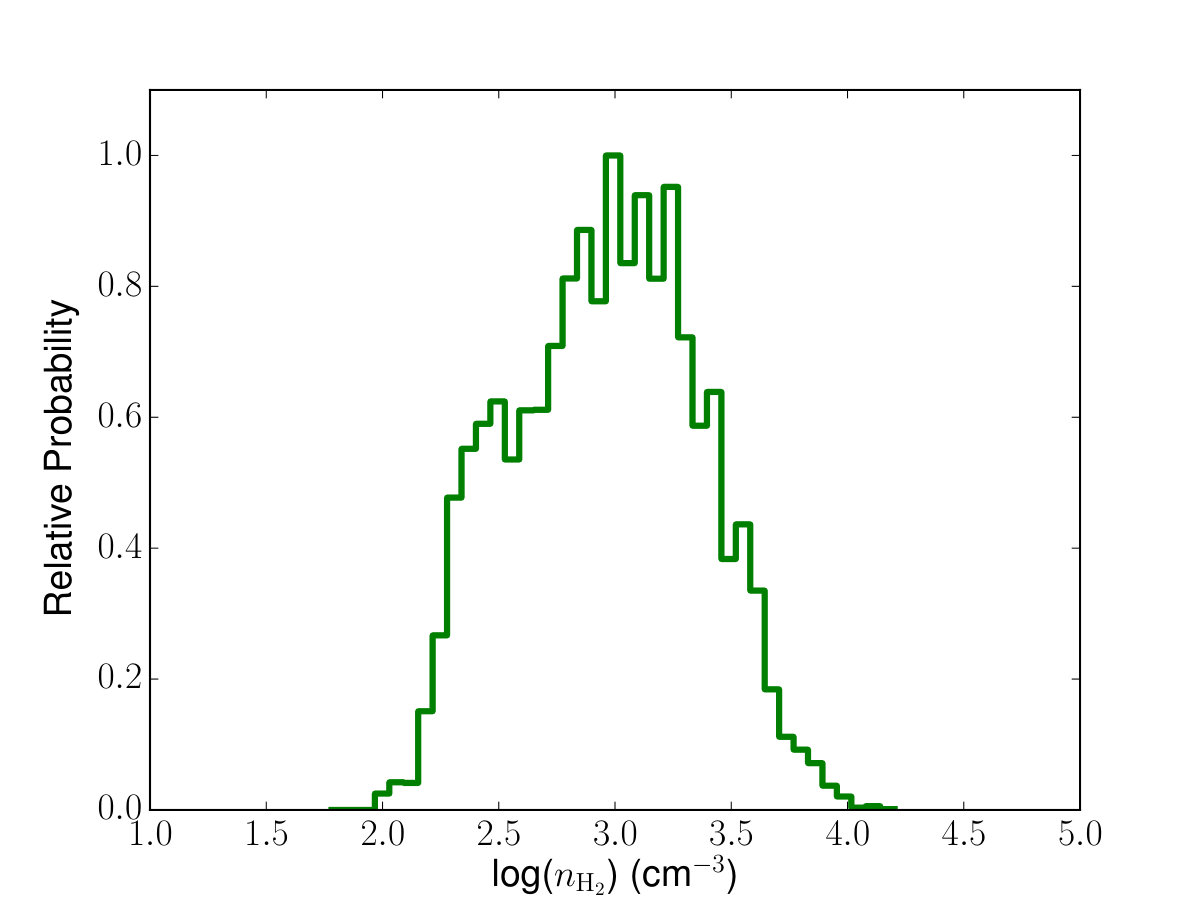

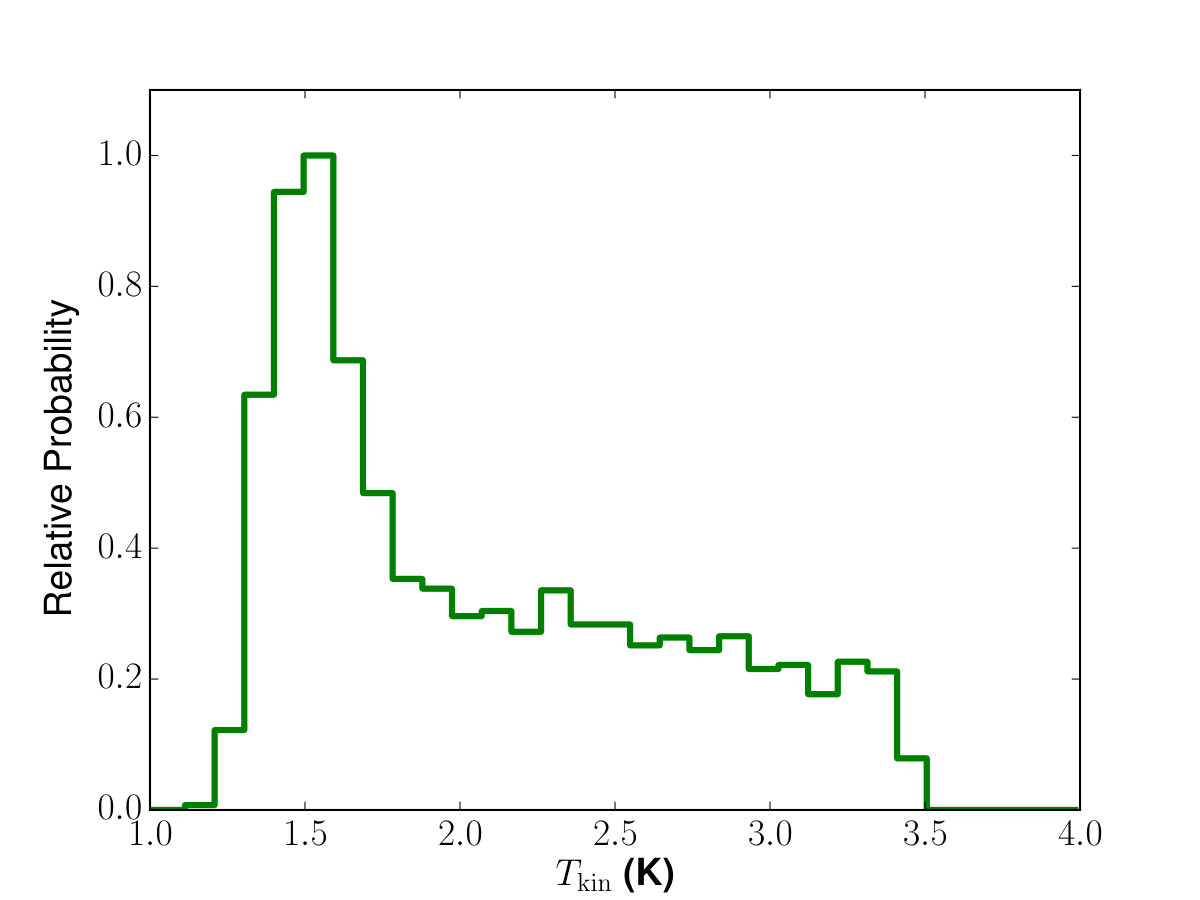

Within the 1$\sigma$ range, a warm, moderately dense gas component is favoured (Table 4 and Figure 8). This result is very similar to other advanced mergers such as VV 114 (Sliwa et al., 2013) and NGC 2623 (Sliwa et al., 2017b) where, on average over $\sim$1 kpc scales, a warm, moderately dense molecular gas is the best fit solution. This can be explained by feedback from massive star formation, which these mergers will experience intensely over the course of the merger process and possibly outflows. The feedback in the form of stellar winds and supernova from massive stars and the outflows that have been observed (e.g. Cicone et al., 2014) are able to push back on the molecular gas, relieving the pressure while decreasing the molecular gas volume density. Sakamoto et al. (2009) have observed a molecular P-Cygni profile suggesting $\sim$100 km s*-1* outflows from the nuclei, which can explain our picture of a less dense medium traced by CO. Within early/intermediate stage mergers we should see a denser molecular medium over roughly kiloparsec scales traced by CO and its isotopologues since the molecular gas is likely still inflowing to the central regions of the merging systems thus increasing the pressure and volume density of the molecular gas (Sliwa et al., 2017b). In Arp 220, the volume density and thus thermal pressure on $\sim$kiloparsec scales will likely be on the rise as the two nuclei are on the verge of the final coalescence.

5.3 [12CO]/[13CO] and [12CO]/[C18O] Abundance Ratios in Arp 220

The R10 and R21 line ratios of Arp 220 (see Table 3) on a position by position basis are typical for ULIRGs but abnormally high when compared with normal disk galaxies (e.g. Davis, 2014) The R10 line ratio is higher (at some positions) than other LIRGs such as Arp 299 and Arp 55 (Casoli et al., 1999; Sliwa et al., 2017b). However, these high R10 line ratios are more common for advanced major mergers such as VV 114, IRAS 13120-5453 and NGC 2623 (Sliwa et al., 2013, 2017b, 2017a; Saito et al., 2015). The possible explanations for the higher line ratios include optical depth effects, increased [12CO]/[13CO] abundance ratio via some mechanism or excitation effects (e.g Casoli et al., 1992; Henkel & Mauersberger, 1993; Taniguchi et al., 1999).

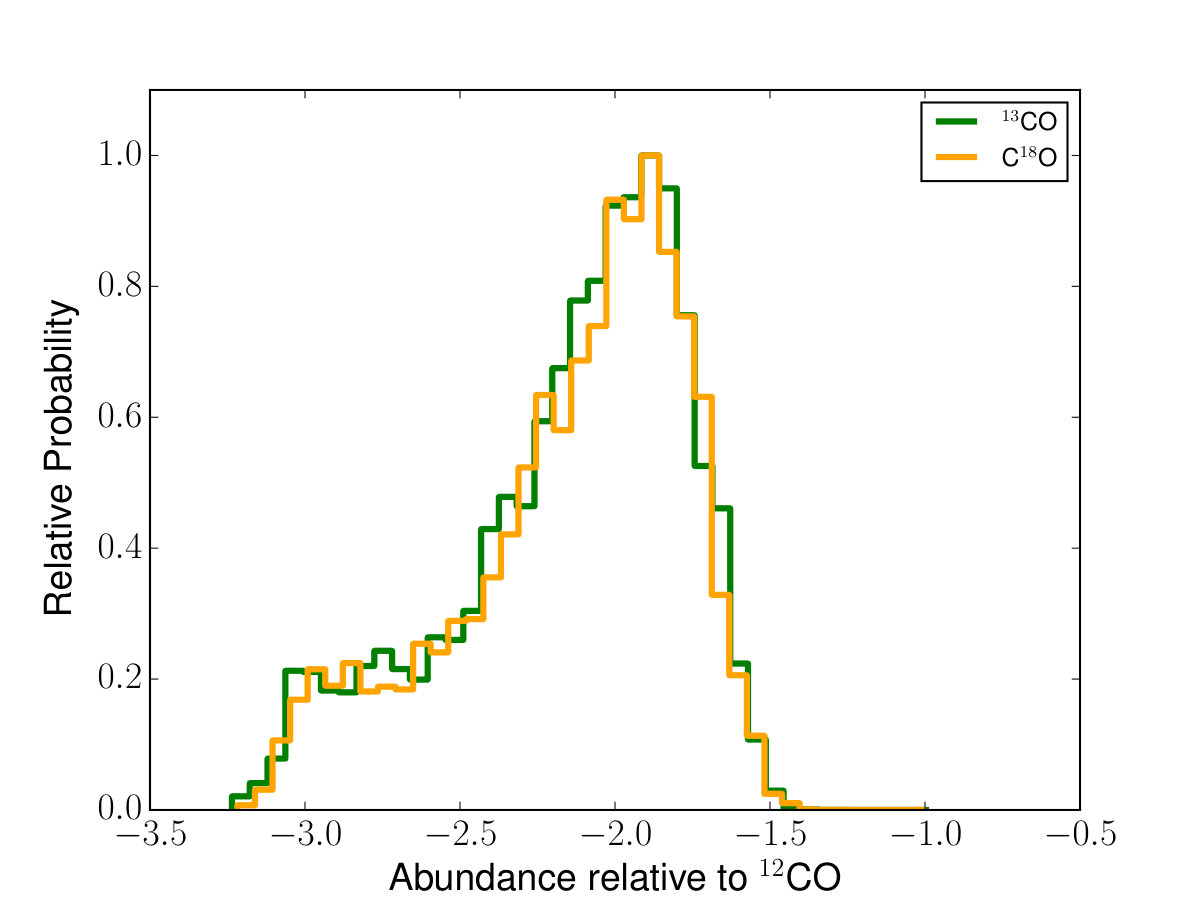

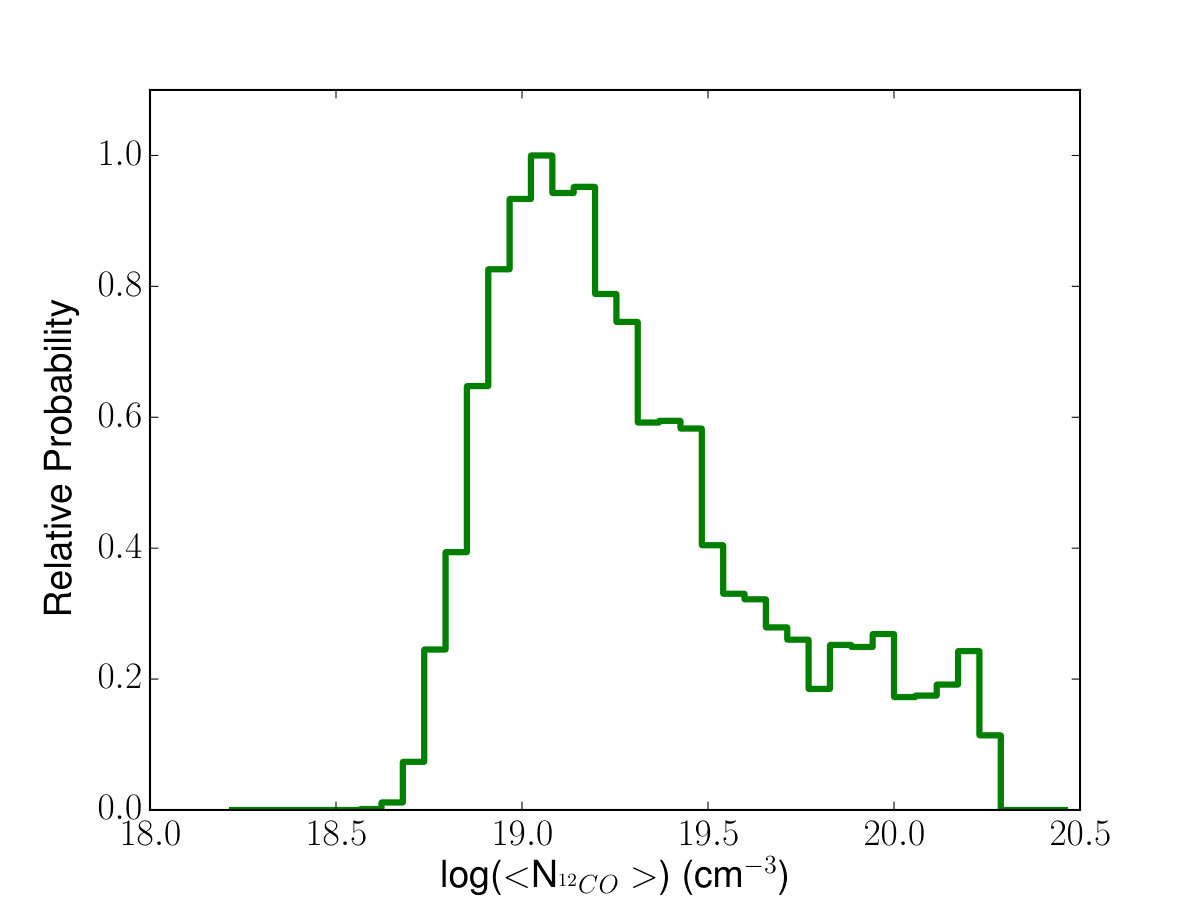

Our radiative transfer analysis allows the [12CO]/[13CO] and [12CO]/[C18O] abundances to vary as a free parameter. We find that for Arp 220, the most probable abundance ratio is 90-125, roughly 3 times higher than the ISM value around the Galactic center (e.g. Milam et al., 2005). In our Galaxy, the abundance ratio increases with increasing radius. If Arp 220 had no enhancements in [12CO]/[13CO], and had a similar [12CO]/[13CO] abundance gradient as observed in our Galaxy, then we would expect values of [12CO]/[13CO] $\leq$50 since the molecular gas in Arp 220 is concentrated within $\sim$2-3 kpc. Even for NGC 6240, the most probable abundance ratio is 98 (Tunnard et al., 2015b).

Optical depth effects have been ruled out by our analysis as the best fit solutions have optical depths $>$ 1 for 12CO and $<<$1 for 13CO.

Selective photo-dissociation was thought to be a possible mechanism to drive the unusually high [12CO]/[13CO] abundance ratio we observe; however, this mechanism is ruled out because C18O, a molecule that should be destroyed via photo-dissociation as fast or faster if less abundant than 13CO, is relatively strong in emission. The likely dominant source of the increased [12CO]/[13CO] and [12CO]/[C18O] abundance ratios is stellar nucleosynthesis. Short-lived ($\leq$ 10 Myr) massive stars produce $\@element[12]{\mathrm{C}}$ and $\@element[18]{\mathrm{O}}$, but $\@element[13]{\mathrm{C}}$ is produced in the envelopes of long-lived low/intermediate mass during the red giant phase. If extreme starbursts have a top-heavy initial mass function, then many massive OB stars will be formed in the Arp 220 starbursts, whose supernovae will enrich the ISM, and we would expect to see increased abundances of $\@element[12]{\mathrm{C}}$ and $\@element[18]{\mathrm{O}}$. Matsushita et al. (2009) and Greve et al. (2009) show that the 13CO/C18O line ratio is $\sim$ 1 for Arp 220. The 13CO/C18O line ratio in spirals has been shown to be on average $\sim$6 (Jiménez-Donaire et al., 2017), 6 times higher than for Arp 220. This strongly suggests that stellar nucleosynthesis has enriched the ISM of Arp 220. This is a similar result in other advanced mergers such as NCG 2623 and IRAS 13120-5453 (Sliwa et al., 2017a).

Fractionation of the $\@element[12]{\mathrm{C}}$ and $\@element[13]{\mathrm{C}}$ has also been considered as playing a role in the relative carbon isotope abundances that we find in U/LIRGs. The most important reaction to exchange carbon isotopes is

[TABLE]

predicted by Watson et al. (1976). The forward reaction is exothermic and in cold molecular gas can dominate isotope fractionation favouring the formation of more 13CO. In hotter temperatures, both the forward and reverse reactions are about equally probable and would not affect the overall abundance ratio greatly. Since the molecular gas in Arp 220 is warm ($\sim$ 40K), we can rule out fractionation as a possible contaminate in our [12CO]/[13CO] abundance. Langer et al. (1984) showed that oxygen fractionation is very small and the oxygen isotope ratios reflect stellar nucleosynthesis processes further supporting the stellar nucleosynthesis enrichment scenario for the observed line ratios.

5.4 HCN and HCO+ Line Ratios: AGN or Starburst?

As stated in the introduction, a linear relation between HCN $J$ = 1$-$0 and infrared luminosity was found and interpreted to be a direct correlation of dense gas and star formation (Gao & Solomon, 2004b). Within the last decade or so, the nature of HCN $J$ = 1$-$0 as a true dense gas tracer has been questioned. Studies of samples of AGN and starburst systems have found enhancements of HCN $J$ = 1$-$0 emission among the AGN systems. Recently, Privon et al. (2015) have shown that composite (i.e. AGN and star forming) and star formation dominated systems can also show a similar enhancement in HCN $J$ = 1$-$0 emission. Privon et al. (2015) found that for AGN, starbursts and composite systems the H10 ratios are 1.84$\pm$0.43, 0.88$\pm$0.28 and 1.14$\pm$0.49, respectively. This overlap of values for the different types of systems has complicated the picture of HCN and HCO+ emission suggesting multiple processes contributing to the line ratio differences.

Nevertheless, we compare the line ratios of Arp 220 and NGC 6240. We find that the line ratios are significantly different between the two sources. Arp 220 is consistent with AGN-like line ratios while NGC 6240 is consistent with a starburst-like ratio, similar to NGC 4039 and the Antennae Overlap region (Schirm et al., 2016). This result is quite surprising considering the fact that NGC 6240 has two well known AGNs (e.g. Komossa et al., 2003) while the presence of an AGN in Arp 220 is still debatable. The low line ratio found for NGC 6240 may reflect the different area filling factors of the two species as our observations are slightly unresolved with our beam; however, this is not the case for Arp 220 as our observations do resolve the emission and therefore, line ratios within one beam element would be filled with emission from both species. We note that our line ratio does not suggest the presence of an AGN in Arp 220 as our angular resolution does not distinguish the individual nuclei and the other possible mechanism affecting the H10 line ratios (e.g Privon et al., 2015). Radiative transfer analyses including just these dense gas tracers are required to understand what is driving the line ratios. We also note that other effects such as infrared pumping of HCN and recombination of HCO+ may be factors that need to be taken into consideration.

6 Conclusions

We present new PdBI observations of several molecular gas tracers for the two nearby major mergers Arp 220 and NGC 6240. The observations show a wealth of chemistry in Arp 220 and different conditions between the two sources. The main results are summarised as follows:

13CO $J$=2$-$1 / $J$=1-0 line ratio reveal that molecular gas conditions vary across the disk of Arp 220 where the line ratio increases from east to west. 2. 2.

The best fit molecular gas conditions at the peak position of 13CO $J$=1$-$0 imply a warm (40 K), moderately dense (103.4 cm*-3*) molecular gas component. This solutions differs in volume density by a factor of $\sim$4 from the analysis of Rangwala et al. (2011) most likely because of the spatial resolution difference. 3. 3.

The HCN/HCO+ $J$ = 1$-$0 line ratio for Arp 220 is greater than 2, while for NGC 6240 the line ratios are below 1. 4. 4.

The [12CO]/[13CO] abundance ratio for Arp 220 is a factor of $\sim$3 or more higher than the central value in the Milky Way, while the [12CO]/[C18O] abundance ratio is quite low indicating the enhancement of C18O in the ISM. The likely explanation that can explain both [12CO]/[13CO] and [12CO]/[C18O] is an enrichment of 12C and 18O in the ISM via stellar nucleosynthesis. Higher-resolution and sensitive observations of 13CO and C18O are needed to look for specific spatial variations as seen in IRAS 13120-5453 (Sliwa et al., 2017a).

These data, along with other sources (see Appendix B) will be made available to the public for download with the intention to use for future analyses and comparisons with new observations.

Acknowledgements.

We thank the referee for their comments and suggestions that improved this manuscript. We thank K. Sakamoto for passing along the SMA 12CO $J$=3$-$2 observations of Arp 220. KS thanks Julia Kamenetzky for her MCMC code made available via github. KS also thanks L. Barcos-Mũnoz, A.K. Leroy, E. Schinnerer, F. Walter, and L.K. Zschaechner for fruitful discussions. Based on observations carried out with the IRAM Interferometer PdBI. IRAM is supported by INSU/CNRS (France), MPG (Germany) and IGN (Spain). The Submillimeter Array is a joint project between the Smithsonian Astrophysical Observatory and the Academia Sinica Institute of Astronomy and Astrophysics and is funded by the Smithsonian Institution and the Academia Sinica. This paper makes use of the following ALMA data: ADS/JAO.ALMA$\#$2011.0.00018.SV. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada) and NSC and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ.

Appendix A Continuum

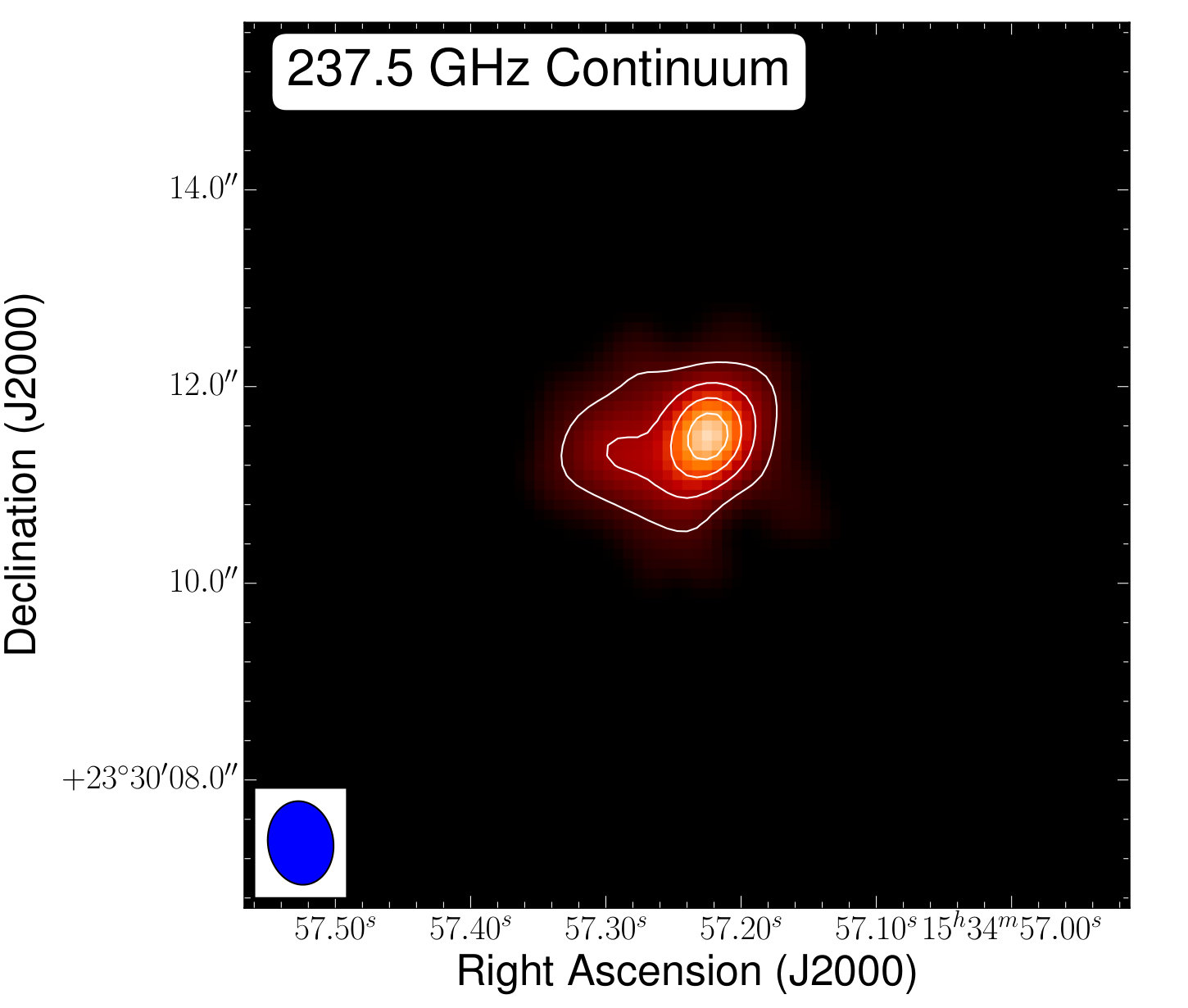

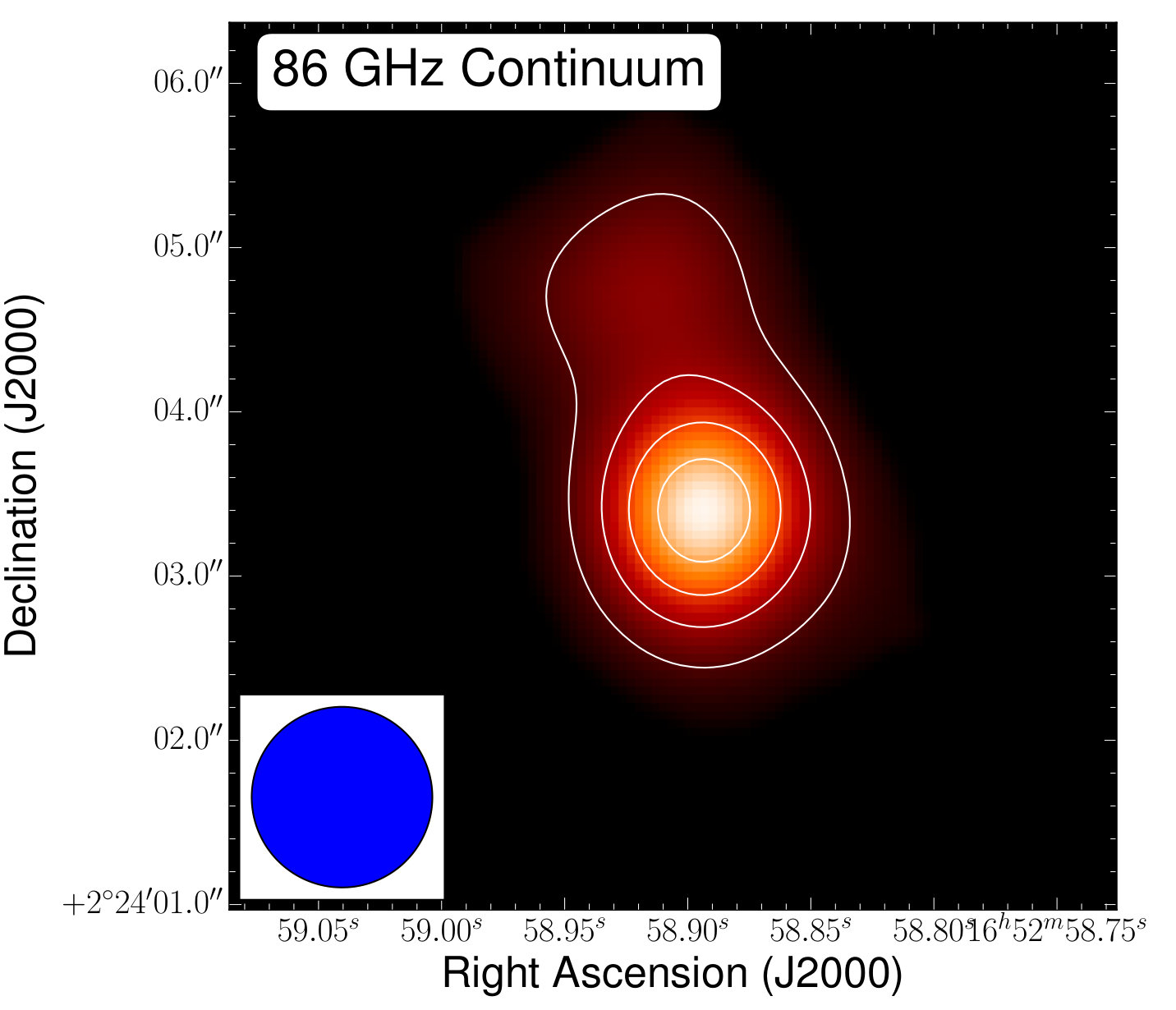

In this Section, we present the continuum data. Table 5 presents the continuum measurements for Arp 220 and NGC 6240. Figure 9 presents the 3 mm and 1 mm continuum for Arp 220 and 3 mm for NGC 6240.

Appendix B Release of Data

The PdBI data presented in this paper will be released via the IRAM Large Program Archive and NASA’s Extragalactic Database apart of the PdBI U/LIRG Survey (PULS). Several other U/LIRGs were also observed (see Table 6) and will be released as well. The data taken in between 2003 - 2008 and for most sources, the PdBI was setup to observe HCN $J$ = 1$-$0 at 3 mm and 13CO $J$=2$-$1 at 1.4 mm, simultaneously. In the weaker sources, 12CO $J$=2$-$1 was observed instead of 13CO $J$=2$-$1. The six 15 m antennas were arranged with spacings from 24 m to 400 m. The long baselines, observed in winter, had rms phase errors $\leq$ 40*∘* at 1.4 mm, and $\leq$ 15*∘* at 3 mm. Short spacings ($\leq$ 80 m), observed in summer at 3 mm, had rms phase errors $\leq$20*∘*.

A paper on the analysis of Arp 193 and VII Zw 31 is forth coming (Sliwa & Downes in preparation).
