KIAS-P17024

UMN-TH-3624/17

UT-17-13

**Low-Scale $D$-term Inflation and the Relaxion

**

Jason L. Evansa, Tony Gherghettab, Natsumi Nagatac, and Marco Pelosob

a**School of Physics, KIAS, Seoul 130-722, Korea

*b**School of Physics & Astronomy, University of Minnesota, Minneapolis, MN 55455, USA

c**Department of Physics, University of Tokyo, Tokyo 113–0033, Japan

We present a dynamical cosmological solution that simultaneously accounts for the early inflationary stage of the Universe and solves the supersymmetric little hierarchy problem via the relaxion mechanism. First, we consider an inflationary potential arising from the $D$-term of a new $U(1)$ gauge symmetry with a Fayet–Iliopolous term, that is independent of the relaxion. A technically natural, small $U(1)$ gauge coupling, $g\lesssim 10^{-8}$, allows for a low Hubble scale of inflation, $H_{I}\lesssim 10^{5}$ GeV, which is shown to be consistent with Planck data. This feature is then used to realize a supersymmetric two-field relaxion mechanism, where the second field is identified as the inflaton provided that $H_{I}\lesssim 10$ GeV. The inflaton controls the relaxion barrier height allowing the relaxion to evolve in the early Universe and scan the supersymmetric soft masses. After electroweak symmetry is broken, the relaxion settles at a local supersymmetry-breaking minimum with a range of $F$-term values that can naturally explain supersymmetric soft mass scales up to $10^{6}$ GeV.

1 Introduction

A natural solution to the hierarchy problem in the Standard Model (SM) has motivated the development of particle physics for decades with predictions of new states near the electroweak scale. However, to date, the experimental results at the Large Hadron Collider (LHC) have begun to call into question of whether naturalness is a relevant guide for physics beyond the Standard Model. For example, in supersymmetric (SUSY) models, colored superpartner masses need to be heavier than the TeV scale to evade LHC searches [1, 2, 3], exacerbating the tuning, while constraints on other models addressing naturalness (such as composite Higgs models [4]) lead to a similar conclusion.

Recently a new approach to naturalness, that evades the LHC constraints, uses the idea of cosmological relaxation [5] (for previous studies with a similar idea, see Refs. [6, 7, 8]). In this process, an axion-like particle (the “relaxion”) associated with a shift symmetry, is coupled directly to the Higgs field during a nearly de-Sitter phase of the Universe. This coupling contributes to the mass-squared of the Higgs field, since initially the relaxion has a very large field value. During the cosmological evolution of the relaxion, caused by an explicit breaking of the shift symmetry, the field value changes and the Higgs mass-squared is reduced. Eventually the Higgs mass-squared reaches a critical value where it flips sign, triggering electroweak symmetry breaking with the Higgs field developing a vacuum expectation value (VEV). The generation of the Higgs VEV then back reacts on the relaxion potential, causing the relaxion to stop at a local minimum. The slope of the relaxion potential, which is proportional to the shift-symmetry breaking parameter, can then be chosen so that the Higgs VEV is naturally set to be at the weak scale. This provides a technically natural solution to the hierarchy problem.

However, the relaxion process itself is not a completely satisfactory explanation of the hierarchy problem. First, it can only address radiative corrections to the Higgs mass that depend on a cutoff scale which is generally much lower than the Planck scale [5]. The hierarchy problem is therefore only partly alleviated. Second, it requires a very low inflation scale in order to naturally realize a weak scale Higgs VEV. However low-scale inflation models often introduce some new tuning which is not solved by the relaxion process [9]. The first problem is not a concern if the relaxion process is instead embedded into a supersymmetric framework. Supersymmetric models with soft mass scales near the PeV scale ($10^{6}$ GeV) are meso-tuned, but can easily accommodate a 125 GeV Higgs boson mass [10, 11, 12, 13, 14, 15, 16, 17]. Thus if the relaxion actually scans the supersymmetric soft masses, then the cutoff scale in the relaxion mechanism can be identified with the soft mass scale. This naturally provides an explanation for the tuning using just the relaxion [18], or else a two-field relaxion mechanism [19] can be generalized to supersymmetry [20], which preserves the QCD axion solution to the strong CP problem. For other recent studies on the relaxion mechanism, see Refs. [21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31].

In this paper we address the second problem in the context of $D$-term inflation [32, 33, 34, 35] and identify the second field in the two-field relaxion mechanism with the inflaton. In order to realize an inflationary model with a very low Hubble scale [36], the potential must be very flat or else the density perturbations will not satisfy the cosmic microwave background (CMB) constraints [37]. One way of accomplishing this is to take small-field inflation and tune the initial condition so that the potential is very flat. Although this may work, it is not a very appealing approach to inflation since it is difficult to justify why the initial value of the field is so tuned. Furthermore, when applied to relaxion models, this tuning destroys the naturalness of the relaxion process and the tuning of the Higgs sector has merely been transferred to the inflationary sector.

Large field inflation, on the other hand, is in general fairly insensitive to the initial field value. However, it is difficult to naturally obtain a sufficiently flat potential to realize the density perturbations if the scale of inflation is too low. A model that combines low scale inflation with the insensitivity to initial conditions, typical of large field inflation, can be found in supersymmetry. In $D$-term inflation [32, 33, 34, 35], the Fayet–Iliopoulos (FI) term of some new $U(1)$ gauge symmetry is responsible for inflation, and therefore at tree-level the potential is completely flat. Although this flatness is broken at the loop-level, it will provide the right conditions to obtain low-scale inflation. We will show that a successful model of $D$-term inflation occurs for a $U(1)$ gauge coupling, $g\simeq 7\times 10^{-9}$, corresponding to a Hubble scale $H_{I}\simeq 10^{5}$ GeV. Such a low value of $g$ is technically natural since radiative corrections vanish in the limit $g\to 0$. With this low Hubble scale, CMB modes are produced approximately 39 $e$-folds before the end of inflation (contrary to the 50–60 $e$-folds required in typical models). Within $D$-term inflation this produces a spectral tilt in agreement with observations. However after inflation ends, there is the possibility that cosmic strings will form because the $U(1)$ phase has different values across different patches in the sky. This problem can be evaded if one considers a dynamical generation of the FI term [38], where the $U(1)$ gauge symmetry is explicitly broken during inflation, by an amount that negligibly affects the inflationary evolution. This is achieved via a superpotential coupling which induces a spatial alignment of the phase of the $U(1)$ breaking field that prevents the formation of topological defects at the end of inflation. Finally, we show that the fields responsible for this explicit breaking, together with two additional $U(1)$ singlets, allow for a sufficiently fast conversion of the inflationary energy to Standard Model fields (a decay through the $D$-term potential is not fast enough, due to the smallness of the gauge coupling $g$).

With a naturally flat, low-scale inflation model, the inflaton in $D$-term inflation can now be identified with the second field (the “amplitudon”) of the supersymmetric two-field relaxion model [20]. In this model the inflaton is coupled to the relaxion and controls the barrier height of the relaxion potential, and also helps to avoid a potential isocurvature problem in the original two-field relaxion model. The slow roll evolution of the inflaton periodically eliminates the relaxion barrier, allowing the relaxion to move in a step-wise fashion until, after electroweak symmetry is broken, it is eventually trapped at a local supersymmetry-breaking minimum. A quadratic potential with shift-symmetry breaking mass parameter, $m_{S}$ controls the slope of the relaxion potential. For a soft mass scale, $m_{\rm SUSY}=10^{5}$ GeV this parameter is constrained to be $10^{-9}\lesssim m_{S}\lesssim 10^{-6}$ GeV, provided that the Hubble scale satisfies $H_{I}\lesssim 10$ GeV. This leads to a model that simultaneously incorporates low-scale $D$-term inflation consistent with Planck data, and solves the little hierarchy problem in supersymmetric models, while preserving the QCD axion solution to the strong CP problem.

The plan of the paper is as follows. In Section 2 we present a phenomenologically viable $D$-term inflation model with a low Hubble scale that is consistent with the CMB data, does not form cosmic strings, and has a successful reheating to Standard Model fields. This low-scale inflation model is then combined with the supersymmetric relaxion mechanism in Section 3. In Section 4, we summarize our results and provide some concluding remarks. The paper ends with two Appendices that contain further details of our model. In Appendix A we present the details of the dynamical generation of the $D$-term, which allows for the explicit breaking of the $U(1)$ symmetry, preventing the formation of cosmic strings, and helps to facilitate reheating. Other details concerning the quantum and thermal corrections arising from the $U(1)$ symmetry breaking are then discussed in Appendix B.

2 $D$-term Inflation

2.1 $D$-term inflation model

Let us begin by reviewing the $D$-term inflation model [32, 33, 34, 35] in light of recent cosmological observations. The basic model of $D$-term inflation contains three chiral superfields, $T$, $\Phi_{+}$, and $\Phi_{-}$ which have charges of [math], $+1$, and $-1$ under a $U(1)$ gauge symmetry, respectively. This model takes advantage of the FI term of the $U(1)$ gauge symmetry, with which the auxiliary field of the $U(1)$ gauge field is given by

[TABLE]

where $g$ is the $U(1)$ gauge coupling, $\xi$ is the FI term, and $\phi_{\pm}$ are the scalar components of $\Phi_{\pm}$. We take $\xi>0$ in what follows. The superpotential for this model is

[TABLE]

where $\kappa$ is a dimensionless parameter, which is taken to be real and positive. We write the scalar components of $T$ as

[TABLE]

In the following discussion, we regard $\sigma$ as the inflaton and consider the case where $|\sigma|\gg|\tau|$.111The imaginary part is chosen to be the inflaton so that when the relaxion mechanism is discussed, it can more readily be identified with the amplitudon [20], i.e., the second field in the two-field relaxion scenario [19]. The tree-level scalar potential for this model is then

[TABLE]

This potential has a SUSY-preserving minimum at $\tau=\sigma=\phi_{-}=0$ and $|\phi_{+}|=\sqrt{\xi}$ with $V_{\rm tree}=0$.

If $\sigma$ has a large field value, however, we can find a local minimum with $V_{\rm tree}>0$ at which $\phi_{+}=\phi_{-}=0$, and the charged fields $\phi_{\pm}$ have a mass squared

[TABLE]

This local minimum becomes unstable when $|\sigma|$ is below the critical field value

[TABLE]

Thus, the initial field value of $\sigma$ must satisfy $\sigma\gg\sigma_{c}$. As long as this condition is satisfied, the initial value of the inflaton field is unimportant, like all large-scale inflation models. At this local minimum, the tree-level potential for $\sigma$ is completely flat: $V_{\rm tree}=g^{2}\xi^{2}/2$.

However, in order to realize a phenomenologically acceptable model, the slope of the inflaton potential must be non-zero. Fortunately, the correct slope is provided by the quantum corrections encoded in the Coleman–Weinberg term [39]. Since we will consider the case $\sigma\gg\sigma_{c}$, we can expand the Coleman–Weinberg potential keeping the leading order term in $g^{2}\xi/(\kappa^{2}\sigma^{2})$. In this limit, we find that the potential is well approximated by

[TABLE]

where $Q$ is a renormalization scale. Using this potential, the slow-roll parameters are found to be

[TABLE]

where $M_{P}=2.4\times 10^{18}$ GeV denotes the reduced Planck mass. At this point, it is already clear that $\epsilon\ll|\eta|$, which we will later see is important for realizing an acceptable inflation model in this context.

2.2 CMB constraints on $D$-term inflation

To determine the value of $\epsilon$ and $\eta$, which are constrained by the CMB data, we need to obtain the value of $\sigma$ at the time when the CMB modes left the horizon. This value can be determined in terms of the number of $e$-folds of inflation that occurred after the CMB was set,

[TABLE]

where $H_{I}$ is the Hubble parameter during inflation, and $\sigma_{\rm CMB}$ and $\sigma_{c}$ are the field values when the CMB was set and inflation ends, respectively. We find that for $\kappa\ll 10^{-2}$, $\eta$ is suppressed and $n_{s}-1\equiv d\ln P/d\ln k$ is too large (where $P$ is the scalar power spectrum and $k$ is the wavenumber). We therefore assume that $\kappa$ is large enough so that $\sigma_{\rm CMB}$ is not near the critical point $\sigma_{c}$. In this case, $\sigma_{\rm CMB}\gg\sigma_{c}$, and thus the expression (10) can be solved to give

[TABLE]

Notice that if $g\ll 1$, we do not need super-Planckian excursions for inflation to work. As we will show below, low-scale inflation requires $g$ to be very small and inflation occurs for field values well below $M_{P}$.

Equation (11) allows us to determine the slow-roll parameters in terms of $N_{\rm CMB}$:

[TABLE]

Using these expressions, the spectral tilt is then found to be

[TABLE]

where we can neglect $\epsilon_{\rm CMB}$ since it is loop suppressed relative to $\eta_{\rm CMB}$. As can be seen from this expression, $\eta_{\rm CMB}$, and therefore $n_{s}$, only depends on $N_{\rm CMB}$. Typically for large-scale inflation the number of $e$-folds is $\simeq 50$–60. For this model, this would give a spectral tilt $n_{s}\gtrsim 0.98$, which is already excluded by current Planck results [40]. However, since we now consider low-scale inflation, $N_{\rm CMB}$ is modified. In fact, the number of $e$-folds of inflation after the CMB is set, is significantly altered if the scale of inflation is much lower than that assumed in ordinary large-scale inflation models.

Let us determine the number of $e$-foldings after the CMB is set for low-scale inflation. The number of $e$-foldings $N_{e}(k)$ which corresponds to a wave-number $k$ is defined by

[TABLE]

where $a_{\rm end}$ is the value of the scale factor at the end of inflation, and $a_{k}\equiv k/H_{I}$. Then, we obtain [41, 42, 43]

[TABLE]

where $\rho_{\rm end}$, $\rho_{\rm reh}$, $\rho_{\rm eq}$ are the energy densities at the end of inflation, at the end of reheating, and at the time of matter-radiation equality, respectively; $a_{\rm eq}$ and $a_{0}$ are the scale factors at the time of matter-radiation equality and the present Universe, respectively. In this derivation, we have assumed instantaneous reheating with a sudden transition from matter to radiation domination (where the matter domination is due to the coherent oscillations of the field $\phi_{+}$ before it decays;222As we discuss later, this field carries most of the inflationary energy right after inflation. changes in the thermalization during reheating modify the value of $N_{e}(k)$, as discussed in [44]). This radiation-dominated Universe persists until the time of matter-radiation equality. Note that this estimation suffers from uncertainty that originates from the assumption on the cosmological history; for instance, we obtain a smaller $N_{e}(k)$ if there is an additional matter-dominated period between reheating and Big-Bang Nucleosynthesis.

Now we set $k$ equal to the default pivot scale taken by the Planck collaboration [40], $k=0.05~{}{\rm Mpc}^{-1}$. We then obtain

[TABLE]

where $\rho_{\rm reh}$ should be understood as the energy density at the time at which the equation of state of the plasma formed at reheating becomes $w=1/3$. We also note that we can disregard the very small variation of the Hubble parameter, and thus fix $H_{I}\simeq\rho_{\rm end}^{1/2}/(\sqrt{3}M_{P})$ at $N_{e}=N_{\rm CMB}$.

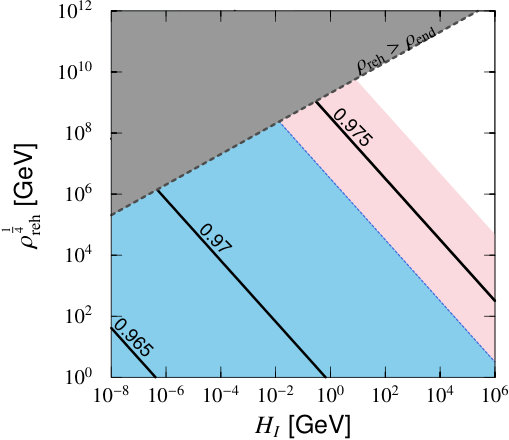

Using the expression (16) for the number of $e$-folds after the CMB is set and the expression for the spectral tilt in Eq. (13), we show in Fig. 1 the contours of the spectral tilt as a function of the reheating energy density and Hubble parameter. The blue area in this figure depicts the *Planck$+$*BICEP2$+$Keck Array combined 1$\sigma$ range for the spectral tilt [45]. The limit obtained from only the Planck TT$+$lowP [40] data, extends the allowed 1$\sigma$ region into the pink area. The entire parameter space shown in Fig. 1 falls within the 2$\sigma$ error bands of both results. The gray shaded region is theoretically excluded since $\rho_{\rm reh}$ exceeds the energy density of the inflation potential. We thus find that the $D$-term inflation model, with a low Hubble scale $H_{I}\lesssim 10^{5}$ GeV, can actually explain the observed value of $n_{s}$ with a sufficiently high ($\gtrsim 100$ GeV) reheating temperature for baryogenesis.

Now that we have seen that an acceptable spectral tilt can be realized for low-scale inflation, we next need to verify that this model can generate cosmological perturbations of the right amplitude. The size of the cosmological perturbations are determined by the power spectrum which is related to the inflation scale through

[TABLE]

where we have used the expression for $\epsilon_{\rm CMB}$ in Eq. (12). Therefore, the observational value of $A_{s}$ determines $\sqrt{\xi}$:

[TABLE]

The gauge coupling $g$ is determined from the Hubble parameter during inflation via the relation

[TABLE]

which, using (18), becomes

[TABLE]

Note that this very small value for $g$ is technically natural since the gauge coupling quantum corrections vanish in the limit $g\to 0$. This means that a small gauge coupling at a high energy scale will remain small at low energies, and there is no need to tune the coupling against radiative corrections.

Finally, we study the mass spectrum of this model after the $U(1)$ gauge symmetry is spontaneously broken. After inflation, $\phi_{+}$ develops a VEV of $\langle\phi_{+}\rangle=\sqrt{\xi}$. This causes $T$ and $\Phi_{-}$ in the superpotential (2), to form a vector-like mass term with a mass, $\kappa\sqrt{\xi}$. Notice that since $\langle\Phi_{+}\rangle$ does not break supersymmetry, the superfield description still holds. As a consequence, the scalar and fermionic components of $T$ and $\Phi_{-}$ have an identical mass of $\kappa\sqrt{\xi}$. On the other hand, $\Phi_{+}$ is absorbed by the $U(1)$ gauge vector superfield to form a massive vector superfield with a mass of

[TABLE]

More specifically, a massless Nambu–Goldstone boson that originates from $\phi_{+}$ is absorbed by the $U(1)$ gauge boson via the gauge interaction, while the massless fermionic component of $\Phi_{+}$ combines with the $U(1)$ gaugino via the gaugino interaction to form a massive Dirac fermion. The radial component of $\phi_{+}$ acquires a mass, $g\sqrt{2\xi}$, which is required by supersymmetry to form a massive vector superfield. As a result, after inflation, we have a vector-like chiral superfield with a mass of $\kappa\sqrt{\xi}$ and a massive vector superfield with a mass of $m_{Z^{\prime}}=g\sqrt{2\xi}$.

2.3 Cosmic Strings

2.3.1 Cosmic String Problem

One complication of $D$-term inflation is the generation of cosmic strings after inflation ends. When the $U(1)$ symmetry is broken, the phase of the $U(1)$ breaking field takes different values in different patches of the sky. This leads to the formation of cosmic strings [46, 47]. Since the $U(1)$ symmetry is broken at the end of inflation, these cosmic strings contribute to the CMB anisotropies, and thus are stringently constrained by the CMB data [48, 49, 50, 51, 52, 53]. The contribution of cosmic strings to the CMB angular power spectrum $C_{\ell}^{(\text{str})}$ is approximately given by

[TABLE]

where $T_{\rm CMB}$ is the CMB temperature, $G$ is the gravitational constant, and $\mu$ is the mass per unit length of the string, which is given by333As discussed in Sec. 2.2, the masses of the scalar boson and the $U(1)$ gauge boson are equal, and thus the cosmic strings that are generated after the $U(1)$ symmetry breaking are Bogomol’nyi–Prasad–Sommerfield (BPS) strings.

[TABLE]

Therefore, in our model, the size of $G\mu$ is predicted from Eq. (18) to be

[TABLE]

On the other hand, the Planck 2015 data [40] gives a severe bound on this quantity: $G\mu<3.3\times 10^{-7}$. This clearly shows that the minimal $D$-term inflation model is disfavored due to the formation of cosmic strings.444It was previously argued [48] that this constraint may be evaded by taking a very small $\kappa$. In this case, inflation occurs in the vicinity of the critical value $\sigma_{c}$ given in Eq. (6), and thus $\sigma_{\rm CMB}\simeq\sigma_{c}$. On the other hand, Eq. (17) shows that if $n_{s}$ is very close to one, we can obtain a sufficiently small $\xi$ to evade the cosmic string bound. Such a value of $n_{s}$ can be obtained by taking a very small $\kappa$, which makes $\sigma_{\rm CMB}\simeq\sigma_{c}$ very large and thus $|\eta|$ very small. Nevertheless, this possibility is now excluded by the Planck result, as it restricts the value of $n_{s}$ and thus $\xi$ cannot become sufficiently small.

There are several proposed ways to solve this problem, however, it is difficult to implement many of them in the context of low-scale inflation. One possible solution [48] is to assume that the cosmological fluctuations are due to some curvaton. This mechanism, however, will not end up working for the relaxion process, since there is also $F$-term SUSY breaking during inflation which generically gives too large of a mass to the curvaton. Another possible solution is to take a non-minimal Kähler potential [49, 54, 55]. In these scenarios, either $n_{s}$ is too large [49, 54] or the power spectrum scales down with $g$ [55], and so the low-scale implementation is ruled out by CMB measurements. Another solution is to consider $D$-term inflation on the part of the potential below the critical point [56]. In this regime, inflation occurs after the $U(1)$ charged field, $\phi_{+}$ obtains a VEV and so no cosmic strings can form. However, this does not work for low-scale inflation since $\epsilon$ is much too large. A more elaborate solution is to supplement the $U(1)$ gauge symmetry by a global $SU(2)$ symmetry so that the vacuum manifold is simply connected. In this case, instead of topologically stable cosmic strings, semilocal strings are produced when the symmetry is broken [57], which are in general less dangerous compared with stable strings. It turns out, however, that CMB measurements can restrict even semilocal strings [58], and in fact this solution is disfavored by the Planck result [40]. In addition, the presence of a global $SU(2)$ symmetry leads to the formation of textures, which are again severely constrained by the Planck data.

Instead in the next subsection we will present one solution that works for our parameter choices, and that we will later be able to use in the context of the relaxion mechanism.

2.3.2 Dynamical $D$-terms

Cosmic strings form because the $U(1)$ gauge symmetry breaks after inflation is over and each patch of the sky has a different phase for the $U(1)$ breaking field. This can be remedied by explicitly breaking the $U(1)$ symmetry before the CMB modes exit the horizon during inflation. This can occur in models where the $D$-term is dynamically generated [38], due to a hidden sector breaking of the $U(1)$ which generates the FI-term. Note that the breaking of this symmetry must be sufficiently large, so that Hubble fluctuations do not restore the symmetry in the inflationary sector. This will be accomplished by adding a marginal coupling in the superpotential. Dynamically generated $D$-terms are appealing, since they can more naturally explain a FI-term much smaller then the Planck scale. If the hidden $U(1)$ breaking is appropriately coupled to the visible sector, it will prevent string formation. The details of how this works are given in Appendix A, however, we will summarize the main features below.

Let us add the following superpotential terms to Eq. (2):

[TABLE]

where $M_{\pm}$ are the hidden sector fields, which develop VEVs of ${\cal O}(\sqrt{\xi})$ with $\langle M_{+}\rangle\neq\langle M_{-}\rangle$ to generate the FI-term dynamically. In order not to deform the $D$-term potential considerably, we take $|\kappa_{\pm}|$ to be much smaller than the $U(1)$ gauge coupling $g$.555Since the couplings $\kappa_{\pm}$ explicitly break the shift symmetry for the $T$ field, a mass term for the $\sigma$ field will be induced. However, this contribution can be sufficiently small compared with the Coleman–Weinberg effects (7) for $|\kappa_{\pm}|\ll g$. See Eq. (A.15) for more a detailed condition. Then, using Eq. (A.5), we have a linear term for $\phi_{+}$ during inflation,

[TABLE]

Because of this linear term, $\phi_{+}$ has a non-zero VEV during inflation, with the minimum of the potential occurring for a particular phase. Since this is the only minimum of the potential until inflation ends, $\kappa^{2}\sigma^{2}/2\simeq g^{2}\xi$, the VEV in all patches of the sky is driven to the same phase, as shown in Appendix B.1.2. This prevents the formation of CMB-size cosmic strings, provided that the fluctuations in the phase direction are sufficiently small. As discussed in Appendix B.1.3, this requirement gives an upper bound, (B.15) on the Hubble parameter during inflation which becomes

[TABLE]

Thus for the values of $H_{I}$ satisfying the CMB constraints (see Figure 1), we can always find a value666The actual constraint on the relative size of these couplings can be found in Eq. (A.15) and the discussion that follows. As $g$, and thus $H_{I}$, increases this constraint becomes weaker, and therefore CMB-sized cosmic strings can always be prevented by choosing $\kappa_{+}$ appropriately. of $|\kappa_{+}|\ll g$, which satisfies this condition for $M_{+}\simeq\sqrt{\xi}$.

Once inflation ends, the universe is reheated. If the reheat temperature is large enough, thermal fluctuations could generate strings which are much smaller than the CMB size. Although these will not appear in the power spectrum, they could form stable energy configurations which could overclose the universe. However for this model, as the end of inflation nears, the VEV of $\phi_{+}$ grows. By the time inflation ends, it is large enough that the VEV of $\phi_{+}$ is always larger than the maximum reheat temperature. Since the temperature sets the size of the thermal fluctuations of the VEV, no cosmic strings will form from thermal fluctuations. See Appendix B.2 for the relevant details.

2.4 Reheating

With knowledge of the mass spectrum of the fields in the inflaton sector obtained in subsection 2.2, we can now discuss reheating after inflation. In Refs. [59, 60], kinetic mixing between the gauge fields associated with the SM hypercharge and the $U(1)$ symmetry driving inflation was used to reheat to SM fields. However, since the $U(1)$ gauge coupling is very small, this kinetic mixing is too small to reheat the SM above the weak scale.777We assume that the reheating temperature is above the electroweak scale to facilitate baryogenesis. In Ref. [61], inflation is driven by the quadratic part of the $D$-term potential. Inflation models driven by a mass term are no longer compatible with experimental results. Furthermore, the method of reheating used there depends on the gauge coupling $g$, and in our case it would lead to a reheat temperature lower than the weak scale.

Since our low-scale inflation model is a hybrid inflation model, the energy after inflation is divided between the inflaton, $\sigma$, and the radial part of $\phi_{+}$. This second component is by far the dominant contribution for $g\ll\kappa$. We thus neglect the energy associated with the inflaton oscillations in this analysis.888The energy stored in the inflaton can be easily dissipated by adding an inflaton coupling to the right-handed neutrinos, if necessary. Since the inflaton is quite heavy after inflation, this decay mode can easily thermalize the remaining energy. Therefore, in order to transfer the vacuum energy of inflation into radiation energy, the field $\phi_{+}$ needs to decay to lighter states. Because the mass of $\phi_{+}$ is much smaller than the scale of its VEV, it is difficult to find viable decay modes.999In this context, we use the VEV to mean the time-evolving homogeneous background value of the field. Because the VEV of $\phi_{+}$ begins small, some vacuum decay of $\phi_{+}$ would be possible for couplings larger than $g$. However, this decay channel would shut off once the VEV becomes large enough, leaving the majority of the energy left in $\langle\phi_{+}\rangle$. In fact, generically decay of $\phi_{+}$ to fields which couple with a strength greater than $g$ will be kinematically forbidden. On the other hand, couplings of $\phi_{+}$ smaller than $g$ would be kinematically allowed but would give a reheating temperature smaller than the weak scale.

Non-renormalizable couplings do not help. These non-renormalizable operators would arise from integrating out some heavier fields. The mass of these heavier fields would, in general, be large since they would couple directly to $\phi_{+}$ which has a large VEV. A non-renormalizable operator with a mass scale of order the VEV of $\phi_{+}$ would lead to a suppression of $(m_{\phi_{+}}/\langle\phi_{+}\rangle)^{2(n-4)}$, where $n$ is the dimension of the operator, in the decay width. Even for $n=5$, this gives too much suppression to obtain a reheating temperature above the weak scale. If the field couples weakly to $\phi_{+}$ it could lead to a smaller mass scale when the particle is integrated out. However, since it couples weakly to $\phi_{+}$ this non-renormalizable interaction gets additional suppression from the small coupling it has with $\phi_{+}$, making it difficult to obtain a reheating temperature larger then the weak scale.

The problem persists when we consider couplings in the $D$-term potential. In the $D$-term, other fields couple with $|\phi_{+}|^{2}-\xi$, and so do not receive a large mass from the VEV of $\phi_{+}$. However, these couplings are proportional to $g$, and, due to the smallness of this parameter, they lead to a reheating temperature smaller than the weak scale. Nevertheless, this holds the key to reheating for our model. If we couple particles to $\phi_{+}$ in a combination where the VEV cancels, it is possible to reheat above the weak scale.

A simple example of this method of solving this rather difficult problem can be found if we again use the fields, $M_{\pm}$, which generate the dynamical $D$-term. Using these fields we can couple $\phi_{+}$ to a singlet in the following way

[TABLE]

where both $R$ and $\bar{R}$ are singlets and $H_{u,d}$ are the MSSM Higgs superfields. These new couplings modify the $F$-term of $\phi_{+}$ and $M_{-}$ as can be seen in Appendix A.101010We assume that additional superpotential couplings among these fields are negligibly small. This still maintains technical naturalness. These effects are small because $R$ is stabilized quite close to the origin. However, they also give new contributions to the potential111111During inflation, $R$ has a non-zero VEV. However, this VEV is less than about a GeV for the parameters we consider. This, plus the fact that $\kappa_{2}$ generally will be quite small in order to prevent overclosing the universe, leads to a very small correction to the Higgs bilinear mass. This small correction to $\mu$ will have a negligible effect on the relaxion process.

[TABLE]

The cross terms of the above equation gives an interaction for $\phi_{+}$ of the form

[TABLE]

The potential in Eq. (29) gives an additional contribution to the mass of $\phi_{+}$ plus a mixing mass for $\phi_{+}$ and $\bar{R}$. If $\kappa_{1}\langle M_{-}\rangle,m_{R}\lesssim g\sqrt{2\xi}$, the mass eigenstates discuss in Section 2.2 are fairly unchanged. In this case, the contribution from $\bar{R}$ can be removed from the interaction in Eq. (30) since $\phi_{+}$ and $\bar{R}$ are approximately orthogonal fields. If either $\kappa_{1}\langle M_{-}\rangle$ or $m_{R}$ is larger than $g\sqrt{2\xi}$, decays coming from this interaction become suppressed. For $\kappa_{1}\langle M_{-}\rangle\gtrsim g\sqrt{2\xi}$, the mass of the lightest mass eigenstate coming from $R$ and $\phi_{+}$ becomes quite light and so cannot decay to Higgs bosons. If $m_{R}$ is large, $R$ decouples and all interactions in the superpotential become suppressed by $m_{R}^{-1}$, again leading to suppression of this decay mode.

Given that $\kappa_{1}\langle M_{-}\rangle\lesssim m_{\phi_{+}}$, we obtain the constraint $\kappa_{1}\lesssim g$. Although this means $\kappa_{1}$ is a very small coupling, its smallness is offset by a large mass scale $\langle M_{-}\rangle$, and therefore the trilinear coupling of $\phi_{+}$ can be as large as $m_{\phi_{+}}$.

Since the only state in $H_{u,d}$ that is light enough for $\phi_{+}$ to decay to is the SM like Higgs boson, this interaction becomes

[TABLE]

where $h$ is the SM-like Higgs boson, $\langle H_{u,d}\rangle=v_{u,d}$, and $\tan\beta=v_{u}/v_{d}$. The interaction (31) then gives a decay rate for the radial part of $\phi_{+}$

[TABLE]

Recall that the radial part of $\phi_{+}$ holds the remaining energy of inflation, and therefore the decay produces the reheating temperature

[TABLE]

where $g_{\rho}$ is the number of relativistic degrees of freedom and we have taken $\sin 2\beta=1$.

Now, if the mass of $\phi_{+}$ is lighter then $2m_{h}$, $\phi_{+}$ can no longer decay to Higgs bosons. The $\phi_{+}$ mass is also given by (21), where it is clear that if $H_{I}\lesssim 0.1$ GeV, the decay mode to Higgs bosons shuts off. In this case, depending on its mass, $\phi_{+}$ decays into $ZZ$, $WW$, $b\bar{b}$, etc, at tree level via the mixing with the Higgs boson. Although these decay modes are suppressed by a small mixing angle, it can still be sufficiently large to allow a reheat temperature above the weak scale.

If $\widetilde{R}$, the fermionic component of $R$, is lighter than the Higgsinos, then $\widetilde{R}$ could be produced via the Higgsino decay, in addition to the annihilation of the Higgs fields. Since $\widetilde{R}$ is stable in this case, it may overclose the universe. There are two ways this can be avoided. Since, as we discussed above, $\widetilde{R}$ can be as heavy as $\phi_{+}$, it will have a mass as heavy as that in Eq. (21). Experimental constraints allow a bino mass which is lighter than this, especially if $H_{I}$ is pushed beyond the weak scale to make $\phi_{+}$, and thus $\widetilde{R}$ as well, be heavy enough. In this case, $\widetilde{R}$ can decay into bino through the Higgsino exchange. In the relaxion model below, this type of spectrum is only realized for some of the parameter space where the bino mass can be as light as $10^{2}$ GeV.

The other way to prevent overclosure of the universe from Higgsinos decaying to $\widetilde{R}$ is to suppress the reheat temperature below the Higgsino mass. In this case, the universe will never produce Higgsinos and so there would be no $\widetilde{R}$ produced from Higgsino decays. If the reheat temperature is larger than the bino mass, $\widetilde{R}$ could still be produced from bino decays due to bino-Higgsino mixing. Since the bino can be produced in processes like $hh\to\widetilde{B}\widetilde{B}$, its production cannot be suppressed if the SM reheats to a temperature above the bino mass. The simplest way to avoid these problems is to just reheat below the bino mass which requires $\kappa_{2}\lesssim 10^{-9}$ for $H_{I}=10^{5}$ GeV.121212Such a small $\kappa_{2}$ also suppresses the $hh\to\widetilde{R}\widetilde{R}$ process. However, it may be possible to reheat above the bino mass in this scenario if the decay of the bino to $\widetilde{R}$ is suppressed so that it happens after the bino freezes out. In this case the relic density of the bino could be suppressed during freeze out by some process such as coannihilation. Since this will effectively reduce the number of $\widetilde{R}$ produced from bino decays, it may be possible to get a relic density of $\widetilde{R}$ which does not overclose the universe and may even be the dark matter candidate.131313This is only possible when the gravitino is heavier than $\widetilde{R}$ which is not always the case. In the relaxion model we discuss below, only gauginos can be much lighter than the SUSY-breaking scale. Thus, candidates for the coannihilation partner of the bino are the gluino or wino. For the bino-gluino coannihilation case, the bino abundance falls into a desirable value if the mass difference between the bino and gluino is $\lesssim 100$ GeV and squark masses are $\lesssim{\cal O}(100)$ TeV [62, 63, 64]. In the case of the bino-wino coannihilation, on the other hand, the bino-wino mass difference should be $\lesssim{\cal O}(10)$ GeV [65]. These coannihilation scenarios may be probed at the LHC by searching for displaced vertex signals [63, 65, 66]. For detailed discussions on these coannihilation scenarios, see Refs. [62, 63, 65, 64] and references therein. Another option is to assume that there is a wino with a mass of $\gtrsim 500$ GeV [67, 68] or a gluino141414If gluino is lighter than bino, wino or gravitino needs to be lighter than the gluino in order to make it decay into these particles. with a mass of $\gtrsim 2$ TeV [1, 2, 3], and the bino is heavier than these particles. In this case, the bino mainly decays into these particles, while the abundance of these particles are sufficiently suppressed. A few TeV gluino can be probed at the LHC in the multi-jets plus missing energy channel [69], while an ${\cal O}(100)$ GeV wino can be probed in the disappearing-track searches [70, 71]. Even in these cases, we need to take $\kappa_{2}$ to be a small value to suppress the direct $\widetilde{R}$ production process $hh\to\widetilde{R}\widetilde{R}$.

3 The Inflaton as an Amplitudon

The above $D$-term inflation model provides a technically natural realization of low-scale inflation that is consistent with the current Planck results. Since low-scale inflation is needed for the relaxion process and requires a very flat potential, it suggests that the inflaton of this $D$-term inflation model can be identified with the second (amplitudon) field in the supersymmetric two-field relaxion model discussed in Ref. [20]. We next present a relaxion model that combines these two ideas, thereby relating inflation with solving the supersymmetric little hierarchy problem. In fact, regarding the amplitudon as the inflaton is also desirable from the phenomenological point of view; in the minimal setup discussed in Ref. [20], the light amplitudon field may cause an isocurvature problem, but we can evade this once we identify it with the inflaton.

In the supersymmetric relaxion mechanism, supersymmetry breaking in the visible sector is determined by the $F$-term of the relaxion superfield. Because of this, the determinant of the Higgs mass matrix is dependent on the relaxion field value. Initially, the relaxion field value is large and the determinant of the Higgs mass matrix is positive. As the relaxion field rolls, the determinant of the Higgs mass matrix eventually becomes negative and electroweak symmetry breaking occurs. Electroweak symmetry breaking generates an additional contribution to the relaxion potential which stops the relaxion from rolling. For properly chosen parameters, the relaxion stops in a local minimum that corresponds to a weak scale Higgs VEV.

3.1 The Inflaton-Relaxion Model

In Ref. [20], a two-field relaxion model was considered with an additional field coined the amplitudon. This field was responsible for controlling the relaxion barrier height and allowing the relaxion to roll. If we now identify the inflaton of the previous section (contained in $T$) with this amplitudon, the superpotential for this scenario becomes

[TABLE]

where the imaginary scalar component of the superfield $S$ is the relaxion, $N,{\bar{N}}$ are superfields charged under a strongly-coupled gauge group ($SU(N)$) and $H_{u,d}$ are the Higgs superfields. The couplings $\lambda,\kappa,g_{S,T}$ are dimensionless (where $\kappa$ was already introduced in eq. (2)) and $m_{N,S,T},M_{L}$ are mass parameters. Note that $m_{S}$ is a shift-symmetry breaking parameter that causes the relaxion to roll, and $\Phi_{\pm}$ are again charged under some additional $U(1)$ so that inflation proceeds as it did in the previous section. In addition $m_{T}$ is a shift symmetry breaking parameter that controls the inflaton evolution during the relaxion epoch. We also consider an identical $D$-term to the one in Eq. (1). Comparing this to the model in Ref. [20], the only difference in the superpotential is the addition of the coupling of the amplitudon with two scalar fields, $\phi_{\pm}$. This is the same interaction that we studied in the previous section for the inflaton.

In addition to these superpotential interactions, the relaxion superfield, $S$, is coupled to the gauge kinetic function,

[TABLE]

in a similar way to the QCD axion151515The theta term, $\Theta_{a}$ can be neglected since it is subdominant compared to the effective value obtained in the early universe from the large $(\gg f_{\phi})$ field value of $\phi$., where $f_{\phi}$ is the global symmetry breaking scale, $c_{a}$ is an order one constant and $a$ runs over the SM gauge symmetries as well as an additional confining $SU(N)$. When this $SU(N)$ confines, the fermionic components of $N$ and $\bar{N}$ condense and generate a $\cos(\phi/f_{\phi})$ potential, which is the back reaction that stops the relaxion.

Writing the scalar field components as $S=\frac{s+i\phi}{\sqrt{2}}$ and $T=\frac{\tau+i\sigma}{\sqrt{2}}$, the relevant parts of these superfields for our discussion are the relaxion $\phi$, and the amplitudon (inflaton), $\sigma$. The relaxion and amplitudon correspond to the Nambu-Goldstone boson of some broken symmetry, and therefore transform under a shift symmetry. If these shift symmetries are exact, the potential for these fields would be completely flat. This flatness is lifted by the explicit breaking of the shift symmetry161616This shift symmetry will preserve the very flat potential for the inflaton, $\sigma$. Higher-order shift symmetric terms in the Kähler potential, $K=K(S+S^{\dagger},T+T^{\dagger})$, stabilize $s$ and $\tau$ near the origin. due to the couplings $m_{S}$, $m_{T}$, and $\kappa$ in Eq. (34). The scalar potential is then

[TABLE]

The explicit breaking of the shift symmetry for the amplitudon arises from the mass term and from integrating out the $\phi_{\pm}$, which are heavy during both the relaxion and inflation epochs. As we will see below, the shift-symmetry breaking mass terms $|m_{S}|$ and $|m_{T}|$ are taken to be very small; such small shift-symmetry breaking effects may be explained by means of the “clockwork” mechanism [72, 73, 74].171717A similar idea was first considered in the context of inflation model building [75].

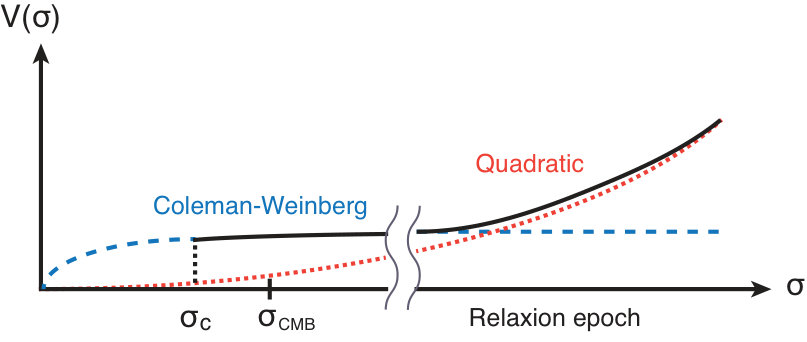

To combine these two theories, we need the explicit mass term for the inflaton to dominate during the relaxion epoch and the loop induced mass to dominate during inflation, as schematically depicted in Fig. 2. The ratio of these two masses is

[TABLE]

During the relaxion epoch the ratio is

[TABLE]

where we have used $m_{T}^{2}\sigma^{2}\sim m_{S}^{2}\phi^{2}\sim m_{\rm SUSY}^{2}f_{\phi}^{2}$ which comes from the constraints181818This relies on the parameterization of the hidden sector parameters. on the relaxion mechanism in Section 3.2, and Eq. (17) and Eq. (20) for $g^{4}\xi^{2}$. From this expression, it is clear that $m_{T}$ dominates in this regime. Note that we have changed our normalization of $H_{I}$ in this section since $H_{I}\sim 10^{5}$ GeV will no longer be compatible with the relaxion process (see Eq. (58)). During the CMB epoch, on the other hand, the ratio is

[TABLE]

where we have used Eq. (11), or, $\sigma_{\rm CMB}=H_{I}/(\pi(1-n_{s})A_{s}^{\frac{1}{2}})$. For this regime of the potential, the loop induced mass dominates. This is just the correct behavior that is needed to use the $\sigma$ field as both the amplitudon and the inflaton. Therefore, we can ignore the Coleman-Weinberg contribution to the mass during the relaxion epoch and the constraints reduce to those found in Ref. [20], which will be summarized in Section 3.2.

The back reaction potential for the relaxion is generated by the fields $N,\bar{N}$ in Eq. (34). The $N,\bar{N}$ fields are charged under the same $SU(N)$ gauge theory that $S$ is coupled to in Eq. (35). When the fermionic components of $N,\bar{N}$ confine at the scale $\Lambda_{N}$, they give a contribution to the scalar potential of the form

[TABLE]

where we have assumed $c_{a}=1$. For the model we consider, we take $g_{S}>0$ and $g_{T}<0$. When the $\sigma$ field value is very large, the above potential (40) provides a large barrier for the relaxion and therefore the relaxion is initially stabilized at some very large field value. However the inflaton, $\sigma$, is free to roll. As $\sigma$ rolls, the barrier height is reduced until the mass term in Eq. (36) dominates and $\phi$ begins to roll, tracking $\sigma$. This evolution continues until the determinant of the Higgs mass matrix becomes negative and electroweak symmetry is broken. As the Higgs VEV increases, a new barrier develops in the relaxion potential (from the $\lambda$ term in Eq. (40)) eventually stopping the relaxion at a local minimum. The explicit symmetry breaking parameter, $m_{S}$ is chosen so that this minimum corresponds to a Higgs field with a weak scale VEV.

3.2 The Constraints on the Cosmological Evolution

Next we examine the constraints on the cosmological evolution that will limit the parameter space of the relaxion. To determine these constraints, the relevant part of the scalar potential is given as

[TABLE]

which are given, respectively, in eq. (36) and (40). However, as we argued above, we can ignore the Coleman-Weinberg contribution during the relaxion epoch. The main constraints on the parameter space are as follows:191919For the discussion of other conditions which lead to weaker constraints, see Ref. [20].

$\bullet$ Inflaton/Amplitudon slow roll: In order for the relaxion process to work, we first need the slow roll of the inflaton, $\sigma$, to proceed unimpeded, with little effect from the coupling to the relaxion. The equations of motion for $\sigma$ in the slow roll regime are

[TABLE]

Since we need the inflaton rolling to be unaffected by the periodic potential piece in Eq. (42), we require that

[TABLE]

We can remove the $\sigma$ field dependence in this expression by using the fact that right before electroweak symmetry breaking (EWSB), $g_{S}\phi_{*}\sim-g_{T}\sigma_{*}$ (which follows from taking the expression in the square brackets of Eq. (40) to be zero) and $\mu_{0}\sim m_{\rm SUSY}\sim m_{S}\phi_{*}/f_{\phi}$ (which follows from having a negative determinant of the Higgs mass matrix, see Ref. [20]), with $\phi_{*}$ and $\sigma_{*}$ the field values when the relaxion stops rolling. Using these relationships, the condition (43) becomes

[TABLE]

$\bullet$ Relaxion initial condition: Next, we examine the initial condition for the relaxion, $\phi$ which we require to be trapped at a local minimum. This requires that the contribution to the mass of $\phi$ coming from $V_{\text{explicit}}$ is subdominant compared to the contribution coming from $V_{\text{period}}$. This results in the following constraint

[TABLE]

where we have again used the fact that right before EWSB, $g_{S}\phi_{*}\sim-g_{T}\sigma_{*}$.

$\bullet$ Stability of relaxion minimum: The next constraint we consider comes from requiring that the Higgs VEV does indeed provide a barrier to eventually stop $\phi$ from rolling, and stabilize the relaxion at a local minimum. This expression is found from the minimization condition with the following inequality arising from taking $\sin\left(\frac{\phi}{f}\right)=1$

[TABLE]

where $v=\sqrt{v_{u}^{2}+v_{d}^{2}}$ is the electroweak VEV. In addition, the term in $V_{\text{period}}$ proportional to $\lambda$ generates a contribution to the soft SUSY breaking $B_{\mu}$ term, which causes the determinant of the Higgs mass matrix to oscillate. Requiring that the amplitude of this oscillation be smaller than the electroweak scale gives the constraint

[TABLE]

Combining this with Eq. (46), we find

[TABLE]

$\bullet$ Classical rolling condition: Another relevant constraint to this scenario comes from requiring that the relaxion, $\phi$, and the inflaton, $\sigma$, undergo classical rolling. The classical rolling conditions are determined from $\dot{\sigma}/H_{I}>H_{I}$, leading to the constraint

[TABLE]

$\bullet$ $\phi$** tracks $\sigma$ after EWSB:** In order for $\phi$ to settle in its minimum with the Higgs VEV of order the weak scale, ${\cal A}(\phi,\sigma,H_{u}H_{d})$ needs to grow quickly enough with the Higgs VEV so that $\phi$ can stop tracking $\sigma$. By examining the evolution of ${\cal A}(\phi,\sigma,H_{u}H_{d})$ as the Higgs VEV develops, we find that as along as202020The additional factors in Eq. (50) as compared to the corresponding expression in Ref. [20] come from considering the contribution to $B_{\mu}$ originating in the Higgs dependent part of ${\cal A}(\phi,\sigma,H_{u}H_{d})$. This oscillatory contribution to $B_{\mu}$ gives the dominant contribution to $\phi\frac{d{\cal D}(\phi)}{d\phi}\sim m_{\rm SUSY}^{4}\frac{f_{\phi}^{2}}{v^{2}\sin 2\beta}$. Following the same calculation as in Ref. [20], with this single change, gives the constraint in Eq. (50)..

[TABLE]

is satisfied, $\phi$ will discontinue its tracking of $\sigma$ with the Higgs VEV of order the weak scale.

$\bullet$ Loop corrections to inflaton mass: A new constraint, which is only present when the amplitudon is identified as the inflaton, comes from loop corrections to the mass of $\sigma$. First, because the coupling $\kappa$ breaks the shift symmetry, the Kähler potential will be affected by this shift-symmetry breaking at the loop-level,

[TABLE]

Since $\kappa$ is the order parameter of this shift-symmetry breaking, it will control the size of all shift-symmetry breaking in the Kähler potential. Because of the inflation constraints discussed above, this parameter must satisfy, $\kappa\gtrsim 10^{-2}$. If we include this loop-corrected Kähler contribution in the supergravity scalar potential,

[TABLE]

we see that there can be important affects on the amplitudon. With the vacuum energy non-zero during the relaxion process, the exponential $\exp(K/M_{P}^{2})$, which now depends on $\sigma$ because of the shift-symmetry breaking, will generate a mass for the inflaton. The exponential piece can be important because the vacuum energy during the relaxion process changes at least by an amount of order

[TABLE]

Expanding the exponential in Eq. (52), and using Eq. (53) for the vacuum energy, we obtain an inflaton mass of order

[TABLE]

Now in order for the relaxion process to be viable, this correction to the $\sigma$ mass must be smaller than $m_{T}$ in the superpotential.

Second, the soft SUSY-breaking effects in the $\phi_{\pm}$ fields can induce the $\sigma$ mass term via the Coleman–Weinberg potential of order

[TABLE]

where $\widetilde{m}_{\phi_{\pm}}$ denote the soft masses of $\phi_{\pm}$. If $\widetilde{m}_{\phi_{\pm}}$ is induced by the Planck suppressed $\phi_{\pm}$–relaxion operators, then we expect $\widetilde{m}_{\phi_{\pm}}\sim m_{\rm SUSY}f_{\phi}/M_{P}$ and thus the contribution (55) is of the same order as (54). If, on the other hand, there is another source of SUSY-breaking and it gives a larger contribution to $\widetilde{m}_{\phi_{\pm}}$, then this gives a more severe constraint, as we see in Appendix A.

3.2.1 Combined constraints

The relevant constraints can now be combined to restrict the parameter space of the inflaton-relaxion model. However, to simplify the parameter space, we will redefine the parameters in a similar manner as was done in Ref. [20]:

[TABLE]

where $\zeta$ is a dimensionless parameter. Using this parameterization, we display the constraints in the $m_{\rm SUSY}$–$m_{S}$ plane. Recall that the parameter $m_{\rm SUSY}$ represents the “cutoff scale” of the model while $m_{S}$ is the explicit shift-symmetry breaking parameter. In Fig. 3, we have taken $\zeta=10^{-8}$, $r_{TS}=0.1$, $r_{\Lambda}=1$, $r_{\rm SUSY}=1$, and $\kappa=10^{-2}$. The gray shaded region is excluded because the periodic barrier formed when the Higgs VEV develops, cannot stop the relaxion rolling (Eq. (48)). The blue shaded region is excluded because $\phi$ never decouples from $\sigma$ (Eq. (50)). In the red region, the shift-symmetry breaking correction to the Kähler potential generates an inflaton mass larger than $m_{T}$ ((54)). The green-shaded region is disfavored since the scalar potential may become unstable in the direction of $N\bar{N}$, as discussed in Ref. [20]. Above the dash-dotted line, $\phi_{*}<M_{P}$, and thus sub-Planckian field values may be realized. The figure shows that supersymmetric soft masses up to $3\times 10^{5}$ GeV can be obtained for the range $10^{-10}~{}{\rm GeV}\lesssim m_{S}\lesssim 10^{-4}~{}{\rm GeV}$. We see that the PeV-scale SUSY region is now constrained by the condition $\Delta m_{\sigma}<|m_{T}|$, which is a consequence of combining the low-scale $D$-term inflation model with the two-field relaxion model.

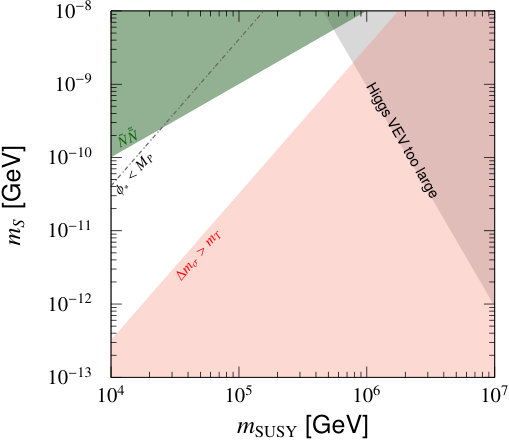

In Fig. 4, we take $\zeta=10^{-14}$, $r_{TS}=0.1$, $r_{\Lambda}=1$, $r_{\rm SUSY}=1$, and $\kappa=10^{-2}$. The color coding of the excluded regions in Fig. 4 is the same as in Fig. 3. For these parameter choices the allowed region now corresponds to supersymmetric soft mass scales up to $10^{6}$ GeV and $10^{-12}~{}{\rm GeV}\lesssim m_{S}\lesssim 10^{-8}~{}{\rm GeV}$. It is found that the new condition, $\Delta m_{\sigma}<|m_{T}|$ gives a very severe limit on the parameter space in this case.

Finally, in the allowed region, we can always find a value of $H_{I}$ which satisfies the above constraints. The lower bound on $H_{I}$ is given by

[TABLE]

which comes from requiring that the slow roll of $\phi$, and the relaxion vacuum energy is subdominant compared to that of the inflaton. The upper bound on the Hubble scale is

[TABLE]

which comes from Eq. (49). In addition, we have upper limits on $H_{I}$ to evade the cosmic string problem as discussed in Appendix B.1.3.

4 Conclusion

In this paper, we have presented a low-scale inflationary model embedded in a supersymmetric framework that seeks to address the hierarchy problem and be consistent with experimental data. Specifically, we consider a $D$-term inflationary model, characterized by a new $U(1)$ symmetry with a FI term. There are three parameters of the model that are relevant for the CMB phenomenology: the $U(1)$ gauge coupling, $g$, the FI scale, $\sqrt{\xi}$, and the energy density $\rho_{\rm reh}$ at reheating (assuming an instantaneous transition between matter domination and radiation domination). To determine the constraints on these parameters we trade the FI scale for the Hubble scale, $H_{I}$, at the moment at which the CMB modes were produced. The measured values of the amplitude and the spectral tilt of the primordial scalar perturbations can then be used to obtain $g$ and $H_{I}$ as a function of $\rho_{\rm reh}$. By requiring $\rho_{\rm reh}^{1/4}$ to be above the electroweak scale (in order to facilitate baryogenesis), we find that a value of $n_{s}$ compatible with the experimental limits (namely, a sufficiently red scalar spectrum) can be achieved provided $g\lesssim 10^{-8}$ and $H_{I}\lesssim 10^{5}$ GeV. For this low scale of inflation, the CMB modes are produced approximately $N_{\rm CMB}\simeq 39\;e$-folds before the end of inflation (contrary to the 50–60 $e$-folds typically required in high scale models of inflation). In $D$-term inflation, this relatively low value of $N_{\rm CMB}$ is used to match the observed value of $n_{s}$, since deviations from scale invariance are inversely proportional to $N_{\rm CMB}$.

Another issue typically associated with $D$-term inflation is the formation of cosmic strings due to the spontaneous breaking of the $U(1)$ symmetry at the end of inflation. We prevent this from occurring by introducing a tiny explicit breaking of the $U(1)$ symmetry throughout the entire inflationary epoch, due to a dynamical $D$-term mechanism. This mechanism also allows the generation of an FI scale much below the Planck scale. Finally, a low value of $g$ is typically problematic for reheating. For such a value, most of the energy density after inflation is actually stored in the field that spontaneously breaks the $U(1)$ symmetry (leading to the end of inflation). This field obtains a VEV much greater than its mass, and therefore typically gives a large effective mass to any field that it is coupled to with a strength greater than $g$, preventing its decay into these fields. A way to avoid this kinematic barrier, is to introduce superpotential couplings which cancel the VEV, so as to allow the decay into the MSSM Higgs fields, and the eventual reheating into Standard Model fields. Thus, with the technically natural superpotential couplings and the $U(1)$ gauge coupling $g$, a low-scale model of supersymmetric inflation can be made to be consistent with Planck data.

This low-scale $D$-term inflation model leads to an interesting application. It can be combined with the relaxion mechanism in order to identify the inflaton with the second field (amplitudon) of a supersymmetric two-field relaxion model that preserves the QCD axion solution to the strong CP problem. The inflaton now also controls the barrier height of the relaxion periodic potential. As the inflaton rolls, it periodically reduces the barrier height causing the relaxion to move and scan the supersymmetric soft masses. Eventually electroweak symmetry breaking occurs, which produces a new contribution to the relaxion barrier height and traps the relaxion in a supersymmetry-breaking local minimum. The correct electroweak VEV can be obtained for supersymmetric soft masses up to the PeV scale, provided the explicit shift-symmetry breaking parameter $m_{S}\lesssim 10^{-4}$ GeV, and the Hubble scale satisfies $H_{I}\lesssim 10$ GeV. This dynamics takes place well before the production of the CMB, at a time in which the energy density of the inflaton was dominated by a quadratic (mass) term, rather than by the Coleman–Weinberg term which instead controls the motion of the inflaton at $N_{\rm CMB}$. The switchover between these two potential terms is a natural consequence of the flatness associated with the logarithmic Coleman-Weinberg term, and it distinguishes our model from other implementations of the relaxion mechanism. Also by identifying the amplitudon as the inflaton, a potential isocurvature problem in the original two-field relaxion model is avoided. Therefore, the supersymmetric inflaton-relaxion model, successfully combines low-scale $D$-term inflation, which is technically natural, with a solution to the supersymmetric little hierarchy problem. This intriguing connection between the inflaton and the relaxion provides a new way to address the hierarchy problem and deserves further study.

Acknowledgments

We are grateful to M. Hindmarsh and A. R. Liddle for helpful correspondence, and thank Z. Thomas for initially collaborating on the project. The work of T.G. and M.P. is supported by the U.S. Department of Energy Grant No. DE-SC0011842 at the University of Minnesota. The work of N.N. is supported by JSPS KAKENHI Grant Number 17K14270.

Appendix

Appendix A Dynamical $D$-terms

Here, we review the dynamical generation of $D$-terms. We basically follow the arguments in Ref. [38, 76] where the dynamical generation of $D$-terms is discussed based on the IYIT model [77, 78]. We focus on the case of the $SP(1)\cong SU(2)$ strongly-interacting gauge theory with $N_{f}=2$ quark flavors. For more generic cases, see Ref. [38]. In this case, we have four chiral quark superfields $Q^{i}$ $(i=1,\dots,4)$ which are in the fundamental representation of $SP(1)$, and six singlet chiral superfields $Z_{ij}=-Z_{ji}$ $(i,j=1,\dots,4)$. We assign the $U(1)$ gauge charge $+1/2$ ($-1/2$) to $Q^{1,2}$ ($Q^{3,4}$), $-1$ to $Z_{-}\equiv Z_{12}$, $+1$ to $Z_{+}\equiv Z_{34}$, and [math] to $Z_{13}$, $Z_{14}$, $Z_{23}$, $Z_{24}$, respectively. The superpotential terms for these fundamental fields are then given by

[TABLE]

with $\lambda_{ij}=-\lambda_{ji}$ dimensionless Yukawa couplings. We also couple $T$ and $\Phi_{\pm}$ to this sector via the higher-dimensional operators $T\Phi_{-}Q^{1}Q^{2}$ and $T\Phi_{+}Q^{3}Q^{4}$. In order to facilitate reheating, we will include another shift symmetric singlet, $R$, and couple it to this strongly coupled sector through the higher dimensional operator $R\Phi_{+}Q^{1}Q^{2}$ as well. There are other renormalizable couplings allowed by the gauge symmetries, such as $TZ_{+}Z_{-}$, $Z_{\pm}\Phi_{\mp}$, $\Phi_{-}Q^{1}Q^{2}$, etc.—we simply assume that all of these unwanted terms are negligible in the following discussion. Such a situation may be realized by geometrically separating the $SP(1)$ sector from the inflation/relaxion sector by means of, say, branes in extra dimensions.

Below the confinement scale of the $SP$(1) gauge interaction, $\Lambda$, the low-energy dynamical degrees of freedom are given by the meson fields $M^{ij}=-M^{ji}\sim Q^{i}Q^{j}/\Lambda$. The $U(1)$ charge assignment for these meson fields follows from those for the constituent quark fields; $M_{+}\equiv M^{12}$ has $+1$, $M_{-}\equiv M^{34}$ has $-1$, and the other meson fields are neutral. The meson fields are subject to the constraint [79]

[TABLE]

As in Ref. [38], we assume that $\lambda_{13}$, $\lambda_{14}$, $\lambda_{23}$, and $\lambda_{24}$ are much larger than $\lambda_{+}\equiv\lambda_{12}$ and $\lambda_{-}\equiv\lambda_{34}$ in order to make sure that all of the neutral fields except $T$ remain at the origin. In this case, the condition (A.2) leads to

[TABLE]

and the relevant part of the low-energy effective superpotential is given by

[TABLE]

where the third, fourth and seventh terms in the right-hand side of this equation come from the higher-dimensional operators introduced above. Since these terms are generated by non-renormalizable interactions and/or break the shift symmetry with respect to $T$ or $R$, the couplings $\kappa_{\pm}$ and $\kappa_{1,2}$ can be parametrically small.

From the superpotential (A.4), we obtain the $F$-term scalar potential as

[TABLE]

where we have assumed $|\sigma|\gg|\tau|$ as in Section 2.1. There is also a $D$-term contribution to the scalar potential

[TABLE]

where $\xi_{\rm tree}$ denotes the tree-level FI term, which can be taken to be zero when the dynamical sector generates a large enough contribution for $D$-term inflation to work. This amounts to the difference of the VEVs of $M_{\pm}$ being large enough.

Now to leading order212121We have checked this perturbatively in the limit where $g$, $\kappa_{\pm}$, and $\kappa_{1}$ are small. in $\kappa_{\pm}$, $\kappa_{1}$ and $g$, the $F$-terms vanish in the vacuum except for $Z_{\pm}$ and $T$ with the fields having the following VEVs,222222The leading order contributions to the VEVs of all fields except $\phi_{+}$ and $M_{\pm}$ can be taken to be zero in the limit $\kappa_{-}\to 0$. This has no adverse effect on the model we consider.

[TABLE]

and $\bar{R}$ can be found by solving $F_{R}$. We have assumed $g\ll\lambda_{\pm}$ as in Ref. [38]. This condition can easily be satisfied in the case of low-scale $D$-term inflation as can be seen from Eq. (20). The details of the calculation for the VEVs of $M_{\pm}$ can be found in Ref. [38]. By using Eq. (A.7), we then obtain the dynamically generated FI term:

[TABLE]

This can explain the required value shown in Eq. (18) if $\Lambda\simeq 10^{16}$ GeV. Such a dynamically-generated FI term has several advantages. First, this can naturally explain why the FI term is much smaller than the fundamental scale, such as the Planck scale. In addition, this allows the model to couple with supergravity in a consistent manner, which is very difficult if the theory possesses a constant FI term.232323As pointed out in Refs. [80, 81], the Ferrara–Zumino current multiplet [82], which contains the energy-momentum tensor and the supersymmetry current, becomes gauge-variant in the presence of a constant FI term, and thus cannot be well-defined. This prevents the theory from coupling to minimal supergravity. It also provides a means to suppress cosmic strings and facilitate reheating through additional couplings of the dynamical sector to the inflaton sector.

As mentioned above, the fields $Z_{\pm}$ develop $F$-terms

[TABLE]

Note that since we have assumed $g\ll\lambda_{\pm}$, this $F$-term VEV is much larger than the dynamically generated $D$-term $g\xi_{\rm dyn}\sim g\Lambda^{2}$. The size of $F_{Z_{\pm}}$ can, however, be much smaller than $\Lambda^{2}$ if one takes $\lambda_{\pm}$ to be very small.

Since this setup introduces another source of SUSY-breaking as well as the shift-symmetry breaking, this sector may give rise to a sizable shift-symmetry breaking effect on the inflaton/amplitudon field. For example, if $F_{Z_{\pm}}$ induces the gravity-mediated soft masses of $\phi_{\pm}$, this generates a mass for $\sigma$ via the Coleman-Weinberg potential as in Eq. (55) of order

[TABLE]

and thus the requirement 242424Note, this constraint is only important if we wish to identify the inflaton as the amplitudon. However, there is still a restriction on the couplings $\lambda_{\pm}$ but it is much weaker. of $\Delta m_{\sigma}<m_{T}$ restricts $\sqrt{\lambda_{+}\lambda_{-}}$ as

[TABLE]

This may be in contradiction with the condition $g\ll\lambda_{\pm}$. However, if we consider the no-scale Kähler terms for $\phi_{\pm}$, the gravity-mediated mass terms may vanish and thus the dominant contribution comes from anomaly mediation [83, 84]. In this case, $\Delta m_{\sigma}$ is suppressed by another factor of $\kappa^{2}/(16\pi^{2})$, which allows $\lambda_{\pm}$ to be larger than the gauge coupling constant.

If ${Z_{\pm}}$ were to couple to $T$ too strongly, their $F$-terms, $F_{Z_{\pm}}$, would generate a large mass for $\sigma$. However, $Z$ does not interact with $T$ even at one-loop level, and thus $F_{Z_{\pm}}$ do not give sizable effects on $\sigma$ through radiative corrections. The $F$-terms for $M_{\pm}$ vanish at the leading order with respect to the small couplings $g$, $\lambda_{\pm}$, and $\kappa_{\pm}$, and thus their effects are very tiny and can be completely neglected. On the other hand, there are non-zero contributions to the $F$-terms of $\phi_{\pm}$, which can induce a mass term for the $\sigma$ field through the terms in the second line of Eq. (A.5). From a straightforward calculation, we find that this effect is smaller than the Coleman–Weinberg effect if

[TABLE]

Because $\langle M_{\pm}\rangle\sim\sqrt{\xi}$, this roughly places a constraint of $\sqrt{|\kappa_{+}|^{2}+|\kappa_{-}|^{2}}\lesssim\frac{\kappa g}{4\pi}$. Because $g$ grows with the inflation scale, this constraint on $\kappa_{\pm}$ becomes weaker for larger inflation scales. Thus, we find that there is a sufficient range of parameter space where both (27) and (A.15) are satisfied.

Appendix B Cosmic Strings and Inflation

In this section, we discuss the effects of quantum and thermal corrections on the $U(1)$ symmetry breaking during inflation. This breaking can prevent the generation of cosmic strings after inflation.

B.1 Quantum Fluctuations and Cosmic Strings

B.1.1 General Model of Cosmic Strings

First, we discuss the effects of quantum fluctuations on the $U(1)$-breaking scalar field during inflation. To that end, we consider a simple toy model which is described by the following Lagrangian:

[TABLE]

with

[TABLE]

where $I$ is the inflaton. In the limit that $C=0$, the theory has a global $U(1)$ symmetry, and the vacuum corresponds to $\phi=0$ for $|\bar{\kappa}I|^{2}>\bar{g}^{2}\bar{\xi}$. Instead, when $|\bar{\kappa}I|^{2}<\bar{g}^{2}\bar{\xi}$ we obtain

[TABLE]

In this case, the global $U(1)$ symmetry is spontaneously broken, and the vacuum manifold is $U(1)\cong S^{1}$ as seen in Eq. (B.3). Since the first homotopy group of this manifold is $\pi_{1}(U(1))\cong\mathbb{Z}$, vortices and strings can form in three and four spacetime dimensions, respectively. Here, we consider four spacetime dimensions and take the $z$ axis parallel to the string. We use polar coordinates $(r,\theta)$ in the $x$–$y$ plane, with the origin located at the center of the cosmic string.252525The translational invariance in the theory is also spontaneously broken.

Let us explicitly see how strings form after the $U(1)$ symmetry is broken. In order for the energy per unit length of the string, or string tension, to be finite, it is necessary that $|\phi|\to\sqrt{\bar{\xi}}$ as $r\to\infty$. However, the phase of $\phi$ at infinity is not necessarily the same in different directions; for instance, we may have

[TABLE]

with $n$ an integer. Such non-trivial field configurations (for $n\neq 0$) correspond to the formation of strings in the system.

So far, we have considered global strings. It turns out, however, that the string tension in this case diverges if the spatial volume is infinite. On the other hand, if the $U(1)$ symmetry is a gauge symmetry, then the tension becomes finite thanks to non-trivial field configurations of the $U(1)$ gauge field. In this case, the winding number $n$ corresponds to the magnetic flux in the string core. If the $U(1)$ charge times the gauge coupling of $\phi$ is given by $\bar{g}$, then the masses of the $U(1)$ gauge boson and $\phi$ in the broken phase are equal; in this case, we have BPS strings whose string tension is given by

[TABLE]

The model discussed in Section 2.3 assumes a $U(1)$ gauge symmetry which gives rise to BPS strings. The behavior of the $U(1)$ symmetry breaking itself can, however, be captured with the simplifed model in Eq. (B.1), and thus we focus on this in what follows.

B.1.2 Effects of the Linear Term

Here we examine in detail what happens if $C\neq 0$, which explicitly breaks the $U(1)$ symmetry. To that end, let us take

[TABLE]

Then, Eq. (B.2) leads to

[TABLE]

with the vacuum conditions

[TABLE]

From Eq. (B.9), we see that the phase of $\langle\phi\rangle$ is uniquely selected by the phase of the $U(1)$ symmetry breaking term such that

[TABLE]

and therefore strings never form. We use this mechanism to evade the formation of cosmic strings.

With the condition (B.10), Eq. (B.8) leads to

[TABLE]

Assuming that $\bar{g}$ is very small so that we can neglect the first term, as justified in our $D$-term inflation model, we obtain $v_{r}$ as

[TABLE]

In order for strings not to form, we require that this VEV is larger than quantum fluctuations in $v_{r}$ induced by inflation and thermal fluctuations. This would guarantee that all patches of the sky will have the same phase of $\langle\phi\rangle$ in the end, so no strings could form.

B.1.3 Cosmic Strings For Our Model

If the quantum fluctuations around the time inflation ends are large enough, cosmic strings could still form since there could be fluctuations of $\phi$ which spoil the phase alignment imposed by the $U(1)$-breaking term.262626This may not be a necessary condition for no strings, but it is sufficient. As long as there is only one minimum of the potential for some time after the CMB is set, the quantum fluctuations will no longer be correlated on superhorizon scales and large strings will not form. Smaller strings may still form, but they lead to different problems, such as overclosure, and are not constrained by the CMB. Here we evaluate the size of the quantum fluctuations in $\alpha$ from inflation; if the fluctuation $\delta\alpha$ can be as large as $\pi$, then strings can form after inflation. During inflation, the size of the fluctuations depends on the size of the fields mass in the $\alpha$ direction, $m_{\alpha}$, relative to the Hubble parameter during inflation, $H_{I}$. The mass $m_{\alpha}$ can be obtained from Eq. (B.7) as272727To obtain a mass term for the canonically normalized field, we need to rescale by $\sqrt{2}v_{r}$.

[TABLE]

where we have used Eq. (B.12). Since the cosmic strings that can be see in the CMB have lengths that are of order the current horizon size, the variations in the phases must be in place when the inflaton has the field value corresponding to $N_{\rm CMB}$. The fluctuations in the $\alpha$ direction at this time is then estimated as

[TABLE]

where $I_{\rm CMB}$ denotes the field value of $I$ at the time when the CMB is set. The condition $\sqrt{\langle\delta\alpha^{2}\rangle}<\pi$ imposes a lower bound on $|C|$, given an inflation model.

We now apply this result to the model discussed in Appendix A. This model can be mapped on to the simplified model we considered above by setting $\bar{g}=g$, $\bar{\xi}=\xi$, $\bar{\kappa}=\kappa$, $\phi=\phi_{+}$, $I=i\sigma/\sqrt{2}$, and $C=\kappa\kappa_{+}^{*}M_{+}^{*}\sigma^{2}/2$. Note that from Eqs. (11), (13), (17), (18), and (20), we have $\sigma_{\rm CMB}=H_{I}/(\pi A_{s}^{1/2}(1-n_{s}))$. The limit $\sqrt{\langle\delta\alpha^{2}\rangle}<\pi$ then reads

[TABLE]

We can easily find a set of parameters which satisfy this condition as well as Eq. (A.15).

Since the mass of $\phi_{+}$ approaches zero at the end of inflation, it is possible that strings with size much smaller than the current horizon could have formed if the fluctuations during this period are too large. To verify that this is not a problem, we examine the same constraint but in the case that $m_{\alpha}=0$, which leads to fluctuations of order $\langle\delta\alpha^{2}\rangle=H_{I}^{2}/(4\pi^{2}v_{r}^{2})$. In this case the constraint becomes

[TABLE]

This is again compatible with the condition (A.15). Since the constraints on strings with sizes much smaller than the CMB scale may not be problematic, we only cite the constraint in Eq. (B.15) in the main text. However, since (B.16) scales with $\kappa_{+}$, just like the constraint in Eq. (B.15), this constraint can be satisfied for any $H_{I}$ by choosing an appropriate $\kappa_{+}$ that is consistent with Eq. (A.15).

B.2 Thermal Fluctuations After Inflation

Finally, we need to consider the effect that thermal fluctuations can have on the formation of cosmic strings. Since we are only interested in an order of magnitude estimate, we will use

[TABLE]

where the fluctuations are probably a bit more mild than this. By requiring $\sqrt{\langle\delta\alpha^{2}\rangle}_{\rm therm}<\pi$, we then obtain an upper bound on the reheating temperature as $T_{R}<\pi v_{r}$. This corresponds to $T_{R}<\pi|\langle\phi_{+}\rangle|$ in the $D$-term inflation model.

During most of inflation, the non-zero VEV for $\phi_{+}$ is determined by the linear term and the mass term as we have seen above. However, towards the end of inflation,

[TABLE]

and so the $\phi_{+}$ mass approaches zero. When Eq. (B.18) is satisfied, the mass term is zero, and the VEV is set by the quartic term and the linear term, which can be read from Eq. (B.8) as

[TABLE]

Thus, the upper bound on $T_{R}$ is given by

[TABLE]

where we have used Eq. (18). For the values of $H_{I}$ we are considering, the reheating temperature can easily satisfy this constraint. However, above we have assumed that the field is not displaced from its minimum as the location of the minimum moves near the end of inflation. If the field can indeed track its minimum, there will be no cosmic strings from thermal fluctuations.

Now we need to verify that $\phi_{+}$ can track the minimum as the inflaton approaches the critical value, or at least track it sufficiently long that thermal fluctuations do not cause strings to form. The minimum begins to move once $|\kappa\sigma|^{2}\sim g^{2}\xi$. To approximate the actual size of the VEV of $\phi_{+}$ once $\sigma$ hits its critical value, we estimate how far $\phi_{+}$ will track its minimum. The field $\phi_{+}$ will track its minimum until its mass $m_{\phi_{+}}$ becomes equal to $3H_{I}/2$, a well-known relationship. During inflation, the VEV of $\phi_{+}$ has plenty of time to settle into its minimum of $|\kappa_{+}M_{+}/\kappa|$, where the mass of $\phi_{+}$ (both the radial and phase directions) is given by $m_{\phi_{+}}^{2}=\frac{\kappa^{2}\sigma^{2}}{2}-g^{2}\xi$. The value of $\sigma$ where $\phi_{+}$ ceases to track its minimum can then be found from $m_{\phi_{+}}=3H_{I}/2$. At this point, the $\phi_{+}$ VEV is (see Eq. (B.12)) given by

[TABLE]

where we have used $\frac{\kappa^{2}\sigma^{2}}{2}\simeq g^{2}\xi$, Eq. (17), and Eq. (19). The upper bound on $T_{R}$ is then given by

[TABLE]

This bound is satisfied for the entire parameter space that is compatible with the CMB observation. Indeed, we can show that the maximum possible reheat temperature is always smaller than the VEV of $\phi_{+}$.
