Prescriptions on antiproton cross section data for precise theoretical antiproton flux predictions

TL;DR

This paper analyzes the precision needed in antiproton production cross section measurements to match the high accuracy of cosmic-ray antiproton flux data, emphasizing the importance of improved collider experiment data for astrophysical modeling.

Contribution

It provides specific accuracy targets for cross section measurements across various energies and kinematic ranges to reduce uncertainties in antiproton flux predictions.

Findings

Cross section measurements need to be accurate within a few percent.

Optimal measurement ranges are from 10 GeV to 6 TeV in proton beam energy.

Current data collection is insufficient to meet these precision requirements.

Abstract

After the breakthrough from the satellite-borne PAMELA detector, the flux of cosmic-ray (CR) antiprotons has been provided with unprecedented accuracy by AMS-02 on the International Space Station. Its data spans an energy range from below 1 GeV up to 400 GeV and most of the data points contain errors below the amazing level of 5%. The bulk of the antiproton flux is expected to be produced by the scatterings of CR protons and helium off interstellar hydrogen and helium atoms at rest. The modeling of these interactions, which requires the relevant production cross sections, induces an uncertainty in the determination of the antiproton source term that can even exceed the uncertainties in the CR $\bar{p}$ data itself. The aim of the present analysis is to determine the uncertainty required for $p+p\rightarrow \bar{p} + X$ cross section measurements such that the induced uncertainties on the $\bar{p}$ flux are at the same level. Our results are discussed both in the center-of-mass reference frame, suitable for collider experiments, and in the laboratory frame, as occurring in the Galaxy. We find that cross section data should be collected with accuracy better that few percent with proton beams from 10 GeV to 6 TeV and a pseudorapidity $\eta$ ranging from 2 to almost 8 or, alternatively, with $p_T$ from 0.04 to 2 GeV and $x_R$ from 0.02 to 0.7. Similar considerations hold for the $p$He production channel. The present collection of data is far from these requirements. Nevertheless, they could, in principle, be reached by fixed target experiments with beam energies in the reach of CERN accelerators.

Figures

Tables

Table 1. Table 1: Summary of available cross section parametrizations for the antiproton production.

parametrization	Species	Info	Year	Ref.
Winkler	$pp$, $p$He,He$p$,HeHe	analytic	2017	Kappl:2014_pbarCrossSection ; Winkler:2017xor
di Mauro et al.	$pp$	analytic	2014	diMauro:2014_pbarCrossSectionparametrization
Duperray et al.	$pp$, $pA$, $Ap$	analytic	2003	Duperray:2003_pbarCrossSectionparametrizationForPA
Kachelriess et al.	$pp$, $pA$, $Ap$, $AA$	high-energy MC, $\overline{n}$ inclusive, LAB frame	2015	Kachelriess:2015_pbarCrossSection
DTUNUC	$p$He, He$p$, HeHe	low-energy MC, LAB frame	1998	Simon_Antiproton_CS_Scaling_1998 ; Donato:2001_DTUNUC
Tan&Ng	$pp$	analytic	1983	TanNg:1983_pbarCrossSectionparametrization

Table 2. Table 2: Grid properties for the LAB and CM frames variables adopted in our numerical calculations.

Variable [unit]	Range					Size/Scale
$T$ [GeV/n]	$5$	$\times {10}^{+0}$	–	$5$	$\times {10}^{+5}$	400/log
$T_{\overline{p}}$ [GeV]	$1$	$\times {10}^{-1}$	–	$1$	$\times {10}^{+3}$	400/log
$\eta$	$0$		–	$13$		400/linear
$\sqrt{s}$ [GeV]	$1$	$\times {10}^{+5}$	–	$1$	$\times {10}^{+5}$	400/log
$p_T$ [GeV]	$1$	$\times {10}^{-2}$	–	$1$	$\times {10}^{+2}$	400/log
$x_R$	$0$		–	$1$		400/log

Table 3. Table 3: Summary of cross section measurements and their systematical uncertainties not shown in Fig.  12 and 13 . Note that Dekkers:1965zz and Capiluppi:1974rt do not distinguish between statistical and systematical uncertainties.

Experiment	Systematic	Ref.
	uncertainty
Dekkers et al, CERN 1965	-	Dekkers:1965zz
Allaby et al, CERN 1970	15%	Allaby:1970jt
Capiluppi et al, CERN 1974	-	Capiluppi:1974rt
Guettler et al, CERN 1976	4%	Guettler:1976ce
Johnson et al, FNAL 1978	7%	Johnson:1977qx
Antreasyan et al, FNAL 1979	20%	Antreasyan:1978cw
Phenix, BNL 2007	9.7%-11%	Adare:2011vy
BRAHMS, BNL 2008	12%-19%	Arsene:2007jd
NA49, CERN 2010	3.3%	NA49_Anticic:2010_ppCollision

Equations

$$q_{ij}(T_{\bar{p}})$$

$$\frac{d{\sigma }_{ij}}{d{T}_{\bar{p}}}(T_i,T_{\bar{p}}),$$

$${\sigma }_{\mathrm{inv}}(\sqrt{s},x_{\mathrm{R}},p_{\mathrm{T}})$$

$$\frac{d\sigma }{d{T}_{\bar{p}}}(T,T_{\bar{p}})$$

$$\eta$$

$${\sigma }_q^{\mathrm{rel}}(T_{\bar{p}})\equiv \frac{{\sigma }_q(T_{\bar{p}})}{q(T_{\bar{p}})}\approx \frac{{\sigma }_{{\varphi }_{\bar{p}}}(T_{\bar{p}})}{{\varphi }_{\bar{p}}(T_{\bar{p}})}.$$

$${\sigma }_q^{\mathrm{rel}}(T_{\bar{p}})={\sigma }_{q_{ij}}^{\mathrm{rel}}(T_{\bar{p}}).$$

$$q(T_{\bar{p}})$$

$$x(T_{\bar{p}},T,\eta )$$

$${\sigma }_{{\sigma }_{\mathrm{inv}}}^{\mathrm{rel}}(x,T_{\bar{p}})=\{\begin{array}{ll}3\%& x<x_t(T_{\bar{p}})\\ 30\%& \text{elsewhere},\end{array}$$

$$\underset{0}{\overset{1}{\int }}dx{\sigma }_{{\sigma }_{\mathrm{inv}}}^{\mathrm{rel}}(x,T_{\bar{p}})={\sigma }_q^{\mathrm{rel}}(T_{\bar{p}}).$$

$$m_X^2=p_X^2$$

$$=s+m_c^2-2(p_a+p_b)\cdot p_c$$

$$=s+m_c^2-2\sqrt{s}{E}_c$$

$$\Rightarrow$$

$$E_{\bar{p},\max }=\frac{s-8m_p^2}{2\sqrt{s}}$$

$$s$$

$$E$$

$$p$$

$${\beta }^{\ast }$$

$${\gamma }^{\ast }$$

$${\gamma }^{\ast }{\beta }^{\ast }$$

$$s=2Tm+4m^2.$$

$$p_{\mathrm{T}}=p\sin (\theta )=\sqrt{T^2+2Tm}/\cosh (\eta ),$$

$$x_{\mathrm{R}}$$

$$E_{\bar{p}}^{\ast }$$

$${p_{\mathrm{L}}}_{\bar{p}}$$

$$\frac{d\sigma }{d{T}_{\bar{p}}}(T,T_{\bar{p}})$$

Full text

The bulk of the antiproton flux is expected to be produced by the scatterings of CR protons and helium off interstellar hydrogen and helium atoms at rest. The modeling of these interactions, which requires the relevant production cross sections, induces an uncertainty in the determination of the antiproton source term that can even exceed the uncertainties in the CR ${\bar{p}}$ data itself.

The aim of the present analysis is to determine the uncertainty required for $p+p\rightarrow{\bar{p}}+X$ cross section measurements such that the induced uncertainties on the ${\bar{p}}$ flux are at the same level. Our results are discussed both in the center-of-mass reference frame, suitable for collider experiments, and in the laboratory frame, as occurring in the Galaxy. We find that cross section data should be collected with accuracy better that few percent with proton beams from 10 GeV to 6 TeV and a pseudorapidity $\eta$ ranging from 2 to almost 8 or, alternatively, with $p_{\mathrm{T}}$ from 0.04 to 2 GeV and $x_{\mathrm{R}}$ from 0.02 to 0.7. Similar considerations hold for the $p$He production channel. The present collection of data is far from these requirements. Nevertheless, they could, in principle, be reached by fixed target experiments with beam energies in the reach of CERN accelerators.

Introduction

Astroparticle physics of charged cosmic rays (CRs) has become a high-precision discipline in the last decade. Spaceborne experiments like first PAMELA and more recently and still operating AMS-02 have reduced the measurement uncertainties of CR fluxes to the percent level over an energy range from below 1 GeV up to a few TeV, which is typical for Galactic CRs. In particular, this result has been achieved for the nuclear PAMELA_Adriani:2011cu ; 2014ApJ…791…93A ; AMS-02_Aguilar:2015_ProtonFlux ; AMS-02_Aguilar:2015_HeliumFlux ; Aguilar:2016vqr and leptonic (positron and electron) 2009Natur.458..607A ; 2011PhRvL.106t1101A ; 2013PhRvL.110n1102A ; 2014PhRvL.113l1102A ; 2014PhRvL.113v1102A components, and also for the CR antiprotons 2010PhRvL.105l1101A ; AMS-02_Aguilar:2016_AntiprotonFlux . The rare CR antimatter has been extensively studied as a possible indirect signature of dark matter annihilating in the halo of the Galaxy 2010pdmo.book..521S (and Refs. therein). The recent AMS-02 data on the antiproton flux and ${\bar{p}}/p$ flux ratio has reached an unprecedented precision from about 1 GeV up to hundreds of GeV AMS-02_Aguilar:2016_AntiprotonFlux .

This exceptional experimental accuracy poses the challenging task of a theoretical interpretation with an uncertainty at a similar level. The dominant part of the antiprotons in our Galaxy arises from secondary production, namely it originates by the inelastic scattering of incoming CRs off interstellar medium (ISM) nuclei at rest. In practice, the secondary antiprotons are produced from the scattering of CR $p$ and He on ISM consisting again of H and He. The number of produced antiprotons then depends on the correct modeling of the production cross section $d\sigma(p+p\rightarrow{\bar{p}}+X)/dT_{\bar{p}}$ and the equivalent reactions with He instead of $p$. The production cross sections induce a non-negligible uncertainty in the prediction of the secondary antiprotons, as already underlined in Donato:2001_DTUNUC ; Bringmann:2006im ; Donato:2008jk . In literature, there have been different approaches to describe the ${\bar{p}}$ production cross section; after the first parametrization for the $pp$ scattering TanNg:1983_pbarCrossSectionparametrization , which is now probably outdated, Monte Carlo (MC) predictions have been employed, in particular, for the He channels using the DTUNUC code Simon_Antiproton_CS_Scaling_1998 ; Donato:2001_DTUNUC . For these He channels measurements were not available until very recently when the LHCb Collaboration presented a preliminary analysis on the search for antiprotons in collisions of 6.5 TeV protons on a fixed helium target at the LHC LHCb_pHe . A parametrization deduced from a large $pp$ and $pA$ (proton-nuclei) data set was proposed in Duperray:2003_pbarCrossSectionparametrizationForPA . Recently, triggered by the NA49 data NA49_Anticic:2010_ppCollision , new parametrizations have been proposed in diMauro:2014_pbarCrossSectionparametrization ; Kappl:2014_pbarCrossSection as well as predictions from MC generators tuned with LHC data Kachelriess:2015_pbarCrossSection . Nevertheless, the theoretical uncertainty induced by the modeling of fundamental interactions on the antiproton spectrum is sizable, reaching a few ten percent.

In this paper we “backwards engineer” the usual process of cross section parametrization in order to determine the accuracy required on cross section measurements to match AMS-02 accuracy. Our aim is to provide, for the first time, quantitative indications for future high-energy experiments about the kinematical regions and the precision level to be obtained, in order to induce uncertainties on ${\bar{p}}$ flux which do not exceed the uncertainty in the present CR data.

This paper is structured as follows. In Sec. I we review the main steps for the calculation of the antiproton source term starting from the invariant cross section. In Sec. II we explain how we invert this calculation in order to assign uncertainty requirements on the differential cross section. The results are presented in Sec. III and are summarized in Sec. IV.

I Theoretical framework for the cosmic antiproton source spectrum

Antiprotons in our Galaxy are dominantly produced in processes of CR nuclei colliding with ISM. Hence, the ingredients to calculate the ${\bar{p}}$ source term, i.e., the number of antiprotons per volume, time, and energy, are the flux of the incident CR species $i$, $\phi_{i}$, and the density of the ISM component $j$, where, in practice, both $i$ and $j$ are $p$ and He. The source term for secondary antiprotons is given by a convolution integral of the CR flux, the ISM targets, and the relevant cross section:

[TABLE]

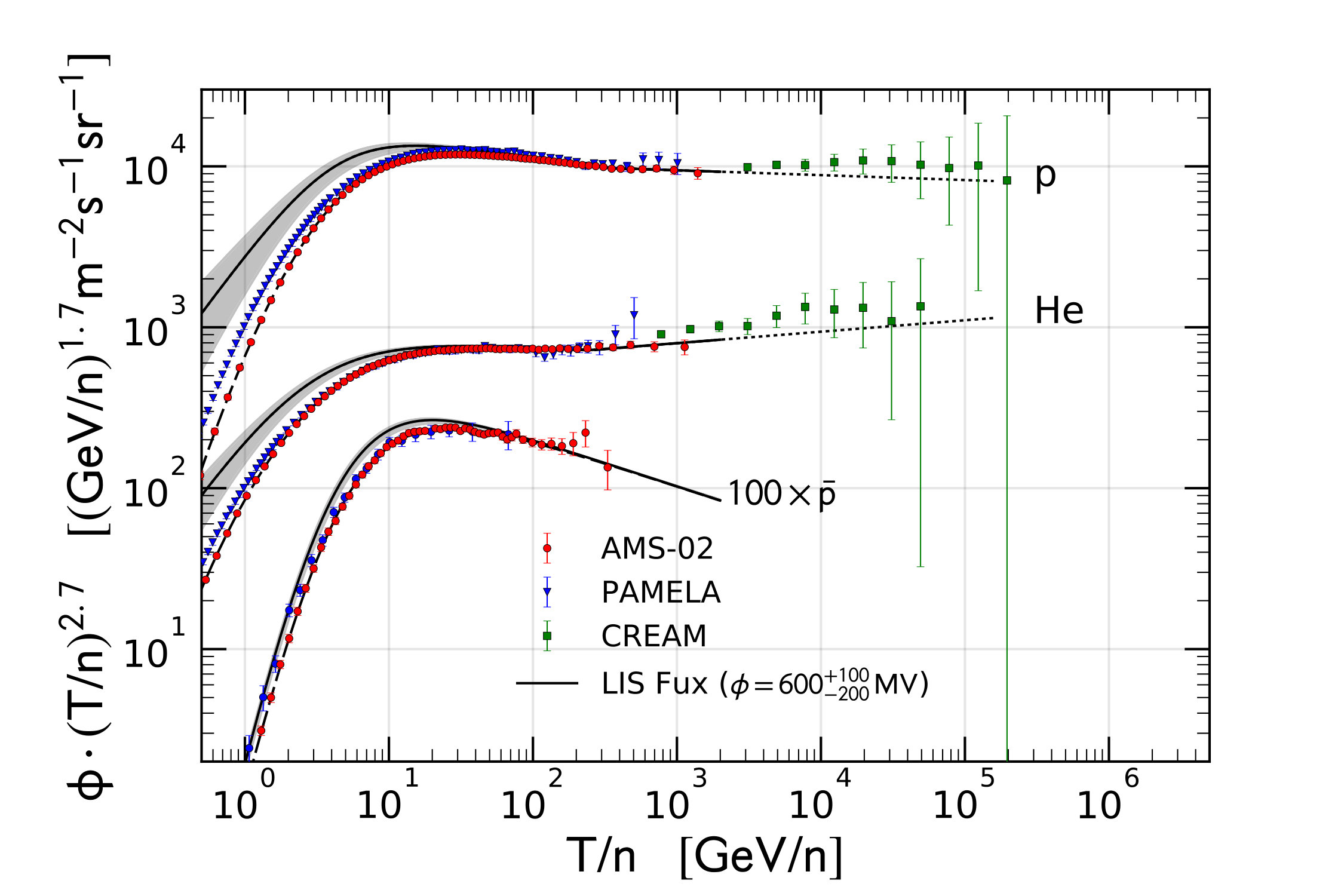

Here $n_{\mathrm{ISM}}$ is the ISM density and $T_{\rm th}$ the production energy threshold. The factor $4\pi$ corresponds to the already executed angular integration of the isotropic flux $\phi$. The according fluxes are known precisely at the top of the Earth’s atmosphere (TOA) due to AMS-02 measurements AMS-02_Aguilar:2015_ProtonFlux ; AMS-02_Aguilar:2015_HeliumFlux presented in Fig. 1, together with the results from the precursor satellite-borne PAMELA experiment PAMELA_Adriani:2011cu ; PAMELA_Adriani:2012paa and the data from the balloon-borne CREAM detector at higher energies CREAM_Yoon:2011aa . At low energies E\lower 3.01385pt\hbox{;\stackrel{{\scriptstyle\textstyle<}}{{\sim}};} 20 GeV/nucleon (in the following GeV/n) the charged particles arriving at the Earth are strongly affected by solar winds, commonly referred to as solar modulation Parker:1958_SolarModulation ; Gleeson:1968_SolarModulation , given their activity modulation on a cycle of roughly 11 years. We will work with interstellar (IS) quantities. The $p$ and He IS fluxes are inferred by demodulated AMS-02 data, which we obtain within the force-field approximation Fisk:1976_SolarModulation assuming an average Fisk potential of $\phi_{\odot}=600$ MeV for the period of data taking Usoskin:2005_SolarModulation ; Usoskin:2011_SolarModulation . More complete studies on solar modulation take into account time dependent proton flux data from PAMELA and recent ISM flux measurements by VOYAGER Cholis:2016_Solar_Modulation ; Ghelfi:2016pcv ; Corti:2015bqi . They find similar values for $\phi_{\odot}$. The source term derivation only includes incoming proton energies $E_{p}>7m_{p}\sim 6.6$ GeV ($E_{p}>4m_{p}$) corresponding to the ${\bar{p}}$ production threshold in $pp$ ($p$He) collisions. For these energies the solar modulation, which becomes negligible above a few 10 GeV, agrees reasonably well with the simple force-field approximation. The scattering sights are the ISM elements H and He with density given by 1 and 0.1 $\mathrm{cm^{-3}}$ in the Galactic disk respectively.

The final essential ingredient to calculate the source term is the cross section corresponding to the production reaction $\mathrm{CR}_{i}+\mathrm{ISM}_{j}\rightarrow\bar{p}+X$

[TABLE]

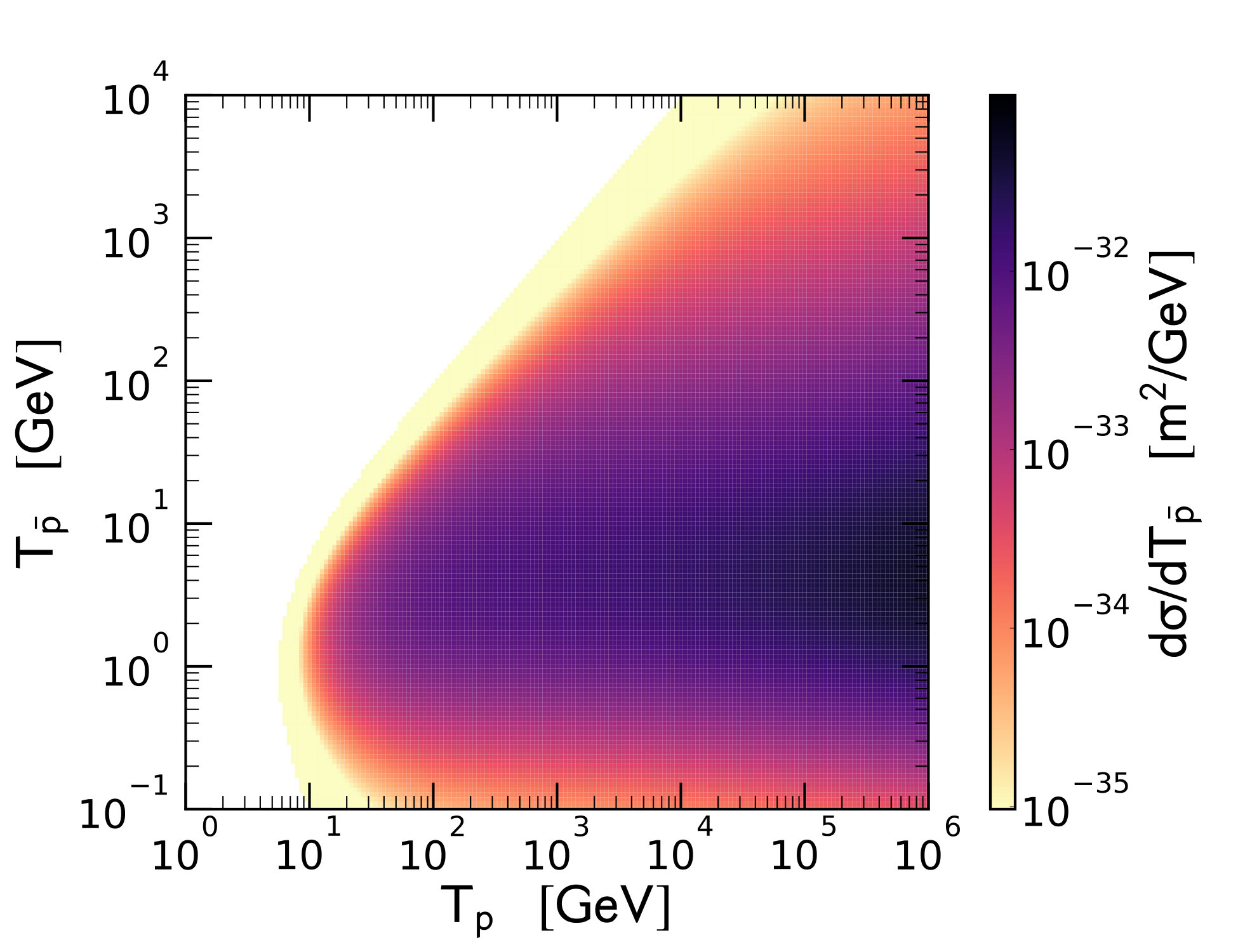

where $T_{\bar{p}}$ is the kinetic energy of the produced antiproton in collisions of the CR species $i$ with kinetic energy $T_{i}$ on the ISM component $j$. In the following we will call the quantity in Eq. (2) the energy-differential cross section111Note that $dT=dE$ and, hence, $d\sigma/dE=d\sigma/dT$.. One example, derived from the cross section parametrization in Ref. diMauro:2014_pbarCrossSectionparametrization for the $pp$ channel, is shown in Fig. 2 as a function of $T_{\bar{p}}$ and $T_{p}$. The kinetic energy threshold at $T_{p}=6m_{p}$ is clear.

11footnotetext: As discussed in diMauro:2014_pbarCrossSectionparametrization , the parameters $D_{1}$ and $D_{2}$ must be interchanged.

The ${\bar{p}}$ production cross section is not directly available in the energy-differential form from Eq. (2), which also enters in Eq. (1). Experiments, rather, measure the angular distribution on top of the energy-differential cross section and then present the Lorentz invariant (LI) form

[TABLE]

where $E$ and $p$ are the total ${\bar{p}}$ energy and momentum, respectively, $\sqrt{s}$ is the center-of-mass (CM) energy of the colliding nucleons, $x_{\mathrm{R}}=E_{\bar{p}}^{*}/E^{*}_{{\bar{p}},{\rm max}}$ (* refers to CM quantities) is the ratio of the ${\bar{p}}$ energy to the maximally possible energy in the CM frame, and $p_{\mathrm{T}}$ is the transverse momentum of the produced antiproton. Note that the three kinematic variables are LI quantities. We skipped the subscripts $i,j$ for projectile and target to avoid unnecessarily complicated notation. Anyway, Eq. (3) and also the following equations are valid for all combinations of projectile and target, if all quantities are understood in the nucleon-nucleon system.

To relate the LI cross section to the energy-differential one in Eq. (2), two steps must be performed. First, the LI kinetic variables $\{\sqrt{s},x_{\mathrm{R}},p_{\mathrm{T}}\}$ need to be related to an equivalent set in the LAB frame, where the target is at rest. Typically, the set is given by the projectile and the ${\bar{p}}$ kinetic energies, and the scattering angle $\{T,T_{\bar{p}},\cos(\theta)\}$. We give explicit relations in Appendix A. In a second step, the angular integration has to be performed

[TABLE]

Here $\theta$ is the angle between the incident projectile and the produced antiproton in the LAB frame. In the second line of Eq. (4) we transform the angular integration to an integration with respect to the pseudorapidity defined as

[TABLE]

This transformation is advantageous because the invariant cross section is very peaked in forward direction at small angles. Again, a more detailed derivation of Eq. (4) is stated Eq. (23) in the Appendix. Concerning the limits of the angular integration, we notice that from $x_{\mathrm{R}}\leq 1$ it is possible to derive a precise $\theta_{\max}$ or, equivalently, $\eta_{\min}$. Nevertheless, in practice it is sufficient to start both integrals in Eq. (4) from 0, which is trivially a lower limit.

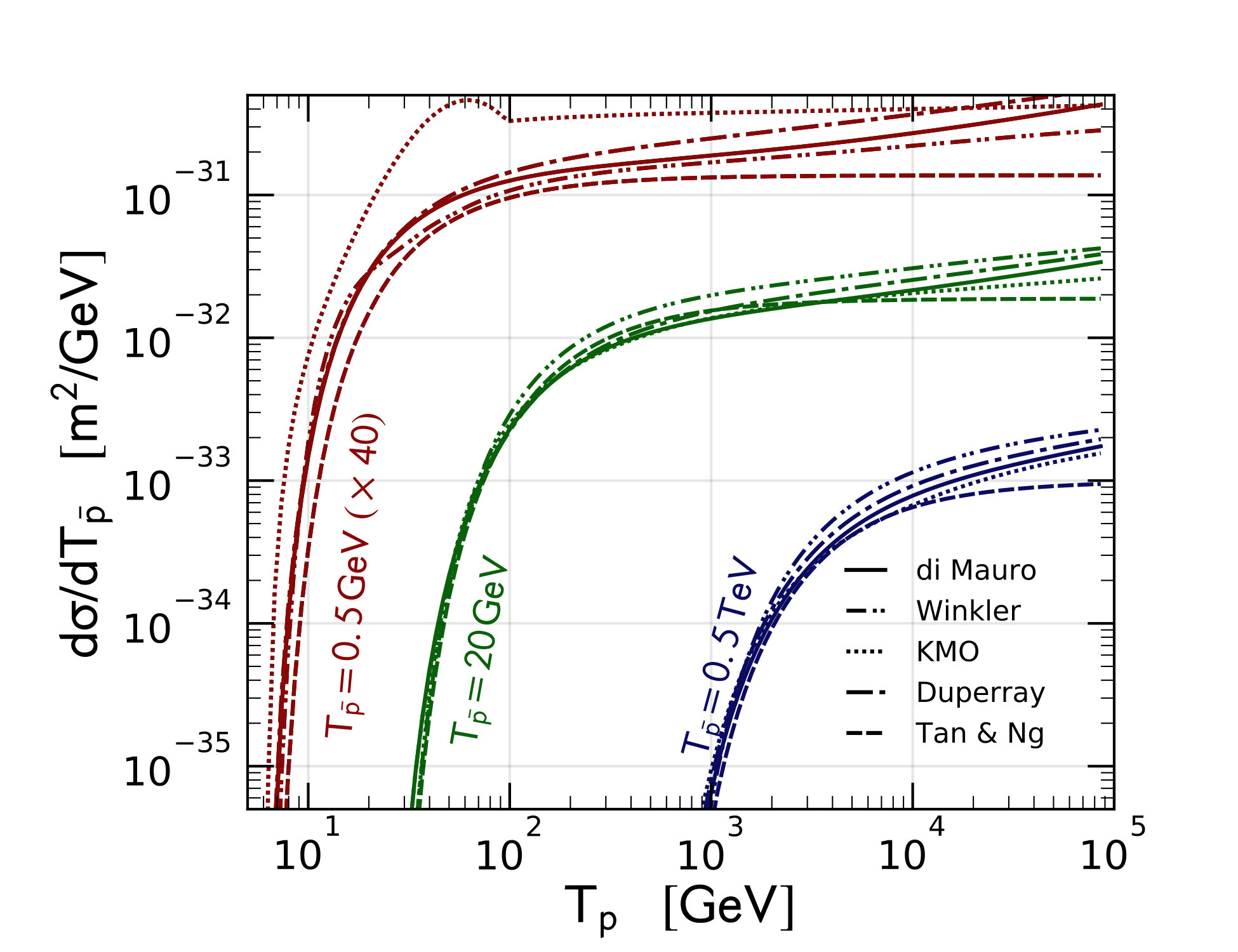

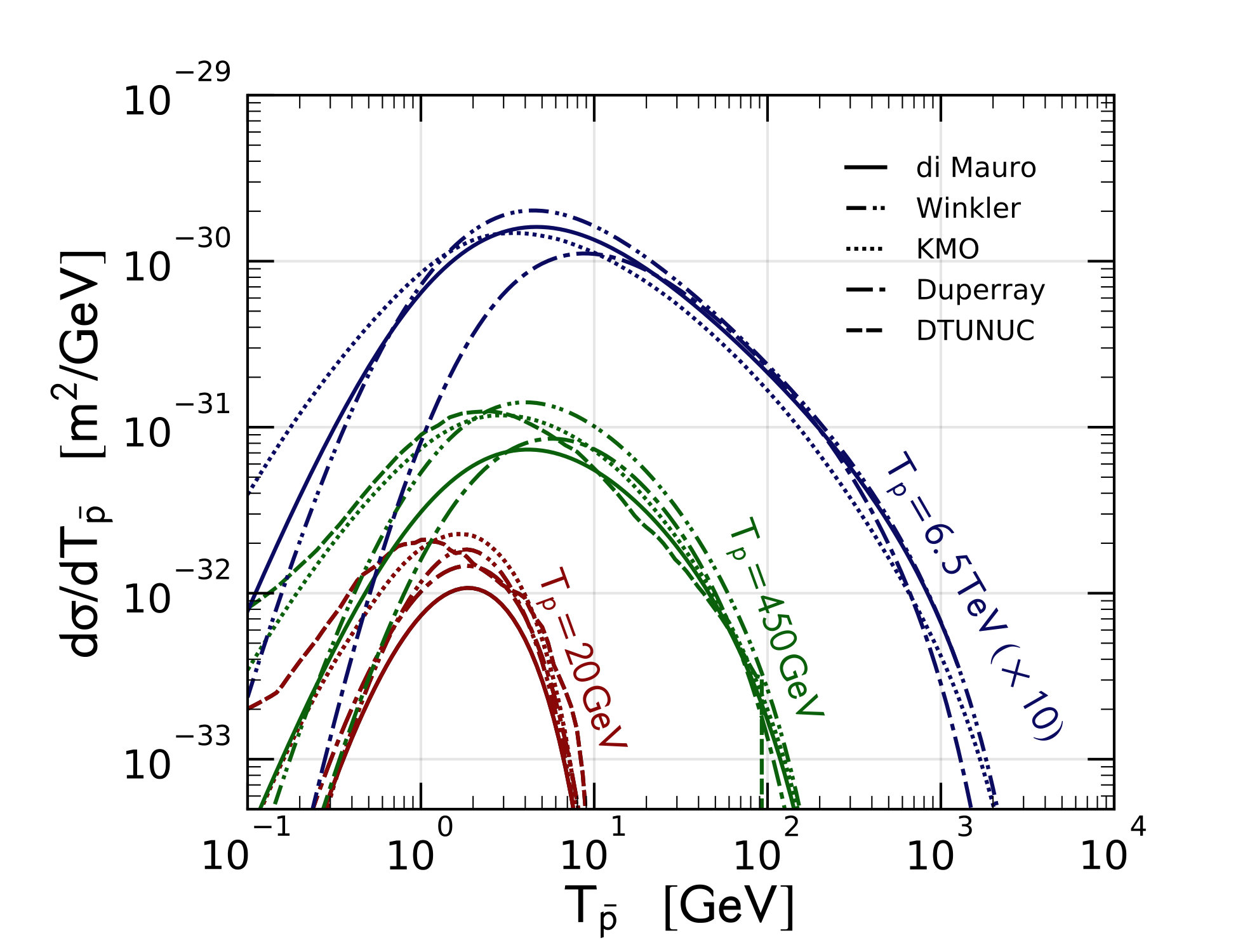

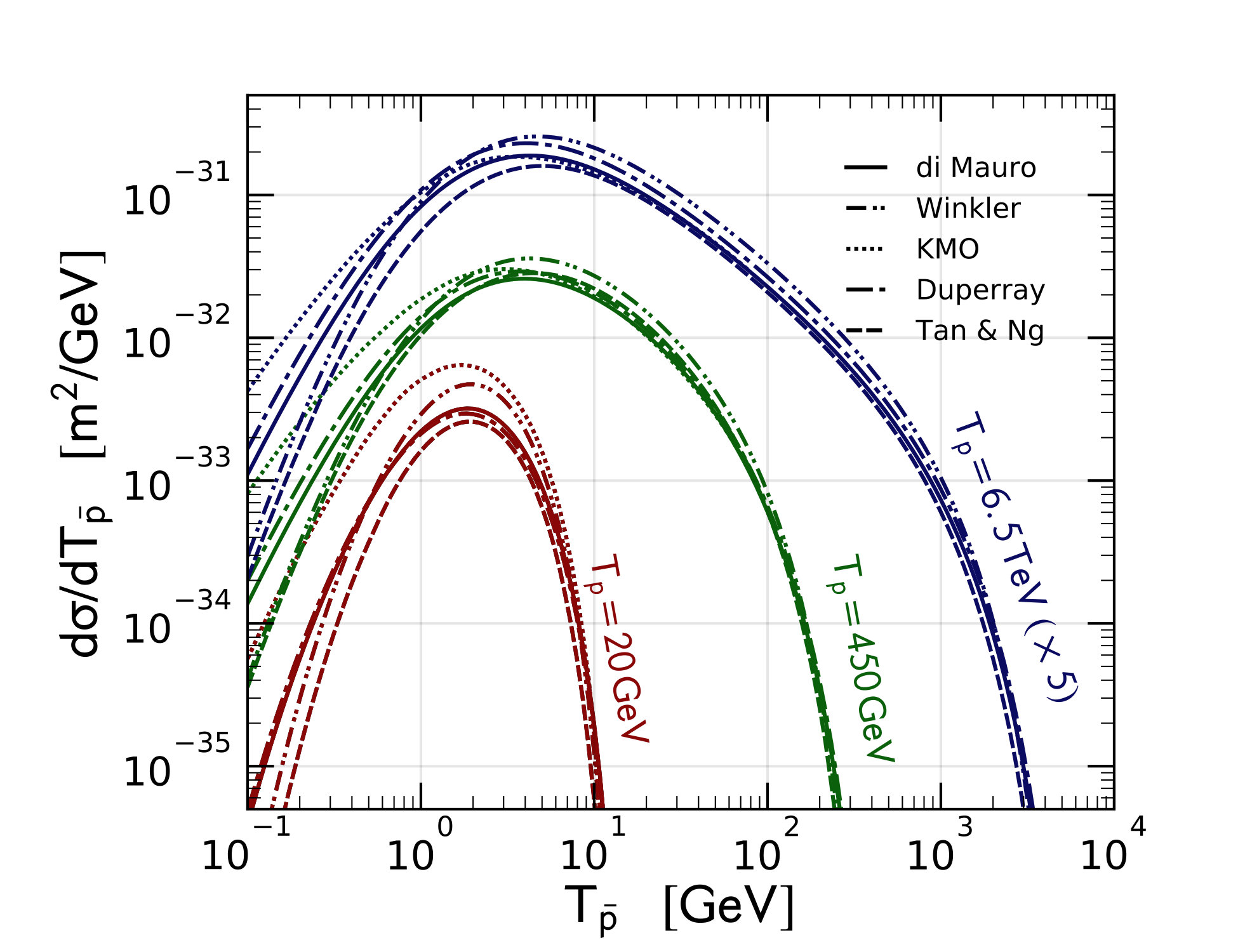

With this information at hand, we compare three different parametrizations of the $p+p\rightarrow{\bar{p}}+X$ cross section, as given by diMauro:2014_pbarCrossSectionparametrization ; TanNg:1983_pbarCrossSectionparametrization ; Duperray:2003_pbarCrossSectionparametrizationForPA ; Winkler:2017xor and the MC approach in Kachelriess:2015_pbarCrossSection (see also the information in Table 1). Fig. 3 displays profiles of the energy-differential cross section for either fixed $T_{p}$ or $T_{\bar{p}}$. At antiproton energies of a few 10 GeV, which are dominantly produced by protons with an energy of a couple of 100 GeV, all approaches agree well. However, at lower and higher energies the picture is different. In particular, for antiproton energies below 10 GeV, the deviation between the different approaches is significant. The MC approach in Kachelriess:2015_pbarCrossSection , which is intrinsically designed for and trained with high-energy data, is expected to break down below 10 GeV, as clearly visible in the plots. Furthermore, the different analytical forms have discrepancies of up to a factor 2 at 1 GeV. We notice that the parametrizations in diMauro:2014_pbarCrossSectionparametrization ; Winkler:2017xor are driven by the NA49 data NA49_Anticic:2010_ppCollision , taken at $\sqrt{s}$=17.3 GeV and covering antiproton energies from about 8 GeV up to 70 GeV. The plotted cross sections also include the antiprotons from antineutron decay. Given the CR propagation timescale, ${\bar{n}}$ immediately decays into ${\bar{p}}$ and has to be included in the antiproton source term. The simplest correction is to multiply the cross section by two. However, NA49 data suggest that the $p+p\rightarrow{\bar{n}}+X$ cross section is larger than the ${\bar{p}}$ one by roughly 50% around $x_{F}=0$ NA49_Anticic:2010_ppCollision , where Feynman scaling variable is defined by $x_{F}=p_{\mathrm{L}}^{*}/(2\sqrt{s})$ with the the longitudinal momentum $p_{\mathrm{L}}^{*}$ in the CM frame. Hence, in order to properly include the ${\bar{n}}$ inclusive cross section, we multiply the ${\bar{p}}$ one by 2.3 as suggested by Ref. diMauro:2014_pbarCrossSectionparametrization , here and in the following. Ref. Kachelriess:2015_pbarCrossSection directly provides the ${\bar{n}}$ inclusive cross section based on their modified MC simulations with QGSJET-II and Winkler:2017xor gives a specific formula for the isospin violation term. Moreover, the parametrization from Winkler:2017xor contains explicitly the contribution from hyperons, as it is likely the case also for the MC predictions in Kachelriess:2015_pbarCrossSection . We remind here that both the antineutron and the hyperon induced antiproton production are still debated and involve large uncertainties. The argumentation relies mostly on symmetries and theory assumptions, as there are no or few direct measurements, respectively. Our final results should be understood as requirements not only on the antiproton, but also on the antineutron and hyperon production. More details might be found e.g. in diMauro:2014_pbarCrossSectionparametrization ; Kappl:2014_pbarCrossSection ; Winkler:2017xor . In panel (c), we also plot literature results for the $p+\mathrm{He}\rightarrow{\bar{p}}+X$ channel. Concretely, only the MC approach in Kachelriess:2015_pbarCrossSection provides both the He channels individually, while the parametrization in Duperray:2003_pbarCrossSectionparametrizationForPA is fitted to $pA$ data ($p$ as the projectile, nuclei heavier than helium as targets) while the one in diMauro:2014_pbarCrossSectionparametrization is only valid for $pp$. In order to get a He$p$ parametrization form Ref. Duperray:2003_pbarCrossSectionparametrizationForPA , and for both He channels from the results in Ref. diMauro:2014_pbarCrossSectionparametrization , the following is done. Naturally, the $p$He cross section might be Lorentz transformed to He$p$ one. However, Ref. Duperray:2003_pbarCrossSectionparametrizationForPA already assumes a cross section parametrization with z-symmetry222Symmetry with respect to the plane perpendicular to the incident particles, namely, no dependence on the longitudinal momentum $p_{\mathrm{L}}$. in the nucleon-nucleon CM system. In this way, we directly conclude that both He channels ($p$He and He$p$) are equal as functions of energy per nucleon. For the up-to-date $pp$ parametrization in diMauro:2014_pbarCrossSectionparametrization , we extract and translate the $A$ dependence from Duperray:2003_pbarCrossSectionparametrizationForPA . Again Kappl:2014_pbarCrossSection ; Winkler:2017xor gives its own scaling for the $p$He and He$p$ cross sections. We see from Fig. 3 that different choices for the He cross section lead to significantly different results, in particular below $T_{\bar{p}}$ of about 10 GeV, where the discrepancy can reach a factor 10.

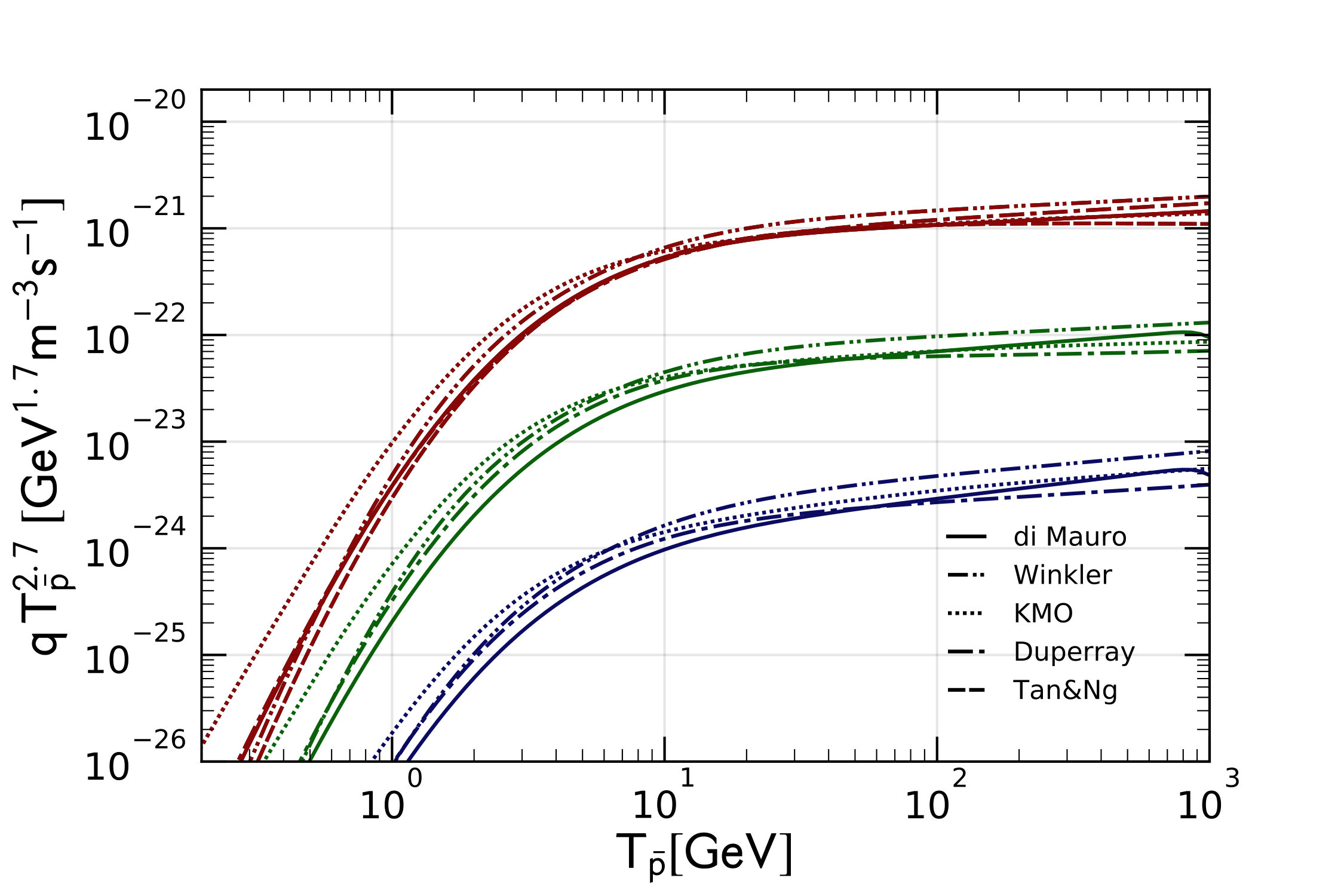

In Fig. 4 we present the source term for the three most important production channels $pp$, $p$He, and He$p$. Although some of the differences among the cross sections might be integrated out at the source term level (see Eq. (1)), Fig. 4 shows that, in fact, most of the deviations above $T_{\bar{p}}=100$ GeV and below 10 GeV remain. The predictions from Winkler’s parametrization are systematically higher than the other ones above 10 GeV. One possible explanation could be the explicit inclusion of antiprotons from the decay of hyperons. The approach in Kachelriess:2015_pbarCrossSection predicts a much larger source term at low energies. We are aware of the fact that the heavier elements, namely C and O, contribute to the source term at the percent level. However, the purpose of this analysis is to determine the cross section parameter space of the dominant production channels. In this regard, it is sufficient to consider only $p$ and He each as projectile and target.

The antiprotons, once produced at the source, propagate in the Galaxy experiencing magnetic diffusion together with minor effects that shape the flux measured at the Earth. Since the source spectrum is the fundamental quantity with which we will work, we do not pause here on the propagation details. They can be found, i.e., in Donato:2001_DTUNUC , where the CR propagation is considered within a semianalytical diffusive model. However, errors induced by propagation modelings can be considered reasonably negligible when dealing with relative flux uncertainties, as we will do in the following of our paper. In the last years, more complex scenarios have been proposed with the main aim of explaining the rising positron fraction observed by PAMELA and AMS-02. In Blasi:2009bd ; Mertsch:2014poa , it is predicted that secondary CRs receive a primary contribution from scatterings of primary nuclei inside the supernova remnants, before being propagated. Refs. Tomassetti:2012ga ; Tomassetti:2015mha speculate that diffusion might be different close to the Galactic disk and further away, and build a two-halo diffusion model. In Cowsik:2016wso , the secondary origin of antiprotons in the nested leaky-box model is discussed. However, as discussed in the next section, our choice to work with relative (and not absolute) flux uncertainties strongly limits the effects of alternative production and propagation modeling on our results on the production cross sections.

II Methods for determining the precision on the cross section

The general idea of the present analysis is to determine the uncertainty requirements on ${\bar{p}}$ cross section measurements for a given cosmic antiproton flux accuracy. Firstly, we determine the contribution to the source term from each point in the parameter space of the fully differential LI cross section. Then we derive the uncertainty requirements on cross section measurements according to two principles: (i) the total uncertainty shall match experimental flux accuracy dictated by AMS-02, which provides the currently most precise measurement, and (ii) in the parameter space regions, where the cross section provides a dominant contribution to the source term, we require higher accuracy. In the following we will provide a detailed explanation of our strategy.

We start from the uncertainty level in the antiproton flux measurement. Our prior is the AMS-02 data, which display the most accurate determination over the widest energy range (see Fig. 1). This TOA spectrum of AMS-02 has to be related to the ${\bar{p}}$ source spectrum. First of all, we have to extract the local IS flux from the TOA one. We choose to correct the effect of the solar modulation by means of the force-field approximation, dictating to simply shift all data points by $\Delta E=|Z|\phi_{\odot}$, having fixed $\phi_{\odot}=600$ MV. Then, the relation between the IS flux and the source spectrum is given by propagation in the Galaxy, which is usually described by a diffusion equation (see Donato:2001_DTUNUC and refs. therein).

As a first approximation, it is reasonable to assume that relative uncertainties of IS flux and the source term are equal above $\sim 1$ GeV. Flux and the source term are linked by linear differential equation. Thus, the main term of this equation, namely, the diffusion term, indeed keeps the ratios unaffected. The only possibility are energy distortions between the propagated flux and the source spectrum which may arise from reacceleration at very low energies. However, we explicitly checked by propagating several, strongly peaked, toy-source-term spectra and comparing them with the resulting propagated flux that the energy distortion is negligible down to 1 GeV. The baseline for the cross check is the Galprop-based global analysis of CR propagation performed in 2016PhRvD..94l3019K (and refs. therein). Conclusively, we use the relative flux uncertainty $\sigma_{\phi_{\bar{p}}}$ as proxy of the source term uncertainties ${\sigma_{q}}$:

[TABLE]

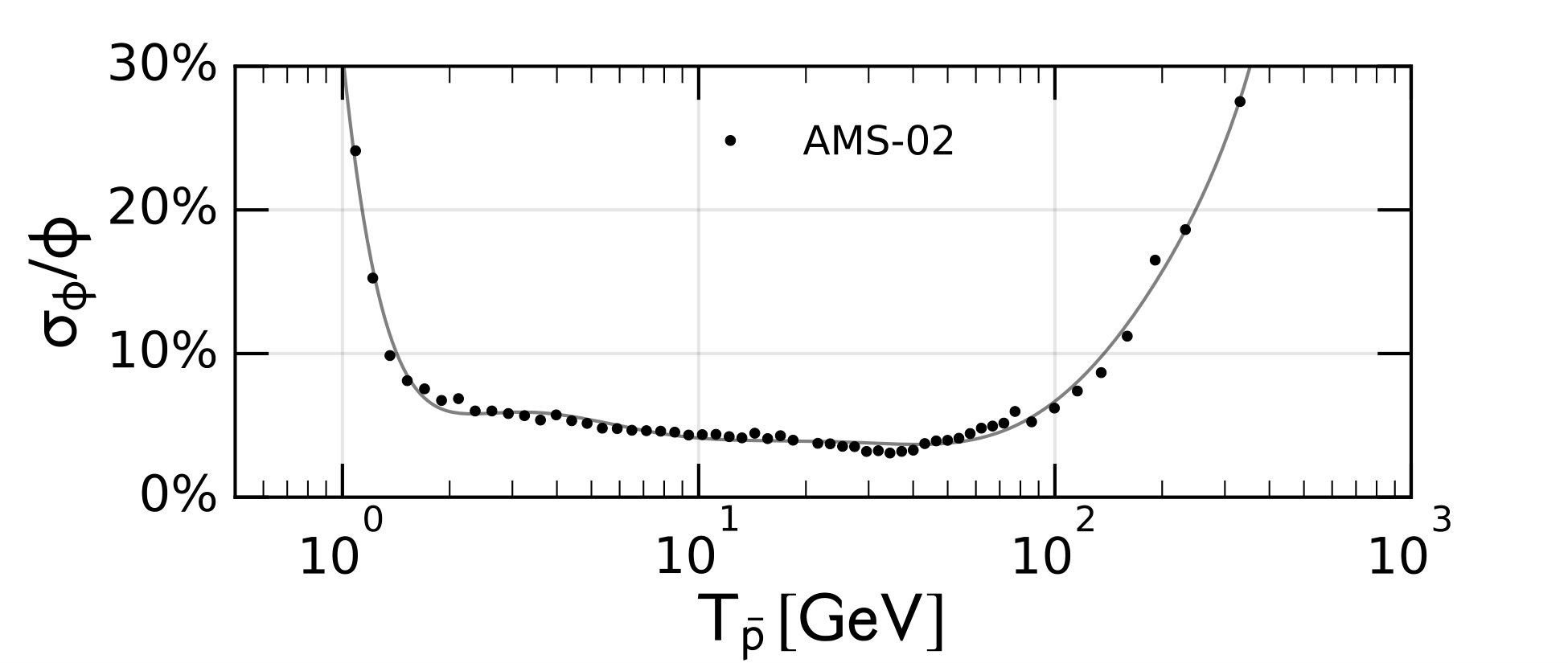

The quantity $\sigma^{\mathrm{rel}}_{q}(T_{\bar{p}})$ can be read from Fig. 5, where it has been derived from the AMS-02 ${\bar{p}}$ measurements AMS-02_Aguilar:2016_AntiprotonFlux . From this figure we can clearly see the precision level of the current AMS-02 data. In particular, it is about 5% between 1 and 100 GeV. This is the minimum level of accuracy which is required to any prediction. The uncertainty of the source term has to be distributed on the single production channels. We will assume that the relative uncertainties in all the $p$ and He channels are equal, meaning

[TABLE]

To determine the contribution from each parameter point of the invariant cross section we work with the full expression of the source term. Inserting Eq. (4) in Eq. (1) and changing the energy integration to $\log(T)$ results in

[TABLE]

where we have dropped the labels $i,j$ indicating the species of the incoming CR flux and ISM. We then define the containment

[TABLE]

The integrand of the source spectrum $I(T_{\bar{p}},T,\eta)$ has been defined in Eq. (8). The containment function varies between $[0,1]$ and has to be understood as follows. The parameter space with, e.g., $x(T_{\bar{p}},T,\eta)<0.9$ contains 90% of the source term at the given antiproton energy. To be more precise, we calculate the smallest containment areas in the variables $\log(T)$ and $\eta$, for each given $T_{\bar{p}}$. In practice, this is obtained by calculating the integral from Eq. (9) in the following way. On the two dimensional grid at fixed $T_{\bar{p}}$, we sum the integral of $I(T,T_{\bar{p}},\eta)$ over the $\log(T)$ and $\eta$ bins starting from the largest to the smallest contribution, until the required value of $x(T,T_{\bar{p}},\eta)$ is reached. Although there is a freedom to choose the exact set of kinetic parameters, the general behavior of containment contours is not largely affected, because the integrand $I$ is a strongly peaked function. Furthermore, cross sections and source terms are power laws. The choice of logarithmic variables, $\log(T)$ and $\eta$, respects their natural scaling properties.

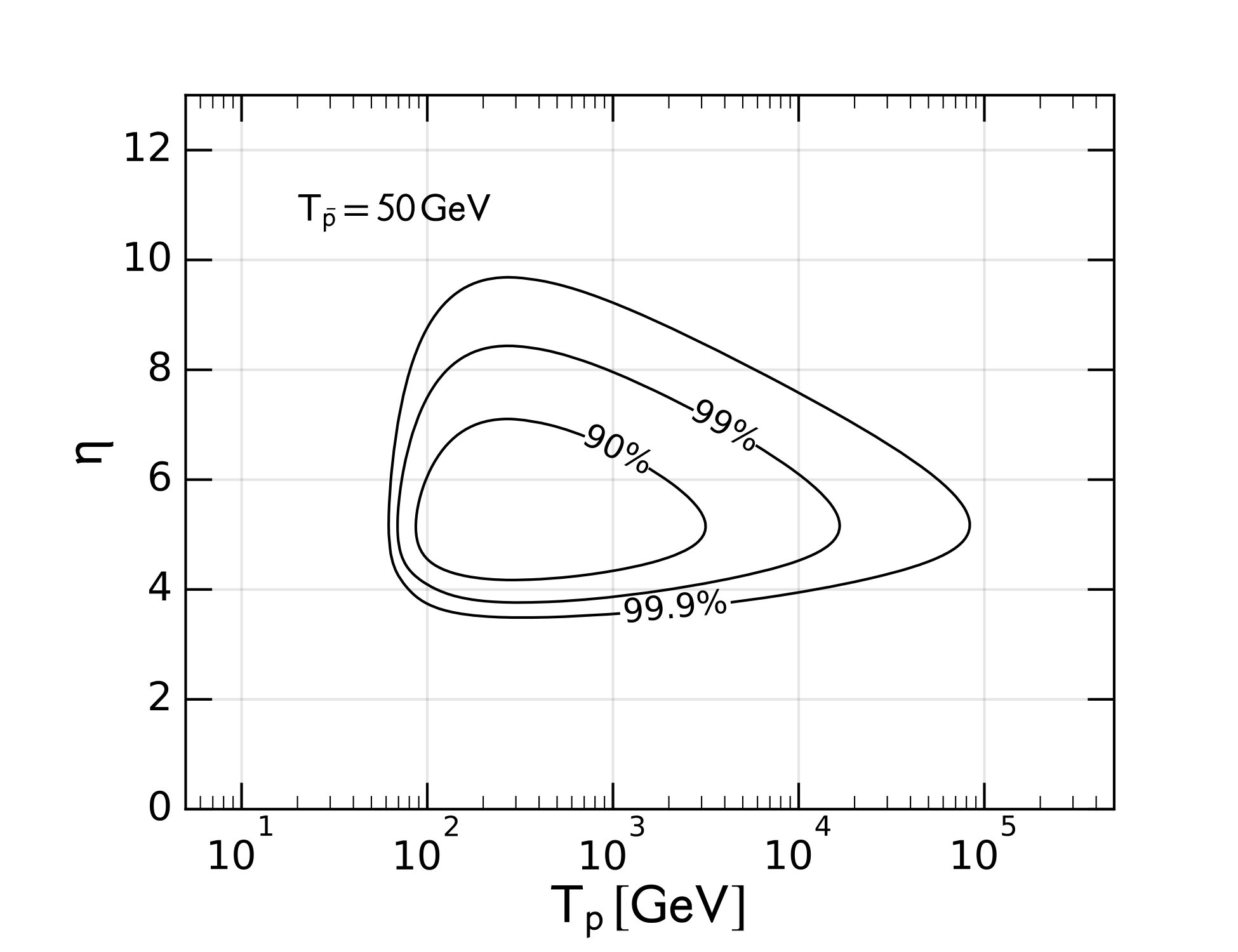

Fig. 6 illustrates the containment parameter space for the $pp$ channel when $x(T_{\bar{p}},T,\eta)$ = 0.90, 0.99 and 0.999, as function of $\eta$ and $T_{p}$ at fixed $T_{\bar{p}}=50$ GeV. Here and when not differently stated, we assume the cross section parametrization as in Ref. diMauro:2014_pbarCrossSectionparametrization . However, we do not expect large systematic deviations by changing the underlying cross section parametrization. We will explicitly verify this by changing to the Duperray 8 et al. Duperray:2003_pbarCrossSectionparametrizationForPA or Winkler Winkler:2017xor expression below. Note, that it is not possible to check any of the MC results (like for example Kachelriess:2015_pbarCrossSection ) because they are not available with complete angular dependence. In Fig. 6 we can see that the 90% of the antiprotons at $T_{\bar{p}}$ = 50 GeV are produced by protons with energies spanning about 90 GeV - 3 TeV and $\eta$ between 2 and 7, depending on $T_{p}$. In order to include the 99.9% of the $pp$ source spectrum, one has to consider protons with energies up to 70 TeV with pseudorapidity values around 5.

From the containment $x$ it is easy to assign values for $\sigma^{\mathrm{rel}}_{\sigma_{\mathrm{inv}}}$. Since increasing $x$ corresponds to decreasing contribution by construction, $\sigma^{\mathrm{rel}}_{\sigma_{\mathrm{inv}}}$ shall increase while $x$ varies from 0 to 1. By increasing $x$ up to 1, one increases the spanned kinematical parameter space. This correspondence ensures that our initial requirement (ii), see beginning of Sec. II, namely, more accurate determinations of the cross sections in the parameter space with large contribution, is fulfilled.

We fix a precision level for the relative uncertainties on the LI cross section for ${\bar{p}}$ production. To keep things simple we choose the step function

[TABLE]

where $x_{t}(T_{\bar{p}})$ is a threshold value for the containment function. The values of 3% and 30% are a free choice, which, however, is suggested by by the most precise values of current cross section measurements (see Fig. 9 in the following), on the one hand, and by the spread of various parametrizations in the energy regime of interest, on the other hand. Anyway, we will provide a comparison with different assumptions for the step function in Sec. III. Finally, the threshold $x_{t}(T_{\bar{p}})$ is fixed by the requirement to match AMS-02 accuracy, which is guaranteed by solving

[TABLE]

In practice, the right-hand side of this equation is taken from the parametrization of the uncertainties on the ${\bar{p}}$ data as reported in Fig. 5.

This procedure allows us to derive the required levels for $\sigma^{\mathrm{rel}}_{\sigma_{\mathrm{inv}}}$. Technically, we determine $\sigma^{\mathrm{rel}}_{\sigma_{\mathrm{inv}}}$ on a $400^{3}$ grid in the LAB frame variables summarized in Table 2. To get the distribution in $\sqrt{s},x_{\mathrm{R}},p_{\mathrm{T}}$ we transform those three variables to $T,T_{\bar{p}},\eta$ and then interpolate on our grid. To get a bijective mapping we have to add an assumption on the sign of $p_{\mathrm{L}}$. So we get two values for each set of $\sqrt{s},x_{\mathrm{R}},p_{\mathrm{T}}$ and choose the minimum.

III Results

We derive the parameter space of the inclusive $\bar{p}$ cross section which should be covered to determine the antiproton source term with the accuracy dictated by recent AMS-02 measurements AMS-02_Aguilar:2016_AntiprotonFlux . We show our results as functions of the kinematical variables in both the LAB and CM reference frames. As explained in the previous section, in the LAB frame the parameter space is described by the kinetic energy of the proton $T_{p}$, the kinetic energy of the antiproton $T_{\bar{p}}$, and and pseudorapidty of the antiproton $\eta$. Equivalently, the results can be expressed in terms of the CM frame, given by the CM energy $\sqrt{s}$, the ratio between the antiproton energy and its maximal energy $x_{R}$, and the transverse momentum of the antiproton $p_{\mathrm{T}}$. Unless stated differently, the $pp$ cross section parametrization is chosen as in Di Mauro et al. diMauro:2014_pbarCrossSectionparametrization .

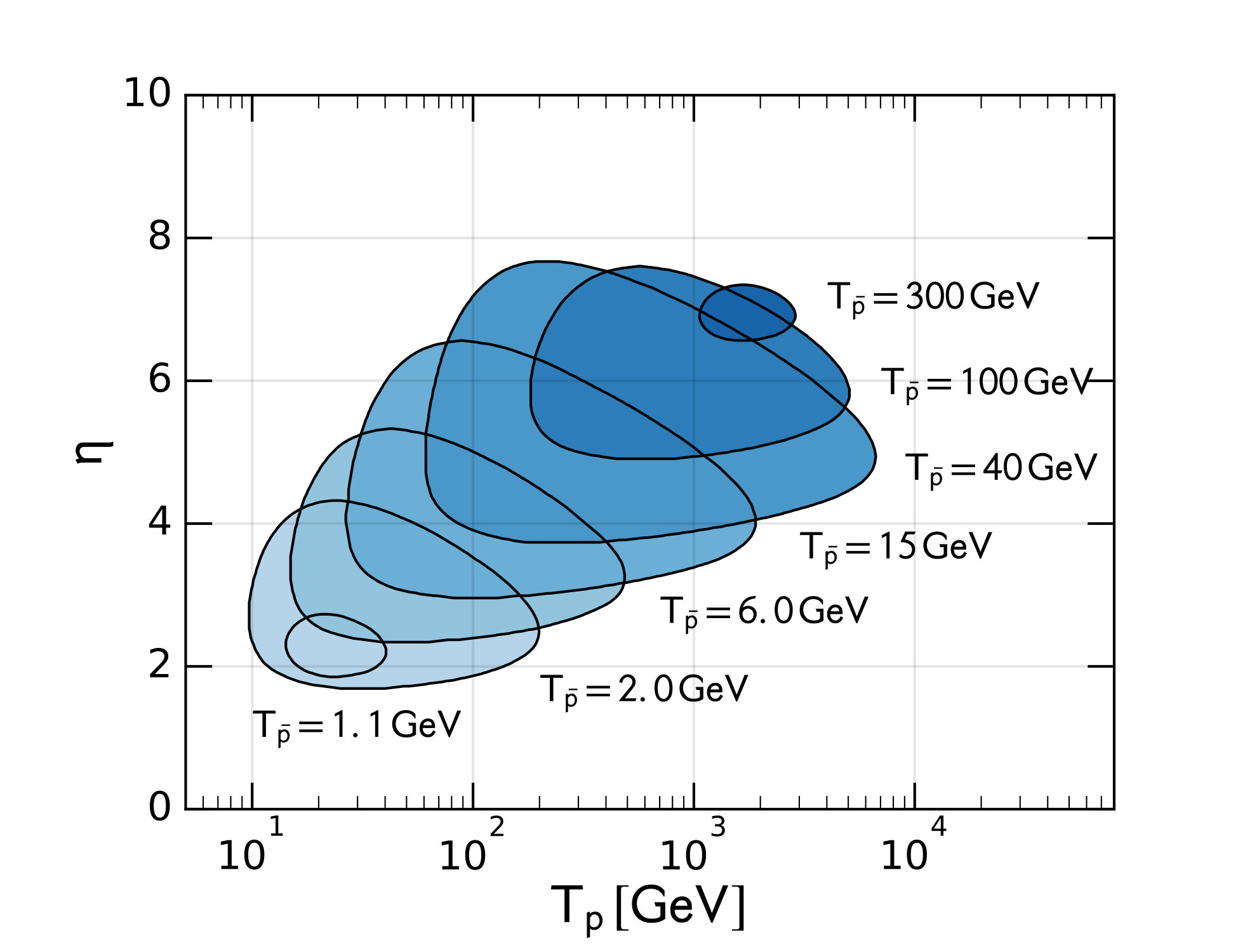

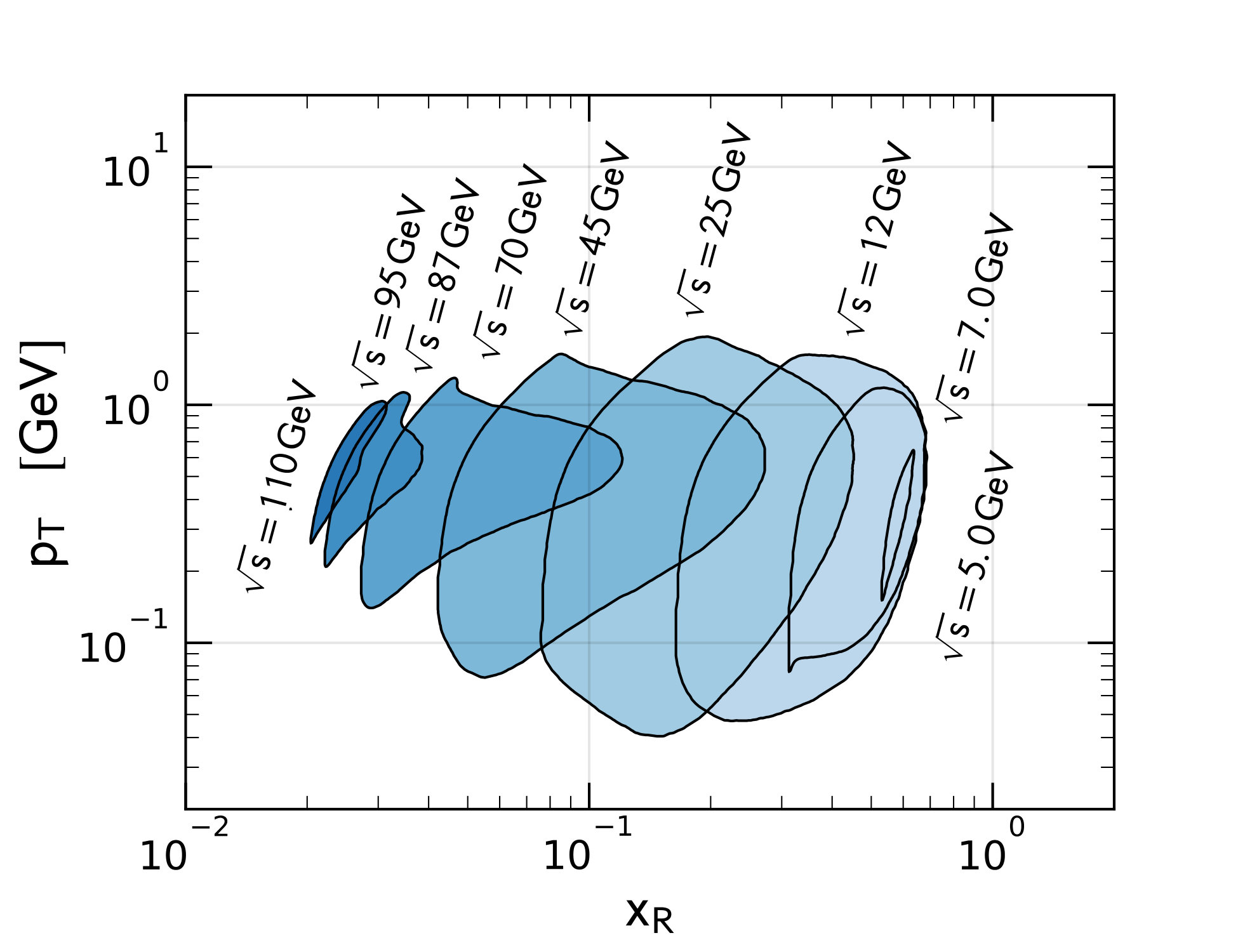

Fig. 7 shows the parameter space that has to be covered in order to guarantee the AMS-02 precision level on the ${\bar{p}}$ source term, if the $p+p\rightarrow\bar{p}+X$ cross section is determined with 3% uncertainty within the blue shaded regions and by 30% outside the contours. The plot is done for the LAB (left panel, a) and CM (right panel, b) reference frame variables. For the LAB frame we show the contours as functions of $\eta$ and $T$, for selected values of $T_{\bar{p}}$ from 1.1 (the lowest energy below 30% uncertainty in the CR ${\bar{p}}$ flux, see Fig. 5) to 300 GeV. As expected the contour size decreases when $T_{\bar{p}}$ approaches to 1 GeV, because there the AMS-02 uncertainty on the antiproton flux reaches 30%. A similar explanation holds for large $T_{\bar{p}}$. Antiprotons of increasing energy require the coverage of increasing $\eta$ values. For example, $\sigma_{\rm inv}(p+p\rightarrow{\bar{p}}+X)$ at $T_{\bar{p}}$=2 GeV is known at 3% level if data were taken with proton beams between 10 and 200 GeV and pseudorapidity from 1.8 to 4. If the whole AMS-02 energy range had to be covered with high precision, one should collect $p+p\rightarrow{\bar{p}}+X$ cross section data with proton beams from 10 GeV to 6 TeV, and $\eta$ increasing from 2 to nearly 8. Fig. 7b displays analogous information in the CM reference frame. We fix $\sqrt{s}$ to representative values from 5 to 110 GeV, and identify the regions in the $p_{\mathrm{T}}$-$x_{\mathrm{R}}$ plane. A full coverage of the parameter space should scan $p_{\mathrm{T}}$ from 0.04 to 2 GeV, and $x_{\mathrm{R}}$ from 0.02 to 0.7. For each value of $\sqrt{s}$, the extension of the contour within which the cross section is required at 3% precision level is correlated to the AMS-02 uncertainty on the antiproton flux.

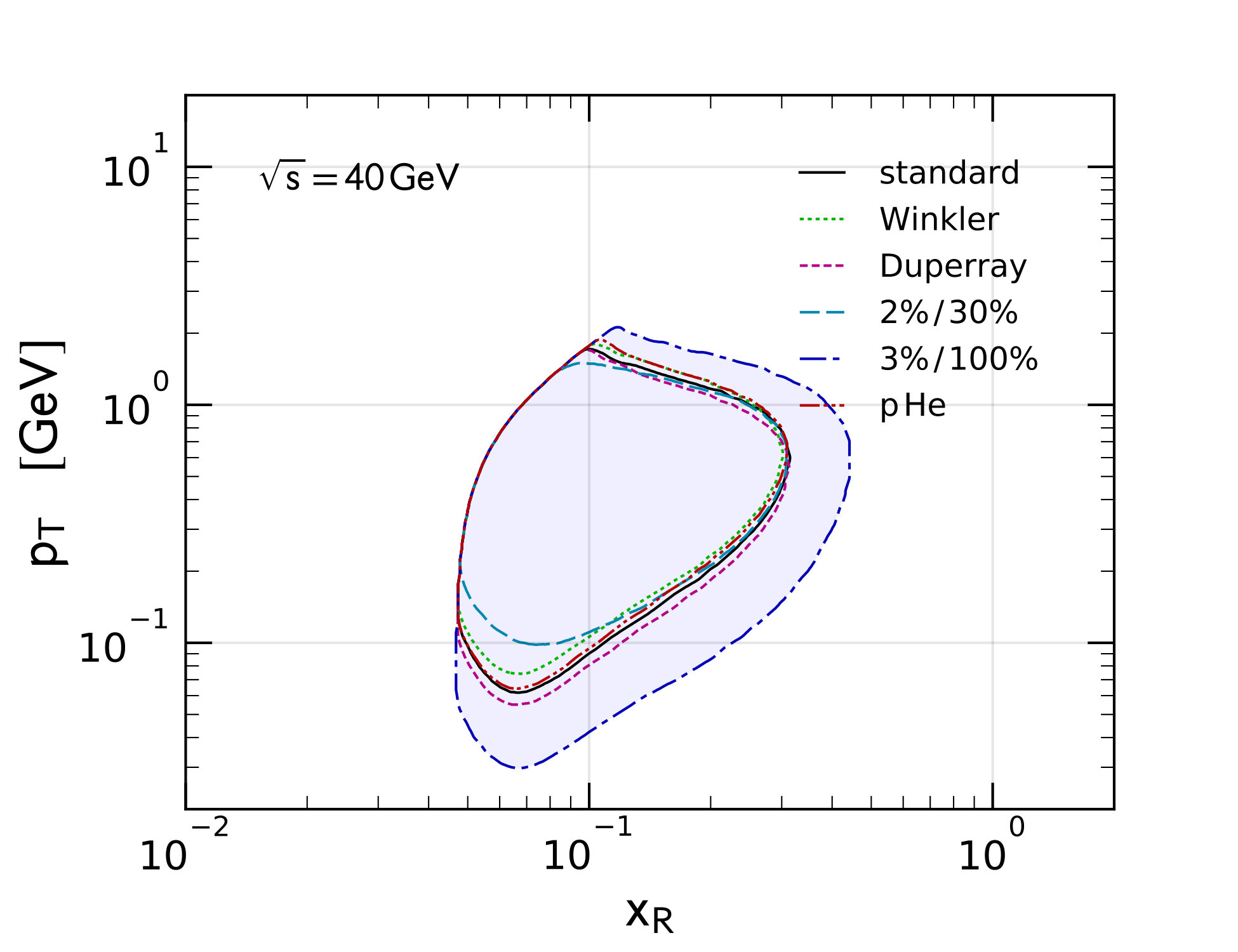

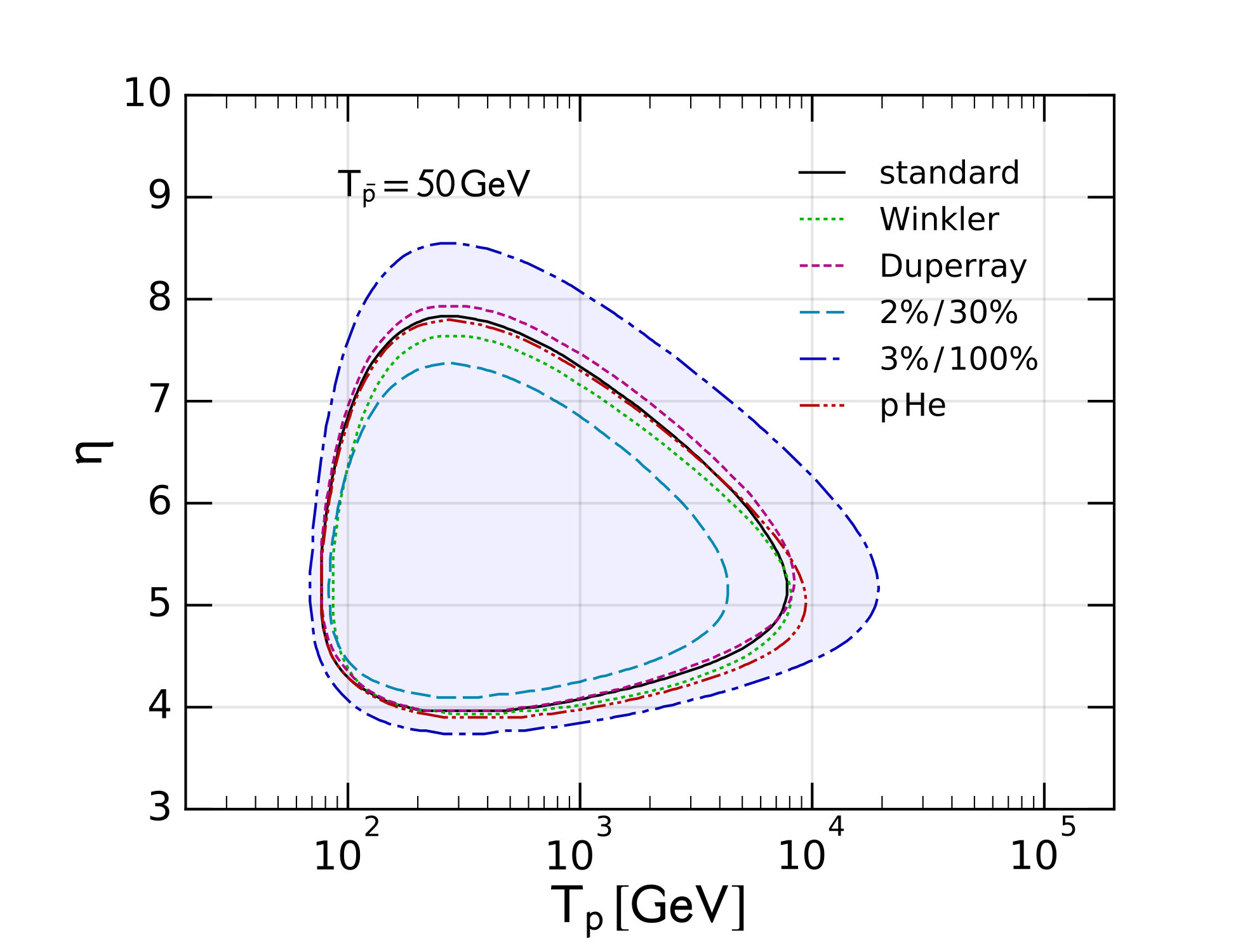

Furthermore, we estimate possible systematic effects on our predictions. In Fig. 8 we present the same information as in Fig. 7, now with different parametrizations for the cross section and modified requirements on the uncertainty levels. We recall that our standard setup is fixed by the $\sigma_{\rm inv}(p+p\rightarrow{\bar{p}}+X)$ as in Ref. diMauro:2014_pbarCrossSectionparametrization and uncertainty requirements of 3%/30% (inner/outer regions) as in Eq. (10). In Fig. 8a we display the results in the LAB reference frame for $T_{\bar{p}}$=50 GeV. Changing the parametrization for the cross section to the ones in Winkler:2017xor or Duperray:2003_pbarCrossSectionparametrizationForPA (their Eq. 6) has negligible effects. Instead, a smaller (higher) inner $\sigma^{\mathrm{rel}}_{\sigma_{\mathrm{inv}}}$ implies a smaller (larger) contours. Moving from 2%-30% to 3%-100%, the $T_{p}$ needed coverage pushes 4 TeV to 20 TeV. As a final point in this figure we address the $p$He cross section, where the computation is performed in the standard setup. It is interesting to note that the covered parameter space is very similar to $pp$. This result is expectable because at first order the $p$He and $pp$ cross sections are simply related by a rescaling, which drops out of the calculation. In this regard, it is possible to interpret all plots with $pp$ results also for the heavier channels $p$He or He$p$. Note, however, that in this case $T_{p}$ has to be understood as the kinetic energy per nucleon of the projectile. Naturally, all considerations also hold for the representation in the CM reference frame, as shown in Fig. 8b.

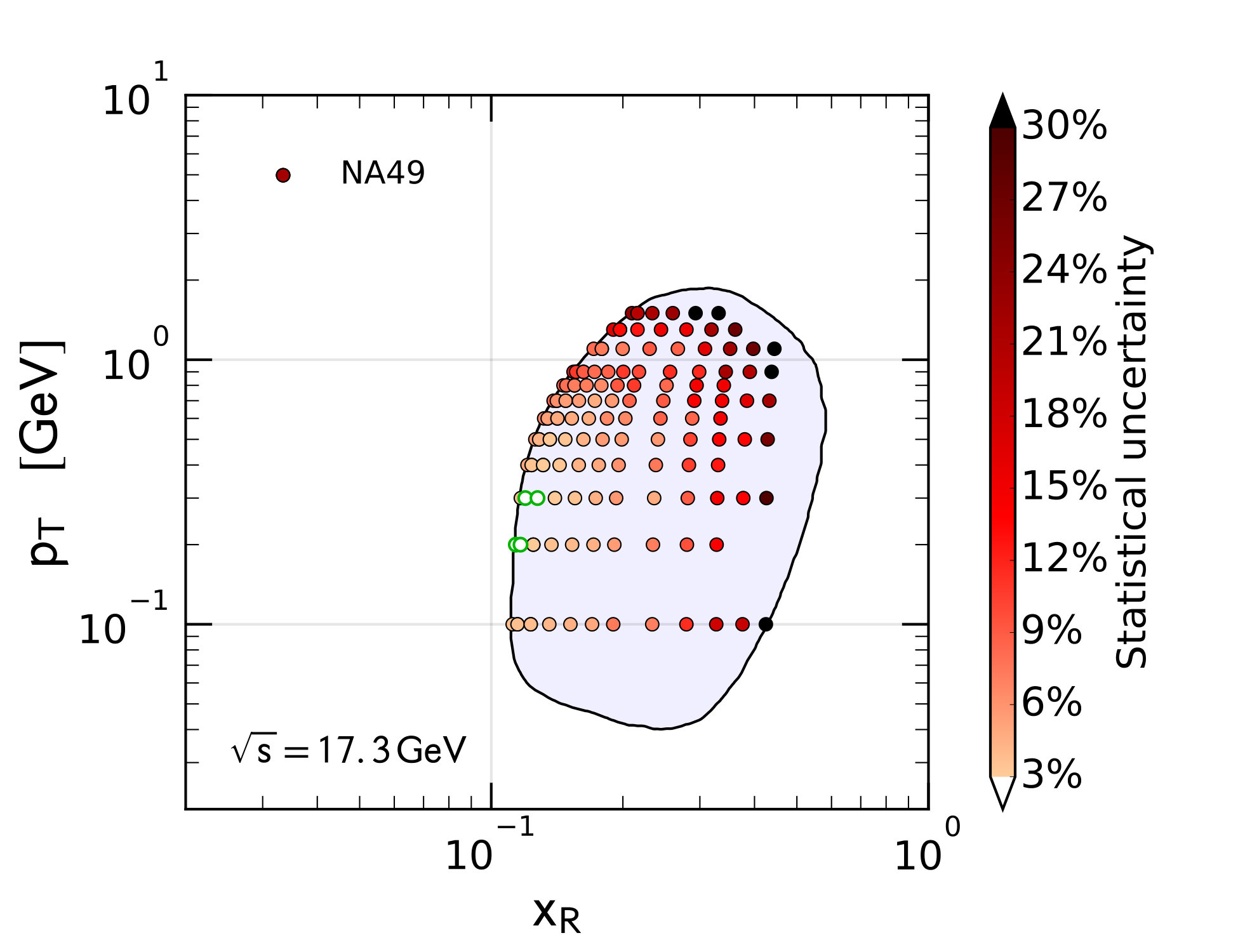

In Fig. 9 we display the state of the art by showing the NA49 data NA49_Anticic:2010_ppCollision on the $\sigma_{\rm inv}(p+p\rightarrow{\bar{p}}+X)$. Data is taken at $\sqrt{s}=17.3$ GeV corresponding to a proton beam at 158 GeV momentum on a fixed proton target. The points show the statistical uncertainty in the CM parameter space, while an overall systematic error of 3.3% (quadratic sum) is omitted. The parameter space of NA49 matches the requirement of AMS-02 coverage. But only four data points, indicated by the green border, fulfill the uncertainty requirement. The other data points exceed the 3% error level even by a large amount. We notice that due to the high density of points, which can improve the shape determination of $\sigma_{\mathrm{inv}}(p+p\rightarrow{\bar{p}}+X)$, the statistical uncertainties might decrease after the integration leading to the source term. However, it is not straightforward to estimate the amount of this improvement, if any, as the cross section has to be folded with the primary fluxes of $p$ or He, which are grossly power laws with spectral index 2.7. On the other hand, the 3.3% overall systematic uncertainty is irreducible. Similar information for a selection of data samples collected in the previous decades are shown in Appendix B.

Given the relevance of the helium production channels in the ${\bar{p}}$ spectrum, we come back to the discussion of heavier channels and explicitly study the parameter space an experiment, using high-energy protons scattering off a fixed helium target, should have in order to fulfill the 3%-30% requirement and reach the AMS-02 precision of the ${\bar{p}}$ spectrum. We remind that, as stated in Eq. (7), the relevant cross section uncertainties are set equal for all the production channels. In Fig. 10 we display the according contours in the parameter space of antiproton momentum and transverse momentum. All variables are in the fixed target frame and, hence, the conveyed information is very similar to Fig. 7(a). The parameter space which has to be measured spans from below 10 GeV to more than 6.5 TeV, while the required ${\bar{p}}$ momentum tracks the AMS-02 measurement range from about 1 to 350 GeV. The LI transverse momentum $p_{\mathrm{T}}$ remains, as expected from Fig. 7(b), between 0.04 and 2 GeV. Again, at $T_{p}$ below 10 GeV or equivalently above 2 TeV the size of the contours shrinks because then the dominant production of antiproton is below or above the AMS-02 measurement range, respectively.

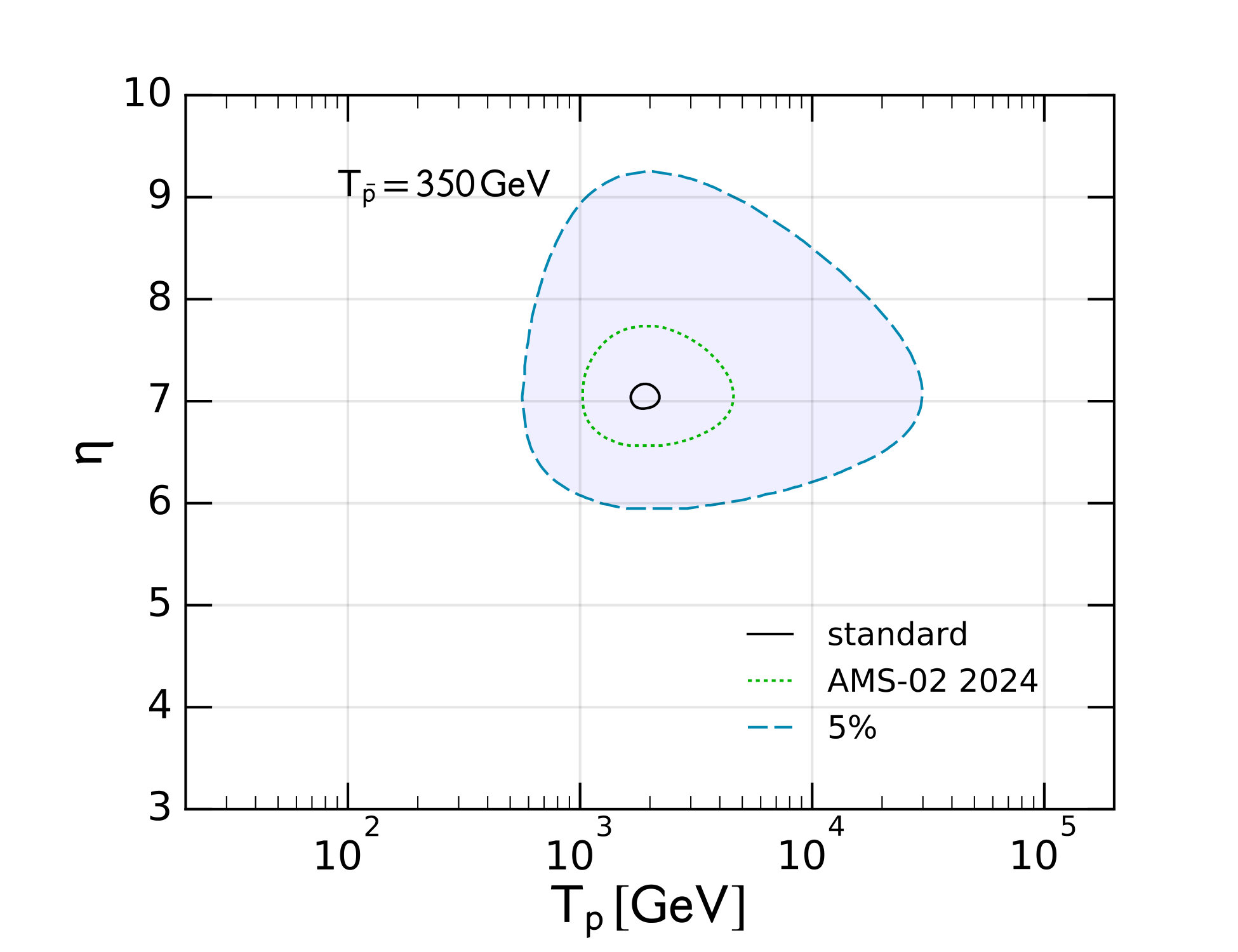

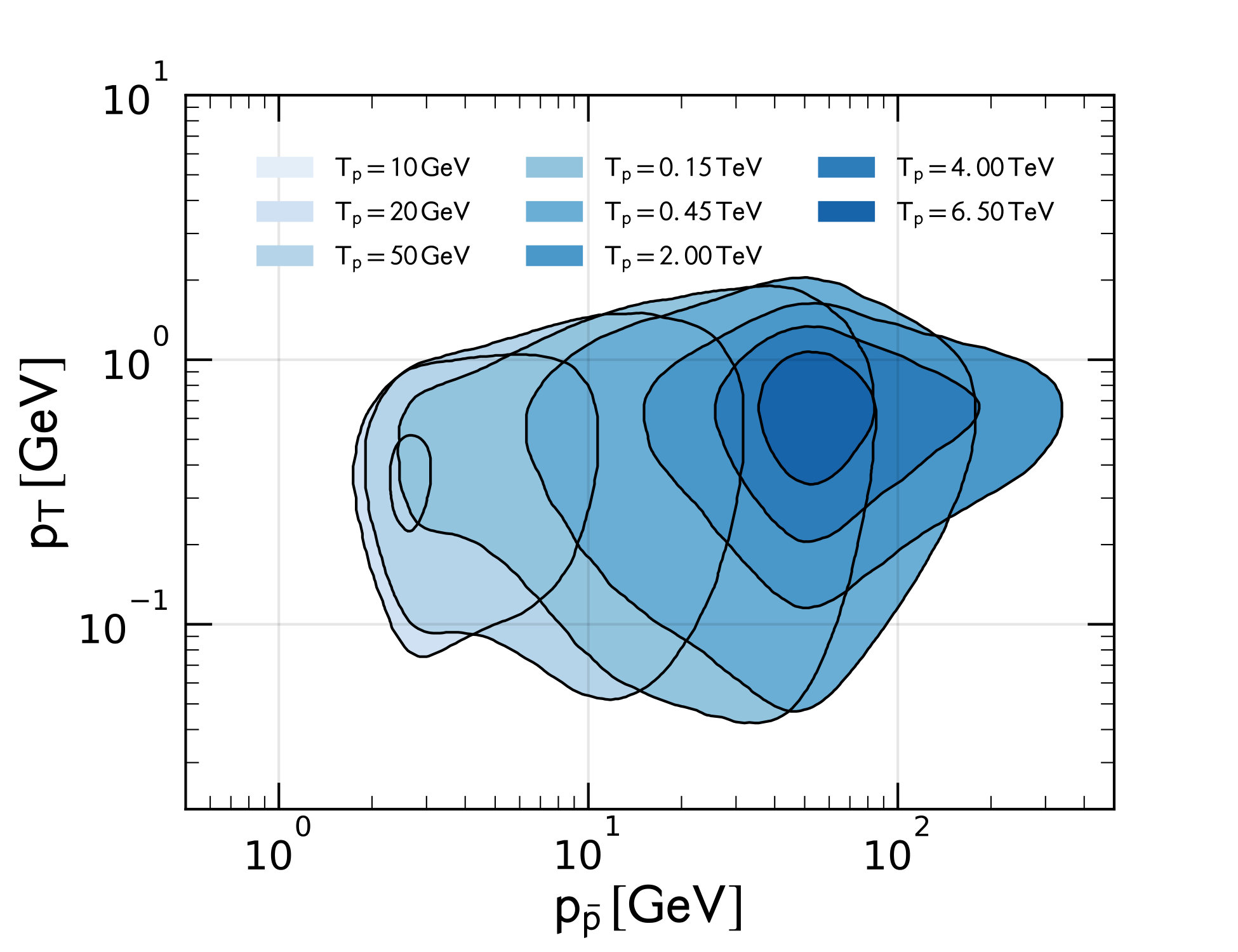

Finally, we undergo the exercise to investigate future requirements on cross section measurements to explain the highest energies which is measured by AMS-02. Fig. 11 is a dedicated plot for fixed $T_{\bar{p}}=350$ GeV, which corresponds to the central value of the last energy bin of the current AMS-02 measurement. The figure contains the same information as Fig. 7(a), displaying the usual contours with 3% and 30% accuracy requirement for inner and outer parameter space, respectively. We find that the $p+p\rightarrow{\bar{p}}+X$ cross section should be measured with a proton beam of $T_{p}\sim 2$ TeV and $\eta$ around 7. The corresponding CM frame variables are $\sqrt{s}\sim 60$ GeV, $x_{\mathrm{R}}\sim 0.18$, and $p_{\mathrm{T}}\sim 0.64$ GeV, which are probably more feasible for experiments than the high pseudorapidity values required in the LAB frame.

In the present situation the large energy part T_{\bar{p}}\lower 3.01385pt\hbox{;\stackrel{{\scriptstyle\textstyle>}}{{\sim}};}100 GeV of the AMS-02 flux is dominated by statistical uncertainties. Hence, until the scheduled operation of AMS-02 in 2024, the accuracy will increase. To estimate this improvement, we assume that systematical uncertainties stay constant, while the statistical uncertainty reduces according to the Poisson statistics. The current AMS-02 analysis contains four years of data, and until 2024 AMS-02 may collect 13 years of data. Accordingly, we rescale the statistical error by a factor of $\sqrt{4/13}$. As expected, the contour in Fig. 11 slightly increases. As a last step, we show the size of a contour if we require 5% accuracy on the whole AMS-02 energy range. This leads to a significant increase of the $T_{p}-\eta$ contour. Now fixed target measurements would need to cover a parameter space for beam energies from about 0.5 TeV up to 30 TeV, and for pseudorapidity from 6 to above 9.

IV Summary and Conclusion

Antiprotons in CRs have been measured with space-based experiments with unprecedented accuracy. After the high-precision measurement by the PAMELA detector, the flux of cosmic-ray (CR) antiprotons has been provided with unprecedented accuracy by AMS-02 on the International Space Station, with data in the energy range 0.5-400 GeV and errors that are as low as 5%. The CR antiprotons are expected to be produced by the scatterings of CR proton and helium off the interstellar medium, made by hydrogen and helium at rest. The inclusive cross sections for the possible interactions induce a significant uncertainty in the determination of the antiproton source term and finally on the antiproton flux.

In this paper we have determined the requirements on the kinematic parameter space that the $p+p\rightarrow{\bar{p}}+X$ cross section measurements should cover in order not to induce uncertainties in the theoretical predictions exceeding the ones inherent in the CR ${\bar{p}}$ flux data. We have assumed that the cross sections could be measured with a few percent accuracy in the relevant regions. Our analysis is performed in terms of the ${\bar{p}}$ source term, which is a proxy of the flux and of its precision level, and is the convolution of the progenitor CR fluxes with the ISM targets and the relevant production cross sections. Our results are discussed both in the center-of-mass reference frame, suitable for collider experiments, and in the laboratory frame, as occurring in the Galaxy. To cover all the AMS-02 ${\bar{p}}$ energy range with the cosmic data precision level, which are now of the order of 5%, one should collect $p+p\rightarrow{\bar{p}}+X$ cross section data with proton beams from 10 GeV to 6 TeV and pseudorapidity $\eta$ increasing from 2 to nearly 8. Alternatively, a full coverage of the CM parameter space should scan $p_{\mathrm{T}}$ from 0.04 to 2 GeV, and $x_{\mathrm{R}}$ from 0.02 to 0.7. Similar requirements are found for the $p+\mathrm{He}\rightarrow{\bar{p}}+X$ and $\mathrm{He}+p\rightarrow{\bar{p}}+X$ channels. These conclusions are not affected by different choices of the cross section parametrization. The necessary kinematical coverage is still far from the present collection of data, but it could be fulfilled by fixed target experiments with energies from tens of GeV up to few TeV, which are in the reach of CERN accelerators.

Acknowledgments

We would like to thank A. Cuoco, G. Graziani, D. Maurin, G. Passaleva and M.W. Winkler for very useful discussions. This work is supported by the research grants TAsP (Theoretical Astroparticle Physics) and Fermi funded by the Istituto Nazionale di Fisica Nucleare (INFN). M. di Mauro acknowledges support by the NASA Fermi Guest Investigator Program 2014 through the Fermi multiyear Large Program No. 81303 (P.I. E. Charles).

Appendix A Useful kinematics

Maximal energy of product particles

Assuming the generic process $a+b\rightarrow c+X$ in the CM frame we solve for the total energy $E_{c}$.

[TABLE]

Here $p_{i}$ are the four-momenta of particle $i$. In the case of ${\bar{p}}$ production in $pp$ scattering, we have $m_{c}=m_{p}$ and, due to baryon number conservation, $m_{X,\mathrm{min}}=3m_{p}$. Therefore, the maximal energy allowed for the produce antiproton - which enters in the definition of $x_{R}$ - is:

[TABLE]

Inertial frames and Lorentz transformation

During the analysis we use two inertial frames. On the one hand, there is the CM frame of the proton-proton or, in the more general case, the nucleon-nucleon scattering. Variables in this system are denoted with a * superscript in the following. On the other hand, in the LAB frame one of the particles is at rest. The LI square of the CM energy is

[TABLE]

where $E^{*}$ is the total energy of the two protons in the CM frame, $E$ is the incident proton energy in LAB frame, and $m$ is the proton (nucleon) mass. Formally the relation between energy $E$ and momentum $p$ between the two frames is given by the Lorentz transformation

[TABLE]

Here $\beta^{*}$ is the particle velocity in terms of the speed of light $c$ (we use the convention $c=1$) and $\gamma*=\sqrt{1-(\beta^{*})^{2}}$ is the corresponding Lorentz factor. All of them are linked as follows:

[TABLE]

Relation of kinetic variables

Here we give explicitly the relation between the CM frame variables $\{\sqrt{s},x_{\mathrm{R}},p_{\mathrm{T}}\}$ and the LAB frame variables $\{T,T_{\bar{p}},\eta\}$. From Eq. (14) we infer

[TABLE]

The transverse momentum is invariant under Lorentz transformation

[TABLE]

where we used $\sin(\theta)=1/\cosh(\eta)$ for $\theta\in[0,\pi]$.

Finally, we get:

[TABLE]

Energy-differential and invariant cross section

[TABLE]

We used $\cos(\theta)=\tanh(\eta)$ in the last line.

Appendix B Parameter space covered by $pp$ experiments. Additional plots.

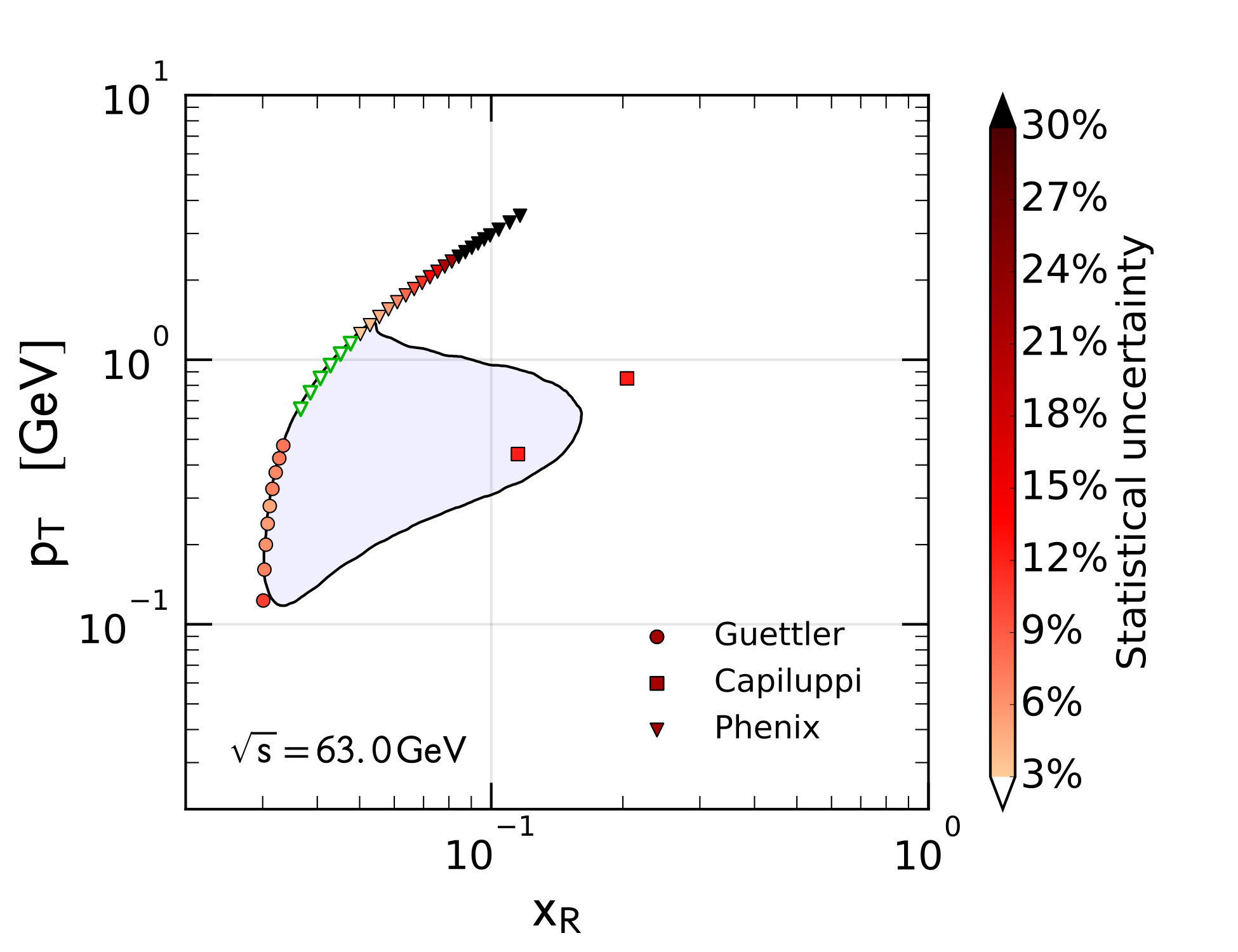

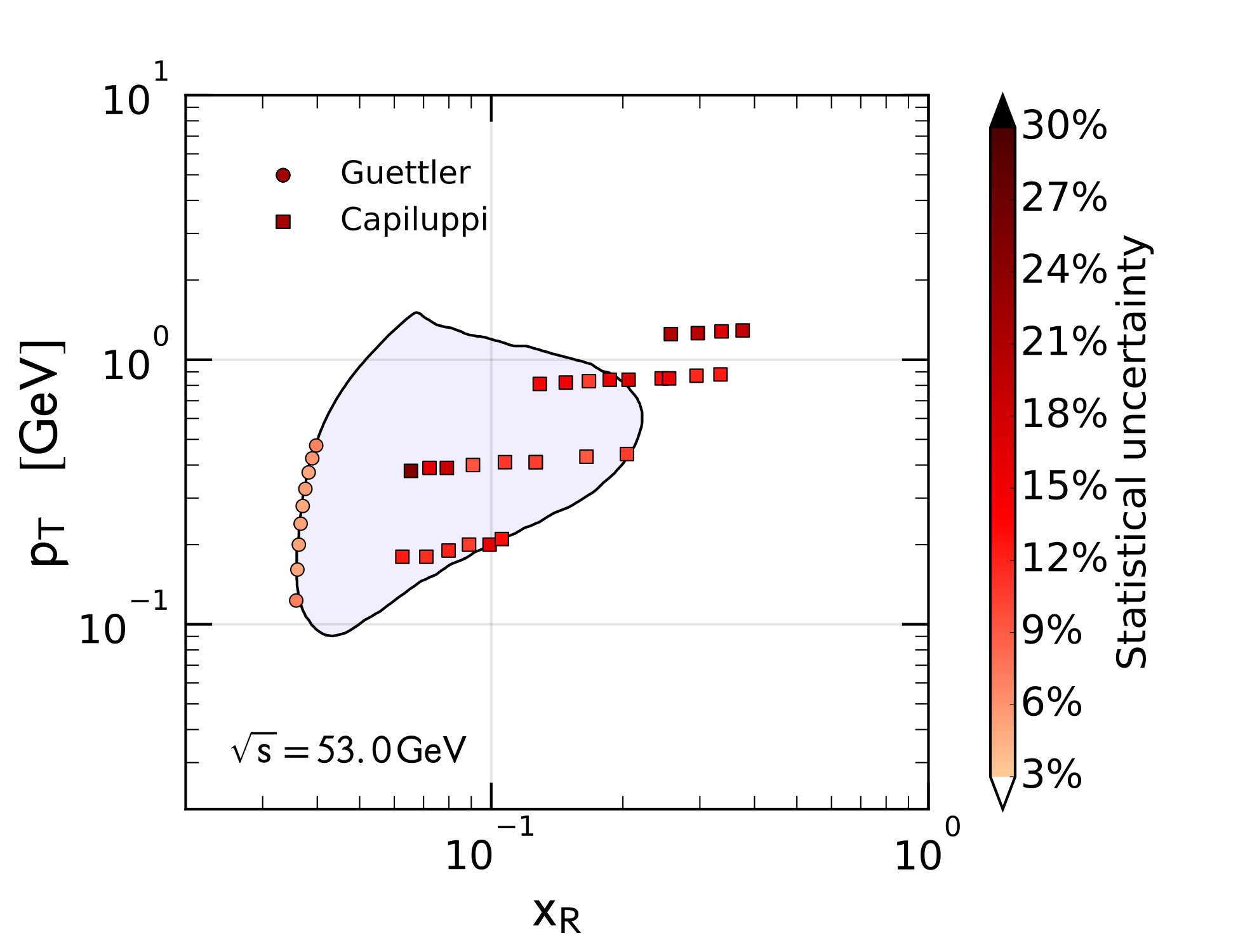

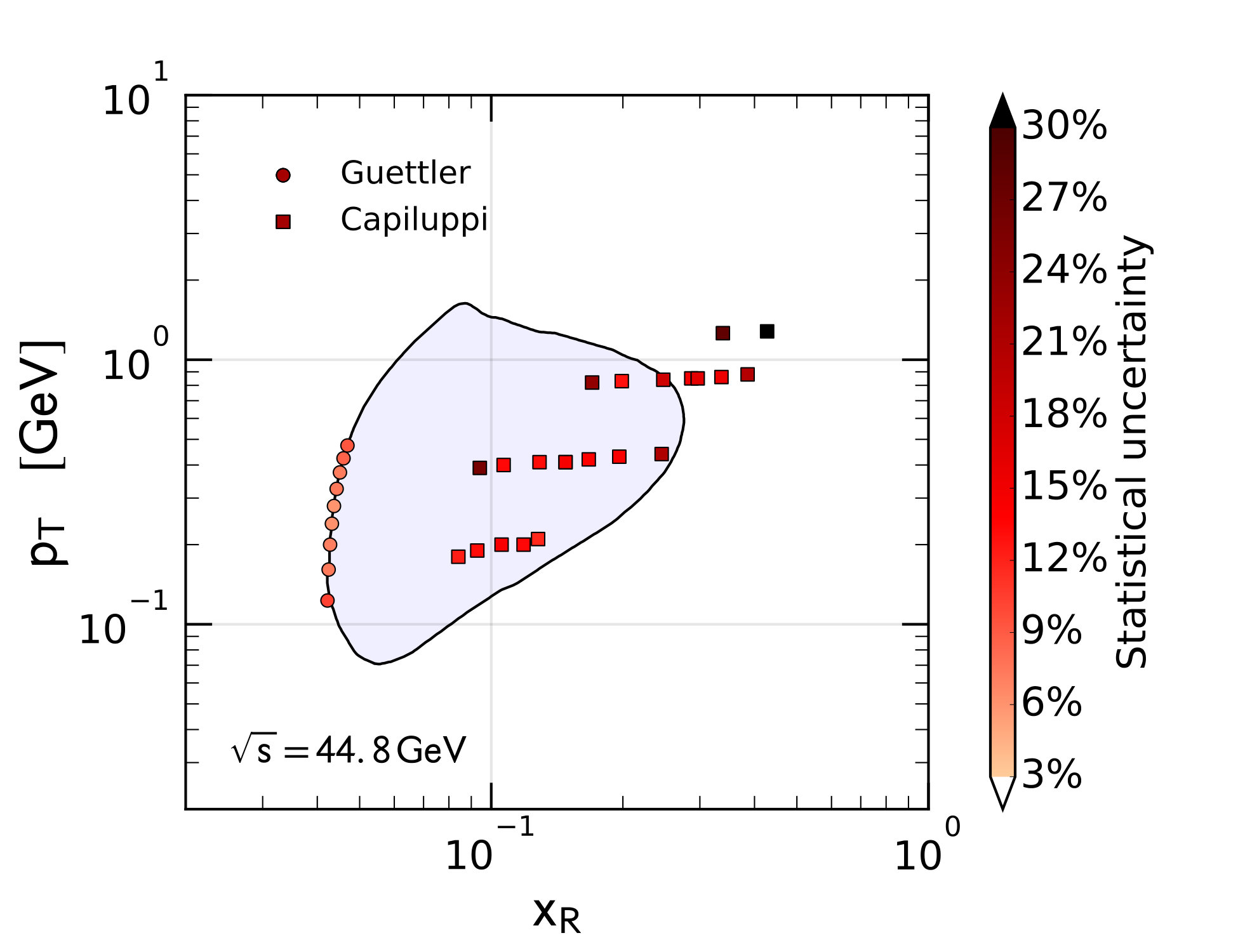

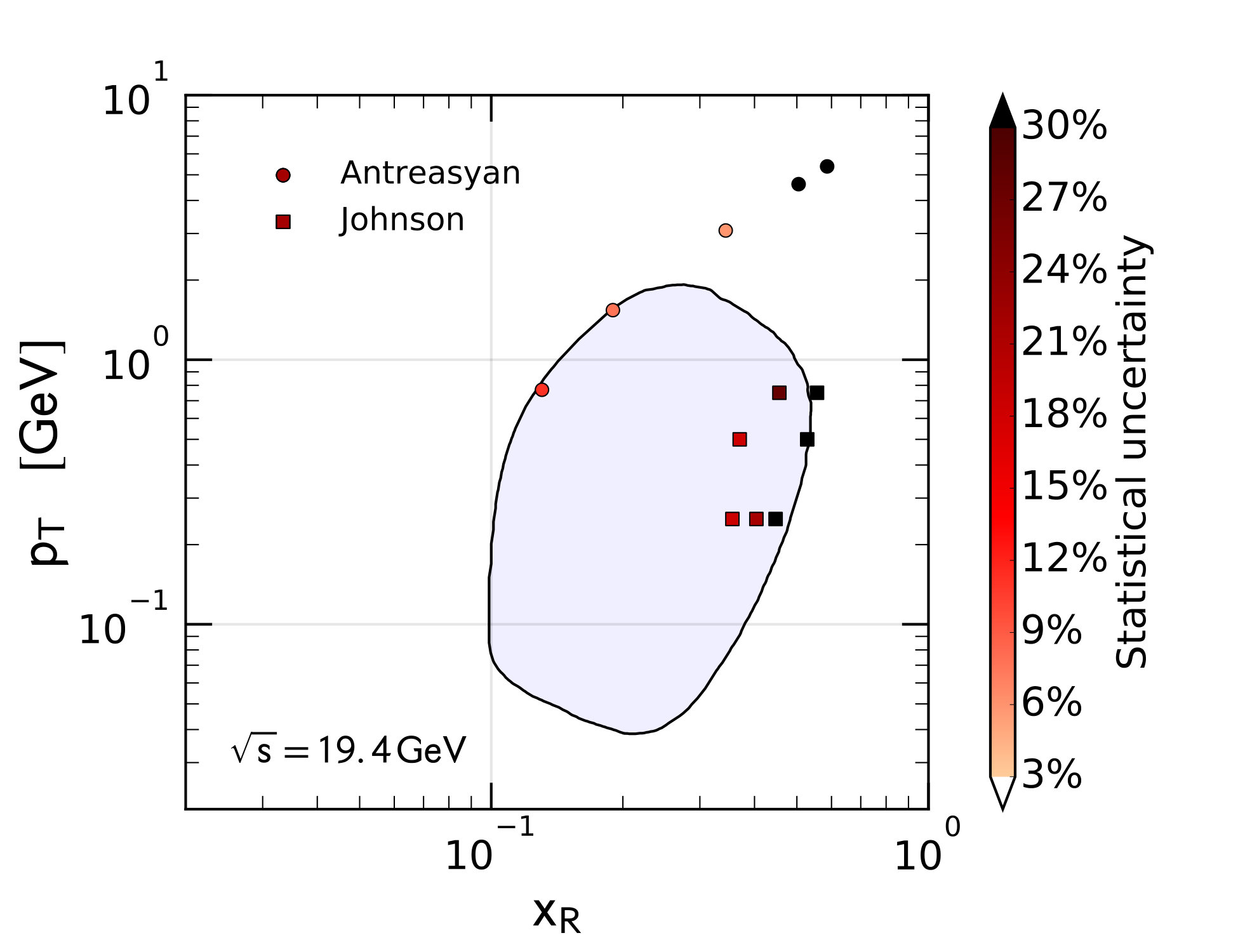

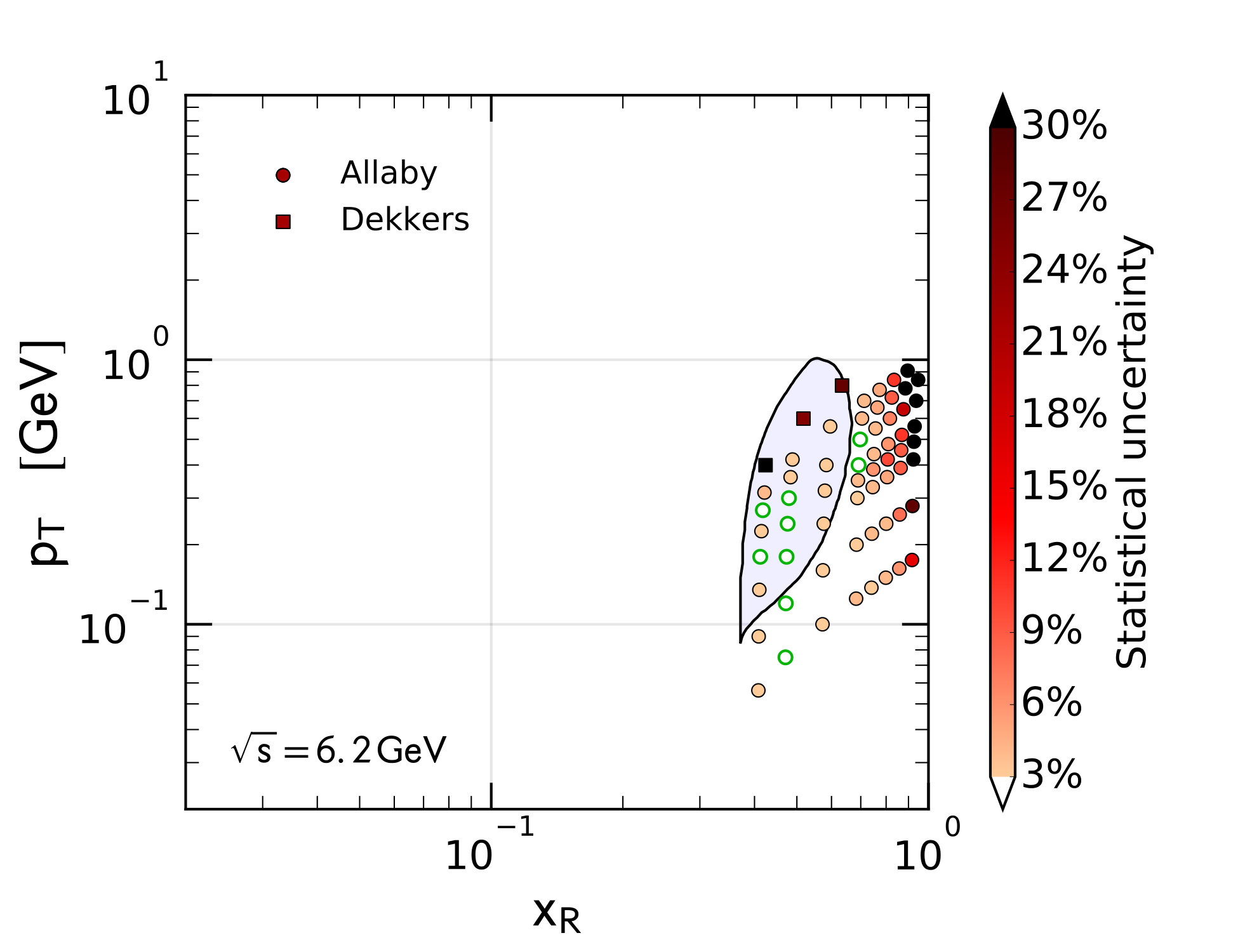

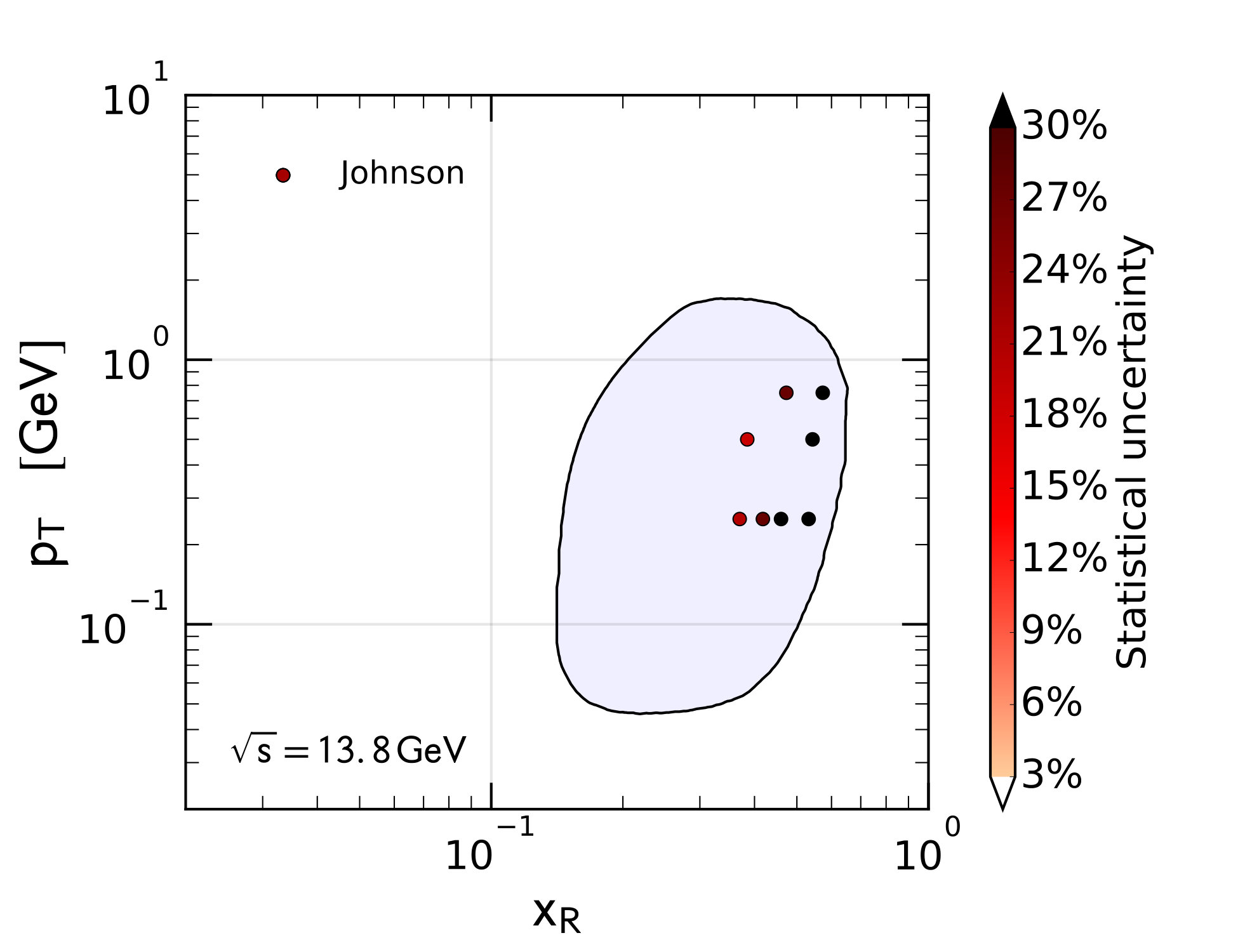

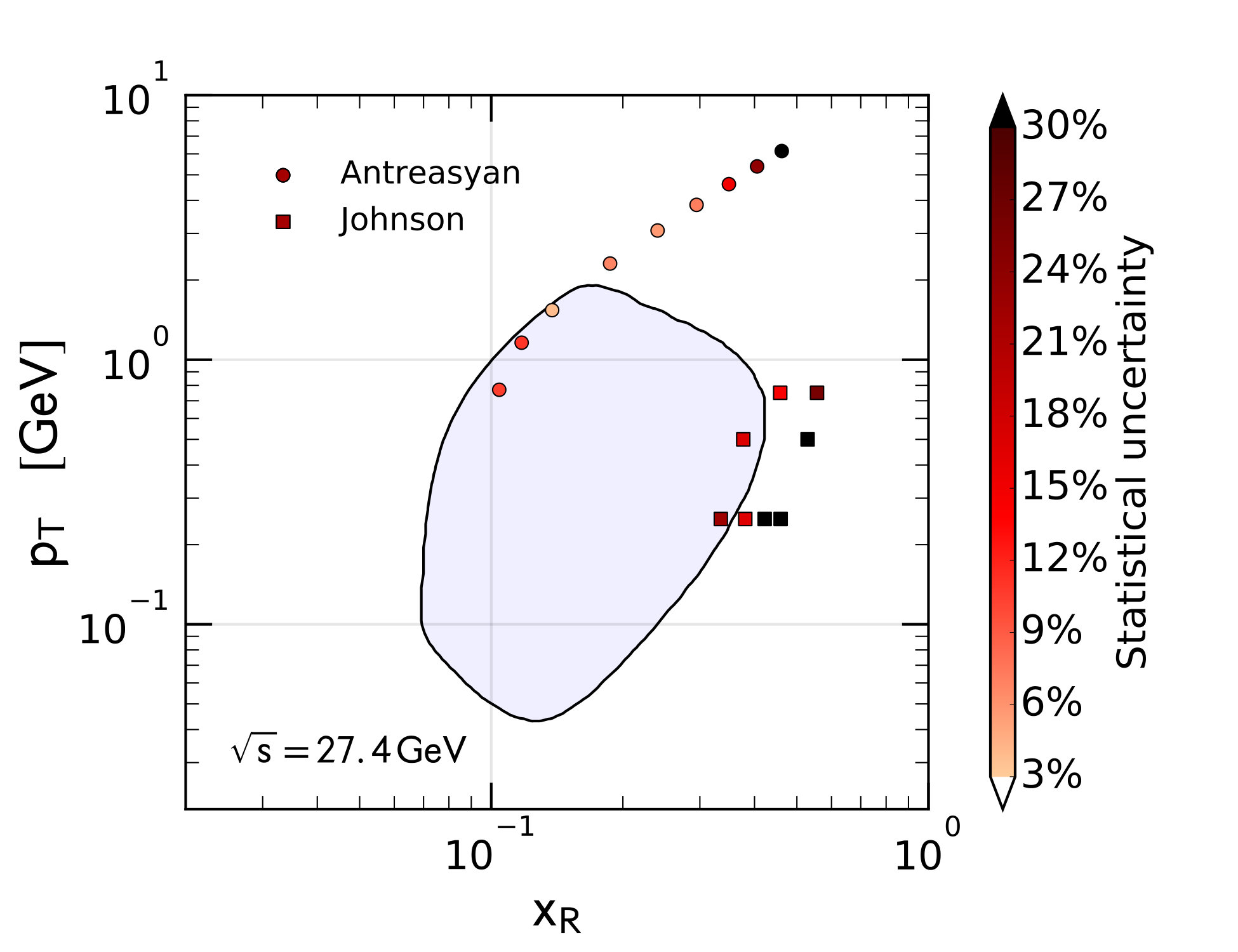

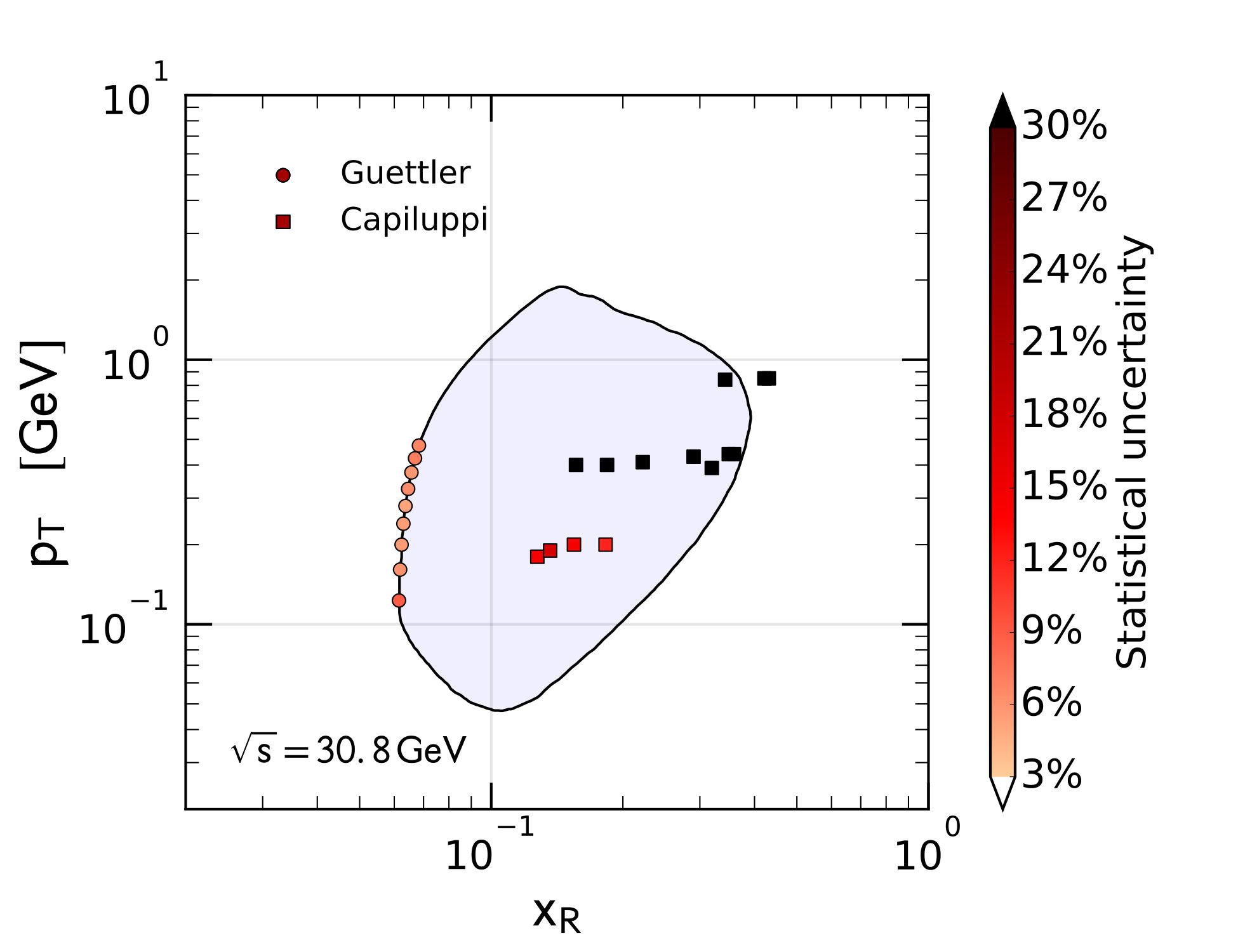

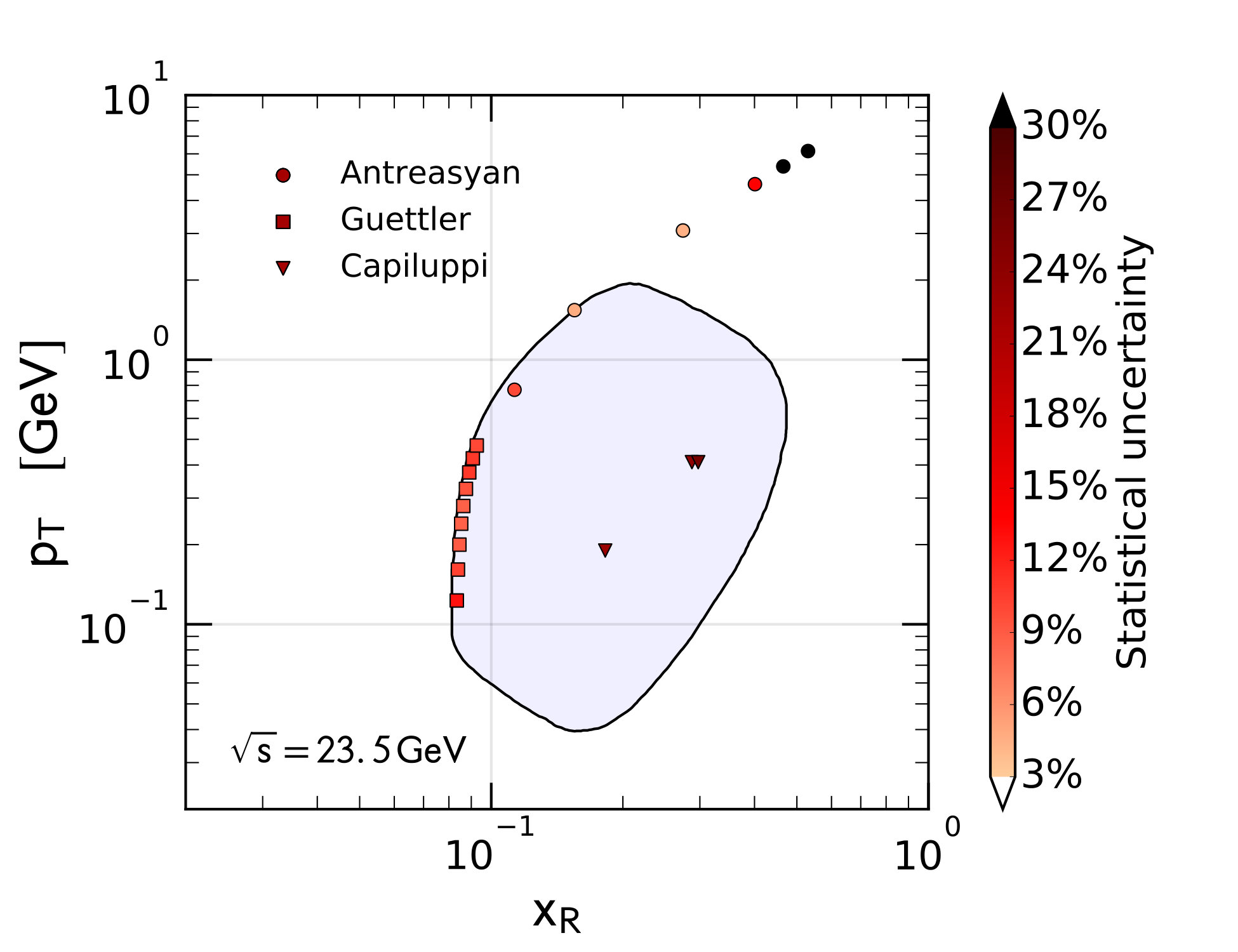

We extend the information already given in Fig. 9 to several $p+p\rightarrow{\bar{p}}+X$ cross sections data prior to NA49. The data are shown in Fig. 12 and 13 for increasing $\sqrt{s}$ as functions of $p_{\mathrm{T}}$ and $x_{R}$. It is evident from these figures that the data have large statistical errors and do not properly cover the parameter space region required by the AMS-02 ${\bar{p}}$ data. The overall systematic errors have been omitted here but are reported in Table 3. These figures are a simplified visualization of the conclusions already gotten from the analysis of this data as performed, i.e., in diMauro:2014_pbarCrossSectionparametrization .
