Effects of jet-induced medium excitation in $\gamma$-hadron correlation in A+A collisions

TL;DR

This paper introduces a coupled transport-hydrodynamics model to simulate jet-medium interactions in heavy-ion collisions, successfully reproducing experimental data and predicting soft hadron enhancements and azimuthal broadening.

Contribution

The development of CoLBT-hydro, a GPU-accelerated (3+1)D simulation framework that models jet transport and medium excitation simultaneously in high-energy collisions.

Findings

Accurately reproduces RHIC data on hadron suppression.

Predicts soft hadron enhancement from jet-induced medium excitation.

Shows broadening of soft hadron azimuthal distribution relative to jets.

Abstract

Coupled Linear Boltzmann Transport and hydrodynamics (CoLBT-hydro) is developed for co-current and event-by-event simulations of jet transport and jet-induced medium excitation (j.i.m.e.) in high-energy heavy-ion collisions. This is made possible by a GPU parallelized (3+1)D hydrodynamics that has a source term from the energy-momentum deposition by propagating jet shower partons and provides real time update of the bulk medium evolution for subsequent jet transport. Hadron spectra in $\gamma$-jet events of A+A collisions at RHIC and LHC are calculated for the first time that include hadrons from both the modified jet and j.i.m.e.. CoLBT-hydro describes well experimental data at RHIC on the suppression of leading hadrons due to parton energy loss. It also predicts the enhancement of soft hadrons from j.i.m.e. The onset of soft hadron enhancement occurs at a constant transverse momentum due to the thermal nature of soft hadrons from j.i.m.e. which also have a significantly broadened azimuthal distribution relative to the jet direction. Soft hadrons in the $\gamma$ direction are, on the other hand, depleted due to a diffusion wake behind the jet.

Figures

Equations

$$p_a\cdot \partial f_a$$

$$\frac{d{N}_g^a}{dzd{k}_{\perp }^{2}d\tau }=\frac{6{\alpha }_s{P}_a(z)k_{\perp }^4}{\pi (k_{\perp }^2+z^2{m}^2{)}^4}\frac{p\cdot u}{p_0}{\hat{q}}_a(x){\sin }^2\frac{\tau -{\tau }_i}{2{\tau }_f},$$

$$j^{\nu }$$

$$D(z)={\frac{d{N}_h}{dz}|}_{\mathrm{LBT}}+{\frac{d{N}_h}{dz}|}_{\mathrm{hydro}}^{w/jet}-{\frac{d{N}_h}{dz}|}_{\mathrm{hydro}}^{no/jet},$$

Full text

Introduction. Parton energy loss in dense medium was predicted to lead to jet quenching in heavy-ion collisions Wang:1991xy . Experimental discovery of jet quenching at Relativistic Heavy-ion Collider (RHIC) provides important evidence for the formation of strongly coupled quark-gluon plasma (QGP) Adcox:2001jp ; Wang:2004dn . Recent theoretical and experimental progress at both RHIC and the Large Hadron Collider (LHC) have advanced the jet tomography as a powerful tool for the study of QGP properties Majumder:2010qh ; Qin:2015srf ; Chang:2015hqa .

Jet quenching leads to suppression of leading hadrons, dihadron and $\gamma$-hadron correlations, due to parton energy loss Wang:1996yh ; Vitev:2002pf ; Zhang:2007ja ; Zhang:2009rn . It also modifies jet spectra, dijet and $\gamma$-jet correlations, jet profiles and jet fragmentation functions Vitev:2009rd ; Aad:2010bu ; Qin:2010mn ; CasalderreySolana:2010eh ; Young:2011qx ; Dai:2012am ; Chien:2015hda ; Milhano:2015mng ; Chang:2016gjp ; Blaizot:2015lma ; Kang:2017frl . Since jets are reconstructed from collimated cluster of hadrons within a jet cone, the final jet modification will be determined not only by energy loss of the leading jet shower partons but also how the lost energy is redistributed in the medium through induced radiation, rescattering and jet-induced medium excitation (j.i.m.e.) Wang:2013cia ; Blaizot:2013hx ; Apolinario:2012cg ; Fister:2014zxa ; Casalderrey-Solana:2015vaa . Similarly, dissipation of lost energy in medium can also influence soft hadron spectra associated with hard jet production Andrade:2014swa . Tomography of QGP with jets and jet-hadron correlations therefore requires a complete understanding of both jet transport in a fluctuating and dynamically evolving QGP medium and j.i.m.e..

Jet-induced medium excitation in heavy-ion collisions has been the subject of many recent studies CasalderreySolana:2004qm ; Stoecker:2004qu ; Li:2010ts . Theoretical tools used include parton transport Xu:2004mz ; Schenke:2009gb ; Zapp:2008gi ; Zapp:2012ak ; He:2015pra ; Cao:2016gvr ; Cao:2017hhk , hydrodynamics Betz:2008ka ; Qin:2009uh ; Tachibana:2015qxa ; Tachibana:2017syd and AdS/CFT Gubser:2007ga ; Chesler:2007sv . The Linear Boltzmann Transport (LBT) model has been developed for the study of both jet transport and j.i.m.e. in QGP Wang:2013cia ; Li:2010ts ; He:2015pra ; Cao:2016gvr ; Cao:2017hhk . It simulates the propagation of not only jet shower partons and radiated gluons but also recoil and back reaction partons from jet-medium interaction within perturbative QCD (pQCD).

We have recently developed the first Coupled Linear Boltzmann Transport and hydrodynamics (CoLBT-hydro) in which LBT for jet propagation is coupled to (3+1)D relativistic hydrodynamics in real time. In this coupled approach, LBT provides a source term for energy-momentum deposition by propagating partons in the hydrodynamics which in turn updates the bulk medium profile for LBT in the next time step. CoLBT-hydro for event-by-event simulations is made possible only with a Graphics-Processing-Unit (GPU) parallelized (3+1)D hydrodynamics. It combines the pQCD approach for the propagation of energetic jet shower partons with the hydrodynamic evolution of the strongly coupled QGP medium, including j.i.m.e.. It therefore can describe both high and low $p_{T}$ phenomena in high-energy heavy-ion collisions. We report in this Letter our first study of $\gamma$-hadron correlations with CoLBT-hydro. We study in particular the effect of j.i.m.e. in soft hadrons associated with the suppression of leading hadrons due to parton energy loss in $\gamma$-jet events of heavy-ion collisions.

LBT model. In LBT model, jet transport is simulated according to a linear Boltzmann equation 111Note that in the first publication of LBT model He:2015pra , the degeneracy factor $\gamma_{b}$ and an overall factor 1/2 are missing in Eq. (1) . The degeneracy factor is also missing in the formulae for scattering rate in Eqs. (4) and (9). These are all typos in the manuscript.

[TABLE]

where $d[p_{i}]=d^{3}p_{i}/[2E_{i}(2\pi)^{3}]$, $\gamma_{b}$ is the color-spin degeneracy for parton $b$, $f_{i}=1/(e^{p_{i}\cdot u/T}\pm 1)$ $(i=b,d)$ are parton phase-space distributions in a thermal medium with local temperature $T$ and fluid velocity $u=(1,\vec{v})/\sqrt{1-\vec{v}^{2}}$, $f_{i}=(2\pi)^{3}\delta^{3}(\vec{p}-\vec{p_{i}})\delta^{3}(\vec{x}-\vec{x_{i}}-\vec{v_{i}}t)$ $(i=a,c)$ are the phase-space density for jet shower partons before and after scattering. $S_{2}(\hat{s},\hat{t},\hat{u})=\theta(\hat{s}\geq 2\mu_{D}^{2})\theta(-\hat{s}+\mu_{D}^{2}\leq\hat{t}\leq-\mu_{D}^{2}$) is introduced Auvinen:2009qm to regulate the collinear divergency in the leading-order (LO) elastic scattering amplitude $|{\cal M}_{ab\rightarrow cd}|^{2}$ Eichten:1984eu , where $\hat{s}$, $\hat{t}$, and $\hat{u}$ are Mandelstam variables, and $\mu_{D}^{2}=3g^{2}T^{2}/2$ is the Debye screen mass with 3 quark flavors. The cross section of corresponding elastic collision is $d\sigma_{ab\rightarrow cd}/d\hat{t}=|{\cal M}_{ab\rightarrow cd}|^{2}/16\pi\hat{s}^{2}$. The strong coupling constant $\alpha_{s}=g^{2}/4\pi$ is fixed and will be fitted to experimental data.

The inelastic process of induced gluon radiation accompanying each elastic scattering is also included in LBT. The radiated gluon spectrum is simulated according to the high-twist approach Guo:2000nz ; Wang:2001ifa ,

[TABLE]

where $m$ is the mass of the propagating parton, $z$ and $k_{\perp}$ are the energy fraction and transverse momentum of the radiated gluon, $P_{a}(z)$ the splitting function, $\tau_{f}=2p_{0}z(1-z)/(k_{\perp}^{2}+z^{2}m^{2})$ the gluon formation time, $\hat{q}_{a}(x)=\sum_{bcd}\rho_{b}(x)\int d\hat{t}q_{\perp}^{2}d\sigma_{ab\rightarrow cd}/d\hat{t}$ the transverse momentum transfer squared per mean-free-path or jet transport parameter in the local comoving frame, $\rho_{b}(x)$ is the parton density (including the degeneracy) and $\tau_{i}$ is the time of the last gluon emission. $\mu_{D}$ is used as an infrared cut-off for the gluon’s energy.

Within LBT, the probability of elastic scattering in each time step $\Delta\tau$ during the propagation of a parton is $P^{a}_{\rm el}=1-\text{exp}[-\Delta\tau\Gamma_{a}^{\rm el}(x)]$, where $\Gamma_{a}^{\rm el}\equiv\sum_{bcd}(p\cdot u/p_{0})\rho_{b}(x)\sigma_{ab\rightarrow cd}$ is the elastic scattering rate. The probability for inelastic process is $P^{a}_{\mathrm{inel}}=1-\exp[-\Delta\tau\Gamma_{a}^{\rm inel}(x)]$ where $\Gamma_{a}^{\rm inel}=\int dzdk_{\perp}^{2}(dN^{a}_{g}/dzdk_{\perp}^{2}d\tau)/(1+\delta_{g}^{a})$ is the gluon radiation rate. The total scattering probability $P^{a}_{\mathrm{tot}}=P^{a}_{\mathrm{el}}(1-P^{a}_{\mathrm{inel}})+P^{a}_{\mathrm{inel}}$ can be split into the probability for pure elastic scattering and the probability for inelastic scattering with at least one gluon radiation. Multiple gluon radiation is simulated by a Poisson distribution with the mean $\langle N^{a}_{g}\rangle=\Delta\tau\Gamma_{a}^{\rm inel}$.

Since LBT is designed to study both jet propagation and j.i.m.e., all final partons after each scattering (jet shower partons, recoil medium partons and radiated gluons) will go through further scattering in the medium. To account for the back reaction in the Boltzmann transport, initial thermal parton $b$ in each scattering, denoted as “negative” partons with negative energy-momentum, are also transported according to the Boltzmann equation. They are part of the j.i.m.e. Wang:2013cia ; Li:2010ts ; He:2015pra and their energies and momenta will be subtracted from all final observables. LBT has been employed to study successfully $\gamma$-jet modification, light and heavy flavor hadron suppression in heavy-ion collisions Wang:2013cia ; Cao:2016gvr ; Cao:2017hhk .

CoLBT-hydro model. In LBT, a hydrodynamic model provides information on the local temperature and fluid velocity of the bulk medium which evolves independently of the jet propagation. Parton-medium interaction at all energy scales is described by pQCD and linear approximation ($\delta f\ll f$) is assumed which will break down when the j.i.m.e. becomes appreciable. To extend LBT beyond this region of applicability, we have developed CoLBT-hydro in which jet transport is coupled to hydrodynamic evolution of the bulk medium in real time and j.i.m.e. is also described by hydrodynamics. Such coupling is achieved through a source term in the hydrodynamic equation, $\partial_{\mu}T^{\mu\nu}=j^{\nu}$,

[TABLE]

which is the energy-momentum deposition by soft ($p\cdot u<p^{0}_{\rm cut}$) and “negative” partons ($p\cdot u<0$) from LBT with a Gaussian smearing. We employ the CCNU-LBNL viscous (CLVisc) code Pang:2014ipa ; Pang:2012he to solve the (3+1)D hydrodynamics with the above source term and a parametrized equation of state (EoS) s95p-v1Huovinen:2009yb . CLVisc parallelizes Kurganov-Tadmor algorithm KURGANOV2000241 for space-time evolution of the bulk medium and Cooper-Frye particlization on GPU, using Open Computing Language (OpenCL). With massive amount of computing elements on GPUs and the Single Instruction Multiple Data (SIMD) vector operations on modern CPUs, CLVisc brings the best performance boosts so far to (3+1)D hydrodynamics on heterogeneous computing devices and makes event-by-event CoLBT-hydro simulations possible.

In CoLBT-hydro, both LBT and CLVisc are formulated in the Milne coordinates $(\tau,\vec{x}_{\perp},\eta_{s})$ and are simulated in sync with each other. For each time step $\Delta\tau$, transport of jet shower partons are carried out according to LBT with local temperature and fluid velocity from CLVisc at $\tau$. Soft and “negative” partons are removed from the list of partons in LBT after each scattering and their energy-momentum contributes to the source term according to Eq. (3) in the hydrodynamic evolution of the bulk medium. The updated local medium properties will be used in the transport of energetic partons $(p\cdot u>p^{0}_{\rm cut})$ within LBT for the next time step $\tau+\Delta\tau$. The initial energy-momentum density distributions for event-by-event CoLBT-hydro simulations are obtained from particles in A Multi-Phase Transport (AMPT) model Lin:2004en with the same Gaussian smearing as in Eq. (3) ($\sigma_{r}=0.6$ fm and $\sigma_{\eta_{s}}=0.6$). The normalization of the initial energy-momentum density, the initial time $\tau_{0}=0.4$ fm/$c$ and freeze-out temperature $T_{\rm f}=137$ MeV are fitted to reproduce experimental data on the final charged hadron rapidity and transverse momentum distributions Pang:2012he ; Pang:2015zrq ; Pang:2014pxa . We employ the parton recombination model Han:2016uhh developed within the JET Collaboration for hadronization of hard partons from LBT. The final hadron spectra from CoLBT-hydro include contributions from both LBT via parton recombination and CLVisc via Cooper-Frye freeze-out. The ideal version of CLVisc is used for most of our calculations. Detailed descriptions of the CoLBT-hydro model and the discussion of effect of viscosity will be given in a forthcoming publication.

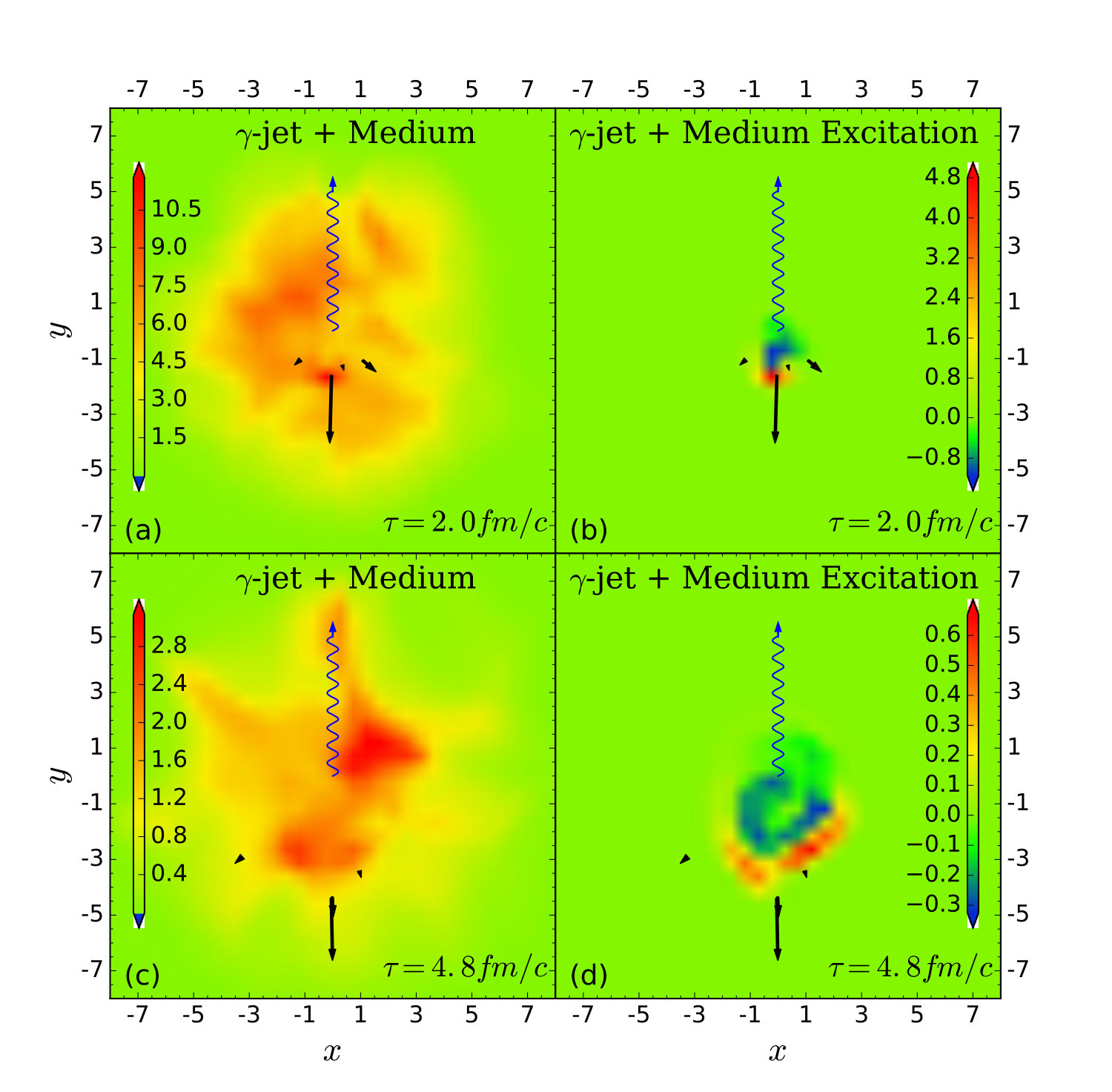

To illustrate jet transport and j.i.m.e. in CoLBT-hydro simulations we show in Fig. 1 transverse distributions of the energy density at two different time $\tau=2.0$ (upper panels) and 4.8 fm/$c$ (lower panels) in a 0-12% central Au+Au collision at $\sqrt{s}=200$ AGeV with a $\gamma$-jet that is produced at the center of the overlap region. The (wavy) straight lines represent the momenta of ($\gamma$) hard jet shower partons. The left panel is from CoLBT-hydro with a $\gamma$-jet. The Mach-cone-like j.i.m.e. including the diffusion wake (depletion of energy density behind the jet) is clearly seen in the right panels where the same bulk medium evolution without the $\gamma$-jet is subtracted.

$\gamma$-hadron correlation. Modification of $\gamma$-hadron correlations has been proposed as a good probe of parton energy loss in QGP medium Wang:1996yh since direct photons can be used to better measure the initial jet energy. We carry out the first study of jet quenching with CoLBT-hydro as well as j.i.m.e. through $\gamma$-hadron correlations in high-energy heavy-ion collisions.

We use Pythia8 Sjostrand:2007gs to generate initial jet shower partons for $\gamma$-jet events in p+p collisions. These partons start to interact with the medium in CoLBT-hydro after their formation time $\tau_{f}=2p_{0}/p_{T}^{2}$ or the QGP formation time $\tau_{0}$ whichever later. The initial position of the $\gamma$-jet is sampled according to the spatial distribution of binary hard processes from the same AMPT event that provides the initial condition for the bulk medium evolution. The final hadron spectrum per $\gamma$ trigger, defined as the $\gamma$-triggered fragmentation function,

[TABLE]

$z=p_{T}^{h}/p_{T}^{\gamma}$, is the sum of hadron spectra from LBT and CLVsic in CoLBT-hydro minus the background from CLVisc with the same initial condition but without $\gamma$-jet.

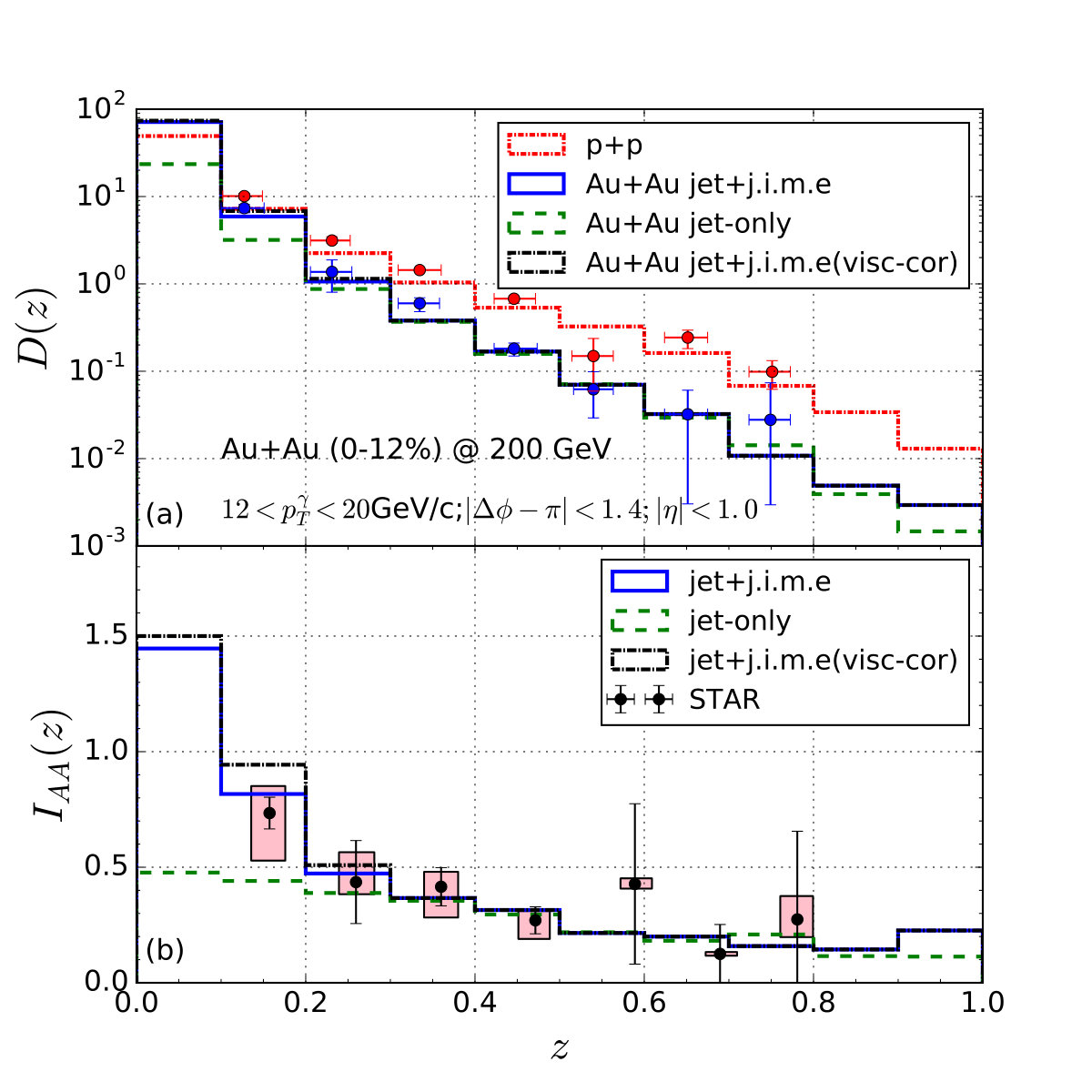

Shown in Fig. 2(a) are CoLBT-hydro results for the $\gamma$-triggered fragmentation functions in p+p and 0-12% central Au+Au collisions at $\sqrt{s}=200$ AGeV and (b) the corresponding modification factors $I_{AA}(z)=D_{AA}(z)/D_{pp}(z)$ for $12<p_{T}^{\gamma}<20$ GeV/$c$ within pseudo-rapidity $|\eta|<1$ and azimuthal angle $|\Delta\phi_{\gamma h}-\pi|<1.4$. A constant background in the hadron yield from CoLBT-hydro in p+p and Au+Au collisions is subtracted separately using the zero-yield-at-minimum (ZYAM) method similarly as in the experimental analyses. CoLBT-hydro describes well the STAR experimental data STAR:2016jdz on suppression of leading hadrons at intermediate and large $z$ due to energy loss of hard partons within LBT. Soft hadrons at small $z<0.1$ are significantly enhanced due to contributions from j.i.m.e. as compared to that without (also excluding recoil thermal partons in LBT). The only parameter that controls parton energy loss in LBT is the strong coupling constant which we choose $\alpha_{\rm s}=0.3$ to fit the STAR data. The cut-off parameter is set at $p^{0}_{\rm cut}=2$ GeV for soft partons that contribute to the source term for CLVisc. The final combined spectra from LBT and CLVisc are not sensitive to $p^{0}_{\rm cut}$ within the range $1<p^{0}_{\rm cut}<4$ GeV. Though the effect of viscosity can be significant for hadron spectra from the bulk Ryu:2015vwa and j.i.m.e. at large $p_{T}$, viscous correction to the final fragmentation function is only sizable (about 10-20% for $\eta/s=0.16$) at low $z$ where j.i.m.e. contribution dominates as shown by the dot-dashed lines.

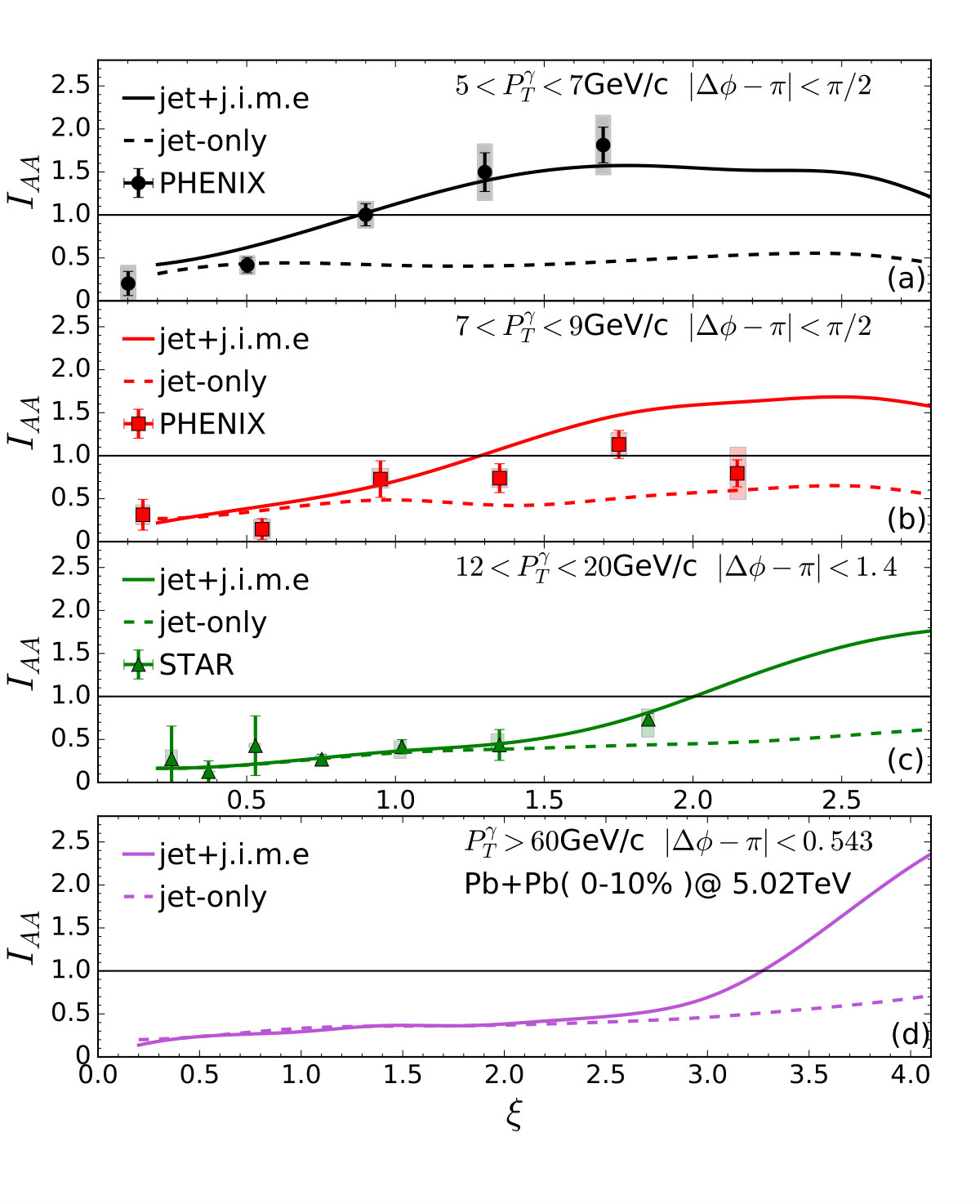

To exam j.i.m.e. in detail, we show in Fig. 3(a)-(c) the modification factor $I_{AA}$ for $\gamma$-hadron correlation with (solid) and without j.i.m.e. (dashed lines) as a function of $\xi=\log(1/z)$ in 0-40% and 0-12% Au+Au collisions at $\sqrt{s}=200$ AGeV for different ranges of $p_{T}^{\gamma}$ within $|\eta|<0.35$ and $|\Delta\phi_{\gamma h}-\pi|<\pi/2$ as compared to experimental data STAR:2016jdz ; Ge:2017irb . Jet-medium interaction in CoLBT-hydro leads to the suppression of hadrons at small $\xi$ as well as enhancement at large $\xi$ that are consistent with STAR STAR:2016jdz and preliminary PHENIX data Ge:2017irb . Since soft hadrons from j.i.m.e. carry an average thermal energy that is independent of the jet energy, a unique feature of the CoLBT-hydro results is that the onset of soft hadron enhancement ($I_{AA}\geq 1$) due to j.i.m.e. occurs at a constant $p^{h}_{T}\sim 2$ GeV/$c$ or $\xi=\ln(p_{T}^{\gamma}/p_{T}^{h})$ that increases logarithmically with $p_{T}^{\gamma}$. We also show in Fig. 3(d) our prediction on $I_{AA}$ for $p_{T}\gamma>60$ GeV in central Pb+Pb collisions at the LHC energy $\sqrt{s}=5.02$ TeV.

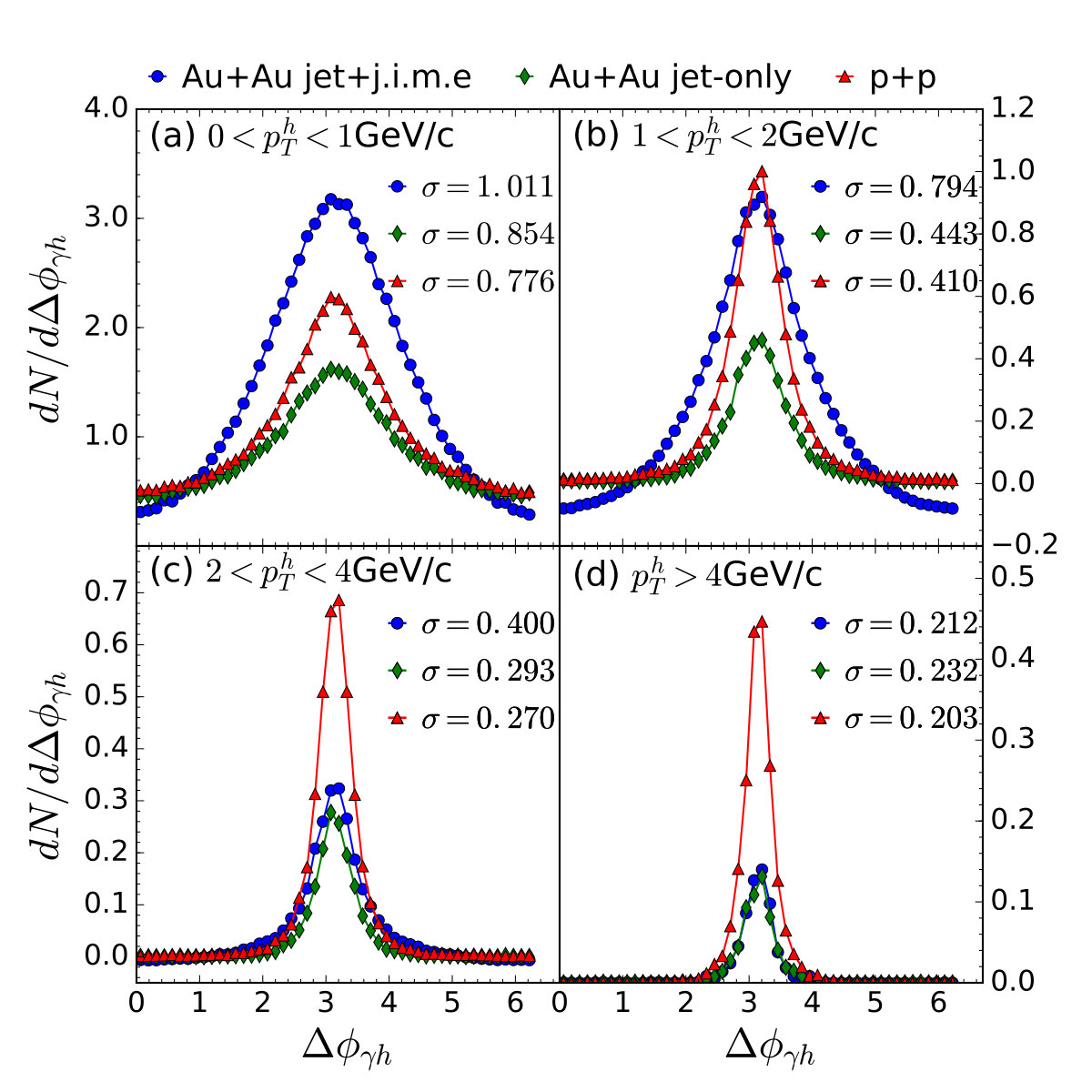

To illustrate the angular structure of j.i.m.e., we plot in Fig. 4 $\gamma$-hadron correlation as a function of $\Delta\phi_{\gamma h}$ in p+p and 0-12% central Au+Au collisions at $\sqrt{s}=200$ AGeV (without ZYAM background subtraction). Large $p_{T}$ hadron yields from $\gamma$-jet in Au+Au are suppressed but the width of their angular distributions remain approximately unchanged from p+p. The angular distributions for the enhanced soft hadrons in Au+Au are, however, significantly broadened. The enhancement due to j.i.m.e. occurs both in the small $|\Delta\phi_{\gamma h}-\pi|<\pi/6$ and large azimuthal angle $\pi/3<|\Delta\phi_{\gamma h}-\pi|<\pi/2$ region relative to the jet direction. The most interesting feature in the angular distribution of soft hadrons is the depletion of soft hadrons in the $\gamma$ direction due to the diffusion wake left behind by the jet in QGP.

Summary. We have developed the state of art CoLBT-hydro for co-current and event-by-event simulations of jet propagation and hydrodynamic evolution of the bulk medium including j.i.m.e.. We carried out the first study with CoLBT-hydro of the medium modification of $\gamma$-hadron correlations in heavy-ion collisions at RHIC. CoLBT-hydro describes well the suppression of leading hadrons due to parton energy loss and predicts an enhancement of soft hadrons due to j.i.m.e.. The onset of soft hadron enhancement at a constant $p_{T}^{h}$ with broadened angular distribution and depletion of soft hadrons in the $\gamma$ direction are two unique features of j.i.m.e. that are different from the parton cascade picture Blaizot:2013hx ; Fister:2014zxa . Experimental studies of these effects at RHIC ( sPHENIX) and LHC should provide a new window into jet tomography of QGP in high-energy heavy-ion collisions.
