This paper introduces a minimal extension to the Standard Model adding a scalar triplet and vector-like leptons to simultaneously explain neutrino masses and dark matter, with distinctive collider and direct detection signatures.

Contribution

It proposes a novel model combining scalar triplet and vector-like leptons to address neutrino mass and dark matter in a unified framework.

Findings

Dark matter is a mixture of vector-like lepton doublet and singlet.

Higgs-mediated direct detection is promising at Xenon-1T.

Charged partner particles can produce detectable signatures at LHC.

Abstract

We propose a minimal extension of the standard model (SM) by including a scalar triplet with hypercharge 2 and two vector-like leptons: one doublet and a singlet, to explain simulatenously the non-zero neutrino mass and dark matter (DM) content of the Universe. The DM emerges out as a mixture of the neutral component of vector-like lepton doublet and singlet, being odd under a discrete $Z_2$ symmetry. After electroweak symmetry breaking the triplet scalar gets an induced vev, which give Majorana masses not only to the light neutrinos but also to the DM. Due to the Majorana mass of DM, the $Z$ mediated elastic scattering with nucleon is forbidden. However, the Higgs mediated direct detection cross-section of the DM gives an excellent opportunity to probe it at Xenon-1T. The DM can not be detected at collider. However, the charged partner of the DM (often next-to-lightest stable particle) can give large dispalced vertex signature at the Large Hadron Collider (LHC).

Figures

Equations

$$\left(\frac{LLHH}{\Lambda }+\frac{NNHH}{\Lambda }\right),$$

$${\mathcal{L}}_{\mathrm{new}}=\overline{N}\cancel{D}N+\overline{{\chi }^0}\cancel{\partial }{\chi }^0+(D^{\mu }\Delta {)}^{†}(D_{\mu }\Delta )+M_N\overline{N}N+M_{\chi }\overline{{\chi }^0}{\chi }^0+{\mathcal{L}}_{yuk}-V(\Delta ,H),$$

$$D_{\mu }={\partial }_{\mu }-i\frac{g}{2}\tau .W_{\mu }-i{g}^{\prime }\frac{Y}{2}{B}_{\mu }.$$

$$V(\Delta ,H)$$

$$\Delta =\left(\begin{array}{cc}\frac{{\Delta }^{+}}{\sqrt{2}}& {\Delta }^{++}\\ {\Delta }^0& -\frac{{\Delta }^{+}}{\sqrt{2}}\end{array}\right).$$

$$⟨\Delta ⟩\equiv u_{\Delta }\approx -\frac{\mu v^2}{\sqrt{2}({\mu }_{\Delta }^2+{\lambda }_{H\Delta }{v}^2/2)}$$

$${\mathcal{L}}_{yuk}=\frac{1}{\sqrt{2}}\left[(f_L{)}_{\alpha \beta }\overline{L_{\alpha }^c}i{\tau }_2\Delta L_{\beta }+f_N\overline{N^c}i{\tau }_2\Delta N+h.c\right]+\left[Y\overline{N}\tilde{H}{\chi }^0+h.c.\right],$$

$$\mathcal{M}=\left(\begin{array}{cc}{M}_{\chi }& m_D\\ & \\ m_D& M_N\end{array}\right)$$

$$M_1\approx M_{\chi }-\frac{m_D^2}{M_N-M_{\chi }}$$

$$M_2\approx M_N+\frac{m_D^2}{M_N-M_{\chi }}$$

$$N_1=\cos \theta {\chi }^0+\sin \theta N^0$$

$$N_2=\cos \theta N^0-\sin \theta {\chi }^0,$$

$$\tan 2\theta =\frac{2m_D}{M_N-M_{\chi }}.$$

$$M^{\pm }=M_1{\sin }^2\theta +M_2{\cos }^2\theta \simeq M_N.$$

$$Y=\frac{\Delta M\sin 2\theta }{2v},$$

$$\Gamma =\frac{G_F^{2}si{n}^2\theta }{24{\pi }^3}{M}_N^{5}I$$

$$I=\frac{1}{4}{\lambda }^{1/2}(1,a^2,b^2)F_1(a,b)+6F_2(a,b)\ln \left(\frac{2a}{1+a^2-b^2-{\lambda }^{1/2}(1,a^2,b^2)}\right).$$

$$F_1(a,b)$$

$$F_2(a,b)$$

$$t_f=0.301g_{\star }^{-1/2}\frac{m_{\mathrm{pl}}}{T_f^2},$$

$$\sin \theta \gtrsim 1.1789\times 10^{-5}{\left(\frac{1.375\times 10^{-5}}{I}\right)}^{1/2}{\left(\frac{200\mathrm{GeV}}{M_N}\right)}^{5/2}{\left(\frac{g_{\star }}{106.75}\right)}^{1/4}\left(\frac{M_1}{180\mathrm{GeV}}\right).$$

$$H^0=\frac{1}{\sqrt{2}}(v+h^0+i{\xi }^0),{\Delta }^0=\frac{1}{\sqrt{2}}(u_{\Delta }+{\delta }^0+i{\eta }^0)$$

$${\mathcal{M}}_{sc}^2=\left(\begin{array}{cc}{M}_H^2& \mu v/2\\ & \\ \mu v/2& M_{\Delta }^2\end{array}\right)$$

$$H_1=\cos {\theta }_0{h}^0+\sin {\theta }_0{\delta }^0,H_2=-\sin {\theta }_0{h}^0+\cos {\theta }_0{\delta }^0$$

$$\tan 2{\theta }_0=\frac{\mu v}{(M_{\Delta }^2-M_H^2)}.$$

$$M_{H_1}^2\approx M_H^2-\frac{(\mu v/2{)}^2}{M_{\Delta }^2-M_H^2}$$

$$M_{H_2}^2\approx M_{\Delta }^2+\frac{(\mu v/2{)}^2}{M_{\Delta }^2-M_H^2}.$$

$$u_{\Delta }\le 3.64\mathrm{GeV}.$$

$$\sin {\theta }_0<0.02\left(\frac{174\mathrm{GeV}}{v}\right)\left(\frac{1}{1-0.39\frac{(M_H/125\mathrm{GeV}{)}^2}{(M_{\Delta }/200\mathrm{GeV}{)}^2}}\right).$$

$$\Gamma =\frac{M_{H_1}}{8\pi }\frac{m_{\tau }^2}{v^2}{\left(1-\frac{4m_{\tau }^2}{M_{H_1}^2}\right)}^{3/2}(1-{\sin }^2{\theta }_0)$$

$${\Gamma }_{H_1\to W{W}^{\ast }\to Wf\overline{f^{\prime }}}=\frac{3g^4{M}_{H_1}}{512{\pi }^3}(g\sin {\theta }_0{u}_{\Delta }/(4M_w)-\cos {\theta }_0{)}^{2}F(x),$$

$$F(x)=-|1-x^2|\left(\frac{47}{2}{x}^2-\frac{13}{2}+\frac{1}{x^2}\right)+3(1-6x^2+4x^4)|Ln(x)|+\frac{3(1-8x^2+20x^4)}{|\sqrt{4x^2-1}|}\arccos \left[\frac{3x^2-1}{2x^3}\right],$$

Full text

I Introduction

Astrophysical evidences like galaxy rotation curves, gravitational lensing, large scale structure of the universe and anisotropies in Cosmic Microwave Background Radiation (CMBR) hint towards the existence of an unknown form of non-luminous matter, called dark matter (DM) in our Universe DM_review1 ; DM_review2 . However they imply only about the gravitational property of DM, whose relic abundance is precisely measured by the satellite borne experiments such as WMAP wmap and PLANCK PLANCK to be $\Omega_{\rm DM}h^{2}=0.1199\pm 0.0027$. However, the microscopic nature of DM is still a mystery. In fact, none of the particles in the standard model (SM) mimics the properties of DM. This leads to a rich possibility of DM model building in the beyond SM physics, though the WIMP (Weakly Interacting Massive Particle) paradigm is the most popular one.

Another significant hint of physics beyond the SM came through the discovery of non-zero masses of left-handed neutrinos in the last decade. Long baseline neutrino oscillation experiments Fukuda:2001nk ; Bilenky:1980cx confirmed that neutrinos have sub-eV masses and they mix among themselves. This also has compelled particle physicists to explore structures beyond the SM. There are two major issues involving neutrinos: (i) their nature, Dirac or Majorana, (ii) mass hierarchy, normal or inverted. A popular solution for non-zero Majorana masses of active neutrinos is to introduce the seesaw mechanisms type_I ; type_II ; type_III which are different realisations of the dimension five operator dim-5-operator : ${LLHH}/{\Lambda}$, where $L$ and $H$ are the lepton and Higgs doublet of the SM and $\Lambda$ is the scale of new physics. After electroweak (EW) symmetry breaking the neutrino mass is given by $M_{\nu}=\langle H\rangle^{2}/\Lambda$. Thus for tiny neutrino mass $M_{\nu}\sim 0.1$ eV, the new physics scale requires to be pretty heavy $\Lambda\sim 10^{14}$ GeV when the involved couplings are order 1. However, $\Lambda$ can be reduced down to TeV scales if the couplings are assumed to be smaller.

In an attempt to bring dark matter and neutrino mass mechanisms under one umbrella (for some earlier attempts, see Bhattacharya:2016rqj ; Bhattacharya:2016lts ; Bhattacharya:2016qsg ; Sahu:2007uh ; McDonald:2007ka ; Sahu:2008aw ; Chatterjee:2014vua ; Patra:2014sua ; Patra:2016shz ), we consider a minimal type-II seesaw extension of the SM by adding a TeV scale triplet scalar $\Delta$ with hypercharge 2 and introduce two additional vector-like leptons: one doublet $N\equiv(N^{0},N^{-})^{T}$ and a singlet $\chi$. A $Z_{2}$ symmetry is also imposed under which $N$ and $\chi$ are odd while all other fields are even. As a result the DM emerges out to be a mixed state of singlet and neutral component of the doublet vector-like leptons. Such DM frameworks have been discussed earlier; see for example, refs. ArkaniHamed:2005yv ; Mahbubani:2005pt ; D'Eramo:2007ga ; Enberg:2007rp ; Cynolter:2008ea ; Cohen:2011ec ; Cheung:2013dua ; Restrepo:2015ura ; Calibbi:2015nha ; Cynolter:2015sua ; Bhattacharya:2015qpa ; Bhattacharya:2016lyg . However, the presence of the triplet adds to some interesting DM phenomenology as we will discuss in this paper. Since the scalar triplet can be light, it contributes to the relic abundance of DM through s-channel resonance on top of $Z$ and $H$ mediation. Moreover, it relaxes the strong constraints coming from direct detection.

The triplet scalar not only couples to the SM lepton and Higgs doublets, but also to the additional vector-like lepton doublet $N$. The Majorana couplings of $\Delta$ with $N$, $L$ and $H$ is then be given by $f_{N}\Delta NN+f_{L}\Delta LL+\mu\Delta^{\dagger}HH$. Note that if the triplet is heavier than the DM and leptons, it can be integrated out and hence effectively generating the dimension five operators:

[TABLE]

where $\Lambda\sim M_{\Delta}$. After EW symmetry breaking $\Delta$ acquires an induced vacuum expectation value (vev) of ${\cal O}(1)$ GeV which in turn give Majorana masses to light neutrinos as well as to $N^{0}$. Since $N^{0}$ is a vector-like Dirac fermion, it can have a Dirac mass too. As a result $N^{0}$ splits up into two pseudo-Dirac fermions, with a mass splitting of sub-GeV order, whose elastic scattering with the nucleon mediated by $Z$-boson is forbidden. This feature of the model leads to a survival of larger region of parameter space from direct search constraints given by the latest data from Xenon-100 xenon100 and LUX Akerib:2016vxi . On the other hand, the Higgs mediated elastic scattering of the DM with the nucleon gives an excellent opportunity to detect it at future direct search experiments such as XENON1T Aprile:2015uzo . It is harder to see the signature of only DM production at collider as they need to recoil against an ISR jet for missing energy. However, the charged partner of the DM (which is next-to-lightest stable particle) can be produced copiously which eventually decays to DM giving rise to leptons and missing energy. More interestingly, the charged companion can also give large displaced vertex signature as we will elaborate.

The paper is arranged as follows. In section II, we discuss about model and formalism, mixing in fermionic and in scalar sector. In section III, we explain non-zero neutrino mass in a type II see-saw scenario while section IV is devoted to illustrate the pseudo-Dirac nature of DM. The relic abundance of DM is obtained in section V. The inelastic scattering of DM with the nucleus for direct search is presented in section VI. Section VII is devoted for direct detection of DM through elastic scattering and limits on model parameter space. The displaced vertex signature of the charged partner of DM is discussed in sec VIII. With a summary of the analysis, we finally conclude in section IX.

II The Model

As already been stated in the introduction, we extend the standard model (SM) by introducing two vector like fermions $N^{T}=(N^{0},N^{-})$ (1,2,-1) and $\chi^{0}$ (1,1,0) and a scalar triplet $\Delta$ (1,3,2), where the numbers inside the parenthesis are quantum numbers under the SM gauge group $SU(3)_{c}\times SU(2)_{L}\times U(1)_{Y}$. A $Z_{2}$ symmetry is imposed under which $\chi^{0}$ and $N$ are odd, while other fields are even. The relevant Lagrangian involving the additional fields is given by:

[TABLE]

where $D_{\mu}$ is the covariant derivative involving $SU(2)$ ($W_{\mu}$) and $U(1)_{Y}(B_{\mu})$ gauge bosons and is given by :

[TABLE]

The scalar potential involving SM doublet ($H$) and triplet ($\Delta$) in Eq. (1) is given by

[TABLE]

where $\Delta$ in matrix form is

[TABLE]

We assume that $\mu_{\Delta}^{2}$ is positive. So it doesn’t acquire a vacuum expectation value (vev). But it gets an induced vev after EW phase transition. The vev of $\Delta$ is given by

[TABLE]

where $v$ is the vev of Higgs field and its value is 174 GeV.

The Yukawa interaction in Eq. (1) is given by:

[TABLE]

where $L$ is the SM lepton doublet and $\alpha,\beta$ denote family indices. The Yukawa interactions importantly inherit the source of neutrino masses (terms in first square bracket) and DM-SM interactions (terms in second square bracket).

II.1 Singlet-doublet fermion mixing

After electroweak phase transition vev of Higgs field introduces a mixing between $N^{0}$ and $\chi^{0}$. The mass matrix is given by

[TABLE]

where $m_{D}=Yv$. Diagonalizing the above mass matrix we get two mass eigenvalues:

[TABLE]

where we have assumed $m_{D}<<M_{N},M_{\chi}$. The corresponding mass eigenstates are given by:

[TABLE]

where the mixing angle (in small mixing limit) is given by:

[TABLE]

Due to the imposed $Z_{2}$ symmetry, the lightest odd particle remains stable. We choose $N_{1}$ to be the lightest and hence becomes a viable candidate for DM. The next-to-lightest $Z_{2}$ odd particle is charged lepton $N^{\pm}$ whose mass in terms of $M_{1}$, $M_{2}$ and mixing angle $\theta$ is given by:

[TABLE]

From Eq. 9, we see that $Y$ and $\sin\theta$ are not two independent parameters. They are related by:

[TABLE]

with $\Delta M=M_{2}-M_{1}$. We use $\sin\theta$ as an independent parameter in our analysis. We will see that the mixing angle plays a vital role in the DM phenomenology. In particular, the relic abundance of DM gives an upper bound on the singlet-doublet mixing angle to be $\sin\theta\lesssim 0.4$. For larger mixing angle the relic abundance is less than the observed value due to large annihilation cross-sections in almost all parameter space. We also found that a lower bound on $\sin\theta$ coming from the decay of $N_{2}$ and $N^{-}$ after they freeze out from the thermal bath. In principle these particles can decay on, before or after the DM ($N_{1}$) freezes out depending on the mixing angle. In the worst case, $N_{2}$ and $N^{-}$ have to decay before the onset of Big-Bang nucleosynthesis. In that case, the lower bound on the mixing angle is very much relaxed and the out-of-equilibrium decay of $N_{2}$ and $N^{-}$ will produce an additional abundance of DM. Therefore, in what follows, we demand that $N_{2}$ and $N^{-}$ decay on or before the freeze out of DM ($N_{1}$). As a result we get a stronger lower bound on $\sin\theta$, which of course depends on their masses.

If the mass splitting between $N^{-}$ and $N_{1}$ is larger than $W^{\pm}$-boson mass, then $N^{-}$ decay preferably through the two body process: $N^{-}\to N_{1}+W^{-}$. However, if the mass splitting between $N^{-}$ and $N_{1}$ is less than $W^{\pm}$-boson mass then $N^{-}$ decay through the three body process: $N^{-}\to N_{1}\ell^{-}\overline{\nu_{\ell}}$. For the latter case, we get a stronger lower bound on the mixing angle than the former. The three body decay width of $N^{-}$ is given by Bhattacharya:2015qpa :

[TABLE]

where $G_{F}$ is the Fermi coupling constant and $I$ is given as:

[TABLE]

In the above Equation $F_{1}(a,b)$ and $F_{2}(a,b)$ are two polynomials of $a=M_{1}/M_{N}$ and $b=m_{\ell}/M_{N}$, where $m_{\ell}$ is the charged lepton mass. Up to ${\cal O}(b^{2})$, these two polynomials are given by

[TABLE]

In Eq. (13), $\lambda^{1/2}=\sqrt{1+a^{4}+b^{4}-2a^{2}-2b^{2}-2a^{2}b^{2}}$ defines the phase space. In the limit $b=m_{\ell}/M_{N}\to 1-a=\Delta M/M_{N}$, $\lambda^{1/2}$ goes to zero and hence $I\to 0$. The life time of $N^{-}$ is then given by $\tau\equiv\Gamma^{-1}$. We take the freeze out temperature of DM to be $T_{f}=M_{1}/20$. Since the DM freezes out during radiation dominated era, the corresponding time of DM freeze-out is given by :

[TABLE]

where $g_{\star}$ is the effective massless degrees of freedom at a temperature $T_{f}$ and $m_{\rm pl}$ is the Planck mass. Demanding that $N^{-}$ should decay before the DM freezes out (i.e. $\tau\lesssim t_{f}$) we get

[TABLE]

Notice that the lower bound on the mixing angle depends on the mass of $N^{-}$ and $N_{1}$. For a typical value of $M_{N}=200$ GeV, $M_{1}=180$ GeV, we get $\sin\theta\gtrsim 1.17\times 10^{-5}$. Since $\tau$ is inversely proportional to $M_{N}^{5}$, larger the mass, smaller will be the lower bound on the mixing angle. We will come back to this issue while calculating the relic abundance of DM in section V.

II.2 Doublet-triplet scalar mixing

In the scalar sector, the model constitutes an usual Higgs doublet and an additional triplet. The quantum fluctuations around the vacuum is given as:

[TABLE]

The mass matrix is given as :

[TABLE]

where $M_{\Delta}^{2}=\mu_{\Delta}^{2}+\lambda_{H\Delta}v^{2}/2$. The two neutral Higgs fields (CP - even) mass eigenstates are given by

[TABLE]

where $H_{1}$ is the standard model like Higgs and $H_{2}$ is the triplet like Higgs. The mixing angle is given by

[TABLE]

The corresponding mass eigenvalues are $M_{H_{1}}$ (SM Higgs like) and $M_{H_{2}}$ (triplet like) and are given as :

[TABLE]

Since the addition of a scalar triplet can modify the $\rho$ parameter, which is not differing from SM value: $\rho=1.00037\pm 0.00023$ pdg , so we have a constraint on the vev $u_{\Delta}$ as:

[TABLE]

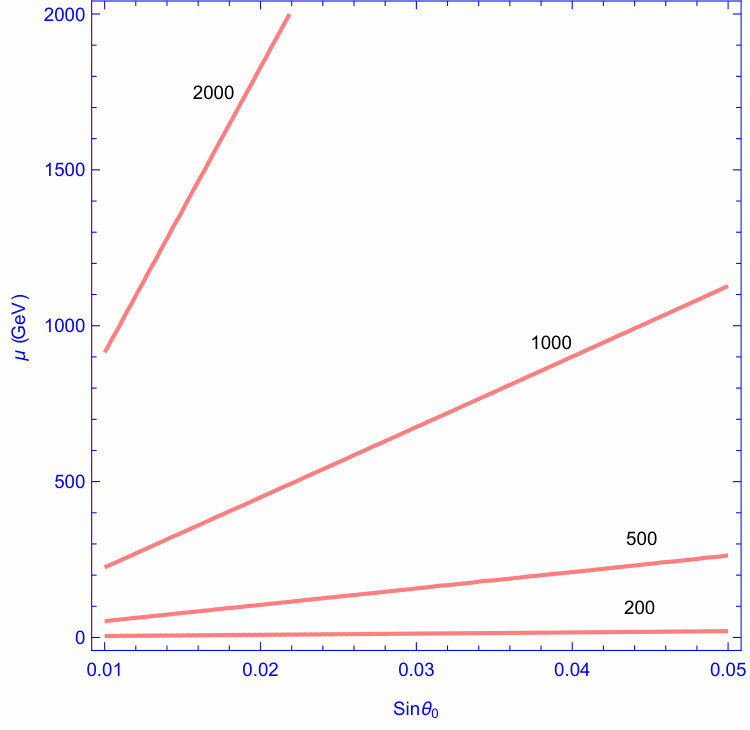

For different values of $M_{\Delta}$ we have shown $\mu$ as a function of $\sin\theta_{0}$ in Fig. (1). Here we see that smaller is the triplet scalar mass, the smaller is the dependence on mixing angle $\sin\theta_{0}$.

From Eqs.(20), (4) and (22) we see that there exist an upper bound on the mixing angle

[TABLE]

We also get a constraint on $\sin\theta_{0}$ from SM Higgs phenomenology, since the mixing can change the strength of the Higgs coupling to different SM particles. See for example Cheung:2015dta ; Hartling:2014aga , in which the global fit yields a constraint on mixing angle $\sin\theta_{0}\lesssim 0.5$, which is much larger than the constraint obtained using $\rho$ parameter. We may also get a constraint on $\sin\theta_{0}$ from the decay of SM Higgs to different channels. For example, let us take the decay of $H_{1}$ to $\tau$ leptons. The decay width is given by:

[TABLE]

Comparing with the experimental branching fraction $Br(H_{1}\rightarrow\tau\tau)=6.272\times 10^{-2}$, we found that $(\sin\theta_{0})_{max}=0.176$. So any value of the mixing angle less than this will be allowed by the corresponding decay width measurement. Similarly one can easily derive the limit on the doublet-triplet mixing from branching fraction of SM Higgs decaying to $W^{+}W^{-*},~{}ZZ^{*}$, which are much precisely measured at LHC. For example, if we choose Higgs decay to $W^{+}W^{-*}$ state, the observed branching fraction is $Br(H_{1}\to W^{+}W^{-*}):~{}2.317\times 10^{-1}$. In order to obtain a limit on the doublet-triplet mixing angle $\sin\theta_{0}$, we need to calculate the decay width of this process process as given in Keung:1984hn :

[TABLE]

where

[TABLE]

with $x=M_{W}/M_{H_{1}}$. In the small mixing limit $\sin\theta_{0}\rightarrow 0$, the decay reproduces same branching ratio as that of the SM prediction. However, as we increase the value of the mixing angle, the branching ratio to this particular final state reduces due to larger triplet contributions. For example, with $\sin\theta_{0}=0.05,0.07,0.1$, $Br(H_{1}\to WW^{*})$ is changed by $0.27\%,0.51\%,1.04\%$ respectively from the central value. Hence, in a conservative limit, if we take $\sin\theta_{0}\sim 0.05$ or smaller, it is consistent with the experimental observation of Higgs decay to $WW^{*}$ final state.

Thus we see that the bound obtained on the mixing angle from Higgs decay depends on the final state that we choose, but is less constraining than that from the $\rho$ parameter. Therefore, we will use the constraint on the mixing angle, obtained from $\rho$ parameter, while calculating the DM-nucleon elastic scattering in section (VII). Since the doublet-triplet scalar mixing is found to be small, we assume that the flavour eigenstates are the mass eigenstates and treat $M_{H_{1}}=M_{H},M_{H_{2}}=M_{\Delta}$ throughout the calculation.

We also assume for simplicity that there is no mixing between the neutral CP-odd states and in the charged scalar states, so that $\xi^{0}$ is absorbed by the gauge bosons after spontaneous symmetry breaking in unitary gauge and the charged triplet scalar fields remain as mass eigen states.

III Non Zero Neutrino Mass

The coupling of scalar triplet $\Delta$ to SM lepton and Higgs doublets combinely break the lepton number by two units as given in Eq. (5). As a result the $\Delta L_{\alpha}L_{\beta}$ coupling yields Majorana masses to three flavors of active neutrinos as type_II :

[TABLE]

Taking $\mu\simeq M_{\Delta}\simeq\mathcal{O}(10^{14})$ GeV, we can explain neutrino masses of order $0.1\rm eV$ with a coupling strength $f_{L}\simeq 1$. However, the scale of $M_{\Delta}$ can be brought down to TeV scales by taking the smaller couplings.

To get the neutrino mass eigen values, the above mass matrix can be diagonalised by the usual $U_{PMNS}$ matrix as :

[TABLE]

where $U_{PMNS}$ is given by

[TABLE]

with $c_{ij}$, $s_{ij}$ stand for $\cos\theta_{ij}$ and $\sin\theta_{ij}$ respectively and $U_{ph}$ is given by

[TABLE]

Where $\gamma_{1}$, $\gamma_{2}$ are two Majorana phases. The diagonal matrix $M_{\nu}^{diag}$ = Diag $(m_{1},m_{2},m_{3})$ with diagonal entries are the mass eigen values for the neutrinos. The current neutrino oscillation data at $3\sigma$ confidence level give the constraint on mixing angles  pdg :

[TABLE]

However little information is available about the CP violating Dirac phase $\delta$ as well as the Majorana phases. Although the absolute mass of neutrinos is not measured yet, the mass square differences have already been measured to a good degree of accuracy :

[TABLE]

One of the main issues of neutrino physics lies in the sign of the atmospheric mass square difference $|\Delta m^{2}_{\rm atm}|\equiv|m_{3}^{2}-m_{1}^{2}|$, which is still unknown. This yields two possibilities: normal hierarchy (NH) ($m_{1}<m_{2}<m_{3}$) or inverted hierarchy (IH) ($m_{3}<m_{1}<m_{2}$). Another possibility, yet allowed, is to have a degenerate (DG) neutrino mass spectrum ($m_{1}\sim m_{2}\sim m_{3}$). Assuming that the neutrinos are Majorana, the mass matrix can be written as :

[TABLE]

Using equations 27, 28, 30 and III, we can estimate the unknown parameters in neutrino mass matrix of Eq. (32). To estimate the parameters in NH, we use the best fit values of the oscillation parameters. For a typical value of $m_{1}=0.0001$ eV, we get the mass parameters (in eV) as :

[TABLE]

Similarly for IH case, choosing $m_{3}=0.001$ eV, we get the mass parameters (in eV) as :

[TABLE]

In both the cases, we put the Dirac and Majorana phases to be zero for simplicity.

The mass of the scalar triplet can also be brought down to TeV scale by choosing appropriate Yukawa coupling. If the mass is order of a few hundreds of GeV, then it can give interesting dilepton signals in the collider. See for example, Dilepton for a detailed discussion regarding the dilepton signatures at collider.

We would like to note that the presence of scalar triplet addresses the issue of generating neutrino masses as we discussed here, and has minor dependence on DM relic density. However, the scalar triplet plays a major role in the direct detection by forbidding Z-mediated DM-nucleon interaction and thereby increasing the limit on singlet-doublet mixing as we will discuss shortly.

IV Pseudo-Dirac nature of dark matter

IV.1 Pseudo-Dirac nature of Inert fermion doublet dark matter

Let us assume the case where the singlet fermion $\chi^{0}$ is absent in the spectrum. In this case, the imposed $Z_{2}$ symmetry stabilizes the neutral component of the fermion doublet $N\equiv(N^{0},N^{-})^{T}$. From Eq. (5) we see that after EW phase transition the induced vev of the triplet yields a Majorana mass to $N^{0}$ and is given by:

[TABLE]

Thus the $N^{0}$ has a large Dirac mass $M_{N}$ as given in Eq. (1) and a small Majorana mass $m$ as shown in the above Eq. (35). Therefore, we get a mass matrix in the basis $\{N^{0}_{L},(N^{0}_{R})^{c}\}$ as:

[TABLE]

The presence of small Majorana mass of the doublet DM splits the Dirac state $N^{0}$ into two pseudo-Dirac states: $\psi^{0}_{1,2}$, whose mass eigenvalues are given by $M_{N}\pm m$ for mixing angle $\pi/4$, which is the maximal mixing. Hence the mass splitting between the two states $\{N^{0}_{L},(N^{0}_{R})^{c}\}$ is:

[TABLE]

Notice that the above mass splitting $\delta M<<M_{N}$ and hence does not play any role in the relic abundance calculation, where both the components act as degenerate DM components. However, the small mass splitting between the two pseudo-Dirac states prohibits $N_{0}$ to interact to the detector through $Z$ mediation in the non-relativistic inelastic scattering limit and is crucial to escape from the strong direct detection constraints mediated via $Z$-boson. For example, to explain the DAMA signal through the inelastic scattering of DM with the nuclei the required mass splitting should be $\mathcal{O}(100\rm keV)$  Arina:2011cu ; Arina:2012fb ; Arina:2012aj .

A crucial observation from Eq. (26) and (35) is that the ratio:

[TABLE]

is extremely small. In particular, if $M_{\nu}\sim\mathcal{O}(\rm eV)$ and $m\sim\mathcal{O}(100{\rm KeV})$ then $R\sim 10^{-5}$. In other words the triplet scalar coupling to SM sector is highly suppressed in comparison to the DM sector. Using this constraint, in section V.1 we will calculate the relic abundance of inert fermion doublet DM.

IV.2 Pseudo-Dirac nature of singlet-doublet fermion dark matter

Next we adhere to the actual scenario where DM is the lightest one among the mixed states of singlet and doublet fermions $\chi^{0}$ and $N^{0}$. As discussed in section (II.1), the DM is assumed to be $N_{1}=\cos\theta\chi^{0}+\sin\theta N^{0}$ with a Dirac mass $M_{1}$. However, from Eq. (5) we see that the vev of $\Delta$ induces a Majorana mass to $N_{1}$ due to singlet-doublet mixing and is given by:

[TABLE]

Thus the Majorana mass $m_{1}$ splits the Dirac spinor $N_{1}$ into two pseudo-Dirac states $\psi_{1}^{a,b}$ with masses $M_{1}\pm m_{1}$. The mass splitting between the two pseudo-Dirac states ($\psi_{1}^{a,b}$) is given by

[TABLE]

Note that again $\delta M_{1}<<M_{1}$ from the estimate of induced vev of the triplet and hence does not play any role in the relic abundance calculation. However, the sub-GeV order mass splitting plays a crucial role in direct detection by forbidding the Z-boson mediated DM-nucleon elastic scattering. We will come back to this issue while discussing the inelastic scattering of DM with nucleon in sec. VI. Now from Eq. (26) and (39) we see that the ratio:

[TABLE]

Thus in comparison to Eq. (38), we see that the ratio between the two couplings $R=f_{L}/f_{N}$ is improved by two orders of magnitude (i.e. $R\sim 10^{-3}$) if we assume $\sin\theta=0.1$, which is the rough order of magnitude of singlet-doublet mixing being used in relic abundance calculation as we demonstrate in the next section.

V Relic Abundance of DM

V.1 Relics of Inert fermion doublet dark matter

In absence of the singlet fermion $\chi^{0}$, the neutral component ($N^{0}$) of the fermion doublet is stable due to the imposed $Z_{2}$ symmetry. However, this does not guarantee that the $N^{0}$ alone is a viable dark matter candidate. Under this circumstance it is crucial to check if $N^{0}$ can give rise correct relic abundance observed by WMAP and PLANCK.

The relic abundance of a DM is characterised by the number changing processes in which the candidate is involved. In this case, on top of annihilations to SM particles, the DM ($N_{0}$) can also participate in co-annihilations with heavier particles $N_{\pm}$ which are odd under the same $Z_{2}$ symmetry. The relevant annihilation and co-annihilation channels in order to keep the inert fermion doublet DM in the thermal equilibrium in the early universe are listed below.

$N^{0}\overline{N^{0}}\rightarrow HH,ZH,W^{+}W^{-},ZZ,\Delta^{++}\Delta^{--},\Delta^{+}\Delta^{-},\Delta^{0}\Delta^{0},W^{\mp}\Delta^{\pm},\Delta^{0}H,\Delta^{0}Z,f\bar{f}$

$N^{0}N^{\pm}\rightarrow W^{\pm}\gamma,W^{\pm}H,W^{\pm}Z,\Delta^{\pm}Z,\Delta^{\pm}H,\Delta^{\pm}\gamma,W^{\pm}\Delta^{0},\Delta^{\pm\pm}W^{\mp},\Delta^{0}\Delta^{\pm},f^{\prime}\bar{f}$

$N^{\pm}N^{\mp}\rightarrow W^{\pm}W^{\mp},ZH,\gamma Z,\gamma\gamma,ZZ,\Delta^{++}\Delta^{--},\Delta^{+}\Delta^{-},W^{+}\Delta^{-},Z\Delta^{0},f\bar{f}$

We use micrOMEGAs micro to calculate the relic abundance of dark matter. In Fig. 2, we have shown the relic abundance of $N^{0}$ dark matter as a function of its mass. In a conservative limit we take the mass splitting between $N^{0}$ and its charged partner $N^{-}$ to be 1 GeV. The scalar triplet mass is fixed at 200 GeV and its coupling with the fermions is taken to be $\frac{f_{L}}{f_{N}}=10^{-5}$. We see that the large annihilation and co-annihilation cross-sections always yield much smaller relic density than required and hence the model is ruled out with the mass range of the order of TeV. The dominant channels are $N^{0}\overline{N^{0}}\rightarrow HH,ZH,W^{+}W^{-},ZZ$ and $N^{\pm}N^{\mp}\rightarrow W^{\pm}W^{\mp}$. We can also clearly spot the resonance at $M_{N}=\frac{M_{Z}}{2}$, where the relic density drops due to enhancement in the cross-section due to s-channel $Z$ mediation. The resonance drop at $M_{N}=100$ GeV specifies the presence of triplet. Thus we infer that the neutral component of the doublet alone can not be a viable DM candidate as its relic abundance is much below the observed limit. Therefore, in the next section we will consider a mixed singlet-doublet state as the candidate of DM.

V.2 Relics of Singlet-Doublet mixed fermion dark matter

The singlet ($\chi^{0}$) and neutral component of the doublet ($N^{0}$) fermion mix with each other after the electroweak symmetry breaking. In this scenario, the lightest particle $N_{1}=\cos\theta\chi^{0}+\sin\theta N^{0}$, which is stabilized by the imposed $Z_{2}$ symmetry, serves as a viable candidate of DM. The relic abundance of $N_{1}$ can be obtained through its annihilations to SM particles as well as through co-annihilations with $N^{-}$ and $N_{2}$. The main processes which contribute to the relic abundance of DM without involving triplet scalar are Bhattacharya:2015qpa :

$N_{1}\overline{N_{1}}\rightarrow HH,ZH,W^{+}W^{-},ZZ,f\bar{f}\\ N_{1}\overline{N_{2}}\rightarrow HH,ZH,W^{+}W^{-},ZZ,f\bar{f}\\ N_{2}\overline{N_{2}}\rightarrow HH,ZH,W^{+}W^{-},ZZ,f\bar{f}\\ N_{1}N^{\pm}\rightarrow W^{\pm}\gamma,W^{\pm}H,W^{\pm}Z,f^{\prime}\bar{f}\\ N_{2}N^{\pm}\rightarrow W^{\pm}\gamma,W^{\pm}H,W^{\pm}Z,f^{\prime}\bar{f}\\ N^{\pm}N^{\mp}\rightarrow W^{\pm}W^{\pm},ZH,\gamma Z,\gamma\gamma,ZZ,f\bar{f}$

In presence of the light scalar triplet $\Delta$, there will be additional s-channel processes through $\Delta^{0}$ mediation as well as processes involving $\Delta$ particles in the final states. The relevant processes are :

$N_{1}\overline{N_{1}}\xrightarrow{\Delta^{0}}f\bar{f},HH,W^{+}W^{-},ZZ$

$N_{1}\overline{N_{1}}\rightarrow\Delta^{++}\Delta^{--},\Delta^{+}\Delta^{-}\Delta^{0}\Delta^{0},W^{\pm}\Delta^{\pm},\Delta^{0}H,\Delta^{0}Z$

$N_{1}\overline{N_{2}}\xrightarrow{\Delta^{0}}f\bar{f},HH,W^{+}W^{-},ZZ$

$N_{1}\overline{N_{2}}\rightarrow\Delta^{++}\Delta^{--},\Delta^{0}\Delta^{0},\Delta^{+}\Delta^{-},W^{\pm}\Delta^{\pm},\Delta^{0}H,\Delta^{0}Z$

$N_{1}N^{+}\rightarrow\Delta^{-}\Delta^{++},W^{-}\Delta^{++},\Delta^{0}\Delta^{+},H\Delta^{+},Z\Delta^{+},A\Delta^{+},W^{+}\Delta^{0}$

$N_{2}\overline{N_{2}}\xrightarrow{\Delta^{0}}f\bar{f},HH,W^{+}W^{-},ZZ$

$N_{2}\overline{N_{2}}\rightarrow\Delta^{++}\Delta^{--},\Delta^{+}\Delta^{-}\Delta^{0}\Delta^{0},W^{\pm}\Delta^{\pm},\Delta^{0}H,\Delta^{0}Z$

$N_{2}N^{+}\rightarrow\Delta^{-}\Delta^{++},W^{-}\Delta^{++},\Delta^{0}\Delta^{+},H\Delta^{+},Z\Delta^{+},A\Delta^{+},W^{+}\Delta^{0}$

$N^{\pm}N^{\pm}\rightarrow\Delta^{++}\Delta^{--},\Delta^{+}\Delta^{-},W^{+}\Delta^{-},Z\Delta^{0}$

Relic density for $N_{1}$ is given by griest

[TABLE]

where $J(x_{f})$ is given by

[TABLE]

where $\langle\sigma|v|\rangle_{\rm eff}$ is thermal average of annihilation and coannihilation cross-sections of the DM particle. The expression for effective cross-section can be written as :

[TABLE]

In this equation $g_{1},g_{2},g_{3}$ represent spin degrees of freedom for particles $N_{1},N_{2},N^{-}$ respectively and their values are 2 for all. $\omega$ stands for the mass splitting ratio, given by $\omega=\frac{M_{i}-M_{1}}{M_{1}}$, where $M_{i}$ is the mass of $N_{2}$ and $N^{\pm}$. The effective degrees of freedom denoted by $g_{\rm eff}$, and is given by

[TABLE]

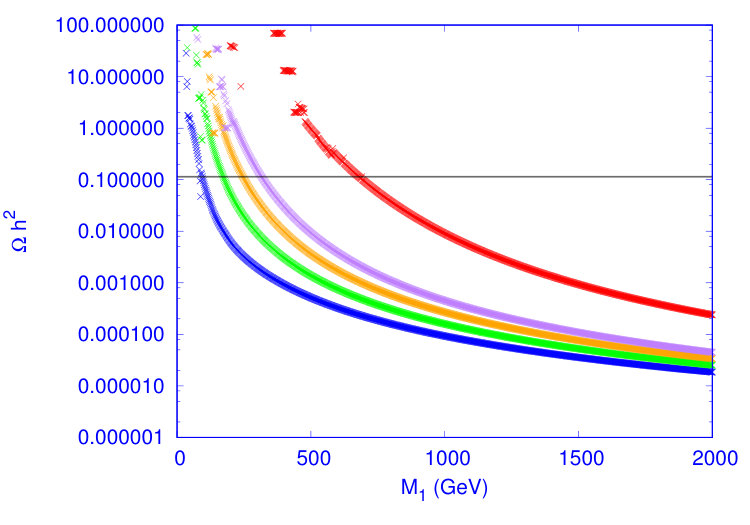

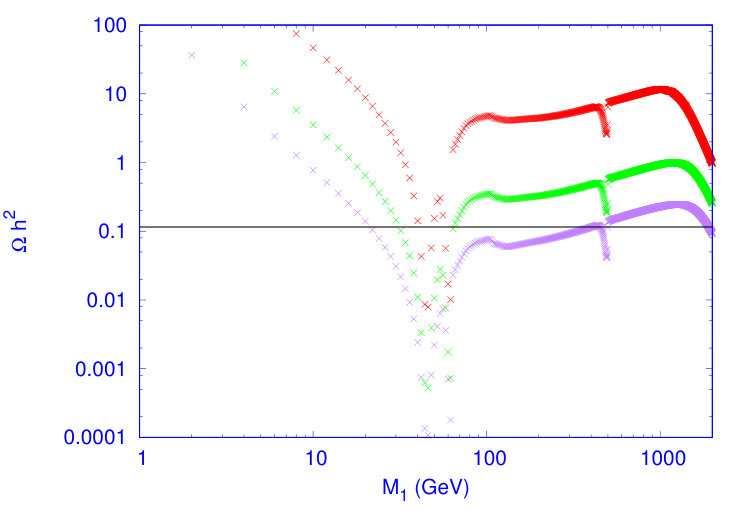

To calculate the relic density of DM, we use the code micrOMEGAs micro . We have shown in fig. 3 the relic density as a function of DM mass keeping the mass difference fixed at $M_{2}-M_{1}=500$ GeV, for three different values of the mixing angle: $\sin\theta=0.1,0.2,0.3$, shown in red (top), green (middle), purple (bottom) respectively in the plot. In the left panel of the fig. 3 we use $M_{\Delta}=200$ GeV, whereas in the right panel of fig. 3 we use $M_{\Delta}=1000$ GeV. The black horizontal line corresponds to the observed relic density: $\Omega_{\rm DM}h^{2}=0.1199\pm 0.0027$ by PLANCK PLANCK . From fig. 3, we notice that there is a sharp decrease in relic density near three different points. These three points correspond to the resonant annihilation of DM to the SM particles via the s- channel processes mediated by $Z$ , h and $\Delta^{0}$. From these figures it is clear that as $\sin\theta$ increases relic density decreases. It is due to the fact that the $Z$ and $\Delta$ mediated cross-section increases for increase in $\sin\theta$, and hence yield a low relic density. For both the plots in fig 3 we fix the ratio of Majorana couplings to be: $\frac{f_{L}}{f_{N}}=10^{-3}$. From the plots in the fig. 3, we conclude that the $\Delta$ field is contributing to the relic density only near the resonance points. Apart from the resonance region, the triplet does not contribute significantly. This is because the total cross-section is dominated by $N_{1}\bar{N_{1}}\rightarrow W^{+}W-$ and the $\Delta$-mediated s-channel contribution is suppressed due to the large triplet scalar mass present in the propagator. Therefore, we can not expect any change in relic density allowed parameter space if we vary the ratio of Majorana couplings: $\frac{f_{L}}{f_{N}}$. The cross-sections involving scalar triplet in the final states also do not affect the relic abundance since those are suppressed by phase space due to heavy triplet masses and as in this region of parameter space ($M_{1}>M_{\Delta}$) the cross-sections involving gauge bosons in the final state dominate. In summary, we don’t see almost any difference in relic density of DM in left and right panel of Fig. 3 due to change in triplet masses. We can however see that the resonance drop due to s-channel triplet mediation is reduced for large triplet mass $M_{\Delta}=1000$ GeV (shown in right panel) in comparison to $M_{\Delta}=200$ GeV (shown in left panel) for obvious reasons. As the mass splitting between $N_{1}$ and $N_{2}$ is taken to be very large in the above cases, the dominant contribution to relic density comes from annihilation channels while co-annihilation channels are Boltzmann suppressed.

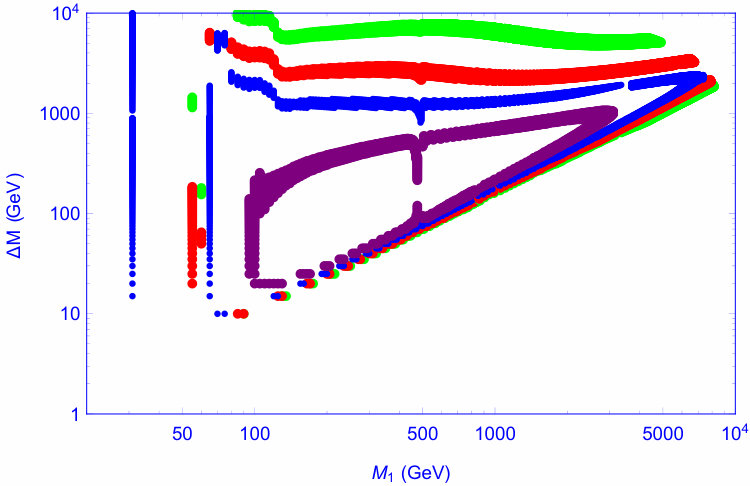

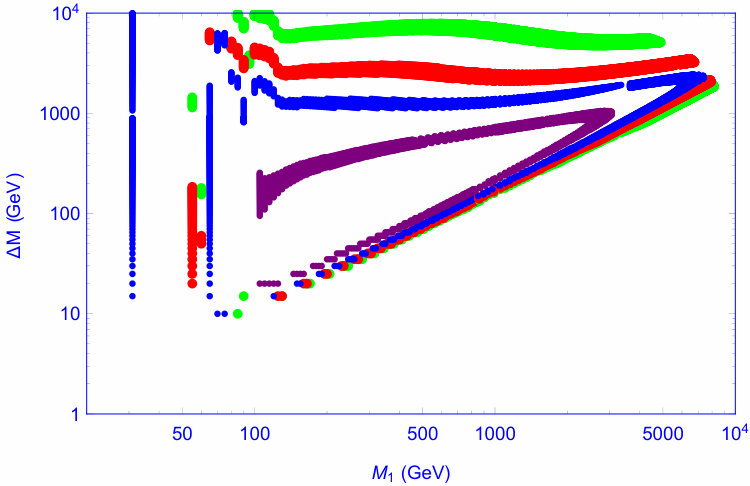

Now we will show the effect of mass-splitting between $N_{1}$ and $N_{2}$ on DM relic density. In fig. 4, we have shown a scatter plot for correct relic density in the plane of $M_{1}$ and $\Delta M=M_{2}-M_{1}$. Green, red, blue and purple coloured points satisfy the constraint of relic density for $\sin\theta=0.1,0.15,0.2,0.3$ respectively (from outermost to innermost contour). Let us first consider the vertical bars in the left hand side of the allowed parameter space. In this region of small DM mass, annihilation cross-section achieves large enhancement due to s-channel $Z$ and $H$ mediation at $M_{N_{1}}=\frac{M_{Z}}{2}$ and at $M_{N_{1}}=\frac{M_{H}}{2}$ respectively where the annihilation cross-section is independent of $\Delta M$. Annihilation cross-sections contribute significantly for large $\Delta M$ to provide correct relic abundance. As the mass splitting decreases co-annihilation channels contribute significantly to add to the annihilation channels. As seen from the figure 4, we can divide the relic density allowed parameter space into two regions with same $\sin\theta$ value: i) The region in which $\Delta M$ is increasing with DM mass to satisfy correct relic density constraint. In this region, the contribution to relic density comes from both annihilation and dominantly from co-annihilation channels as the mass splitting is small. Here, due to small, $\Delta M$, the Yukawa coupling $Y$ (see Eq. 11) is small and so is the Higgs mediated cross-sections. Hence, co-annihilation channels provide with the rest of the requirement for correct relic density and allowed parameter space requires $\Delta M\sim M_{1}$. ii) The second region corresponds to a large $\Delta M$ while insensitive to DM mass satisfying the correct relic abundance. In this region, the dominant contribution to relic density comes from the annihilation channels (large $\Delta M$ indicates large Yukawa $Y$ and large Higgs mediation cross-sections), and the co-annihilation channels are Boltzmann suppressed. $Z$ mediated annihilation cross-sections are fixed by the choice of a specific mixing angle (in the DM mass region within $\sim$ TeV). Therefore, the larger is the mixing the larger is the $Z$ mediated annihilation. This correctly balances the Higgs mediated annihilation cross-sections to yield correct relic density. That is why we notice that a smaller mass splitting ($\Delta M$) is required for larger $\sin\theta$ for a fixed value of DM mass. Hence green lines with smaller mixing ($\sin\theta=0.1$) requires larger $\Delta M$ and appears on top. With larger mixing, red, blue and purple lines, the required $\Delta M$ are smaller and appears below. It is easy to extend the analysis for even larger mixing angles, where the triangle becomes smaller and smaller in size and covers the innermost regions to yield the correct relic density. For $\sin\theta\gtrsim 0.5$ we can not get any relic abundance.

Points below “correct annihilation lines” (for a specific value of $\sin\theta$) provide more than required annihilation and hence those are under abundant regions. Similarly just above those, the annihilation will not be enough to produce correct density and hence are over abundant regions. Points below (above) the “correct co-annihilation regions” produce more (less) co-annihilations than required and hence depict under (over) abundant regions. There is not much difference in the parameter space if we vary the scalar triplet mass except few points in the resonance region. It can be clearly seen in left and right panel of the fig. 4 with scalar triplet mass 200 GeV and 1000 GeV respectively. The Yukawa coupling ratio $f_{L}/f_{N}=10^{-3}$ is fixed for both the plots. Again, if we change this ratio to a different value, no significant change in the allowed parameter space is expected.

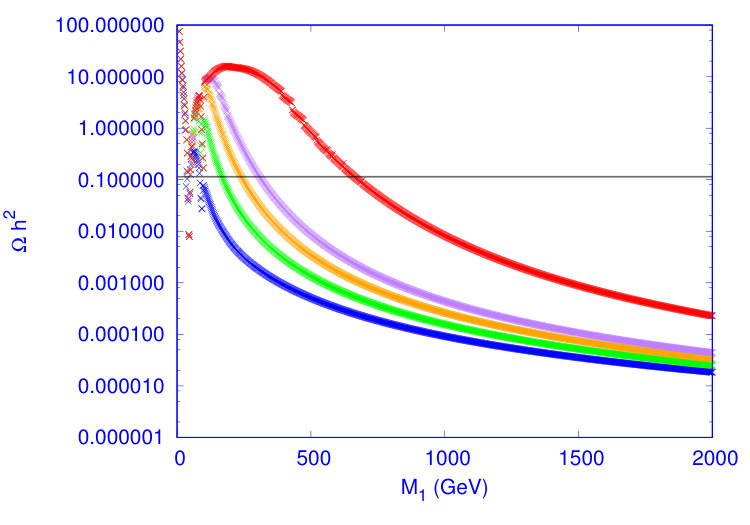

The $\Delta M$ dependency on the relic density for a specific choice of mixing angle is shown in Fig. 5, particularly for small mixing regions where co-annihilations play a crucial role in yielding correct relic density. In the left panel we use $\sin\theta=0.1$ and that in the right panel $\sin\theta=0.0001$. We plot different slices with constant $\Delta M={10,20,30,40,100}$ GeV as shown in Blue, Green, Orange, Purple, Red respectively from bottom to top. We note here that with larger $\Delta M$, the annihilation cross-section increases due to enhancement in Yukawa coupling $Y\propto\Delta M$. However, co-annihilation decreases due to increase in $\Delta M$ as $\sigma\propto e^{-\Delta M}$. Note that in the small $\sin\theta$ limit the dominant contribution to relic density comes from the channels involving only $N_{2}$ and $N^{\pm}$ in the initial state going to SM gauge bosons, as mentioned in the beginning of this section. The processes involving $N_{1}N_{1}\to{\rm SM}$ are heavily suppressed with small $\sin\theta$. As a result, we first get relics of $N_{2}$ and $N^{-}$ which subsequently decay to $N_{1}$ before $N_{1}$ freezes out. In particular, if the mass splitting between $N^{-}$ and $N_{1}$ is more than 80 GeV, then $N^{-}$ decays through two body process: $N^{-}\to N_{1}+W^{-}$. However, if the mass splitting between $N^{-}$ and $N_{1}$ is less than 80 GeV, than the former decays through the three body process, say $N^{-}\to N_{1}+\ell^{-}+\overline{\nu_{\ell}}$. Notice that the mixing angles $\sin\theta=0.1,0.0001$ used simultaneously in the left and right-panel of Fig. (5) are much larger than the lower bound obtained on the singlet-doublet fermion mixing angle as given in eq. 16 by considering the 3-body decay of $N^{-}$, namely $\sin\theta>\mathcal{O}(10^{-5})$.

For large $\Delta M$ the co-annihilation cross-sections decrease, which are the dominant processes in the small $\sin\theta$ limit. As a result relic abundance increases for a particular value of $M_{1}$ with larger $\Delta M$. Hence we require a larger mass difference $\Delta M$ for larger DM mass to account for correct co-annihilation so that the relic density will be in the observed limit.

VI Direct Detection of DM through inelastic scattering with the nuclei

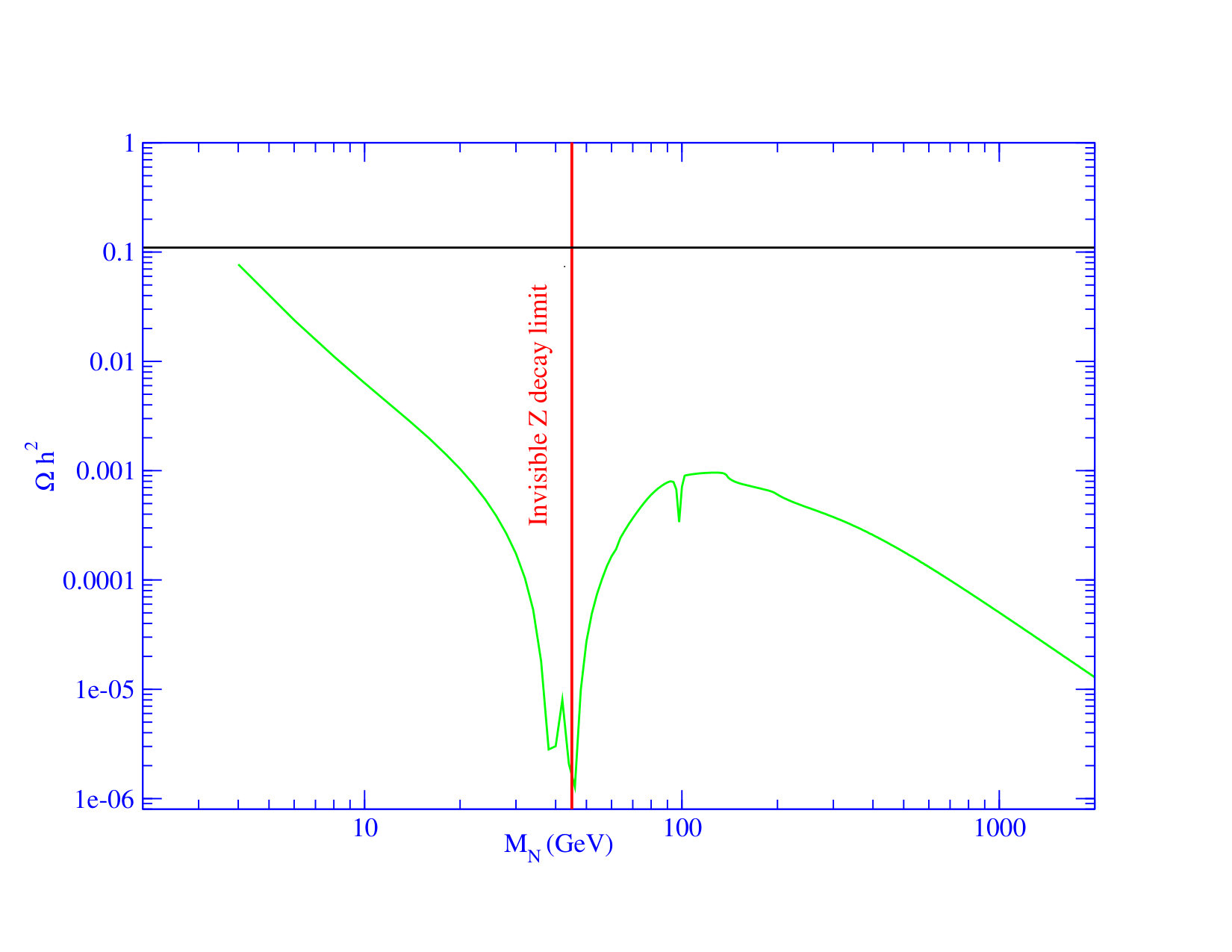

As discussed in section (V.1), the inert fermion doublet $N^{0}$ alone does not produce correct relic abundance. Therefore, we refrain ourselves to consider the inelastic scattering of $N^{0}$ only with the nuclei mediated via $Z$ boson. Rather we will consider the inelastic scattering of DM $N_{1}$, which is an admixture of doublet $N^{0}$ and singlet $\chi^{0}$.

From Eq. (1), the relevant interaction for scattering of $N_{1}$ with nucleon mediated via the Z-boson is given by

[TABLE]

where $g_{z}=\frac{g}{2\cos\theta_{w}}\sin^{2}\theta$. However the presence of scalar triplet, as discussed in section (IV.2), splits the Dirac state $N_{1}$ into two pseudo-Dirac states $\psi_{1}^{a,b}$ with a small mass splitting $m_{1}$. Therefore, the above interaction in terms of the new eigenstates $\psi_{1}^{a,b}$ can be rewritten as:

[TABLE]

From the above expression the dominant gauge interaction is off-diagonal, and the diagonal interaction vanishes. As a result there will be inelastic scattering possible for the DM with the nucleus. Note that the mass splitting between the two mass eigen states $\psi_{1}^{a,b}$ is given by: $\delta M_{1}=2\sqrt{2}f_{N}\sin^{2}\theta\,u_{\Delta}\,$. In this case, the minimum velocity of the DM needed to register a recoil inside the detector is given by TuckerSmith:2001hy ; Cui:2009xq ; Arina:2011cu ; Arina:2012fb ; Arina:2012aj :

[TABLE]

where $E_{R}$ is the recoil energy of the nucleon and $\mu_{r}$ is the reduced mass. If the mass splitting is above a few hundred keV, then it will be difficult to excite $\psi_{1}^{b}$ with the largest possible kinetic energy of the DM $\psi_{1}^{a}$. So the inelastic scattering mediated by $Z$-boson will be forbidden. As a result constraints coming from direct detection can be relaxed significantly. This in an important consequence in presence of the scalar triplet $\Delta$ in this model, which makes a sharp distinction with the existing analysis in this direction Bhattacharya:2015qpa .

VII Direct Detection of DM through elastic scattering with the nuclei

We shall now point out constraints on the model parameters from direct search of DM via Higgs mediation. The relevant diagrams through which $N_{1}$ interacts with the nuclei are shown in Fig. (6). In particular, our focus will be on Xenon-100 xenon100 and LUX Akerib:2016vxi which at present give strongest constraint on spin-independent DM-nucleon cross-section from the null detection of DM yet. In our model, this in turn puts a stringent constraint on the singlet-doublet mixing angle $\sin\theta$ for spin independent DM-nucleon interaction mediated via the $H_{1}$ and $H_{2}$-bosons (see in the Fig. (6)). The cross-section per nucleon is given by Goodman:1984dc ; Essig:2007az

[TABLE]

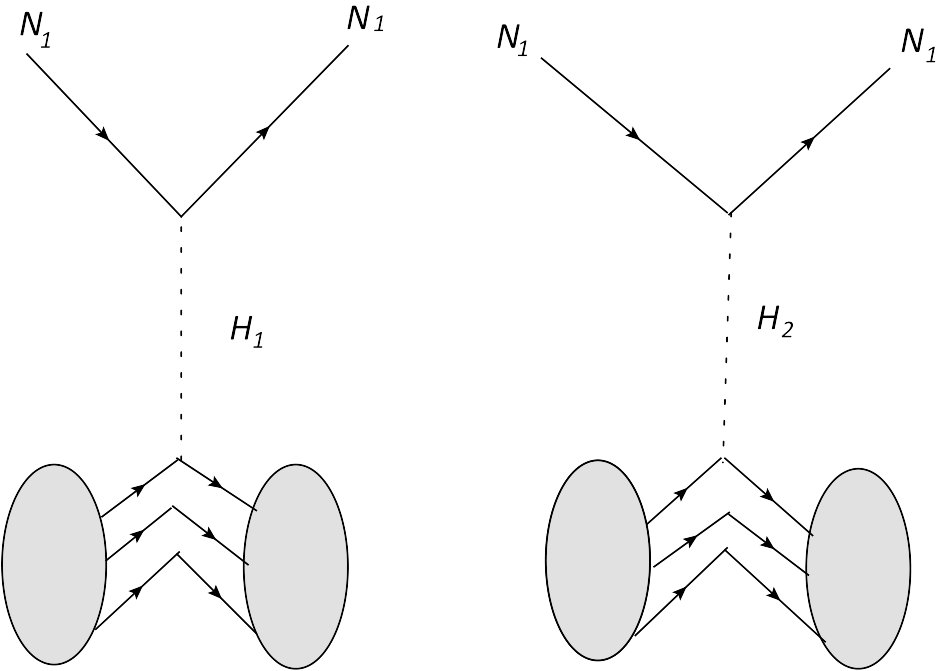

where $A$ is the mass number of the target nucleus, $\mu_{r}=M_{1}m_{n}/(M_{1}+m_{n})\approx m_{n}$ is the reduced mass, $m_{n}$ is the mass of nucleon (proton or neutron) and $\mathcal{M}$ is the amplitude for DM-nucleon cross-section. There are two t-channel processes through which DM can interact with the nucleus which is shown in the fig 6. The amplitude is given by:

[TABLE]

where the effective interaction strengths of DM with proton and neutron are given by:

[TABLE]

with

[TABLE]

In Eq. (51), the different coupling strengths between DM and light quarks are given by DM_review1 $f^{(p)}_{Tu}=0.020\pm 0.004$, $f^{(p)}_{Td}=0.026\pm 0.005$,$f^{(p)}_{Ts}=0.118\pm 0.062$, $f^{(n)}_{Tu}=0.014\pm 0.004$,$f^{(n)}_{Td}=0.036\pm 0.008$,$f^{(n)}_{Ts}=0.118\pm 0.062$. The coupling of DM with the gluons in target nuclei is parameterized by

[TABLE]

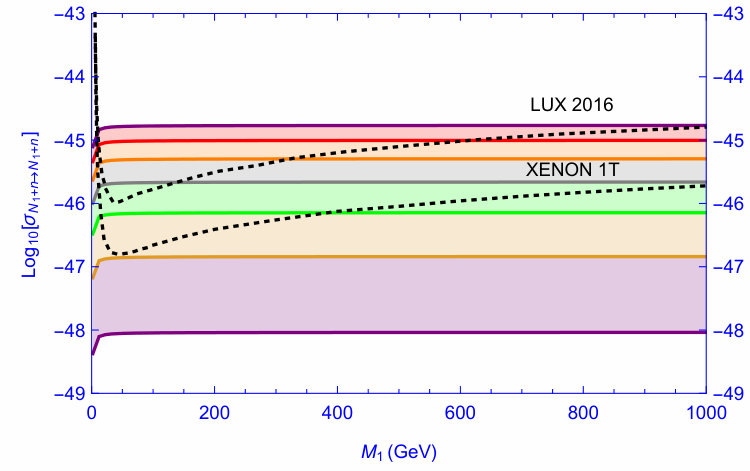

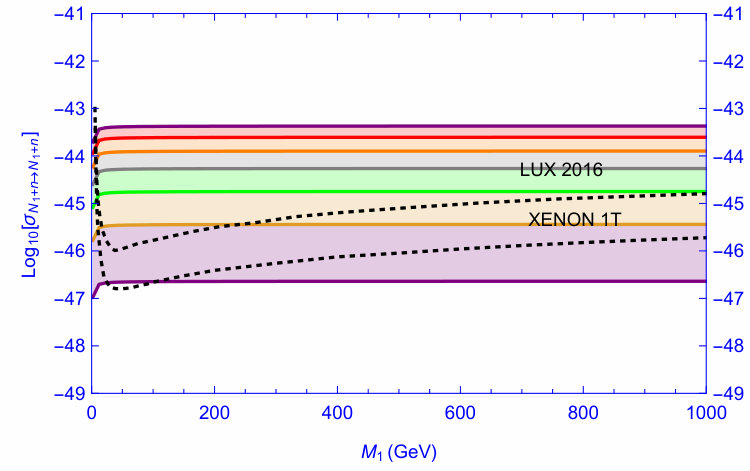

We have plotted the spin independent direct detection cross-section as a function of DM mass in the Fig.7 by taking the value of $M_{\Delta}=200~{}\rm GeV$ for two different values of $M_{2}-M_{1}=100,~{}500\rm~{}GeV$ in the left and right panel respectively. The plot is generated using different values of the singlet-doublet mixing angle: $\sin\theta=${0.05-0.1} (Purple), $\sin\theta=${0.1-0.15} (Pitch), $\sin\theta=${0.15-0.2} (Green), $\sin\theta=${0.2-0.25} (Gray), $\sin\theta=${0.25-0.3}(Orange), $\sin\theta=${0.3-0.35}(Red). The top Black dotted line shows the experimental limit on the SI nuclei-DM cross-section with DM mass predicted from LUX 2016 and the one below shows the sensitivity of XENON1T. The constraint from XENON 100 is loose and weaker than the LUX data and hence not shown in the figure. One of the main outcome of the figure in the left panel is that with larger $\sin\theta$, due to larger Yukawa coupling direct search cross-section through Higgs mediation is larger. Hence, LUX data constrains the singlet-doublet mixing to $\sin\theta\sim 0.3$ for DM mass $\sim$ 600 GeV with $\Delta M=100~{}\rm GeV$ (on the left hand side of Fig. 7). The constraint on the mixing is even more weaker for larger DM mass $\sim 900$ GeV and can be as large as $\sin\theta\sim 0.4$. This presents a strikingly different outcome than what we obtained in absence of scalar triplet Bhattacharya:2015qpa , the mixing angle was constrained there significantly to $\sin\theta\leq 0.1$ to account for the null observation in LUX data. Again this is simply due to the absence of $Z$ mediated direct search processes due to the mass splitting generated by the triplet as discussed in the above section and hence allows the DM to live in a much larger region of relic density allowed parameter space. In the right panel of the Fig. 7 with larger $\Delta M=500~{}\rm GeV$, the constraint on $\sin\theta$ is more stringent than the left one. It is because the SI cross-section is enhanced due to the increase in Yukawa coupling $Y\propto\Delta M$ for larger $\Delta M$ as expected. In the right panel, for DM mass of $\sim$ 300 GeV: $\sin\theta\sim 0.1$ and for DM mass around $\sim$ 1000 GeV and above: $\sin\theta\sim 0.15$ can be accommodated. Since the mixing between $\Delta-h$ is small: $\sin\theta_{0}<5\times 10^{-2}$ , the contribution to the cross-section by the $H_{2}$ mediated diagram is suppressed. This is also further suppressed by the large mass of $M_{\Delta}$ present in the propagator. For this reason no striking difference in direct search cross-section for higher values of $M_{\Delta}$ is found as the cross-section is dominated by $H_{1}$ mediation only.

VIII Decay of $N^{-}$ and the displaced vertex signature

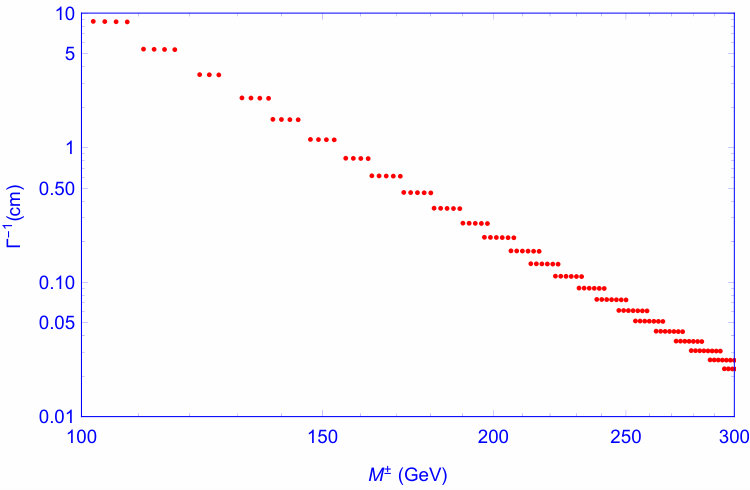

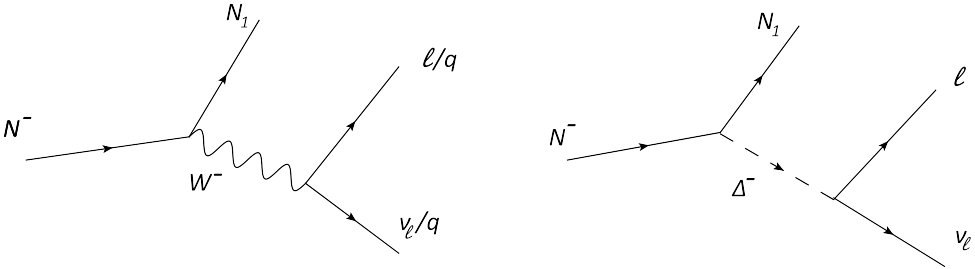

The phenomenology of the charged partner of DM is quite interesting. If the mass splitting between $N^{\pm}$ and $N_{1}$ is less than mass of $W^{-}$ , then $N^{-}$ will decay via three body suppressed process: $N^{-}\to N_{1}\ell\nu_{\ell}$ and $N^{-}\to N_{1}+{\rm di-jets}$. The relevant Feynman diagrams for the decay is shown in Fig. 8. However the figure on the right side, mediated by triplet ($\Delta^{-}$), is suppressed due to the small coupling of triplet with the leptons and the large mass $M_{\Delta}$ present in the propagator. So the dominant contribution for decay of $N^{-}$ is coming from the left diagram of Fig. 8 through $W$ mediation. The decay rate for the process $N^{-}\to N_{1}\ell\nu_{\ell}$ is given in Eq.12.

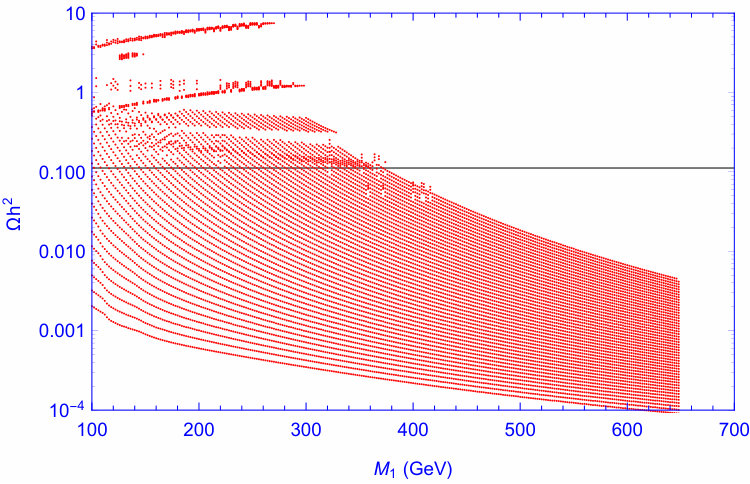

In the left panel of Fig. 9, a scatter plot is shown taking relic abundance as a function of DM mass keeping the mass splitting less than $50$ GeV. Here, we fix the singlet-doublet mixing angle to be $\sin\theta=3\times 10^{-4}$, a moderately smaller value. We have also shown the correct relic abundance as allowed by the PLANCK data with a horizontal solid black line. We choose those set of points from the relic abundance data which are allowed by the PLANCK result and use them to calculate the displaced vertex signature of $N^{\pm}$ ($\Gamma^{-1}$) and plotted as a function of $M^{\pm}$ in the right-panel of Fig. (9). We observe that the displaced vertex becomes very small for larger values of $M^{\pm}$, as the inverse of decay width $\Gamma^{-1}$ is inversely proportional to the mass of decaying charged particle. However, for smaller masses with $M^{\pm}\sim 200$ GeV, the displaced vertex can be as large as 2.5 mm to be detected in Large Hadron Collider (LHC). The production cross sections for such excitations have already been discussed earlier Bhattacharya:2015qpa with possible leptonic signatures and we refrain from discussing those here again. The important point to be noted here is that to get a large displaced vertex we need a small mixing angle between the singlet and doublet. In fact, the small mixing angle is favoured by all the constraints we discussed in previous sections, such as correct relic abundance and null detection of DM at direct search experiments. However, from Eq. (16) we also learnt that the singlet-doublet mixing can not be arbitrarily small and therefore, the displaced vertex can not be too large.

IX Summary and conclusion

We explored the possibility of a singlet-doublet mixed vector-like fermion dark matter in presence of a scalar triplet. The mixing angle: $\sin\theta$ between the singlet and doublet plays an important role in the calculation of relic abundance as well as direct detection. We found that the constraint from null detection of DM at direct search experiments and relic abundance can be satisfied in a large region of parameter space for mixing angle: $\sin\theta\sim 0.3$ and smaller values. If the scalar triplet is light, say $M_{\Delta}\lesssim 500$ GeV, then it contributes to relic abundance only near the resonance i.e with $M_{N_{1}}\sim\frac{M_{\Delta}}{2}$. On the other hand, if $M_{\Delta}\gtrsim 1$ TeV, then it decouples and hence does not contribute to relic abundance of DM.

The scalar triplet couples symmetrically to lepton doublets as well as to the doublet component of the DM. Therefore, when the scalar triplet acquires an induced vev, it not only gives Majorana masses to the light neutrinos but also induce a sub-GeV Majorana mass to the DM. As a result the DM, which was originally a vector-like Dirac fermion splits into two pseudo-Dirac fermions with a mass separation of sub-GeV order. Due to this reason the Z-mediated inelastic scattering of the DM with nucleon is suppressed. However, we found that the spin independent direct detection of DM through the SM Higgs mediation is in the right ballpark of Xenon-1T. The absence of $Z$ mediated DM-nucleon cross-section relaxes the constraint on mixing angle $\sin\theta$ as we can go as high as $\sin\theta=0.3$ for DM mass $M_{1}>400$ GeV for small mass splitting $\Delta M<100$ GeV. This high value of $\sin\theta$ is also well satisfied by the correct relic abundance. So the spin independent direct detection cross-section does not put stronger constraint on the mixing angle if the mass splitting is not so large and allows large region of parameter space unlike the model in absence of a triplet.

The $\rho$ parameter in the SM restricts the vev of scalar triplet to $u_{\Delta}\leq 3.64$ GeV. This in turn gives the mixing between the SM Higgs and $\Delta$ to be $\sin\theta_{0}$ $\mathcal{O}(10^{-2})$ even if the $M_{\Delta}\lesssim 500$ GeV. Therefore, $\Delta$ does not contribute significantly to the spin independent direct detection cross-section.

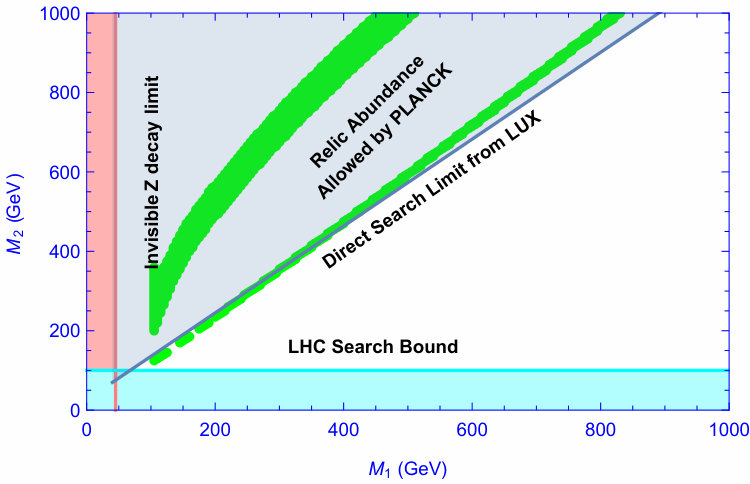

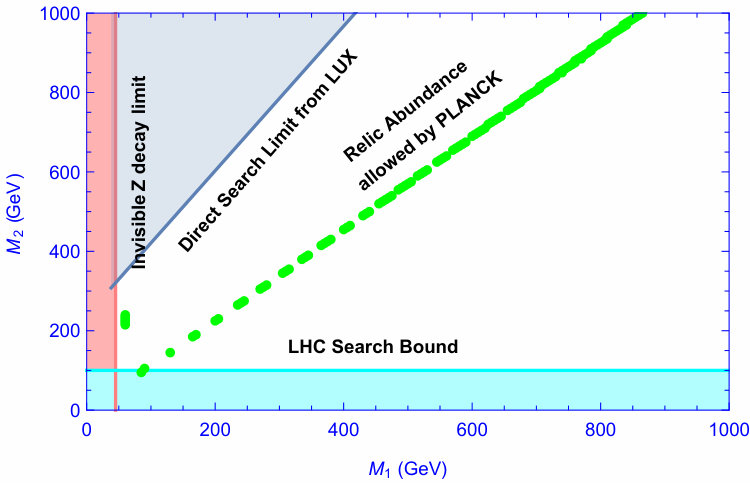

We summarize the constraints on the parameters in Fig. 10, where we have shown the allowed values in the plane of $M_{1}-M_{2}$ using $\sin\theta=0.1$ in the left and for $\sin\theta=0.3$ on the right. The green points are allowed by the relic abundance of DM by taking the constraint from PLANCK data. The main constraint comes from non observation of DM from direct search data of LUX experiment. On the left, for small $\sin\theta=0.1$, direct search constraint is less severe as has already been discussed and the whole relic density allowed points are consistent with direct search bound. However, for larger $\sin\theta=0.3$, on the right hand side of Fig. 10, a significant part of the relic density allowed space is submerged into direct search bound excepting for the low DM mass region upto $\sim$ 400 GeV. The direct search bound gets more stringent with larger $\Delta M$ and that is one of the primary reasons that relic density allowed parameter space with large $\sin\theta=0.3$ is disfavoured. This is still significantly new in contrast to the model without the triplet, where larger mixing $\geq 0.1$, was completely forbidden by direct search data. There are other small regions which are disfavoured by various experimental searches. For example, the region in cyan colour is disfavoured by the collider search of $N^{\pm}$ and hence the allowed values are given by $M^{\pm}\sim M_{2}>100\rm GeV$. The mass of $N_{1}$ (DM), i.e., $M_{1}>45$ GeV, is required in order to relax the severe constraints from the invisible $Z$ boson decay Bhattacharya:2015qpa . The charged partner of the DM gives interesting signatures at colliders if $M^{\pm}-M_{1}\lesssim 80$ GeV. As a result the two body decay of $N^{\pm}$ is forbidden. The only way it can decay is the three body decay. For example, the notable one is $N^{-}\to N_{1}\ell^{-}\overline{\nu_{\ell}}$. In the small singlet-doublet mixing limit we get a displaced vertex of $10$ cm for $M^{\pm}\sim 100$ GeV and a mass splitting of few tens of GeV while satisfying the constraint from observed relic abundance.

Acknowledgement

SB would like to acknowledge the DST-INSPIRE project with grant no. IFA-13 PH-57 at IIT Guwahati.
