Cosmological searches for a non-cold dark matter component

TL;DR

This paper investigates a mixed dark matter model with cold and non-cold components, analyzing cosmological data to assess its potential in resolving tensions in measurements of the universe's expansion and structure formation.

Contribution

It introduces an extended cosmological model with mixed dark matter, extracting particle properties from multiple data sources and evaluating its effectiveness in addressing existing cosmological tensions.

Findings

Non-cold dark matter with keV mass can help alleviate tensions.

Different data sets prefer different non-cold dark matter parameters.

A single non-cold component struggles to resolve all tensions simultaneously.

Abstract

We explore an extended cosmological scenario where the dark matter is an admixture of cold and additional non-cold species. The mass and temperature of the non-cold dark matter particles are extracted from a number of cosmological measurements. Among others, we consider tomographic weak lensing data and Milky Way dwarf satellite galaxy counts. We also study the potential of these scenarios in alleviating the existing tensions between local measurements and Cosmic Microwave Background (CMB) estimates of the $S_8$ parameter, with $S_8=\sigma_8\sqrt{\Omega_m}$, and of the Hubble constant $H_0$. In principle, a sub-dominant, non-cold dark matter particle with a mass $m_X\sim$~keV, could achieve the goals above. However, the preferred ranges for its temperature and its mass are different when extracted from weak lensing observations and from Milky Way dwarf satellite galaxy counts, since these two measurements require suppressions of the matter power spectrum at different scales. Therefore, solving simultaneously the CMB-weak lensing tensions and the small scale crisis in the standard cold dark matter picture via only one non-cold dark matter component seems to be challenging.

Figures

Equations

$$f_X=\frac{{\omega }_X}{{\omega }_{DM}},$$

$${\omega }_X={\left(\frac{T_X}{T_{\nu }}\right)}^3\left(\frac{m_X}{94\text{ eV}}\right).$$

$$\frac{P_{\mathrm{MDM}}(k)}{P_{\mathrm{CDM}}(k)}$$

$$r_X(f_X)$$

$$k_d^{\prime }(k_d,f_X)$$

$$k_d(m_X,z)={\left(\frac{m_X}{\text{keV}}\right)}^{2.207}D(z{)}^{1.583}388.8h{\text{Mpc}}^{-1}.$$

$$a=1.551,b=0.5761,c=1.263.$$

$$\frac{d{N}_{\mathrm{sat}}}{d\ln M_s}=\frac{1}{C_n}\frac{1}{6{\pi }^2}\left(\frac{M_h}{M_s}\right)\frac{P(1/R_s)}{R_s^3\sqrt{2\pi (S_s-S_h)}}.$$

$$N_{\mathrm{sat}}^{\mathrm{th}}={\int }_{M_{\min }}^{M_h}\frac{d{N}_{\mathrm{sat}}}{d\ln M_s}d{M}_s.$$

$$S_i(M)$$

$$M_i$$

$$W(k|M)=\{\begin{array}{l}1,\text{if}k\le k_s(M);\\ 0,\text{if}k>k_s(M).\end{array}$$

$$T(S_8)\equiv |{\bar{S}}_8^{D_1}-{\bar{S}}_8^{D_2}|/\sqrt{{\sigma }^2(S_8^{D_1})+{\sigma }^2(S_8^{D_2})},$$

Full text

I Introduction

Within the current canonical cosmological model, dubbed the $\Lambda$CDM model, the dark matter is assumed to be made of a totally cold gas of weakly interacting particles, accounting for $\sim 26\%$ of the current universe mass-energy density. This standard picture has been extremely successful in explaining both the large scale structure observations of our universe and the pattern of the temperature and polarization fluctuations in the Cosmic Microwave Background (CMB) Ade et al. (2016). Nevertheless, the mechanism explaining the origin and the physics of this cold dark matter component remains obscure Bertone et al. (2005); Bergstrom (2012); Kusenko and Rosenberg (2013), with possible candidates ranging from the GeV-TeV energy scale to very light ($\mu$eV) dark matter axions. Together with this hitherto theoretically unknown cold dark matter nature, there are a number of observations which further motivate the searches for other possible dark matter candidates.

On the one hand, there is the small scale crisis of the $\Lambda$CDM model. This problem is closely related to several galactic and sub-galactic phenomena, as the Milky Way satellites problem Klypin et al. (1999); Moore et al. (1999a) and the so-called too big to fail problem Boylan-Kolchin et al. (2012), which refer to the fact that the predictions from the $\Lambda$CDM picture fail in reproducing the number of low-mass subhalos expected within a Milky Way-sized halo and the measured kinematics of the Milky Way satellites, respectively. A large effort in the literature has been devoted to alleviate these problems Wang et al. (2016); Lovell et al. (2016a); Sawala et al. (2013, 2016); Fattahi et al. (2016); Polisensky and Ricotti (2014); Vogelsberger et al. (2012); Schewtschenko et al. (2016); Lovell et al. (2012, 2014, 2016b); Nakama et al. (2017).

On the other hand, recent measurements of tomographic weak gravitational lensing, as those from the Kilo Degree-450 deg2 Survey (KiDS-450) Hildebrandt et al. (2016); Joudaki et al. (2016a), show substantial discordances with CMB measurements from Planck Ade et al. (2016); Aghanim et al. (2016) in the matter perturbations at small scales. These discordances are quantified in terms of the extracted values of the amplitude of the small-scale density fluctuations, quantified by the parameter $\sigma_{8}$, at a given matter density, $\Omega_{m}$. In particular, the quantity $S_{8}=\sigma_{8}\sqrt{\Omega_{m}}$ as measured by KiDS is in tension with the Planck estimate at the level of $2.3\sigma$ Hildebrandt et al. (2016). Similar results had already appeared in the past from the analyses of CFHTLenS data Kilbinger et al. (2013); Heymans et al. (2013). A number of recent dedicated studies in the literature have shown that the CFHTLenS and the KiDS discrepancies are independent of the small-angle approximations commonly exploited in weak lensing data analyses Lemos et al. (2017); Kilbinger et al. (2017); Kitching et al. (2016a).

Here, instead of refining cosmic shear analyses, we follow a different avenue to ameliorate these problems. In the spirit of Ref. Joudaki et al. (2016a), we consider a modified version of the most economical pure cold dark matter model, allowing for a mixed dark matter cosmology with an additional, non-totally cold, dark matter relic. These models with an admixture of cold and non-cold dark matter particles have been dubbed mixed dark matter (MDM) models; see e.g. Refs. Palazzo et al. (2007); Boyarsky et al. (2009); Maccio et al. (2013); Anderhalden et al. (2012, 2013); Diamanti et al. (2017). The motivation to consider these models is twofold: in addition to their potential in alleviating the tension between cosmic-shear and CMB measurements, they could also provide a solution to the aforementioned $\Lambda$CDM small-scale crisis, while leaving unchanged the predictions from the $\Lambda$CDM model at large scales. The reason is simple: the particle associated to the second, non-totally cold dark matter component will have a significant free-streaming length, that affects the matter power spectrum on the smallest scales, therefore improving the compatibility with the observations of the local Universe Weinberg et al. (2014) through a reduction of the $S_{8}$ quantity.

In this study we scrutinize these mixed dark matter scenarios, using the most recent tomographic weak lensing measurements from the KiDS-450 survey, in combination with Planck CMB data. By means of these datasets we shall derive constraints on the current temperature and mass-energy density of the non-cold dark matter component, searching for the most favored cosmological dark matter scenario. Furthermore, we also consider current estimates from the observed number of Milky Way satellite galaxies, comparing these results to those preferred by weak lensing data.

The structure of the paper is as follows. In Sec. II we present the methodology followed here, describing the Mixed Dark Matter model, the included datasets and the technical details of our numerical analyses. Our results are shown in Sec. III. We draw our main conclusions in Sec. IV.

II Methodology

II.1 Mixed Dark Matter modeling

In this paper we explore a scenario where the dark matter fluid is made of two components: one which corresponds to the standard cold dark matter (CDM) plus a second one with a non-zero temperature $T_{X}$ 111We consider relics with a Fermi-Dirac distribution. A change in the distribution will not change dramatically the results, see e.g. Diamanti et al. (2017).. In the following we shall refer to this model as the Mixed Dark Matter (MDM) model. While the CDM component is simply parameterized via its energy density $\omega_{c}\equiv\Omega_{c}h^{2}$, the second dark matter component is parameterized through its temperature $T_{X}$ and its energy density fraction $f_{X}$ relative to the total dark matter component $\omega_{DM}=\omega_{X}+\omega_{c}$, defined as

[TABLE]

where $\omega_{i}\equiv\Omega_{i}h^{2}$ refers to the present mass-energy density. Notice that the mass of the second, non-cold dark matter particle can be computed from its energy density and its temperature using the relation

[TABLE]

In our analyses we shall consider $0\leq f_{X}\leq 1$ for the WDM energy density and $-1.5\leq\log_{10}(T_{X}/T_{\nu})\leq 0$ for its temperature. The upper temperature prior, $T_{X}=T_{\nu}$, is fixed to be the one corresponding to the pure hot dark matter regime, i.e. to the standard neutrino temperature, while the lower prior is chosen in order to preserve the validity of the numerical calculations for the MDM model used here, as we explain in what follows.

A crucial point when dealing with the MDM modeling is related to the power spectrum of the density perturbations, which is modified when a second non-totally cold dark matter component is also considered in the cosmological evolution. The deviations of the matter power spectrum in the MDM model from its standard shape within the CDM model may be highly non-trivial and must be treated cautiously, since we are dealing with weak lensing probes, which require a good knowledge of the perturbation behavior in the non-linear regime 222This is a delicate issue, as we are dealing with a second dark matter component different from the standard three neutrino active contribution. For the implementation of massive neutrinos in non-linear matter power spectrum simulations, see Ref. Ali-Haimoud and Bird (2012).. We recall that the non-linear approximations that are commonly used for the numerical computations are calibrated on N-body simulations. These calibrations, however, must be considered carefully, since the extrapolation for unusual models may spoil the correctness of the adopted formulae.

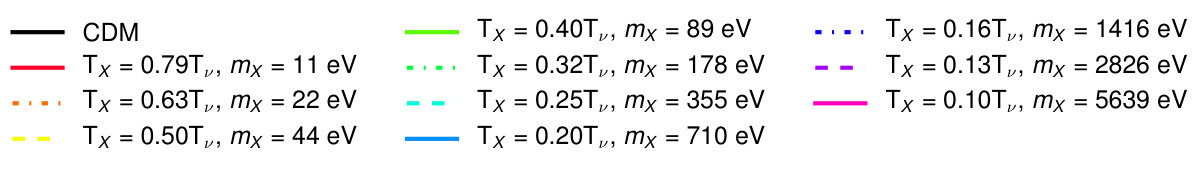

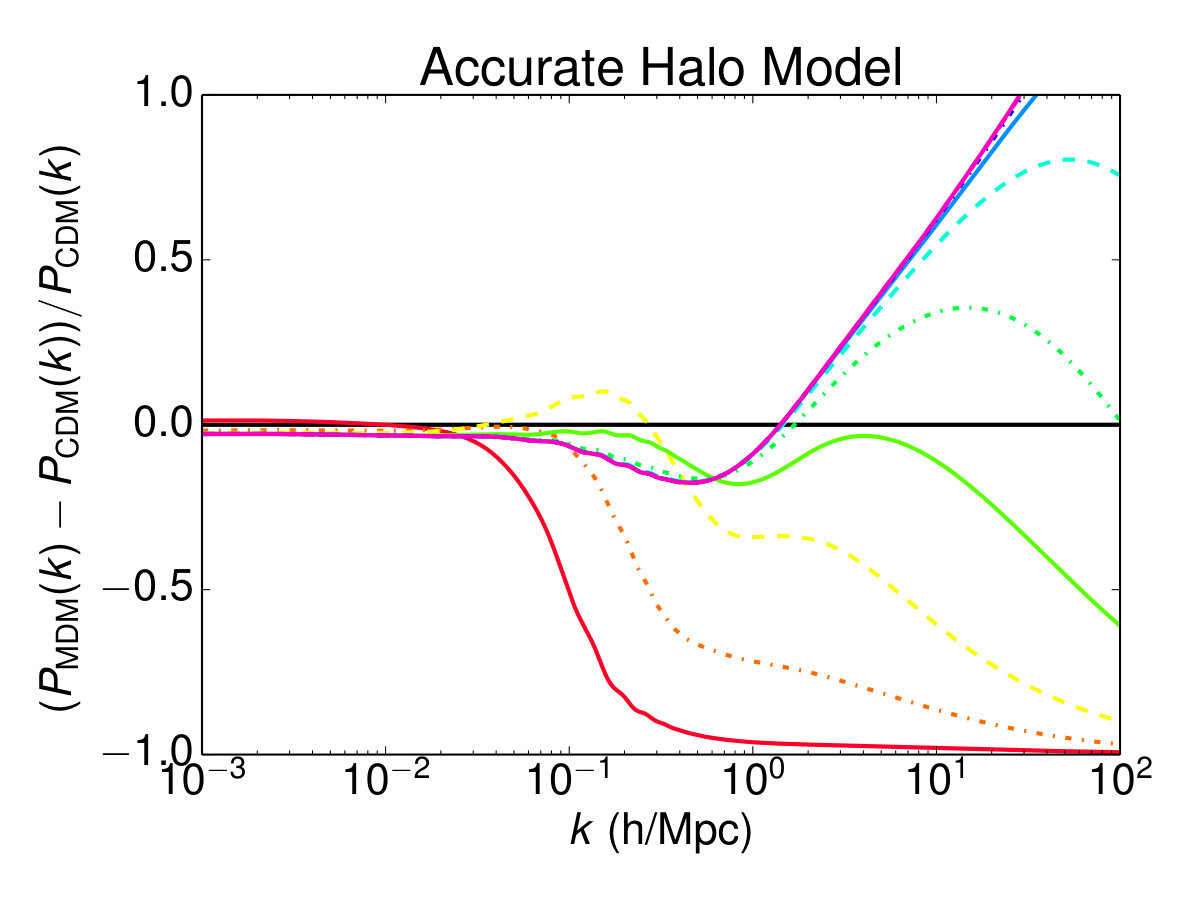

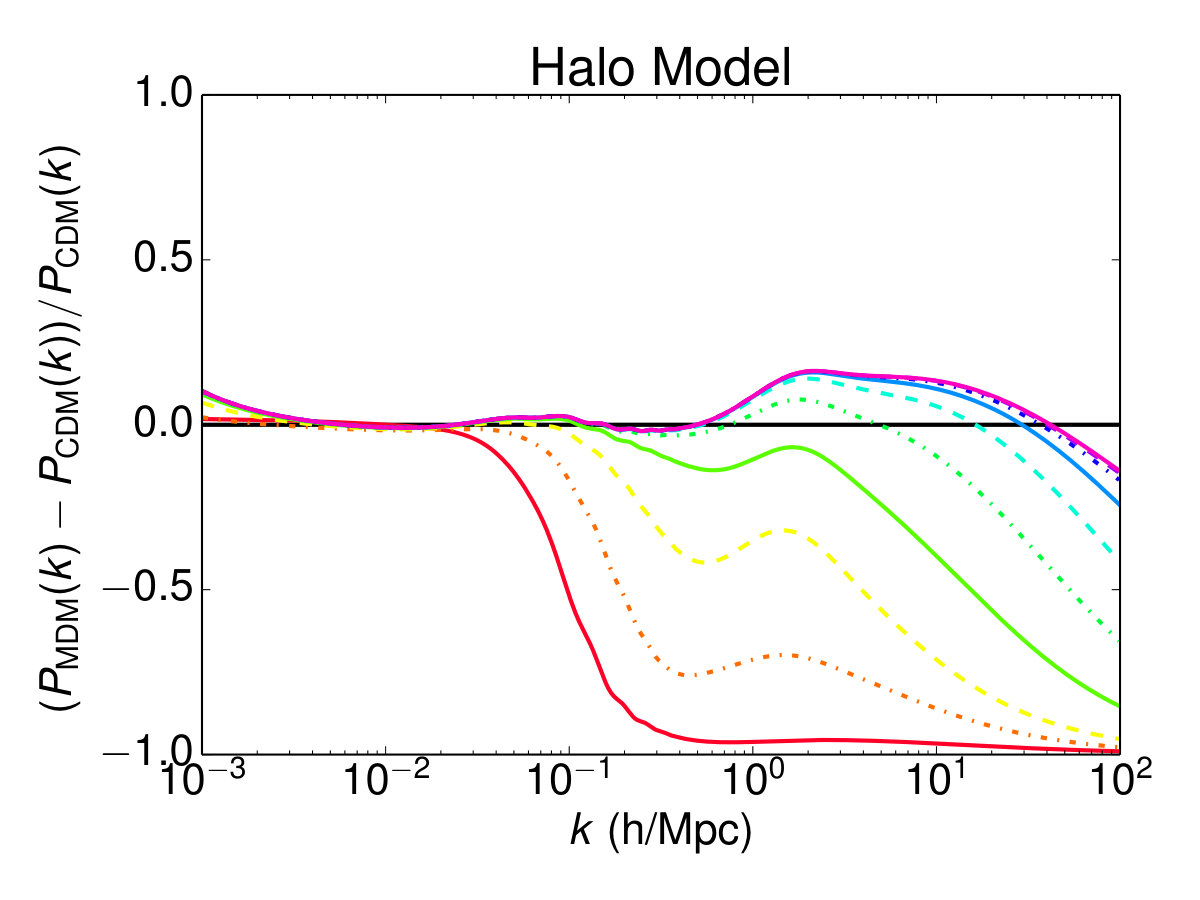

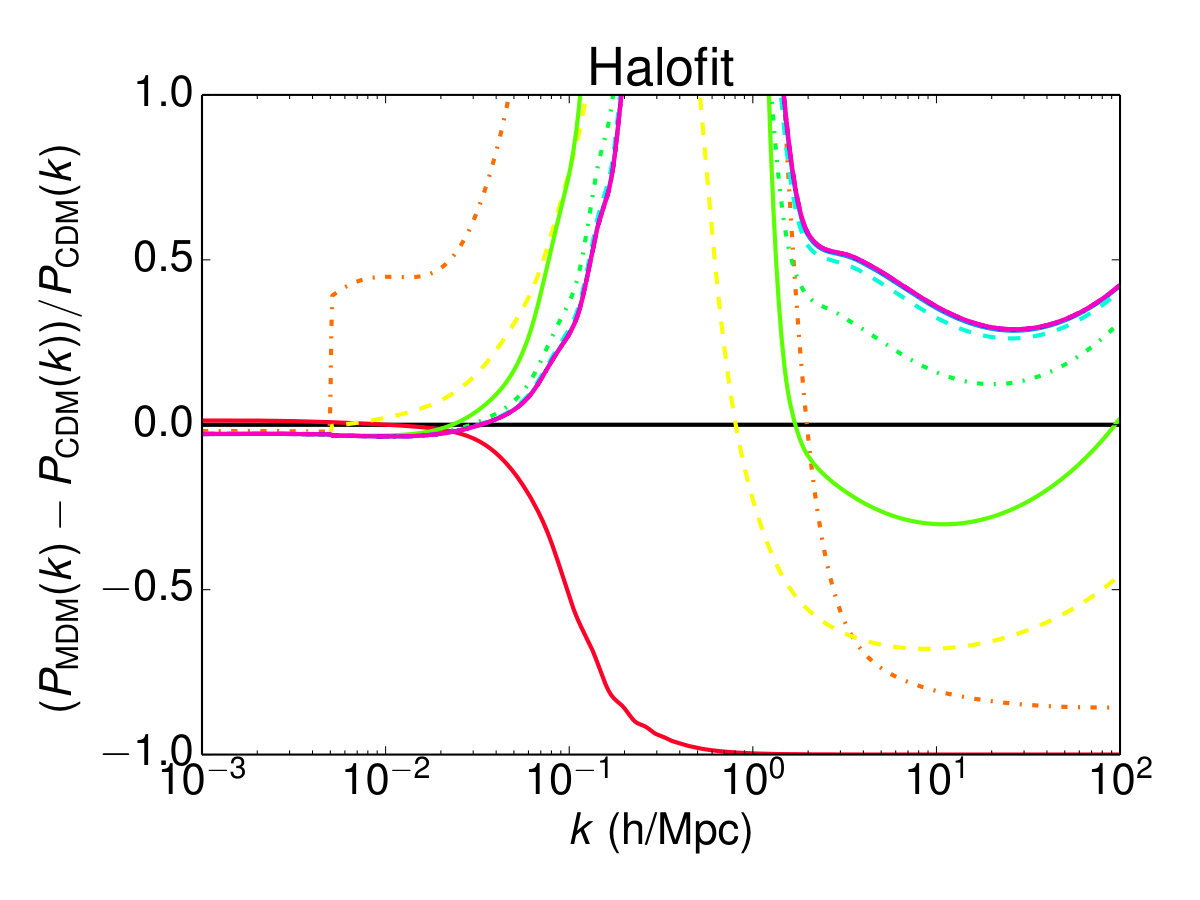

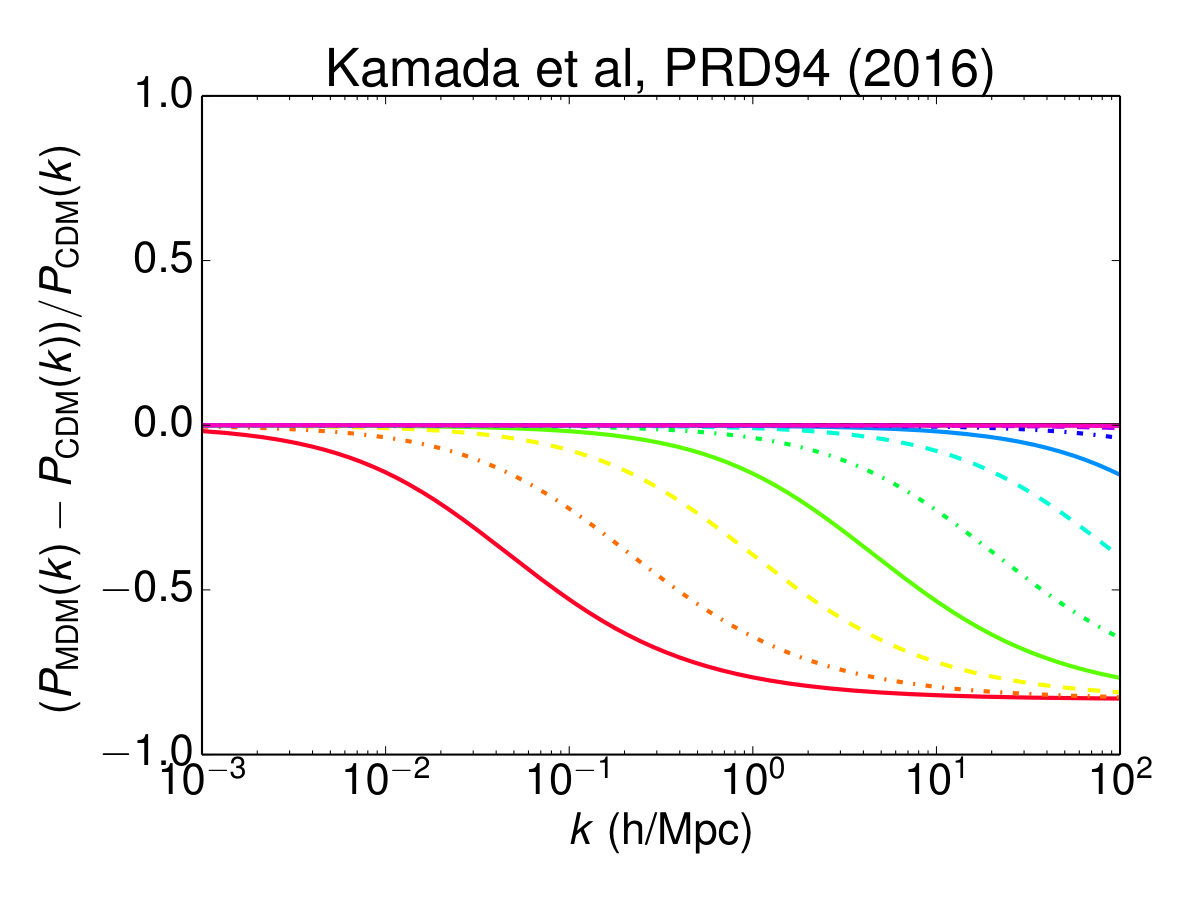

In this regard, we show in Fig. 1 the relative difference between the non-linear matter power spectrum of some of the MDM models explored here with respect to the corresponding CDM only case. We use $\omega_{DM}=0.12$ for all the plots, with $f_{X}=0$ for the CDM-only model and $f_{X}=0.5$ for the other cases, and we vary the non-cold dark matter particle temperature. The panels refer to four possible non-linear prescriptions: the standard Seljak (2000); Peacock and Smith (2000); Ma and Fry (2000); Cooray and Sheth (2002) (upper left panel) and the accurate Mead et al. (2015) (upper right panel) versions of the halo model, the standard halofit code Takahashi et al. (2012) (lower left panel) and the fitting formula presented in Ref. Kamada et al. (2016) (lower right panel), that we shall adopt here (see below). Notice that the halofit prescription badly fails in reproducing the expected behavior of the non-linear power spectrum when the temperature $T_{X}$ of the non-totally cold dark matter particle deviates significantly from the neutrino temperature, $T_{\nu}$. In the limit $T_{X}\rightarrow 0$, the MDM case should approach the CDM one, eventually overlapping with it and this behavior is clearly not reproduced. The accurate halo model 333The term “accurate” is related to the fact that this improved version of the original halo model Seljak (2000); Peacock and Smith (2000); Ma and Fry (2000); Cooray and Sheth (2002) takes into account several corrections (that include, among others, the baryonic feedback), i.e. factors that are not included in the standard halo model, see Ref. Mead et al. (2015) for details. also presents some problems at the smallest scales. Following these results, the best model to describe the non-linear perturbation growth in the MDM case seems to be the standard halo model. However, even in this case there exists an unphysical bump at scales $k\sim 1$ $h$/Mpc which makes its predictions unreliable.

The clear failure of these three widely used non-linear models for a significant range of temperatures $T_{X}$ has motivated us to search for an alternative description of the non-linearities in the power spectrum in the presence of an additional non-cold dark matter component. We have therefore adopted the prescriptions presented in Ref. Kamada et al. (2016), that we briefly summarize here.

Starting from the standard non-linear matter power spectrum for a CDM universe $P_{\rm CDM}$ computed with halofit Takahashi et al. (2012); Takahashi and Inoue (2014), the authors of Ref. Kamada et al. (2016) find that the fitting function that best matches the results of N-body simulations in the presence of a non-cold dark matter component is given by:

[TABLE]

where the two quantities that appear in the right hand side read as

[TABLE]

In the latter equation, $k_{d}$ is the damping scale given in Ref. Inoue et al. (2015) as a function of the linear growth rate $D(z)$:

[TABLE]

Finally, parameters $a$, $b$, $c$ in Eq. (4) are obtained by fitting the parameterization above to the N-body simulation results Kamada et al. (2016):

[TABLE]

In all the relevant parts of our computation, therefore, we substituted the non-linear matter power spectrum with the one given by Eq. (3). This means that we need to compute the non-linear matter power spectrum $P_{\rm CDM}$ in the CDM-only model using the standard halofit prescription.

II.2 Datasets

II.2.1 Cosmic microwave background (CMB)

We consider the CMB measurements of the most recent Planck data release Ade et al. (2016); Aghanim et al. (2016), using the full temperature power spectrum at all multipoles ($2\leq\ell\leq 2500$, Planck TT) , the polarization power spectra only in the low multipoles range ($2\leq\ell\leq 29$, lowP) and the lensing likelihood computed from the 4-point correlation function. Since there could be still some level of residual systematics contamination Ade et al. (2016), we neglect the polarization measurements at high multipoles (highP), following therefore a very conservative approach which will ensure very robust limits. We refer to the Planck TT + lowP + lensing combination of data as the “CMB” dataset.

II.2.2 KiDS data

An essential point of this study is the addition of the measurements of the Kilo Degree Survey (KiDS) Hildebrandt et al. (2016); Joudaki et al. (2016a) using the methodology explained in Hildebrandt et al. (2016).

The KiDS data can be used to reconstruct the 2-point shear correlation functions $\xi_{\pm}^{ij}(\theta)$ for the ${i,j}$ tomographic bin combination at the angle $\theta$. The dataset that we use here is from KiDS-450 Kuijken et al. (2015); Hildebrandt et al. (2016); Conti et al. (2016) and covers an effective area of $360\text{ deg}^{2}$. The median redshift is $z_{m}=0.53$, while the effective number density is $n_{\rm eff}=8.5$ galaxies arcmin*-2*. The experiment covers 7 angular bins in the range 0.5 to 72 arcmins for $\xi_{+}^{ij}(\theta)$ and 6 angular bins between 4.2 and 300 arcmins for $\xi_{-}^{ij}(\theta)$.

The calibration of the photometric redshift distributions is made through the “weighted direct calibration” (DIR) method presented in Ref. Hildebrandt et al. (2016). This uses the data of external, overlapping spectroscopic surveys and creates series of 1000 bootstrap realizations to obtain the uncertainties and the correlations between the tomographic bins. Each bootstrap sample is used for a fixed number of iterations of the MCMC scan performed here. This bootstrap procedure ensures that the analysis is statistically unaffected by the photometric redshift bias corrections Joudaki et al. (2016a), which can instead significantly change the results of the analysis of e.g. CFHTLenS data and may alleviate the tension with the value of $\sigma_{8}$ determined by Planck Kitching et al. (2016b).

Furthermore, the KiDS data are analyzed taking into account the intrinsic galaxy alignments, for which the correlations of intrinsic ellipticities of galaxies with each other and with the shear of background sources must be considered. This is done varying two nuisance parameters: the amplitude $A_{\rm IA}$ and the redshift dependence $\eta_{\rm IA}$ (see Ref. Joudaki et al. (2016b)). As we have checked that our results do not change significantly if we turn on these “extended systematics” settings Joudaki et al. (2016a), we will only show the results obtained within the standard prescription, i.e. $\eta_{\rm IA}=0$ and $-6\leq A_{\rm IA}\leq 6$.

To perform the analyses as presented by the KiDS collaboration Hildebrandt et al. (2016); Joudaki et al. (2016a), we should include the calculation of baryonic effects in the nonlinear matter power spectrum, that are computed using HMCODE Mead et al. (2015). As we discussed in Subsec. II.1, this code gives biased results when applied to the (unusual) MDM cosmology when the non-cold dark matter temperature is much smaller than the standard neutrino one. Since we are using Eq. (3) for computing the non-linear matter power spectrum, we shall not use HMCODE and the related prescriptions on the baryonic feedback.

II.2.3 Satellite galaxies

As we have already introduced, one of the problems of the $\Lambda$CDM model at galactic and sub-galactic scales is the one of the missing satellite galaxies. Here we explain how we compute the constraints from the observations of dwarf satellite galaxies in the Milky Way (MW).

Dwarf galaxies are usually faint and small objects that must be observed and correctly identified as satellites of the MW. In the following we briefly comment on the current observational status Schneider (2016); Polisensky and Ricotti (2011). The number of known standard satellites of our galaxy is eleven. The SDSS experiment, with a sky coverage of $f_{\rm sky}\simeq 0.28$, observed other fifteen satellites Wolf et al. (2010), with a corresponding poissonian error of $\sim 4$. Recently, the Dark Energy Survey (DES) has reported the discovery of eight new Milky Way companions, which could potentially be ultra-faint satellite galaxies Bechtol et al. (2015); Drlica-Wagner et al. (2015). In the absence of a robust confirmation of the fact that these new eight DES candidates are truly all of them Milky-Way satellite galaxies, we adopt here the conservative approach of Ref. Schneider (2016) and restrict ourselves to the classical satellites plus the extrapolated number of the SDSS measurements, see the discussion that follows.

We assume here that the number within the SDSS footprint is binomially distributed with probability $f_{\rm sky}\simeq 0.28$, following an isotropic distribution. Then, a SDSS-like experiment would have observed $54$ MW satellite galaxies over the entire sky, with an associated (binomial distribution) error of $11$. Therefore, together with the eleven classical MW satellites, this would imply a total number of $N_{\rm sat}=65\pm 11$. Following Ref. Schneider (2016), we assume a halo-to-halo scatter Boylan-Kolchin et al. (2010) by reducing our estimated number of MW satellite galaxies, quoted above, by $10\%$. Nevertheless, we are aware that this number is probably an underestimate of the true number of dwarf satellites, as a consequence of the technical challenges of the observation. Notice however that, due to the incompleteness of the SDSS sample, it could be possible that, when accounting for corrections in e.g. the observed luminosity function, the number of satellite galaxies around the MW could be much larger than these estimates, see e.g. Ref. Tollerud et al. (2008). For this reason, we present the results obtained combining the satellites likelihood with other datasets following two different approaches. In the most conservative scenario, labeled “SAT(low)” in the following, we apply the observed number of MW dwarf satellite galaxies $N_{\rm sat}^{\rm obs}=58\pm 11$ as a lower limit only, by means of a half-gaussian likelihood, following e.g. Ref. Diamanti et al. (2017). In this conservative approach we apply the dwarf galaxy bounds only when the number of satellite galaxies predicted within a given model is below the mean number of satellite galaxies that are observed. In this way we envisage the putative situation in which not all dwarf spheroidal galaxies have been detected, being the current estimates subject to increase by ongoing and/or future searches. We also follow a more aggressive scenario in which we apply the current measurement $N_{\rm sat}^{\rm obs}=58\pm 11$ via a standard gaussian likelihood. This latter case will be referred to as “SAT”.

Another problem related to dwarf satellites is that it is also difficult to infer the mass of these objects, since they are dominated by dark matter and the only possibility to measure the properties of the DM halo is through stellar kinematics inside the object. Studies that use different profiles for the halo suggest that all the known dwarfs have a mass larger than $M_{\rm min}=10^{8}\,h^{-1}M_{\odot}$ Brooks and Zolotov (2014), a number that we shall use in the calculations explained below.

For the theoretical computation of the number of satellites we follow the procedure described in Refs. Schneider (2015, 2016); Diamanti et al. (2017), based on a conditional mass function that is normalized taking into account the results of the N-body simulations. The function which gives the expected number of dwarf satellite galaxies with a given mass $M_{s}$ reads as Schneider (2015, 2016):

[TABLE]

Here $P(1/R_{s}=k)$ is the linear matter power spectrum for the given cosmological model, $h$ stands for “host halo”, i.e. the MW galaxy, and the subscript $s$ stands for “satellite” or “subhalo”. The coefficient $C_{n}=45$ is chosen to mimic the results of N-body simulations Lovell et al. (2014). In our calculations we assume $M_{h}=1.77\cdot 10^{12}h^{-1}M_{\odot}$ for the MW. This may be not the exact mass of our galaxy, but it is chosen because it lies in the estimated range for the MW mass Guo et al. (2010) and it matches the mass of the Aquarius-D2 simulation Springel et al. (2008), from which the calibration on the N-body simulations results is computed Lovell et al. (2014). The estimated number of satellites $N_{\rm sat}^{\rm th}$ is obtained integrating the above Eq. (8) between the minimum mass of satellites $M_{\rm min}$, previously described, and the mass of the host halo $M_{h}$:

[TABLE]

The parameters describing the subhalo (or the host halo) are the radius $R_{s}$ ($R_{h}$), the mass $M_{s}$ ($M_{h}$) and the corresponding variance $S_{s}$ ($S_{h}$). They are related by:

[TABLE]

where $i=s,h$. The parameter $c=2.5$ is used to calibrate the calculation on N-body simulation results.

To evaluate the variance, we use a procedure based on a re-derivation of the Press & Schechter Press and Schechter (1974) mass function, for which we use a k-sharp filter approach Lovell et al. (2016b) to cut all the scales $k$ below the cut-off scale $k_{s}=1/R_{s}$, and $R_{s}$ depends on the subhalo mass as in Eq. (11). This filter is written in terms of a window function

[TABLE]

II.3 Numerical analyses

We base our analyses on the standard $\Lambda$CDM model, with the addition of a second non-cold dark matter component. The parameters that we vary in our analyses are then the energy density of baryons, $\omega_{b}\equiv\Omega_{b}h^{2}$; the total energy density of the dark matter components $\omega_{DM}$, the fraction of the total dark matter mass-energy density in the form of non-cold dark matter ($f_{X}$) and its temperature through the logarithm $\log_{10}(T_{X}/T_{\nu})$ (see also Subsec. II.1); the optical depth to reionization, $\tau$; the ratio of the sound horizon to the angular diameter distance at decoupling $\Theta$; and the amplitude and the tilt of the primordial power spectrum of curvature perturbations, $\ln(10^{10}A_{s})$ and $n_{s}$.

Other cosmological parameters are fixed to their standard values as follows. The sum of the three active neutrino masses is fixed to zero. Despite neutrino oscillation measurements tell us that at least two of the neutrinos must have a mass, with a minimum total mass of $\sum m_{\nu}\simeq 0.06$ eV for the normal ordering, the error that we make when fixing $\sum m_{\nu}\simeq 0$ is small. For the three massless neutrinos, we fix the standard value $N_{\rm eff}^{\nu}=3.046$, corresponding to the three active neutrino contribution obtained in the limit of non-instantaneous neutrino decoupling Mangano et al. (2005); de Salas and Pastor (2016).

For the Planck CMB and satellite galaxy number counts we use the Markov Chain Monte Carlo (MCMC) tool Monte Python Audren et al. (2013), interfaced with the Boltzmann solver CLASS Lesgourgues (2011). We use then the obtained covariance matrices to run MCMC with KiDS data, by means of the Boltzmann solver CAMB Lewis et al. (2000) together with its MCMC companion CosmoMC Lewis and Bridle (2002) 444For the latter one, we use the July 2015 version with the required modifications to perform the analyses of the KiDS data Joudaki et al. (2016a), publicly available at http://github.com/sjoudaki/kids450..

Together with the cosmological parameters, we vary all the required nuisance parameters involved in the Planck and the KiDS likelihoods.

III Results

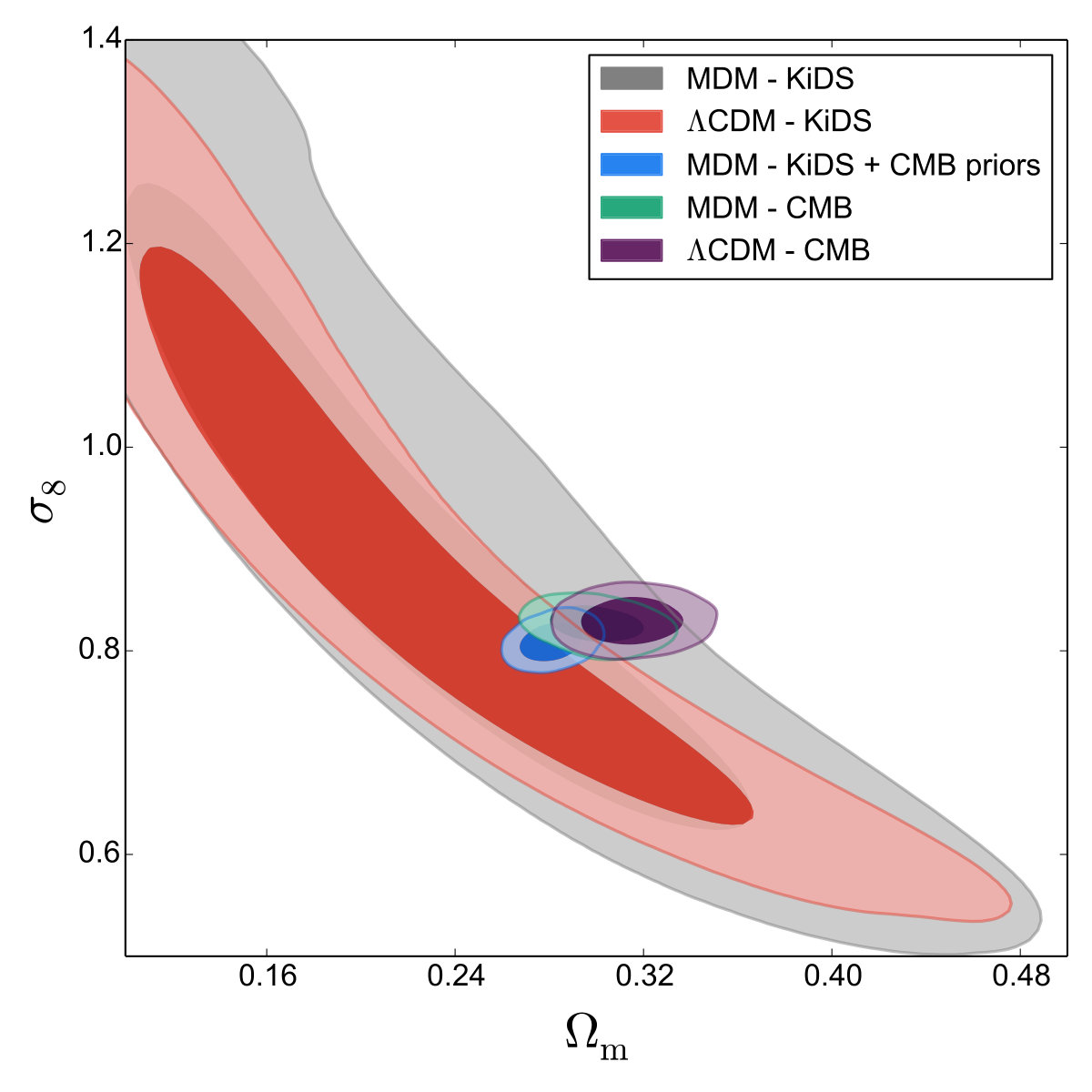

Figure 2, left panel, depicts the 68% and 95% CL allowed contours in the ($\Omega_{m}$, $\sigma_{8}$) plane resulting from a number of possible data combinations and comparing different underlying cosmological models. In the simplest $\Lambda$CDM picture, the allowed regions for the KiDS and Planck datasets do not basically overlap, showing a clear tension, as pointed out before by Refs. Hildebrandt et al. (2016); Joudaki et al. (2016a). Such a tension is clearly alleviated when one considers the possible MDM extension to the minimal $\Lambda$CDM picture: notice that the contours for KiDS and Planck overlap for a larger region in the MDM case. This very same improvement can be noticed from the one-dimensional posterior probability distribution of the $S_{8}=\sigma_{8}\sqrt{\Omega_{m}}$ quantity in the right panel of Fig. 2.

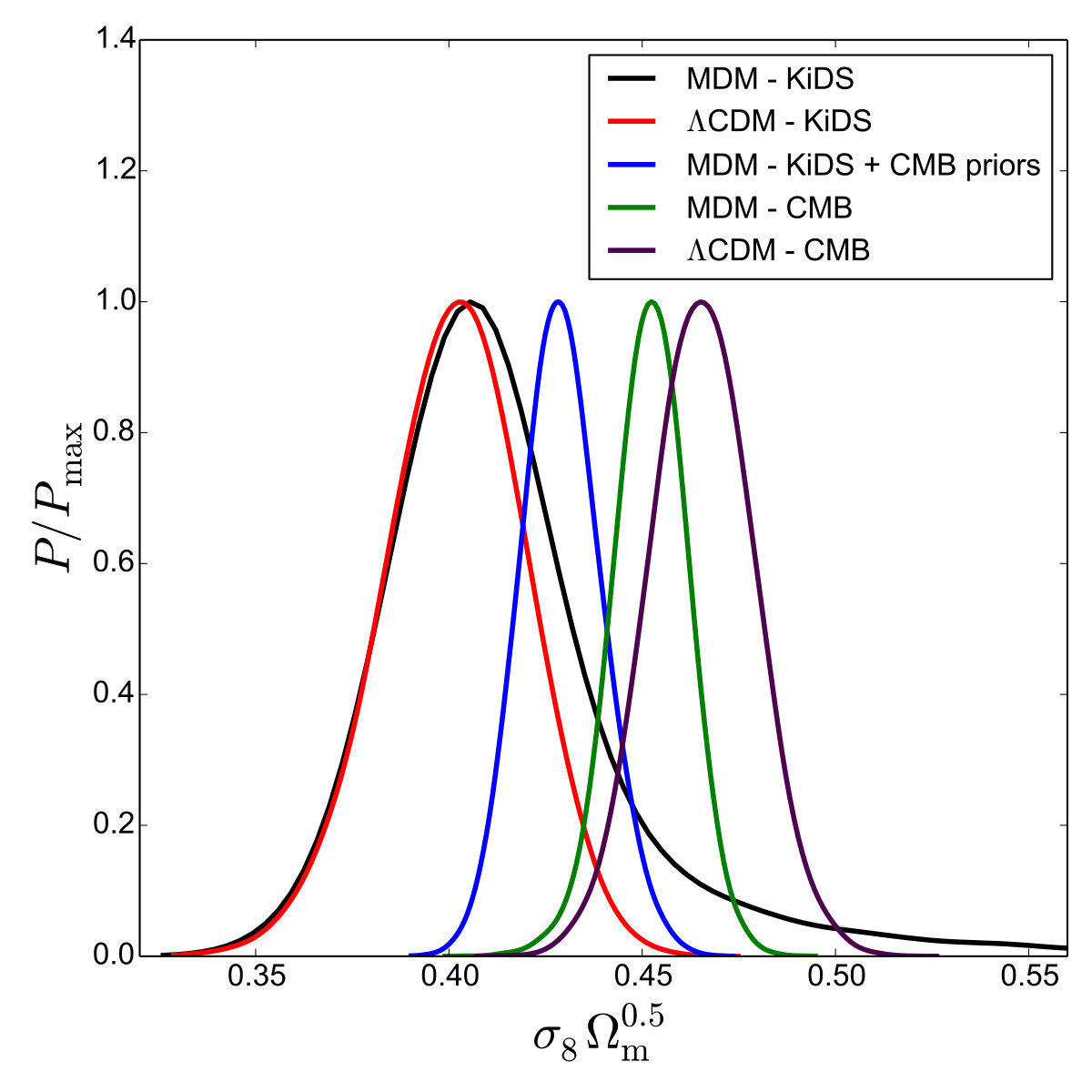

A possible way of quantifying the tension in the measurements of $S_{8}$ arising from the Planck and KiDS datasets in possible extensions of the $\Lambda$CDM framework has been presented and used in Ref. Joudaki et al. (2016a). The tension is defined by:

[TABLE]

where $D_{1}$ and $D_{2}$ refer to the Planck and KiDS datasets, $\bar{S}_{8}$ is the mean value over the posterior distribution and $\sigma$ refers to the $68\%$ CL error on $S_{8}$. If we compute the value of $T(S_{8})$ from the constraints obtained within the MDM scenario explored here, we get a displacement of $T^{\textrm{MDM}}(S_{8})\simeq 1\sigma$, which indicates that the $2.3\sigma-2.8\sigma$ 555The authors of Hildebrandt et al. (2016) quote a $2.3\sigma$ tension among the obtained $S_{8}$ values from Planck (CMB temperature and low-$\ell$ polarization) and KiDS. Our analysis of the KiDS results with the prescriptions published together with Ref. Joudaki et al. (2016a) leads to a value of $T(S_{8})\simeq 2.8$, with small variations when we consider our results from Planck CMB data or the Planck chains publicly available at https://wiki.cosmos.esa.int/planckpla. When the full CMB dataset we explore here is considered, which includes the Planck lensing likelihood, the tension shifts to $T(S_{8})\simeq 2.5$. obtained between Planck and KiDS $S_{8}$ values within the canonical $\Lambda$CDM scenario is considerably reduced. The level of the improvement is very similar to that reached when other possible extensions to the minimal scenario are considered, as, for instance, in the presence of a dark energy equation of state or within modified gravity models Joudaki et al. (2016a). The fact that assuming a MDM scenario the tension between the Planck and KiDS constraints is strongly alleviated fully justifies the combination of these two datasets, already depicted in both panels of Fig. 2.

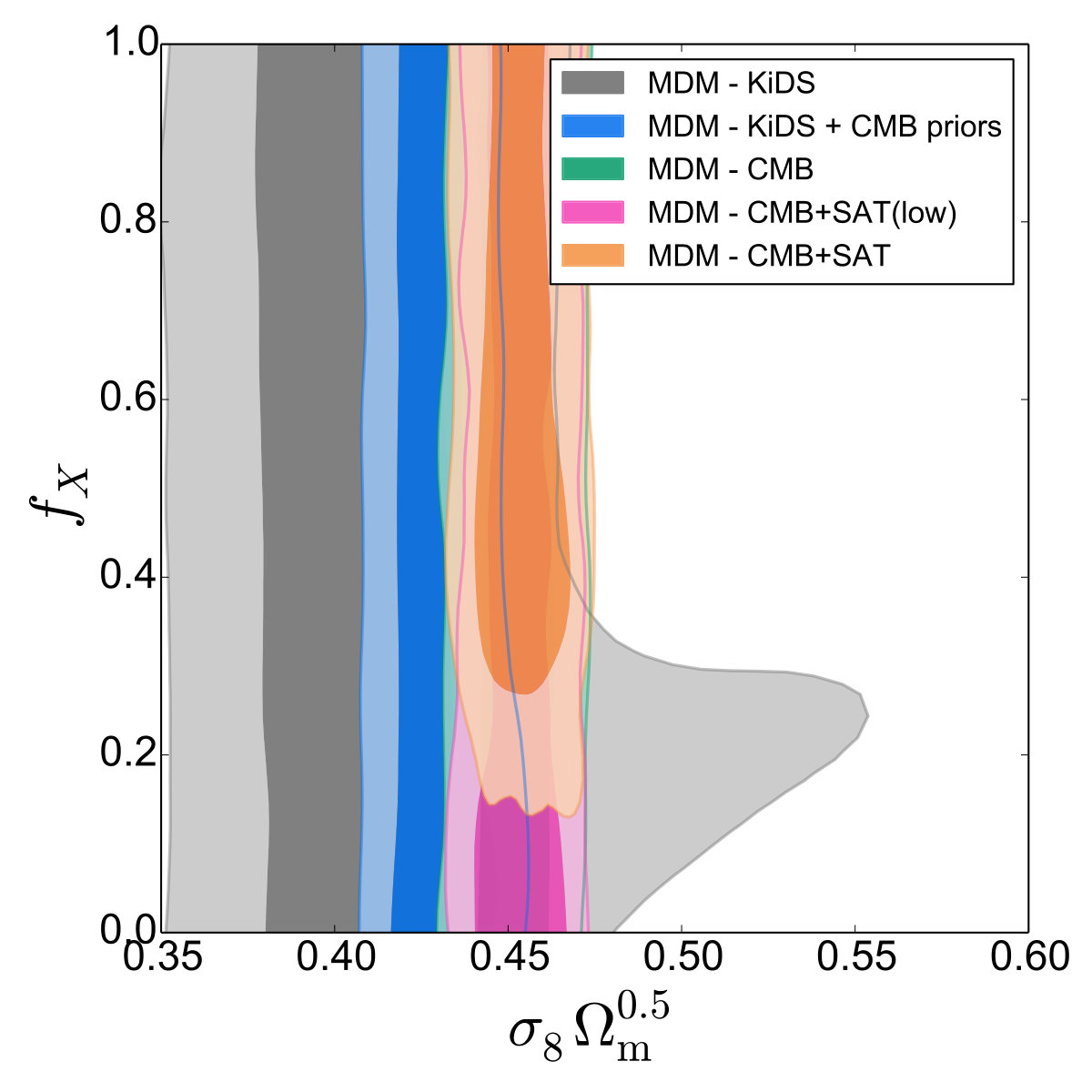

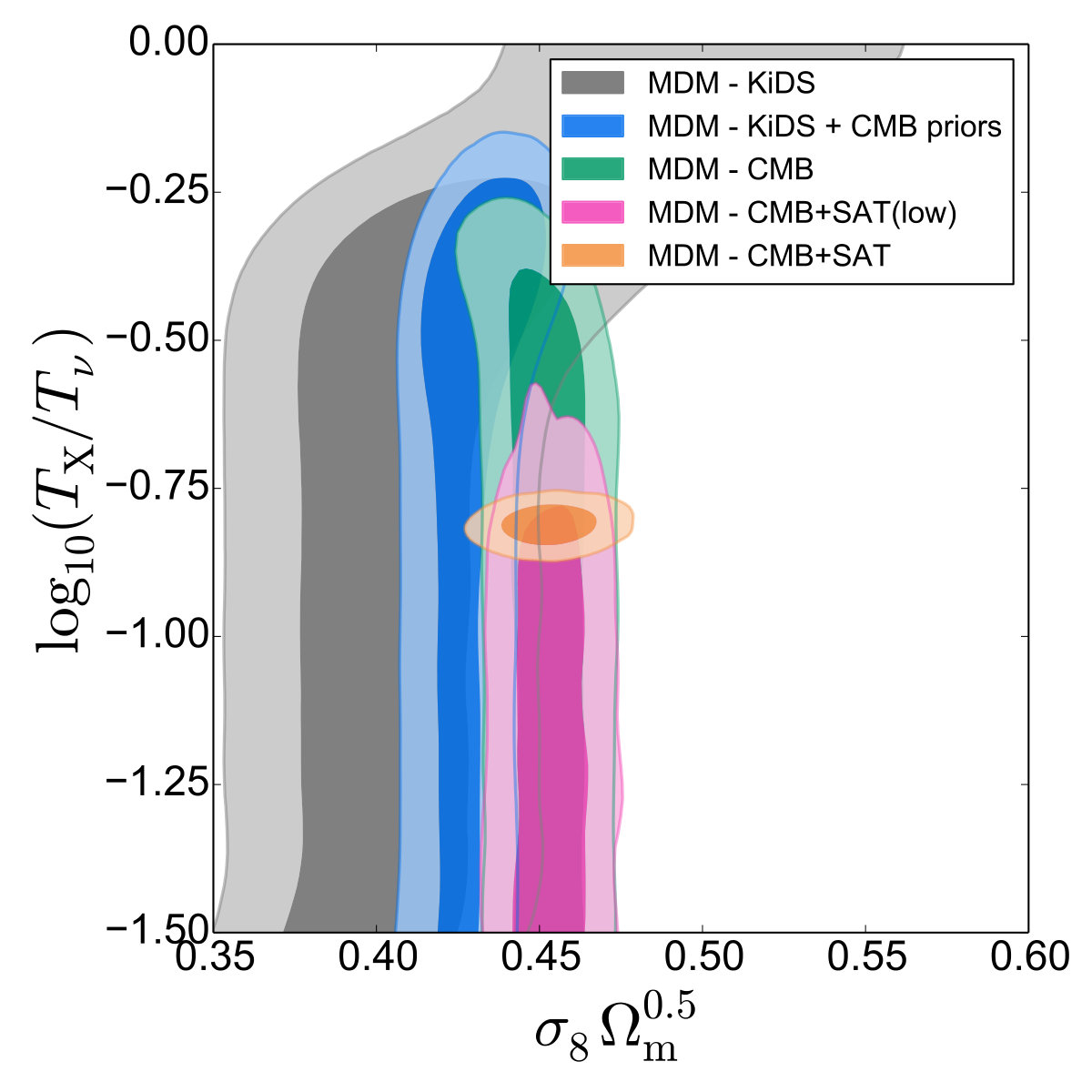

Figure 3 shows the two-dimensional 68% and 95% CL allowed contours in the ($S_{8}$, $T_{X}/T_{\nu}$) and ($S_{8}$, $f_{X}$) planes. We illustrate the results from KiDS, CMB and their combination. We can notice from the contours shown in the left panel of Fig. 3 that there exists a degeneracy between the $S_{8}$ quantity and $T_{X}/T_{\nu}$. The reason for that is because the larger $T_{X}$ is, the closer the non-cold dark matter component behaves as a hot dark matter fluid, and therefore a larger matter component (and, consequently, a larger value of $S_{8}$) would be required to compensate for the suppression of perturbations at small scales. As expected, there are no bounds on the non-cold dark matter fraction $f_{X}$, as one can see in the right panel of Fig. 3. Indeed, for a very small value of $T_{X}$ the non-cold dark matter is observationally indistinguishable from a pure cold component and therefore its relative abundance is perfectly compatible with $f_{X}=1$.

As previously stated, the motivation for MDM scenarios is twofold. We have already shown above that a non-cold dark matter component provides a possible way of alleviating the tension between Planck CMB measurements and tomographic weak lensing data from KiDS. As mentioned in our introductory section, there is another very important motivation to look for additional extensions of the minimal cold dark matter picture, namely, the so-called small scale crisis of the $\Lambda$CDM, and, in particular, the Milky Way satellite problem Klypin et al. (1999); Moore et al. (1999a). We have therefore also considered in our analyses the constraints from the MW dwarf satellite galaxies, that we are going to discuss in what follows.

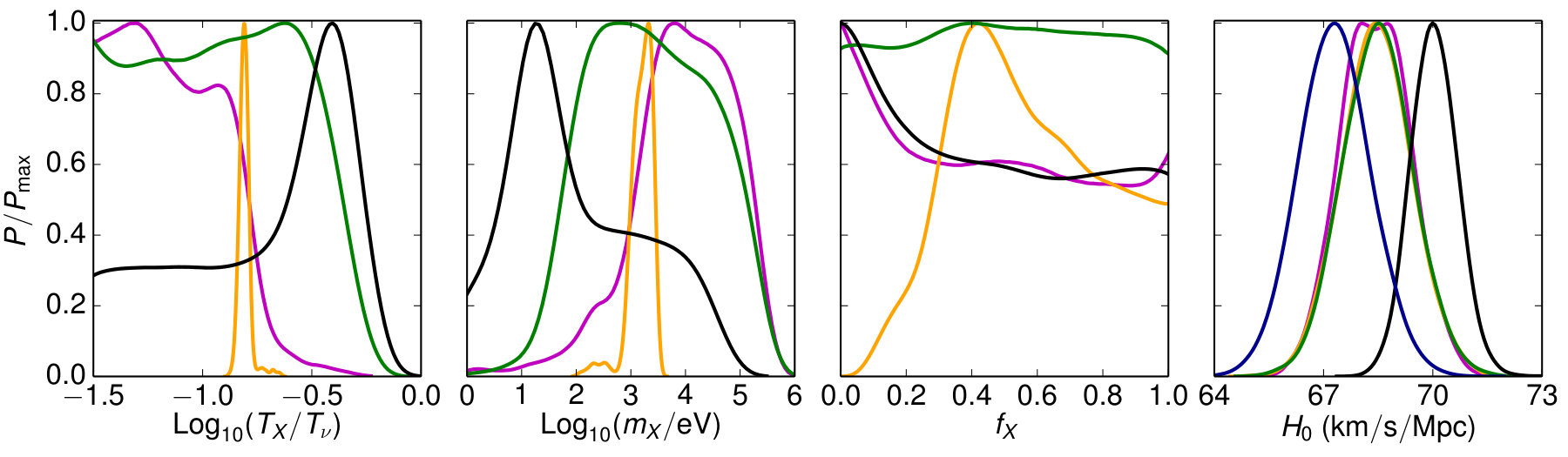

The first panel of Fig. 4 shows the one-dimensional probability distribution of the non-cold dark matter temperature relative to that of the neutrino bath $T_{X}/T_{\nu}$. Planck CMB data measurements provide the $95\%$ CL upper bound of $T_{X}/T_{\nu}<0.4$, which could be naively translated into a contribution to $\Delta N_{\rm eff}=(T_{X}/T_{\nu})^{4}\simeq 0.02$ during the periods in the universe expansion history in which these non-cold dark matter particles are relativistic. Notice that this value is much smaller than the limit obtained from Planck CMB measurements on the contribution from (massless) dark radiation or light sterile neutrinos. However, the limits are not directly comparable as the energy density of the non-cold dark matter component explored here is that of a non-relativistic fluid for a large region of the parameter space. KiDS measurements show a preference for higher temperatures, indeed the $95\%$ CL upper limit is set by the upper prior in the $T_{X}/T_{\nu}$ ($T_{X}/T_{\nu}<1$) parameter. When analyzing KiDS data taking into account the Planck CMB constraints on all the cosmological parameters, we obtain $T_{X}/T_{\nu}<0.6$ at $95\%$ CL. We also show in Fig. 4 the results obtained combining the MW satellites counts with CMB measurements. The blue curve depicts the one-dimensional probability distribution of the non-cold dark matter temperature when the current estimates of MW satellite galaxies are treated as regular gaussian priors and are combined with Planck CMB measurements. This data combination constrains the temperature to lie within a narrow region, favoring scenarios with values of $T_{X}/T_{\nu}$ in the range $0.15<T_{X}/T_{\nu}<0.17$, therefore smaller than those quoted previously for the KiDS plus Planck MDM case. This difference can be explained in terms of the preferred value of $m_{X}$, which turns out to be larger for Planck plus MW satellites than for Planck plus KiDS data. If we instead consider the MW likelihood in the form of a conservative half-gaussian likelihood, imposing the current observed number of galaxies only as a lower limit, there is no lower bound on the non-cold dark matter temperature, as the half-gaussian likelihood turns out to be perfectly compatible with a pure $\Lambda$CDM universe, for which the number of satellite galaxies is around 160. The upper limit on $T_{X}/T_{\nu}$ is very close to the one quoted above for our more aggressive MW likelihood scenario ($T_{X}/T_{\nu}<0.19$ at $95\%$ CL), and smaller also than the constraint obtained from Planck plus KiDS data.

The second panel of Fig. 4 shows the one-dimensional probability distribution of the non-cold dark matter mass $m_{X}$ 666We recall that $m_{X}$ is a derived parameter in our analyses.. Notice that there exist a $95\%$ CL lower limit from Planck data on the mass of the MDM component $m_{X}>32$ eV. This bound on the mass is related to the fact that, below that region, the non-cold dark matter fluid behaves as a hot dark matter component (even if its temperature is lower than the neutrino one) and CMB observations do not allow for such large contribution from hot dark matter relics. On the other hand, KiDS measurements show a mild preference for a dark matter mass in the sub-keV region, that can provide the suppression of the small-scale perturbations required to reduce the value of the $S_{8}$ quantity for KiDS. The combination of Planck CMB plus KiDS weak lensing data does not significantly change these findings.

When considering the MW dwarf satellite constraints in their less conservative form, we observe that there is a preferred narrow region for the non-cold dark matter mass, which, as we shall further illustrate in short, turns out to be very close to the warm dark matter region 777For pioneer work on WDM cosmologies see Refs. Moore et al. (1999b); Bode et al. (2001); Avila-Reese et al. (2001); Narayanan et al. (2000); Viel et al. (2005).. The mass of the particle lies in the range $0.95$ keV$<m_{X}<2.9$ keV ($95\%$ CL). Additional and independent constraints from power spectrum measurements from the Lyman alpha forest flux and from the universe reionization history can be applied in this case, see Refs. Viel et al. (2013); Baur et al. (2016); Irsic et al. (2017); Yeche et al. (2017); Lopez-Honorez et al. (2017) for the most recent analyses.

When adopting the more conservative, half-gaussian approach for the MW likelihood, the lower bound we get for the non-cold dark component is very close to the region quoted above, $m_{X}>0.09$ keV at $95\%$ CL, as lower values of the non-cold dark matter mass will lead to a very large suppression of the matter power spectrum at galactic and sub-galactic scales, in which case the number of MW satellite galaxies gets strongly reduced. However, for this case, there is no upper limit on $m_{X}$, as a model with only the cold dark matter component is perfectly allowed once the upper bound in the observed number of MW galaxies is no longer considered, largely relaxing the allowed mass range.

Notice that the preferred region for the mass $m_{X}$ obtained considering the MW satellites observations is larger than the one suggested by KiDS weak lensing measurements. This is due to the fact that the suppression in the growth of structure required to satisfy MW satellite galaxy observations is associated to a smaller scale (large wavenumber $k$) than the one required to explain KiDS weak lensing data. The differences in the preferred values of $m_{X}$ from weak lensing and from KiDS lead to differences in the allowed values of $T_{X}/T_{\nu}$. As previously stated, the bound on $m_{X}$ directly depends on the constraint in the abundance of the particle. Consequently, the larger (smaller) the allowed mass is, the smaller (larger) the temperature should be to satisfy CMB constraints, see Eq. (2).

The bounds on the non-cold dark matter fraction are shown in the third panel of Fig. 4. Planck measurements result in an almost completely flat distribution for $f_{X}$, as particles with small temperatures and large masses will produce CMB photon temperature and lensing patterns that are identical to those obtained in the pure cold dark matter case. KiDS and its combination with CMB measurements lead also to flat distributions for $f_{X}$, with limits coinciding with the assumed priors on $f_{X}$. When dealing with the MW satellites likelihood in the less conservative approach, its combination with Planck CMB sets a robust preference for $f_{X}>0$, i.e. $f_{X}>0.34$ at $95\%$ CL, while in the more conservative approach the $f_{X}$ distribution is flat. Therefore, the results that we obtain when considering the MW dwarf satellites in the less conservative approach followed here strongly suggest the need for a non-zero non-cold dark matter component. The explanation is simple: while we observe a number around 60 satellite galaxies, the corresponding number for a CDM-only case would be $\sim 160$. A suppression of the matter perturbations at small scales (as, for instance, that associated to a non-cold dark matter component) is required, in order to match the predicted number and the observed one.

We can also note from the two panels of Fig. 3 that the allowed contours in the ($S_{8}$, $T_{X}/T_{\nu}$) and ($S_{8}$, $f_{X}$) planes after considering the MW dwarf satellite galaxies likelihood do not deviate significantly from the CMB constraints. This shows that the second dark matter component required to fully explain the satellites counts at galactic scale does not help in solving the tension in the $S_{8}$ parameter that exists between Planck CMB and KiDS weak lensing data. On the other hand, there exists also the possibility that the current measures of the number of MW dwarf galaxies are only underestimations of the true number, and future observations will increase the present statistics. Figure 3 illustrates also such a possibility, when combining MW satellite number counts with CMB data. In this more conservative approach to the MW satellites problem, we can notice that the satellites limits on $f_{X}$ overlap with those from the CMB, adding no extra information on the non-cold dark matter abundance.

Finally, the fourth panel of Fig. 4 shows the one-dimensional posterior distribution of the Hubble constant $H_{0}$. Notice that, as in the case of Ref. Joudaki et al. (2016a) for other possible extensions of the $\Lambda$CDM scheme, the Hubble parameter values show a better agreement with direct estimates of $H_{0}$ Efstathiou (2014); Riess et al. (2016) in the MDM scheme than in the pure cold dark matter scenario. The Planck constraint on the Hubble constant in the MDM scenario explored here ($H_{0}=68.5\pm 0.9$ km s*-1* Mpc*-1*) is higher than in the pure $\Lambda$CDM case ($H_{0}=67.3\pm 1$ km s*-1* Mpc*-1*), i.e. the mean value of $H_{0}$ is shifted by approximately $1.5\sigma$. The reason for the larger preferred value of $H_{0}$ in the context of MDM scenarios can be understood as follows. From Fig. 2 it is straightforward to infer that the value of $\Omega_{m}$ in these scenarios is generically lower than in the pure $\Lambda$CDM case. This fact is reinforced when combining Planck and KiDS data. As the CMB peaks structure does not leave much freedom on the value of the physical (total) matter energy density $\Omega_{m}h^{2}$, a smaller value of $\Omega_{m}$ requires the mean value of $H_{0}$ to be larger, in order to leave the product $\Omega_{m}h^{2}$ unchanged. When combining Planck CMB and KiDS datasets we obtain $H_{0}=70.0\pm 0.6$ km s*-1* Mpc*-1*, showing a much better matching to the Hubble parameter value extracted from local observations. This value, for instance, is consistent (within $1\sigma$) with that of Ref. Efstathiou (2014), $H_{0}=72.5\pm 2.5$ km s*-1* Mpc*-1*, and the $3.4\sigma$ tension within the $\Lambda$CDM paradigm between CMB and the Hubble constant estimates of Ref. Riess et al. (2016), $H_{0}=73.24\pm 1.74$ km s*-1* Mpc*-1*, is reduced to the $2\sigma$ level. Finally, the combination of MW satellites and Planck data leaves unchanged the value of $H_{0}$ from CMB alone in MDM scenarios, as expected, since MW satellites observations do not require a change on the dark matter abundance but on its nature, and therefore no shift is required in $H_{0}$.

IV Conclusions

Observations at galactic and sub-galactic scales compromise the viability of the canonical $\Lambda$CDM paradigm, which otherwise provides an excellent fit to large scale structure and Cosmic Microwave Background (CMB) observations. The number of satellite galaxies in Milky-Way (MW) sized halos and the measured kinematics of the MW satellites pose the question of whether a universe made out of a pure cold dark matter component and a dark energy fluid can successfully explain all cosmological observations. Furthermore, there are a number of additional inconsistencies among small scale predictions from the $\Lambda$CDM model and observations from recent data releases from tomographic weak gravitational lensing surveys, as those from the Kilo Degree-450 deg2 Survey (KiDS-450) Hildebrandt et al. (2016); Joudaki et al. (2016a). More concretely, there are discrepancies in the value of the amplitude of the density fluctuations at a given matter density $\Omega_{m}$, commonly quantified in terms of $S_{8}=\sigma_{8}\sqrt{\Omega_{m}}$.

Models with an admixture of cold and non-cold dark matter particles (MDM models) may potentially alleviate the $\Lambda$CDM observational problems outlined above, as the free streaming nature associated to a non-totally cold dark matter component will suppress the matter power spectrum on the smallest scales, leading to a better agreement among large and galactic and sub-galactic scales measurements. Here we have analyzed these MDM scenarios using the most recent tomographic weak lensing measurements from the KiDS-450 survey, combining them with Planck CMB data. We have also studied the constraints derived using the current estimates for the observed number of MW satellite galaxies.

In a similar way to other extended cosmological models Joudaki et al. (2016a), the tension in the measurements from Planck and KiDS of the $S_{8}$ quantity is reduced from $2.3-2.8\sigma$ to $1\sigma$ in MDM scenarios. Furthermore, the value of the Hubble parameter $H_{0}$ is perfectly consistent with that measured by late universe observations Efstathiou (2014). We find $H_{0}=70.0\pm 0.6$ km s*-1* Mpc*-1* after combining Planck CMB and KiDS tomographic weak lensing data, value which is in a good agreement with the Hubble parameter value extracted from local observations, see e.g. Ref. Efstathiou (2014), which quotes a value of $H_{0}=72.5\pm 2.5$ km s*-1* Mpc*-1*.

We have also searched for the allowed ranges on the non-cold dark matter properties, as its temperature and its mass. We find a $95\%$ CL upper limit $T_{X}/T_{\nu}<0.6$ after combining Planck CMB and KiDS data. Current estimates of the number of satellite galaxies, $N_{\rm sat}^{\rm obs}=58\pm 11$, when translated into a standard gaussian likelihood and combined with CMB measurements, prefer smaller values of the temperatures ratio ($0.15<T_{X}/T_{\nu}<0.17$ at $95\%$ CL), as they would require larger values of $m_{X}$ to suppress the growth of structure at the scales involved in MW halo observations. However, if current MW satellite observations are conservatively interpreted as a half-gaussian likelihood, imposing the current measured number only as a lower limit, the lower bound on the non-cold dark matter temperature disappears and we obtain $T_{X}/T_{\nu}<0.19$ at $95\%$ CL. Concerning the non-cold dark matter mass and its abundance, after combining Planck CMB and KiDS measurements, we find a (mild) preference for a sub-keV non-cold dark matter particle mass, with no particular evidence for a non-zero abundance of such a component. However, satellite counts data, in their more aggressive interpretation and combined with CMB measurements, isolate the preferred regions $0.95$ keV$<m_{X}<2.9$ keV and $f_{X}>0.34$ at $95\%$ CL, robustly establishing the need for the existence of such a keV warm dark matter particle. In the most conservative approach there is not such a preference for $f_{X}\neq 0$ and only a lower bound on the non-cold dark matter mass exists, $m_{X}>0.08$ keV at $95\%$ CL.

Therefore, a sub-dominant, non-cold dark matter component with $m_{X}\sim$ keV could in principle alleviate some existing tensions between CMB and low redshift observations. However, the masses and temperatures required to explain weak lensing and MW observations are rather different. While the scale of the power spectrum suppression required by KiDS data needs a sub-keV non-cold dark matter mass and a temperature $T_{X}\sim T_{\nu}/2$, the ones required by Milky Way satellites observations are associated to larger masses and smaller temperatures. Future weak lensing and MW satellites observations will further sharpen the preferred regions, either enlarging or diminishing the existing differences among the current weak lensing and MW preferred constraints for the non-cold dark matter temperature and mass. Future work with simulated data will be devoted elsewhere to further corner MDM scenarios.
