Effect of Frustrated Exchange Interactions and Spin-half Impurity on the Electronic Structure of Strongly Correlated NiFe2O4

Kodam Ugendar1,§, S. Samanta2,§, Sudhendra Rayaprol3, V. Siruguri3, G. Markandeyulu1, B. R. K. Nanda2,⋆

1 Advanced Magnetic Materials Laboratory, Department of Physics, Indian Institute of Technology Madras, Chennai – 600 036, India

2Condensed Matter Theory and Computational Lab, Department of Physics, Indian Institute of Technology Madras, Chennai – 600 036, India

[email protected]

$^§$ equal contribution

3 UGC-DAE Consortium for Scientific Research, Mumbai center, Bhabha Atomic Research Centre, Trombay, Mumbai - 400 085, India

Abstract

Spin-polarized density functional calculations, magnetization, and neutron diffraction (ND) measurements are carried out to investigate the magnetic exchange interactions and strong correlation effects in Yb substituted inverse spinel nickel ferrite. In the pristine form, the compound is found to be a mixed insulator under the Zaanen-Sawatzky-Allen classification scheme as it features both charge transfer and Mott insulator mechanism. Estimation of magnetic exchange couplings reveals that both octahedral-octahedral and octahedral-tetrahedral spin-spin interactions are antiferromagnetic. This is typical of spin-frustrated triangular lattice with one of the vertices occupied by tetrahedral spins and remaining two are occupied by octahedral spins. However, since the octahedral-tetrahedral interaction is dominant, it leads to a forced parallel alignment of the spins at the octahedral site which is in agreement with the results of ND measurements. The substituent Yb is found to be settled in +3 charge state, as confirmed from the XPS measurements, to behave like a spin-half impurity carried by the localized $f_{z(x^{2}-y^{2})}$ orbital. The impurity $f$ spin significantly weakens the antiferromagnetic coupling with the spins at the tetrahedral site, which explains the experimental observation of fall in Curie temperature with Yb substitution.

I Introduction

The cubic inverse spinel NiFe2O4 (NFO) has been extensively investigated in the context of nanomagnetism Wang et al. (2013), spin-filtering Matzen et al. (2014); Caffrey et al. (2013), spintronics Lüders et al. (2006) and multiferroics Verma et al. (2014). In addition, it exhibits unusual electronic and magnetic properties when Fe3+/Ni2+ ions at the octahedral sites are partially substituted by other transition metal (M) ions, rare earth (R) ions or ions of non-transition elements Chappert and Frankel (1967); Bharathi et al. (2008, 2011); Rezlescu et al. (1994); Rezlescu and Rezlescu (1993); Rezlescu et al. (1997). Collinear N $\acute{e}$ el type ferrimagnetic structure of NFO yields to triangular Yafet-Kittel structure upon substantial Cr substitution at the Fe cations at the octahedral sites Chappert and Frankel (1967). The octahedra containing Fe3+ ions in NFO, when partially substituted by rare-earth (R3+), become non-centrosymmetric to make the compound ferroelectric. Experimentally it has been shown that, substituents like Sm3+ and Ho3+ induce magnetoelectric effect in NFO Bharathi et al. (2011).

Significant changes in the electronic, magnetic and structural behavior of Ni-Zn ferrite upon diluting with several rare earth ions have been observed Rezlescu et al. (1994); Rezlescu and Rezlescu (1993); Rezlescu et al. (1997). With substitution of 2% of Fe by R (= Yb, Er, Dy, Tb, Gd, Sm and Ce) in Ni0.7Zn0.3Fe2O4, while lattice has been reported to expand and resistivity has increased, both magnetization and Curie temperature (TC) have decreased Rezlescu et al. (1994); Rezlescu and Rezlescu (1993); Rezlescu et al. (1997). Larger ionic radii of R3+ ions cause lattice expansion and the 4f elections are more localized than the itinerant 3d electrons and hence, the resistivity increases Rezlescu et al. (1994); Rezlescu and Rezlescu (1993); Rezlescu et al. (1997). The reported value of TC of NFO is 853 K Chikazumi (1997); Bharathi et al. (2008). A decrease in TC upon the partial substitution of R3+ for Fe3+ in NFO has been reported from our lab Bharathi et al. (2008, 2011). In Ni2Fe1.925R0.075O4 compounds, the TC decreases to 775 K, 812 K and 839 K respectively for Dy3+ Bharathi et al. (2008), Ho3+ and Sm3+ substitutions Bharathi et al. (2011). However, there are no concrete mechanisms and evidences to explain the decrease in magnetization and Curie temperature, even though qualitatively it has been attributed to weaker R-Fe exchange coupling replacing the stronger Fe-Fe exchange coupling Chikazumi (1997); Smit and Wijn (1959).

In this paper, results from density functional theory (DFT) calculations and experimental studies are presented and analyzed to explain the electronic and magnetic structures of Yb substituted NFO viz. NiFe2-xYbxO4 ( $x$ = 0, 0.05, 0.075). The reasons for choosing Yb were manifold: (a) Structural distortion is expected to be weak or negligible, since the radius of Yb3+ ion (0.86 Å) is smaller compared to those of the other rare earth ions. (b) Yb ion can stabilize in +2 and +3 charge states. (c) Yb3+ is magnetic and has lower spin moment compared to the other R3+ (R = Gd, Tb, Dy, Ho, Er, Tb) ions Chikazumi (1997) and hence, large reduction in magnetization as well as Curie temperature. (d) Yb3+ is expected to provide a spin-half f impurity state. Therefore, it serves as a model system to study host (d spin)-impurity (f spin) magnetic interactions.

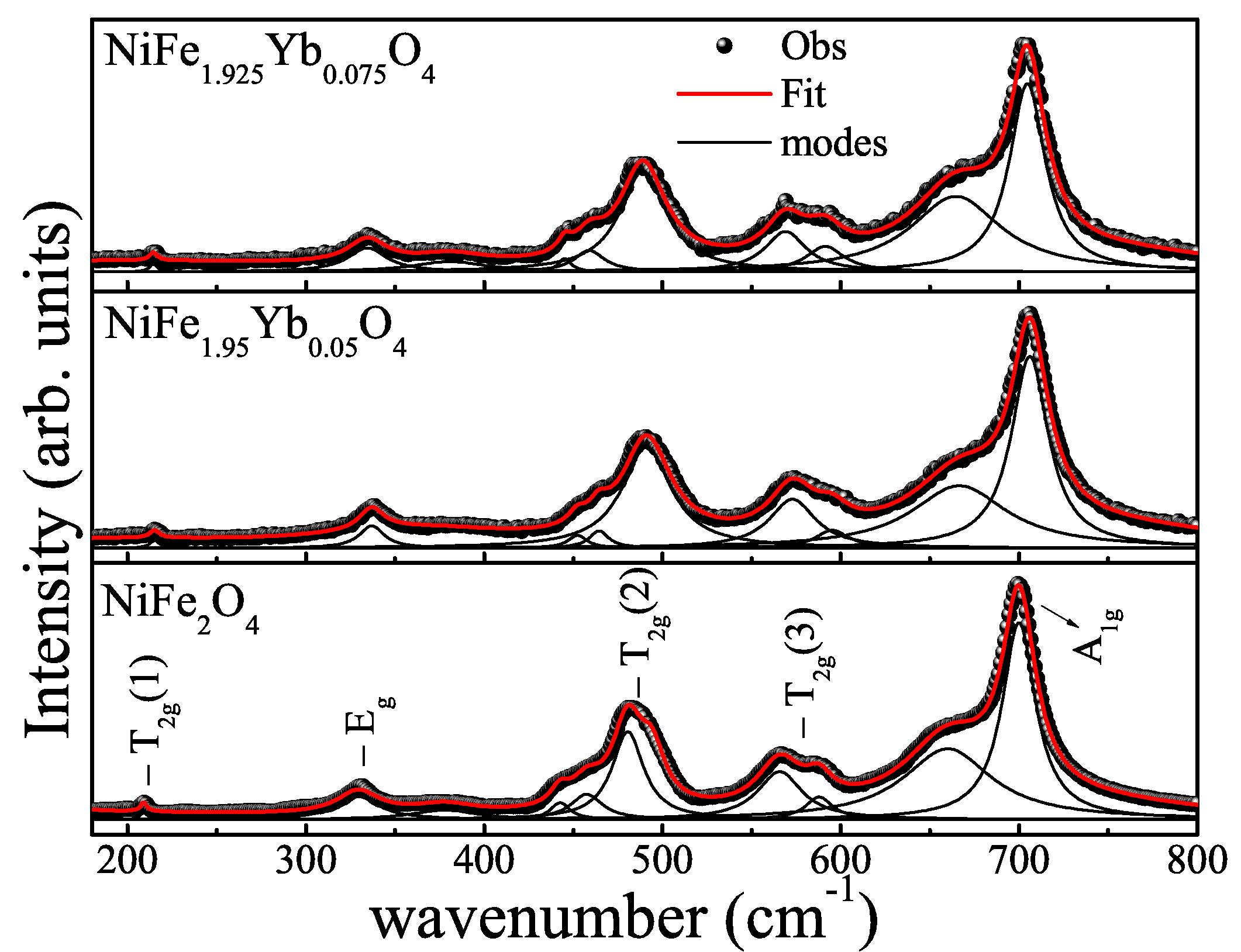

Experimentally, X-ray photoelectron spectroscopy (XPS), Raman spectroscopy and ND measurements are performed and theoretically, spin-polarized band structure is calculated to explain the electronic structure of NiFe2-xYbxO4. In addition, various magnetic exchange couplings are estimated from the total energies of several possible magnetic configurations so that the spin-spin interactions in this compound can be better understood. Emphasis is given on the magnetic coupling of Yb and Fe spins and its effect on the net magnetization as well as TC of this inverse spinel compound.

The compound NFO behaves as a mixed insulator under the Zaanen-Sawatzky-Allen classification scheme with the trait of both Mott and charge transfer insulating phenomena. It is found that the spins of Fe3+ and Yb3+ ions at the octahedral sites prefer to align antiparallel. However, stronger antiferromagnetic coupling with the spins at the tetrahedral sites forces them to align parallel in order to avoid spin frustration and thereby stabilizing ferrimagnetism in NFO. The +3 charge state, confirmed from XPS measurements and DFT studies, makes Yb a spin-half ion with the $f_{z(x^{2}-y^{2})}$ orbital carrying the unpaired spin. Experimental observation of the decrease of Curie temperature by approximately 14 K, with 7.5 % Yb substitution is attributed to the fact that the Yb spin significantly weakens the antiferromagnetic coupling with the neighboring spins at the tetrahedral site and marginal enhancement of the same with the spins at the neighboring octahedral sites.

The rest of the paper is organized as follows. Section II and III report experimental and theoretical investigations respectively. Section II.1 presents the experimental details involving material synthesis (NiFe2-xYbxO4 ( $x$ = 0, 0.05, 0.075)) and characterization. Section II.2 provides the basic crystal structure information of the Yb substituted NFO based on X-ray diffraction (XRD) and Raman spectroscopy studies. Section II.3 analyzes the results from XPS and ND studies. Computational details are reported in section III.1, and corresponding results are presented in Section III.2. In section III.3, the magnetic exchange interactions are presented to explain the effect of Yb-f state on host NFO. Finally, the results are summarized in section IV.

II Experimental studies

II.1 Synthesis and Characterization of the compounds

Polycrystalline samples of NiFe2-xYbxO4 ( $x$ = 0, 0.05, 0.075) were prepared starting from NiO (99.96% pure), Fe2O3 and Yb2O3 (99.99% pure), by solid state reaction method. The powders of the starting materials were ground in an agate mortar and pestle for 3 h and heat treated in air at 1200 0C for 12 h. The phase formation of each of the samples was confirmed by taking powder XRD patterns employing a PANalytical (X’pert PRO) x-ray diffractometer with Cu Kα radiation. Raman active vibrational modes in the samples were recorded using a Horiba Jobin Yvon HR800 UV: Raman Division, Raman spectrometer, with an excitation wave length of 633 nm, in the wave number range 180 to 750 cm*-1*. XPS and ND measurements were carried out on the compound with the highest concentration of Yb, NiFe1.925Yb0.075O4. The Fe 2p, Ni 2p, Yb 4d and O 1s XPS spectra were recorded with micro focused monochromatic X-ray source (Design: Sigma Probe) having an energy resolution of 0.47 eV at FWHM. Spectroscopic studies were carried out on thin pellets; the binding energies were charge corrected with reference to C 1s energy level at 284.5 eV. Magnetization data were obtained by employing a vibrating sample magnetometer (VSM; Lakeshore Model 7450). ND experiments were carried out at the Dhruva reactor of Bhaba Atomic Research Center, Trombay, employing the powder diffractometer-3 ( $\lambda$ = 1.48 Å).

II.2 Structural properties

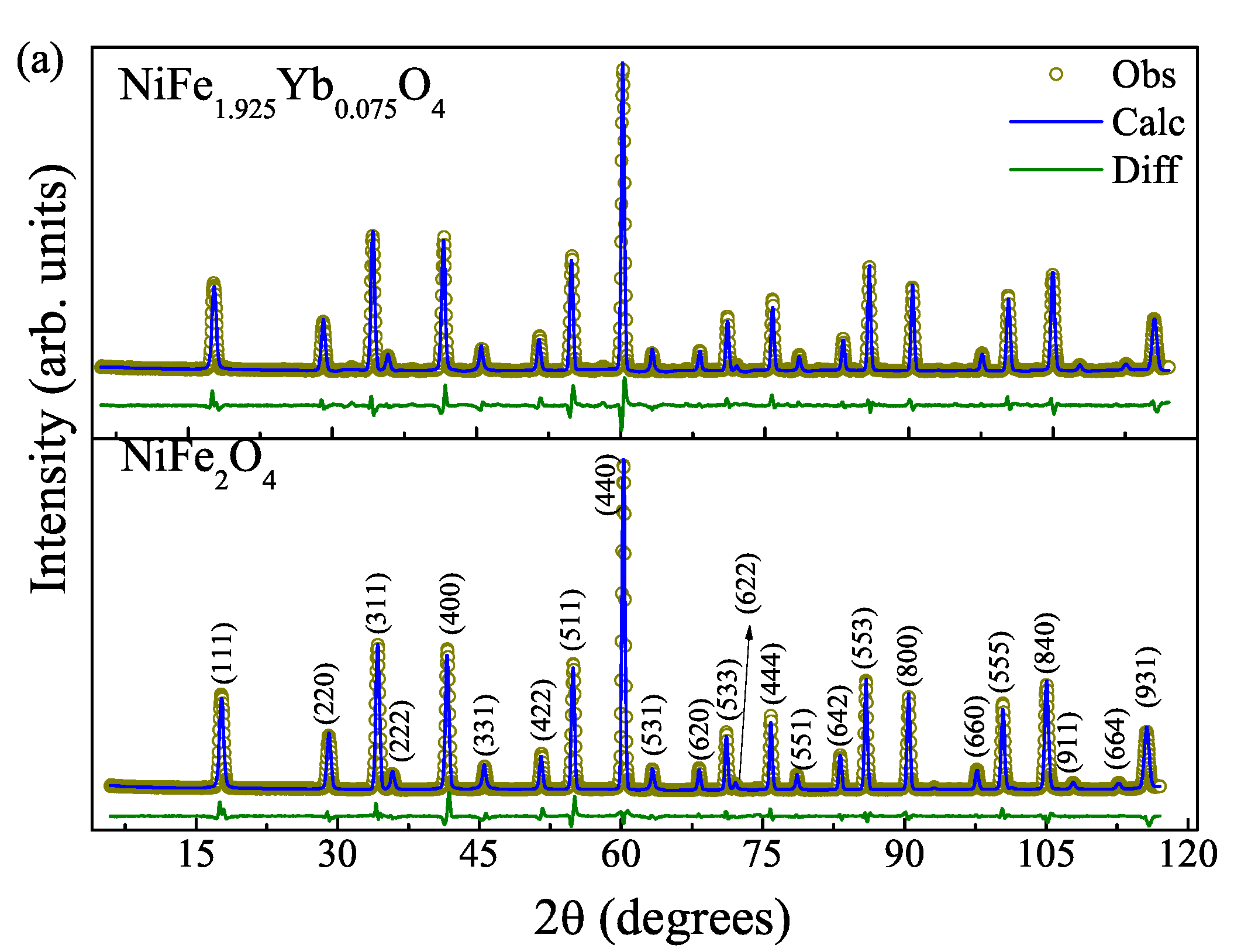

The structural details, listed in Table 1, are obtained through Rietveld refinement using the General Structure Analysis System (GSAS) program. As expected, it is found that for all doping concentrations, the compounds were crystallized in the cubic inverse spinel phase (Fd $\bar{3}$ m). However, orthorhombic YbFeO3 appears as the secondary phase. The weight fractions, ( $i.e.$ phase fractions of different phases present in the compound) of inverse spinel phase and the secondary phase respectively are found to be 0.95 and 0.05 for x = 0.05 and 0.91 and 0.09 for x = 0.075.

The conventional unit cell of NFO, comprises of 8 divalent cations (Ni2+), 16 trivalent cations (Fe3+) and 32 oxygen anions (O2-). There are two cationic sites in spinel structure: (i) tetrahedrally coordinated A-site (Td symmetry with Wyckoff position 8a) and (ii) octahedrally coordinated B-site (Oh symmetry with Wyckoff position 16d). In inverse spinel NFO, A-sites are occupied Fe3+ cations, and B-sites are occupied by both Ni2+ and Fe3+ cations with equal distributions.

For Yb doped NFO, the Rietveld refinement was carried out by providing Yb occupancy in place of Fe in both A-site and B-site. The $\chi^{2}$ value for A-site occupancy is found to be greater than 3 for both the doping concentration whereas it is less than 2 for B-site occupancy. This suggests that Yb3+ ion prefers to replace octahedral Fe3+ ion. The replacement of Ni2+ by Yb is not favored as the XPS studies, discussed next, suggest 3+ charge state to Yb. Table 1 shows that, in agreement with earlier reports Bharathi et al. (2008, 2011); Rezlescu et al. (1994); Rezlescu and Rezlescu (1993), an increment in the lattice constant was observed for the doped compounds which is attributed to the larger ionic radius of Yb3+ (0.86 Å) compared to that of Fe3+ (0.63 Å). Also from Table 1, it is clear that the octahedral (O-B) bond length has increased and tetrahedral (O-A) bond length has decreased with Yb substitution. This implies that the Yb3+ ions have replaced the Fe3+ ions at octahedral site in the process of doping.

In order to confirm that the compounds formed in inverse spinel structure and that no other phases such as NiO or $\alpha$ -Fe2O3 or Fe3O4 are present, the materials were further investigated by taking Raman spectra. Fig. 1 shows the room temperature Raman spectra recorded in the wave number range 180 to 750 cm*-1*. Five Raman modes viz., A1g (1), Eg (1), T2g (3) corresponding to the inverse spinel phase with space group (Fd $\bar{3}$ m) Ivanov et al. (2010); Iliev et al. (2011) were identified and indicated in Fig. 1. Additional peaks, observed in all the compounds, are attributed to the presence of short-range ordering of Ni2+ and Fe3+ ions at the B-site Ivanov et al. (2010); Iliev et al. (2011); Fritsch and Ederer (2011).

II.3 Charge state and local spin moments: XPS and ND studies

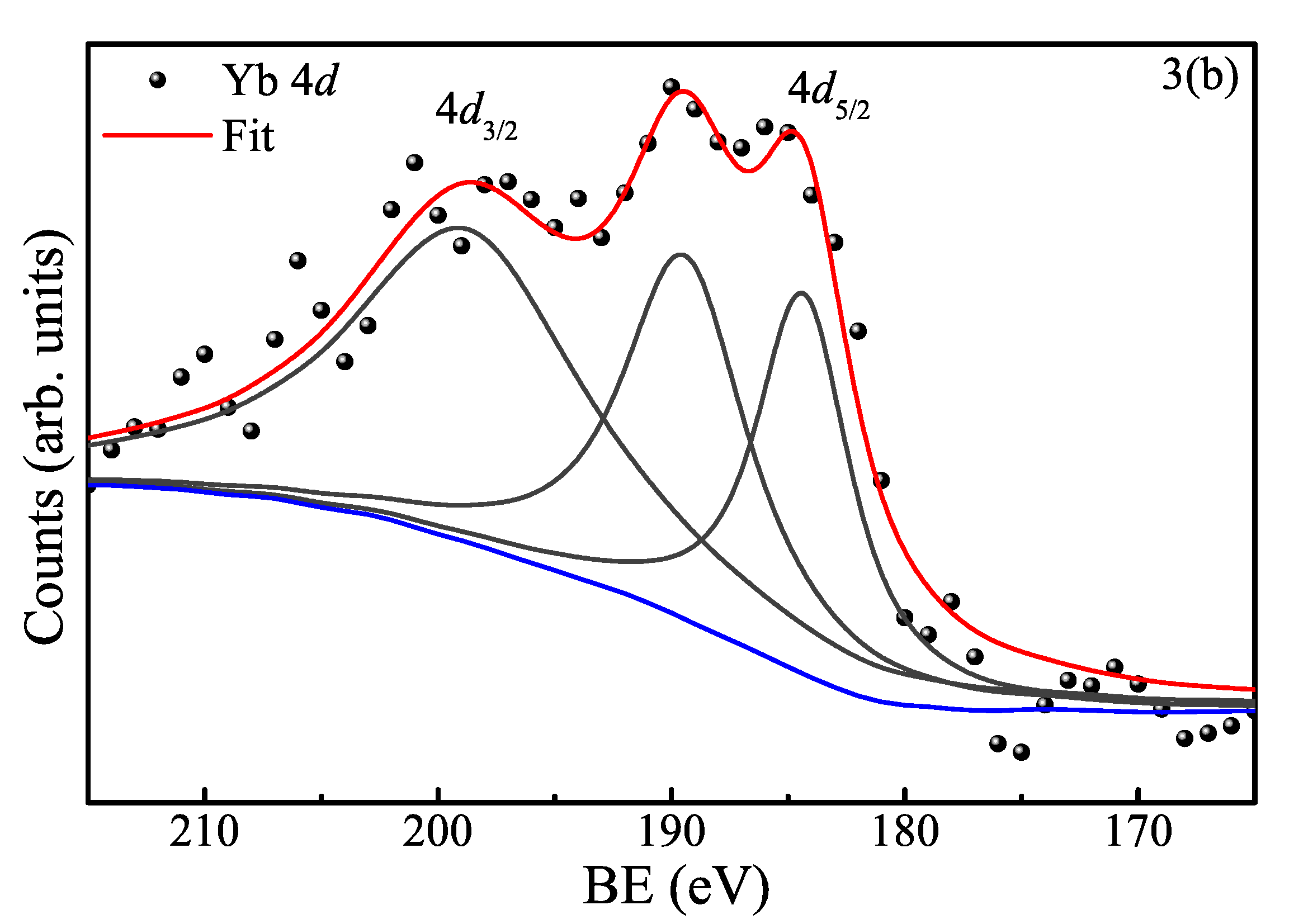

While majority of the lanthanide elements stabilize in +3 charge state, Yb stabilizes both in +2 and +3 charge states Chung et al. (1990); Yasui et al. (2011). In order to confirm the charge state of Yb and other cations, XPS measurements were carried out. The Fe 2p and Yb 4d spectra of NiFe1.925Yb0.075O4 are shown in Figs. 2 (a) and (b), respectively. The Fe 2p spectrum consists of spin-orbit-split 2p3/2 and 2p1/2 peaks. The binding energies (BEs) corresponding to both these peaks are in good agreement with literature Droubay and Chambers (2001); Hüfner (1995). The peaks also consist of doublets, which were attributed to Fe3+ and Fe2+ ions.

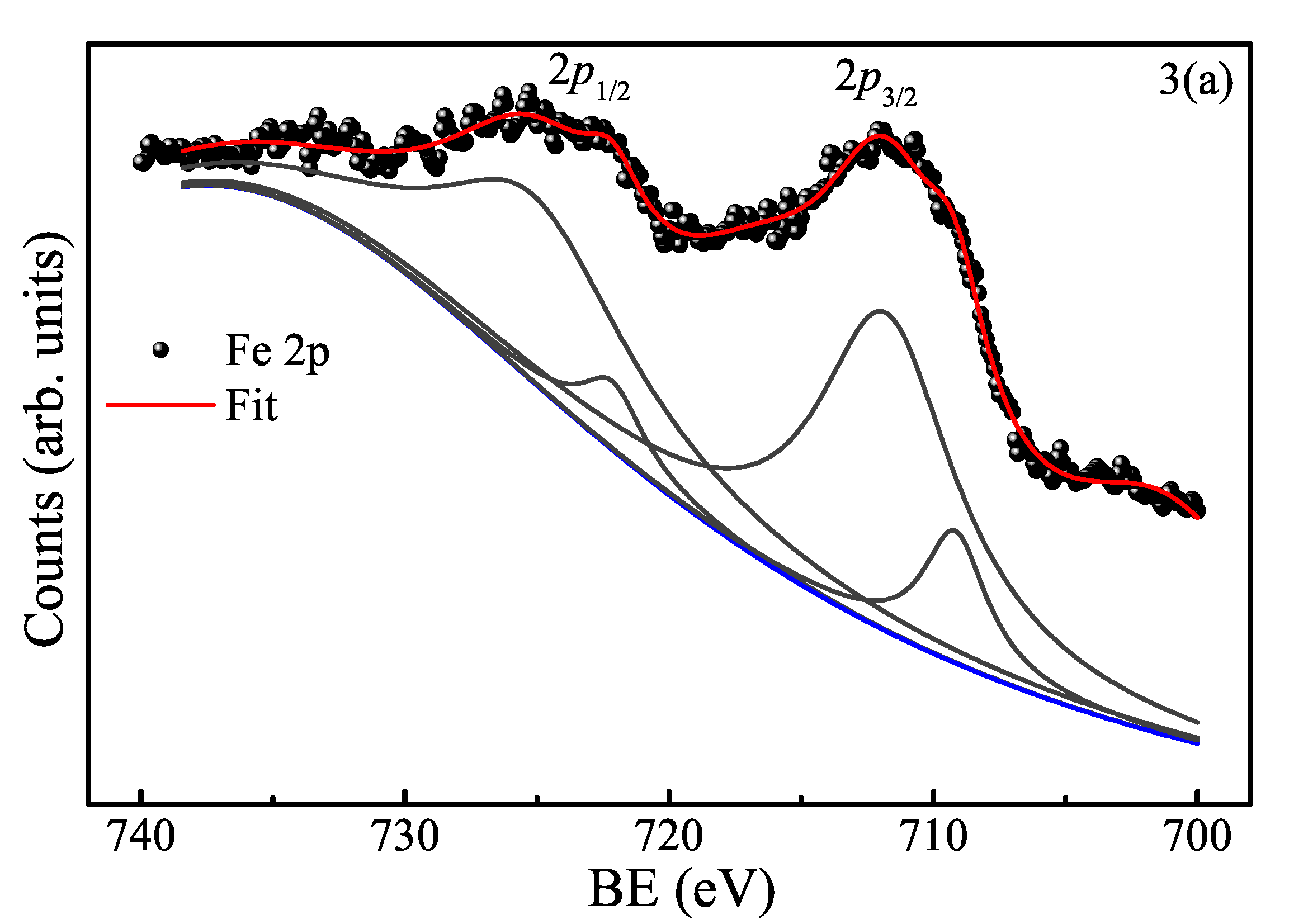

The high BEs of 712 eV (in 2p3/2 peak) and 726.7 eV (in 2p1/2 peak) correspond to Fe3+ ions. The BEs 709.3 eV (in 2p3/2 peak) and 722.5 eV (in 2p1/2 peak) correspond to Fe2+ ions. This suggests that there exists a minor fraction of Fe2+ ions in the synthesized sample. It may be noted that Fe BEs corresponding to +2 and +3 charge states are 709.2 eV and 711.2 eV respectively Hüfner (1995). Droubay et.al Droubay and Chambers (2001), by analyzing Fe 2p XPS spectra of $\alpha$ -Fe2O3 films and Fe 2p (L-edge) X-ray absorption spectra of Fe2O3 (in the form of pressed pellet), have reported similar BEs which they attribute to the 2 $p^{5}$ 3 $d^{6}$ L final state of Fe3+ ions.

The XPS spectrum of Ni 2p (not shown) exhibits spin-orbit-split 2p3/2 and 2p1/2 peaks at 855 eV and 874 eV respectively. These binding energies are comparable to that of octahedral Ni2+ found in NiO Hüfner (1995); Fujimori and Minami (1984); Grosvenor et al. (2006), suggesting the +2 charge state of Ni, in the compound investigated. The XPS of Yb 4d is shown in Fig. 2 (b). The two peaks centered at 184.5 eV and 199 eV are assigned respectively to 4d5/2 and 4d3/2 spin-orbit-split 4d levels. These values are in good agreement with that of Yb 4d level binding energy in Yb2O3 Signorelli and Hayes (1973) which implies +3 charge state for Yb Signorelli and Hayes (1973). The spin-orbit-split was found to be 14.5 eV, which further confirms the +3 charge state for Yb. Had it been in +2 state, the separation would have been 8.8 eV, as suggested by Hagström et.al Hagström et al. (1970). The O 1s spectrum (not shown) consists of two peaks at 528.8 eV and 531.9 eV, which are ascribed to O2- ions at the octahedral coordinates and tetrahedral coordinates respectively.

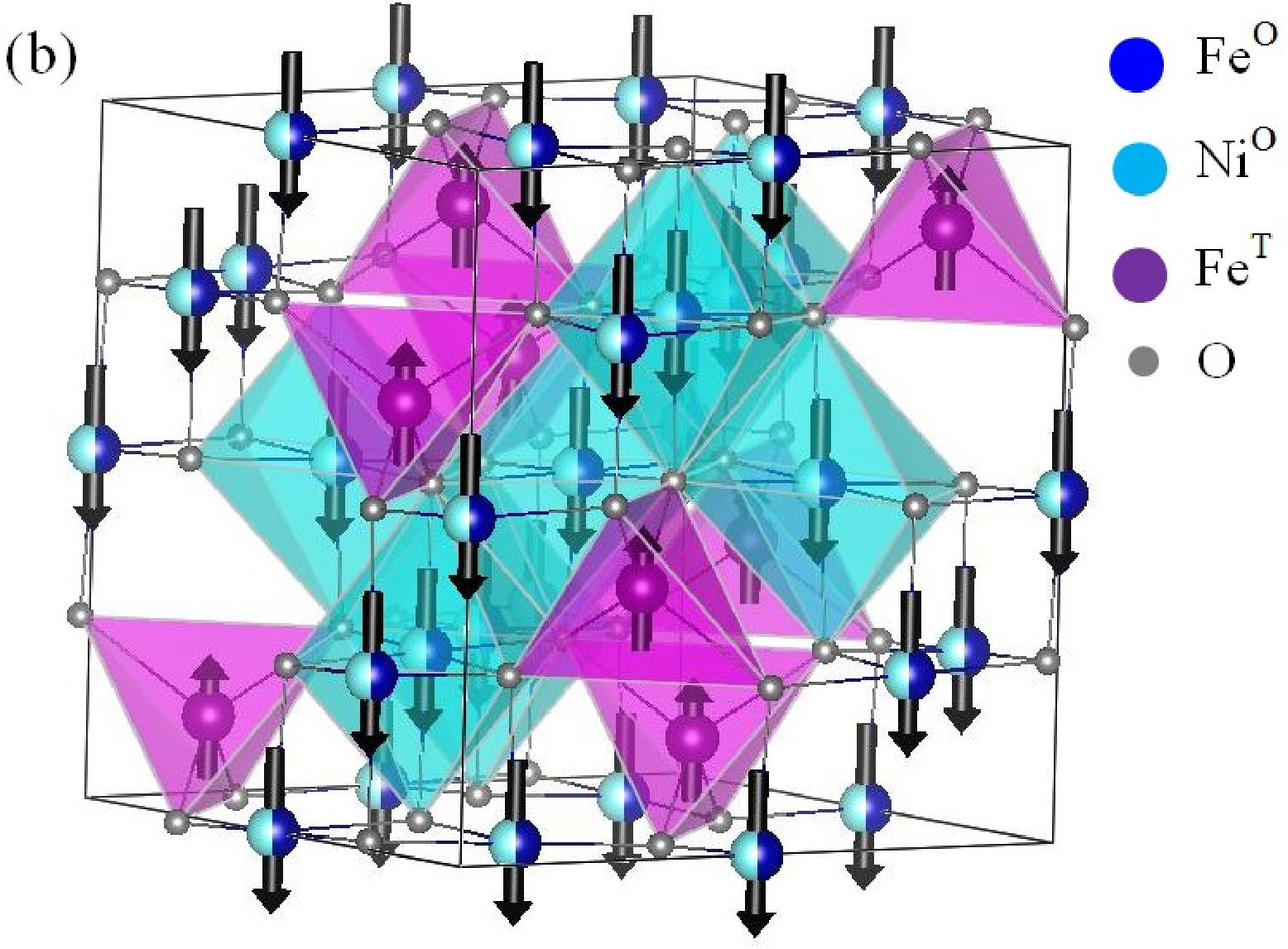

In order to understand the magnetic ordering and to quantify the local spin moments in NiFe2-xYbxO4, ND measurements were carried out. The ND patterns recorded at room temperature are shown in Fig. 3(a). Rietveld refinement was done using the FULLPROF program. The site positions used were: A-site (Fe3+) at 8a ( $\frac{1}{8},\frac{1}{8},\frac{1}{8}$ ), B-site (Ni2+, Fe3+, Yb3+) at 16d ( $\frac{1}{2},\frac{1}{2},\frac{1}{2}$ ), and oxygen at 32e (0.26, 0.26, 0.26). Thompson-Cox-Hastings pseudo-Voigt function was employed for the peak profile. All the peaks were reconciled the cubic inverse spinel structure (Fd $\bar{3}$ m) and no impurity phase was observed. We would like to note that, as ND scattering factor is independent of atomic number (Z) the impurities phases with very low phase fraction may not be detected with this technique. However, if the impurity phase has heavier element as in the case of YbFeO3, it can be detected in XRD measurement where the scattering factor increases with Z. Both the crystal and magnetic refinement parameters are listed in Table 2.

From Table 2, it can be noted that the magnetization decreases upon substitution of Yb3+. This decrease in magnetization is due to the smaller value of the magnetic moment of Yb3+ (0.86 $\mu_{B}$ ) compared to that of Fe3+ ion (5 $\mu_{B}$ ). This behaviour is in agreement with the literature which was obtained by M-H curves and Mössbauer studies on NiFe2-xYbxO4 (x = 0, 0.05 and 0.075) Ugendar et al. (2016). In addition, the substitution of rare earth ions (possessing high magnetic moment compared with Fe3+) such as R3+ (R = Dy, Gd, Sm, Ho) in NFO also caused a decrease in magnetization, which has been attributed to antiparallel alignment of R3+ (R = Dy, Gd, Sm and Ho) to octahedral Fe3+ moments Bharathi et al. (2008, 2011); Bharathi and Markandeyulu (2008).

However, in the present case, the moments within the B-site, viz., Yb3+, Fe3+ and Ni2+ moments, are parallel (Table 2). In addition, the moments of Fe3+ ions at the A-site and that of B-site moments (Ni2+, Fe3+ and Yb3+) are antiferromagnetically aligned and the latter possessing higher moment than the former confirms the ferrimagnetic ordering. The magnetic structure determined from the ND measurements is presented in Fig. 3 (b).

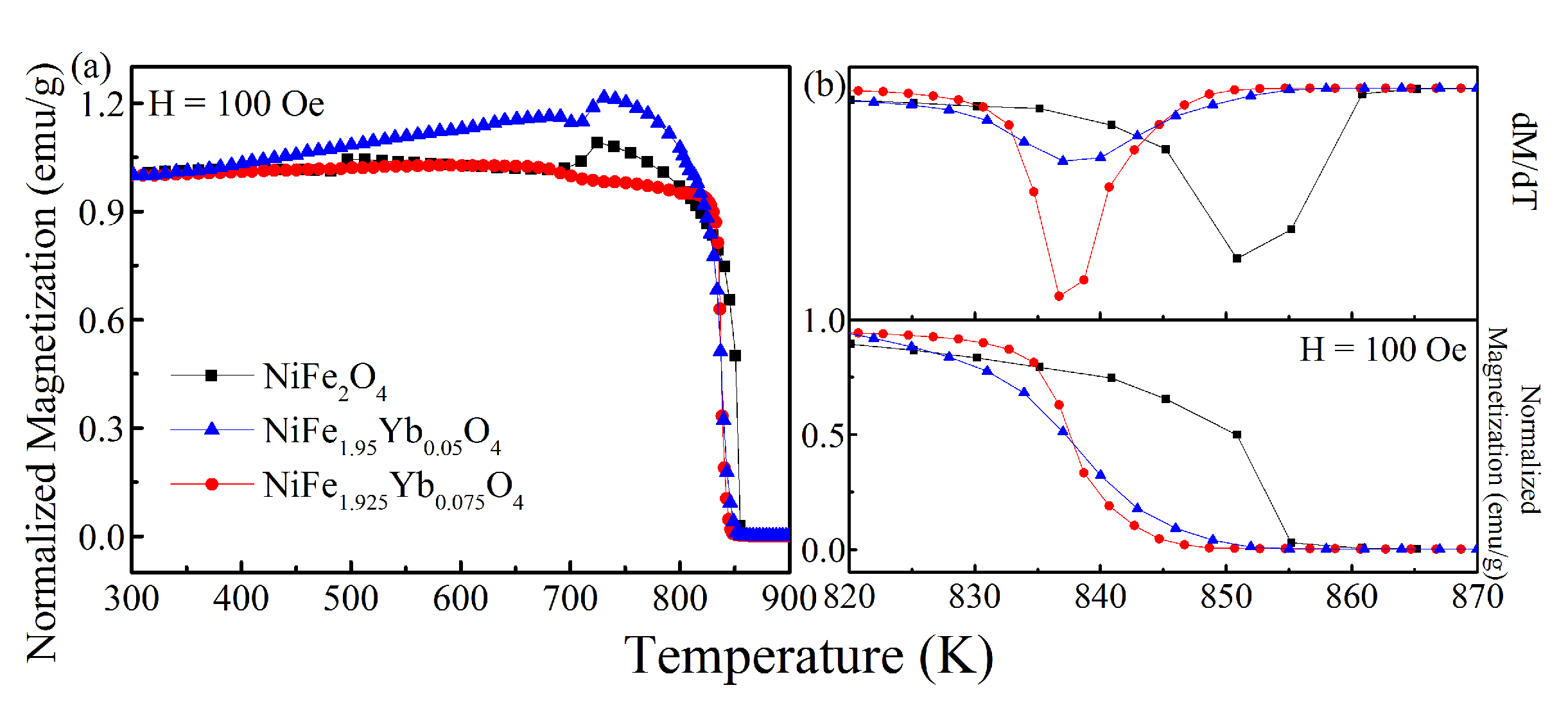

The magnetization, measured at a field of 100 Oe, in the temperature range 300 - 900 K is shown in Fig. 4. The Curie temperature was extracted from inflection point (in M vs. T) which gives a minimum in $\frac{dM}{dT}$ vs. T at T = TC (shown in Fig. 4(b)). The TC of NiFe2-xYbxO4 compounds were found to be 850 K, 837 K and 836 K respectively for x = 0, 0.05 and 0.075. For the undoped compound, our result is in close agreement with the reported value of TC = 853 K Chikazumi (1997); Bharathi et al. (2008). With Yb substitution in NFO, the TC drops from 850 K to 836 K. In the subsequent section, the strengths of various magnetic exchange interactions in this compound are examined, to understand the reason for the decrease in TC.

III ELECTRONIC STRUCTURE FROM DFT STUDIES

To study the formation of Yb impurity spin and its interaction with the host magnetic ordering and thereby to understand the origin behind the experimental observation of decrease in magnetization and TC, in this section DFT calculations were carried out and the results are presented in the subsequent sections.

III.1 Computational details

The ab initio calculations are performed using the full potential linearized augmented plane wave method with local orbital basis (FP-LAPW + lo), as implemented in WIEN2k Blaha et al. (2001). For NFO, there are three possible Ni/Fe cation distributions at the B-sites $viz.$ P $\bar{4}$ m2, P4122, and Imma Fritsch and Ederer (2012). However, it has been found that while the P $\bar{4}$ m2 configuration has higher energy, both P4122 and Imma configurations are lower in energy and almost have same ground state Fritsch and Ederer (2011). Since the primitive unitcell of P4122 configuration consists of four formula unit compared to two formula unitcell for Imma, the latter was used for calculations Caffrey et al. (2013). As mentioned earlier, the octahedral sites are occupied equally by Fe3+ and Ni2+ ions. Even though the distribution of these ions is random in an experimentally synthesized sample, for computation, ordered distribution with Ni2+ and Fe3+ ions occupying alternate octahedral sites, was considered. The experimental structure was further optimized to study the ground state electronic and magnetic properties.

For the self-consistent calculations the plane wave cutoff RKmax was taken to be 7.0 which yielded 3939 plane waves for the interstitial region. The muffin-tin radii of Ni, Fe, Yb, and O were taken as 1.88, 1.84, 1.97, and 1.58 a.u. respectively. For the computation of non-muffin tin matrix elements, Lmax was set to 4. The local orbitals included 4s and 3d states for Ni and Fe; 4f, 6s and 5d for Yb and 2s and 2p states for O. Brillouin zone integration was performed using tetrahedron method on 8 $\times$ 8 $\times$ 8 k-grid. Out of the possible exchange correlation approximations, such as, LSDA Pénicaud et al. (1992), LSDA+SIC Szotek et al. (2006), GGA Perron et al. (2007) and GGA+U Caffrey et al. (2013) applied to NFO so far, the result with GGA+U matched well with the experimental magnetic ordering as well as band gap Sun et al. (2012). Therefore, the results presented in this paper are obtained within the framework of GGA+U. The effective U (i.e. U - J = 3 eV) is applied to Ni-d, Fe-d and Yb-f orbitals and the calculations are carried out using rotationally invariant Dudarev approach Dudarev et al. (1998). Supporting the experimental observation, the calculations showed that Yb replacing the octahedral Fe (FeO) is favourable by 0.6 eV than Yb replacing the tetrahedral Fe (FeT). Therefore, in rest of the article, the results for $\mathrm{Ni{Fe^{O}}_{1-x}Yb_{x}Fe^{T}O_{4}}$ are presented.

For the electronic structure calculations with substituents, a 2 $\times$ 2 $\times$ 2 supercell which gives rise to a sixteen f.u. unit cell was constructed. One and two Yb atoms were substituted to construct NiFe2-0.0625Yb0.0625O4 and NiFe2-0.125Yb0.125O4 respectively. Even though these concentrations of Yb ions do not match exactly with those of the synthesized samples, NiFe2-0.05Yb0.05O4 and NiFe2-0.075Yb0.075O4, the qualitative features of Yb substitution are not expected to differ substantially. The optimized lattice constants of NiFe2-xYbxO4 are found to be 8.44 Å, 8.46 Å, and 8.53 Å for $x$ = 0, 0.0625 and 0.125, respectively. These agree well with experimental observation of lattice expansion with substitution of Yb.

III.2 Electronic and magnetic structure of pure and Yb doped NFO

The electronic structure of pure NFO has been investigated by many in the past in the context of strong correlation effect Sun et al. (2012); Antonov et al. (2003), spin-filter efficiency Caffrey et al. (2013) and stability of normal and inverse spinel configuration Szotek et al. (2006); Perron et al. (2007); Fritsch and Ederer (2011). In the present study, the electronic structure of NFO is revisited in order to examine the effect of substitution of Yb as well as to explain the insulating mechanism of the parent compound.

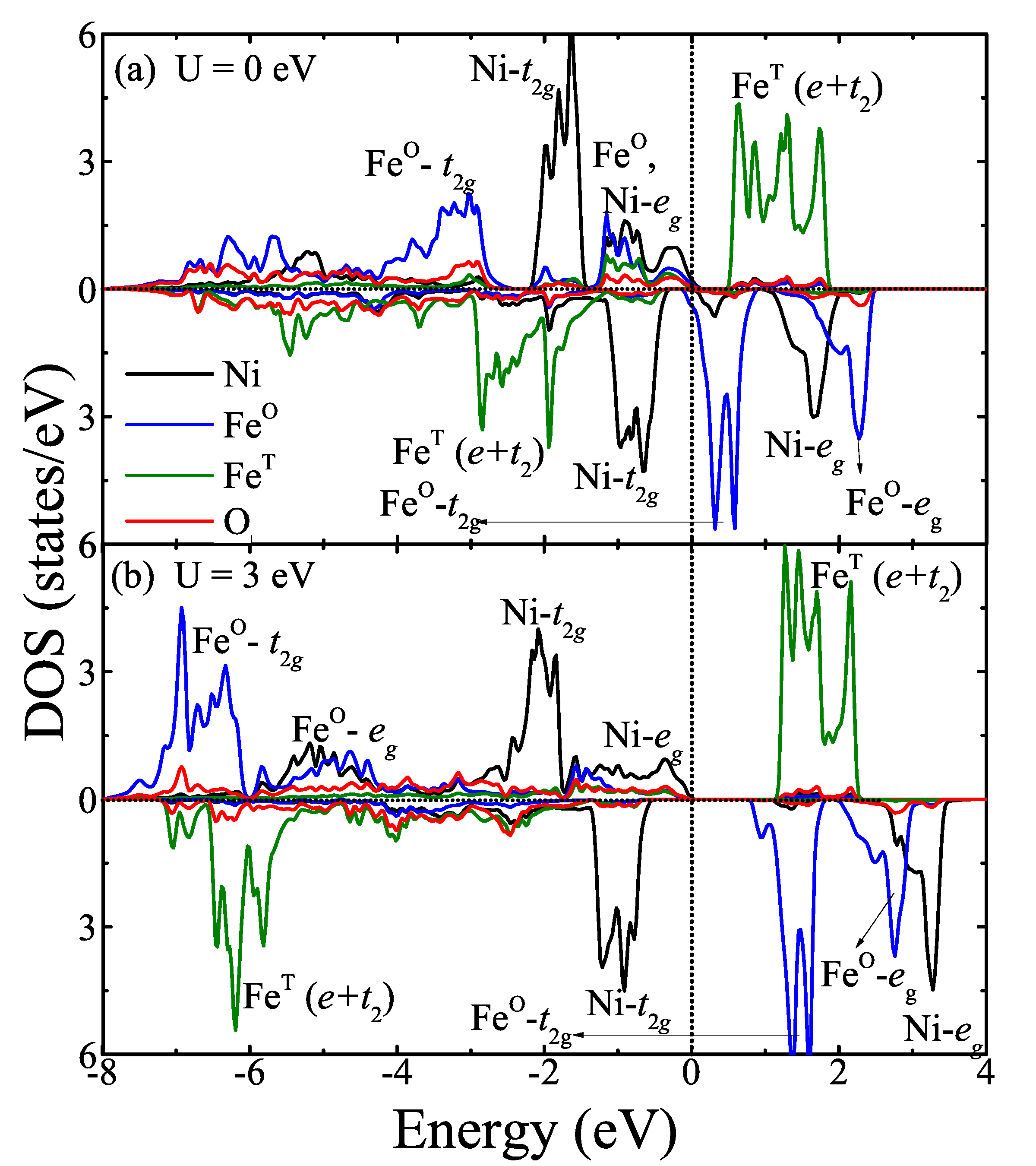

In NFO, due to the octahedral crystal field effect of O-ligands, Ni and FeO-d states are split into triply degenerate $t_{2g}$ and doubly degenerate $e_{g}$ states with the former lying lower in energy. Likewise, the tetrahedrally coordinated Fe-d states are split into doubly degenerate e and triply degenerate $t_{2}$ , where the latter has higher energy. The densities of states in Fig. 5 show these crystal field effects. From the figure, it can also be seen that in the spin up channel, both $t_{2g}$ and $e_{g}$ states of Ni and FeO are occupied. However, in the spin down channel, the FeO-d states are empty and only Ni- $t_{2g}$ states are occupied. On the other hand, the spin-resolved occupancy of the Fe ${}^{T}-d$ states is opposite to that of FeO. These occupancies together confirm Ni2+ and Fe3+ charge states and also the antiparallel alignment of FeT spins with Ni and FeO spins. Such a spin alignment makes NFO ferrimagnetic with net magnetic moment of 2 $\mu_{B}$ /f.u. (see Table 3), which is in agreement with those reported in literature Bharathi et al. (2008, 2011); Chikazumi (1997); Ugendar et al. (2016); Fritsch and Ederer (2010).

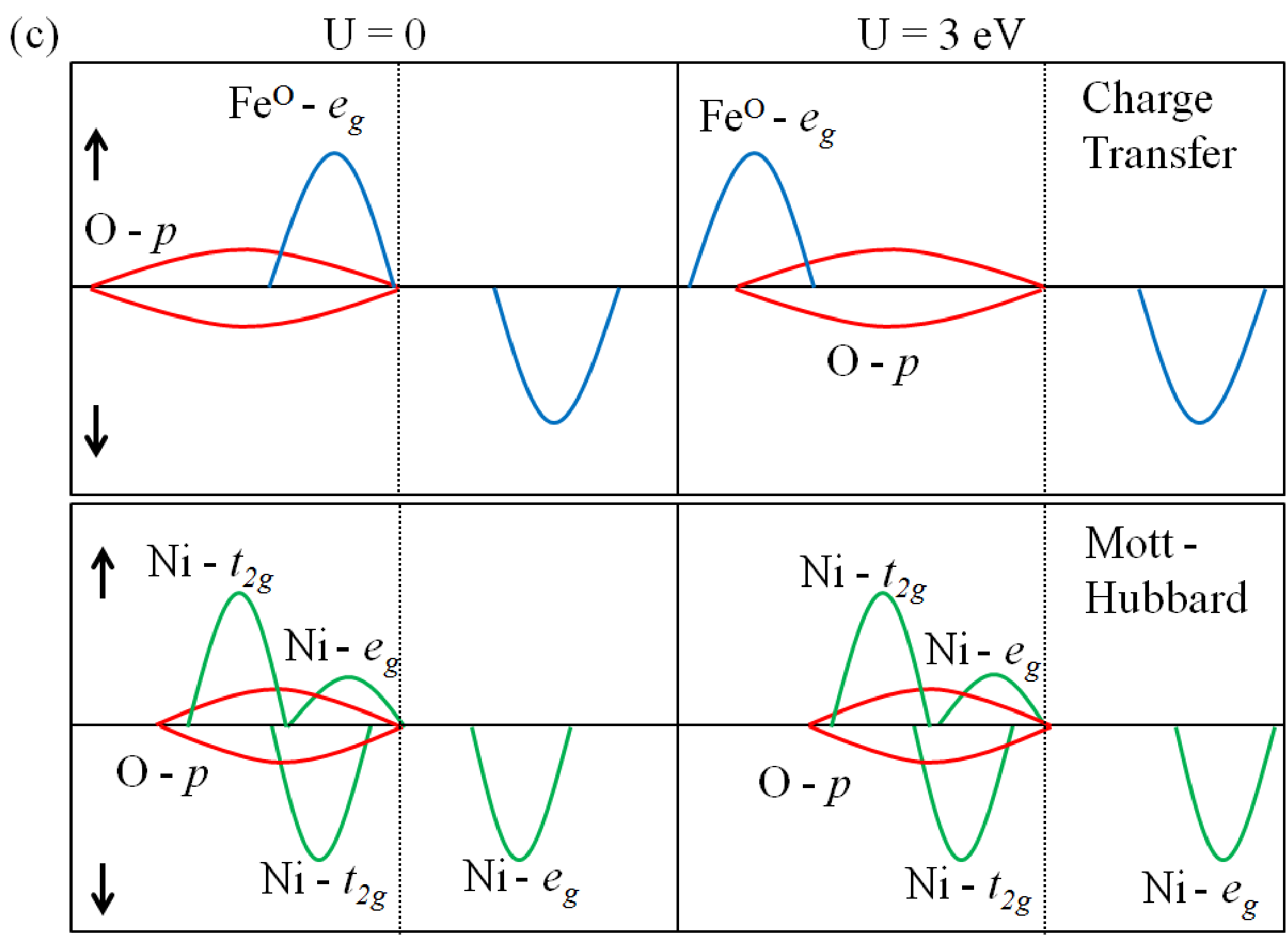

In order to examine the role of strong correlation effect on the insulating behavior, the partial densities of states obtained using GGA and GGA+U are shown in Fig. 5 (a) and (b) respectively. Since Ni- $t_{2g}$ states are occupied in both the spin channels, they are not affected by the on-site repulsion U. The half-filled Fe ${}^{O}-d$ states exhibit maximum strong correlation effect. Specifically, the Fe ${}^{O}-e_{g}$ spin-up states, which are at the Fermi level (EF) along with O-p states in GGA, are now pushed down in energy, with the inclusion of U. Since O-p states occupy the EF, it confirms the charge-transfer mechanism. However, the same is not the case for Ni- $e_{g}$ states. In the spin majority channel, the band center of Ni- $e_{g}$ lies above the band center of O-p in order to favor the Mott-Hubbard mechanism. The Fe ${}^{T}-d$ states are away from the EF both in GGA and GGA+U and hence, have negligible role in determining the insulating mechanism in this system. As a whole, the entire system behaves as mixed insulator falling under the Zaanen-Sawatzky-Allen classification scheme Zaanen et al. (1985). The insulating mechanism in this compound is summarized schematically in Fig. 5 (c). We find that the mechanism remains valid for higher values of U.

With Yb substitution at the octahedral site, it was found that, both within GGA and GGA+U, Yb did not affect the Ni and Fe d-states and hence, only the Yb-f partial DOS is plotted in Fig. 6. The GGA only calculation shows two prominent peaks near EF which are denoted as (a) and (b). These peaks together form partially occupied f-states and from the charge density plot, shown in Fig. 6, they are found to be linear combinations of $f_{z^{3}}$ and $f_{z(x^{2}-y^{2})}$ states. The rest of the $f$ orbitals lie lower in energy and are completely occupied. This can be understood from crystal field effect. As Yb3+ is in an octahedral site and these $f$ -orbitals are nearly along the axis of the YbO6 octahedra, they experience stronger Coulomb repulsion by the O-ligands, compared to the rest and hence, lie higher in energy.

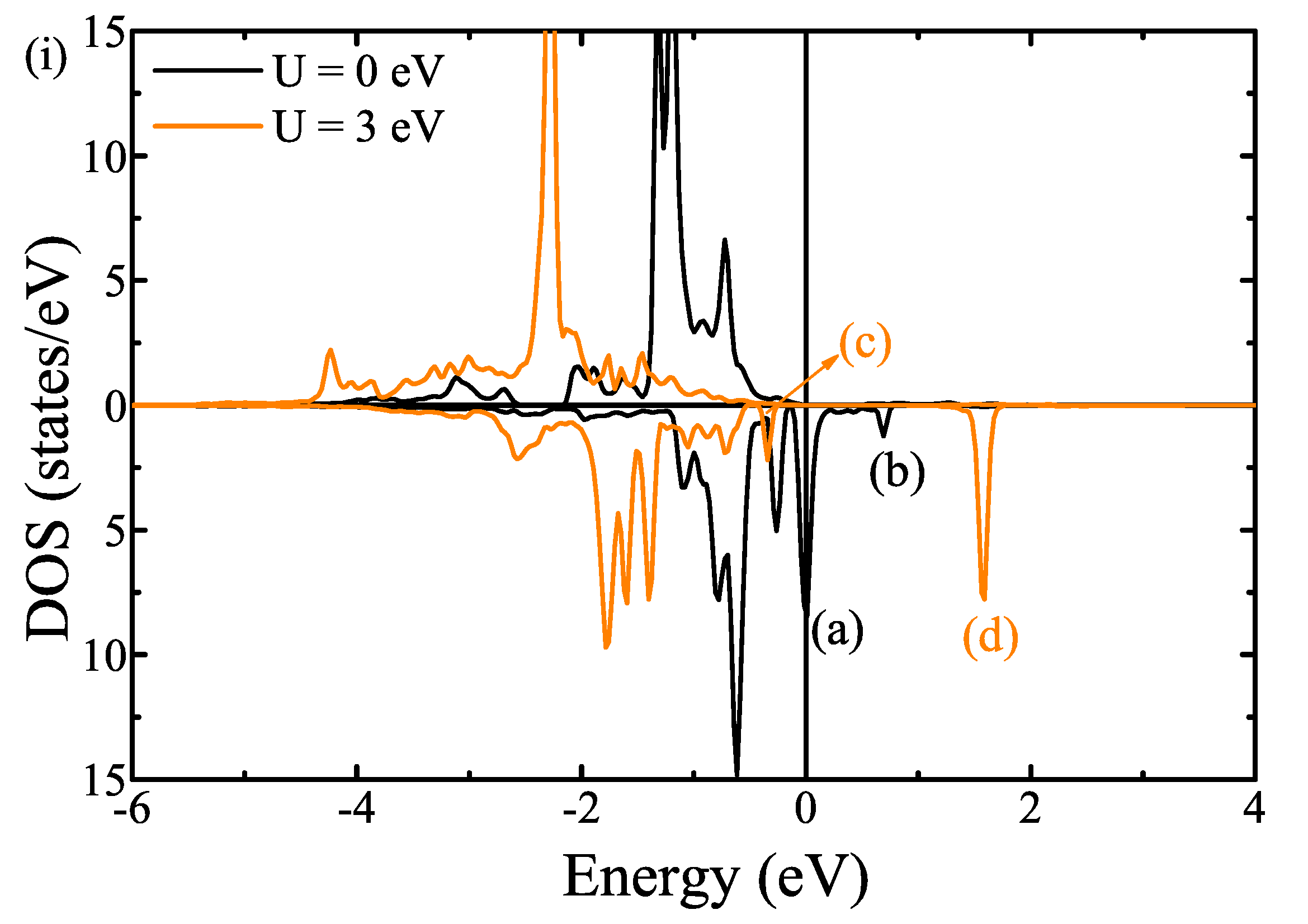

The strong correlation effect splits these partially occupied states to lower Hubbard band (LHB) and upper Hubbard band (UHB) which are also reflected in the DOS obtained with U = 3 eV. In Fig. 6(i) the peak (c) constitutes the LHB and the peak (d) constitutes the UHB. From the electronic density plot shown in the Fig. 6(ii), LHB is found to be of $f_{z^{3}}$ character and UHB is found to be of $f_{z(x^{2}-y^{2})}$ character. Since in the spin-majority channel Yb- $f$ states are completely occupied and in the spin-minority channel only $f_{z(x^{2}-y^{2})}$ is empty, this further reveals that Yb is in +3 charge state, confirming the experimental observation.

III.3 Magnetic exchange interactions of pure and Yb substituted compound

While studying the magnetization as a function of temperature in Fig. 4, it was found that the Yb substitutions led to decrease in the Curie Temperature of the ferrimagnetic ordering. Since TC is determined from the spin-exchange interaction strengths J, it is imperative to identify the dominant interaction paths in the NFO and how they are affected by substitution of Yb. In this section, the Heisenberg Hamiltonian, $H$ = - $\sum_{i,j}$ Jij $\vec{S}_{i}\cdot\vec{S}_{j}$ was employed to NiFe2-xYbxO4 (x = 0, 0.0625) compounds over several exchange paths between the transition metal cations, as shown in Fig. 7. The value of Jij between two neighboring spins $S_{i}$ and $S_{j}$ of the dimer i-j was obtained from the relation: J ${}_{ij}=E_{i\uparrow j\downarrow}-E_{i\uparrow j\uparrow}$ . Here, E is the energy of the corresponding spin configurations and was evaluated from DFT calculations. Since multiple inter-coupled spin-dimers are involved in this system, the energies of several configurations were calculated to get the values of Js.

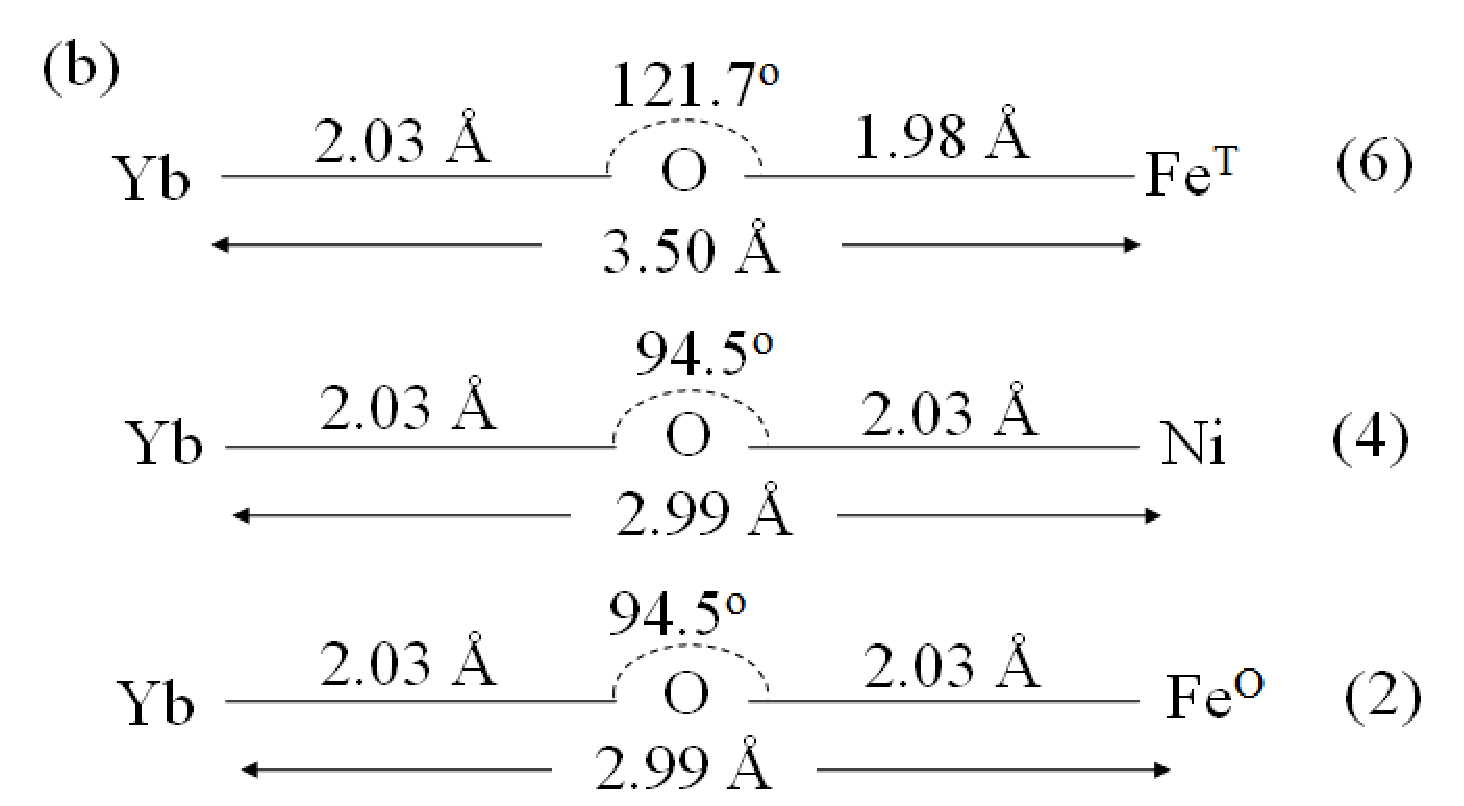

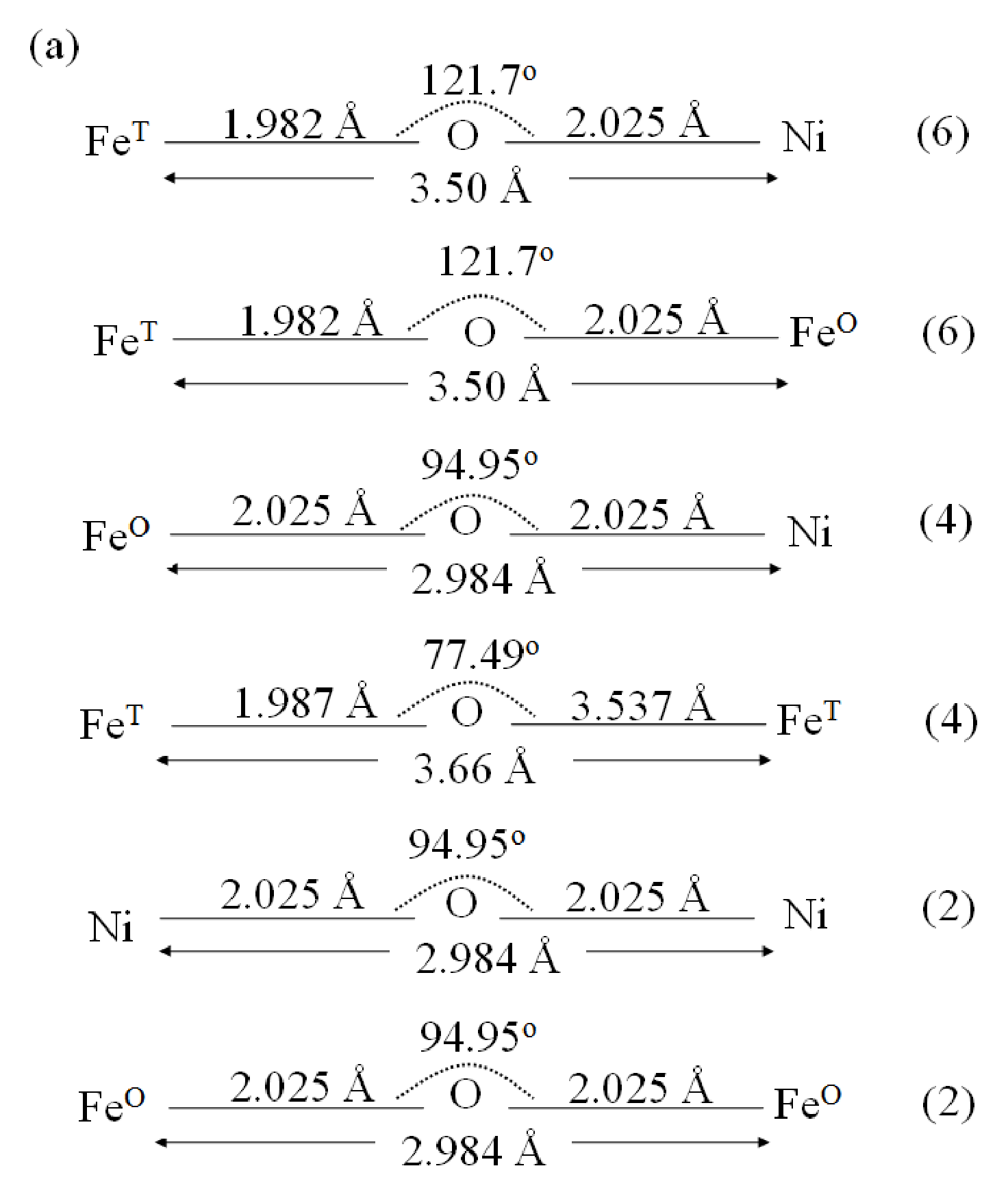

For NFO, six exchange interaction paths, as shown in Fig. 7(a), were considered and therefore, a minimum of seven magnetic configurations were necessary. Table 4 lists these seven configurations as well as the relation between the Jij and E of these configurations. Simultaneous solutions of these relations give the values of Jij which are given in Table 5. The results are comparable to those obtained by Srivastava $et$ $al$ Srivastava et al. (1979) and by Cheng Cheng (2013). The former has estimated J using Anderson transfer integral Anderson (1963) as well three sublattice model. They have found that the strongest exchange interaction is J ${}_{Fe^{O}Fe^{T}}$ which is in agreement with our study. In addition, except JNiNi, the signs of the exchange interactions are also found to be same. Only three J values (J ${}_{NiFe^{O}}$ , J ${}_{NiFe^{T}}$ , J ${}_{Fe^{T}Fe^{O}}$ ) have been estimated by Cheng Cheng (2013), by pseudopotential based DFT calculations and the present results are in good agreement with them Cheng (2013).

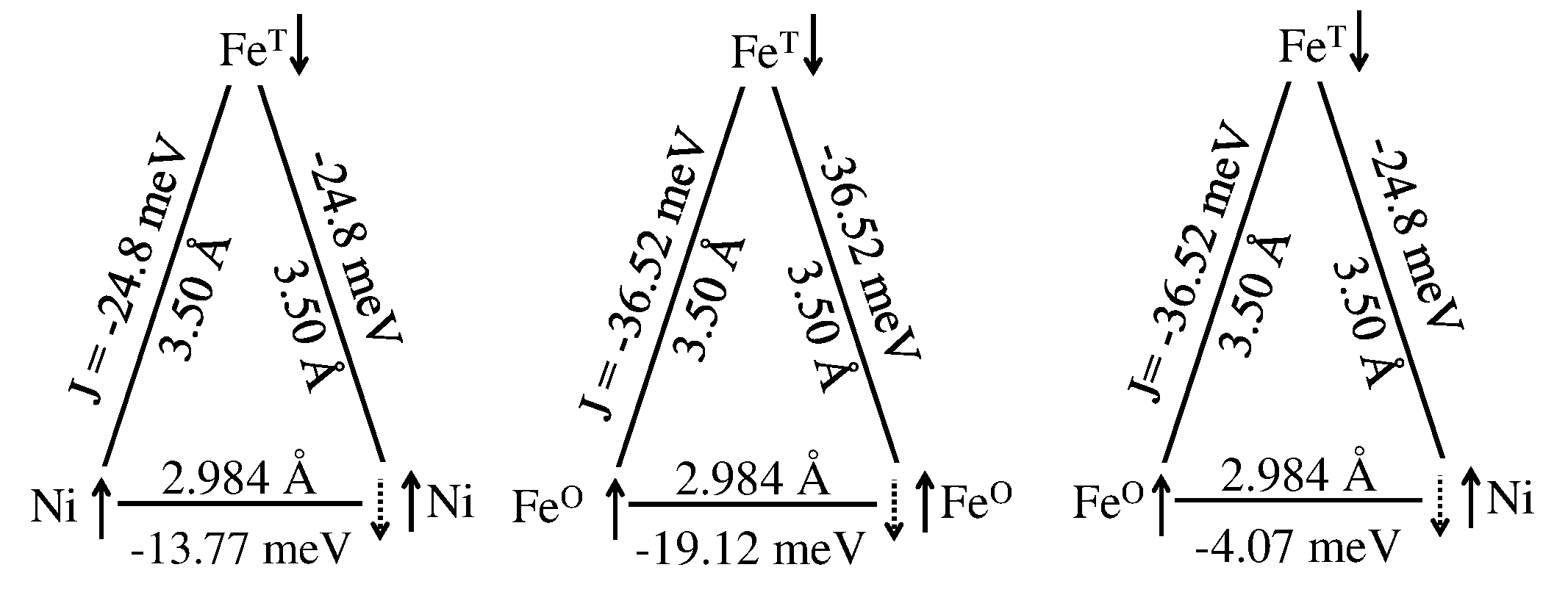

Table 5 suggests that each of the exchange interactions is antiferromagnetic in nature (as shown in Fig. 8). However, the ground state magnetic ordering shows that the spins at the octahedral sites (henceforth, referred as octahedral spins) are aligned parallel and there is an antiparallel alignment between the octahedral and tetrahedral spins. This can be explained from the schematic triangles (see Fig. 8) representing the magnetic coupling between two octahedral and one tetrahedral spins. Had the octahedral spins been antiparallel (represented by the dashed arrow), one of them would have been parallel to the tetrahedral spin. Since the strength of antiferromagnetic exchange interaction between the neighboring octahedral and tetrahedral spins are far more stronger compared to that between neighboring spins (see the Fig. 8), the octahedral spins are forced to align parallel to achieve the ground state magnetic ordering as shown by the solid arrows.

To explain the effect of Yb spin-half impurity on the host magnetic ordering, the exchange interaction strengths J ${}_{YbFe^{T}}$ , J ${}_{YbFe^{O}}$ and JYbNi along the paths shown in Fig. 7(b) were estimated. The equations listed in the bottom part of Table 4 were used to estimate these magnetic interactions. Here, the effect of Yb3+ on the host-host spin interactions was neglected. The estimated Yb-host Jijs, are listed in Table 5.

From Table 5, it is seen that $Yb-Fe^{T}$ coupling is significantly weak (-3.73 meV) in comparison to that of host octahedral-tetrahedral spin interactions: $Fe^{O}-Fe^{T}$ (-36.52 meV) and $Ni-Fe^{T}$ (-24.8 meV). At the same time, the $Yb-Fe^{O}$ (-23.72 meV) and $Yb-Ni$ (-23.05 meV) antiferromagnetic coupling have become stronger in comparison to that of host octahedral-octahedral spin interactions: $Fe^{O}-Fe^{O}$ (-19.12 meV) and $Fe^{O}-Ni$ (-4.07 meV). Based on the coordination numbers of this inverse spinel structure, it was noted that there are four neighboring $Yb-Ni$ ( $Fe^{O}-Ni$ ), two neighboring $Yb-Fe^{O}$ ( $Fe^{O}-Fe^{O}$ ) and six neighboring $Yb-Fe^{T}$ ( $Fe^{O}-Fe^{T}$ ) magnetic interactions. From the subtraction: (2J ${}_{YbFe^{O}}$ +4JYbNi+6J ${}_{YbFe^{T}}$ )-(2J ${}_{Fe^{O}Fe^{O}}$ +4J ${}_{Fe^{O}Ni}$ +6J ${}_{Fe^{O}Fe^{T}}$ ), it is found that there is a net decrease in the strength of the antiferromagnetic interaction by 7 meV/f.u. in the NiFe2-0.0625Yb0.0625O4 compound, which in turn decreases the TC.

IV Summary and Conclusions

In summary, a combined experimental and theoretical study was carried out through XPS, ND and magnetization measurements as well as spin-polarized DFT calculations to explain the electronic and magnetic structure of pure and Yb substituted strongly correlated oxide: NiFe2-xYbxO4. The emphasis was on examining the strong correlation effect on the magnetic ordering of NFO and how the spin-half Yb impurity couples with the host to affect the magnetization and TC of this inverse spinel ferrite.

The 3+ charge state of Yb (which substitutes the octahedral Fe) was confirmed from XPS measurements. The ND studies confirmed the ferrimagnetic ordering in NFO where spins at the octahedral sites (Ni2+ and Fe3+ cations) are aligned parallel while the spins at the tetrahedral sites (Fe3+ cations) are antiparallel to those at the octahedral sites. The magnetization measurements indicated a small decrease in the Curie temperature (TC) from 853K to 836K with 7.5% Yb substitution. From the estimation of exchange interaction strengths, it was found that the spins at the octahedral sites preferred to align antiparallel. However, stronger antiferromagnetic coupling with the spins at the tetrahedral sites forces them to parallel in order to avoid spin frustration. By examining the effect of Hubbard U, it is concluded that this compound behaves as a mixed insulator under the Zaanen-Sawatzky-Allen classification scheme. Due to crystal field effect and strong correlation effect, the Yb- $f_{z(x^{2}-y^{2})}$ orbital carries the unpaired spin which, unlike in the pure case, strengthens the antiferromagnetic coupling with the neighboring spins at the octahedral sites and significantly weakens the same with the spins at the tetrahedral site. Based on the estimation of magnetic coupling between the impurity and host spins, it was found that there was a net decrease in the antiferromagnetic interaction strength and as a consequence the TC of the compound is decreased.
