Fast litho-panspermia in the habitable zone of the TRAPPIST-1 system
Sebastiaan Krijt, Timothy J. Bowling, Richard J. Lyons, Fred J., Ciesla

TL;DR
This study shows that litho-panspermia could occur extremely rapidly in the TRAPPIST-1 system, with material transfer between planets happening within a century, much faster than in our Solar System.
Contribution
The paper introduces a simulation-based analysis demonstrating that impact ejecta can transfer between habitable planets in TRAPPIST-1 within a century, highlighting a potential for rapid biological material exchange.
Findings
Approximately 10% of ejecta reach another habitable planet within 100 years.
Transfer times are shortest for ejection velocities near planetary escape velocity.
Litho-panspermia in TRAPPIST-1 is 4-5 orders of magnitude faster than in the Solar System.
Abstract
With several short-period, Earth-mass planets in the habitable zone, the TRAPPIST-1 system potentially allows litho-panspermia to take place on very short timescales. We investigate the efficiency and speed of inter-planetary material transfer resulting from impacts onto the habitable zone planets. By simulating trajectories of impact ejecta from their moment of ejection until (re-)accretion, we find that transport between the habitable zone planets is fastest for ejection velocities around and just above planetary escape velocity. At these ejection velocities, of the ejected material reaches another habitable zone planet within , indicating litho-panspermia can be 4 to 5 orders of magnitude faster in TRAPPIST-1 than in the Solar System.
Click any figure to enlarge with its caption.
Figure 1
Figure 1
Figure 1
Figure 2
Figure 3
Figure 4| Planet | ||||||
|---|---|---|---|---|---|---|
| b | 0.011 | 1.09 | 0.85 | 5.5 | 9.9 | 80 |
| c | 0.015 | 1.06 | 1.38 | 8.8 | 13 | 68 |
| d | 0.021 | 0.77 | 0.41 | 8.4 | 8.2 | 58 |
| e | 0.028 | 0.92 | 0.62 | 13 | 9.2 | 50 |
| f | 0.037 | 1.04 | 0.68 | 17 | 9.0 | 44 |
| g | 0.045 | 1.13 | 1.34 | 26 | 12 | 40 |
| h | 0.063 | 0.76 | 0.40 | 25 | 8.1 | 34 |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Fast litho-panspermia in the habitable zone of the TRAPPIST-1 system
Sebastiaan Krijt, Timothy J. Bowling, Richard J. Lyons and Fred J. Ciesla
Department of the Geophysical Sciences, The University of Chicago, 5734 South Ellis Avenue, Chicago, IL 60637, USA
Abstract
With several short-period, Earth-mass planets in the habitable zone, the TRAPPIST-1 system potentially allows litho-panspermia to take place on very short timescales. We investigate the efficiency and speed of inter-planetary material transfer resulting from impacts onto the habitable zone planets. By simulating trajectories of impact ejecta from their moment of ejection until (re-)accretion, we find that transport between the habitable zone planets is fastest for ejection velocities around and just above planetary escape velocity. At these ejection velocities, of the ejected material reaches another habitable zone planet within , indicating litho-panspermia can be 4 to 5 orders of magnitude faster in TRAPPIST-1 than in the Solar System.
1. Introduction
Planet formation is not a 100% efficient process and most, if not all, mature planetary systems contain a reservoir of comets and asteroids (e.g., Matthews et al., 2014). When these bodies impact planets at high velocities (), material can be ejected at velocities above the planetary escape velocity. This debris can potentially end up on another planet; such an event explains how the SNC meteorites arrived from Mars (e.g., Gladman et al., 1996; Worth et al., 2013). If life developed on the impacted planet, the exchanged material could harbor biological material or organisms that could inoculate the planet onto which it is accreted. This process is referred to as litho-panspermia (Melosh, 1988, 2003).
In our Solar System, transit times of impact ejecta between terrestrial planets are found to be in numerical simulations (e.g., Gladman et al., 1996; Worth et al., 2013), consistent with cosmic-ray exposure times reported for Martian meteorites found on Earth (Eugster et al., 2006). Transit times may be much shorter in other planetary systems, where different orbital architectures result in very different dynamical evolution of ejected debris (Steffen & Li, 2016). The recently discovered TRAPPIST-1 system is particularly intriguing in this regard, as it consists of seven, nearly Earth-massed planets orbiting an M-type dwarf star. Three of those planets are believed to be within the habitable zone (HZ) and have rocky compositions (e.g., Gillon et al., 2016, 2017). With orbital periods on order of days and orbital separations , the transport of material between these planets may be more rapid and efficient than in the Earth-Mars case. Lingam & Loeb (2017) have argued, using an analytical model calibrated to our Solar System, that litho-panspermia could be 2 orders of magnitude faster in TRAPPIST-1 when compared to the Solar System.
In this Letter, we numerically investigate the efficiency and speed of potential litho-panspermia in the TRAPPIST-1 system. Specifically, we seek to quantify what fraction of material that is ejected from one of the HZ planets (e, f, or g) ends up on another planet, how long this material spends in space, and at what speeds it is accreted by another planet.
2. Simulation setup
We simulated the trajectories of impact ejecta from their moment of ejection until accretion onto a planet using the SyMBA -body integrator111Part of the Swifter software package, available at http://www.boulder.swri.edu/swifter/. This package accounts for the gravitational interactions between massive bodies (planets and the star) and the gravitational interactions from (all) massive bodies onto test particles (ejecta), but neglects interactions among the test particles and other forces (e.g., radiation pressure, Poynting-Robertson drag). We use a time-step of 0.1 days (1/15th of the orbital period of TRAPPIST-1b), with SyMBA automatically switching to a smaller time-step during close encounters (Duncan et al., 1998; Levison & Duncan, 2000).
The semi-major axes of the orbits of the TRAPPIST-1 planets are listed in Table 1 along with their radii, masses, and Hill sphere radii. Because the eccentricities and inclinations of the TRAPPIST-1 planets are believed to be very small (Gillon et al. (2017) constrain the eccentricities to be and the mutual inclinations to be ), we place the planets on circular and co-planar orbits at the start of our simulations. Over the course of the simulations, interactions between the planets raise the eccentricities of the planetary orbits to , consistent with the upper limits given by Gillon et al. (2017). In theory, for eccentric orbits, there will be differences in the trajectories of ejecta released at different times during the planet’s orbit (e.g., Jackson et al., 2014). Comparing aphelion and perihelion, the difference in heliocentric distance and orbital velocity , so we do not expect significant variations for .
The starting positions of the planets (i.e., their initial true anomalies) are chosen at random222We ran multiple simulations with different starting positions and found no significant differences in the outcomes.. At , the three planets that are most likely to be in the HZ (e, f, and g) isotropically eject material at a velocity that, in the absence of interactions with other massive bodies, allows them to reach infinity with a remaining velocity . We will consider ejection velocities333The ejection velocity normal to the planet’s surface can be related through the velocity at infinity by . that result in .
This range covers ejection that is so slow the material barely escapes the planet (), and high-velocity ejection of material that is launched from the surface at 3 times the planetary escape from the surface (). While material can be ejected at even higher velocities, we expect the majority of large, mass-dominating, and lightly-shocked ejecta to be just above (see Section 4). Moreover, at , the ejection velocity will become comparable to the local Keplerian velocity, causing the ejected material to escape the TRAPPIST-1 system on a hyperbolic orbit (Jackson et al., 2014).
To simulate the ejecta, mass-less test particles are released from each planet in the HZ at 0.1 planetary radii above the surface. Ejecta that reaches a heliocentric distance is assumed to be accreted by the primary, and bodies that reach are taken to be ejected from the system. The simulations are stopped after ( orbits of planet g) because most material has been accreted by then (see Section 3) and we are focusing on the fastest transport.
While there are considerable uncertainties in the planetary masses as derived from transit timing variations (Gillon et al., 2017), it is beyond the scope of this study to address in detail the effects these uncertainties have on the results obtained in Section 3. However, we are confident our main conclusions are robust because the important quantities scale with planet mass relatively weakly, e.g., and .
3. Results
3.1. Individual trajectories

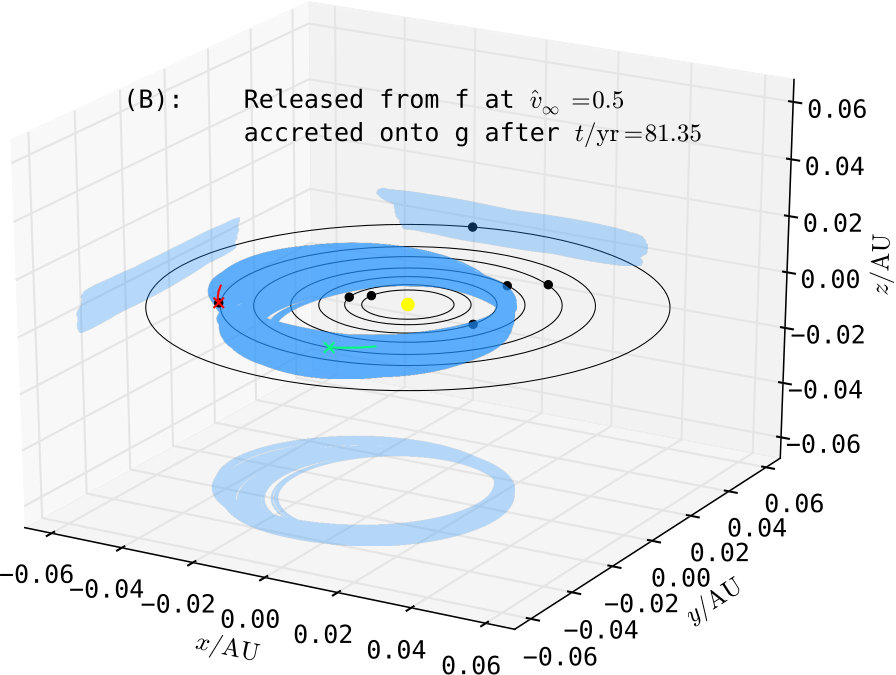

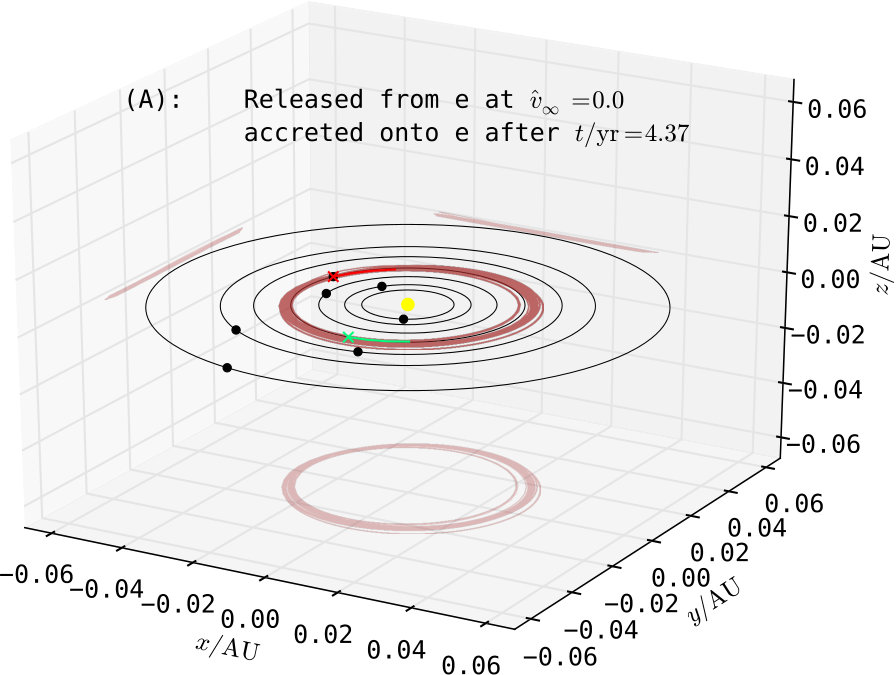

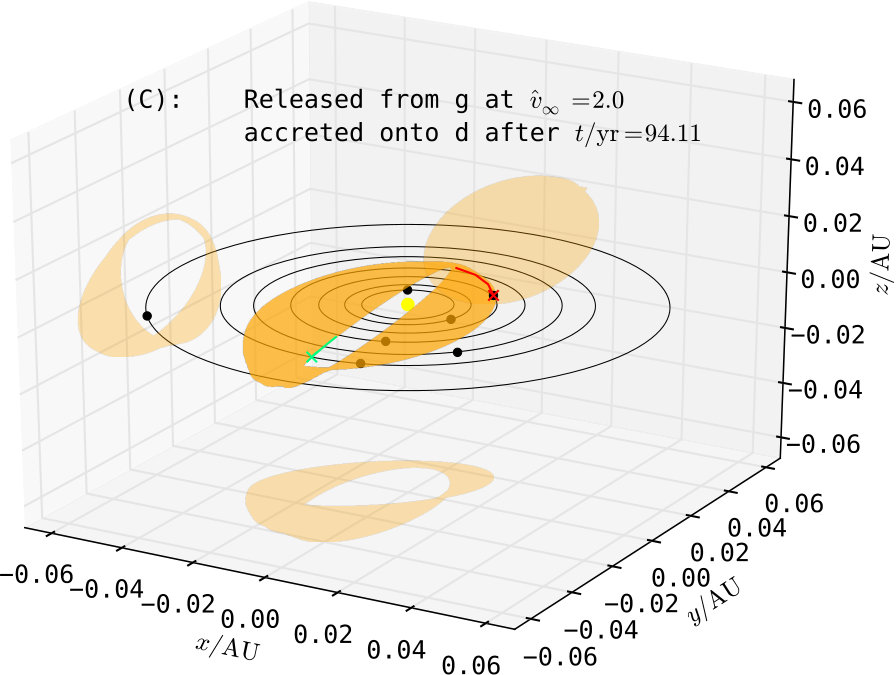

To illustrate the the possible scenarios, Fig. 1 shows three trajectories taken by particles ejected from planets e, f, and g at different velocities. In Fig. 1A, material ejected from planet e at a velocity equal to the escape velocity () is re-accreted onto the same planet within several years. In Fig. 1B, a particle is ejected at a higher velocity from planet f, and eventually ends up on planet g after . Finally, in Fig. 1C, ejecta released at a high velocity from planet g is eventually accreted by planet d. Generally, higher ejection velocities result in more variation in the eccentricity and inclination of ejecta orbits as the ‘kick’ in velocity these bodies get upon release increases relative to the local Keplerian velocity (Jackson et al., 2014).
3.2. Fate of ejected material

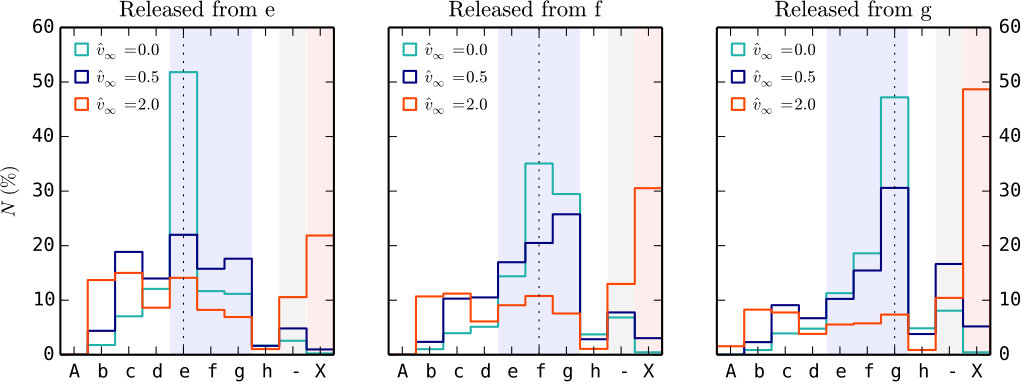

In Fig. 2, we plot the outcomes of individual ejecta trajectories for material ejected from planets e, f, and g, at different ejection velocities. Letters indicate (re-)accretion onto the planets and the primary, and the two right-most columns include material that was still in orbit at the end of the simulation or that was ejected from the TRAPPIST-1 system.
Focusing first on relatively slow ejection (), we find that re-accretion onto the same planet is the dominant outcome. Nonetheless, between of the ejected bodies end up somewhere else, even at these relatively low ejection velocities. In particular, material exchange within the HZ is relatively common (especially between f and g).
At somewhat higher ejection speeds, the distributions in Fig. 2 become broader, with less material being re-accreted by the source planet. In fact, for , the dominant outcome for material released by planet f (middle panel) is accretion by planet g. Accretion onto b, c, and d also becomes more common, as ejecta that is released at higher velocities is more likely to reach highly-eccentric (but bound) orbits that cross the inner parts of the system (see Fig. 1). Qualitatively similar behavior is seen for ejecta originating from Mars and Earth in the Solar System (Melosh, 2003, Fig. 1).
Lastly, for , ejection from the TRAPPIST-1 system is the dominant outcome, with almost of material released from planet g at these velocities leaving the system on very short timescales. This (virtually instantaneous) ejection from the planetary system occurs when the sum of the ejection velocity and the Keplerian velocity exceeds , in which case the test particle is released on an unbound orbit (Jackson et al., 2014).
3.3. Time spent ‘en route’

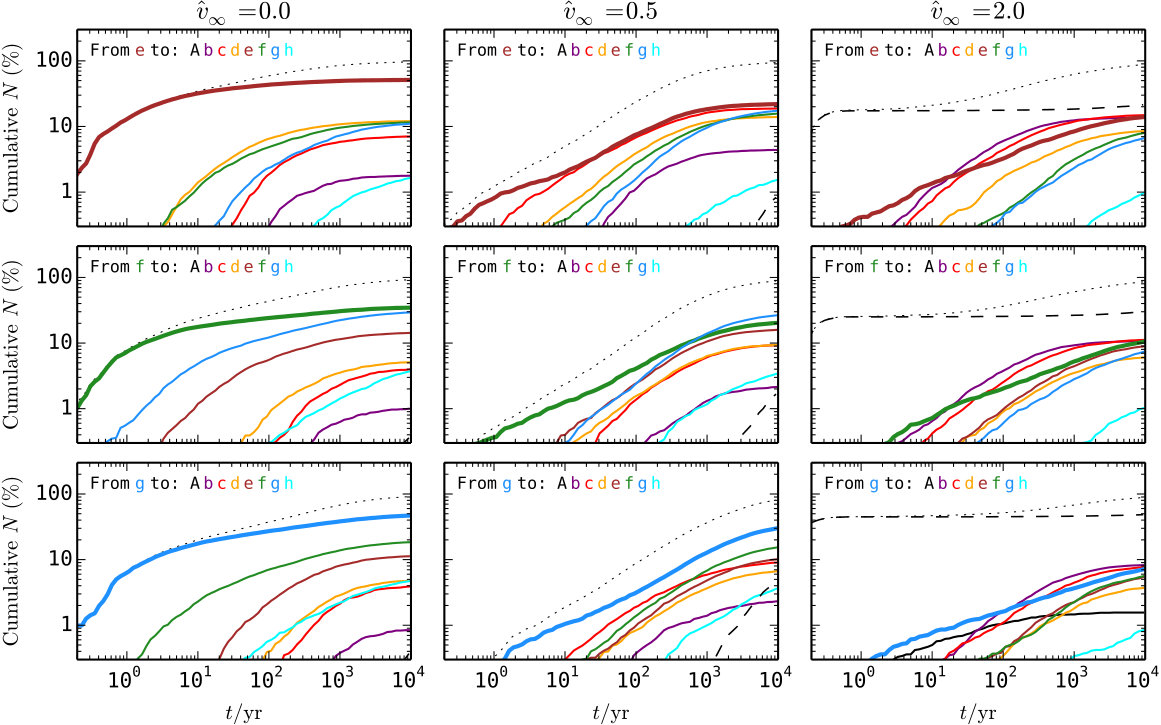

In Fig. 3, we show the cumulative accretion histories for all bodies in the system for the 9 simulations shown in Fig. 2. In all low-velocity cases (left column), of the ejected mass returns ‘home’ within . Transport to other planets however is also remarkably fast. Focusing on the HZ planets, the routes444In this notation f-g should be read as ‘from f to g’. f-g, g-f, f-e, and g-e stand out as being particularly fast for , transferring between of ejecta within . When increased to and , both re-accretion onto the planet of origin and transport to other planets become significantly slower and much less material is (re-)accreted in the first . It is also interesting to look at accretion onto b and c, the inner two planets. In all three low-velocity cases, these two bodies accrete least of the material, and do so relatively late. At the highest ejection velocities however, planets b or c dominate the accretion, even out-pacing re-accretion onto the body of origin.
3.4. Impact velocities
For organisms to survive re-entry, (relatively) low impact velocities onto the accreting planet are required. Using the final approach of to-be-accreted ejecta (see Fig. 1) we can calculate the (approximate) impact velocity of material. Fig. 4 shows the distribution of impact speeds of material ejected from planet e at relative to planetary escape and orbital velocities. For transport within the HZ, the most common impact velocities are , within a factor of of the target escape velocity (Table 1). This reflects the fact that most ejecta was released on almost circular and co-planar orbits (Fig. 1A), i.e., the ejection velocity was small compared to the local Keplerian velocity. Reaching b or c requires a more eccentric orbit, and therefore usually results in a considerable contribution of the orbital velocity to . For increasing , the impact velocity distribution shift to higher velocities, with average impact velocities for transport within the HZ reaching for . Note that the impact velocities shown in Fig. 4 correspond to the ejecta’s final approach to the targeted planet and do not take in to account potential slowing down of material by the planet’s atmosphere.
4. Implications for (litho-)panspermia
Comparing the results of Fig. 3 to typical transfer timescales of in the Solar System (Gladman et al., 1996; Worth et al., 2013) reveals just how well the proximity of the TRAPPIST-1 planets to each other facilitates material exchange. If the probability of surviving inter-planetary transfer is inversely proportional to the duration of the journey (e.g., Lingam & Loeb, 2017), this indicates the efficiency of litho-panspermia could be orders of magnitude more efficient. In addition, the radiation environment (at X-ray and UV wavelengths) around M-stars is expected to be harsh and highly variable (Scalo et al., 2007), so short transit times might well be a prerequisite for successful litho-panspermia.
Because the size-/velocity-frequency distribution of the impactor population bombarding the habitable zone of Trappist is unknown, it is impossible to translate our estimates of ejecta flux (Fig. 3) into mass flux (kg/yr) of life bearing rock mass. However, using the inner Solar System as a template, we expect the mean impact velocities on TRAPPIST-1 e-g are times the escape velocities of those planets, making it likely that some amount of lightly shocked (Melosh, 1985; Johnson & Melosh, 2014), unsterilized (e.g., Mastrapa et al., 2001; Stöffler et al., 2007) material will be transferred between planets every time a large enough impact occurs. Moreover, because both the cumulative amount of mass ejected per impact (Shuvalov, 2011; Johnson & Melosh, 2014) and the mean size of ejected fragments (Melosh, 1988) generally decrease with ejection velocity, we expect that material ejected just above escape velocity (i.e., for close to or just above 0) will constitute most of the mass transferred between planets, and will especially dominate the component of transferred mass in large enough fragments that life can survive both irradiation during transfer and heating during re-entry.
5. Summary
We have performed -body simulations of the TRAPPIST-1 system to study the fate of impact ejecta released by the three planets that are most likely to be in the habitable zone (e.g., Fig. 1). Our main findings are:
Material exchange between planets in the TRAPPIST-1 system is very efficient for ejection velocities close to and just above the planetary escape velocity, with of material ejected at these velocities eventually accreting onto another HZ planet (Fig. 2). 2. 2.
Comparing transport timescales between e, f, and g to those of the Mars-Earth route in our own Solar System, we conclude that transferring solids between habitable zone planets in TRAPPIST-1 is up to orders of magnitude faster (Fig. 3). 3. 3.
Transport between planets f and g stands out as being particularly fast and effective, with some material being transferred within of being released (Fig 3). 4. 4.

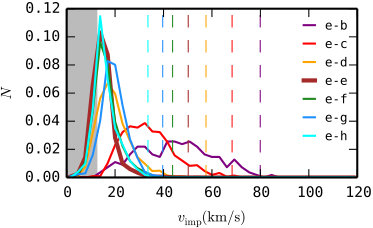

The velocities with which transferred material impacts other HZ planets are low () for material ejected just above escape velocity (Fig. 4); only slightly above the accreting planet’s .
As we are poised to learn more about the properties of these alien worlds (e.g., Barstow & Irwin, 2016; de Wit et al., 2016), our results suggest that, as is the case in the Solar System, we should consider the possibility of frequent material exchange between (adjacent) planets in the TRAPPIST-1 system, life-bearing or sterile.
The authors thank A. Loeb and M. Lingam for fruitful discussions and the anonymous reviewer for constructive feedback that helped improve the manuscript. This material is based upon work supported by the National Aeronautics and Space Administration under Agreement No. NNX15AD94G for the program “Earths in Other Solar Systems.” The results reported herein benefitted from collaborations and/or information exchange within NASA’s Nexus for Exoplanet System Science (NExSS) research coordination network sponsored by NASA’s Science Mission Directorate.
